Your phone

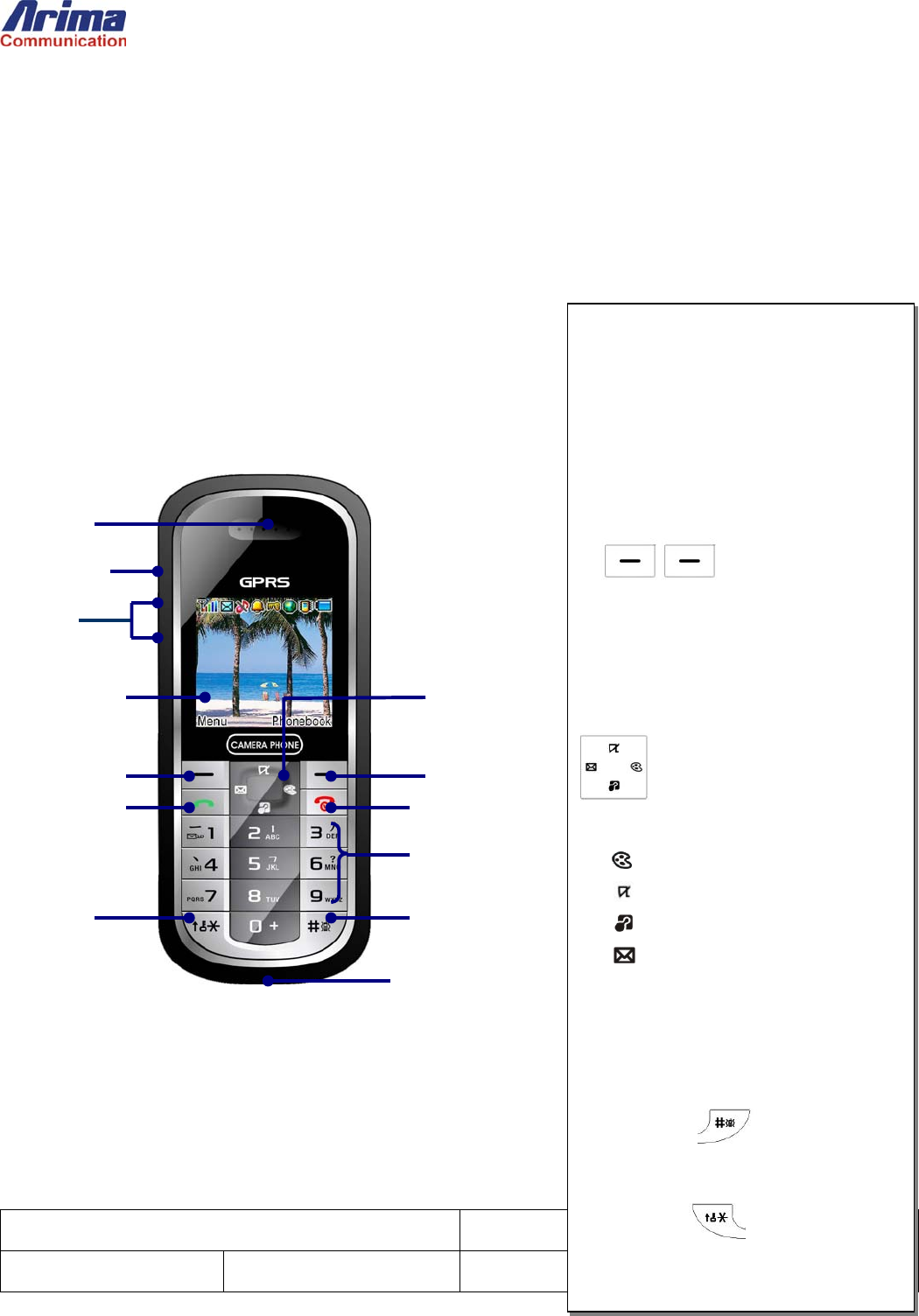

Keys and connectors
Earpiece
Side key
Main display
Power on/End call
Left soft key Right soft key
N
umeric key
# key ¼ key
Microphone
Side key
• During a call, adjusts the earpiece
volume.
• In standby mode, the keys adjust the ring
volume.
• To reject an incoming call, press the side
key twice.
Soft key
• The current functions are displayed in
the bottom line of LCD. The soft key
display as shortcut to access the sub
menu.
• In standby mode, quick access to
Profile
Calendar
Funs
Message
• In sub menu, use navigation key to scroll
up and down to select an item to view
• Long press to activate Silent
mode.
• Long press to activate Keypad
lock.
Talk key/ Yes key
Camera key
N
avi
g
ation ke
y
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Standby mode
In the main display
: The signal strength of the cellular network at your current location.
: The battery charge level.
: Received one or several messages.
: All your calls are diverted to another number.
: Vibrate indicator is turned on.
: The alarm clock is to set on.
: The phone does not ring at an incoming call or message.
: When GPRS dial-up connection is switched on.
: When reject list is switched on.
: Keypad lock.
: When setting profile.
: When time countdown is turned on.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Getting started
Installing the SIM card and the battery
You need to insert the SIM card and charge the battery before using the phone.
• Keep all miniature SIM cards out of the reach of small children.
• Be careful to handle, insert or remove the SIM card since the SIM card and its contacts can easily be damaged by scratched
or bending.
• Before installing/removing the SIM card, always make sure that the phone is switched off.

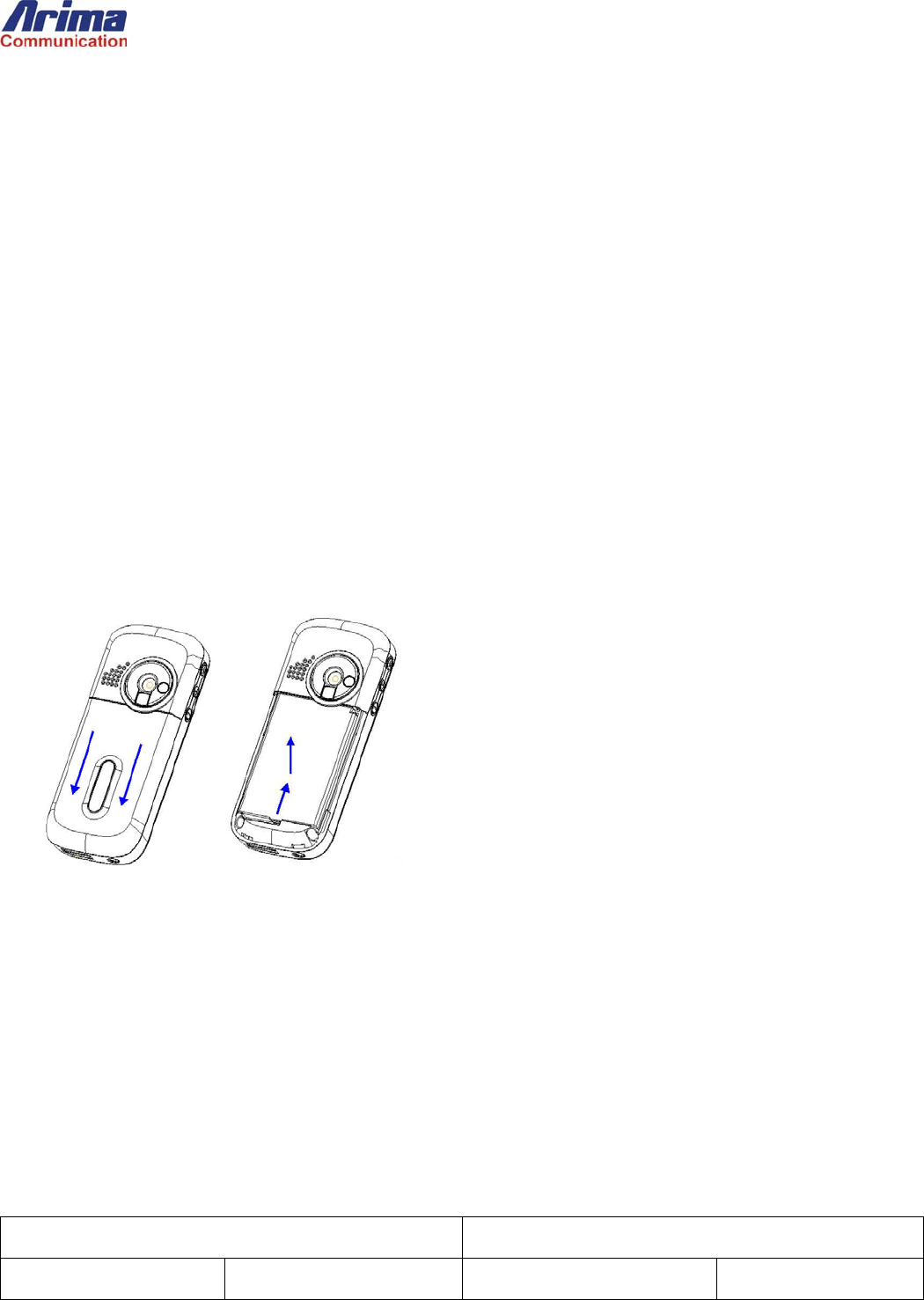

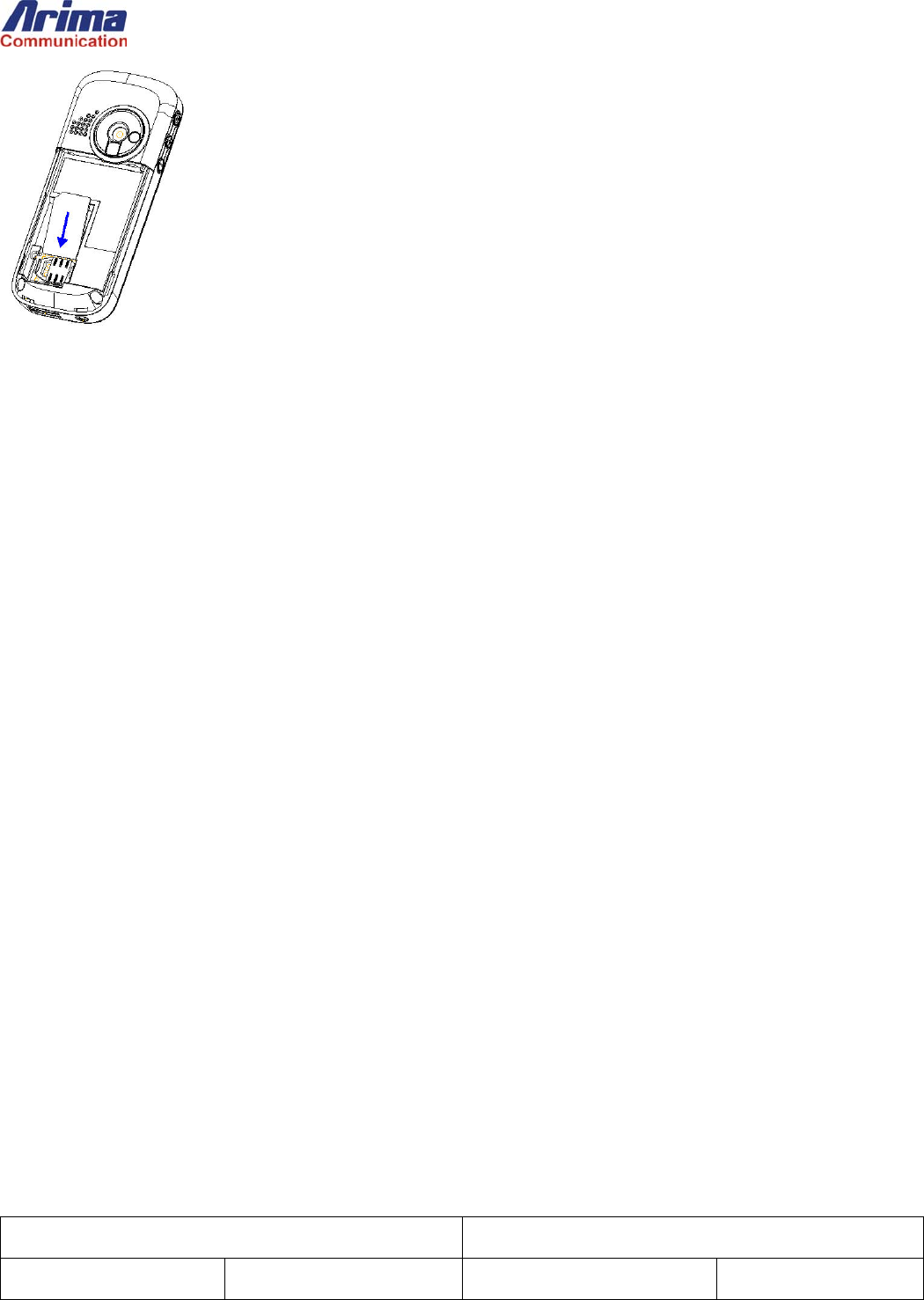

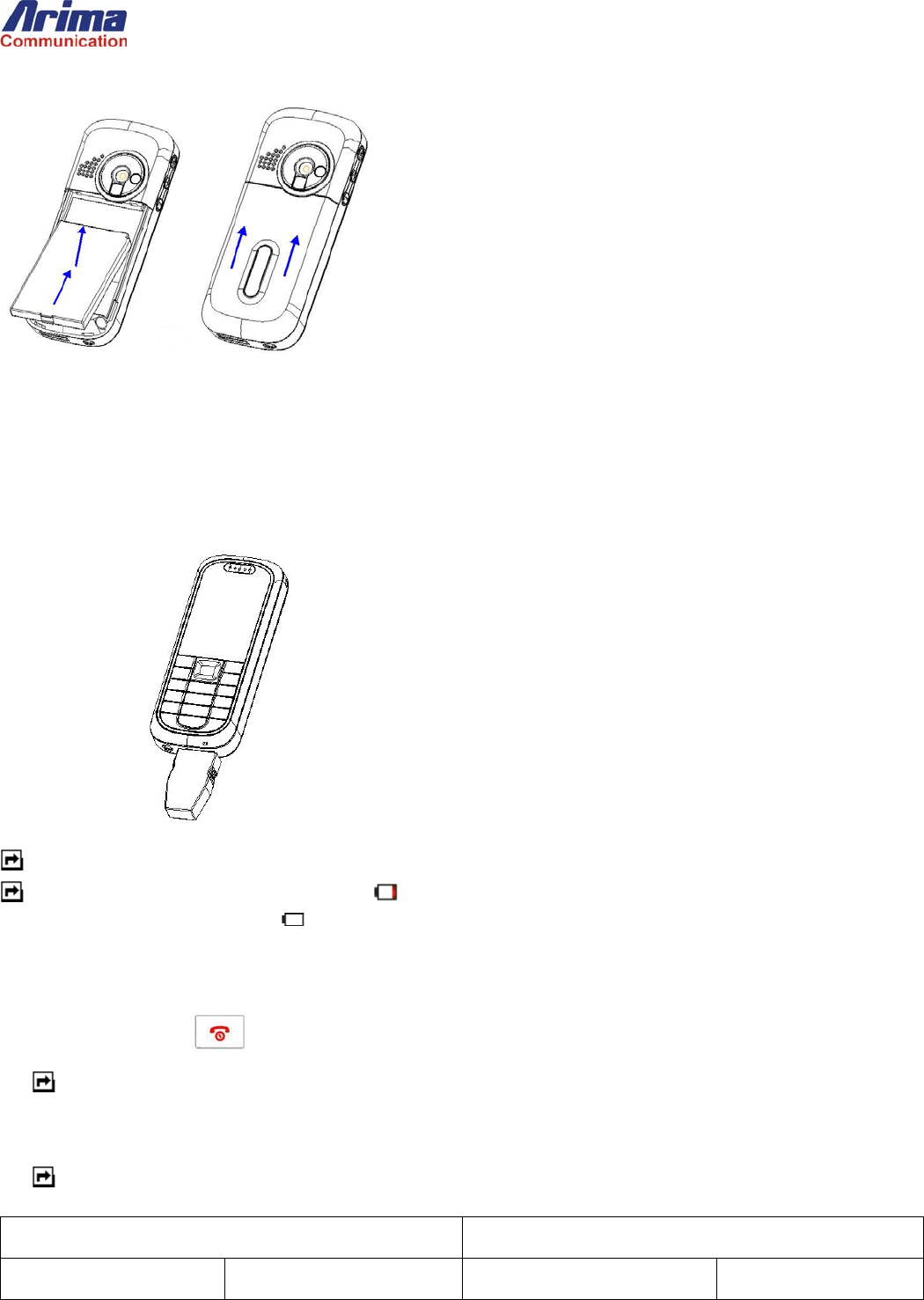

1. Push back cover off the phone (1) and lift the battery away. (2).
2. Insert and slide the SIM card (3).
(1) (2)
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
(3)
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
3. Install the battery (4) and back cover (5) on the back of the phone.
Charging the battery
You must fully charge the battery before using your phone for the first time.
1. Connect the lead from the travel adapter to the socket on the bottom of your phone (A).
2. Connect the charger to an AC wall outlet.
3. It can take 5-15 minutes before a charging icon is shown in the display.
Note: You can use the phone while the charger is connected but charging is suspended during that time.
Note: When the battery is weak indicated by “ ”on the display, you will hear a warning sound. When the battery
becomes too weak indicated by “ ” on the display, it switched off automatically.
Switching the phone on and off
• Press and hold the .
Note: If the phone shows “Insert SIM” when SIM card is properly inserted, contact your network operator or service
provider.
• If the phone asks PIN code, key in the PIN code, and press OK.
Note: Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.
(A)
(4)
(5)
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Call functions
This gives you information about the calling service that support in your phone.
Making a call
• In standby mode, key in the number, including the area code, press .
Note: Use to move the cursor and use the softkey to delete the character.
Making a call from the phone book
1. In standby mode, Press Names, choose the one you want to make a call, press to call.
2. Or you could press Option and choose Search. Enter the name and press Option / Search to search, choose the one
you want, press to call.
Making an international call
1. For international calls, long press for the international prefix (character +).
2. Key in the country code, area code and the phone number.
3. Press to call.
Answering or rejecting an incoming call
To answer the incoming call
• Press to answer the call.
Note: This phone also provides you other answer modes for your option; please refer to” Answer mode setting”.
To reject the incoming call
• Short press side key twice to reject the call or
• Press Reject to reject the call or
• Press to reject the call.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Call waiting
You can answer another incoming call while you have a call in progress.
1. During a call, press to answer the waiting call and the first call is put on hold.
2. Press to end the ongoing call.
Handling more than one call
You can handle up to two lines simultaneously.
Making a second call
1. During a call, press Hold.
2. Press Option, choose Phonebook and choose a name you want to call.
3. Press to make the second call.
Note: You can only put one call on hold.
Note: Please refer to “Making a call from phonebook”.
Two calls on line
To swap between the two calls
• Press Swap. The first call is put on hold.
To end the ongoing call and return the call on hold
• Press .
Making a Conference call
This function is a network service that allows up to five persons to take part in a conference.
1. When receive the second call during a call, press Option.
2. Choose Join calls, Press Select.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Input method
You can key in text by using the traditional method, or another method called predictive input.
To select input method
1. When key in text, press Option and select Input Select.
2. Choose an input method, and press Select.
Quick way to change input method
• Long press to change the input method (T9Ab, ABC, abc, 123)
To Changing case
• In “ABC” or “abc” input mode, short press to change capital or lower-case letters.
To insert a space
• Press key to insert a space.
• In T9Ab, you could also use to insert a space.
Traditional English input
• Press to and select the desired character.
Note: Your phone provides Multi-tap function. For example, press twice to display the letter B, and press
three times to display the letter C.
Characters table
Key Character
1 -? ! , . : ; = 1
2 A B C Å Ä Æ à Ç 2
3 D E F è É 3ΔΦ
4 G H I ì 4Γ
5 J K L 5 Λ
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
6 M N O Ñ Ö Ø Ò 6
7 P Q R S β 7ΠΣ
8 T U V Ü Ù 8
9 W X Y Z 9
0 Space + & @ / % $ \ 0
* To shift the case to lower-case and initial case.
# To activate Silent mode.
To change text input.
Text entry with “T9”
“T9” uses a built-in dictionary to recognize the most commonly used word for every sequence of key presses.
Shift the cursor.
To switch alternative words
Long press to change input method.
Short press to switch upper case between lower case.
Keypad information
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Menu Structure
Phone book
You can save numbers and names in your phone or in SIM card. In addition, this phone allows you to store up to 300
numbers and names in phone memory. Names and numbers saved in the SIM card’s memory and Phone’s memory are
indicated by and .
To save a phone number and a name
1. In standby mode, key in a number, press Names.
2. Press Select, choose Add, press Select, choose Save in SIM or Save in phone, press Select.
3. Key in the name and press Option, choose OK to save number.
Modify
Allow you edit a number and name saved in the phone book.
To edit a number and a name
1. Use to find a name in the phone book, and then press Select.
2. Press Detail and choose Select.
3. Choose an item you want to modify, press Select and choose Edit to start edit.
4. Press OK to save edited name or number.
Add
Allow you add new name and number in the phone book.
To add a phone number and a name in phone book
1. In Phone Book menu, press Select, choose Add.
2. Choose Save in SIM or Save in phone, press Select.
3. Key in the name, press Option, choose OK, key in the number, press Select, choose Save to save number.
Groups
You can send a message to all members of a group at the same time by this setting. Before using this function, you need to
edit name list in Group list of Phone Book.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
To add a name in a Group
1.In Phone book menu, choose Groups, press Select.
2.Choose a group, press Select.
3.Choose Add member, press Select.
4.Enter a name or press Option and choose Names and select a member from phone book, press OK.
Note: For input method operation, please refer to Input method.
Group edits
1. In Phone book menu, choose Groups, press Select.
2.Use to choose a group, press Select, and to start the edit.
3.Press Option and choose OK to save.
Your phone provides the following selections for your option:
• List members:
Allow you to view the members specified in the group.
• Add member:
Allow you to add a member in the specified group.
• Rename:
Allow you to change the group name.
• Ring type:
Allow you to set a ring type for a group.
• Pictures:
Allow you to set a picture for a group.
Speed dial
If you assign the number to one of the speed dialing keys (from to ) saved in the phone book, you can call
the phone number by long pressing the key in standby mode.
1. In Phone book menu, choose Speed dial, press Select.
2. Choose a speed key number, press Select.
3. Choose Assign, press Option.
4. Choose an entry from the phone book, press Select to save.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Memory status
This phone allows you to view the phone book data in SIM and Phone.
In Phone book menu, choose Memory status, press Select.
Copy all
You can copy and transfer your phone data from SIM to your phone (or from phone to SIM).
1. In Phone book menu, choose Copy all, press Select.
2. Choose Copy to Phone or Copy to SIM, press Select.
Delete
Your phone allows you to delete all numbers and names stored in the phonebook.
1. In Phone book menu, choose Delete, press Select.
2. Choose Delete this record or Delete all in SIM or Delete all in Phone.
3. Key in passwords in Delete all screen, at the prompt “Are you sure?” press OK.
CLI (Calling Line Identification)
Your phone allows you to recognize the incoming call by the specified ring signals, pictures for personal calls saved and
specified in the phone book.
1.In Phone book menu, choose Search, press Select.
2.Enter a name or press Option, choose a name in phonebook, press Detail.
3.Choose or , press Select.
4.Choose Select, press Select.
5.Choose a Default pictures/Melodies or Saved pictures/Melodies, press OK.
: Personal picture
: Personal melody
SIM (40/200)
Phone (60/300)
Memory status
Back
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Message
SMS
Your phone services voice mail notification messages and text messages. Voice mail and short message service (SMS) are
network service. Your phone also allows you to send and receive text messages contain pictures or melodies. A message with
pictures was made up of several text messages. Therefore, sending message with pictures may cost more than sending one
text message.
Read messages
When you have received a message, the indicator will appear on the display. The blinking indicates that the
message memory is full. And before you can receive or send new messages, you need to delete some of your old messages.
1.In Standby mode, press Menu, choose Message, press Select.
2.In Message menu, choose Inbox, press Select.
3.Choose a message, press Read to view the content.
Note: To quick access Message function, you can press in standby mode.
Note: To scroll through the content of messages, use .
When read the message, your phone provides following selections for your options.
• Reply: Allow you to reply by sending a text message.
• Forward: Allow you to forward a text message.
• Add number: Allow you to save the number in your phone book.
• Call: Allow you to call the number that show in the message.
• Delete: Allow you to delete the message in progress.
: The message that has been read.
: The message that has not been read.
To write a message
1. In Standby mode, press Menu, choose Message, press Select.
2. In Message menu, choose SMS, press Select.
3. In SMS menu, choose Compose, press Select.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
4. Key in the content, press Option, choose a selection, press Select.
Note: To quick access Message function, you can press in standby mode.
Note: To key in the content, please refer to “Input method “.
Note: To use picture message function, your network operator or service provider support is necessary. Only phones
that contain this function can receive and display picture messages.
Your phone provides the following selections for your option:
• Add symbol: Allow you to add one more symbols in edit screen.
• Insert object: Allow you to add pictures or melodies in your message.
• Input select: Allow you to change input method and suit your need.
• Use templates: Allow you to insert templates specified in “Templates” in message menu.
• Clear all: Allow you to erase the text composed in edit screen.
Keypad information
To send a message
1. After you complete the message compose,
2. Press Option, use to choose Send.
3.Enter the recipient’s phone number or search for it in the phone book, press Names.
Shift the cursor.
Short press to insert character *, #, column
Long press to change input method.
Short press to switch upper case and lower case.
Long press to insert symbol.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
4. Select a phone number, press Select , then press Send.
Your phone provides the following selections for your option:
• Send single: Allow you send a text message immediately.
• Send group: Allow you to send to a group that specified in your phone book.
• Save: Allow you to save a message and send it later.
Unsent and Outbox Message
After sending out the message, the message is saved in the outbox folder. You can also save the message in the Unsent mails
to send it later.
Message setting
Your phone allows you to set up default setting on the SMS feature.
1. In Standby mode, press Menu, choose Message, press Select.
2.In Message menu, choose SMS, press Select.
3. Choose Setting, press Select.
Your phone provides the following setting selections for your option:
• SMS center: This is the service center that allows you to save or change the number of your SMS center required
when sending text messages.
• Valid time: Allow you to set the length of time for which your text messages will be stored at the SMS center.
• Format: Allow you to send different types of messages if your network operator’s service center can offer the function.
• Delivery report: Allow you to get the report whether your message has been delivered or not.
• Reply path: Allow the recipient of your SMS message to send you a reply through your message center.
• Broadcast: This is the network service that allows you to receive text messages on various topics, such as the weather
or traffic.
Note: To active Broadcast, you need your operator’s service.
Template
If you use one or more messages that you send often, you can save these messages as templates in your phone.
1. In Standby mode, press Menu, choose Message, press Select.
2.Choose Template, press Select, select a template, press Select.
3.Key in the content, press Select, choose Save to save the template.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Voice mail
Your phone allows you to access your voice mailbox with a quick way if your operator provides this function.
• In standby mode, press and hold to access your voice mail server directly.
To use this function, you may need to enter the voice server number obtained from your service provider.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Call Record
Your phone can save information for missed, received and dialed calls, and the length and cost of your calls.
Note: Once the call list exceeds the memory limitation, the oldest one is deleted.
Missed calls /Received calls/Outgoing calls
Your phone allows you to view the last ten unanswered calls. You can also edit the number or delete the number from the call list.
1.In Standby mode, press Menu, choose Call record, press Select.
2.In Call record menu, choose an item, press Select to view the content.
3.Press Options and choose an item, press Select.
Your phone provides the following selections for your option:
• Call: Allow you to call the number that show in the screen.
• Delete: Allow you to erase the number from the list.
• Save: Allow you to save the number in phone book.
Call duration
Your phone allows you to view the timers for calls made and received.
1.In Standby mode, press Menu, choose Call record, press Select.
2.In Call record menu, choose Call duration, press Select.
3.Choose an item, press Select.
Your phone provides the following selections for your option:
• Total
• Last
• Received
• Dialled
• Clear
Data counter
This function allows you to check the data size while browsing Internet content through GPRS.
Your phone provides the following selections for your option:
• Last data
• All data
• Clear
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Setting
Alarm
This function allows you to set the alarm to ring at the time specified. The alarm clock works even when the phone is switched
off.
1. In Standby mode, press Menu, choose Setting, press Select.
2. In Setting menu, choose Alarm, press Select, enter time, press OK.
3. Please choose Once alarm or Repeat alarm, press Select.
Time & Date setting
This function allows you to view and change the time and date set in your phone.
To set the Time
This function allows you to change the time displayed, using the 12-hour or 24-hour format.
1. In Setting menu, choose Time & Date.
2. Choose Set time, press Select.
3. Enter the time, press OK.
To set the Time format
1. In Standby mode, press Menu, choose Setting, press Select.
2. In Setting menu, choose Time & Date.
3. Choose Set Time, press Select, choose Set time format, press Select.
4. Choose 12 hours or 24 hours and then press OK.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
To set the Date
1. In Standby mode, press Menu, choose Setting, press Select.
2. In Setting menu, choose Time & Date.
3.Choose Set Date, press Select, press Select.
4.Enter the date, press OK.
Melody
This function allows you to select ring signal volume, choose among different ring signals or compose your own ring signals.
Ring setting
1. In Standby mode, press Menu, choose Setting, press Select.
2.In Setting menu, choose Melody, press Select.
3.Choose Ring setting, press Select, and choose a selection, press Select.
4.Pleasse choose a melody, press OK.
You can set the following features in different melodies:
• Incoming call
• Message
• Alarm
• Calendar
Ring volume
This function let you adjust the ringing volume to one of six levels.
1. In Setting menu, choose Melody, press Select.
2. Choose Ring volume, press Select.
3. Use to adjust the ring volume, press OK.
Ring or Vibrate
This feature allows you to set the phone to ring or vibrate during an incoming call.
1.In Setting menu, choose Melody, press Select.
2. Choose Ring or Vibrate, press Select.
3. Please choose an item, press OK.
Your phone provides the following ring type selections for your option:
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
1. Ring only: The phone rings using the rinsing tone set in Melody Ring setting menu.
2. Vibrate only: The phone vibrates but doesn’t ring.
3. Ring & vibrate: The phone rings and vibrates both.
4. Vibrate first: The phone vibrates a few seconds then rings.
Key tone
This function allows you to select the keypad tone type when you press a key.
1.In Setting menu, choose Melody, press Select.
2.Please choose Key tone, press Select, and then choose Key sound, press Select.
3.Please choose a key tone, press Select.
Display setting
Your phone allows you to set the display value to suit your preference.
Wallpaper
This feature allows you to set one wallpaper in LCD display in standby mode.
1.In Setting menu, choose Display, press Select.
2.Please choose Wallpaper, press Select.
3.Choose a wallpaper you prefer, press OK.
Greeting
This phone allows you to set a greeting animation or a message to be displayed briefly when the phone is switched on.
1. In Setting menu, choose Main Display, press Select.
2. Choose Greeting, press Select, and choose Animation, Text or Off, press OK.
Backlight time
This function indicates the screen backlight duration.
1.In Setting menu, choose Backlight time press Select.
2.Please choose Short, Medium or Long, press Select.
Note: The function impacts the battery consumption.
Contrast
This function indicates the color contrast in main display.
1.In Setting menu, choose Main display, press Select.
2.Please choose Contrast, press Select.
3. Use to adjust the contrast rate, press OK.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Brightness
This function allows you to adjust the contrast of the LCD screen.
1.In Setting menu, choose Brightness, press Select.
2.Please choose brightness level to adjust the contrast.
Phone setting
Language
This phone allows you to set a language for the display in this phone.
1. In Standby mode, press Menu, choose Setting, press Select.
2. In Phone setting menu, press Select.
3.Choose a Language, press Select, and then choose a selection, press OK.
Network selection
This Network selection feature allows you to indicate whether the network used when roaming is selected automatically or
manually.
1 In Phone setting menu, press Select.
2.Choose Network select press Select.
3. Choose Auto or Manual, press Select.
Note: You can select a network other than your home network only if it has a valid roaming agreement with your home
network.
Call setting
Reject list
This function allows you to reject calls only from certain numbers. To activate the function, you need to save the numbers that
you want to reject in the Reject list. The numbers must first be saved in your phone book.
To activate Reject calls
1. In Standby mode, press Menu, choose Setting, press Select.
2.In Setting menu, please choose Call setting, press Select.
3.Choose Reject list, press Select, choose Activate, press Select.
To add numbers to the Reject list
1.In Setting menu, choose Call setting, press Select.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
2.Choose Reject list, press Select, choose Edit, and choose an empty to add member, then press Select.
3.Choose Assign single or Assign group, press Names and choose an entry, press Select to save.
Time alert
This function allows you to set a time reminder during a call.
1.In Setting menu, choose Call setting, press Select.
2.Choose Time alert, press Select.
3.Choose an item, and press Select.
Your phone provide the following time alert selections for your option:
• Off
• Each minute
• User setting
Notice: The minimum time for User setting is 30 seconds at least.
Speed dial
You can set digit keys to as speed dialing numbers for fast shortcut access.
To activate speed dial
1.In Setting menu, choose Call setting, press Select.
2.Choose Speed dial, press Select, and choose On, press OK.
Note: Digit key is used as shortcut for voice mailbox.
Call waiting
This network service enables you to be informed when someone is trying to reach you during another call.
1.In Setting menu, choose call setting, press Select.
2.Choose Call waiting, press Select.
3.Choose Activate or Cancel, press Select.
Call divert
You can set the call condition by which calls are diverted to another numbers.
To Set call divert
1. In Setting menu, choose Call setting, press Select.
1. 2. Choose Call divert, press Select.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
2. 3.Choose a condition, press Select, and choose Activate, press Select.
3. 4.Enter the number to which your calls to be diverted, press OK.
Your phone provides the following divert selections for your option:
• Any time:
All calls are diverted.
• When busy:
Calls are diverted when your phone is engaged on other calls.
• No reply:
Calls are diverted when the call is not answered.
• Unreachable:
Calls are diverted when you not in a location covered by your service provider.
Security
Phone and SIM card are protected against misuse by several security codes.
PIN (4 to 8 digits)
The PIN (Personal Identification Number) code protects your SIM card against unauthorized use. The PIN code is usually
supplied with the SIM card.
To activate or cancel PIN code
1.In Setting mode, choose Security, press Select.
2.Choose PIN, press Select.
3.Key in PIN number, choose On or Off, press Select.
Note: Your may need to obtain the password from your service provider.
Phone Lock
This function protects the phone against unauthorized use
1.In Setting menu, choose Security, press Select.
2.Choose Phone Lock, press Select.
3.Choose On or Off, press Select.
Call barring
This network service allows you to restrict your calls.
To activate the call barring
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
1.In Setting menu, choose Security, press Select.
2.Choose Call barring, press Select.
3.Choose a selection, press Select.
Your phone provides the following call barring selections for your option:
• Outgoing:
All outgoing calls are not allowed to make.
• Int’l calls (international calls):
International calls are not allowed to make.
• ICEH (Internal Call Except Home):
When abroad, calls can be made within the current the current country and to your home country, where your home
network provider is located.
• Incoming:
All incoming calls are not allowed to receive.
• Incoming(Roaming):
Incoming calls are not allowed to receive while using the phone outside your country.
• Code Change:
Change call barring code.
Note: Call barring is a network service, and need password for the settings.
FDN (Fixed Dial Number)
This function allows you to restrict your outgoing calls to a limited set of phone numbers.
To set FDN
1.In Setting menu, choose Security, press Select.
2.Choose FDN, press Select, enter PIN2 code, press OK.
3.Choose a selection, press Select.
Your phone provides the following selections for your option:
• Activate
• Member list
• Add member
• Delete all
Note: To active the function, you may need to enter the PIN2 code.
Change codes
This feature allows you to change your current code to a new one. To change the code, you need to enter the current code before
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
you can specify a new one.
To change the codes
1.In Setting menu, choose Security, press Select.
2.Choose Change codes, press Select.
3.Choose a selection, press Select.
Your phone provides the following code selections for your option:
• Change PIN
• Change PIN2
• Phone code
Note: Please refer to Security.
Reset all
This feature allows you to reset your phone to its default configuration. Before start reset, you may need to enter the phones code.
1.In Setting menu, choose Security, press Select.
2.Choose Reset all, press Select.
3.Key in phone code, press OK.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Camera
You can use this phone in taking photos with the phone’s built-in camera and adjust its settings. The camera lens is on the back of
the phone, and the display of the phone works as a viewfinder. If there’s not enough memory for camera, you need to delete old
photos to free some spaces for new photos.
Note: Do not use this feature when it violates local laws.
Camera indications
: Save the photo and the video
: Shutter the photo and take video
: Back
: Zoom out or zoom in the photo
: Flash light
: Option menu
: Photo mode
: Multi-shot mode
: In video mode
: Video play
: Video record
: Stop taking video
: Pause
: Self timer
To take a photo
1.In the standby mode, press camera key to enter camera feature, choose Photo and press Select.
2.To take a photo, press camera key or key.
3.To save the photo, press key. When taking a photo, a shutter sound is heard. The photo is saved in Picture folder in
Fun menu.
4. Select right softkey to take another photo or press left softkey to enter Option menu.
Note: When you are in photo mode, the screen will show icon.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Multi-shot
To take multi-shot
1. In the standby mode, press camera key to enter camera feature, choose Photo and press Select.
2. Press left soft key , and choose Multi-shot.
3. Select On or Off.
Note: When you are in multi-shot mode, the screen will show icon.
Your phone provides the following items for camera settings.
Self-timer: Allow you to set the camera self time, after time out, the camera takes the photo and saves it in the
Gallery menu. While the self-timer is running, a beeping sound is heard.
Date: Allow you to set the time in photos.
Digital Effect: Allow you set your favorite effect in your photos. This phone provides Monochrome, Negative, Sepia,
Solarize and Binary mode for your options.
Quality: Allow you set the photo quality. This phone provide Excellent, Fine and Basic quality for your options.
Excellent provides the best quality but takes more memory.
Picture size: This phone provides Large (640x480) and Normal (128x160) for your options. Large photo takes more
memory. You can set the frame effect when taking a photo.
Flash light: Allow you turn On or Off the flash light.
Video
To take Video
1.In the standby mode, press camera key to enter camera feature, choose Video and press Select.
2. To take video, please press to start taking. Press to stop taking.
3. You could press to see the video you just take, if you want to save it, please press key.
4. When taking the video, a shutter sound is heard. The video is saved in Video Folder in Fun menu.
4. Select right soft key to take another video or press left soft key to enter Option menu.
Note: When you are in video mode, the screen will show icon.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Profile
Your phone has the following profiles to customize the alert to meet a certain environments.
• Normal:
Your phone is set in standard profile, which is the factory setting.
• Meeting:
Your phone ring volume is set to be low and key tone is switched off in meeting profile.
• Outdoor:
Your phone ring and key tone volume is set to be loud.
• My profile:
Your phone sets to be a casual profile specified in Profile.
Note: To quick access Profile function, you can press in standby mode.
To activate the Profile
1. In the standby mode, press soft key Menu, choose Profile, press Select.
2.In Profile menu, choose a profile, press Select.
3.Choose Personalize, press Select.
To edit the Profile
You can personalize the profile settings to meet your preference.
1.In Profile menu, choose a profile, press Select.
2.Choose Personalize, press Select.
Your phone provides the following selections for your personalize option:
• Ring or vibrate
• Incoming
• Message
• Ring volume
• Key tone
Note: You can change the profile to Silent or General quickly by long press key.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Extra
Calendar
In the calendar you can add tasks for things such as reminders, meetings, birthdays that you need to make. The phone sounds an
alarm tone when the set date expires.
To make a note and reminder in Calendar
1. In the standby mode, press soft key Menu, choose Extra, press Select.
2.In Extra menu, choose Calendar, press Select.
3.Choose a day, press Select, choose Make a note, press Select.
4.Key in the note, press OK and confirm the date and time.
5.Please choose Alarm On or Off, press Select to save the note.
Your phone provides the following selections for your option:
• View today:
To view the task in specified day.
• View all:
To view all tasks made in the calendar.
• Make a note:
To add a note in specified day.
• Delete:
To delete a task or all tasks in made in calendar.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
To delete a note
1. In Calendar menu, choose Delete, press Select.
2.Choose Of chosen day, One by one or All, press Select.
Calculator
The calculator in this phone adds, subtracts, multiplies, divides, and converts currency values.
To use the calculator
• In Extra menu, choose Calculator, press Select.
Your phone provides the following compose mapping s for your option:
• Four way key Left : ÷ (divide)
• Four way key Right : * (Multiply)
• Four way key Up : + (Add)
• Four way Down : - (Subtract)
• Left Soft key (OK ) key : To get the result.
Note: This calculator has a limited accuracy rounding errors may occur, especially in long divisions.
Stopwatch
This feature allows you time an event or record splits in this phone.
To use the stopwatch
1. In Extra menu, choose Stopwatch, press Select.
2. Choose Start, press Select and press Start.
3. Press the Split when you want to take an intermediate time and intermediate timers are listed below the display.
4. Press Stop to stop the time observation.
5. Press Menu to choose Save or Reset the stopwatch.
Note: You can use two soft keys to control the stopwatch.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Note: Using the stopwatch consumes the battery and the phone’s operating time will be reduced.
Time count down
A set period elapses set in your phone, the last three seconds are indicated by a beep. At the end, a special beep sounds.
To use the Time count down
1.In Extra menu, choose Time count down, press Select.
2.Enter the period, press Start.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Funs
Picture Folder
This folder saves all images that have been saved. The pictures are automatically saved in the Picture Folder. You can also send
these pictures to your friends in a multimedia message, as an e-mail attachment. The camera produces JPEG pictures.
To edit the images
1. In the standby mode, press soft key Menu, choose Funs, press Select.
2. In Funs menu, choose Picture Folder, press Select.
3. Choose a picture, press Select.
4.Choose an item, press Select to start edit.
Your phone provides the following selections for your option:
Option menu
View: You can view the pictures saved in the gallery.
Send MMS: You can select a picture and use the MMS function to send to your friends.
Rename: You can rename a picture name.
Save to my picture: You can forward the picture to my picture with the password.
Delete: You can delete the picture that you don’t like.
Information: To view the memory capacity and feasibility for user application.
Delete All: You can delete all the pictures.
Note: Sending picture via MMS, the size can n t be larger than 30KB
Your phone provides the following picture format for your application:
: BMP format picture
: EMS format picture
: GIF format picture
: GPG format picture
: WBMP format picture
Video Folder
This folder saves all videos that have been saved. The videos are automatically saved in the Video Folder. The camera produces
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
AVI video format.
Note: Only AVI format could be played or saved.
To edit the images
1. In the standby mode, press soft key Menu, choose Funs, press Select.
2. In Funs menu, choose Video Folder, press Select.
3. Choose a picture, press Select.
4.Choose an item, press Select to start edit.
Your phone provides the following selections for your option:
Option menu
View: You can view the videos saved in the gallery.
Rename: You can rename a video name.
Save to my video: You can forward the video to my video with the password.
Delete: You can delete the video that you don’t like.
Information: To view the memory capacity and feasibility for user application.
Delete All: You can delete all the videos.
Your phone provides the following video format for your application:
: AVI format video
Melody gallery
This folder saves all melodies that have been saved. The melodies are automatically saved in the Melody gallery. You can also
send these melodies to your friends in a multimedia message, as an e-mail attachment.
To edit the melody
1. In the standby mode, press soft key Menu, choose Funs, press Select.
2. In Funs menu choose Melody gallery, press Select.
3. Choose one song to listen.
Your phone provides the following selections for your option:
Send EMS: You need to choose the format that meet EMS specification.
Send MMS: You can select a melody and use the MMS function to send to your friends.
Rename: You can rename a melody name.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Delete: You can delete the melody that you don’t like.
Information: To view the memory capacity and feasibility for user application.
Note: Sending picture via MMS, the size can n t be larger than 30KB
Game
New game options
• Play:
Allow you to start a new game.
• Music:
Allow you to enable or disable music.
• High scores:
Show the highest scores.
• Help:
Show the play rule for the game.
Memory Status
This function allows you to realize how much memory you used. The total user memory is 2048KB.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
STK
SIM toolkit
In addition to the functions available in the phone, your service provider may offer additional applications such as weather or
stock market information via the SIM card.
To set the STK service
• In Extra menu, choose STK, press Select.
Note: For availability, you need to register for the services from your service provider.
Note: Accessing these services may involve sending an SMS for which you may be charged.
GPRS
GPRS (General Packet Radio Service) is a technology that use for sending and receiving data over the mobile network. The
applications that use GPRS are WAP services, MMS and SMS messaging, Java application downloading and GPRS dial-up (such
as Internet and e-mail). You can set the phone to automatically register to a GPRS network when you switch the phone on.
Note: To use GPRS function, you may need to register for the service from your service provider.
To get the GPRS service
1. In WAP menu, choose Setting, press Select.
2. Choose a profile, press Select, choose Edit, press Select.
3. Choose Dial type, press Select, choose GPRS, press Select.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
General information
Battery care
Your phone is powered by a rechargeable battery.
• The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time
(talk-time and standby time) is noticeably shorter than normal, you should buy a new battery at the time.
• Unplug the charger when not in use, and don’t leave the battery connected to a charger for longer than a week, since
overcharging may shorten its lifetime.
• Overcharging may shorten its lifetime, and if left unused a fully charged battery may discharge itself over time.
• Temperature extremes can affect the ability of your battery to charge.
• Do not use any charger or battery that is damaged in any way.
• Use the battery only for its intended purpose.
• Extreme temperatures will affect the charging capacity of your battery.
• Do not leave the battery in hot or cold places, such as in a car in summer or winter condition.
• Do not short-circuit the battery. Short-circuiting the terminals may damage the battery or the connecting object.
• Dispose of batteries according to local regulations. Always recycle. Do not dispose of batteries in a fire.
Access codes
PIN code (4 to 8 digits):
The PIN (Personal Identification Number) code protects your SIM card against unauthorized. Your SIM card usually supplies the
PIN code.
PIN2 code (4 to 8 digits)
The PIN2 code may be supplied with the SIM card. Some functions will require PIN2 support, such Set tariff.
PUK and PUK2 (8 digits)
The PUN (Personal Unblocking Key) code is required to change a blocked PIN code. The PUK2 code is required to change a
blocked PIN2 code.
Phone code (4 to 8 digits)
Phone code protects the phone against unauthorized use. It is not on when you buy the phone. You can change the phone code
(0000) to any four to eight-digit personal codes.
Care and Maintenance
Read this information before using your mobile phone.
Your mobile phone is a highly sophisticated electronic device. When using your phone, battery, charger or any accessory, please
read this first.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Product care
• Keep your mobile phone and all its parts out of young children’s reach.
• Keep your mobile phone dry.
• Avoid exposing your mobile phone to extreme hot or cold temperatures.
• Avoid placing your mobile phone close to lit cigarettes, naked flames or any heat source.
• Do not attempt to disassemble it. Non-expert handling of the device may damage it.
• Do not drop, knock or shake it. Rough handling can break internal circuit boards.
• Do not paint your mobile phone as the paint could obstruct the earphone, microphone or any moveable parts and prevent
normal use.
• Treat your mobile phone with care, keep it in a clean and dust free place.
Important Safety Information
Radio frequency energy
Your mobile phone is a radio transmitter and receiver. When the phone is turned on, it receives and transmits radio frequency (RF)
energy. Depending on the type of mobile phone you posses, it operates on different frequency ranges and employs commonly
used modulation techniques. The system that handles your call when you are using your phone controls the power level at which
your phone transmits.
Electronic devices
Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded
against the RF signals from your wireless phone, therefore:
• Don not use your mobile phone near medical equipment without requesting permission.
Pacemaker
Mobile phones may affect the operation of some implanted cardiac pacemakers and other medically implanted equipment.
Pacemaker manufacturers recommend that a minimum separation of 20 cm (6 inches) be maintained between a hand-held
wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with
the independent research by and recommendations of Wireless Technology Research.
Persons with pacemakers:
• Should always keep the phone more than 20 cm (6 inches) from their pacemaker when the phone is switched on;
• Should not carry the phone in a breast pocket;
• Should use the ear opposite the pacemaker to minimize the potential for interference.
• If you have any reason to suspect that interference is taking place, switch off your phone immediately.
Hearing aids
Some hearing aids might be disturbed by mobile phones. In the event of such disturbance, you may want to consult your service
provider, or call the customer services line to discuss alternatives.
Prepared
Venson Wang
2710
User manual
Approved
Stephen Huang
Checked
Alex Pao
Release Day
2004/11/22
Rev.
A
Aircraft
• Turn off your mobile phone before boarding any aircraft.
• Do not use it on the ground without crew permission
To prevent interference with communication systems, you must not use your mobile phone while the plane is in the air.
Potentially explosive atmospheres
Switch off your phone when in any area with a potentially explosive atmosphere and obey all signs and instructions. It is rare, but
your phone or its accessories could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily
injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include
fuelling areas, such as petrol station, below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air
contains chemicals or particles, such as grain, dust, or metal powders.; and any other area where you would normally be advised
to turn off your vehicle engine.
Driving
Check the laws and regulations on the use of mobile phones in the areas where you drive. If you are going to use your phone
while driving, please:
• Give full attention to driving
• Use handsfree. Law in many countries requires vehicle handsfree.
• Pull off the road and park before making or answering a call if driving conditions so require.
RF energy may affect some electronic systems in motor vehicles such as car stereo, safety equipment etc. in addition, some
vehicle manufacturers do not allow use of mobile phones, unless the installation is supported by a handsfree kit with an external
antenna, in their vehicles. Check with your vehicle manufacturer’s representative to be sure that your mobile phone will not affect
the electronic systems in your vehicle.
Emergency calls
Important:
This phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user programmed
functions. Because of this, connections in all conditions cannot be guaranteed. Therefore, you should never rely solely upon any
wireless phone for essential communications (e.g. medical emergencies)
Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are
in use. Check with local service provider.
FCC Regulations:
zThis mobile phone complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
zThis mobile phone has been tested and found to comply with the limits for a Class B
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
4RF Exposure Information (SAR)
This model phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted
by the FCC with the phone transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for
use at the ear is 0.251 W/kg and when worn on the body, as described in this user
guide, is 1.12 W/kg. (Body-worn measurements differ among phone models,
depending upon available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various phones and at
various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with the FCC and can be found under
the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:
PJO2710.
For body worn operation, this phone has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and the positions the
handset a minimum of 1.5 cm from the body. Use of other enhancements may not
ensure compliance with FCC RF exposure guidelines. If you do no t use a
body-worn accessory and are not holding the phone at the ear, position the handset a
minimum of 1.5 cm from your body when the phone is switched on.
