Important Safety Instructions
The front, the back
Control panel
Choosing a Program
Table of control panel lights
Table of preset wash programs
Table of washing options
Automatic dispenser drawer
Dispenser compartments
About using bleach
Table of laundry aids
When to switch off electricity and water faucets
After washing is complete
Clean the exterior, interior & dispenser drawer
Clear the coin trap
Check the rubber inlet hoses yearly
Winterization
Spare parts
Recessed, closet, alcove installations
Tools and Parts
Location
Water Inlet Requirements
Drain System Requirements
Electrical Requirements
Remove Transit Screws/Spacers
Connect the Inlet Hoses
Route and Secure the Drain Hose
Level the Washer
Final Installation Checklist
Read all instructions before using the appliance.
Do not wash articles that have been previously
cleaned in, washed in, or spotted with gasoline, dry
cleaning solvents, other flammable or explosive
substances as they emit vapors that could ignite or
explode.
Do not allow children to play on or in the appliance.
Close supervision of children is necessary when the
appliance is used near children.
Before the appliance is removed from service or dis-
carded, remove the door.
Do not reach into the appliance if the tub or drum is
moving.
Do not install or store this appliance where it will be
exposed to the weather.
Do not tamper with controls.
Do not repair or replace any part of the appliance or at-
tempt any servicing unless specifically recommended
in the user-maintenance instructions or in published
user-repair instructions that you understand or have
the skills to carry out.
Do not add gasoline, dry-cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors, that could ignite or
explode.
Under certain conditions, Hydrogen gas may be pro-
duced in a hot water system that has not been used
for 2 weeks or more.
If the hot water system has not been used for such a
period, before using a washing machine, turn on all
hot water faucets and let the water flow from each
for several minutes. This will release any accumulated
Hydrogen.
Check the Coin Trap every few months to remove
coins, buttons or similar size objects.
This appliance must be properly grounded
Clothes, cleaning rags, mop heads and the like which
have traces of any flammable substances, such as veg-
etable oil, petroleum based oils or distillates, etc. must
not be placed in the washing machine. These items
may contain flammable substances after laundering
which may smoke or catch fire by itself.
Always be sure to unplug the washing machine from
the electrical supply before attempting any service.
Do not insert/pull out the mains plug with wet hands.
Do not pull out the mains plug by tugging the cable.
Do not use an extension cord or an adapter to connect
the washing machine to the electrical power supply.
Caution when draining hot water.
The washing machine must only be used for it’s in-
tended purpose.
Make sure drum is empty before loading washer.
Make sure that all water connections to the wash-
ing machine have shut-off valve(s) and that they are
readily accessible. Close the washing machine shut-off
valves at the end of each wash day.
Check the fill hose connections on a regular basis to
assure that they are tight and not leaking.
Do not machine wash fiberglass materials. Small par-
ticles can stick to fabrics washed in following loads and
cause skin irritation.
Check the inlet hoses periodically for bulges, kinks,
cuts, wear or leaks and replace them every five years.
ELECTRICAL SHOCK HAZARD
Plug washer-dryer into a
grounded 3 prong outlet.
Do not remove ground prong.
Do not use adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in death,
fire, or electrical shock.
WARNING
!
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death
or electrical shock.
WARNING
!
EXCESSIVE WEIGHT HAZARD
Use two or more people to move
and install the washer-dryer.
Failure to do so can result in back
or other injury
WARNING
!
WARNING!
The machine was designed and built in compliance with the appliance international safety regulations.
The information on this page is provided for your safety and should be read carefully.
(Pull on Grey Tab)
Knobs are hidden. To extract them, gently
press the middle of each knob.
Congratulations on the purchase of your new Ariston washing machine. It is a highly sophisticated engineered
product that will give you many years of satisfaction. Please read this Owners Manual. It will show you ways to best
utilize your valuable purchase.

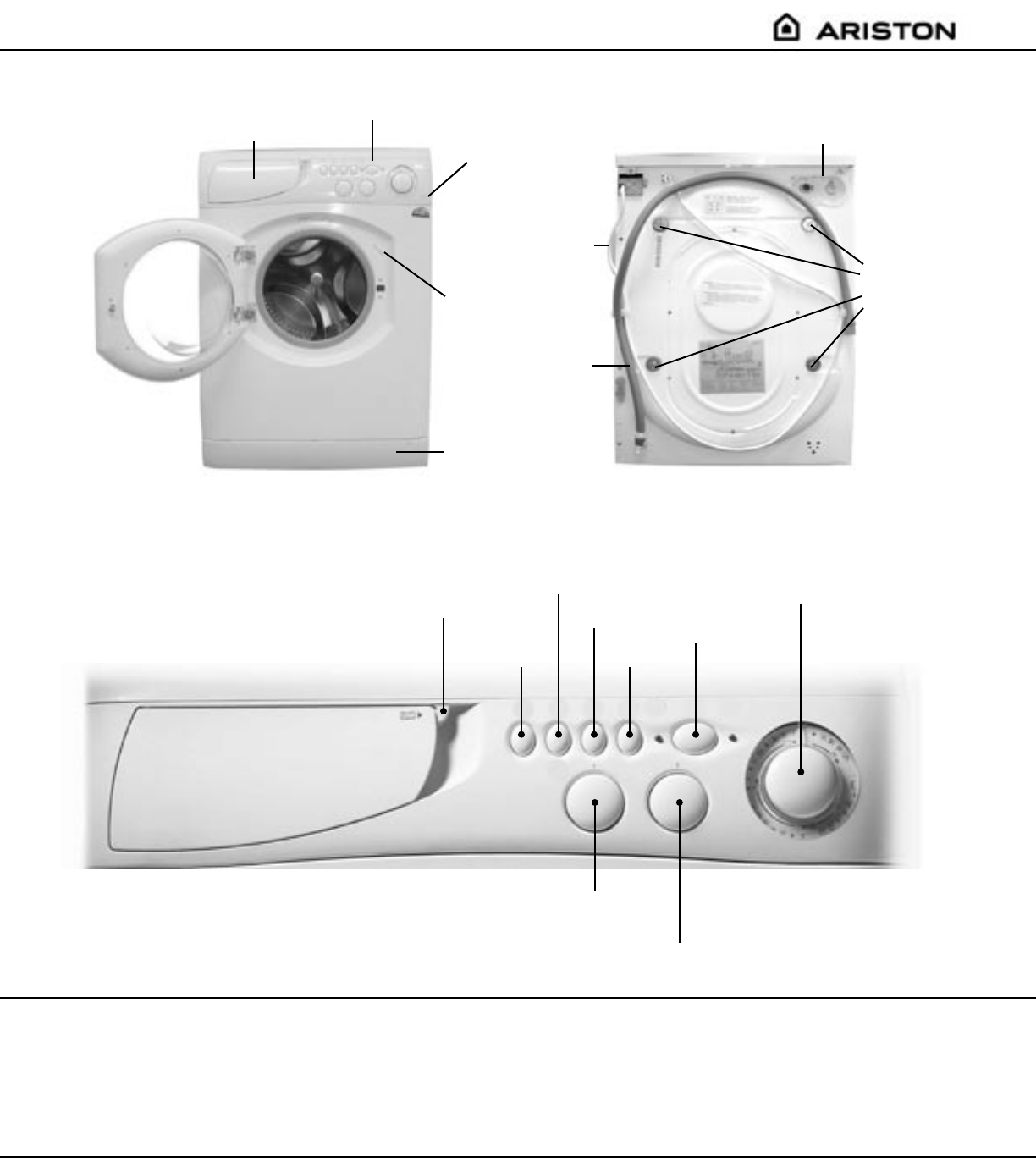

Control panel
Dispenser drawer
Coin Trap

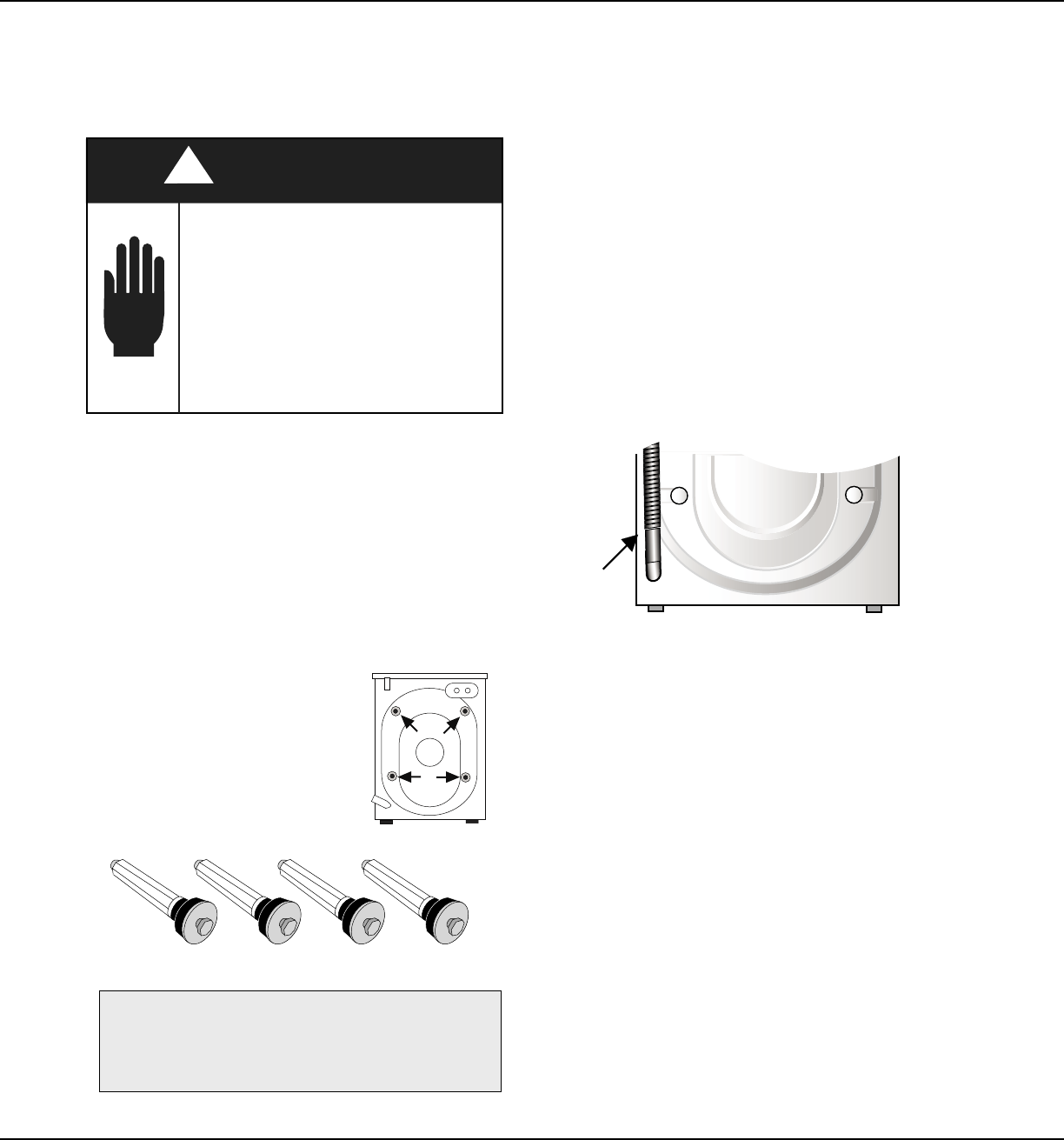

Transit
bolts
Power cord
Drain hose
Hot and cold
water inlet
Serial No.
Model No.
Plug the washer into the electrical socket.
Sort your laundry according to similar colors,
fabrics and degree of soil. For best results,
do not load more than the maximum capacity:
Cottons 12 lbs.
Synthetics 6 lbs.
Delicate Fabrics 5 lbs.
Wools 3 lbs.
Bathrobes 5 lbs.
Open the door. Load the machine and make sure
the items are not in the way of the door seal.
Close the door.
Choose the wash program by checking the
Programs table
as well as the fabric care tags found on your
clothing.
Select a washing cycle by rotating the
PROGRAMS dial clockwise.
Set the wash water temperature with the
TEMPERATURE knob.
Set the high spin speed with the
SPIN SPEED knob.
To further customize the program, press
one of the four buttons
Open the dispenser drawer and add laundry aids
).
If your previous washing machine was a
top-loader, initial loads may require little to no
detergent. Old detergent trapped in the clothes
will be released during the tumble action.
Close the dispenser drawer.
Press the ON-OFF (in) to begin.
During the washing program, you cannot open
the door.
Open the door and
take your laundry out.
Unplug the washer.
Indicates when the
door is locked
Locked
Unlocked
The door will stay locked for
up to 2 minutes after the
program is completed
Indicates the status
of the washer
= Ready; awaiting
instructions
= Program
accepted; in operation
= Program
competed, but door still
locked
This washer can perform self-
diagnostics in the event of a
problem. If needed, this light
will indicate a fault code by
displaying a specific series of
blinking lights.
!
(10 - 13 min.)
(Anticrease Stop)
(No Spin)
(25 min.)
Colorfast Items
120 minutes
Heating element
is used to reach
158ºF wash temp.
Bleach option not
available
•
•
•
Eliminates harmful
bacteria and safely deep
cleans stained, cotton
colorfast items
The heating element will
take about 10 minutes to
reach full heat.
•
•
Exceptionally soiled
whites 90 minutes• Sheets, tablecloths, etc.•
Heavily soiled
whites and colorfast
colors
50 minutes•
Jeans, towels, etc.
Fasten all hooks, zippers
and buttons
•
•
Slightly soiled
whites and delicate
colors
40 minutes• Shirts, sweatshirts, etc.
Turn printed shirts inside
out before washing
Tie all strings before
loading
•
•
•
Heavily soiled
colorfast synthetics
80 minutes• Baby linen, etc.•
Delicate color
synthetics
65 minutes• All types of slightly soiled
synthetics
•
Delicate color
synthetics
40 minutes• All types of slightly soiled
synthetics
•
Delicate items 64 minutes•
All types of delicate items
Place underwear, tights
stockings and other
delicates in a linen bag
•
•
Particularly delicate
items
60 minutes• Curtains, silk, viscose•
Wool
hand washables
65 minutes• Wool scarf, sweater, etc.
Turn knit items inside out
Use very little detergent
3 lb. max load
•
•
•
•
Please Note: cycle times will vary according to size and fabric type of load, water system temperature and room temperature
Changes the preset wash water
temperature of the selected
program
Rotate
knob to the desired wash
temperature
Rinse water is always
COLD
•
Changes/excludes the preset
spin cycle of the selected
program
Rotate knob
to the desired speed
Select for No Spin
Faster spinning will
extract more water
from highly absorbent
fabrics
•
•
Adds a one hour soak to the
selected washing program
Press
button (in)
During soaking, laun-
dry is gently tumbled
•
Adds one extra rinse to the
selected Cotton Heavy Duty or
Permanent Press program
Press
button (in)
Recommended for
very large loads, when
too much detergent is
used or for detergent
contact allergies.
•
Automatically stops the selected
Permanent Press or Hand
Washables program before
the spin cycle begins. Laundry
soaks in water until the Easy
Iron button is pressed again.
Press
button (in)
Program will stop when it
reaches the symbol on
the Programs dial.
Press button
again (out)
Prevents wrinkles
caused when laundry is
not removed promptly
from the drum.
Use this option when
you know you won’t
be able to remove the
laundry until long after
the cycle is finished.
•
•
Adds an extra wash to the
selected program
(Not available in “Wool” cycle)
Press
button (in)
Recommended for
heavily soiled loads
like work clothes or
children’s clothes.
•
On Dial
Delay’s the start of the
washing program by 1, 3, 9 or 12
hours so laundry is ready when
you are.
Rotate dial
clockwise and select
Press button (in).
Wait 5 seconds for the
to stop
flashing.
Rotate the
dial clockwise and select
a washing program.
The On-Off lamp will
flash (1 second on, 4
seconds off) to indicate
a has been
set. The door can be
opened or closed at
any time before the
cycle begins.
•
Cancels/Interrupts the
selected program
Rotate the
dial clockwise to a
position.
Wait 5 seconds.
Rotate the
knob to the desired
washing program or
(see right).
select
(Drain). After the
washer drains, wait for
the light
to extinguish before
attempting to open the
door.

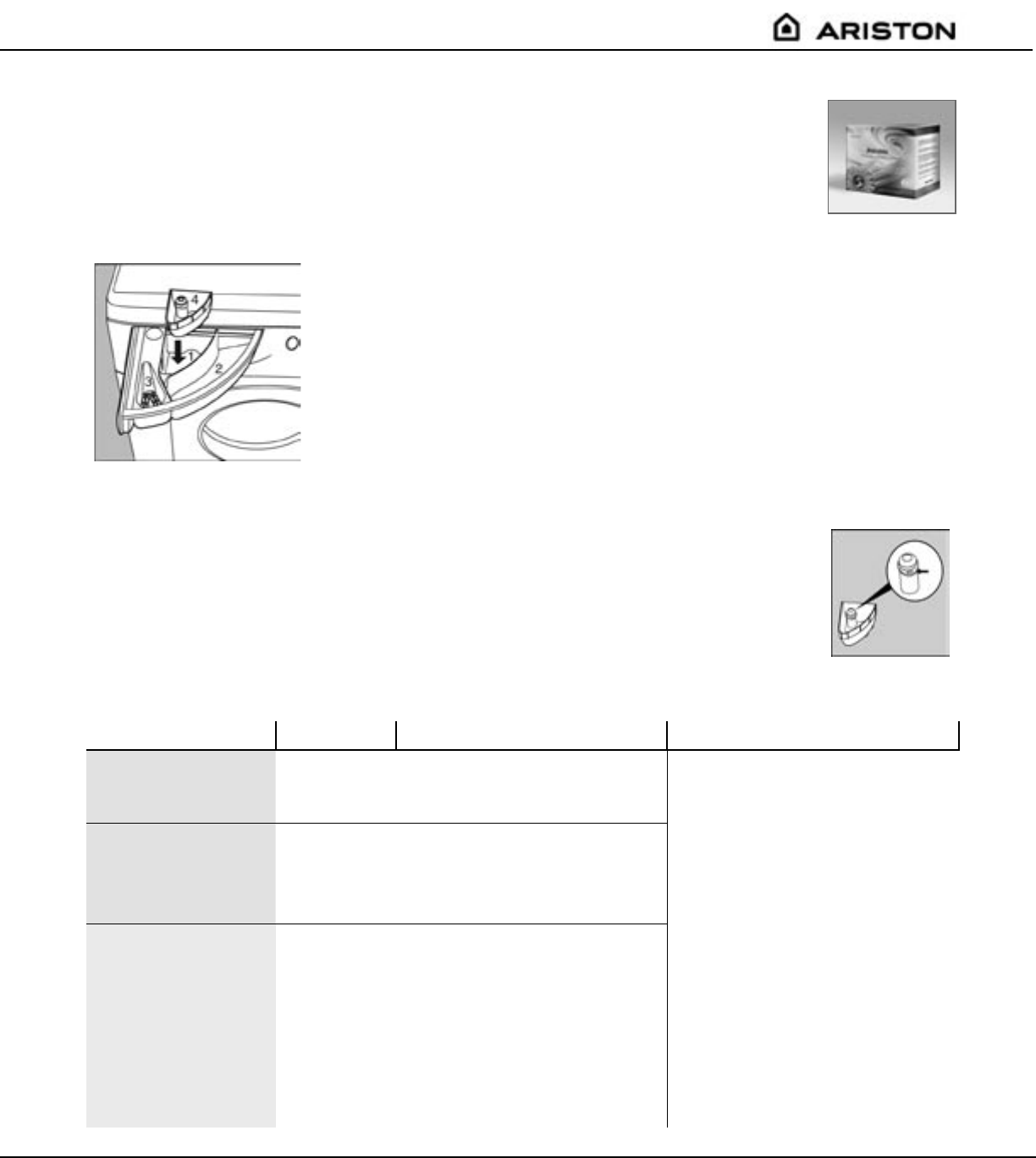

For best results, use HE (High
Efficiency) detergent. HE laundry
detergents dissolve more quickly
in less water and won’t overfoam in
front loading washers.
Bleach can only be used when HOT is selected on
the knob
If bleaching is necessary, the Bleach Compart-
ment 4 (provided) must be inserted into com-
partment 1.
Always dilute bleach before using.
If used, you will see water in the Bleach compart-
ment after the washing program is complete. This
is normal.
Bleach cannot be used during the “Silk” washing
program.
Using the Bleach compartment excludes the
possibility of using the
PreWash cycle.
DO NOT exceed the Max
level If you
overfill the bleach dispenser,
bleach will run directly into
the machine and may possibly
damage clothes.
•
•
•
•
•
•
•
Once loaded in the proper compartment(s) in the dis-
penser drawer, Detergent, Fabric Softener and Bleach
will automatically be added at the appropriate time
during the washing program.
Powder detergent is
recommended.
•
or additives. Using too much will
cause excessive sudsing, and
scaling which may reduce perfor-
mance and cause possible damage
to your washer.
or a detergent that is
not designated for “machine use.”
When washing in COLD water,
reduce amount of detergent
•
If using liquid detergent,
ALWAYS add detergent to
compartment no more than a
few seconds before the start of
the wash cycle.
•
Using a liquid fabric softener (or
a detergent with a built-in soft-
ener) fluffs clothes. This helps
speed drying times and reduce
wrinkles.
Fabric perfumes can be used in
this compartment.
Using more than the recommend-
ed amount of fabric softener
can impair wash results.
•
•
•
Bleach “Max” level
Splendide All-Natural
Premium Laundry Powder
(Part No. 1005)
Unplug the washer and turn off the water faucets when
not using it, when cleaning it and during maintenance
activities.
Turn off the water faucets to relieve pressure on
the inlet hoses.
Wipe the inside of washer door with a soft cloth.
As needed, clean the exterior with a rag dipped in luke-
warm water and soap. Never use polish of any kind.
In hard water areas or where heavily soiled items are
frequently washed, you may periodically need to
remove body oils or detergent that has accumulated
in the drum. To remove this build-up, run the washer
through a complete cycle using HOT water and 2 cups
of a non-precipitating water softener.
Periodically, apply a thin coat of paste wax to the inner
door (especially the area that is immediately next to the
door window) to protect it from laundry aid spills and
discoloration.

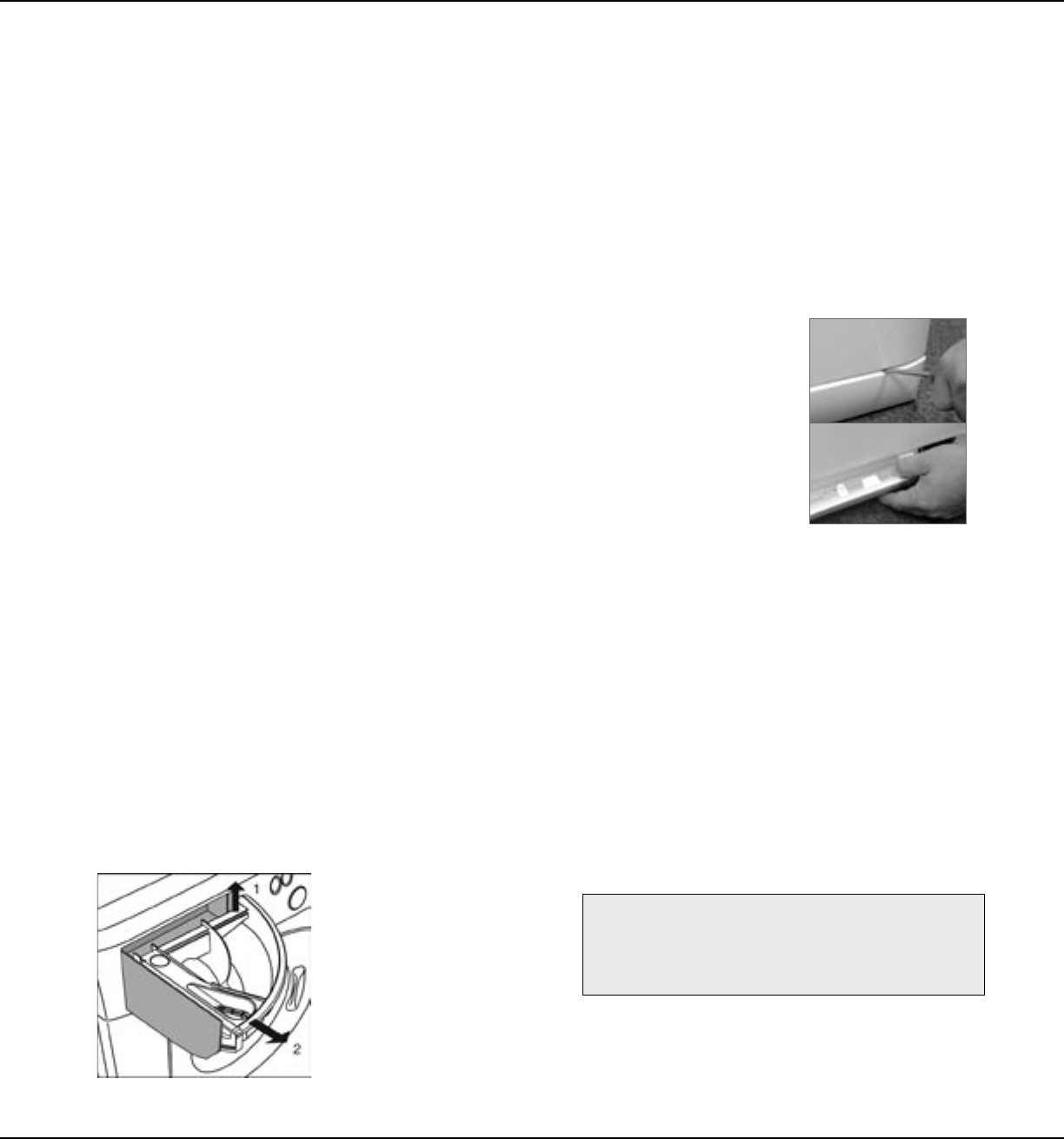

As needed, rinse
buildup of detergent
or other laundry aids
from the dispenser
drawer. To remove the
dispenser drawer, pull
it outwards, as indicat-
ed in the picture. Then
leave it under warm
running water for a
few minutes.
•
•
This washer contains a self-cleaning pump that does
not require any cleaning or maintenance. However,
small objects (like coins, hair clips, keys, etc.) may ac-
cidentally fall into the pump. To avoid possible damage,
they are withheld in an accessible coin trap, located at
the bottom, right corner of the washer.
If needed, follow these instructions to remove items
that may have accidentally been washed and got
caught in the coin trap:
With the washer OFF and
empty, gently ease down
the top of the kick-plate
panel with a flat
blade screwdriver or
plastic putty knife.
Remove the panel by
lifting slightly and pulling
forward.
Place a small pan or towel
under the pump to catch
any water still left in the
pump.
Turn the large knob and then
pull the filter straight out.
When finished cleaning, reinstall the filter and
ensure that it’s securely tightened. Finally, re-fit the
kick-plate panel.
Inspect the inlet hoses yearly. If you see any cracks,
bulges or other signs of wear replace the hose immedi-
ately. Record the hose installation/replacement dates
on hoses for future reference.
1.
2.
3.
4.
5.
With machine power OFF, pour ½ quart of RV-
type antifreeze into washer drum
Close door. Advance to a ‘Spin’
position
Press Button (IN). Wait 1-2 minutes
Press Button (OUT). Unplug washer-dryer
from electrical outlet (or disconnect power)
Turn water supply faucets OFF. Disconnect inlet
hoses from faucets. Drain remaining water from
the hoses.
If currently pumping antifreeze
through a fresh water system
With machine power OFF, turn knob
to HOT
Advance to cycle
Press button (IN). Let machine fill until
antifreeze is in the drum
Advance to ‘RESET’. Wait 5
seconds
Advance to a ‘Spin’ position. Let
the antifreeze drain from the drum
Advance to ‘RESET’. Wait 5
seconds.
Press the button (OUT)
Turn knob to COLD
Repeat steps 2 through 7. .
Reconnect water inlet hoses to corresponding
HOT/COLD faucets. Turn faucets ON. NOTE: Check
water inlet hoses and pump periodically
Plug washer-dryer in to appropriate electrical out-
let- or reconnect power supply
With button in the OFF (OUT) position,
pour ½ TBSP. of powder detergent (or liquid
equiv.) into the ‘Detergent’ compartment inside
the Dispenser Drawer
Advance to cycle
Press button (IN). Allow machine to run
through complete cycle to clean out any remain-
ing antifreeze.
(for RV or marine installs)
The plug is not plugged into the socket, or not making contact.
There has been a power outage.
The fuse has blown.
The door is not closed securely.
The ON-OFF button is not pressed (in)
The Programs dial has not been set correctly
The water supply faucets are not turned on
•
•
•
•
•
•
•
The hose is not correctly connected to the tap.
The inlet hose filter screens need to be cleaned. If work has recently been
carried out on the water piping, or if water is very hard, the filters could be
clogged with particles or debris.
The rubber hoses are kinked or squashed.
•
•
•
Wait for the washer to drain, then the washer
. Set another program. If the knob continues to turn, contact our
Customer Care Department.
•
The drain hose is positioned too low. It must be installed at a height ranging
from 25” to 34”.
The end of the drain hose is under water.
The wall drainage system does not have a breather pipe.
There may be a problem with your drain trap if the washer is installed on an
upper floor of a building.
•
•
•
•
The Easy Iron function is selected
The Coin Trap is clogged
The drain hose is kinked or squashed.
The drain hose is clogged or positioned incorrectly so it is blocking water flow.
•
•
•
•
The shipping bolts and spacers have not been removed.
The washer is not leveled correctly.
•
•
The inlet hoses are not secured properly. They should be tightened by hand but
not forced.
The detergent dispenser needs to be cleaned
The drain hose is not secured properly.
•
•
•
Improper detergent for this washer
Too much detergent has been used
To clear excess suds, set the Programs dial to “Rinse” and allow the machine to
rinse out.
•
•
•
This washer is a complex machine. Repairing it yourself or having a non-authorized person try to repair it could cause
harm to one or more persons and to the machine, and could invalidate the warranty.

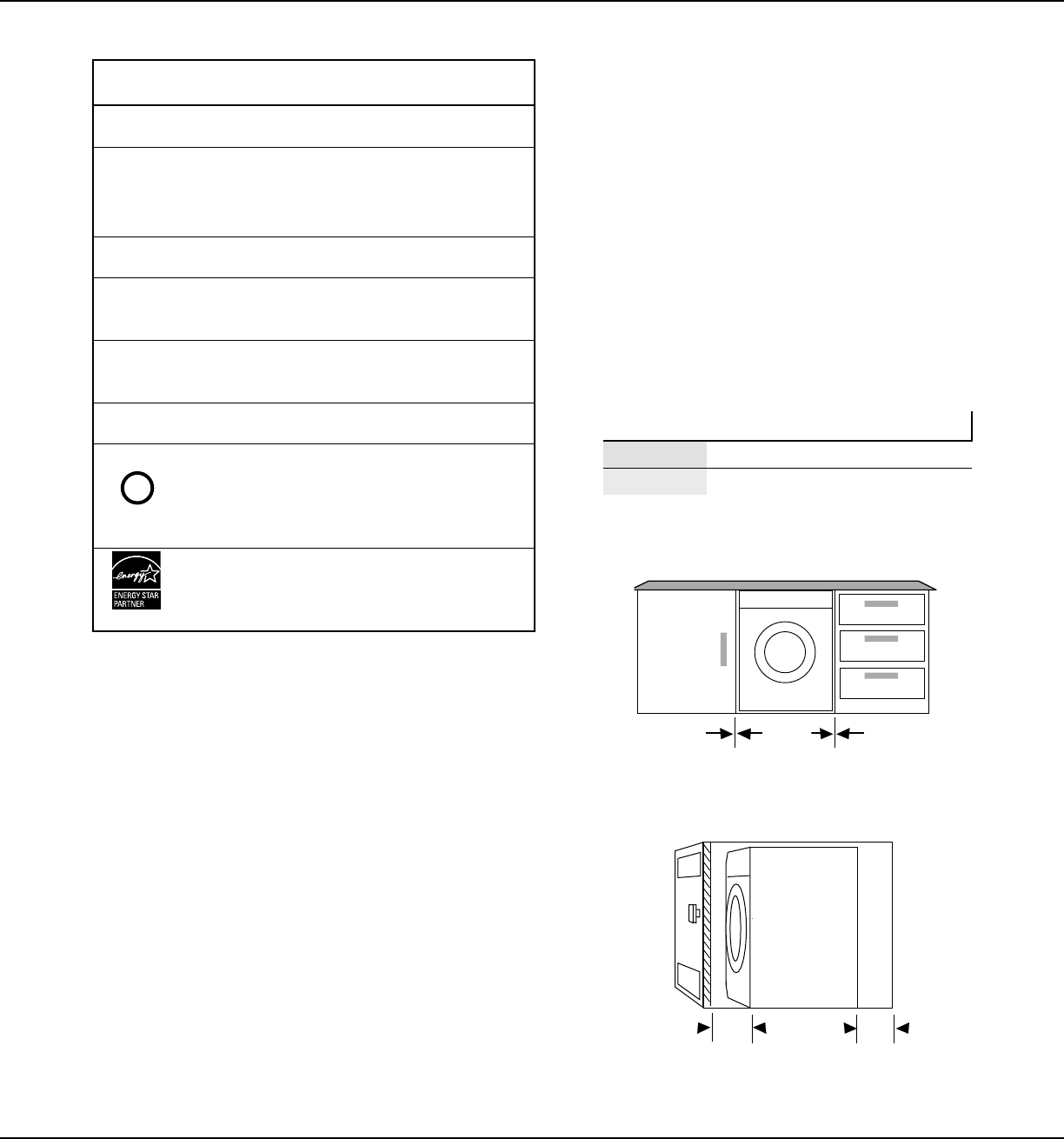

The installation spacing is in inches and is the
minimum acceptable. Additional spacing should
be considered for easy installation, servicing and
compliance with local codes or ordinances. Other
installations must use the minimum dimensions
indicated.
Additional clearances for wall, door and floor
moldings may be required.
AW122
* With legs screwed all
the way in
23 ½”
32 ¾” *
22 1/2”
(59.5 cm)
(85 cm)
(53 cm)
wide
high
deep
2 to 12 lbs (7 kg)
120 V 60 Hz (min. working 108V)
max. absorbed power: 1350 W, 12 A.
max. pressure:
min. pressure:
100 psi (689.6 kPa)
20 psi (137.9 kPa)
up to 1200 rpm
This appliance was tested by UL
and conforms with both Canadian
and U.S. UL safety requirements and
displays their Mark
Indesit Company offers their
customers products with the Energy
Star label
As a result of technological progress, the manufacturer reserves the right
to make any improvements to its appliances without giving prior notice
to its clientele.
23-1/2 in.
(59.7 cm)
0 in.
(0 cm)
0 in.
(0 cm)
0 in.
(0 cm)
33-1/4 in.
(84.5 cm)
*Depth dimension varies with model.
18-1/4 to
24 1/4 in.*
(46.4 to 61.6 cm)
1 in.
(2.54 cm)
1 in.
(2.54 cm)
CULUS LISTED
®

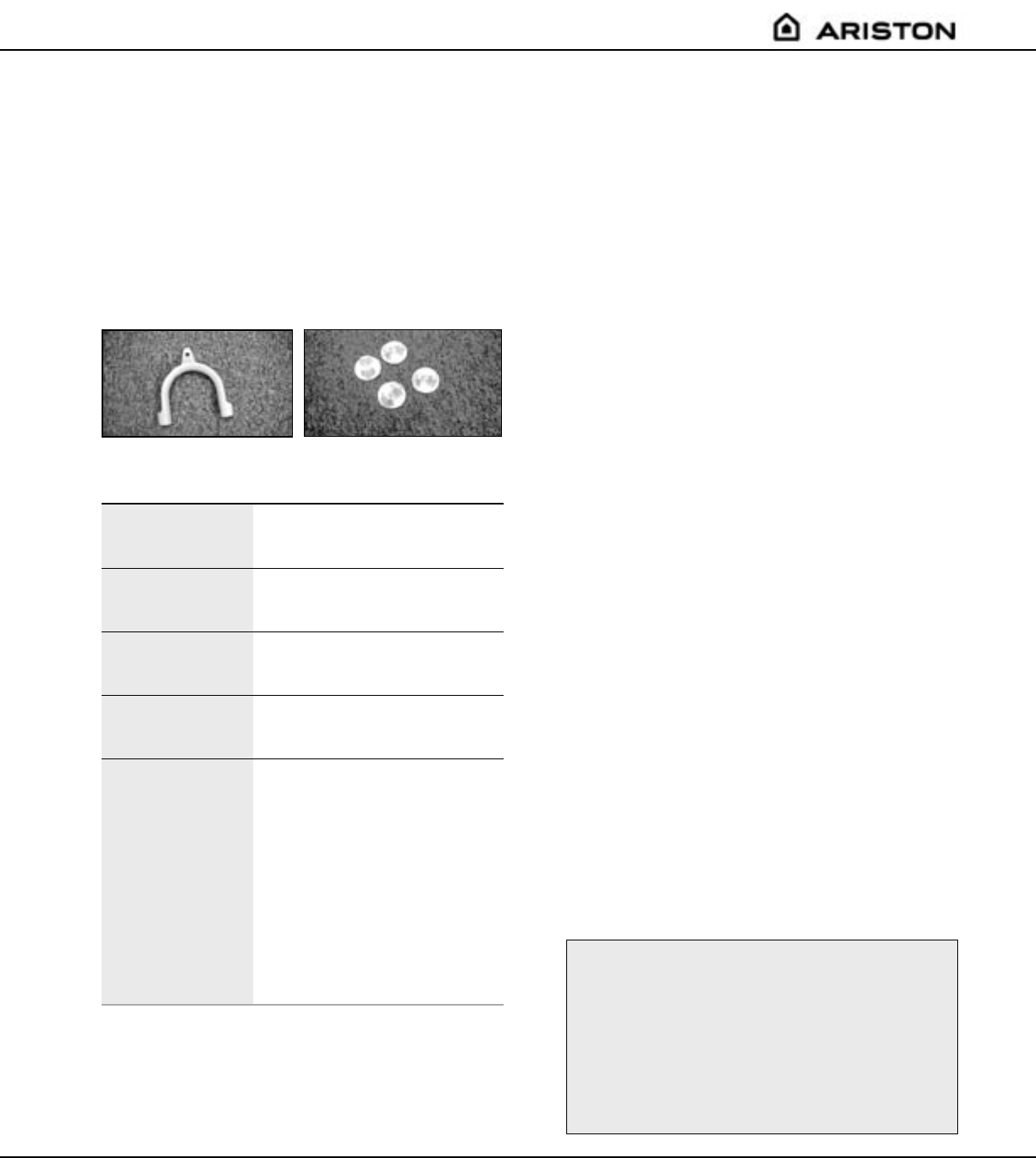

Assemble the necessary tools and supplies before
beginning the washer installation. The parts supplied
are in the drum.
Tools needed for installation:
10mm Wrench, Screwdriver
U-Clamp Transit Bolt Hole Plugs (4)
kit,
Part No.154187104A (8ft , 2.4m)
,
Part No. PI-22, PI-24 (or similar)
Siphon break kit (sold at most
hardware stores)
“Y” connector (sold at most
hardware stores)
, Part No.
MK01. Keeps washer in place dur-
ing travel to prevent:
Kinked inlet hoses
Disconnected dryer vent
hoses
Crushed dryer vent hose
Blocked dispenser drawer
Knobs rubbing against closed
doors
Scuffed cabinet woodwork
•
•
•
•
•
•
Selecting the proper location for the washer-dryer
improves performance and minimizes noise. Proper
installation is your responsibility. The washer-dryer
can be installed under a counter, in a closet, in an
alcove, or in a recessed area with minimum installation
clearances of 0” sides, 1” front/back.
• A water heater set to deliver 120°F (49°C) water to
the washer.
• A grounded electrical outlet located within 6 ft.
(1.8m) of where the power cord is attached to the
back of the washer.
Make sure the electrical socket is accessible so you
can unplug the washer when not in use.
• Hot and cold water faucets located within 8ft. (2.4
m) of the hot and cold water fill valves, and water
pressure of 7.5-100 psi.
• A solid, level floor that can support at least 280
lbs. (127 kg). DO NOT install on carpet. The ma-
chine must rest solid on a sturdy floor for optimum
performance and minimum vibration.
• Enough space to open the door fully so you can load
and unload easily.
• When locating the appli-
ance in a towable trailer or watercraft, position the
machine over the axles or mid-ship where move-
ment is at a minimum. Block the machine to prevent
extreme movement or tipping.

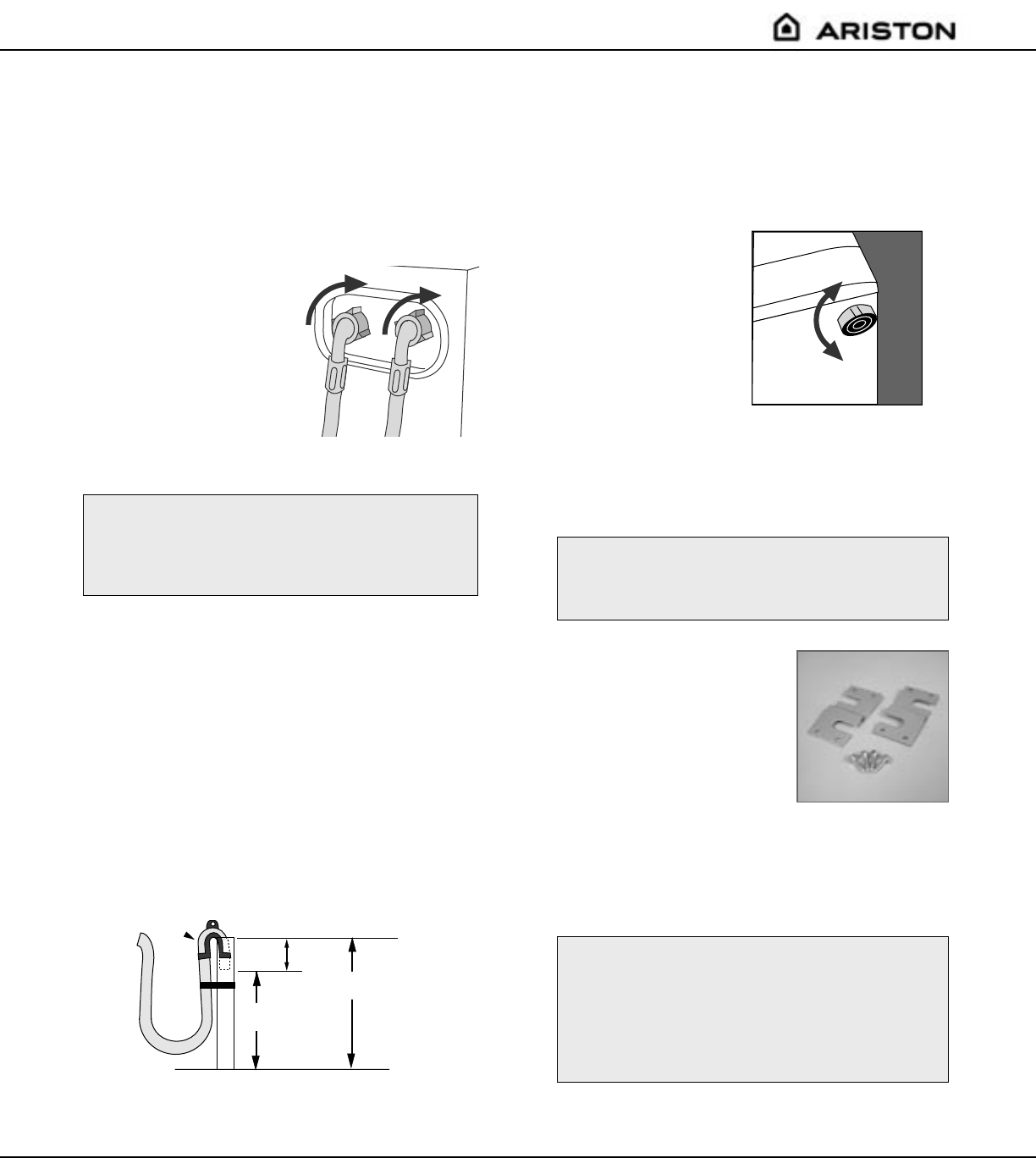

Water pressure must range within 7.5 and 100 psi. If
the water pipes are new or left unused, before con-
necting the machine, run the water until clear to
remove debris. Connect the inlet hose to a cold water
tap having a 3/4” BSP thread. Ensure that there are
rubber washers at the end of each inlet hose. The
L-Shaped end goes on the machine and the straight
ends on the water faucets.

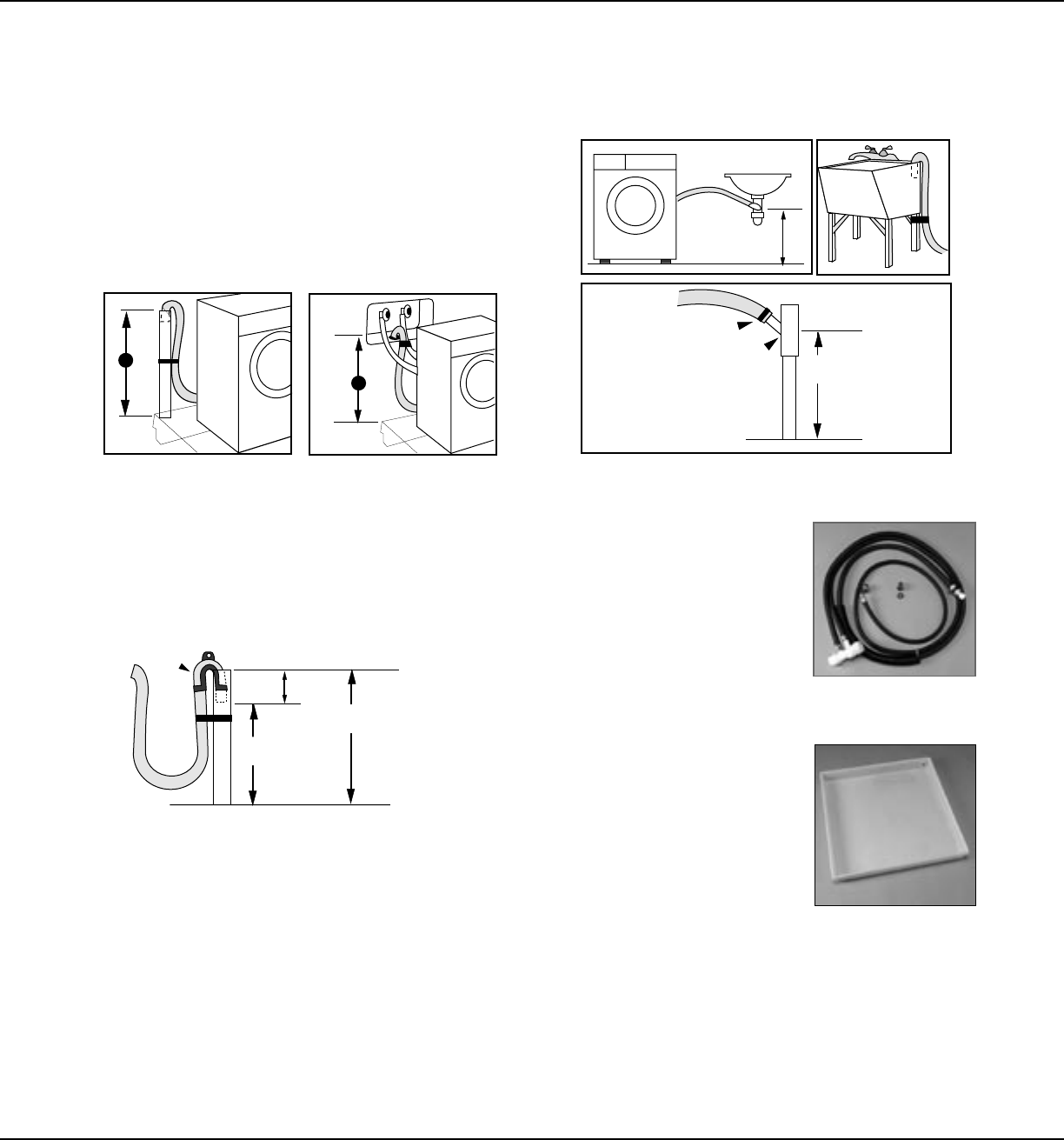

The washer-dryer can be installed using the standpipe
drain system, floor drain system or the sink drain system.
To prevent siphoning, the outlet end of the drain hose
(provided with unit) MUST be at least 20” (50.8 cm) above
the base of the machine. Not more than 6” (15.24 cm) of
the drain hose should be inserted into the drain pipe.
requires a minimum diameter stand-
pipe of 1-1/4” (3.2 cm). The minimum carry-away capacity
can be no less than 7 gal (26.5 L) per minute. The top of
the standpipe must be at least 25 in. (62 cm) high and no
higher than 34” (86 cm) from the bottom of the washer.
system requires a siphon break that may
be purchased separately.
system connected to a garbage disposer
requires a “Y” connector (sold separately).
A & B = 25" (62 cm) min. / 34" (86 cm) max.
Floor Standpipe
Wall Standpipe
A
B
20" (50 cm) min.
with an air break
25" (62 cm) min.
34" (86 cm) max.
6" max.
Standpipe
U-Clamp
20" (51.8 cm) min.
34" (86 cm) max.
Standpipe
"Y" Tail Piece
This connection MUST be
before drain trap and at
least 20" (50.8 cm) above
the floor where washer will
be installed.
Cable tie
Floor Standpipe w/ "Y" Branch Tail Piece Fig. 7
25" (62 cm) min.
with an air break
Laundry Sink Drain
Sink Drain W/ "Y" Branch Tailpiece
Faucet Adapter Kit, Part No.
154187104A
• Supplies water from the
faucet and discharges water
directly into the sink.
• Designed for installations
where washer-dryer hookups
are not available.
• Durable, rotomolded pan
with seamless construction
and reinforced corners.
• Fits under the washer.
• Designed to protect against
water damage in the event
of overflow or flooding.
Drain-A-Way Pan, Part No.
PI-22
• A 120-volt, 60-Hz., AC-only, 15 or 20-amp, fused electrical
supply is required. Time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
• This washer-dryer is equipped with a 6’ power supply
cord having a 3-prong ground plug.
• To minimize possible shock hazard, the cord must be
plugged into a properly grounded (3) prong electrical
outlet capable of 120 Volt, 60 Hz and grounded in ac-
cordance with local codes and ordinances. If a mating
outlet is not available, it is the personal responsibility
and obligation of the customer to have the properly
grounded outlet installed by a qualified electrician. The
outlet shouldn’t be controlled by a wall switch or pull
cord which can be turned off accidentally.
• If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
• Do not ground to a plastic plumbing lines, gas lines or
water pipes.
• Check with a qualified electrician if you are not sure the
washer is properly grounded.
• DO NOT use an extension cord.
• DO NOT have a fuse in the neutral or ground circuit.
• DO NOT install or store this appliance where it will be
exposed to weather or in an area where gasoline or other
flammables are stored.
This appliance must be grounded.
This appliance should be connected to an
Individual Branch Circuit with N.14 AWG Wire
and Protected by 15A fuse
In the event of a malfunction, or breakdown,
grounding will reduce the risk of electric shock
by providing a path of least resistance for
electric current. This appliance is equipped
with a cord having an equipment grounding
conductor and grounding plug. The plug must
be plugged into an appropriate outlet that is
properly installed and grounded in accordance
with all local codes and ordinances. DO NOT
modify the plug provided with the appliance.
If it will not fit the outlet, have the proper out-
let installed by a qualified electrician.
ELECTRICAL SHOCK HAZARD
Plug washer-dryer into a
grounded 3 prong outlet.
Do not remove ground prong.
Do not use adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in death,
fire, or electrical shock.
WARNING
!
First, position the washer so that the rear of the unit is
within approximately 3 feet (90 cm) of the final location.
There are 4 bolts in the rear panel of the washer that sup-
port the suspension system during transportation.
1. Using a wrench, loosen each of the bolts.
2. Once loosened, pull out the bolt, including the rubber
grommet and the plastic spacer covering the bolt.
3. Once all 4 bolts are removed,
close the holes with the transit
bolt hole plugs (provided).
4. Keep the bolts, rubber
grommets and plastic spacers in
a safe place. These items should
be reinstalled if the machine is
transported in the future.
Proper routing of the drain hose protects your floors from
damage due to water leakage. Carefully read and follow
these instructions.
The drain hose is connected to the washer. To prevent
drain water from going back into the washer:
• Do not straighten the drain hose, and do not force
excess drain hose into the standpipe. Hose should be
secure, but loose enough to provide a gap for air.
• When routing the drain hose through cabinets or walls,
use a protective material such as electrical tape to cover
sharp edges that could damage the hose.
Before connecting any hoses, run the faucets until the
water is clear to remove any debris. Make sure the drum is
empty. Please use the new hoses supplied. Old hoses may
cause leaks due to worn out washers or may be split due to
water pressure.
1. Connect the angled ends of the hoses to the inlet
valves at the back of the machine (20mm threads).
Screw on the couplings BY HAND until they are seated
on each gasket.
EXCESSIVE WEIGHT HAZARD
Use two or more people to move
and install the washer-dryer.
Failure to do so can result in back
or other injury
WARNING
!
Drain Hose
2. Attach the hose connected to the ‘H’ valve to the hot
water faucet. Screw on the coupling BY HAND until it is
seated on the gasket. DO NOT OVERTIGHTEN.
3. Attach the hose con-
nected to the ‘C’ valve
to the cold water faucet.
Screw on the coupling
BY HAND until it is
seated on the gasket.
DO NOT OVERTIGHTEN.
4. Turn on the water
faucets and check for
leaks.
1. Drape the power cord over the washer top.
2. Secure the drain hose to the laundry tub leg or
standpipe with a strap or cable-tie.
3. Use the U-Clamp (provided) and insert the drain hose
into the standpipe or sink. DO NOT force excess drain
hose into the standpipe. There should be only 6” of
drain hose in the stand pipe.
After positioning the washer in it’s final installation
location, you must level the washer.
The front feet are self
locking and adjustable.
Your machine will be
noisy if the two front feet
are not adjusted so the
machine stands firm and
level.
1. Tilt the machine
back, leaning it
against the wall.
2. Adjust the front feet up or down to ensure the
washer is resting solid and does not rock side-to-
side or front-to back when the machine is upright.
HC
20" (50 cm) min.
with an air break
25" (62 cm) min.
34" (86 cm) max.
6" max.
Standpipe
U-Clamp
SecureFit Brackets,
Part No. MKO1
• Hook around two front feet
and screw into the floor.
• Designed to keep the washer
from shifting front-to-back or
left-to right.
• Recommended for RV or
Marine Installations.
ELECTRICAL SHOCK HAZARD
Plug washer-dryer into a
grounded 3 prong outlet.
Do not remove ground prong.
Do not use adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in death,
fire, or electrical shock.
WARNING
!
• Check to be sure all parts are now installed. If
there’s an extra part, go back through the steps to
see which step was skipped.
• Check to be sure you have all your tools.
• Dispose/recycle all packaging materials.
• Read this manual.
Instructions and Installation Kit have been re-
moved from the tub.
Transit bolts/spacers have been removed.
Washer is plugged into electrical outlet and is
properly grounded.
Water hoses are connected to the faucets with
inlet screens and washers.
Water is turned on and checked for leaks at
faucet and water valve connections.
Drain hose is properly located into drain facility
and is not collapsed or damaged.
Washer has been leveled.
Test for proper operation
Measure 1 to 2 tbsp. of powdered High Efficiency (HE)
detergent.
• Pour the detergent into
compartment 2 in the
dispenser drawer
.
• Select program “4” on the
dial.
• Select HOT on the
knob
• Press the button
(in). Allow the washer to
complete the full cycle. (It
will take approx. 40 min.)
© Copyright 2006, Westland Sales, Clackamas, OR 97015
www.westlandsales.com
