User Manual
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
1/19 1
BnCOM Confidential Proprietary
SPP Module Manual
BnCOM(BlueandCommunication)
ATcommunicationprotocol
ForSPPmodule
OEM/Integrators Installation
BnCOMCo.,Ltd
Http://www.bncomm.co.kr
TEL)070‐8274‐8901
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
2/19 2
BnCOM Confidential Proprietary
■ History
버전 배포일자 내 역 작성자
1.0.0 2014.09.12 - First Release JTY
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
3/19 3
BnCOM Confidential Proprietary
INDEX
1. OVERVIEW ....................................................................................................................................... 5
1.1. PROTOCOL BASIC RULE ................................................................................................................ 8
2. REQUEST (HOST→BT) PROTOCOL SUMMARY .................................................................... 10
3. NOTIFY (BT→HOST) PROTOCOL SUMMARY ....................................................................... 11
4. GENERAL RESPONSE (BT→HOST) PROTOCOL SUMMARY ............................................. 11
5. REQUEST PROTOCOL DETAIL .................................................................................................. 12
5.1. AT⤶ ............................................................................................................................................. 12
5.2. ATZ⤶ .......................................................................................................................................... 12
5.3. AT&F⤶ ....................................................................................................................................... 12
5.4. AT+CONNECT⤶ ........................................................................................................................ 13
5.5. AT+DATA=N,XXXXX⤶ ............................................................................................................... 13
5.6. AT+SETSLEEP=N⤶ .................................................................................................................. 13
5.7. AT+SETSCAN=N,T0⤶ ............................................................................................................... 13
5.8. AT+SETAUTOCON=E,N,T⤶ ...................................................................................................... 14
5.9. AT+SETSSP=N⤶ ........................................................................................................................ 14
5.10. AT+SETINITMODE=N⤶ ........................................................................................................... 14
5.11. AT+SETPIN=XXXX⤶ .................................................................................................................. 14
5.12. AT+SETLP=E⤶ ........................................................................................................................... 15
5.13. AT+SETNAME=XXXX⤶ ............................................................................................................ 15
5.14. AT+SETUART=B,P,S⤶ ............................................................................................................... 15
5.15. AT+CONNECTMAC=XXXX⤶ ................................................................................................... 15
5.16. AT+SETROS=N⤶ ....................................................................................................................... 16
5.17. AT+SETMODEL=XXXX⤶ ......................................................................................................... 16
5.18. AT+SETPROSTR=XXXX⤶ ........................................................................................................ 16
5.19. AT+SETSERIAL=XXXX⤶ .......................................................................................................... 16
5.20. AT+SETMANUF=XXXX⤶ .......................................................................................................... 16
5.21. AT+SETDEVCLASS=N,V⤶ ....................................................................................................... 17
5.22. AT+GETCP⤶ .............................................................................................................................. 17
5.23. AT+SETLED=N⤶ ....................................................................................................................... 17
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
4/19 4
BnCOM Confidential Proprietary
5.24. AT+GETINFO=N⤶ ..................................................................................................................... 17
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
5/19 5
BnCOM Confidential Proprietary
1. overview
-. Product : SBT-B1 (with BCM-D408EF2 bluetooth module)
-. Frequency : 2.
- Bluetooth version : 2.1+EDR
- Operation temp. : MAX -30 ~ 85
- Supply voltage range : 2.7V ~ 3.6V

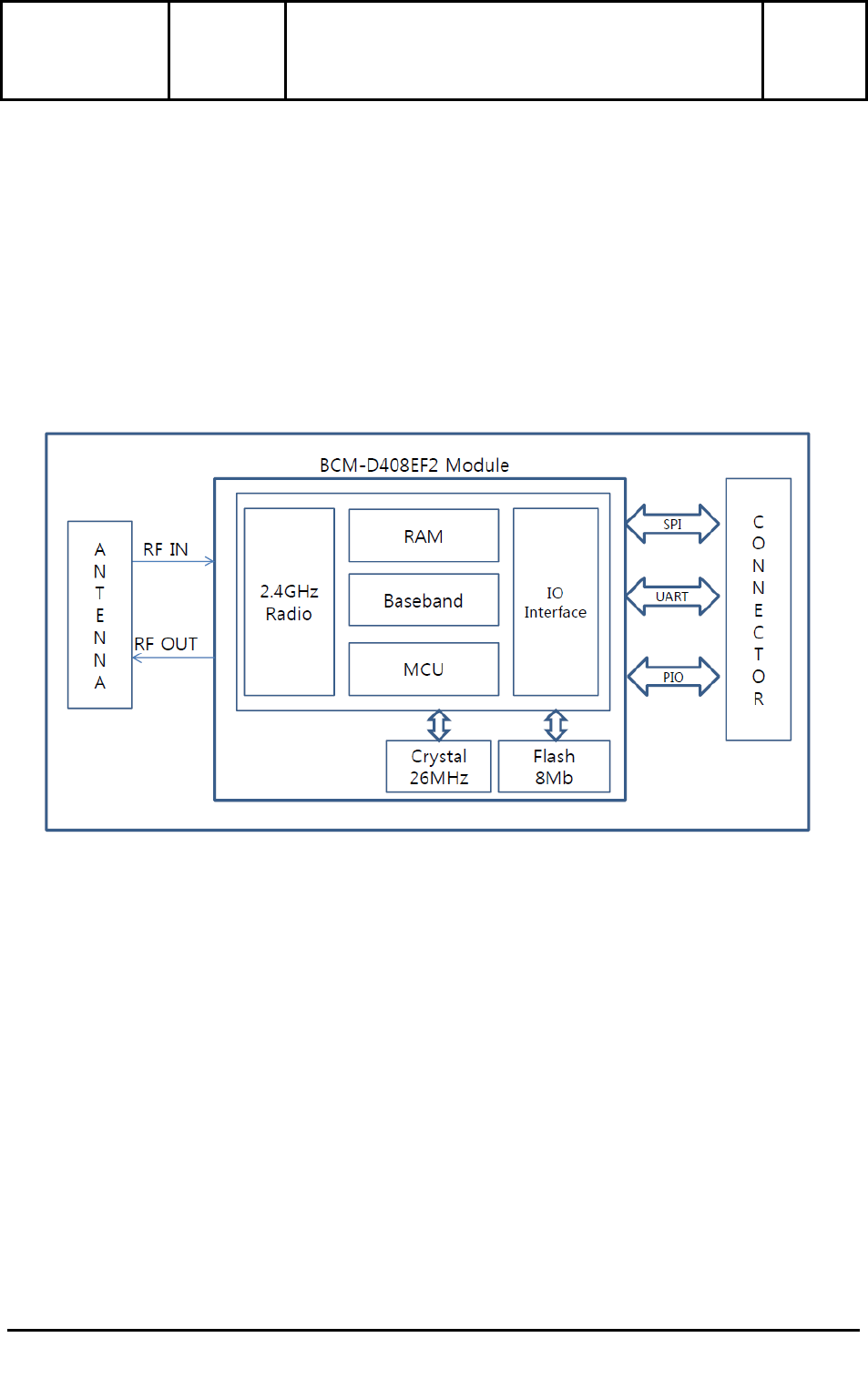

-. Block Diagram
Figure 1 SBT-B1
This module has been granted modular approval for mobile applications. OEM integrators for
host products may use the module in their final products without additional FCC / IC (Industry
Canada) certification if they meet the following conditions. Otherwise, additional FCC / IC
approvals must be obtained.
The host product with the module installed must be evaluated for simultaneous
transmission requirements.
The users manual for the host product must clearly indicate the operating requirements and
conditions that must be observed to ensure compliance with current FCC / IC RF exposure
guidelines.
To comply with FCC / IC regulations limiting both maximum RF output power and human
exposure to RF radiation, use this module only with the included onboard antenna.
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
6/19 6
BnCOM Confidential Proprietary
A label must be affixed to the outside of the host product with the following statements.
This device contains FCCID: WF5SBTB1
This equipment contains equipment certified under ICID: 9080A-
SBTB1
The final host / module combination may also need to be evaluated against the FCC Part 15B
criteria for unintentional radiators in order to be properly authorized for operation as a Part 15
digital device.
This transmitter module has been certified for FCC Part 15 operation; when installed
in a host device, the host manufacturer is responsible for making sure that the host
device with the transmitter installed continues to be compliant with Part 15B unintentional
radiator requirements.
This device complies with Part 15 of the FCC Rules and Industry Canada License-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation of the device.
Caution Statement for Modifications:
CAUTION: Changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules and Industry Canada License-
exempt RSS standard(s). Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Any changes or modifications not expressly approved by the party responsible for
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
7/19 7
BnCOM Confidential Proprietary
compliance could void the user’s authority to operate the equipment.
-. Labeling
- FCC ID: WF5SBTB1 / IC : 9080A-SBTB1
The certification label of a module shall be clearly visible at all times when installed in
the host device.
A label must be affixed to the outside of the host product with the following statements:
"Contains FCC ID: WF5SBTB1"
"Contains IC: 9080A-SBTB1"
- Caution: Exposure to Radio Frequency Radiation.
To comply with RF exposure compliance requirements, a separation distance of at
least 20 cm must be maintained between the antenna of this device and all persons.
*The module is limited to OEM installation only.
OEM integrators must ensure that the end-user has no manual instructions to remove or
install the module. OEM's must comply with FCC marking regulation part 15 declaration of
conformity (Section 2.925(e)).
This module is to be installed only in mobile or fixed applications (Please refer to FCC CFR 47
Part 2.1091(b) for a definition of mobile and fixed devices).
The separate approval is required for all operating configurations, including portable
configurations with respect to FCC CFR 47 Part 2.1093 and different antenna configurations.
The SBT-B1 Module has been designed to operate with the following antenna and gains. Use
with other antenna types or with these antenna types at higher gains is strictly prohibited.
Manufacturer Type of
Antenna
Model Gain (dB)
Type of
Connector
AMOTECH Co., Ltd. Chip Antenna AMAN802012MS02
3.14 Permanent
integral
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
8/19 8
BnCOM Confidential Proprietary
1.1. Protocol Basic Rule
HOST and BT transfer is base from UART(serial port) interface.
UART(serial port) default setting value
Baud rate : 230400bps
Data bit : 8
Parity bit : none
Stop bit : 1
Communication direction
REQUEST (HOST→BT): From HOST to BT
NOTIFY(BT
→ HOST) : From BT to HOST. Notify BT Status
RESPONSE(BT → HOST) : From BT to HOST.
Communication rule
Almost Protocol is combind to ascii. Also It is notify end of command packet attach
carriage return(0x0D,⤶)
Ex) REQUEST – Recently Connected Device : AT+CONNECT
Command AT+CONNECT
Command set A T + C O N N E C T ⤶
Ascii set 0x41 0x54 0x2B 0x43 0x4F 0x4E 0x4E 0x45 0x43 0x54 0x0D
Ex) NOTIFY – iAP Support / BT Initial mode : +StartL
Command
command set + S t a r t L ⤶
ascii set 0x2B 0x53 0x54 0x41 0x52 0x54 0x4C 0x0D
Ex) RESPONSE – REQUEST fail : +ERROR<1>
Command +ERROR<1>
command set + E R R O R < 1 > ⤶
ascii set 0x2B 0x45 0x52 0x52 0x4F 0x52 0x3C 0x31 0x3E 0x0D
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
9/19 9
BnCOM Confidential Proprietary
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
10/19 10
BnCOM Confidential Proprietary
2. REQUEST (HOST→BT) Protocol Summary
프로토콜 설명 비고
AT UART Tx, Rx path Test
ATZ BT reset
AT&F BT factory reset
AT+CONNECT Last connected device reconnection
AT+SETSCAN=n,t0 scan mode setting
: n=0 – Unuse discoverable and page scan
: n=1 – Available discoverable
: n=2 – Available page scan
: n=3 – Available discoverable and page scan
: t0 – (0~180sec)
AT+DATA=n,xxxxx In IAP mode, when send data to iOS device
N : Transmit data length (Max 140 bytes)
XXXX : Transmit Data
Only Local IAP Mode
AT+SETSLEEP=n DeepSleep mode enable / disable
AT+SETAUTOCON=e,n,t BT에서 remote device auto connection
: e – Auto connection setting (0 or 1)
: n – Auto connection retry number (1~50회)
: t – Auto connection retry period time ( 1 ~ 180sec)
AT+SETINITMODE=n BT Connection mode setting
: n=1 – After power on, stay connectable
: n=2 – After power on, stay discoverable and
connectable
: n=3 – After power on, auto connection to last
connected device
AT+SETPIN=xxxx PIN code setting
: xxxx – PIN Number (4~16 character)
AT+SETLP=e Low power mode enable / disable
: e – low power mode (0 or 1)
AT+SETNAME=xxxx Changed local name of device
: xxxx –name string(1~30character)
AT+SETUART=b,p,s HOST UART Setting
: b – Baudrate(1200, 2400, 4800, 9600, 19200, 38400,
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
11/19 11
BnCOM Confidential Proprietary
57600, 115200, 230400 or 460800)
: p – Parity bit(N,E or O)
: s – Stop bit (1 or 2)
AT+CONNECTMAC=xxxx Connect to remote device with Bluetooth specific
address
: xxxx –remote device Bluetooth address(12character)
AT+SETLED=n LED enable or disable. Apply after rebooting. (0:
disable , 1 : enable)
AT+SETDEVCLASS=n,v Device of class setting
N : 0 (Un-store class), 1(stored)
V : ‘P’ (Printer Class), ‘H’ (Headset Class)
AT+GETCP Identify CP chip available
AT+GETINFO=n BT Status
: n – Status or information index (0~17)
3. NOTIFY (BT→HOST) Protocol Summary
프로토콜 설명 비고
+StartH Normal boot mode
+StartL Local iAP boot mode
+StartF Local iAP boot fail mode
+SUCCESS Success send data to iOS device
+FAILn Fail send data to iOS device n : 1 ~5
4. General RESPONSE (BT→HOST) Protocol Summary
프로토콜 설명 비고
+OK REQUEST Successfully
+ERROR<N> REQUEST Error N =1 : BAD_HOST_COMMAND,
N =2 : BAD_HOST_COMMAND_LENGTH,
N =3 : BAD_HOST_COMMAND_PARAMETER,
N =4 : BAD_LOCAL_STATE,
N =5 : NOT_MATCHED_OR_NO_DATA,
N =6 : UNHANDLED_REMOTE_RESPONSE,
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
12/19 12
BnCOM Confidential Proprietary
N =7 : FAIL_OR_BAD_REMOTE_RESPONSE,
N =8 : UNKNOWN_ERROR
5. REQUEST Protocol Detail
5.1. AT⤶
Action HOST and BT check uart
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT⤶
(BT→HOST) : +OK⤶
5.2. ATZ⤶
Action BT Soft Reset
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : ATZ⤶
(BT→HOST) : +OK⤶
BT reset and rebooting
5.3. AT&F⤶
Action Factory Reset
Response +OK⤶ or +ERROR<N>⤶
example -. iAP Mode : iAP Local
-. Sniff Mode : Enable
-. Auto Connection : Enable
-. Init Mode : Discoverable Mode
-. Uart Setting : 230400 bps / Parity None / 1 stop bits
-. Pin code : 0000
-. iAP Manufacturer : BnCOM
-. iAP Model Name : BCM-D408EF2
-. iAP Device Name : Mobile Printer
-. iAP Protocol String : com.mobileprinter.datapath
(HOST→BT) : AT&F⤶
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
13/19 13
BnCOM Confidential Proprietary
(BT→HOST) : +OK⤶
5.4. AT+CONNECT⤶
Action Try connection to Remote device
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+CONNECT⤶
(BT→HOST) : +OK⤶
5.5. AT+DATA=n,xxxxx⤶
Action Data send to Remote iOS device
Response +SUCCESS, or +FAIL<n>
example (HOST→BT) : AT+DATA=5,12345
(BT→HOST) : +SUCCESS⤶ orFAILn
5.6. AT+SETSLEEP=n⤶
Action Sleep setting
Response +OK or +ERROR<n>
example (HOST→BT) : AT+SETSLEEP=0 (disable)
(BT→HOST) : +OK⤶orERRORn
5.7. AT+SETSCAN=n,t0⤶
Action Discoverable and paging scan setting
Response +OK⤶ or +ERROR<N>⤶
example n = 0 Non discoverable and paging scan
n = 1 discoverable.
n=2 page scan
n=3 discoverable and page scan
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
14/19 14
BnCOM Confidential Proprietary
.
(HOST→BT) : AT+SETSCAN=3,0⤶
(BT→HOST) : +OK⤶
5.8. AT+SETAUTOCON=e,n,t⤶
Action Auto connection configuration
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETAUTOCON=1,20,5⤶
(BT→HOST) : +OK⤶
5.9. AT+SETSSP=n⤶
Action Pairing Mode setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETSSP=0⤶
(BT→HOST) : +OK⤶
(BT→HOST) : +Start<x>⤶
5.10. AT+SETINITMODE=n⤶
Action BT connection mode setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETINITMODE=2⤶
(BT→HOST) : +OK⤶
(BT→HOST) : +START⤶
5.11. AT+SETPIN=xxxx⤶
Action BT pin code setting
Response +OK⤶ or +ERROR<N>⤶
example
(HOST→BT) : AT+SETPIN=1234⤶
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
15/19 15
BnCOM Confidential Proprietary
(BT→HOST) : +OK⤶
5.12. AT+SETLP=e⤶
Action Remote device low power mode setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETLP=1⤶
(BT→HOST) : +OK⤶
5.13. AT+SETNAME=xxxx⤶
Action BT local name changed
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETNAME=BnCOM DEMO SPP⤶
(BT→HOST) : +OK⤶
5.14. AT+SETUART=b,p,s⤶
Action UART configuration
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETUART=115200,N,1⤶
(BT→HOST) : +OK⤶
5.15. AT+CONNECTMAC=xxxx⤶
Action BT Connection.
Response +OK⤶ or +ERROR<N>⤶
example
(HOST→BT) : AT+CONNECT=74f07db00001⤶
(BT→HOST) : +OK⤶
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
16/19 16
BnCOM Confidential Proprietary
5.16. AT+SETROS=n⤶
Action BT OS Type Setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETROS=0⤶
(BT→HOST) : +OK⤶
5.17. AT+SETMODEL=xxxx⤶
Action HOST model name setting to BT
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETMODEL=BnCOM_DEMO_SPP⤶
(BT→HOST) : +OK⤶
5.18. AT+SETPROSTR=xxxx⤶
Action protocol string setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETPROSTR=com.bncom.protocol⤶
(BT→HOST) : +OK⤶
5.19. AT+SETSERIAL=xxxx⤶
Action Serial number Setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETSERIAL=123456789⤶
(BT→HOST) : +OK⤶
5.20. AT+SETMANUF=xxxx⤶
Action HOST manufacturer information setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETMANUF=BnCOM⤶
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
17/19 17
BnCOM Confidential Proprietary
(BT→HOST) : +OK⤶
5.21. AT+SETDEVCLASS=n,v⤶
Action BT Module Device of Class setting
Response +OK⤶ or +ERROR<N>⤶
example (HOST→BT) : AT+SETDEVCLASS=1,P⤶
(BT→HOST) : +OK⤶orFAILn
5.22. AT+GETCP⤶
Action Identify CP Chip
Response +OK⤶ or +FAIL<N>⤶
example (HOST→BT) : AT+GETCP⤶
(BT→HOST) : +OK⤶orFAIL
5.23. AT+SETLED=n⤶
Action LED Configuration
Response +OK⤶ or +FAIL<N>⤶
example (HOST→BT) : AT+SETLED=1⤶Enable
(BT→HOST) : +OK⤶orFAIL
5.24. AT+GETINFO=n⤶
Action BT Status Configuration
Response n=0 : +<BT name>⤶
n=1 : +<BT address>⤶
n=2 : +<Remote device name>⤶
n=3 : +<Remote device address>⤶
n=4 : +<Init Mode>⤶
n=5 : +<Uart Setting>⤶
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
18/19 18
BnCOM Confidential Proprietary
n=6 : +<PinCode >⤶
n=7 : +<Power Save mode setting>⤶
n=8 : +<Supervision Time>⤶
n=9 : +<Automatically Connection>⤶
n=10 : +<Hardware Version>⤶
n=11 : +<BT firmware version>⤶
n=12 : SSPorLegacyMode
n=13 : +<Manufacturer>⤶
n=14 : +<Model Number>⤶
n=15 : +<Protocol String>⤶
n=16 : +<Serial Number>⤶
n17:IAPorSPP
n18:ENx,CLASSx
n19:LEDx
example (HOST→BT) : AT+GETINFO=n⤶
n=0 : (BT→HOST) : +BnCOM DEMO SPP
n=1 : (BT→HOST) : +LOCALBD<74f07db00001>
n=2 : (BT→HOST) : +BnCOM Remote Device
n=3 : (BT→HOST) : +REMOTEBD<74f07db00002>
n=4 : (BT→HOST) : +INITMODE<2>
n=5 : (BT→HOST) : +UART<115200,0,0>
n=6 : (BT→HOST) : +0000
n=7 : (BT→HOST) : +PS<0>
n=8 : (BT→HOST) : +ST<2>
n=9 : (BT→HOST) : +AUTOCON<1,5,10>
n=10 : (BT→HOST) : +HWVER<1.0.0>
n=11 : (BT→HOST) : +SWVER<1.0.0>
n=12 : (BT→HOST) : +SSP or +LEGACY
n=13 : (BT→HOST) : +MANU<BnCOM>
n=14 : (BT→HOST) : +MODEL<BnCOM Demo SPP>
n=15 : (BT→HOST) : +PROS<com.bncom.protocol>
n=16 : (BT→HOST) : +SER<000000000000>
n=17 : (BT->HOST) : +IAP or +SPP
n=18 : (BT->HOST) : +EN<0>,CLASS<H>
Customer
SEWOO
Date
2014.12.04
Document
BnCOM Bluetooth SPP Module UART Protocol
Doc. Ver
1.0.0
19/19 19
BnCOM Confidential Proprietary
n=19 : (BT->HOST) : +LED<0>
