arris.com

SBG6580 / SBG6580-2

DOCSIS 3.0 Wireless Gateway

© 2014-2016 ARRIS Enterprises, LLC. All rights reserved.

Next Generation High-Bandwidth Services and Home Networking in a Stylish Package - The SBG6580

SURFboard DOCSIS 3.0 Wireless Gateway enables the delivery of innovative ultra-broadband data and

multimedia services as well as high-bandwidth home networking.

•Easy to Setup and Use

•Plug-and-play installation

•Wi-Fi pairing button for easy Wi-Fi Protected Setup™ (WPS) Wi-Fi connection

•Supports standard Internet browser software

•Front panel LEDs indicate status and simplify troubleshooting

•User-friendly online diagnostics and configuration

•Advanced Services Ready

•DOCSIS 3.0 certified

•Channel bonding of up to eight downstream and four upstream channels

capable of data rates of 343 Mbps in the received (downstream) data stream

and over 100 Mbps in the send (upstream) data stream

•1 GHz-capable tuners

•Supports IPv4 and IPv6 to expand network addressing capabilities

•Versatile and Convenient Backwards compatible to 802.11a/b/g

•Backwards compatible to DOCSIS 1.x and 2.0

•Integrated 802.11n Wi-Fi access point, 2 x 2 MIMO antenna array

•Switched onboard radios: 2.4 or 5 GHz

•Four one-gigabit Ethernet ports enable flexible, high-speed connectivity

•Compatible with Windows®, Macintosh®, and Unix® computers

•Support for multicast IP services

•Support for up to eight SSIDs for flexibility in the home Wi-Fi networks

•Efficient

•Stylish and space-saving enclosure

•Reliable and Secure

•Wi-Fi security WEP/WPA/WPA2

•Advanced firewall with DoS protection and intrusion prevention

•Enhanced security: supports AES traffic encryption

FEATURES:

PRODUCT OVERVIEW

SURFboard® SBG6580

© 2014-2016 ARRIS Enterprises, LLC. All rights reserved.

Dual Radio Operation: The SBG6580 is configured with radio technology that offers 802.11 n at 2.4 GHz and 802.11n at 5 GHz to support

maximum LAN flexibility.

Switched radio operation enables the SBG6580 to work with the lowest common denominator Wi-Fi peripherals, allowing consumers to

network previous- and next-generation computers, gaming consoles, and other peripherals anywhere in the home.

With ARRIS SURFboard integrated home networking solutions, users will experience seamless interaction among devices such as laptops,

PCs, tablets, mobile phones, gaming consoles or any connected device enabling high-quality media streaming, and supporting efficient

sharing of media within and outside of the connected home. Capable of supporting IP-based entertainment services, the SBG6580 enables

the delivery of advanced whole home entertainment services and a consumer’s personal media experiences.

Built-In Security

The SBG6580 is equipped with a number of security features to offer consumers peace of mind, including:

•Firewall with DoS protection and intrusion prevention

•DHCP, NAT, VPN tunneling

•Configurable Wi-Fi security

•WEP/WPA/WPA2

•User-friendly, secure wireless client pairing using WPS

User-friendly Installation

The ARRIS integrated SURFboard solutions include firewall protection and state-of-the-art Wi-Fi network security. Setting up your Wi-Fi

network on the SBG6580 is simple with our easy to use configuration tool and provides best-in-class security to keep your network safe.

Internal MoCA Reject Filter

This feature eliminates the possibility for MoCA interference to the IP Signals with the implementation of an internal 1 GHz low pass filter.

This reduces both the complexity and the cost of installing an external filter. MoCA is being implemented by Cable Operators as a means

to transport video signals to other devices on the network. These signals can interfere with the DOCSIS signal reception by the Gateway.

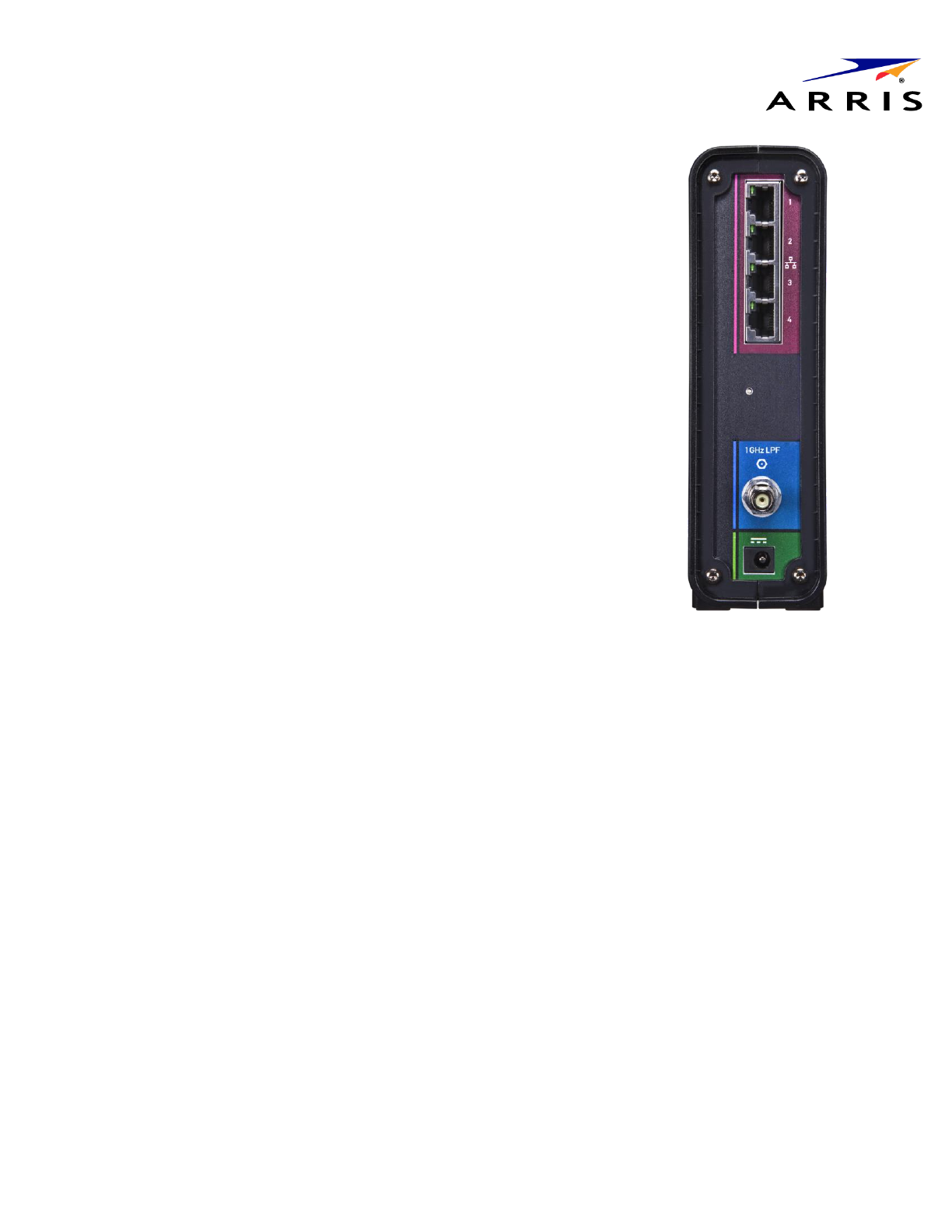

The filter removes the interference before it disrupts IP data. You can verify the presence of the filter by a stamped indication on the rear

panel that reads 1 GHz LPF. This filter will not interfere with any of the IP traffic for which the Gateway is used.

The SURFboard SBG6580 is a fully integrated all-in-one home networking solution

that combines the functionality of a DOCSIS 3.0 cable modem, four-port

10/100/1000 Ethernet switch with advanced firewall, and an 802.11n Wi-Fi access

point in a sleek, stylish package for the sophisticated consumer. It’s the perfect

networking solution for the home, home office, or small business, allowing users to

create custom networks with a high-speed ultra-broadband Internet connection and

the ability to share files and peripheral devices across the home network. Cost-

effective, efficient, and secure, the SBG6580 enables users to maximize the potential

of their existing resources, while benefiting from next generation high-bandwidth

services.

Increased Data Rates

Utilizing the power of DOCSIS 3.0, the SBG6580 enables channel bonding of up to eight

downstream and four upstream channels –which provides data rates of 343 Mbps in the

received (downstream) data stream and over 100 Mbps in the send (upstream) data stream.

The SBG6580 eliminates the need for stand-alone routers, hubs, and access points. Its four,

one-gigabit Ethernet RJ-45 ports, an integrated 802.11n Wi-Fi access point with an internal 2 x

2 MIMO antenna array, and switched on-board radios (2.4 or 5 GHz) enable users to maximize

the high-bandwidth potential of their home or business network.

Wi-Fi Access

One way to avoid the challenges of rewiring or contending with varying wiring in the home is

to eliminate wires altogether. The SBG6580 is equipped with a next-generation 802.11n Wi-Fi

access point, enabling users to easily wirelessly network all of their 802.11 a/b/g/n equipped

devices.

Note: Specifications are subject to change without notice. Copyright Statement: ©2014-2016 ARRIS Enterprises, LLC. All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any

derivative work (such as translation, transformation, or adaptation) without written permission from ARRIS Enterprises, LLC. (“ARRIS”). ARRIS reserves the right to revise this publication and to make changes in content from time to

time without obligation on the part of ARRIS to provide notification of such revision or change. ARRIS and the ARRIS logo are all registered trademarks of ARRIS Enterprises, LLC. Other trademarks and trade names may be used in this

document to refer to either the entities claiming the marks and the names of their products. ARRIS disclaims proprietary interest in the marks and names of others. The capabilities, system requirements and/or compatibility with third-

party products described herein are subject to change without notice. www.arris.com

SURFboard® SBG6580

CUSTOMER CARE

Contact Customer Care for product information and sales:

•United States: 866-36-ARRIS

•International: +1-678-473-5656 365-095-26270 x.3 (rev 09-2016)

DOCSIS Upstream (continued)

S-CDMA Pmin to +56 dBmV (all modulations), where:

Pmin = +17 dBmV, 1280 kHz modulation rate

Pmin = +20 dBmV, 2560 kHz modulation rate

Pmin = +23 dBmV, 5120 kHz modulation rate

Level range per channel (two channels in the TCS)

TDMA Pmin to +54 dBmV (32 QAM, 64 QAM)

Pmin to +55 dBmV (8 QAM, 16 QAM)

Pmin to +58 dBmV (QPSK)

S-CDMA Pmin to +53 dBmV (all modulations), where:

Pmin = +17 dBmV, 1280 kHz modulation rate

Pmin = +20 dBmV, 2560 kHz modulation rate

Pmin = +23 dBmV, 5120 kHz modulation rate

Level range per channel (three or four channels in the TCS)

TDMA Pmin to +51 dBmV (32 QAM, 64 QAM)

Pmin to +52 dBmV (8 QAM, 16 QAM)

Pmin to +55 dBmV (QPSK)

S-CDMA Pmin to +53 dBmV (all modulations), where:

Pmin = +17 dBmV, 1280 kHz modulation rate

Pmin = +20 dBmV, 2560 kHz modulation rate

Pmin = +23 dBmV, 5120 kHz modulation rate

Level range per channel (two channels in the TCS)

TDMA Pmin to +54 dBmV (32 QAM, 64 QAM)

Pmin to +55 dBmV (8 QAM, 16 QAM)

Pmin to +58 dBmV (QPSK)

S-CDMA Pmin to +53 dBmV (all modulations), where:

Pmin = +17 dBmV, 1280 kHz modulation rate

Pmin = +20 dBmV, 2560 kHz modulation rate

Pmin = +23 dBmV, 5120 kHz modulation rate

Level range per channel (three or four channels in the TCS)

TDMA Pmin to +51 dBmV (32 QAM, 64 QAM)

Pmin to +52 dBmV (8 QAM, 16 QAM)

Pmin to +55 dBmV (QPSK)

S-CDMA Pmin to +53 dBmV (all modulations), where:

Pmin = +17 dBmV, 1280 kHz modulation rate

Pmin = +20 dBmV, 2560 kHz modulation rate

Pmin = +23 dBmV, 5120 kHz modulation rate

Output Impedance 75 Ω (nominal)

Frequency Range DOCSIS 5-42 MHz (edge to edge), optional DOCSIS 5

to 65 MHz (edge to edge)

Compatibility

PC PC: 90496, Pentium, or later; Windows 7 / 8 or

Linux® with Ethernet connection (older versions of

Windows, although not specifically supported, will

work with this cable modem)

Macintosh Power PC or later; OS 9 or higher, Ethernet

connection

UNIX Ethernet connection

Home Networking Ethernet router or wireless access point

connectivity via Ethernet port

GENERAL SPECIFICATIONS

Cable Interface F-Connector, female 75 Ω

Network Interface Four One-Gigabit (10/100/1000) Ethernet port

Wi-Fi Interface 802.11n Wi-Fi

(backwards compatible with 802.11a/b/g)

Dimensions 6.6 in x 1.9 in x 6.8 in (167 mm x 50 mm x 171.7 mm)

Regulatory RoHS compliant, FCC, UL listed (U.S. and Canada),

Industry Canada, CE,Underwriters Laboratory

Environmental Certification, CoC compliant, MEPS

Compliant

DOCSIS 3.0 certified (interoperable with DOCSIS 1.0, 1.1, and 2.0)

Input Power

Power 9W (nominal)

North America 105 to 125 VAC, 60 Hz

Outside North America 100 to 240 VAC, 50 to 60 Hz

Environmental

Operating Temperature 32 F to 104 °F (0 °C to 40 °C)

Storage Temperature –22 °F to 158 °F (–30 °C to 70 °C)

Operating Humidity 5 to 95% R.H. (non-condensing)

DOCSIS Downstream

Modulation 64 or 256 QAM

Capture Bandwidth SBG6580 - Dual 32 MHz Capture windows

SBG6580-2 - Full Capture Bandwidth

Maximum Theoretical

Data Rate* DOCSIS

343.072 Mbps (8 channels) / 42.884 (single channel)

@ 256 QAM at 5.36 Msym/s

Bandwidth DOCSIS ≤ 48 MHz

Symbol Rate DOCSIS 64 QAM 5.057 Msym/s; 256 QAM 5.361 Msym/s

Operating Level Range –15 to 15 dBmV

Bonded Channel RF Level Tolerance 10dBmV

Input Impedance 75 Ω (nominal)

Frequency Range DOCSIS 108 to 1002 MHz (edge to edge)

Frequency Plans DOCSIS Annex BJ

Security DOCSIS 3.0 Security (BPI+, EAE, SSD)

Network Management SNMP v2 & v3, TR-069

Provisioning Supports IP addressing using IPv4 and/or IPv6 (dual

stack)

DOCSIS Upstream

Modulation QPSK and 8, 16, 32, 64, 128 QAM, optional 256 QAM

Maximum Channel Rate

DOCSIS

131.072 Mbps (4 channels) / 32.768 Mbps (single

channel): @ 128 QAM at 6.4 MHz

Channel Width 200 kHz, 400 kHz, 800 kHz, 1.6 MHz,3.2 MHz,

6.4 MHz

Symbol Rates 160, 320, 640, 1280, 2560, 5120 ksym/s

Operating Level Range Level range per channel (Multiple Transmit Channel

mode disabled, or only Multiple Transmit Channel

mode enabled with one channel in the TCS)

For information on additional SURFboard products please visit www.SURFboard.com

For product support please visit www.arris.com/consumers

DOCSIS

TDMA Pmin to +57 dBmV (32 QAM, 64 QAM)

Pmin to +58 dBmV (8 QAM, 16 QAM)

Pmin to +61 dBmV (QPSK)
