STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 1
Setting the Standard for Battery Backup Solutions
ARRIS pioneered using Lithium-Ion (Li-Ion) battery technology in DOCSIS® compliant Touchstone® Embedded
Multimedia Terminal Adapters (E-MTAs) in 2003. ARRIS battery back-up solutions optimize E-MTA performance for
lifeline telephony, reduce risk through multiple protection mechanisms, and maximize battery life with proprietary low
power designs. ARRIS superior battery technology ensures that all Touchstone battery-backed E-MTA products provide
unsurpassed quality, safety, and value within the industry.
Lithium-Ion Technology Leadership
ARRIS battery packs come in 2, 4, 6, and 8-cell configurations. ARRIS maintains a comprehensive cell and pack
qualification process, which includes safety qualification testing, electrical performance analysis, and rigorous
manufacturing standards. With ARRIS batteries, Cable Operators can count on hours of dependable voice service during
a local power outage.
Environmentally Friendly ARRIS "Green"
ARRIS is pleased to provide products that meet the Restriction of Hazardous Substances (RoHS) directive. Beyond the
present directive to remove lead and other heavy metals, ARRIS has increased our focus by removing other
environmentally impacting materials from the packaging, cables, and other accessories. Please contact your sales
representative for more information.
In many areas, consumers are not allowed to dispose of lithium-based batteries as household waste. To minimize the
inconvenience of recycling used batteries, ARRIS has partnered with Call2Recycle for proper disposal. For information
about the battery recycling and disposal program, visit the Call2Recycle (http://www.call2recycle.org/) website.
Touchstone®
Quick Reference
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 2
Minimum 8-Hour Hold-up Time by Model
An 8-hour hold-up time means the device can support voice service for at least 8 hours. The actual talk time available is
5 hours. The following factors can affect hold-up time:
Battery age—most batteries have a service life (when the battery can provide the rated hold-up time) of at least 5
years. ARRIS warrants batteries for 1 year.
A high number of charge and discharge cycles—whether caused by frequent outages, or frequently disconnecting
power (by unplugging the unit or putting it on a switched outlet) can reduce battery service life.
Ambient temperature—rated capacity and service life assumes room temperature (72°F or 22°C). Lower
temperatures may increase service life while reducing capacity, and higher temperatures may increase capacity
while decreasing service life.
The following table shows the minimum battery size required to provide an 8-hour hold-up time for each listed model.
The following conditions apply:
The battery is new.
The battery is fully charged.
The battery remains at room temperature: 72°F (22°C) at all times.
Model Minimum Battery for 8-hour Hold-up Time
Model # Part # (single) Part # (10-pack)
TM602G BPB022S 790513 718003
TM604G BPB044S 790512 718005
TM608G BPB044S 790512 718005
WTM652G BPB026S 794068 789699
TM722G BPB044S 790512 718005
TM802G BPB026S 794068 789699
TM804G BPB026S 794068 789699
TM822G BPB026S 794068 789699
TG852G BPB026S 794068 789699
TG862G BPB026S 794068 789699
TM1602G, TM3202G BPB044S 790512 718005
TG1662G, TG1672G,
TG1682G, TG2472G
BPB044S 790512 718005
When installing or replacing a battery in a Touchstone device, it typically takes up to 72 hours to calibrate and charge.
The device repeats the calibration cycle:
After the battery has been totally depleted.
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 3
Approximately every 6 months, as part of routine battery maintenance.
On loss of AC power, all units shut down data services (WiFi, Ethernet, and USB as applicable) either immediately or
after several minutes depending on model. If continued data service during an outage is required, use a UPS to maintain
AC power.
While operating on battery power, the Touchstone® E-MTA supports analog telephones plugged into a telephone jack.
However, cordless telephones or other phones that require AC power will not work unless powered by their own backup
power source.
The following table provides detailed information about battery support and hold-up times per model for each
supported battery type.
Model # BPB022S BPB026S BPB044S BPB044H BPD066H BPB088S BPC088S BPD088H
Part # (single) 790513 794068 790512 - - 790514 - 802251
Part # (10-pack) 718003 789699 718005 722841 785170 721192 722842 785171
Capacity (Ah) 2.2 2.6 4.4 4.4 6.6 8.8 8.8 8.8
TM502
Idle 5 5 10 10 - - - -
1 line off-hook 3 3 6 6 - - - -
2 lines off-hook 2 2 4 4 - - - -
TM504
Idle 4 4 8 - - 16 - -
1 line off-hook 3 3 6 - - 12 - -
2 lines off-hook 2 2 4 - - 8 - -
3 lines off-hook 1.75 1.75 3.5 - - 7.5 - -
4 lines off-hook 1.5 1.5 3 - - 7 - -
WTM552
Idle 5 5 10 - - - - -
1-line off-hook 3 3 6 - - - - -
2-lines off-hook 2 2 4 - - - - -
TM602v2
Idle 8 8 12 12 - 24 - -
1-line off-hook 5 5 8 8 - 16 - -
2-lines off -hook 4 4 6 6 - 13 - -
DTM602
Idle 4 5 8 8 - - - -
1-line off-hook 2.5 3 5 5 - - - -
2-lines off-hook 1.5 2 4 4 - - - -
TM604
Idle 6 7 12 12 - 24 - -
1-line off-hook 4 5 8 8 - 16 - -
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 4
Model # BPB022S BPB026S BPB044S BPB044H BPD066H BPB088S BPC088S BPD088H
Part # (single) 790513 794068 790512 - - 790514 - 802251
2-lines off-hook 3.5 4.25 7 7 - 14 - -
3-lines off-hook 3 3.5 6 6 - 12 - -
4-lines off-hook 2.5 3 5 5 - 10 - -
WTM652
Idle 6 8 12 12 - - - -
1-line off-hook 3.75 5 7.75 7.75 - - - -
2-lines off-hook 3 4 6 6 - - - -
TM608
Idle - - 8 8 - - 16 -
1-line off-hook - - 6 6 - - 12 -
2-lines off-hook - - 4 4 - - 8 -
3-lines off-hook - - 3.25 3.5 - - 7 -
4-lines off-hook - - 2.75 3 - - 5.5 -
TM722
Idle 4 4 81 82 122 - - 16
1-line off-hook 3.25 3.5 6.5 6.5 9.75 - - 13
2-lines off-hook 2.75 3 5.5 5.5 8.25 - - 11
TM802
Idle 6 8 12 12 18 - - 24
1-line off-hook 4 6 8 8 12 - - 16
2-lines off-hook 3 4 6 6 10 - - 14
TM822
Idle 6 8 12 12 18 - - 24
1-line off-hook 4 6 8 8 12 - - 16
2-lines off-hook 3 4 6 6 10 - - 14
TM804
Idle 6 6 12 12 18 - - 24
1-line off-hook 4 6 8 8 12 - - 16
2-lines off-hook 3.5 3.5 7 7 10 - - 14
3-lines off-hook 3 3 6 6 8 - - 12
4-lines off-hook 2.5 2.5 5 5 6 - - 10
TG852
Idle 6 8 12 12 - - - -
1-line off-hook 4 6 8 8 - - - -
2-lines off-hook 3 4 6 6 - - - -
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 5
Model # BPB022S BPB026S BPB044S BPB044H BPD066H BPB088S BPC088S BPD088H
Part # (single) 790513 794068 790512 - - 790514 - 802251
TG862
Idle 6 8 12 12 - - - -
1-line off-hook 4 6 8 8 - - - -
2-lines off-hook 3 4 6 6 - - - -
TM1602/TM3202
Idle 4 4 8 8 12 16 16 -
1-line off-hook 3 3 6 6 9 12 12 -
2-lines off-hook 2.5 2.5 5.5 5.5 8 10 10 -
TG1652/TG1662/TG1672/TG1682/TG2472
Idle 4 4 8 8 - - - -
1-line off-hook 3 3 6 6 - - - -
2-lines off-hook 2.5 2.5 5.5 5.5 - - - -
Notes:
1. The BPB044S will function in the TM722, but only charges at the standard rate.
2. The BPB044H is a high charge 4-cell pack intended for the TM722; it charges at the standard rate in other models.
On loss of AC power, E-MTA units shut down data services (configurable; default 15 minutes or less, depending on the
model).
"-" indicates battery not applicable or supported on this E-MTA model.
Getting Battery Information
Battery status information is available on the Touchstone device's Registration Status Screen. To access this screen:
1. Access the HSD pages as follows:
- Gateway devices: Using a web browser, access http://192.168.0.1/ and click the HSD tab at the top of the page.
- Other devices: Using a web browser, access http://192.168.100.1/ You may have to manually adjust your
computer's IP address to (for example) 192.168.100.6 to access the HSD pages.
2. Click the CM State link below the ARRIS banner.
3. Scroll down, if necessary, to see the Power Supply Telemetry and Battery Test State information at the bottom of
the page. The expected states are:
- Power Supply Telemetry: TELEMETRY NORMAL
- Battery Test State: Not Currently Under Battery Test
The latest version of your Touchstone guide should list all telemetry and test states. Download a guide from ARRIS
documentation (http://www.arris.com/support/guides/).
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 6
Ordering Information
To order upgraded or replacement batteries, visit the ARRIS battery website (http://shop.surfboard.com/).
Model
Number
Description Part # (single) Part # (10-
pack)
BPB022S Touchstone Li-Ion Battery Pack, 2-Cell, 8.4V,
2200 mAH, Standard Charge
790513 718003
BPB026S Touchstone Li-ion Battery Pack, 2-Cell, 8.4 V,
2600 mAH, Standard Charge
794068 789699
BPB044S Touchstone Li-Ion Battery Pack, 4-Cell, 8.4V,
4400 mAH, Standard Charge
790512 718005
BPB044H Touchstone Li-Ion Battery Pack, 4-Cell, 8.4V,
4400 mAH, High Charge
- 722841
BPD066H Touchstone Li-Ion Battery Pack, 6-Cell, 8.4V,
6600 mAH, High Charge
- 785170
BPB088S Touchstone Li-Ion Battery Pack, 8-Cell, 8.4V,
8800 mAH, Standard Charge
790514 721192
BPC088S Touchstone Li-Ion Battery Pack, 8-Cell, 8.4V,
8800 mAH, Standard Charge
- 722842
BPD088H Touchstone Li-Ion Battery Pack, 8-Cell, 8.4V,
8800 mAH, High Charge
802251 785171
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 7
Technical Specifications
This section provides a brief overview of the batteries available for Touchstone products. For more detailed information
about battery operation, see the Battery Reference.
Visual / Dimension Specifications
Note: photos are not to scale when document is printed.

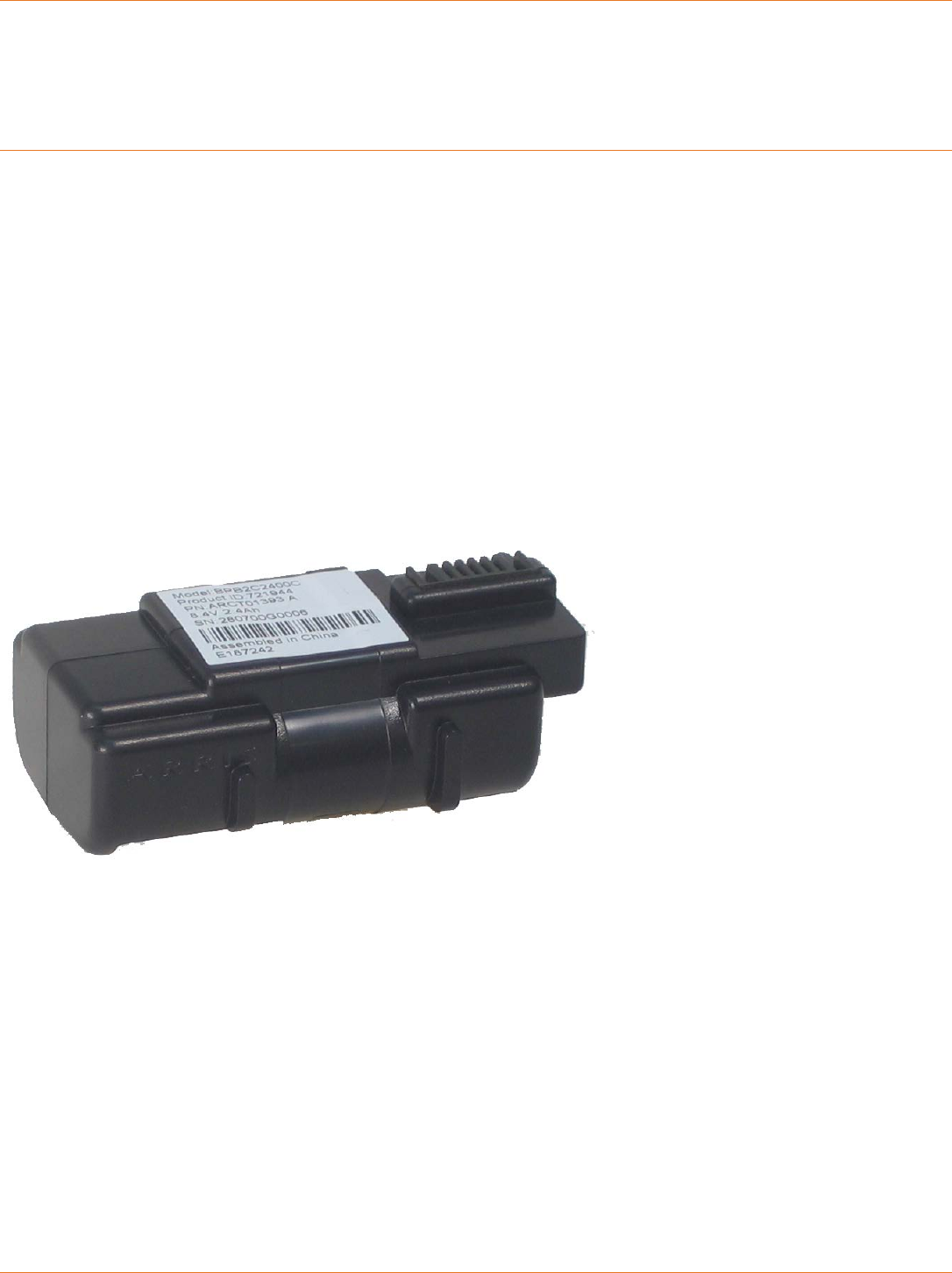

Model BPB022S
Ordering codes:
10-pack: 718003
Single: 790513
Dimensions (H x W x D):
in. : 1.2 x 3.1 x 1.8
cm: (3.1 x 7.9 x 4.7)
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 8

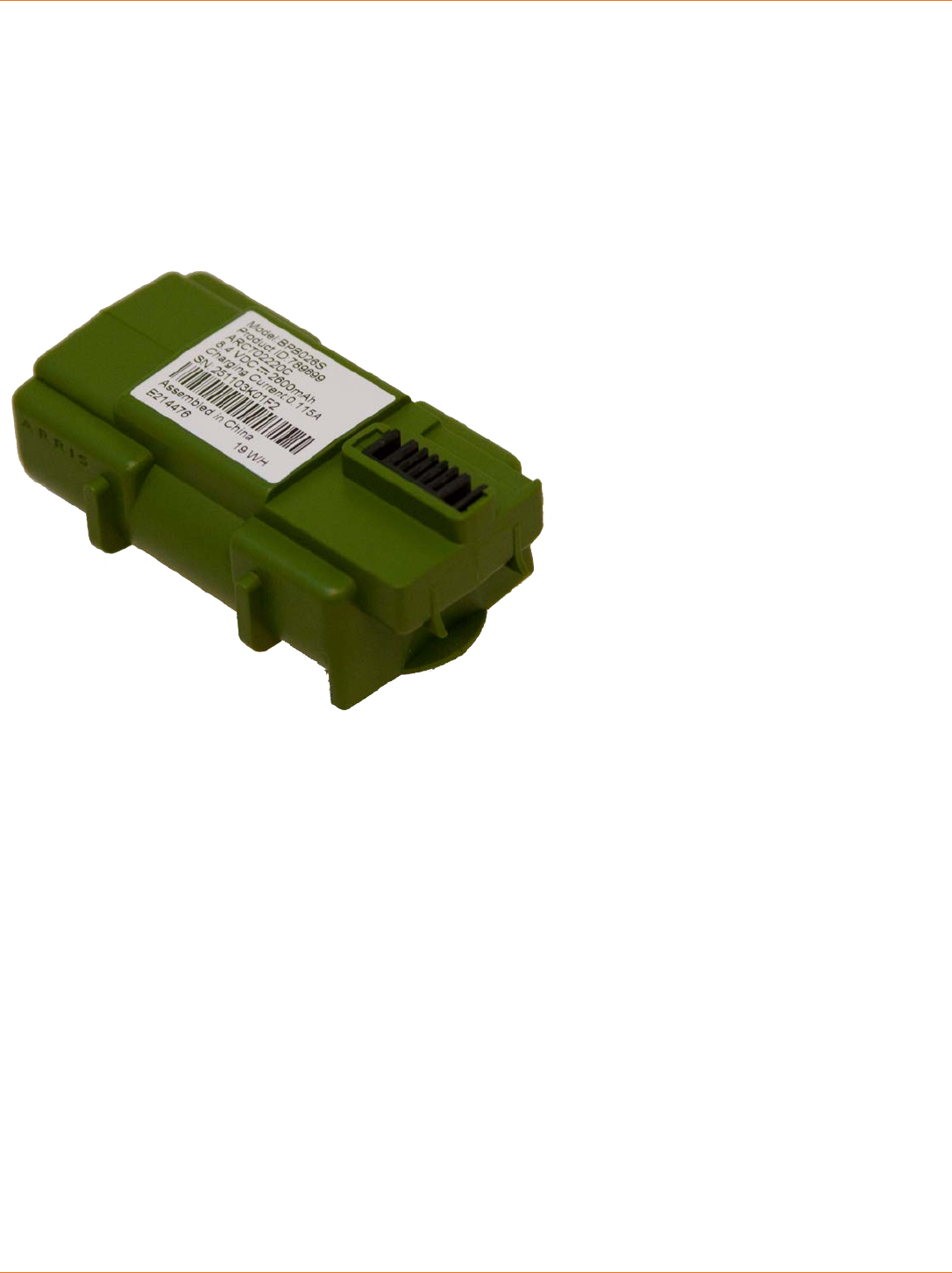

Model BPB026S
Ordering codes:
10-pack: 789699
Single: 794068
Dimensions (H x W x D):
in. : 1.2 x 3.1 x 1.8
cm: (3.1 x 7.9 x 4.7)
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 9

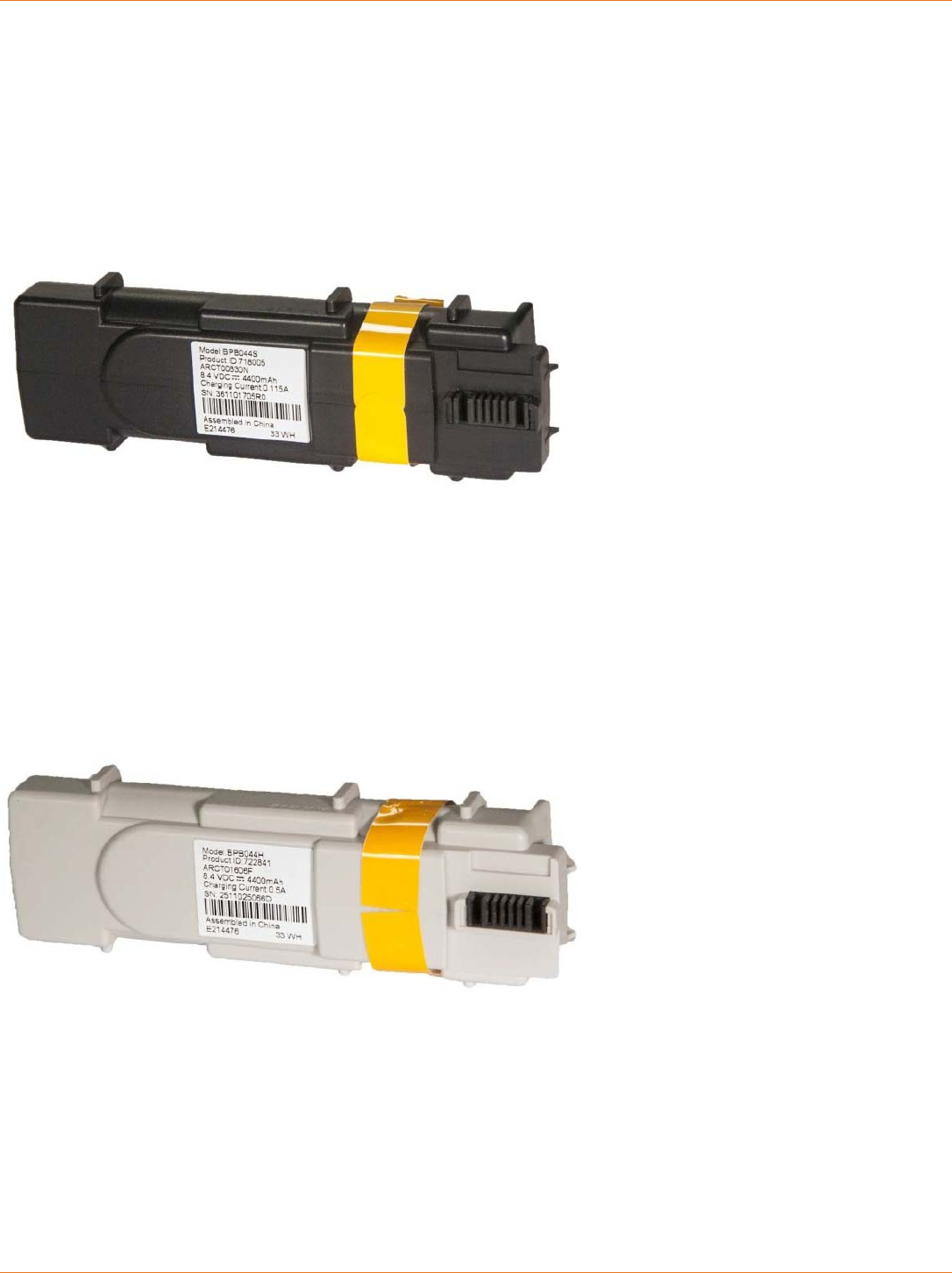

Model BPB044S
Ordering codes:
10-pack: 718005
Single: 790512
Dimensions (H x W x D):
in. : 1.2 x 5.7 x 1.8
cm: (3.1 x 14.5 x 4.7)
Model BPB044H
Ordering codes:
10-pack: 722841
Dimensions (H x W x D):
in. : 1.2 x 5.7 x 1.8
cm: (3.1 x 14.5 x 4.7)
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 10

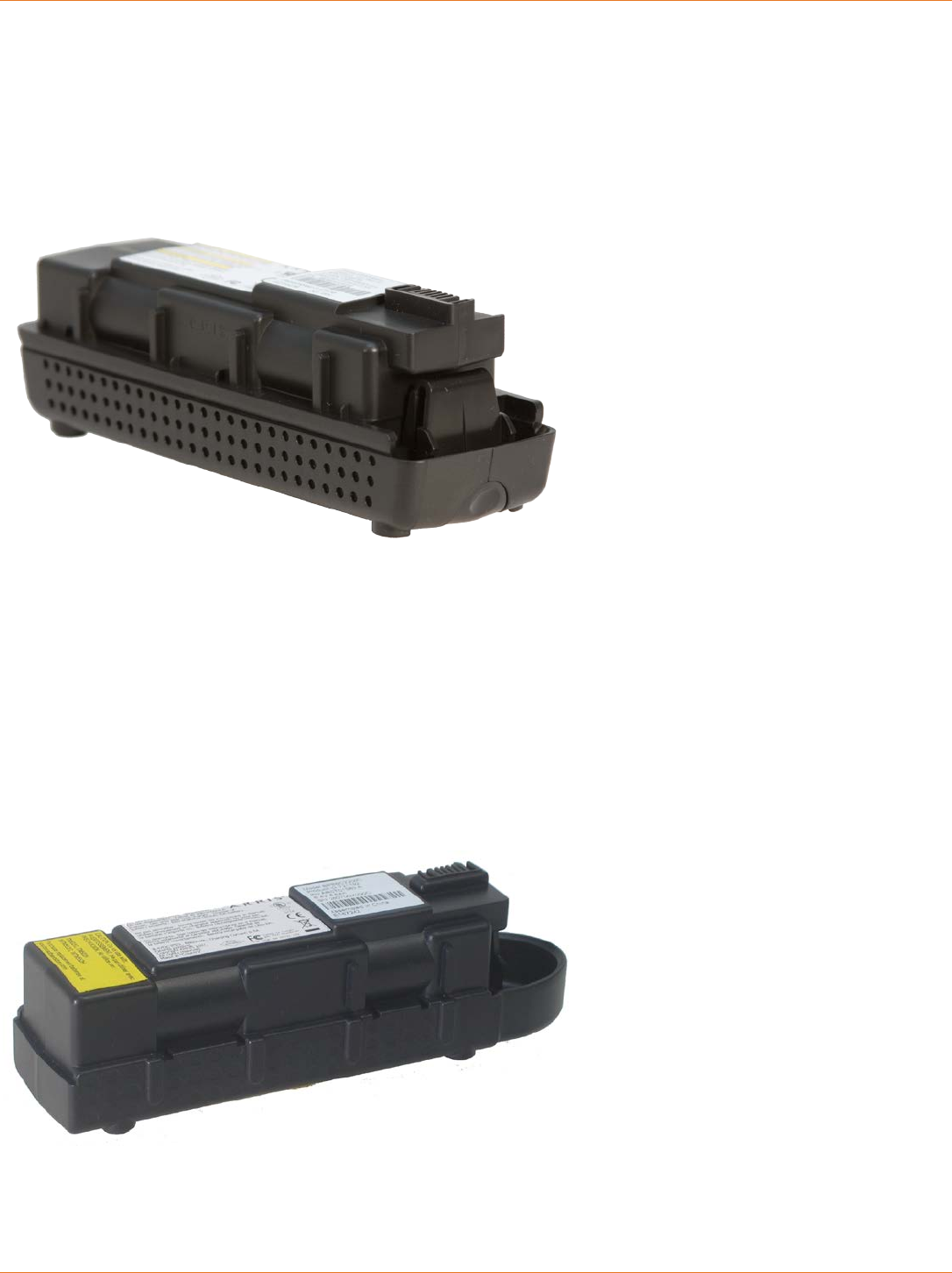

Model BPD066H
Ordering codes:
10-pack: 785170
Dimensions (H x W x D):
in. : 6.3 x 2.0 x 2.1
cm: (16.0 x 5.1 x 5.3)

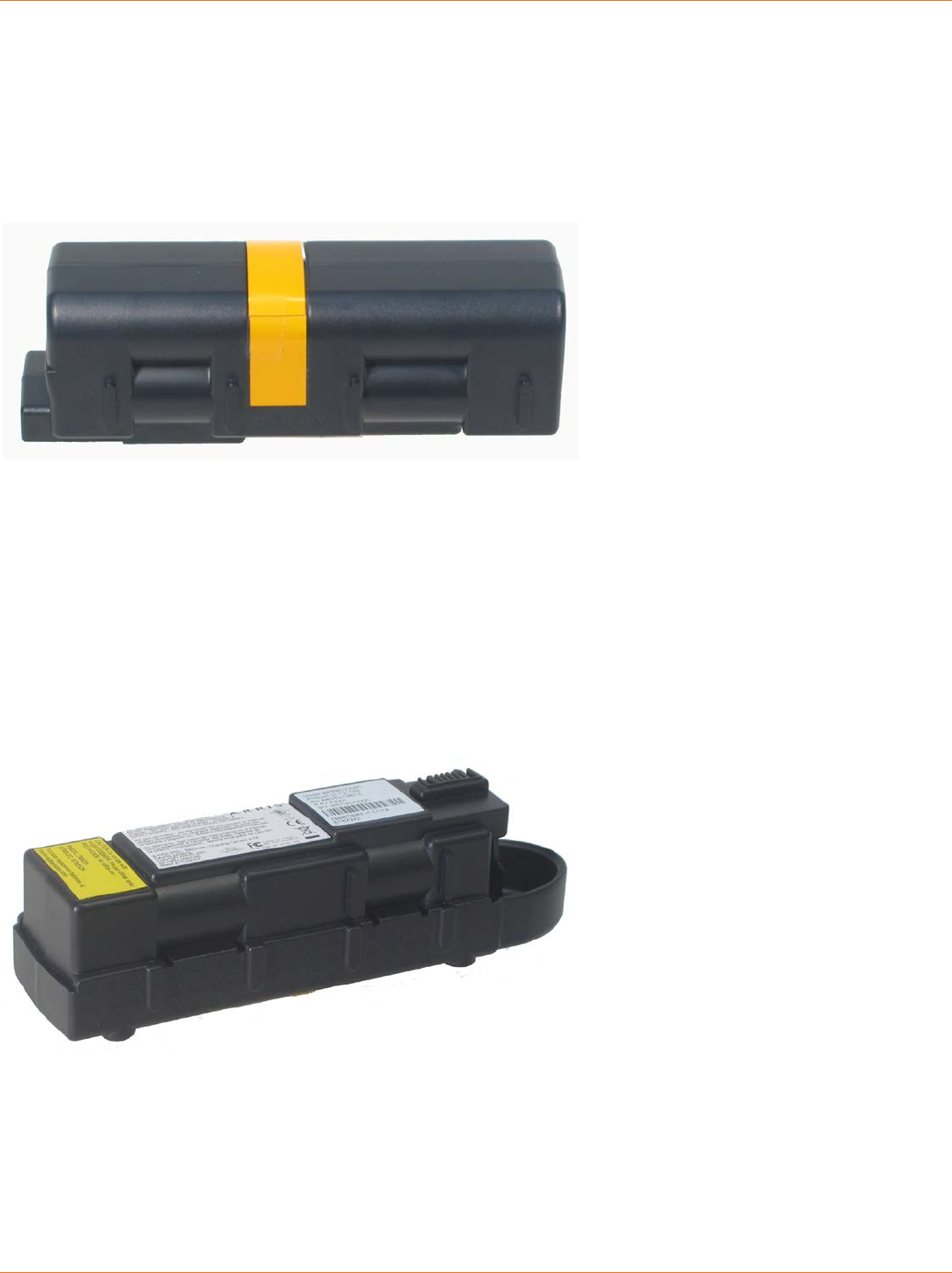

Model BPB088S
Ordering codes:
10-pack: 721192
Single: 790514
Dimensions (H x W x D):
in. : 2.0 x 6.9 x 2.0
cm: (5.1 x 17.6 x 5.1)
Touchstone®
STANDARD Revision 2 © 2016 ARRIS Enterprises LLC. All Rights Reserved. 11
Model BPC088S
Ordering codes:
10-pack: 722842
Dimensions (H x W x D):
in. : 2.0 x 2.0 x 6.9
cm: (5.0 x 4.7 x 14.4)
Model BPD088H
Ordering codes:
10-pack: 785171
Single: 802251
Dimensions (H x W x D):
in. : 6.3 x 2.0 x 2.1
cm: (16.0 x 5.1 x 5.3)
