Artin Co 726502R RC Car User Manual

Artin Industrial Co Ltd RC Car

User Manual

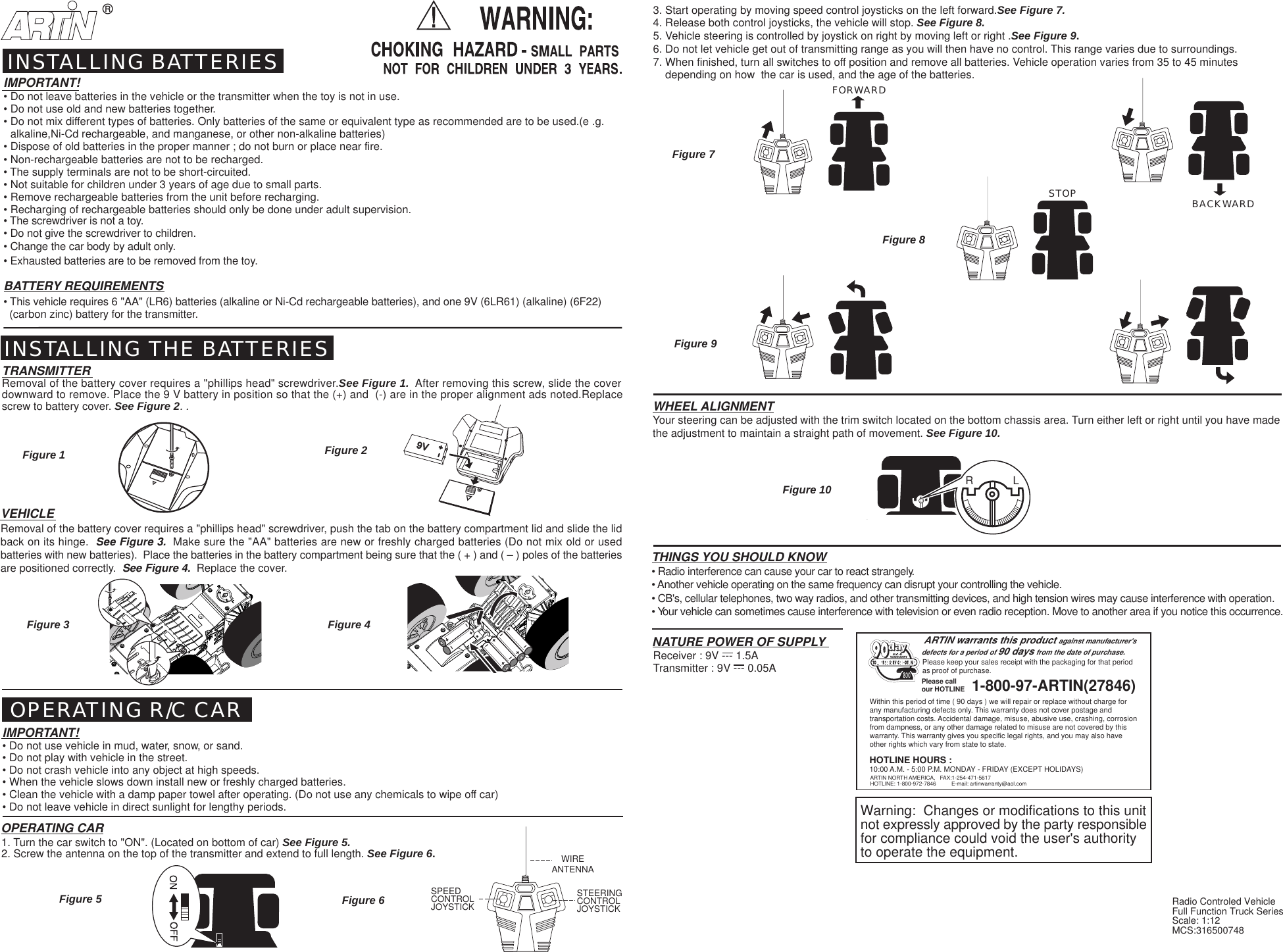

BACKWARDFORWARDSTOP®R LVEHICLERemoval of the battery cover requires a "phillips head" screwdriver, push the tab on the battery compartment lid and slide the lidback on its hinge. See Figure 3. Make sure the "AA" batteries are new or freshly charged batteries (Do not mix old or usedbatteries with new batteries). Place the batteries in the battery compartment being sure that the ( + ) and ( – ) poles of the batteriesare positioned correctly. See Figure 4. Replace the cover.9V9VRadio Controled VehicleFull Function Truck SeriesScale: 1:12MCS:316500748WIREANTENNASTEERINGCONTROLJOYSTICKSPEEDCONTROLJOYSTICKFigure 5Figure 1 Figure 2Figure 7Figure 3 Figure 4Figure 10Figure 93. Start operating by moving speed control joysticks on the left forward.See Figure 7.4. Release both control joysticks, the vehicle will stop. See Figure 8.5. Vehicle steering is controlled by joystick on right by moving left or right .See Figure 9.6. Do not let vehicle get out of transmitting range as you will then have no control. This range varies due to surroundings.7. When finished, turn all switches to off position and remove all batteries. Vehicle operation varies from 35 to 45 minutes depending on how the car is used, and the age of the batteries.Figure 6INSTALLING BATTERIESINSTALLING THE BATTERIESTRANSMITTERRemoval of the battery cover requires a "phillips head" screwdriver.See Figure 1. After removing this screw, slide the coverdownward to remove. Place the 9 V battery in position so that the (+) and (-) are in the proper alignment ads noted.Replacescrew to battery cover. See Figure 2. . OPERATING R/C CARIMPORTANT!• Do not use vehicle in mud, water, snow, or sand.• Do not play with vehicle in the street.• Do not crash vehicle into any object at high speeds.• When the vehicle slows down install new or freshly charged batteries.• Clean the vehicle with a damp paper towel after operating. (Do not use any chemicals to wipe off car)• Do not leave vehicle in direct sunlight for lengthy periods.OPERATING CAR1. Turn the car switch to "ON". (Located on bottom of car) See Figure 5.2. Screw the antenna on the top of the transmitter and extend to full length. See Figure 6.THINGS YOU SHOULD KNOW• Radio interference can cause your car to react strangely.• Another vehicle operating on the same frequency can disrupt your controlling the vehicle.• CB's, cellular telephones, two way radios, and other transmitting devices, and high tension wires may cause interference with operation.• Your vehicle can sometimes cause interference with television or even radio reception. Move to another area if you notice this occurrence.WHEEL ALIGNMENTYour steering can be adjusted with the trim switch located on the bottom chassis area. Turn either left or right until you have madethe adjustment to maintain a straight path of movement. See Figure 10.IMPORTANT!• Do not leave batteries in the vehicle or the transmitter when the toy is not in use.• Do not use old and new batteries together.• Do not mix different types of batteries. Only batteries of the same or equivalent type as recommended are to be used.(e .g.alkaline,Ni-Cd rechargeable, and manganese, or other non-alkaline batteries)• Dispose of old batteries in the proper manner ; do not burn or place near fire.• Non-rechargeable batteries are not to be recharged.• The supply terminals are not to be short-circuited.• Not suitable for children under 3 years of age due to small parts.• Remove rechargeable batteries from the unit before recharging.• Recharging of rechargeable batteries should only be done under adult supervision.• The screwdriver is not a toy.• Do not give the screwdriver to children.• Change the car body by adult only.• Exhausted batteries are to be removed from the toy.BATTERY REQUIREMENTS• This vehicle requires 6 "AA" (LR6) batteries (alkaline or Ni-Cd rechargeable batteries), and one 9V (6LR61) (alkaline) (6F22) (carbon zinc) battery for the transmitter.Figure 8Transmitter : 9V --- 0.05ANATURE POWER OF SUPPLYReceiver : 9V --- 1.5AWithin this period of time ( 90 days ) we will repair or replace without charge forany manufacturing defects only. This warranty does not cover postage andtransportation costs. Accidental damage, misuse, abusive use, crashing, corrosionfrom dampness, or any other damage related to misuse are not covered by thiswarranty. This warranty gives you specific legal rights, and you may also haveother rights which vary from state to state.ARTIN NORTH AMERICA, FAX:1-254-471-5617HOTLINE: 1-800-972-7846 E-mail: artinwarranty@aol.comPlease keep your sales receipt with the packaging for that periodas proof of purchase.ARTIN warrants this product against manufacturer'sdefects for a period of 90 days from the date of purchase.1-800-97-ARTIN(27846)Please callour HOTLINE800HOTLINE HOURS :10:00 A.M. - 5:00 P.M. MONDAY - FRIDAY (EXCEPT HOLIDAYS)Warning: Changes or modifications to this unitnot expressly approved by the party responsiblefor compliance could void the user's authorityto operate the equipment.
