PRODUCT NO.232

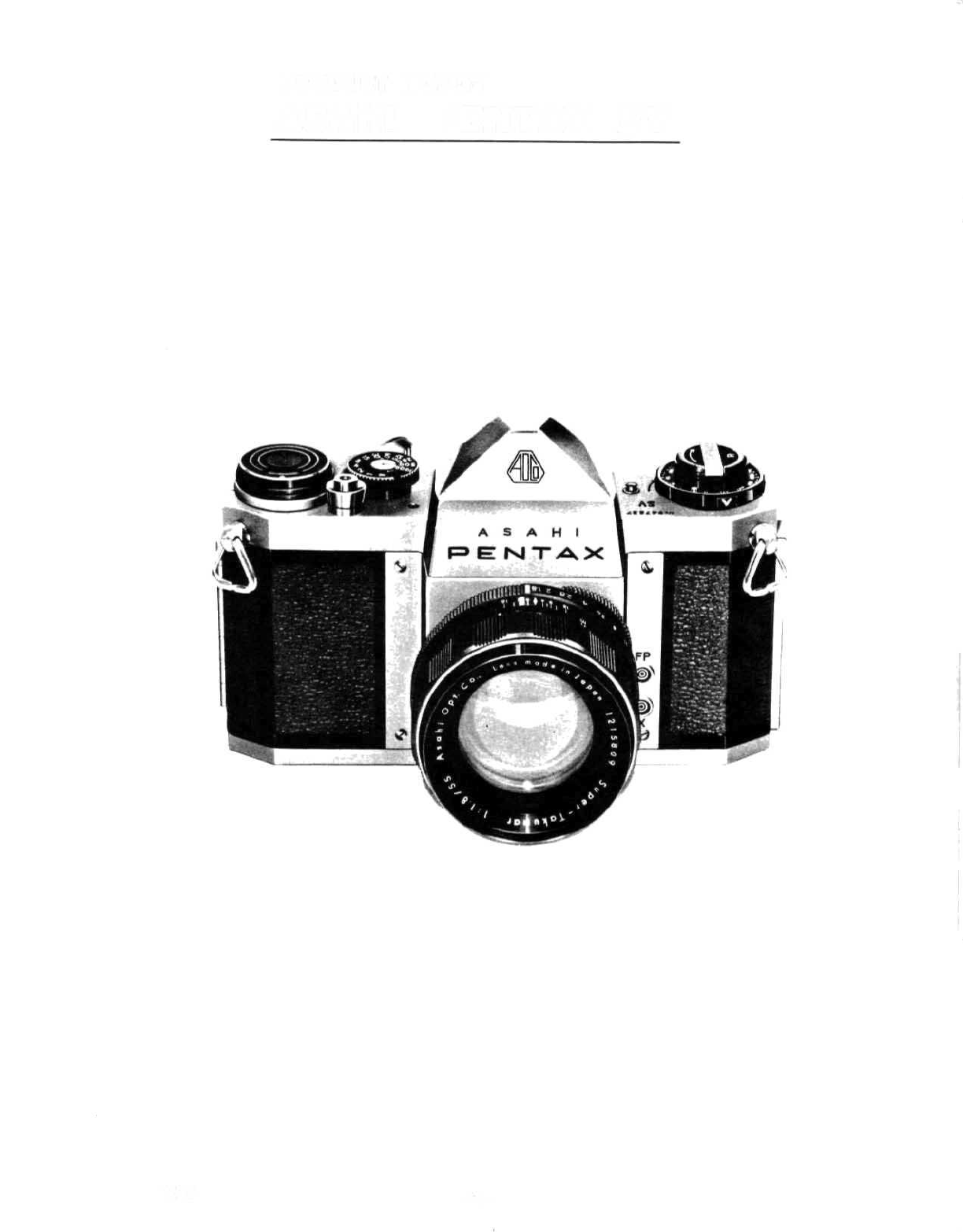

ASAHI PENTAX SV
232
-1-

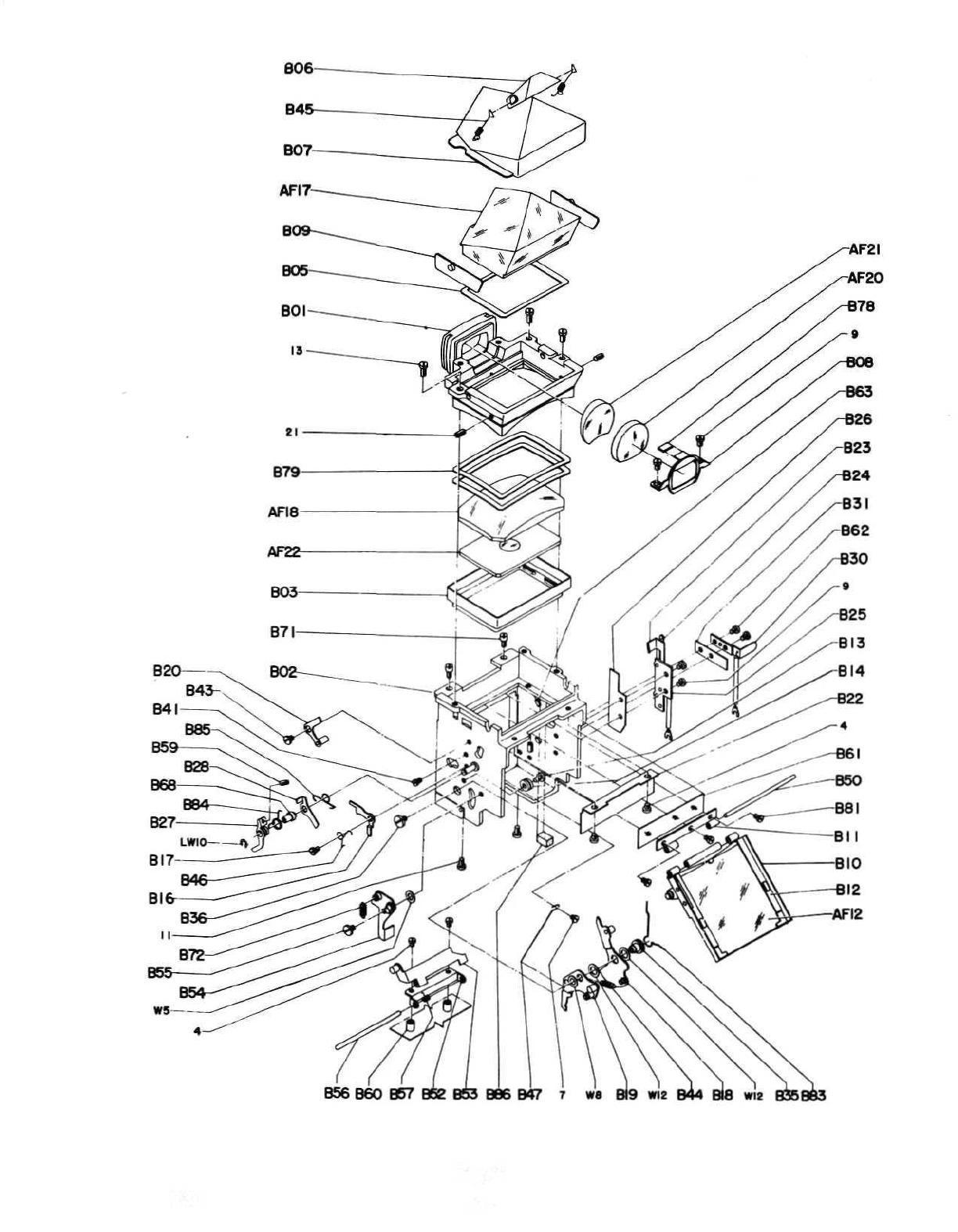

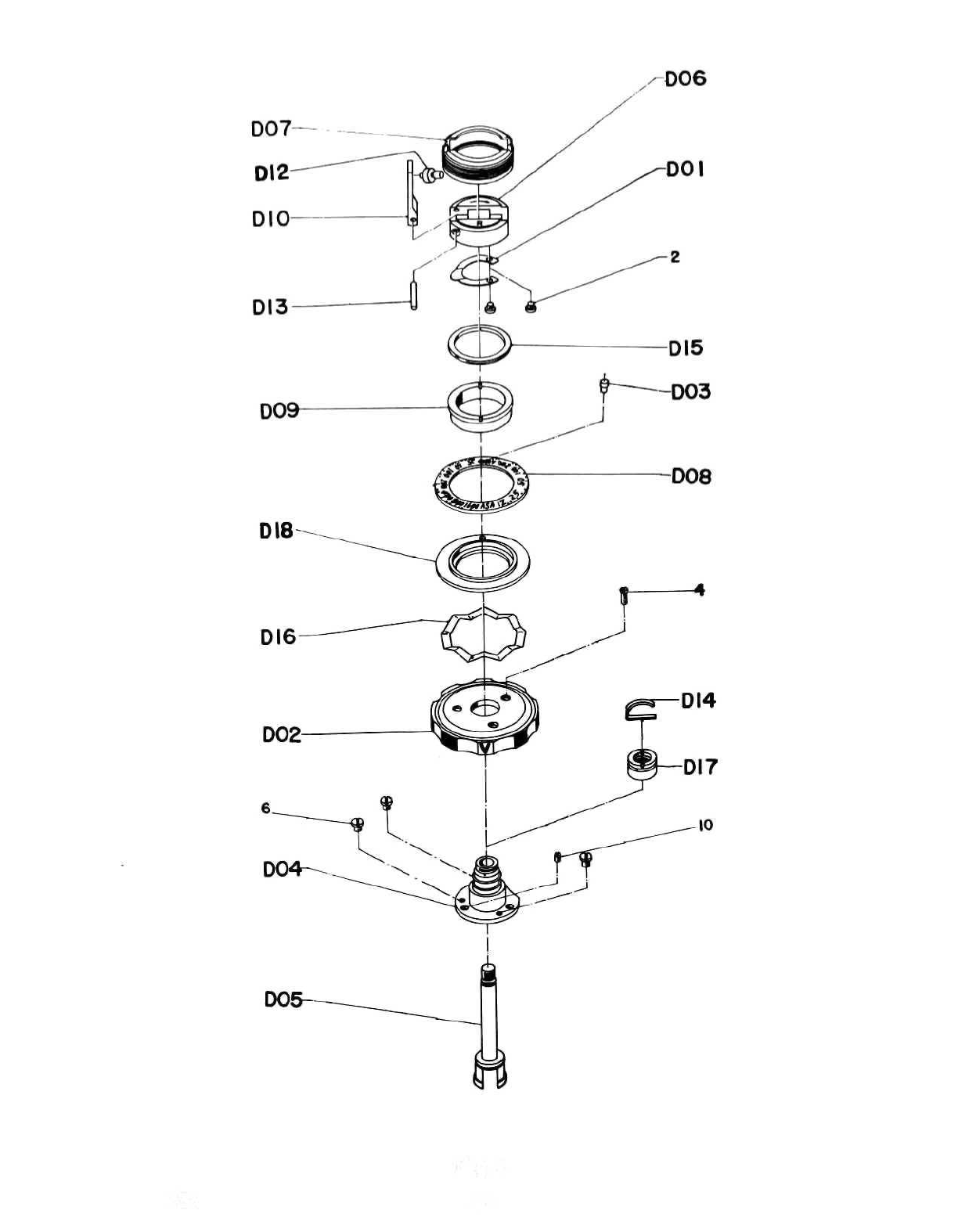

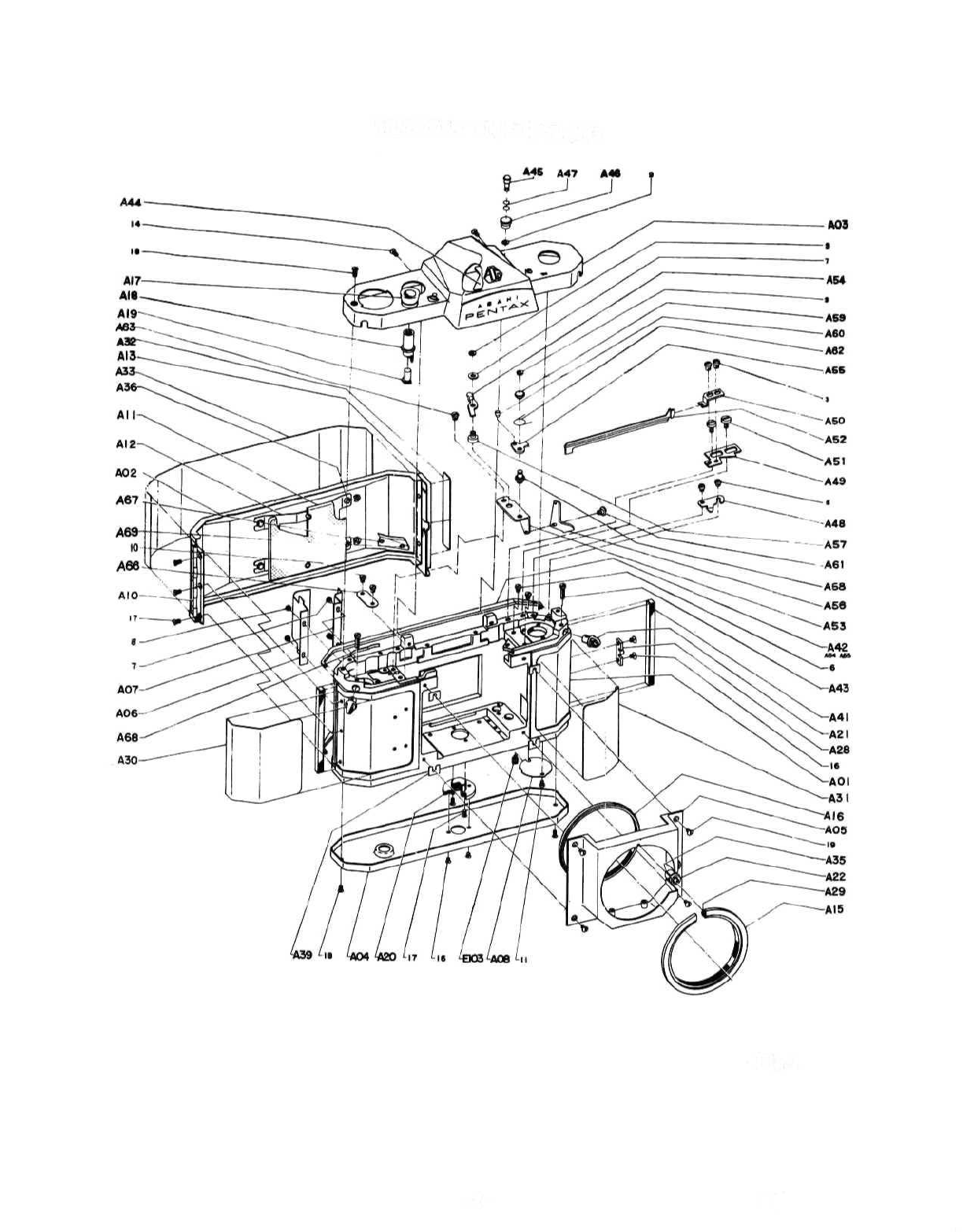

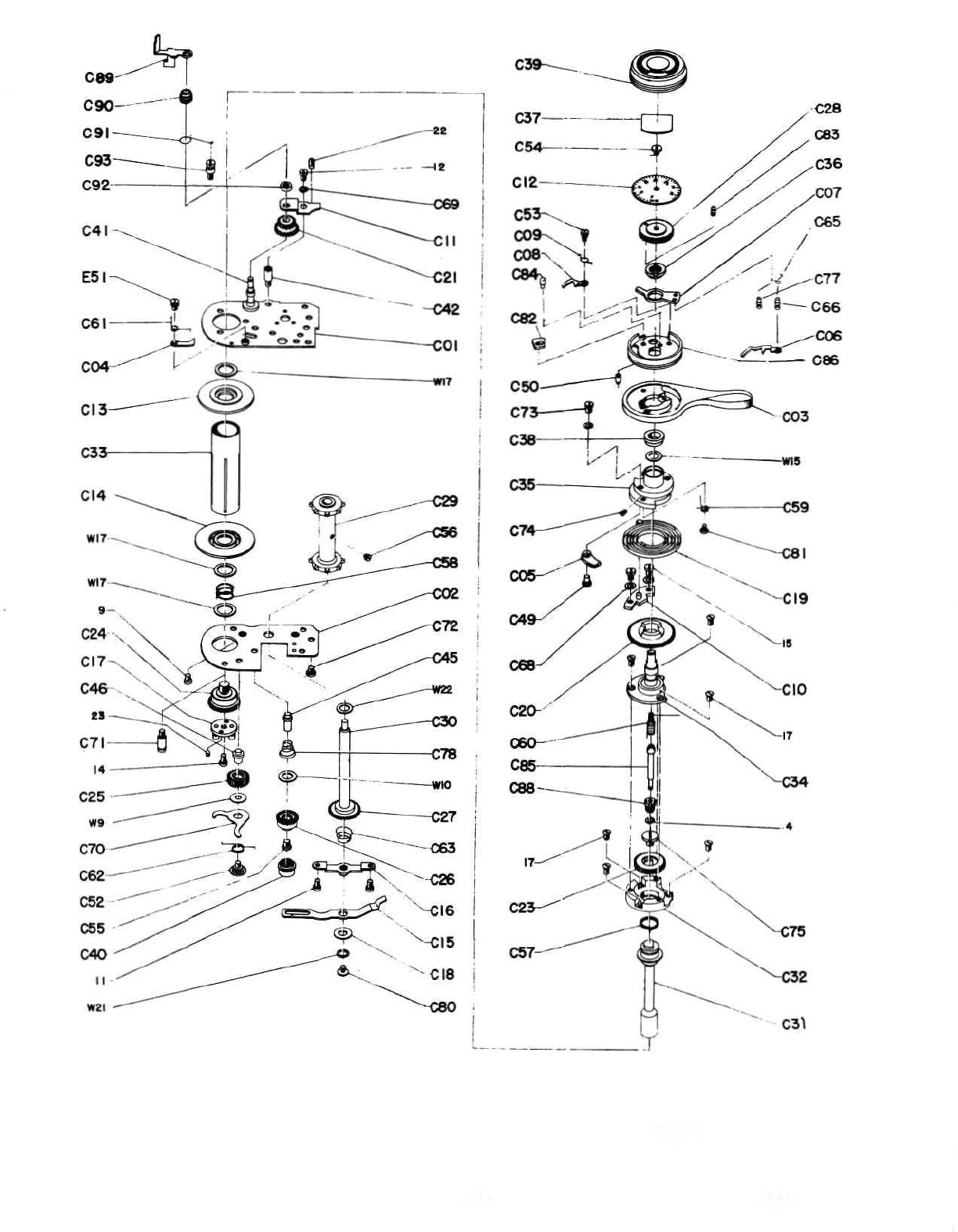

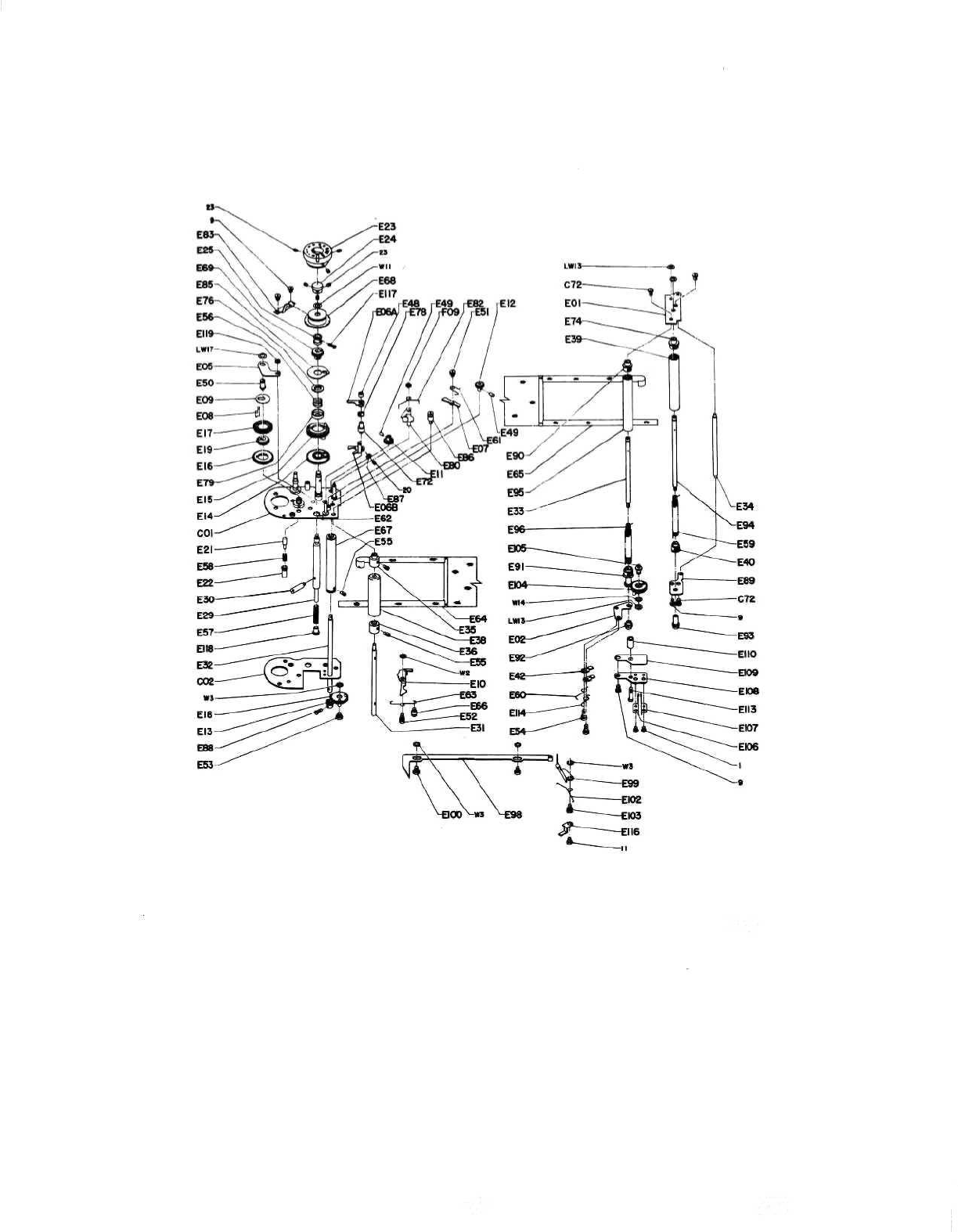

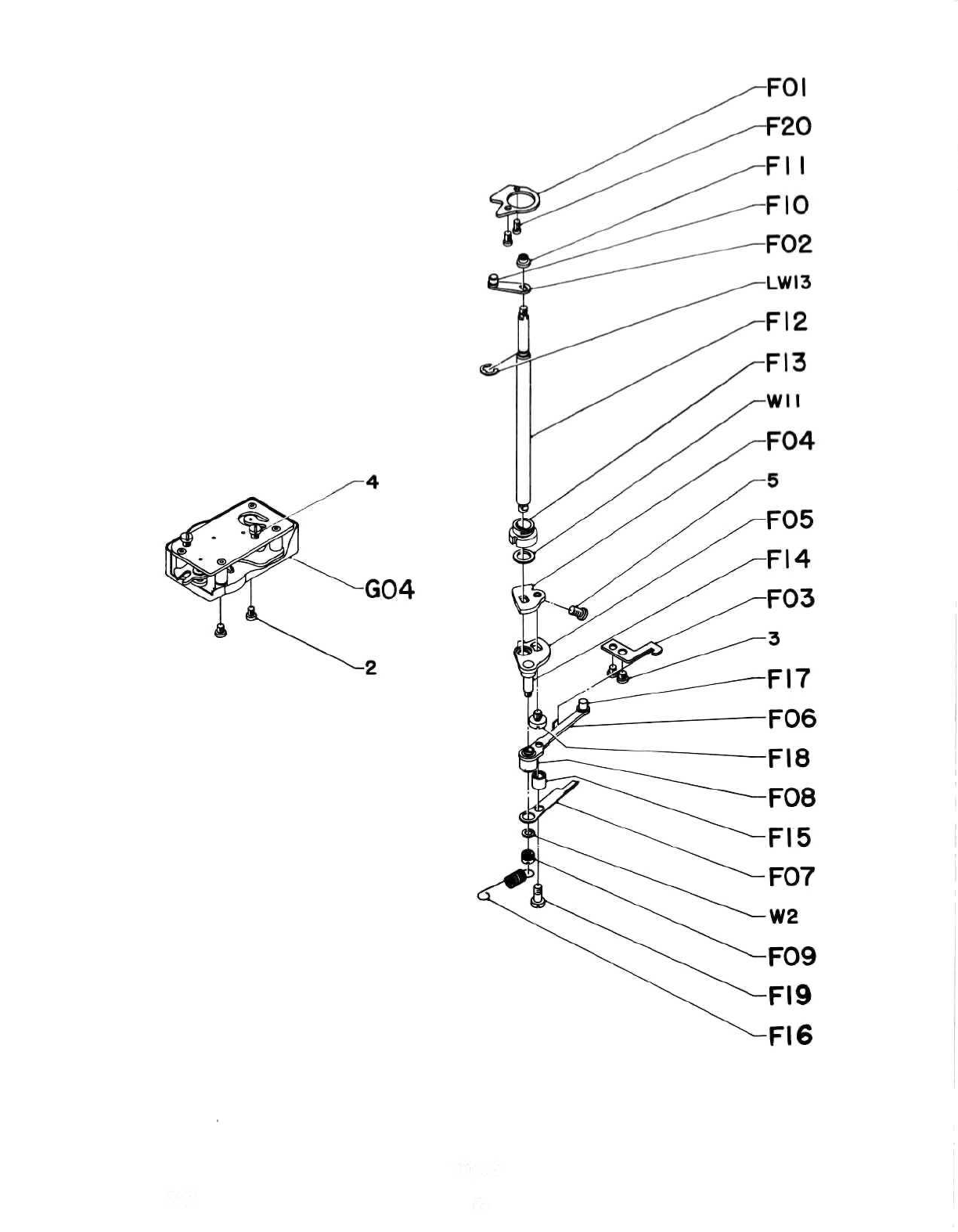

EXPLODED ILLUSTRATIONS
Fig.l
-2-232
232
Fig.2
-3-
Fig.
3
-4-
232
232
Fig.4
-5-
Fig.5
-6-
232
232
Fig.6
-7-
Fig.7
-8-
232
LIST OF SERVICE PARTS
Product No. 232
ASAHI PENTAX SV
Note: The parts with numbers starting with ' 0 ' are assembled parts ;
the *marked parts are included in the ' 0' starting assembled parts;
and these marked with ' o ' are same as the parts for Product No. 230-2.
PART NO. DESCRIPTION QUANTITY
0A01 Body proper assembly (A01, E118) 1
0A02 Back cover assembly (A02, A09, A10, A13, 1
A14, A25, A27, A32, A33, A34, A36, A37, A67,
A69)
0A03 Top cover assembly (A03, A17, A40, A45, A46, 1
A47, LW13)
A04 o Bottom cover 1
0A05 o Front cover assembly (A05, A15, A16, A22, 1
A23, A24, A29, A35, B51, B52, B53, B56, B57,
B60, small screw FM 1.4x2)
A06 o Sprocket cover 1
A07 o Light seal 1
A08 o Cassette receptacle 1
A09 * o Cassette holder 1
A10 * o Hinge 1
0A11 o Pressure plate assembly (All, A12, A26) 1
A12 * o Pressure plate spring 1
A13 * o Key housing 1
A14 * o Back cover key 1
A15 * o Helicoid seat 1
A16 * o Helicoid seat retainer screw 1
A17 * o Shutter button seat 1
A18 o Shutter button 1
A19 o Shutter button shaft 1
232
-9-
A20 o Tripod socket
A21 o Strap hook
A22 * o Plug seat
A23 * o Outer pole
A24 * o Inner pole
A25 * o Pressure plate retainer stud A
A26 * o Pressure plate rivet
A27 * o Key housing column
A28 o Key housing retainer plate
A29 * o Helicoid seat stopper
A30 o Body covering, left
A31 o Body covering, right
A32 * o Key housing covering
A33 * o Back cover covering
A34 * o Cassette holder rivet
A35 * o Earth
A36 * o Pressure plate retainer stud B
A37 * o Hinge rivet
A39 o Front cover adjust washer
(t = 0.05, 0.1, 0.15 and 0.2)
A40 * o Indicator window
A41 o Light seal
A42 J Light seal
A43 o Strap hook screw
A45 * Release button
A46 * Release button seat
A47 * Release button spring
A48 Self-timer box stopper
A49 Guide plate
A50 Adjust plate
A51 Guide screw
A52 Coupler lever
1
1
1
1
1
2
2
2
1
1
1
1
1
1
2
1
3
3
4
1
2
1
-10- 232
2
1
1
1
1
1
1
1
1
0A53 Intermediate lever retainer plate assembly 1
(A53, A54, A56, A57, A61, LW13)
A54 * Intermediate lever A 1
0A55 Intermediate lever B assembly (A55, A60) 1
A56 * Actuator lever 1
A57 * Intermediate lever shaft A 1
A58 Intermediate lever shaft B 1
A59 Intermediate lever spring hanger 1
A60 * Intermediate lever stud 1
A61 * Actuator lever shaft 1
A62 Intermediate lever spring 1
A64 Light seal B 1
A65 Light seal C 1
A67 * Light seal plate B 1
A69 * Light seal rivet 2
B01 o Prism seat 1
0B02 Mirror housing assembly (B02, B21, B76, R304) 1
B03 o Ground glass frame 1
B05 o Ground glass mask 1
B06 o Prism retainer plate 1
B07 o Prism cover 1
0B08 o Magnifier retainer assembly (B08, B78) 1
0B09 o Prism side protector assembly (B09, B33) 2
0B10 o Mirror seat assembly (BIO, Bll, B12, B15, B42, 1
B48, B49, B50)
Bll * o Mirror hinge 1
B12 * o Mirror retainer plate 1
B13 o Mirror seat rest screw 1
B14 o Mirror seat rest 1
B15 * o Mirror seat lug 1
B16 o Mirror check lever 1
232 -11-
B17 o Mirror check lever screw 1
0B18 o Mirror actuator lever, top, assembly (B18, B39, 1
B51)
0B19 o Mirror actuator lever, bottom, assembly (B19, 1
B38, B58, B70) 1
0B20 o Curtain actuator lever assembly (B20, B40) 1
B21 o Light seal 1
B22 o Light seal 1
B23 o FP lever A 1
B24 * o FP lever B 1
0B25 o Sync seat assembly (B25, B23, B24, B26, B64, 1
B65, B66, B73, B74, B77)
B26 * o Sync seat insulator 1
0B27 o Actuator lever assembly (B27, B28, B59, B67, 1
B68, B84)
B28 * o Bottom actuator lever 1
B29 * o 2nd dia lever checker plate 1
0B30 o X lever assembly (B30, B32, B73, B75, B77, 1
B80)
B31 o X lever insulator 1
B32 * o X lever retainer plate 1
B33 * o Protector plate pin 2
B35 o Mirror actuator lever shaft 1
B36 o Mirror actuator lever retainer screw 1
B37 * o 2nd dia lever checker plate rivet 2
B38 * o Mirror actuator lever spring hanger A 1
B39 * o Mirror actuator lever spring hanger B 1
B40 * o Curtain actuator lever stay 1
B41 o Actuator lever spring hanger 1
B42 * o Mirror seat lug stud 1
B43 o Curtain actuator lever retainer screw 1
B44 o Mirror seat spring 1
B45 Prism retainer spring 2
-12- 232
B46 o Mirror check lever spring 1
B47 o Bottom actuator lever spring 1
B48 * o Mirror seat lug rivet 2
B49 * o Mirror retainer plate rivet 2
B50 * o Mirror hinge shaft 1
B51 * o 1st dia lever pin 2
B52 * o Dia lever support 1
B53 * o 1st dia lever 1
0B54 o 2nd dia lever assembly (B54, B29, B37, B69) 1
B55 o 2nd dia lever retainer screw 1
B56 * o 1st dia lever shaft 1
B57 * o 1st dia lever spring 1
B58 * o Mirror actuator lever, bottom, stud 1
B59 * o 2nd dia lever adjust screw 1
B60 * o Supporter column 2
B61 o Light seal 1
B62 o X lever retainer screw 2
B63 o Focus adjust screw 3
B64 * o Contact A 2
B65 * o Contact B 2
B66 * o Sync lever rivet 6
B67 * o Actuator lever collar 1
B68 * o Actuator lever shaft 1
B69 * o Dia lever spring hanger A 1
B70 * o Dia lever spring hanger B 1
B71 o Mirror housing retainer screw 2
B72 o Dia lever spring 1
B73 * o Cord B 2
B74 • o Tube A 1
B75 * o Tube B 1
B76 * o Actuator lever column 1
B77 * o Lug plate 2
232 -13-
B78 * o Magnifier cusion 1
B79 o Ground glass holder 2
B80 * o X lever rivet 1
B81 o Mirror hinge screw 3
B83 o Mirror checker spring 1
B84 * o Actuator lever coupler spring 1
B85 o Actuator lever spring 1
B86 o Mirror shock absorber 1
0C01 o Top mec plate assembly (C01, C41, C43, C79, 1
E20, E22, E26, E27, E28, E81, E120)
0C02 o Bottom mec plate assembly (C02, C45, C46, 1
C47)
C01 Rapid wind lever 1
C04 o Non-return arm 1
C0S * o Lever seat lug 1
C06 * Counter advance lug 1
0C07 Advance lug actuator assembly (C07, C06, C65, 1
C66, C77)
C08 * Retainer lug 1
C09 * Retainer lug spring 1
0C10 o Lever stopper assembly (CIO, C44) 1
Cll o Stopper 1
C12 Counter dial 1
C13 o Top take-up spool brim 1
C14 o Bottom take-up spool brim 1
CI5 o Coupler lever 1
0C16 o Coupler lever seat assembly (C16, C48) 1
0C17 o Pin adjust plate assembly (C17, C51, C76. set 1
screw tapered 1.7x2)
C18 o Half moon washer 1
C19 * o Spring 1
-14-
232
C20 Top 1st gear l
0C21 o Top 2nd gear assembly (C21, C22) 1
C22 * o Top 3rd gear l
C23 * o Top main gear 1
C24 o Bottom main gear 1
C25 o Bottom 1st gear 1
C26 o Bottom 2nd gear 1
0C27 o Bottom 3rd gear assembly (C27, C30) 1
0C28 Transport gear assembly (C28, C83) 1
C29 o Sprocket 1
C30 * o Sprocket shaft 1
0C31 o Wind-up shaft assembly (C31, C23, C32, C57, 1
C75)
C32 * o Wind-up shaft bearing 1
C33 o Take-up spool shaft 1
0C34 Rapid wind lever shaft assembly (C34, C60, 1
C85, C88, LW10)
0C35 Wind-up lever seat assembly (C35, COS, C19, 1
C49, C59, C74, C81) No. 1-5
C36 Actuator plate retainer screw 1
C37 * Counter dial window 1
C38 Lever seat collar 1
0C39 Cover ring assembly (C39, C37) 1
C40 o R button 1
C41 * o Top 1st gear column 1
C42 o Stopper column 1
C43 * o Non-return arm seat 1
C44 * o Spring hanger column 1
C45 * o Bottom 2nd gear shaft 1
C46 * o Bottom 1st gear shaft 1
C47 * o Coupler lever collar 2
C48 * o Coupler lever shaft 1
C49 * o Lever seat rivet 1
232 -15-
C50 Counter advance stud 1
C51 * o Coupler lever pin 1
C52 o R lever retainer screw 1
C53 * Retainer lug screw 1
C54 Counter retainer screw 1
C55 o Bottom 2nd gear screw 1
C56 o Sprocket screw 1
C57 * o Wind-up shaft spring 1
C58 o Take-up spool spring 1
C59 * o Lever seat lug spring 1
C60 * Counter spring 1
C61 o Non-return arm spring 1
G62 o R lever spring 1
C63 o Sprocket seat spring 1
C64 o Spring washer 2
C65 * Advance lug spring 1
C66 * Advance lug rivet 1
G68 o Stopper washer A 2
C69 o Stopper washer B 1
C70 o R lever 1
C7l o Slow speed spring 1
C72 o Bottom mec plate retainer screw 4
C73 o Rapid wind lever retainer screw 2
C74 * Spring retainer screw 1
C75 * o Top main gear retainer screw 1
C76 * o Pin adjust plate stud 1
C77 * Advance lug spring hanger 1
C78 o Bottom 2nd gear spring 1
C79 * o Gear column pin 1
C80 o Coupler lever retainer screw 1
C81 * o Lug spring retainer screw 1
C82 * Actuator stopper 1
-16-
232
C83 * Counter dial stopper A 1
C84 * Counter dial stopper B 1
C85 * Counter shaft 1
0C86 Counter housing assembly (C86, C08, C09, C53, 1
C82, C84, small screw FM 1.4 x 1.8)
C87 o Light seal 1
C88 * Counter shaft bearing, bottom 1
C89 * Reset lever 1
0C90 Reset lever assembly (C90, C89) 1
C91 Reset lever spring 1
C92 o Stopper nut 1
C93 Reset lever spring hanger 1
D01 * Hoof spring 1
D02 * Cocking wheel 1
D03 * Reminder dial stud 1
D04 Shaft bearing 1
D05 Rewind shaft 1
0D06 Rewind knob assembly (D06, D01, D07, D10, 1
Dll, D12, D13, D15>
D07 * Rewind cover ring 1
0D08 ASA dial assembly (D08, D02, D03, D09, D16, D18) 1
D09 * Dial retainer nut 1
D10 * Crank 1
Dll * o Nipple 1
D12 * Crank shaft 1
D13 * o Crank pin 1
D14 * Shaft spring 1
D15 * Retainer ring 1
D16 * o Dial seat spring 1
0D17 Nut assembly (D17, D14) 1
D18 * ASA dial 1
232 -17-
E01 o Top shaft plate 1
EO2 o 1st curtain shaft plate 1
E03 * o 1st curtain edger 1
E04 * o 2nd curtain edger 1
E05 o Release plate 1
0E06 o Bulb lever assembly (E06A, E06B, E71, E72, 1
B78, E87, set screw flat 1.4x2.5)
E06A * o Top bulb lever 1
E06B * o Bottom bulb lever 1
E07 o 1st curtain checker arm 1
E08 o Spill 1
E09 o Spill receptacle plate 1
0E10 o Pinion coupler lever assembly (El0, E75) 1
0E11 o 2nd curtain pinion assembly (Ell, E32, E49) 1
E12 * o 1st curtain pinion 1
E13 o Coupler pinion 1
0E14 o Bottom selector gear assembly (E14, E44, E73) 1
0E15 o Top selector gear assembly (E15, E43, E70, 1
E77, E84)
0E16 o Bottom idling gear assembly (E16, E19) 1
E17 o Top idling gear 1
0E18 o Coupler gear assembly (E18, E45, E46) 1
E19 * o Idling gear collar 1
E20 * o Idling gear shaft 1
E21 o Spill rest 1
E22 * o Spill rest collar 1
E23 o Speed dial 1
E24 o Index ring 1
E25 o Selector collar 1
E26 * o Selector gear shaft 1
E27 * o Bulb lever shaft 1
E28 * o 1st curtain checker arm seat 1
-18- 232
E29 o Shutter rod 1
E30 o Actuator rod 1
E31 * o 1st curtain pinion shaft l
E32 * o 2nd curtain pinion shaft 1
E33 * o 1st curtain shaft 1
E34 o Curtain roller, small l
E35 * o 1st curtain wind shaft, top 1
E36 * o 1st curtain wind shaft, bottom 1
E37 * o Curtain roller bearing 2
0E38 o Curtain roller, large, assembly (E38, E37) 1
E39 * o 2nd curtain pipe 1
E40 * o 2nd curtain wind shaft bearing, bottom 1
E41 * o Wind shaft bearing 2
E42 o Curtain spring adjust lug 2
E43 * o Top selector gear stud 1
E44 * o Selector gear retainer ring 1
E45 * o Slow speed lever actuator stud 1
E46 * o Coupler gear stud 1
E47 * o Edger rivet 4
E48 o Bulb lever nut 1
E49 * o Pinion retainer pin 2
E50 o Idling gear retainer screw 1
E51 o 1st curtain checker arm retainer screw 2
E52 o Pinion coupler lever retainer screw 1
E53 o Coupler gear retainer screw 1
E54 o Adjust lug screw 2
E55 * o Pinion shaft retainer screw (Only 2 supplied 3
with 0E64)
E56 o Cam shaft spring 1
E57 o Shutter rod spring 1
E58 o Spill spring 1
E59 * o 2nd curtain spring 1
232 -19-
B60 o Adjust lug spring A 1
E61 o 1st curtain checker arm spring 1
E62 o Bulb lever spring 1
E63 o Pinion coupler lever spring 1
0E64 o 1st curtain assembly (E64, E03, E12, E31, E33, 1
E35, E36, E47, E49, E55, E90, E91, E95, E96)
0E65 o 2nd curtain assembly (E65, E04, E39, E40, E41, 1
E47, E59, E67, E74, E94)
E66 o Coupler lever spring hanger 1
E67 * o Curtain pipe 1
E68 a Speed selector disc 1
E69 * o Cam shaft 1
E70 * .3 Speed selector pin 1
E71 * o Bulb lever collar, top 1
E72 * o Bulb lever collar, bottom 1
E73 * o Retainer ring rivet 1
E74 * o 2nd curtain wind shaft metal, top 1
F75 * o Pinion coupler lever pin 1
E76 * o Cam shaft nut 1
E77 * o Selector gear stopper 1
E78 * o Bulb coupler spring 1
E79 o Cam shaft spring receptacle 1
E80 o 'Cocked' indicator 1
E81 * o 'Cocked' indicator shaft 1
E82 o 'Cocked' indicator spring 1
E83 o Click spring 1
E84 * o Selector gear stopper rivet 1
0E85 o High speed cam assembly (E85, E69, E76) 1
E96 o 1st curtain checker arm stopper 1
E87 * o Bulb lever adjust nut 1
E88 Coupler pinion screw 1
E89 o 2nd curtain shaft plate 1
-20- 232
E90 * o 1st curtain wind shaft bearing, top 1
E91 * o 1st curtain wind shaft bearing, bottom 1
E92 o Curtain spring adjust gear A 1
E93 o Curtain spring adjust gear B 1
E94 * o 2nd curtain shaft 1
E95 * o 1st curtain pipe 1
E96 * o 1st curtain spring 1
E97 * o Bounce stopper 1
E98 o Bounce stopper actuator lever 1
E99 o Bounce stopper lever 1
E100 o Bounce stopper actuator lever screw 2
E101 * o Bounce stopper rivet 1
E102 o Bounce stopper spring 1
E103 o Bounce stopper lever screw 1
0E104 o Sync gear assembly (E104, E97. E101, El 11, 1
E115)
E105 o Sync gear column
E106 * o X contact A
0E107 o X contact B assembly (E107, B64, B65, B66, 1
E106, E108, E109, E112)
E108 * o X contact seat 1
E109 * o X insulator 1
El10 o X contact support 1
Elll * o X contact pin 1
El12 * o X contact column 2
E113 o X contact retainer screw 1
El14 o Adjust lug spring B 1
E115 * o Insulator tube 1
El16 o Bounce stopper lever retainer 1
E117 o Selector shaft tube retainer screw 1
El18 * o Shutter rod receptacle 1
El19 o Release plate nut 1
E120 * o Gear shaft rivet 5
232
-21-
F01 o Slow speed cam 1
0F02 o Cam coupler plate assembly (F02, F10) 1
F03 o Time stopper 1
0F04 o Bottom adjust plate assembly (F04, F12) 1
0F05 o Top adjust plate assembly (F05, F06, F07, F08, 1
F09, F14, F15, F17, F19, W2)
F06 * o Slow speed actuator lever 1
F07 * o Slow speed lever 1
F08 * o Slow speed Jever collar 1
F09 * o Lever support nut (Only 1 supplied with 0F05) 2
F10 * o Cam coupler plate stud 1
F11 o Cam coupler plate nut 1
F12 * o Slow speed rod 1
F13 o Slow speed rod receptacle 1
F14 * o Lever support 1
F15 * o Slow speed lever seat 1
F16 o Slow speed spring 1
F17 * o Slow speed actuator lever stud 1
F18 o Adjust plate screw 1
F19 * o Slow speed lever retainer screw 1
F20 o slsw speed cam retainer screw 2
0G00 o Slow speed governor assembly (G01—G19) 1
AF12 o Mirror 1
AF17 o Pentaprism 1
AF18 o Ground glass 1
0AF20 o Magnifier front element assembly (AF20, 1
1AF21)
AF21 * o Magnifier rear element 1
AF22 o Fresnel lens 1
-22- 232
0H01 Self-timer box assembly (H01, H03, H04, H05, 1
H06, H07, H08, H10, H45)
0H02 Self-timer box cover assembly (H02, H09) 1
H03 • Spring 1
H04 * Self-timer box lug 1
H05 * Self-timer box lug shaft 1
H06 * Spring hanger 2
H07 * Lug stopper 1
H08 * Lug spring 1
H09 * Cover stud 1
H10 * Hook 1
H45 * Hook retainer rivet 1
0H00 Self-timer governor assembly (H11-H44, H46) 1
232 -23-
LIST OF STANDARD PARTS
Product No. 232
ASAHI PENTAX SV
Index
No.
1
2
3
24
4
5
7
8
9
Name
Flat medium
"
"
"
"
"
"
1.2x1.6
1.4x1.2
1.4x1.4
1.4x1.8
1.4x2
1.4x3
1.7x1.8
1.7x2
1.7x2.5
Surface
Treatment
Nickel plated
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Place of
Use
G02, G13
E112, B77
G04. G14
D01, D06
F03. C02
C82. C86
A49, A50
C82, C86
A01. G01
B52, B60
B02. B22
F04, F05
B02, B47
A01, A07
A01, H12
A01, A06
A01, A53
A01, A48
A01, A89
A01, E108
AO1, E83
A01, D04
A01, C02
B02, B25
B01, B08
Quantity
2
2
2
2
2
1
2
1
2
2
2
1
1
2
2
2
1
2
1
1
2
2
1
2
2
-24- 232
Small Screws
Index
No.
11
12
13
14
15
25
16
17
18
19
20
21
22
26
23
Name
Flat medium
"
"
"
Round flat medium
Saucer medium
"
"
Round saucer
medium
Set flat
"
"
Set tapered
"
1.7x3
1.7x3.5
1.7x5
2x3
2x4.5
1.4x2
1.7x2.2
1.7x3.5
2x3.5
1.7x3
1.4x2.5
1.7x4
1.7x4.5
1.4x1.6
1.7x2
Surface
Treatment
Black
Black
Black
Black
Black
Black
Chrome plated
Black
Chrome plated
Chrome plated
Nickel plated
Nickel plated
Nickel plated
Black
Nickel plated
Place of
, ...
Use Quantity
A01, B02 2
A01, A08 1
C16, C47 2
C11, C42 1
B01, B02 3
C17, C24 1
A01, C10 2
D02, H02 3
A04, A20 2
A01, A28 2
A01, C32 3
A01, A20 2
A01, A10 3
C32, C34 3
A01, A03 2
A01, A04 2
A01, A03 2
A01, A05 4
E06A, E06B 1
C01, B09, AF17 2
A01, Cll 1
C39, C86 3
A01, D04 2
C17, C24 2
E24, E26 3
E23, E68 3
232
-25-
Washers (Note: Asterisk * donote quantity which is subject to change.)
Code Material Thickness (mm) Place of Use Quantity
W2 Steel 0.03, 0.05. 0.1 0H00 2*
F09, F14 1*
Brass 0.4 E10 1
W3 Steel 0.3 A51 2
0.1 E18 1
E99 1
Phosphor-bronze 0.2 E98 2
W5 Steel 0.05, 0.1, 0.2 B02. B54, B55 1
A01, A05 4*
W8 Phosphor-bronze 0.1 B02, B35 1
W9 Brass 0.4 C70 1
W10 Steel 0.05 C26 1
Wll Phosphor-bronze 0.1. 0.15, 0.2, 0.5 A27 2*
F12 1*
E26 1*
W12 Phosphor-bron2e 0.05. 0.07, 0.1 B18, B35 1*
B19. B35 1*
W13 Steel 0.3 A27 2
W14 Phosphor-bronze 0.15 A57 1
0.1 E105 1
W16 Steel 0.05. Oil C35, C38 1
W17 Bakelite 0.4 C13, C31 1
Steel 0.2 C14, C24 3
W18 Steel 0.1 D02. D09 1
W21 Steel 0.05. 0.1 C48 1
W22 Phosphor-bronze 0.7. 0.8 C30 1
W25 Phosphor-bronze 0.05. 0.1 D04 1*
-26- 232
Lock Washers
Code Material Thickness (mm) Place of Use Quantity
LW10 0.2 C41 1
C85 1
B76 1
LW13 0.3 A45 1
A57 1
A58 1
E33 1
E94 1
E105 1
F12 1
LW17 0.4 E50 1
„ (Black) „ A36 2
232 -27-
