Digital Camera
Operating Manual
To ensure the best performance from your camera, please
read the Operating Manual before using the camera.
• Specifications and external dimensions are subject to change without notice.
54637 Copyright © PENTAX RICOH IMAGING CO., LTD. 2012
R02AYH12 Printed in Indonesia
PENTAX RICOH IMAGING CO., LTD.
2-35-7, Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN
(http://www.pentax.jp)
PENTAX RICOH IMAGING
FRANCE S.A.S.
(European Headquarters)
112 Quai de Bezons, B.P. 204, 95106 Argenteuil Cedex,
FRANCE
(HQ - http://www.pentax.eu)
(France - http://www.pentax.fr)
PENTAX RICOH IMAGING
DEUTSCHLAND GmbH
Julius-Vosseler-Strasse 104, 22527 Hamburg,
GERMANY
(http://www.pentax.de)
PENTAX RICOH IMAGING
UK LTD.
PENTAX House, Heron Drive, Langley, Slough, Berks
SL3 8PN, U.K.
(http://www.pentax.co.uk)
PENTAX RICOH IMAGING
AMERICAS CORPORATION
633 17th Street, Suite 2600, Denver, Colorado 80202,
U.S.A.
(http://www.pentaximaging.com)
PENTAX RICOH IMAGING
CANADA INC.
1770 Argentia Road Mississauga, Ontario L5N 3S7,
CANADA
(http://www.pentax.ca)
PENTAX RICOH IMAGING
CHINA CO., LTD.
23D, Jun Yao International Plaza, 789 Zhaojiabang
Road, Xu Hui District, Shanghai, 200032, CHINA
(http://www.pentax.com.cn)
http://www.pentax.jp/english
Thank you for purchasing this PENTAX Digital Camera.
Please read this manual before using the camera in order to get the most
out of all the features and functions. Keep this manual safe, as it can be
a valuable tool in helping you to understand all the camera’s capabilities.
Regarding copyrights
Images taken with the PENTAX Digital Camera that are for anything other than
personal enjoyment cannot be used without permission according to the rights as
specified in the Copyright Act. Please take care, as there are cases where
limitations are placed on taking pictures even for personal enjoyment during
demonstrations, performances or of items on display. Images taken with the
purpose of obtaining copyrights also cannot be used outside the scope of use of
the copyright as laid out in the Copyright Act, and care should be taken here also.
Regarding trademarks
• SDXC logo is a trademark of SD-3C, LLC.
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing, LLC in the United States and/or
other countries.
• Eye-Fi, the Eye-Fi logo and Eye-Fi connected are trademarks of Eye-Fi, Inc.
•ArcSoft
®, and its logo are either the registered trademark or trademark of
ArcSoft Inc. in the United States and/or other countries.
• Microsoft, Windows and Windows Vista are registered trademarks of Microsoft
Corporation in the United States of America and other countries.
• Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and
other countries.
• Intel, Intel Core and Pentium are trademarks of Intel Corporation in the U.S.
and/or other countries.
• This product is licensed under the AVC Patent Portfolio License for the personal
use of a consumer or other uses in which it does not receive remuneration to (i)
encode video in compliance with the AVC standard (“AVC video”) and/or (ii)
decode AVC video that was encoded by a consumer engaged in a personal
activity and/or was obtained from a video provider licensed to provide AVC
video. No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
• All other brands or product names are trademarks or registered trademarks of
their respective companies.
• This product supports PRINT Image Matching III. PRINT Image Matching
enabled digital still cameras, printers and software help photographers to
produce images more faithful to their intentions. Some functions are not
available on printers that are not PRINT Image Matching III compliant.
Copyright 2001 Seiko Epson Corporation. All Rights Reserved.
PRINT Image Matching is a trademark of Seiko Epson Corporation. The PRINT
Image Matching logo is a trademark of Seiko Epson Corporation.
1
To users of this camera
• Do not use or store this device in the vicinity of equipment that generates strong
electromagnetic radiation or magnetic fields.
Strong static charges or the magnetic fields produced by equipment such as
radio transmitters could interfere with the display, damage the stored data, or
affect the product’s internal circuitry and cause camera misoperation.
• The liquid crystal panel used for the display is manufactured using extremely
high precision technology. Although the level of functioning pixels is 99.99% or
better, you should be aware that 0.01% or fewer of the pixels may not illuminate
or may illuminate when they should not. However, this has no effect on the
recorded image.
• There is a possibility that the illustrations and the screen display in this manual
are different from the actual ones.
• In this manual, SD Memory Cards, SDHC Memory Cards, and SDXC Memory
Cards are referred to as SD Memory Cards.
• In this manual, the generic term “computer(s)” refers to either a Windows PC or
a Macintosh.
• In this manual, the term “battery(ies)” refers to any type of batteries used for this
camera and its accessories.
We have paid close attention to the safety of this camera. When using
this camera, we request your special attention regarding items marked
with the following symbols.
Regarding Product Registration
In order to better serve you, we request that you complete the product
registration, which can be found on the CD-ROM supplied with the camera or the
PENTAX website. Thank you for your cooperation.

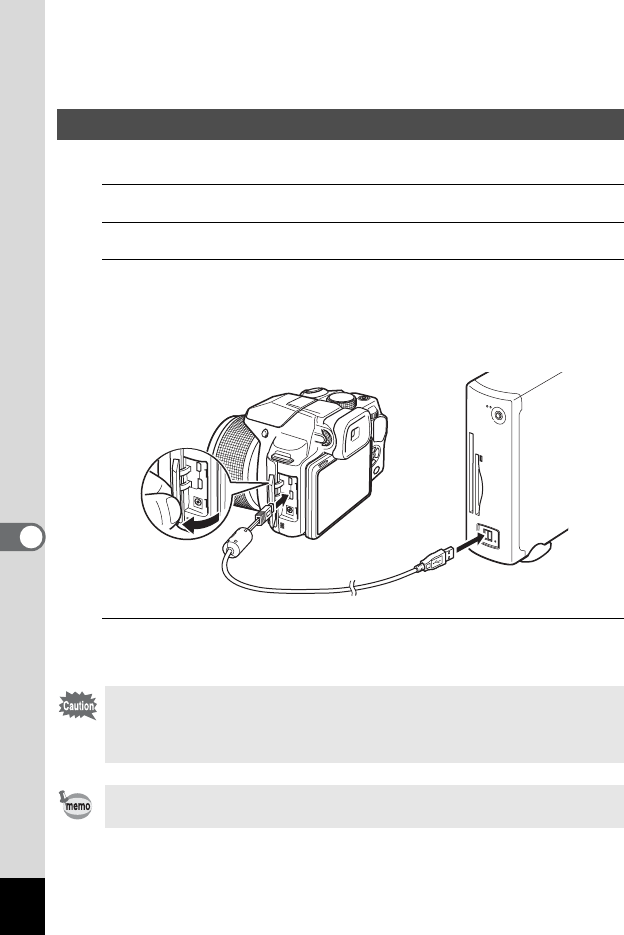

Refer to “Connecting to a Computer” (p.183) for more information.
Using Your Camera Safely
Warning This symbol indicates that ignoring this item could
cause serious personal injuries.
Caution This symbol indicates that ignoring this item could
cause minor or medium personal injuries, or loss of
property.
2
Warning
• Do not disassemble or modify the camera. High voltage areas are present
inside the camera, with the risk of electric shock.
• If the camera interior is exposed due to dropping or otherwise damaging
the camera, never touch the exposed portion. There is a risk of electric
shock.
• Wrapping the strap around your neck is dangerous. Take care that small
children do not hang the strap around their necks.
• If any irregularities occur during use, such as smoke or a strange odor, stop
use immediately, remove the batteries, and contact your nearest PENTAX
Service Center. Continuing to use the camera can cause a fire or electric
shock.
Caution
• Do not place your finger over the flash when discharging the flash. You
may burn yourself.
• Do not cover the flash with clothing when discharging the flash.
Discoloration may occur.
• Some portions of the camera heat up during use. There is a risk of low
temperature burns when holding such portions for long periods.
• Should the display be damaged, be careful of glass fragments. Also, be
careful not to allow the liquid crystal to get on your skin, in your eyes or
mouth.
• Depending on your individual factors or physical condition, the use of the
camera may cause itching, rashes or blisters. In case of any abnormality,
stop using the camera and get medical attention immediately.
Warning
• Always use the AC adapter exclusively developed for this camera, with the
specified power and voltage. Using an AC adapter not exclusive to this
camera, or using the exclusive AC adapter with an unspecified power or
voltage can cause a fire, electric shock, or camera breakdown. The
specified voltage is 100 - 240V AC.
About the Camera

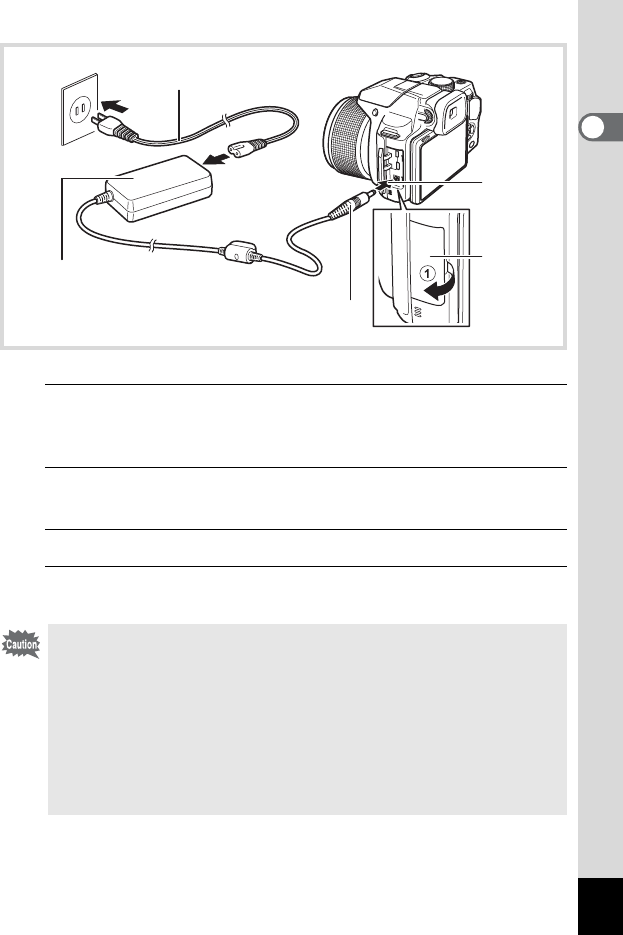

About the AC Adapter
3
• Do not disassemble or modify the AC adapter. This can cause a fire or
electric shock.
• If the generation of smoke or strange odor from the AC adapter or other
abnormality occurs, immediately discontinue use and consult a PENTAX
Service Center. Continuing to use the adapter can cause a fire or electric
shock.
• If water should happen to get inside the AC adapter, consult a PENTAX
Service Center. Continuing to use the adapter can cause a fire or electric
shock.
• If you see a lightning flash or hear thunder during use of the AC adapter,
unplug the power plug and discontinue use. Continuing to use the adapter
can cause damage to the equipment, fire, or electric shock.
• Wipe off the plug of the AC adapter if it becomes covered with dust.
Accumulated dust on the plug may cause a fire.
Caution
• Do not place or drop heavy objects on or forcefully bend the AC plug cord.
Doing so may damage the cord. Should the cord be damaged, consult a
PENTAX Service Center.
• Do not touch or short-circuit the terminal area of the AC plug cord while the
cord is plugged in.
• Do not handle the power plug with wet hands. This can cause an electric
shock.
• Do not drop the AC adapter, or subject it to violent impact. This can cause
equipment breakdown.
• To reduce the risk of hazards, use only a CSA/UL certified power supply
cord set, cord is Type SPT-2 or heavier, minimum NO.18 AWG copper,
one end with a molded-on male attachment plug cap (with a specified
NEMA configuration), and the other is provided with a molded-on female
connector body (with a specified IEC non-industrial type configuration) or
the equivalent.
Warning
• Be sure to store the batteries out of the reach of small children. Placing the
battery in their mouths may cause an electric shock.
About the Batteries
4
• If any leakage from the batteries should come in contact with your eyes, do
not rub them. Flush your eyes with clean water and get medical attention
immediately.
Caution
• This camera uses four AA alkaline, AA lithium or AA Ni-MH batteries. Do
not use batteries other than those specified here. Using other types of
batteries may cause the camera to function poorly, or the batteries may
explode or cause a fire.
• Do not charge any batteries other than rechargeable Ni-MH batteries. The
batteries could explode or catch fire. AA batteries for use with this camera
other than Ni-MH batteries cannot be charged.
• Do not disassemble the battery. Disassembling the battery may cause an
explosion or leakage.
• When replacing the batteries, do not combine different brands, types or
capacities. Also, do not combine old batteries with new ones. Inserting the
batteries incorrectly may cause an explosion or fire.
• The batteries should be inserted correctly, observing (+) and (-) marks on
the batteries. Inserting the batteries incorrectly may cause an explosion or
fire.
• Remove the batteries from the camera immediately if they become hot or
begin to smoke. Be careful not to burn yourself during removal.
• Do not short the batteries or dispose of the batteries in fire. This can cause
an explosion or fire.
• If any leakage from the batteries should come in contact with skin or
clothing, wash the affected areas thoroughly with water.
Warning
• Do not place the camera and its accessories within the reach of small
children.
1. If the product falls or is operated accidentally, it may cause serious
personal injuries.
2. Wrapping the strap around a neck may cause suffocation.
3. To avoid the risk of a small accessory such as batteries or SD Memory
Cards from being swallowed by mistake, keep them out of the reach of
Keep the Camera and its Accessories out of the Reach of Small
Children
5
small children. Seek medical attention immediately if an accessory is
accidentally swallowed.
• When traveling, take the Worldwide Service Network listing that is included
in the package. This will be useful if you experience problems abroad.
• When the camera has not been used for a long time, confirm that it is still
working properly, particularly prior to taking important pictures (such as at
a wedding or when traveling). Contents of the recording cannot be
guaranteed if recording, playback or transferring your data to a computer,
etc. is not possible due to a malfunction of your camera or recording media
(SD Memory Card), etc.
• The lens on this camera is not interchangeable. The lens is not removable.
• Do not subject the camera to high temperatures or high humidity. Do not
leave the camera in a vehicle, as the temperature can get very high.
• Do not subject the camera to strong vibrations, shocks, or pressure. Use a
cushion to protect the camera from vibrations of motorcycles, automobiles,
or ships. If the camera is subjected to substantial vibrations, shocks or
pressure, take your camera to your nearest PENTAX Service Center and
have it checked.
• The temperature range for camera use is 0°C to 40°C (32°F to 104°F).
• The display may appear black at high temperatures, but will return to
normal at normal temperatures.
• The display may respond more slowly at low temperatures. This is due to
liquid crystal properties, and is not a malfunction.
• Sudden temperature changes will cause condensation on the inside and
outside of the camera. Place the camera in your bag or a plastic bag, and
remove it after the temperature of the camera and surroundings are
equalized.
• Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salt.
These could cause the camera to breakdown. Wipe the camera to dry off
any rain or water drops.
• Do not press the display with excessive force. This could cause it to break
or malfunction.
Care to be Taken During Handling
Before Using Your Camera
Precautions on Carrying and Using Your Camera
6
• Be careful not to overtighten the tripod screw when using a tripod.
• Do not clean the camera with organic solvents such as thinner, alcohol or
benzine.
• Use a lens brush to remove dust accumulated on the lens. Never use a
spray blower for cleaning as it may damage the lens.
• Do not store the camera with preservatives or chemicals. Storage in high
temperatures and high humidity can cause mold to grow on the camera.
Remove the camera from its case and store it in a dry and well-ventilated
location.
• Avoid using or storing the camera where it may be exposed to static
electricity or electrical interference.
• Avoid using or storing the camera in direct sunlight or where it may be
exposed to rapid changes in temperature or to condensation.
• Periodic inspections are recommended every one to two years to maintain
high performance.
• The SD Memory Card is equipped with a
write-protect switch. Setting the switch to
LOCK prevents new data from being
recorded on the card, the stored data from
being deleted, and the card from being
formatted by the camera or computer.
r appears on the display when the card is
write-protected.
• Care should be taken when removing the SD Memory Card immediately
after using the camera, as the card may be hot.
• Keep the battery/card cover closed and do not remove the SD Memory
Card or turn the camera off while the data is being played back or saved to
the card, or the camera is connected to a computer with the USB cable, as
this may cause the data to be lost or the card to be damaged.
• Do not bend the SD Memory Card or subject it to violent impact. Keep it
away from water and store away from high temperature.
Cleaning Your Camera
Storing Your Camera
Other Precautions
Write-protect
switch
7
• Do not remove the SD Memory Card during formatting as this may damage
the card and render it unusable.
• The data on the SD Memory Card may be lost in the following
circumstances. We do not accept any liability for data that is deleted
(1) when the SD Memory Card is mishandled by the user.
(2) when the SD Memory Card is exposed to static electricity or electrical
interference.
(3) when the SD Memory Card has not been used for a long time.
(4) when the SD Memory Card is ejected or the batteries are removed
while the card is being accessed.
• If it is not used for a long time, the data on the card may become
unreadable. Be sure to regularly make a backup of important data on a
computer.
• Be sure to format SD Memory Cards that are unused or have been used
on another camera. Refer to “Formatting the Memory” (p.162).
• Please note that deleting data, or formatting the SD Memory Cards or the
built-in memory does not completely erase the original data. Deleted files
can sometimes be recovered using commercially available software. It is
user’s responsibility to ensure the privacy of such data.
8
Using Your Camera Safely...............................................................1
Care to be Taken During Handling ...................................................5
Contents ...........................................................................................8
Composition of the Operating Manual ............................................15
Camera Features.................................................................................16

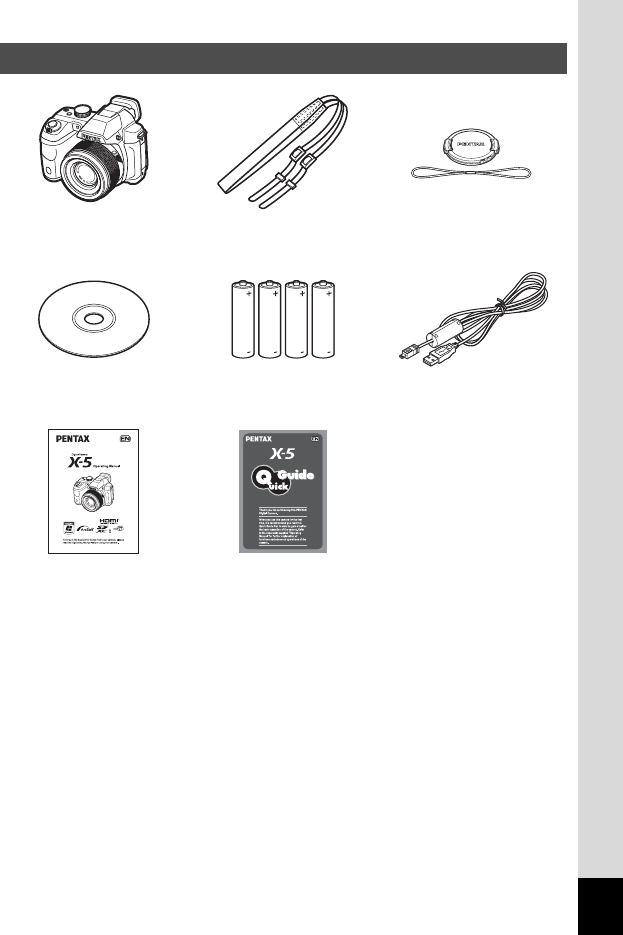

Checking the Contents of the Package ..........................................19

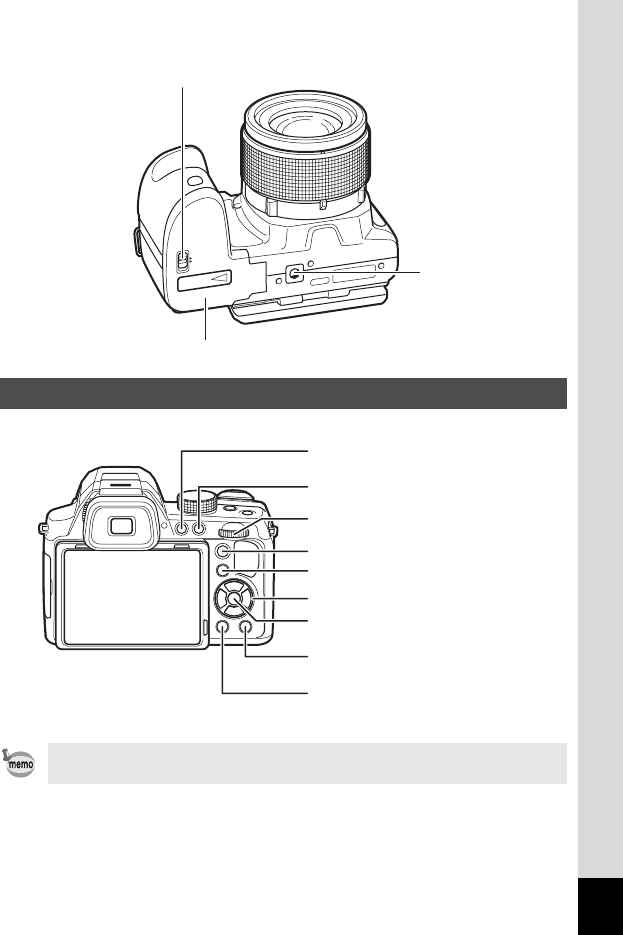

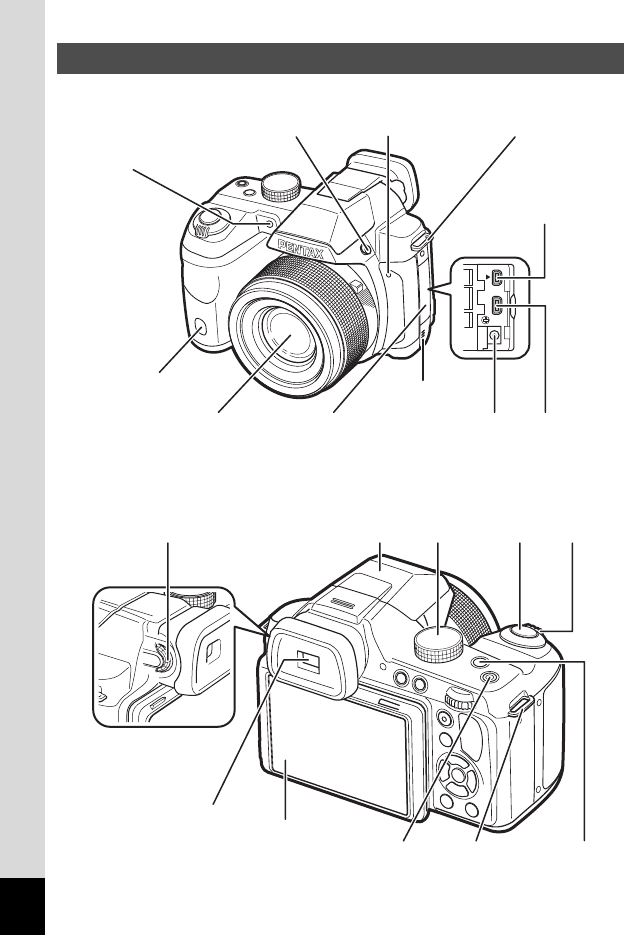

Names of Parts...............................................................................20

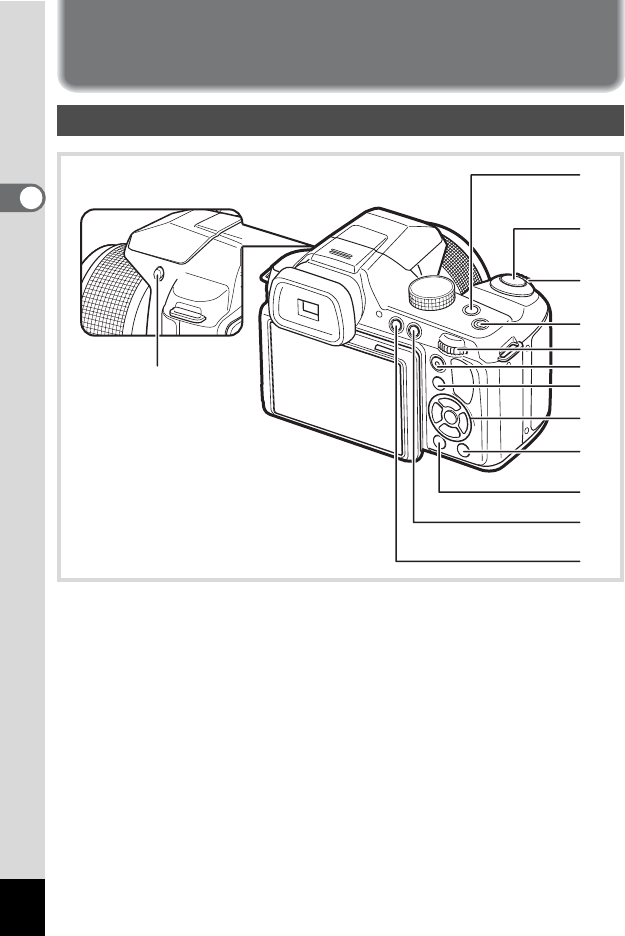

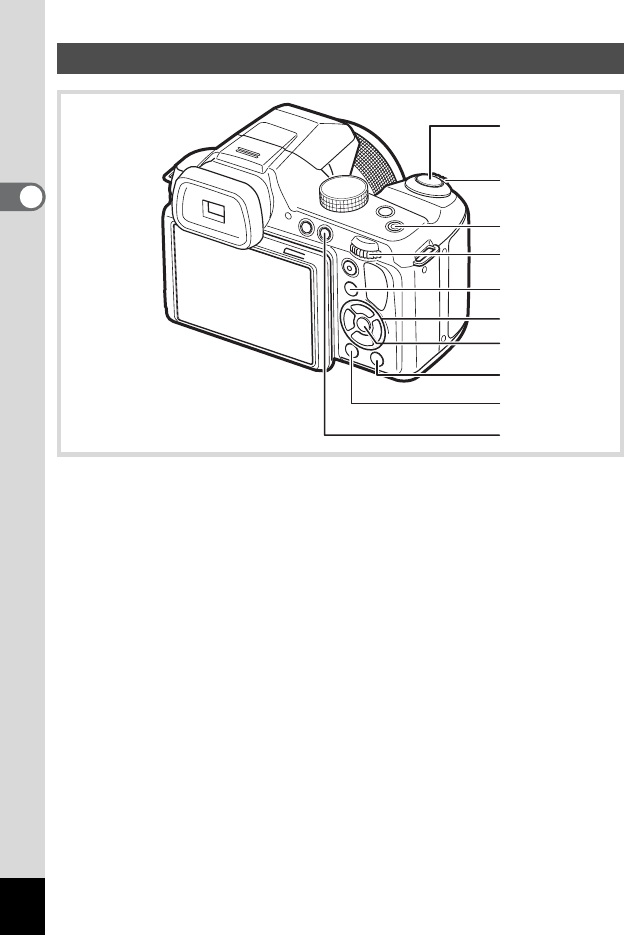

Names of Operating Parts ..............................................................21

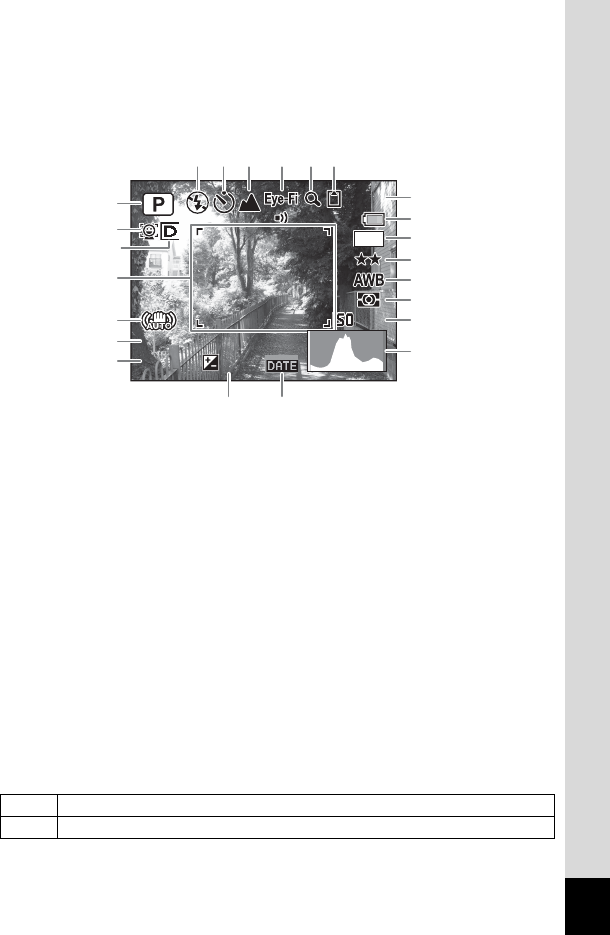

Monitor Indications .........................................................................22
Getting Started 29

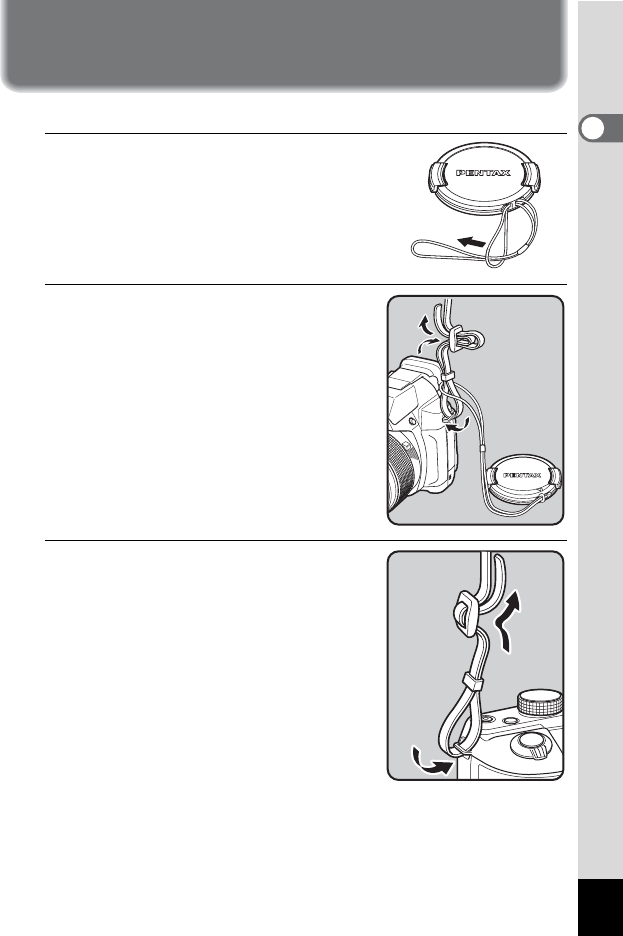

Attaching the Lens Cap and Strap ....................................................29
Powering the Camera .........................................................................30
Installing the Batteries ....................................................................30
Using the AC Adapter.....................................................................32
Installing an SD Memory Card ...........................................................34
Turning the Camera On and Off ........................................................36
Starting-up in Playback Mode.........................................................37

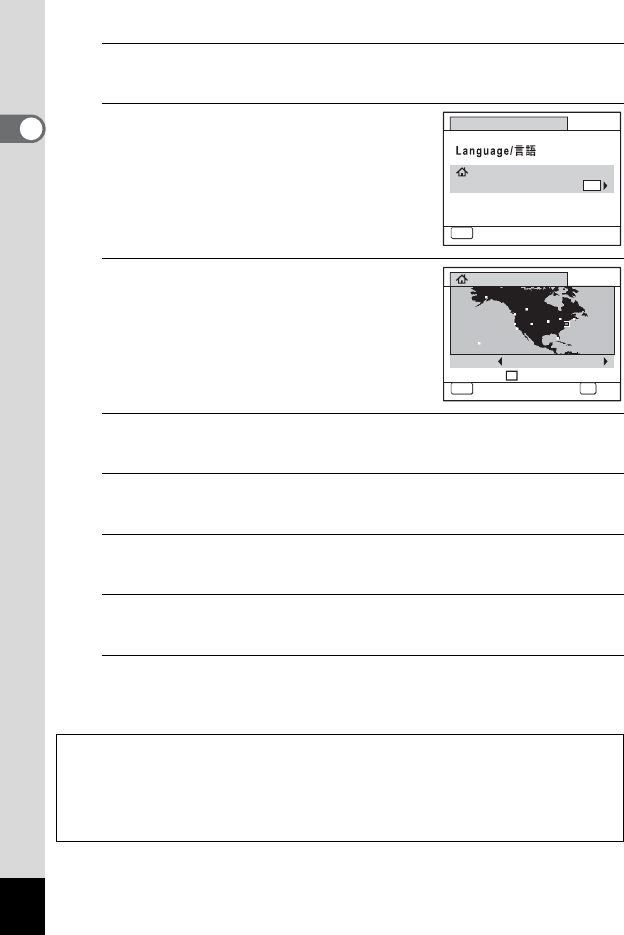

Initial Settings .....................................................................................38
Setting the Display Language.........................................................38
Setting the Date and Time..............................................................41

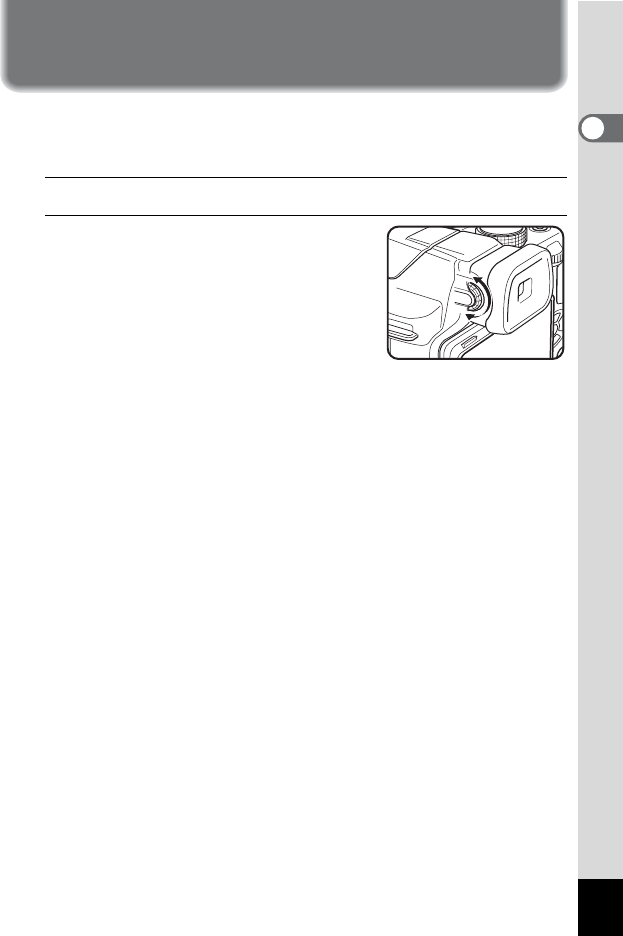

Adjusting the Viewfinder Diopter ......................................................43
Common Operations 44

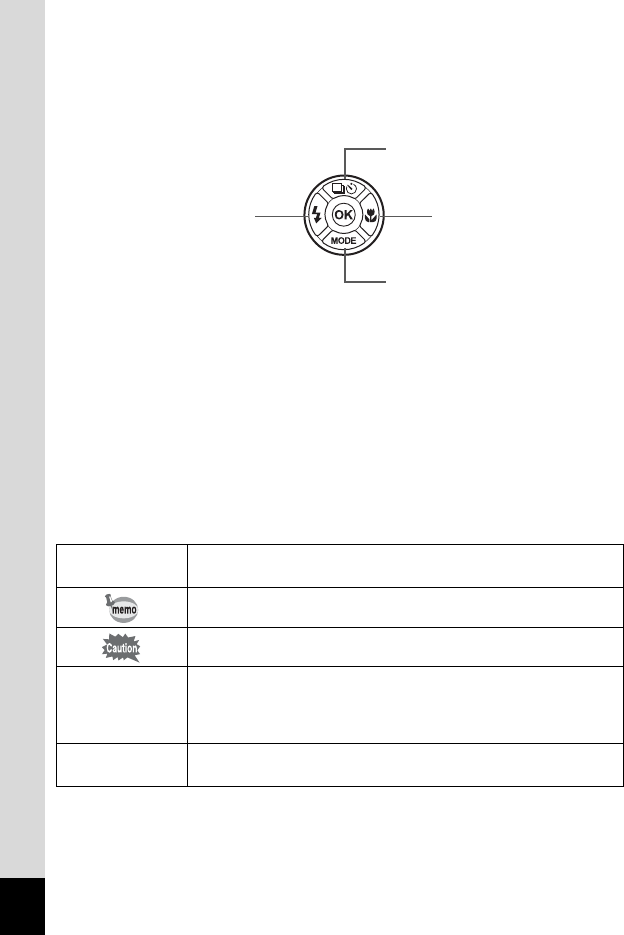

Understanding the Button Functions ...............................................44
A Mode .........................................................................................44
Q Mode ........................................................................................46
Switching Between A Mode and Q Mode...................................48
Contents
9
Setting the Camera Functions...........................................................49
Operating the Menus ......................................................................49

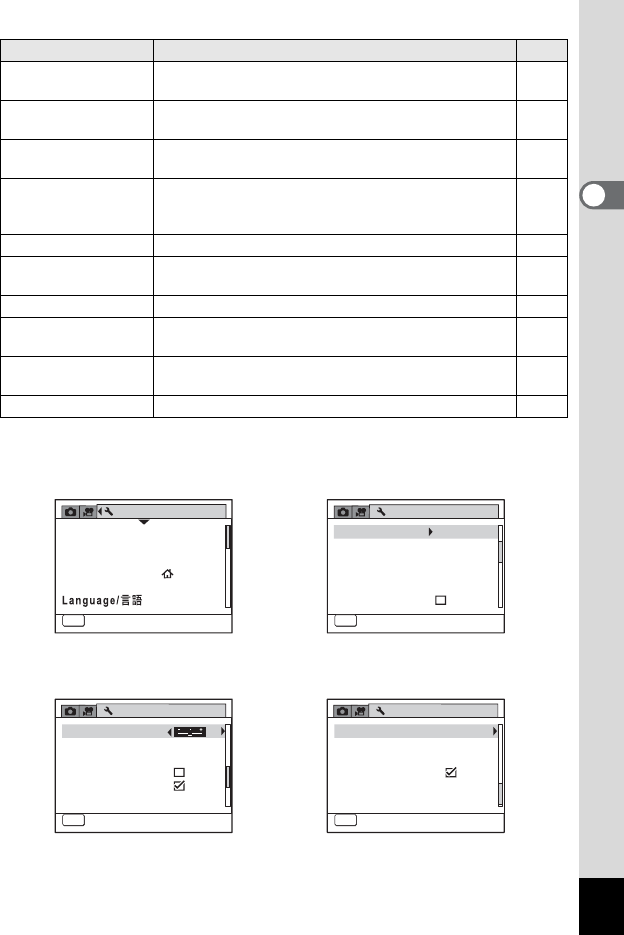

Menu List ........................................................................................52
Taking Pictures 56
Taking Still Pictures............................................................................56

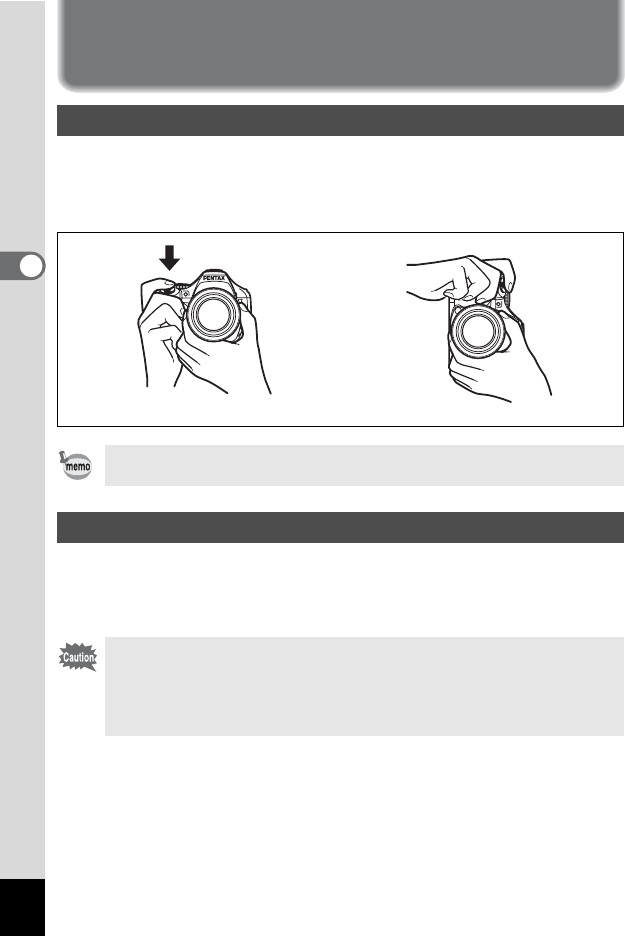

Holding the Camera........................................................................56
Adjusting the Position of the Display ..............................................56
Taking Pictures...............................................................................57

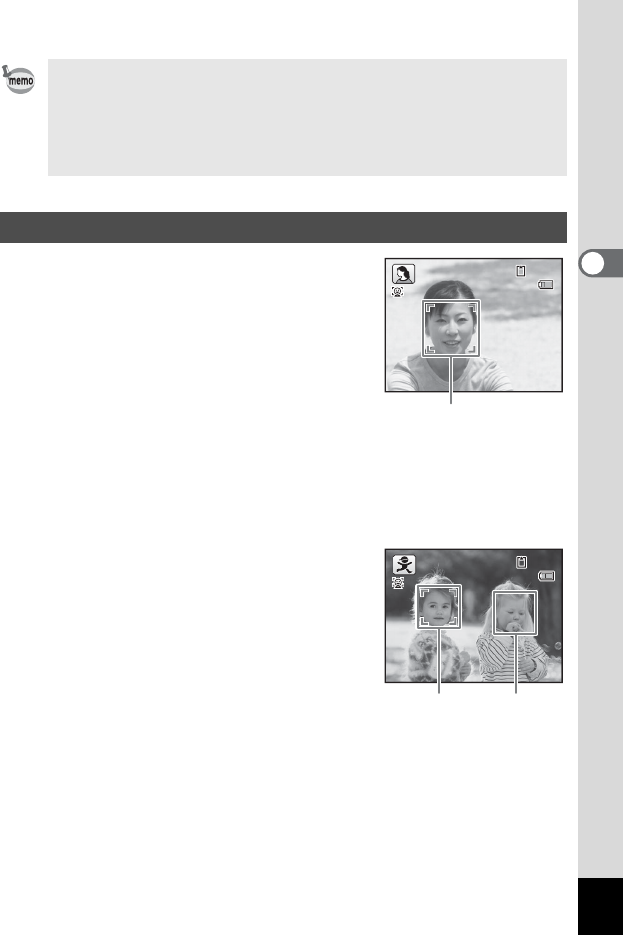

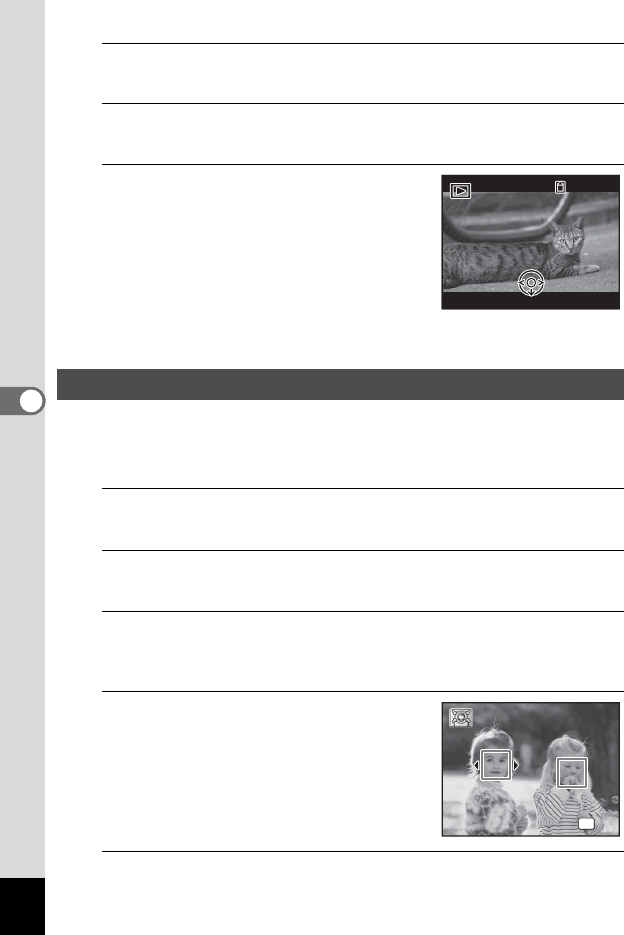

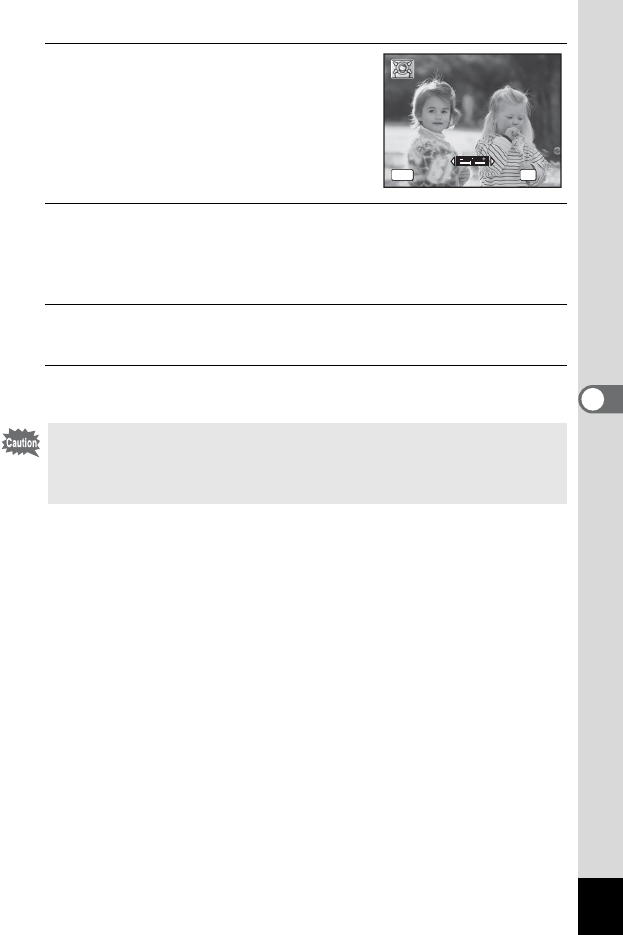

Using the Face Detection Function ................................................61
Taking Pictures in the Custom Settings (Program Mode) ..............62
Taking Pictures in Basic Mode (Green Mode)................................62
Using the Zoom ..............................................................................64
Adjusting the Exposure...................................................................66
Selecting the Shooting Mode.............................................................68

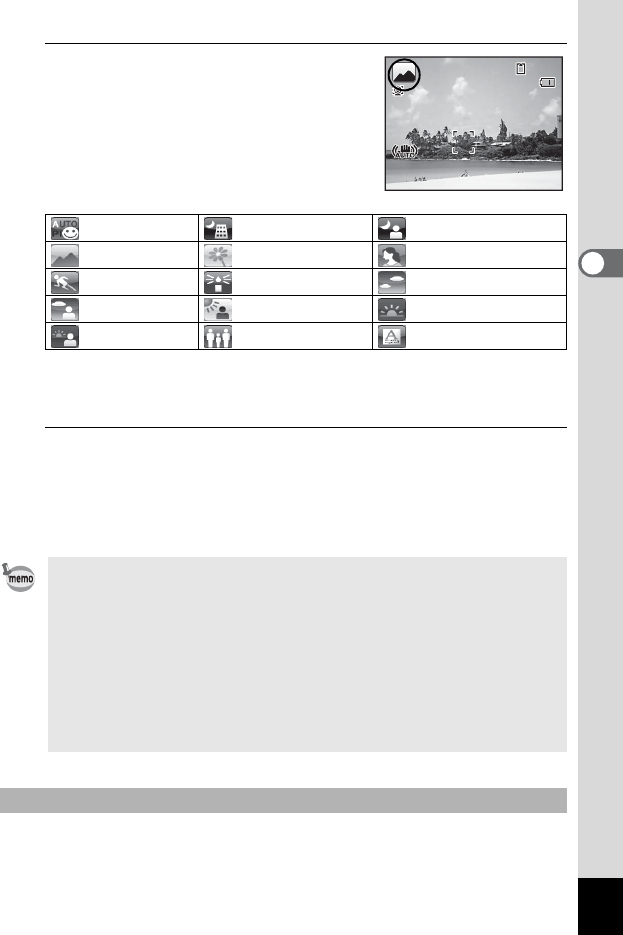

Picture Modes.................................................................................68
H Modes .....................................................................................69
Exposure Modes.............................................................................71
Various Shooting Methods ................................................................72
Framing Your Pictures (Frame Composite Mode)..........................72
Using the Digital Wide Function (Digital Wide Mode).....................73

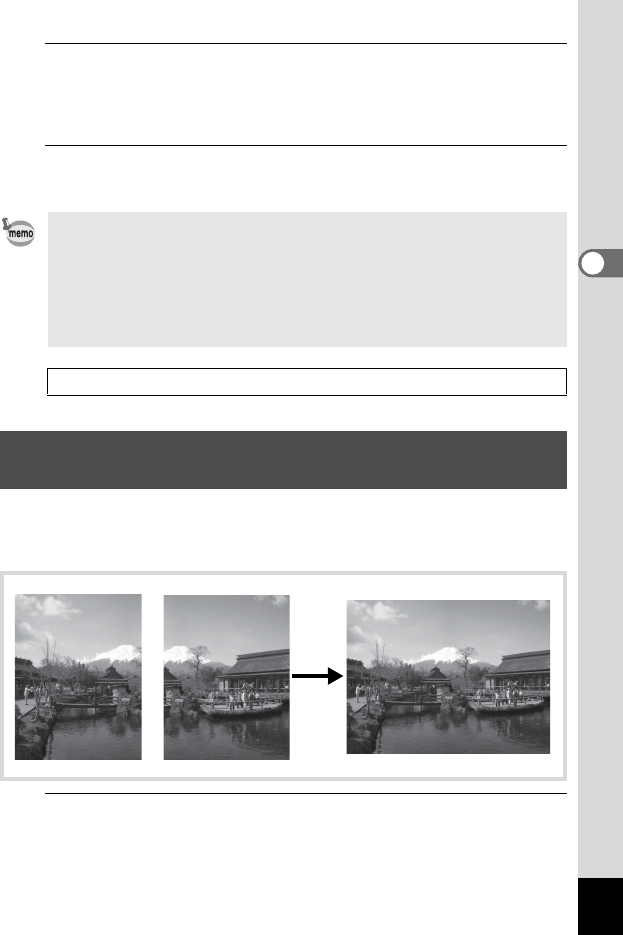

Taking Panoramic Pictures (Digital Panorama Mode)....................75

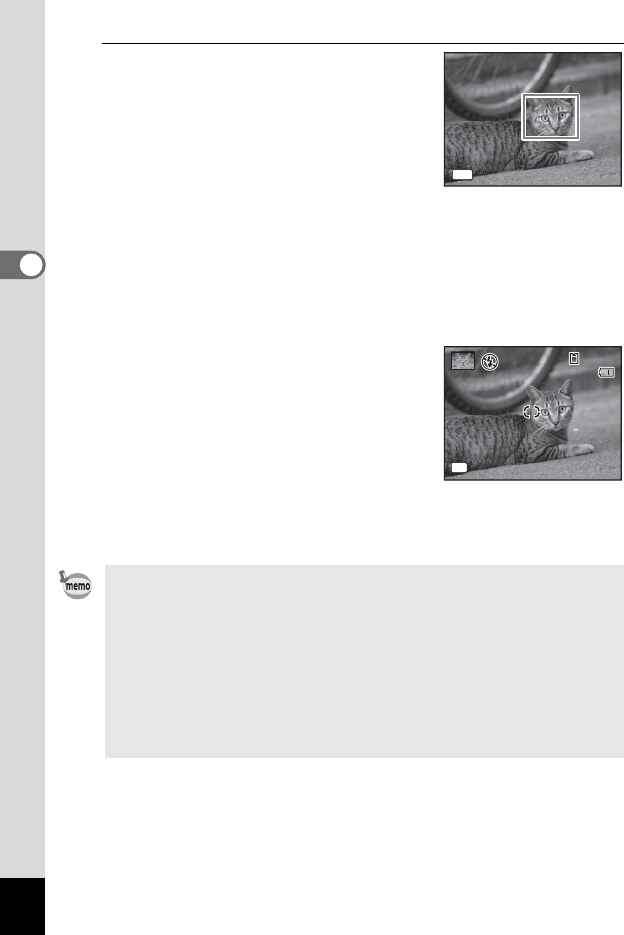

Taking Pictures of Your Pet (Pet Mode) .........................................77
Using a (Manual Exposure) Mode.................................................79
Using A (USER) Mode ..............................................................80
Setting the Shooting Functions.........................................................82
Selecting the Flash Mode...............................................................82
Selecting the Drive Mode ...............................................................84
Selecting the Focus Mode..............................................................86
Setting the [A Rec. Mode] Menu...................................................88
Selecting the Autofocus Settings....................................................88
Setting the Image Tone ..................................................................90
10
Selecting the Number of Recorded Pixels......................................91
Selecting the Quality Level of Still Pictures ....................................92

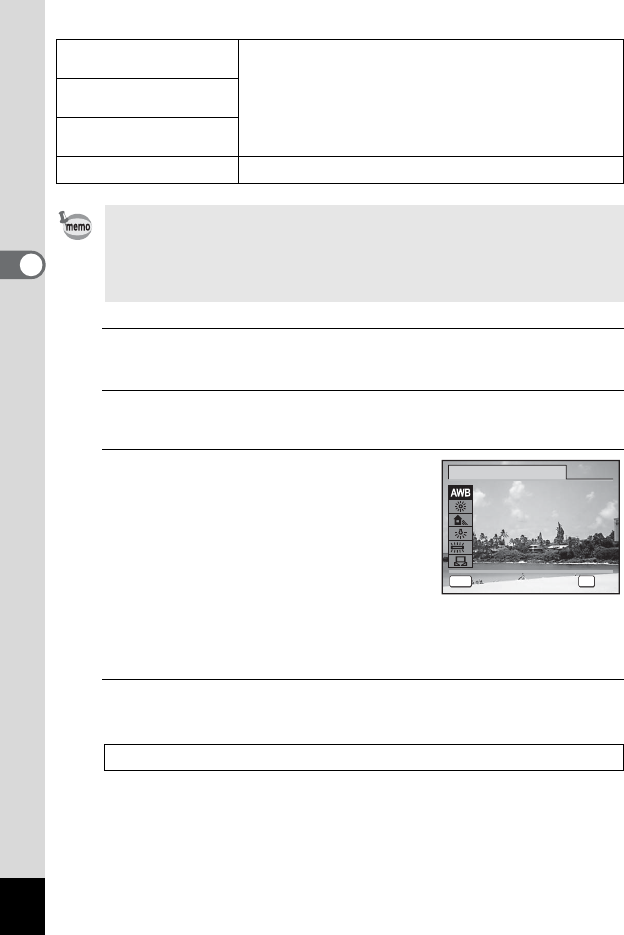

Setting the White Balance ..............................................................93
Setting the AE Metering..................................................................95
Setting the Sensitivity .....................................................................96
Setting the AUTO ISO Range.........................................................97
Compensating Flash Output...........................................................98
Compensating for Brightness (D-Range Setting) ...........................98
Setting the Shake Reduction ..........................................................99
Switching the Face Detection Function ........................................100
Setting the Blink Detection Function.............................................101
Setting the Instant Review............................................................102
Setting the Image Sharpness (Sharpness)...................................102
Setting the Color Saturation/Tone (Saturation/Tone
Adjustment) ............................................................................102
Setting the Image Contrast (Contrast)..........................................103
Setting the Date Imprint Function .................................................103
Setting the IQ Enhancer Processing ............................................104
Setting the Green Button ..............................................................105
Recording Movies .............................................................................108
Selecting the Movie Mode ............................................................108
Recording a Movie........................................................................110
Recording a Movie Quickly Using the Movie button .....................111
Using the Time-Lapse Movie Function .........................................112
Using the High Speed Movie Function .........................................113
Setting the [C Movie] Menu.........................................................113
Selecting the Number of Recorded Pixels and Frame Rate for
Movies....................................................................................114
Setting the Movie SR (Movie Shake Reduction) Function............114
Suppressing Wind Noises during Movie Recording (Wind
Suppression) ..........................................................................115
Saving the Settings (Memory) .........................................................116
11
Playing Back and Deleting Images 118
Playing Back Images ........................................................................118
Playing Back Still Pictures ............................................................118
Playing Back Movies ....................................................................119

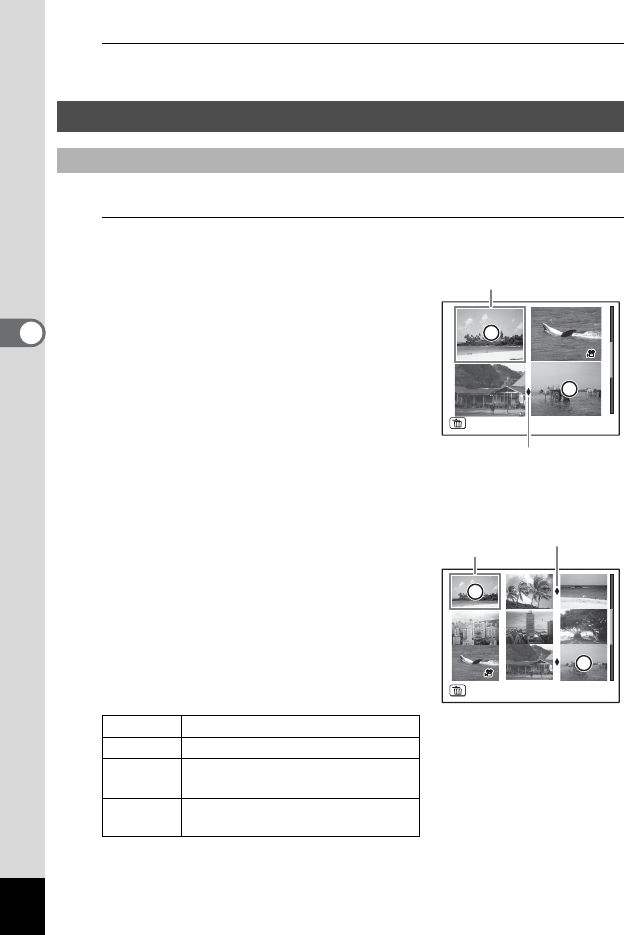

Multi-Image Display ......................................................................120
Using the Playback Function........................................................122
Slideshow .....................................................................................124
Rotating the Image .......................................................................126
Zoom Playback.............................................................................127
Deleting Images ................................................................................129
Deleting a Single Image ...............................................................129
Deleting Selected Images.............................................................129
Deleting All Images.......................................................................131

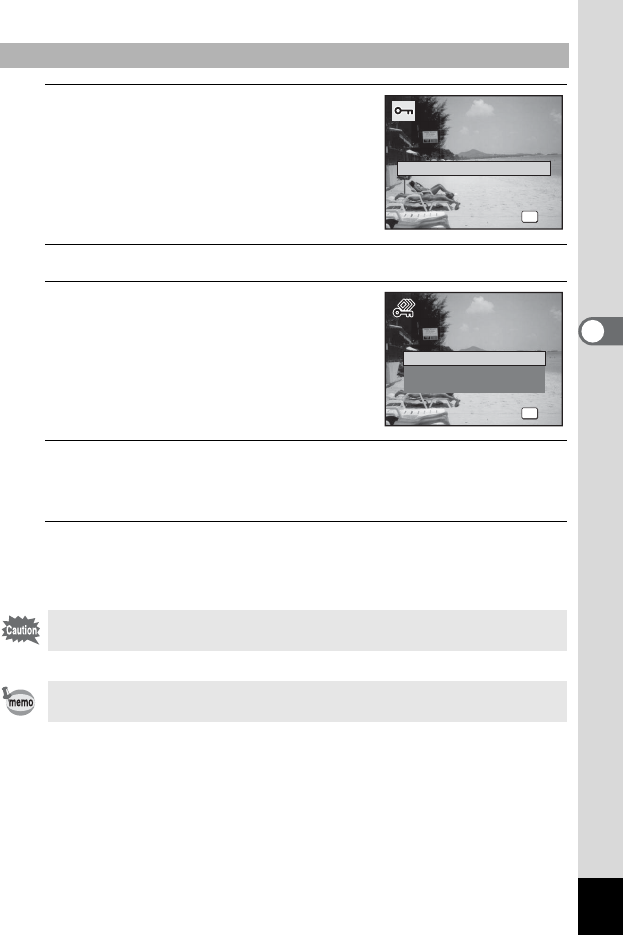

Protecting Images from Deletion (Protect) ...................................131
Connecting the Camera to AV Equipment...................................... 134

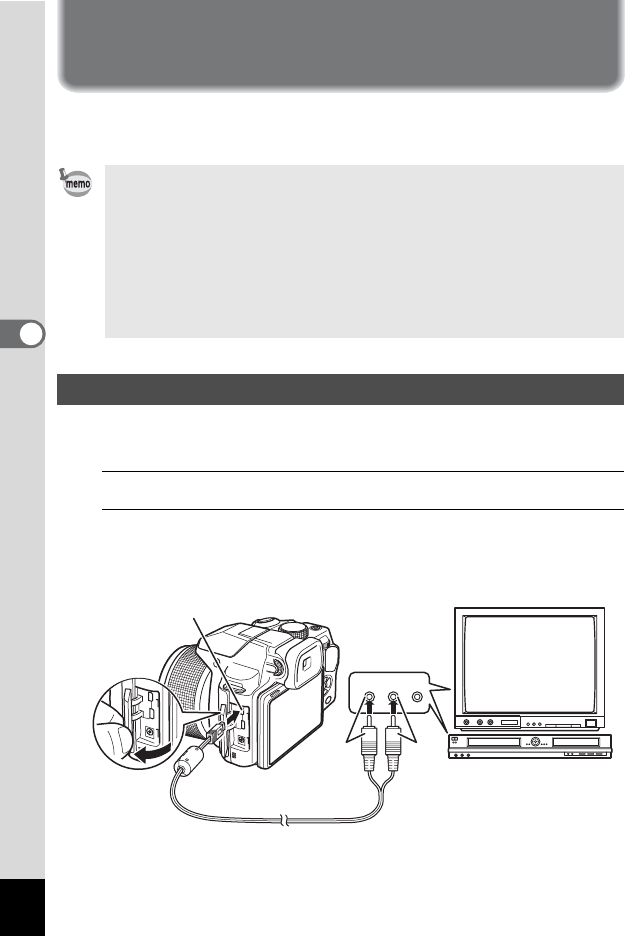

Connecting the Camera to a Video Input Terminal ......................134

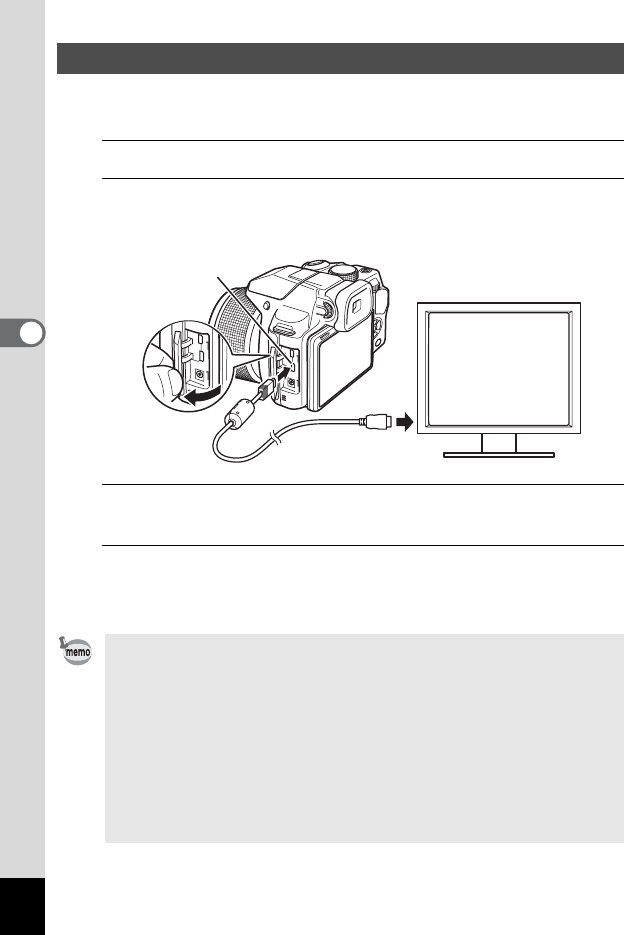

Connecting the Camera to an HDMI Terminal .............................136
Editing and Printing Images 137
Editing Images ..................................................................................137
Changing the Image Size (Resize)...............................................137

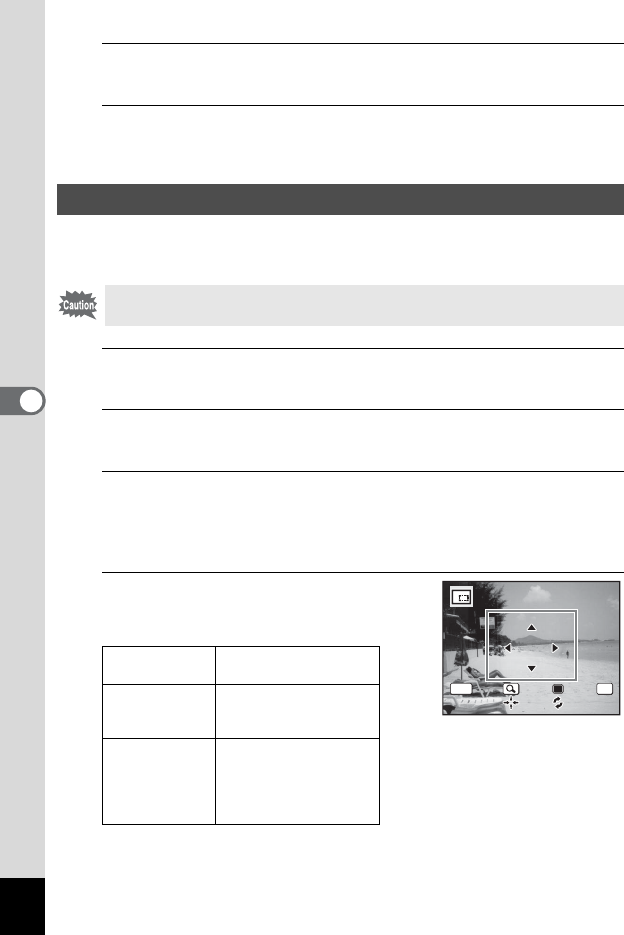

Cropping Images ..........................................................................138
Stretching a User-Selected Area of an Image (Stretch Filter) ......139
Processing Images to Make a Face Look Smaller .......................140
Using the Digital Filters.................................................................142
Using the HDR Filter.....................................................................145
Creating a Collage Image.............................................................145
Compensating for a Red-eye Effect .............................................149
Adding a Frame (Frame Composite) ............................................150
Editing Movies ..............................................................................153
Copying Images............................................................................156
12

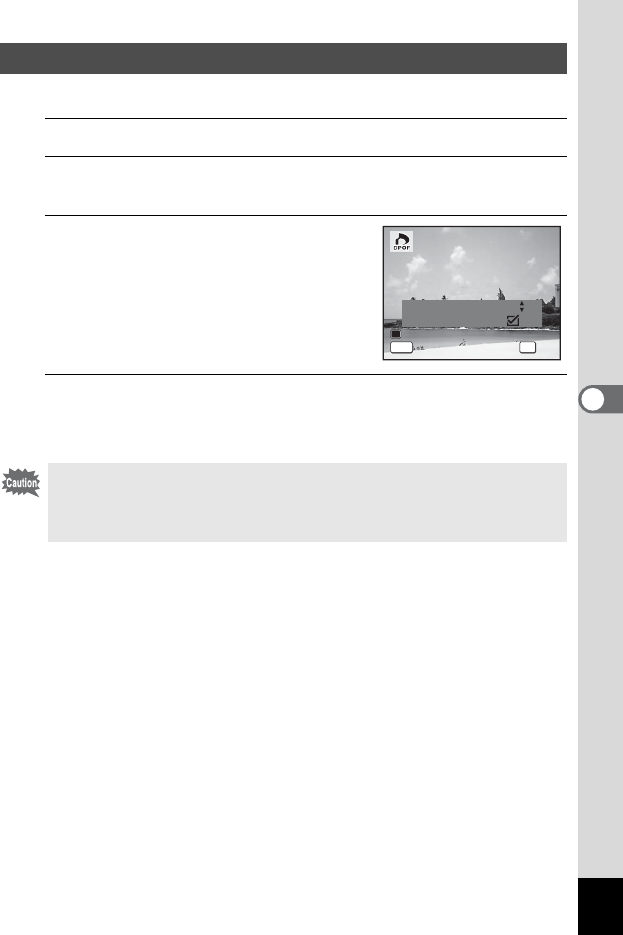

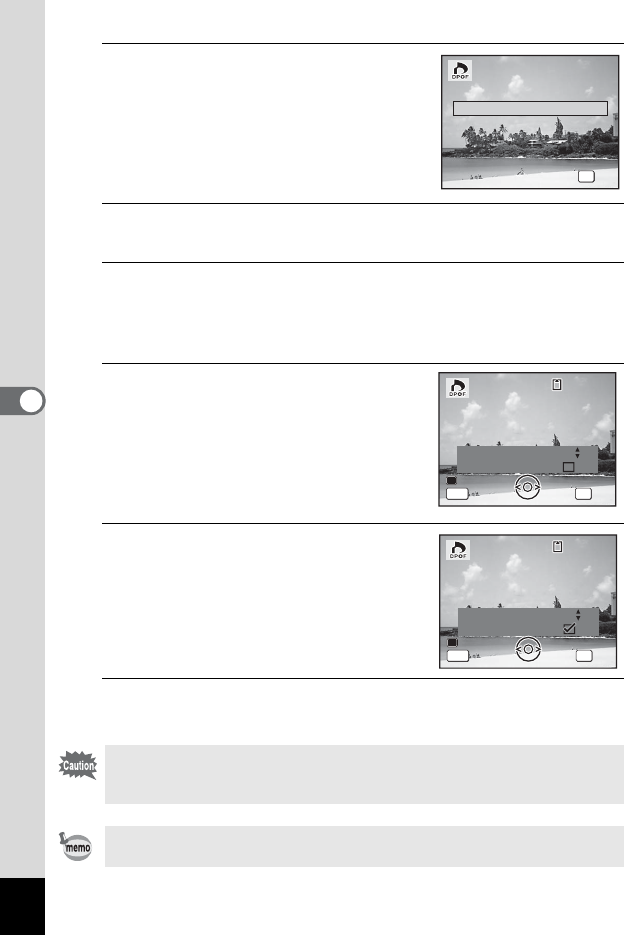

Setting the Printing Service (DPOF)................................................159
Printing a Single Image ................................................................159
Printing All Images........................................................................161
Settings 162
Camera Settings................................................................................162
Changing the [W Setting] Menu....................................................162
Formatting the Memory ................................................................162
Changing the Sound Settings.......................................................163
Changing the Date and Time........................................................164

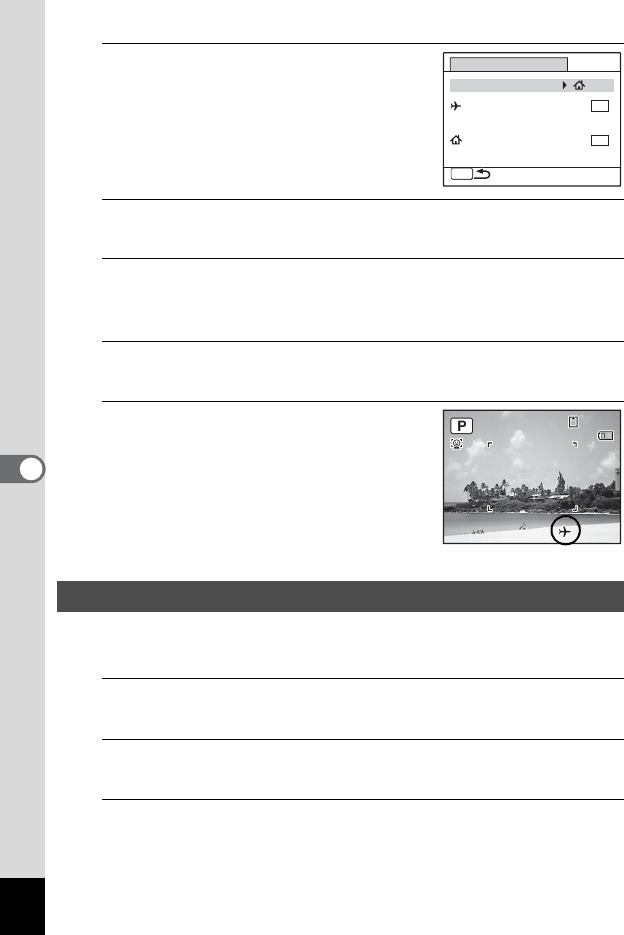

Setting the World Time .................................................................166
Setting the Text Size on the Menu ...............................................168
Changing the Display Language ..................................................169

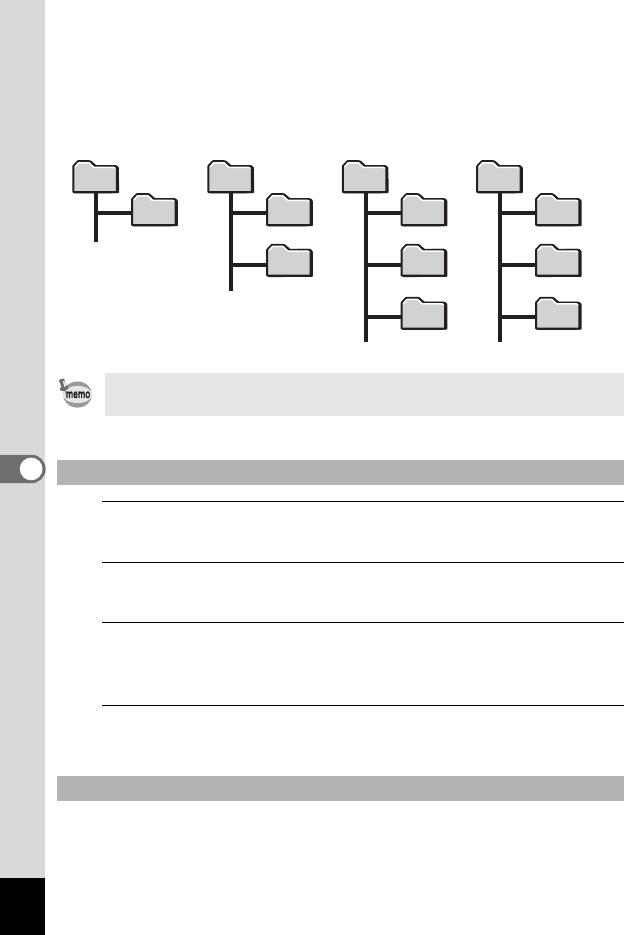

Changing the Naming System of the Folder.................................169
Changing the Naming System of the File .....................................172
Changing the Video Output Format..............................................173
Selecting the HDMI Output Format ..............................................174
Setting Eye-Fi Communication .....................................................175
Adjusting the Brightness of the Display ........................................176
Using the Power Saving Function ................................................176
Setting the Auto Power Off Function ............................................177

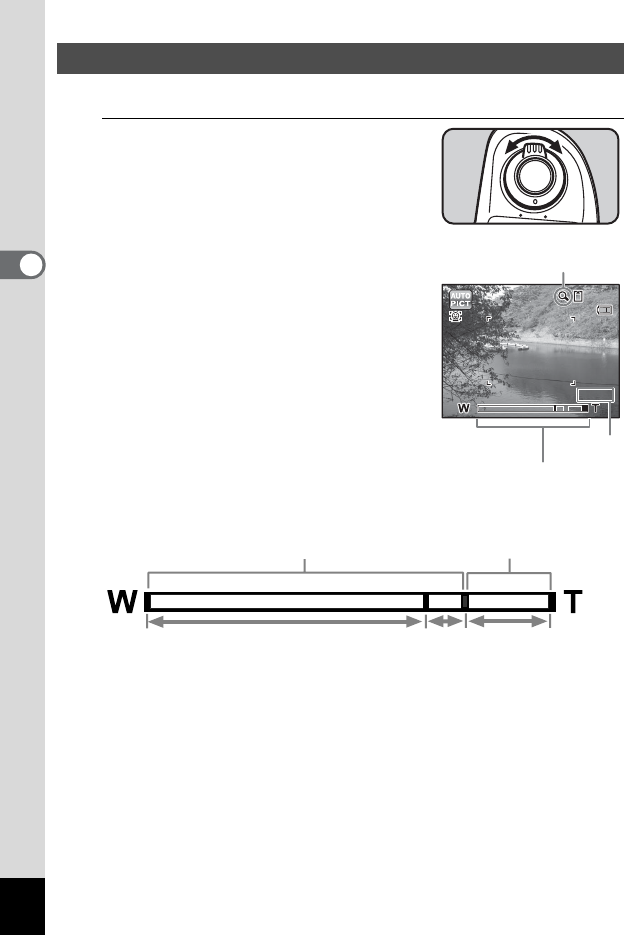

Setting the Quick Zoom Function .................................................178
Setting the Guide Display.............................................................178
Setting the Battery Type ...............................................................178
Changing the Start-up Screen ......................................................179
Correcting Defective Pixels in the Image Sensor
(Pixel Mapping) ......................................................................180
Setting the Playback Shortcut ......................................................181
Resetting to Default Settings (Reset) ...........................................181
13
Connecting to a Computer 183
Connecting to a Computer...............................................................183
Setting the USB Connection Mode...............................................183
Connecting the Camera and the Computer..................................184

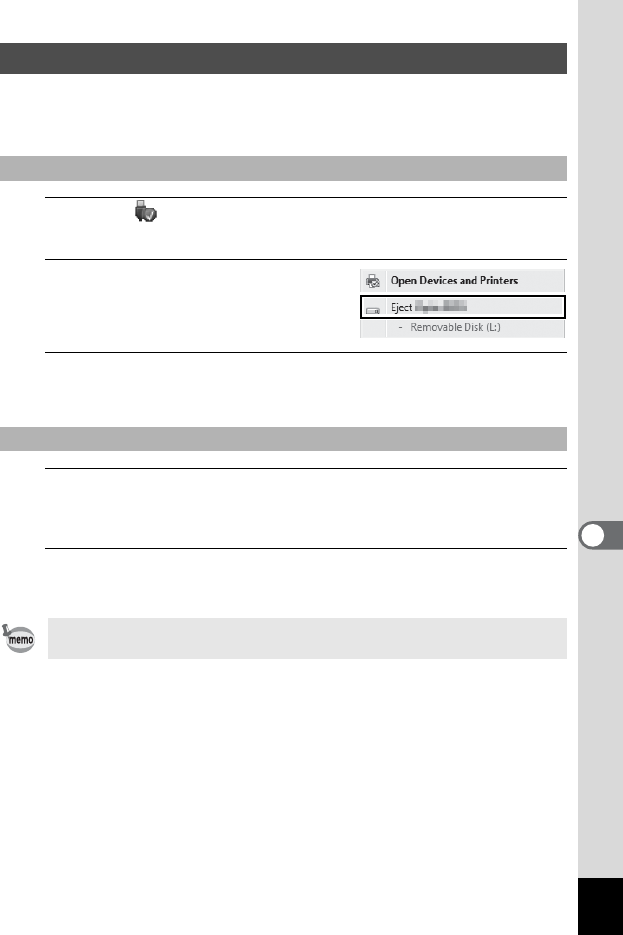

Disconnecting the Camera from the Computer ............................185
Using the Provided Software ...........................................................186
System Requirements ..................................................................186

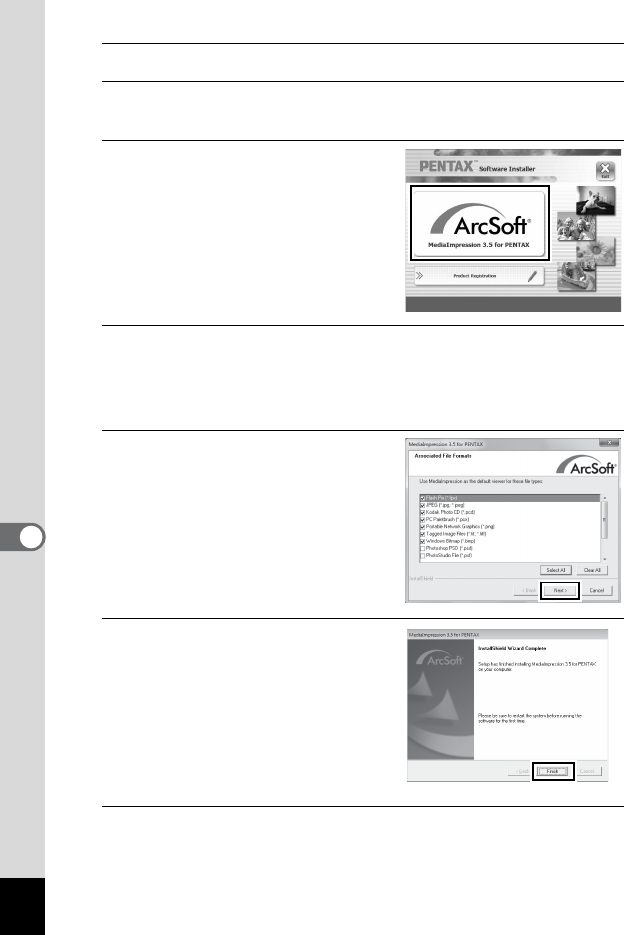

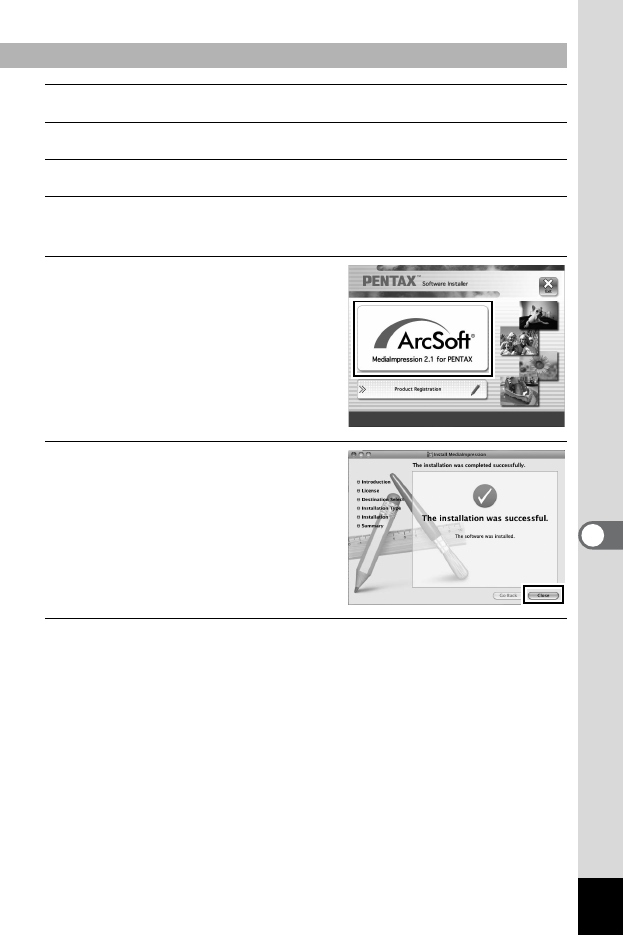

Installing the Software ..................................................................187

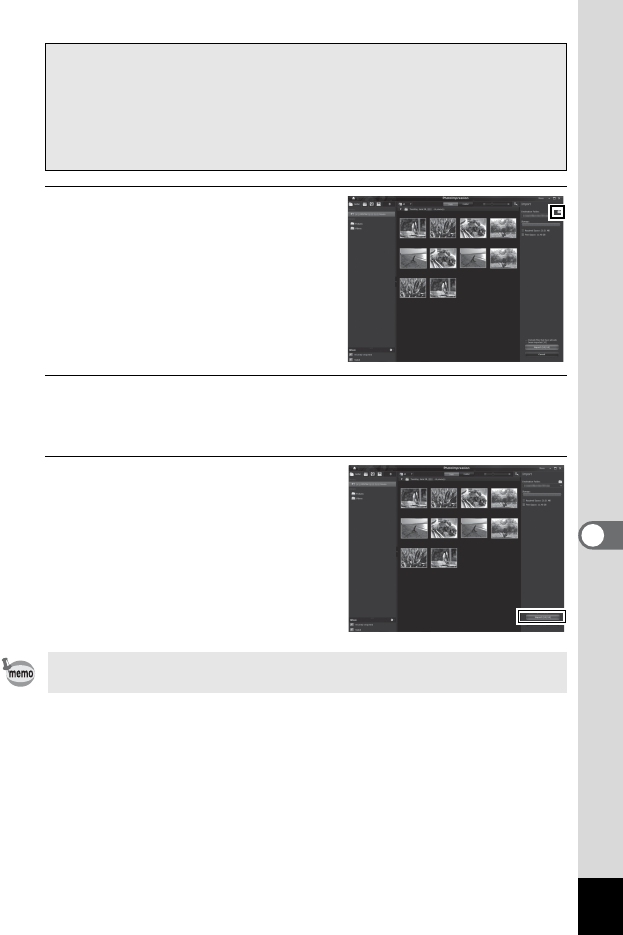

Using MediaImpression on Windows ...........................................190
Using MediaImpression on Macintosh..........................................192
Transferring Images Using an Eye-Fi Card ....................................194
Appendix 196
Functions Available for Each Shooting Mode................................196
Messages...........................................................................................201
Troubleshooting................................................................................203
Default Settings.................................................................................205
List of World Time Cities..................................................................210
Main Specifications ..........................................................................211
WARRANTY POLICY.........................................................................216
Index...................................................................................................221
14
In this manual, the method for operating the four-way controller is shown
in illustrations, such as in the ones below.
The meanings of the symbols used in this Operating Manual are
explained below.
1indicates the reference page number for an explanation of the
related operation.
indicates information that is useful to know.
indicates precautions to be taken when operating the camera.
A mode
This is the mode for capturing still pictures and recording movies.
In this manual, the mode for taking still pictures is referred to as
the “still picture capture mode” and the mode for recording movies
is referred to as the “movie mode”.
Q mode This is the mode for viewing still pictures and playing back
movies.
4
3
5
2
15
This Operating Manual contains the following chapters.
Composition of the Operating Manual
1 Getting Started –––––––––––––––––––––––––––––––––––––––––
This chapter explains what you need to do after purchasing the camera
before you start taking pictures. Be sure to read this chapter and follow the
instructions.
2 Common Operations ––––––––––––––––––––––––––––––––––––
This chapter explains common operations such as the functions of the
buttons and how to use the menus. For more details, refer to the respective
chapters below.
3 Taking Pictures ––––––––––––––––––––––––––––––––––––––––
This chapter explains the various ways of capturing images and how to set
the relevant functions.
4 Playing Back and Deleting Images–––––––––––––––––––––––––
This chapter explains how to view still pictures and movies on the camera
or on a TV screen and how to delete them from the camera.
5 Editing and Printing Images ––––––––––––––––––––––––––––––
This chapter explains how to edit still pictures on the camera and how to
print them.
6 Settings –––––––––––––––––––––––––––––––––––––––––––––––
This chapter explains how to set the camera-related functions.
7 Connecting to a Computer –––––––––––––––––––––––––––––––
This chapter explains how to connect the camera to a computer, and
includes installation instructions and a general overview of the provided
software.
8 Appendix––––––––––––––––––––––––––––––––––––––––––––––
This chapter explains troubleshooting and provides various resources.
1
3
2
4
5
6
7
8
16
Camera Features
In addition to basic picture-taking, this camera has a variety of shooting
modes to suit different situations. This section describes how to make the
most of the key features of your camera. For details of camera
operations, refer to the pages for each function.
The user-friendly design of this camera
enables easy operation with only a few
buttons. Simply by choosing the
appropriate icon, you can select the
shooting mode (p.68) and choose the
optimal settings for the situation, or the
playback mode (p.122, p.137) and
enjoy the various playback and editing
functions. A guide on the display lets
you check the functions available in
each mode and how to use them.
Easy-to-Navigate Capture and Playback
Functions!
A shooting mode guide is displayed in the Capture Mode
Palette and a playback mode guide in the Playback Mode
Palette (p.68, p.122).
Use the Green Mode to take pictures easily using
standard settings (p.62).
17
This camera comes with a “Face Detection” function that spots the faces
in your shot and automatically adjusts the focus and exposure for the
faces. It can detect up to 32 people per shot*, so it will help you take
perfect group shots too. It will automatically release the shutter when one
or more of the subjects are smiling, or it will tell you that anyone blinked,
so you can take many shots from which you can choose the best.
* Up to 31 face detection frames are displayed on the display.
When you take a picture with this
camera, you can choose from the
original fun frames to create attractive
framed shots (p.72). You can also add
frames to pictures you have taken.
Adjust the position of the subject in the
picture or reduce or enlarge the picture
size to match the frame shape and
size. Now you no longer have to worry
about the subject not fitting into the
frame (p.150).
With this camera, you can display recorded images and movies by date
in calendar format (p.121). This lets you quickly find the image or movie
you want to play back.
Perfect for Portrait Shots!
Add Fun Frames to Your Pictures!
Display Your Data in Calendar Format!
Face Detection function (p.61)
Modes for taking stunning pictures of people (p.68)
For decorating your pictures
with a frame
18
This camera has a “Movie SR” function to reduce camera shake during
movie recording (p.114). You can record movies in 1920 × 1080 pixel
(16:9) Full HD format (p.114) and can enjoy viewing high-quality movies
on AV devices by connecting the camera using a commercially available
HDMI cable (p.134).
This camera has a variety of
functions to let you enjoy playing
back and editing images without
having to connect the camera to
your computer. The camera is all
you need to take and edit still
pictures and movies (p.137).
Advanced Movie Recording Functions
A Multitude of Functions Inside the Camera for
Enjoying Images Without a Computer!
Use the camera to shoot fun-filled movies of your children
or pets as a visual diary of their development (p.108).
Image processing features such as Resize (p.137),
Cropping (p.138), Digital Filter (p.142) and Red-eye Edit
(p.149) can be used.
You can divide a movie into two or more segments and
select a frame from a movie to save it as a still picture
(p.153).
19
Items marked with an asterisk (*) are also available as optional accessories.
Checking the Contents of the Package
Camera
X-5
Strap
O-ST92 (*)
Lens cap O-LC129 (*)
Software (CD-ROM)
S-SW129
Four AA alkaline
batteries
USB cable
I-USB7 (*)
Operating Manual
(this manual)
Quick Guide
20
Front
Back
Names of Parts
PC/AV
b button
Lens
Self-timer lamp
(focus assist light)
DC terminal
Strap lug
PC/AV terminal
HDMI terminal
(Type D)
Terminal cover
Microphone
Speaker
Remote control
receiver
Diopter adjustment dial Flash (stored)
Viewfinder
Zoom
lever
Mode
dial
Display
Power button/Power lamp m button
Strap lug
Shutter
release
button
21
Bottom
Names of Operating Parts
Refer to “Understanding the Button Functions” (p.44 - p.48) for an
explanation of the function of each button.
Battery/card cover
Tripod socket
Battery/card cover lock lever
e-dial
4 button
Green/i button
Four-way controller
3 button
3 button
Q button
4 button
Movie button
22
The display shows information such as the shooting conditions in
capture mode. The display changes in the following sequence each time
you press the 3 button: “Normal Display”, “Histogram + Info”, “Grid
Display” and “No Info”.
Monitor Indications
Display in A Mode
• When the shooting mode is set to 9
(Green) mode, the monitor display is as
shown on the right. You cannot change
the information on the display by
pressing the 3 button.
• To take pictures using the viewfinder,
switch from the monitor display to the
viewfinder by pressing the 4 button.
Press the button again to switch to the
monitor display.
14:25
14:25
14:25
38
3 8
38 38
3 8
38
16
M
200
200
200
38
09/09/2012
09/09/2012
09/09/2012
No Info
Histogram + InfoNormal Display
Grid Display
38
3 8
38
23
Still Picture Capture Mode
(All of the display items are displayed here for explanatory purposes.)
A1 to A16 and B1 appear when “Normal Display” is selected. All the
icons appear when “Histogram + Info” is selected. Only B1 appears
when “No Info” is selected.
* A2 varies depending on the [Face Detection] setting in the [A Rec.
Mode] menu.
If set to [Off], nothing appears in A2.
A1 Shooting mode (p.68) A12 Memory status (p.37)
A2 Face Detection icon (p.61) A13 EV Compensation (p.66)
A3 D-Range Setting icon (p.98) A14 Date Imprint setting (p.103)
A4 Shake Reduction icon (p.99) A15 Remaining image storage
capacity
A5 Shutter Speed
A6 Aperture A16 Battery level indicator (p.32)
A7 Flash Mode (p.82) B1 Focus frame (p.58)
A8 Drive Mode (p.84) B2 Recorded Pixels (p.91)
A9 Focus Mode (p.86) B3 Quality Level (p.92)
A10 Eye-Fi communication status
(p.175)
B4 White Balance (p.93)
B5 AE Metering (p.95)
A11 Digital Zoom/Intelligent Zoom
icon (p.64)
B6 Sensitivity (p.96)
B7 Histogram (p.27)
IWhen [Face Detection] is set to [On]
JWhen [Face Detection] is set to [Smile]
F3.5
1/250
F3.5
1/250
38
38
16
M
200
200
+1.0
+1.0
1
A7 A8 A9 A12A11
A10
2
3
B1
4
5
6
A13 A14
B7
B3
B6
B5
B4
B2
A16
A15
24
* A3 varies depending on the [D-Range Setting] setting in the [A Rec.
Mode] menu.
If [Highlight Correction] and [Shadow Correction] are both set to P
(Off), nothing appears in A3.
* For A4, M appears if the shutter release button is pressed halfway
when [Shake Reduction] in the [A Rec. Mode] menu is set to [Sensor
Shift] or [Dual]. l appears when [Shake Reduction] is set to [Off].
* A5 and A6 always appear when the shooting mode is set to a or E
(when the registered shooting mode is a). In other shooting modes,
they are displayed only when the shutter release button is pressed
halfway.
* A10 varies depending on the communication status when using SD
Memory Card with a built-in wireless LAN (Eye-Fi card).
(No indicator) Eye-Fi card is not supported
MN Communicating
MO Waiting for communication
MP Eye-Fi communication is not allowed
MQ Version is outdated
* When the shooting mode is b (Auto Picture) and if you press the
shutter release button halfway, the automatically selected shooting
mode appears in A1 even when “Grid Display” or “No Info” is selected
(p.59).
* The current date and time (p.22) appear instead of B7 when “Normal
Display” is selected.
* In “Normal Display”, X appears during world time setting instead of
B7.
* Some indications may not appear depending on the shooting mode.
PWhen [Highlight Correction] is set to O (On)
QWhen [Shadow Correction] is set to O (On)
OWhen [Highlight Correction] and [Shadow Correction] are both set to O
(On)
25

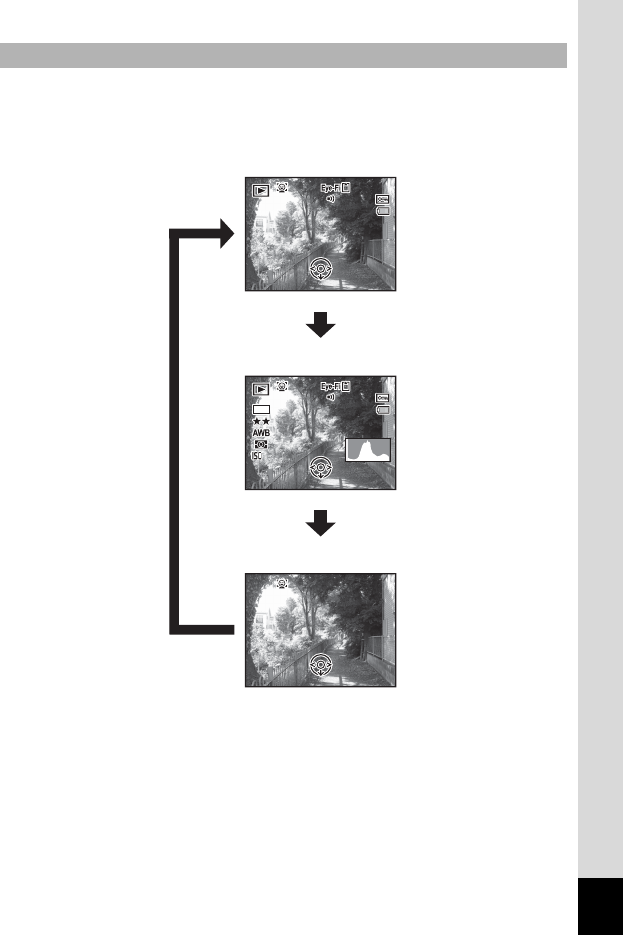

The display shows the shooting information of the image in playback
mode. The display changes in the following sequence each time you
press the 3 button.
Display in Q Mode
3
3
3
F3.5
F 3 . 5
1/250
1 / 2 5 0
F3.5
1/250
100
1 0 0 -
0038
0 0 3 8
100-0038
14:25
1 4 : 2 5
14:25
200
200
200
16
M
100
1 0 0 -
0038
0 0 3 8
100-0038
14:25
1 4 : 2 5
14:25
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
Edit
Edit
Edit
Edit
Edit
Edit
Normal Display
No Info
Histogram + Info
26

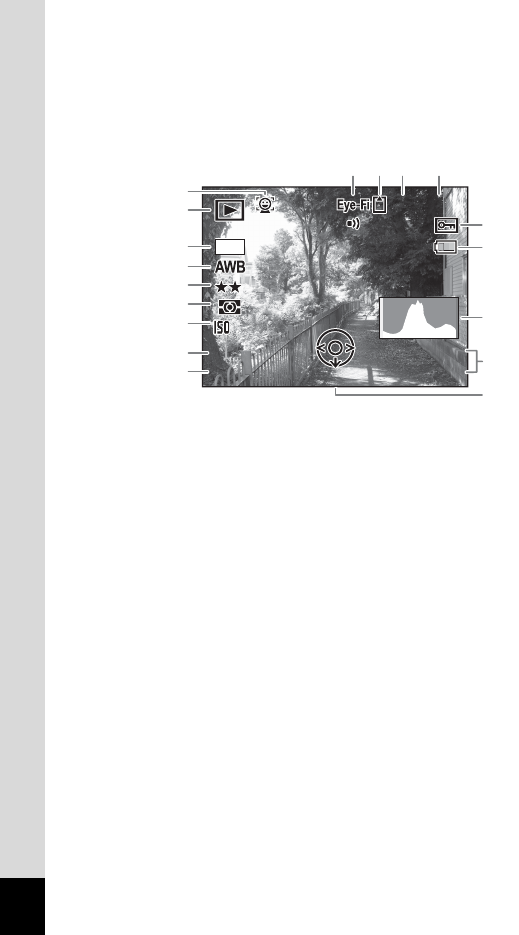

Playback Mode
(All of the display items are displayed here for explanatory purposes.)
The display shows information such as the shooting conditions. A1 to
A10 appear when “Normal Display” or “Histogram + Info” is selected. B1
to B8 appear only when “Histogram + Info” is selected.
* A1 appears only if the Face Detection function worked when the image
was shot.
* In “Normal Display”, A8 and A9 disappear if no operation is performed
for two seconds.
* A10 appears even when “No Info” is selected, but disappears if no operation
is performed for two seconds. When no operation is performed for two
seconds in “Normal Display” or “Histogram + Info”, only “Edit” disappears.
A1 Face Detection icon (p.61) A8 Battery level indicator (p.32)
A2 Playback mode A9 Captured date and time (p.41)
Q: Still Picture (p.118) A10 Four-way controller guide
h: Time-Lapse Movie (p.112) B1 Recorded Pixels (p.91)
K: Movie (p.119) B2 White Balance (p.93)
g: High Speed Movie (p.113) B3 Quality Level (p.92)
A3 Eye-Fi communication status
(p.175)
B4 AE Metering (p.95)
B5 Sensitivity (p.96)
A4 Memory status (p.37) B6 Shutter speed
A5 Folder number (p.169) B7 Aperture
A6 File number B8 Histogram (p.27)
A7 Protect icon (p.131)
F3.5
F 3 . 5
1/250
1/250
F3.5
1/250
100
1 0 0 -
0038
0 0 3 8
100-0038
14:25
14:25
14:25
200
200
200
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
16
M
Edit
Edit
A
2
A
1
B8
A9
A10
A6
A7
B2
B3
B4
B5
B6
B7
B1 A8
A3 A4 A5
27

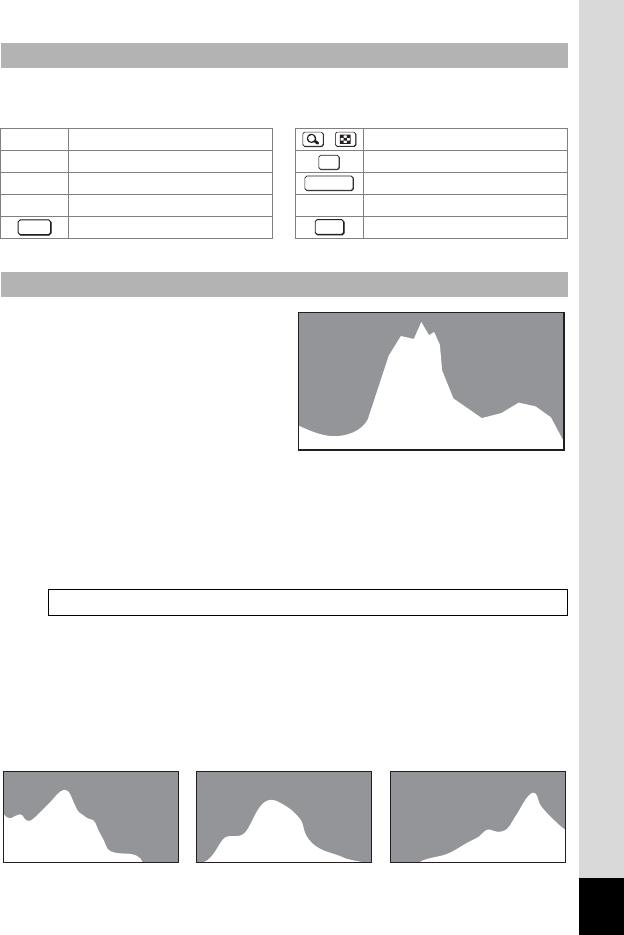

A guide indication for each available button/key operation appears as
follows on the display during operation.
A histogram shows the
brightness distribution of an
image. The horizontal axis
represents brightness (dark at
the left and bright at the right)
and the vertical axis represents
the number of pixels.
The shape of the histogram
before and after shooting tells
you whether the brightness and
contrast are correct or not, and lets you decide if you need to adjust the
exposure and take a picture again.
Understanding Brightness
If the brightness is correct, the graph peaks in the middle. If the image is
underexposed, the peak is on the left side, and if it is overexposed, the
peak is on the right side.
Guide Indications
2Four-way controller (2) / e-dial
3Four-way controller (3)4 button
4Four-way controller (4) Shutter release button
5Four-way controller (5)X /iGreen/i button
3 button 3 button
Using the Histogram
Adjusting the Exposure 1p.66
OK
SHUTTER
MENU DISP
Number of pixels→
←Brightness→(Dark) (Bright)
Dark image Correct image Bright image
28
When the image is underexposed, the part to the left is cut off (dark
portions) and when the image is overexposed, the part to the right is cut
off (bright portions).
Understanding Contrast
The graph peaks gradually for images in which contrast is balanced. The
graph peaks on both sides but sinks in the middle for images with a large
difference in contrast and low amounts of mid-level brightness.
29
1
Getting Started
Gettin
g
Starte
d
Attaching the Lens Cap and Strap
Attach the lens cap and strap supplied with the camera.
1
Attach the string provided to the
lens cap.
2
Pass the end of the strap through
the strap lug, then secure it on the
inside of the clasp.
As shown in the illustration, passing the
strap through the lens cap’s string prevents
the lens cap from being lost.
3
Attach the other end of the strap in
the same manner as described
above.
30
1
Getting Started
Powering the Camera
Install the batteries into the camera. Use four AA alkaline, AA lithium or
AA Ni-MH batteries.
1
Open the battery/card cover.
1Slide the battery/card cover lock lever in the direction of the arrow
to unlock.
2Slide the battery/card cover in the direction of the arrow to open the
cover.
2
Insert the batteries according to the (+)/(–) indicators in
the battery compartment.
Installing the Batteries
Make sure to check the direction of the batteries. If the batteries are
incorrectly oriented, the power of the camera is not turned on, and
malfunction may result.
Battery/card
cover lock lever
Battery/card cover
31
1
Getting Started
3
Close the battery/card cover.
While steadying the whole battery/card cover with your hands, press
to slide it in the opposite direction of 2 until it clicks.
Close the battery/card cover, and slide the battery/card cover lock
lever in the opposite direction of 1 to lock.
To remove the batteries, open the battery/card cover in the same
manner in Step 1 of “Installing the Batteries” (p.30) then remove the
batteries.
Recordable Image No., Movie Recording Time, and Playback Time
(When using new AA alkaline batteries at 23
°
C with the display on)
*1 Recording capacity shows approximate number of shots recorded during
CIPA-compliant testing (with display on, flash used for 50% of the shots, and
23 degrees centigrade). Actual performance may vary according to operating
conditions.
• AA alkaline and AA lithium batteries are not rechargeable.
• Do not open the battery/card cover or remove the batteries while the
camera is turned on.
•
If you do not intend to use the camera for a long time, remove the batteries.
If the batteries are left in the camera for a long time, they may leak.
• If the batteries have been removed from the camera for a long time,
when they are reinserted and the camera is turned on, the message
[Battery depleted] may appear. This can also happen when using the
camera for the first time; however this is not a malfunction. Turn the
camera off, wait a minute and then turn the camera on again. The date
and time may be reset by this operation.
• Insert the batteries correctly. If the batteries are incorrectly oriented,
malfunction may result. Wipe the end of the batteries before inserting
into the camera.
• Be careful as the camera or the batteries may become hot when the
camera is used continuously for a long period of time.
Use the AC adapter kit K-AC129 (optional) if you intend to use the
camera for a long time (p.32).
Recordable Image No.*1
(flash used for 50% of the shots)
Movie Recording
Time*2 Playback Time*2
Approx. 330 pictures Approx. 75 min. Approx. 420 min.
32
1
Getting Started
*2 According to the result of in-house testing. Actual performance may vary
according to operating conditions.
Battery Level Indicator
You can check the battery level by the indicator on the display.
Use of the AC adapter kit K-AC129* (optional) with a household power
supply is recommended if you intend to use the camera for a long time
or connect it to a computer.
* The AC adapter kit K-AC129 is a set of the AC adapter D-AC115 and the AC
plug cord.
• In general, battery performance may temporarily deteriorate as the
temperature decreases. Be sure to take spare batteries when using
the camera in a cold region and keep the batteries warm by placing
them in your pocket or inside your coat. Battery performance that has
deteriorated due to cold temperature will return to normal performance
at normal temperatures.
• Due to their attributes, AA alkaline batteries may not allow the camera
to make full use of its capabilities when used at cold temperatures. Use
of AA lithium or AA Ni-MH batteries is recommended when the camera
is used at cold temperatures.
• Be sure to take spare batteries with you when traveling abroad or to a
cold region, or if you intend to take a lot of pictures.
Screen Display Battery Status
(green) Adequate power remains.
(green) Batteries are running low.
(yellow) Batteries are running very low.
(red) Batteries are exhausted.
[Battery depleted] The camera will turn off after this message appears.
AA nickel manganese batteries may not display the battery level
correctly due to their attributes. may be displayed for the battery level
even if the batteries are running low. The camera may also turn off
without warning even if is displayed.
Using the AC Adapter
33
1
Getting Started
1
Make sure that the camera is turned off and open the
terminal cover.
Pull out the terminal cover in the direction of the arrow 1.
2
Connect the DC plug of the AC adapter to the DC
terminal of the camera.
3
Connect the AC plug cord to the AC adapter.
4
Plug the AC plug cord into the power outlet.
• Make sure that the camera is turned off before connecting or
disconnecting the AC adapter.
• Make sure that the DC plug connected securely. The data may be lost
if either becomes disconnected while data is being recorded on the SD
Memory Card or the built-in memory.
• Use the AC adapter with due care to avoid fire or electric shock.
Be sure to read “Using Your Camera Safely” (p.1) and “About the AC
Adapter” (p.2) before using the AC adapter.
• Be sure to read the operation manual accompanying the AC adapter
kit K-AC129 before using the adapter.
AC plug cord
AC adapter
DC plug
DC
terminal
Terminal
cover
1
2
3
4
34
1
Getting Started
Installing an SD Memory Card
This camera uses a commercially available SD Memory Card, SDHC
Memory Card, or SDXC Memory Card. Captured images are saved on
the SD Memory Card when a card is inserted in the camera. They are
saved in the built-in memory when a card is not inserted (p.37).
• Be sure to use this camera to format (initialize) an SD Memory
Card that is unused or has been used on other cameras or digital
devices. Refer to “Formatting the Memory” (p.162) for
instructions on formatting.
• When using a new Eye-Fi card for the first time, copy the
installation file of Eye-Fi Manager on the card to your computer
before formatting the card.
• Make sure that the camera is turned off before inserting or
removing the SD Memory Card.
• The number of still pictures that can be stored and movie recording
time vary depending on the capacity of the SD Memory Card, the
selected number of recorded pixels, and the quality level, as well as
the frame rate (for movies).

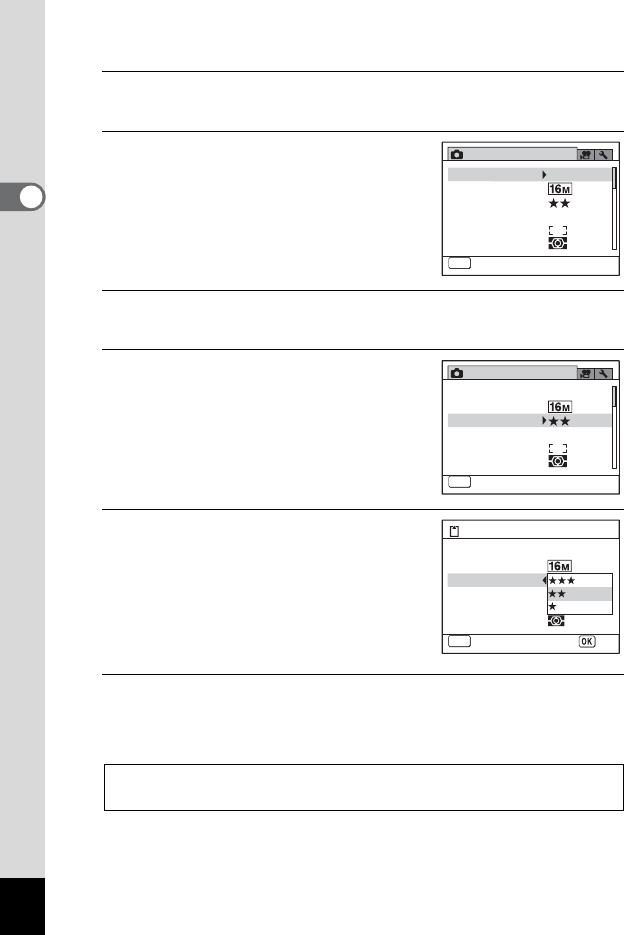

- Choose the appropriate number of recorded pixels for still pictures
in the [A Rec. Mode] menu. Refer to “Selecting the Number of
Recorded Pixels” (p.91) for details.
- Choose the appropriate number of recorded pixels and frame rate
for movies in the [C Movie] menu. Refer to “Selecting the Number
of Recorded Pixels and Frame Rate for Movies” (p.114) for details.
- For an approximate guide to the number of still pictures or the length
of recorded movies that can be saved on an SD Memory Card or in
the built-in memory, see “Main Specifications” (p.211).
• The power lamp blinks while the SD Memory Card is being accessed
(data is being recorded or read).
Backing Up Data
The camera may not be able to access data in the SD Memory Card or built-in
memory in the case of a malfunction. Use a computer or other device to back
up important data in another location.
35
1
Getting Started
1
Make sure that the camera is turned off and open the
battery/card cover.
1Slide the battery/card cover lock lever in the direction of the arrow
to unlock.
2Slide the battery/card cover in the direction of the arrow to open the
cover.
2
Insert the SD Memory Card into the SD Memory Card
socket so that the label is facing the lens side of the
camera.
Push the card in until it clicks. Data may not be recorded correctly if the
card is not inserted all the way.
To remove the SD Memory Card, push it in once and then pull it out.
3
Close the battery/card cover.
While steadying the whole battery/card cover with your hands, press
to slide it in the opposite direction of 2 until it clicks.
Close the battery/card cover, and slide the battery/card cover lock
lever in the opposite direction of 1 to lock.
SD Memory Card
Battery/card cover lock lever
Battery/card cover
36
1
Getting Started

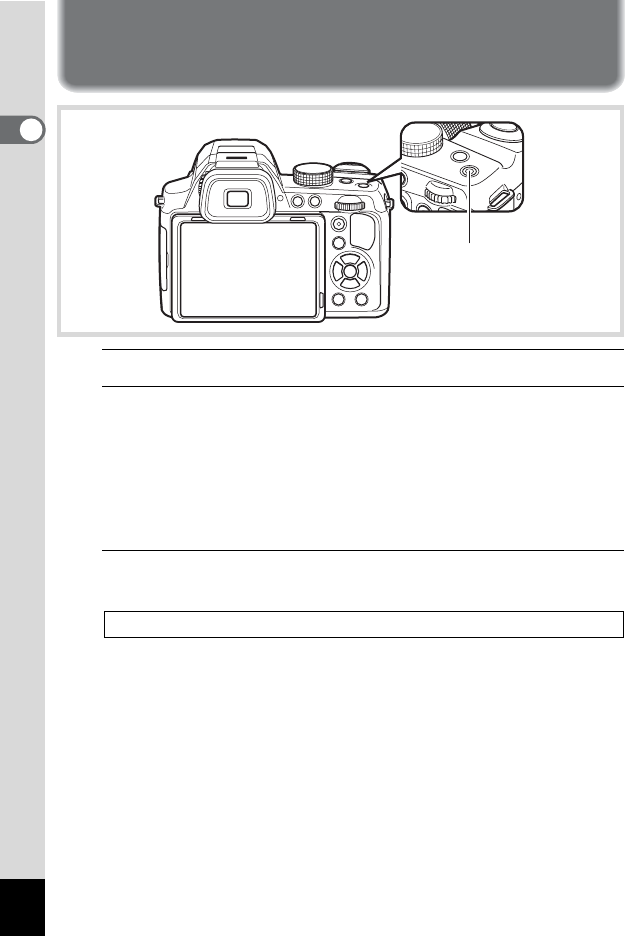

Turning the Camera On and Off
1
Remove the lens cap.
2
Press the power button.
The camera turns on and the display turns on.
When you turn the camera on, the lens extends. (The lens will not
extend if the initial settings have not been configured.)
If the [Language/u] screen or [Date Adjustment] screen appears
when you turn the camera on, follow the procedure on p.38 to set the
display language and/or current date and time.
3
Press the power button again.
The display turns off, the lens closes, and the camera turns off.
Taking Still Pictures 1p.56
Power button
37
1
Getting Started

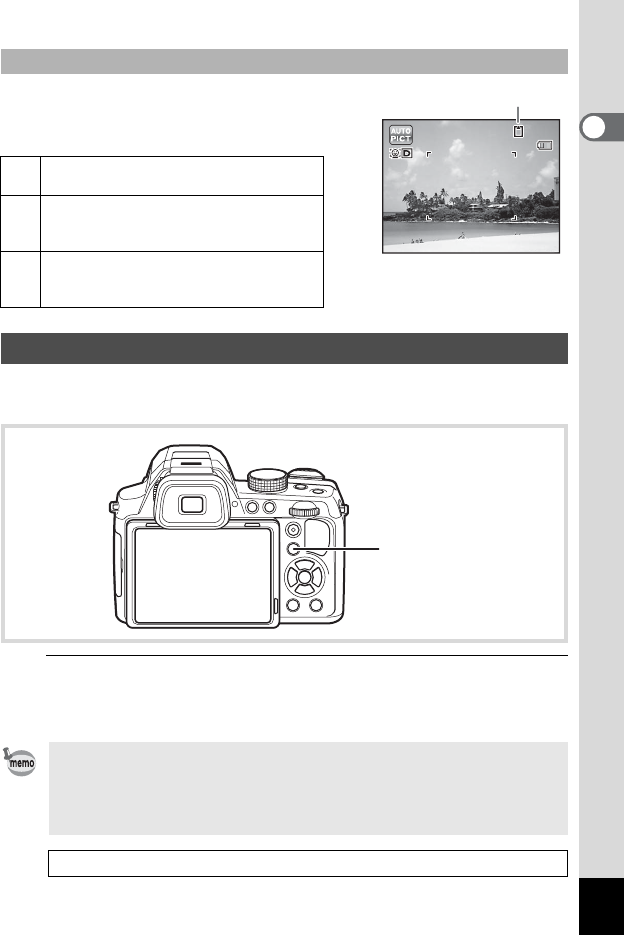

The SD Memory Card is checked when the
camera turns on and the memory status is
displayed.

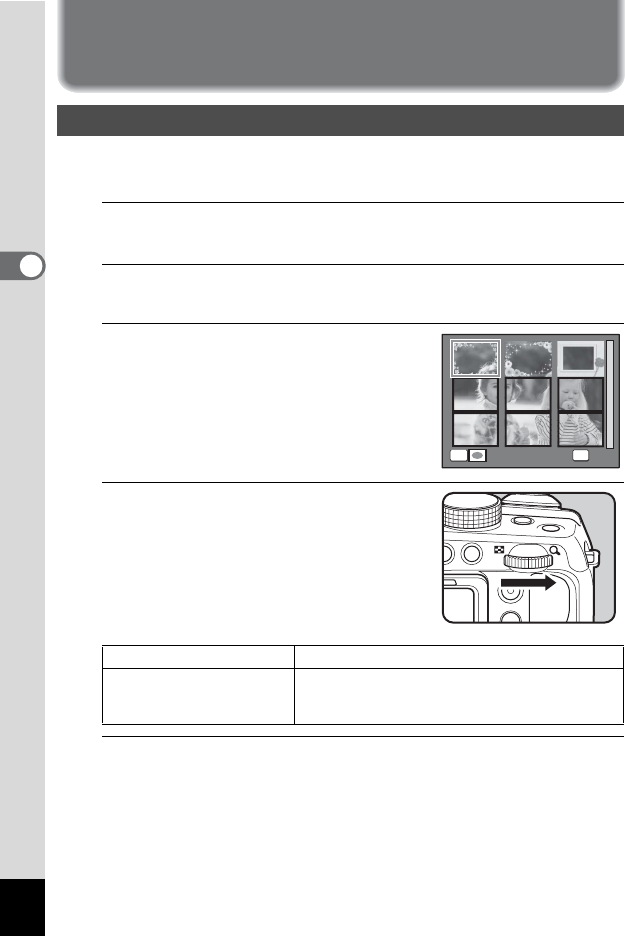

If you want to play back images straightaway without taking any pictures,
you can start up the camera in playback mode.
1
Hold down the Q button.
The display turns on with the lens retracted, and the camera turns on
in playback mode.
Checking the SD Memory Card
aThe SD Memory Card is inserted. Images
will be saved on the SD Memory Card.
+The SD Memory Card is not inserted.
Images will be saved in the built-in
memory.
rThe write-protect switch on the SD
Memory Card is in the LOCK position
(p.6). Images cannot be recorded.
Starting-up in Playback Mode
• To switch from the playback mode to the A mode, be sure to remove
the lens cap, and press the Q button or press the shutter release
button halfway.
• In order to set the starting-up in playback mode to off, set [Playback
Shortcut] to P (Off) in the [W Setting] menu (p.181).
Playing Back Still Pictures 1p.118
14:25
1 4 : 2 5
14:25
38
3 8
38
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
Memory status
Q button
38
1
Getting Started
Initial Settings
The [Language/u] screen appears when the camera is turned on for
the first time (p.36). Perform the operations in “Setting the Display
Language” below to set the language, and in “Setting the Date and Time”
(p.41) to set the current date and time.
1
Use the four-way controller (2345) to choose the
desired display language.

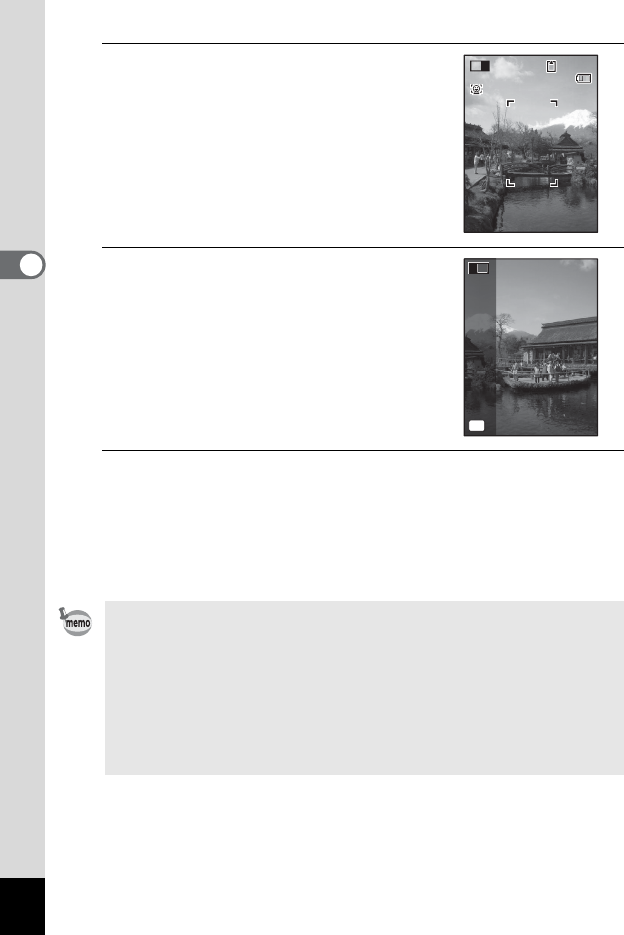

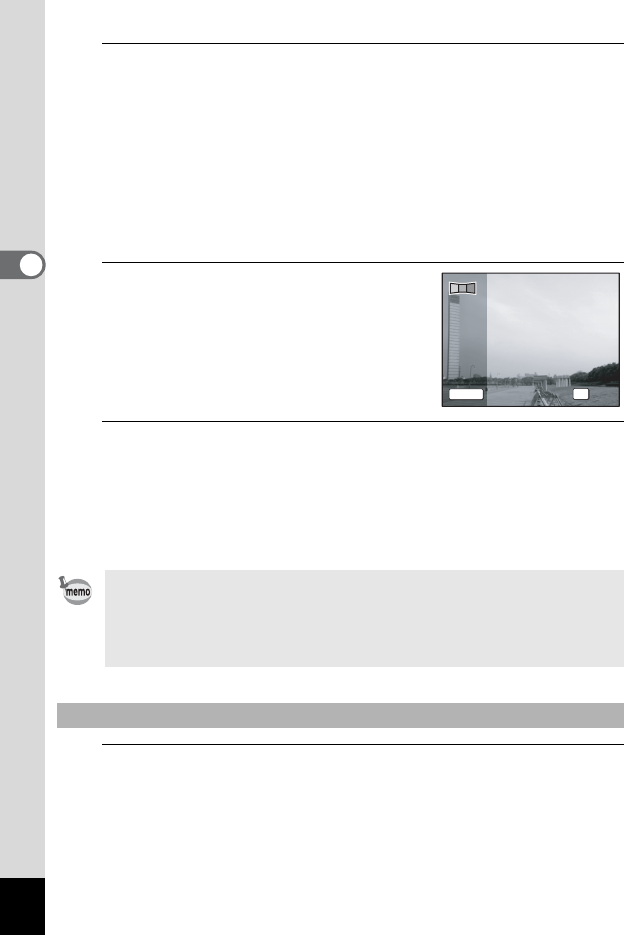

2
Press the 4 button.
The [Initial Setting] screen appears in
the selected language. If the desired
settings for [Hometown] and [DST]
(Daylight Saving Time) appear,
proceed to Step 9.
Proceed to Step 3 if the desired
settings do not appear.
The language, date, and time can be changed later. Refer to the pages below
for instructions.
• To change the language, follow the steps in “Changing the Display Language”
(1p.169).
• To change the date and time, follow the steps in “Changing the Date and
Time” (1p.164).
Setting the Display Language
3 button
Four-way controller
4 button
Initial Setting
MENU
Cancel
English
DST
OFF
OFF
OFF
Hometown
New York
Settings complete
Daylight saving time
39
1
Getting Started
If you accidentally select the wrong language and proceed to the next
procedure, perform the following operation to set the desired language.
When the Wrong Language Has Been Inadvertently Selected
1
Press the four-way controller (5).
2
Use the four-way controller (2345) to select the
desired language and press the 4 button.
The [Initial Setting] screen appears in the selected language.
When the Screen After Step 2 Appears in the Wrong Language
1
Press the 3 button.
The setting screen is canceled and the camera is set to still picture
capture mode.
2
Press the 3 button.
The [A Rec. Mode] menu appears.
3
Press the four-way controller (5) twice.
The [W Setting] menu appears.
4
Use the four-way controller (23) to select [Language/
u].
5
Press the four-way controller (5).
The [Language/u] screen appears.
6
Use the four-way controller (2345) to select the
desired language.
7
Press the 4 button.
The [W Setting] menu appears in the selected language.
To reset the Hometown city, date, and time, refer to the pages below for
instructions.
• To change the Hometown city, follow the steps in “Setting the World Time”
(1p.166).
• To change the date and time, follow the steps in “Changing the Date and
Time” (1p.164).
40
1
Getting Started
3
Press the four-way controller (3).
The frame moves to [W Hometown].
4
Press the four-way controller (5).
The [W Hometown] screen appears.
5
Use the four-way controller (45)
to choose a city.
6
Press the four-way controller (3).
The frame moves to [DST] (Daylight Saving Time).
7
Use the four-way controller (45) to select O (On) or P
(Off).
8
Press the 4 button.
The [Initial Setting] screen reappears.
9
Press the four-way controller (3) to select [Settings
complete].
10
Press the 4 button.
The [Date Adjustment] screen appears. Next, set the date and time.
The video output format (NTSC/PAL) is set to the format of the city selected in
[Hometown] on the [Initial Setting] screen. Refer to “List of World Time Cities”
(p.210) for the video output format of each city that will be set at the time of initial
setting, and “Changing the Video Output Format” (p.173) for changing the video
output format.
Initial Setting
MENU
Cancel
English
DST
OFF
OFF
OFF
Hometown
New York
Settings complete
Hometown
City New York
DST
MENU
Cancel
OK
OK
41
1
Getting Started
Set the current date and time and the display style.
1
Press the four-way controller (5).
The frame moves to [mm/dd/yy].
2
Use the four-way controller (23)
to choose the date format.
Choose from [mm/dd/yy], [dd/mm/yy] or [yy/
mm/dd].
3
Press the four-way controller (5).
The frame moves to [24h].
4
Use the four-way controller (23) to select [24h] (24-
hour display) or [12h] (12-hour display).
5
Press the four-way controller (5).
The frame returns to [Date Format].
6
Press the four-way controller (3).
The frame moves to [Date].
7
Press the four-way controller (5).
The frame moves to the month.
8
Use the four-way controller (23) to change the month.
Change the day and year in the same manner.
Next, change the time.
If you selected [12h] in Step 4, the camera automatically switches the
display between am and pm corresponding to the time.
9
Press the four-way controller (5), and then use the
four-way controller (3) to select [Settings complete].
10
Press the 4 button.
This confirms the date and time.
Setting the Date and Time
Date Adjustment
MENU
Cancel
Date Format
Date
Time
24h
01/01/2012
00:00
mm/dd/yy
Settings complete
42
1
Getting Started
If you press the 4 button in Step 10, the camera clock is reset to 0
seconds. To set the exact time, press the 4 button when the time
signal (on the TV, radio, etc.) reaches 0 seconds.
When the [Initial Setting] or [Date Adjustment] screen is displayed, you
can cancel the settings made up to that point and switch to the capture
mode by pressing the 3 button. In this case, the [Initial Setting]
screen will appear again the next time you turn the camera on.
The language, date, time, Hometown city, and DST setting can be changed.
Refer to the pages below for instructions.
• To change the language, follow the steps in “Changing the Display Language”
(1p.169).
• To change the date and time, follow the steps in “Changing the Date and
Time” (1p.164).
• To change the Hometown city or DST setting, follow the steps in “Setting the
World Time” (1p.166).
43
1
Getting Started

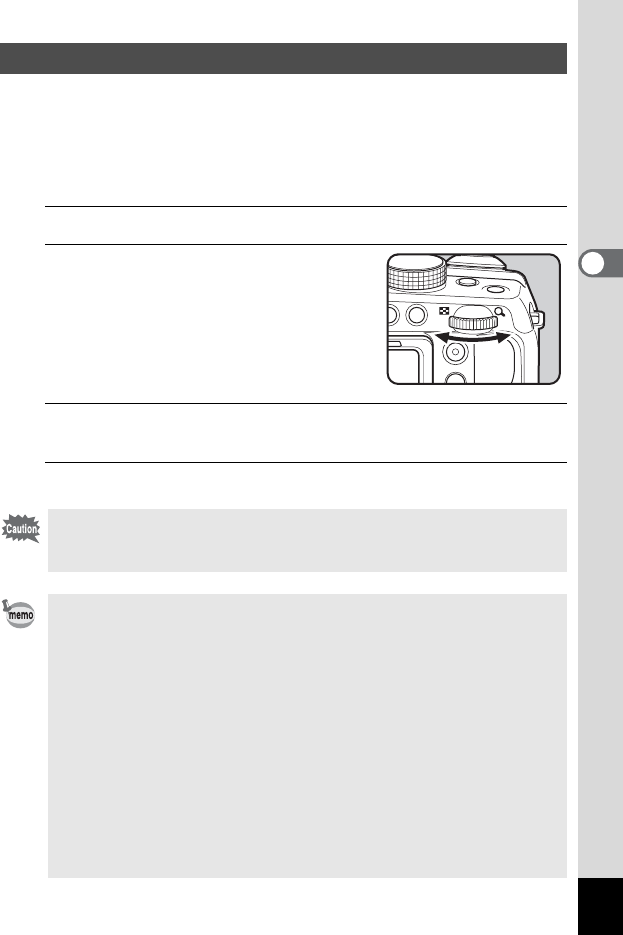

Adjusting the Viewfinder Diopter
Adjust the viewfinder diopter to suit your eyesight.
If it is difficult to see the image in the viewfinder clearly, turn the diopter
adjustment dial up or down.
1
Press the 4 button and switch to the viewfinder.
2
Look through the viewfinder and
turn the diopter adjustment dial
up or down.
Adjust the dial until the image in the
viewfinder appears clearly focused.
Point the camera at a white wall or other
bright and even surface.
44
2
Common Operations
Comm
on
Operat
ions
Understanding the Button Functions
1m button
Press this button to set the EV compensation value (p.66).
In a mode, this button is used for switching the shutter speed and the
aperture value (p.79).
2Shutter release button
Focuses the camera on the subject when pressed halfway in still
picture capture mode (except when s (Infinity) or \ is selected as
the focus mode). Takes a still picture when pressed down fully (p.59).
Starts and stops movie recording in movie mode (p.110).
3Zoom lever
Changes the captured area (p.64).
A Mode
1
2
3
4
5
8
9
0
a
b
7
6
c
45
2
Common Operations
4Power button
Turns the camera on and off (p.36).
5e-dial
Changes the EV compensation value, shutter speed, and aperture
value.
6Movie button
Starts movie recording when the mode dial is set to a position other
than C (p.111).
7Q button
Switches to the Q mode (p.48).
8Four-way controller
2Changes the drive mode (p.84).
3Displays the Capture Mode Palette when the mode dial is set
to H (p.69).
Displays the Movie Mode Palette when the mode dial is set to
C (p.109).
4Changes the flash mode (p.82).
5Changes the focus mode (p.86).
23 Adjusts the focus when the focus mode is set to \ (p.87).
9Green button
Switches to the 9 (Green) mode (p.62).
Calls up the assigned function when set to [Fn Setting] (p.105).
03 button
Displays the [A Rec. Mode] menu in still picture capture mode (p.49).
Displays the [C Movie] menu in movie mode (p.49).
a3 button
Changes the information on the display (p.22).
b4 button
Switches between the viewfinder and the monitor display.
cb (Flash) button
The flash pops up.
46
2
Common Operations
1Shutter release button
Switches to A mode (p.48).
2Zoom lever
Each time the lever is turned to the right (5) during single-image
display, the image is enlarged by 1.1 to 10 times. Returns to the
previous display when turned to the left (6) (p.64).
3Power button
Turns the camera on and off (p.36).
4e-dial
• Enlarges the image by 1.1 to 10 times when turned to the right (y)
during single-image display. Returns to the previous display when
turned to the left (f) (p.127).
• Changes to four-image display when turned to the left (f) during
single-image display. Changes to nine-image display when turned to
the left again. Returns to the previous display when turned to the
right (y) (p.120).
Q Mode
1
2
3
4
5
6
7
8
9
0
47
2
Common Operations
• Changes to folder or calendar display when turned to the left (f)
during nine-image display (p.121).
• Returns to nine-image display when turned to the right (y) during
folder/calendar display (p.121).
Adjusts the volume during playback of movies (p.119).
5Q button
Switches to A mode (p.48).
6Four-way controller
2Plays back and pauses a movie (p.119).
3Displays the Playback Mode Palette (p.122).
Stops a movie during playback (p.120).
45 Displays the previous or next image during single-image
display (p.118).
Fast-forwards, fast-reverses, frame forwards and frame
reverses during playback (p.119).
2345 Selects an image during four-/nine-image display, a folder
during folder display, and a date during calendar display
(p.121).
Moves the display area during zoom display (p.127).

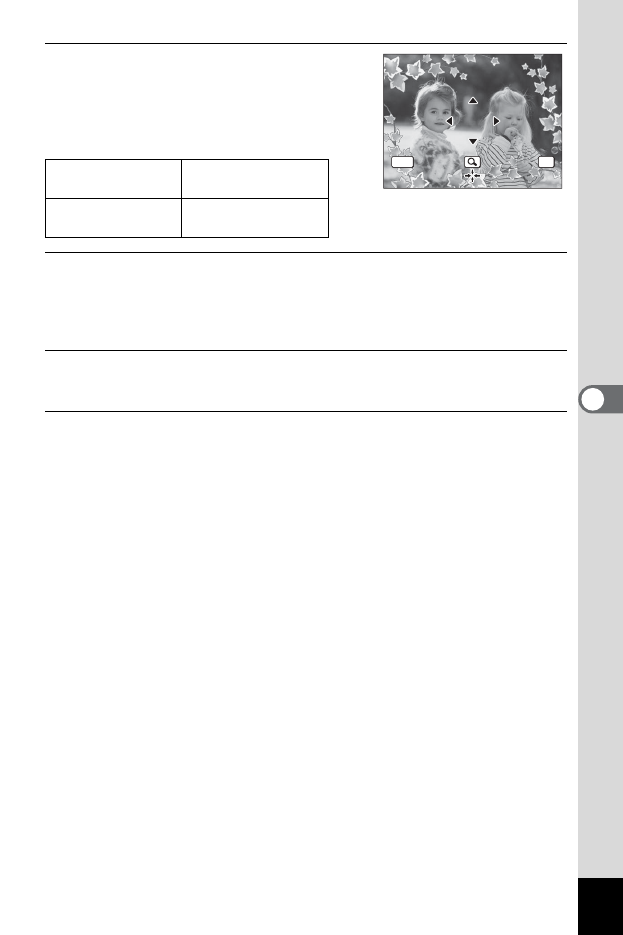

Moves the image when using the Frame Composite
function (p.150).
74 button
Returns to single-image display during four-/nine-image display or
zoom display (p.120, p.127).
Changes to nine-image display of the selected folder during folder
display (p.121).
Changes to single-image display of the selected date during calendar
display (p.121).
8Green/i (Delete) button
• Switches from single-image display to the Delete screen (p.129).
• Switches from
four-/
nine-image display to the Select & Delete
screen (p.129).
• Switches from folder display to the calendar display screen (p.121).
• Switches from calendar display to the folder display screen (p.121).
93 button
• Displays the [W Setting] menu during single-image display (p.49).
Returns to single-image display during Playback Mode Palette
display.
48
2
Common Operations
• Returns to single-image display during four-/nine-image display or
zoom display.
• Switches from folder/calendar display to nine-image display with the
cursor placed on the most recent image.
03 button
Changes the information on the display (p.25).
In this manual, the capture mode, such as for taking still pictures, is referred
to as “
A
mode” (the capture mode). The playback mode, such as for
displaying captured images on the display, is referred to as “
Q
mode” (the
playback mode). In
Q
mode, you can perform simple editing operations on
the captured images.
Follow the procedure below to switch between A mode and Q mode.
1
Press the Q button.
The camera switches to Q mode.
1
Press the Q button or the shutter release button.
The camera switches to A mode.
Switching Between A Mode and Q Mode
To Switch from A Mode to Q Mode
To Switch from Q Mode to A Mode
Displaying the data stored in the built-in memory
When an SD Memory Card is inserted in the camera, images and
movies on the SD Memory Card are displayed. If you want to display
images and movies in the built-in memory, turn the camera off and
remove the SD Memory Card.
Make sure that the camera is turned off before inserting or removing
the SD Memory Card.
49
2
Common Operations

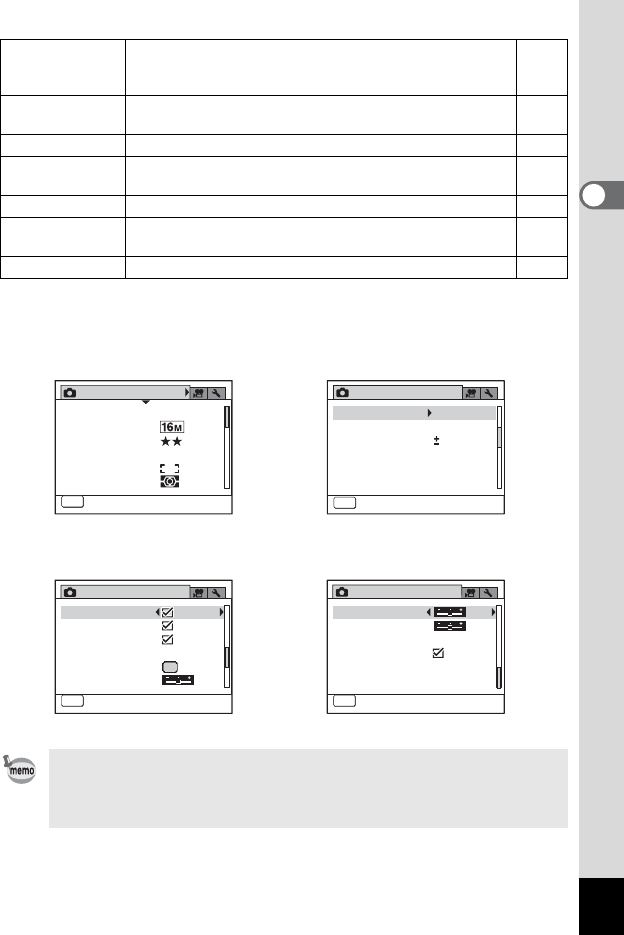

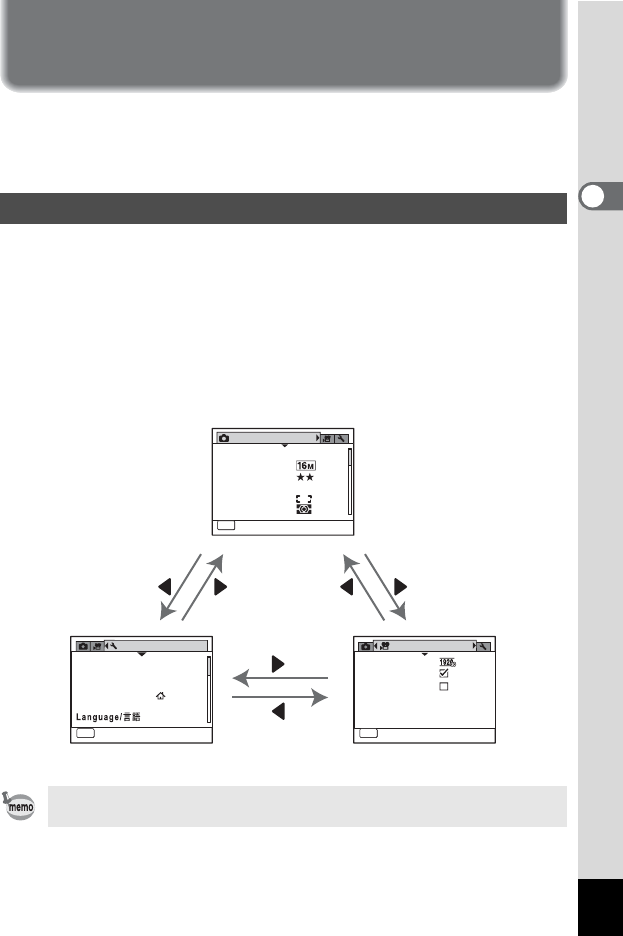

Setting the Camera Functions
To change the camera settings, press the 3 button to display the
menu screens. Functions for playing back and editing images are called
up from the Playback Mode Palette (p.122).
There are three menus available with the camera: [A Rec. Mode],
[CMovie], and [WSetting].
Press the 3 button in still picture capture mode to display the [A
Rec. Mode] menu. Press the 3 button in movie mode to display the
[C Movie] menu. Press the 3 button in Q mode to display the [W
Setting] menu.
Use the four-way controller (45) or e-dial to switch between the menus.
Operating the Menus
Available button/key operations appear on the display during menu
operation (p.27).
Rec. Mode
1/4
MENU
Exit
Recorded Pixels
Image Tone
White Balance
AF Setting
AE Metering
AWB
Quality Level
Bright
Setting
Sound
Save as USER
Text Size
Date Adjustment
01/01/2012
World Time
English
Standard
MENU
Exit
1/4
Movie
MENU
Recorded Pixels
Exit
Movie SR
Wind Suppression
50
2
Common Operations
Ex.) To set [Quality Level] in the [A Rec. Mode] menu
1
Press the 3 button in still picture capture mode.
The [A Rec. Mode] menu appears.

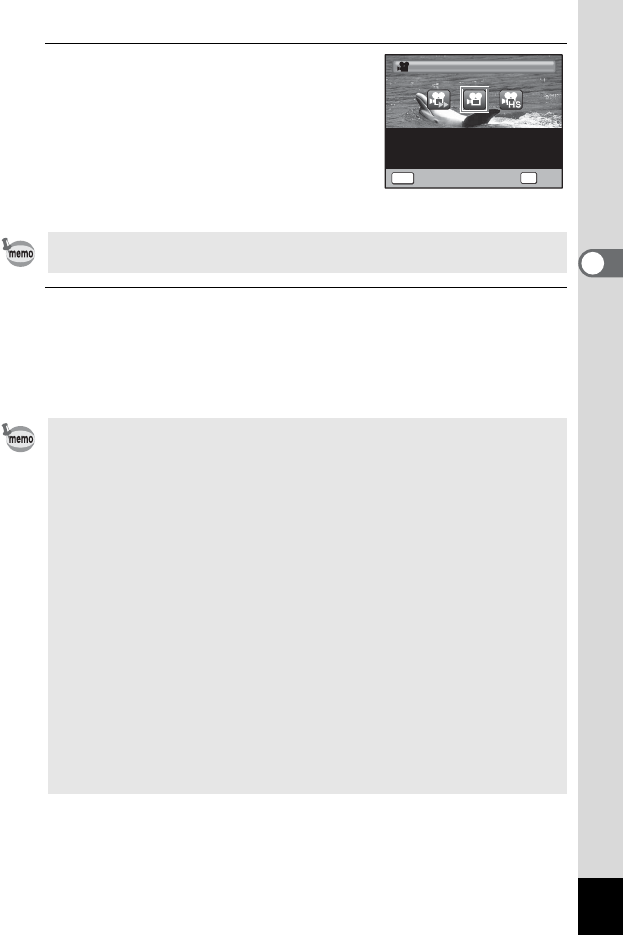

2
Press the four-way controller (3).
The frame moves to [Image Tone].
3
Press the four-way controller (3) twice.
The frame moves to [Quality Level].
4
Press the four-way controller (5).
A pull-down menu appears with the items
that can be selected.
The pull-down menu displays only those
items that can be selected with the current
camera settings.
5
Use the four-way controller (23)
to change the setting.
The quality level changes each time the
four-way controller (23) is pressed.
6
Press the 4 button or the four-way controller (4).
The setting is saved and then the camera is ready for setting the other
functions. To exit the setting operation, press the 3 button.
To perform another operation, refer to the following alternate Step 6
options.
Rec. Mode
1/4
MENU
Exit
Recorded Pixels
Image Tone
White Balance
AF Setting
AE Metering
AWB
Quality Level
Bright
Rec. Mode
1/4
MENU
Exit
Recorded Pixels
Image Tone
White Balance
AF Setting
AE Metering
AWB
Quality Level
Bright
MENU
14
Recorded Pixels
Image Tone
Recordable Image No.
White Balance
AF Setting
AE Metering
Cancel
Quality Level
Bright
OK
51
2
Common Operations
6
Press the shutter release button halfway.
The setting is saved and the camera returns to capture status.
When the shutter release button is pressed fully, the picture is taken.
6
Press the Q button.
When the [A Rec. Mode] menu is displayed from still picture capture
mode, the setting is saved and the camera returns to playback status.
6
Press the 3 button.
The changes are canceled and the screen shown in Step 3 reappears.
To Save the Setting and Start Taking Pictures
When the [W Setting] menu is displayed from Q mode, you can switch
to A mode by pressing the Q button.
To Save the Setting and Start Playback of Images
To Cancel the Changes and Continue with Menu Operations
The 3 button function differs depending on the screen. Refer to the
guide indications.
Exit Exits the menu and returns to the original screen.
Returns to the previous screen with the current
setting.
Cancel Cancels the current selection, exits the menu and
returns to the previous screen.
MENU
MENU
MENU
52
2
Common Operations
This displays the items that can be set with the menus and provides
descriptions of each item. See the list of default settings in the Appendix
“Default Settings” (p.205) to check whether the settings are saved when
the camera is turned off and whether the settings return to the defaults
when the camera is reset.
[A Rec. Mode] Menu
Menu List
Item Description Page
Image Tone For setting the tone of still pictures p.90
Recorded Pixels For choosing the number of recorded pixels for still
pictures p.91
Quality Level For setting the quality level of still pictures p.92
White Balance For adjusting the color balance according to the lighting
conditions p.93
AF Setting
Focusing Area
For setting the area of the autofocus p.89
Auto Macro For adjusting the focus up to the macro range if necessary p.89
Focus Assist For discharging an assist light when the subject is in a dark
area and the autofocus system does not operate correctly p.90
AE Metering For choosing the area of the screen that is metered to
determine the exposure p.95
Sensitivity For setting the sensitivity p.96
AUTO ISO
Range
For setting the adjustment range when sensitivity is set to
[AUTO] p.97
Flash Exp. Comp.
For adjusting the flash output p.98
D-Range Setting
Highlight
Correction For adjusting the bright areas when the image is too bright
p.98
Shadow
Correction For adjusting the dark areas when the image is too dark
Shake Reduction For choosing whether to compensate for camera shake
while taking still pictures p.99
Face Detection For spotting the faces in your shot and automatically
adjusting the focus and exposure for the faces p.100
Blink Detection For choosing whether to use the Blink Detection function
when the Face Detection function is activated p.101
Digital Zoom
For choosing whether to use the Digital Zoom function
p.66
Instant Review For choosing whether to display Instant Review p.102
53
2
Common Operations
* IQ Enhancer = Image Quality Enhancer
Memory
For choosing whether to save the set values of the
shooting function or return to the defaults when the camera
is turned off
p.116
Green Button For assigning a function to the Green button so that you
can go straight to it in A mode p.105
Sharpness For choosing sharp or soft outlines p.102
Saturation (Tone
Adjustment)
For setting the color saturation. When [Monochrome] is
selected, [Tone Adjustment] is displayed. p.102
Contrast For setting the image contrast level p.103
Date Imprint For choosing whether to imprint the date and/or time when
taking still pictures p.103
IQ Enhancer* For setting whether to perform the IQ enhancer p.104
• Use the 9 (Green) mode to enjoy easy picture-taking using standard
settings, regardless of the settings in the [A Rec. Mode] menu (p.62).
• Assigning frequently used functions to the Green button enables you
to go straight to the desired function (p.105).
Rec. Mode
1/4
Rec. Mode
4/4
MENU
Exit
Saturation
Contrast
Off
Date Imprint
IQ Enhancer
[A Rec. Mode] Menu 1
Rec. Mode
1/4
MENU
Exit
Recorded Pixels
Image Tone
White Balance
AF Setting
AE Metering
AWB
Quality Level
Bright
[A Rec. Mode] Menu 2
Rec. Mode
1/4
Rec. Mode
2/4
MENU
Exit
D-Range Setting
Sensitivity
AUTO ISO Range
Flash Exp. Comp.
Shake Reduction
Face Detection On
0.0
AUTO
Sensor Shift
ISO100-1600
[A Rec. Mode] Menu 3
Rec. Mode
1/4
Rec. Mode
3/4
MENU
Exit
Sharpness
Green Button
Memory
Blink Detection
Digital Zoom
Instant Review
[A Rec. Mode] Menu 4
54
2
Common Operations
[C Movie] Menu
[W Setting] Menu
Item Description Page
Recorded Pixels For choosing the number of recorded pixels for movies p.114
Movie SR For choosing whether to use the Movie Shake
Reduction function p.114
Wind Suppression For suppressing wind noises during recording a movie p.115
Item Description Page
Save as AFor saving the current camera settings in A on the
mode dial p.80
Sound
For adjusting the operation volume and playback
volume, and setting the startup sound, shutter sound,
key operation sound and self-timer sound
p.163
Date Adjustment For adjusting the date and time p.164
World Time For setting the Hometown and Destination p.166
Text Size For setting the text size of the menu p.168
Language/uFor setting the language in which menus and
messages appear p.169
Folder Name For choosing how names are assigned to folders for
storing images p.169
File Name For choosing how names are assigned to image files p.172
USB Connection For setting the method of connecting the camera to a
computer (MSC or PTP) p.183
Video Out For setting the output format to an AV device p.173
HDMI Out For setting the HDMI output format when connecting
the camera to an AV device with an HDMI terminal p.174
Eye-Fi
For setting when transferring images using an SD
Memory Card with a built-in wireless LAN (Eye-Fi
card)
p.175
Brightness Level For changing the brightness of the display p.176
Movie
MENU
Recorded Pixels
Exit
Movie SR
Wind Suppression
55
2
Common Operations
Power Saving For setting the time until the camera enters power-
saving mode p.176
Auto Power Off For setting the time until the camera turns off
automatically p.177
Quick Zoom For choosing whether to use [Quick Zoom] (p.128)
when playing back images p.178
Guide Display
For setting whether to display explanations for
selected items in Capture Mode Palette, Movie Mode
Palette and Playback Mode Palette displays
p.178
Select Battery For choosing the type of AA batteries to be used p.178
Reset For returning settings other than the date and time,
language, world time and video out to their defaults p.181
Delete All For deleting all the saved images at once p.131
Pixel Mapping For mapping out and correcting any defective pixels in
the image sensor p.180
Playback Shortcut For choosing whether to start up the camera in
playback mode by holding down the Q button p.181
Format For formatting the SD Memory Card/built-in memory p.162
Item Description Page
[W Setting] Menu 1
Setting
Sound
Save as USER
Text Size
Date Adjustment
01/01/2012
World Time
English
Standard
MENU
Exit
1/4
[W Setting] Menu 2
Setting
2/4
Folder Name
MENU
Exit
Date
USB Connection
Video Out
HDMI Out
Eye-Fi
MSC
IMGP
File Name
NTSC
Auto
[W Setting] Menu 3
Setting
3/4
Brightness Level
Power Saving 5sec.
3min.
AUTO
Auto Power Off
Quick Zoom
Guide Display
Select Battery
MENU
Exit
[W Setting] Menu 4
Setting
4/4
Reset
Delete All
Pixel Mapping
Playback Shortcut
Format
MENU
Exit
56

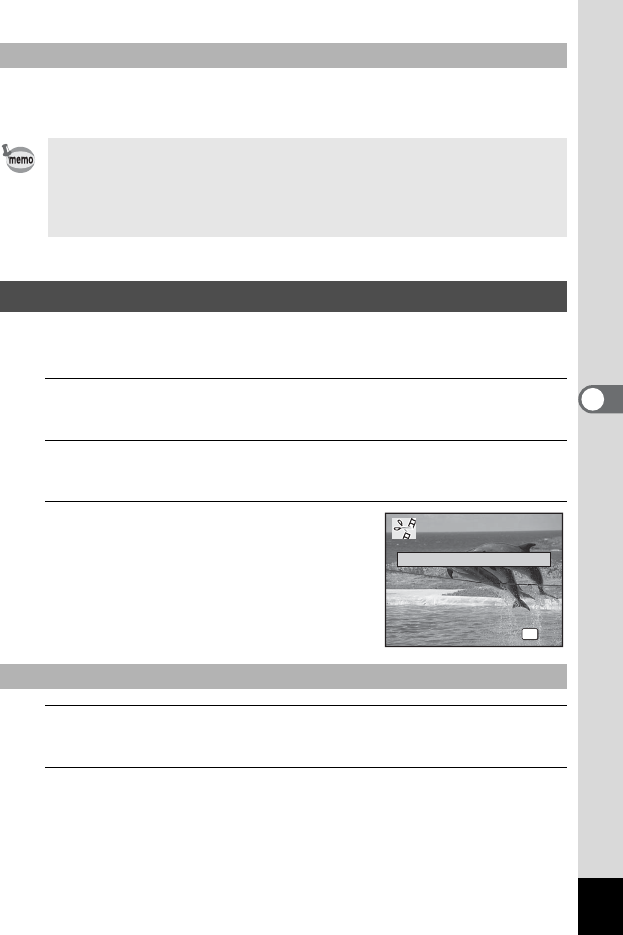

3
Taking Pictures
Taking
s
Taking Still Pictures
How you hold the camera is important when taking pictures.
• Hold the camera firmly with both hands.
• Press the shutter release button gently when taking a picture.
The display can be lowered down to approx. 60° or raised upward to
approx. 90°. This is convenient for shooting at a low angle, or shooting
with the camera above your head.
Holding the Camera
To reduce camera shake, support your body or the camera on a solid
object such as a table, tree, or wall.
Adjusting the Position of the Display
• Be careful not to apply excessive force to the display when adjusting
its position.
• The display cannot be moved horizontally.
• Put the display back in the original position when using in ordinary
situations.
Horizontal position Vertical position
57
3
Taking Pictures
This camera features various capture modes, focus modes, and drive
modes for expressing your photographic vision. This section explains
how to take pictures using b (Auto Picture) mode, by simply pressing
the shutter release button.
In b mode, the camera automatically selects the most appropriate
capture mode depending on the situations and subjects.
1
Remove the lens cap.
2
Press the power button.
The camera turns on and enters “Capture Mode”.
3
Set the mode dial to .
The camera will select the optimal capture mode for the subject.
Taking Pictures
1Pull out the top
of the display in
the direction of
the arrow.
2Move the display in the
direction of the arrow
according to your
desired shooting
angle.
58
3
Taking Pictures

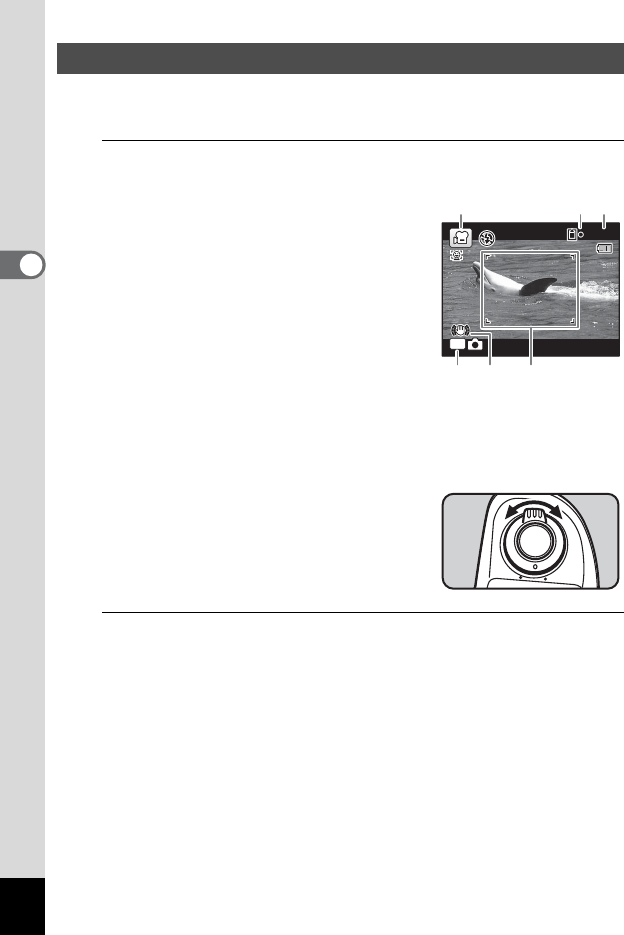

4
Confirm the subject and shooting
information on the display.
The focus frame in the middle of the display
indicates the zone of automatic focusing.
When the camera detects a person’s face,
the Face Detection function is activated and
the face detection frame appears (p.61).
You can change the captured area by
turning the zoom lever to the right or left
(p.64).
Right (5) Enlarges the subject.
Left (6) Widens the area that is
captured by the camera.
TW
Dial indicator
14:25
1 4 : 2 5
14:25
38
3 8
38
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
Focus frame
14:25
1 4 : 2 5
38
3 8
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
38
14:25
Face detection frame
TW
59
3
Taking Pictures
5
Press the shutter release button
halfway.
The selected shooting mode is displayed on
the top left of the screen.
The focus frame (or face detection frame) on the display turns green
when the camera focuses on the subject at the correct distance.

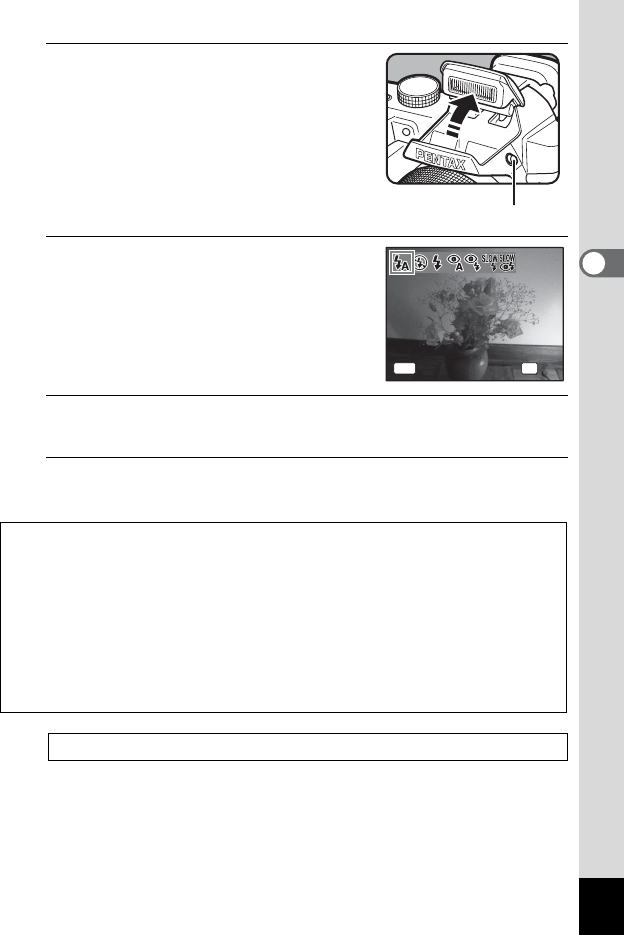

To use the flash, press the b button to pop up the flash (p.84).
6
Press the shutter release button fully.
The picture is taken.
The flash discharges automatically depending on the light conditions.
The captured image appears on the display (Instant Review: p.60) and
is saved to the SD Memory Card or the built-in memory.

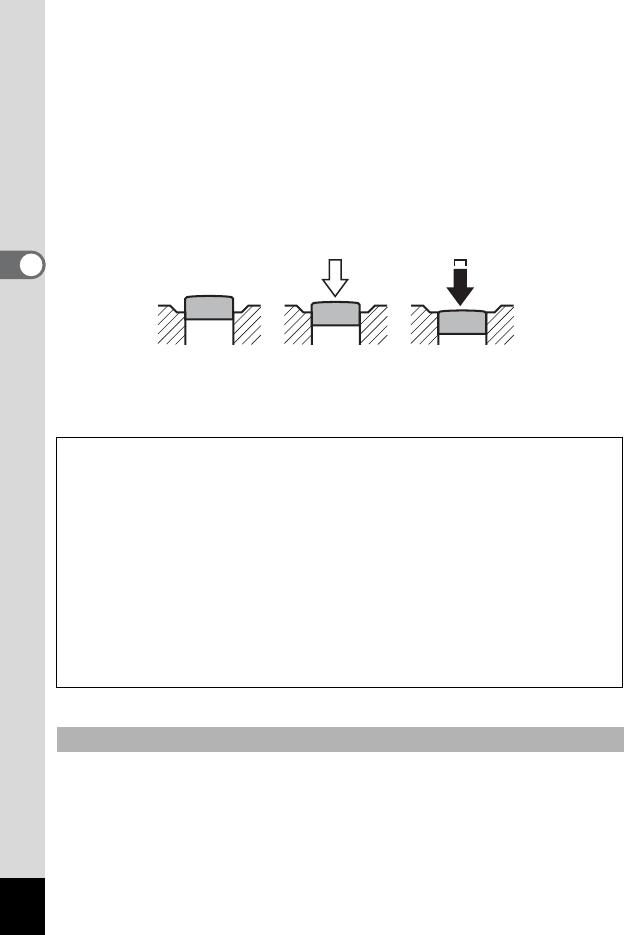

The shutter release button works in a two-step action as follows.
Standard Night Scene Night Scene Portrait
Landscape Flower Portrait
Sport Candlelight Blue Sky
Portrait×Blue Sky
Portrait×Backlight
Sunset
Portrait×Sunset
Group Photograph
Text
The following restrictions apply in b mode:
- You cannot set the Face Detection function to [Off].
- The focusing area setting is fixed at J (Multiple).
- The b (Flower) mode cannot be selected when using Digital Zoom
or Intelligent Zoom.
- The flash mode is fixed to a when A (Night Scene) mode is
selected.
- When the drive mode is set to A (Burst Shooting(L)), or C (Burst
Shooting(H)), pictures are taken consecutively in shooting mode
selected for the first shot.
To Use the Shutter Release Button
F4.6
F 4 . 6
1/250
1 / 2 5 0
F4.6
1/250
14:25
1 4 : 2 5
14:25
38
3 8
38
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
60
3
Taking Pictures
Press halfway
This refers to pressing the shutter release button gently to the first
position. This locks the focus setting and the exposure. The green focus
frame lights on the display when the shutter release button is pressed
halfway and the subject is in focus. If the subject is out of focus, the
frame turns white.
Press fully
This refers to pressing the shutter release button all the way down to the
fully depressed position. This takes a picture.
The image appears on the display immediately after capturing (Instant
Review). If the camera detects that the subject’s eyes are closed while
the Face Detection function is activated, the message [Closed eyes
have been detected] appears for 3 seconds (Blink Detection).
Subjects that are difficult to focus on
The camera may not be able to focus under the following conditions. In these
cases, lock the focus on an object the same distance away as the subject (by
pressing and holding the shutter release button halfway), then aim the camera
at your subject and press the shutter release button fully.
• Objects that lack contrast such as a blue sky or white wall
• Dark places or objects, or conditions that prevent light being reflected back
• Intricate patterns
• Fast moving objects
• When there is an object in the foreground and an object in the background in
the captured area
• Strongly reflected light or strong backlighting (bright background)
Instant Review and Blink Detection
Not pressed Pressed halfway
(first position)
Pressed fully
(second position)
61
3
Taking Pictures
With this camera, the Face Detection function
is available with all shooting modes.
When the camera detects a person’s face in the
image, the Face Detection function displays a
yellow face detection frame around the face on
the screen display, sets the focus (Face
Detection AF) and compensates the exposure
(Face Detection AE).
If the subject in the face detection frame
moves, the frame also moves and changes its
own size as it tracks the face.
The Face Detection function can detect up to
32 people’s faces. If it detects multiple faces,
the camera displays a yellow frame over the
main face and white frame(s) over the other
face(s). It can display up to a total of 31 frames
including a main frame and white frame(s).
The default setting is [On]. You can switch to
the Smile Capture function that automatically
releases the shutter when the subject smiles.
Refer to “Switching the Face Detection
Function” (p.100) for details.
• When the Face Detection function does not work, Blink Detection also
does not function. Even if the subjects’ faces are detected, Blink
Detection may not function depending on the condition of the detected
faces.
• You can set the Instant Review function to off (p.102).
• You can also disable the Blink Detection function (p.101).
Using the Face Detection Function
14:25
1 4 : 2 5
38
3 8
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
38
14:25
Face detection frame
14:25
1 4 : 2 5
38
3 8
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
38
14:25
When the multiple
faces are detected
Main frame White
frame
62
3
Taking Pictures
In e (Program) mode, the camera automatically sets the shutter speed
and aperture for taking still pictures. However, you can select other
functions such as the flash mode and the number of recorded pixels.
1
Set the mode dial to e.
2
To use the flash, press the b button.
The flash pops up (p.84).
3
Take the picture.
In 9 (Green) mode, you can enjoy easy picture-taking using standard
settings, regardless of the settings in the [A Rec. Mode] menu.
The 9 (Green) mode settings are as shown below.
Taking Pictures in the Custom Settings (Program
Mode)
Taking Pictures in Basic Mode (Green Mode)
Drive Mode 9 (Standard) Focus Assist O (On)
Flash Mode , (Auto) AE Metering L
(Multi-segment
metering)
Focus Mode = (Standard)
Face Detection
function I (On) Flash Exposure
Compensation ±0.0
Information Display Normal Highlight Correction P (Off)
EV Compensation ±0.0 Shadow Correction P (Off)
Image Tone Bright Shake Reduction Sensor Shift
Recorded Pixels mBlink Detection O (On)
Quality Level D (Better) Digital Zoom O (On)
White Balance F (Auto) Instant Review O (On)
Sensitivity AUTO Sharpness G (Normal)
AUTO ISO Range ISO 100-1600 Saturation G (Normal)
Contrast G (Normal)
Focusing Area J (Multiple) Date Imprint Off
Auto Macro O (On) IQ Enhancer O (On)
63
3
Taking Pictures
1

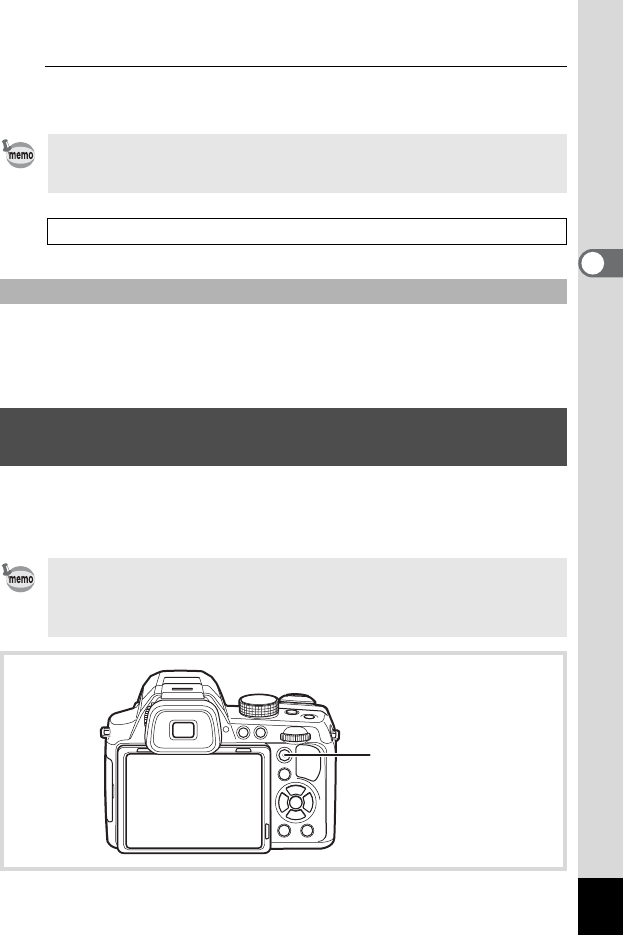

Press the Green button in A
mode.
The camera switches to 9 mode.
Press the Green button again to return to
the status before 9 mode was selected.
When the camera detects a person’s face,
the Face Detection function is activated and
the face detection frame appears (p.61).
To use the flash, press the b button to pop up the flash (p.84).
2
Press the shutter release button halfway.
The focus frame on the display turns green when the camera focuses
on the subject at the correct distance.
3
Press the shutter release button fully.
The picture is taken.
• The 9 mode is available only when it is assigned to the Green button
in [Green Button] of the [A Rec. Mode] menu (p.105). By default, the
9 mode is assigned to the Green button.
•In 9 mode, you cannot change the information on the display by
pressing the 3 button.
• If you press the 3 button in 9 mode, the [W Setting] menu
appears. The [A Rec. Mode] menu cannot be displayed.
• When the camera is turned off in 9 mode, it turns on in 9 mode next
time the power button is pressed.
Green button
Shutter release
button
38
3 8
38
64
3
Taking Pictures
You can use the zoom to change the captured area.
1
Turn the zoom lever in A mode.
Right (5) Enlarges the subject.
Left (6) Widens the area that is
captured by the camera.
If you continue turning the lever to the right
(5), the camera automatically switches
from optical zoom to Intelligent Zoom and
stops at the point it switches to Digital
Zoom.
Once the lever is released and turned
again, the camera switches to Digital
Zoom.
The zoom bar is displayed as follows:
*1 You can zoom in to a maximum of 26× optically (4.0 mm -104.0 mm
(Approx. 22.3 mm - 580 mm in 35 mm equivalent focal length)).
*2 The Intelligent Zoom range differs depending on the number of
recorded pixels. See the following table.
Using the Zoom
TW
38
3 8
38
130 x
130 x
130 x
Zoom bar
Zoom ratio
Green: Intelligent Zoom
White: Digital Zoom
Zoom in with high
image quality
Zoom in with some degree
of image deterioration
Optical zoom range*1 Intelligent
Zoom range*2 Digital Zoom
range
65
3
Taking Pictures
Recorded pixels and the maximum zoom ratio
Recorded
Pixels Intelligent Zoom Digital Zoom
m
Not Available (26× optical zoom only)
Equivalent to approx.
187.2×
o
n
6Approx. 39×
fApprox. 46.2×
0Approx. 39×
1Approx. 46.2×
hApprox. 58.5×
iApprox. 74.9×
hApprox. 62.4×
lApprox. 117×
mApprox. 187.2×
• It is recommended to use a tripod or other support to prevent camera
shake when taking pictures at high zoom.
• When the focus mode is set to q (Macro) or I (1cm Macro), the zoom
position is fixed.
• Pictures taken in the Digital Zoom range appear grainier than pictures
taken in the optical zoom range.
• Intelligent Zoom is not available when the number of recorded pixels
is set to m/o/n (26× optical zoom and Digital Zoom are
available).
• The image enlarged using Intelligent Zoom may appear rough on the
display. This does not affect the quality of the recorded image.
• Only Digital Zoom is available while recording a movie in C (Movie)
mode.
66
3
Taking Pictures
The Digital Zoom is set to O (On) in the default setting. To take pictures
using only the optical zoom and Intelligent Zoom range, set the Digital
Zoom to P (Off).
1
Press the 3 button in still picture capture mode.
The [A Rec. Mode] menu appears.
2
Use the four-way controller (23) to select [Digital
Zoom].
3
Use the four-way controller (45)
to select O or P.
OUses Digital Zoom
P Uses only optical zoom and Intelligent
Zoom
The setting is saved.
4
Press the 3 button.
The camera returns to capture status.
You can adjust the overall brightness of the picture.
Use this function to take pictures that are intentionally overexposed
(brighter) or underexposed (darker).
1
Press the m button in A mode.
To Set the Digital Zoom
Saving the Digital Zoom Function setting 1p.116
Adjusting the Exposure
Rec. Mode
1/4
Rec. Mode
MENU
Exit
3/4
Blink Detection
Digital Zoom
Sharpness
Green Button
Memory
Instant Review
67
3
Taking Pictures
2
Turn the e-dial.
To brighten, select a positive (y) value. To darken, select a negative
(f) value.
You can choose the EV compensation value in the range of ±2.0 EV in
increments of 1/3 EV.
3
Press the m button.
EV compensation value is saved and the camera returns to capture
status.
• EV compensation value always appears on the display when set to a
value other than ±0.0. When set to ±0.0, it disappears if you press the
m button.
•In 9 (Green) or b (Auto Picture) mode, EV compensation value is
fixed at ±0.0.
•In a (Manual Exposure) mode, EV Compensation is unavailable.
• The EV compensation value displayed on the screen is enlarged when
you press the m button.
F4.5
F 4 . 5
F4.5 +1.0
+ 1 . 0
+1.0
38
3 8
38
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
14:25
14:25
14:25 F4.5
F 4 . 5
F4.5
1/250
1 / 2 5 0
1/2501/250
1 / 2 5 0
1/250
+1.0
+ 1 . 0
+1.0
38
3 8
38
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
14:25
1 4 : 2 5
14:25
Normal Display When the m button is pressed
68
3
Taking Pictures

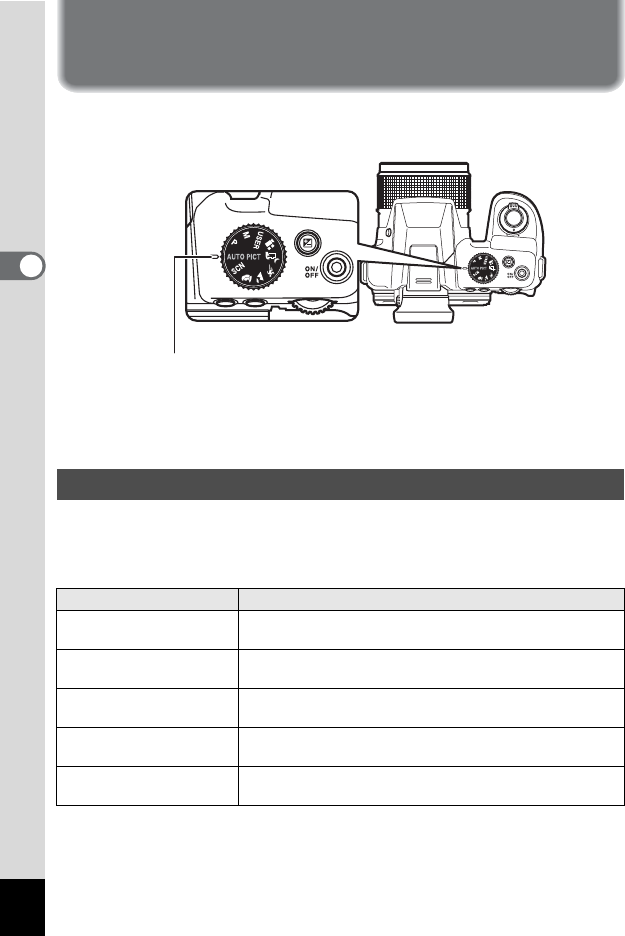

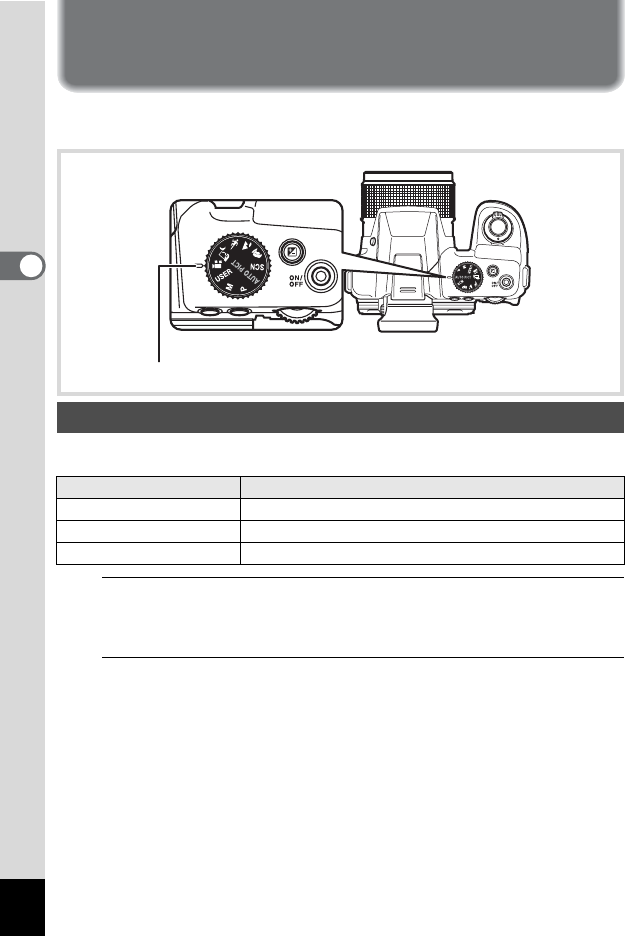

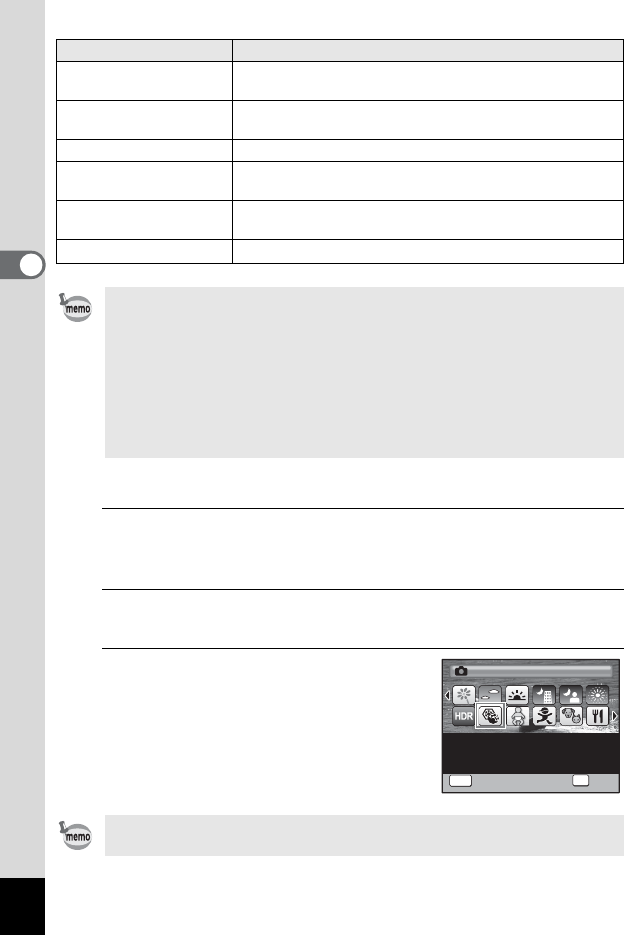

Selecting the Shooting Mode
You can switch the shooting modes by setting the icons on the mode dial
to the dial indicator.
This camera features various shooting modes, enabling you to take
pictures with settings suited to your photographic vision.
There are following shooting modes: b (Auto Picture), N (Handheld
Night Snap), \ (Sport), q (Landscape) and c (Portrait).
The characteristics of each mode are as follows.
Picture Modes
Modes Characteristics
bAuto Picture The optimal capture mode is selected automatically from
standard settings. (1p.57)
NHandheld Night
Snap
Minimizes camera shake for shooting at night or other low
light settings.
\Sport For a fast moving subject. Tracks the subject until the
picture is taken.
qLandscape For capturing landscape views. Enhances colors of sky
and foliage.
cPortrait For capturing portraits. Reproduces a healthy and bright
skin tone.
TW
Dial indicator
69
3
Taking Pictures
By setting the mode dial to H (Scene), you can choose from the
following shooting modes.
•In \ mode, the camera tracks the subject and continues to focus on
it. When [Focusing Area] (p.89) is set to J (Multiple) or K (Spot),
focus can be locked by pressing the shutter release button halfway.
• Some functions may not be available or may not work fully depending
on the selected shooting mode. For details, refer to “Functions
Available for Each Shooting Mode” (p.196).
H Modes
Shooting Mode Description
bFlower For images of flowers. The outline of the flower is softened.
fBlue Sky Emphasizes saturation of the sky to produce a bright
image.
KSunset For images of sunsets and warm lighting.
ANight Scene For night time images. Use of a tripod or other support is
suggested.
BNight Scene
Portrait
For images of people at night. Use of a tripod or other
support is advised.
When the flash mode is set to , (Auto) and the camera
detects a person’s face, the flash mode automatically
changes to d (Flash On + Red-eye).
SFireworks
For capturing fireworks. Use of a tripod or other support is
suggested.
The shutter speed is fixed at 4 seconds and the sensitivity
is fixed at the minimum value.
pHDR Filter Processes single image to simulate HDR effect.
QSurf & Snow For bright images such as sand or snow. Accurately
meters for bright scenes.
LBaby For images of babies. Captures bright images of a baby's
expressions.
RKids For capturing moving kids. Reproduces a healthy and
bright skin tone.
ePet For capturing moving pets. Detection of registered pets is
also available. (1p.77)
KFood For images of food and prepared dishes. Enhances
saturation and contrast.
cDigital SR Higher sensitivity reduces blur. The sensitivity is fixed to
[AUTO].
70
3
Taking Pictures
1
Set the mode dial to H.
The camera enters H mode last selected. The default setting is b
(Flower).
2
Press the four-way controller (3).
The Capture Mode Palette appears.
3
Use the four-way controller
(2345) to choose a shooting
mode.
When an icon is selected in the Capture
Mode Palette, the guide for the selected
shooting mode appears.
nStage Lighting For moving subjects on poorly lit stages. Resolution is
reduced to i.
cText Captures text in an easy to read manner. Text contrast can
be adjusted.
EMuseum For capturing images in places where a flash is prohibited.
XDigital Wide Stitches two pictures together to create a wider image.
(1p.73)
FDigital Panorama Stitches images taken with the camera to create a
panoramic photograph. (1p.75)
NFrame Composite For capturing images with a frame. (1p.72)
• In shooting modes other than A, c, N and p, saturation,
contrast, sharpness, white balance, etc. are set to the optimal settings
for the selected mode.
•In R or e mode, the camera tracks the subject and continues to focus
on it. When [Focusing Area] (p.89) is set to J (Multiple) or K (Spot),
focus can be locked by pressing the shutter release button halfway.
• Some functions may not be available or may not work fully depending
on the selected shooting mode. For details, refer to “Functions
Available for Each Shooting Mode” (p.196).
You can turn the guide display off for each mode on the Capture Mode
Palette (p.178).
Shooting Mode Description
OK
MENU
1 / 2
1/2
Surf & Snow
Surf & Snow
OK
OK
Cancel
Cancel
For bright images such as
sand or snow. Accurately
meters for bright scenes
71
3
Taking Pictures
4
Press the 4 button.
The shooting mode is fixed and the camera
is set to capture status.
To use the flash, press the b button to pop
up the flash (p.84).

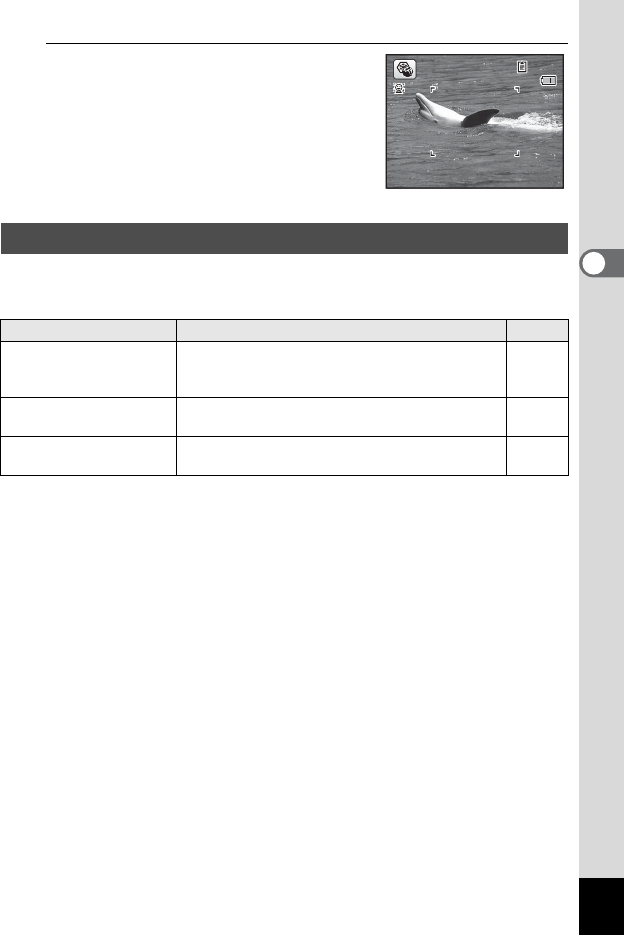

Use the exposure modes to change the shutter speed and aperture
value and take pictures according to your own photographic vision.
Exposure Modes
Shooting Modes Description Page
eProgram
This mode automatically sets the shutter speed
and aperture value to the proper exposure
according to Program Line.
p.62
aManual Exposure Lets you set the shutter speed and aperture value
to capture the picture with creative intent. p.79
AUSER Lets you use previously-saved settings defined
by the user. p.80
38
3 8
38
14:25
1 4 : 2 5
14:25
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
72
3
Taking Pictures

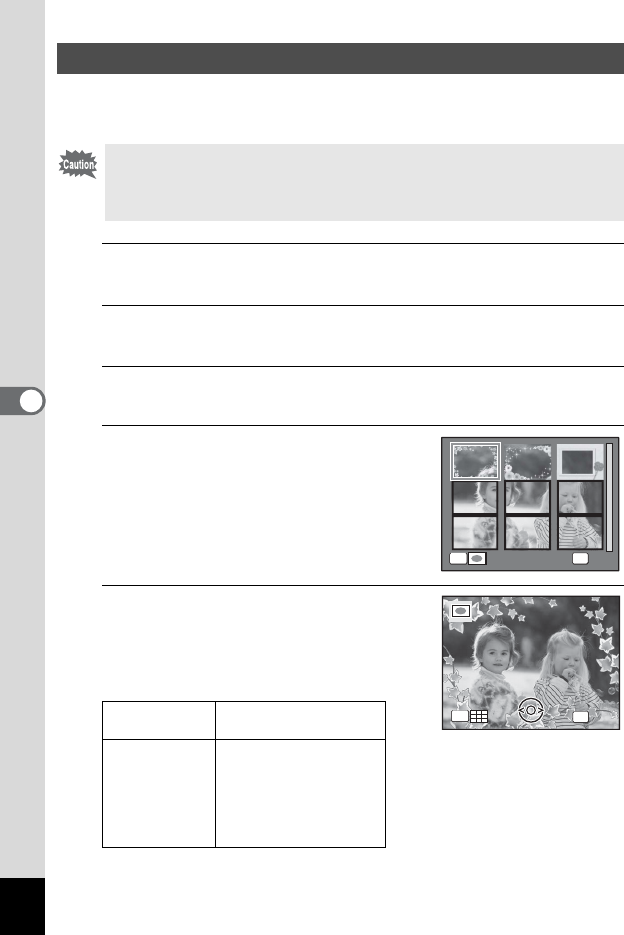

Various Shooting Methods
In N (Frame Composite) mode, you can take pictures using the frames
stored in the camera.
1
Use the four-way controller (2345) to select N from
the Capture Mode Palette.
2
Press the 4 button.
The 9-frame display of the frame selection screen appears.
3
Use the four-way controller
(2345) to choose the frame you
want to use.
4
Turn the e-dial to the right (y).
The selected frame appears in single-image
display.
You can choose another frame using either
of the following operations.
5
Press the 4 button.
The framed image appears on the display.
When the camera detects a person’s face, the Face Detection function
is activated and the face detection frame appears (p.61).
Framing Your Pictures (Frame Composite Mode)
Four-way controller (45) Chooses a different frame.
e-dial to the left (f) Returns to the 9-frame display of the frame
selection screen, and then lets you choose a
different frame in the same way as Step 4.
OK
y
OK
OK
73
3
Taking Pictures
6
Press the shutter release button halfway.
The focus frame (or face detection frame) on the display turns green
when the camera focuses on the subject at the correct distance.
To use the flash, press the b button to pop up the flash (p.84).
7
Press the shutter release button fully.
The picture is taken.

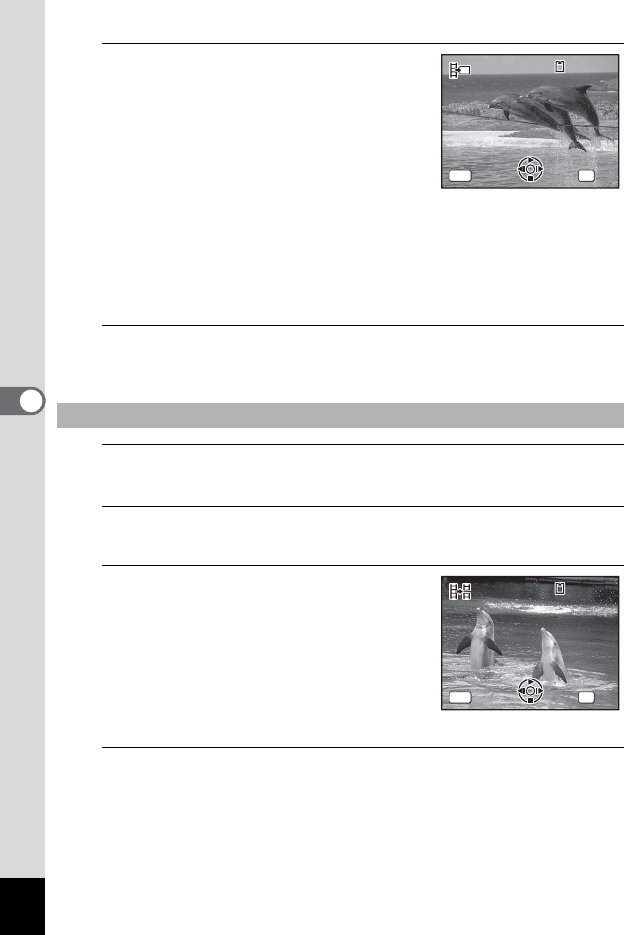

In X (Digital Wide) mode, you can stitch two vertical images captured
with this camera into a single frame up to approx. 17 mm coverage (35
mm film equivalent).
1
Use the four-way controller (2345) to select X
from the Capture Mode Palette.
• The number of recorded pixels is fixed at h.
• By default, three frames are built-in to the camera. These frames are
not deleted even if the built-in memory is formatted. The CD-ROM
supplied with the camera contains optional frames. To save the frames
into the built-in memory, copy the files from the CD-ROM (p.152).
•In N mode, you cannot display “Grid Display” by pressing the 3
button.
Adding a Frame to a captured image 1p.150
Using the Digital Wide Function (Digital Wide
Mode)
+
74
3
Taking Pictures
2
Press the 4 button.
The camera enters X mode.
Hold the camera vertically so that the
shutter release button is on the bottom, and
compose the first image (left half of picture).
When the camera detects a person’s face,
the Face Detection function is activated and
the face detection frame appears (p.61).
3
Press the shutter release button to
take a shot.
The first captured image is temporarily
saved, and the shooting screen for the
second image is displayed.
4
Take the second image.
Overlap the image on the preview guide on the left of the screen to
compose the second image (right half of picture). Repeat Step 3 to
take the second image.
The stitched first and second image appears on the display (Instant
Review), and then is saved.
• To minimize distortion when taking the second image, turn the camera
so that it pivots around the right edge of the preview guide on the
screen.
• Some distortion may result from moving objects, repeating patterns, or
if nothing exists when overlapping the first and second image on the
preview guide.
• When the Face Detection function (p.100) is set to [On], it works only
when taking the first shot.
• The composite image is saved with the pixel size of f.
38
3 8
38
1
2
2
OK
E x i t
Exit
75
3
Taking Pictures
1
When the shooting screen for the second image is
displayed in Step 4 on p.74, press the 4 button or the
four-way controller (3).
A confirmation dialog appears.
2
Use the four-way controller (23) to select an option
and press the 4 button.

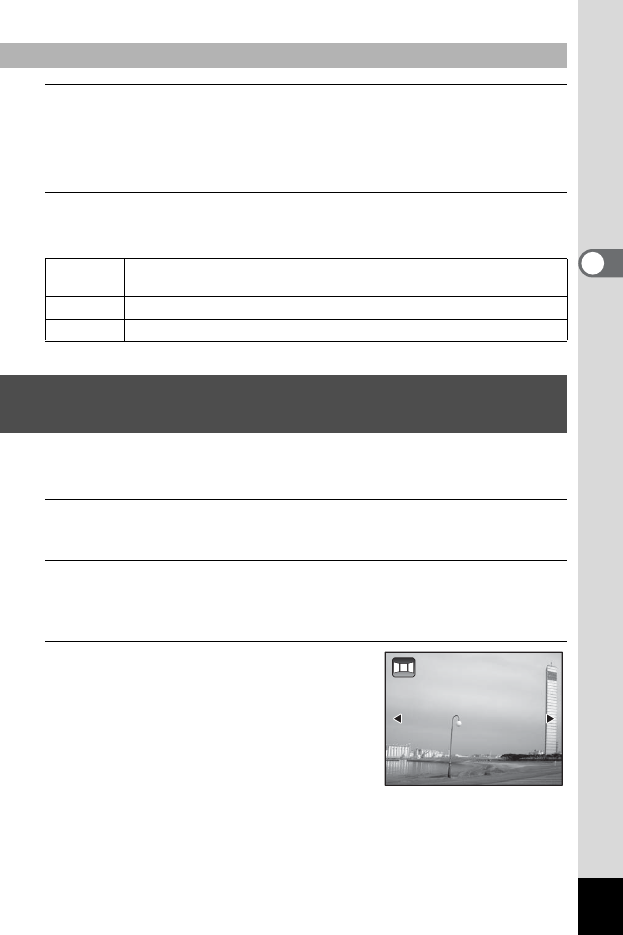

In F (Digital Panorama) mode, you can stitch together two or three
captured frames to create a panoramic photograph with the camera.
1
Use the four-way controller (2345) to select F
from the Capture Mode Palette.
2
Press the 4 button.
The camera enters F mode and the message [Set shift direction] is
displayed.
3
Use the four-way controller (45)
to choose the direction in which
the images will be joined.
The screen for taking the first frame is
displayed.
When the camera detects a person’s face,
the Face Detection function is activated and
the face detection frame appears (p.61).
To Cancel after Taking the First Shot
Save Saves the first image and you can retake the first shot. The first
image is saved in h.
Discard Discards the first image and you can retake the first shot.
Cancel Returns to the shooting screen for the second image.
Taking Panoramic Pictures (Digital Panorama
Mode)
Set shift direction
Set shift direction
76
3
Taking Pictures
4
Press the shutter release button to take a shot.
The screen for taking the second frame is displayed after you take the
first frame.
If you select right (5) in Step 3:
The right edge of the first frame appears in semi-transparent form on
the left edge of the display.
If you select left (4) in Step 3:
The left edge of the first frame appears in semi-transparent form on
the right edge of the display.
5
Take the second frame.
Move the camera so that the semi-
transparent image and the actual view
overlap and press the shutter release
button.
6
Take the third frame.
Repeat Steps 4 and 5 to take the third frame.
The panorama images are joined and a stitched together image
appears.
The stitched image does not appear when [Instant Review] (p.102) is
P (Off).
1
After shooting the first frame in Step 4 on p.76 or the
second frame in Step 5, press the 4 button or the
four-way controller (3).
A confirmation dialog appears.
• Some distortion may result from moving objects, repeating patterns, or
if nothing exists when overlapping the first and second frames or the
second and third frames on the preview guide.
• When the Face Detection function (p.100) is set to [On], it works only
when taking the first shot.

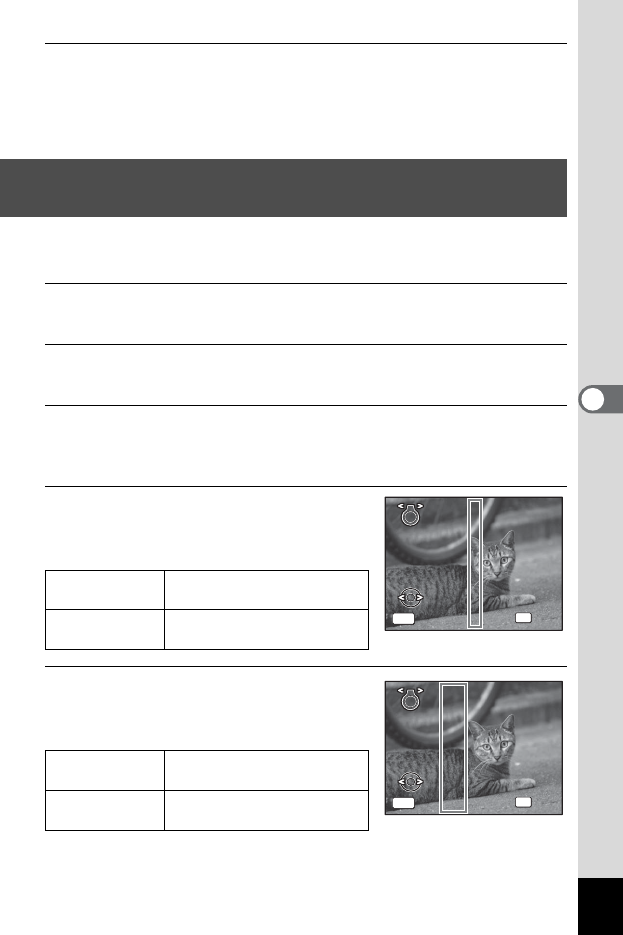

To Cancel after Taking the First or Second Frame
12
SHUTTER
OK
Exit
Exit
2nd Frame
2nd Frame
77
3
Taking Pictures
2
Use the four-way controller (23) to select an option
and press the 4 button.
In e (Pet) mode, the camera automatically releases the shutter when
the pet is detected. Also the camera can register pets.
1
Use the four-way controller (2345) to select e (Pet)
from the Capture Mode Palette.
2
Press the 4 button.
The e mode is selected and the camera is
set to capture status.
When the camera detects the pet’s full face,
a pet detection frame appears, and the
shutter is automatically released.
1
Press the 4 button on the
capture status screen in e mode.
The pet selection screen appears.

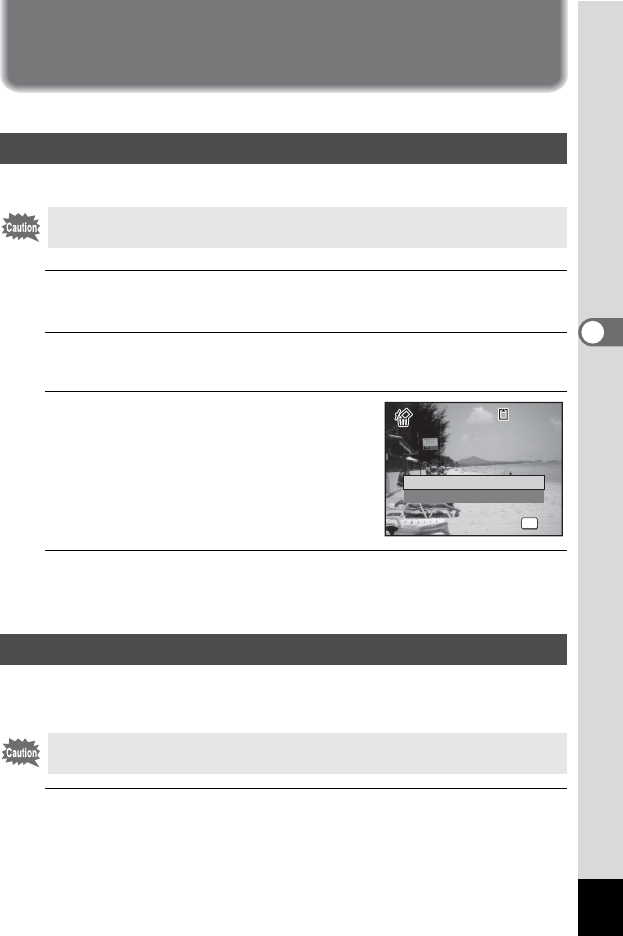

Save Saves the captured image(s) and you can retake the first frame.
When this option is selected after shooting the second frame, the
first and the second frames are stitched together and saved as a
panoramic photograph.
Discard Discards the captured image(s) and you can retake the first frame.
Cancel Returns to the previous shooting screen.
Unstitched images captured in F mode are saved with a pixel size of
i.
Taking Pictures of Your Pet (Pet Mode)
To Register the Pet
38
3 8
38
Selection / Registr
Selection / Registry
Selection / Registry
OK
14:25
14:25
09/09/2012
09/09/2012
MENU
OK
OK
OK
Cancel
New Registry
Selecting pet to shoot
DISP
78
3
Taking Pictures
2
Press the 3 button.
The pet registration screen appears.
Aiming the camera at the pet’s full face
automatically releases the shutter and the
pet registration confirmation dialog appears.
When you select [Registry] using four-way
controller (23) and press the 4 button,
the picture of the registered pet is indicated
on the upper-left corner of the display and the
camera returns to capture status.
When the camera detects the pet’s full face,
a pet detection frame appears, and the
shutter is automatically released.
You can also take a picture by pressing the
shutter release button.
When you press the 4 button in the
capture status screen, the pet registration
screen appears to register another pet. You
can register up to three pets.
• When you press the 3 button on the pet registration screen, the
registration will be canceled and the camera returns to capture status.
• Only dogs and cats can be registered in e mode. Other animals or
human faces cannot be registered. You may not be able to register the
pet’s face if, for example, the pet’s face is too small.
• The camera may not detect the registered pet’s face, depending on the
shooting situation.
• [Focusing Area] is set to W (Automatic Tracking AF) and the flash
mode is set to a (Flash Off). However, you can change these settings.
• [Focus Assist] is set to P (Off). However, you can change this setting.
MENU
Cancel
Cancel
CancelCancel
Cancel
CancelCancel
Cancel
CancelCancel
Cancel
CancelCancel
Cancel
Cancel
If pet face turns to camer
If pet face turns to camera
front, it's self-registerin
front, it's self-registering
If pet face turns to camera
front, it's self-registering
Selection / Registr
Selection / Registry
Selection / Registry
38
3 8
38
OK
14:25
14:25
09/09/2012
09/09/2012
79
3
Taking Pictures
You can set the shutter speed and aperture value to capture the picture
with creative intent. This mode is convenient for taking pictures using the
metered combination of the shutter speed and aperture value or taking
intentionally overexposed (brighter) or underexposed (darker)
photographs.
1
Set the mode dial to a.
2
Turn the e-dial to change the
shutter speed/aperture value.
Use the m button to switch between the
shutter speed and aperture value. (The
default setting is shutter speed.)
3
To use the flash, press the b button.
The flash pops up (p.84).
4
Take the picture.
Using a (Manual Exposure) Mode
•In a mode, EV Compensation is unavailable.
• [AUTO] cannot be selected for sensitivity.
• Flash modes , (Auto) and c (Auto + Red-eye) are not available.
• A warning appears if there is a large difference between the current
exposure and the proper exposure. If the difference is greater than
±2.0EV, only the exposure warning icon is displayed. If the difference
is ±2.0EV or less, the exposure warning icon is displayed and the
difference between the current exposure and the proper exposure is
shown in increments of 1/3EV.
• When the shutter speed is set to a speed slower than 1/4 seconds, a
process to reduce image roughness and unevenness (noise
reduction) is performed.
• When the shutter speed or aperture value is changed, the new value
is displayed in a larger font size.
• Even when the zoom ratio is changed, the aperture value is
maintained. However, when the current aperture value cannot be used
with the selected zoom ratio, the closest aperture value is set. In this
case, if you change the zoom ratio again and the original aperture
value can be used, the setting returns to the original aperture value.
80
3
Taking Pictures
By saving the current camera settings, you can easily retrieve them by
setting the mode dial to E.
The following settings can be saved:
• Shooting modes e (default setting)/a
• Aperture
• Shutter speed
•[A Rec. Mode] menu settings
•Flash mode
• Drive mode
• Focus mode
• EV Compensation
•MF Position
• Exposure compensation range of Auto Bracketing
•3 button information display
• Face Detection mode
1
Set the mode dial to e or a.
2
Set the functions to be saved.
3
Use the four-way controller (23) to select [Save as
A] in the [W Setting] menu.
4
Press the four-way controller (5).
The [Save as A] screen appears.
Using A (USER) Mode
To Save the Settings in E Mode
You can save settings in E mode only when the mode dial is set to e
or a.
81
3
Taking Pictures
5
Press the four-way controller (2)
to select [Save].
6
Press the 4 button.
The save process starts.
When the save process is completed, the camera returns to A mode
or Q mode.
1
Set the mode dial to A.
The saved settings are retrieved.
2
Change the settings already saved in A mode as
necessary.
3
To use the flash, press the b button.
The flash pops up (p.84).
4
Take the picture.
To Take Pictures in A Mode
The settings changed in A mode are only valid when the mode dial is
set to A. Changing the capture mode or turning off the power returns
the camera to the settings saved with [Save as A]. To change the
settings of A mode, perform the operations in [Save as A] again.
Save as USER
Saves current shooting
settings in USER mode
Save
Cancel
OK
OK
82
3
Taking Pictures
Setting the Shooting Functions
Selecting the Flash Mode
,Auto
The flash discharges automatically depending on the light
conditions. If the Face Detection function is activated, the flash
mode is automatically set to d.
aFlash Off
The flash does not discharge, regardless of the brightness. Use
this mode to take pictures where flash photography is
prohibited.
bFlash On The flash discharges regardless of the brightness.
cAuto + Red-eye
This mode reduces the phenomenon of red eyes caused by the
light from the flash being reflected in the subject’s eyes. The
flash discharges automatically. A pre-flash discharges before
the main flash.
dFlash On +
Red-eye
This mode reduces the phenomenon of red eyes caused by the
light from the flash being reflected in the subject’s eyes. The
flash discharges regardless of the light conditions. A pre-flash
discharges before the main flash.
G
Slow-speed
Sync
For taking bright pictures of both people and background
indoors and outdoors at night. The flash discharges
automatically.
H
Slow-speed
Sync+Red-eye
Discharges a pre-flash to reduce the phenomenon of red eyes
before discharging the flash with Slow-speed Sync.
• The flash mode is fixed at a in the following situations:
- when N (Handheld Night Snap), n (Stage Lighting),
S(Fireworks), c (Time-Lapse Movie), C (Movie) or d (High
Speed Movie) is selected as the capture mode
- when j(Continuous Shooting), A (Burst Shooting(L)), C (Burst
Shooting(H)) or l (Auto Bracketing) is selected as the drive mode
- when s (Infinity) is selected as the focus mode
•In 9 (Green) mode, you can only select , or a.
•In A (Night Scene) mode, you cannot select , or c.
Using the flash when capturing images at a close distance may cause
irregularities in the image due to the light distribution. When using the
flash at an extremely close distance, a shadow of the lens may appear
in the picture taken.
83
3
Taking Pictures
1
Press the b button.
The flash pops up and begins charging.
2
Press the four-way controller (4)
in still picture capture mode.
The [Flash Mode] screen appears.
3
Use the four-way controller (45) to select a flash
mode.
4
Press the 4 button.
The setting is saved and the camera returns to capture status.
About the red-eye phenomenon
Taking pictures using the flash may cause the subject’s eyes to appear red in
the resulting picture. This phenomenon occurs when the light from the flash is
reflected in the subject’s eyes. It can be reduced by increasing the illumination
in the area around the subject and/or decreasing the subject distance and
adjusting the lens to wider angle setting. Setting the flash mode to c, d or H
is also an effective way of reducing red eyes.
If the subject’s eyes appear red despite such precautions, they can be corrected
by the Red-eye Edit function (p.149).
Saving the Flash Mode setting 1p.116
b button
MENU OK
OK
OK
Cancel
Cancel
OK
Cancel
Flash Mode
Flash Mode
Auto
Auto
Flash Mode
Auto
84
3
Taking Pictures
1
Select a capture mode.
2
Press the b button.
The flash pops up and begins charging.
b (Red) blinks on the display while charging.
When the flash is fully charged, b appears on the display (not
displayed in , mode).
3
Press the shutter release button halfway.
The focus frame (or face detection frame) on the display turns green
when the camera focuses on the subject at the correct distance.
4
Press the shutter release button fully.
The flash discharges and the picture is taken.
5
Push the flash down to retract.
To Use the Flash
Selecting the Drive Mode
jContinuous
Shooting
Each time a picture is taken, the image is saved in the
memory before the next image is taken. The higher the
image quality, the longer the interval between shots.
You can continue shooting until the memory of the SD
Memory Card or the built-in memory is full.
ABurst Shooting(L) The number of recorded pixels is fixed to f or 1 and
pictures are taken continuously. The interval between
shots becomes shorter in the following sequence: A, and
C.
CBurst Shooting(H)
gSelf-timer
The picture is taken approximately ten seconds after the
shutter release button is pressed. Use this mode when you
want to be included in a group picture.
Z2 sec. Self-timer
The picture is taken approximately two seconds after the
shutter release button is pressed. Use this mode to avoid
camera shake.
iRemote Control
The shutter will be released after about three seconds
when the shutter release button on the remote control unit
is pressed.
h0-sec Remote
Control
The shutter will be released immediately when the shutter
release button on the remote control unit is pressed.
85
3
Taking Pictures
1
Press the four-way controller (2) in A mode.
The [Drive Mode] screen appears.
2
Use the four-way controller (45) to select a drive mode
and press the 4 button.
The camera is ready to take the picture using the selected drive mode.
l Auto Bracketing
When the shutter release button is pressed once, three
consecutive pictures at different exposure levels are taken
so that you can select the best one later.
The shooting order is: correct exposure negative
compensation positive compensation.
• Focusing may be compromised if you move the camera while the self-
timer lamp is blinking when taking still pictures.
• The flash does not discharge in j, A, C or l mode.
• In the following modes, you cannot select j , A, C or l.
9 (Green), S (Fireworks), p (HDR Filter), N (Frame
Composite), X (Digital Wide), or F (Digital Panorama) mode or
when recording a movie.
• The drive mode cannot be selected when N (Handheld Night Snap) is
set.
• For movies using the self-timer, recording will start ten seconds or two
seconds after the shutter release button or the Movie button is
pressed.
• Press the shutter release button halfway while the self-timer is running
to stop the countdown and press fully to restart the countdown.
•Z cannot be selected while the 9 (Green) mode settings remain as
the default. However, it can be selected if you select Z in another
shooting mode first, and then switch the shooting mode to 9 (Green).
•In j, A or C mode, the number of pictures that can be taken
consecutively and the frame rate per second vary depending on the
shooting condition.
•In j, A or C mode, the focus, exposure and white balance are
locked with the first shot.
• When [Face Detection] is set to [On] (p.100) in j, A or C mode, the
function works only for the first shot.
• When j, A or C is selected as the drive mode in b (Auto Picture)
mode, pictures are taken consecutively in shooting mode selected for
the first shot.
• When Instant Review is set to O (On) in l mode (p.102), the third
picture taken is shown in Instant Review after shooting (p.60).
86
3
Taking Pictures
1
Press the four-way controller (5)
in A mode.
The [Focus Mode] screen appears.
The focus mode changes each time the
four-way controller is pressed. You can also
change the setting using the four-way
controller (4).
2
Press the 4 button.
The setting is saved and the camera returns to capture status.

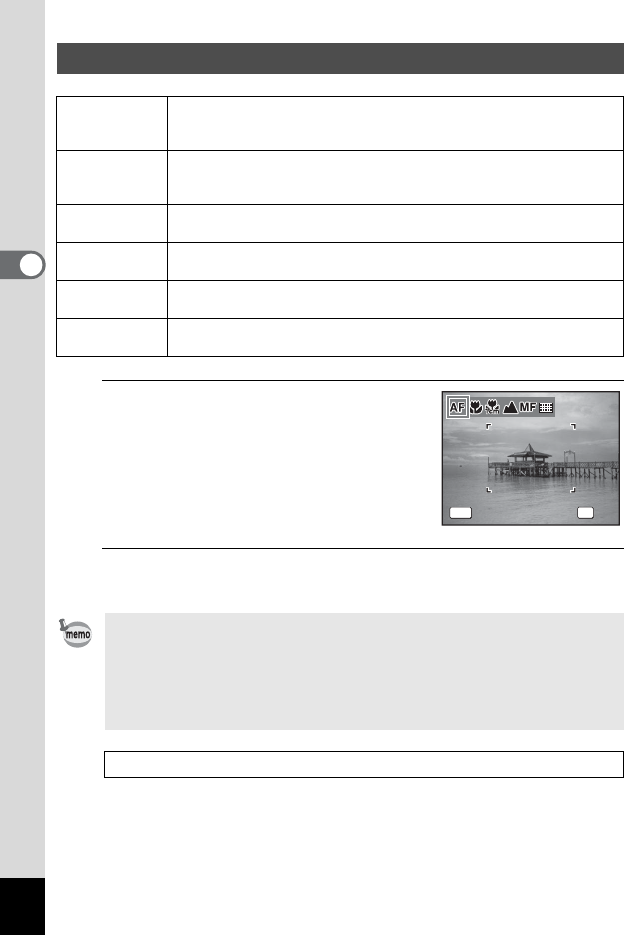

Selecting the Focus Mode
=Standard
This mode is used when the distance to the subject is 40 cm (16 in.)
or more. The camera is focused on the subject in the autofocus area
when the shutter release button is pressed halfway.
qMacro
This mode is used when the distance to the subject is approx. 10 cm
to 50 cm (4 in. to 20 in.). The camera is focused on the subject in the
autofocus area when the shutter release button is pressed halfway.
I1cm
Macro
This mode is used when the distance to the subject is 1 cm to 20 cm.
(0.4 in. to 8 in.)
sInfinity This mode is used for taking distant objects. The flash is set to a
(Flash Off).
\Manual
Focus This mode lets you adjust the focus manually.
JAF Area
Selection Select an area of the subject to focus on.
•In 9 (Green) mode, you can only select = or q.
• The focus mode is fixed at s in S (Fireworks) mode.
• When [Auto Macro] (p.89) is set to O (On) and shooting with q
selected, if the subject is further than 50 cm away, the camera
automatically focuses to ∞ (Infinity). By pressing the shutter release
button fully, you can also take a picture even when the focus is not set.
Saving the Focus Mode setting 1p.116
OK
OK
OK
MENU
Cancel
Cancel
Focus Mode
Focus Mode
Standard
Standard
OK
Cancel
Focus Mode
Standard
87
3
Taking Pictures
1
Press the four-way controller (5) in A mode.
2
Press the four-way controller (5) to select \.

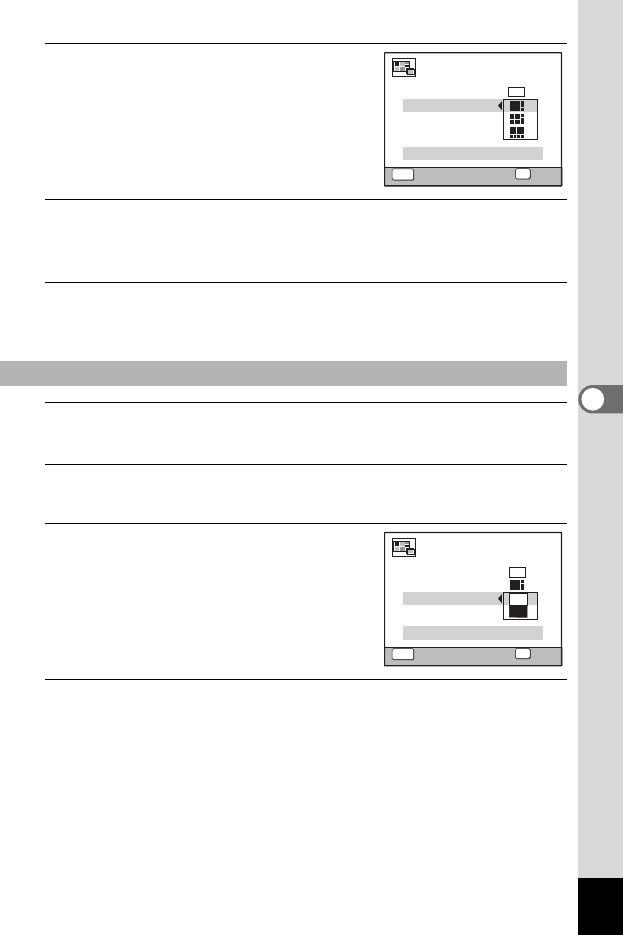

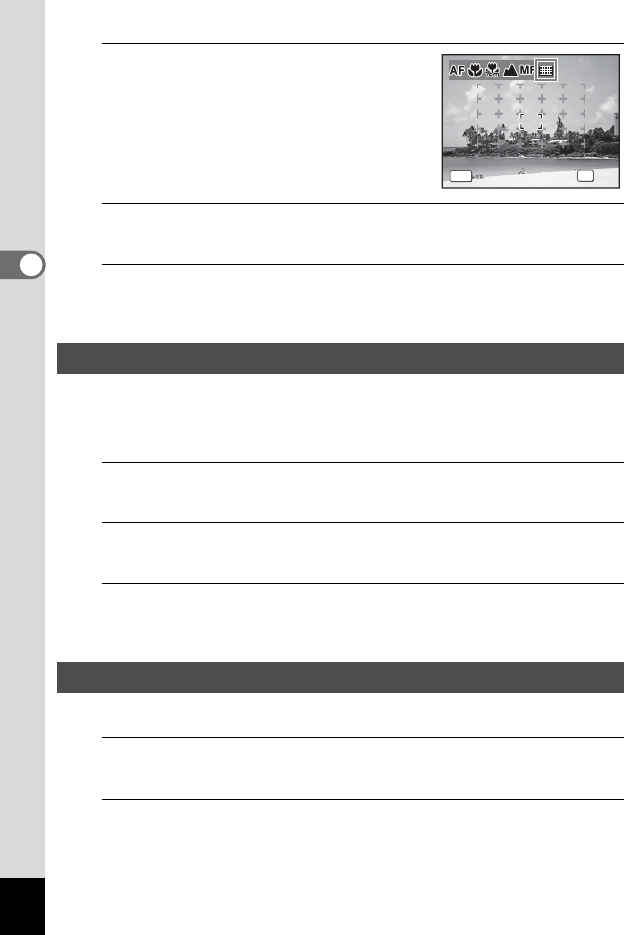

3
Press the 4 button.
The central portion of the image is magnified to full screen on the
display.
4
Use the four-way controller (23)
to adjust the focus.
The \ indicator appears on the display to
indicate the approximate distance to the
subject. Adjust the focus using the indicator
as a guide.
2for distant focus
3for closer focus
5
Press the 4 button.
The focus is fixed and the camera returns to capture status.
After the focus is fixed, you can press the four-way controller (5) again
to display the \ indicator and readjust the focus.

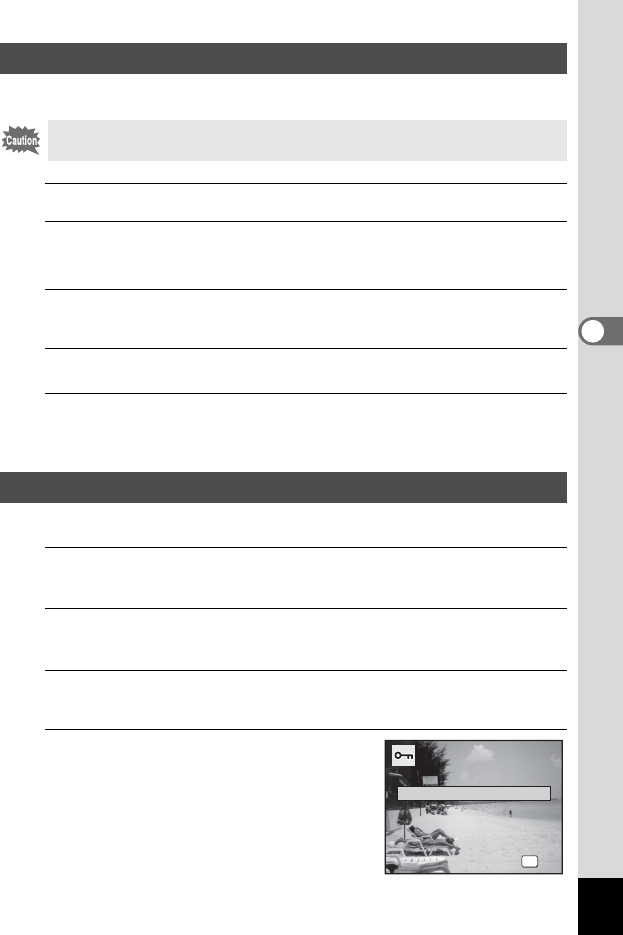

You can select an area to focus on from 25 points.
1
Press the four-way controller (5) in A mode.
2
Press the four-way controller (5) to select J.

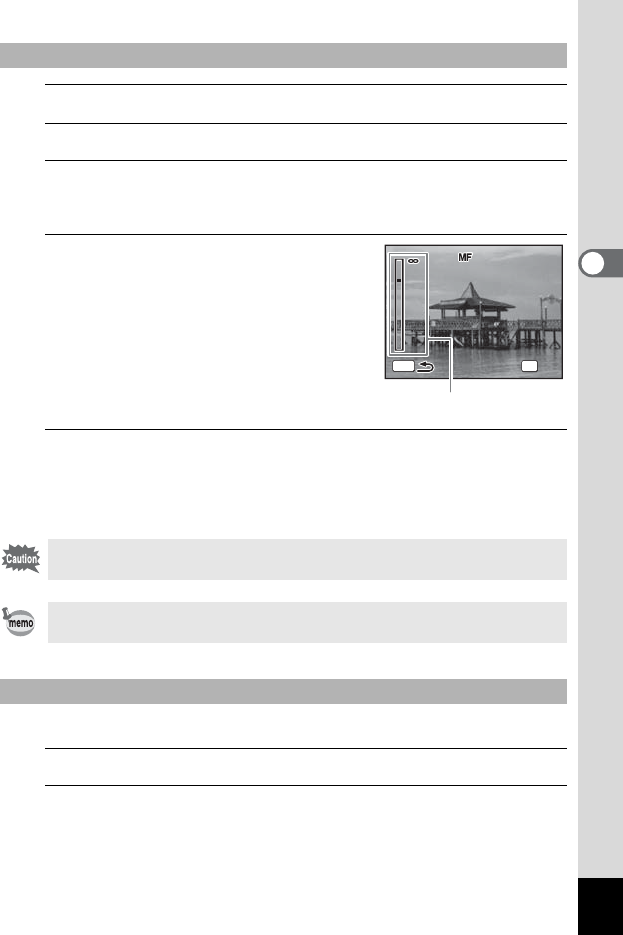

To Set the Focus Manually (Manual Focus)
The shooting mode and drive mode cannot be changed while the \
indicator is displayed.
To switch from \ to another focus mode, press the four-way controller
(5) while the \ indicator is displayed.
To Select an Area to Focus On (AF Area Selection)
5m
5m
3
3
1.5
1.5
MENU OK
OK
OK
\ indicator
88
3
Taking Pictures
3
Press the 4 button.
The [AF Area Selection] screen appears
with the central portion selected.
4
Use the four-way controller (2345) to select the area
you want to focus on.
5
Press the 4 button.
The focusing area is fixed and the camera returns to capture status.
To set the main shooting functions, choose each function in the [A Rec.
Mode] menu. Refer to the explanation of the respective functions for how
to change the settings.
1
Press the 3 button in still picture capture mode.
The [A Rec. Mode] menu appears.
2
Use the four-way controller (23) to select an item and
change its setting.
3
Press the 3 button after changing the setting.
The setting is saved and the camera returns to capture status.
You can set the autofocus area and focusing method.
1
Use the four-way controller (23) to select [AF Setting]
in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
The [AF Setting] screen appears.
Setting the [A Rec. Mode] Menu
Selecting the Autofocus Settings
MENU OK
OK
OK
Cancel
Cancel
OK
Cancel
Focus Mode
AF Area Selection
Focus Mode
AF Area Selection
89
3
Taking Pictures
You can change the autofocus area (Focusing Area).
3
Use the four-way controller (23) to change the
focusing area setting.
4
Press the 4 button.
The setting is saved.
You can set the focus in the macro range when the distance to the
subject is 50 cm or closer.
3
Use the four-way controller (23) to select [Auto
Macro].
4
Use the four-way controller (45) to select O(On) or
P(Off).
The setting is saved.
To Set the Focusing Area
JMultiple The camera sets a focusing area in the center of the display and
focuses on the nearest subject in the focusing area.
KSpot The camera sets a narrow focusing area, making easier for you
to focus on a specific subject.
WAutomatic
Tracking AF
The camera continues to focus on the moving subject while you
are pressing the shutter release button halfway.
•In N (Frame Composite), C (Movie), c (Time-Lapse Movie) and d
(High Speed Movie) modes, the focusing area cannot be set to W.
•In 9 (Green) and S (Fireworks) modes, the focusing area is fixed at
J.
To Set the Auto Macro
O
When the focus mode is set to = or J, the focus is adjusted to the
macro range (distance to the subject: 10 cm to 50 cm) as necessary.
When the focus mode is set to q, the focus is adjusted even within the
standard range, as necessary. When it is set to I, the focus is only
adjusted within the 1cm macro range (1 cm to 20 cm). (Default setting)
When the Auto Macro function is activated during shooting, q appears
on the display.
PThe focus is only adjusted in the respective focus range.
90
3
Taking Pictures
The focus assist light aids in focusing on dark subjects. This helps you
to focus on the subject in low light conditions where auto focus does not
work properly. The focus assist light is emitted from the self-timer lamp
part.
3
Use the four-way controller (23) to select [Focus
Assist].
4
Use the four-way controller (45) to select O (On) or P
(Off).
The setting is saved.
Set the image tone of still pictures.
You can select from [Bright] (Default setting), [Natural] or [Monochrome].
1
Use the four-way controller (23) to select [Image
Tone] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select a finishing
tone.
4
Press the 4 button.
The setting is saved.
To Set the Focus Assist Light
• Looking at the light directly does not pose a safety but you may feel
dazzled. Do not look directly into the emitter from a very short distance.
• The camera does not emit the focus assist light under the following
conditions:
- when the capture mode is set to c (Time-Lapse Movie), C (Movie)
or d (High Speed Movie) mode
- when s (Infinity) or \ is selected as the focus mode
• The default setting in e (Pet) mode is P.
Setting the Image Tone
91
3
Taking Pictures

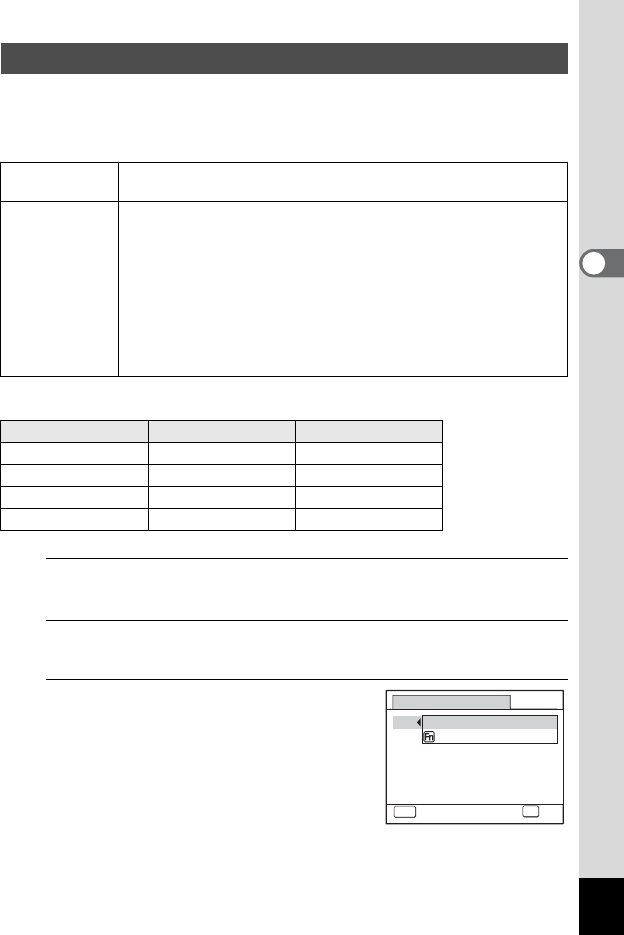

You can choose from the following recorded pixels settings for still
pictures.
The larger the number of recorded pixels, the clearer the details will
appear when you print your picture. As the quality of the printed picture
also depends on the image quality, exposure control, resolution of the
printer, and other factors, you do not need to select more than the
required number of recorded pixels. h is adequate for making
postcard-size prints. The more pixels there are, the larger the picture and
the bigger the file size.
Refer to the following table for the appropriate settings according to
expected usage.
(Default setting : m)
When [Monochrome] is selected, [Tone Adjustment] appears in the
[ARec. Mode] menu for setting the tone of monochrome images
instead of [Saturation].
Selecting the Number of Recorded Pixels
Recorded Pixels Use
m4608×3456 For printing high quality photos or A4-size pictures or
larger, or editing images on a computer
n3456×3456
o4608×2592
63072×2304
03072×1728
f2592×1944
12592×1464
h2048×1536 For making postcard-size prints
A1920×1080
l1024× 768
m640× 480 For posting on a website or attaching to e-mail
Clearer
92
3
Taking Pictures
1
Use the four-way controller (23) to select [Recorded
Pixels] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to change the number
of recorded pixels.
4
Press the 4 button.
The setting is saved.
You can set the quality level for still pictures according to how the images
will be used.
The more stars (E), the higher the quality of the image, but the file size
becomes larger. The selected recorded pixels also affect the size of the
image file (p.91).
If you select o, 0, 1 or A,
the aspect ratio of the image is 16:9 (same
as that of HDTV) and the monitor display for
recording and playback is as shown on the
right.
• The number of recorded pixels for images captured in 9 (Green)
mode is fixed at m.
• The number of recorded pixels for images captured in N (Frame
Composite) mode is fixed at h.
• The number of recorded pixels for images captured in X (Digital
Wide) mode is fixed at f. (The number of recorded pixels is h if
you exit X mode without taking the second image.)
• The number of recorded pixels for images captured in n (Stage
Lighting) mode is fixed at i.

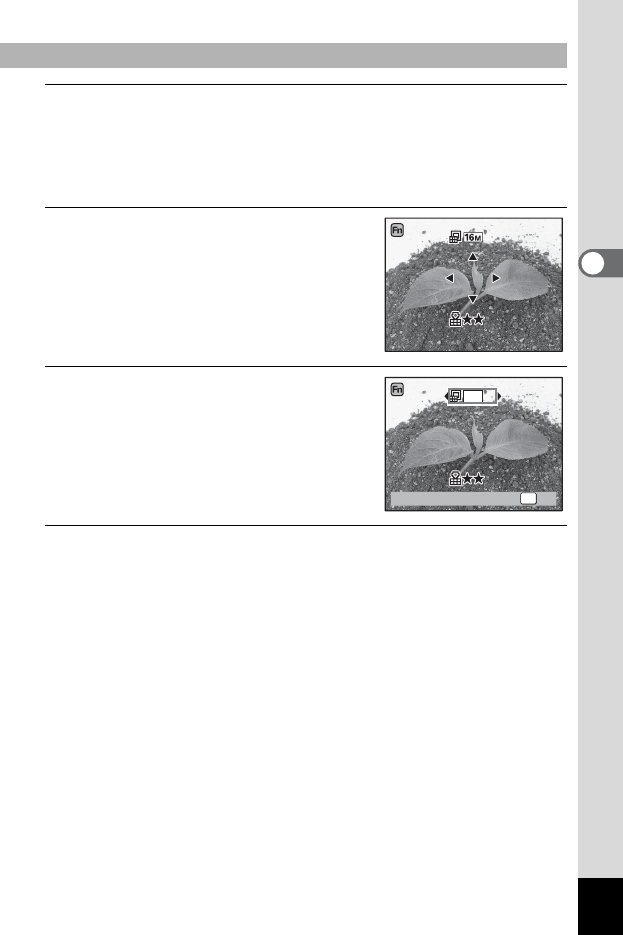

Selecting the Quality Level of Still Pictures
1 4 : 2 5
38
3 8
38
14:25
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
93
3
Taking Pictures
1
Use the four-way controller (23) to select [Quality
Level] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to choose the quality
level.
The maximum number of still pictures you can take is displayed at the
top of the screen when you select a quality level.
4
Press the 4 button.
The setting is saved.
You can take pictures in natural colors by adjusting the white balance
according to the light conditions at the time of shooting.
CBest Lowest compression ratio. Suitable for photo prints.
DBetter Standard compression ratio. Suitable for viewing on a
computer screen. (Default setting)
EGood Highest compression ratio. Suitable for attaching to e-mails
or posting on websites.
•In 9 (Green) mode, the quality level is fixed at D.
•In c (Time-Lapse Movie), C (Movie) or d (High Speed Movie) mode,
the quality level is fixed at C.
Setting the White Balance
FAuto The camera adjusts the white balance automatically.
(Default setting)
GDaylight For use when taking pictures in sunlight
HShade For use when taking pictures in the shade
ITungsten Light For use when taking pictures under light bulb or other
tungsten light
94
3
Taking Pictures
1

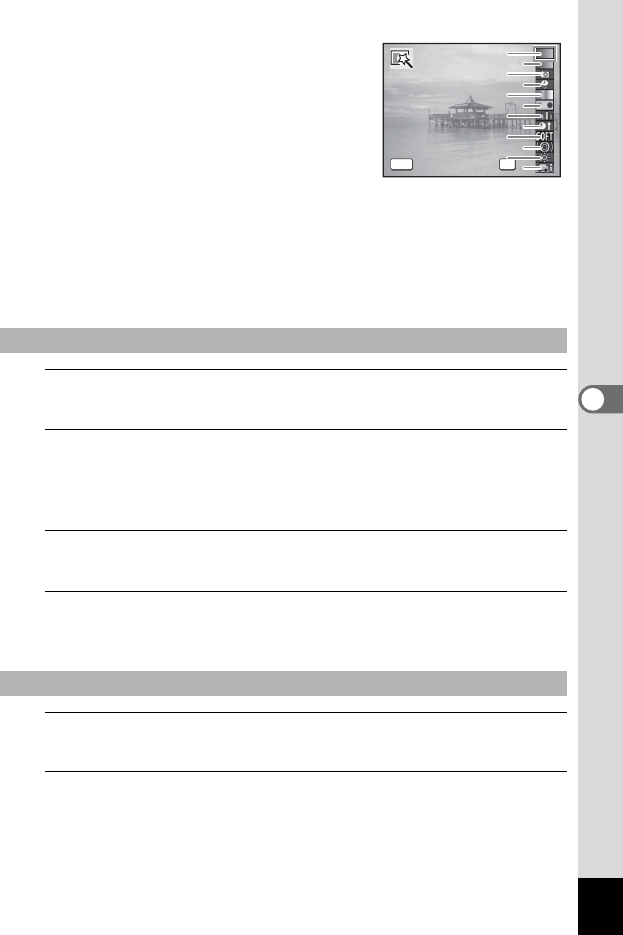

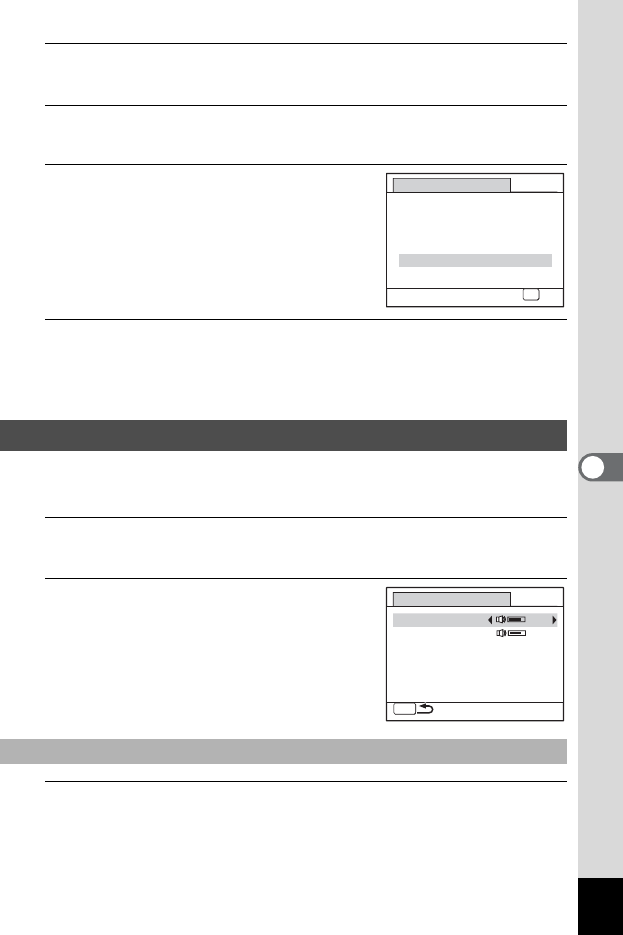

Use the four-way controller (23) to select [White
Balance] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
The [White Balance] screen appears.
3
Use the four-way controller (23)
to change the setting.
You can check the result of selected white
balance setting on the preview image each
time you press the four-way controller
(23).
To select a type of fluorescent lighting,
select an icon for the fluorescent light and press the four-way controller
(5) and then use the four-way controller (23) to select a type of
lighting.
4
Press the 4 button.
The setting is saved.
JDDaylight Colors
Fluorescent
For use when taking pictures under fluorescent light
JNDaylight White
Fluorescent
JWWhite Light
Fluorescent
KManual For use when adjusting the white balance manually
• Set another white balance if you are not satisfied with the color
balance of pictures taken with the white balance set to F.
• Depending on the selected shooting mode, the white balance setting
may not be changed. Refer to “Functions Available for Each Shooting
Mode” (p.196) for details.
Saving the White Balance setting 1p.116
White Balance
MENU
Cancel
Cancel
Auto
Auto
OK
OK
OK
D
95
3
Taking Pictures

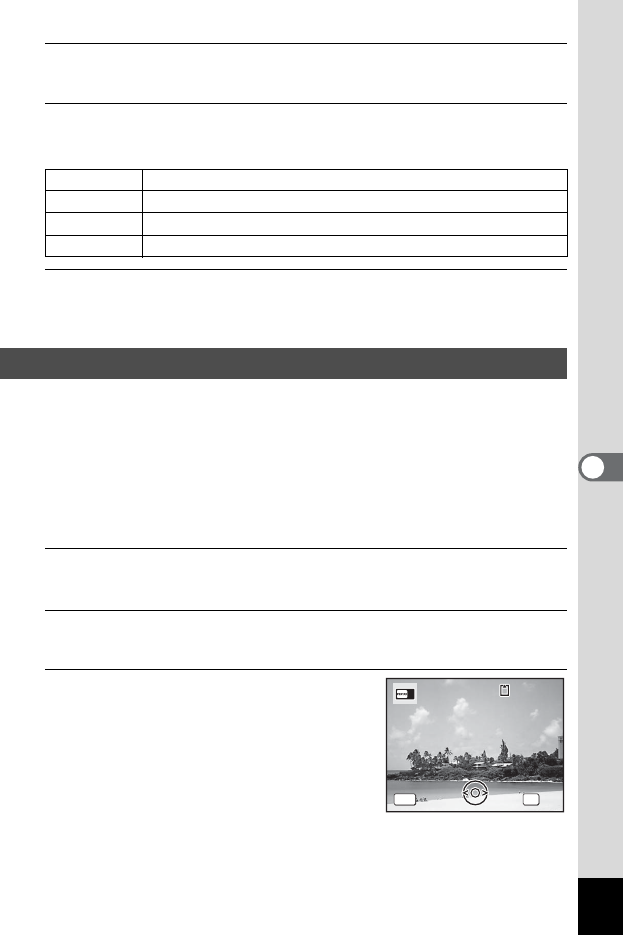

Have a blank sheet of white paper or similar material ready.
1
In the [White Balance] screen, use the four-way
controller (23) to select K.
2
Point the camera at the blank sheet of paper or other
material so that it fills the frame displayed in the center
of the screen.
3
Press the shutter release button fully.
The white balance is automatically adjusted.
4
Press the 4 button.
The setting is saved and the [A Rec. Mode] menu reappears.
You can set the area of the screen where the brightness is metered to
determine the exposure.
1
Use the four-way controller (23) to select [AE
Metering] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select a metering
method.
4
Press the 4 button.
The setting is saved.
To Set the White Balance Manually
Setting the AE Metering
LMulti-segment The camera divides the image into 256 areas, meters the
brightness and determines the exposure.
MCenter-weighted
The camera takes a reading of the overall brightness of the
image with the center of the image having more influence on
the exposure.
NSpot The camera determines the exposure by metering the
brightness only at the center of the image.
96
3
Taking Pictures
You can select the sensitivity to suit the brightness of the surroundings.
1
Use the four-way controller (23) to select [Sensitivity]
in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to change the
sensitivity.
4
Press the 4 button.
The setting is saved.
• When the shutter release button is pressed halfway, the brightness is
metered and the exposure is determined.
• When the subject is outside the focusing area and you want to use N,
aim the camera at the subject and press the shutter release button
halfway to lock the exposure, then compose your picture again and
press the shutter release button fully.
• Depending on the selected shooting mode, the AE metering setting
may not be changed. Refer to “Functions Available for Each Shooting
Mode” (p.196) for details.
Saving the AE Metering setting 1p.116
Setting the Sensitivity
AUTO The sensitivity is automatically adjusted by the camera.
100 The lower the sensitivity, the less noise that affects the image. The
shutter speed will be slower in low light conditions.
200
400
800
1600 Higher sensitivity settings use faster shutter speeds in low light
conditions to reduce camera shake, but the image may be affected by
noise.
3200
6400
97
3
Taking Pictures
Set the sensitivity range when the sensitivity is set to [AUTO].
You can select it from among the following settings: 100-200, 100-400,
100-800, 100-1600, 100-3200, and 100-6400.
1
Use the four-way controller (23) to select [AUTO ISO
Range] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the
sensitivity adjustment range.
4
Press the 4 button.
The setting is saved.
• When set to c (Digital SR), 9 (Green), c (Time-Lapse Movie), C
(Movie) or d (High Speed Movie) mode, only [AUTO] is available.
• When set to S (Fireworks) mode, the sensitivity is fixed to the
minimum value.
•In a (Manual Exposure) mode, you cannot select [AUTO].
• When [Highlight Correction] in [D-Range Setting] is set to O (On), 200
is displayed as the sensitivity instead of 100.
• When [Shake Reduction] is set to [Dual], you cannot set the sensitivity
to 3200 or 6400.
Saving the Sensitivity setting 1p.116
Setting the AUTO ISO Range
When [Highlight Correction] in [D-Range Setting] is set to O (On), select
from 200-400, 200-800, 200-1600, 200-3200, and 200-6400.
98
3
Taking Pictures
You can adjust the flash output.
1
Use the four-way controller (23) to select [Flash Exp.
Comp.] in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select the
exposure.
To brighten, select a positive (+) value. To darken, select a negative
(–) value.
You can choose the exposure value in the range of –2.0 EV to +2.0 EV
in increments of 1/3 EV.
Expands the dynamic range and prevents bright and dark areas from
occurring. [Highlight Correction] adjusts the bright areas when the image
is too bright and [Shadow Correction] adjusts the dark areas when the
image is too dark.
1
Use the four-way controller (23) to select [D-Range
Setting] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
The [D-Range Setting] screen appears.
3
Use the four-way controller (23) to select [Highlight
Correction] or [Shadow Correction].
4
Use the four-way controller (45) to select O (On) or P
(Off).
The D-Range Setting icon appears on the
display.
Compensating Flash Output
Compensating for Brightness (D-Range Setting)
PWhen [Highlight Correction] is set to O
QWhen [Shadow Correction] is set to O
OWhen [Highlight Correction] and [Shadow
Correction] are both set to O
14:25
1 4 : 2 5
14:25
38
3 8
38
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
99
3
Taking Pictures
By using this function, you can correct camera shake during shooting.
You can select the optical correction only (Sensor Shift) or both the
optical and electronic correction (Dual). The default setting is [Sensor
Shift].
1
Use the four-way controller (23) to select [Shake
Reduction] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Pres the 4 button.
The setting is saved.
When [Highlight Correction] is set to O, the minimum sensitivity is 200.
Setting the Shake Reduction
Sensor Shift For correcting camera shake optically only
Dual For correcting camera shake both optically and electronically
Off Neither optical nor electronic camera shake correction is performed.
•In 9 (Green) mode, the setting is fixed to [Sensor Shift].
• [Dual] cannot be set in the following situations:
- when . (Fireworks), c (Digital SR), X (Digital Wide), F (Digital
Panorama) or N (Frame Composite) is selected as the capture mode
- when the sensitivity is set to 3200 or 6400
- when g (Self-timer), j (Continuous Shooting), A (Burst Shooting(L)), C
(Burst Shooting(H)), i (Remote Control), h (0-sec Remote Control) or
l (Auto Bracketing) is selected as the drive mode
- when the flash is activated
- when the picture is taken without pressing the shutter release button
halfway
• For correcting camera shake in C (Movie) or c (Time-Lapse Movie) mode,
use the Movie SR function (p.114).
• When [Dual] is set, the optical correction is used whenever the camera can
correct shaking optically.
100
3
Taking Pictures
The Face Detection function locates faces in the frame and
automatically adjusts the focus and exposure for those faces. You can
change the setting of the function so that the camera will automatically
release the shutter when one or more of the subjects smile. The default
setting is [On] for [Face Detection].
1
Use the four-way controller (23) to select [Face
Detection] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select an option.
4
Press the 4 button.
The setting is saved.
The Face Detection icon appears on the display.
Switching the Face Detection Function
On The camera detects a person’s face.
Smile The camera automatically release the shutter when your subject
smiles.
Off The camera does not detect a person’s face.
IWhen [Face Detection] is set to [On]
JWhen [Face Detection] is set to [Smile]
101
3
Taking Pictures
This specifies whether the Blink Detection function works when the Face
Detection function is activated.
1
Use the four-way controller (23) to select [Blink
Detection] in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select O or P.
OBlink Detection function works. (Default setting)
P Blink Detection function does not work.
• Face Detection AF and AE may not work if the subject is wearing
sunglasses, has part of their face covered or is not looking toward the
camera.
• If the camera cannot detect the subject’s face, the camera focuses
using the setting currently selected in [Focusing Area].
• When [Face Detection] is set to [Smile], the shutter may not be
released automatically because the Smile Capture function may not
work in some situations, such as when the detected face is too small.
If this happens, press the shutter release button to release the shutter.
• [Face Detection] cannot be set to [Off] in b (Auto Picture), c
(Portrait), B (Night Scene Portrait), or R (Kids) mode.
• [Face Detection] is automatically set to [On] in 9 (Green), b (Auto
Picture), c (Portrait), B (Night Scene Portrait), or R (Kids) mode.
When switching to another mode from one of these modes, the Face
Detection setting returns to the previous setting.
• The Face Detection function is fixed to [On] in e (Pet) mode.
• For movies, the Face Detection function is activated before recording
starts. The face detection frame is not displayed while recording a
movie.
Setting the Blink Detection Function
• If the Blink Detection function worked when shooting, the message
[Closed eyes have been detected] appears for 3 seconds during
Instant Review.
• The Blink Detection function cannot be set in p (HDR Filter), X
(Digital Wide), F (Digital Panorama), c (Time-Lapse Movie), C
(Movie) or d (High Speed Movie) mode.
Blink Detection 1p.101
102
3
Taking Pictures
Use this setting to specify whether to activate the Instant Review is
displayed immediately after images are shot.
1
Use the four-way controller (23) to select [Instant
Review] in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select O or P.
OInstant Review is displayed. (Default setting)
P Instant Review is not displayed.
You can give the image sharp or soft outlines.
1
Use the four-way controller (23) to select [Sharpness]
in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to change the
sharpness level.
FSoft
GNormal
HSharp
You can set either color brightness (Saturation) or the tone of
monochrome images (Tone Adjustment).
The displayed items change depending on the setting in [Image Tone] of
the [A Rec. Mode] menu.
Setting the Instant Review
Instant Review 1p.60
Setting the Image Sharpness (Sharpness)
Setting the Color Saturation/Tone (Saturation/
Tone Adjustment)
Image Tone Setting Displayed Item
Bright/Natural Saturation
Monochrome Tone Adjustment
103
3
Taking Pictures
1
Use the four-way controller (23) to select [Saturation]
(or [Tone Adjustment]) in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select the level of
saturation (or the tone of monochrome images).
You can set the image contrast level.
1
Use the four-way controller (23) to select [Contrast] in
the [A Rec. Mode] menu.
2
Use the four-way controller (45) to change the
contrast level.
FLow
GNormal
HHigh
You can choose whether to imprint the date and/or time when taking still
pictures.
1
Use the four-way controller (23) to select [Date
Imprint] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the Date
Imprint details.
Choose from [Date], [Date & Time], [Time] or [Off].
Saturation Tone Adjustment
FLow Blue
GNormal B&W
HHigh Sepia
Setting the Image Contrast (Contrast)
Setting the Date Imprint Function
104
3
Taking Pictures
4
Press the 4 button.
The setting is saved.
You can take pictures with clearer details by using image processing
with IQ enhancer technique.
1
Use the four-way controller (23) to select [IQ
Enhancer] in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select O or P.
OIQ Enhancer function works (Default setting)
PIQ Enhancer function does not work
• The date and/or time imprinted with the Date Imprint function cannot
be deleted.
• Note that if the printer or the image editing software is set to print the
date and the images to be printed already have the date and/or time
imprinted, the imprinted dates and/or times may overlap.
•O
appears on the display in still picture capture mode when [Date
Imprint] is set.
• The date and/or time are imprinted on the picture with the date format
style set with “Setting the Date and Time” (p.41).
Setting the IQ Enhancer Processing
• [IQ Enhancer] is fixed at O (On) in 9 (Green) mode.
• [IQ Enhancer] is fixed at P (Off) in the following situations:
– when F (Digital Panorama), X (Digital Wide), N (Handheld Night
Snap), p (HDR Filter) or d (High Speed Movie) is selected as the
capture mode
– when j (Continuous Shooting), A (Burst Shooting(L)) or C (Burst
Shooting(H)) is selected as the drive mode
105
3
Taking Pictures
You can assign either [Green Mode] (p.62) or [Fn Setting] to the Green
button. You can activate the assigned function by just pressing the
Green button.
Default settings of Fn Setting
1
Use the four-way controller (23) to select [Green
Button] in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
The [Green Button] screen appears.
3
Use the four-way controller (23)
to select the function you want to
register.
• When [Green Mode] is selected, press
the 4 button to save the setting.
• When [Fn Setting] is selected, press the
4 button to display the Fn Setting
screen.
Setting the Green Button
Green Mode Press the Green button to shoot in 9 (Green) mode. (Default
setting)
Fn Setting
Press the Green button to use the functions assigned to the four-
way controller (2345). By assigning frequently used functions to
the four-way controller, you can easily change the settings during
shooting.
The functions that can be set differ depending on the capture mode
used before the 3 button is pressed.
• When you press the 3 button in still picture capture mode:
Still picture capture functions are assigned.
• When you press the 3 button in movie recording mode:
Movie recording functions are assigned.
Four-way Controller Still Picture Mode Movie Mode
2Recorded Pixels Movie SR
3Quality Level Recorded Pixels
4White Balance White Balance
5Sensitivity Focusing Area
Green Button
Q9
MENU
Cancel
OK
OK
Fn Setting
Green Mode
106
3
Taking Pictures
4
Use the four-way controller (23)
to select a key to which to assign a
function.
5
Press the four-way controller (5).
A pull-down menu appears.
6
Use the four-way controller (23)
to select the function you want to
register.
The following functions can be registered.
*1 When [Bright] or [Natural] is selected for [Image Tone] in the [A Rec.
Mode] menu, [Saturation] is displayed, and when [Monochrome] is
selected, [Tone Adjustment] is displayed.
7
Press the 4 button.
The setting is saved.
Repeat Steps 4 to 7 to register other keys.
Still picture mode
functions
Recorded Pixels/Quality Level/White Balance/Sensitivity/
Focusing Area/Auto Macro/AE Metering/Highlight
Correction/Shadow Correction/Sharpness/Saturation
(Tone Adjustment)*1/Contrast
Movie mode
functions
Recorded Pixels/Movie SR/White Balance/Focusing Area/
Sharpness/Saturation (Tone Adjustment)*1/Contrast
Only one function can be registered to each key.
Recorded Pixels
Green Button
Q
MENU
Quality Level
Sensitivity
White Balance
WB
+
+
+
+
Fn Setting
Fn Setting screen
Green Button
Q
MENU
Cancel
OK
OK
Quality Level
White Balance
Focusing Area
Auto Macro
Recorded Pixels
Sensitivity
+
+
+
+
WB
AF
107
3
Taking Pictures
1
Press the Green button in A mode.
The functions registered with [Fn Setting] on the Fn Setting screen
appear.
The displayed functions differ depending on whether the camera is in
still picture mode or movie mode before the Green button is pressed.
2
Select the four-way controller
(2345) to which the function
you want to change is registered.
3
Use the four-way controller (23
or 45) to change the setting.
4
Press the 4 button.
The setting is saved and the camera returns to capture status.
Changing Registered Items
WB
WB
AWB
AWB
ISO
ISO
AUTO
AUTO
16
M
Recorded Pixels
Recorded Pixels
OK
OK
OK
WB
WB
AWB
AWB
ISO
ISO
AUTO
AUTO
108
3
Taking Pictures
Recording Movies
You can switch to the movie recording mode by setting the C icon on
the mode dial to the dial indicator.
There are three movie recording modes. Choose your desired mode.
1
Set the mode dial to C.
The camera enters the movie mode last selected. The default setting
is C (Movie).
2
Press the four-way controller (3).
The Movie Mode Palette appears.
Selecting the Movie Mode
Modes Characteristics
cTime-Lapse Movie Captures frames for fast motion playback.
CMovie For recording movies
dHigh Speed Movie Captures frames for slow motion playback.
TW
Mode dial
109
3
Taking Pictures
3
Use the four-way controller (4 5)
to choose a movie mode.
When an icon is selected in the Movie
Mode Palette, the guide for the selected
movie mode appears.
4
Press the 4 button.
The movie mode is selected, and the camera is ready for recording
movies.
The selected movie mode is saved and retrieved when the mode dial
is set to C.
You can turn the guide display off for each mode on the Movie Mode
Palette (p.178).
Cautions for c (Time-Lapse Movie), C (Movie) and d (High Speed
Movie) in common
• The flash cannot be used.
• Select the focus mode before recording starts. The focus mode cannot
be changed during recording.
• The focus can be adjusted manually before recording starts if the focus
mode is set to \. The focus cannot be adjusted during recording.
• The monitor display cannot be switched using the 3 button during
movie recording.
• When the mode dial is set to C, the Face Detection function is
automatically set to [On]. If you want to set it to [Smile] or [Off], change
the setting in the [A Rec. Mode] menu before movie recording starts
(p.100).
• When the Face Detection function is set to [Smile] and the focus mode
is set to = or q, movie recording starts automatically when the
camera detects the subject’s smile. However, depending on the
condition of the detected faces, movie recording may not start
automatically, because the Smile Capture function may not work. If
this happens, press the shutter release button to start recording a
movie.
For recording movies
Movie
Movie
OK
OK
OK
MENU
Cancel
Cancel
Movie Mode Palette
110
3
Taking Pictures
This mode enables you to record movies. Sound is recorded at the same
time.
1
Use the four-way controller (45) to select C (Movie)
from the Movie Mode Palette.
The following information appears on
the display.
1Movie mode icon
2Recording indicator (blinks during
recording)
3Remaining recordable time
4Still picture recordable icon (appears
during movie recording)
Press the 4 button to capture a still
picture while the icon is displayed.
5Movie Shake Reduction icon
6Focus frame (does not appear during
recording)
You can change the captured area by
turning the zoom lever to the left or right.
Right (5) Enlarges the subject.
Left (6) Widens the area that is
captured by the camera.
2
Press the shutter release button fully.
Recording starts.
You can continue recording for up to 25 minutes.
Saving a still picture during movie recording
• If you press the 4 button during movie recording, a still picture is
captured at the moment you pressed the button (up to three still
pictures per each continuous movie recording, with the focus fixed
at the start of recording and the number of recorded pixels fixed to
m). The captured still picture will be saved when the movie
recording is stopped.
• The angle of view may change, depending on the number of
recorded pixels for movies.
Recording a Movie
0 7 : 3 4
07:34
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
14:25
1 4 : 2 5
14:25
OK
132
465
56
111
3
Taking Pictures
• The image may be distorted, depending on recording conditions.
3
Press the shutter release button fully.
Recording stops.
If you keep the shutter release button pressed for one second or more,
recording will continue as long as you keep the button pressed.
Recording stops when you take your finger off the shutter release button.
This camera starts/stops movie recording simply by pressing the Movie
button, without setting the mode dial to C. This is useful when you want
to start recording quickly.
Only Digital Zoom is available during recording. If you want to record
within the optical zoom range, operate the zoom before recording.
Intelligent Zoom cannot be used.
Playing Back Movies 1p.119
Keeping the Shutter Release Button Pressed
Recording a Movie Quickly Using the Movie
button
• The Movie button functions only in still picture capture mode. It cannot
be used in movie mode or Q mode.
• The shutter release button is disabled when recording started with the
Movie button.
Movie button
112
3
Taking Pictures
1
Press the Movie button.
Recording starts.
2
Press the Movie button.
Recording stops.
You can capture frames for fast motion playback.
1
Use the four-way controller (45) to select [ c Time-
Lapse Movie] from the Movie Mode Palette.
2
Press the 4 button.
The camera returns to capture status.
3
Press the shutter release button fully.
Recording starts.
The maximum length of continuous recording time for Time-Lapse
Movie is 25 minutes.
4
Press the shutter release button fully.
Recording stops.
• When recording starts using the Movie button, the number of recorded
pixels is fixed to 1920 × 1080 and the frame rate 30fps.
• The recorded area of a movie becomes smaller, both horizontally and
vertically, than the image displayed on the monitor display before
recording.
Using the Time-Lapse Movie Function
• The number of recorded pixels is fixed to 640 × 480 and the frame rate
15fps.
• Zoom is not available during recording.
113
3
Taking Pictures
You can capture frames for slow motion playback.
1
Use the four-way controller (45) to select [ d High
Speed Movie] from the Movie Mode Palette.
2
Press the 4 button.
The camera returns to capture status.
3
Press the shutter release button fully.
Recording starts.
The maximum length of continuous recording time for High Speed
Movie is 15 seconds.
4
Press the shutter release button fully.
Recording stops.
1
Press the 3 button in movie mode.
The [C Movie] menu appears.
2
Use the four-way controller (23) to select an item and
change its setting.
3
Press the 3 button after changing the setting.
The setting is saved and the camera returns to capture status.
Using the High Speed Movie Function
• The number of recorded pixels is fixed to 640 × 480 and the frame rate
120fps.
• [Movie SR] (Movie Shake Reduction) is fixed to P (Off).
Setting the [C Movie] Menu
114
3
Taking Pictures
In C mode, you can choose the number of recorded pixels and frame
rate for movies.
The more pixels there are, the clearer the details and the bigger the file
size. The more frames per second, the better the quality of the movie,
but the file size becomes larger.
* The frame rate (fps) indicates the number of frames per second.
1
Use the four-way controller (23) to select [Recorded
Pixels] in the [C Movie] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the number
of recorded pixels and the frame rate.
4
Press the 4 button.
The setting is saved.
In C (Movie) or c (Time-Lapse Movie) mode, you can correct camera
shake during movie recording with the Movie SR (Movie Shake
Reduction) function.
Selecting the Number of Recorded Pixels and
Frame Rate for Movies
Settings Recorded
Pixels
Frame
Rate Use
b1920×1080 30fps Records images in full HD format (16:9). Movement is
recorded smoothly. (Default setting)
a1280×720 60fps Records images in HDTV format (16:9). Quick
movement is recorded smoothly.
M1280×720 30 fps Records images in HDTV format (16:9). Movement is
recorded smoothly.
G640×480 30 fps Suitable for viewing on a TV or computer screen.
Movement is recorded smoothly.
Setting the Movie SR (Movie Shake Reduction)
Function
115
3
Taking Pictures
1
Use the four-way controller (23) to select [Movie SR]
in the [C Movie] menu.
2
Use the four-way controller (45) to select O or P.
OAutomatically corrects camera shake. (Default setting)
PDoes not correct camera shake.
The setting is saved.
You can reduce wind noises during movie recording.
1
Use the four-way controller (23) to select [Wind
Suppression] in the [C Movie] menu.
2
Use the four-way controller (45) to select O or P.
OSuppresses wind noises.
PDoes not suppress wind noises (Default setting).
Suppressing Wind Noises during Movie
Recording (Wind Suppression)
116
3
Taking Pictures
Saving the Settings (Memory)
The Memory function is for saving the current camera settings when the
camera is turned off.
For some camera settings, the Memory function is always set to O (On)
(the settings are saved when the camera is turned off), while for others
you can choose O or P (Off) (to choose whether the settings are saved
or not when the camera is turned off). The items which can be set to O
or P in the Memory function are shown in the table below. (Items not
listed here are always saved in the selected settings when the camera is
turned off.)
If you select O, the settings will be saved in the status they were in
immediately before the camera was turned off. If you select P, the
settings will be reset to the defaults when the camera is turned off. The
table below also shows whether the Memory default setting for each item
is O or P.
Item Description
Default
Settings
Page
Face Detection The [Face Detection] setting in the [A Rec. Mode]
menu Pp.100
Flash Mode The flash mode set with the four-way controller (4) Op.82
Drive Mode The drive mode set with the four-way controller (2)Pp.84
Focus Mode The focus mode set with the four-way controller
(5)Pp.86
Zoom Position The zoom position set with the zoom lever Pp.64
MF Position The manual focus position set with the four-way
controller (23)Pp.87
White Balance The [White Balance] setting in the [A Rec. Mode]
menu Pp.93
Sensitivity The [Sensitivity] setting in the [A Rec. Mode]
menu Pp.96
EV
Compensation The EV Compensation setting Pp.66
AE Metering The [AE Metering] setting in the [A Rec. Mode]
menu Pp.95
Digital Zoom The [Digital Zoom] setting in the [A Rec. Mode]
menu Op.66
117
3
Taking Pictures
1
Use the four-way controller (23) to select [Memory] in
the [A Rec. Mode] menu.
2
Press the four-way controller (5).
The [Memory] screen appears.
3
Use the four-way controller (23) to choose an item.
4
Use the four-way controller (45) to select O or P.
DISPLAY The information display mode selected with the
3 button Pp.22
File No.
If a new SD Memory Card is inserted when O (On)
has been selected, file numbers are assigned
sequentially
O—
118
4
Playing Back and Deleting Images
Playin
g Back
and
Deletin
g
s
Playing Back Images
1
Press the Q button after taking a
picture.
The camera enters Q mode and the
captured image appears on the display
(Single-image display).
2
Press the four-way controller (45).
The previous or next image appears.
Press the i button while the image is
displayed to display the Delete screen. Press
the four-way controller (2) to select [Delete]
and press the 4 button.
Playing Back Still Pictures
To Delete the Displayed Image
For information on other deletion procedures 1p.129
Four-way controller
Q button
14:25
1 4 : 2 5
14:25
100
1 0 0 -
0038
0 0 3 8
100-0038
09/09/2012
0 9 / 0 9 / 2 0 1 2
Edit
Edit
09/09/2012
File number
OK
OK
OK
Delete
Cancel
100
1 0 0 -
0017
0 0 1 7
100-0017
119
4
Playing Back and Deleting Images
You can play back the movies you have taken. The sound is played back
at the same time.
1
In Q mode, use the four-way controller (45) to
choose the movie you want to play back.
2
Press the four-way controller (2).
Playback starts.
Available operations during playback
Available operations while playback is paused
*1 Every 30 frame is the first frame for reversing frame. For example, when
you reverse frame at 1 to 31, the frame reverses to the first frame and
when you reverse frame at 32 to 61, the frame reverses to the 31st
frame.
Playing Back Movies
e-dial to the right (y) Increases the volume.
e-dial to the left (f) Reduces the volume.
Four-way controller (2) Pauses playback.
Four-way controller (5)
Fast-forwards playback while the button is held down.
Four-way controller (4)
Fast-reverses playback while the button is held down.
Four-way controller (2) Resumes playback.
Four-way controller (5) Forwards the frame.
Four-way controller (4) Reverses the frame.*1
Four-way controller
Q button
e-dial
00:30
0 0 : 3 0
00:30
1 4 : 2 5
14:25
100
1 0 0 -
0017
0 0 1 7
100-0017
0 9 / 0 9 / 2 0 1 2
09/09/2012
Edit
Edit
120
4
Playing Back and Deleting Images
3
Press the four-way controller (3).
Playback stops.
You can display four or nine thumbnails of captured images at a time.
1
In Q mode, turn the e-dial to the left (f).
The four-image display appears showing a
page consisting of four thumbnail images.
Turn the e-dial to the left (f) again to
switch to the nine-image display.
A page consisting of four or nine thumbnail
images appears. The displayed images
change four or nine images at a time page
by page.
Use the four-way controller (2345) to
move the frame. If there are too many
images to display on one page, pressing the
four-way controller (24) while the image
1 is selected will display the previous
page. Similarly, if you choose image 2 and
press the four-way controller (35), the
next page appears.
♦ (Folder divider icon) indicates that the
previous or next image is stored in a
separate folder.
The icons that appear on the images
indicate the following:
Multi-Image Display
Four-Image Display/Nine-Image Display
(No icon) Still picture
CMovie (the first frame appears)
cTime-Lapse Movie (the first frame
appears)
dHigh Speed Movie (the first frame
appears)
Select & Delete
100-0010
1
2
Select & Delete
100-0010
1
2
Nine-Image Display
Four-Image Display
Folder divider icon
Folder
divider icon
Frame
Frame
121
4
Playing Back and Deleting Images
Press the 4 button to switch to single-image display of the selected
image.
Press the Q button to switch to A mode.

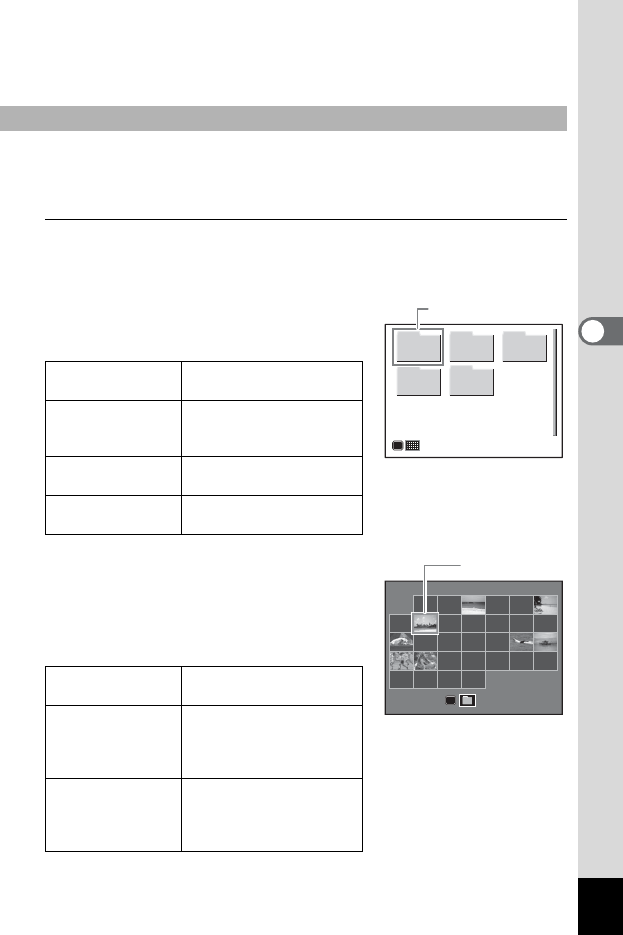

In nine-image display, turn the e-dial to the left (f) to switch to folder
display or calendar display. Press the Green button to switch between
folder display and calendar display.
1
In Q mode, turn the e-dial to the left (f) three times.
The screen changes to folder display or calendar display.
Folder display
The list of folders with recorded images
appears.
Calendar display
Images are displayed by date in calendar
format.
The thumbnail of the first image recorded on
each date is displayed on the calendar.
Folder Display/Calendar Display
Four-way controller
(2345)Moves the frame.
e-dial to the right
(y) / 4 button
Displays the images in the
selected folder in nine-
image display.
3 button Returns to nine-image
display.
Green button Switches to calendar
display.
Four-way controller
(2345)Moves the frame.
e-dial to the right
(y)
Displays the images
recorded on the selected
date in nine-image
display.
4 button
Displays the first image
recorded on the selected
date in single-image
display.
100_0707
100 101
103 104
102
Frame
7
7
2012. 10
2 0 12 . 10
2012. 10
SUN
SUN
TUE
TUE
WED
WED
THU
THU
FRI
FRI
SAT
SAT
5
5
6
6
10
10
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
9
9
2
2
11
11
3
3
4
4
MON
MON
8
8
1
1
Frame
122
4
Playing Back and Deleting Images
1
Press the four-way controller (3) in Q mode.
The Playback Mode Palette appears.
2
Use the four-way controller
(2345) to choose an icon.
The guide for the selected function appears
below.
3
Press the 4 button.
The selected playback function is called up.
3 button Returns to nine-image
display.
Green button Switches to folder display.

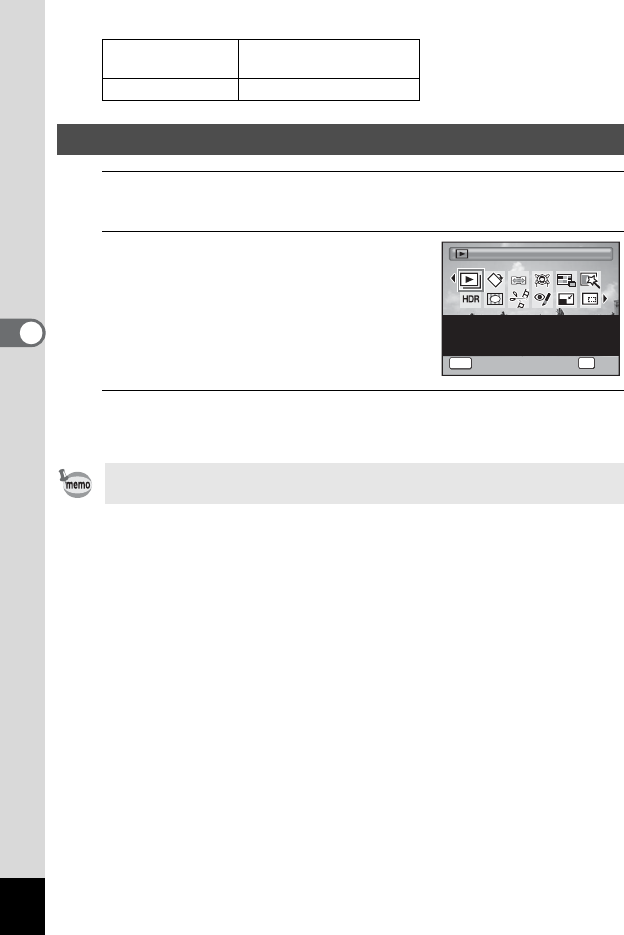

Using the Playback Function
You can turn the guide display off for each function on the Playback
Mode Palette (p.178).
Slideshow
Slideshow
For continuously playing
back images. Screen or
sound effects can be set
1 / 2
1/2
OK
OK
OK
MENU
Cancel
Cancel
123
4
Playing Back and Deleting Images
Playback Mode Palette
Playback Mode Description Page
uSlideshow For continuously playing back images. Screen
or sound effects can be set. p.124
sImage Rotation Rotates captured images. Useful when viewing
vertical images on a TV. p.126
OStretch Filter Stretches or elongates a user-selected area of
images (4:3 to 16:9). p.139
NSmall Face Filter Reduces the size of faces in the image, for well-
proportioned portraits. p.140
Collage Creates a collage print page from saved image
files p.145
PDigital Filter For modifying images with a Color filter or Soft
filter. p.142
pHDR Filter Processes single image to simulate HDR effect p.145
NFrame Composite For composing an image with a frame. Select
Overwrite or Save as to save. p.150
[
Movie Edit
Save as Still
For saving one frame from a movie as a still
picture.
p.153
Divide
Movies For dividing a movie into two.
Adding title
picture For adding a title picture to your movie
ZRed-eye Edit Attempts to edit out the red-eye effect in image.
Success may vary. p.149
nResize Changes Recorded Pixels and Quality Level to
make the file size smaller. p.137
oCropping For cropping images to the size you like. Saved
as a new image. p.138
pImage Copy To copy images between the built-in memory
and an SD Memory Card. p.156
ZProtect Protects images from delete function. Format
function still erases all. p.131
rDPOF For the print settings. Useful when printing at a
printing service. p.159
RStart-up Screen For setting a captured image as the Start-up
Screen. p.179
124
4
Playing Back and Deleting Images
You can play back recorded images one after another.
1
In Q mode, use the four-way controller (45) to
choose the image to start the slideshow with.
2
Use the four-way controller (2345) to select u
(Slideshow) from the Playback Mode Palette.
3
Press the 4 button.
The slideshow setting screen appears.
4
Use the four-way controller (23)
to select [Start].
5
Press the 4 button.
The slideshow starts.
Pressing the 4 button during the slideshow pauses the slideshow.
To resume the slideshow, press the 4 button again.
6
Press any button other than the 4 button.
The slideshow stops.
Slideshow
MENU
3sec.
3sec.
I n t e r v a l
Interval
S l id e s h ow s t ar t s
Slideshow starts
S c re e n Ef f e c t
Screen Effect
Start
W i p e
Wipe
S o un d E ff e c t
Sound Effect
OK
O K
OK
125
4
Playing Back and Deleting Images
You can set the playback interval and also a screen effect and sound
effect for when one image changes to the next.
1
Use the four-way controller (23) to select [Interval] in
Step 4 on p.124.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the interval
and press the 4 button.
Choose from [3sec.], [5sec.], [10sec.], [20sec.] or [30sec.].
4
Use the four-way controller (23) to select [Screen
Effect].
5
Press the four-way controller (5).
A pull-down menu appears.
6
Use the four-way controller (23) to choose the screen
effect and press the 4 button.
7
Use the four-way controller (23) to select [Sound
Effect].
8
Use the four-way controller (45) to select O (On) or P
(Off).
Except when [Screen Effect] is set to [Off] or [Random], you can
choose O or P for the sound that is played when one image changes
to the next.
To Set the Slideshow Conditions
Wipe The next image slides over the previous one from left to right
Checker The next image appears in small square mosaic blocks
Fade The current image gradually fades out and the next image fades in
Random Various effects are used randomly
Off No effect
126
4
Playing Back and Deleting Images
9
Use the four-way controller (23) to select [Start] and
press the 4 button.
The slideshow starts using the selected interval and effect.
1
Press the Q button after taking a picture.
The image appears on the display.
2
Use the four-way controller (2345) to select s
(Image Rotation) from the Playback Mode Palette.
3
Press the 4 button.
The rotation selection screen (0°, Right 90°, Left 90°, or 180°) appears.
4
Use the four-way controller
(2345) to choose the rotation
direction and press the 4
button.
The rotated image is saved.
• The slideshow will continue until you press any button other than the
4 button.
• Movies will be played through to the end before the next picture is
played back, regardless of the interval setting. However, pressing the
four-way controller (5) while playing back a movie skips to the next
image.
• When [Random] is selected for the screen effect, the interval is fixed
and the sound effect is set to P (off).
• Panorama images will be scrolled for display from left to right in 4
seconds before the next picture is played back, regardless of the
interval or screen effect setting.
Connecting the Camera to AV Equipment 1p.134
Rotating the Image
MENU
Cancel
Cancel
OK
OK
OK
Cancel OK
127
4
Playing Back and Deleting Images
You can magnify an image up to ten times.
1
In Q mode, use the four-way controller (45) to
choose the image you want to magnify.
2
Turn the e-dial to the right (y), or turn the zoom lever
to the right (5).
The image is magnified (×1.1 to ×10).
Continuing to turn the e-dial to the right (y) changes the magnification
continuously.
Holding the zoom lever turned to the right (5) also changes the
magnification continuously.
You can use the guide mark “+” that
appears at the bottom left of the screen to
check which portion of the image is
magnified.
Available operations while an image is
magnified
3
Press the 4 button.
The image returns to single-image display.
• Images taken at F (Digital Panorama) mode and movies cannot be
rotated.
• Protected images can be rotated, but they cannot be saved in a rotated
state.
Zoom Playback
Four-way controller
(2345)
Moves the position to be
magnified
e-dial to the right
(y) / Zoom lever to
the right (5)
Makes the image larger
(max. ×10)
e-dial to the left
(f) / Zoom lever to
the left (6)
Makes the image smaller
(min. ×1.1)
2.0
2.0×
2.0×
Guide
128
4
Playing Back and Deleting Images
• When [Quick Zoom] (p.178) is set to O (On), you can magnify the
image at 10x by simply rotating the e-dial to the right (y) once or
turning the zoom lever to the right (5) once.
• Movies cannot be magnified.
129
4
Playing Back and Deleting Images
Deleting Images
You can delete images that you do not want to keep.
You can delete a single image.
1
In Q mode, use the four-way controller (45) to
choose the image you want to delete.
2
Press the i button.
A confirmation screen appears.
3
Press the four-way controller (2)
to select [Delete].
4
Press the 4 button.
The image is deleted.
You can delete several images selected from the four-/nine-image
display at once.
1
In Q mode, turn the e-dial to the left (f) once or twice.
Four-image display or nine-image display appears.
Deleting a Single Image
Protected images cannot be deleted (p.131).
Deleting Selected Images
Protected images cannot be deleted (p.131).
OK
OK
OK
Delete
Cancel
100
1 0 0 -
0017
0 0 1 7
100-0017
130
4
Playing Back and Deleting Images
2
Press the i button.
A frame appears on the image.
3
Use the four-way controller
(2345) to choose the images
that you want to delete and press
the 4 button.
O appears on the selected images.
Turn the e-dial to the right (
y
) to display the
selected image in a single screen and check
whether you want to delete it or not. Turning to the left returns to four/
nine-image display. However, protected images cannot be displayed in
single-image display.
4
Press the i button.
A confirmation dialog appears.
5
Press the four-way controller (2)
to select [Select & Delete].
6
Press the 4 button.
The selected images are deleted.
Select & Delete
100-0010
OKMENU
Cancel Delete
Select & Delete
Cancel
Cancel
OK
OK
MENU
All selected images
are deleted
All selected images
are deleted
131
4
Playing Back and Deleting Images
You can delete all the images at once.
1
Press the 3 button in Q mode.
2
Use the four-way controller (23) to select [Delete All]
in the [W Setting] menu.
3
Press the four-way controller (5).
The [Delete All] screen appears.
4
Press the four-way controller (2) to select [Delete All].
5
Press the 4 button.
All the images are deleted.
You can protect stored images from being accidentally deleted.
1
In Q mode, use the four-way controller (45) to
choose the image you want to protect.
2
Use the four-way controller (2345) to select Z
(Protect) from the Playback Mode Palette.
3
Press the 4 button.
The screen for selecting [Single Image] or [All Images] appears.
4
Use the four-way controller (23)
to select [Single Image].
Deleting All Images
Protected images cannot be deleted (p.131).
Protecting Images from Deletion (Protect)
All Images
A l l I m a ge s
All Images
OK
OK
O K
OK
Single Image
Cancel
C a n c e l
Cancel

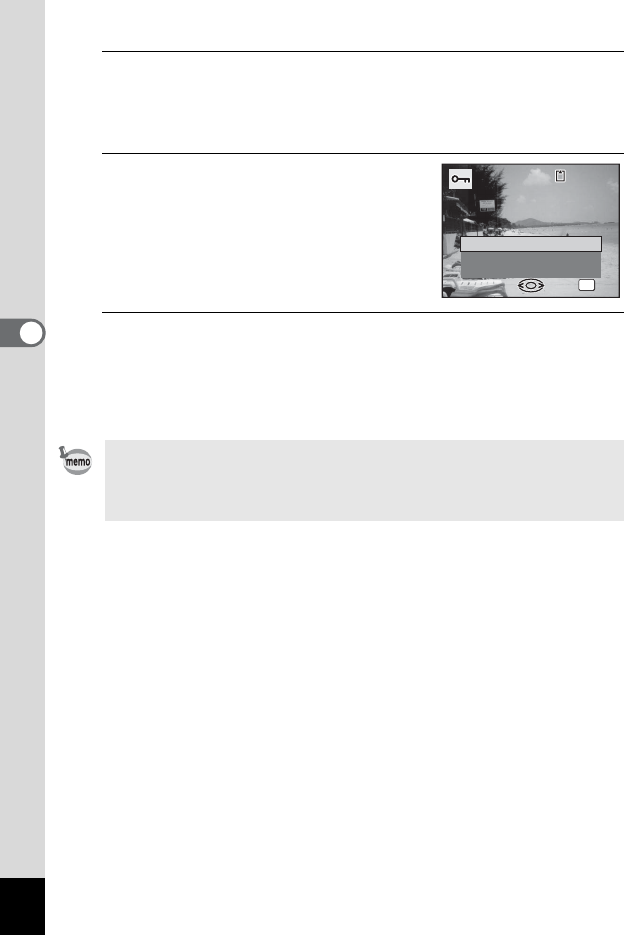

132
4
Playing Back and Deleting Images
5
Press the 4 button.
The message [Protects this image] appears.
To protect another image, use the four-way controller (45) to select
another image.
6
Use the four-way controller (23)
to select [Protect].
7
Press the 4 button.
The selected image is protected and the screen shown in Step 4
reappears.
To protect other images, repeat Steps 4 to 7. Select [Cancel] to exit the
Protect setting.
• To cancel the protection of the image, select [Unprotect] in Step 6.
•Y appears on the protected images during playback.
• The maximum number of images you can protect in succession with
[Single Image] is 99.
Protect
P r ot e c t s t h i s i m a g e
Protects this image
Unprotect
Cancel
100
1 0 0 -
0017
0 0 1 7
100-0017
OK
O K
OK
133
4
Playing Back and Deleting Images
1
Select [All Images] in Step 4 on
p.131.
2
Press the 4 button.
3
Use the four-way controller (23)
to select [Protect].
4
Press the 4 button.
All the images are protected and the screen shown in Step 1
reappears.
5
Use the four-way controller (23) to select [Cancel] and
press the 4 button.
The Playback Mode Palette reappears.
To Protect All Images
Protected images will be deleted when the SD Memory Card or the built-
in memory is formatted (p.162).
To cancel the protection of all your images, select [Unprotect] in Step 3.
All Images
Single Image
Single Image
Single Image
OK
OK
O K
OK
Cancel
C a n c e l
Cancel
P r ot e c t s a l l i m a g e s
Protects all images
OK
O K
OK
Protect
Unprotect
Cancel
134
4
Playing Back and Deleting Images
Connecting the Camera to AV
Equipment
By connecting the camera to a TV or other equipment with a video input
terminal or HDMI terminal, you can play back images.
Use the optional AV cable (I-AVC7) to connect the camera to equipment
with a video input terminal.
1
Turn the AV equipment and camera off.
2
Open the terminal cover, face the arrow mark on the AV
cable towards the 2 mark on the camera, and connect
the cable to the PC/AV terminal.
• If you intend to use the camera continuously for a long period, use of
the AC adapter kit K-AC129 (optional) is recommended (p.32).
• For AV equipment with multiple video input terminals, check the
operating manual of the AV equipment, and select the video input
terminal to which the camera is connected.
• You cannot output a composite and HDMI video signal at the same
time.
• You cannot adjust the volume on the camera when connected to AV
equipment. Adjust the volume on the AV equipment.
Connecting the Camera to a Video Input Terminal
VIDEO AUDIO
(L) (R)
PC/AV terminal
Yellow White
External input
terminal
135
4
Playing Back and Deleting Images
3
Connect the other ends of the AV cable to the video
input terminal and audio input terminal of the AV
equipment.
When using stereo sound equipment, insert the sound terminal into the
L (white) terminal.
4
Turn the AV equipment on.
When the equipment that the camera is connected to and the equipment
that plays back images are different, turn both on.
When viewing images on AV equipment with multiple video input
terminals (such as a TV), refer to the operation manual of the
equipment
and select the video input terminal to which the camera is
connected.
5
Turn the camera on.
• The video output format differs depending on the region. When you set
[Select Time] in the World Time setting (p.166) to X (Destination), the
video output setting changes to the video output format for that city.
• Depending on the country or region, images and sounds may fail to be
played back if the video output format is set differently from the one in
use there. If this happens, change the video output format setting
(p.173).
• The camera display turns off and the volume cannot be adjusted by
turning the zoom lever while the camera is connected to AV
equipment.
When connecting to and playing back images on AV equipment, image
data is output at normal screen resolution. To view movies recorded at
b, a or M in HDTV, transfer the data to a computer and play it back
on the computer (p.184).
136
4
Playing Back and Deleting Images
Use a commercially available HDMI cable to connect the camera to
equipment with an HDMI terminal.
1
Turn the AV equipment and camera off.
2
Open the terminal cover and connect the HDMI cable to
the HDMI terminal.
3
Connect the other end of the HDMI cable to the HDMI
terminal of the AV equipment.
4
Turn the AV equipment and camera on.
The camera information is displayed on the screen of the connected
AV equipment.
Connecting the Camera to an HDMI Terminal
• The camera has a Type D (Micro) HDMI terminal. Use a commercially
available HDMI cable that matches your AV equipment.
• Nothing is displayed on the camera display during HDMI output.
• The HDMI output format is set to [Auto] by default. With this setting,
the image is displayed in the largest resolution that the connected AV
equipment or camera supports. You can change setting according to
the output format of your AV equipment or camera (p.174).
• When the HDMI output format is set to [1080i] or [720p], the image is
displayed with a 16:9 aspect ratio on the connected AV equipment or
camera. The display may appear with a screen design that differs from
that displayed on this camera.
HDMI terminal
137

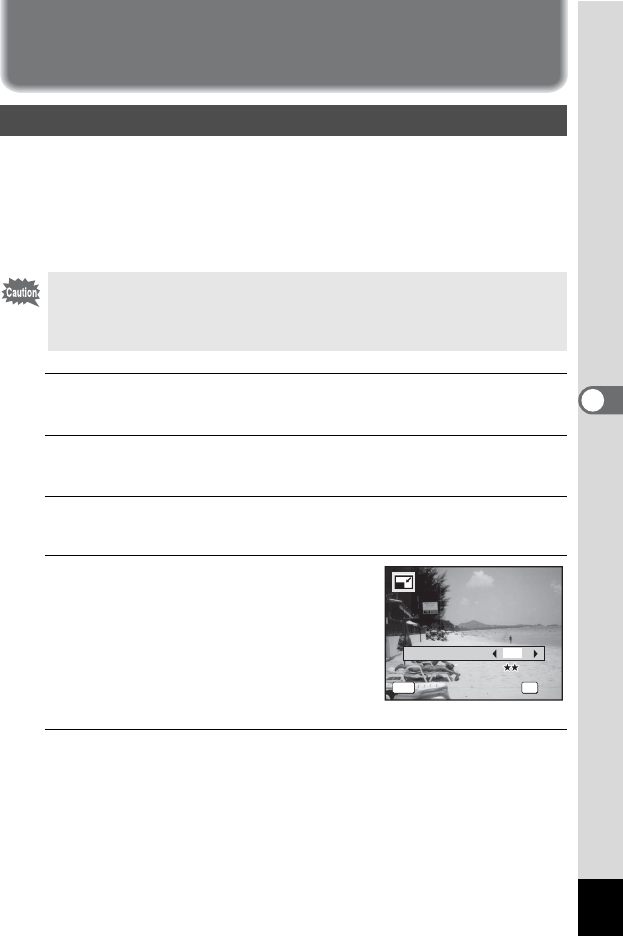

5
Editing and Printing Images
Editing
and
Printin
g
s
Editing Images
By changing the recorded pixels and quality level of a selected image,
you can make the file size smaller than the original. You can use this
function to continue taking pictures when the SD Memory Card or the
built-in memory is full, by making the images smaller and overwriting the
original images to make more space available.
1
In Q mode, use the four-way controller (45) to
choose the image you want to resize.
2
Use the four-way controller (2345) to select n
(Resize) from the Playback Mode Palette.
3
Press the 4 button.
The screen for choosing the number of recorded pixels appears.
4
Select [Recorded Pixels] or
[Quality Level].
Use the four-way controller (23) to switch
between [Recorded Pixels] and [Quality
Level].
Use the four-way controller (45) to choose
the recorded pixels and quality level.
5
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation dialog does not appear.
Changing the Image Size (Resize)
• Images taken with the recorded pixels of n/m or at F (Digital
Panorama) mode, and movies cannot be resized.
• You cannot select a larger number of recorded pixels and/or a higher
quality level (with more E symbols) than those of the original image.
OK
OK
OK
OK
MENU
Cancel
Cancel
Recorded Pixels
6
Quality Level
Quality Level
Cancel
Quality Level
138
5
Editing and Printing Images
6

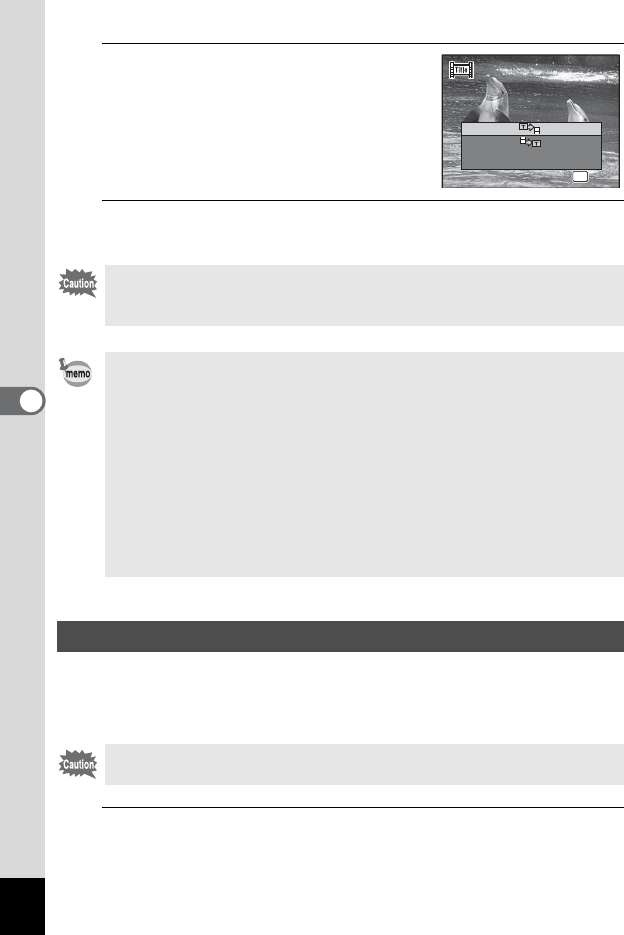

Use the four-way controller (23) to select [Overwrite]
or [Save as].
7
Press the 4 button.
The resized image is saved.
You can delete the unwanted part of a picture and save the cropped
image as a new image.
1
In Q mode, use the four-way controller (45) to
choose the image you want to crop.
2
Use the four-way controller (2345) to select o
(Cropping) from the Playback Mode Palette.
3
Press the 4 button.
The cropping screen appears.
The largest size of cropped image is shown with a green frame on the
screen. The cropped image cannot be larger than this cropping frame size.
4
Choose the cropping area.
Change the size and/or position of the
cropping frame by the following operations.
Cropping Images
Images taken with the recorded pixels of n/m or at F (Digital
Panorama) mode, and movies cannot be cropped.
e-dial Changes the size of the
cropping frame.
Four-way
controller
(
2345
)
Moves the cropping
frame up, down, left
and right.
Green button Rotates the cropping
frame.
•
The button is displayed
only when the cropping
frame can be rotated.
OKMENU
C a n c e l
Cancel OK
O K
OK
139
5
Editing and Printing Images
5
Press the 4 button.
The cropped image is saved with a new file name.
The number of recorded pixels is selected automatically according to
the size of the cropped image.
You can stretch a user-selected area of a 4:3 image and store it as a 16:9
image.
1
In Q mode, use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select O
(Stretch Filter) from the Playback Mode Palette.
3
Press the OK button.
The message [Specify the position and area of effect for stretch]
appears and the adjustment screen is displayed.
4
Use the four-way controller (45)
to move the position for
stretching.
5
Turn the zoom lever left or right to
adjust the area of effect for
stretching.
Stretching a User-Selected Area of an Image
(Stretch Filter)
Four-way
controller (4)
Moves the position for
stretching left.
Four-way
controller (5)
Moves the position for
stretching right.
Zoom lever
to the left (6)
Makes the area of effect
narrower.
Zoom lever
to the right (5)
Makes the area of effect
wider.
MENU
OK
O K
OK
C a n c e l
Cancel
P o s i t i o n
Position
A r ea o f e f f e ct
Area of effect
MENU
OK
O K
OK
C a n c e l
Cancel
P o s i t i o n
Position
A r ea o f e f f e ct
Area of effect
140
5
Editing and Printing Images
6
Press the OK button.
A confirmation dialog for overwriting the image appears.
7
Use the four-way controller (23) to select [Overwrite]
or [Save as].
8
Press the OK button.
The stretched image is saved.
The number of recorded pixels of a new
image becomes o for an image taken
with m, 0 for an image taken with
6, 1 for an image taken with f, or
A for an image taken with a lower
number of recorded pixels.
Images are processed to reduce the size of a person’s face detected
with the Face Detection function (p.100) when taking pictures so that the
face looks smaller.
1
In Q mode, use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select N
(Small Face Filter) from the Playback Mode Palette.
3
Press the 4 button.
Face detection frames appear on the faces that can be processed.
Proceed to Step 6 when there is only one detection frame.
4
Use the four-way controller
(2345) to select a face to be
processed.
A green frame indicates the face that is to
be processed.
5
Press the 4 button.
Processing Images to Make a Face Look Smaller
100
100-
0018
0018
100-0018
OK
OK
OK
OK
141
5
Editing and Printing Images
6
Use the four-way controller (45)
to change the reduction ratio.
FApprox. 5 %
GApprox. 7 %
HApprox. 10 %
7
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation dialog does not appear.
8
Use the four-way controller (23) to select [Overwrite]
or [Save as].
9
Press the 4 button.
The camera returns to
Q
mode and the processed image is displayed.
You may not be able to process images in the following situations:
- When the size of face taken in relation to an image is too large or too
small
- When a face is not in the center of an image
OK
OK
OK
MENU
Cancel
Cancel
OKCancel
142
5
Editing and Printing Images
This function lets you change the color tones and perform special
processing on the selected image.
1
In Q mode, use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select P
(Digital Filter) from the Playback Mode Palette.
3
Press the 4 button.
The filter selection screen appears.
Using the Digital Filters
B&W Processes the image into one that has the look of a black and white
photograph.
Sepia
Processes the image into one that has the look of a sepia photograph.
Toy Camera Processes the image that looks as though it was shot with a toy
camera.
Retro Processes the image into one that has the look of an old photo.
Color Processes the image using the selected color filter. You can choose
from six filters: red, pink, purple, blue, green, and yellow.
Extract Color
Extracts only a specific color and processes the rest of the image
into black and white. You can choose from three filters: red, green,
and blue.
Color Emphasis There are four filters: Sky Blue/Fresh Green/Delicate Pink/Autumn
Leaves.
High Contrast Adjusts the contrast of the captured images.
Soft Processes the image into one that appears soft overall.
Fish-eye Creates an image that looks as though it was shot with a fish-eye
lens.
Brightness Adjusts the brightness of the image.
Miniature Blurs part of the image to create a fake miniature scene.
Movies and images taken at F (Digital Panorama) mode, or with
another camera cannot be processed using the Digital Filter function.
143
5
Editing and Printing Images
1B&W
2Sepia
3Toy Camera
4Retro
5Color
6Extract Color
7Color Emphasis
8High Contrast
9Soft
10 Fish-eye
11 Brightness
12 Miniature
Subsequent steps vary depending on your selection.
4
Use the four-way controller (23) to choose a filter.
The preview image of the result of the filter effect appears.
5
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation dialog does not appear.
6
Use the four-way controller (23) to select [Overwrite]
or [Save as].
7
Press the 4 button.
The image processed with the filter is saved.
4
Use the four-way controller (23) to choose a filter.
The preview image of the result of the filter effect appears.
5
Use the four-way controller (45) to choose the color.
The color filter changes in the following sequence each time the four-
way controller (5) is pressed.
To Select a B&W, Sepia or Soft Filter
To Select a Retro, Color, Extract Color or Color Emphasis Filter
OK
OK
OK
MENU
Cancel
Cancel
OKCancel
B&W
B&W
B&W
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
144
5
Editing and Printing Images
6
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation dialog does not appear.
7
Use the four-way controller (23) to select [Overwrite]
or [Save as].
8
Press the 4 button.
The image processed with the filter is saved.
4
Use the four-way controller (23) to choose a filter.
The preview image of the result of the filter effect appears.
5
Use the four-way controller (45) to adjust the effect.
6
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation dialog does not appear.
Retro Original image → Amber → Blue
Color Red → Pink → Purple → Blue → Green → Yellow
Extract Color Red → Green → Blue
Color Emphasis Sky Blue → Fresh Green → Delicate Pink → Autumn Leaves
To Select a Toy Camera, High Contrast, Fish-eye, Brightness or
Miniature Filter
Four-way controller
(4) Default Setting Four-way controller
(5)
Toy Camera Weak Standard Strong
High
Contrast Weak Standard High Contrast
Fish-eye Weak Standard Strong
Brightness Dark Standard Bright
Miniature Blurs the top. Blurs the top and
bottom. Blurs the bottom.
145
5
Editing and Printing Images
7
Use the four-way controller (23) to select [Overwrite]
or [Save as].
8
Press the 4 button.
The image processed with the filter is saved.

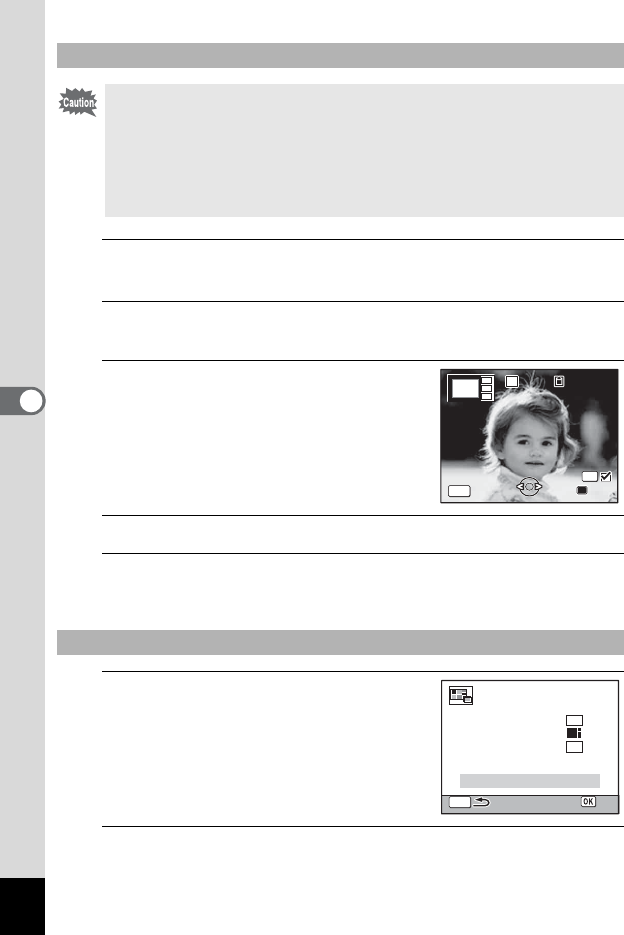

Adjusts parts of the image that are too bright or too dark and processes images
to simulate an HDR effect.
1
In Q mode, use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select p
(HDR Filter) from the Playback Mode Palette.
3
Press the 4 button.
The preview image of the result of the filter effect appears.
4
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation does not appear.
5
Use the four-way controller (23) to select [Overwrite]
or [Save as].
6
Press the 4 button.
The image processed with the filter is saved.
Make a collage image by placing captured images on a selected pattern.
Using the HDR Filter
Creating a Collage Image
The collage function cannot be used on the following images.
• Movies or images taken at F (Digital Panorama) mode
• Images taken with the recorded pixels of n, l, or m
• Images taken with other cameras
146
5
Editing and Printing Images
1

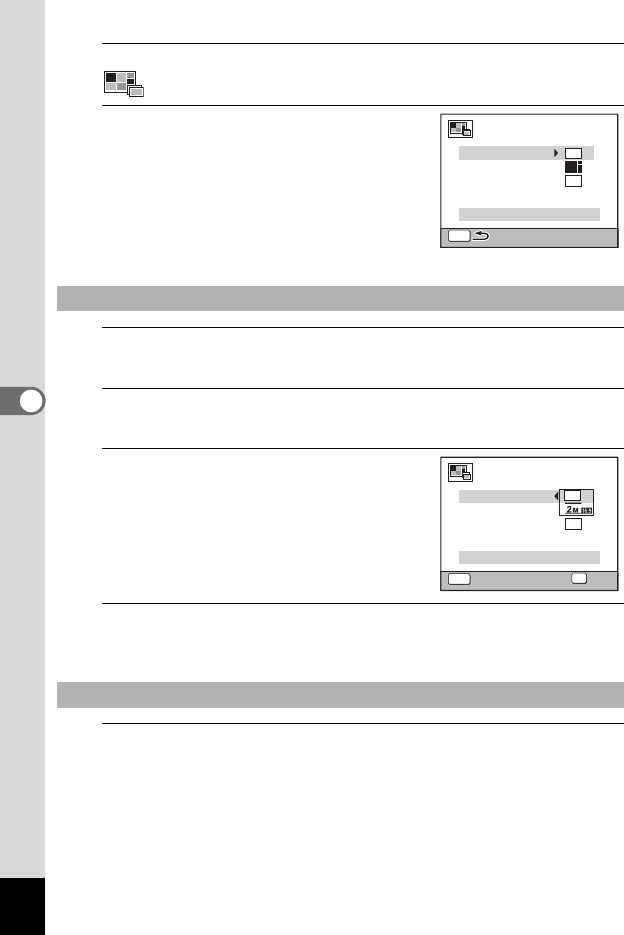

Use the four-way controller (2345) to select
(Collage) from the Playback Mode Palette.
2
Press the 4 button.
The item selection screen appears.
3
Use the four-way controller (23) to choose [Recorded
Pixels].
4
Press the 4 button or the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (23)
to choose the recorded pixels.
You can choose from h or h.
6
Press the 4 button.
The setting is saved and the item selection screen reappears.
7
Use the four-way controller (23) to choose [Layout].
Selecting the Number of Recorded Pixels
Selecting the Layout Pattern
MENU
3
M
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
MENU
3
M
OK
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
O K
OK
Cancel
Cancel
Cancel
147
5
Editing and Printing Images
8
Press the 4 button or the four-
way controller (5).
A pull-down menu appears.
9
Use the four-way controller (23) to choose the pattern
of layout.
You can choose from 3 patterns of layout (7 / 9 / 8).
10
Press the 4 button.
The setting is saved and the item selection screen reappears.
11
Use the four-way controller (23) to choose
[Backgnd.].
12
Press the 4 button or the four-way controller (5).
A pull-down menu appears.
13
Use the four-way controller (23)
to choose the background.
You can choose the white background or
the black background.
14
Press the 4 button.
The setting is saved and the item selection screen reappears.
Selecting the Background
MENU OK
3
M
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
O K
OK
Cancel
Cancel
Cancel
MENU OK
3
M
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
O K
OK
Cancel
Cancel
Cancel
148
5
Editing and Printing Images
15
Use the four-way controller (23) to choose [Select
image(s)].
16
Press the 4 button or the four-way controller (5).
The images to be selected appear.
17
Use the four-way controller (45)
to choose the image to be placed
and press the 4 button.
The selected image is placed in the
highlighted area in the guide. The guide
appears on the top left of the display.
18
Repeat Step 17 to lay out the rest images.
19
Press the Green button.
Returns to the item selection screen.
20
Use the four-way controller (23)
to choose [Create an image].
21
Press the 4 button.
A confirmation dialog for saving the image appears.
Laying Out the Image
• The collage function cannot be used on the following images.
- Movies or images taken at F (Digital Panorama) mode
- Images taken with the recorded pixels of n, l, or m
- Images taken with other cameras
These images do not appear as selectable items.
• If you select an image with a 16:9 aspect ratio, the black areas appear
above and below the image.
Saving the Edited Image
MENU
10
1 0 0-
0001
0001
100-0001
0/4
0/4
0/4
OK
Cancel
Cancel
Cancel Exit
Exit
Exit
MENU
3
M
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
O K
OK
149
5
Editing and Printing Images
22
Use the four-way controller (2) to select [Save].
23
Press the 4 button.
The edited image is saved.
You can correct images where the flash has caused the subject to
appear with red eyes.
1
In Q mode, use the four-way controller (45) to
choose the image you want to correct.
2
Use the four-way controller (2345) to select Z (Red-
eye Edit) from the Playback Mode Palette.
3
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation dialog does not appear.
4
Use the four-way controller (23) to select [Overwrite]
or [Save as].
5
Press the 4 button.
The processed image is saved.
The quality level of the image is fixed at C (Best).
Compensating for a Red-eye Effect
The red-eye edit function can only be used with still pictures taken with
this camera. The red-eye edit function cannot be used on images taken
at F (Digital Panorama) mode, movies, images taken with other
cameras and images where red eyes cannot be detected on the camera.
150
5
Editing and Printing Images
This function lets you add a decorative frame to still pictures. There are
three frames already stored in the camera.
1
In Q mode, use the four-way controller (45) to
choose the image to which you want to add a frame.
2
Use the four-way controller (2345) to select N
(Frame Composite) from the Playback Mode Palette.
3
Press the 4 button.
The 9-frame display of the frame selection screen appears.
4
Use the four-way controller
(2345) to choose a frame.
5
Turn the e-dial to the right (y).
The selected frame appears in single-
image display.
You can choose another frame using either
of the following operations.
Adding a Frame (Frame Composite)
The Frame Composite function cannot be used on images taken with the
recorded pixels of o/n/0/1/h, images of smaller
size than h with 4:3 aspect ratio, images taken at F (Digital
Panorama) mode, and movies.
Four-way
controller (45)
Chooses a different
frame.
e-dial to the left
(f)
Returns to the 9-frame
display of the frame
selection screen, and
then lets you choose a
different frame in the
same way as Step 4.
OK
y
OK
OK
OK
f
OK
OK
151
5
Editing and Printing Images
6
Press the 4 button.
The image position and size adjustment
screen appears.
You can adjust the image using the
following operations.
7
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a
new image and the following confirmation dialog does not appear.
8
Use the four-way controller (23) to select [Overwrite]
or [Save as].
9
Press the 4 button.
The processed image is saved with the recorded pixels of h.
Four-way controller
(2345)
Adjusts the position
of the image
e-dial Makes the image
larger or smaller.
OKMENU
Cancel
C a n c e l
Cancel
O K
OK
152
5
Editing and Printing Images
Optional Frames
In addition to the built-in frames that come with this camera, there are optional
frames included on the supplied CD-ROM. You can save the optional frames to
the camera’s built-in memory or an SD Memory Card. To save them to the built-
in memory, first remove the SD Memory Card before proceeding.
To Copy Frames
1
Connect the camera to a computer using the provided
USB cable.
Refer to “Connecting to a Computer” (p.183) for instructions on
connecting the camera to a computer.
2
When the device detection window opens, click
[Cancel].
3
Insert the CD-ROM into the CD/DVD drive.
4
When the installer window opens, click [EXIT].
5
Copy the desired files from the FRAME folder in the
root directory of the CD-ROM to the FRAME folder on
the camera (removable disk).
For information on working with files on a computer, refer to the
instruction manual supplied with the computer.
6
Disconnect the USB cable from the computer and
camera.
Refer to “Connecting to a Computer” (p.183) for instructions on
disconnecting the cable.
• Frames can be stored both in the built-in memory and on an SD
Memory Card, but using large numbers of frames may slow down
processing speed.
153
5
Editing and Printing Images
Frames downloaded from the PENTAX website or other source can be
used for adding a frame to pictures.
You can extract a frame from the recorded movie to save as a still
picture, divide a movie into two, or add a title picture to a movie.
1
In Q mode, use the four-way controller (45) to
choose the movie you want to edit.
2
Use the four-way controller (2345) to select [
(Movie Edit) from the Playback Mode Palette.
3
Press the 4 button.
The movie editing selection screen
appears.
Subsequent steps vary depending on your
selection.
4
Select [Save as Still Image] on the movie editing
selection screen.
5
Press the 4 button.
The screen for selecting a frame to be saved as a still picture appears.
To Use a New Frame
• Extract the downloaded frame and copy it to the FRAME folder in the
built-in memory or on the SD Memory Card.
• The FRAME folder is created when the SD Memory Card is formatted
with this camera.
• For more information on downloading, refer to the PENTAX website.
Editing Movies
To Save a Frame from a Movie as a Still Picture
OK
O K
OK
Save as Still Image
D i vi d e Mo v i e s
Divide Movies
C a n c e l
Cancel
A d di n g ti t l e p i c t ur e
Adding title picture
154
5
Editing and Printing Images
6
Use the four-way controller
(2345) to choose the frame
you want to save.
2Plays or pauses the movie
3Stops the movie and returns to the
first frame
4Reverses the movie frame by
frame*1
5Forwards the movie frame by frame
*1 Every 30 frame is the first frame for reversing frame. For example, when
you reverse frame at 1 to 31, the frame reverses to the first frame and
when you reverse frame at 32 to 61, the frame reverses to the 31st
frame.
7
Press the 4 button.
The selected frame is saved as a still picture.
4
Select [Divide Movies] on the movie editing selection
screen.
5
Press the 4 button.
The screen for specifying the dividing position appears.
6
Use the four-way controller
(2345) to specify the dividing
position.
2Plays or pauses the movie
3Stops the movie and returns to the
first frame
4Reverses the movie frame by frame
5Forwards the movie frame by frame
7
Press the 4 button.
A confirmation dialog appears.
To Divide a Movie
Select the image
Select the image
to save
to save
Select the image
to save
100
100-
0042
0 0 4 2
100-0042
00:06
0 0 : 0 6
00:06
MENU OK
OK
OK
OKCancel
Cancel
Cancel
1
1
Select image for
Select image for
dividing position
dividing position
Select image for
dividing position
100
1 0 0 -
0042
0 0 4 2
100-0042
31
3 1
00:09
00:09
00:09
31
MENU OK
OK
OK
OKCancel
Cancel
Cancel
155
5
Editing and Printing Images

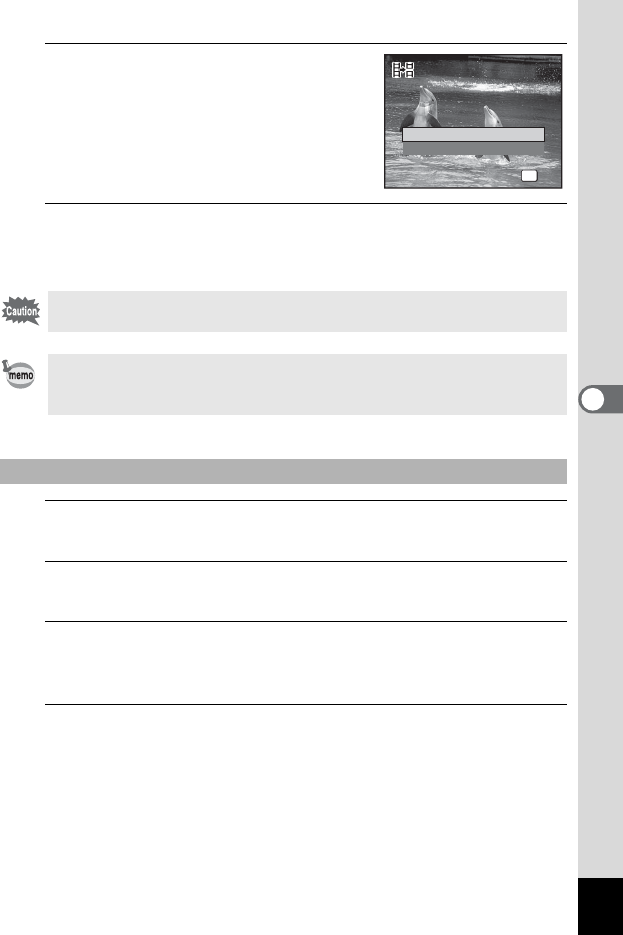

8
Use the four-way controller (23)
to select [Divide].
9
Press the 4 button.
The movie is divided at the specified position, each segment is saved
as a new file, and the original movie is deleted.
4
Select [Adding title picture] on the movie editing
selection screen.
5
Press the 4 button.
The screen for selecting a title picture appears.
6
Use the four-way controller (45) to choose the image
for the title picture.
Only images available for the title picture are displayed.
7
Press the 4 button.
The screen for confirming the position of the title picture appears.
Protected movies cannot be divided.
• Only the movie for more than 2 seconds (31 frames) can be divided.
• For dividing, every 30 frames (31st, 61st, 91st. frames) can be
selected.
To Add a Title Picture to a Movie
Divide
Cancel
Divide at this position?
Divide at this position?
Divide at this position?
OK
OK
O K
OK
156
5
Editing and Printing Images
8
Use the four-way controller (23)
to select the position.
eAdds the title picture to the
beginning of the movie
fAdds the title picture to the end of
the movie
9
Press the 4 button.
The selected picture is saved as the title picture.
You can copy images from the built-in memory to the SD Memory Card
and vice versa. This function can be selected only when an SD Memory
Card has been inserted in the camera.
1
Use the four-way controller (2345) to select p
(Image Copy) from the Playback Mode Palette.
• Protected movies cannot be added a title picture.
• If a movie is more than 26 minutes long after adding title pictures, you
cannot add any more title pictures to it.
• When a title picture is added to the beginning of a movie: When the
movie is played back, the title picture is played back for three seconds,
and then the movie is played back. The still picture set as title picture
is used as the thumbnail of the movie.
When a title picture is added to the end of a movie: When the movie is
played back, the movie is played back first, then the title picture is
played back for three seconds. The thumbnail of the movie is not
changed by adding a title picture to the end of the movie.
• A still picture is automatically resized according to the size of the
movie.
• Only a still picture with the same aspect ratio as the movie can be set
as a title picture.
Copying Images
Make sure that the camera is turned off before inserting or removing the
SD Memory Card.
OK
OK
O K
OK
Cancel
S p ec i f y t h e po s i t io n o f
t i tl e p ic t u r e t o ad d
Specify the position of
title picture to add
157
5
Editing and Printing Images
2
Press the 4 button.
The copying method selection screen appears.
Subsequent steps vary depending on your selection.
All the images in the built-in memory are copied to the SD Memory Card
at once. Before copying the images, make sure that there is enough
space on the SD Memory Card.
3
Use the four-way controller (23)
to select [2}{].
4
Press the 4 button.
All the images are copied to the SD Memory Card.
Selected images from the SD Memory Card are copied to the built-in
memory one by one.
3
Use the four-way controller (23) to select [{}2].
4
Press the 4 button.
5
Use the four-way controller (45)
to select the image you want to
copy.
6
Press the 4 button.
The selected image is copied to the built-in memory.
To Copy Files from the Built-in Memory to the SD Memory Card
To Copy Files from the SD Memory Card to the Built-in Memory
OK
OK
O K
OK
Cancel
C a n c e l
SD
SD
SD
Cancel
SD
OK
O K
OK
C a n c e l
Cancel
MENU
C o pi e s th i s im a g e t o
a l te r n a te m e mo r y
Copies this image to
alternate memory
100
100-
0017
0 0 1 7
100-0017
158
5
Editing and Printing Images
To copy other images, repeat Steps 3 to 6. Select [Cancel] to exit the
copy operation.
When a file is copied from the SD Memory Card to the built-in memory,
it is assigned a new file name.
159
5
Editing and Printing Images
Setting the Printing Service (DPOF)
DPOF (Digital Print Order Format) is the format for storing print order
data on still pictures captured with a digital camera. Once the print order
data has been stored, the pictures can be printed according to the DPOF
settings by using a DPOF-compatible printer or at a photo processing
lab.
Set the following items for each image.
1
Use the four-way controller (2345) to select r
(DPOF) from the Playback Mode Palette.
2
Press the 4 button.
The DPOF setting method selection screen appears.
About printing
The following options are available for printing images taken with this
camera.
1 Use a printing service.
2 Use your printer with an SD Memory Card slot to print directly
from the SD Memory Card.
3 Use your computer’s software to print images.
• The DPOF settings can be applied only to still pictures. Movies cannot
be processed with the DPOF settings.
• If the picture already has the date and/or time imprinted on it (p.103),
do not set [Date] to O (On) in DPOF setting. If you select O, the
imprinted date and/or time may overlap.
Printing a Single Image
Copies Choose the number of copies up to 99.
Date Specify whether to imprint the date on the pictures.
160
5
Editing and Printing Images
3
Use the four-way controller (23)
to select [Single Image].
4
Press the 4 button.
The message [Applies DPOF settings to this image] appears.
5
Use the four-way controller (45) to select an image.
If DPOF settings have already been made for the selected image, the
previous number of copies and date setting O (On) or P (Off) is
displayed.
6
Use the four-way controller (23)
to choose the number of copies.
7
Press the Green button to switch
O or P for [Date] setting.
OImprints the date.
P Does not imprint the date.
To continue DPOF settings to other
image(s), repeat Steps 5 to 7.
8
Press the 4 button.
The settings are saved and the screen shown in Step 3 reappears.
Depending on the printer or printing equipment at the photo processing
lab, the date may not be imprinted on the pictures even if O is selected
for [Date] in DPOF setting.
To cancel DPOF settings, set the number of copies to [00] in Step 6 and
press the 4 button.
OK
OK
O K
OK
All Images
A l l I m a ge s
All Images
Single Image
Cancel
C a n c e l
Cancel
Copies
A p pl i e s D P O F s e t t in gs
t o t h i s i m a g e
Applies DPOF settings
to this image
Date
D a t e
Date
00
C a n c e l
Cancel
MENU OK
O K
OK
100
1 0 0 -
0017
0 0 1 7
100-0017
MENU
Copies
A p pl i e s D P O F s e t t in gs
t o t h i s i m a g e
Applies DPOF settings
to this image
Date
D a t e
Date
C a n c e l
Cancel
OK
O K
OK
100
1 0 0 -
0017
0 0 1 7
100-0017
01
161
5
Editing and Printing Images
DPOF settings are applied to all the images stored in the camera.
1
Select [All Images] in Step 3 on p.160.
2
Press the 4 button.
The message [Applies DPOF settings to all images] appears.
3
Choose the number of copies and
switch O or P for [Date] setting.
Refer to Steps 6 and 7 in “Printing a Single
Image” (p.160) for details on how to make
the settings.
4
Press the 4 button.
The settings specified for all the images are saved and the DPOF
setting method selection screen reappears.
Printing All Images
• The number of copies specified in the [All Images] setting applies to all
the images. Before printing, check that the number is correct.
• DPOF settings specified for single images are canceled when settings
are made with [All Images].
Copies
A p pl i e s D P O F s e t t in gs
t o a l l im a g e s
Applies DPOF settings
to all images
Date
D a t e
Date
C a n c e l
Cancel
OK
O K
OK
MENU
01
162
6
Settings
Setting
s
Camera Settings
To change the main camera settings, choose each setting in the [W
Setting] menu. Refer to the explanation of the respective functions for
how to change the settings.
1
Press the 3 button in Q mode.
The [W Setting] menu appears.
2
Use the four-way controller (23) to select an item and
change its setting.
3
Press the 3 button after changing the setting.
The setting is saved and the camera returns to Q mode.
Formatting deletes all the data on the SD Memory Card/built-in memory.
Be sure to use this camera to format (initialize) an SD Memory Card that
is unused or has been used on other cameras or digital devices.
Changing the [
W
Setting] Menu
Switching Between A Mode and Q Mode 1p.48
Formatting the Memory
• Do not open the battery/card cover during formatting as this may
damage the card and render it unusable.
• Formatting deletes all the data on the card, including protected images
and images recorded with a computer or camera other than this
camera.
• SD Memory Cards formatted on a computer or device other than this
camera cannot be used. Be sure to format the card with this camera.
• When the SD Memory Card is inserted in the camera, the SD Memory
Card will be formatted. To format the built-in memory, be sure to
operate after taking out the SD Memory Card.
• The optional frames copied from the provided CD-ROM are deleted
when the SD Memory Card or the built-in memory is formatted (3
default frames are not deleted).
163
6
Settings
1
Use the four-way controller (23) to select [Format] in
the [W Setting] menu.
2
Press the four-way controller (5).
The [Format] screen appears.
3
Use the four-way controller (23)
to select [Format].
4
Press the 4 button.
Formatting starts.
When formatting is completed, the camera returns to Q mode.
You can adjust the volume of operation sounds and change the type of
sound.
1
Use the four-way controller (23) to select [Sound] in
the [W Setting] menu.
2
Press the four-way controller (5).
The [Sound] screen appears.
Subsequent steps vary depending on your
selection.
3
Use the four-way controller (23) to select [Operation
Volume].
Changing the Sound Settings
To Change the Operation Volume/Playback Volume
Format
All data will be deleted
Format
Cancel
OK
OK
O K
OK
Sound
Operation Volume
Startup Sound
Shutter Sound
Operation Sound
Self-timer Sound
MENU
Playback Volume
1
1
1
Off
164
6
Settings
4
Use the four-way controller (45) to adjust the volume.
Set the volume to f to mute the startup sound, shutter sound,
operation sound, and self-timer sound.
5
Change [Playback Volume] in the same way as in Steps
3 and 4.
6
Press the 3 button twice.
The camera returns to Q mode.
3
Use the four-way controller (23) to select [Startup
Sound].
4
Press the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (
23
) to select the sound type.
Choose from [1], [2], [3] or [Off].
6
Press the 4 button.
7
Set [Shutter Sound], [Operation Sound] and [Self-timer
Sound] in the same way as in Steps 3 to 6.
8
Press the 3 button twice.
The camera returns to Q mode.
You can change the initial date and time settings (p.41). Also, you can
change the format in which the date appears on the camera.
1
Use the four-way controller (23) to select [Date
Adjustment] in the [W Setting] menu.
2
Press the four-way controller (5).
The [Date Adjustment] screen appears.
To Change the Sound Type
Changing the Date and Time
165
6
Settings
3
Press the four-way controller (5).
The frame moves to [mm/dd/yy].
Depending on the initial setting or previous
setting, [dd/mm/yy] or [yy/mm/dd] may be
displayed.
4
Use the four-way controller (23) to choose the date
format.
Choose from [mm/dd/yy], [dd/mm/yy] or [yy/mm/dd].
5
Press the four-way controller (5).
The frame moves to [24h].
6
Use the four-way controller (23) to select [24h] (24-
hour display) or [12h] (12-hour display).
7
Press the four-way controller (5).
The frame returns to [Date Format].
8
Press the four-way controller (3).
The frame moves to [Date].
9
Press the four-way controller (5).
The frame moves to one of the following items depending on the date
format set in Step 4.
Month for [mm/dd/yy]
Day for [dd/mm/yy]
Year for [yy/mm/dd]
The following operations use [mm/dd/yy] as an example. The
operations are the same even if another date format has been
selected.
10
Use the four-way controller (23) to change the month.
11
Press the four-way controller (5).
The frame moves to the day field. Use the four-way controller (23) to
change the day. After changing the day, change the year in the same
manner.
Date Adjustment
MENU
Cancel
Date Format
Date
01/01/2012
Time
00:00
24h
mm/dd/yy
Settings complete
166
6
Settings
12
Change the time in the same way as in Steps 7 to 11.
If you select [12h] in Step 6, the camera automatically switches the
display between am and pm corresponding to the time.
13
Press the four-way controller (3) to select [Settings
complete].
14
Press the 4 button.
The date and time settings are saved.
The date and time selected in “Setting the Date and Time” (p.41) and
“Changing the Date and Time” (p.164) serve as the Hometown date and
time. If you set the Destination city using the World Time function, you
can display the Destination date and time when taking pictures in a
different time zone.
1
Use the four-way controller (23) to select [World Time]
in the [W Setting] menu.
2
Press the four-way controller (5).
The [World Time] screen appears.
3
Use the four-way controller (23)
to select [X Destination].
When you press the 4 button in Step 14, the camera clock is reset to
0 seconds. To set the exact time, press the 4 button when the time
signal (on the TV, radio, etc.) reaches 0 seconds.
Setting the World Time
To Set the Destination
MENU
14:25
DST
OFF
OFF
OFF
DST
OFF
OFF
OFF
World Time
Destination
Hometown
Select Time
New York
New York
14:25
167
6
Settings
4
Press the four-way controller (5).
The [X Destination] screen appears. The city that is currently selected
blinks on the map.
5
Use the four-way controller (45)
to change the Destination city.
The current time, location and time
difference of the selected city appear.
6
Use the four-way controller (23) to select [DST].
7
Use the four-way controller (45) to select O (On) or P
(Off).
Select O if the Destination city uses daylight saving time.
8
Press the 4 button.
The settings are saved and the [World Time] screen reappears.
9
Press the 3 button twice.
The camera returns to Q mode.
1
Use the four-way controller (23) to select [World Time]
in the [W Setting] menu.
2
Press the four-way controller (5).
The [World Time] screen appears.
Select [W Hometown] in Step 3 to set the city and DST setting for the
Hometown city.
To Display the Time of the Destination (Select Time)
Destination
City New York
DST TimeDif. +0:00
MENU
Cancel
OK
OK
14:25
168
6
Settings
3
Use the four-way controller (23)
to select [Select Time].
4
Press the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (23) to select X or W.
XDisplays the time of the Destination city
WDisplays the time of the Hometown city
6
Press the 4 button.
The setting is saved.
7
Press the 3 button twice.
The camera returns to Q mode.
When X (Destination) is selected in Step 5,
the X icon appears on the display to
indicate that the Destination date and time
are displayed in A mode.
You can set the text size of the item selected with the cursor on the menu
to [Standard] (normal display) or [Large] (magnified display).
1
Use the four-way controller (23) to select [Text Size] in
the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the text size.
Select from [Standard] or [Large].
Setting the Text Size on the Menu
MENU
14:25
DST
DST
OFF
OFF
OFF
World Time
Destination
Hometown
Select Time
London
New York
20:25
38
3 8
38
09/09/2012
0 9 / 0 9 / 2 0 1 2
09/09/2012
2 0 : 2 5
20:25
169
6
Settings
4
Press the 4 button.
The setting is saved.
You can change the language in which the menus, error messages, etc.
are displayed.
1
Use the four-way controller (23) to select [Language/
u] in the [W Setting] menu.
2
Press the four-way controller (5).
The [Language/u] screen appears.
3
Use the four-way controller (2345) to select the
desired language.
4
Press the 4 button.
The menus and messages are displayed in the selected language.
You can change the naming system of the folder for storing images.
When the naming system is set to [Date], pictures are saved in separate
folders by the date they were taken.
Changing the Display Language
Changing the Naming System of the Folder
Choice The name of the folder
Date
(Default)
xxx_mmdd (3-digit folder number_month day)
* xxx_ddmm (3-digit folder number_day month) when the date format is
set to [dd/mm/yy]
A folder is made by day, and the images of the day are saved in the
folder.
PENTX xxxPENTX (xxx is the 3-digit folder number)
Up to 9999 images are saved in the same folder.
_USER
xxxAAAAA (xxx is the automatically assigned 3-digit folder number, and
AAAAA is the 5-digit letters that you entered)
Up to 9999 images are saved in the same folder.
170
6
Settings
1
Use the four-way controller (23) to select [Folder
Name] in the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the rule for
naming folders.
Select [Date], [PENTX], or [_USER].
4
Press the 4 button.
The setting is saved.
You can name the folder in which to save images.
You can enter up to five numbers and letters.
The 5-digit name is displayed after the 3-digit folder number.
• Up to 900 folders can be created.
• Up to 9999 images can be saved in a folder.
Selecting a Rule for Naming Folders
Naming the Folder Yourself
DCIM
100_0401
101_0408
102PENTX
DCIM
100_0401
101_0408
DCIM
100_0401
100 100
101
100
101
102
DCIM
100_0401
101_0408
102PENTX
100
101
102
Image taken on April 1
with the folder name
setting set to [Date]
created.
A folder with the name
“100_0401” is created.
The images are saved in
the “100_0401” folder.
Image taken on April 8
with the folder name
setting set to [Date]
created.
A folder with the name
“101_0408” is created.
The images are saved in
the “101_0408” folder.
Image taken on April 10
with the folder name
setting set to [PENTX]
created.
A folder with the name
“102PENTX” is created.
The images are saved in
the “102PENTX” folder.
Image taken on April 15
with the folder name
setting set to [PENTX]
created.
A new folder is not
created.
The images are saved in
the “102PENTX” folder.
171
6
Settings
1
Select [ _USER] in Step 3 in “Selecting the Rule for
Naming Folders”.
2
Press the four-way controller (5).
The folder naming screen appears.
“_USER” has already been entered.
3
Use the four-way controller (2345) to select the
letter to enter, and press the 4 button.
The first letter is fixed and the cursor moves to the second letter.
4
Repeat Step 3 and enter the remaining letters.
5
Press the four-way controller (4)
while “A” is selected, or press (35)
while “_” is selected.
The frame moves to [Settings complete].
6
Press the 4 button twice.
The folder name is fixed, and returns to the [W Setting] menu.
• You can move the cursor by using the zoom lever.
• The folder name you have set is displayed in the [R Setting] menu.
MENU
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQRS T UV
W
XYZ
USER
OK
Folder Name
Settings complete
Cancel
Cancel
Enter
Enter
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQRS T UV
W
XYZ
OK
APRTY
MENU
Folder Name
Settings complete
Cancel
Cancel
O K
OK
172
6
Settings
You can change the naming system of the file for storing images.
1
Use the four-way controller (23) to select [File Name]
in the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the rule for
naming files.
Select [IMGP] or [USER].
4
Press the 4 button.
The setting is saved.
You can name the file of captured images.
You can enter up to four numbers and letters.
The 4-digit name is displayed before the 4-digit file number.
1
Select [USER] in Step 3 in “Selecting a Rule for Naming
Files”.
Changing the Naming System of the File
Choice The name of the file
IMGP
(Default)
IMGPxxxx (xxxx is the automatically assigned 4-digit file number)
The file number follows the setting character which is specified to the
camera.
USER AAAAxxxx (xxxx is the automatically assigned 4-digit file number)
The file number follows the name you have entered.
Selecting a Rule for Naming Files
Naming the File Yourself
173
6
Settings
2
Press the four-way controller (5).
The file naming screen appears.
“USER” has already been entered.
3
Use the four-way controller (2345) to select the
letter to enter, and press the 4 button.
The first letter is fixed and the cursor moves to the second letter.
4
Repeat Step 3 and enter the remaining letters.
5
Press the four-way controller (4)
while “A” is selected, or press (35)
while “_” is selected.
The frame moves to [Settings complete].
6
Press the 4 button twice.
The file name is fixed, and returns to the [W Setting] menu.
When you take pictures and/or play them back with the camera
connected to AV equipment, select an appropriate video output format
(NTSC or PAL).
1
Use the four-way controller (23) to select [Video Out]
in the [W Setting] menu.
• You can move the cursor by using the zoom lever.
• The file name you have set is not changed even if you reset the
camera.
Changing the Video Output Format
MENU
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQRS T UV
W
XYZ
USER
OK
File Name
Settings complete
C a n c e l
Cancel
E n t e r
Enter
MENU
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQRS T UV
W
XYZ
ABCD
OK
File Name
Settings complete
C a n c e l
Cancel
O K
OK
174
6
Settings
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select a video
output format.
Choose the video output format to match the input format of the AV
equipment.
4
Press the 4 button.
The setting is saved.
When you connect the camera to AV equipment with an HDMI cable, set
the appropriate video output resolution for playing back images. The
default setting is [Auto].
1
Use the four-way controller (23) to select [HDMI Out]
in the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select an output
format.
Choose the HDMI output format to match the output format of the AV
equipment.
4
Press the 4 button.
The setting is saved.
Depending on the country or region, images and sounds may fail to be
played back if the video output format is set differently from the one in
use there. If this happens, change the video output format setting.
Connecting the Camera to AV Equipment 1p.134
Video Output Format of Each City 1p.210
Selecting the HDMI Output Format
175
6
Settings
You can automatically transfer images to a computer or similar devices
via wireless LAN using a commercially available Eye-Fi card. For details
on transferring images, refer to “Transferring Images Using an Eye-Fi
Card” (p.194). The default setting is P (Off).
1
Use the four-way controller (23) to select [Eye-Fi] in
the [WSetting] menu.
2
Use the four-way controller (45) to select O or P.
OCommunicates using an Eye-Fi card
P Does not communicate using an Eye-Fi card
3
Press the 4 button.
The setting is saved.
The items on the pull-down menu vary depending on the selected Video
output format.
To change the display, set the Video output format before setting the
HDMI output format.
The table below shows the combinations of the Video output format and
HDMI output.
Setting Eye-Fi Communication
To establish Eye-Fi communication, you first have to specify a wireless
LAN access point and transfer destination on the Eye-Fi card. For details
on how to set up the card, refer to the operating manual supplied with the
Eye-Fi card.
Video output format
NTSC PAL
Resolution
Auto (The largest size that both the AV
device and camera support is automatically
selected)
1080i (1920×1080i)
720p (1280×720p)
480p (1920×1080i) 576p (720×576p)
176
6
Settings
You can adjust the brightness of the display.
1
Use the four-way controller (23) to select [Brightness
Level] in the [W Setting] menu.
2
Use the four-way controller (45) to adjust the
brightness.
FDark
GNormal
HBright
3
Press the 3 button.
The camera returns to Q mode.
The display appears with the set brightness.
You can save battery power by setting the display to dim automatically
when no operation is performed for a fixed time. After the power saving
function has been activated, the display returns to the ordinary
brightness if any button is pressed.
1
Use the four-way controller (23) to select [Power
Saving] in the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the time
until the camera enters power saving mode.
Choose from [2min.], [1min.], [30sec.], [15sec.], [5sec.] or [Off].
4
Press the 4 button.
The setting is saved.
Adjusting the Brightness of the Display
Using the Power Saving Function
177
6
Settings
You can set the camera to turn off automatically when no operation is
performed for a fixed time.
1
Use the four-way controller (23) to select [Auto Power
Off] in the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the time
until the camera turns off automatically.
Choose from [5min.], [3min.] or [Off].
4
Press the 4 button.
The setting is saved.
• Power Saving does not function in the following situations:
- While taking pictures in j (Continuous Shooting), A (Burst
Shooting(L)) or C (Burst Shooting(H)) mode
- When the AC adapter is connected
- In playback mode
- While recording a movie
- While the camera is connected to a computer
- When a menu is being displayed
• When no operation is performed after the camera is turned on, the
Power Saving function is activated only after 15 seconds elapse even
if [5sec.] is set.
Setting the Auto Power Off Function
Auto Power Off does not function in the following situations:
- While taking pictures in j (Continuous Shooting), A (Burst
Shooting(L)) or C (Burst Shooting(H)) mode
- While recording a movie
- During a slideshow or playback of movies
- While the camera is connected to a computer
- While images are being transferred using an Eye-Fi card
178
6
Settings
You can set whether to use [Quick Zoom] to magnify playback images to
the maximum of 10x by simply turning the e-dial to the right (y) or
turning the zoom lever to the right (5) during playback of images in Q
mode.
1
Use the four-way controller (23) to select [Quick
Zoom] in the [W Setting] menu.
2
Use the four-way controller (45) to select O or P.
OUses the Quick Zoom.
P Does not use the Quick Zoom. (Default setting)
3
Press the 3 button.
The camera returns to Q mode.
Set whether to display the guides in Capture Mode Palette, Movie Mode
Palette and Playback Mode Palette or when setting the capture mode.
1
Use the four-way controller (23) to select [Guide
Display] in the [W Setting] menu.
2
Use the four-way controller (45) to select O or P.
ODisplays the mode guides. (Default setting)
P Does not display the mode guides.
3
Press the 3 button.
The camera returns to Q mode.
Set the AA battery type to be used for the camera.
1
Use the four-way controller (23) to select [Select
Battery] in the [W Setting] menu.
Setting the Quick Zoom Function
Setting the Guide Display
Setting the Battery Type
179
6
Settings
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the battery
type.
4
Press the 4 button.
The setting is saved.
You can choose the start-up screen displayed when the camera is
turned on.
You can choose any of the following images as the start-up screen:
- One of the three pre-installed screens
- The Guide Display Start-up Screen showing a guide for the shooting
modes and buttons
- One of the captured images (compatible images only)
1
Use the four-way controller (2345) to select R
(Start-up Screen) from the Playback Mode Palette.
2
Press the 4 button.
The image selection screen appears.
3
Use the four-way controller (45)
to choose the image for the start-
up screen.
Only images available for the start-up
screen are displayed. You can also choose
from among the Guide Display Start-up
Screen and three PENTAX logo screens
already stored in the camera.
AUTO For selecting the battery type automatically (Default setting)
Li Lithium battery
Ni-MH Nickel-metal hydride battery
AL Alkaline battery
Changing the Start-up Screen
100
1 0 0 -
0017
0 0 1 7
100-0017
MENU
Cancel
C a n c e l
OK
O K
Cancel
OK
OK
180
6
Settings
4
Press the 4 button.
The start-up screen is set.
Pixel Mapping is a function for mapping out and correcting defective
pixels in the image sensor. Run the Pixel Mapping function if image dots
always seem to be defective in the same place.
1
Press the 3 button in A mode, and press the four-
way controller (5) twice.
The [W Setting] menu appears.
2
Use the four-way controller (23) to select [Pixel
Mapping].
3
Press the four-way controller (5).
The [Pixel Mapping] screen appears.
• Once the start-up screen has been set, it will not be deleted even if the
original image is deleted or the SD Memory Card/built-in memory is
formatted.
• The start-up screen is not displayed when set to [Off].
• The start-up screen is not displayed when the camera starts up in
playback mode.
• The following images cannot be used as the start-up screen: images
taken with the recorded pixels of o/n/0/1/h,
images of smaller size than h with 4:3 aspect ratio, images taken at
F (Digital Panorama) mode, and movies.
Correcting Defective Pixels in the Image Sensor
(Pixel Mapping)
When executing Pixel Mapping, display the [W Setting] menu in A
mode. Pixel Mapping cannot be selected when the [W Setting] menu is
displayed in Q mode.
181
6
Settings
4
Use the four-way controller (23)
to select [Pixel Mapping].
5
Press the 4 button.
Defective pixels are mapped and corrected.
You can turn on the camera by holding down the Q button.
1
Use the four-way controller (23) to select [Playback
Shortcut] in the [W Setting] menu.
2
Use the four-way controller (45) to select O or P.
OStarts up in playback mode
PDoes not start up in playback mode
3
Press the 4 button.
The setting is saved.
You can reset the camera settings to their defaults. Refer to “Default
Settings” (p.205) for the reset settings.
1
Use the four-way controller (23) to select [Reset] in
the [W Setting] menu.
2
Press the four-way controller (5).
The [Reset] screen appears.
When the battery level is low, [Not enough battery power remaining to
activate Pixel Mapping] appears on the display. Use the AC adapter kit
K-AC129 (optional) or replace the batteries with those having sufficient
power.
Setting the Playback Shortcut
Resetting to Default Settings (Reset)
Pixel Mapping
Checks the image sensor
and corrects defective
pixels
Pixel Mapping
Cancel
OK
OK
182
6
Settings
3
Use the four-way controller (23)
to select [Reset].
4
Press the 4 button.
The settings return to the defaults.
Reset
Returns to default
settings
Reset
Cancel
OK
OK
183
7
Connecting to a Computer
Conne
cting
to a
Comp
uter
Connecting to a Computer
Set the device to which the camera is connected with the USB cable.
1
Turn your camera on.
2
Use the four-way controller (23) to select [USB
Connection] in the [W Setting] menu.
3
Press the four-way controller (5).
A pull-down menu appears.
4
Use the four-way controller (23) to select [MSC].
5
Press the 4 button.
The setting is saved.
MSC (Mass Storage Class)
A general-purpose driver program that handles devices connected to the
computer via USB as a memory device. Also indicates a standard for
controlling USB devices with this driver.
By simply connecting a device that supports USB Mass Storage Class,
you can copy, read, and write files from a computer without installing a
dedicated driver.
PTP (Picture Transfer Protocol)
A protocol that allows transfer of digital images and control of digital
cameras via USB, standardized as ISO 15740.
You can transfer image data between devices that support PTP without
installing a device driver.
Setting the USB Connection Mode
Make sure to set the USB Connection mode before connecting your
camera to a computer. You cannot perform the following setting if your
camera is connected to a computer with the USB cable.
MSC and PTP
184
7
Connecting to a Computer
Unless otherwise specified, select MSC when connecting this camera to
a computer.
Connect your camera to the computer using the provided USB cable.
1
Turn the computer on.
2
Turn your camera off.
3
Connect your camera to the computer using the USB
cable.
Face the } mark on the USB cable towards the 4 mark on the
camera, and connect the cable to the PC/AV terminal.
4
Turn your camera on.
The camera is recognized by the computer.
Connecting the Camera and the Computer
If the batteries run out of power while images are being transferred to the
computer, the image data may be lost or damaged. When connecting
your camera to the computer, use of the AC adapter kit K-AC129
(optional) is recommended (p.32).
• The power lamp blinks while the camera is connected to a computer.
• For information on system requirements, refer to p.186.
185
7
Connecting to a Computer
When the camera is being used by an application such as
MediaImpression, it cannot be disconnected until the application is
closed.
1
Click the [Safely Remove Hardware] icon in the task
bar located at the bottom-right corner of the desktop.
2
Click [Eject (the device
connected)].
The message appears.
3
Disconnect the USB cable from the Windows PC and
your camera.
1
Drag [NO NAME] on the desktop to the trash.
If the SD Memory Card has a volume label, drag the icon of that name
to the trash.
2
Disconnect the USB cable from the Macintosh and your
camera.
Disconnecting the Camera from the Computer
Windows
Macintosh
The camera will automatically switch to the playback mode when the
USB cable is disconnected from the camera or the computer.
186
7
Connecting to a Computer
Using the Provided Software
The following software is included in the provided CD-ROM.
Image viewing/managing/editing software
“MediaImpression 3.5 for PENTAX” (for Windows)
“MediaImpression 2.1 for PENTAX” (for Macintosh)
Languages: English, French, German, Spanish, Portuguese, Italian, Dutch,
Swedish, Russian, Korean, Chinese (traditional and simplified), Japanese
The following system requirements must be met for you to fully enjoy the
images and movies captured with the camera on a computer.
You can edit movies when using the MediaImpression (for Windows)
System Requirements
The following lists the minimum system requirements for playing back
and editing movies. Operation is not guaranteed on all computers
meeting the system requirements.
Windows®
OS Windows XP (SP3), Windows Vista® or Windows 7
• The OS must be preinstalled and updated to the latest version.
CPU Pentium® 4 1.6 GHz or equivalent AMD Athlon
(Intel® Core™ 2 Duo 2.0 GHz or equivalent AMD Athlon X2 or
higher processor recommended)
Memory 512 MB or more (1 GB or more recommended)
Hard Disk Space 300 MB or more
Others CD/DVD drive
USB port as standard equipment
1024 × 768 pixels, 16-bit color monitor or greater
187
7
Connecting to a Computer
Install the image viewing/managing/editing software “MediaImpression”.
This section outlines installation steps in Windows 7 as an example.
1
Turn your Windows PC on.
2
Insert the provided CD-ROM into the CD/DVD drive.
If the installation screen appears, go to Step 5.
Windows 95, Windows 98, Windows 98SE, Windows Me, Windows NT
and Windows 2000 are not supported.
Macintosh
OS Mac OS X (Ver.10.4, 10.5, 10.6, 10.7)
• The OS must be preinstalled and updated to the latest version.
CPU PowerPC G4 800 MHz processor or equivalent CPU (Intel®
Core™ 2 Duo or higher processor recommended)
Memory 512 MB or more (1 GB or more recommended)
Hard Disk Space 300 MB or more
Others CD/DVD drive
USB port as standard equipment
1024 × 768 pixels, 16-bit color monitor or greater
Installing the Software
• Make sure the computer meets the system requirements before
installing the software.
• When multiple accounts have been set up in the computer, log on with
an account that has administrative rights before installing the software.
Windows
188
7
Connecting to a Computer
3
Click [Computer] in the Start menu.
4
Double-click the CD/DVD drive icon.
The installation screen appears.
5
Click [MediaImpression 3.5 for
PENTAX].
6
Choose a language in the “Choose Setup Language”
screen and click [OK].
The setup screen appears. Follow the on-screen guidance and install
the software.
7
Select the file format to use
and click [Next].
All files in the checked format will open
with MediaImpression. Remove the
check to open the file using another
application.
8
Click [Finish].
Installation is complete.
9
Click [Exit] on the installation screen.
Remove the CD-ROM and reboot the computer.
189
7
Connecting to a Computer
1
Turn your Macintosh on.
2
Insert the provided CD-ROM into the CD/DVD drive.
3
Double-click the CD-ROM icon.
4
Double-click the [Pentax Software Installer] icon.
The installation screen appears.
5
Click [MediaImpression 2.1 for
PENTAX].
The setup screen appears. Follow the
on-screen guidance and install the
software.
6
Click [Close].
Installation is complete.
7
Click [Exit] on the installation screen.
The window is closed.
Macintosh
190
7
Connecting to a Computer
In order to better serve you, we request that you complete the product
registration.
If the computer is connected to the
Internet, please click [Product
Registration] on the installation screen.
The world map screen shown on the right
for Internet Product Registration is
displayed. Click the displayed country or
region and then follow the instructions to
register your product.
Only customers in countries and regions
displayed on the software installation screen can register their products
on the Internet Product Registration.
1
Connect your camera to the computer.
Refer to Steps 2 to 4 on p.184 for details.
The [AutoPlay] screen appears.
2
Click [Import media files to
local disk].
MediaImpression starts and the Import
screen appears.
Product Registration on the Internet
Using MediaImpression on Windows
191
7
Connecting to a Computer
3
Click the folder icon next to
[Destination Folder] and
specify the destination
location.
To transfer all images, proceed to Step
5.
4
Select an image to transfer.
To select multiple images, choose the images while pressing the Ctrl
key.
5
Click [Import].
A message appears when transfer is
complete.
An arrow mark appears on the
transferred images.
When the [AutoPlay] screen does not appear
1 Double-click the [MediaImpression 3.5 for PENTAX] icon on
the desktop.
2 Click [PhotoImpression].
3 Click [Import].
You can find more information on how to use MediaImpression by using
the help pages. Select [Help] in [Menu] at the top right of the screen.
192
7
Connecting to a Computer
1
Connect the camera to your Macintosh.
Refer to Steps 2 to 4 on p.184 for details.
2
Double-click the
[MediaImpression 2.1 for
PENTAX] icon in the
[Applications] folder.
MediaImpression 2.1 for PENTAX
starts and the start page appears.
3
Click [Import].
The Import screen appears.
4
Select an image to transfer.
To select multiple images, choose the
images while pressing the Command
key.
To specify the destination location,
click the folder icon.
If any of the “Import Options” are
checked, marks will appear on the
images that were transferred.
Using MediaImpression on Macintosh
193
7
Connecting to a Computer
5
Click [Import].
The images are transferred to the
computer and the Media Browser
screen appears.
When a message appears after
transfer is complete, click [Done].
• If the images from the camera are not displayed in the Import screen,
select [NO NAME] (or the volume label name) in [Get Media from].
• You can find more information on how to use MediaImpression by
using the help pages. Select [ArcSoft MediaImpression Help] in [Help]
on the menu bar.
194
7
Connecting to a Computer
Transferring Images Using an Eye-Fi
Card
You can transfer images to your computer or similar devices
automatically when a built-in wireless LAN memory card (Eye-Fi card) is
inserted in the camera.
1
Specify the wireless LAN access point and transfer
destination on the Eye-Fi card.
For details on how to set up the card, refer to the operating manual
supplied with the Eye-Fi card.
2
Turn the camera off.
3
Insert the Eye-Fi card into the camera.
4
Turn the camera on.
5
Select O (On) for [Eye-Fi] in the [W Setting] menu.
The images are transferred automatically. For details on how to set up
the camera, refer to “Setting Eye-Fi Communication” (p.175).
One of the following icons will appear on the display.
M
N
Communicating
When [Eye-Fi] is set to O and the camera is connected to an
access point or is searching for an access point
M
O
Waiting for communication
When [Eye-Fi] is set to O and is not connected to an access point
M
P
Eye-Fi communication is not allowed
When [Eye-Fi] is set to P (Off)
M
Q
Version error
When the version of the Eye-Fi card is out of date or the card is
write-protected
• Endless Memory Mode is not supported.
• Update the Eye-Fi card firmware as necessary before using the card.
195
7
Connecting to a Computer
• When you intend to use a brand-new Eye-Fi card for the first time,
copy the Eye-Fi Manager installation file to your computer before
formatting the card.
• Images are transferred via wireless LAN. Set [Eye-Fi] to P (Off), or do
not use an Eye-Fi card in locations where the use of wireless LAN
devices is restricted or prohibited, such as on airplanes.
• If you insert an older version of Eye-Fi card in the camera, an error
message appears.
• Images will not be transferred in the following situations:
- When available wireless LAN access points cannot be found
- When the battery level is low (the color of the battery level indicator
is red)
• Transferring a large number of images may take a while. Use of the
optional AC adapter kit (K-AC129) is recommended.
• Auto Power Off does not function while transferring images.
• The camera may be turned off automatically to protect the internal
components when the inside of the camera reaches a high
temperature caused by transferring a large file such as a movie.
• Use of a wireless access point, Internet and suitable Internet settings
are required to transfer images via wireless LAN. For more
information, refer to the website (http://www.eye.fi/).
• For details on how to use an Eye-Fi card, refer to the operating manual
supplied with the card.
• In case of malfunction of an Eye-Fi card, refer to the manufacturer of
the card.
• Operation is not guaranteed for all Eye-Fi card functions, regardless of
whether this camera has the function of turning ON or OFF the
wireless communication of an Eye-Fi card.
• Use of an Eye-Fi card is permitted only in the country where the Eye-
Fi card is purchased. Observe local and national regulations of the
country where the card is to be used.
196
8
Appendix
Appen
dix
Functions Available for Each Shooting
Mode
bcq \ N b f K
Zoom lever
Zoom z*1 zzzzzzz
Flash
Mode
, (Auto) zzzz ×zzz
a (Flash Off) zzzzzzzz
b (Flash On) zzzz ×zzz
c (Auto + Red-eye) zzzz ×zzz
d (Flash On + Red-eye) zzzz ×zzz
G (Slow-speed Sync)/
H
(Slow-speed Sync+Red-eye)
zzzz ×zzz
Drive
Mode
9 (Standard) zzzz ×zzz
j (Continuous Shooting) zzzz ×zzz
AC (Burst Shooting L/H) zzzz ×zzz
g (Self-timer)/
Z (2 sec. Self-timer) zzzz ×zzz
i Remote Control
h 0-sec Remote Control zzzz ×zzz
a (Auto Bracketing) zzzz ×zzz
Focus
Mode
= (Standard)/q (Macro) zzzzzzzz
I (1cm Macro) zzzzzzzz
s (Infinity) zzzzzzzz
\
(Manual Focus)
zzzzzzzz
J (AF Area Selection) × zzzzzzz
[A Rec.
Mode]
menu
Image Tone ×*2 ×*2 ×*2 ×*2 z×*2 ×*2 ×*2
Recorded Pixels z*3 z*3 z*3 z*3 zz*3 zz
Quality Level zzzzzzzz
White Balance ×*4 ×*4 ×*4 ×*4 z×*4 ×*4 ×*4
AF
Setting
Focusing Area ×*5 zzzzzzz
Auto Macro zzzzzzzz
Focus Assist zzzzzzzz
AE Metering ×*6 ×*6 ×*6 ×*6 z×*6 ×*6 ×*6
Sensitivity zzzzz*7 zzz
AUTO ISO Range zzzzz
*7 zzz
Flash Exp. Comp. zzzzzzzz
D-Range Setting ×*9 zzzz*10 zzz
Shake Reduction zzzz×*11 zzz
Face Detection On/Smile/Off z*13 z*13 zzzzzz
Blink Detection zzzzzzzz
Instant Review zzzzzzzz
Sharpness/Saturation (Tone
Adjustment)/Contrast ×*15 ×*15 ×*15 ×*15 z×*15 ×*15 ×*15
Date Imprint zzzzzzzz
IQ Enhancer zzzz×*9 zzz
Shooting Mode
Function
197
8
Appendix
z: Can be set. ×: Cannot be set. —: Settings and changes are not applied.
ABSpQLRe
zzzzzzzzZoom
Zoom lever
×z×zzzzz, (Auto)
Flash
Mode
zzzzzzzza (Flash Off)
zz ×zzzzzb (Flash On)
×z×zzzzzc (Auto + Red-eye)
zz ×zzzzzd (Flash On + Red-eye)
zz ×zzzzz
G (Slow-speed Sync)/
H
(Slow-speed Sync+Red-eye)
zzzzzzzz9 (Standard)
Drive
Mode
zz ××zzzz
j (Continuous Shooting)
zz ××zzzzAC (Burst Shooting L/H)
zzzzzzzz
g (Self-timer)/
Z (2 sec. Self-timer)
zzzzzzzz
i Remote Control
h 0-sec Remote Control
zz ××zzzza (Auto Bracketing)
zz ×zzzzz= (Standard)/q (Macro)
Focus
Mode
zz ×zzzzzI (1cm Macro)
zzzzzzzzs (Infinity)
zz ×zzzzz\
(Manual Focus)
zz ×zzzzzJ (AF Area Selection)
z×*2 ×*2 ×*2 ×*2 ×*2 ×*2 ×*2 Image Tone
[A Rec.
Mode]
menu
z*3 z*3 zzz*3 z*3 z*3 z*3 Recorded Pixels
zzzzzzzzQuality Level
z×*4 ×*4 z×*4 ×*4 ×*4 ×*4 White Balance
zz×*5 zzzzzFocusing Area AF
Setting
zz ×zzzzzAuto Macro
zz ×zzzzzFocus Assist
z×*6 ×*6 z×*6 ×*6 ×*6 ×*6 AE Metering
zz×*8 zzzzzSensitivity
zz —zzzzzAUTO ISO Range
zzzzzzzzFlash Exp. Comp.
zzz ×zzzzD-Range Setting
zzz
*12 zzzzzShake Reduction
zz
*13 zzzz*13 z*13 ×*14 Face Detection On/Smile/Off
zzz×*9 zzzzBlink Detection
zzzzzzzzInstant Review
z×*15 ×*15 z×*15 ×*15 ×*15 ×*15 Sharpness/Saturation (Tone
Adjustment)/Contrast
zzzzzzzzDate Imprint
zzz×*9 zzzzIQ Enhancer
Shooting Mode
Function
198
8
Appendix
KcnB E XFN
Zoom lever
Zoom zzzzz ×zz
Flash
Mode
, (Auto) zz ×zzzzz
a (Flash Off) zzzzzzzz
b (Flash On) zz ×zzzzz
c (Auto + Red-eye) zz ×zzzzz
d (Flash On + Red-eye) zz ×zzzzz
G (Slow-speed Sync)/
H
(Slow-speed Sync+Red-eye)
zz ×zzzzz
Drive
Mode
9 (Standard) zzzzzzzz
j (Continuous Shooting) zzzzz ×××
AC (Burst Shooting L/H) zzzzz ×××
g (Self-timer)/
Z (2 sec. Self-timer) zzzzzzzz
i Remote Control
h 0-sec Remote Control zzzzzzzz
a (Auto Bracketing) zzzzz ×××
Focus
Mode
= (Standard)/q (Macro) zzzzzzzz
I (1cm Macro) zzzzz ×zz
s (Infinity) zzzzzzzz
\
(Manual Focus)
zzzzzzzz
J (AF Area Selection) zzzzzzzz
[A Rec.
Mode]
menu
Image Tone ×*2 z×*2 ×*2 ×*2 zzz
Recorded Pixels z*3 z*3 ×*20 z*3 z*3 ×*21 ×*22 ×*23
Quality Level zzzzzzzz
White Balance ×*4 z×*4 ×*4 ×*4 zzz
AF
Setting
Focusing Area zzzzzzzz
*30
Auto Macro zzzzzzzz
Focus Assist zzzzzzzz
AE Metering ×*6 z×*6 ×*6 ×*6 zzz
Sensitivity z×*32 zzzzzz
AUTO ISO Range z×*34 zzzzzz
Flash Exp. Comp. zzzzzzzz
D-Range Setting zzzzzzzz
Shake Reduction zz
*12 zzzz*12 z*12 z*12
Face Detection On/Smile/Off zzzzzzzz
Blink Detection zzzzz×*9 ×*9 z
Instant Review zzzzzzzz
Sharpness/Saturation (Tone
Adjustment)/Contrast ×*15 z×*15 ×*15 ×*15 zzz
Date Imprint zzzzzzzz
IQ Enhancer zzzzz×*9 ×*9 z
Shooting Mode
Function
199
8
Appendix
z: Can be set. ×: Cannot be set. —: Settings and changes are not applied.
eaC*16 c*16 d*16 9
zzz*17 z*18 z*18 z*19 Zoom
Zoom lever
z××××z, (Auto)
Flash
Mode
zzzzzza (Flash Off)
zz ××××b (Flash On)
z×××××c (Auto + Red-eye)
zz ××××d (Flash On + Red-eye)
zz ××××
G (Slow-speed Sync)/
H
(Slow-speed Sync+Red-eye)
zzzzzz9 (Standard)
Drive
Mode
zz ××××
j (Continuous Shooting)
zz ××××AC (Burst Shooting L/H)
zz ×zzz
g (Self-timer)/
Z (2 sec. Self-timer)
zz ×zz ×i Remote Control
h 0-sec Remote Control
zz ××××a (Auto Bracketing)
zzzzzz= (Standard)/q (Macro)
Focus
Mode
zzzzz ×I (1cm Macro)
zzzzz ×s (Infinity)
zzzzz ×\
(Manual Focus)
zzzzz ×J (AF Area Selection)
zzzzz×*2 Image Tone
[A Rec.
Mode]
menu
z*3 z*3 z*24 ×*25 ×*26 ×*27 Recorded Pixels
zz×*28 ×*28 ×*28 ×*29 Quality Level
zzzzz×*4 White Balance
zzz
*30 z*30 z*30 ×*5 Focusing Area AF
Setting
zzzzz×*31 Auto Macro
zz×*9 ×*9 ×*9 ×*31 Focus Assist
zz×*6 ×*6 ×*6 ×*6 AE Metering
zz
*33 ×*32 ×*32 ×*32 ×*32 Sensitivity
z—×*35 ×*35 ×*35 ×*36 AUTO ISO Range
zz ———×*37 Flash Exp. Comp.
zzzzz×*9 D-Range Setting
zzz
*38 ×*9 ×*9 ×*39 Shake Reduction
zzzzz×*14 Face Detection On/Smile/Off
zz×*9 ×*9 ×*9 ×*31 Blink Detection
zz×*9 ×*9 ×*9 ×*31 Instant Review
zzzzz×*15 Sharpness/Saturation (Tone
Adjustment)/Contrast
zz×*9 ×*9 ×*9 ×*9 Date Imprint
zzzz×*9 ×*31 IQ Enhancer
Shooting Mode
Function
200
8
Appendix
*1 The Flower mode cannot be selected
when using Digital Zoom or Intelligent
Zoom.
*2 Fixed at [Bright]
*3 Fixed at f/1 in A (Burst
Shooting(L)) or C (Burst Shooting(H))
mode
*4 Fixed at F
*5 Fixed at J (Multiple)
*6 Fixed at L (Multi-segment)
*7 The maximum sensitivity is 1600.
*8 The sensitivity is fixed to the minimum
value.
*9 Fixed at P (Off)
*10 Highlight Correction is fixed at P (Off).
*11 Fixed at [Dual]
*12 [Dual] cannot be selected.
*13 [Off] cannot be selected.
*14 Fixed at [On]
*15 Fixed at the normal setting
*16 [Wind Suppression] can be set in the
[C Movie] menu.
Recording start/stop using the Movie
button is not available. (The Movie
button is only available in still picture
capture mode.)
*17 Only optical zoom and Digital Zoom
are available before recording; only
Digital Zoom is available during
recording.
*18 Only optical zoom and Digital Zoom
are available before recording; zoom
is not available during recording.
*19 Only optical zoom and Digital Zoom
are available.
*20 Fixed at i
*21 Fixed at h for the first shot, and fixed
at f for a composite image
*22 Fixed at i for the first shot
*23 Fixed at h
*24 Set [Recorded Pixels] in the [C
Movie] menu
*25 Fixed at 640×480 recorded pixels, and
15 fps frame rate
*26 Fixed at 640×480 recorded pixels, and
120 fps frame rate
*27 Fixed at m
*28 Fixed at C (Best)
*29 Fixed at D (Better)
*30 W (Automatic Tracking AF) is not
available.
*31 Fixed at O (On)
*32 Fixed at [AUTO]
*33 [AUTO] cannot be selected.
*34 Fixed at 100-6400
*35 Fixed at [100–800]
*36 Fixed at [100–1600]
*37 Fixed at ±0.0
*38 Set [Movie SR] in the [C Movie] menu
*39 Fixed at [Sensor Shift]
201
8
Appendix
Messages
Messages such as the following may appear on the display during
camera operation.
Message Description
Battery depleted The batteries are exhausted. Replace with new batteries
(p.30).
Memory card full
The SD Memory Card is full and no more images can be
saved.
Insert a new SD Memory Card or delete unwanted images
(p.34, p.129).
Change the number of recorded pixels or quality level of
recorded images and try again (p.137).
Memory card error
Shooting and playback are impossible due to a problem
with the SD Memory Card. You may be able to display or
copy the images on the card using a computer.
The built-in memory is
not formatted
The data within the built-in memory are damaged. Format
the built-in memory.
Card is not formatted
The SD Memory Card you have inserted is unformatted or
has been formatted on a computer or other device and is
not compatible with this camera. Format the SD Memory
Card in the camera (p.162).
Card is locked The SD Memory Card is write-protected (p.6).
Compression error
Displayed when the camera fails to compress an image.
Change the quality level or recorded pixels of the image and
try shooting or saving it again.
Movie recording stopped Displayed when the internal temperature of the camera has
exceeded normal operating limits while recording a movie.
The camera will turn off
to prevent damage from
overheating
The camera turned off because it has overheated. Wait until
it cools down and then turn it back on.
Deleting Displayed while deleting an image.
No image There are no images for playback on the SD Memory Card
or in the built-in memory.
Unable to play back this
You are trying to play back an image in a format not
supported by this camera. You may be able to play it back
on another brand of camera or on your computer.
Image folder cannot be
created
The largest file number (9999) has been assigned to an
image in the largest folder number (999) and no more
images can be saved. Insert a new SD Memory Card or
format the card (p.162).
Protected The image you are trying to delete is protected.
202
8
Appendix
Data being recorded
Displayed when you switch to Q mode while an image is
still being recorded, or when the protect setting or DPOF
setting is being saved. It disappears after the image is
recorded or the setting is saved.
Data being processed
Displayed when the camera takes more than five seconds
to display an image due to image processing, or when the
SD Memory Card or the built-in memory is being formatted.
Built-in memory full Displayed if the built-in memory is full when saving a file.
No image to be
processed Displayed when there are no images.
This image cannot be
processed Displayed for files that cannot be processed.
No card in the camera Displayed when no SD Memory Card is inserted.
Available memory on
card is insufficient to
copy the images
Displayed when there is insufficient memory on the SD
Memory Card to perform copying.
Available built-in
memory is insufficient to
copy the images
Displayed when there is insufficient built-in memory to
perform copying.
Cannot process
correctly Displayed when Red-eye Edit processing fails.
Please pop-up the flash Press the b button to enable the use of the flash.
Please confirm the lens
cap is removed
Displayed when the power is turned on with the lens cap on.
Turn the camera on after removing the lens cap.
Not enough battery
power remaining to
activate Pixel Mapping
Displayed during pixel mapping if the battery level is
insufficient. Install new batteries or use the optional AC
adapter kit K-AC129 (p.32).
This card isn’t
compatible with this
camera Displayed when the version of the Eye-Fi card is outdated
and the camera is not compatible with it (p.194).
The version of this Eye-
Fi card is outdated
Message Description
203
8
Appendix
Troubleshooting
Problem Cause Remedy
The camera will
not turn on
The batteries are not
installed
Check if batteries are installed. If not,
install batteries.
The batteries are
installed incorrectly
Check orientation of the batteries.
Reinsert the batteries according to the
+- symbols in the battery compartment
(p.30).
The batteries are
exhausted Install new batteries.
No image appears
on the display
The camera is
connected to a
computer
The display is off when the camera is
connected to a computer.
The camera is
connected to a TV
The display is off when the camera is
connected to a TV.
The viewfinder is
selected Press the 4 button.
The display is
hard to see
The brightness level of
the display is set too
dark
Adjust the brightness level in [Brightness
Level] in the [WSetting] menu (p.176).
Power Saving function
is activated
When the Power Saving function is
activated, the display automatically
darkens after a certain amount of time.
Press any button to return to the normal
brightness level.
Select [Off] in [Power Saving] in the
[WSetting] menu to turn the Power
Saving function off (p.176).
The shutter will
not release
The flash is charging
Pictures cannot be taken while the flash
is charging. Wait until charging is
finished.
There is no available
space on the SD
Memory Card or in the
built-in memory
Insert an SD Memory Card with available
space or delete unwanted images
(p.129).
Recording Wait until recording is finished.
The picture is dark
when using the
flash
The subject is too far
away in a dark
environment, such as
a night scene
The picture becomes dark if the subject is
too far away. Take pictures within the
specified flash range.
204
8
Appendix
The subject is not
in focus
The subject is difficult
to focus on with
autofocus
Lock the focus on an object the same
distance away as the subject (by
pressing and holding the shutter release
button halfway), then aim the camera at
your subject and press the shutter
release button fully (p.59). Or set the
focus manually (p.87).
The subject is not in
the focusing area
Locate the desired subject in the focus
frame (focusing area) in the center of the
display. If it is difficult to do so, first lock
the focus on the desired subject (focus
lock), and then move the camera to
recompose. Or, use the J (AF Area
Selection) mode to take a picture with the
focusing area set on the subject you wish
to focus on in (p.87).
The flash does not
discharge
The flash is not
popped up Pop up the flash.
The flash mode is set
to aSet to , (Auto) or b (Flash On) (p.82).
The drive mode is set
to j, A, C or l
The focus mode is set
to s
The shooting mode is
set to n, S, c, C or
d
The flash does not discharge in these
modes.
The flash mode
cannot be set
The flash is not
popped up Pop up the flash.
Very occasionally, static electricity may cause camera malfunction. In
this case, remove the batteies and install them again. If the camera is
then working properly, normal condition is restored and you can continue
using the camera.
Problem Cause Remedy
205
8
Appendix
Default Settings
The table below lists the factory default settings.
The meaning of the indications for menu items with a default setting is
explained below.
Last Memory Setting
Yes : The current setting (last memory) is saved when the camera is
turned off.
No : The setting returns to the default setting when the camera is
turned off.
* : The setting depends on the [Memory] setting (p.116).
—:N/A
Reset Setting
Yes : The setting returns to the default setting with the reset function
(p.181).
No : The setting is saved even after reset.
—:N/A
[A Rec. Mode] Menu Items
Item Default Setting
Last
Memory
Setting
Reset
Setting Page
Image Tone Bright Yes Yes p.90
Recorded Pixels m (4608×3456) Yes Yes p.91
Quality Level D (Better) Yes Yes p.92
White Balance F (Auto) * Yes p.93
AF
Setting
Focusing Area J (Multiple) Yes Yes p.89
Auto Macro O (On) Yes Yes p.89
Focus Assist O (On) Yes Yes p.90
AE Metering L (Multi-segment
metering) * Yes p.95
Sensitivity AUTO * Yes p.96
AUTO ISO Range 100-1600 * Yes p.97
Flash Exp. Comp. ±0.0 Yes Yes p.98
D-Range
Setting
Highlight Correction P (Off) Yes Yes p.98
Shadow Correction P (Off) Yes Yes
Shake Reduction Sensor Shift Yes Yes p.99
206
8
Appendix
*1 When [Image Tone] is set to [Monochrome], [Tone Adjustment] is displayed
instead of [Saturation].
[C Movie] Menu Items
Face Detection On * Yes p.100
Blink Detection O (On) Yes Yes p.101
Digital Zoom O (On) * Yes p.66
Instant Review O (On) Yes Yes p.102
Memory
Face Detection P (Off) Yes Yes
p.116
Flash Mode O (On) Yes Yes
Drive Mode P (Off) Yes Yes
Focus Mode P (Off) Yes Yes
Zoom Position P (Off) Yes Yes
MF Position P (Off) Yes Yes
White Balance P (Off) Yes Yes
Sensitivity P (Off) Yes Yes
EV Compensation P (Off) Yes Yes
AE Metering P (Off) Yes Yes
Digital Zoom O (On) Yes Yes
DISPLAY P (Off) Yes Yes
File No. O (On) Yes Yes
Green Button Green Mode Yes Yes p.105
Sharpness G (Normal) Yes Yes p.102
Saturation G (Normal) Yes Yes p.102
Tone Adjustment *1 G (B&W) Yes Yes p.102
Contrast G (Normal) Yes Yes p.103
Date Imprint P (Off) Yes Yes p.103
IQ Enhancer O (On) Yes Yes p.104
Item Default Setting
Last
Memory
Setting
Reset
Setting Page
Recorded Pixels b (1920×1080•30fps) Yes Yes p.114
Movie SR O (On) Yes Yes p.114
Wind Suppression P (Off) Yes Yes p.115
Item Default Setting
Last
Memory
Setting
Reset
Setting Page
207
8
Appendix
[W Setting] Menu Items
Item Default Setting
Last
Memory
Setting
Reset
Setting Page
Save as ACancel Yes Yes p.80
Sound
Operation Volume 3 Yes Yes
p.163
Playback Volume 3 Yes Yes
Startup Sound Off Yes Yes
Shutter Sound 1Yes Yes
Operation Sound 1Yes Yes
Self-timer Sound 1 Yes Yes
Date
Adjustment
Date Format (date) According to initial
setting Yes No
p.164
Date Format (time) 24h Yes No
Date 01/01/2012 Yes No
Time According to initial
setting Yes No
World Time
Select Time W Hometown Yes Yes
p.166
Destination (City) According to initial
setting Yes No
Destination (DST) Off Yes No
Hometown (City) According to initial
setting Yes No
Hometown (DST) Off Yes No
Text Size Standard Yes No p.168
Language/uAccording to initial
setting Yes No p.169
Folder Name Date Yes Yes p.169
File Name IMGP Yes Yes p.172
USB Connection MSC Yes Yes p.183
Video Out According to initial
setting Yes No p.173
HDMI Out Auto Yes Yes p.174
Eye-Fi P (Off) Yes Yes p.175
Brightness Level G (Normal) Yes Yes p.176
Power Saving 5 sec. Yes Yes p.176
Auto Power Off 3 min. Yes Yes p.177
Quick Zoom P (Off) Yes Yes p.178
Guide Display O (On) Yes Yes p.178
208
8
Appendix
Playback Mode Palette Items
Select Battery AUTO Yes Yes p.178
Reset Cancel — — p.181
Delete All Cancel — — p.131
Pixel Mapping Cancel — — p.180
Playback Shortcut O (On) Yes Yes p.181
Format Cancel — — p.162
Item Default Setting
Last
Memory
Setting
Reset
Setting Page
Slideshow
Interval 3 sec. Yes Yes
p.124Screen Effect Wipe Yes Yes
Sound Effect O (On) Yes Yes
Image Rotation Normal — — p.126
Stretch Filter Center, 8 % No No p.139
Small Face Filter Approx. 7% No No p.140
Collage
Recorded Pixels h (2048×1536) Yes Yes p.146
Layout 7Yes Yes p.146
Backgnd. White Yes Yes p.147
Select image(s) — — — p.148
Digital Filter B&W No — p.142
HDR Filter — No No p.145
Frame Composite Default 1 Yes Yes p.150
Movie Edit Save as Still Image — — p.153
Red-eye Edit — — — p.149
Resize
Recorded Pixels Depending on the
picture taken ——
p.137
Quality Level Depending on the
picture taken ——
Cropping Depending on the
picture taken — — p.138
Image Copy Built-in memory
SD Memory Card — — p.156
Item Default Setting
Last
Memory
Setting
Reset
Setting Page
209
8
Appendix
Key Operation
Protect
Single Image Depending on the
recorded image ——
p.131
All Images Depending on the
recorded image ——
DPOF Single Image Copies: 0 — — p.159
All Images Date: P (Off) — —
Start-up Screen Start-up Screen 1 Yes Yes p.179
Item Function Default Setting
Last
Memory
Setting
Reset
Setting Page
Q button Operation
Mode Q Mode — — —
Movie button Operation
Mode Recording stars — — p.111
Zoom lever Zoom Position Full wide-angle * No p.64
Four-way
controller
2Drive Mode 9 (Standard) * Yes p.84
4Flash Mode , (Auto) * Yes p.82
5Focus Mode = (Standard) * Yes p.86
3 button Menu Display [A Rec. Mode] menu — — p.49
3 button Information
Display Normal * Yes p.22
4 button Display
switching Monitor display Yes Yes —
Green button Capture Mode Green Mode Yes Yes p.105
Item Default Setting
Last
Memory
Setting
Reset
Setting Page
210
8
Appendix
List of World Time Cities
City:
indicates cities that can be set as either the Initial Setting (p.38) or the World Time (p.166).
Video Output Format: indicates the video output format of the city set as the initial setting.
Region City Video Output
Format Region City Video Output
Format
North
America
Honolulu NTSC Africa/
West Asia
Istanbul PAL
Anchorage NTSC Cairo PAL
Vancouver NTSC Jerusalem PAL
San Francisco NTSC Nairobi PAL
Los Angeles NTSC Jeddah PAL
Calgary NTSC Tehran PAL
Denver NTSC Dubai PAL
Chicago NTSC Karachi PAL
Miami NTSC Kabul PAL
Toronto NTSC Male PAL
New York NTSC Delhi PAL
Halifax NTSC Colombo PAL
Central and
South
America
Mexico City NTSC Kathmandu PAL
Lima NTSC Dacca PAL
Santiago NTSC East Asia Yangon NTSC
Caracas NTSC Bangkok PAL
Buenos Aires PAL Kuala Lumpur PAL
Sao Paulo PAL Vientiane PAL
Rio de Janeiro NTSC Singapore PAL
Europe Lisbon PAL Phnom Penh PAL
Madrid PAL Ho Chi Minh PAL
London PAL Jakarta PAL
Paris PAL Hong Kong PAL
Amsterdam PAL Beijing PAL
Milan PAL Shanghai PAL
Rome PAL Manila NTSC
Copenhagen PAL Taipei NTSC
Berlin PAL Seoul NTSC
Prague PAL Tokyo NTSC
Stockholm PAL Guam NTSC
Budapest PAL Oceania Perth PAL
Warsaw PAL Adelaide PAL
Athens PAL Sydney PAL
Helsinki PAL Noumea PAL
Moscow PAL Wellington PAL
Africa/
West Asia
Dakar PAL Auckland PAL
Algiers PAL Pago Pago NTSC
Johannesburg PAL
211
8
Appendix
Main Specifications
Type Fully automatic compact digital camera with built-in zoom lens
Number of
Effective Pixels
Approx. 16.0 megapixels
Image Sensor 1/2.33 inch CMOS
Number of
Recorded Pixels
Still m (4608×3456), n (3456×3456),
o(4608×2592), 6 (3072×2304),
0(3072×1728), f (2592×1944),
1(2592×1464), h (2048×1536), h
(1920×1080), l (1024×768), m (640×480)
*Fixed at h in Frame Composite mode.
*Fixed at f in Digital Wide mode, however, the first frame uses
h.
*Fixed at i for one frame in Digital Panorama mode.
*Fixed at f/1 in Burst Shooting(L) or Burst Shooting(H)
mode.
*Fixed at i in Stage Lighting mode.
Movie b (1920×1080/30fps), a (1280×720/60fps)
M (1280×720/30 fps), G (640×480/30 fps)
Sensitivity AUTO, Manual (ISO 100, 200, 400, 800, 1600, 3200, 6400)
* The sensitivity is fixed at AUTO (100-6400) in Digital SR mode.
File Format Still JPEG (Exif 2.3), DCF 2.0, DPOF, PRINT Image
Matching III
Movie MPEG-4 AVC/H.264, Approx. 60 fps/30 fps, PCM
system, monaural sound, Movie SR (Movie Shake
Reduction)
Quality Level Still C “Best”, D “Better”, E “Good”
Movie Fixed at C (Best) *Unchangeable
Storage Media Built-in memory (Approx. 75.3 MB), SD Memory Card, SDHC
Memory Card, SDXC Memory Card * UHS-1 supported
212
8
Appendix
• The above figures are based on our standard shooting conditions and may vary
depending on the subject, shooting conditions and type of the SD Memory Card
used.
• The maximum length of continuous recording time for a movie is 25 minutes.
Approximate Image Storage Capacity and Recording Time
Still Pictures
Recorded Pixels Built-in Memory 2GB
SD Memory Card
CD E C D E
m(4608×3456) 14
pictures
25
pictures
42
pictures
370
pictures
654
pictures
1078
pictures
n(3456×3456) 17
pictures
33
pictures
51
pictures
436
pictures
854
pictures
1308
pictures
o(4608×2592) 17
pictures
33
pictures
51
pictures
436
pictures
854
pictures
1308
pictures
6(3072×2304) 25
pictures
47
pictures
76
pictures
654
pictures
1205
pictures
1921
pictures
0(3072×1728) 30
pictures
58
pictures
84
pictures
778
pictures
1499
pictures
2120
pictures
f(2592×1944) 30
pictures
58
pictures
84
pictures
778
pictures
1499
pictures
2120
pictures
1(2592×1464) 40
pictures
76
pictures
109
pictures
1024
pictures
1921
pictures
2795
pictures
h(2048×1536) 47
pictures
94
pictures
137
pictures
1205
pictures
2365
pictures
3416
pictures
h(1920×1080) 69
pictures
126
pictures
185
pictures
1756
pictures
3236
pictures
4730
pictures
l(1024×768) 166
pictures
283
pictures
371
pictures
4099
pictures
6832
pictures
8784
pictures
m(640×480) 344
pictures
536
pictures
603
pictures
8784
pictures
12298
pictures
15372
pictures
• The image storage capacity is for reference only. The actual image storage capacity
may vary depending on the SD Memory Card and the subject.
Movies
Recorded Pixels Built-in Memory 2GB
SD Memory Card
b (1920×1080/30 fps) 29 sec. 16 min. 51 sec.
a (1280×720/60 fps) 29 sec. 16 min. 34 sec.
M(1280×720/30 fps) 47 sec. 27 min. 11 sec.
G(640×480/30 fps) 2 min. 3 sec. 1 hr. 10 min. 24 sec.
213
8
Appendix
White Balance Auto, Daylight, Shade, Tungsten Light, Fluorescent Light (Daylight Colors/
Daylight White/White Light), Manual
Lens Focal Length 4.0 mm -104.0 mm
(Approx. 22.3 mm - 580 mm in 35 mm equivalent
focal length)
Aperture F3.1 (W) - F5.9 (T)
Lens Composition 12 elements in 9 groups (3 aspherical elements)
Zoom Type Electrically driven
Optical Zoom 26×
Intelligent
Zoom
6/ 0: Approx. 39×, f/ 1: Approx. 46.2×,
h: Approx. 58.5×, h: Approx. 62.4×, i: Approx. 74.9×,
l: Approx. 117×, m: Approx. 187.2× (when combined with optical zoom)
Digital Zoom Up to approx. 7.2× (when combined with 26× optical zoom to give zoom
magnification equivalent to approx. 187.2×)
Motion Blur
Reduction
Still Sensor-Shift-Type (SR: Shake Reduction),
Dual (SR & Pixel Track SR),
High-sensitivity anti-shake mode (Digital SR)
Movie Movie Shake Reduction (Movie SR)
Display 3.0-inch tiltable LCD with approx. 460,000 dots (can be lowered down to
approx. 60° or raised upward to approx. 90°)
Viewfinder Electronic viewfinder with approx. 230,000 dots and diopter adjustment
function
Playback
Modes
Single-frame, 4-frame, 9-frame, Enlargement (max. 10×, scrollable), Folder
Display, Calendar Display, Histogram Display, Grid Display, Deleting
Selected Images, Slideshow, Image Rotation, Stretch Filter, Small Face
Filter, Collage, Digital Filter, HDR Filter, Frame Composite, Movie Playback/
Edit (Save as Still image, Divide Movies, Adding title picture), Red-eye Edit,
Resize, Cropping, Image Copy, Protect, DPOF, Start-up Screen
Focus Modes Autofocus, Macro, 1cm Macro, Infinity, Manual Focus, AF Area Selection
(Selectable from among 25 points)
Focus Type TTL contrast detection system by image sensor
(multiple (9-point autofocus)/spot/automatic
tracking AF changeable)
Focus range (From
lens surface)
Standard : 0.4 m - ∞ (Wide-angle)
1.5 m - ∞ (Telephoto)
Macro : 0.1 m - 0.5 m
1cm Macro : 0.01 m - 0.2 m
* It is possible to switch to Infinity, Manual Focus
or AF Area Selection.
* Face Detection AF is available only while the
camera detects the subject’s face.
Focus Lock By half-pressing the shutter release button
Exposure
Control
Metering system TTL image sensor metering (Multi-segment/
Center-weighted/Spot)
EV Compensation ±2 EV (can be set in 1/3 EV steps)
214
8
Appendix
Face
Detection
Detection of up to 32 people’s faces (up to 31 face detection frames on the
display), Smile Capture, Blink Detection
* Face Detection AE is available only while the camera detects the subject’s
face.
Pet Detection Registering: 3, Detecting: 1
Capture
Modes
Mode dial: Auto Picture, Program, Manual Exposure, USER, Movie,
Handheld Night Snap, Sport, Landscape, Portrait
SCN mode: Flower, Blue Sky, Sunset, Night Scene, Night Scene Portrait,
Fireworks, HDR Filter, Surf & Snow, Baby, Kids, Pet, Food, Digital SR, Stage
Lighting, Text, Museum, Digital Wide, Digital Panorama, Frame Composite
Green button: Green Mode, Fn Setting
Movie Mode Palette: Movie, Time-Lapse Movie, High Speed Movie
Digital
Filters
B&W, Sepia, Toy Camera, Retro (Blue, Amber), Color (Red, Pink, Purple,
Blue, Green, Yellow), Extract Color (Red, Green, Blue), Color Emphasis
(Sky Blue, Fresh Green, Delicate Pink, Autumn Leaves), High Contrast,
Soft, Fish-eye, Brightness, Miniature
Movie Continuous Recording
Time
Movie/Time-Lapse Movie: Approx. 1 second to 25
minutes (however, until the built-in memory or SD
Memory Card is full)
High Speed Movie: Approx. 1 to 15 seconds
(however, until the built-in memory or SD Memory
Card is full)
Still Picture Saving
during Movie
Recording
Up to three still pictures per each continuous
movie recording, with the focus fixed at the start of
recording and the number of recorded pixels fixed
to m.
The angle of view may change, depending on the
number of recorded pixels for movies.
The image may be distorted, depending on
recording conditions.
Shutter
Speed
1/1500 sec. - 1/4 sec., max. 4 sec. (Manual Exposure, Night Scene mode)
Aperture Type ND Filter
Built-in Flash Modes Auto, Flash Off, Flash On, Auto + Red-eye, Flash
On + Red-eye, Slow-speed Sync, Slow-speed
Sync+Red-eye
Flash Range Wide-angle: Approx. 0.2 m - 11.6 m (Approx.
0.66 ft - 38 ft)
(Sensitivity: in AUTO condition)
Telephoto: Approx. 1.5 m - 6.1 m (Approx.
4.9 ft - 20 ft)
(Sensitivity: in AUTO condition)
Drive Modes Single-frame, Continuous Shooting, Burst Shooting (L/H), Self-timer
(Approx. 10 sec., 2 sec.), Remote Control (Approx. 3-sec, 0-sec), Auto
Bracketing
Self-timer Electronic control type, control time: Approx. 10 sec., 2 sec.
Time Function World Time 75 cities (28 time zones)
Power Source Four AA (alkaline, lithium or Ni-MH) batteries, AC adapter kit (optional)
215
8
Appendix
Battery Life Number of Recordable
Images
Approx. 330 pictures (with AA alkaline batteries),
approx. 500 pictures (with AA Nickel-metal
hydride batteries), approx. 950 pictures (with AA
Lithium batteries)
* Recording capacity shows approximate number
of shots recorded during CIPA-compliant testing
(with display on, flash used for 50% of the shots,
and 23 degrees centigrade).
Playback Time Approx. 420 min. (with AA alkaline batteries),
approx. 500 min. (with AA Nickel-metal hydride
batteries), approx. 950 min. (with AA Lithium
batteries)
* According to the result of in-house testing.
Actual time may differ depending on usage
conditions.
Movie Recording Time Approx. 75 min. (with AA alkaline batteries),
approx. 150 min. (with AA Nickel-metal hydride
batteries), approx. 280 min. (with AA Lithium
batteries)
* According to the result of in-house testing.
Actual time may differ depending on usage
conditions.
Interfaces USB 2.0 (high-speed compatible), PC/AV terminal, HDMI terminal (Type D
(Micro)), DC terminal
Video Output NTSC/PAL (monaural)
Dimensions Approx. 120 (W) × 86.5 (H) × 106.5 (D) mm (excluding operating or
protruding parts)
Weight Approx. 507 g (excluding batteries and SD Memory Card)
Approx. 599 g (including batteries and SD Memory Card)
Accessories Four AA Alkaline Batteries, USB Cable, Software (CD-ROM), Lens Cap,
Strap, Operating Manual, Quick Guide
216
8
Appendix
WARRANTY POLICY
All PENTAX cameras purchased through authorized bona fide photographic
distribution channels are guaranteed against defects of material or workmanship
for a period of twelve months from date of purchase. Service will be rendered, and
defective parts will be replaced without cost to you within that period, provided the
equipment does not show evidence of impact, sand or liquid damage,
mishandling, tampering, battery or chemical corrosion, operation contrary to
operating instructions, or modification by an unauthorized repair shop. The
manufacturer or its authorized representatives shall not be liable for any repair or
alterations except those made with its written consent and shall not be liable for
damages from delay or loss of use or from other indirect or consequential
damages of any kind, whether caused by defective material or workmanship or
otherwise; and it is expressly agreed that the liability of the manufacturer or its
representatives under all guarantees or warranties, whether expressed or
implied, is strictly limited to the replacement of parts as hereinbefore provided. No
refunds will be made on repairs by non-authorized PENTAX service facilities.
Procedure During 12-month Warranty Period
Any PENTAX which proves defective during the 12-month warranty period should
be returned to the dealer from whom you purchased the equipment or to the
manufacturer. If there is no representative of the manufacturer in your country,
send the equipment to the manufacturer, with postage prepaid. In this case, it will
take a considerable length of time before the equipment can be returned to you
owing to the complicated customs procedures required. If the equipment is
covered by warranty, repairs will be made and parts replaced free of charge, and
the equipment will be returned to you upon completion of servicing. If the
equipment is not covered by warranty, regular charges of the manufacturer or of
its representatives will apply. Shipping charges are to be borne by the owner. If
your PENTAX was purchased outside of the country where you wish to have it
serviced during the warranty period, regular handling and servicing fees may be
charged by the manufacturer’s representatives in that country. Notwithstanding
this, your PENTAX returned to the manufacturer will be serviced free of charge
according to this procedure and warranty policy. In any case, however, shipping
charges and customs clearance fees to be borne by the sender. To prove the date
of your purchase when required, please keep the receipt or bills covering the
purchase of your equipment for at least a year. Before sending your equipment
for servicing, please make sure that you are sending it to the manufacturer’s
authorized representatives or their approved repair shops, unless you are
sending it directly to the manufacturer. Always obtain a quotation for the service
charge, and only after you accept the quoted service charge, instruct the service
station to proceed with the servicing.
217
8
Appendix
• This warranty policy does not affect the customer’s statutory rights.
• The local warranty policies available from PENTAX distributors in some
countries can supersede this warranty policy. Therefore, we recommend
that you review the warranty card supplied with your product at the time
of purchase, or contact the PENTAX distributor in your country for more
information and to receive a copy of the warranty policy.
The CE Mark is a Directive conformity mark of the European
Union.
218
8
Appendix
For customers in USA
STATEMENT OF FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
For customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Pour les utilisateurs au Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-
003 du Canada.
FOR CALIFORNIA, U.S.A. ONLY
Perchlorate Material-special handling may apply. The lithium battery
used in this camera contains perchlorate material, which may require
special handling. See www.dtsc.ca.gov/hazardouswaste/perchlorate
219
8
Appendix
Declaration of Conformity
According to 47CFR, Parts 2 and 15 for
Class B Personal Computers and Peripherals
We: PENTAX RICOH IMAGING AMERICAS
CORPORATION
Located at: 633 17 Street, Suite 2600
Denver, Colorado 80202 U.S.A.
Phone: 800-877-0155 Fax: 303-790-1131
Declare under sole responsibility that the product identified herein
complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital
device. Each product marketed is identical to the representative unit
tested and found to be compliant with the standards. Records
maintained continue to reflect the equipment being produced can be
expected to be within the variation accepted, due to quantity production
and testing on the statistical basis as required by 47CFR §2.909.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired
operation. The above named party is responsible for ensuring that the
equipment complies with the standards of 47CFR §15.101 to §15.109.
Product Name: Digital Camera
Model Number: X-5
Contact person: Customer Service Manager
Date and Place: August, 2012, Colorado
th
220
8
Appendix
Information for Users on Collection and Disposal of Old Equipment
and Used Batteries
1. In the European Union
These symbols on the products, packaging and/or
accompanying documents mean that used electrical
and electronic equipment and batteries should not be
mixed with general household waste.
Used electrical/electronic equipment and batteries must
be treated separately and in accordance with legislation
that requires proper treatment, recovery and recycling of
these products.
By disposing of these products correctly you will help
ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent
potential negative effects on the environment and
human health which could otherwise arise due to
inappropriate waste handling.
If a chemical symbol is added beneath the symbol shown above, in
accordance with the Battery Directive, this indicates that a heavy metal
(Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in the battery at a
concentration above an applicable threshold specified in the Battery
Directive.
For more information about collection and recycling of used products,
please contact your local authorities, your waste disposal service or the
point of sale where you purchased the products.
2. In other countries outside the EU
These symbols are only valid in the European Union. If you wish to
discard used products, please contact your local authorities or dealer
and ask for the correct method of disposal.
For Switzerland: Used electrical/electronic equipment can be returned
free of charge to the dealer, even when you don’t purchase a new
product. Further collection facilities are listed on the home page of
www.swico.ch or www.sens.ch.
221
8
Appendix
Index
Symbols
A Mode ...................... 14, 48
Q Mode ..................... 14, 48
Q button .................... 45, 47
b (Flash pop-up) button
.................................... 45, 83
m (EV Compensation) button
.................................... 44, 66
[A Rec. Mode] menu
.................................. 52, 205
[C Movie] menu ........ 54, 206
[W Setting] menu ....... 54, 207
i Delete ................. 118, 129
5 Tele ................................ 64
6 Wide .............................. 64
y Magnify ....................... 127
f Four-/Nine-image display
........................................ 120
j Continuous Shooting .... 84
AC Burst Shooting ......... 84
gr Self-timer ................... 84
ihRemote Control .......... 84
l Auto Bracketing ........... 85
b Auto Picture ................. 57
N Handheld Night Snap ... 68
\ Sport ............................. 68
q Landscape ................... 68
c Portrait .......................... 68
b Flower ........................... 69
f Blue Sky ....................... 69
K Sunset ........................ 69
A Night Scene ................. 69
B Night Scene Portrait ..... 69
S Fireworks ..................... 69
p HDR Filter ................ 69
Q Surf & Snow ................. 69
L Baby ..............................69
R Kids ................................69
e Pet ................................77
K Food ..............................69
c Digital SR ...................69
n Stage Lighting ..............70
c Text ...............................70
E Museum .......................70
X Digital Wide ................73
F Digital Panorama ........75
N Frame Composite
...................................72, 150
9 (Green) Mode ...............62
Numerics
0-sec Remote Control h ...84
1cm MacroI .....................86
2 sec. Self-timer r ............84
A
AC adapter .........................32
AE Metering .......................95
AF Area Selection J ........87
AF Setting ..........................88
Assign functions ...............105
Auto F .........................93
Auto, ................................82
Auto + Red-eye c .............82
Auto Bracketing l ............85
Auto Macro ........................89
Auto Picture Mode .............68
Auto Power Off ................177
Automatic Tracking AF
.....................................61, 89
AV cable ..........................134
B
B&W filter .........................142
222
8
Appendix
Baby Mode ........................ 69
Basic shooting mode ......... 62
Battery level indicator ........ 32
Best (Quality level) ............ 93
Better (Quality level) .......... 93
Blink Detection .......... 60, 101
Blue Sky Mode .................. 69
Bright ................................. 90
Bright portions ................... 98
Brightness filter ................ 142
Brightness of the Display
........................................ 176
Built-in memory ............... 156
C
Calendar display .............. 121
Capture Mode Palette ....... 70
Center-weighted metering M
.......................................... 95
Changing volume .... 119, 163
Checking the SD Memory
Card ................................... 37
City .................................. 210
Collage ............................ 145
Color Emphasis filter ....... 142
Color filter ........................ 142
Compensating for Brightness
.......................................... 98
Connecting to a TV .......... 134
Connecting to AV Equipment
........................................ 134
Contrast ........................... 103
Copy ................................ 156
Cropping .......................... 138
D
Dark portions ..................... 98
Date and time setting
.................................. 41, 164
Date Imprint ..................... 103
Daylight G ......................... 93
Daylight saving time .........167
Default settings ................205
Delete i ..................118, 129
Delete all ..........................131
Destination .......................166
Digital Filter ......................142
Digital Panorama Mode .....75
Digital SR Mode .................69
Digital Wide Mode ..............73
Digital Zoom .................64, 66
Diopter adjustment .............43
3 button ..................45, 48
Display language .......38, 169
Dividing movies ................154
DPOF settings .................159
D-Range Setting ................98
Drive Mode ........................84
DST ..................................167
E
e-dial ................45, 46, 67, 79
Editing movies .................153
Error messages ...............201
EV Compensation ..............66
4 button .........................45
Exposure Mode ............71, 79
Extract Color filter ............142
Eye-Fi ......................175, 194
F
Face Detection .................100
Face Detection function .....61
File Name ........................172
File number ......................117
Filters ...............................142
Fireworks Mode .................69
Fish-eye Filter ..................142
Flash Exposure
Compensation ....................98
Flash Mode ........................82
Flash Off a ........................82
223
8
Appendix
Flash On b ....................... 82
Flash On + Red-eye d ...... 82
Flash output ....................... 98
Flower Mode ...................... 69
Fluorescent Light J .......... 94
Fn Setting ........................ 105
Focus Assist Light ............. 90
Focus Mode ....................... 86
Focusing ............................ 86
Focusing Area ................... 89
Folder display .................. 121
Folder Name .................... 169
Food Mode ........................ 69
Format ............................. 162
Four-image display f ..... 120
Four-way controller ...... 45, 47
Frame Composite Mode .... 72
Frame rate ....................... 114
G
Good (Quality level) ........... 93
Green button ....... 45, 47, 105
Green Mode .............. 62, 105
Guide display ................... 178
Guide indications ............... 27
H
Handheld Night Snap Mode
.......................................... 68
HDMI ............................... 174
HDMI terminal ................. 136
HDR Filter ........................ 145
HDR Filter Mode ................ 69
High Contrast Filter ......... 142
High Speed Movie ........... 113
Highlight Correction ........... 98
Histogram .......................... 27
Hometown ....................... 166
I
Image storage capacity ... 212
Image Tone ........................90
Infinity s ............................86
Info Display ........................23
Initial settings .....................38
Installing the batteries ........30
Installing the Software .....187
Instant Review ...........60, 102
Intelligent Zoom .................64
ISO Sensitivity ...................96
K
Kids Mode ..........................69
L
Landscape Mode ...............68
Language setting .......38, 169
Lens cap ............................29
M
a (Manual Exposure) Mode
...........................................79
Macintosh ........................187
Macro q .............................86
Magnify y .......................127
Manual K ..........................94
Manual Focus \ .............87
MediaImpression .............186
Memory ............................116
3 button ........45, 47, 49
Menu list ............................52
Miniature Filter .................142
Mode dial ...........................68
Monochrome ......................90
Movie ...............................110
Movie button ..............45, 111
Movie Edit ........................153
Movie menu ...............54, 206
Movie SR (Movie Shake
Reduction) Function .........114
MSC .................................183
Multi-Image Display .........120
224
8
Appendix
Multi-segment metering L
.......................................... 95
Museum Mode ................... 70
N
Natural ............................... 90
Night Scene Mode ............. 69
Night Scene Portrait
Mode ................................. 69
Nine-image display f ..... 120
NTSC ............................... 173
O
4 button ......................... 47
Operating the menus ......... 49
P
e (Program) Mode ............ 62
PAL ................................. 173
PC/AV terminal ................ 134
Pet Mode ........................... 77
Photo processing lab ....... 159
Picture Mode ..................... 68
Pixel Mapping .................. 180
Pixels ................................. 91
Playback Mode Palette
................................ 122, 208
Playback Shortcut ........... 181
Playing Back .................... 118
Playing back movies ........ 119
Portrait Mode ..................... 68
Power button ......... 36, 45, 46
Power Saving .................. 176
Press fully (shutter release
button) ............................... 60
Press halfway (shutter release
button) ............................... 60
Product registration ......... 190
Protect Z ...................... 131
PTP ................................. 183
Q
Quality Level ......................92
Quick Zoom .....................178
R
Rec. Mode menu .......52, 205
Recorded Pixels .........91, 114
Recording movies ............108
Red-eye Edit ....................149
Remote Control i .............84
Reset ...............................181
Resize ..............................137
Retro filter ........................142
Rotating ...........................126
S
Saturation ........................102
Saving as still picture
(movie) .............................153
Saving pictures by date ...169
Saving settings ................116
H Mode ..........................69
Screen Effect ...................125
SD Memory Card ...............34
Select Time ......................167
Self-timer g .......................84
Sensitivity ...........................96
Sepia filter ........................142
Setting menu ..............54, 207
Shade H ..........................93
Shadow Correction ............98
Shake Reduction .......99, 114
Sharpness ........................102
Shooting information ..........23
Shooting Mode ...................68
Shutter release button
...............................44, 46, 59
Slideshow ........................124
Slow-speed Sync G .........82
225
8
Appendix
Slow-speed Sync+Red-eye
H ..................................... 82
Small Face Filter ............. 140
Smile Capture ............ 61, 100
Soft filter .......................... 142
Sound settings ................. 163
Sound types .................... 164
Specifications .................. 211
Sport Mode ........................ 68
Spot AE metering N ......... 95
Stage Lighting Mode ......... 70
Standard = ..................... 86
Starting-up in Playback
Mode ................................. 37
Start-up screen ................ 179
Strap .................................. 29
Stretch Filter .................... 139
Sunset Mode ..................... 69
Surf & Snow Mode ............ 69
System requirements ...... 186
T
Text Mode ......................... 70
Text Size ......................... 168
Time imprint ..................... 103
Time-Lapse Movie ........... 112
Title picture of movie ....... 155
Tone Adjustment ............. 102
Toy Camera filter ............. 142
Tungsten Light I ............. 93
TV .................................... 134
U
USB Connection .............. 183
E (USER) Mode ............ 80
V
Video Input Terminal ....... 134
Video output format
................................ 173, 210
Viewfinder .......................... 43
Volume change ................163
W
White balance ....................93
Wind Suppression ............115
Windows ..........................186
Wireless LAN ...................194
World Time ......................166
Z
Zoom /5/6 ........................64
Zoom lever .........................44
Digital Camera
Operating Manual
