Ascalade Technologies B200R36 BABY MONITOR -BASE UNIT User Manual SCD589 DECT 3 US

Ascalade Technologies, Inc. BABY MONITOR -BASE UNIT SCD589 DECT 3 US

users manual

SCD589User manual 4Mode d’emploi XInstrucciones de manejo XESFREN

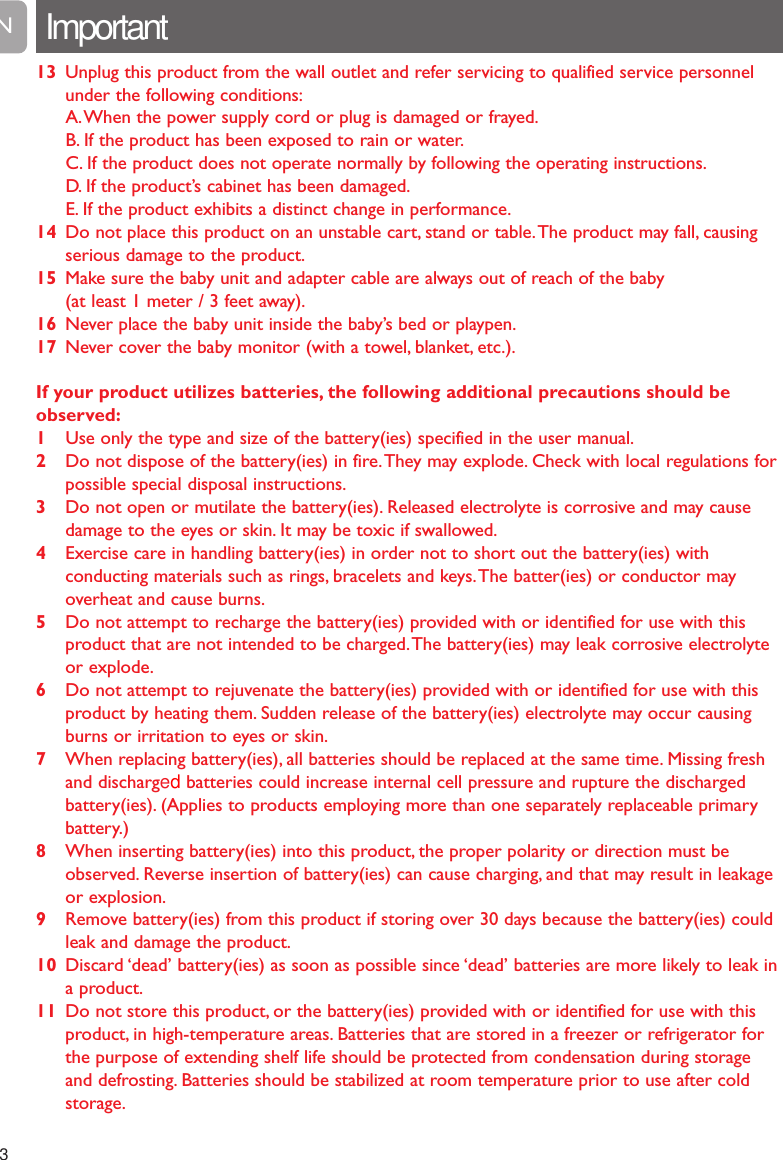

13 Unplug this product from the wall outlet and refer servicing to qualified service personnelunder the following conditions:A.When the power supply cord or plug is damaged or frayed.B. If the product has been exposed to rain or water.C. If the product does not operate normally by following the operating instructions.D. If the product’s cabinet has been damaged.E. If the product exhibits a distinct change in performance.14 Do not place this product on an unstable cart, stand or table.The product may fall, causingserious damage to the product.15 Make sure the baby unit and adapter cable are always out of reach of the baby (at least 1 meter / 3 feet away).16 Never place the baby unit inside the baby’s bed or playpen.17 Never cover the baby monitor (with a towel, blanket, etc.).If your product utilizes batteries, the following additional precautions should beobserved:1Use only the type and size of the battery(ies) specified in the user manual.2Do not dispose of the battery(ies) in fire.They may explode. Check with local regulations forpossible special disposal instructions.3Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may causedamage to the eyes or skin. It may be toxic if swallowed.4Exercise care in handling battery(ies) in order not to short out the battery(ies) withconducting materials such as rings, bracelets and keys.The batter(ies) or conductor mayoverheat and cause burns.5 Do not attempt to recharge the battery(ies) provided with or identified for use with thisproduct that are not intended to be charged.The battery(ies) may leak corrosive electrolyteor explode.6Do not attempt to rejuvenate the battery(ies) provided with or identified for use with thisproduct by heating them. Sudden release of the battery(ies) electrolyte may occur causingburns or irritation to eyes or skin.7When replacing battery(ies), all batteries should be replaced at the same time. Missing freshand discharged batteries could increase internal cell pressure and rupture the dischargedbattery(ies). (Applies to products employing more than one separately replaceable primarybattery.)8When inserting battery(ies) into this product, the proper polarity or direction must beobserved. Reverse insertion of battery(ies) can cause charging, and that may result in leakageor explosion.9Remove battery(ies) from this product if storing over 30 days because the battery(ies) couldleak and damage the product.10 Discard ‘dead’ battery(ies) as soon as possible since ‘dead’ batteries are more likely to leak ina product.11 Do not store this product, or the battery(ies) provided with or identified for use with thisproduct, in high-temperature areas. Batteries that are stored in a freezer or refrigerator forthe purpose of extending shelf life should be protected from condensation during storageand defrosting. Batteries should be stabilized at room temperature prior to use after coldstorage.Important3EN

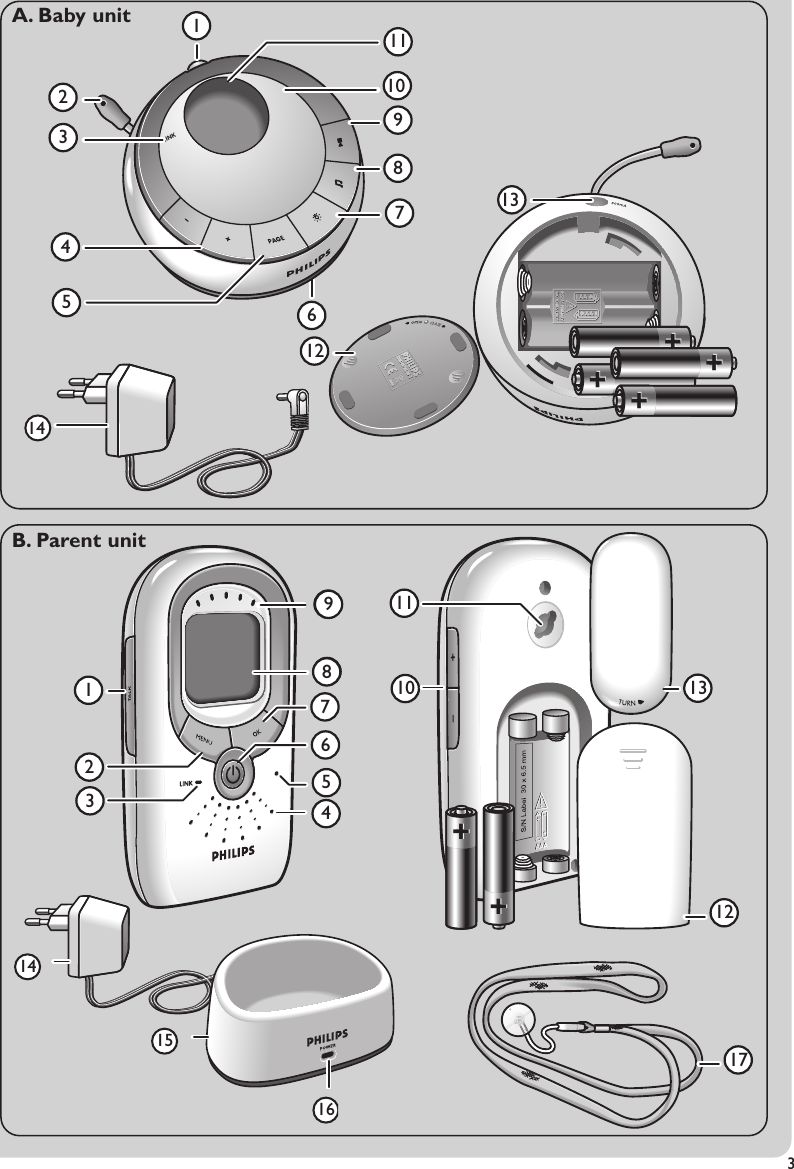

3++++++13510871312629411++++++1487659231011++++++13891217A. Baby unitB. Parent unit14141516

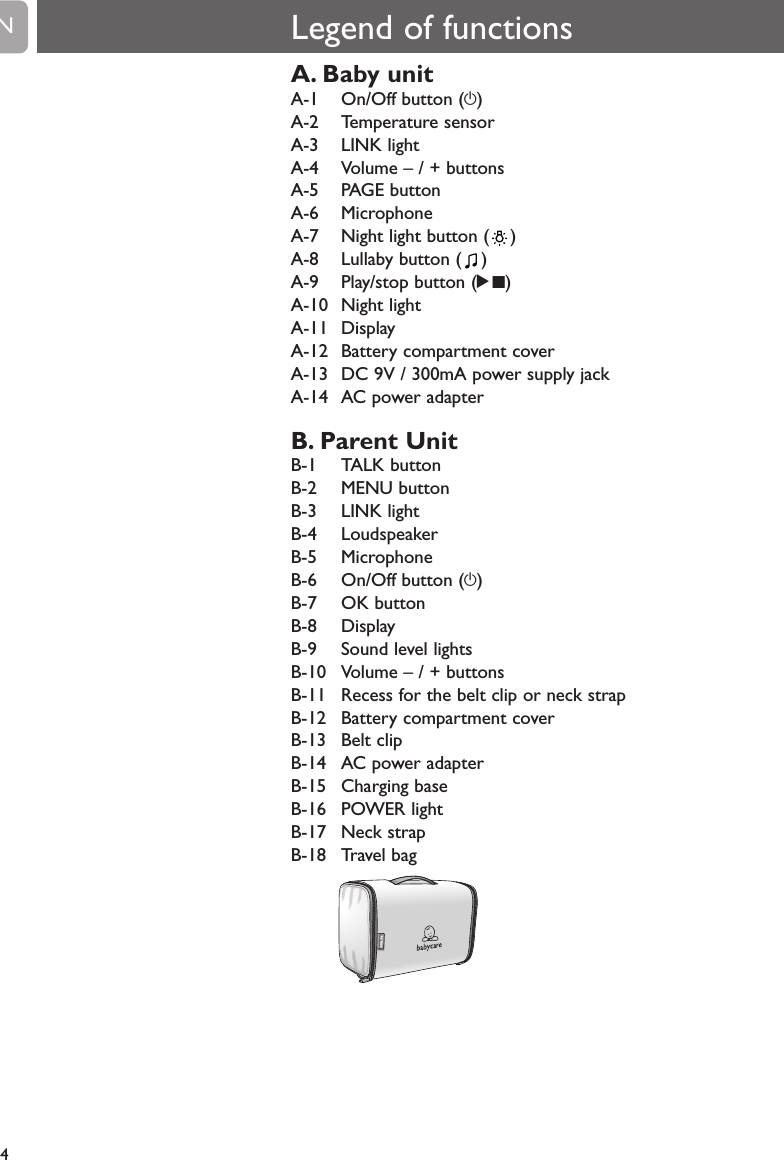

4ENA. Baby unitA-1 On/Off button (y)A-2 Temperature sensorA-3 LINK lightA-4 Volume – / + buttons A-5 PAGE buttonA-6 Microphone A-7 Night light button ( )A-8 Lullaby button ( )A-9 Play/stop button (29)A-10 Night lightA-11 DisplayA-12 Battery compartment coverA-13 DC 9V / 300mA power supply jackA-14 AC power adapterB. Parent UnitB-1 TALK buttonB-2 MENU buttonB-3 LINK lightB-4 LoudspeakerB-5 MicrophoneB-6 On/Off button (y)B-7 OK buttonB-8 DisplayB-9 Sound level lightsB-10 Volume – / + buttons B-11 Recess for the belt clip or neck strapB-12 Battery compartment coverB-13 Belt clipB-14 AC power adapterB-15 Charging baseB-16 POWER lightB-17 Neck strapB-18 Travel bagLegend of functions

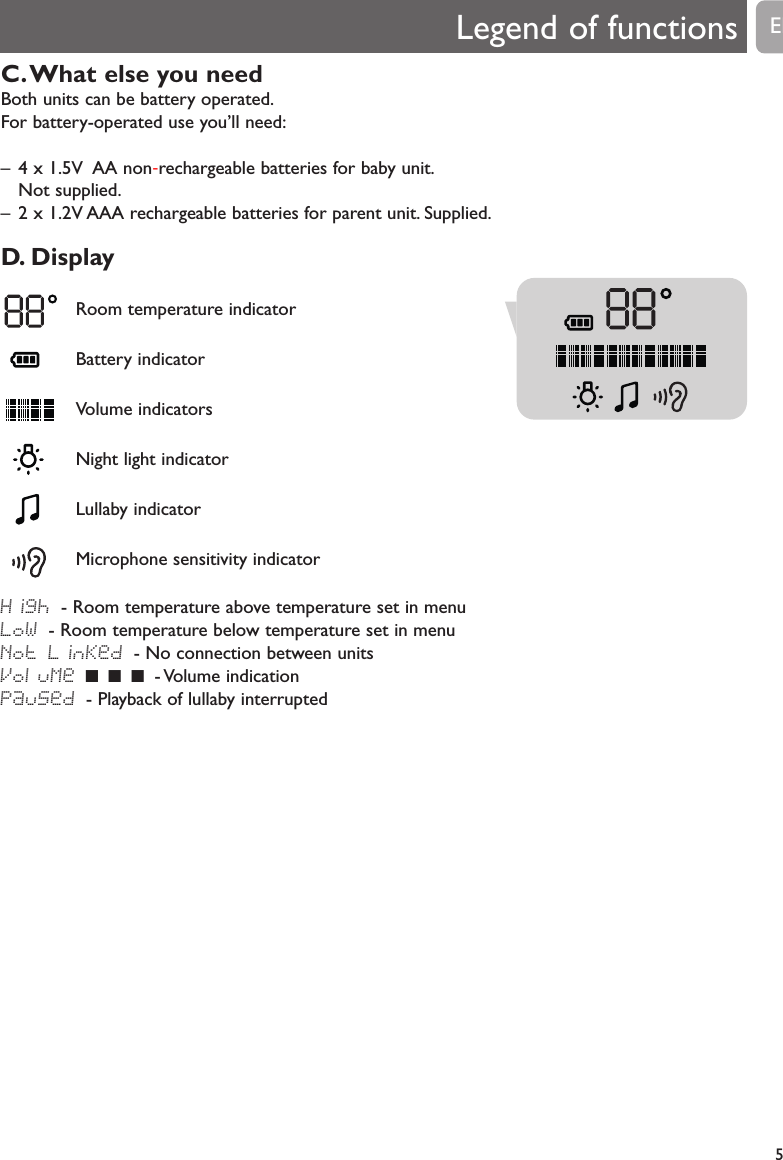

Legend of functions5C.What else you needBoth units can be battery operated.For battery-operated use you’ll need:– 4 x 1.5V AA non-rechargeable batteries for baby unit.Not supplied.– 2 x 1.2V AAA rechargeable batteries for parent unit. Supplied.D. DisplayRoom temperature indicatorBattery indicatorVolume indicatorsNight light indicatorLullaby indicatorMicrophone sensitivity indicatorHigh - Room temperature above temperature set in menuLoW - Room temperature below temperature set in menuNot LinKed - No connection between unitsVoluMe 9 9 9 - Volume indicationPauSed - Playback of lullaby interruptedEN

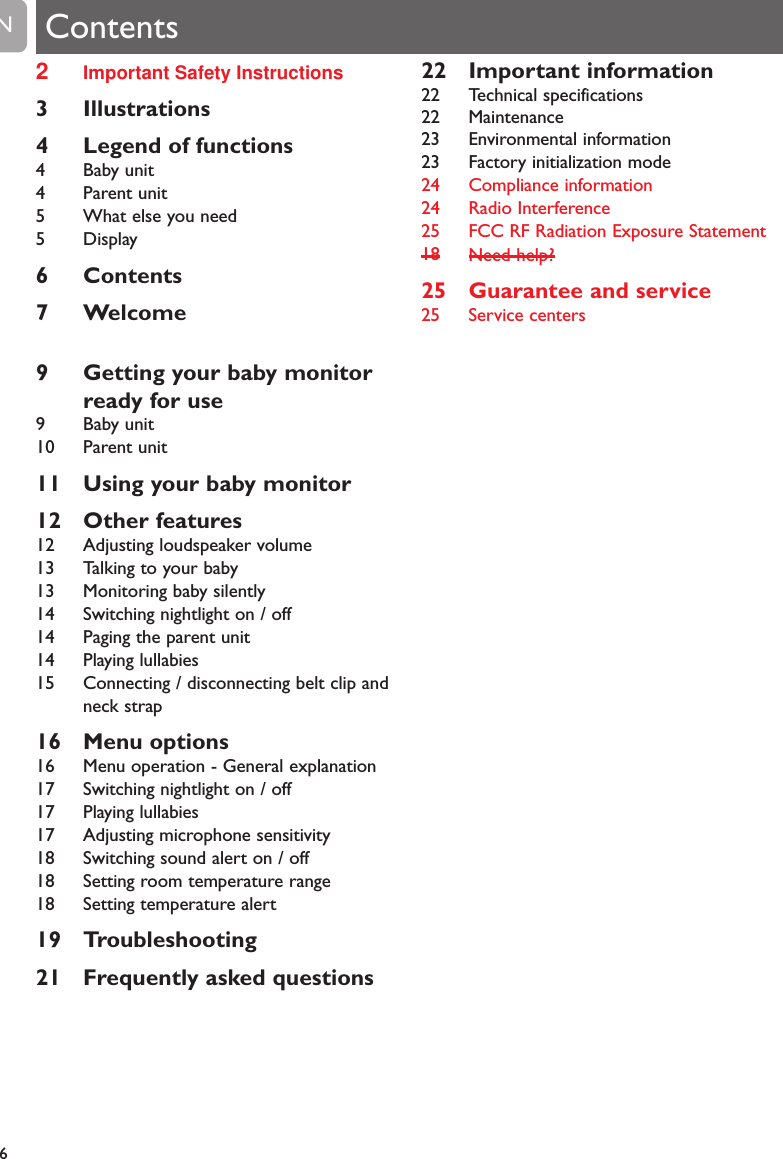

2Important Safety Instructions3 Illustrations4 Legend of functions4 Baby unit4 Parent unit5 What else you need5 Display6 Contents7 Welcome9 Getting your baby monitorready for use9 Baby unit10 Parent unit11 Using your baby monitor12 Other features12 Adjusting loudspeaker volume13 Talking to your baby13 Monitoring baby silently14 Switching nightlight on / off14 Paging the parent unit14 Playing lullabies15 Connecting / disconnecting belt clip andneck strap16 Menu options16 Menu operation - General explanation17 Switching nightlight on / off17 Playing lullabies17 Adjusting microphone sensitivity18 Switching sound alert on / off18 Setting room temperature range18 Setting temperature alert19 Troubleshooting21 Frequently asked questions22 Important information22 Technical specifications22 Maintenance23 Environmental information23 Factory initialization mode24 Compliance information24 Radio Interference25 FCC RF Radiation Exposure Statement18Need help?25 Guarantee and service25 Service centers6EN Contents

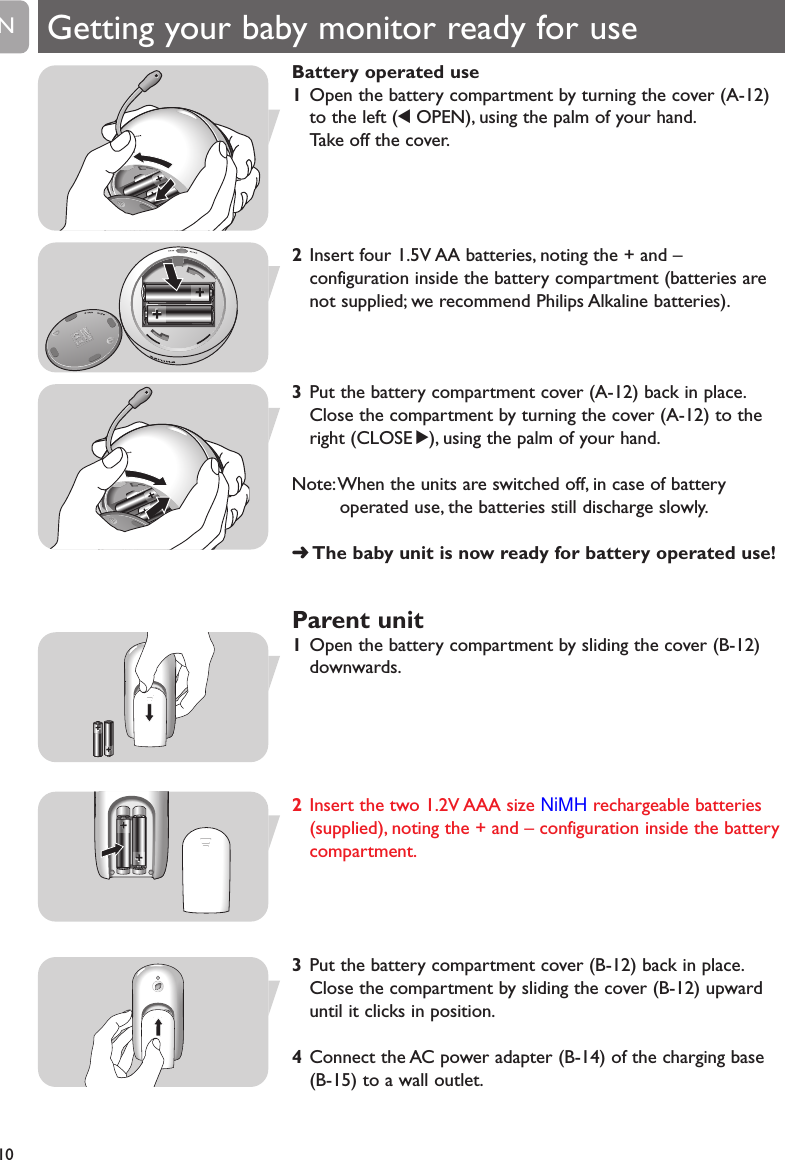

Battery operated use1Open the battery compartment by turning the cover (A-12)to the left (1OPEN), using the palm of your hand.Take off the cover.2Insert four 1.5V AA batteries, noting the + and –configuration inside the battery compartment (batteries arenot supplied; we recommend Philips Alkaline batteries).3Put the battery compartment cover (A-12) back in place.Close the compartment by turning the cover (A-12) to theright (CLOSE 2), using the palm of your hand.Note:When the units are switched off, in case of batteryoperated use, the batteries still discharge slowly.➜The baby unit is now ready for battery operated use!Parent unit1Open the battery compartment by sliding the cover (B-12)downwards.2 Insert the two 1.2V AAA size NiMH rechargeable batteries(supplied), noting the + and – configuration inside the batterycompartment.3Put the battery compartment cover (B-12) back in place.Close the compartment by sliding the cover (B-12) upwarduntil it clicks in position.4Connect the AC power adapter (B-14) of the charging base(B-15) to a wall outlet.10EN++++++++++++++++++Getting your baby monitor ready for use

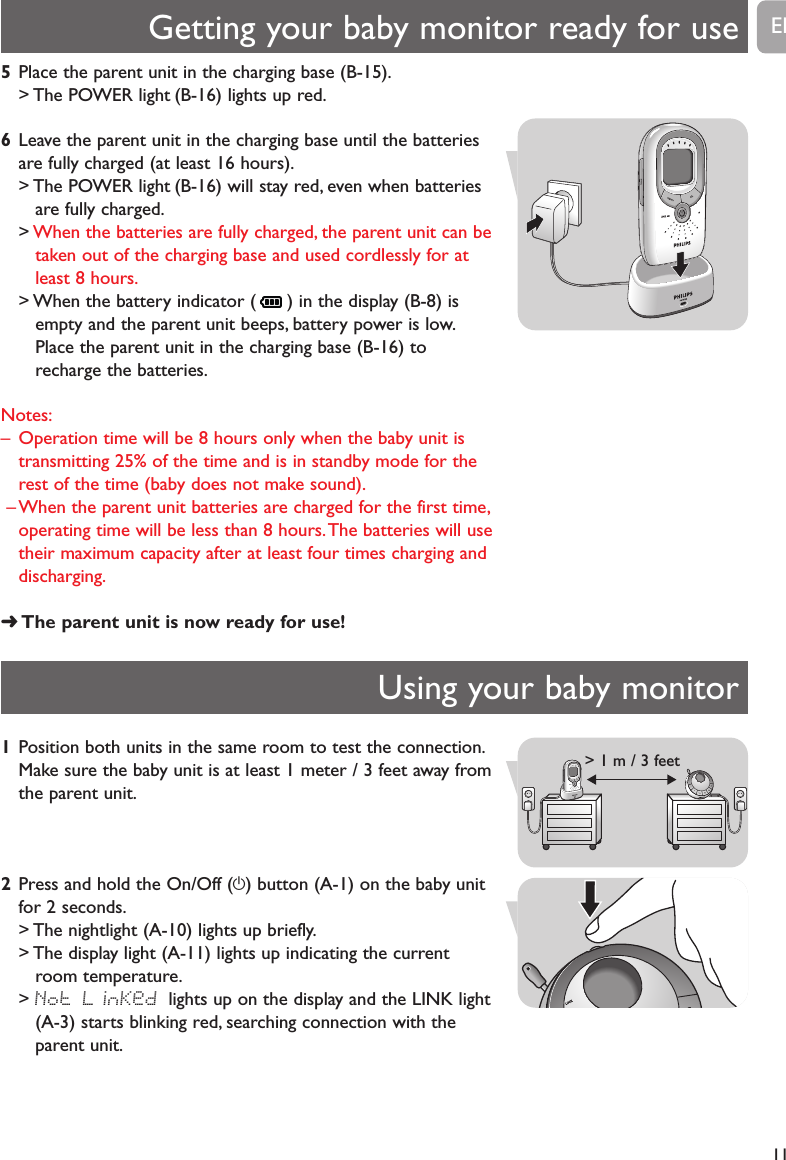

5Place the parent unit in the charging base (B-15).> The POWER light (B-16) lights up red.6Leave the parent unit in the charging base until the batteriesare fully charged (at least 16 hours).> The POWER light (B-16) will stay red, even when batteriesare fully charged.>When the batteries are fully charged, the parent unit can betaken out of the charging base and used cordlessly for atleast 8 hours.> When the battery indicator ( ) in the display (B-8) isempty and the parent unit beeps, battery power is low.Place the parent unit in the charging base (B-16) torecharge the batteries.Notes:– Operation time will be 8 hours only when the baby unit istransmitting 25% of the time and is in standby mode for therest of the time (baby does not make sound).– When the parent unit batteries are charged for the first time,operating time will be less than 8 hours.The batteries will usetheir maximum capacity after at least four times charging anddischarging.➜The parent unit is now ready for use!Getting your baby monitor ready for use11ENUsing your baby monitor1Position both units in the same room to test the connection.Make sure the baby unit is at least 1 meter / 3 feet away fromthe parent unit.2Press and hold the On/Off (y) button (A-1) on the baby unitfor 2 seconds.> The nightlight (A-10) lights up briefly.> The display light (A-11) lights up indicating the currentroom temperature.> Not LinKed lights up on the display and the LINK light(A-3) starts blinking red, searching connection with theparent unit.1m / 3 ft> 1 m / 3 feet

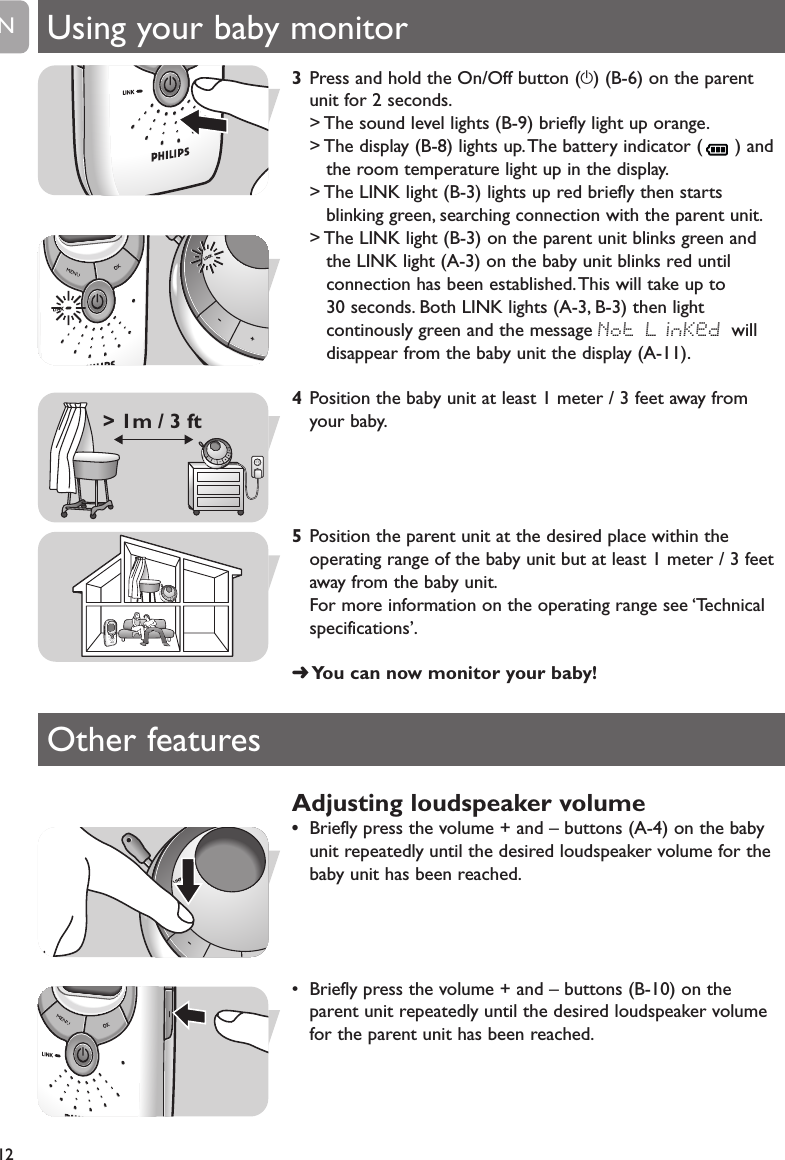

3Press and hold the On/Off button (y) (B-6) on the parentunit for 2 seconds.> The sound level lights (B-9) briefly light up orange.> The display (B-8) lights up.The battery indicator ( ) andthe room temperature light up in the display.> The LINK light (B-3) lights up red briefly then startsblinking green, searching connection with the parent unit.> The LINK light (B-3) on the parent unit blinks green andthe LINK light (A-3) on the baby unit blinks red untilconnection has been established.This will take up to 30 seconds. Both LINK lights (A-3, B-3) then lightcontinously green and the message Not LinKed willdisappear from the baby unit the display (A-11).4Position the baby unit at least 1 meter / 3 feet away fromyour baby.5Position the parent unit at the desired place within theoperating range of the baby unit but at least 1 meter / 3 feetaway from the baby unit.For more information on the operating range see ‘Technicalspecifications’.➜You can now monitor your baby!Using your baby monitor12EN> 1m / 3 ftOther featuresAdjusting loudspeaker volume•Briefly press the volume + and – buttons (A-4) on the babyunit repeatedly until the desired loudspeaker volume for thebaby unit has been reached.• Briefly press the volume + and – buttons (B-10) on theparent unit repeatedly until the desired loudspeaker volumefor the parent unit has been reached.

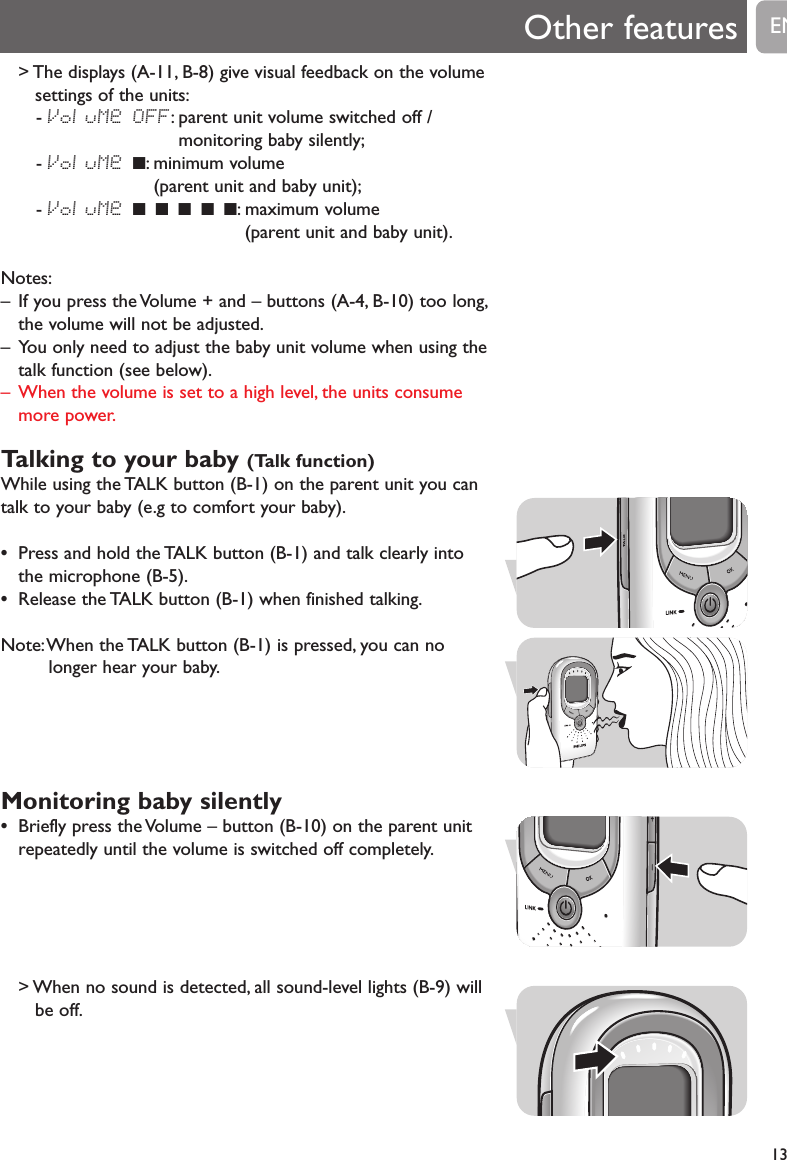

13> The displays (A-11, B-8) give visual feedback on the volumesettings of the units:- VoluMe OFF: parent unit volume switched off /monitoring baby silently;- VoluMe 9: minimum volume (parent unit and baby unit);- VoluMe 9 9 9 9 9: maximum volume (parent unit and baby unit).Notes:– If you press the Volume + and – buttons (A-4, B-10) too long,the volume will not be adjusted.– You only need to adjust the baby unit volume when using thetalk function (see below).– When the volume is set to a high level, the units consumemore power.Talking to your baby (Talk function)While using the TALK button (B-1) on the parent unit you cantalk to your baby (e.g to comfort your baby).•Press and hold the TALK button (B-1) and talk clearly intothe microphone (B-5).•Release the TALK button (B-1) when finished talking.Note:When the TALK button (B-1) is pressed, you can nolonger hear your baby.Monitoring baby silently•Briefly press the Volume – button (B-10) on the parent unitrepeatedly until the volume is switched off completely.> When no sound is detected, all sound-level lights (B-9) willbe off.Other features EN

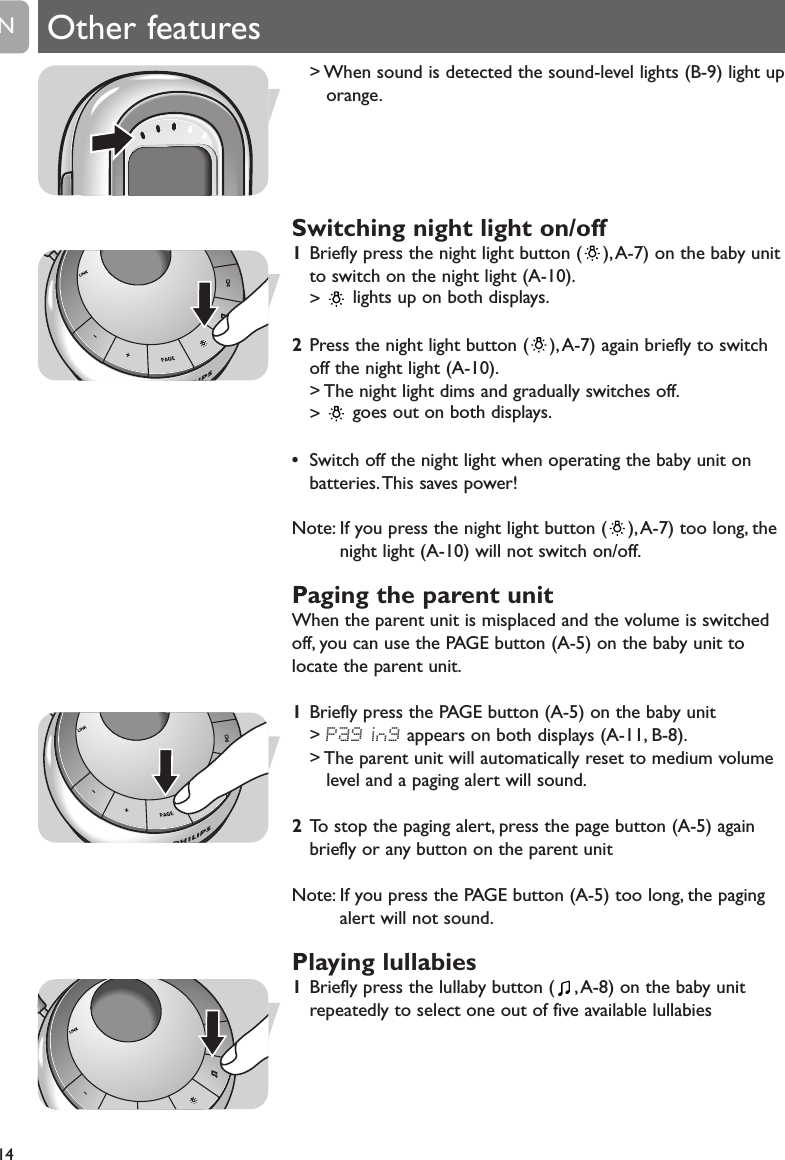

14EN Other features> When sound is detected the sound-level lights (B-9) light uporange.Switching night light on/off 1Briefly press the night light button ( ), A-7) on the baby unitto switch on the night light (A-10).> lights up on both displays.2Press the night light button ( ),A-7) again briefly to switchoff the night light (A-10).> The night light dims and gradually switches off.> goes out on both displays.•Switch off the night light when operating the baby unit onbatteries.This saves power!Note: If you press the night light button ( ),A-7) too long, thenight light (A-10) will not switch on/off.Paging the parent unitWhen the parent unit is misplaced and the volume is switchedoff, you can use the PAGE button (A-5) on the baby unit tolocate the parent unit.1Briefly press the PAGE button (A-5) on the baby unit> Paging appears on both displays (A-11, B-8).> The parent unit will automatically reset to medium volumelevel and a paging alert will sound.2To stop the paging alert, press the page button (A-5) againbriefly or any button on the parent unitNote: If you press the PAGE button (A-5) too long, the pagingalert will not sound.Playing lullabies1Briefly press the lullaby button ( , A-8) on the baby unitrepeatedly to select one out of five available lullabies

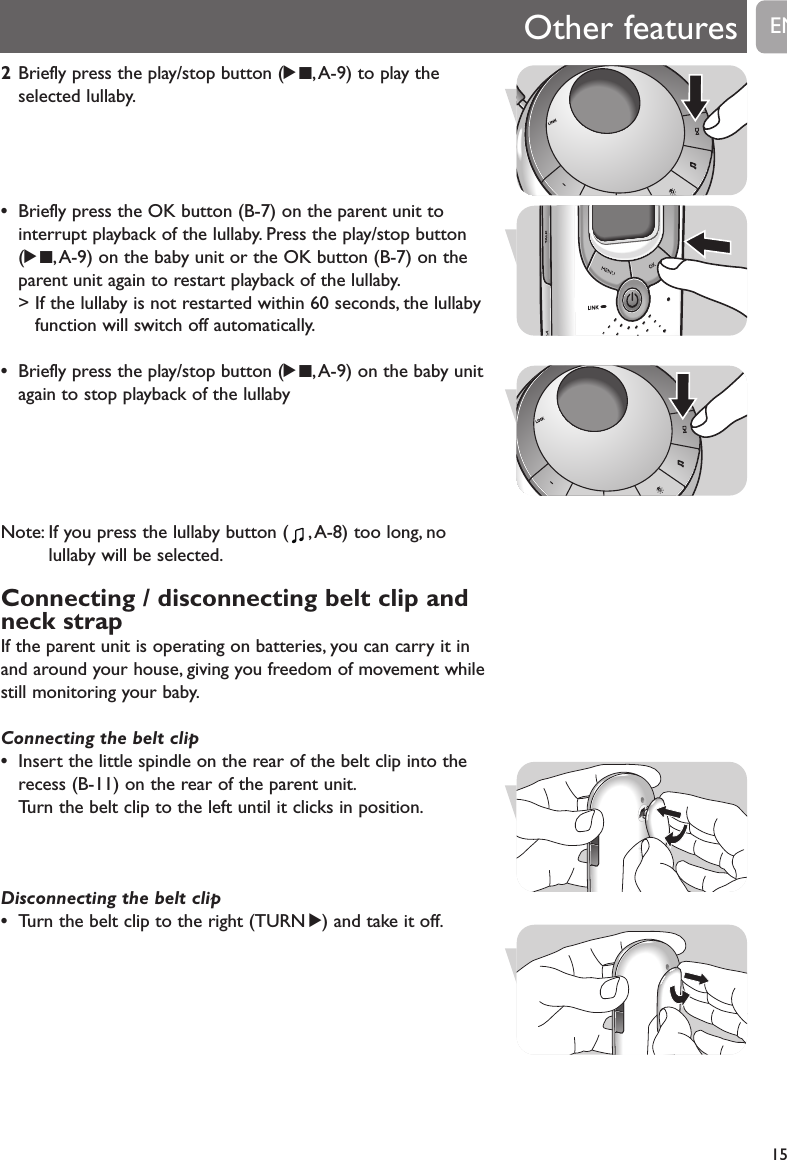

Other features152Briefly press the play/stop button (29,A-9) to play theselected lullaby.•Briefly press the OK button (B-7) on the parent unit tointerrupt playback of the lullaby. Press the play/stop button (29, A-9) on the baby unit or the OK button (B-7) on theparent unit again to restart playback of the lullaby.> If the lullaby is not restarted within 60 seconds, the lullabyfunction will switch off automatically.•Briefly press the play/stop button (29,A-9) on the baby unitagain to stop playback of the lullabyNote: If you press the lullaby button ( ,A-8) too long, nolullaby will be selected.Connecting / disconnecting belt clip andneck strapIf the parent unit is operating on batteries, you can carry it inand around your house, giving you freedom of movement whilestill monitoring your baby.Connecting the belt clip•Insert the little spindle on the rear of the belt clip into therecess (B-11) on the rear of the parent unit.Turn the belt clip to the left until it clicks in position.Disconnecting the belt clip•Turn the belt clip to the right (TURN 2) and take it off.EN

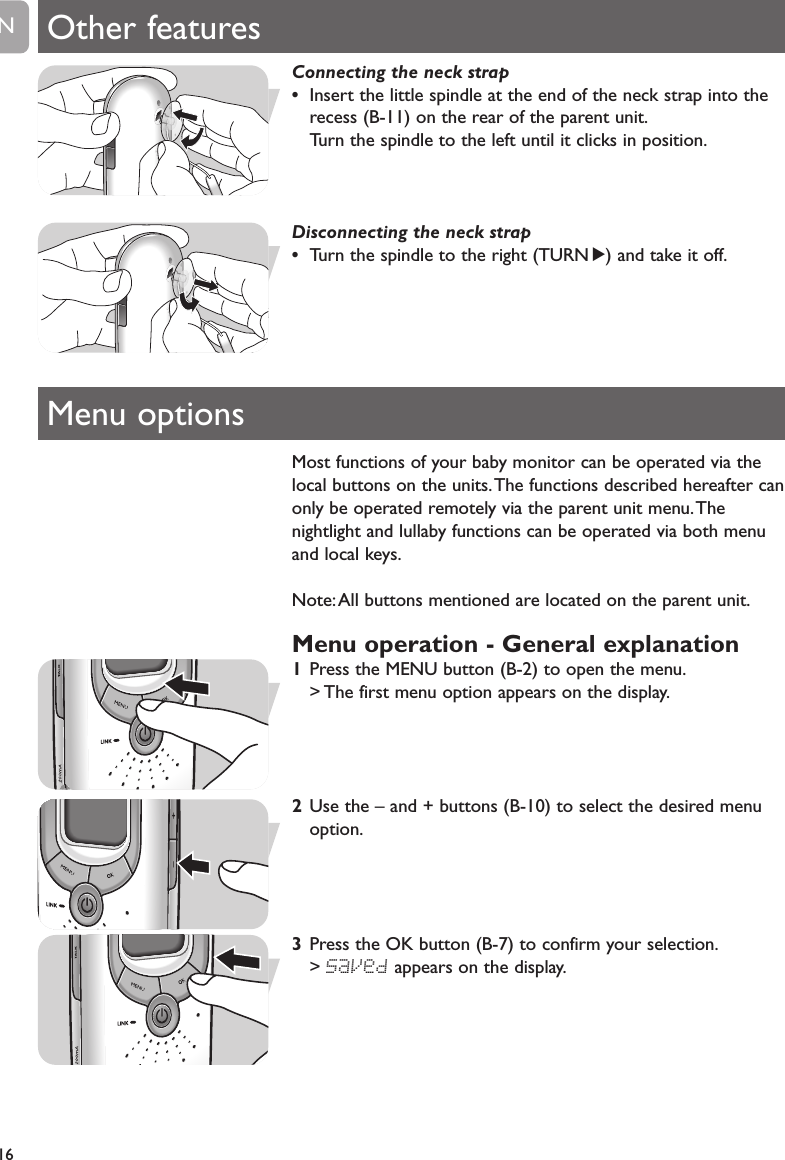

Most functions of your baby monitor can be operated via thelocal buttons on the units.The functions described hereafter canonly be operated remotely via the parent unit menu.Thenightlight and lullaby functions can be operated via both menuand local keys.Note:All buttons mentioned are located on the parent unit.Menu operation - General explanation1Press the MENU button (B-2) to open the menu.> The first menu option appears on the display.2Use the – and + buttons (B-10) to select the desired menuoption.3Press the OK button (B-7) to confirm your selection.> SaVed appears on the display.16EN Other featuresMenu optionsConnecting the neck strap•Insert the little spindle at the end of the neck strap into therecess (B-11) on the rear of the parent unit.Turn the spindle to the left until it clicks in position.Disconnecting the neck strap•Turn the spindle to the right (TURN 2) and take it off.

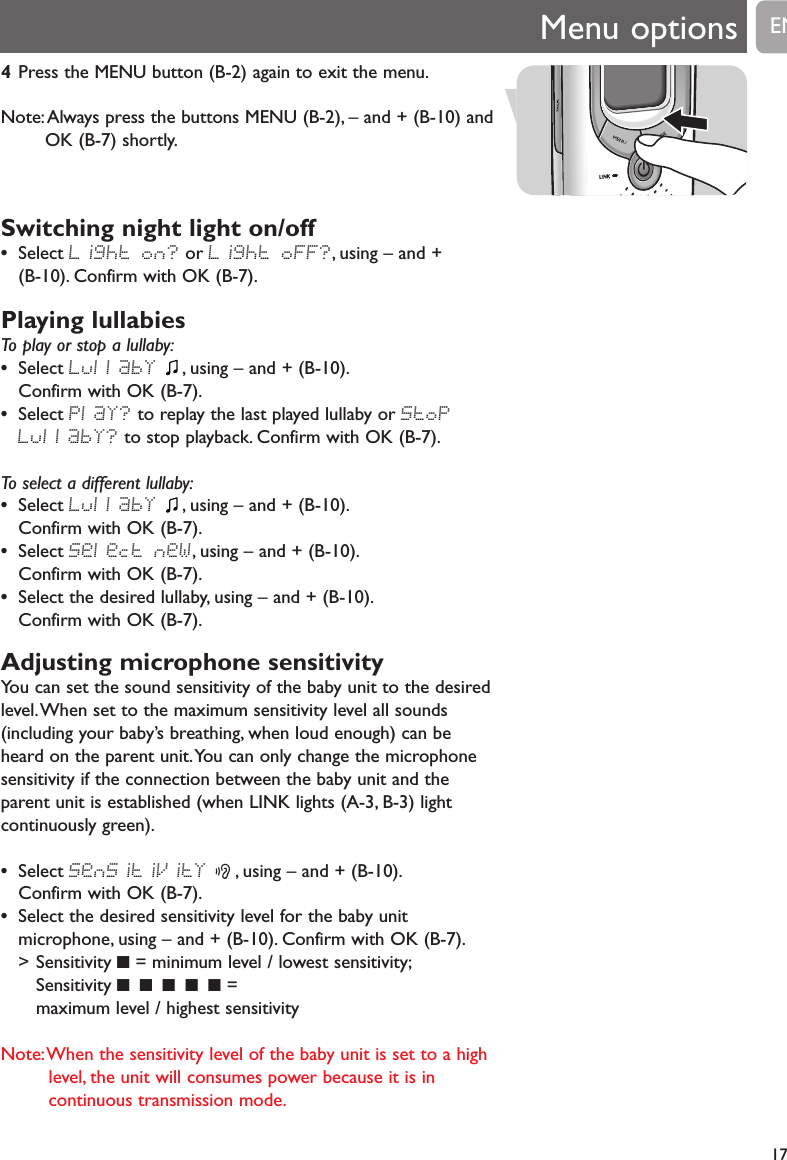

Menu options174Press the MENU button (B-2) again to exit the menu.Note:Always press the buttons MENU (B-2), – and + (B-10) andOK (B-7) shortly.Switching night light on/off •Select Light on? or Light oFF?, using – and + (B-10). Confirm with OK (B-7).Playing lullabiesTo play or stop a lullaby:•Select LullabY , using – and + (B-10).Confirm with OK (B-7).•Select PlaY? to replay the last played lullaby or StoPLullabY? to stop playback. Confirm with OK (B-7).To select a different lullaby:•Select LullabY , using – and + (B-10).Confirm with OK (B-7).•Select Select neW, using – and + (B-10).Confirm with OK (B-7).•Select the desired lullaby, using – and + (B-10).Confirm with OK (B-7).Adjusting microphone sensitivityYou can set the sound sensitivity of the baby unit to the desiredlevel.When set to the maximum sensitivity level all sounds(including your baby’s breathing, when loud enough) can beheard on the parent unit.You can only change the microphonesensitivity if the connection between the baby unit and theparent unit is established (when LINK lights (A-3, B-3) lightcontinuously green).•Select SenSitiVitY , using – and + (B-10).Confirm with OK (B-7).•Select the desired sensitivity level for the baby unitmicrophone, using – and + (B-10). Confirm with OK (B-7).> Sensitivity 9= minimum level / lowest sensitivity;Sensitivity 9 9 9 9 9 = maximum level / highest sensitivityNote:When the sensitivity level of the baby unit is set to a highlevel, the unit will consumes power because it is incontinuous transmission mode.EN

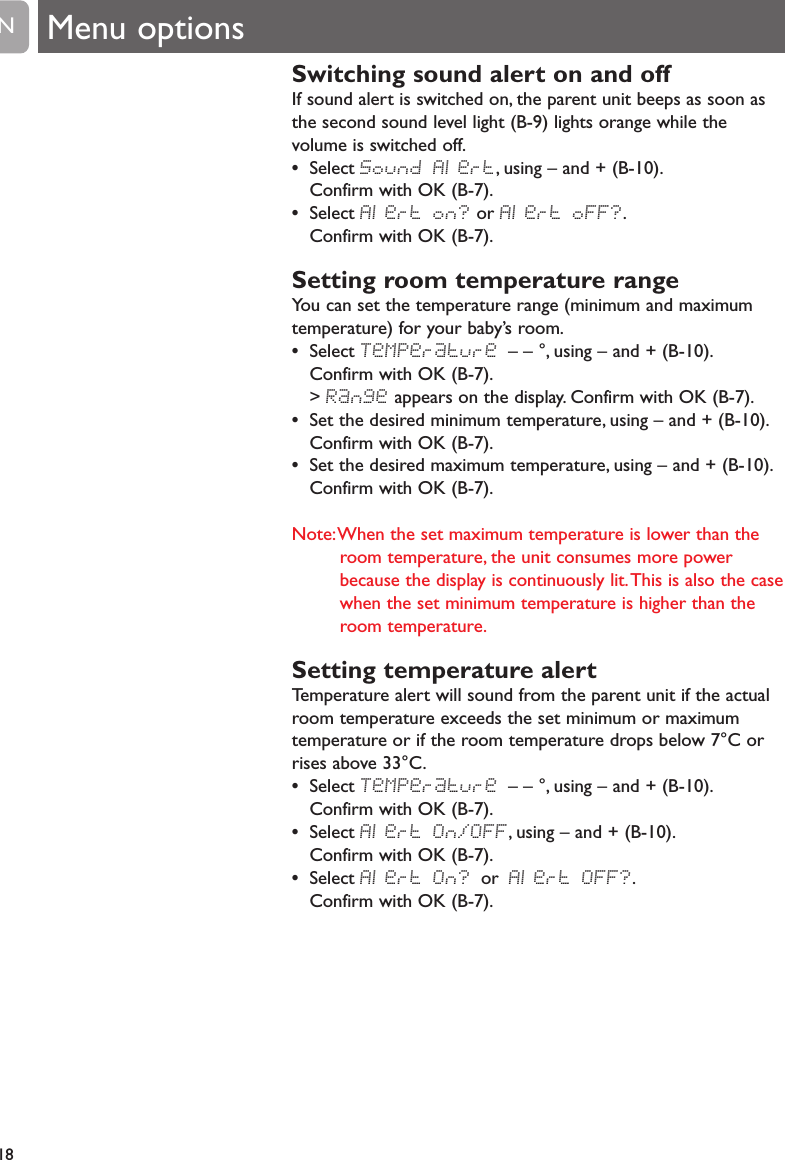

Switching sound alert on and offIf sound alert is switched on, the parent unit beeps as soon asthe second sound level light (B-9) lights orange while thevolume is switched off.•Select Sound Alert, using – and + (B-10).Confirm with OK (B-7).•Select Alert on? or Alert oFF?.Confirm with OK (B-7).Setting room temperature rangeYou can set the temperature range (minimum and maximumtemperature) for your baby’s room.•Select TeMPerature – – °, using – and + (B-10).Confirm with OK (B-7).> Range appears on the display. Confirm with OK (B-7).•Set the desired minimum temperature, using – and + (B-10).Confirm with OK (B-7).•Set the desired maximum temperature, using – and + (B-10).Confirm with OK (B-7).Note:When the set maximum temperature is lower than theroom temperature, the unit consumes more powerbecause the display is continuously lit.This is also the casewhen the set minimum temperature is higher than theroom temperature.Setting temperature alertTemperature alert will sound from the parent unit if the actualroom temperature exceeds the set minimum or maximumtemperature or if the room temperature drops below 7°C orrises above 33°C.•Select TeMPerature – – °, using – and + (B-10).Confirm with OK (B-7).•Select Alert On/OFF, using – and + (B-10).Confirm with OK (B-7).•Select Alert On? or Alert OFF?.Confirm with OK (B-7).18EN Menu options

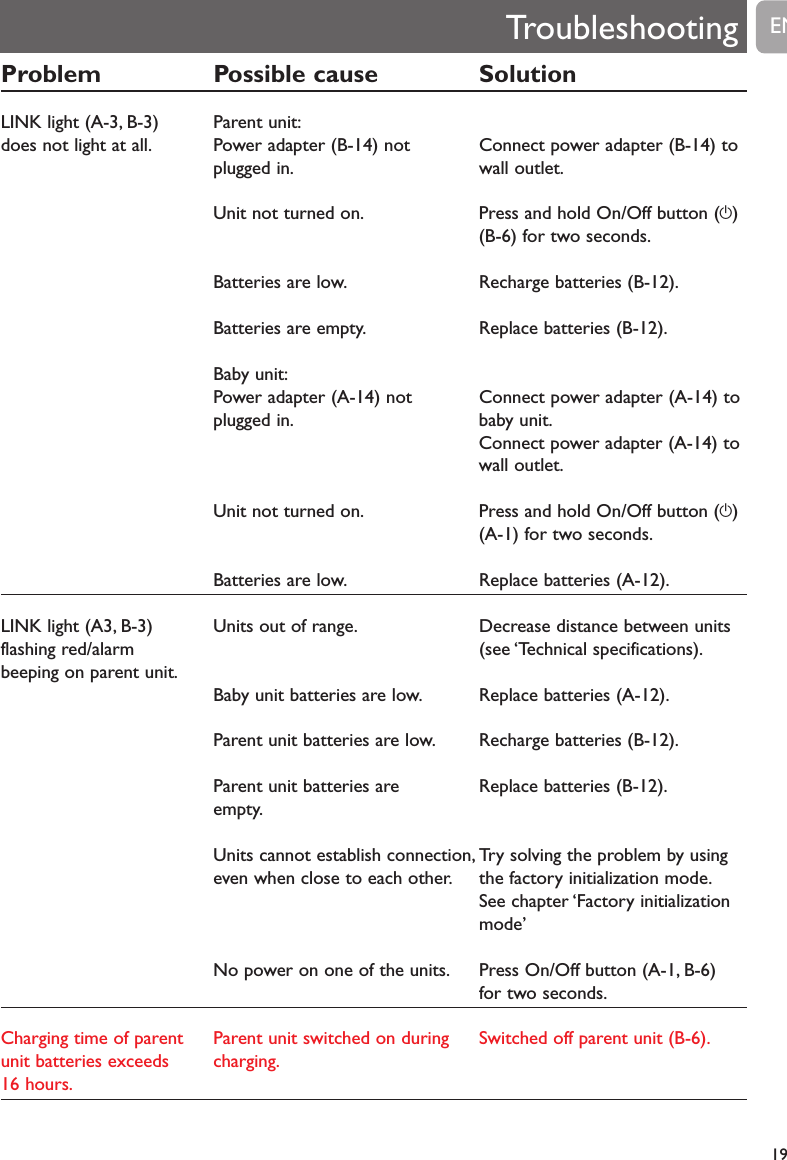

Troubleshooting19Problem Possible cause SolutionLINK light (A-3, B-3) Parent unit:does not light at all. Power adapter (B-14) not Connect power adapter (B-14) toplugged in. wall outlet.Unit not turned on. Press and hold On/Off button (y)(B-6) for two seconds.Batteries are low. Recharge batteries (B-12).Batteries are empty. Replace batteries (B-12).Baby unit:Power adapter (A-14) not Connect power adapter (A-14) toplugged in. baby unit.Connect power adapter (A-14) towall outlet.Unit not turned on. Press and hold On/Off button (y)(A-1) for two seconds.Batteries are low. Replace batteries (A-12).LINK light (A3, B-3) Units out of range. Decrease distance between unitsflashing red/alarm (see ‘Technical specifications).beeping on parent unit.Baby unit batteries are low. Replace batteries (A-12).Parent unit batteries are low. Recharge batteries (B-12).Parent unit batteries are Replace batteries (B-12).empty.Units cannot establish connection, Try solving the problem by usingeven when close to each other. the factory initialization mode.See chapter ‘Factory initializationmode’No power on one of the units. Press On/Off button (A-1, B-6)for two seconds.Charging time of parent Parent unit switched on during Switched off parent unit (B-6).unit batteries exceeds charging.16 hours.EN

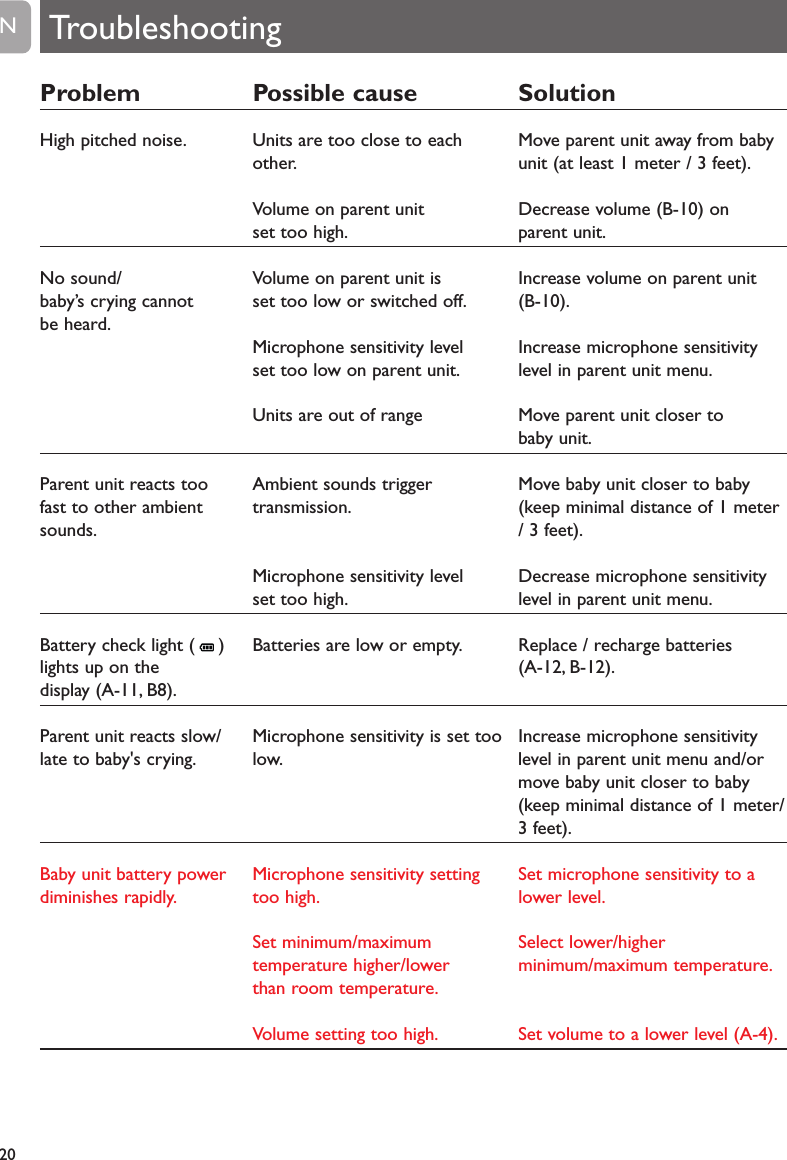

Problem Possible cause SolutionHigh pitched noise. Units are too close to each Move parent unit away from babyother. unit (at least 1 meter / 3 feet).Volume on parent unit Decrease volume (B-10) onset too high. parent unit.No sound/ Volume on parent unit is Increase volume on parent unitbaby’s crying cannot set too low or switched off. (B-10).be heard.Microphone sensitivity level Increase microphone sensitivityset too low on parent unit. level in parent unit menu.Units are out of range Move parent unit closer tobaby unit.Parent unit reacts too Ambient sounds trigger Move baby unit closer to baby fast to other ambient transmission. (keep minimal distance of 1 metersounds. / 3 feet).Microphone sensitivity level Decrease microphone sensitivity set too high. level in parent unit menu.Battery check light ( ) Batteries are low or empty. Replace / recharge batterieslights up on the (A-12, B-12).display (A-11, B8).Parent unit reacts slow/ Microphone sensitivity is set too Increase microphone sensitivity late to baby's crying. low. level in parent unit menu and/ormove baby unit closer to baby(keep minimal distance of 1 meter/3 feet).Baby unit battery power Microphone sensitivity setting Set microphone sensitivity to adiminishes rapidly. too high. lower level.Set minimum/maximum Select lower/highertemperature higher/lower minimum/maximum temperature.than room temperature.Volume setting too high. Set volume to a lower level (A-4).20EN Troubleshooting

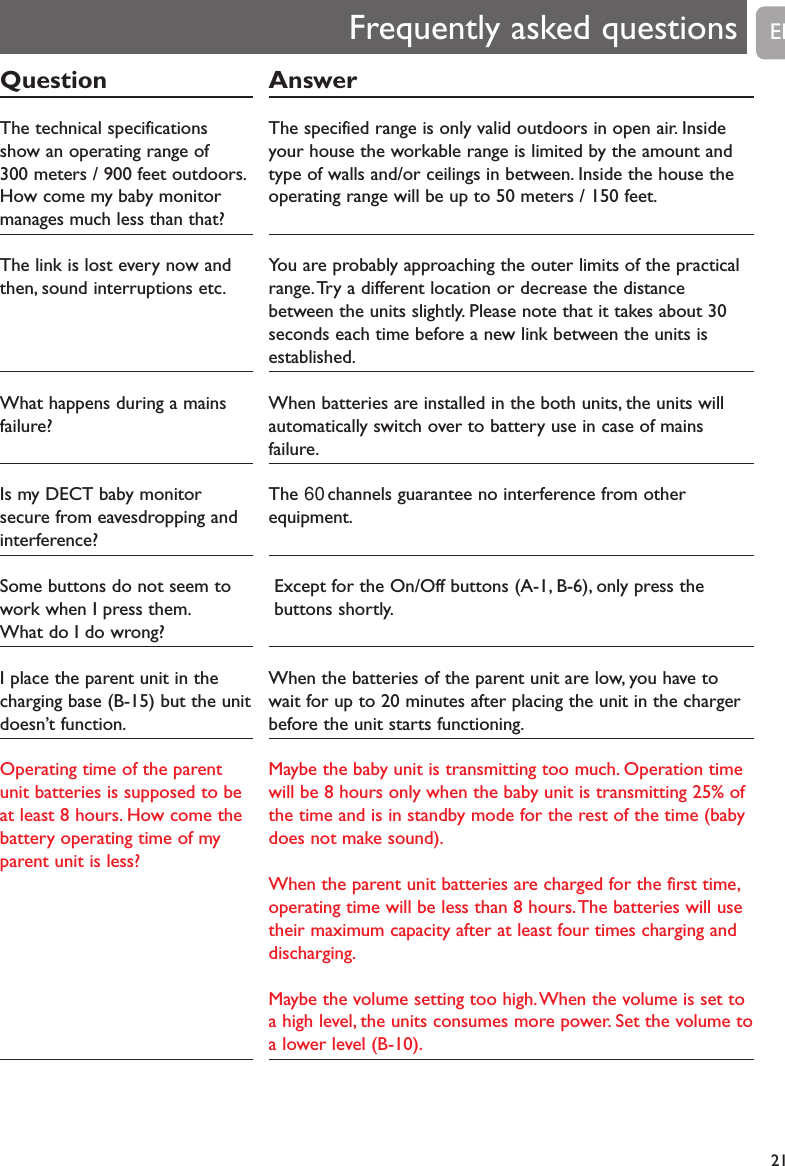

QuestionThe technical specificationsshow an operating range of 300 meters / 900 feet outdoors.How come my baby monitormanages much less than that?The link is lost every now andthen, sound interruptions etc.What happens during a mainsfailure?Is my DECT baby monitorsecure from eavesdropping andinterference?Some buttons do not seem towork when I press them.What do I do wrong?I place the parent unit in thecharging base (B-15) but the unitdoesn’t function.Operating time of the parentunit batteries is supposed to beat least 8 hours. How come thebattery operating time of myparent unit is less?Frequently asked questions21AnswerThe specified range is only valid outdoors in open air. Insideyour house the workable range is limited by the amount andtype of walls and/or ceilings in between. Inside the house theoperating range will be up to 50 meters / 150 feet.You are probably approaching the outer limits of the practicalrange.Try a different location or decrease the distancebetween the units slightly. Please note that it takes about 30seconds each time before a new link between the units isestablished.When batteries are installed in the both units, the units willautomatically switch over to battery use in case of mainsfailure.The 60 channels guarantee no interference from otherequipment.Except for the On/Off buttons (A-1, B-6), only press thebuttons shortly.When the batteries of the parent unit are low, you have towait for up to 20 minutes after placing the unit in the chargerbefore the unit starts functioning.Maybe the baby unit is transmitting too much. Operation timewill be 8 hours only when the baby unit is transmitting 25% ofthe time and is in standby mode for the rest of the time (babydoes not make sound).When the parent unit batteries are charged for the first time,operating time will be less than 8 hours.The batteries will usetheir maximum capacity after at least four times charging anddischarging.Maybe the volume setting too high.When the volume is set toa high level, the units consumes more power. Set the volume toa lower level (B-10).EN

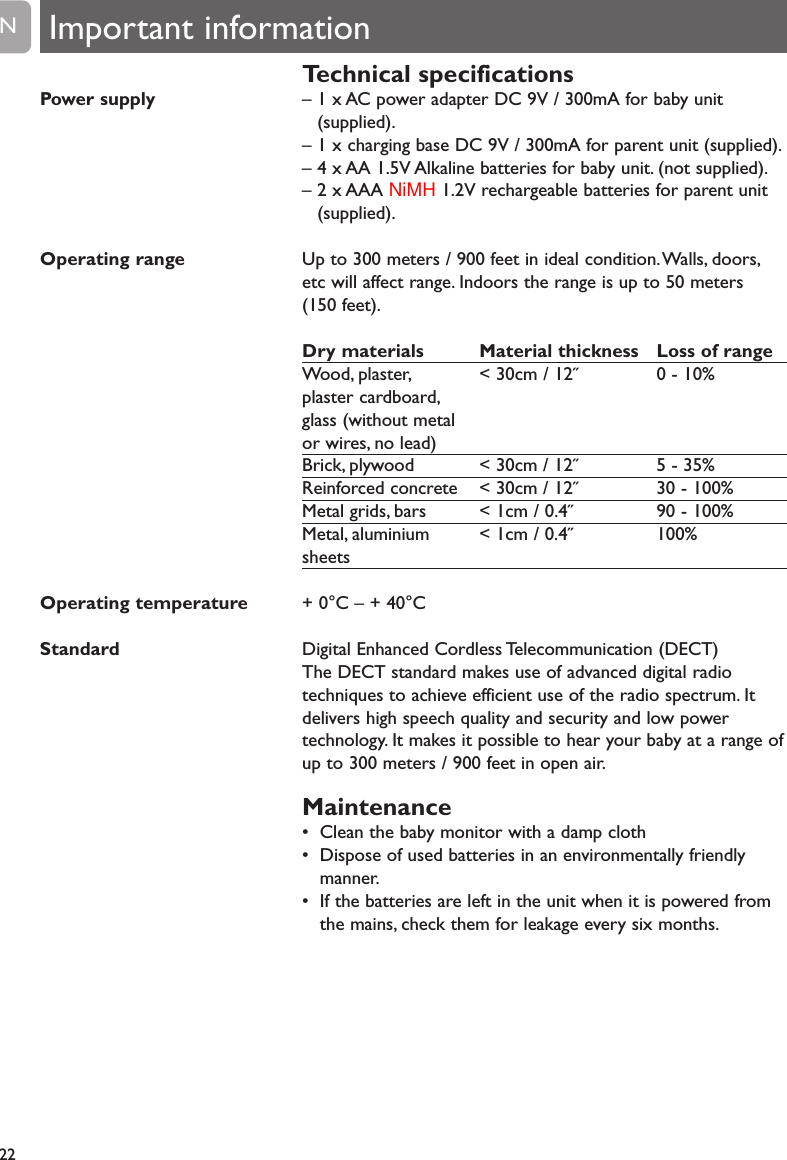

Technical specifications– 1 x AC power adapter DC 9V / 300mA for baby unit(supplied).– 1 x charging base DC 9V / 300mA for parent unit (supplied).– 4 x AA 1.5V Alkaline batteries for baby unit. (not supplied).– 2 x AAA NiMH 1.2V rechargeable batteries for parent unit(supplied).Up to 300 meters / 900 feet in ideal condition.Walls, doors,etc will affect range. Indoors the range is up to 50 meters(150 feet).Dry materials Material thickness Loss of rangeWood, plaster, < 30cm / 12˝ 0 - 10%plaster cardboard,glass (without metalor wires, no lead)Brick, plywood < 30cm / 12˝ 5 - 35%Reinforced concrete < 30cm / 12˝ 30 - 100%Metal grids, bars < 1cm / 0.4˝ 90 - 100%Metal, aluminium < 1cm / 0.4˝ 100%sheets+ 0°C – + 40°CDigital Enhanced Cordless Telecommunication (DECT)The DECT standard makes use of advanced digital radiotechniques to achieve efficient use of the radio spectrum. Itdelivers high speech quality and security and low powertechnology. It makes it possible to hear your baby at a range ofup to 300 meters / 900 feet in open air.Maintenance• Clean the baby monitor with a damp cloth• Dispose of used batteries in an environmentally friendlymanner.• If the batteries are left in the unit when it is powered fromthe mains, check them for leakage every six months.22ENPower supplyOperating rangeOperating temperatureStandardImportant information

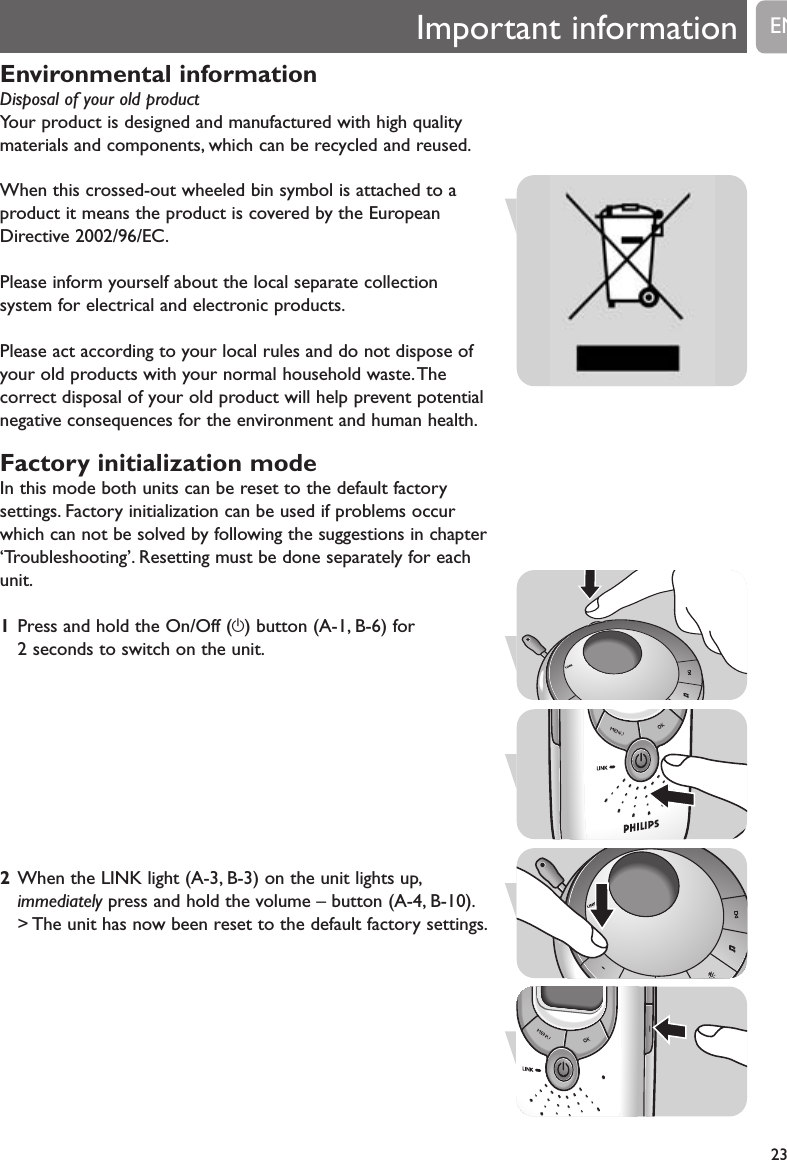

Environmental informationDisposal of your old product Your product is designed and manufactured with high qualitymaterials and components, which can be recycled and reused.When this crossed-out wheeled bin symbol is attached to aproduct it means the product is covered by the EuropeanDirective 2002/96/EC.Please inform yourself about the local separate collectionsystem for electrical and electronic products.Please act according to your local rules and do not dispose ofyour old products with your normal household waste.Thecorrect disposal of your old product will help prevent potentialnegative consequences for the environment and human health.Factory initialization modeIn this mode both units can be reset to the default factorysettings. Factory initialization can be used if problems occurwhich can not be solved by following the suggestions in chapter‘Troubleshooting’. Resetting must be done separately for eachunit.1Press and hold the On/Off (y) button (A-1, B-6) for 2 seconds to switch on the unit.2When the LINK light (A-3, B-3) on the unit lights up,immediately press and hold the volume – button (A-4, B-10).> The unit has now been reset to the default factory settings.Important information23EN

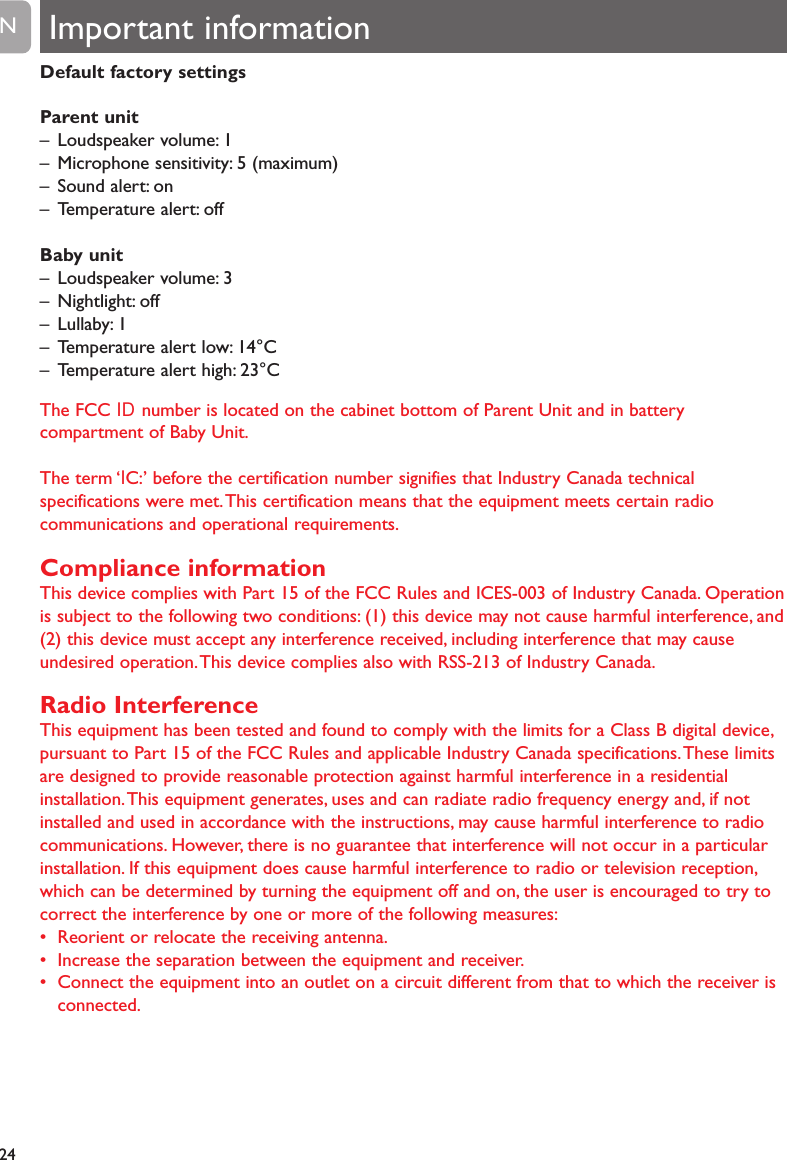

Default factory settingsParent unit– Loudspeaker volume: 1– Microphone sensitivity: 5 (maximum)– Sound alert: on– Temperature alert: offBaby unit– Loudspeaker volume: 3– Nightlight: off– Lullaby: 1– Temperature alert low: 14°C– Temperature alert high: 23°CThe FCC ID number is located on the cabinet bottom of Parent Unit and in batterycompartment of Baby Unit.The term ‘IC:’ before the certification number signifies that Industry Canada technicalspecifications were met.This certification means that the equipment meets certain radiocommunications and operational requirements.Compliance informationThis device complies with Part 15 of the FCC Rules and ICES-003 of Industry Canada. Operationis subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation.This device complies also with RSS-213 of Industry Canada.Radio InterferenceThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules and applicable Industry Canada specifications.These limitsare designed to provide reasonable protection against harmful interference in a residentialinstallation.This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.24EN Important information

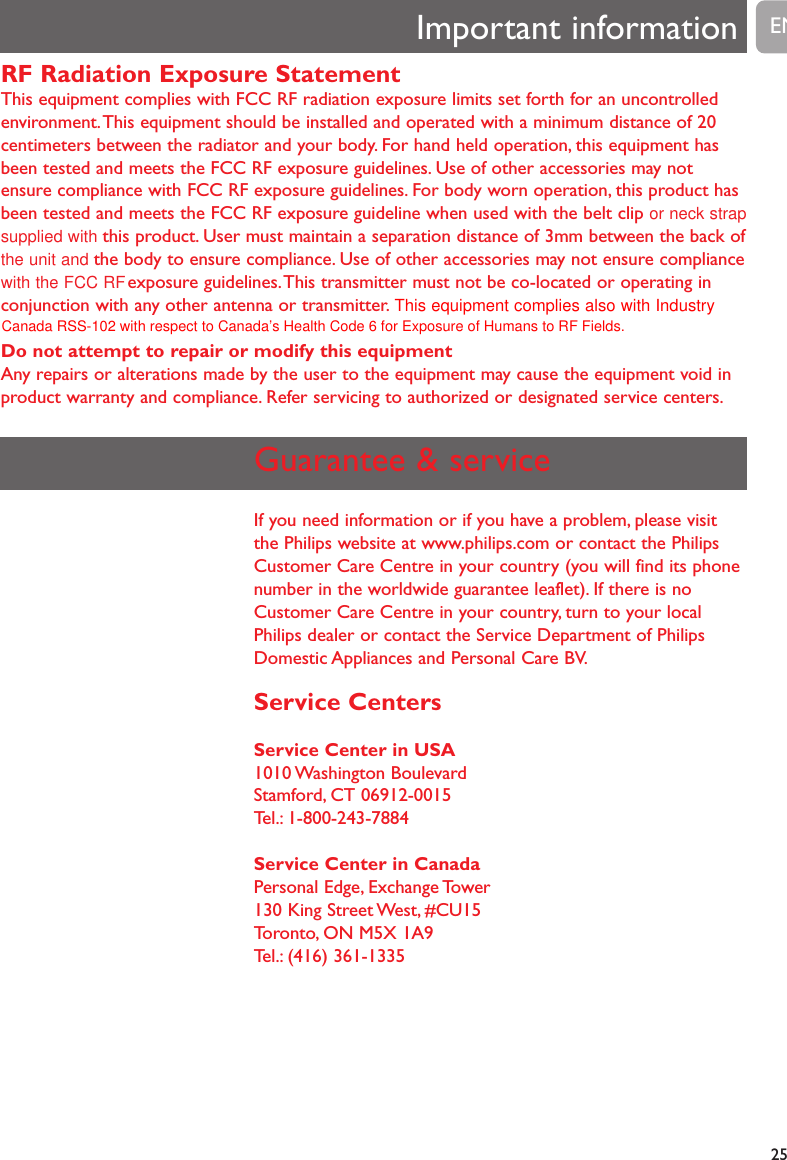

25RF Radiation Exposure StatementThis equipment complies with FCC RF radiation exposure limits set forth for an uncontrolledenvironment.This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. For hand held operation, this equipment hasbeen tested and meets the FCC RF exposure guidelines. Use of other accessories may notensure compliance with FCC RF exposure guidelines. For body worn operation, this product hasbeen tested and meets the FCC RF exposure guideline when used with the belt clip or neck strapsupplied with this product. User must maintain a separation distance of 3mm between the back ofthe unit and the body to ensure compliance. Use of other accessories may not ensure compliancewith the FCC RF exposure guidelines.This transmitter must not be co-located or operating inconjunction with any other antenna or transmitter. This equipment complies also with IndustryDo not attempt to repair or modify this equipmentAny repairs or alterations made by the user to the equipment may cause the equipment void inproduct warranty and compliance. Refer servicing to authorized or designated service centers.Important information ENGuarantee & serviceIf you need information or if you have a problem, please visitthe Philips website at www.philips.com or contact the PhilipsCustomer Care Centre in your country (you will find its phonenumber in the worldwide guarantee leaflet). If there is noCustomer Care Centre in your country, turn to your localPhilips dealer or contact the Service Department of PhilipsDomestic Appliances and Personal Care BV.Service CentersService Center in USA1010 Washington BoulevardStamford, CT 06912-0015Tel.: 1-800-243-7884Service Center in CanadaPersonal Edge, Exchange Tower130 King Street West, #CU15Toronto, ON M5X 1A9Tel.: (416) 361-1335Canada RSS-102 with respect to Canada’s Health Code 6 for Exposure of Humans to RF Fields.
