SG 2520 User Manual HTML Version

User Manual

Contents

FCC SAR Compliance Statement 1

FCC RF Interference Statement 3

For your safety 4

Battery Information 5

Taking Care of your Thuraya Mobile Phone 5

Certification information (SAR) 6

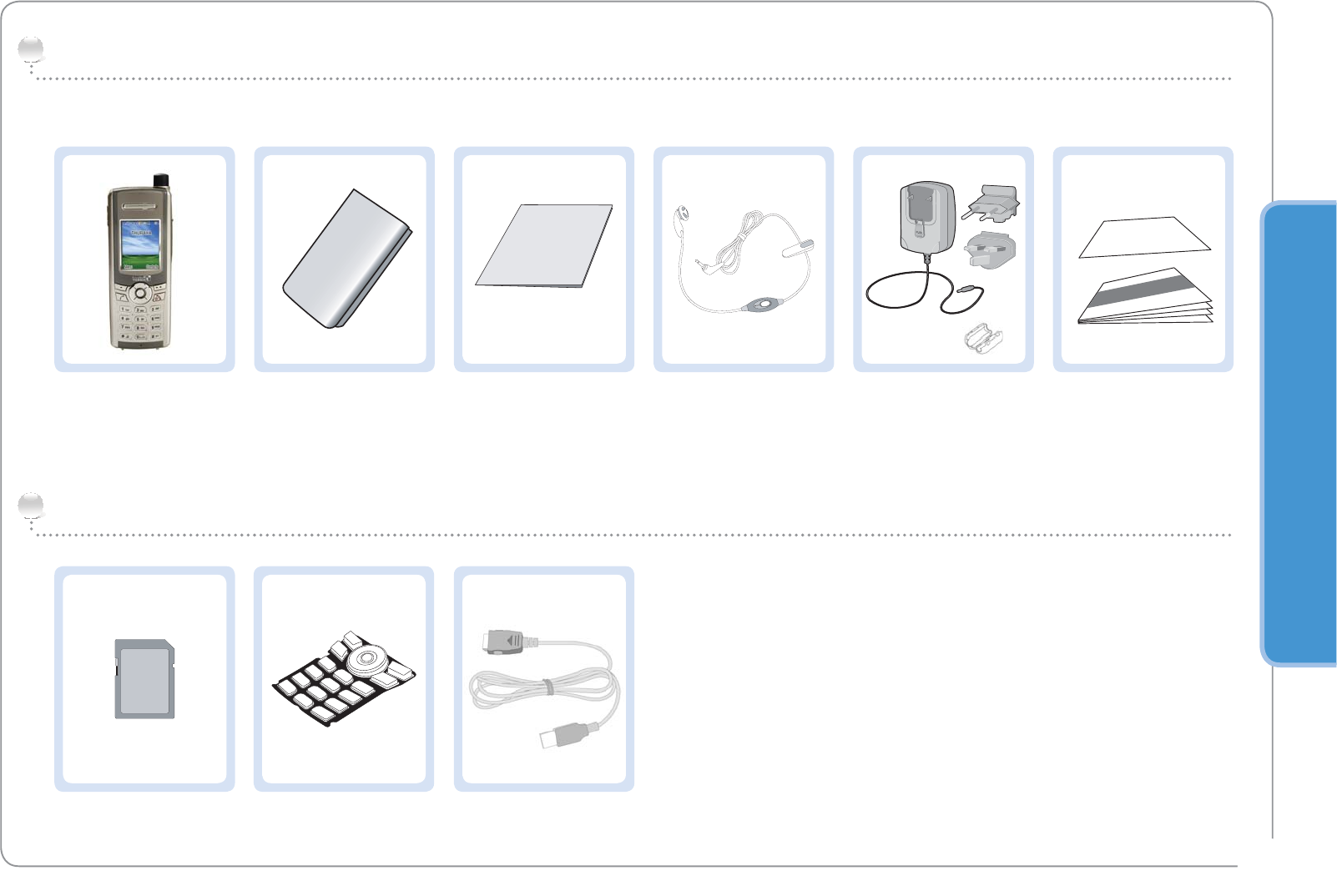

SG-2520 Unpacking 7

SG-2520 Accessories 7

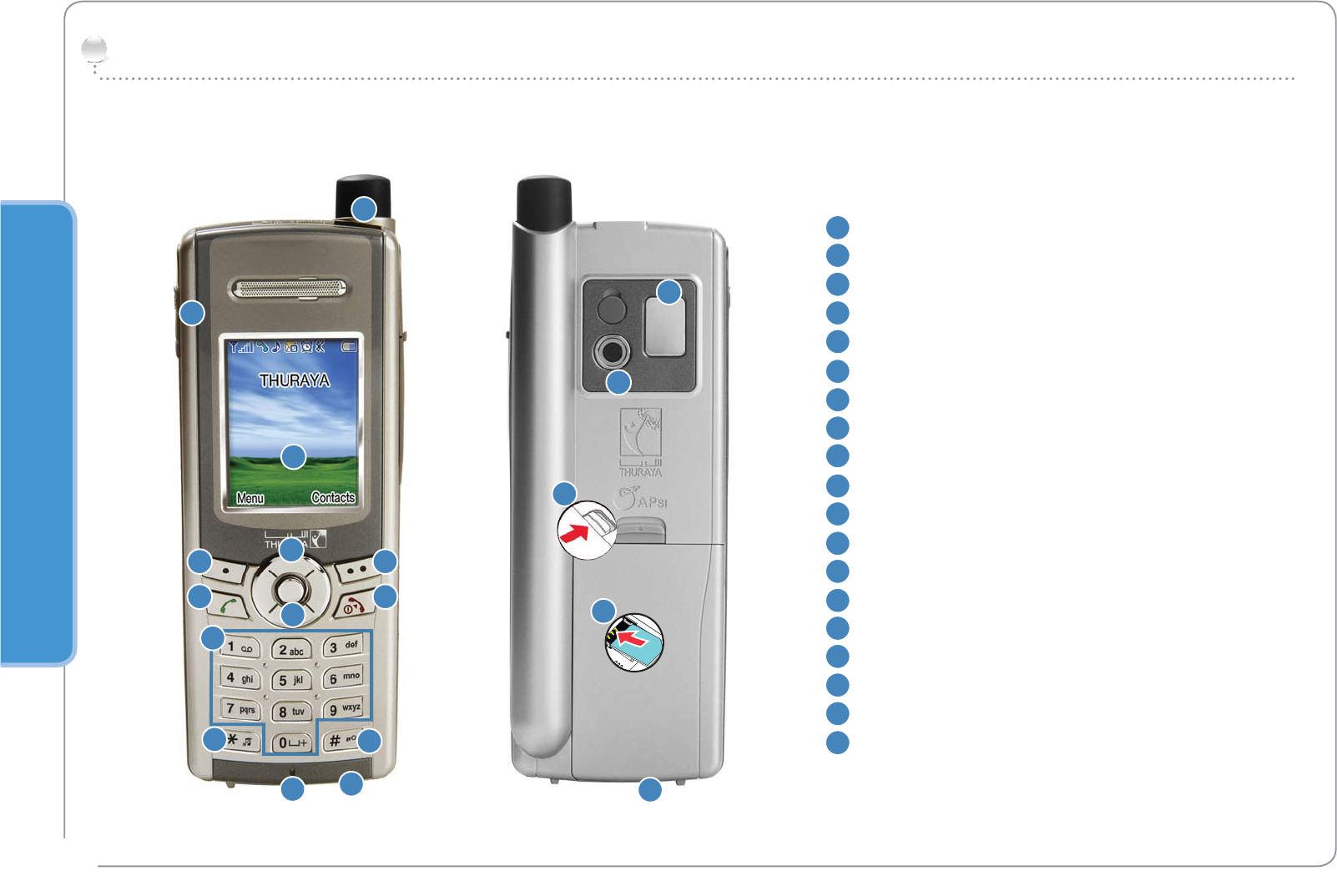

Your SG-2520 8

The function of the keys 9

SG-2520 01 Before you start

Introduction 10

HPA (High-Penetration Alerting) 11

Initial steps

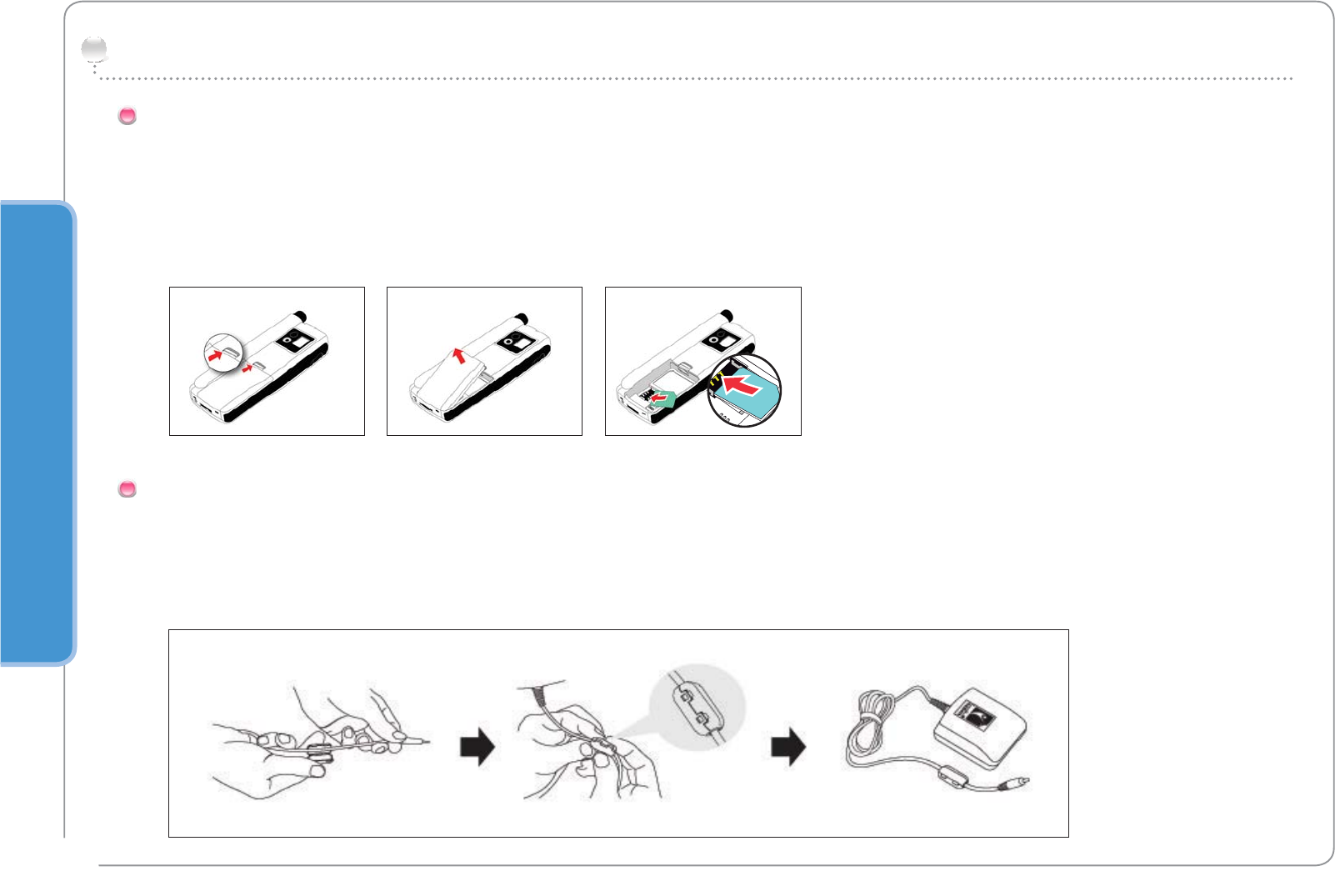

Inserting SIM card 12

Attaching the ferrite core 12

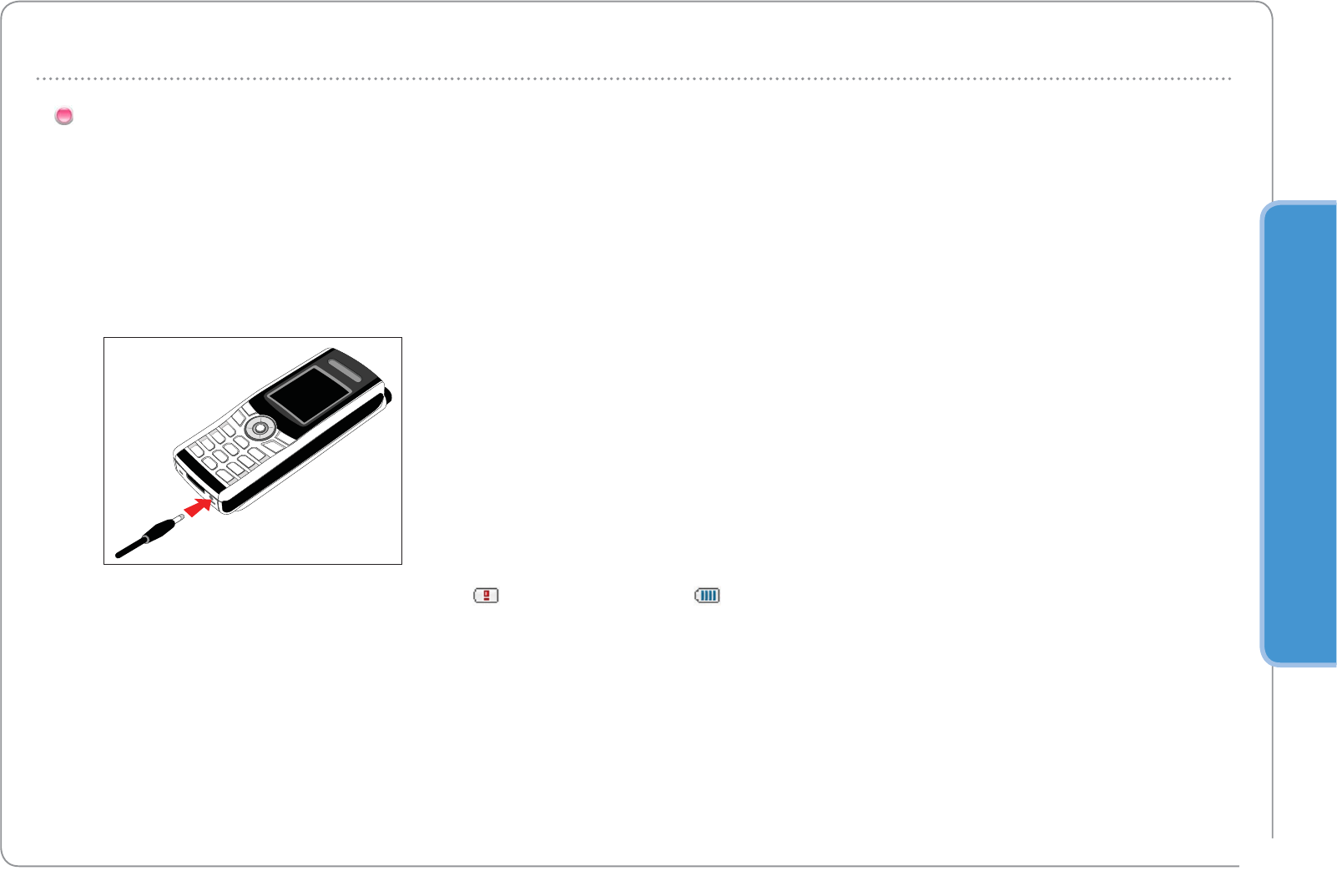

Connect the charger and charge the battery 13

Switch the mobile phone ON / OFF 14

Enter your PIN 14

Emergency call (SOS) 15

Setup Wizard 16

Lock/Unlock in Idle Screen 16

Display

Display layout 17

Display symbols 18

Using softkey and menu 19

Softkey action 19

Menu navigation 20

Quick access 21

Step back one menu level 22

Exit the menu 22

Making and receiving call

Dial using the keypad 23

Receiving a call 24

Silent a call 25

High-Penetration Alerting 26

Options during call 27

Handling more than one call simultaneously 27

New Message

Select mode 29

Edit mode 29

Change Input mode 30

Input symbol 31

Input number 33

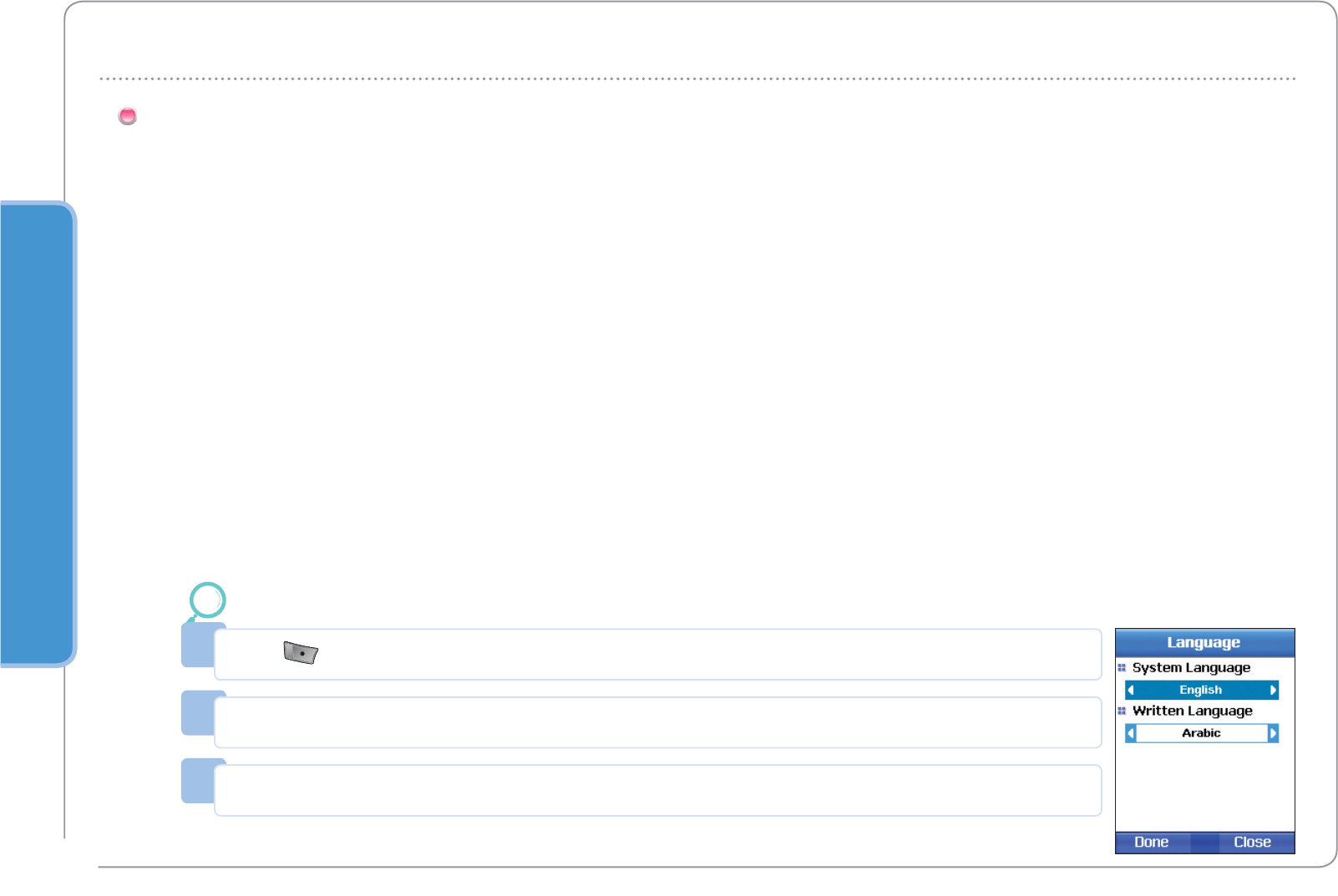

Change language 34

eZitxt ON / OFF 35

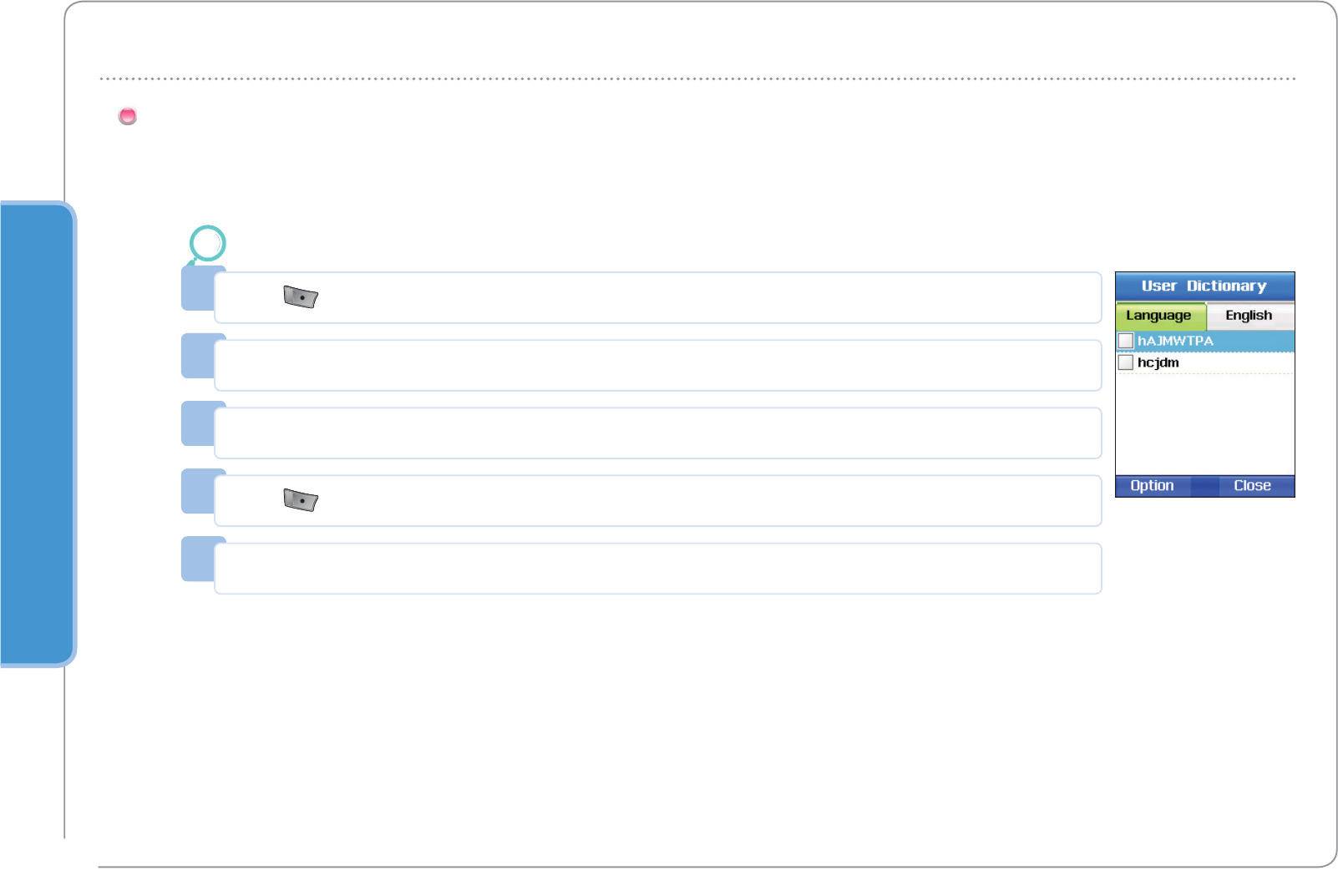

Dictionary 36

To clear text 38

SG-2520 02 Getting started

1. Media center

1.1. Image box 54

1.2. Sound box 54

1.3. Video box 55

1.4. MP3 box 55

1.5. Memory status 57

2. Contacts

2.1. Contact list 59

2.1.1 Contact list 59

2.1.2 Contact group list 62

2.1.3 Message group list 63

2.2. Special list 64

2.3. Speed dial 64

2.4. SIM Contacts 65

2.5. My info 65

2.6. Helper 66

3. Organizer 67

3.1. Monthly schedule 70

3.2. Weekly schedule 72

3.3. Daily schedule 72

3.4. Alarm 73

3.5. Planner 74

3.6. Note 75

4. Navigation 76

4.1. Current position 76

4.2. Continues position 76

4.3. Way point 78

4.4. Route 79

4.5. Location track 80

4.6. Settings 81

4.7. Qiblah & Prayer 83

5. Messaging

5.1. New 84

5.1.1. New (SMS) 84

5.1.2. New (MMS) 87

5.1.3. New (Email) 89

5.2. Inbox 91

5.2.1. Inbox (SMS) 92

5.2.2. Inbox (MMS) 94

5.2.3. Inbox (Email) 96

5.2.4. Inbox (Cell Broadcast) 98

5.2.5. Inbox (Spam message) 98

5.3. Drafts 99

5.4. Sent 99

5.5. Unsent 100

5.6. Reports 100

5.7. SIM messages 101

5.8. Settings 102

5.8.1. SMS 102

5.8.2. MMS 103

5.8.3. Email 106

5.8.4. Cell broadcast 108

5.8.5. Spam message 109

6. Network 110

6.1. SAT registration 110

SG-2520 03 Using the menu

6.2. System preference 111

6.3. Search mode 112

6.4. Preferred list 113

7. Call log 114

7.1. Voice 114

7.1.1. Call history 114

7.1.2. Received calls 114

7.1.3. Dialed calls 114

7.1.4. Missed calls 115

7.2. Packet data 116

7.3. Durations 116

7.4. Cost 117

7.5. Settings 118

8. Camera 119

8.1. Still Capture 119

8.2. Video Capture 121

8.3. Image box 124

8.4. Video box 124

8.5. Setting 125

9. Connectivity 126

9.1. IrDA 126

9.1.1. Receive mode 126

9.1.2. IrDA send 126

9.2. Bluetooth 127

9.3. FTP 129

9.3.1. FTP server 129

9.3.2. FTP connect 129

9.4. Web browser 130

9.4.1. Features 131

9.4.2. Browsing 132

9.4.3. Favorites 133

9.4.4. Settings 135

9.4.4.1. New Connection Profile 137

9.5. Received file 138

10. Setting 139

10.1. Profile 139

10.2. Phone 140

10.2.1. Wallpaper 141

10.2.2. Screen saver 141

10.2.3. Menu style 142

10.2.4. Greeting message 142

10.2.5. Theme 143

10.2.6. LCD adjust 143

10.3. Calls 144

10.3.1. Voice calls 144

10.3.2. Call diverts 145

10.3.3. Call barrings 146

10.3.4. Call waitings 147

10.3.5. External device 147

10.3.6. Cost 148

10.3.7. Send my caller ID 148

10.4. Shortcut 149

10.4.1. Favorite key 149

10.4.2. My menu 150

10.5. Access point 151

10.6. Security 156

10.6.1. Security settings 156

10.6.2. Change codes 157

10.6.3. Fixed dialing 159

10.6.4. Closed user group 160

10.7. Language 161

10.7.1. Language 161

10.7.2. Auto text 162

10.7.3. Dictionary 162

10.8. System 163

10.8.1. System version 163

10.8.2. Time & Date format 163

10.8.3. Setup wizard 163

10.8.4. Default memory 164

10.8.5. External connect 164

10.8.6. Connect speed 164

10.8.7. Soft reset 164

10.8.8. Factory reset 164

11. Extra

11.1. Calculator 165

11.2. Converter 166

11.3. Voice Recorder 168

11.4. Stop watch 171

11.5. Timer 172

11.6. Lullaby 172

11.7. World time 173

12. Application 174

12.1. Games 174

12.2. User program (Java) 175

12.2.1. About the JAM icon 175

12.2.2. Java Application Installation 175

12.2.3. Getting to Know the Java

Appication Manager(JAM) 177

12.3. Memory manager 180

12.4. File browser 181

12.5. SIM tool 188

SG-2520 03 Using the menu

SG-2520 04 Additional

Troubleshooting 190

Quick access codes 191

Access codes 198

Security code 198

PIN & PUK 198

PIN2 & PUK2 198

Barring code 198

Limited Warranty 199

Before you start

The Federal Communications Commission (FCC) has adopted a safety standard for human exposure to Radio Frequency

(RF) electromagnetic energy emitted by FCC-certified equipment. This wireless mobile phone has been evaluated under FCC

Bulletin OET 65C (01-01) and found to be compliant to the requirements of uncontrolled environmental limits as set forth in

CFR 47 Sections 2.1091, 2.1093 addressing RF Exposure from radio frequency devices when operated in accordance with

the operation guidelines described in this manual. Proper operation of this radio device according to the instructions in this

publication will result in user exposure substantially below the FCC recommended limits.

Your wireless phone SG-2520 is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission

limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The

guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough

evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons,

regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC

with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at

the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is

because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network.

In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit

established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (for

example, at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone as

reported to the FCC when tested for use at the ear is 0.32 W/kg (For SAT operations, this mobile phone can not be used in a body

worn position because in this position the phone can not properly receive and transmit the satellite signal and the operation is not

practicable). The body-worn operation is restricted to GSM/BT operations only.

FCC SAR Compliance Statement

Before you start

This phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal

and that positions the handset a minimum of 15 mm from the body. Use of other accessories may not ensure compliance with

FCC RF exposure guidelines.

Highest reported SAR value for Body-worn is: 0.65 W/kg

While there may be differences between the SAR levels of various phones and at various positions, they all meet the government

requirement.

The FCC has granted an Equipment Authorization for this wireless mobile phone with all reported SAR levels evaluated as in

compliance with the FCC RF exposure guidelines. SAR information on this phone is on file with the FCC and can be found

under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:TZ5SG-2520.

In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged

over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public

and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and

the network band.

Before you start

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the

FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used

in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not

occur.

If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase separation between the equipment and receiver.

Connect the equipment to an outlet on a circuit different from which the receiver is connected.

Consult the dealer or an experienced radio/TV technician.

Caution

This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful

interference unless the modifications are expressly approved in the instruction manual.

The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RoHS

This product is in compliance with EU RoHS Directives and manufactured using lead-free solder paste and parts.

•

FCC RF Interference Statement

Before you start

Read these simple guidelines they will help you get the most out of your Thuraya Phone.

For more detailed explanations please refer to the complete user guide.

For your safety

SWITCH ON SAFELY

Do not switch the phone on when wireless phone use is

prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws.

Always keep your hands free to operate the vehicle while

driving.

Your first consideration while driving should be road safety.

SWITCH OFF IN HOSPITALS

Follow any restrictions.

Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT

Follow any restrictions.

Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELING

Do not use the phone at a refueling point.

Do not use near fuel or chemicals.

SWITCH OFF NEAR BLASTING

Follow any restrictions.

Do not use the phone where blasting is in progress.

Please read carefully and make yourself familiar with the safety measures and user instructions in this Manual before you

start to use your SG-2520. Thuraya is always improving the user interface to ensure the user has the best experience.

Before you start

Use only Thuraya approved battery pack and Thuraya approved chargers for your phone.

Do not short-circuit the battery. Short-circuiting the terminals may damage the battery or the connecting object.

Do not expose to high temperatures.

Please dispose the battery in accordance with local regulations.

•

Battery Information

Your device is a product of superior design and craftsmanship and should be treated with care.

The suggestions below will help you protect your warranty coverage.

Keep the device dry. Liquids or moisture can contain minerals that will damage electronic circuits.

If your device does get wet, remove the battery and allow the device to dry completely before replacing it.

Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.

Do not store the device in hot areas. High temperatures can shorten the life of electronic devices and damage batteries.

Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device

and damage electronic circuit boards.

Do not attempt to open the device other than as instructed in this guide.

Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.

Use only the supplied or an approved replacement antenna.

Unauthorized antennas, modifications, or attachments could damage the device and may violate regulations governing radio devices.

Always create a backup of data you want to keep (such as contacts and calendar notes) before sending your device to a service facility.

•

Taking Care of your Thuraya Mobile Phone

Before you start

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.

Your mobile device is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure

to radio frequency (RF) recommended by international guidelines (ICNIRP). These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the general population. The guidelines include a substantial safety

margin designed to assure the safety of all persons, regardless of age and health.

Certification information (SAR)

Before you start

Your package contains the following items:

SG-2520 Unpacking

Handset Battery Quick start guide Ear-set Travel charge with

ferrite core

Warranty card &

User’s guide

SG-2520 Accessories

SD Card Key-pad

(Other language)

USB Cable

Before you start

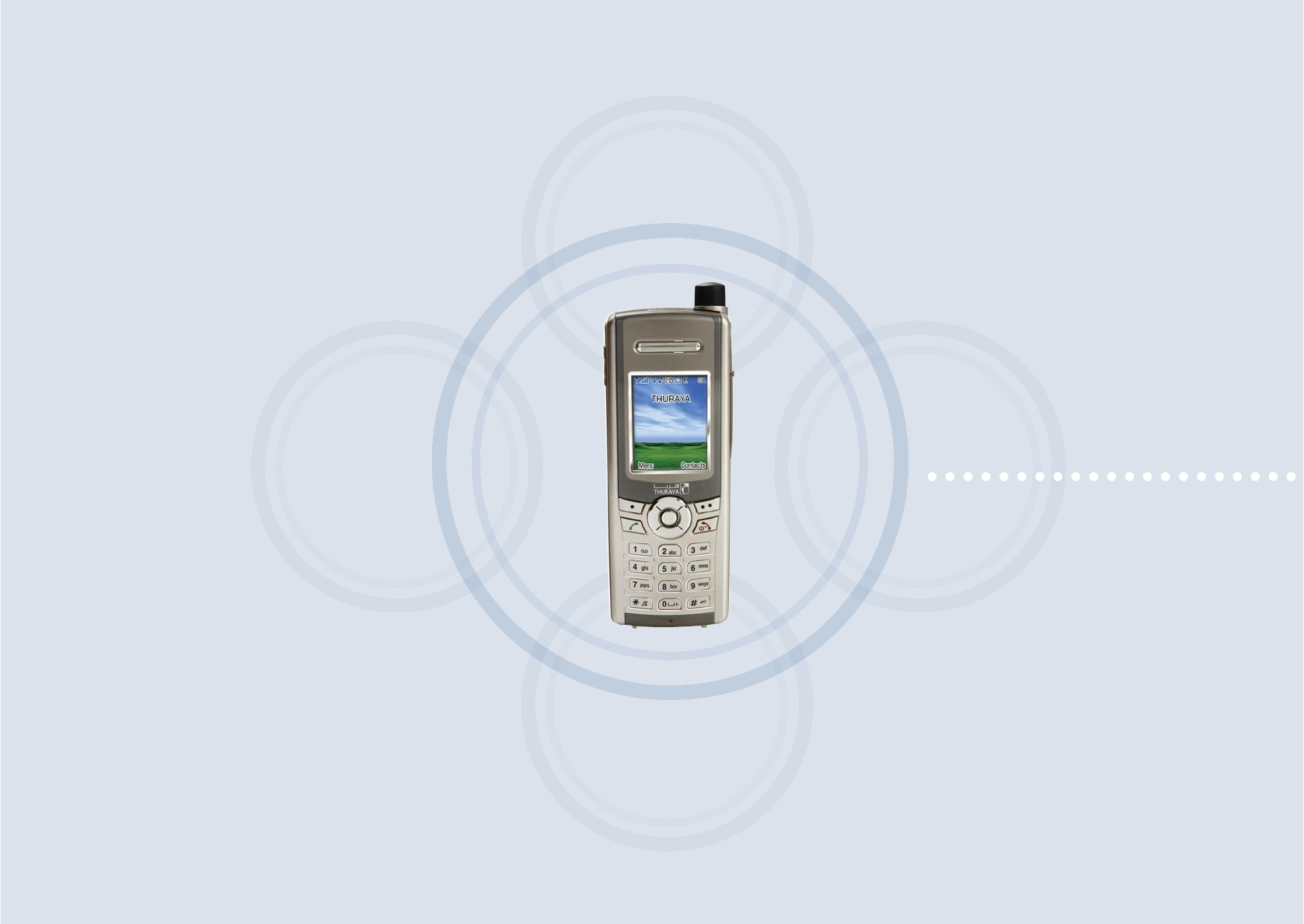

Your SG-2520

An overview of your Thuraya phone

SAT antenna

Ear-set jack

Display

Left Softkey

Right Softkey

Send key

End key

4 ways navigation key

Ok key

Alphanumeric keypad

Star key

Hash key

Microphone

Battery release

Charger socket

SIM card holder

USB/Data cable connector

Camera

Mirror

4 5

6 7

11 12

13 15

Before you start

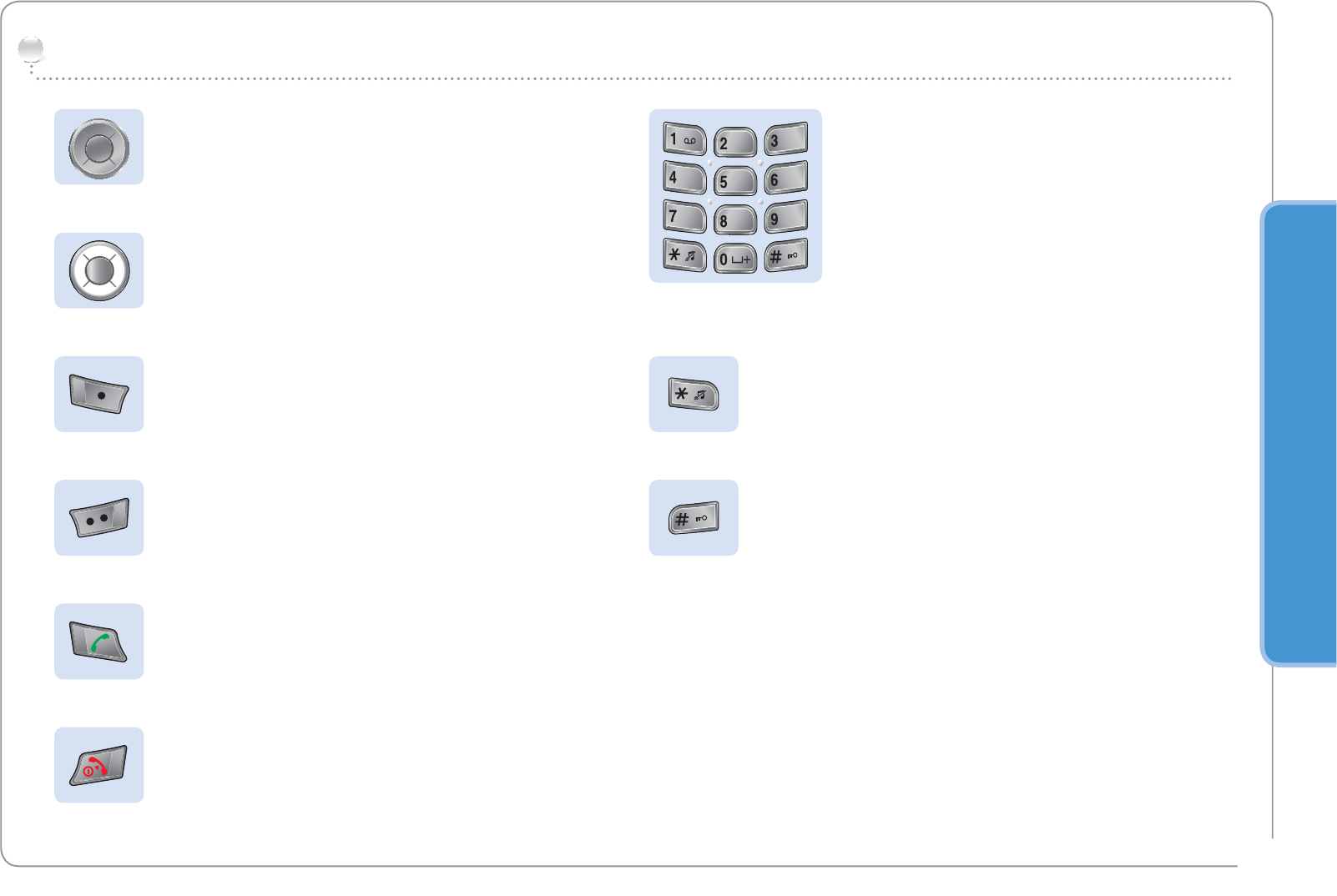

The function of the keys

Navigation Key

4-way direction key for moving focus in menu

screen.

Center Key

This key is used to select/unselect and confirm

menu options.

Left Softkey

The function of the key depends on the text

shown on the display above the key

Right Softkey

The function of the key depends on the text

shown on the display above the key.

Send Key

To accept or initiate a call, access the list of

numbers you last called or attempted to call.

End Key

To end the current connection, or to reject an

incoming call.

Press and hold to turn the phone on or off.

Keypad

Used to enter numbers and characters.

Long press on 0 key will display a ‘+’.

* Key

Long press will switch between Silent & Normal

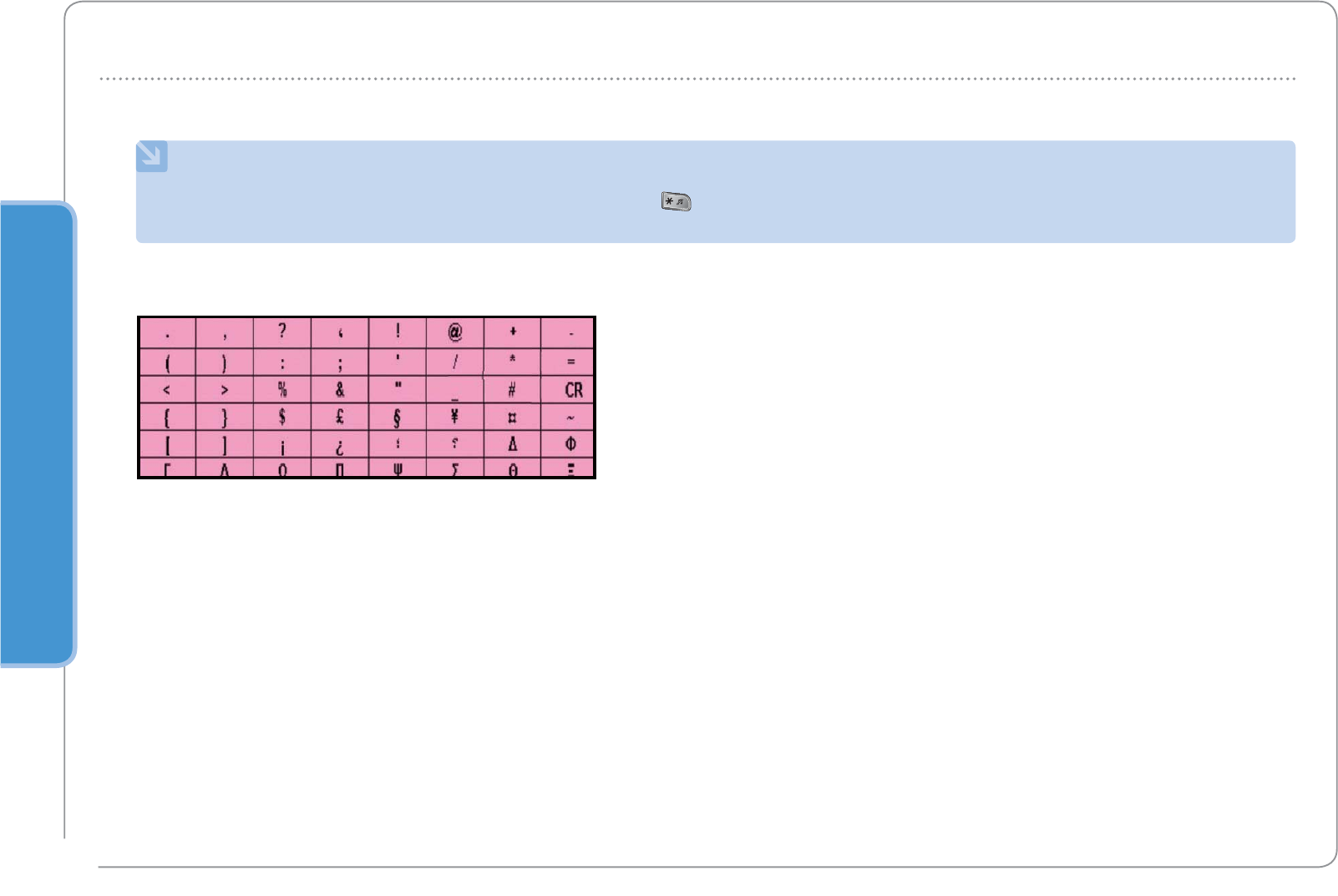

mode. Enters special characters in SMS editor.

# Key

Press and hold to lock the keypad.

Toggles between numbers and characters in

SMS editor.

abc

jkl

tuv

ghi

pqrs

def

mno

wxyz

Getting started

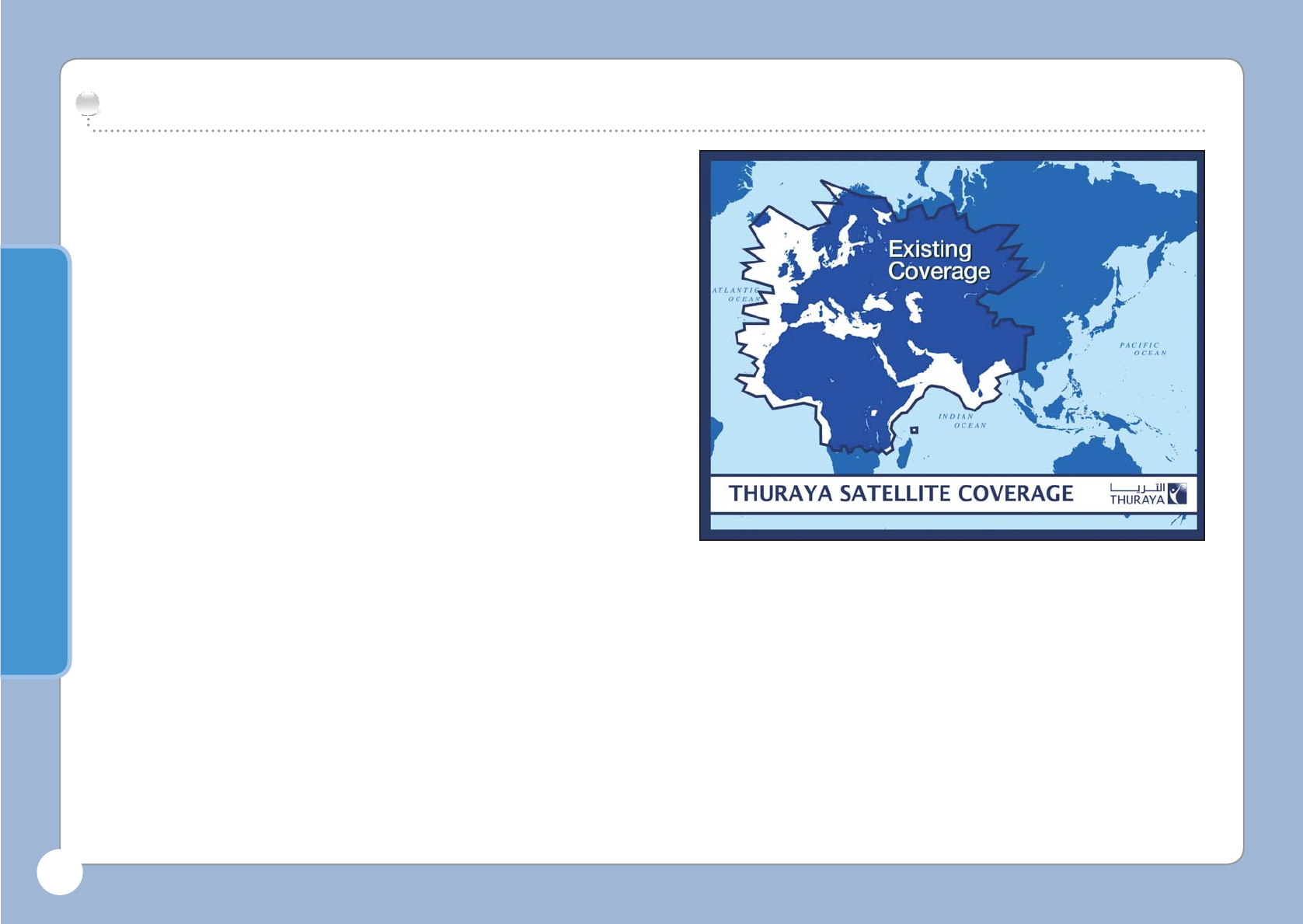

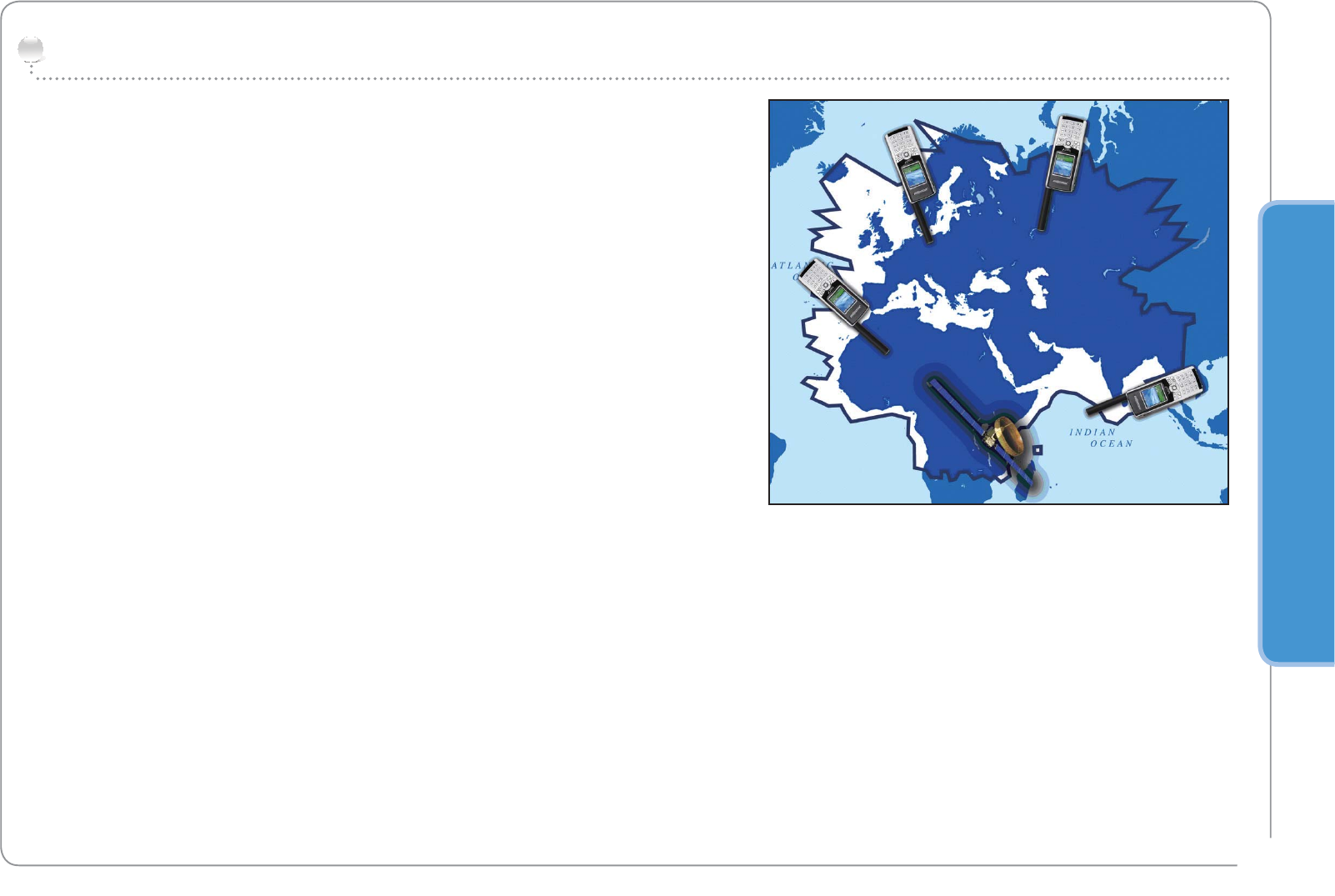

Your Thuraya SG-2520 SmartPhone is an advanced smart phone

using cutting edge technology. It’s superiority is reflected in three

integrated technologies in one handset: satellite (SAT), GSM

and GPS offering you an unmatched combination of quality and

performance.

Thuraya SG-2520 is the only satellite phone with tri-band GSM

that allows operations on three different GSM networks: 900,

1800, 1900 MHz offering greater flexibility in high traffic GSM

environments with increased phone usability and voice quality

in Asia, Africa, Europe, Australia, and North America.

However, in establishing communication on SAT mode there are

few points need to be considered. These are explained below.

- The antenna should be pulled out to receive SAT calls or to

start a SAT call.

- While observing the indicator for SAT signal strength,

move around to achieve the best connection quality for the

mobile phone.

- SAT communication requires clear space without obstructions.

- Avoid obstructions such as buildings, trees or mountains.

- Also, it is important to direct the antenna of the Thuraya SG-2520

towards Thuraya satellites.

Introduction

Getting started

HPA (High-Penetration Alerting)

The Thuraya system features a ‘High-Penetration Alerting’ capability

that allows you to be notified of incoming calls even when your mobile

phone has poor signal coverage. When the mobile phone receives a

High-Penetration Alerting signal it will alert you with an ‘early ring’ and a

special display message (see page 26).

To answer the call, you must immediately extend the antenna and move

the mobile phone into a position that has a clear ‘line of sight’ to the

satellite. When this has occurred the mobile phone display will change,

prompting you to answer the call and proceed with the conversation.

If the call is not answered promptly after the High-Penetration Alerting

signal is received, the calling party will be diverted to voice mail and/or

an announcement stating that you are not available to answer.

Just like GSM, the satellite coverage area is divided into many different

regions. The phone searches the network automatically (see page 110)

and determines which service region is active by registering its presence

with the Thuraya system. If the mobile phone has not been able to

update this registration due to a weak signal, the registration information

will become out of date or ‘stale’. This is indicated on the display by a

blinking SAT icon in the left of the signal strength indicator. This condition

will clear automatically once signal conditions improve and a call is

made or a period of time elapses. You also have the option to speed up

that procedure by manually having the mobile phone register with the

Thuraya system.

This is accomplished with the function SAT Registration in the mobile

phone’s menu (see page 110). Make sure you have good SAT signal

strength before using this function.

Getting started

Initial steps

To insert the SIM card:

1. Switch off the mobile phone before removing the battery

2. Left the battery from the back of the mobile phone

3. Insert the SIM card as shown in the pictures below.

Inserting SIM card

To attach the ferrite core:

1. Place it on the 5cm apart from the plug.

2. Attach it on the cable as shown in the pictures below.

Attaching the ferrite core

Getting started

You should charge the battery supplied with the mobile phone as soon as possible to obtain full battery charge.

To charge the battery:

1. Fit the correct country specific adapter into the charger.

2. Connect the charger plug into the charger socket.

3. Connect the charger to an AC source.

Connect the charger and charge the battery

While the battery is charging you see the symbol changing to cyclically.

The battery is fully charged after 2 hours and 30 minutes.

The charger stops charging automatically when the battery is full.

As long as the charger is not disconnected it restarts charging after a while to keep the battery fully charged.

You may still use the mobile phone while charging the battery.

The internal clock for time, date (see page 163) and alarms (see page 73) will still keep running for about two hours if

neither the battery nor the charger is connected, but no alarm will sound unless a charged battery is connected.

Getting started

Press for 3 seconds to switch the mobile phone on.

Press for 3 seconds again to switch the mobile phone off.

Switch the mobile phone ON / OFF

The PIN (Personal Identification Number : 4 to 8 digits) is initially supplied together with the SIM card by your service

provider and can be changed later. (see page 156)

Enter your PIN

1Enter PIN using keys on keypad.

Each digit entered is displayed as an.

2Press to confirm PIN.

NOTE

If more than 3 errors are made when entering PIN code, PUK code must be entered.

•

Getting started

Until you have entered the correct PIN, you can make only emergency calls.

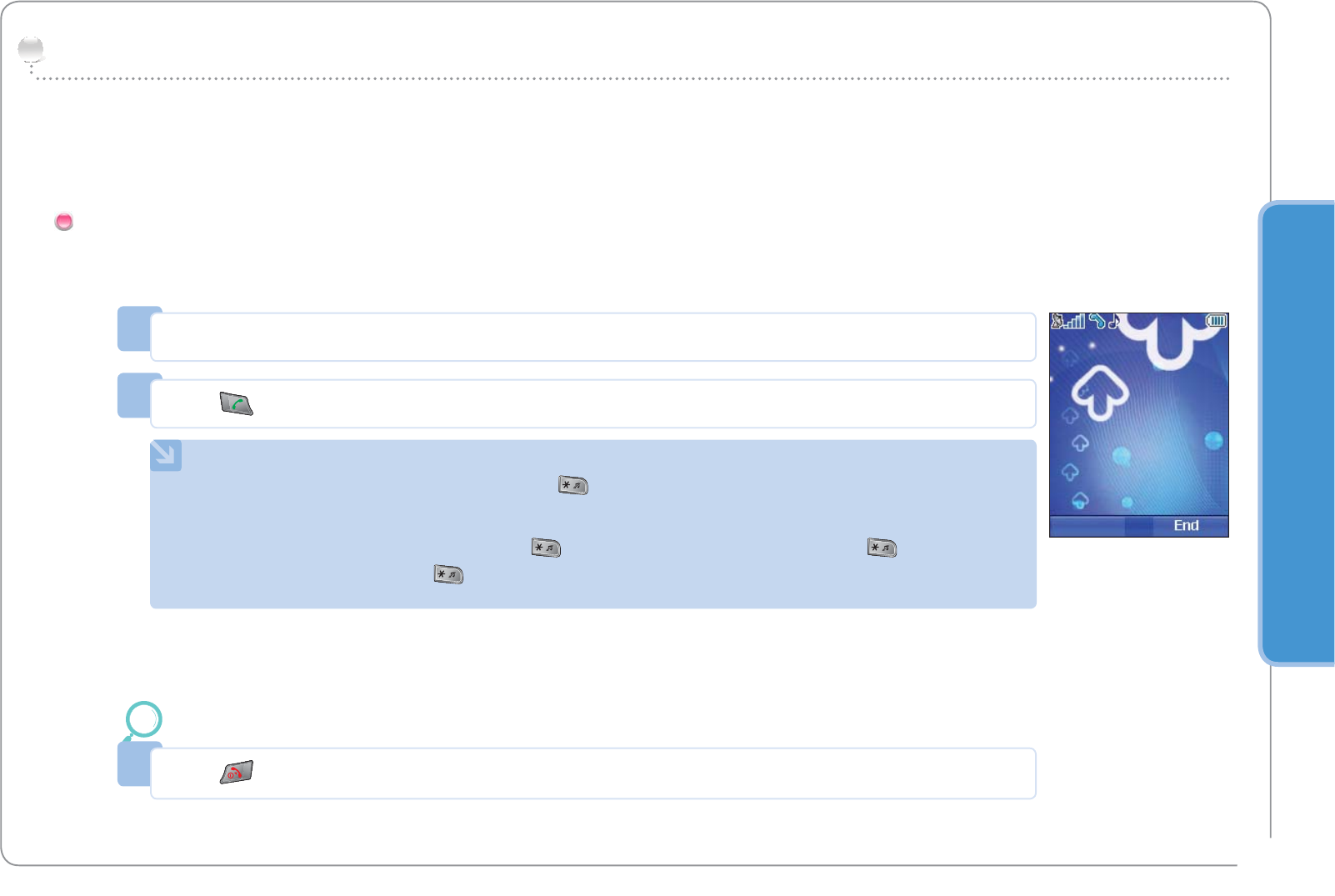

To make an emergency call before having entered the PIN.

In screen Press (SOS).

Emergency call (SOS)

1Enter a specific emergency number.

2Press.

The softkey SOS is available even

When the SIM card in your mobile phone is not valid.

When you have a valid SIM card but no roaming with the selected service provider is possible.

After the PIN is accepted, you have to make an emergency call in the same way as you make a ‘normal’ call.

•

Or.

NOTE

Emergency calls may not be possible on all cellular telephone networks or when certain network service is in use.

In uneven terrain or close to large buildings, the operating range can be limited, which affects the connection.

•

Emergency numbers normally are : 112, 118, 119, 911, 999

Check with your network service provider for local emergency numbers in your area.

Getting started

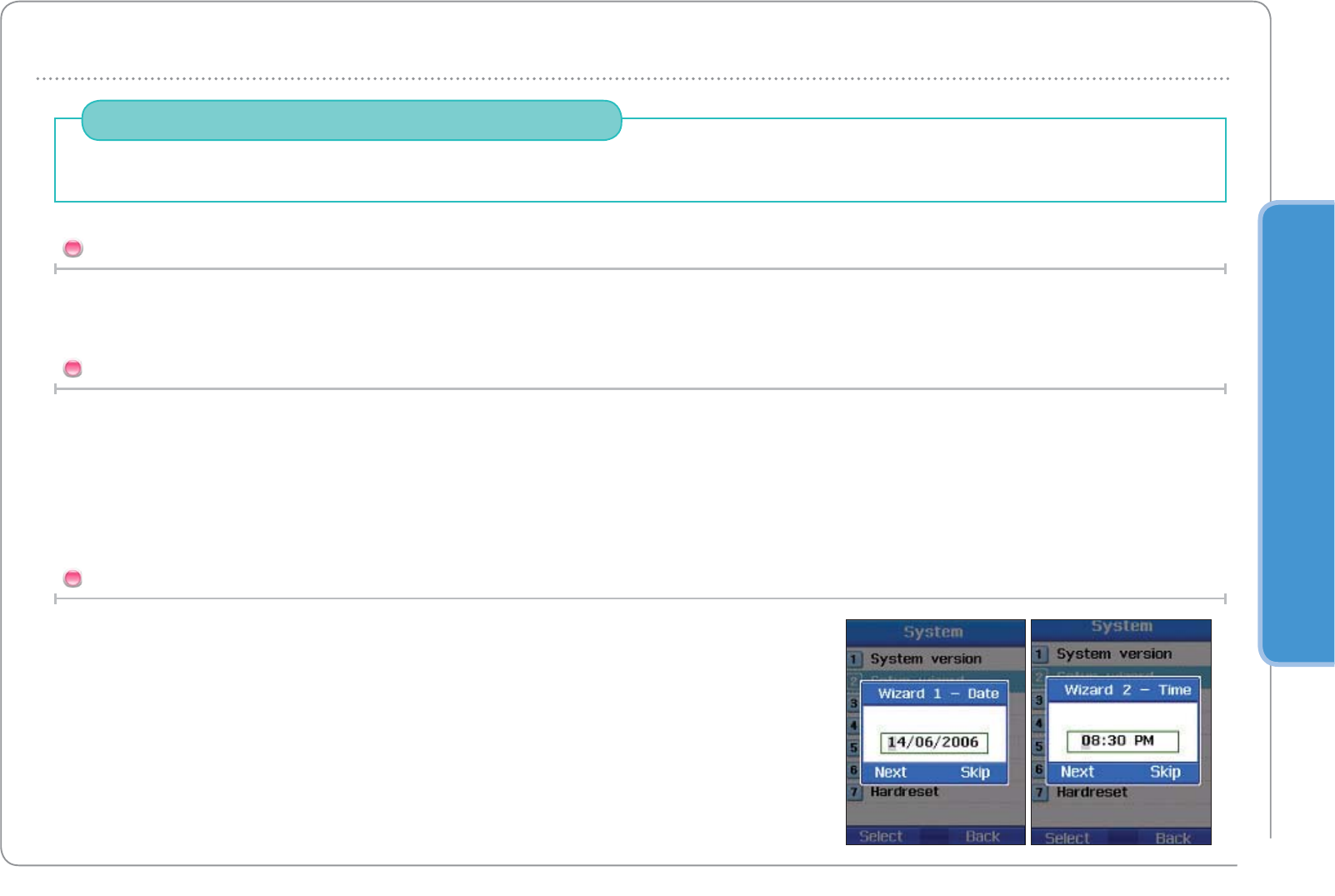

Use this to set the basic details of the phone when booting initially.

You can either use or skip this function.

To change settings, use the applicable menu or Setup Wizard Menu in Settings.

For more details, refer to Setup Wizard Menu in Settings.

Setup Wizard

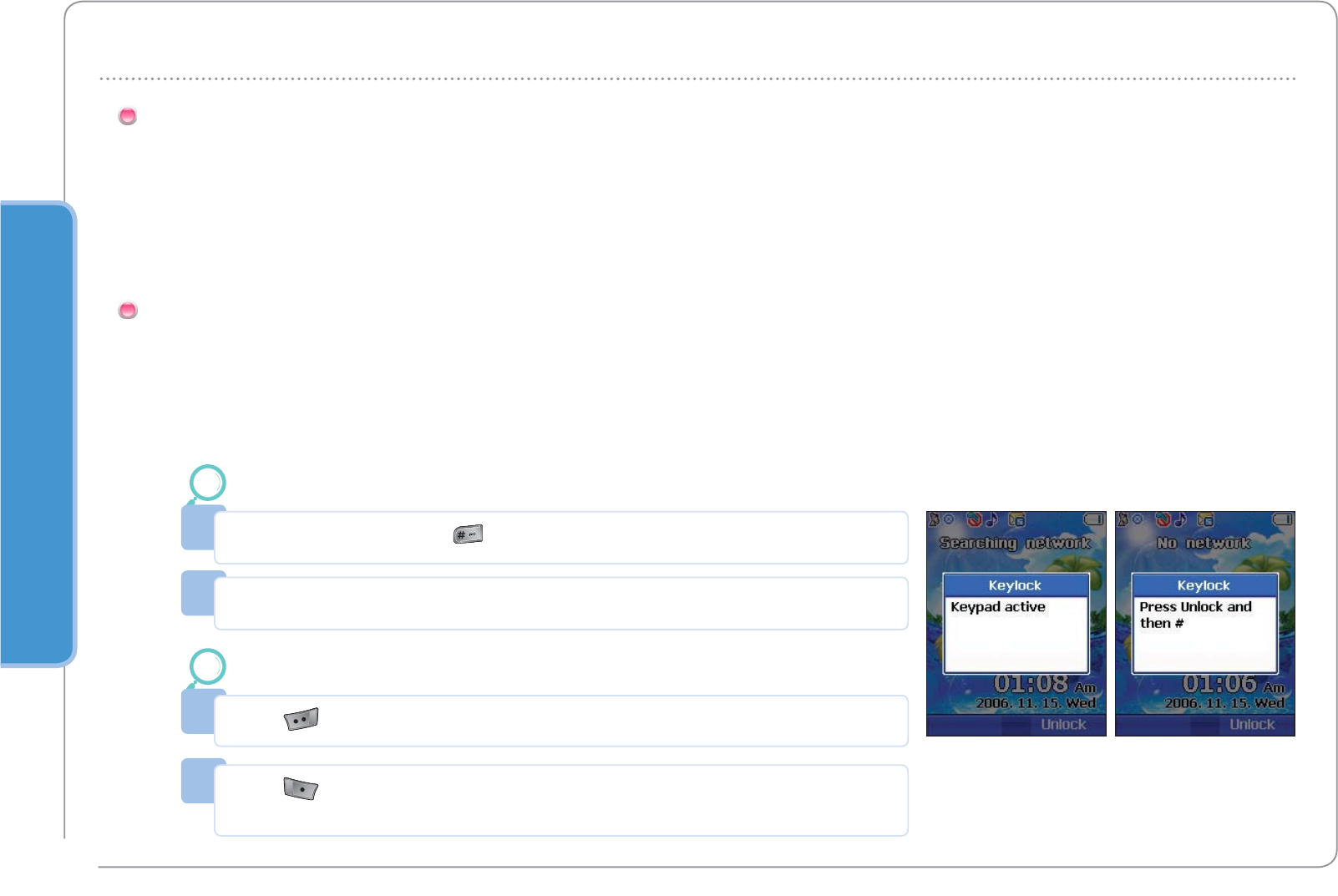

The keypad may be locked so that a number can not be accidentally dialed e.g. while the mobile is in your pocket or

handbag. (e.g. It is to protect your personal information while you have left the phone in a pocket, bag or some other place

for a while, or from the person who might have picked up your lost phone.)

Calls can be received while the phone is locked.

Lock/Unlock in Idle Screen

1In idle screen, long press (#) key.

To Lock :

2Press key within 3 seconds.

If key is not pressed within 3 seconds, the keypad will remain locked.

Press key.

To Unlock :

Locked.

Getting started

Display

Display layout

The pattern of the display areas is as follows:

The indicator line shows mainly symbols which inform you about the operating conditions of the mobile phone.

The main area shows data relating to calls, menu and their submenus, and displays the editors for the Contacts

and SMS messages. In idle mode (standby), the network name, time and date are displayed.

The softkey line operates together with the and softkey and the OK key beneath this line.

It provides access to menus and controls. (see ‘Using softkey and menu’ on page 19)

Indicator menuline

Area information

Date line

Phone status

Time

Getting started

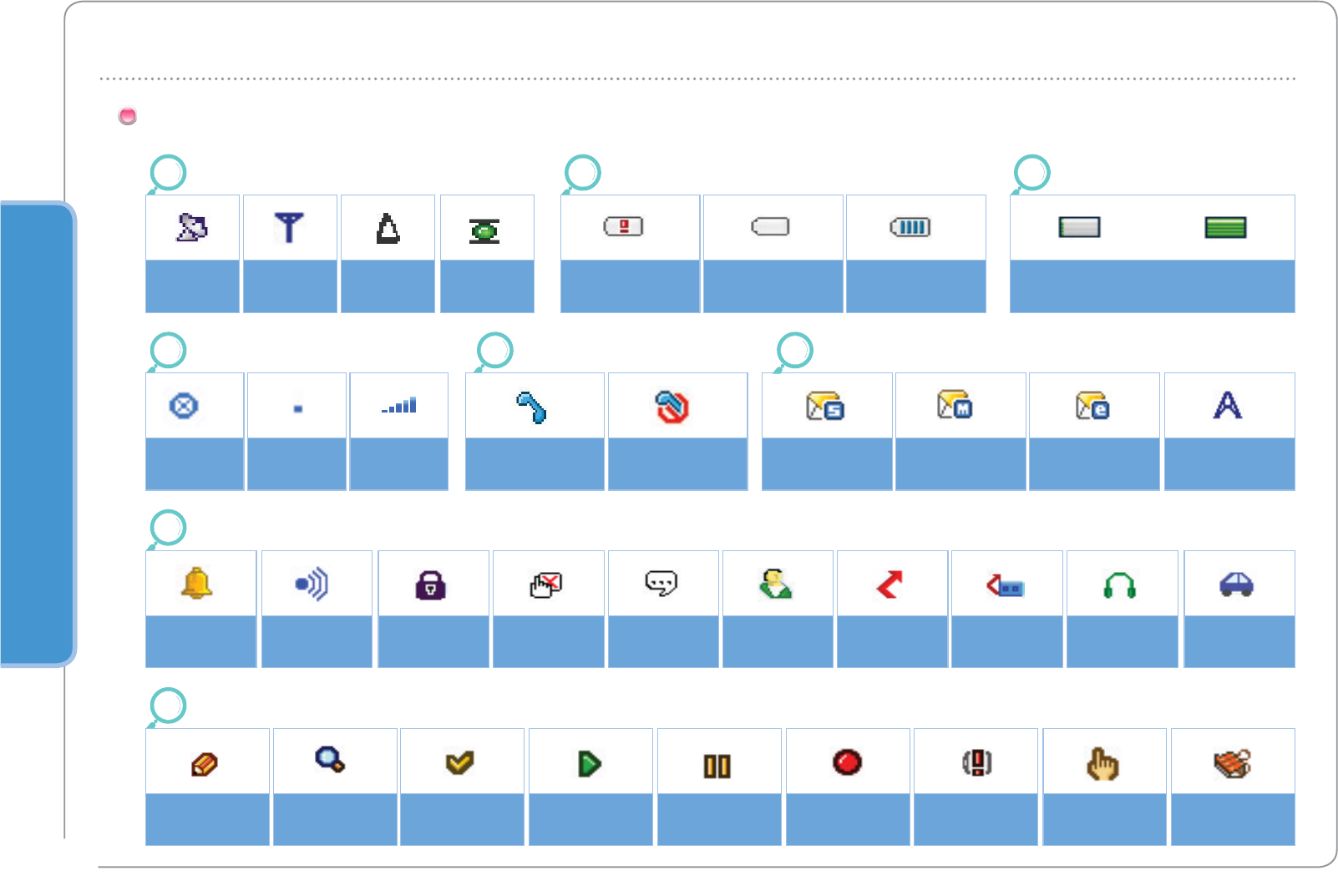

Display symbols

HPA strengthBattery strengthSignal type

Call statusSignal strength

Softkey command

Edit able

Search able Mark On Play able Pause able Capture able Low battery Done/Confirm Grip able

Timer runing IrDA On Lock Key Lock Silent Special only Devert all Devert to

vioce mail

Hedset Carkit

No signal Weak signal Full signal On call Mute SMS MMS E-mail CB

Battery almost

discharged

Low battery Battery full HPA Low signal ~ HPA High signal

SAT Roaming

GSM HPA

Message

Phone status

Getting started

In idle mode your mobile phone offers functions and settings, which allows you to adapt the mobile phone to your needs.

You access these functions through menus and submenus by scrolling or by using the appropriate shortcut.

During a call or while you are editing a number or text, the menu system changes and gives access to various functions,

depending on the context.

The following section describes the principles of using the menu.

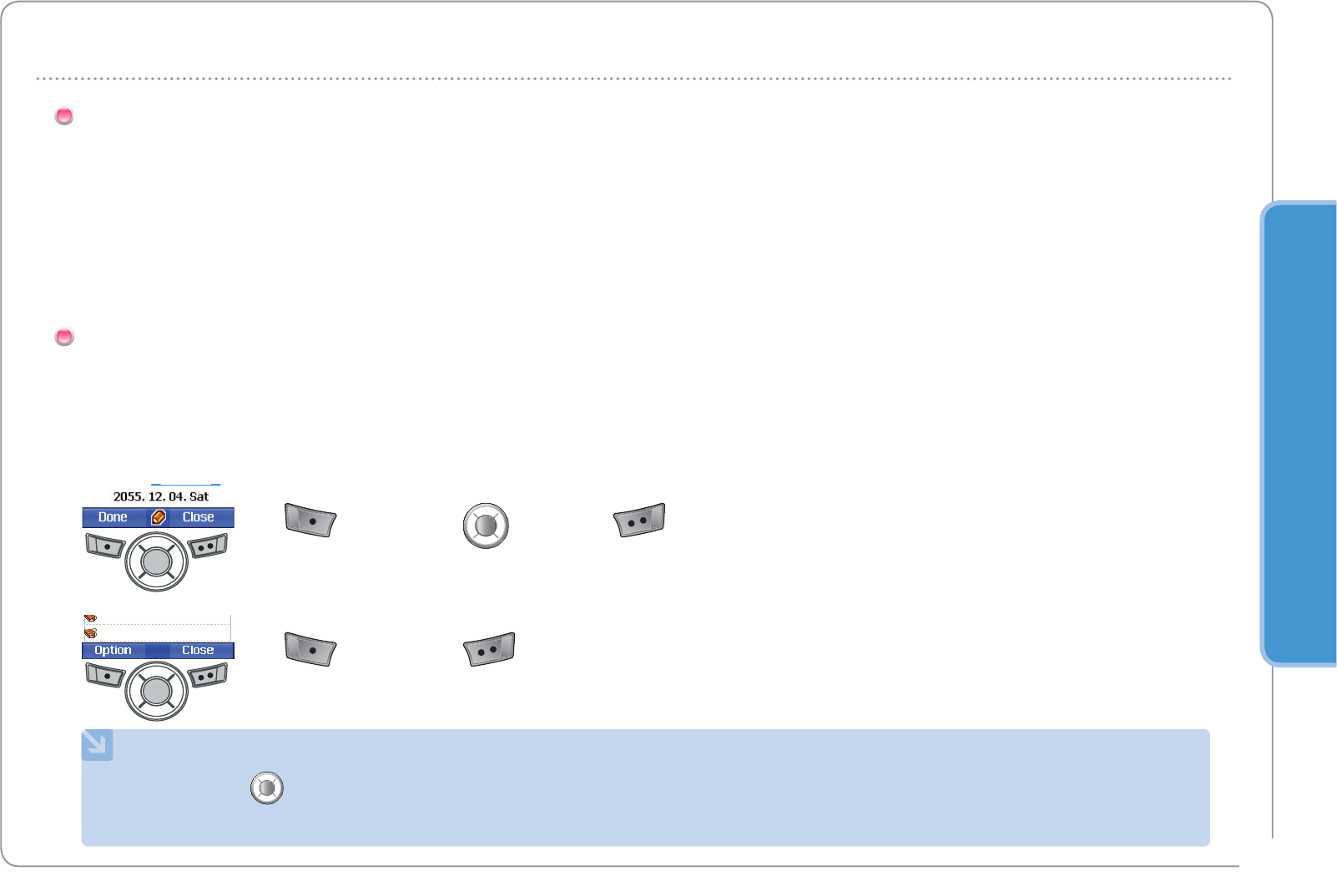

Using softkey and menu

Softkey actions for, menu navigating and lists are performed through entries in the softkey line in conjunction with the

corresponding keys below this line.

Depending on the number of softkey actions offered, the two softkeys beneath the softkey line and the okay key can be

used:

Softkey action

NOTE

Command of is in the form of Icon.

Refer to page 20 where each icon and corresponding command are shown.

•

Done Edit Close

Option Close

Getting started

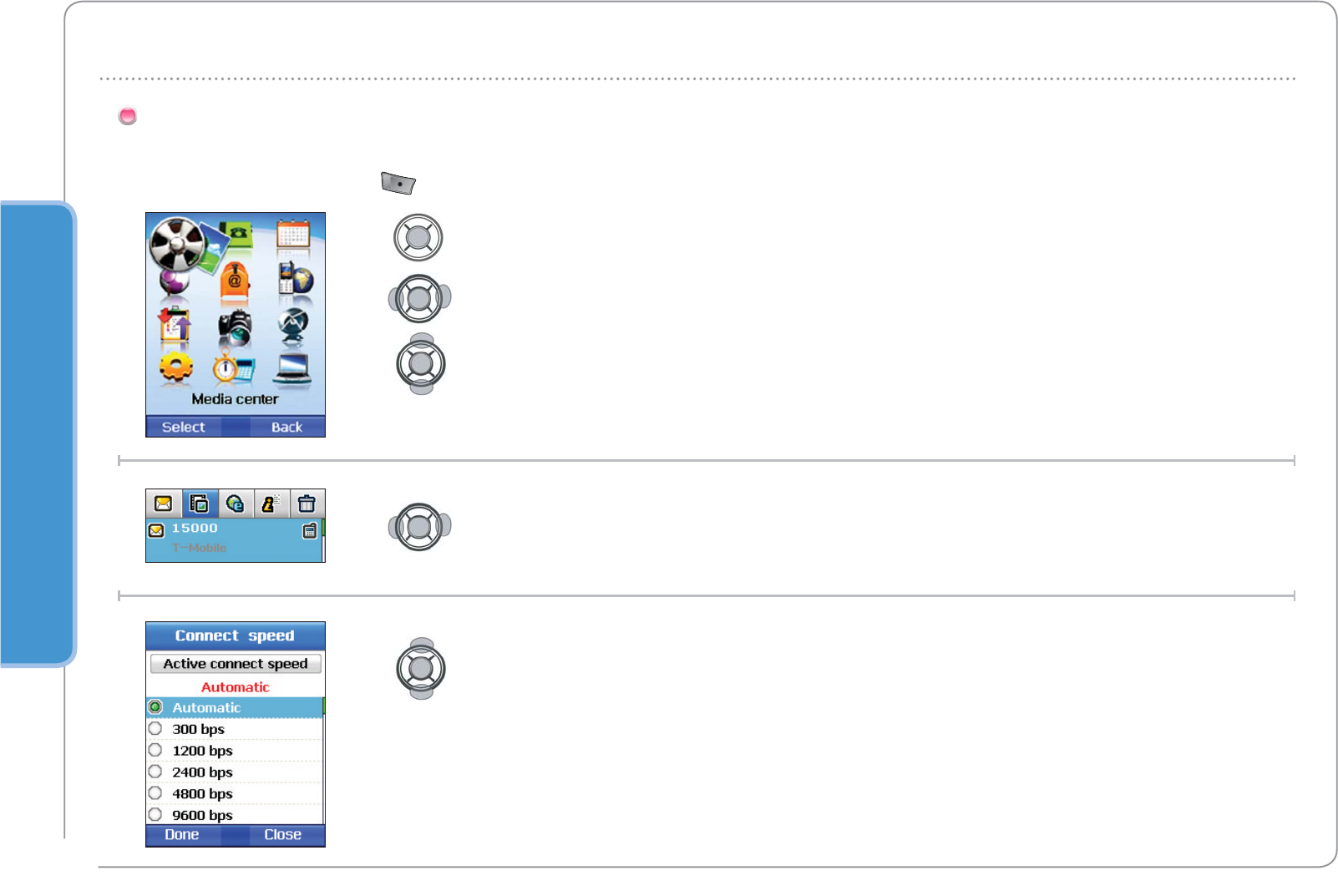

Menu screen is composed of 12 menus. Use the navigation key to move the focus to the desired menu icon,

and execute by pressing .

Menu navigation

4 ways navigation key

Up / Down direction

Left / Right direction

Up / Down direction

Getting started

Menu items can be executed by using the key pad as well as by using the navigation key and softkey as in menu

navigation.

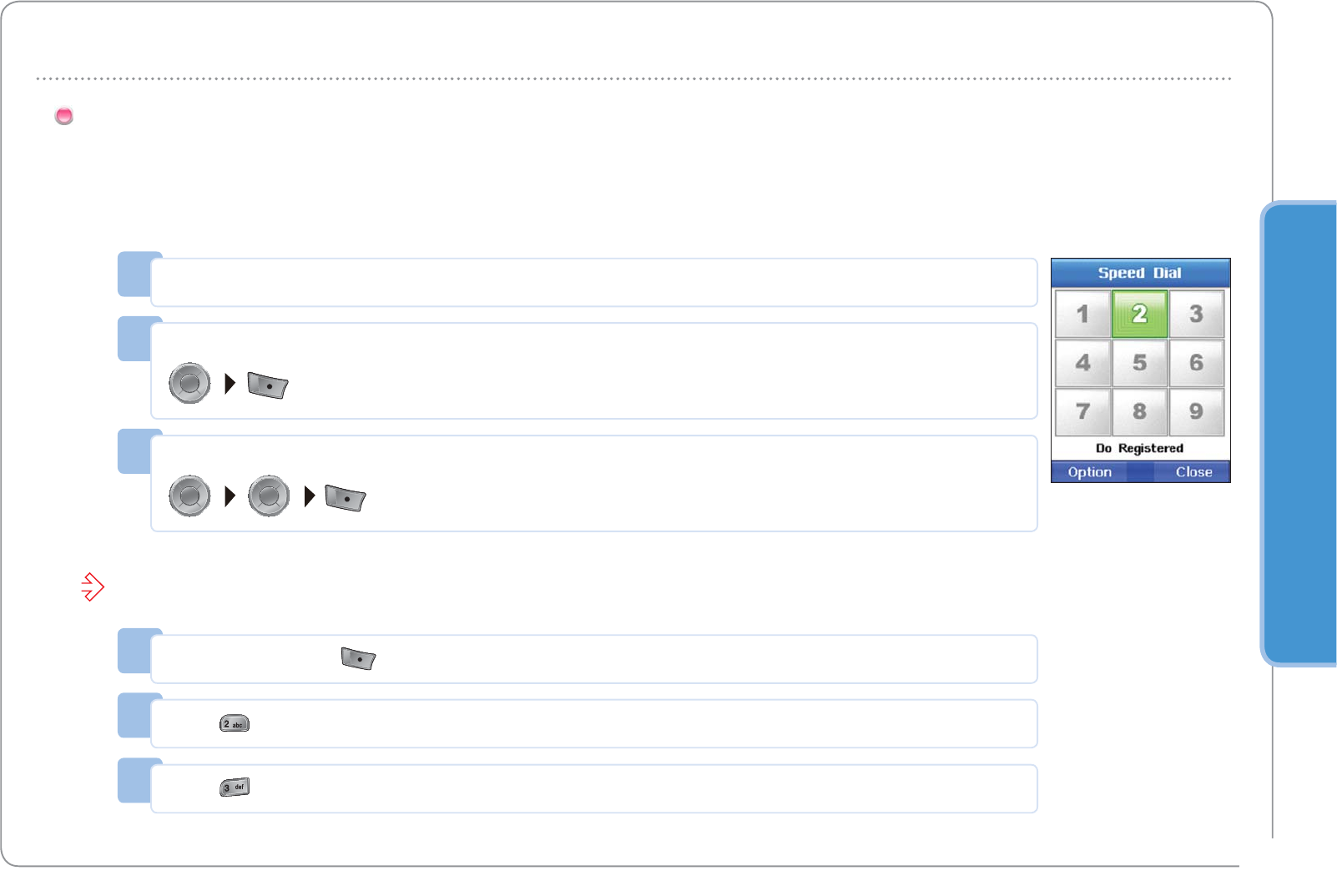

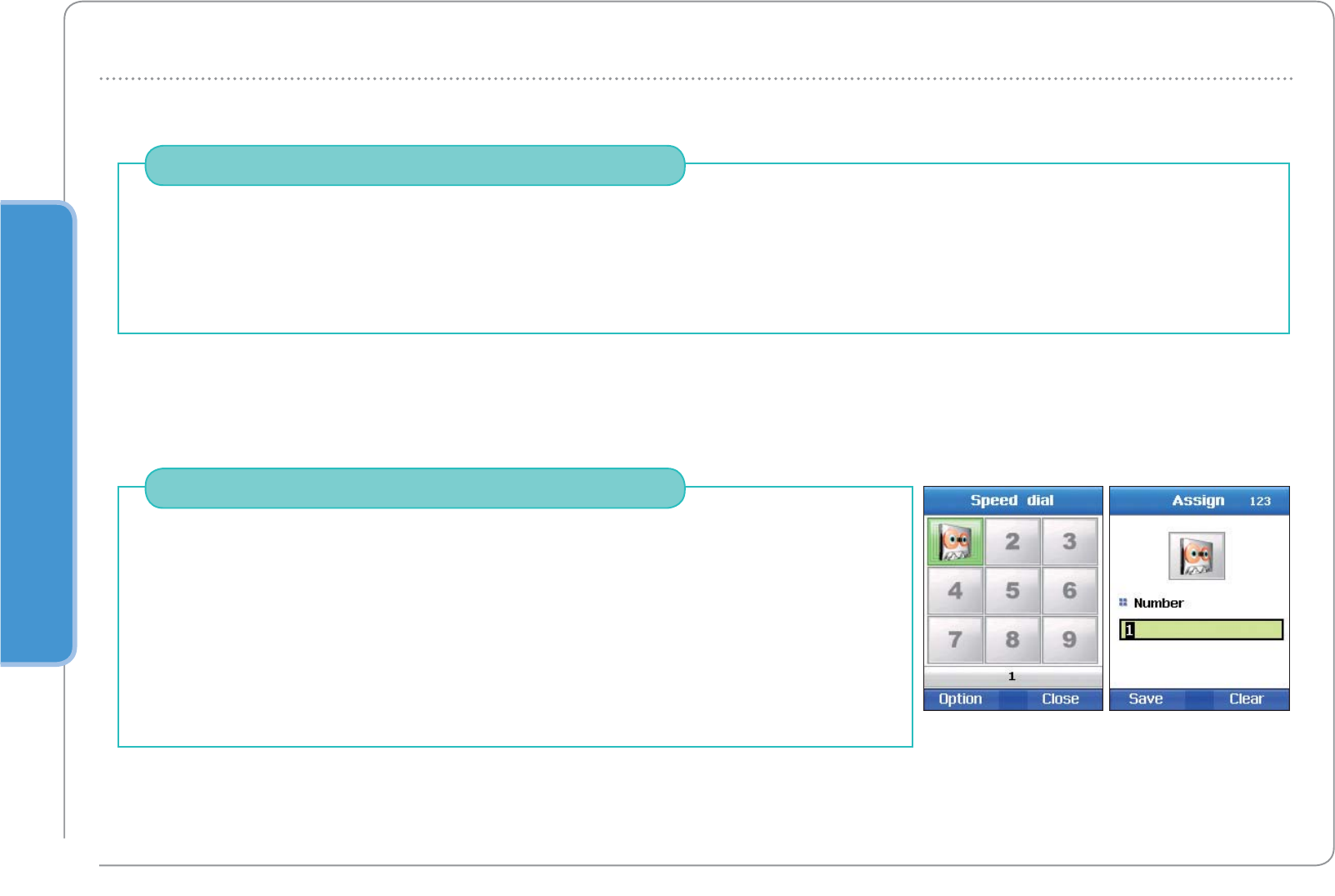

In the following example, Speed dial is described using both methods.

Quick access

1In idle screen press Menu.

2Scroll to [Contacts] and select.

3Scroll to Speed dial and select.

Or. (Quick access)

1In idle screen press Menu.

2Press .

3Press .

Getting started

If you need to go back to a previous window or to move to higher menu during menu execution:

Step back one menu level

1Press .

To go to idle screen during menu execution:

Exit the menu

1Pres .

Getting started

Making and receiving call

In order to make a call, you must be connected to a network and have an adequate SAT signal.

Telephone numbers can be dialed using traditional method.

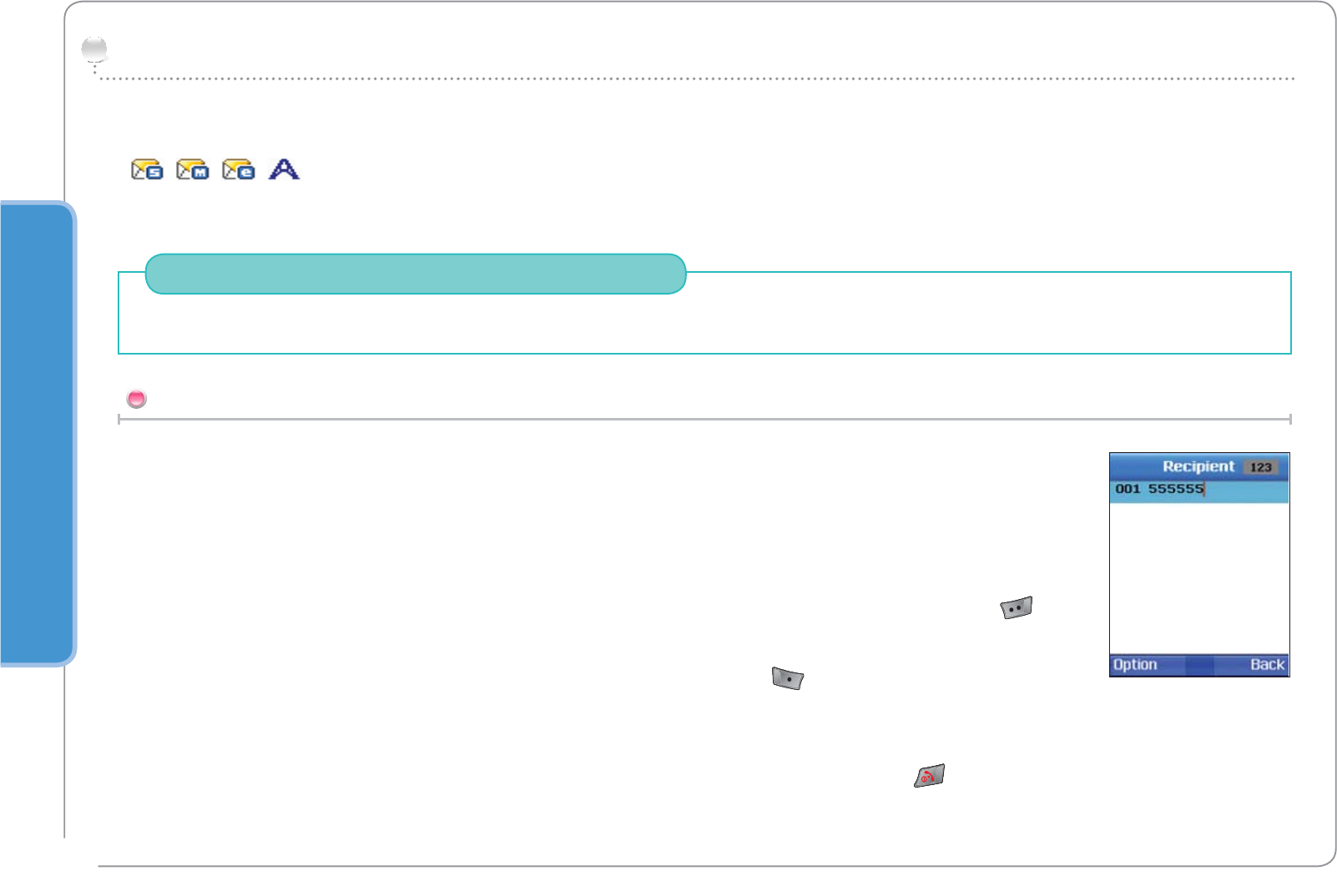

Dial using the keypad

1Enter phone number using keypad.

2Press .

NOTE

To make an international call, long press for + is displayed and then enter country

code without the leading 0’s.

When entering a number, short press button once to input *, short press button twice

to input P, and short press button three times to input W.

•

Press key.

How to end a call :

Getting started

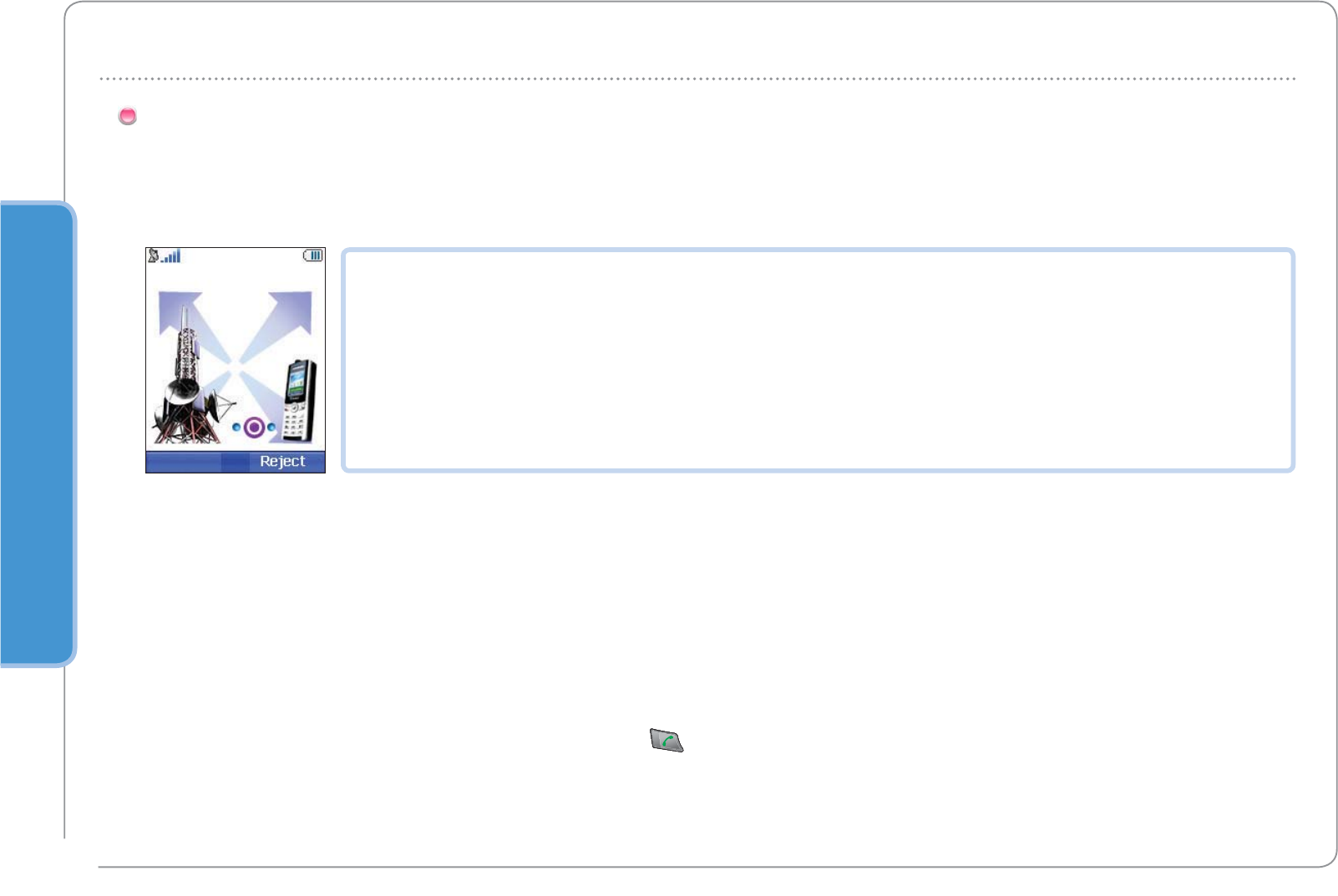

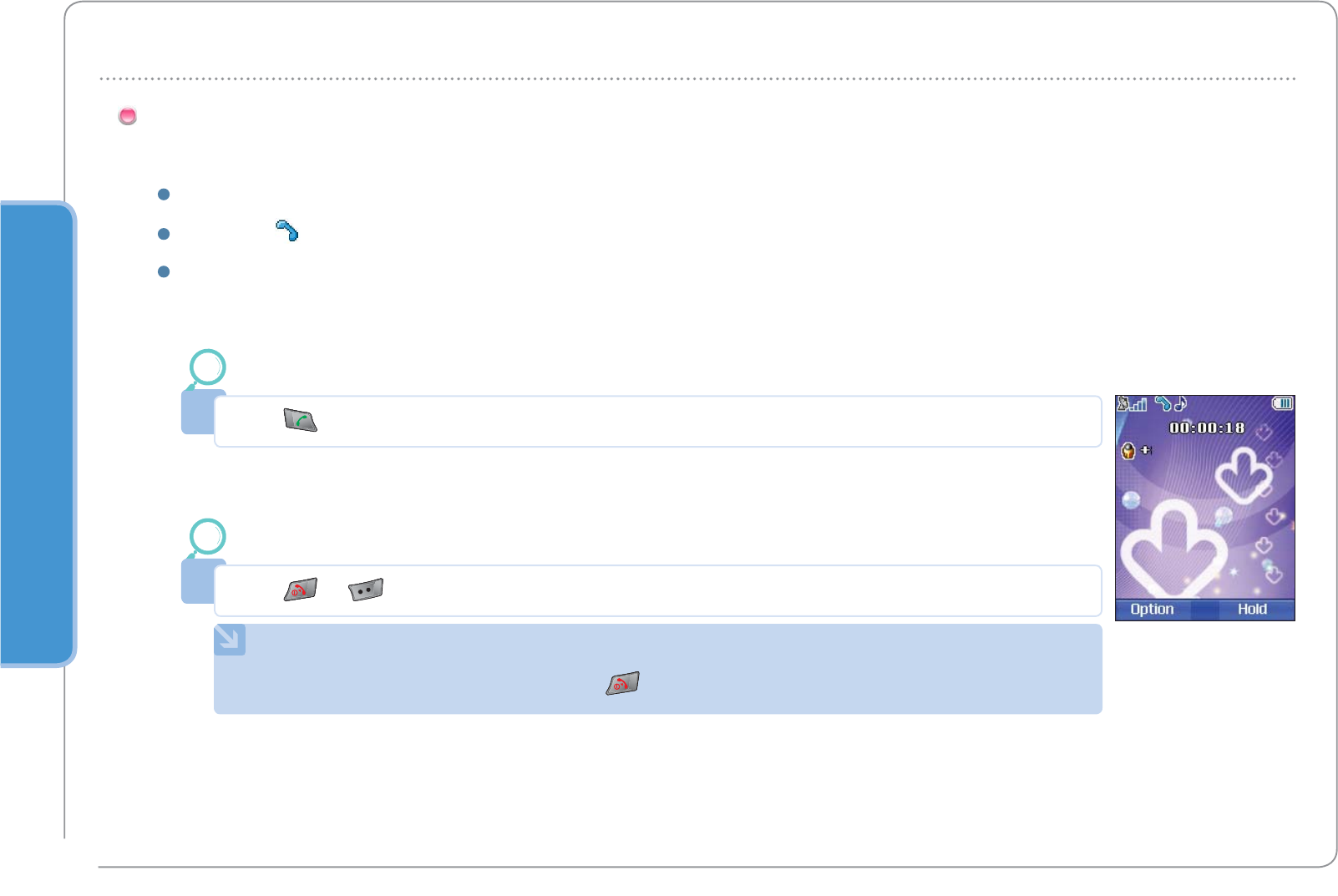

When there is an incoming call, it is indicated as follows.

Ringtone (according to melody and volume of current setting) can be heard.

A flashing is displayed.

The caller’s number will be displayed on the screen.

If the number is stored in the contacts, the corresponding name of contact will be displayed.

Receiving a call

NOTE

When in an existing call is used, press to reject an incoming call using reject.

•

Press key.

Accept a call :

Press or .

Reject a call :

Getting started

In situations where incoming call is disturbing, it can be turned off by using the Silence Softkey

Silent a call

1Press .

NOTE

Sound volume during call can be increased/decreased by using and other sound

volumes can be changed by using the sound setting menu.

•

Getting started

You cannot receive an incoming call if the SAT signal to your mobile phone is not good enough.

In this situation, a message box with “SAT Call Find Improved Reception” and a special ringtone will be displayed on the

screen, and signal on indicator line changes to HPA signal.

High-Penetration Alerting

You cannot receive calls in High-Penetration Alerting mode.

You must move to a place of better SAT signal to receive calls.

Otherwise, you can use reject or ringtone off.

•

To receive calls in HPA mode:

Move to a place with an improved signal.

Fully extend the antenna of SG-2520.

Point SG-2520 roughly towards satellites.

While watching signal on indicator, as soon as signal strength is strong enough the warning indicator will disappear

from the display.

Now you can accept the call as usual by using the key.

Getting started

Options during call

Incoming call :

When Party1 is receiving a call from Party3, while talking with Partyr2, Party1 can ‘accept; or ‘reject’ the call from Party3.

If the call is rejected, the conversation between Party1 and Party2 is not affected.

If the call is accepted, Party2 is put on hold and Party1 is connected to the call from Party3.

Using the option menu, Party1 can swap over Party2 and Party3, or operate a multi-party call up to 6 users including Party1.

Outgoing call :

If Party1 wants to make a call to Party3, while talking with Party2, using the option menu puts Party2 on hold and enters

Party3’s phone number. To include Party2 in the conversation with Party3, select a multiparty call on the option menu.

Party2 and Party3 can be swapped over. Up to 6 users including Party1 can have a conversation simultaneously.

Your mobile phone offers a number of options, which are only available during a call.

You cannot use all of these features at all times, because they vary depending on current circumstances.

Put a call on hold :

This function allows you to interrupt a call temporarily without shutting down the connection.

(For more detail please visit www.thuraya.com)

Muting / Unmuting the microphone:

You can switch off the microphone so that other person is not able to hear what is being said at your end of the line.

Handling more than one call simultaneously

Getting started

Connect a private call :

You can isolate a party from the multiparty call and talk exclusively with this ’private call’. The other parties of the conference

will be put on hold and will not hear what you are speaking with the ’private’ party. You can only have up to two active calls at

one time. Therefore you can select Private only if your second line is not busy with another call.

End one call :

You can switch off the microphone so that the caller is not able to hear what is being said at your end of the line

End all calls in one step :

Ending all calls in one step terminates the multiparty call.

All parties will be disconnected from each other and they will hear the tone for ’line busy’.

Main Menu :

You can use most of the functions in Main Menu such as Sending DTMF signals, Read/Write SMS messages.

However, some functions may not be available.

Getting started

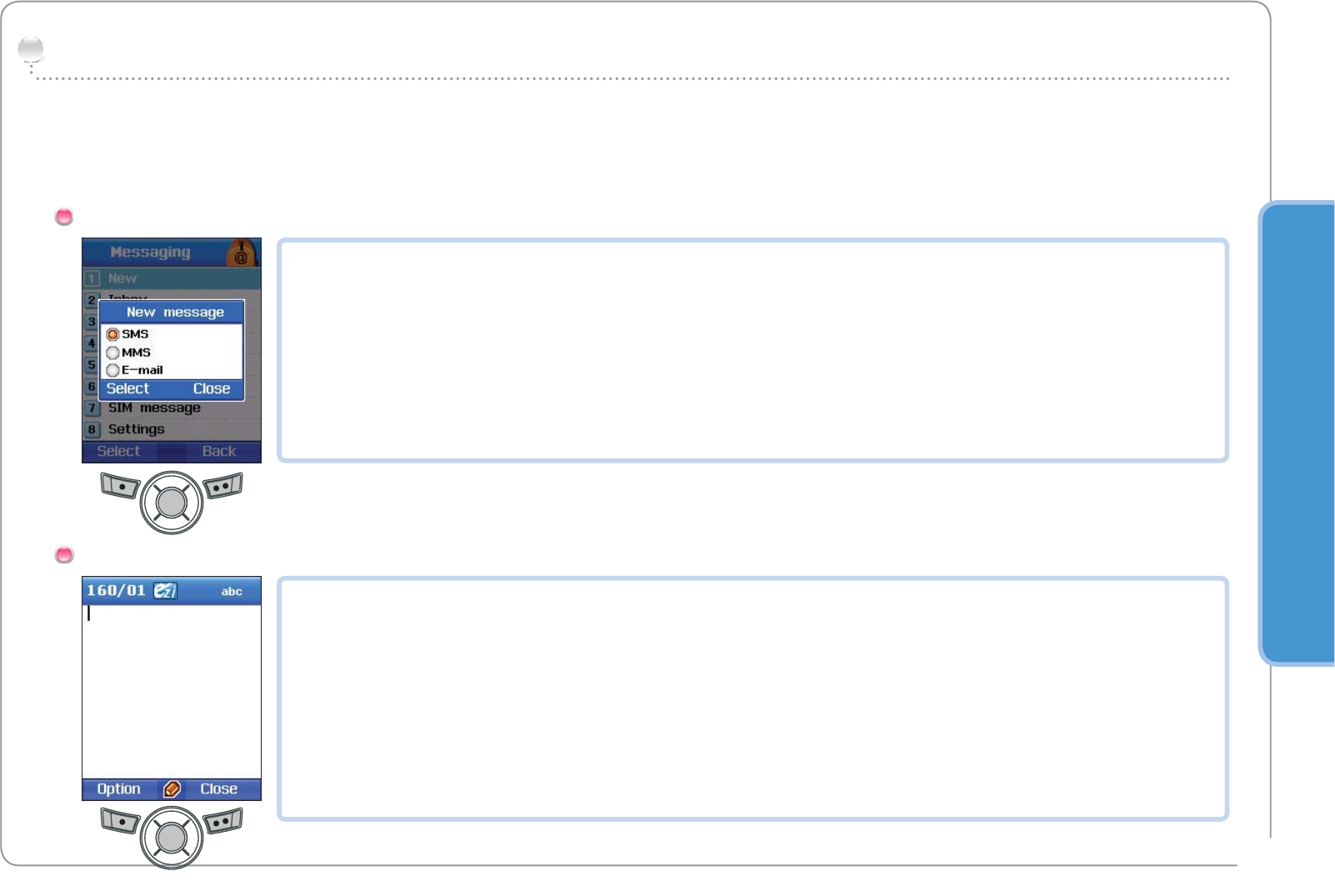

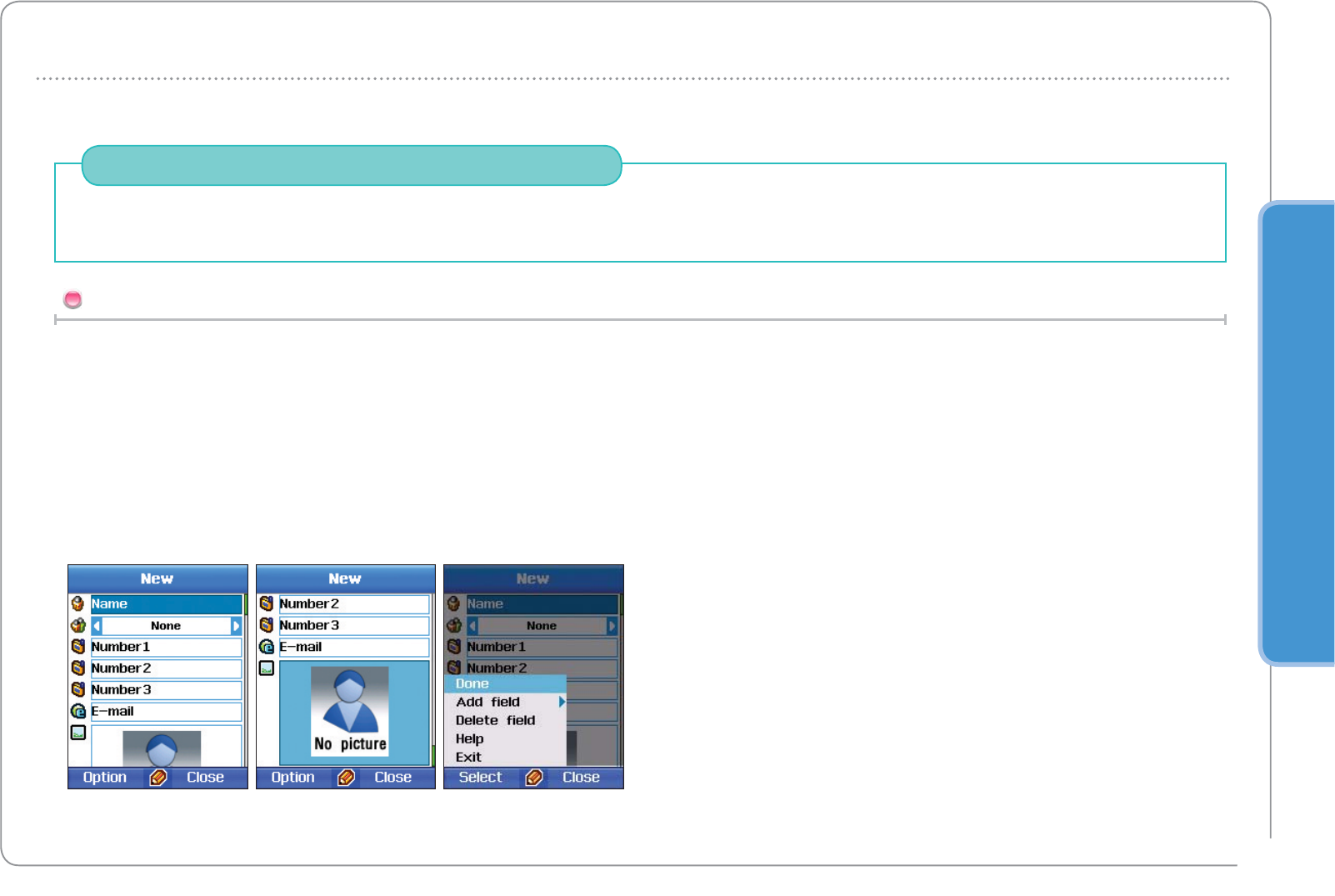

New Message

To enter Name, Message and Memo, follow the below procedures.

In order to facilitate fast operation, the Select mode and Enter mode are separated with SG-2520.

In the Select mode, entry cannot be made with keypad but can be made by using the Edit mode.

Select message type

Focus can be moved using navigation key, and can select message type(SMS, MMS, E-mail).

•

Edit mode

Desired characters can be entered. In edit mode, navigation key can be used to put space at the end

of text row, as well as to move cursor.

Text composition is restricted for each item, the number of characters for names and numbers varies

depending on the memory and the input language.

When storing characters in Phone memory, user can input up to 30 characters for name and

32 characters for number.

When storing characters in SIM memory, user can input up to 14 characters in Latin-related languages

for name and 11 characters for Unicode languages. As for number, user can input up to 20 characters.

•

Getting started

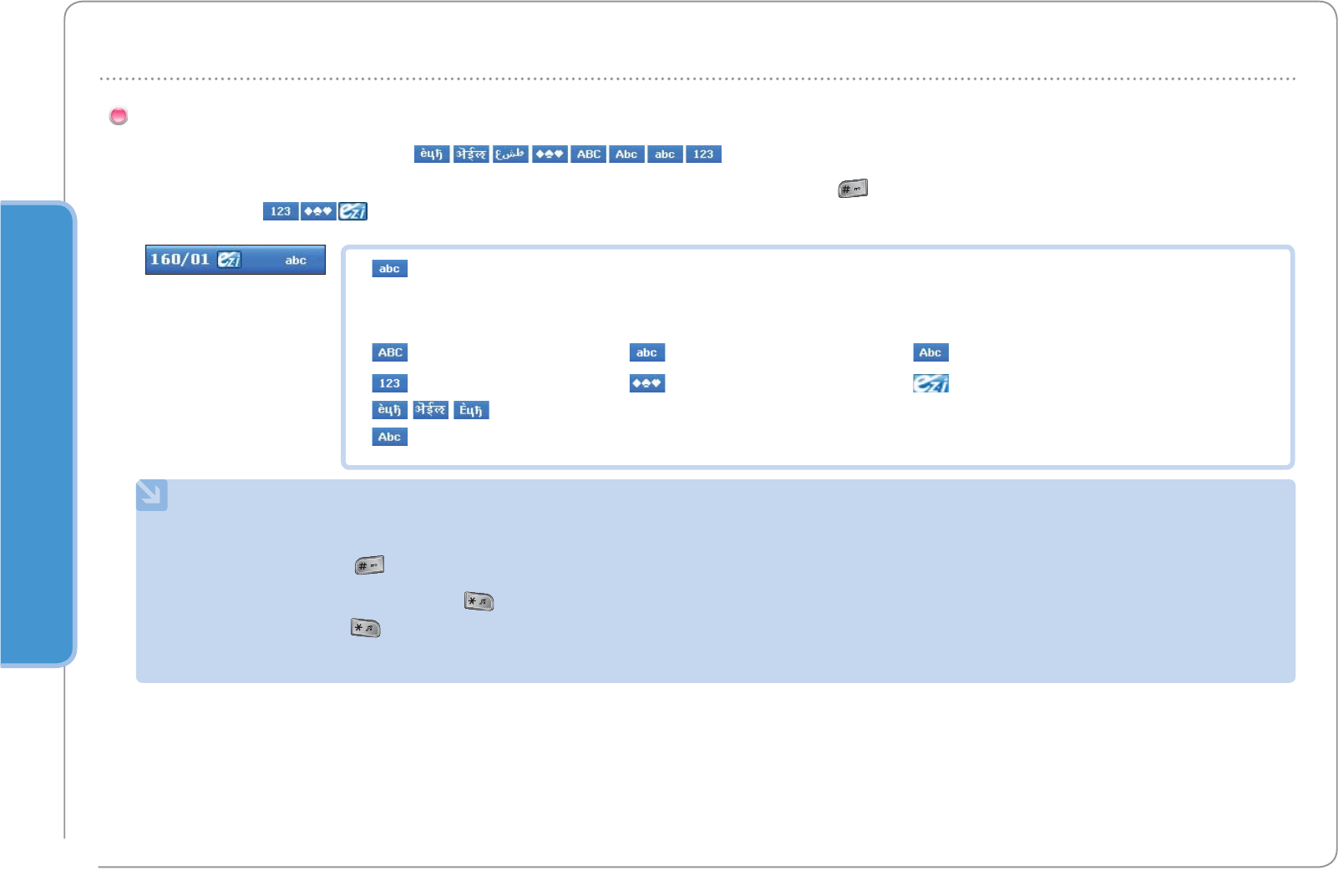

Entry status is displayed with .

Among these, change of capital/small characters can be done by pressing (sharp key).

To change to , Option should be used.

Change Input mode

NOTE

In eZitxt status, capital/small character status is not shown.

However, pressing lets you know that capital/small character entry is still operating.

To switch on or off eZitxt, press (for a few seconds).

Additionally, press shortly and a symbol input pop-up window will be shown. Once text is input, the status will

change to Tap mode.

•

shows whether current entry status is capital or small characters.

Differentiating capital and small character is supported only with Latin language and supported entry

forms in Text entry are as below.

: Capital : Small : Capital + Small

: Number : Special Character : eZitxt On

: Arabic, Farsi, Urdu, Hindi Number

indicates number of current entered characters and available characters for entry.

•

Getting started

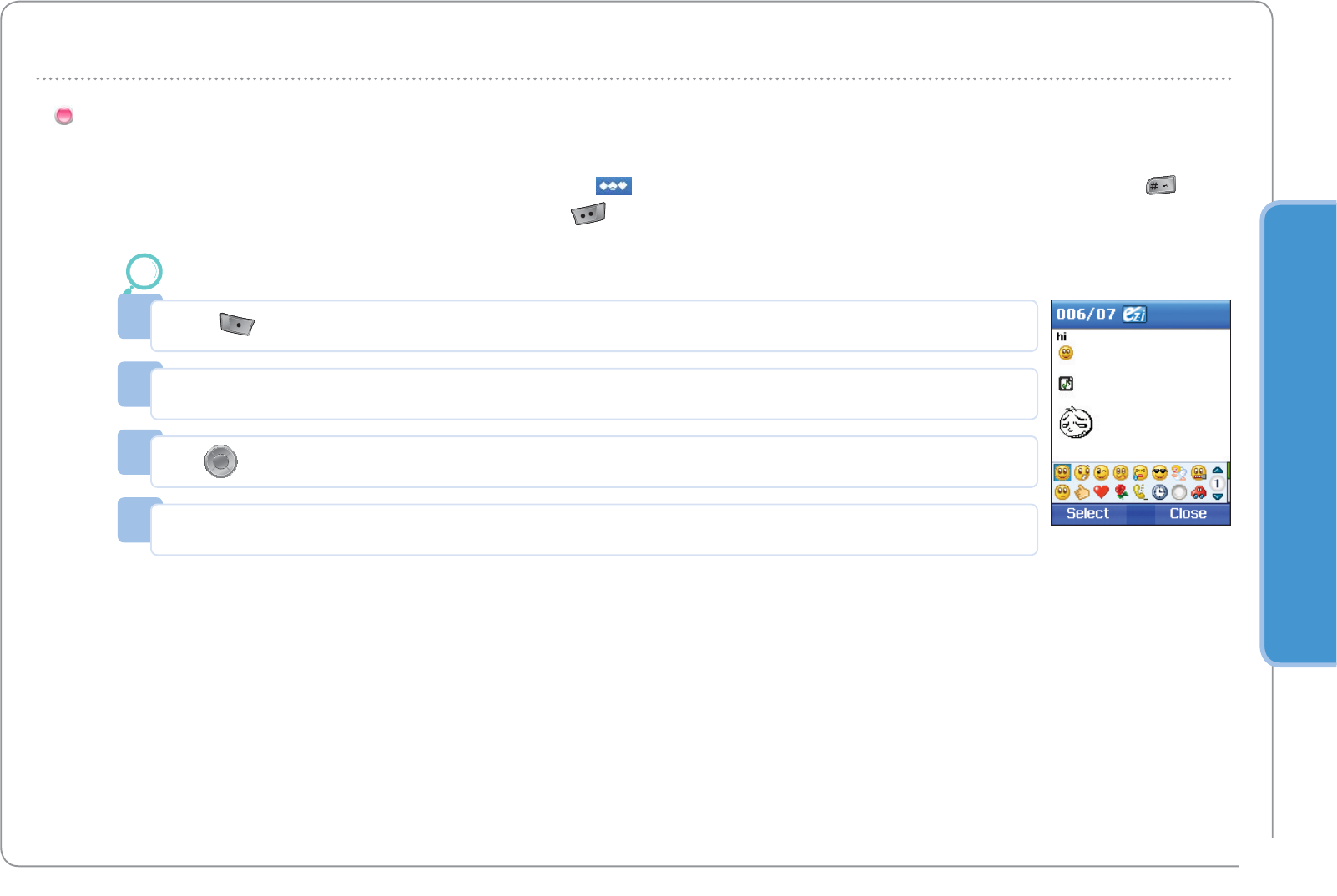

There are two ways to enter symbols.

One is in symbol pop-up by changing entry status with , and the other is to obtain desired symbol by pressing .

To close the window without entering symbol, press key (Close).

Input symbol

1Press (option).

To insert a symbol : In text editor

2Scroll to Symbol and select.

3Use to move through pages.

4Press desired symbols or numbers.

Getting started

NOTE

Special characters can be simply entered by pressing when it is not for symbol or numbers.

•

The details of special characters are below.

Getting started

There are two ways to enter numbers in text entry window.

One is to change entry status to numeric and the other is to press desired number on keypad for 2 seconds.

NOTE

It is easier to change entry status to numeric when entering a series of numbers.

•

Press desired numbers on the keypad for a few seconds.

Or.

Press (option).

To enter Number mode : In text editor

Scroll to Mode and press .

Scroll to ‘123’.

Press desired numbers on the keypad.

Input number

Getting started

SG-2520 supports 12 languages.

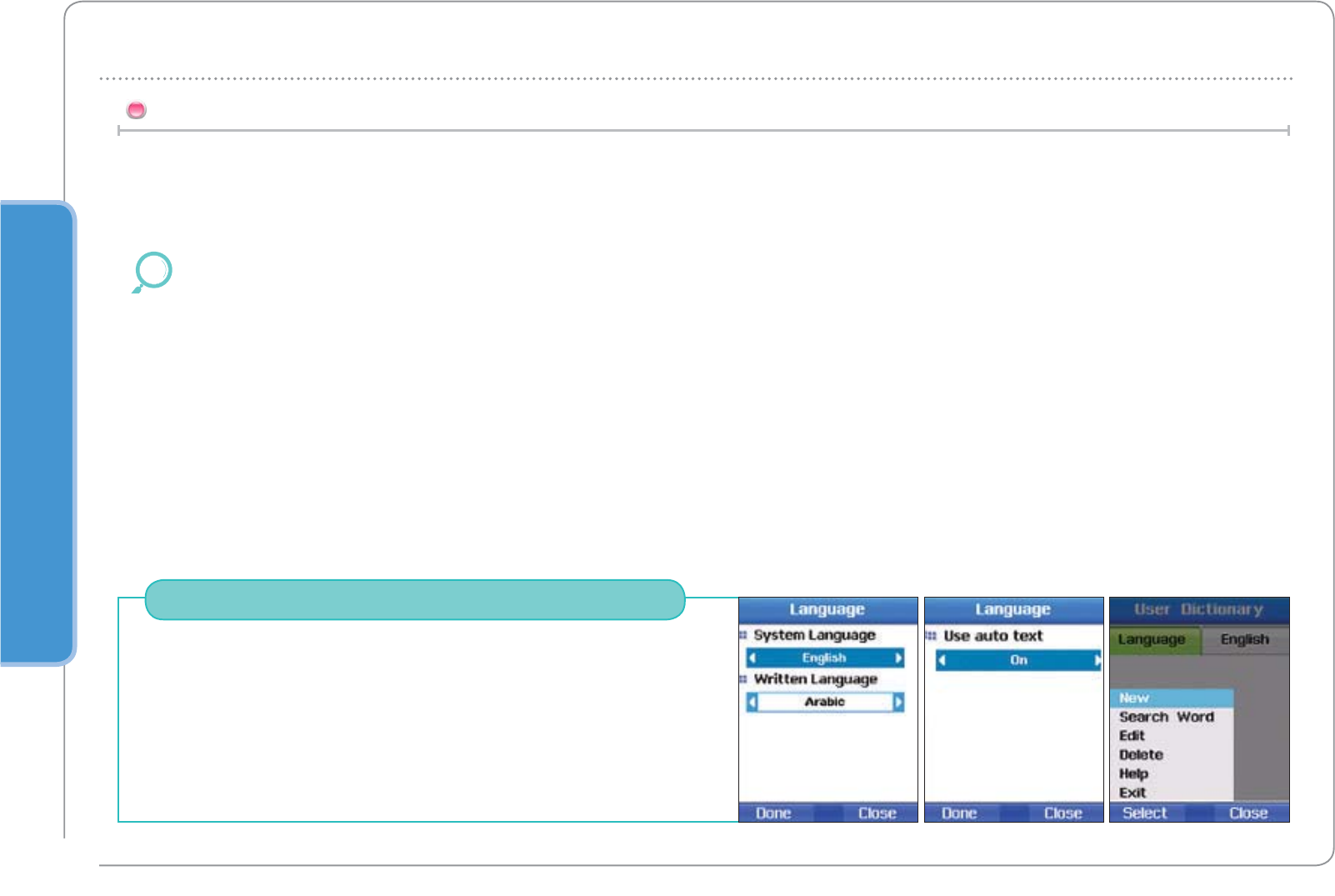

Change language

Supported languages are:

The language is divided into the System language and the Input language, The System language is for menu settings

shown on screen and the Input language is for entering messages or name.

When composing a message, the user can use two languages.

English is supplied as basic, and the other language should be set up by the user in <Settings - Language>. (see page 60)

1Press (option).

To change entry language : In text editor

2Scroll to Language and Ok.

3Scroll to desire language and press Ok.

1. English 2. French 3. German 4. Italian

5. Spanish 6. Portuguese 7. Turkish 8. Russian

9. Farsi 10. Arabic 11. Hindi 12. Urdu

Getting started

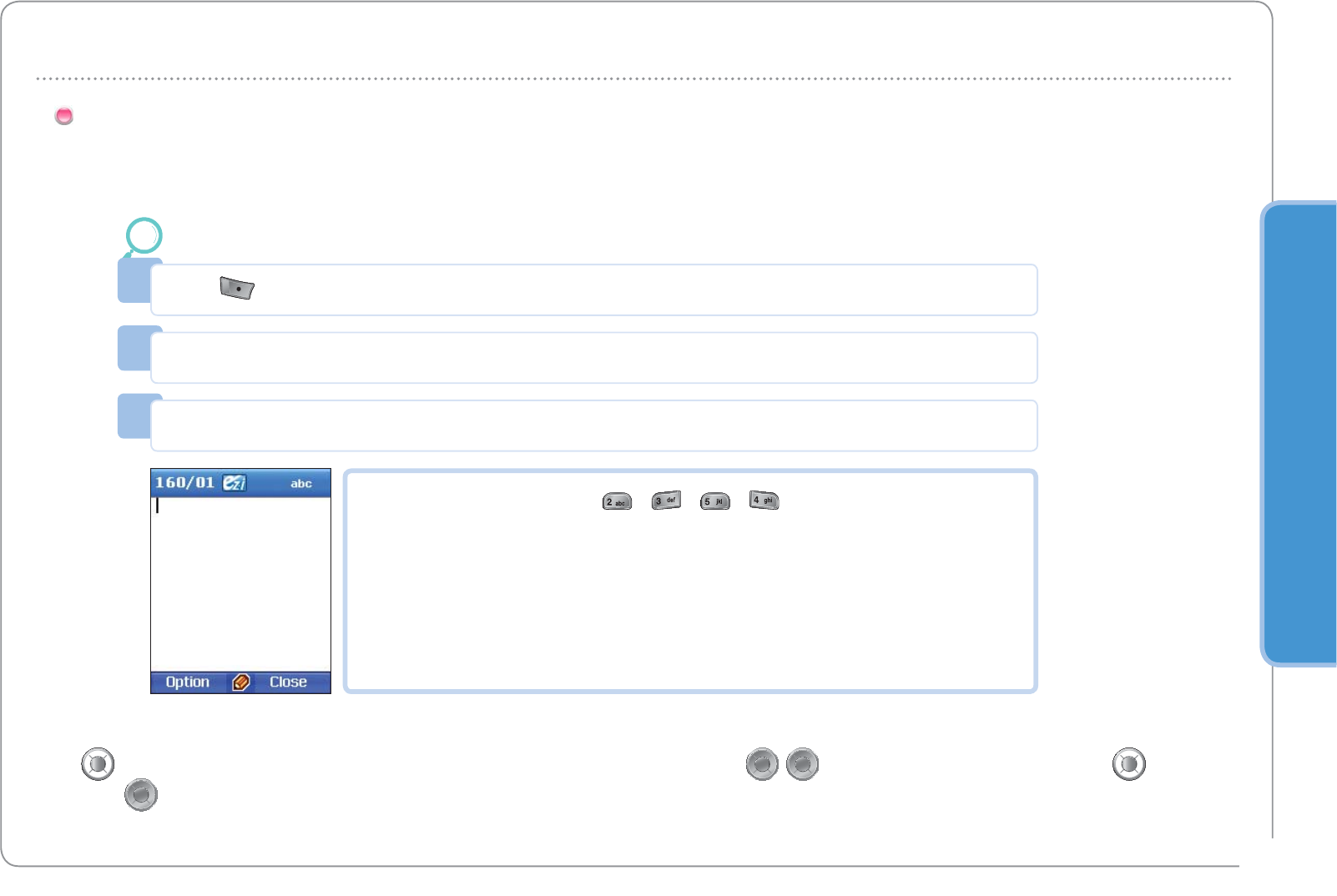

eZitxt is built in for faster entry of words. With eZitxt, you don’t have to type in the whole word. With few initial letters

entered by user the font will recommend the nearest words

eZitxt ON / OFF

1Press (option).

To switch eZitxt ON / OFF : In text editor

2Scroll to eZitxt and select.

3Press desired numbers on the keypad.

Results obtained through ---are two

recommended words including “Believe”.

•

To enter the recommended word from eZitxt, repeatedly press keypad of the word until desired word is found, and press

to enter, and in case desired word is not shown, move focus using  to the desired word and press .

Use to search more words.

To enter a new word which is used frequently, register it in Dictionary located in Option for easy future use.

Getting started

In eZitxt only the words registered in eZi engine are recommended, when new words or names are not recommended,

the user has the ability to insert a new word in the eZitxt dictionary.

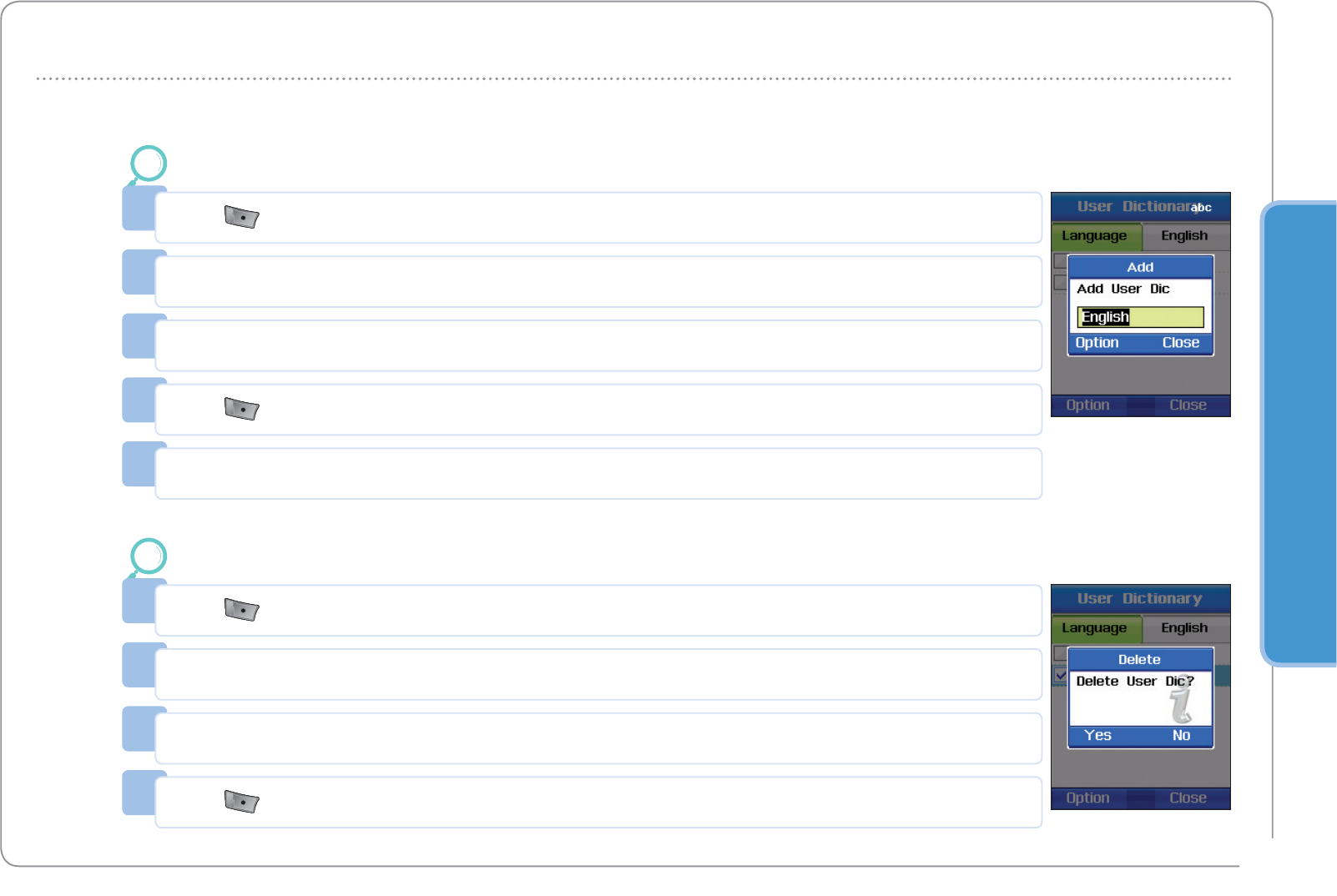

Dictionary

1Press (option).

To register a new word : In text editor

2Scroll to Dictionary and select a word.

3Dictionary List Move.

4Press (Add).

5Input new word.

Getting started

1Press (option).

To change the registered word : In text editor

2Scroll to Dictionary and select a word.

3Dictionary List Move.

4Press (Edit).

5Change word.

1Press (option).

To delete the registered word :

2Scroll to Dictionary and select a word.

3Dictionary list Move

4Press (Delete).

Getting started

NOTE

Using Dictionary ‘Add’ and ‘Edit’ functions may affect the Input language.

Particularly, when editing a word in the Dictionary, the Input language in which a word is already saved,

and the Input language currently set up must be the same.

•

To clear already entered text, a short press of the key clears one character at a time and a long press of the key

clears all of the entry.

To clear text

SG-2520

www.thuraya.com

Using the menu

SG-2520 supports various types of files.

Image, video, sound, MP3, and text files can be easily and quickly sorted out and managed separately.

Especially, Image, Video, Sound, and Mp3 that are frequently used are readily accessible through the Media center.

Files registered in Image, Video, Sound, Mp3 boxes are organized from the most recent file, making viewing and managing

files easier and more convenient.

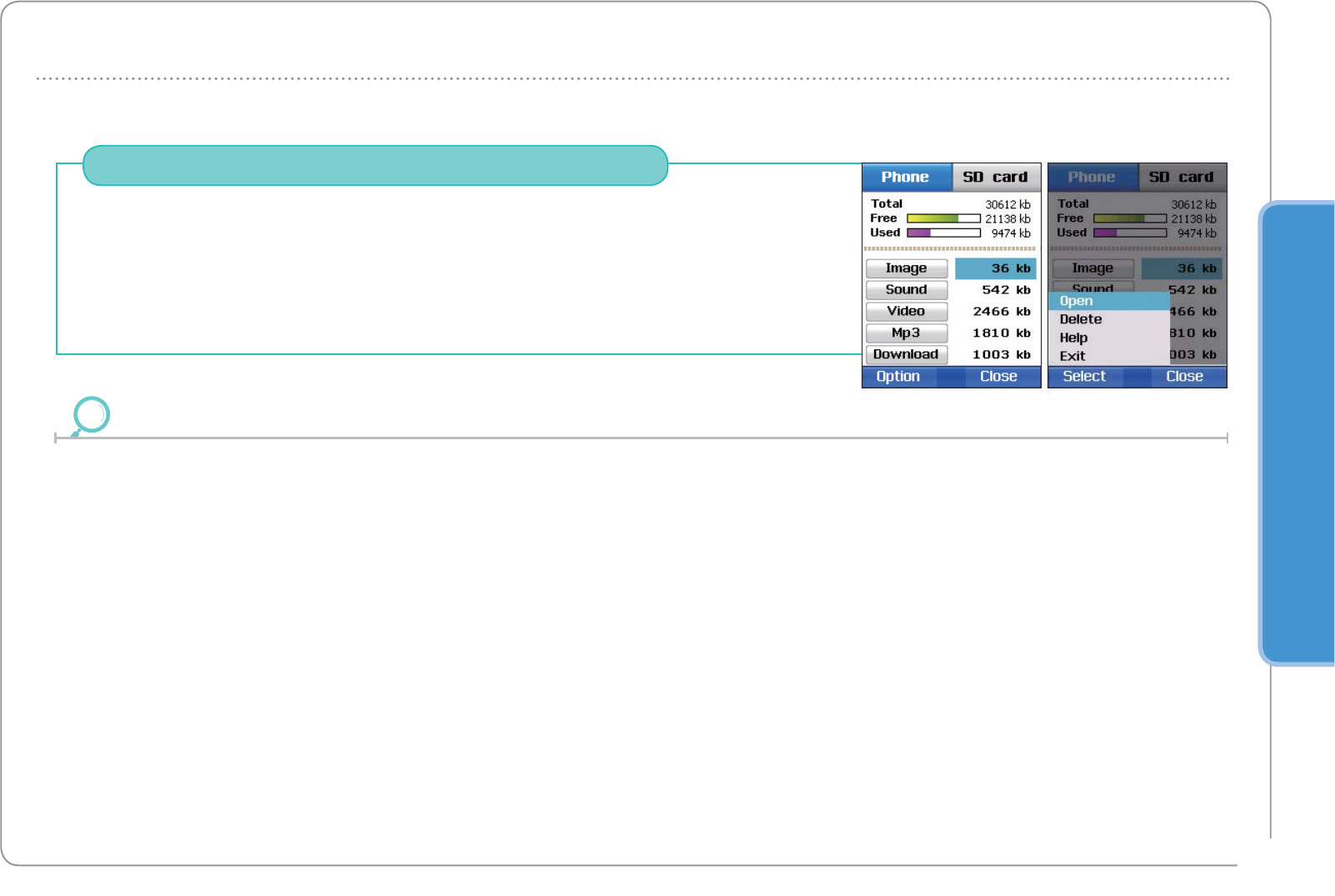

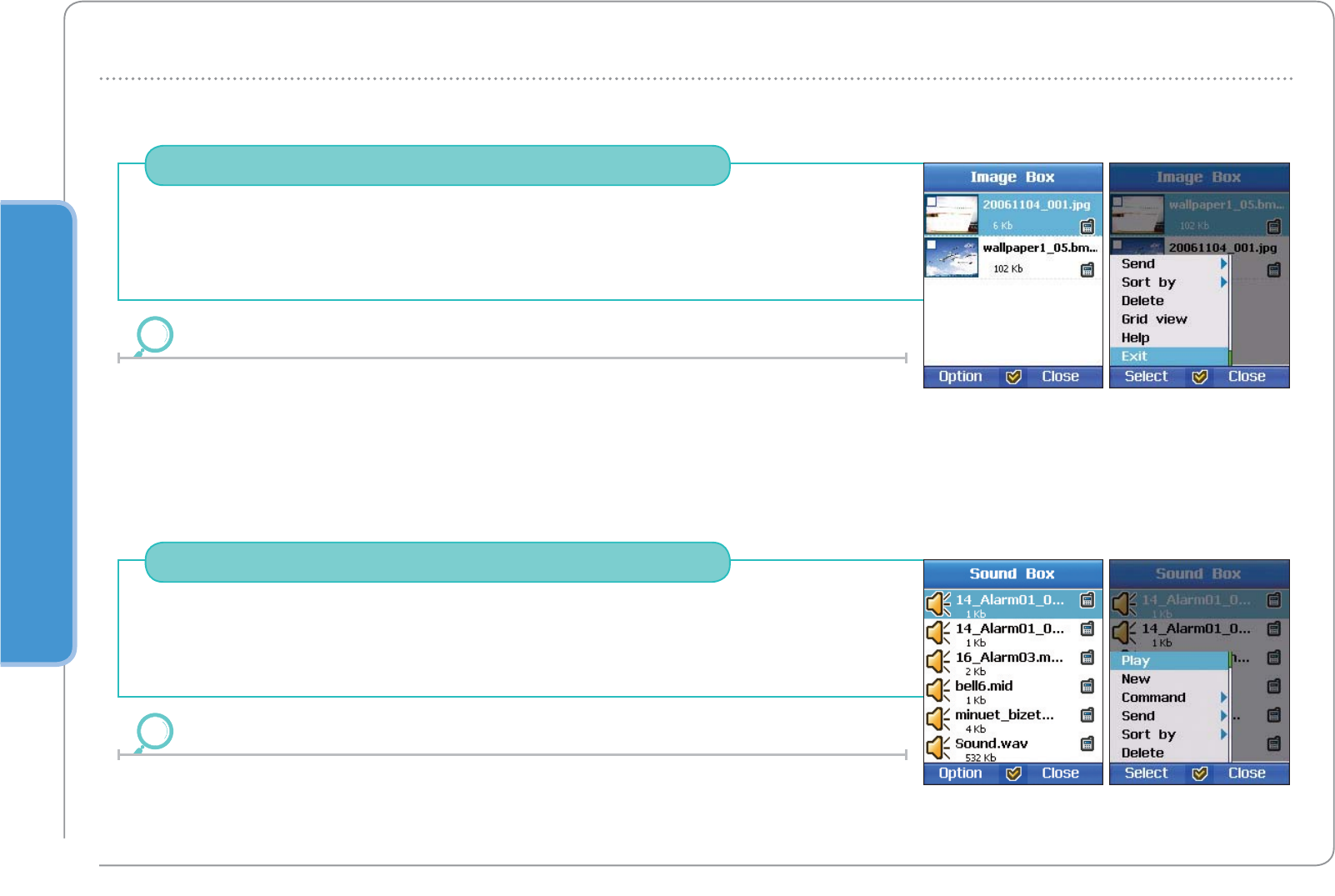

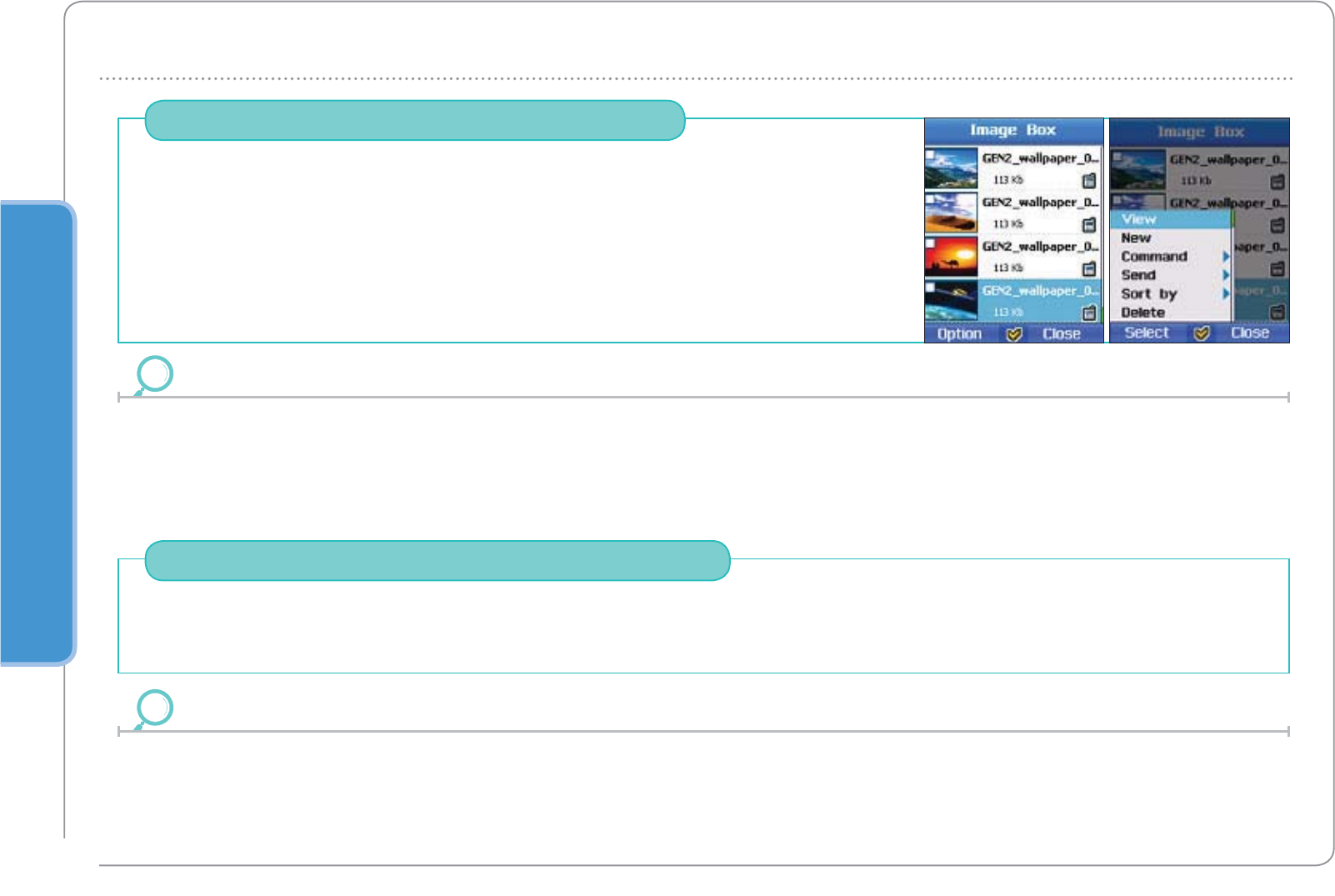

1. Media center

Media center supports the following functions.

Multi-select

You can select several files with Center key ( ).

When several files are selected, the following functions are available.

Move

Copy

Send - MMS, Email, Bluetooth, IrDA

Delete

View, Play

The View function is applicable to the Image box to view photographs.

Use Left or Right key ( ) to view next or previous photos.

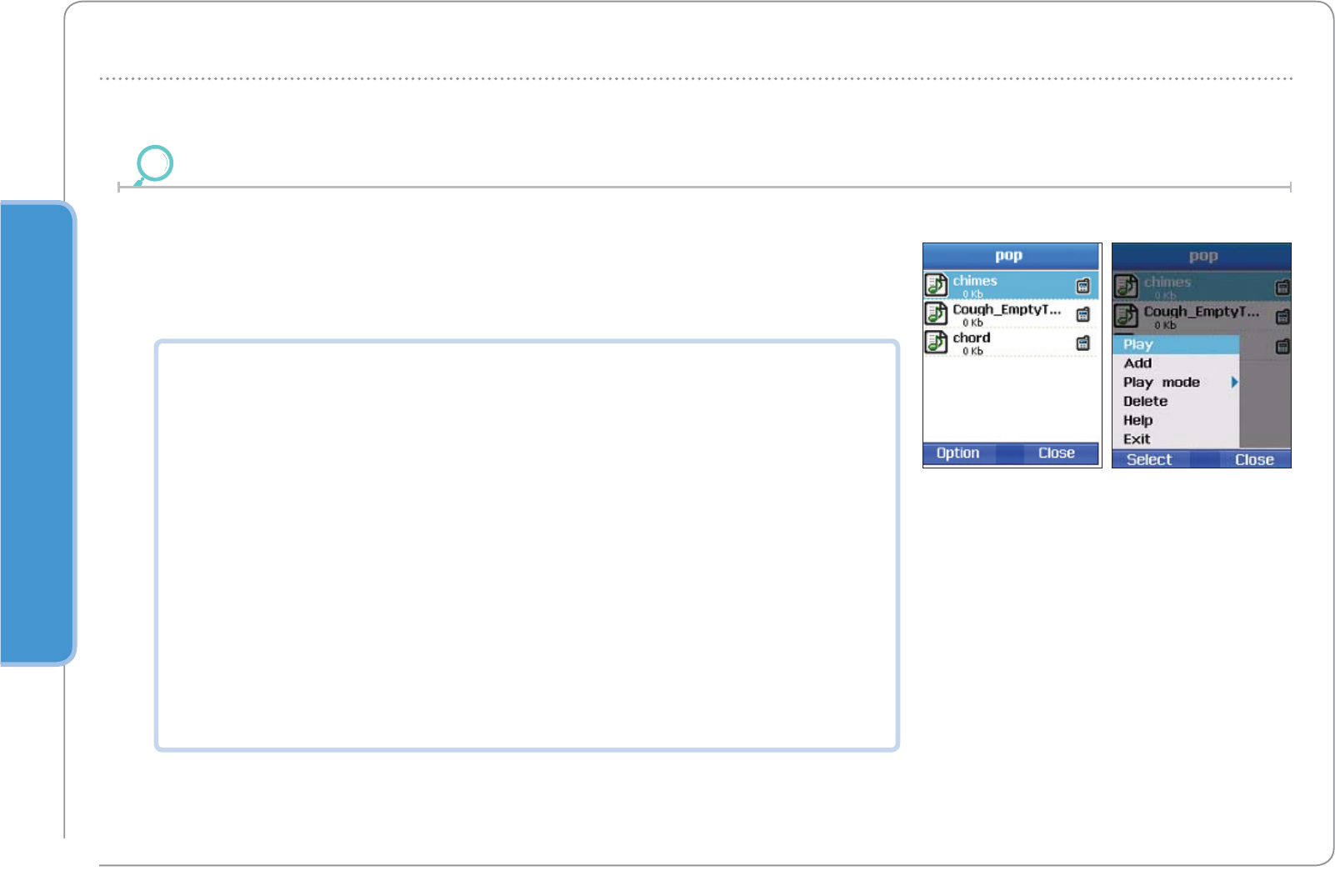

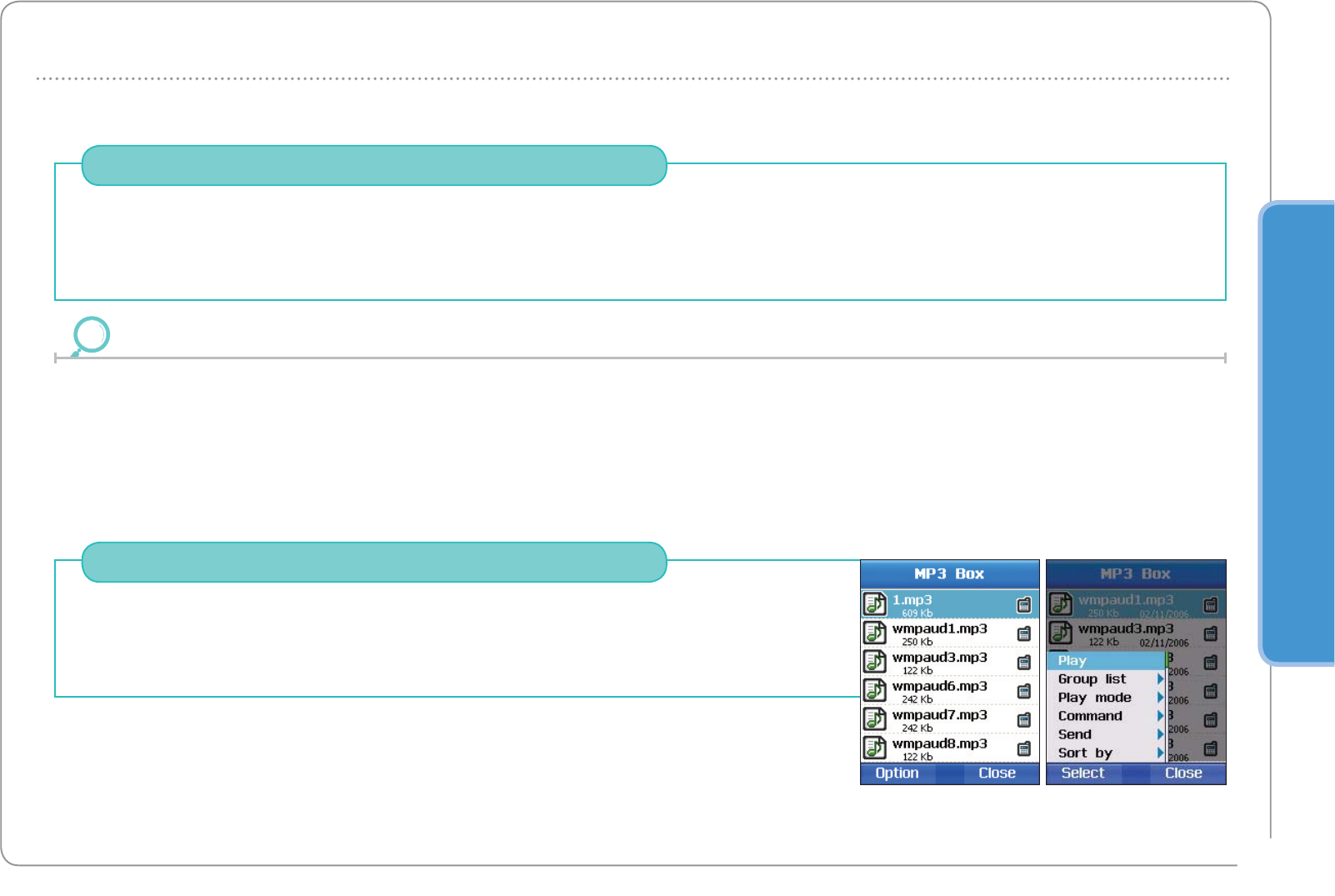

The Play function in Sound box, Video box, and MP3 box plays back the selected file.

The playback of multi-selected files is also possible. Use Left or Right key ( ) to play back next or previous files.

When only one file is selected, press Left or Right key ( ) to play back the file repeatedly.

Using the menu

New

The New function has various features appropriate for each box such as still capture for the Image Box, video capture for the

Video Box, and recorder for the Sound Box. However, the MP3 box does not support the new function.

Command

You can use this menu to manage files that you frequently use.

‘Command’ performs functions such as file name change, file transfer and file copy.

According to the file type, you can choose either Wallpaper or Ringing tone.

Select wallpaper for: Image

Select a ringing tone for: Sound, MP3

Using the menu

Rename

You can change the existing file name. However, when multiple files are selected you cannot change the names. File names can be

made in the language that you selected. However, some symbols (e.g , /, :, ", <, >, |) cannot be used for a file name.

Exceptions to the instruction above are Waypoint names that consist of English and numbers only.

Up to 20 characters can be used to rename a file. When entering more than 20 characters, you will see a pop-up window.

1Select a file (only one).

To Rename :

2Press .

3Scroll to "Command" and press .

4Scroll to "Rename" and press .

5Input file name.

6Press .

7Scroll to "Done" and press .

Using the menu

Move

Use this to move a file to a different location.

For example, you can move a file stored in the Phone Image Box to the Image Box or the User Folder in the SD card.

1Select a (multi-select : ).

To Move :

2Press .

3Scroll to "Command" and press .

4Scroll to "Move" and press .

5Select the location.

Using the menu

Copy

Use this to copy a file to a different location.

For example, you can copy a file stored in the Phone Image Box to the Image Box or the User Folder in the SD card.

1Select a (multi-select : ).

To Copy :

2Press .

3Scroll to "Command" and press .

4Scroll to "Copy" and press .

5Select the location.

Using the menu

Wallpaper

Select an image file and use the selected file as the background of the idle screen.

1Select a file.

To save as Wallpaper :

2Press .

3Scroll to "Command" and press .

4Scroll to "Wallpaper" and press .

Using the menu

Ringing tone

Select a sound file or a MP3 file, and set it as a default Ringing tone.

1Select a file.

To set as a Ringing tone :

2Press .

3Scroll to "Command" and press .

4Scroll to "Ringing tone" and press .

Using the menu

Send

With the following functions, you can send files to others.

MMS

Attach a file in a Multi-media Message format to an outgoing message.

The size of the attached file is limited by the volume of the transmission specified in the MMS settings.

Refer to Creating MMS for details (page 87).

5Refer to Creating MMS (page 87).

Scroll to "MMS" and press .

1Select a file (multi-select : ).

To send as MMS :

2Press .

3Scroll to "Send" and press .

Using the menu

Like an ordinary Email, you can attach a file to an outgoing message.

There is no restriction on the size of the attached file. However, some network providers may limit the transmission volume.

1Select a file (multi-select : ).

To send as Email :

2Press .

3Scroll to "Send" and press .

4Scroll to "Email" and press .

5Refer to Composing Email (page 89).

Using the menu

Bluetooth

Bluetooth is wireless communication that transmits a file to another Bluetooth within a 20m radius and you can share or transmit

files using this feature (See page 127).

1Select a file (multi-select : ).

To send as Bluetooth :

2Press .

3Scroll to "Send" and press .

4Scroll to "Bluetooth" and press .

5Select Device.

Using the menu

IrDA

There is an infrared port for IrDA communication at the top of SG-2520 and you can send files with this feature (See page126).

1Select a file (multi-select : ).

To send as IrDA :

2Press .

3Scroll to "Send" and press .

4Scroll to "IrDA" and press .

5Select Device.

Using the menu

Sort by

To search and manage files more easily, you can sort files by file name, size and creation date.

You can organize files in the descending order of the file names.

Name

Arrange file names in the order of number > symbol > letter.

1Press .

To sort by Name :

2Scroll to "Sort by" and press .

3Scroll to "Name" and press .

Using the menu

Size

Arrange files in the order of the file size, starting from the smallest one.

1Press .

To sort by Size :

2Scroll to "Sort by" and press .

3Scroll to "Size" and press .

Date & time

Arrange files in the order of the creation date, starting from the latest one.

1Press .

To sort by Date & Time :

2Scroll to "Sort by" and press .

3Scroll to "Date" and press .

Using the menu

Delete

Delete the selected files.

Using the menu

Image box displays all photos saved in the built-in and external memories of

SG-2520 after processing the photos into thumbnails, and arranging them in

a grid type. Thumbnail photos can be shown in a full-viewer type.

1.1. Image box

Option (See 1. Media center)

Sound box shows all sound files that are saved in the built-in and external

memories of SG-2520.

1.2. Sound box

Option (See 1. Media center)

Using the menu

Video box shows all images, which are saved in the built-in and external memories of SG-2520, in thumbnail images.

The thumbnail images are arranged in a grid type, but can be shown in a full-viewer type.

1.3. Video box

Option (See 1. Media center)

MP3 box shows all Sound files that are saved in the built-in and external

memories of SG-2520.

1.4. MP3 box

Using the menu

Group list

You can manage MP3 files stored in the Phone by group.

You can listen to songs by creating a group, and simply adding and editing MP3 files

within the Group.

Option (See 1. Media center)

Play

Play back the selected song.

View

View the list of the selected group.

Rename

Change the selected group name.

Play mode

Once : Play back songs in the Group in order once.

Loop : Play back songs in the Group in order repeatedly.

Shuffle : Play back songs in the Group in shuffled order once.

Loop & Shuffle : Play back songs in the Group in shuffled order repeatedly.

Delete

Delete the selected group.

Using the menu

The memory capacity of Image, Sound, Video, MP3, and Download, which are

being used in the Phone and the SD card, is displayed in Kb. Each folder can

also be viewed separately. The used and unused memory capacity of the Phone

and SD card are categorized into Total, Free and Used, and presented in a bar

graph form so that you can view the memory status easily.

1.5. Memory status

Option

View folder

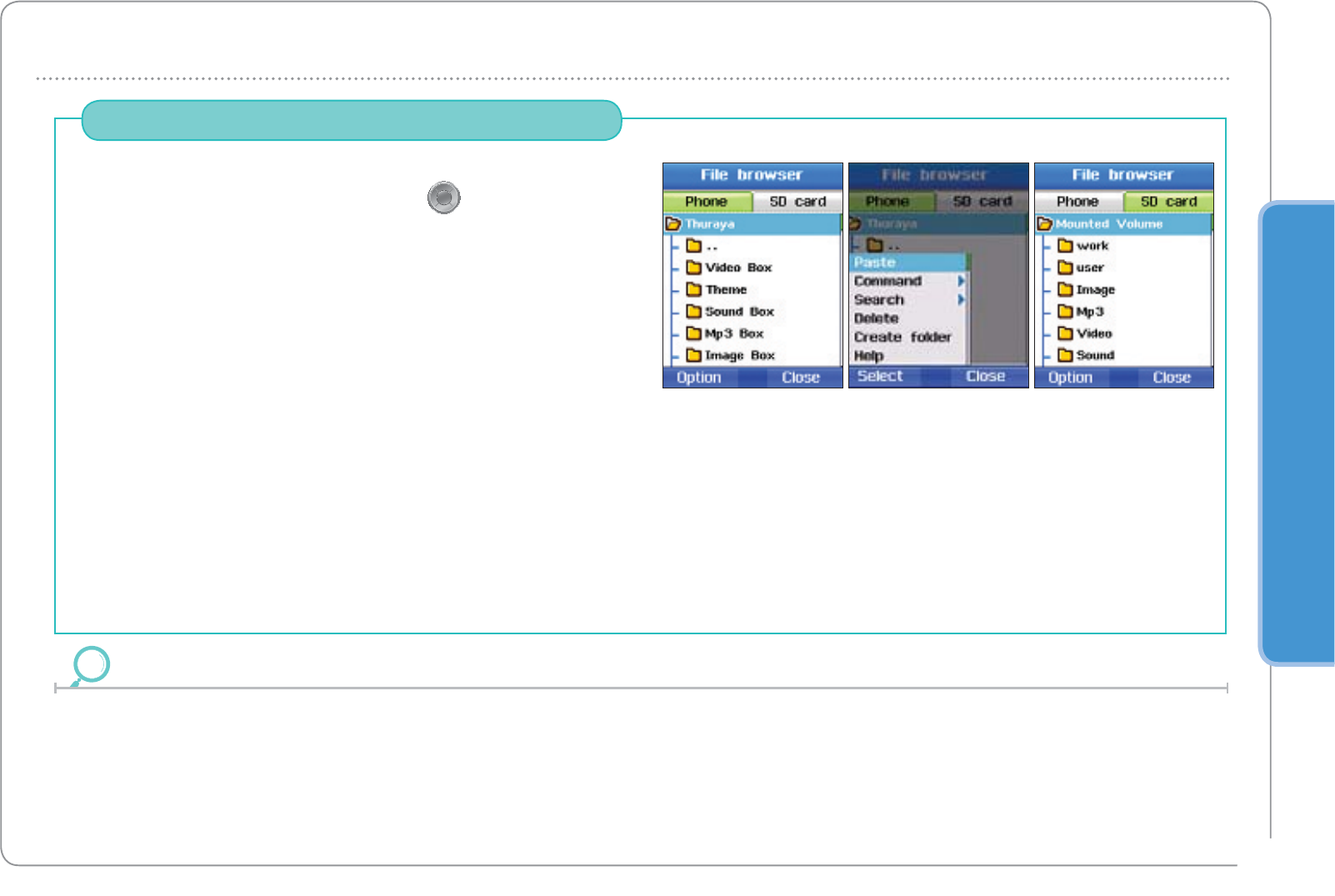

View and edit files in the selected folder. (See 12.4. File browser)

Using the menu

SG-2520 manages 5 different Lists.

You can make calls using numbers from each List.

Contact list (Name, Group, Message group)

Special list

SIM list

Speed dial

Helper

Among these, the most important number list is contacts list. The numbers registered with contacts list have corresponding

names, and the names are displayed in call logs instead of the numbers. The menu, Contacts, includes those contacts

stored in your SIM card. If you already have contacts stored in SIM card, Contacts in the memory and SIM card contacts

will be shown together. In the SG-2520 contacts in the phone’s memory and contacts in SIM card are managed separately.

Therefore, to add a new contact, you should decide whether to store it in the mobile phone or SIM card.

When stored in the SIM card, the maximum number of names and numbers varies depending on service provider.

When stored in mobile phone, a single contact may have a name, 6 different contact numbers, Email, Caller Group, memo

and address. The maximum possible number of contacts is 999 with up to 26 numbers for each contact number,

20 characters for name and 256 characters for memo and address.

Also, when making a call to a name in the contact list by pressing . it tries to connect to the primary number.

The numbers which are stored in contacts are displayed in the all the lists with their respective names.

•

2. Contacts

Using the menu

SG-2520’s Contact List provides 3 different groups such as Name, Group and Message Group.

2.1. Contacts list

2.1.1. Contact List

You can create, edit and view general contacts. Contacts can be added up to 999. To add a new contact name one tele-

phone number is at least required. If Group is not selected, the new contact will be saved into None. A new contact name

may have up to six telephone numbers (three standard telephone numbers and three fields). Standard field numbers remain

blank. Address and Memo fields can be also added and used.

Select "Search" in Picture to use existing photos in Contact image box, and "New" to go to Still Capture to take a new photo

and add it to Contact list.

Details of available functions are as follows.

Using the menu

New

Add a new contact.

Option

Add field (Number)

Add a phone number field. Three more fields can be

added.

Add field (Address)

Add an address field.

Add field (Memo)

Add a memo field.

Delete field

Delete added field.

Address, Memo, Number (except Standard field) fields can

be deleted.

Edit

Edit the selected phone number.

Delete

Delete the selected phone number.

Delete all

Delete all phone numbers.

Using the menu

Copy to

Add to group

Add the selected contact to a Contact list or a Message group list that the user chooses.

Send Msg.

Send SMS, MMS, or Email to the selected contact. (See 5.1messaging on page 84)

Send Contact

Send Contact in a SMS, MMS, Email, IrDA, or Bluetooth format to the selected contact.

Get Contact

Bring the contact list saved in the SD card. (In this case, the list will not exist in the SD card.)

SIM

Copy the selected contact to the SIM card.

SD card

Copy the selected contact to the SD card.

Using the menu

2.1.2. Contact group list

Contact group list displays groups that you created. It helps to easily manage contacts. The maximum possible number of

groups on the Contact group list is twenty. Each Contact Group list can store up to 999 contacts. Additionally, a group bell

can be set for each group.

The details of available functions are as follows.

View

View the contents of the selected Contact Group list.

New

Add a new Group list.

Edit

Edit the selected Group list.

Member (Add)

Add a contact to the selected group.

Member (Remove)

Remove a contact from the selected group.

Delete

Delete the selected group.

Send msg.

Send a group message (SMS, MMS, Email) to the selected

group.

See 5.1.1 for detailed instructions

Order

Organize Contact group lists in the order of frequency usage.

Group bell

Set a Group bell using the Left, Right key.

Option

Using the menu

2.1.3. Message group list

Message group list sets groups which you frequently send a group message to. While Group message in the Contact

group list more focuses on grouping contacts, Message group list aims to group contacts with emphasis on group

messages. The difference helps to easily use and manage Phone book for your convenience.

The details of available functions are as follows.

New

Add a new Message group list.

Rename

Change the name of the selected Message group.

Member (Add)

Add a new contact to the selected Message group.

Member (Remove)

Delete a contact from the selected Message group.

Send msg.

Send a group message (SMS, MMS, or Email) to the

selected Message group.

(Seepage 84)

Delete

Delete the selected Message group.

Option

Using the menu

Special list sets a Ringing tone that is specifically for a certain person. The user can either answer or reject an

incoming call after listening to its ringing tone. The phone will not have a ringing tone, when ‘None’ is selected for

the Ringing tone. Special list takes priority over Group.

To add a contact in the Contact list to the Special list select Option > Member > Add > Search.

2.2. Special list

Using the numbers from 1 to 9 on the phone the user can make a call with great

speed. Select a number in Speed Dial; enter a phone number in Assign, and

select Done to save. Once saved, the number changes to a symbol of lightning.

The number 1, unless being set for a speed dial, functions as a voice mail

box.

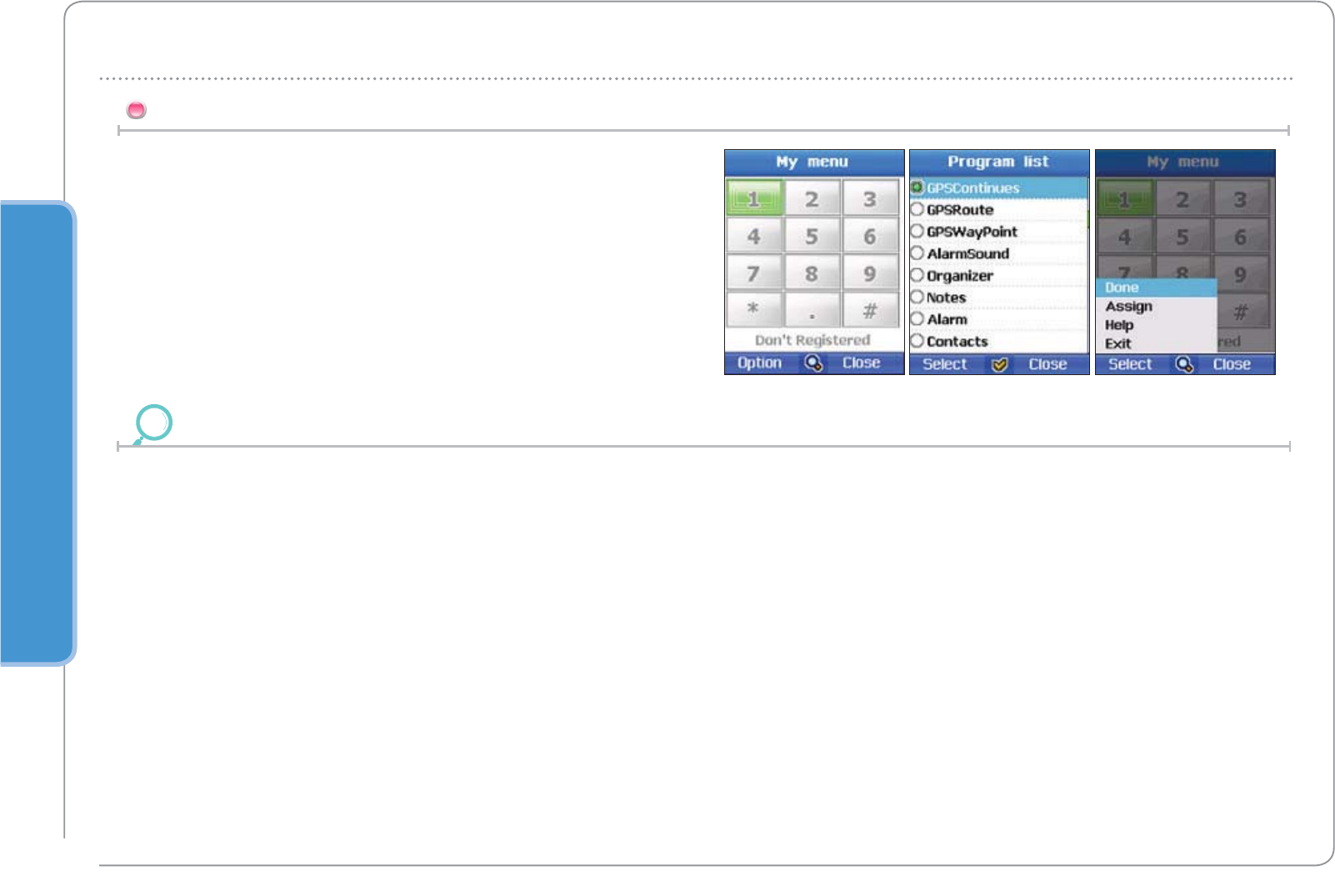

To set more numbers for speed dials move the Focus to a specific number and

take the following steps; Option > Assign > Input number > Option > Done.

2.3. Speed dial

Using the menu

Special list sets a Ringing tone that is specifically for a certain person. The user can either answer or reject an

incoming call after listening to its ringing tone. The phone will not have a ringing tone, when ‘None’ is selected for the

Ringing tone. Special list takes priority over Group.

To add a contact in the Contact list to the Special list select Option > Member > Add > Search.

2.4. SIM Contacts

note) which will be useful when you lose the mobile phone, or give the phone

number to other people.

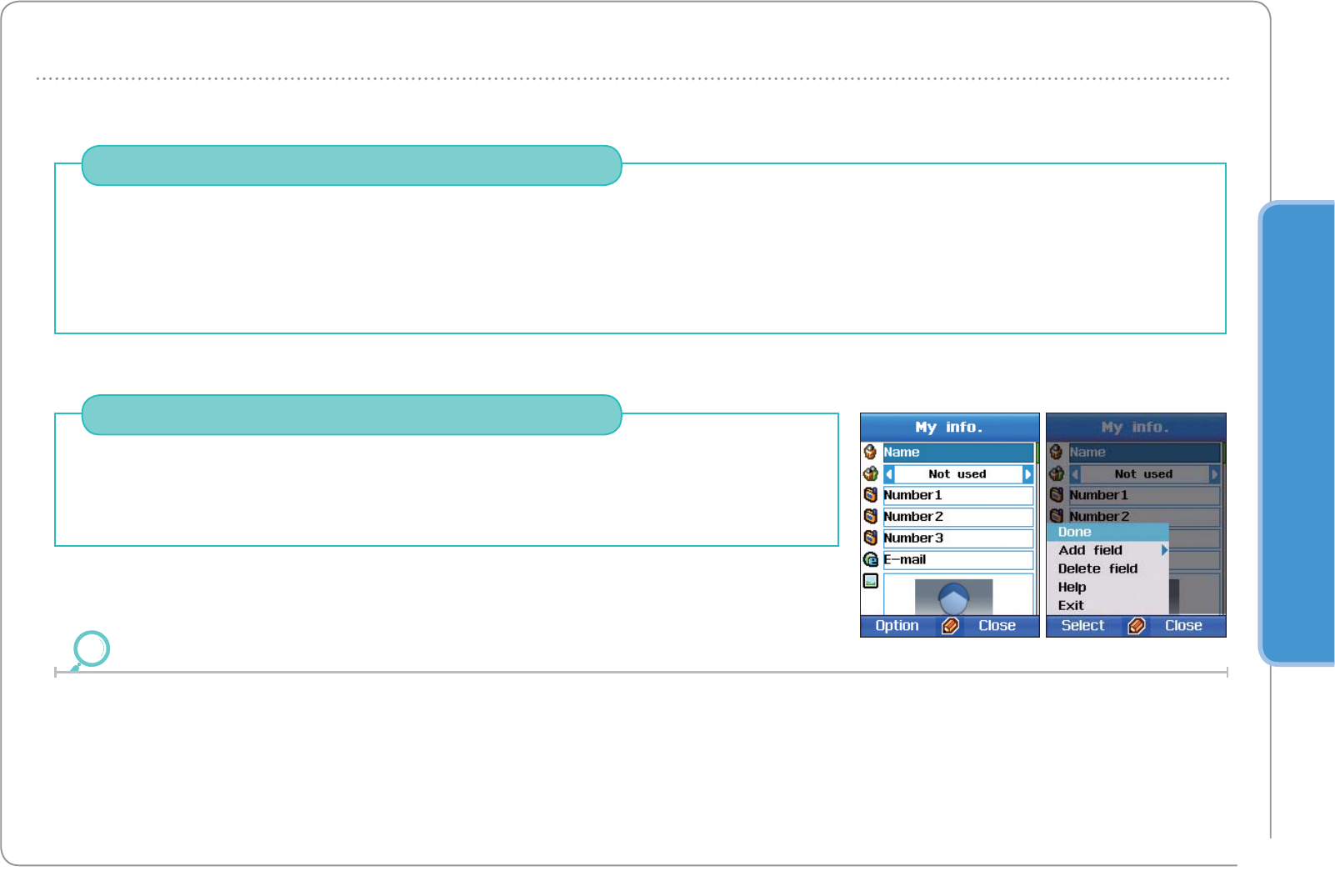

2.5. My Info.

Done

Save the entered information.

Add field

Add Number, Address, Memo fields.

Three more number fields can be added.

Delete field

Delete the added field in the Add field.

Option

Using the menu

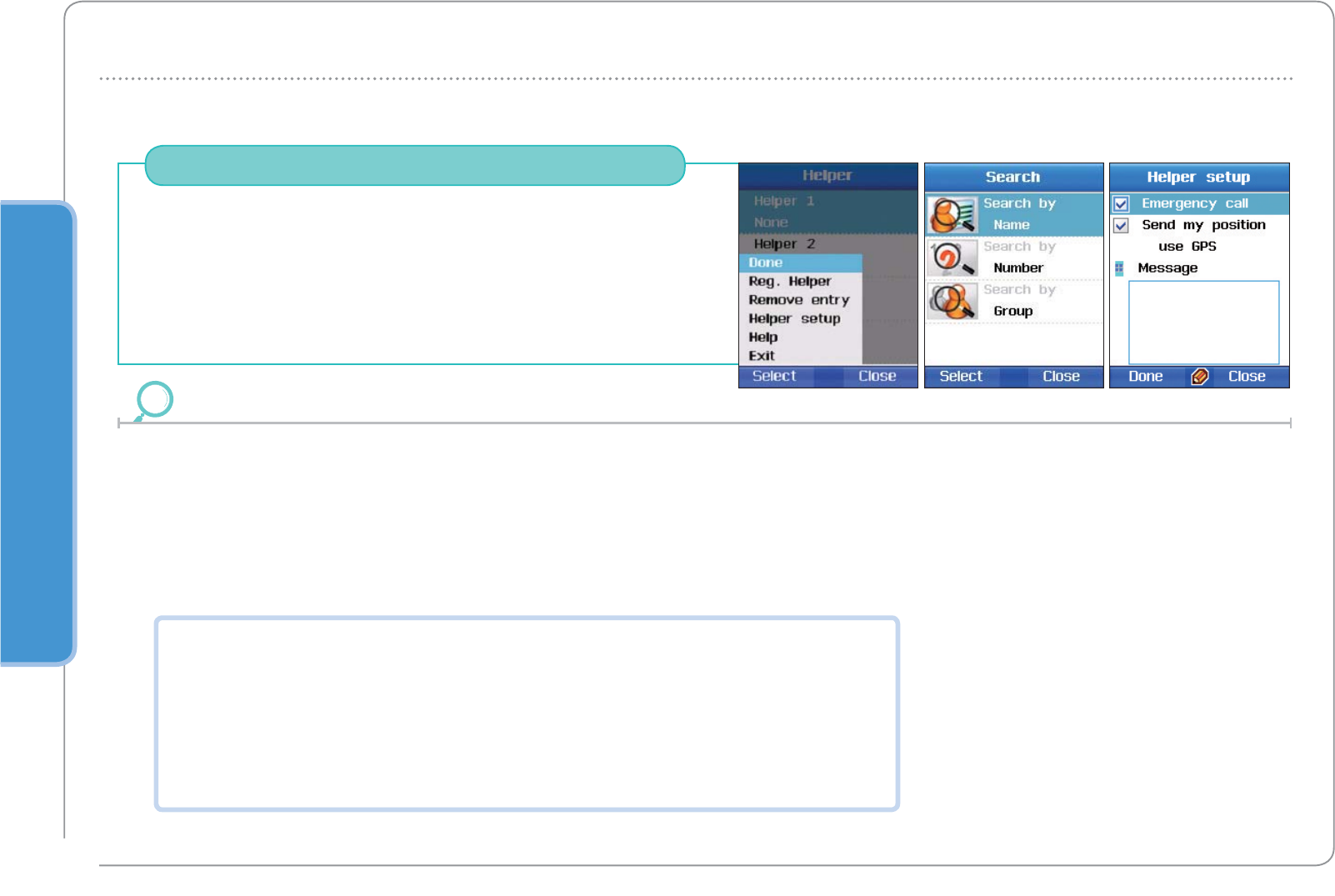

In emergencies Helper sends a SMS message containing

a message asking for help, and the location to the

pre-registered number. Some service providers may not

support this function. Please contact your service provider

regarding the Helper function.

2.6. Helper

Reg. Helper

Use Search mode searching a contact to register in the Helper.

Remove entry

Delete the registered Helper.

Helper setup

Option

Emergency SMS

Set up for an emergency SMS to be made when using Helper.

Message

Enter the text of a message to be sent. If you do not enter a text, a default

text, “help me!! I’m in emergency!!”, will be sent to the set number in the helper

registry.

Using the menu

Organizer creates and manages Schedule, Alarm, Plan, and Note. Registered Schedule and Plan can be shared with

Outlook through PC-sync. Organizer can also set up Alarm when necessary.

3. Organizer

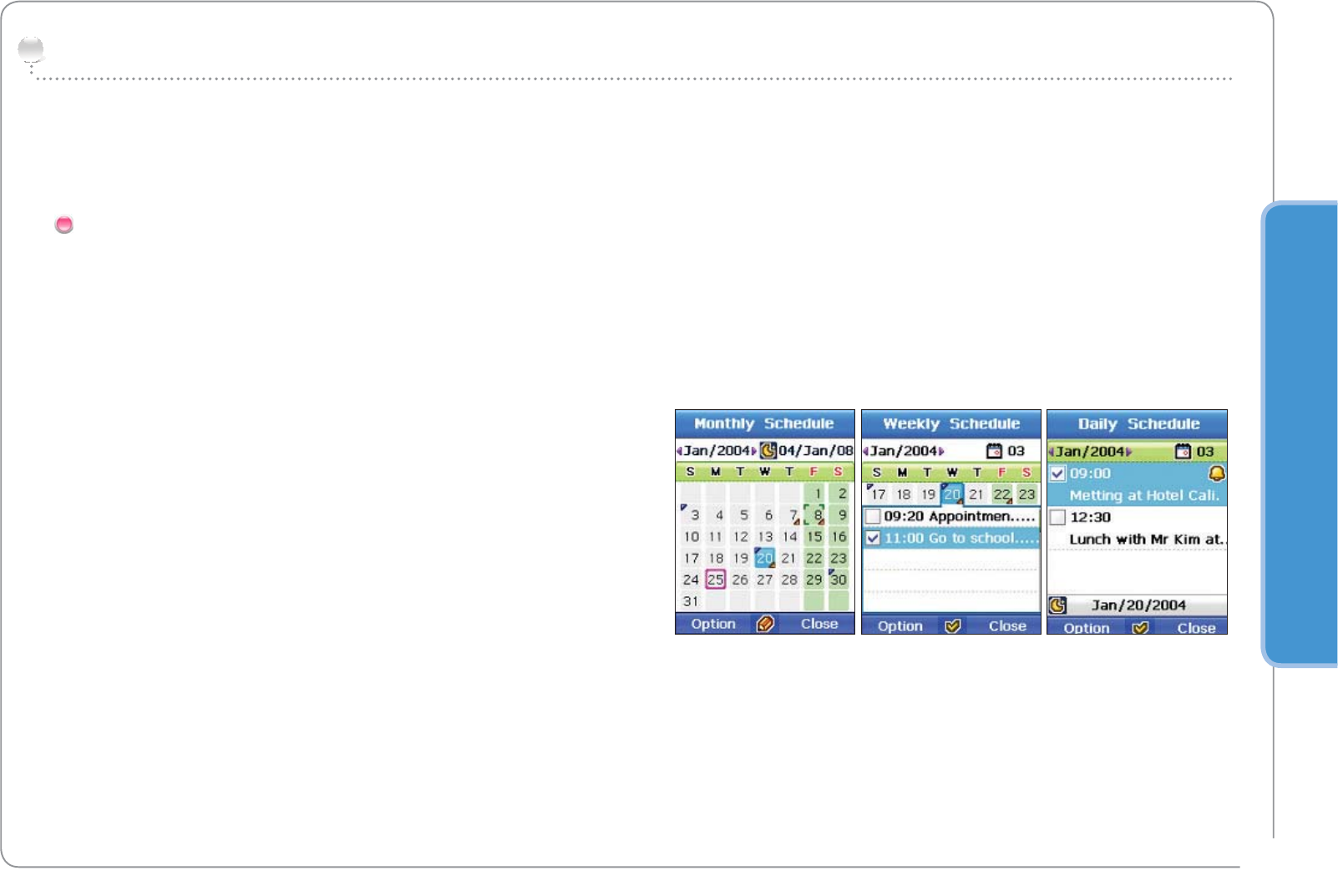

View schedules in various forms.

Schedule presented in Monthly, Weekly and Daily forms has a separate interface that is designed to make the most of

each form’s features. To set Schedule alarm sound take, the following steps;

Settings > Profiles > Option > Detail > Alarms > Schedule alarm.

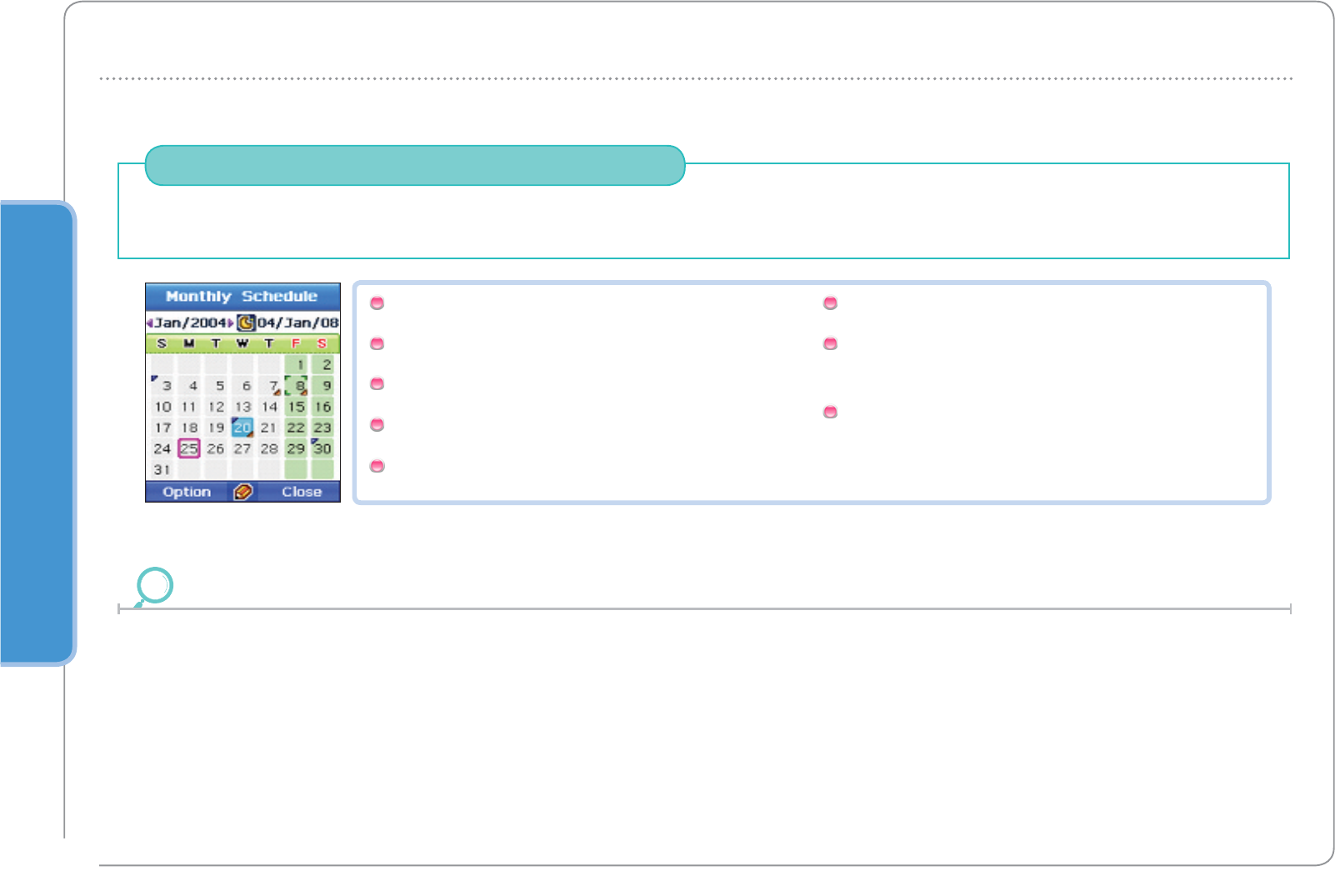

Scheduler

Monthly

Display Schedule organized by month.

Functions of View, New (Normal, Anniversary), Go to date,

Delete are available in the Option.

Weekly

Display Schedule organized by week.

Functions of View, New (Normal, Anniversary), Go to date,

Delete are available in the Option.

Daily

Display Schedule organized by day.

Functions of View, New (Normal, Anniversary), Go to date,

Delete are available in the Option.

Using the menu

Alarm can be set to Normal or Anniversary according to the user’s preference.

Alarm

Normal

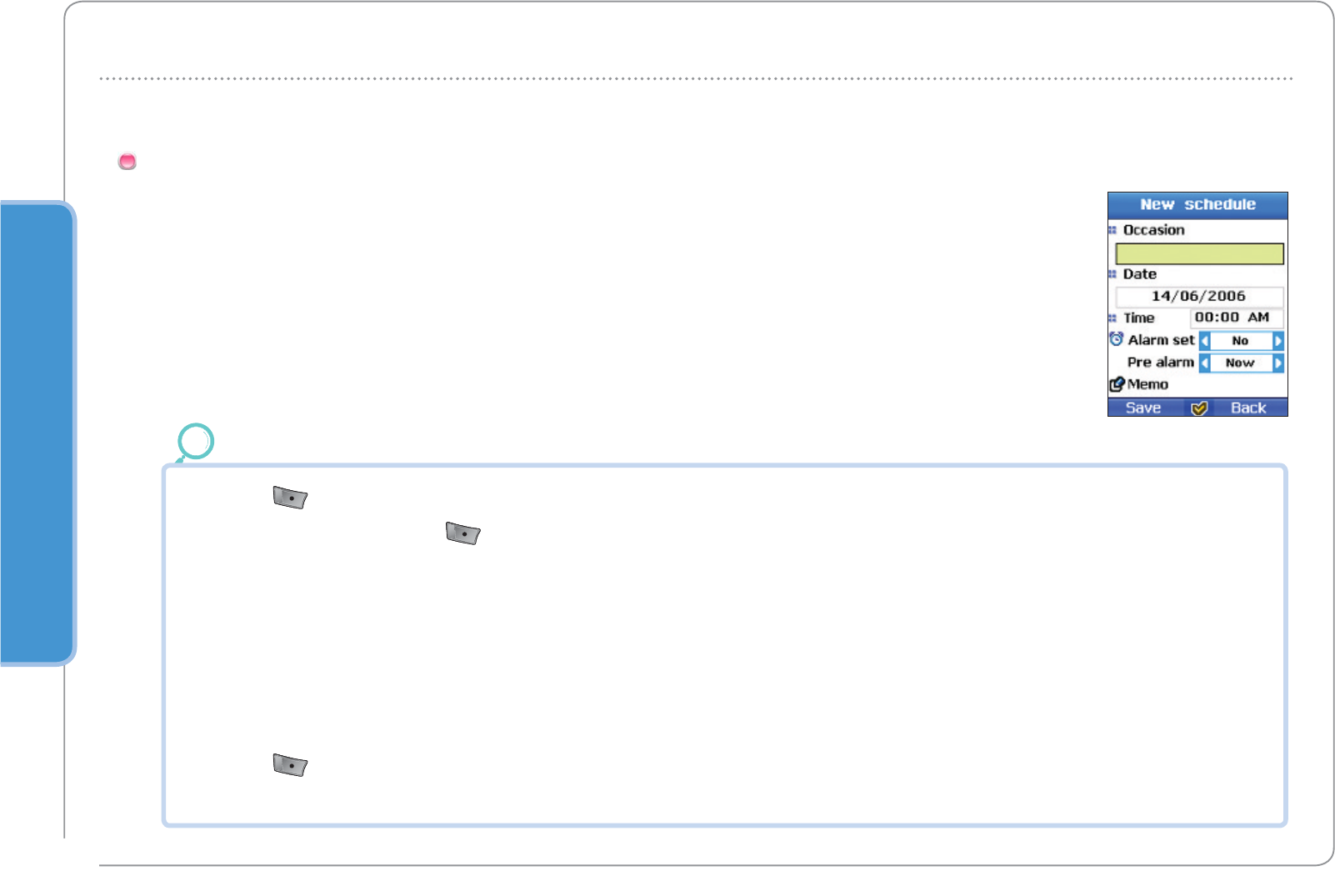

To register Normal :

Press .

Scroll to “New” and press .

Write the contents.

Enter the schedule title.

Select the date to register. The default is set to today’s date.

To set Alarm, select Yes

Once the Alarm is set, pre-alarm can be set prior to the scheduled date.

You can also enter detailed notes on activities prior to Schedule

(Now, 5min before, 30 min before, 1 hour before, 1day before).

Press .

Once a schedule is registered, you can view the schedule in a Daily Schedule form.

Using the menu

Anniversary

To set an Anniversary :

Press .

Scroll to “New” and press .

Write the contents.

Enter the schedule title.

Select the date to register. The default is set to today’s date.

To set Alarm, select On.

Once the Alarm is set, pre-alarm can be set prior to the scheduled date.

You can also enter detailed notes on activities prior to Schedule

(Now, 5min before, 30 min before, 1 hour before, 1day before).

Press .

Once a schedule is registered, you can view the schedule in a Daily Schedule form.

Using the menu

Monthly schedule in a calendar form organizes and displays schedules by month.

3.1. Monthly schedule

View

View the schedule of the selected date in View Daily

schedule.

New

New schedule (Anniversary) can be created as Normal or

Anniversary.

Go to date

Quickly move to a specific date.

Delete

Delete the entire schedule on the selected date.

Option

Weekday

Weekend

Today

Date currently selected

Day with the morning scheduled

Day with the afternoon scheduled

Day with both morning and afternoon

scheduled

Anniversary

Using the menu

Setting

Display message during alarm

Set the message display function when Schedule Alarm is ON

Alarm with sound

Set the sound when Alarm goes ON.

Although Alarm sound is set to ON, if Profile is set to Silent, there will be no sound.

Use alternative

Set an additional calendar to the lunar calendar or the Islamic calendar.

Start day

Set the starting day of the week on the calendar.

Delete schedule After

Set a period of time from the time when schedule alarm goes off until schedule is automatically deleted.

NOTE

To move easily to different dates, follow the instructions below.

For easy searches, use the number pad to move Focus.

Numbers 2, 4, 6, and 8 work as the Navigation Key, and number 5 functions as the Ok key.

Press number 1 to go to ‘previous month’, 3 to ‘next month’.

Press number 7 for ‘previous year’, and 9 for ‘next year’.

•

Using the menu

This option displays the calendar in a weekly format.

3.2. Weekly schedule

Option (See 3. and 3.1 for further details of available functions.)

Daily schedule shows your schedules on daily basis.

3.3. Daily schedule

Option (See 3. and 3.1.for further details of available functions.)

Using the menu

Different from Schedule, Alarm does not have dates to set. Therefore, once the alarm time is set, unless Alarm status is

switched to Off, Alarm goes on at the time and a day initially set. Alarm can be set at different time on different days of

the week, making the management of schedules convenient and flexible.

To set Alarm, take the following steps; Setting > Profiles > Option > Detail > Alarms > Clock alarm.

3.4. Alarm

Every day

Set Alarm at the specific time every day of the week.

Check ‘Every Day’ check box at the bottom of the screen.

Once

Alarm goes on once at the time set and the setting will be automatically cancelled.

Check the ‘Once’ check box.

Some day 1

Alarm goes on on every weekday except weekend.

Check ‘Week Day’ excluding Saturday and Sunday at the bottom of the screen.

Some day 2

Alarm goes on on the specific days of the week.

Check ‘Some Day’ at the bottom of the screen.

Using the menu

Using Planner, you can register and manage plans such as a project with a certain period of time.

Up to 30 plans can be registered in Planner. Planner helps to sort plans into Plan types such as Business, Personal,

Family, and Others, Alarm Set, and making a timetable for daily tasks.

To set Planner sound, take the following steps; Setting > Profiles > Option > Detail > Alarms > Planner alarm.

3.5. Planner

View

Show the period, status (importance, alarm, plan type, and up-to-date progress) and detailed contents of the selected plan.

New

Option

Title

Enter the plan’s title.

Priority

Give priority to plans (High, Normal, or Low).

Start date

Enter the plan start date.

Due date

Enter the plan due date.

Alarm set

Set alarm on or off.

Alarm time

Enter the plan completion time.

Sort

Arrange all registered plans by Due date, Priority or Title.

Edit

Edit the selected plan.

Delete

Delete the selected plan.

Using the menu

Use the Note function as a memo pad. The contents of all notes are organized in the List. Using the PC sync function,

Note together with Address is automatically shifted to PC.

3.6. Note

View

View the contents of a note with the entry date.

New

Write a new note.

Option

To write note :

Press .

Scroll to "New" and press .

Write the contents (See page 30 ).

Press .

Scroll to "Save" and press .

Enter the file name.

Press .

Scroll to "Save" and press .

Sort

Arrange the Note List by Name and Date.

Edit

Edit an already written note.

Delete

Delete the selected note.

Rename

Change the note title.

Using the menu

You can store information about a current location, and send/receive the location information by using

SMS service. The transmission is possible via IrDA, B/T, and USB. Navigation also guides to destina-

tions, and performs functions of Route, Tracking, Prayer Time service, and Qiblah direction. It provides

UTM, MGRS, WGS84 map coordinate systems.

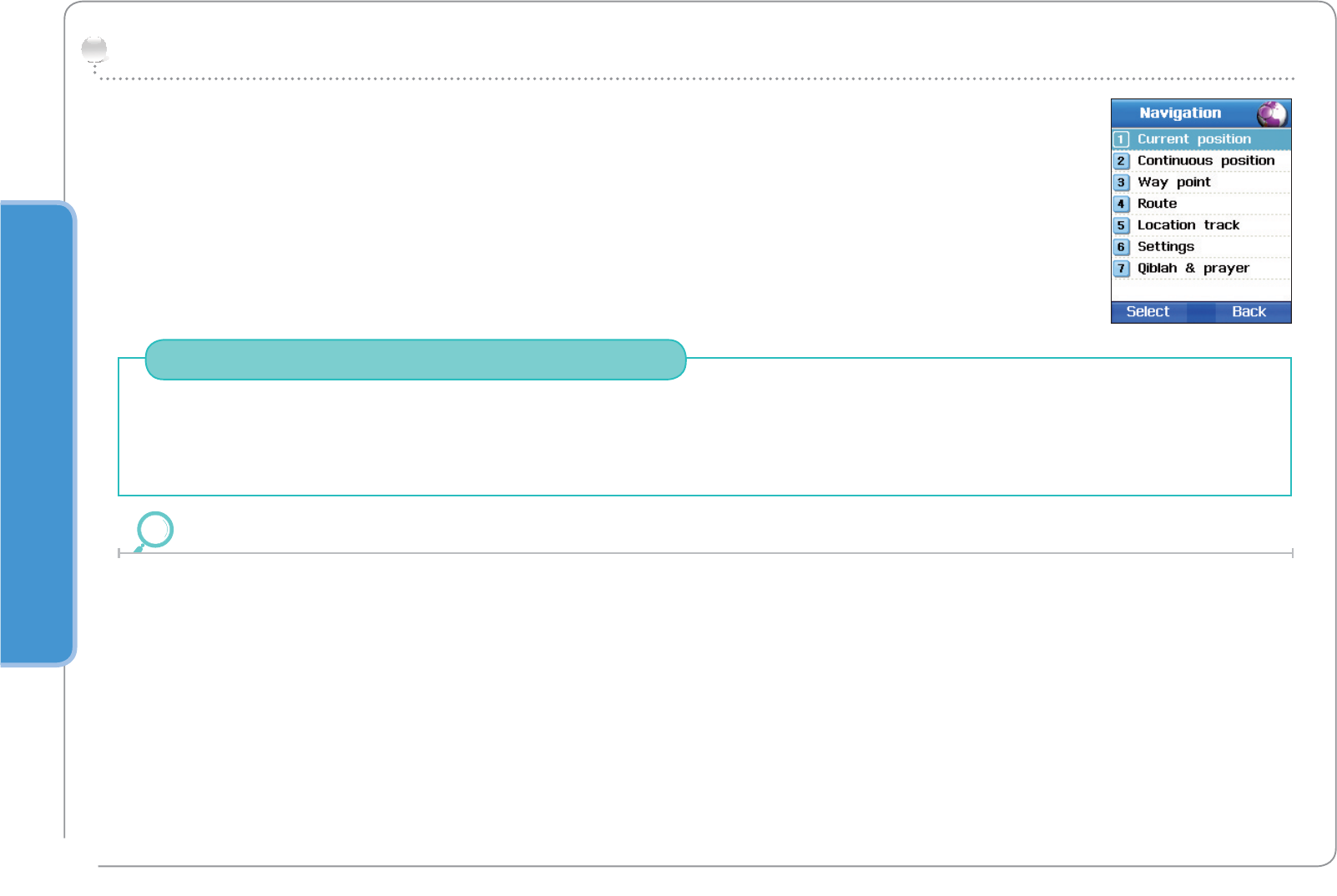

4. Navigation

Receiving information about a current location from the available GPS satellites, Current position displays the informa-

tion in numbers. As well as latitude and longitude coordinates and Altitude correspond to the Format in Settings. The

GMT is shown on the screen. Location information is sent as SMS, and transmitted using IrDA, B/T, and USB.

4.1. Current position

Save

Save the current location as Waypoint. Unless there are any

particular changes, the information will be saved as default

name. To save the information as another name, press Clear

on the Name entry screen to delete the default name, and

enter a new name.

Send (SMS)

Send a SMS message containing the current location

information. The screen will display a space that you can

enter a phone number. Select Option>Send to send SMS.

Send (IrDA)

The current location information sent via IrDA, or same GEN2

will be saved immediately as Waypoint.

Send (B/T)

Transmit the current location information via B/T.

Send (USB)

Transmit the current location information via USB cable.

USB cable must be connected, and a connection for GPS

signals must also be set.

Option

Using the menu

Position displays and stores information about current locations and the status of the satellite.

It sends location information as SMS, and transmits the information via IrDA, B/T, and USB.

4.2. Continuous Position

Direction

Show information about the location that you are currently

moving to.

Satellite Information

Display the information of the GPS satellite, and signal

intensity.

Trip

Show information about a current location (latitude/longi-

tude, date, time, speed, altitude). It performs a function that

changes units or location information display through Setting.

Save

Save information about current locations as Waypoint.

Unless there are any particular changes, the information is

saved as Default name. To save the information as a name

that the user chooses, press Clear on the Name entry screen

to delete the Default name, and enter a new name.

Send (SMS)

Send a SMS message containing current location

information. The screen will display a space that you can

enter a phone number. Select Option>Send to send SMS.

Send (IrDA)

The current location information sent via IrDA, or same GEN2

will be saved immediately as Waypoint.

Send (B/T)

Send the current location information every second via B/T.

Send(USB)

Send the current location information every second via USB

cable. USB cable must be connected, and a connection for

GPS signals must also be set.

Option

Using the menu

Way point edits and stores waypoint information, and guides to a destination by providing direction information. Way-

point has the availability to send location information as SMS, and transmits the information via IrDA, B/T, and USB.

4.3. Way point

View

Display the selected waypoint information.

New

You can create Waypoint by entering information on latitude

and longitude.

Send (SMS)

Send a SMS message containing current location

information. The screen will display a space that you can

enter a phone number. Select Option>Send to send SMS.

Send (IrDA)

The current location information sent via IrDA, or same GEN2

will be saved immediately as waypoint.

Send (B/T)

Send the current location information via B/T.

Send (USB)

Send the current location information via USB cable.

USB cable must be connected, and a connection for GPS

signals must also be set.

Rename

Change the name of the selected waypoint.

Search waypoints.

Delete

Delete the selected waypoint.

Start Navigation

Guide the selected waypoint to a destination.

Relative position

When one waypoint is selected, it compares its information

with current location information.

When two waypoints are selected, the information of the two

Waypoints is compared.

Save

Save the current location.

Option

Using the menu

Route edits and stores Route information, and guides direction information to a destination.

It can add, delete, and change the order of Route’s Waypoint list. It also has a ‘Save as’ function.

4.4. Route

View

Show the Waypoint list included in Route.

New

Add a new Route that the user plans to use.

Navigation

Show Waypoint in the order set in Start - Route.

Show Waypoint in the reverse order set in Back Start - Route.

Rename

Change the name of the Route.

Delete

Delete the selected Waypoint.

Zoom In

Enlarge one scale up.

Zoom Out

Reduce one scale down.

Pause, Continue

Pause for a short while, and re-starting in the course of

Tracking.

Skip next point

Change the direction of the destination to the next

destination.

Add

Add a waypoint to Route.

Remove

Delete the selected waypoints from Route.

Order

Change the order of the waypoints in Route.

Option

Using the menu

Location track saves the path that the user has moved, and transmits current location information via B/T or USB.

Location track shows information about your path.

4.5. Location track

Start

Start to save information about the trace of wheels that you

have moved by Time and Distance of Setting.

The saved information can be viewed and used in Route.

B/T

Transmit the current location information every second via

B/T.

USB

Transmit the current location information every second via

USB cable. USB cable must be connected, and a connection

for sending GPS signals must also be set.

Option

Using the menu

Set GPS functions of Format, speed, Distance & Altitude, GPS fix, Track by, Muslim faith, and waypoint naming.

4.6. Settings

Format

Set the coordinates display system.

Speed

Set a speed display system.

Distance & Altitude

Set a distance and altitude display system.

GPS fix

Set a GPS receiving mode.

Option

DD° MM ‘SS” ss (degrees, minutes, seconds. seconds)

DD° MM ‘SS” (degrees, minutes. seconds)

DD°MM.MM’(degrees, minutes. minutes)

DD.DDDDD (degrees. degrees)

MGRS (Military Grid Reference System)

UTM (Universal Transverse Mercator)

Km/h Mile/h Knotes

Kilometer Meter Feet Mile

Auto 2D 3D

Using the menu

Track by

Set a location track saving standards.

Muslim faith

Set a Prayer time service request.

Waypoint naming

When entering a name to save waypoint, set a default name.

Muslim number

Number Sunnites and Shiites, and save them.

Distance

1, 10, 20, 50, 100, 200, 500, 1000

Time

3s, 10s, 30s, 1min, 3min, 5min, 10min, 15min, 30min, 1hour

Sunnites Shiites

1400 for Sunni Muslims

1411 for Shia Muslims

Using the menu

Initially Qiblah & Prayer is not shown on the menu. Qiblah & Prayer starts to function after the user sends a SMS

message as instructed below, receives a SMS message containing Qiblah & Prayer information, and accepts ‘Receive’.

Send the GPS coordinates as an SMS to:

Current position > send > SMS

Continues position > send > SMS

Update Time Option > Update Time

Send a SMS message requesting information about Prayer time and directions.

4.7. Qiblah & Prayer

Prayer time

Show the Prayer time.

Qiblah direction

Display the Qiblah direction from your location.

Information

Show the current location (latitude/longitude, date, time,

speed, altitude). It performs a function that changes units or

location information display through Setting.

Update time

Request the information about the Prayer time.

Azan

Set the Prayer time alarm to on/off.

Option

NOTE

1400 for Sunni Muslims

1411 for Shia Muslims

Using the menu

SMS allows you to send and receive short text messages, Enhanced Messaging Service (EMS), which allows user to insert

simple pictures, melodies (i-Melody) and animated image with text. If new message is received, you can see the message icon

( , , , ) in top of screen. Select the New menu to compose the SMS, MMS and Email messages.

5. Messaging

Create and send a new SMS(including EMS), MMS and Email message.

5.1. New

5.1.1. New (SMS)

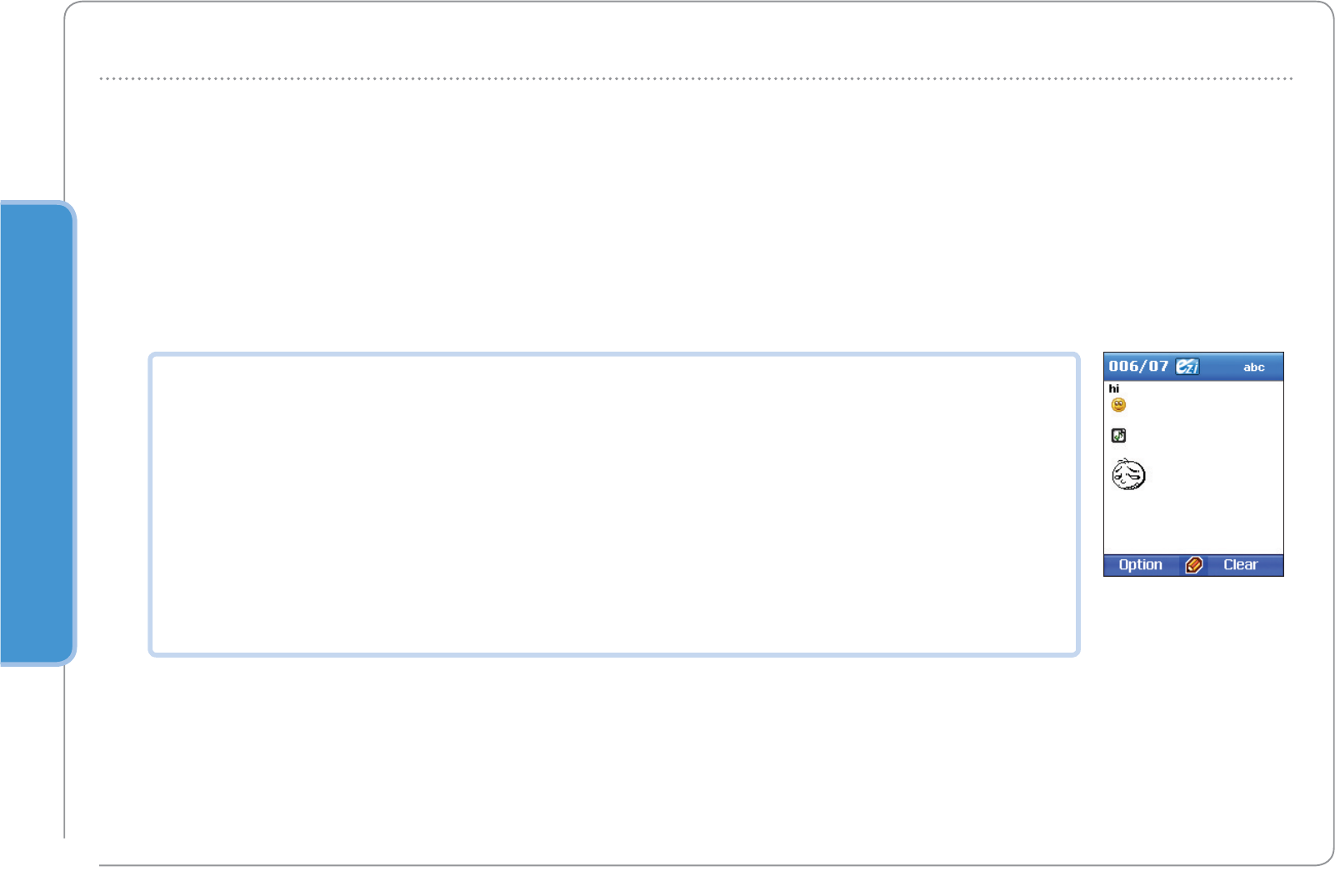

Compose

The SMS can have a message with text, basic picture (black and white), animations and audio file.

While composing the message, you can see the numbers of characters are left in this SMS. Also you

can see the total number of messages that will be sent as short messages. The message is saved

to the drafts folder if something composed message is there. If nothing is composed, then press

"Close" Softkey to close the compose screen. If you want to delete all the contents, press .

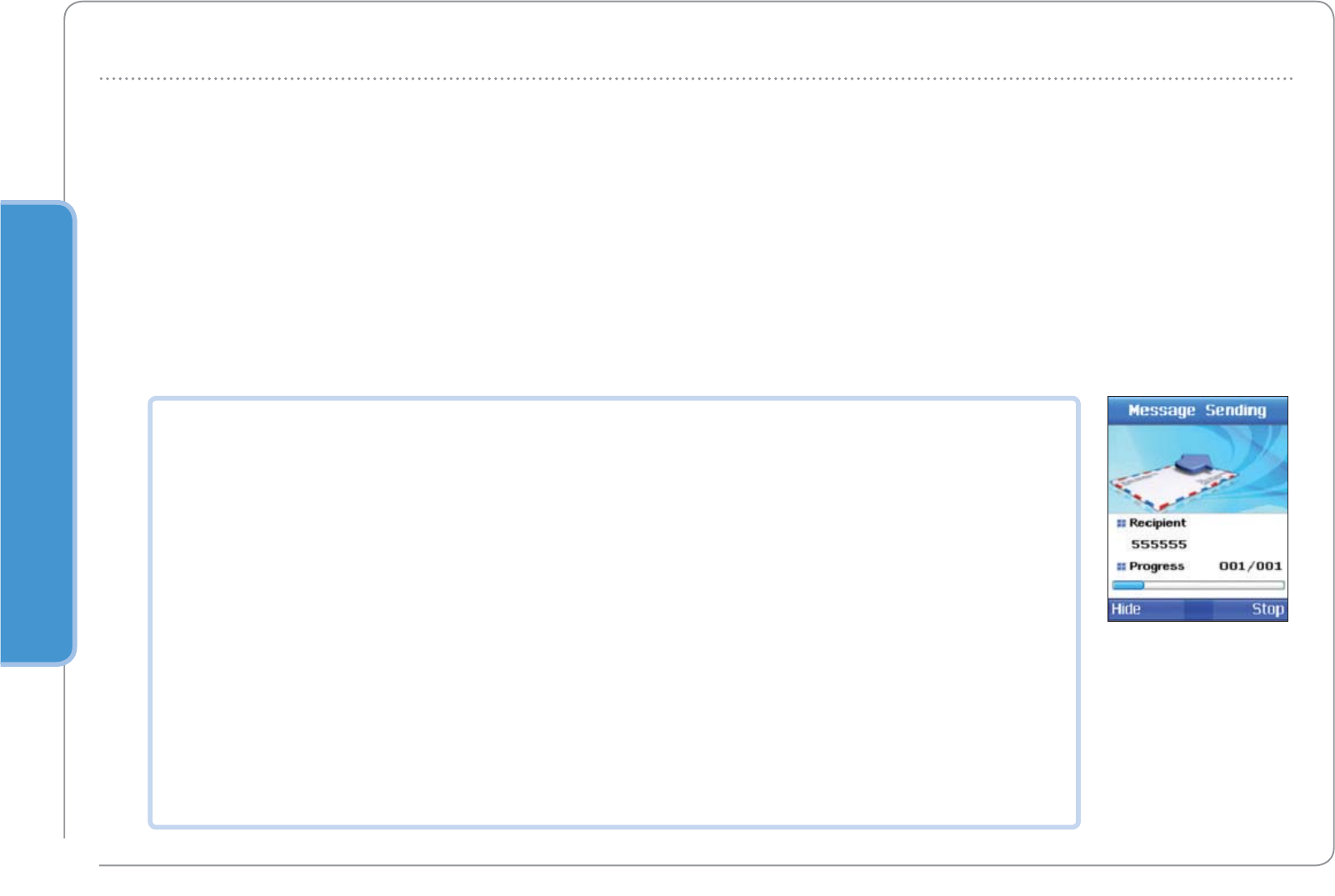

Send

When you finish compose the message, press options Softkey ( ) to view the options. Select

Option > Send if you want to send the message. In next step, you should enter the recipients

address.

To cancel the sending of the composed message, click on Option > Exit or press .

Using the menu

Mode

You can key in text by various modes.

ABC, Abc, and abc indicate the selected case. ABC means all the letters in the message will be upper case.

Abc means that the first letter in the message, or the first letter of the next word, is written in upper case and all the other

letters are in lower case. abc means all the written letters are in lower case.

123 indicates number mode. Symbol indicates the special characters like (eg, @, -, *).

Insert - Emoticons / Templates / Image / Tune / Audio / Animation

You can insert smiles, templates, images, and tunes, audios and animation in your EMS using the Insert feature.

You can add, edit or delete a template.

Enter the new template text and click on Option>Done.

The image, the audio and animation files can be inserted into your message by scrolling through the files to select and

clicking on Select Softkey.

Language

Change the phone’s language.

Select the Option->Language to view the available languages for setting.

Dictionay

You can set your own word in dictionary so that it will be easy for you to type when the auto text is on.

Auto-Text

You can set this to On or Off for the text to predictive display while typing.

Using the menu

Sending option

You can see the sending option and can change the sending option for the current message to be

sent. You can choose a SMS format of “Text”, “Fax”, “Paging” or “E-mail”

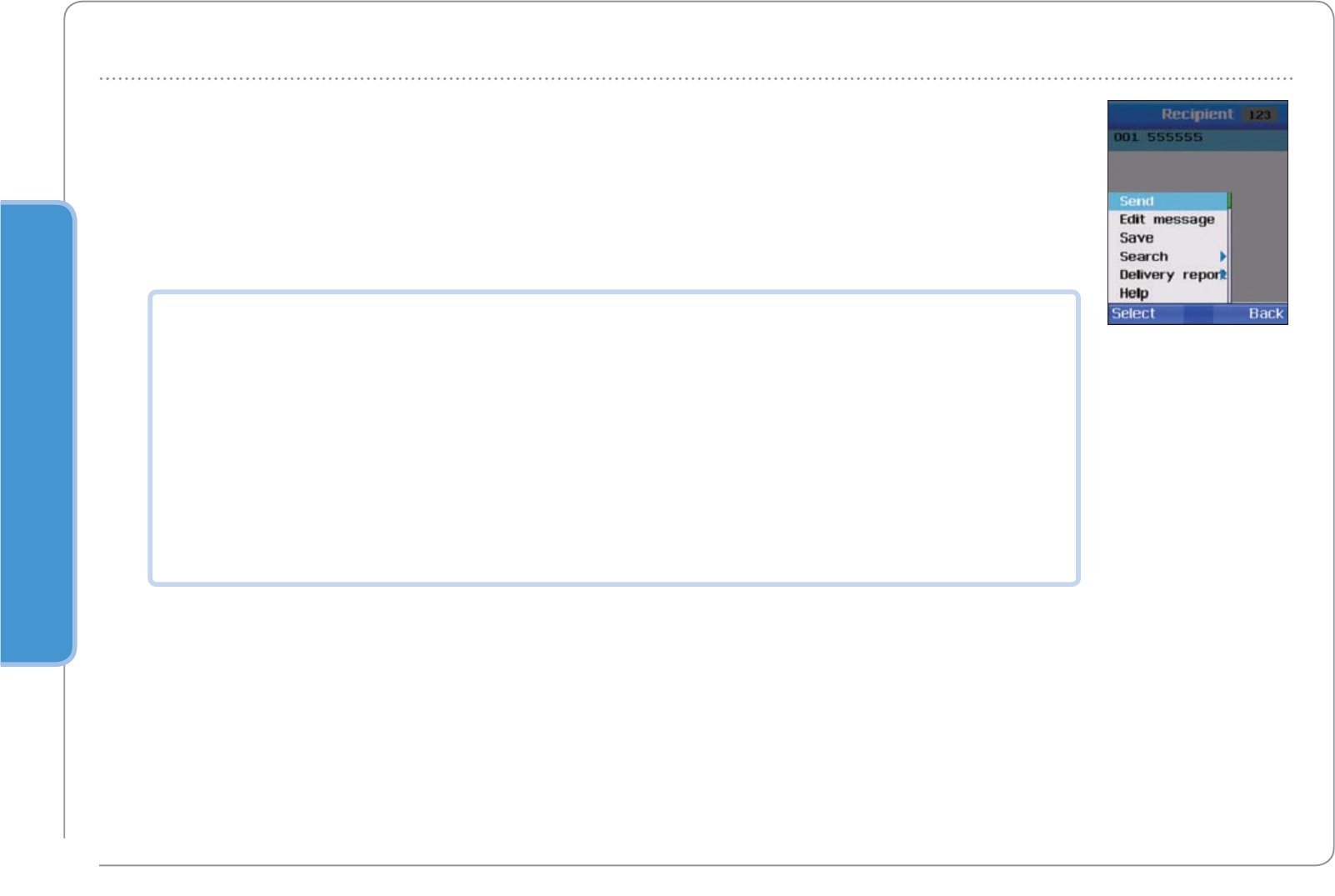

Recipient

Recipients of a message can be added.

It has option menu as follows.

Send

To send the message.

Edit message Edit the message.

Save

To save this message in “Drafts”.

(see page 85)

Mode

(See page 85)

Delivery report

Using the Delivery Report feature can set a

report about the message been delivered or not

to the recipient.

Help

You can the information aoubt this option menu.

Exit

Exit to idle screen directly.

Save

Save a message composed in “Drafts”. A pop-up message will be shown for successfully saved.

Hep

Shows the information about this menu and its actions.

Exit

Exit to idle screen directly.

Using the menu

When you finish compose the message, press options Softkey ( ) to view the options. Select Option > Send if you

want to send the message. In next step, you should enter the recipients address.

Object - Video / Picture / Sound

The respective picker screens are displayed on selecting the Option > Object > Video / Picture / Sound.

Select the video file and the video is inserted inline to your MMS.

Preview

To view the composed message before sending, use this feature.

You can send the previewed message by selecting Option->Send.

The message can be edited by selecting the Option > Edit feature.

To add the recipients of this message press Option >Recipient. The recipient’s can be added to To, Cc or Bcc fields.

Slide – Add/Remove/Background/Timer

You can have a MMS with more than 1 slide. To add a slide, select Option > Slide > Add.

To remove the current slide, select Option > Slide > Remove. You can change the background color of your MMS by

selecting this option. A color palette is displayed from where you can choose the color by pressing on . Also you

can set the duration for the current slide. The duration can be set as slow, moderate and fast.

5.1.2. New (MMS)

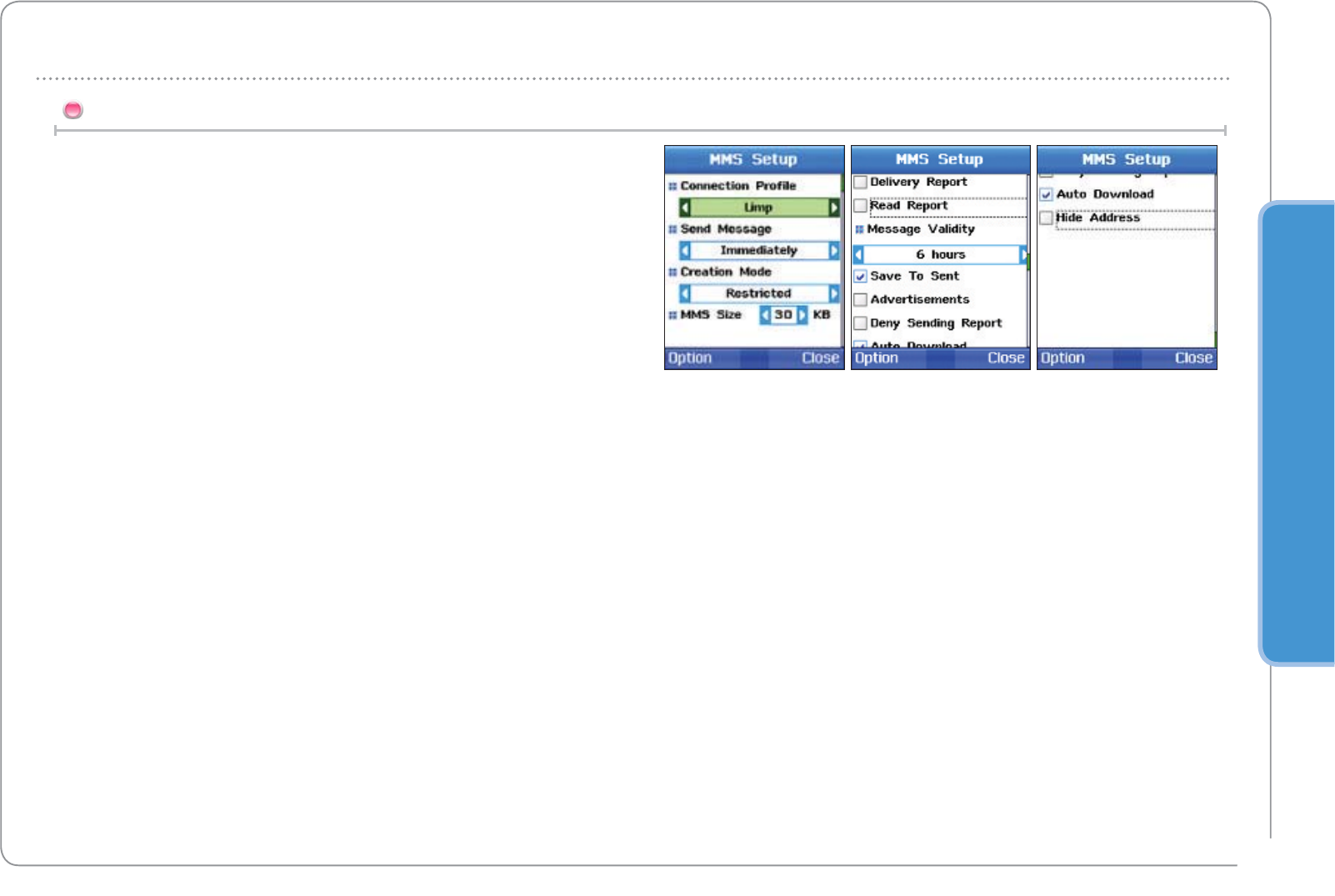

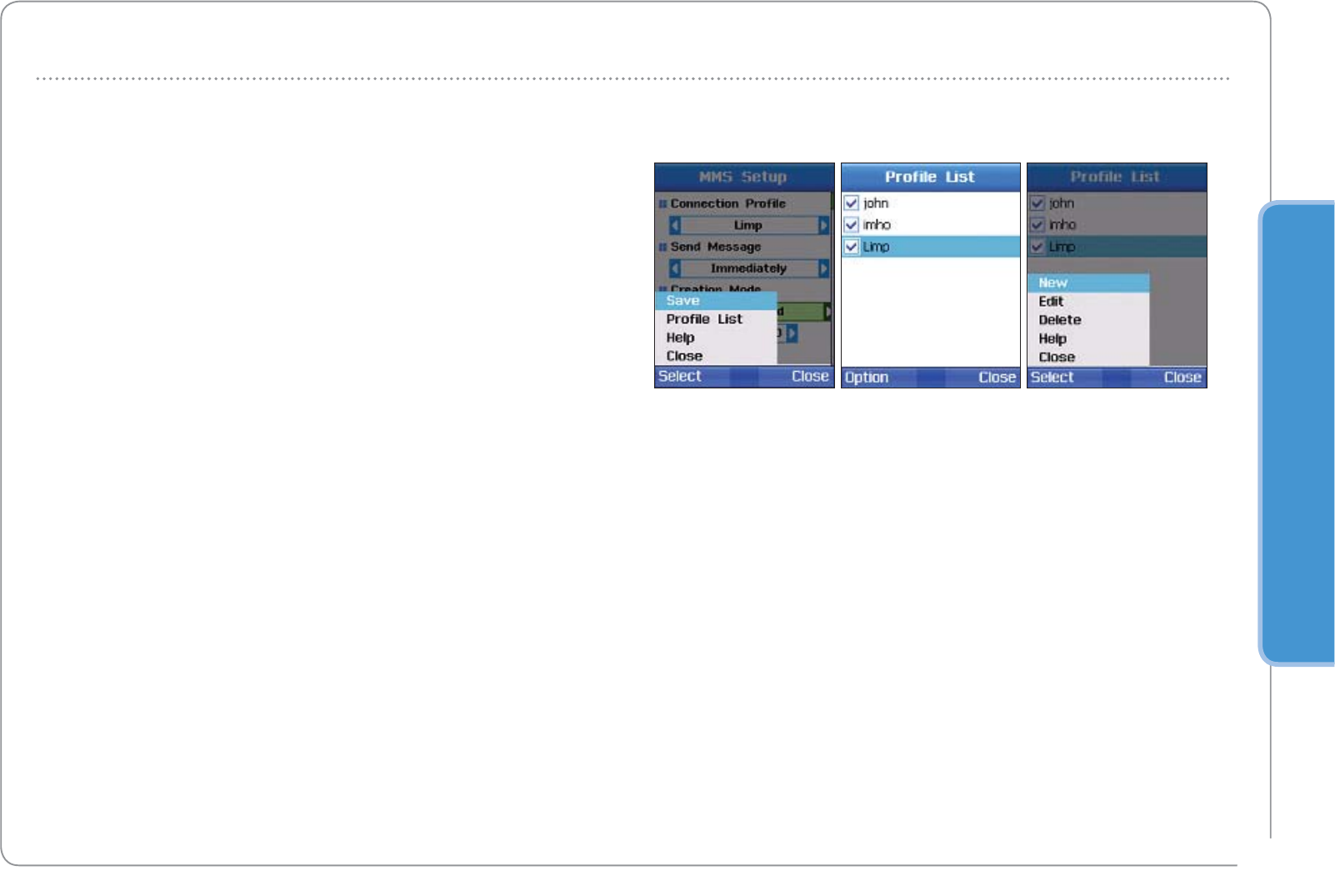

The network setting has to be done before proceeding with the sending and receiving of MMS.

The profiles, connections and downloading settings can be customized according to your requirements.

See page 151 for Menu > Setting > Acces points for more detail and contact your network service provider.

Using the menu

Recipient – To/ CC / BCC

A list of recipients is added to receive this MMS. You can still edit the message by selecting

the Edit Message option.

Select Save to add the recipient if the added recipient is not in the address book.

Sending Options

The options screen for the message is shown below. You can set the Priority, Message Class Validity

period (Maximum, 12 hours, 1 day, 1 week, 1 month) of the message and check for the option shown

in the screen below. The maximum expiry time is the time of the message as per the server configured.

If you want the Delivery report and the read report, check the corresponding check boxes.

Subject

The subject of the message.

Signature

Select this checkbox to add signature with every

message you send.

Read Report

Select this checkbox to get the report of the

message read.

Message Priority

The priority of the message can be set as

Normal, High and low. Messages that are not

important can be set as low priority.

Email Account

To switch to different account.

Recipient

Recipients of a message can be added.

Recipients can be added to Receiver, CC or BBC.

Save

Save a message composed in "Drafts".

A pop-up message will be shown for successfully

saved. "Dictionary(see page 36)

Help

You can get the information about this menu.

Exit

Exit to idle screen directly.

Using the menu

New

On selecting the Email option a screen to create a new Email is displayed.

Click Options Softkey to view the options for the compose screen.

Send

When you finish compose the message, press options Softkey( ) to view the options.

Select Option > Send if you want to send the message. In next step, you should enter the recipients address.

Insert - Emoticons / Templates (See page 85)

Mode (see page 85)

File Attach

An email message can have attachment. Select the file attach option where a screen with the attachments if any is

displayed. Click on Option > Browse to browse for the required file to be attached. The file name will be displayed in the

File Attach screen.

Click on Option > Delete File to delete the selected attached file.

5.1.3. New (Email)

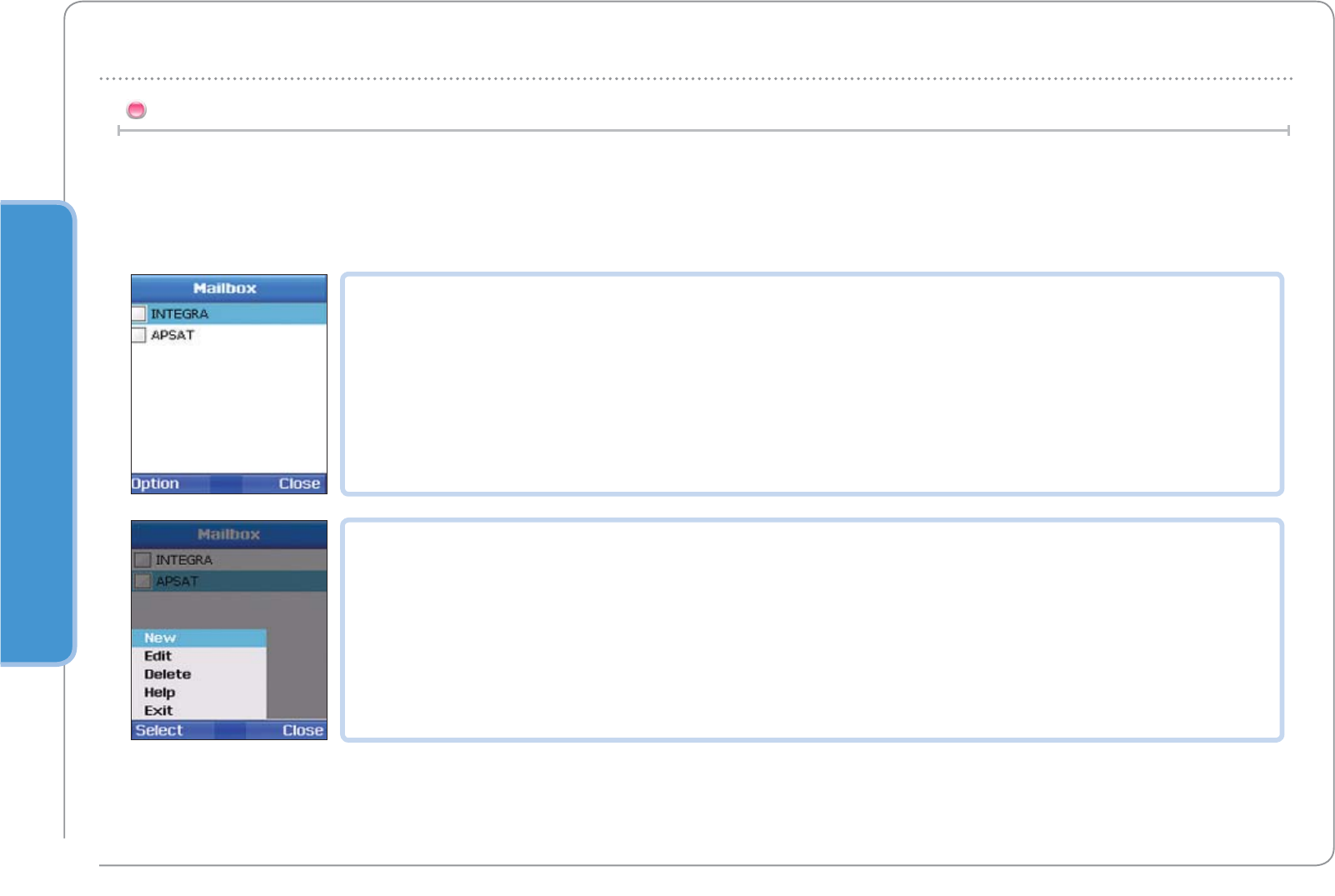

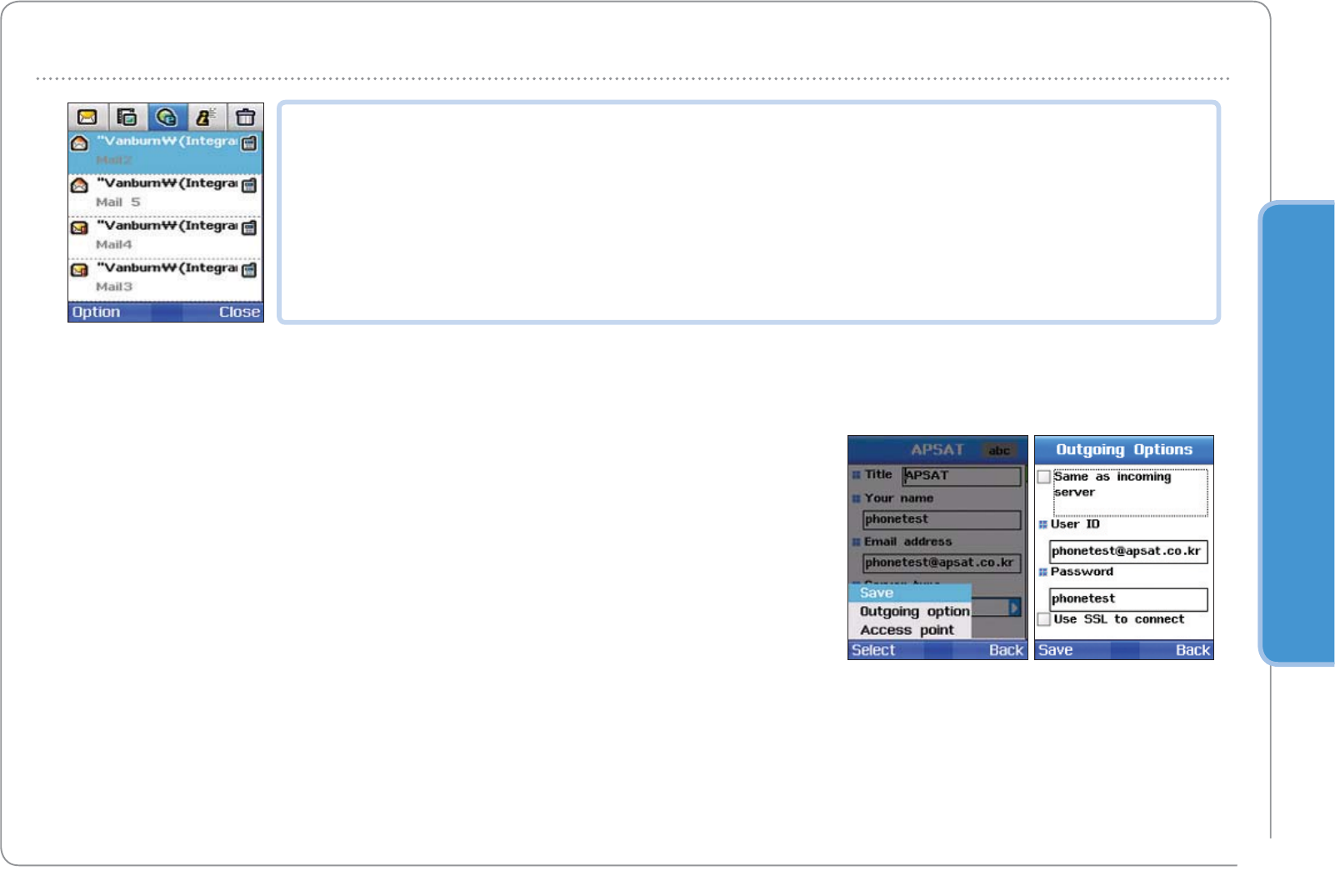

Set the network details first before sending/receiving Email. The profiles, connections and downloading settings can be

customized according to your requirements.

See page 151 for Menu > Setting > Acces points for more detail and contact your network service provider for E-mail

account.

NOTE

The profile needs to be configured to send and receive the Email.

•

Using the menu

Language (see page 85)

Auto-text (see page 85)

Recipient – To / CC / BCC (See page86)

To add the recipients of this message press Option > Recipient.

The recipient’s can be added to To (Receiver), CC or BCC fields.

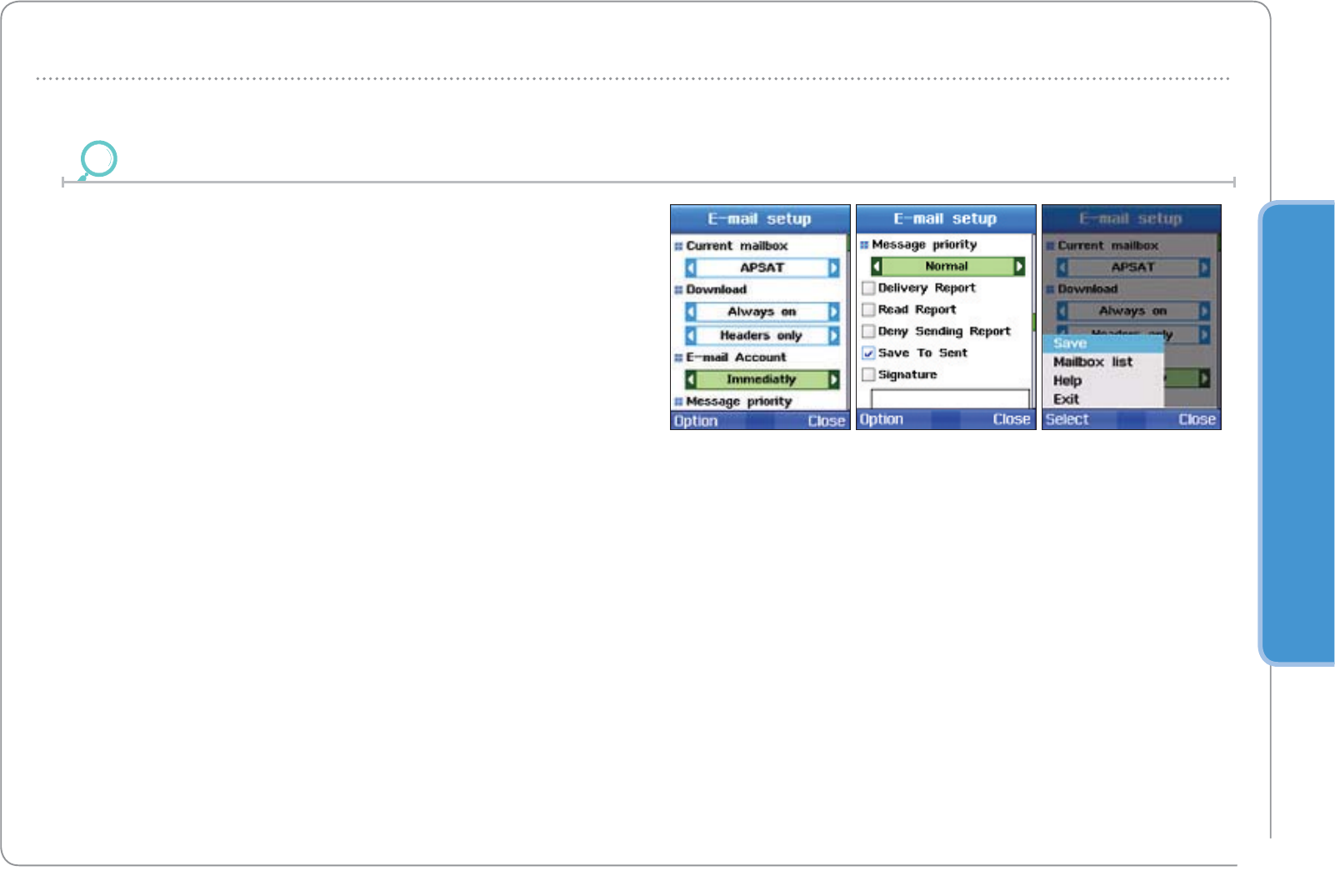

Sending Options

The sending options screen for the message is shown below.

Subject

The subject of the message.

Signature

Check if you want to attach the signature to

your Email. Signature is a text, which is added

to your mail like the Designation, Name,

address etc.

Read Report

Select this checkbox to get the report of the

message read.

•

Message Priority

The priority of the message can be set as

Normal, High and low. Messages that are not

important can be set as low priority.

Email Account

The configured email account, which you want

to use to send the mail.

Using the menu

Incoming text messages or voice messages (voice mail box) can be viewed in the Inbox. Inbox can store

message up to 100Kb, and when exceeding the limit, the messages will be deleted beginning from the

message received first. Save massages to Draft, if you want to prevent them from being deleted. Additionally,

Inbox displays a list of messages received most recently first. As it also shows part of the messages, you can

easily find a message that you are looking for, without having to open each message.

The following screen shows the MM messages in the inbox on launching the EMS Client.

Tap on New to create a new EMS. Tap on Menu to view the menu options for the Inbox.

The inbox shows the messages with the following parameters:

Received from Subject of the Message

5.2. Inbox

This icon indicates read message.

The icon indicates the message is stored

in the phone memory

This icon indicates unread message.

This icon indicates the Multimedia message.

This icon indicates email message.

This icon indicates cell broadcast message

This icon indicates spam message.

Using the menu

View

The following screen shows the opened message from the inbox.

The message displays the recipient’s name, Sent date and time, Size of the message, sender’s Name and the subject of

the message along with the MM (image or audio or text depending on what is present in the message).

On selecting this option you are taken to the compose message page where you can compose a message to be sent as

a reply. The subject of this EMS will be <RE: original subject>. You can change the subject and the other fields also.

Forward

Forward allows you to edit the contents of a message received on the screen. If you do not need to edit the message,

select Option > Receiver number, enter the recipient’s phone number, and select Option > Send.

Save as contact

To save the address of the recipient in the address book. You can save the selected contact as new one or edit the

details of the existing contact for this number by using the Used option.

5.2.1. Inbox (SMS)

Use details

Use details will display any links such as phone numbers, email

address, URLs if anything is present in the message.

You can use and save the selected link.

Chat

You can begin a chat session with the selected sender.

New

Composing a new message.

Move – SIM box / Spam

You can move the selected message to SIM box or spam

folder. Upon selecting, a confirmation is asked to you.

Using the menu

Message info

The message details can be obtained by selecting this feature as followings.

Sender

The sender of the message.

Receive Date/Time

The date, time and the day of the message received are

displayed.

Message Size

The size of the received message in Kb.

Delete

Deleting the selected message.

Delete all

Deleting all messages stored in "Inbox".

Help

You can get the information about this menu.

Exit

Exit to idle screen directly.

Using the menu

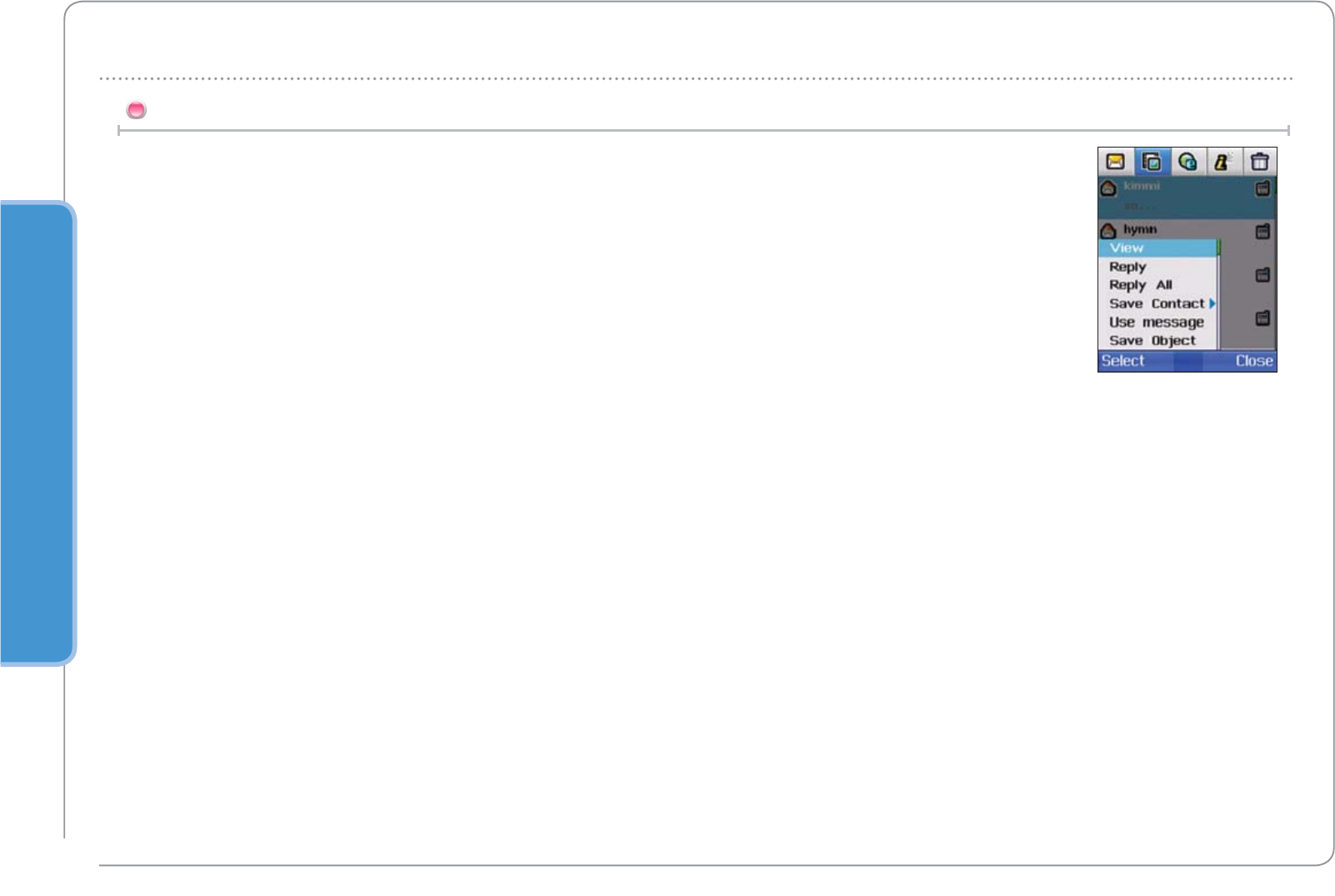

View

The message displays the recipient’s name, Sent date and time, Size of the message, sender’s Name and the subject of

the message along with the MM (image or audio or text depending on what is present in the message).

On selecting this option you are taken to the compose message page where you can compose a message to be sent as

a reply. The subject of this MMS will be <RE: original subject>. You can change the subject and the other fields also.

Reply All

On selecting this option you are taken to the new page where you can compose a message to be sent as a reply.

Reply all sends the reply to the mail Ids present in Cc field. The subject of this MMS will be <RE: original subject>.

You can change the subject and the other fields also.

Save as contacts

To save the address of the recipient in the address book.

Move (SIM Box)

Moving to the SIM Card.

5.2.2. Inbox (MMS)

If the message is set for manual download then a notification to download the message is displayed.

Click on Download to download the message to view.

You can click on pause and stop the message during the view.

Using the menu

Move (Spam)

The received message can be marked as Spam and moved to the Spam folder.

A confirmation is displayed before moving the message. Click on Yes to move it to Spam else click on No.

Use details(see page85)

Save Object

On selecting Save Object option you get a screen, which shows the media present in your MM. Tap on Save button to

save the selected media contents to the local memory of the device.

New

To create a new MMS.

Move to spam

The received message can be marked as Spam and moved to the Spam folder.

A confirmation is displayed before moving the message. Click on Yes to move it to Spam else click on No.

Message info

The message details can be obtained by selecting this feature as like sender, receive date/time, message size in Kb.

Delete

To delete the selected message select this option.

Delete all

To delete the all message in Inbox.

Help

Exit

Using the menu

5.2.3. Inbox (Email)

Inbox (Email) manages Email messages received.

The details of available functions are as follows.

The following screen displays the parameters to be added to create a new account.

Title : The name of the account.

Your Name : The name as you want to appear as sender.

Email address : The mail address to be configured for this account.

Server Type : It sets a server type.

Incoming Server : The IP address of the server for incoming messages.

Port : The port number on which the incoming server is listening.

User ID : The authentication used to login into this account.

Password : The string to authenticate the User ID.

Use SSL to connect : Select this option to connect to the server using secure socket layer.

Using the menu

Copy on Server : Select this option to have a copy of the message on the server.

Outgoing Server : The IP address of the server for the outgoing server.

Port : The port number of the outgoing server.

Access Point : Your device supports packet data connection, such as GPRS in GSM network.

Receive Mail

To refresh and download any mails pending in the server, select this option.

Use Message

On selecting this option the URLs and the Emails are searched in the received

message. The URLs are saved as bookmarks in the browser application and

the contacts are saved in the address book.

Account Change

To switch to different accounts select this feature.

Save Attachment

On selecting the Save Attachment option you get a screen, which shows the

attachments present in your email. Tap on Save File option to save the selected

attachment to the local memory of the device.

The authentication details for the outgoing server can be different from incoming server.

To have the same configuration as the incoming server select the Same as incoming server option.

Using the menu

5.2.4. Inbox (Cell Broadcast)

Inbox (Cell Broadcast) manages Cell Broadcasting messages.

It can be set to use or un-use, and manages received messages. See 5.8.4. Cell Broadcast for Option setting.

See 5.2.1. Inbox (SMS), and 5.2.2. Inbox (MMS) for the functions of the options.

5.2.5. Inbox (Spam message)

SMS, MMS, and Email users may receive unwanted messages.

Inbox (Spam message) filters and manages those messages. See 5.8.5. Spam message for Option setting.

See 5.2.1. Inbox (SMS), and 5.2.2. Inbox (MMS) for the functions of the options.

Using the menu

The saved messages are stored in this folder, which can be later opened for editing and sending.

5.3. Drafts

New

Composing a new message.

Edit

Editing the selected message.

Editing a message has the same procedure as that of

composing a new message.

Delete

Deleting the selected message.

Delete All

Deleting all messages.

Option

The sent messages are stored in this folder. The saving of the SMS in this folder depends on the option set "Save in Sent".

5.4. Sent

Move to Drafts

Moving the selected message to the Drafts folder.

Message Info

The details of a message can be viewed.

The sender, the date/time, and the size of a message (rb)

can be viewed.

Option

Using the menu

100

Messages that are not sent due to some network problem or any other sending problems are stored in the unsent folder.

5.5. Unsent

Resend

Resending the selected message.

Message info

The details of a message can be viewed.

The sender, the date/time, and the size of a message (Kb)

can be viewed.

Move to Drafts

Moving the selected message to the Drafts folder.

Delete all

Deleting all messages.

Delete

Deleting the selected message.

Option

The Delivery and the Read reports for SMS/EMS/SMS and Email sent by the network are stored in this folder.

The subject, recipient, sent date and time and the status of the message can be viewed by selecting Option->View.

5.6. Reports

View

Showing the reports for the selected message.

Clear reports

Clearing the selected report.

Option

Using the menu

101

Messages that are stored in SIM are called SIM Messages.

5.7. SIM messages

View

Showing the contents of the selected message.

On selecting this option you are taken to the compose

message page where you can compose a message to be

sent as a reply.

The subject of this EMS will be <RE: original subject>.

You can change the subject and the other fields also.

Forward

Forward allows you to edit the contents of a message

received on the screen. If you do not need to edit the

message, select Option > Receiver number, enter the

recipient’s phone number, and select Option > Send.

Save as contact

To save the address of the recipient in the address book.

You can save the selected contact as new one or edit the

details of the existing contact for this number by using the

Used option.

Use details

The details of a message (sender, date to send, etc.) can be

viewed.

Chat

You can begin a chat session with the selected sender.

New

Composing a new message.

Option

SIM Box

Moving messages to the SIM Card.

Spam

Movingmessages after categorizing them as spam messages.

Move

Moving messages.

Message Info

The details of a message can be viewed, such as the

sender, the date/time, the size (Kb) of a message.

Delete

Deleting the selected message.

Delete all

Deleting all messages.

Using the menu

102

The settings for the SMS, MMS, Email, Cell Broadcast and Spam messages are done here. The settings done here are

valid for all the messages sent, unless edited under the respective Options - Sending Options.

5.8. Settings

5.8.1. SMS

SMS center

SMS messages are sent to recipients via the SMS center. SMS center edits and sets the phone numbers of the

SMS messages.

Preferred connection

You can send the text messages through normal GSM or the packet data. Refer section 6 Settings.

SMS format

You can select a SMS format among a range of options such as Text, Fax, Paging, and Email.

A Text format is generally used for the message transmission between mobile phones.

Delivery report

The notification of the message been delivered the destination or not can be got by selecting this option.

SMS validity

SMS server sets a period that a message is to be stored. (1 hour, 6 hour, 1 day, 3 days, 1 week, Maximum)

Save to Sent

Select this if you want to save a copy of every message you send in the Sent folder.

Reply via same SMS center

Select this option if you want to reply message to be sent using the same text message center number.

•

SMSC list

The contents of the SMSC list are viewed and edited.

Option

Using the menu

103

5.8.2. MMS

Select the MMS Setup in order to set the profile and data

connection to enable sending and receiving of MMS.

A profile contains connection details like the address of the

MMS server, gateway, user name and password for

authentication by the gateway, IP address and port number.

The profiles can be edited and added.

Connection Profile

A connection profile contains connection details like the address of the MMSC server, gateway, user name and

password for authentication by the gateway, IP address and port number, which is set under Messaging > Settings.

Send Message

Send Message can be set to either ‘Immediately’ or ‘Next Connection’.

Creation Mode

Creation Mode can be set to Restricted, Warning, or Free.

MMS Size

The MMS Size limit can be set to 30 / 50 / 100 / 300 Kb.

Delivery report

This is a confirmation message given by the MMSC about the message delivered to the recipient.

Read report

This is the report received from the recipient about the received message. Check this option to get to read report.

•

Using the menu

104

Message Validity

The validity period for the message that is stored in MMSC when the recipient of a message cannot be reached.

The MM is stored in MMSC for the period set by this parameter (Maximum, 1 week, 1 day, 12 hour and 1 month).

Save so sent

Select this option to save the sent message in the Sent folder.

Advertisements

Define whether you want to receive multimedia message advertisements.

Deny sending report

On selecting this option sender will not get any report (Delivery/Read).

Auto Download

Automatically reading the files attached to the received MMS.

Hide Address

To hide the address of the sender, check the Hide Sender checkbox.

Profile list

Select any of the given profiles from the MMS Profile list and tap on Edit. You can also select the size (available in the drop

down menu) and class (Advanced Tab) based on which the message will be downloaded.

Option

Using the menu

105

The Add Profile window is displayed with the following fields:

Title

Name of the profile

MMS Address

Address of the MMS server

Gateway

Communication gateway.

The gateway can be WAP 1.0 Gateway,

WAP 2.0 Gateway or None.

Connections

The connection used by the MMS Client to connect to

MMSC.

Connection Type

IP Address of the gateway applicable if the Gateway is

1.0 or 2.0.

IP Address

The IP Address of the WP Gateway.

Port

Port number of the gateway applicable if the Gateway is

1.0 or 2.0.

Using the menu

106

5.8.3. Email

The current Email Setup can be viewed by selecting Settings - Email.

Current Mailbox

List of mailboxes is configured which can be made active using this field.

Download

Download format can be set to Headers only, Partially, or Full.

Smaller than

Limits can be set to the size of Email messages downloaded.

Message send

Send Message can be set to either ‘Immediately’ or ‘Next Connection’.

Message priority

The priority to be set for the message as normal, High and Low.

•

Delivery report

The notification of the message been delivered the

destination or not can be got by selecting this option.

Read report

The notification of the message been read by the recipient

or not can be got by selecting this option.

Deny sending report

Select this option if you do not want your device to send

delivery reports of the received multimedia messages.

•

Save so sent

Select this option to save the sent message in the

Sent folder.

Signature

Check if you want to attach the signature to your Email.

Signature is a text, which is added to your mail like the

Designation, Name, address etc.

•

Using the menu

107

Mailbox list

Showing the list of the received messages in the Mailbox.

Header download

Always ON, only in home net, or OFF can be set.

Download day

Every day

Auto Download used every day.

User defined

You can select days of the week, by selecting Monday,

Tuesday, Wednesday, Thursday, Friday, Saturday, or

Sunday, for downloading Email messages.

Download hours

All day

Auto Download is on all day.

User defined

From ~ To: You can set a period of time preferred for

downloading.

Download interval

Download interval can be set to a choice of the following

options: Everyday 30 minutes, 1 hour, 2 hours, 4 hours, or

6hours.

Auto Download

Select this option if you want to automatically download the MMS when you receive it.

Option

Using the menu

108

5.8.4. Cell broadcast

Cell Broadcast is a Network service, which provides a vast range of topics such as weather, traffic, and news bulletins as

text messages. You can select topics you want to receive. The received Cell Broadcast messages can be viewed in the

Cell Broadcast Inbox. Cell Broadcast and SMS Inbox can store messages up to 100 Kb.

Topic list

Viewing and editing the received topic list.

CB msg. receive

Setting whether or not to receive Cell broadcast messages.

Set Language

Selecting a language from the options of Automatic / English / French / German / Spanish / Turkish / Russian / Arabic /

Farsi / Urdu / Hindi.

CB topic preview

Previewing Cell Broadcast topics.

Option

Using the menu

109

5.8.5. Spam message

Reg. sender

Registering senders.

Red. word

Registering words.

Spam Filtering

SMS

Setting Spam Filtering in SMS to either use or un-use.

MMS

Setting Spam Filtering in MMS to either use or un-use.

Setting Spam Filtering in Email to either use or un-use.

Auto remove

The received Spam messages are stored in the trash in

Inbox when the filter is set.

Enter the number of days after which you want the mes-

sage from the trash to be removed.

After days

Spam messages are stored until the date set, and are

automatically deleted after the date.

The number of senders registered for Spam Filtering.

The number of words registered for Spam Filtering.

Option

Using the menu

110

You have the choice to telephone in satellite mode (SAT) or in GSM mode or to switch automatically between the two modes

if you happen to be in an area where only one of the two is possible. There are several ways to fine-tune the mobile phone’s

access to networks so that you are never in danger of losing connection with the network.

6. Network

You may find that you are no longer able to receive SAT calls if your SAT registration is out of date. This is indicated

by the SAT icon blinking or if the displayed service area appears to be incorrect. In this case you have to update SAT

registration manually to correct this mismatch.

6.1. SAT registration

Hide

While Search continues, the screen changes to an idle

screen.

Search stops, and the previous screen is shown.

Option

NOTE

To use this function, your mobile phone has to operate in SAT mode. To send the signal for SAT registration.

•

Using the menu

111

You it will be able to set the approach priority of the network.

SAT only

Operating as SAT only registration.

SAT preferred - If SAT Preferred is selected:

The mobile phone will initially attempt to access a SAT network, if no SAT network is available it will automatically at-

tempt to access a GSM network. When operating on a GSM network, the mobile phone periodically scans for available

SAT networks and will switch to SAT if the service is available. If SAT operation is desired, the mobile phone can be

manually switched to SAT mode using the ‘SAT Only’ single mode setting.

GSM only

Operating as GSM only registration.

GSM preferred - If GSM Preferred is selected:

The mobile phone will initially attempt to access a GSM network, if no GSM network is available it will automatically

attempt to access a SAT network. When operating on a SAT network, the mobile phone periodically scans for available

GSM networks and will switch to GSM if the service is available.

6.2. System preference

Using the menu

112

Search mode is to set a network search mode. Two modes are available: Automatic and Manual.

Automatic

The mobile phone automatically selects the most preferred network available in your area. If this is not your home

network, you will see the roaming symbol For roaming purposes, there is a network preference list which can be

configured.

Manual

Operating as GSM only registration.

GSM preferred - If GSM Preferred is selected:

You can select the desired network from a list of available networks. The mobile phone uses only this one selected

network, and remains in manual mode until the automatic mode is selected or until a different SIM card is inserted.

6.3. Search mode

Using the menu

113

Displaying the Preferred list that is registered in the SIM card. Each one on the list is a Network list. The first one on the

list cannot be edited. From the second one on the list can be registered by the user. When Network mode is set to Auto,

each network on the list is connected to an available Network, starting from the one registered first.

As long as field strength is strong enough and the network allows you, calls will be transmitted via the preferred network.

You will be connected to a different available network only if reception of the preferred network is not sufficient enough.

You can create a list of preferred networks.

6.4. Preferred list

Add

You can add networks to the preference list by yourself.

You need the network code of the network to be added.

Delete

Deleting the selected list.

Option

Using the menu

114

Call log shows phone call records, which are categorized into Total, Dialed, Received, and Missed. Call log can store a total

of 60 records for Dialed, Received, and Missed calls. The record of each call shows the duration and the cost of the call.

Calls from the registered phone numbers interlocked with Contacts show names instead of telephone numbers.

Names on each number list functions as phone numbers.

7. Call log

Voice call manages all voice call records, sorting them into Recently, Received, Dialed, and Missed.

7.1. Voice call

7.1.1. Recent call

Putting together the lists of Received call, Dialed call, and Missed call, and showing call records starting from the most

recent one.

7.1.2. Received call

Showing the list of received calls (received, and received while talking on the phone), starting from the most recent one.

7.1.3. Dialed call

Showing the list of dialed calls (dialed, and dialed while talking on the phone), starting from the most recent one.

Using the menu

115

Call

Making a call to the selected phone number on the call

record.

Save number

Send message

Delete

Deleting the selected call record.

Delete all

Deleting all call records.

Call detail

Displaying the details of the call record (phone number

(name), duration, time received, and charge).

7.1.4. Missed call

Showing the list of missed calls (absent, and rejected), starting from the most recent one.

Voice call supports the following sub-functions.

New

saving the selected phone number to a new list.

Used

adding the selected phone number to the existing list.

SMS

sending a SMS message to the selected phone number.

MMS

sending a MMS message to the selected phone number.

Option

Using the menu

116

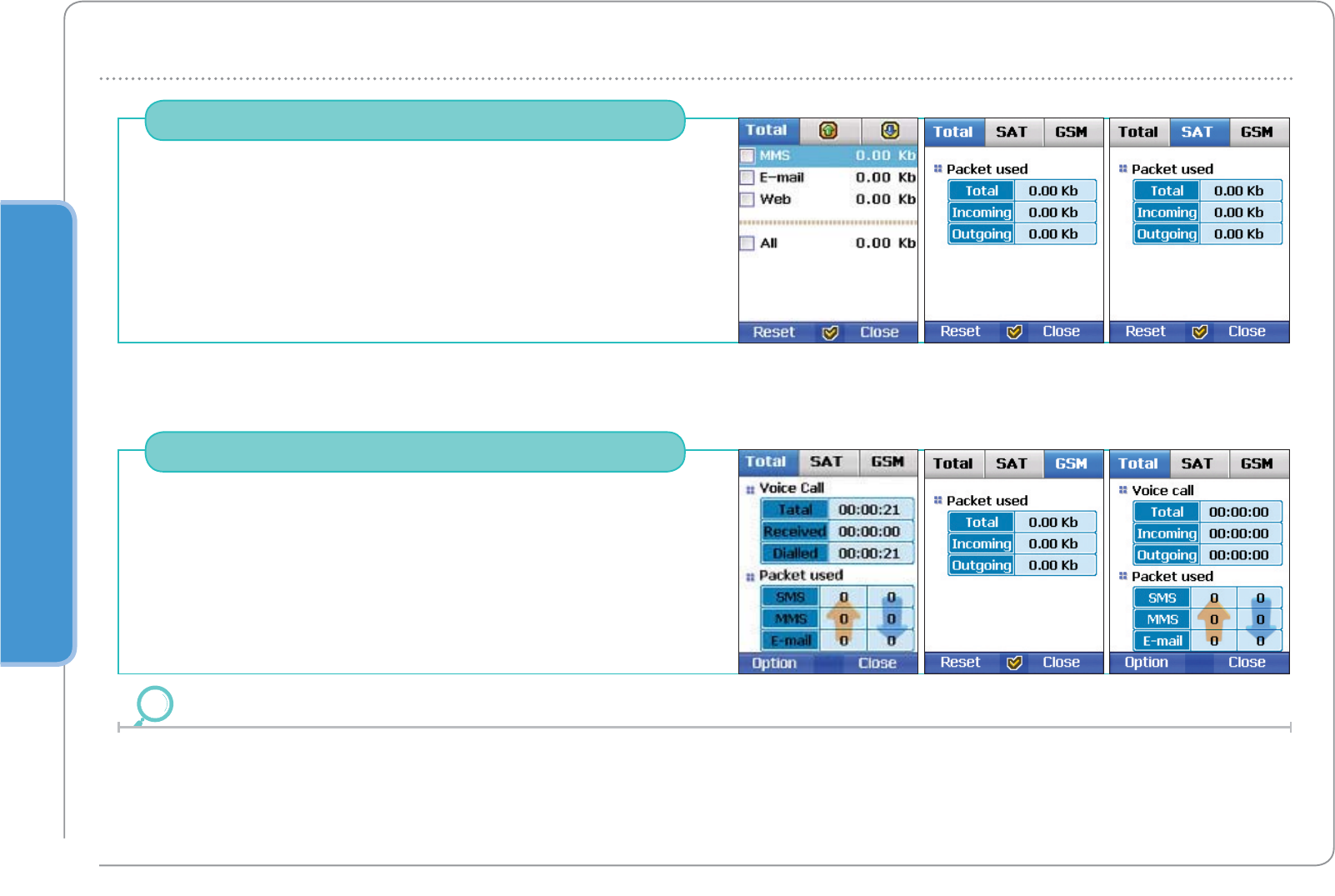

Packet data displays the quantity of the received and sent

packets of your MMS, Email, Web and All, and resets the

quantity.

7.2. Packet data

Durations show the amount of Voice Call and Packet used

for receiving and sending, categorizing them into Total, SAT,

and GSM.

7.3. Durations

Status viewer

Showing the amount of SAT and GSM used in a graph

format.

Reset

Resetting by selecting one from the options of Total,

Received call, Dialed call, Packet counter.

Option

Using the menu

117

Total : Showing the total cost of incoming and outgoing calls.

SAT : Showing the total cost of incoming and outgoing calls

using SAT.

GSM: Showing the total cost of incoming and outgoing calls

using GSM.

7.4. Cost

Reset

You can selectively reset the cost for Total, Incoming,

Outgoing calls.

Help

You can see the detailed information on call cost log.

Exit

Going to the idle screen.

Option

Using the menu

118

This feature is to manage call costs. The call costs calculated based on the details in Cost may differ from the actual

mobile phone bill. Costs are categorized into Total, SAT, and GSM, each of which can also be viewed as Total, Incom-

ing, and Outgoing.

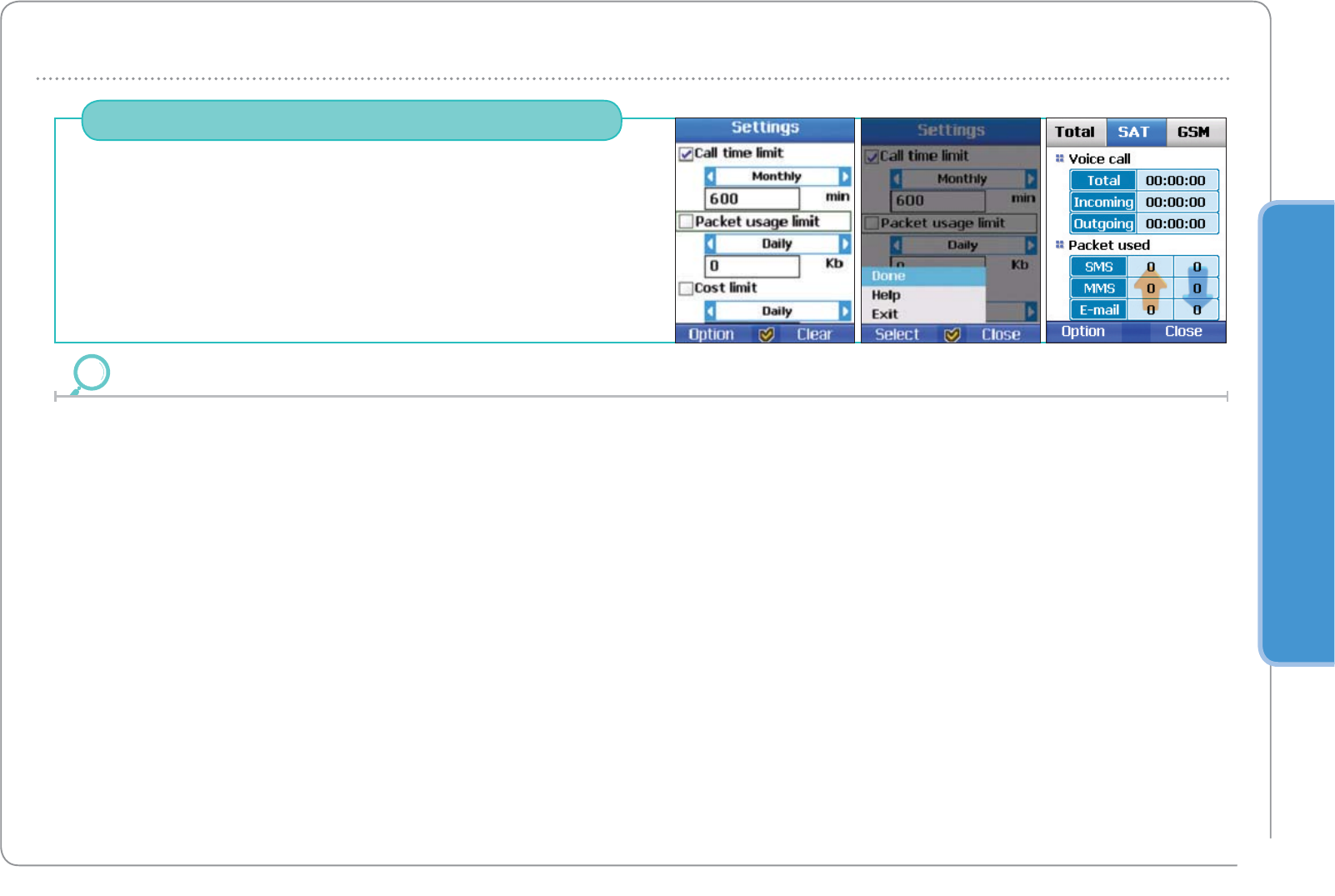

7.5. Settings

Reset

Resetting the Cost record.

Option

NOTE

The function must be supported by the SIM card. Some SIM cards may not provide the function.

•

Using the menu

119

Using a 1.3 megapixel built-in camera, you can take photos or make videos of high quality, and edit and save them.

The saved files can be sent to other people.

8. Camera

This is a photo taking (Still capture) function.

Press theCenter key ( ) to take photos, and use the Left, Right key ( ) to adjust the brightness of photos on the

rage of 1 (dark) ~ 6 (light). Additionally, the Up, Down key ( ) enlarges or reduces photos, ranging from 1 (reduction)

to 6 (enlargement). Refer to the following options for the details of various functions.

8.1. Still capture

Self Timer

If pressing Center key ( ), Photo Timer takes a photo after a certain time while None Timer takes a photo immediately.

5 Sec, and 10 Sec take a photo five seconds and ten seconds later respectively, after pressing the Center key ( ).

When taking photos, after the Timer function is selected, the mobile phone screen shows the time elapsing.

Sequence mode

Series photo is a function for taking photos consecutively.

None is to take a photo once, and Slow, Normal, and Fast take a photo twelve times consecutively at intervals of six, four and

two seconds respectively. When taking photos with the Series photo function set to on, the Series photo icon appears on the

upper-left side of the mobile phone screen.

Option

Using the menu

120

Effects

Effective photo provides special effects when photos are taken.

A wide range of various special effects helps you to take a variety of interesting photos.

When Effective photo is selected, a bar appears, to which the effects of Negative, Black & White, Sepia, Reddish, Greenish,

Bluish, and Normal functions can be applied. Press the Left, Right key to see each color effect applied to the bar on the

screen. Press Apply to finalize the color selection.

Frame

Frame photo creates a bar on the border of the image that a various range of photo frames can be inserted.

Move the list along, and each frame will be inserted into the border of the screen.

Press Apply to have the selected function applied.

Image quality

Image quality is a function for setting image quality by stages when taking photos.

High, Normal, and Low are the available options for the image quality; High for 100% image quality, Normal for 75%,

and Low for 50%. Press Select to have the selected function applied.

Image size

Image size sets the size of the image when photos are taken.

The size options include 76*88, 174*144, 176*198, 320*240, 640*480, 800*600, and 1024*768.

Press Select to have the selected function applied, and the applied size will be displayed at the bottom-left side of the screen.

Using the menu

121

This is a function for making video clips. After Option is selected, press the Center key ( ) to start video recording.

The Left, Right key ( ) adjusts the brightness of the screen on the range of 1 (dark) ~ 6 (light), and the

Up, Down key ( ) reduces or enlarges the screen, ranging from 1 (reduction) to 6 (enlargement).

Maximum recording time is 3 minutes.

8.2. Video Capture

Frame video

Select a frame from Frames 01~10, and press the Apply

button to apply the selected frame.

Video size

Select a video size from the options of 176 * 144, 320 * 240,

and MMS.

Voice

Select this to set the Voiceto ON/OFF while recording a

video.

Pre-video recording Option

Play

Playing back the recorded video files.

Delete

Deleting the file that the Focus is currently placed, or the selected files.

Voice

Select this to set the Voiceto ON/OFF while recording a video.

Post-video recording Option

Using the menu

122

To send as MMS :

Select file (multi-select : ).

Press .

Scroll to "Send" and press .

Scroll to "MMS" and press .

Refer to Creating MMS (page 87).

Send (E-mail)

The selected file can be attached to an outgoing message, like ordinary E-mail messages. There is no limit on the size of the

attached file. However, some network providers may put limits on the volume of the transmission.

To send as E-mail:

Select file (multi-select : ).

Press .

Scroll to "Send" and press .

Scroll to "E-mail" and press .

Refer to Composing E-mail (page 89).

Using the menu

123

Send via Bluetooth

Bluetooth is wireless communication protocol, which enables sending files to another Bluetooth device (Phone, PC, etc) within a

20m radius. Refer to page 127 for the details of file sharing and transmission using Bluetooth.

To send as Bluetooth :

Select file (multi-select : ).

Press .

Scroll to "Send" and press ).

Scroll to "Bluetooth" and press .

Select Device.

NOTE

The sizes of MMS, E-mail, IrDA, and Bluetooth cannot be selected.

•

Send via IrDA

An infrared port for IrDA communication is placed at the top of SG-2520.

Files can be sent via infrared communication (Refer to page 126).

To send as IrDA :

Select file (multi-select : ).

Press .

Scroll to "Send" and press .

Scroll to "IrDA" and press .

Select Device.

Using the menu

124

Image box shows all photos saved in the built-in and

external memories of SG-2520 after processing the photos

into thumbnails, and arranging them in a grid view type.

But the photos can be viewed in a full viewer type.

8.3. Image box

Option (See 1. Media center, page 54)

Video box shows all images, which are saved in the built-in and external memories of SG-2520, in thumbnail images.

The thumbnail images are arranged in a grid type, but can be shown in a full-viewer type.

8.4. Video box

Option (See 1. Media center, page 54)

Using the menu

125

Configuring and setting up the camera functions.

8.5. Setting

8.5.1. Image capture

Configuring the Image capture functions. User settings can be created, such as Auto naming (Auto, User), Capture

sequence, Capture sound, Ready sound, Timer sound, Image size, and Quality.

Press the Save key to save the settings, and press the Close key to go back to the previous menu screen.

8.5.2. Video capture

Configuring the Video capture functions. User setting can be created, such as Auto naming (Auto, User), Capture

sequence, Recorder, and Video size. Press the Save key to save the settings, and press the Close key to go back to the

previous menu screen.

Using the menu

126

Settings for the connection between the mobile phone and external equipment, or the WAP connection.

9. Connectivity

Using the IrDA menu you can configure the settings in which you can send and receives data via an infrared port.

You can send File, Waypoint, Contact, Favorite URL, and V-card.

9.1. IrDA

NOTE

For the IrDA connection between two devices, two IrDA ports must face each other with the distance between the two

ports not exceeding 1 meter. There must no obstacles between the two ports IrDA connected.

•

9.1.1 Receive mode

After setting to the Receive mode, position the IrDA port to face the other IrDA port to receive files from the other person.

The received files are sorted into different types, and saved.

Data must be transmitted within 1 minute after the Receive mode is activated. The connection ends otherwise.

9.1.2 IrDA send

Through the IR port you can transmit objects using File send, Waypoint send, Contact send, Favorite URL send, and

My V-card send in the Menu.

Using the menu

127

This is a specification that allowes wireless connections between the computer and mobile equipment, which are a

short distance away from each other, real-time interactive communications between the two devices.

Bluetooth technology allows wireless connections between electronic devices. Since bluetooth devices communicate

using radio waves, your phone and the other Bluetooth device do not need to be in line of sight. The two devices only

need to be within a maximum of 10 meters of each other, although the connection can be subject to interference from

obstructions such as walls or other electronic devices.

9.2. Bluetooth

Status

Modem

Select which modem profile(FAX, DUN) will be shown to

other device. Both of one profile can be used at one time.

Bluetooth

Setting Bluetooth to ON / OFF.

My phone visibility

Setting to Show or Hide in response to Bluetooth searching

by other devices.

My nickname

Setting a device name to be shown to other device, which is

in the course of Bluetooth searching.

Hands-free

Setting the default headset. The default headset can be

set without other device nearby. The default headset is not

removed from the list even after changing it to Active

Hands-free. To delete any unwanted device from the relevant

list, delete it from the list registered in Paired.

Request authorization

A PIN can be set to allow other devices using the PIN access to the phone for instance Normal profile, FAX, and Dial up network

profile.

Option

Using the menu

128

New Search

Searching to make a Bluetooth connection with another

device. Once Searching starts, nearby Bluetooth devices

that are switched on are searched, their device names are

shown.

Pair

Requesting Pairing to a device on the Bluetooth device list,

which accepts the connection. When Pairing is complete,

Success message is shown, and the connected device is

viewed from the Paired list.

NOTE

If your phone requests a pairing, you should give a passcode. The passcode is fixed for accessories and supplied with the

accessory, but with other devices you can create your own passcode. For pairing, both Bluetooth devices must use the same

passcode. Note that you can use a different passcode each time you make a connection.

•

Option

Paired

File send

Sending the selected file to the device that you choose.

Rename

Rename to modify the selected file name

Delete

Delete device from paired list

Option

Using the menu

129

Through Bluetooth you can make a connection with another person, or accept another person’s request for the

connection, and allow your file browsing. According to the authority given to the connection, the other person is allowed

to Upload, Download and Delete your files.

9.3. FTP

9.3.1. FTP server

FTP service

Setting FTP service to ON / OFF.

Use authorization

A setting that requests for a Passkey from the client that you

want to connect.

Allow write

A setting that allows the connected client to upload or delete

files.

Share folder

The User folder in the Phone or any folder in the SD card can

be used as a shared folder.

9.3.2. FTP connect

This is a menu that helps you to be connected to other device as a Client.

The list on the menu is same as the searched list (last searched list + paired list of Bluetooth).

Using the menu

130

Browser is responsible for fetching WAP contents from the

origin server origin server (normally a web server) and giving

it to you. Browser is an outcome of implementation of

Wireless Application Environment (WAE) user agent

specified in the WAP architecture.

To access the web pages go to Menu > Connectivity > Web

Browser.

9.4. Web browser

NOTE

Check with your service provider for the services, tariffs and pricing.

•

Using the menu

131

9.4.1. Features

Supports various content types

Browser supports WBXML, WML1.3, WML2.0, XHTML mobile profile, HTML and cHTML.

Supports Cascading Style Sheet

Browser supports Mobile Profile CSS (W-CSS), which is used for colorful and well-framed content presentation.

Supports various image formats

Browser supports GIF, BMP, JPEG, and WBMP, which make browsing session more colorful.

Multiple transport modes

The W-HTTP for fetching content through WAP 2.0 feature enhancing proxy or directly from origin servers.

Also supports the Cache and Cookie

Cache: A cache is a temporary store of data. Web pages are stored temporarily in your browser’s cache directory on

your hard disk. If you return to a page, the browser pulls the page from the cache. This is much quicker than loading

it again from the Internet.

Cookie: Cookies are a bit of data a website may store on your device through your browser that allows the website to

keep track of your settings and other information.

Using the menu

132

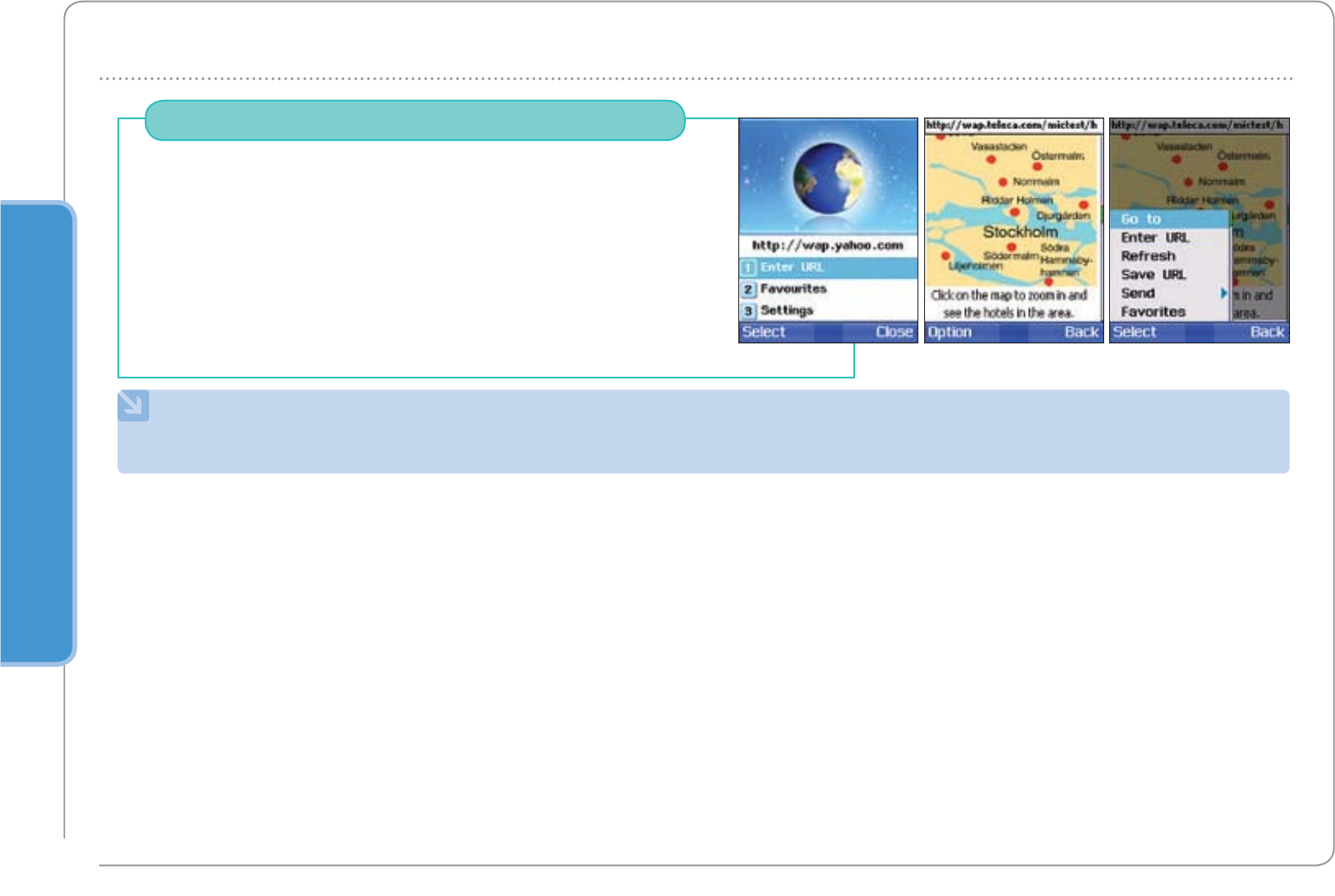

9.4.2. Browsing

Selecting the Enter URL option from the main menu will display the address bar to type the URL to fetch the page.

NOTE

Before browsing check for the Connectivity and Settings.

Refer section 9.4.4. The Profile setting has to be done in

order to connect to the network for browsing.

•

The connecting status is displayed. Press Stop key to stop processing the request.

Press on Option Softkey to choose the other features like to Enter URL, Refresh, Save URL, send this URL as link to other

recipients and to add it to the favorites.

•

Using the menu

133

9.4.3. Favorites

Web sites or pages that you need often can be kept track of, and opened easily if added to the list of favorites. Selecting

the Add to Favorites option gives a screen to add the URL that is open to favorites. You can select the category to which

your favorite has to be added from the Category drop down list. Press on Back Softkey to go to the previous page.

Bookmark

Web sites or pages that you need often can be kept track of, and opened easily if added to the list of favorites.

Select the Favorites option to view the Bookmark, Push Inbox, and the History features.

Use the device navigation keys to navigate between features.

You can browser the favorites by selecting Option > Go to.

Categorization helps you to manage the bookmarks better.

You can create categories by selecting Option > Add Category under which you can add the bookmarks.

Select Option > Rename to rename the category or bookmark parameters.

To add bookmark the following fields are defined:

URL : Enter the URL, which you want to add to the favorite.

Title : The title for the favorite URL, which will be used as alias name for the Favorite URL.

Category : Select the category to which you want to add this URL.

Using the menu

134

Push Inbox

To view messages that are pushed, select the Push Inbox.

Push allows content to be sent or “pushed” to devices by server-based applications via a Push Proxy.

Push messages are sent without waiting for a request from the device. Push functionality is especially relevant to real

time applications that send notifications to their users, such as messaging, stock price, and traffic update alerts.

History

The History list keeps track of all the web sites that you visited.

From the history you can save URLs as favorites by selecting Option > Save URL.

To enter the URL for browsing, select Option > Enter URL.

Select Option > Delete to delete the category or bookmark.

If the category is deleted then the bookmarks under that category will also be deleted.

Select Option > Send > SMS /IrDA / Bluetooth to send the URLs.

Using the menu

135

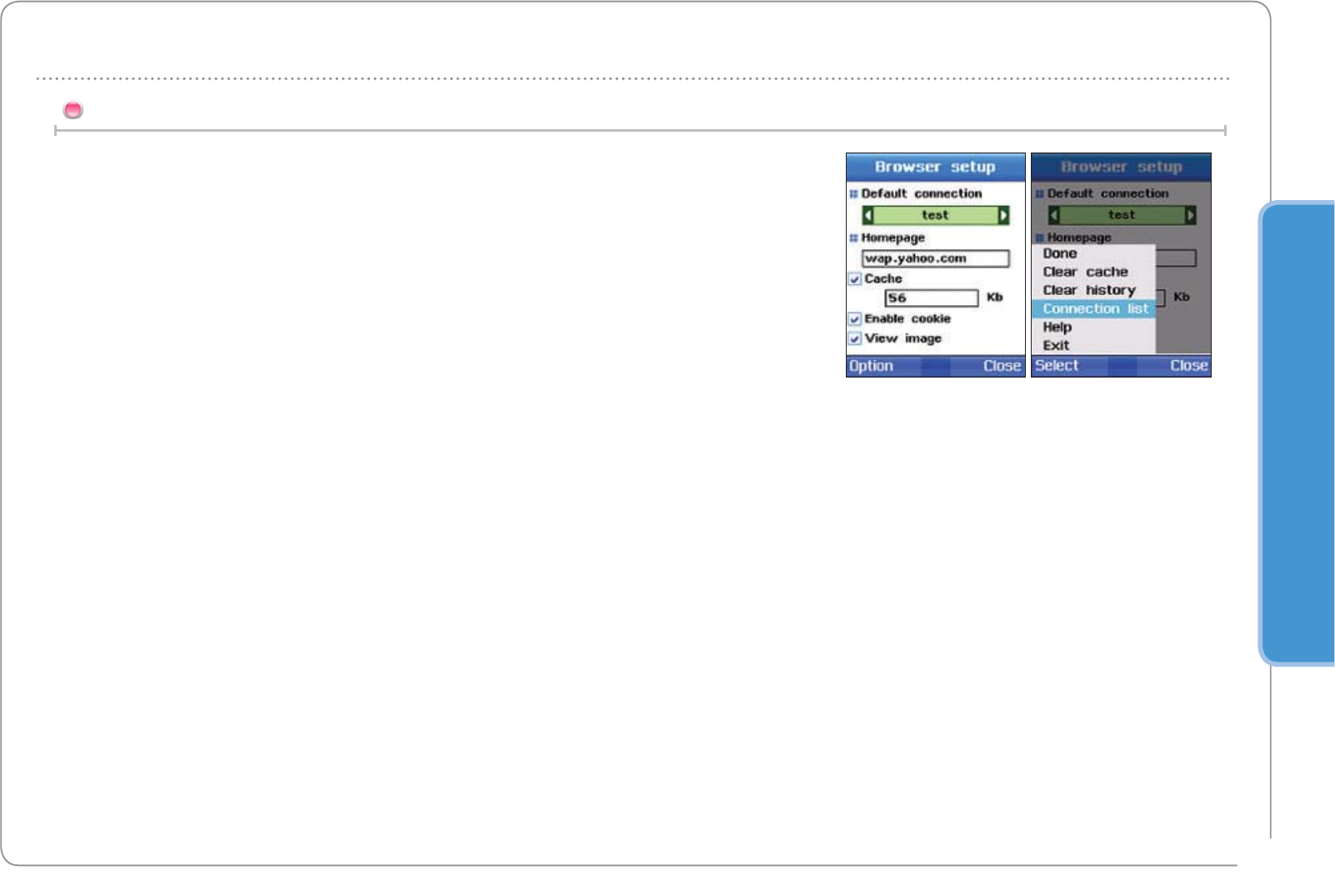

9.4.4. Settings

To get connected to the network and send a request the connection setting

has to be done.

The Connection screen gives the list of all the configured connection.

The Browser comes pre-configured with a direct connection.

On selecting the Connection list option you get list of configured connections.

Select the Option > Done to set the changes made to the profile

Homepage

On opening a browser the default page that will be displayed is the one, which is set in this Homepage parameter.

Cache

To enable cache, check the Cache group. Specify the size (in kilobytes) of cache in the box.

Enable cookie

Information related to a session can be stored as a cookie. To enable the cookie option, check the Enable Cookie option.

View image

To view the images on the web pages fetched, check this option.

Using the menu

136

Clear cache

To clear the cache contents.

Clear history

To clear the history files stored on your device.

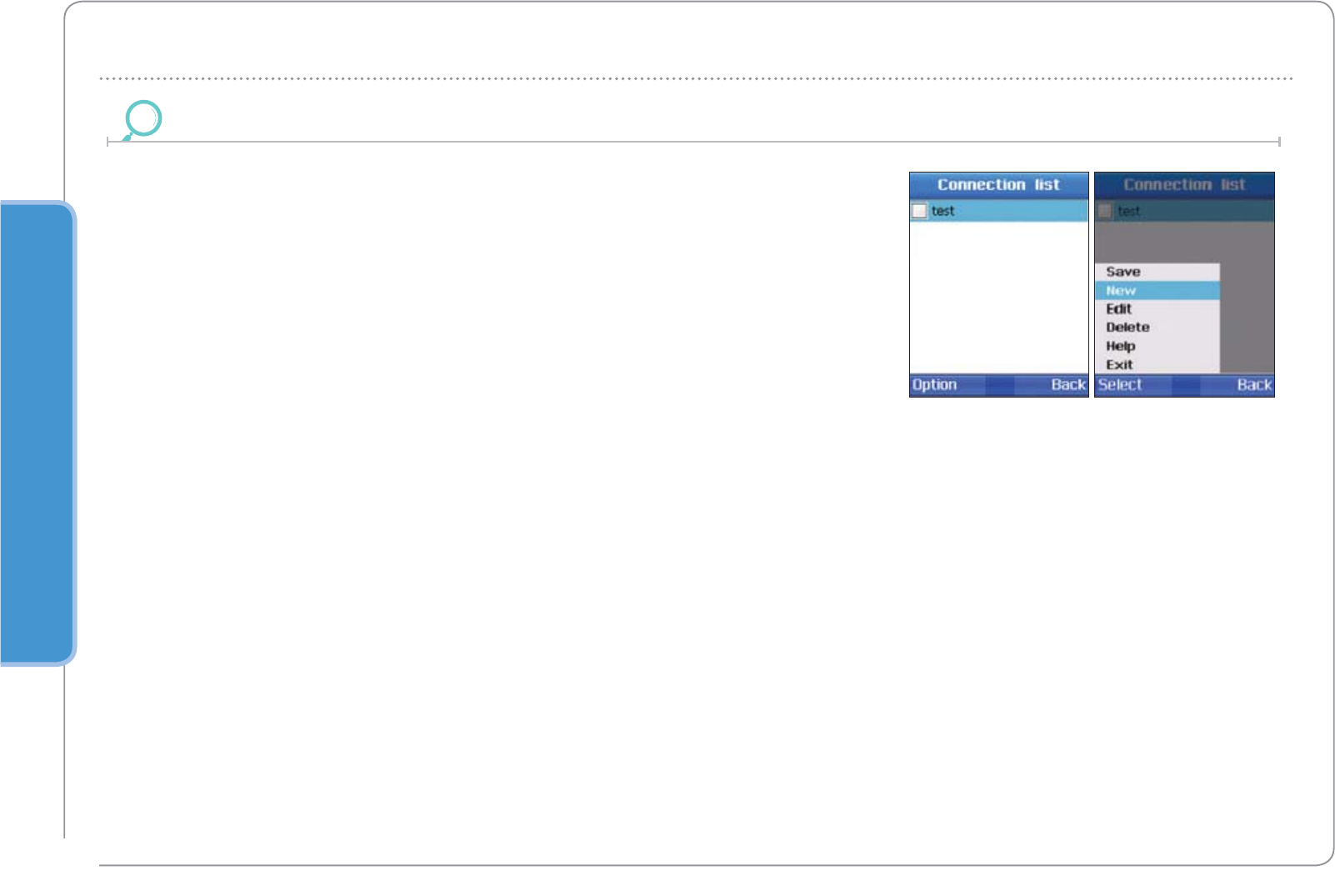

Connection list

To view the list of configured connections.

To view the list of connections, select Option > Connection List.

To add a new profile, edit or delete the profile, select Option > New/ Edit/ Delete in the connection list screen.

Option

Using the menu

137

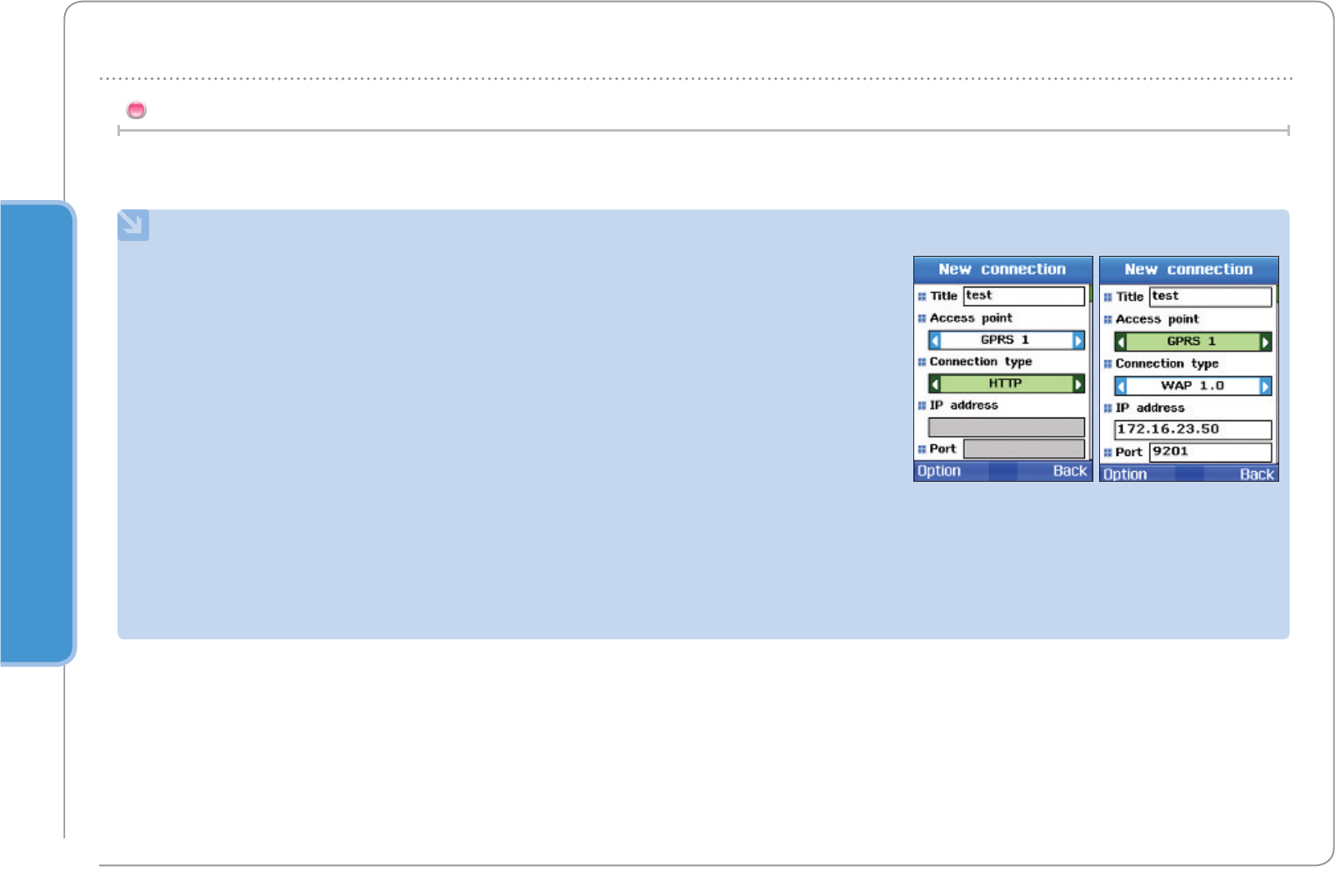

The following parameters define a new profile connection.

Title: The name of the connection.

Access point: The point where your phone connects to the Internet by way of a data call or packet data connection.

A commercial Internet Service Provider(ISP), service provider for mobile devices or network operator, can provide an

access point. Select an access point you want to use for the data connection.

Connection Type: Communication gateway. The gateway can be WAP 1.0 Gateway, WAP 2.0 Gateway or None i.e.

WAP 1x Gateway or WAP 2x Proxy or None.

If WAP 1x Gateway is used the IP address of the WAP Gateway should be provided and the Port, which is generally 9201,

should be mentioned. If the Operator uses WAP 2x Proxy then the IP Address should be mentioned and the Port, which is

generally 9401, should be mentioned.

If the Operator does not use any WAP Gateway and use None (Direct HTTP) then the None option should be selected.

IP Address: IP Address of the gateway applicable if the Gateway is 1.0 or 2.0

Port: Port number of the gateway applicable if the Gateway is 1.0 or 2.0

Select Option > Save to save the settings.

9.4.4.1. New Connection Profile

Using the menu

138

Manging the received files. The files are arranged by date and time.

Files can be sorted into three types: File through IrDA, File through Bluetooth, and File through other files.

9.5. Received file

Move

This command is to move the location which files are saved

to. Files in the Phone Image box can be moved to the Image

box or the User folder in the SD card.

Send

The selected file can be sent as IrDA, Bluetooth, MMS, or

E-mail.

Option

Using the menu

139

Configuring the overall Phone settings. Settings are divided into the following specific areas to manage the Phone:

Profile, Phone, Calls, Shortcut, Access point, Security, Language, and System.

10. Setting

Active profile shows a range of information it contains, and makes a warning sound. You can set a sound for Ringtone,

Alarm, Messaging and Effects of each profile in advance, and can modify the sounds for your convenience.

Basic profiles include General, Headset, Meeting, Office, Outdoor and Silent. You can adjust volume of the ringtone,

alarm, messaging and effects of General profile. As for Headset, Meeting, Office, Outdoor and Silent, you can only

select a profile mode as the volume level is already fixed.

To set a sound, select Option > Detail.

General, Headset, Meeting, Office, Outdoor, Silent

You can select nither General, Headset, Meeting, Office, Outdoor or Silient, these can be modified and the details are

as follows.

10.1. Profile

Active

When ‘Active’ is set, profiles are activated, and a pop-up window with the “Activated” message appears

Option

Using the menu

140

Ringing tone

To set Ring tone, Ringing type, and Ringing volume,

press the Up, Down key ( ) to select Ring tone, Ringing

type, or Ringing volume, and make an adjustment using the

Left, Right key ( ) .

Alarms

To set the tone and the volume of Clock alarm, Schedule

alarm, Planner alarm, and Timer alarm, press the Up, Down

key ( ) to make a selection, and make an adjustment

using the Left, Right key ( ).

Messaging

To set Receiving message, Voice mailbox, Ringing type,

and Rining volume, press the Up, Down key ( ) to

make a selection, and make an adjustment using the Left,

Right key ( ).

Effects

To set Key tone, Confirm, Error, Success, Low battery,

and Ringing volume, press the Up, Down key ( ),

and makean adjustment using the Left, Right key ( ).

Detail

Setting the details of the Profiles. The sounds of Ringing tone, Alarms, Messaging, and Effects can be set.

Setting up Wallpaper, Screen saver, Menu style, Greeting message, Theme, LCD adjust in the phone.

10.2. Phone

Using the menu

141

Done

Saving the selected Wallpaper image.

View

Pre-viewing the selected Wallpaper image.

10.2.1. Wallpaper

Setting up the image of an idle screen. Five Wallpaper images are provided. Images in the Image box or files in the Video

box can be used as Wallpaper. Use the Left, Right key ( ) to move to the Image box.

10.2.2. Screen saver

The Screen saver starts operating when no entry is made, after the time period that you have set, to the idle screen,

Messaging, Note, etc., except those functions currently set to Play, such as Video, Mp3, Stop watch, camera (Video

capture, Still capture), and Timer. If no entry is made, 15 seconds after the Screen saver is switched on, the Screen light

reduces to 50%. And no entry made for another 15 seconds will result in a 100% reduction in the Screen light.

Four basic types of the Screen saver are provided: Off, Fish, Window, and Digital clock.

Activate

Activating the selected Screen saver.

Time setup

The options of the Time setup are 10sec, 15sec, 30sec, and 1min. The Screen saver starts operating after the selected

time.

Preview

Previewing the image for the Screen saver.

Option

Using the menu

142

10.2.3. Menu style

Setting up the style of the menu displayed.

Grid

When the Menu style is set to Grid, the menu displays twelve icons in Matrix images.

Select Done to save the setting and Close to maintain the previous style, and then you will be moved to the previous

screen.

List

When the Menu style is set to List, the menu displays icons in a List form showing menu titles. Select “Done” to save the

setting and Close to maintain the previous style, and then you will be moved to the previous screen.

10.2.4. Greeting message

When power is ON and the phone is booted, firstly Greeting message in a pop-up window is displayed and disappears.

The message can be entered in a choice of eight colors.

If greeting message is ON, you will see the greeting message when booting your phone.

If set OFF, no greeting message will be shown when booting.

Select "Done" to save the setting and Close to maintain the previous setting, and then you will be moved to the previous

screen.

Using the menu

143

10.2.5. Theme

When the phone is turned OFF, until power is completely turned OFF the Theme screen is displayed.

When Activate is selected, the phone is automatically rebooted, and Theme is set. Select Help to get useful information

and details on Theme, and selet Exit to move to the idle screen.

10.2.6. LCD adjust

Using the Left, Right key ( ), adjusting the Contrast and Bright range of the LCD screen for your convenience,.

Using the menu

144

10.3. Calls

10.3.1. Voice calls

Voice calls performs the following functions. Multiple functions can be selected.

Auto redial

When makin a Call, if the other person is not answering

or outside of coverage area, the phone will automatically

redial the number again upto 8 times.

Summary after call

On the completion of a call, the duration and the cost of

the call are displayed.

Anykey answer

Setting up to answer an incoming call by pressing any key

on the phone.

Reject call with SMS

When rejecting an incoming call, you will receive a

SMS message on the call.

Connection tone

You can hear the connection tone while a call is being

connected.

1 minute reminder

You can hear a sound after the call time exceeds

one minute.

Auto reject

When using FAX/ DATA, if you set Auto Reject,

all the incoming calls will be rejected.

You can set the basic menus of the call function.

Using the menu

145

Activate

Activating Call diverts

Contact

Diverting incoming calls to the preset phone number

(Name - Phone number option).

Deactivate

Deactivating Call diverts.

Check status

Checking the status of Call diverts.

Cancel all

Canceling the settings of all functions.

10.3.2. Call diverts

The Call diversion functions for incoming calls are as follows.

All voice Calls

If busy

If not answered

If out of reach

All Fax Calls

All Data Calls

Option

Using the menu

146

10.3.3. Call barring

This function restricts calls, to outgoing and incoming calls.

It is saved at the network, and to set up each call restriction, the barring code is required.

All Outgoing calls

Restricting all outgoing calls.

All International calls

Restricing all international calls.

All International calls except to home country

Restricing all international calls except for ones to home

country.

Incoming calls

Restricting incoming calls.

Incoming from abroad

Restricing incoming calls from abroad.

Activate

Activating Call barring.

Deactivate

Deactivating Call barring.

Check status

Checking the status of Call barring.

Cancel all

Canceling the settings of all functions.

Option

Using the menu

147

10.3.4. Call waitings

It is a setting whether to use waiting when in a call.

All voice call

Activate

Activating Call waiting for all voice calls.

Deactivate

Deactivating Call waiting for all voice calls.

Check status

Checking the status of Call waiting for all voice calls.

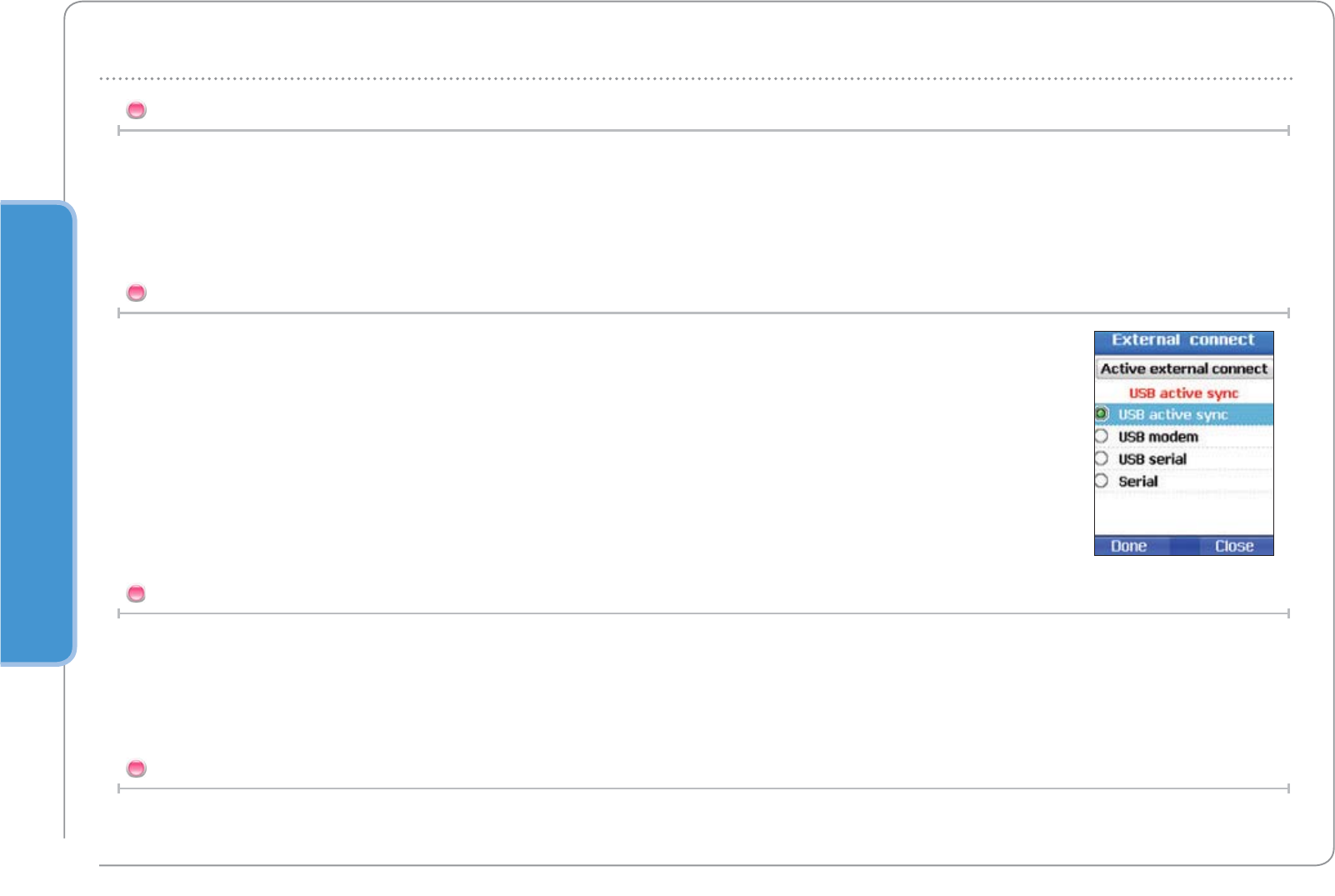

10.3.5. External device

Setting up the options of the external device.

Headset answer, Handsfree answer

When receving MT Calls, select one from the mode options (Send Key, Any Key, and after 5sec) to operate Headset

answer or Handsfree answer functions.

Send Key: Press the to answer a call.

Any key: Press any key to answer a call.

After 5sec: A call will be answered 5 seconds later, although no key is pressed.

Option

Using the menu

148

10.3.6. Cost

This function is for the general management of call costs.

The call costs calculated based on the details in Cost may differ from the actual mobile phone bill.

Display cost

If set ON, the cost will be shown in the idle screen.

Cost Limit

Cost Limit is a function for setting limits on the call costs. Some SIM card may not have this function.

Your call costs can be given a set limit in a currency rate on monthly and daily bases.

Currency

Setting the base value of the Cost Limit.

Currency rate

Setting the currency rate of the Cost Limit.

NOTE

The function must be supported by the SIM card. Some SIM cards may not provide the function.

•

10.3.7 Send my caller ID

When making a call, your phone number is sent to the other person.

Using the menu

149

Using shortcut keys menu search and user management can be completed with great speed.

10.4. Shortcut

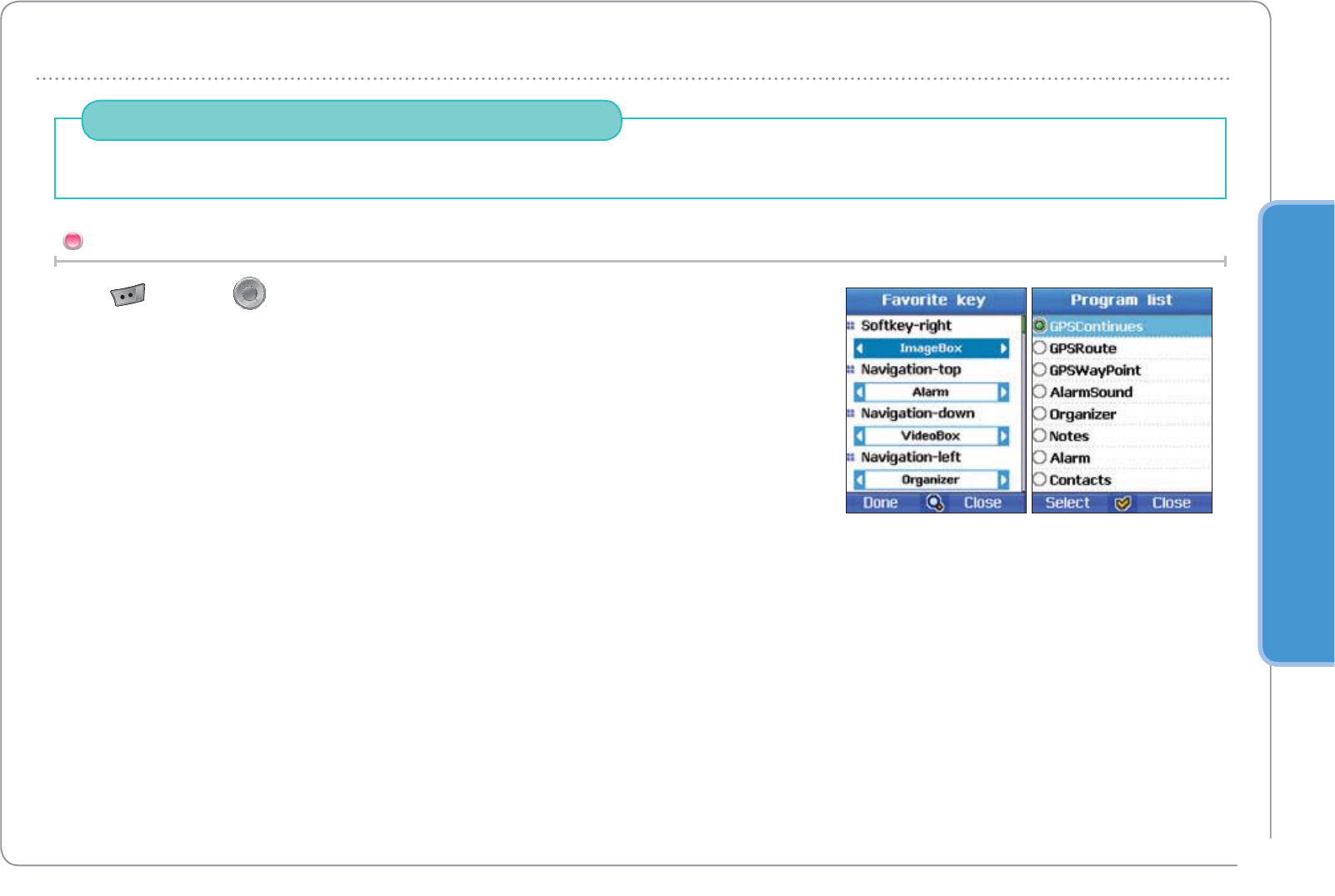

10.4.1. Favorite key

The , and the can be set up for frequently used items on the menu.

Select Done to save the setting and Close to maintain the previous setting,

and then you will be moved to the previous screen.

Image box

Memory Status

Sound Box

Video Box

Music Box

Contacts

Contact SpecialList

Contact SpeedDial

Contact Myinfo

Contact Simlist

Notes

Alarm

Planner

GPS Continues

GPS Current

GPS Location

GPS Route

GPS Waypoint

•

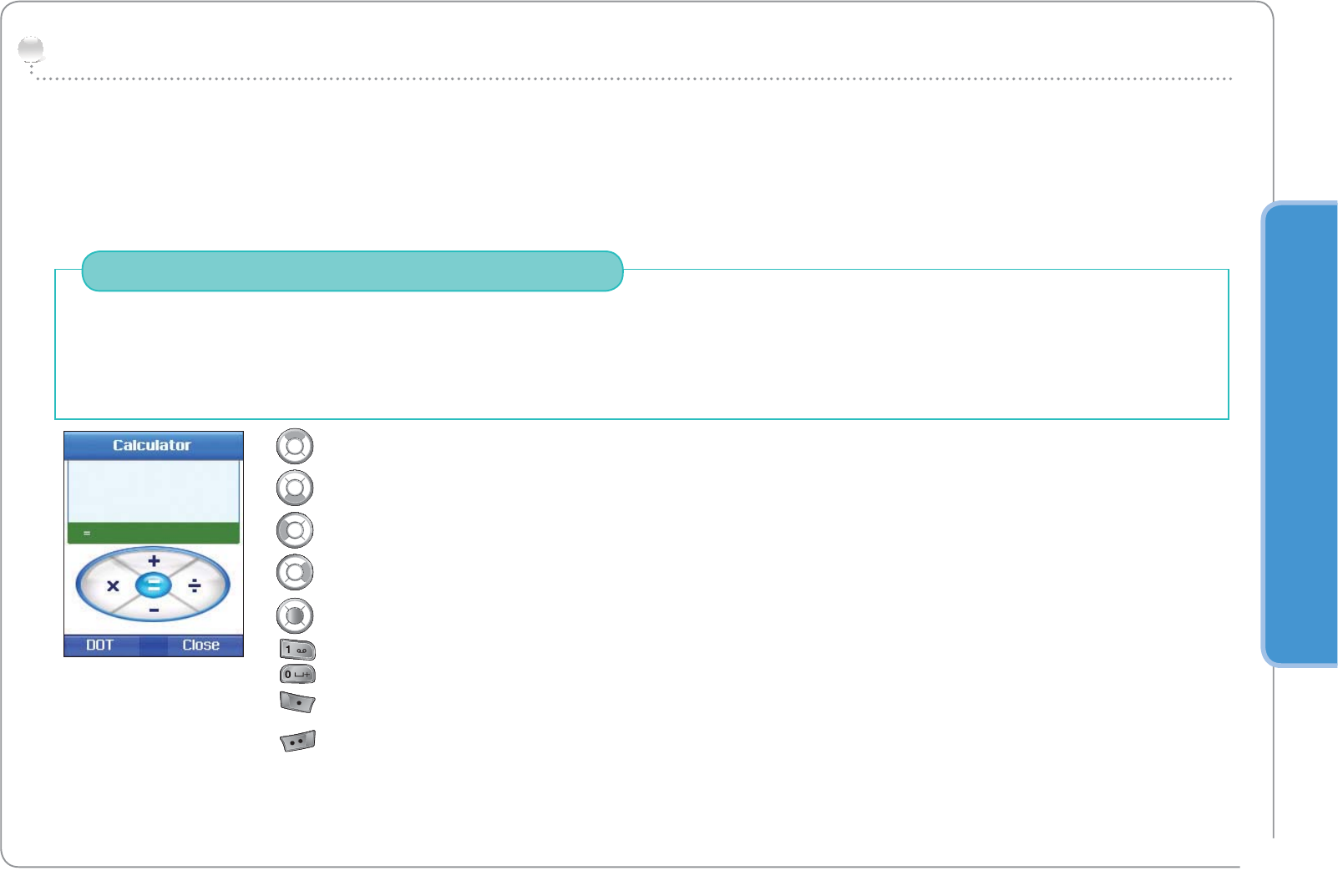

CalCulator

Timer

Converter

Lullby

Stopwatch

Voice Recorder

World time

App Alkanoid

App File Browser

App Tetris

Camera Movie

Camera Still

Message New

Message Inbox

Message Drafts

Message Report

Message Sent

Message Unsent

•

Message Settings Email

Message Settings MMS

Message Simbox

Message Settings CB

Message Settings SMS

Message Settings Spam

CallLog Cost

CallLog Durations

CallLog Packet Data

CallLog Setting

CallLog Voice Call

Connect Received File

•

Connect Bluetooth

Connect FTP Connect

Connect FTP Server

ConnectIrda Contact Send

ConnectIrda Receivemode

ConnectIr DAv Card

Browser

•

Using the menu

150

10.4.2. My menu

Programs can be stored to the keys, “1 ~ 9, *, . , # ”, in

the My menu, making search faster and easier. Once the

program is stored, the number or the symbol in My menu is

changed to a lightning sign. This will help you to check if the

programs are stored.

Assign

Storing Programs to My menu.

Option

Using the menu

151

Here you can see a short explanation for every setting that may be needed for different data connections and access

points. If you have not yet used your phone to make a WAP connection, you may need to contact your service provider

for assistance with the first-time connection.

Many service providers require you to use an IAP for your default access point.

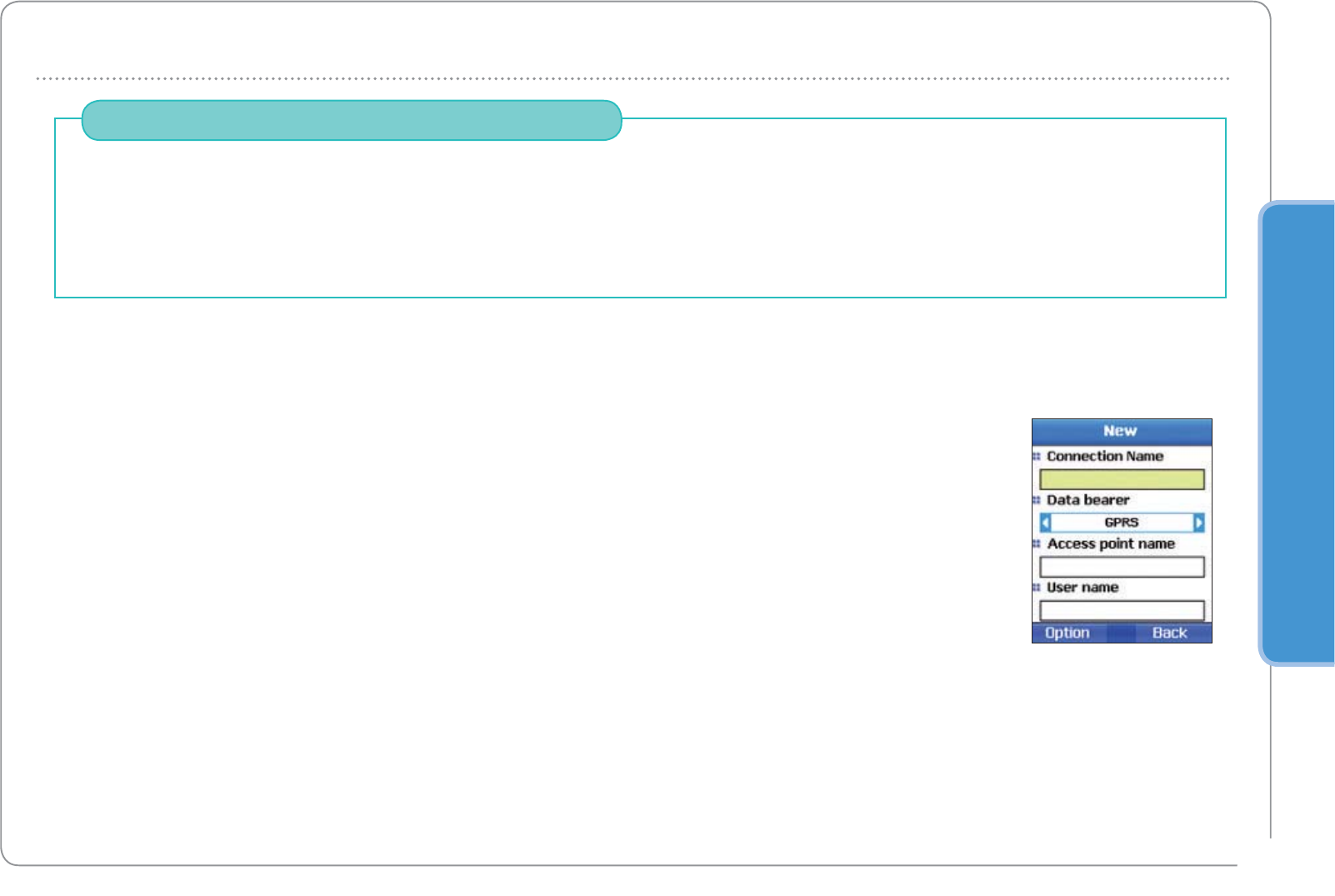

• Connection name

Give a descriptive name for the connection.

• Data bearer

The options are GmPRS/GPRS or CSD or Data call. Depending on what data connection you se-

lect, only certain setting fields are available. Fill in all fields marked with Must be defined, or with an

asterisk. Other fields can be left empty, unless you have been instructed otherwise by your service

provider. To be able to use a data connection, the network operator or service provider must sup-

port this feature, and if necessary, activate it for your SIM card.

• Access point name (for packet data only)

The access point name is needed to establish a connection to the GmPRS/GPRS network.

You obtain the access point name from your network operator or service provider.

• For more details, visit www.thuraya.com.

Start to fill in the settings from the top since, depending on the data connection you select (Data bearer), only certain

fields are available.

• Dial-up number (for data call only)

The access point name is needed to establish a connection to the CSD network.

The modem telephone number of the access point.

10.5. Access point

Using the menu

152

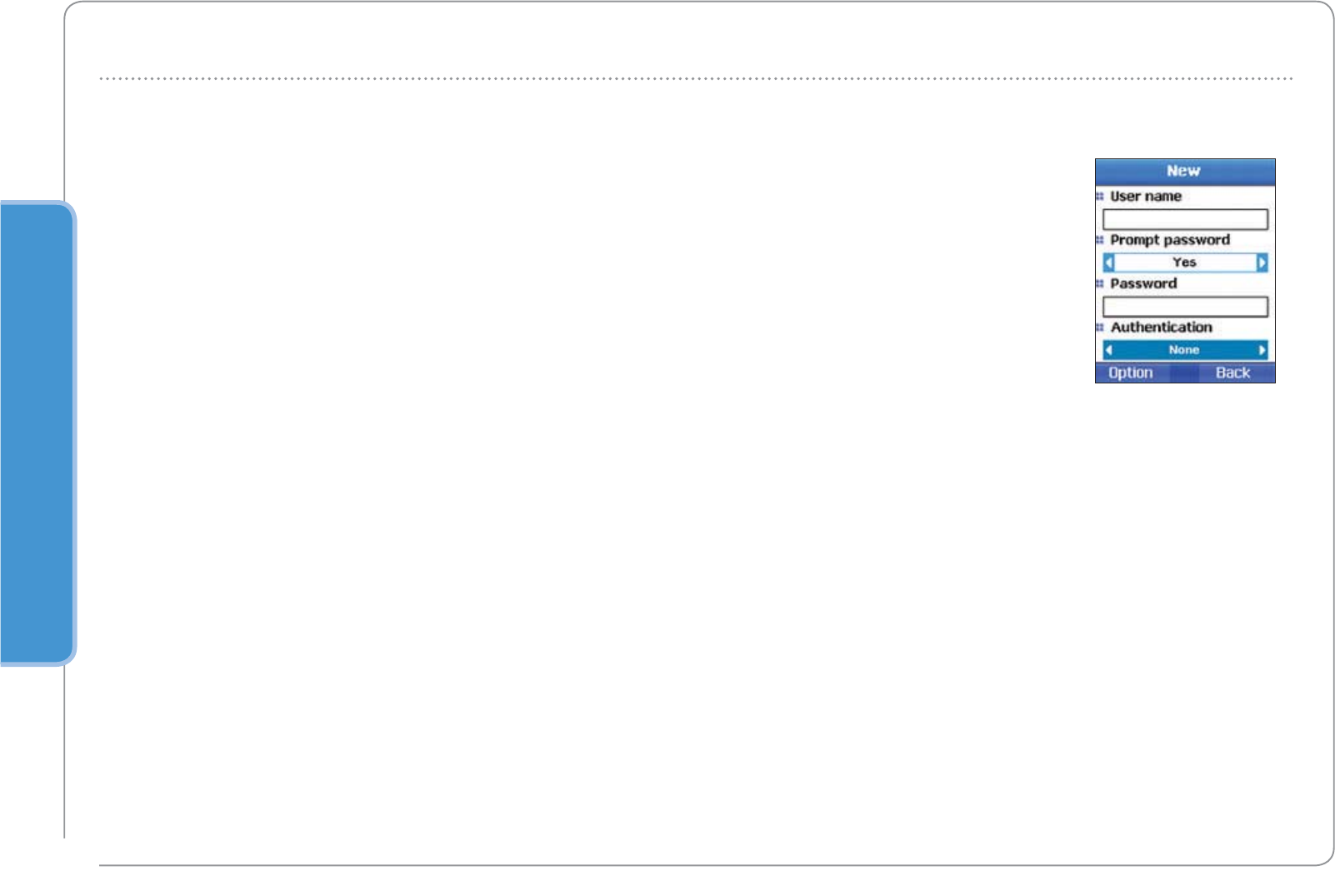

• User name

Write a user name if required by the service provider. The user name may be needed to make a

data connection, and is usually provided by the service provider. The user name is often

case-sensitive.

• Prompt password

If you must enter a new password every time you log onto a server, or if you do not want to save

your password to the phone, choose Yes.

• Password

A password may be needed to make a data connection, and is usually provided by the service provider.

The password is often case-sensitive. When you are writing the password, the characters you enter are shown briefly

and then changed to asterisks (*). The easiest way to enter numbers is to press and hold the digit you want to enter,

and then continue entering letters.

• Authentication

Normal/Secure.

• Data call type (for data call only)

Analogue, ISDN v.110, or ISDN v.120 defines whether the phone uses an analogue or digital connection. This setting

depends on both your GSM network operator and Internet Service Provider (ISP), because some GSM networks do

not support certain types of ISDN connections. For details, contact your ISP. If ISDN connections are available, they

establish connections more quickly than analogue methods.

Using the menu

153

• Maximum data speed (for data call only)

The options are Automatic, 9600, 14400, 19200, 28800, 38400or 43200, depending on the chosen Data call type.

This option allows you to limit the maximum connection speed when GSM data are used.

Higher data rates may cost more, depending on the service provider.

The speeds above represent the maximum speed at which your connection operates.

During the connection, the operating speed may be less, depending on network conditions.

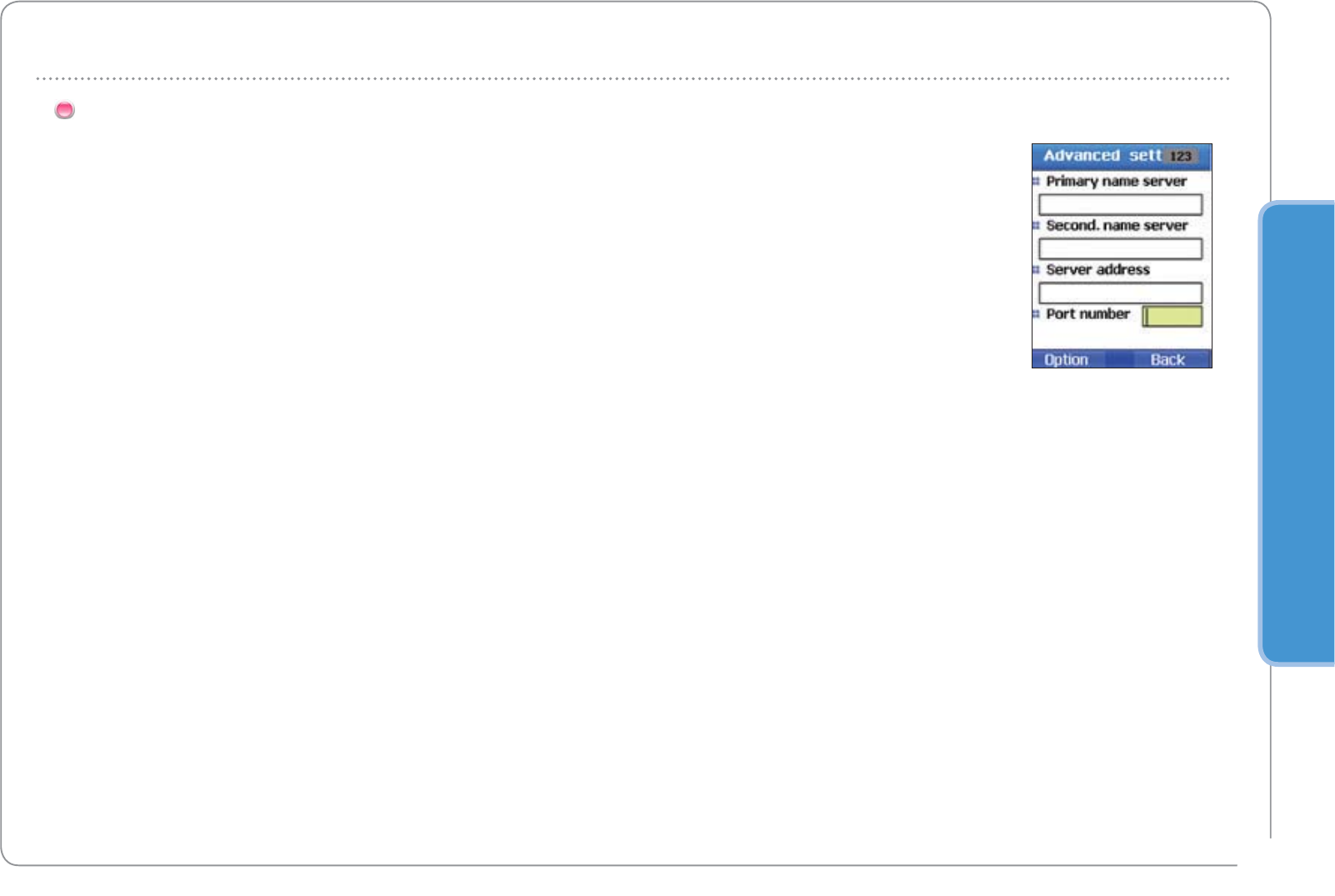

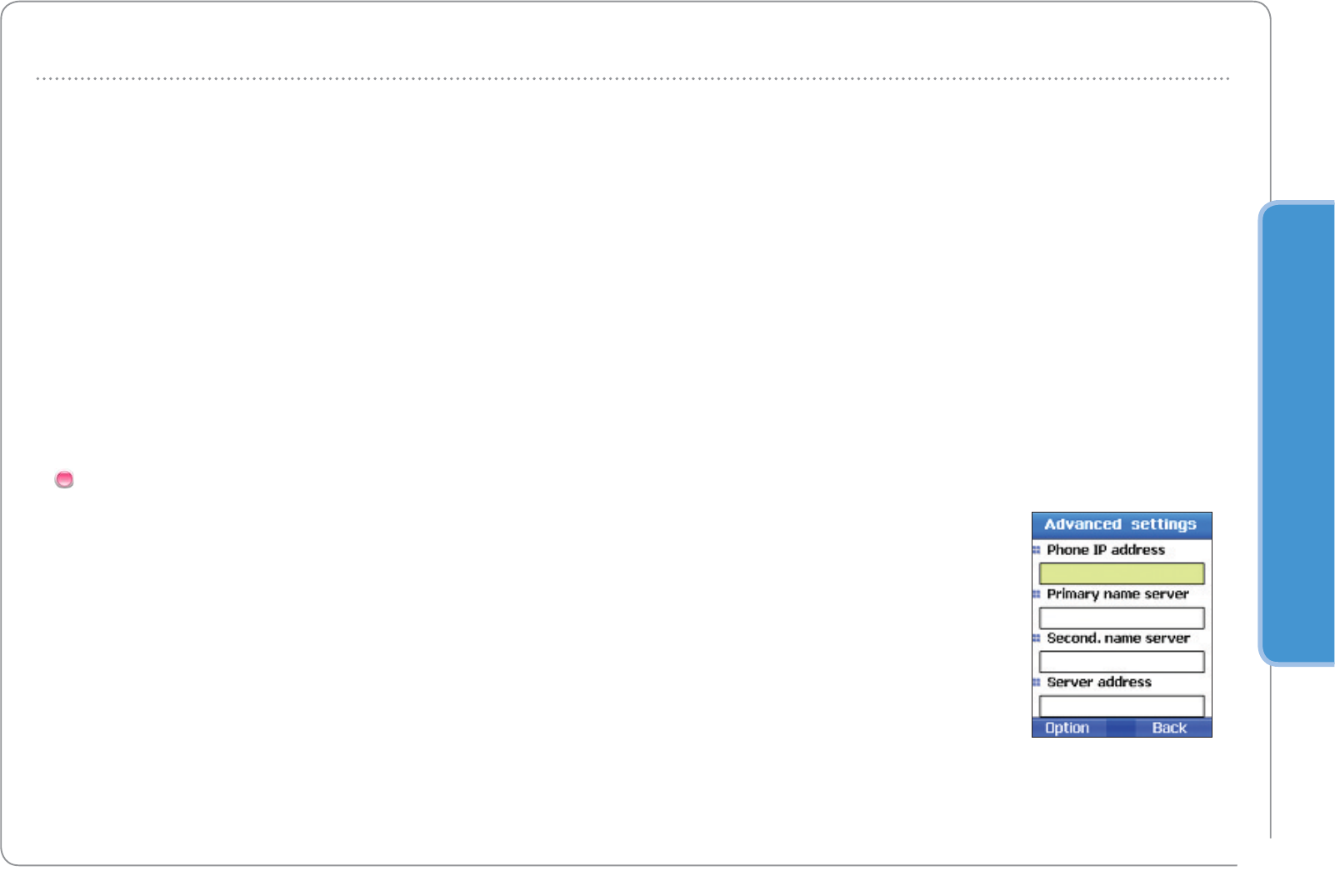

Options - Advanced settings

• Network type

The internet protocol (IP) version of the network.

• Phone IP address

The IP address of your phone.

• Name servers

The IP address of the primary and secondary DNS servers.

• Proxy serv. address

The IP address of the proxy server.

• Proxy port number

The port number of the proxy server.

To enter these settings, contact your Internet service provider.

The following settings are shown if you have selected data call as the connection type:

Advanced settings

Using the menu

154

• Use callback

This option allows a server to call you back once you

have made the initial call. Contact your service provider to

subscribe to this service. The phone expects the callback

call to use the same data call settings that were used in

the callback-requesting call. The network must support

that type of call in both directions, to and from the phone.

• Callback type

The options are Use server no./Use other no..

Ask your service provider for the correct setting to use.

• Callback number

Enter your phone’s data phone number which the

dial-back server uses.

Usually, this number is the data-call phone number of

your phone.

• Use PPP compression

When set to Yes, this option speeds up data transfer,

if supported by the remote PPP server.

If you have problems with establishing a connection,

try setting this to No. Contact your service provider for

guidance.

• Use login script

The options are Yes/No.

• Login script

Insert the login script.

• Modem initialisation (Modem initialisation string)

Controls your phone using modem AT commands.

If required, enter characters specified by your service

provider or Internet service provider.

New

Creating a new Access point.

Connection Name, Data bearer, Access point name, User name, Prompt password, Password, Authentication can be set up.

Option

Using the menu

155

Edit

Editing the contents of the Access point above.

Delete

Deleting the saved Access point.

Advanced settings

Using the menu

156

This is a function that stops the unintended disclosure of the user’s personal information, and safely protects the

contents of phone calls.

10.6. Security

10.6.1. Security settings

PIN code request

When the phone is booted, it requests the user to enter a

PIN code. The PIN code request is to protect the user’s

personal information more safely. The PIN code consists

of eight digit numbers. Access to the SIM card will be

denied, if a wrong PIN code is entered three times.

Enter the PUK code to re-gain access to the SIM card.

Security code

When the phone is booted, it requests the user to enter

a Security code. The Security code request is to protect

the user’s personal information more safely. The Security

code consists of eight digit numbers. Access to the Phone

will be denied, if a wrong Security code is entered three

times. Displaying “Lost note”, the Phone will be locked for

ten hours. Contact a nearby Authorized Repair Center to

unlock the Phone.

Auto security lock

Sleep mode lock will start operating after a certain time set

by the user, a minimum setting ten seconds.

Short dial

Showing the index of the stored phone numbers.

Key-pad auto lock

Key-pad will be automatically locked after a certain time

set by the user, a minimum setting ten seconds.

Using the menu

157

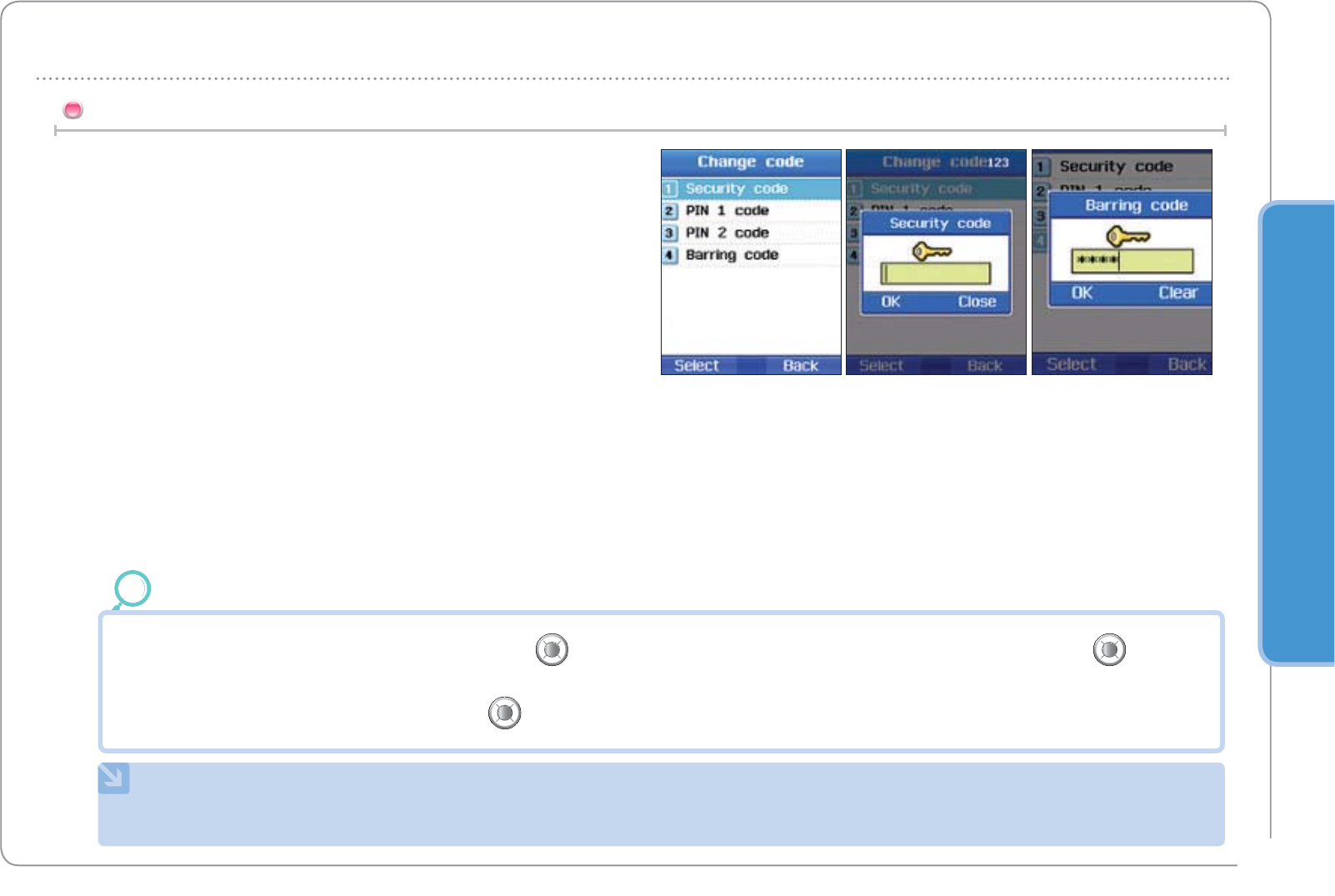

10.6.2. Change codes

Changing Security code, Pin 1 code, Pin 2 code, and

Barring code.

Security code

Security code is to protect the user’s information stored in the Mobile phone.

Setting a code assigned to the Phone handset itself.

Security code can be changed by entering the existing code.

To change the code :

Enter the existing Security code, and press to

confirm.

Enter a new Security code, and press to confirm.

Re-enter the new Security code, and press to

confirm.

NOTE

When the product is shipped, the Security code is set to “0000”.

•

Using the menu

158

PIN 1 code

PIN 1 is a code that protects the user’s information stored in the SIM card.

Changing the pin code of the SIM card. The PIN 1 code can be changed by entering the existing code.

To change the code :

Enter the existing PIN 1 code, and press to

confirm.

Enter a new PIN 1 code, and press to confirm.

Re-enter the new PIN 1 code, and press to confirm.

NOTE

When the product is shipped, the Security code is set to “0000”.

•

PIN 2 code

PIN 2 is a code that protects the settings and the contents related to the Network. The user sets the code when connecting

network services. The PIN 2 code can be changed by entering the existing code.

To change the code :

Enter the existing PIN 1 code, and press to

confirm.

Enter a new PIN 1 code, and press to confirm.

Re-enter the new PIN 1 code, and press to confirm.

Using the menu

159

Barring code

Barring code is used to set up Call barring. The Barring code is stored in the Network, and restricts all calls

(national and international). The Barring code can be changed by entering the existing code.

To change the code :

Enter the existing Barring code, and press to

confirm.

Enter a new Barring code, and press to confirm.

Re-enter the new Barring code, and press to

confirm.

10.6.3. Fixed dialing

Fixed Diaing is a function for making call to the registered phone numbers only. When the Fixed Dia function is set, calls

cannot be made to numbers other than the numbers registered for Fixed Dial, and emergency phone numbers.

The PIN 2 code is required to make calls to unregistered numbers. Workplaces and certain organizations can protect the

users from unnecessary harm or damage by storing their internal phone numbers to the SIM card in advance. The PIN 2

code must be entered to change this function. Select Done to save the setting and Close to maintain the previous setting,

and then you will be moved to the previous screen.

Deactivate

Deactivating Fixed dial.

Edit

Editing the file that the Focus is currently placed.

Delete

Deleting the file that the Focus is currently placed, or the

selected files.

Option

Using the menu

160

10.6.4. Closed User Group

Closed User Group (CUG) enables the phone to make calls to only to specific number. The function is controlled by the

SIM card, for more details, please visit www.thuraya.com

Activating CUG.

To activate CUG the user must know his/her Index number.

Preset

Users can set a default CUG based on the service provider and

also select whether to use this default CUG in the phone.

Off

Deactivating CUG.

The PIN 2 code must be entered to deactivate CUG.

Option

Setting up the System Language, Written Language, Auto

text, and Dictionary functions in the Phone.

10.7. Language

Using the menu

161

10.7.1. Language

SG-2520 supports 12 languages.

1. English 2. French 3. German 4. Italian 5. Spanish 6. Portuguese 7. Turkish 8. Russian 9. Farsi 10. Arabic

11. Hindi 12. Urdu

Language is catagorized into System language and Input language. The System language is used for menu settings

shown on the screen, while the Input language is used to enter messages and names. When writing a text, you use the

two languages. Select one from the System language options to set up the standard language, and one from the Input

language options to set up Other language.

System Language

The available languages to change/set up include English, French, German, Italian, Spanish, Portuguese, Turkish, Rus-

sian, Farsi, Arabic, Hindi and Urdu Select "Done" to save the setting and Close to maintain the previous setting, and then

you will be moved to the previous screen. When saving the new setting, the phone will be automatically rebooted.

Input Language

The available languages to change/set up iinclude English, French, German, Italian, Spanish, Portuguese, Turkish, Rus-

sian, Farsi, Arabic, Hindi and Urdu Select Done to save the setting and Close to maintain the previous setting, and then

you will be moved to the previous screen. When saving the new setting, the phone will be automatically rebooted.

Using the menu

162

10.7.2. Auto text

With the Auto text function, you can enter words more quickly in the text mode. By using Auto text, you cannot misspell

words. Even with the initial part of the words you enter, Auto text will automatically search for, and display the the closest

word that includes the letters you entered. Select On / Off to set the Auto text to use or un-use. Select "Done" to save the

setting and "Close" to maintain the previous setting, and then you will be moved to the previous screen.

10.7.3. Dictionary

In eZitxt only the words registered in eZitxt engine are reconnended, when new workds or names are not reconnended

the user has the ablilty to insert new word in the eZitxt dictionayry.

NOTE

Using Dictionary “New, Search word” and “Edit” Functions may affect the Input language.

Particularly, when editing a word tit h dictionary, the input language in which a word is already saved and the input

language currently set up must be the same.

•

Using the menu

163

Configuring the overall settings of the phone system.

10.8. System

10.8.1. System version

Information on IMEI No, Software version, Last update, and Manufactured is viewed.

10.8.2. Time & Date format

Setting up the Time and Date display on the idle screen.

Time separator, format & Date separator, and Format can be set for your convenience.

Select "Done" to save the setting and "Close" to maintain the previous setting, and then you will be moved to the previous

screen.

10.8.3. Setup wizard

Setting up the Date and Time of the phone.

Using the menu

164

10.8.4. Default memory

Setting memory storage locations for Message, Camera, Record, GPS, Downloaded,

and Note in the Phone and the SD card.

10.8.5. External connect

Selecting a method to connect with an external device.

USB active sync, USB modem-and USB serial.

10.8.6. Connect speed

When connected with an external device, the speed of the data transmition can be set to Automatic, 300bps, 1200bps,

2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps, or 114.195 kbps.

10.8.7. Factory reset

Resetting the settings of the phone, while keeping your data (such as Contacts and File, etc.).

Using the menu

165

Using additional functions such as Calculator, Converter, Recorder, Stopwatch, Timer, Lullaby, and World time.

11. Extra

Providing the functions of a calculator. The numbers and the symbols for calculation can be entered up to 16 digits

together. When the result of the calculation is a decimal figure, the figure is rounded off to eleven decimal places,

displaying down to ten decimal places on the screen.

11.1. Calculator

: Add entered value.

: Subtracts entered value.

: Divides entered value.

: Multiplies entered value.

: Shows result of calculation.

: Enters applicable figure.

: Enters decimal point.

: Deletes entered figure.

Using the menu

166

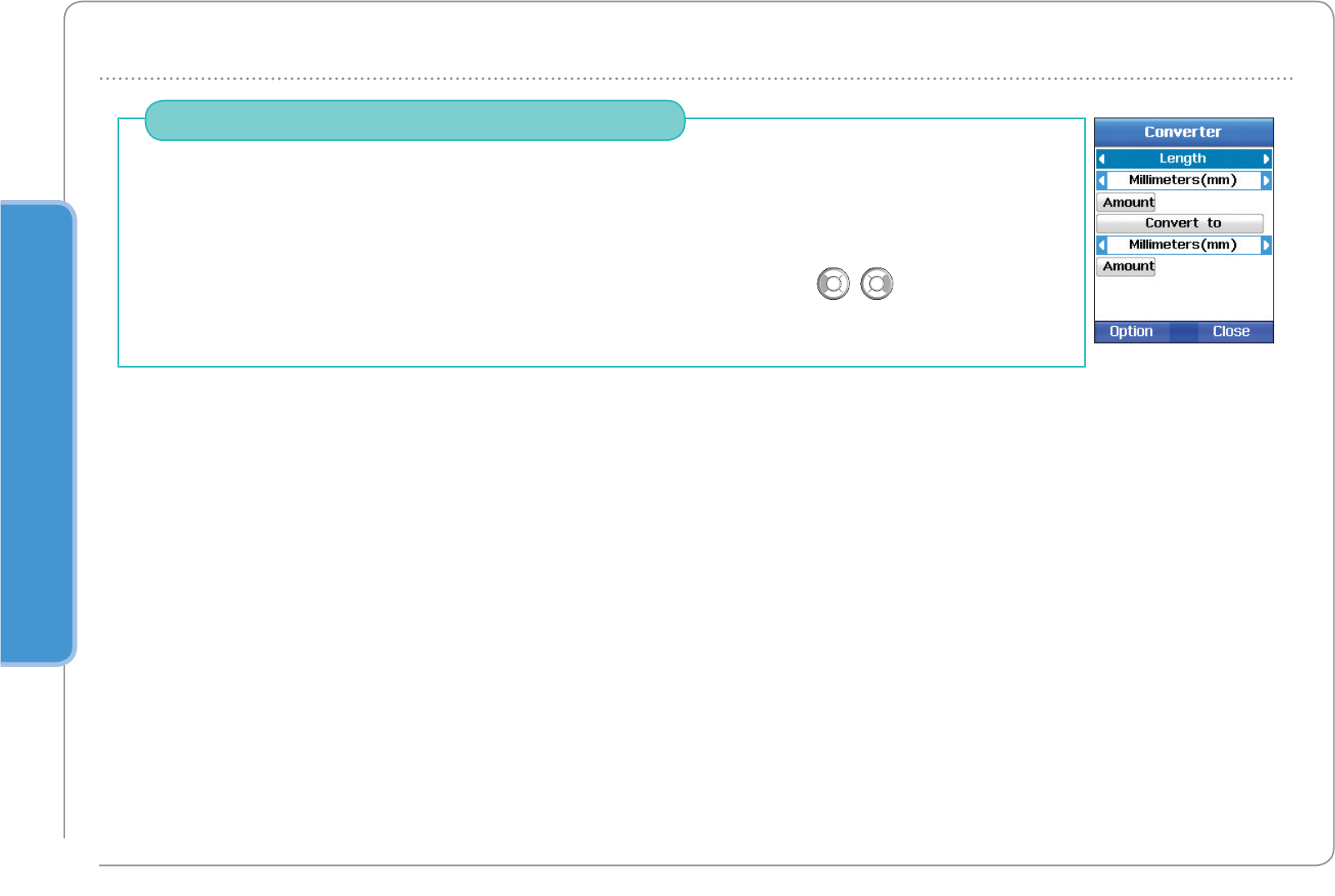

Performing the functions of a unit converter.

The value to be converted is entered on the top space, and the value converted to is entered on

the bottom space. The standard value is entered on the top space, and the value compared to

is entered on the bottom space. The options of the mode are Length, Area, Volume, Currency,

Mass, Temperature, Power, Pressure, Time, Velocity, and Energy. Use to select a mode,

and enter the value on the top space, the value converted to will be automatically displayed. A

total of ten digits can be displayed, 0 will be shown if the output value exceeds ten digits.

11.2. Converter

Length

Millimeters(mm), Centimeters(cm), Meters(m),

Kilometers(km), Inches(in), Feet(ft), Yards(yd), Miles(mi),

Nautical miles(nm).

Area

Square millimeters(mm²), Square centimeters(cm²),

Square meter(m²), Ares(a), Hectares(ha), Square

kilometers(km²), Square inches(in²), Square feet(ft²),

Square yards(yd²), Acres(acres), Square miles(mi²)

Volume

Milliliters(ml), Liters(l), Cubic meters(m³), Cu-

bic inches(in³), Cubic feet(ft³), Gallons(UK)(gal),

Gallons(US)(gal), Pint(UK)(pt), Dry Pint(US)(pt),

Liquid pints(US)(pt), Liquid ounces(US)(oz), Liquid

ounces(UK)(oz), Barrels(bbl)

Currency

USD, EUR, GBR, JPY, AED, AUD, CAD, CHF, HKD, RUR

Mass

Milligrams(mg), Grams(g), Kilograms(kg), Metric tons(t),

Ounces(oz), Pounds(lb)

Temperature

Celsius(C), Fahrenheit (F), Kelvin (K)

Power

Watts (W), Kilowatts (kW), Horsepower (hp)

Pressure

Atmospheres (atm), Bars (bar), Pascals (pa), Millimeters

of Hg (mmHg)

Using the menu

167

Time

Seconds(s), Minutes (min), Hours (h), Days (d),

Weeks (wk)

Velocity

Kilometers per hour (km/h), Meters per second (m/s),

Miles per hour (mph), Feet per second (fps), Knots (kts)

Energy

Calories (cal), Kilocalories (kcal), Joules (J), Kilojoules

(kJ), Kilowatt hours (kWh), Electron volts (eV)

Currency table

Showing a list of currency units:

USD, EUR, GBR, JPY, AED, AUD, CAD, CHF, HKD,

and RUR.

Default

By moving , select one currency and set it as the

Default Currency.

New

Adding a New Currency.

Remove

Deleting the newly added Currency, while keeping the

existing Currency.

Change Rate

Changing Currency Rate.

Change it against the Default value.

Option

Using the menu

168

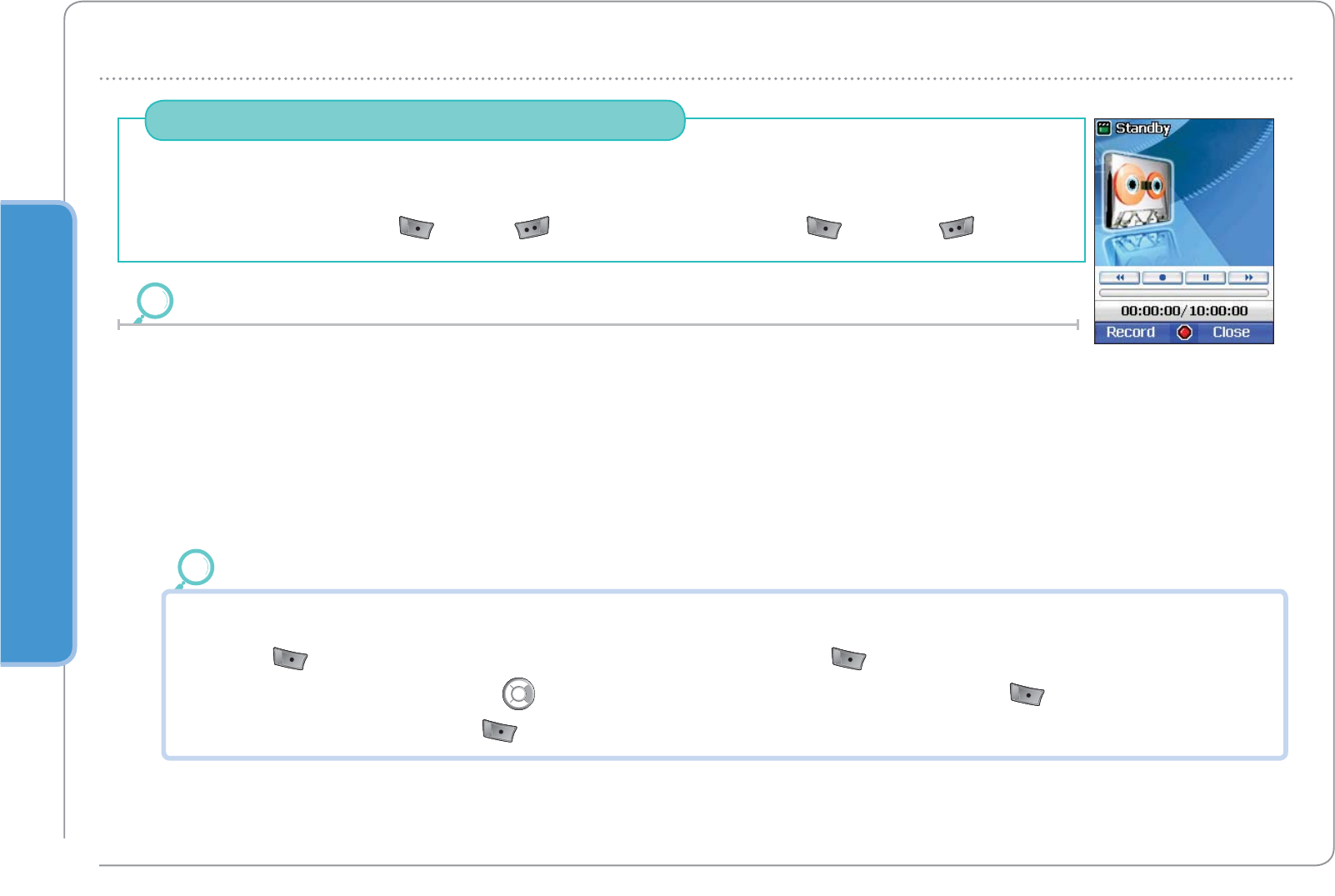

Using Recorder, you can play back or record voice.

Each voice recording has a maximum of ten minutes.

Menu - Extra - Recorder - (Rec.) / (Close) - Voice recording - (Pause) / ( Stop)

11.3. Voice recorder

Play

Playing back the currently recorded file.

New

Starting new recording.

Rename

The existing file name can be changed to one that you

choose. When multiple files are selected, the names cannot

be changed. File names can be made in the language that

you have selected. However, some special symbols, such as

\, /, :, “, <, >, |, cannot be used for a file name.

Exceptions to the instruction above are Waypoint names that

consist of English and numbers only.

Option

To Rename :

Select file (only one)

Press .

Scroll to “Command” and press .

Scroll to “Rename” and press .

Input file name

Press .

Scroll to “Save” and press .

Delete

Deleting the selected file.

Send

SG-2520 supports the following functions that allow you to

send files to other people.

Using the menu

169

To send as MMS :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “MMS” and press .

Refer to Creating MMS (page 87)

Send (MMS)

A file selected in a Multi-media message format can be sent out as an attachment to an outgoing message.

The size of the attached file is decided by the limit on the volume of the transmission specified in MMS settings.

Refer to Creating MMS (page87) for details.

To send as E-mail :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “E-mail” and press .

Refer to Creating E-mail (page 89)

Send (E-mail)

The selected file can be attached to an outgoing message, like ordinary E-mail messages. There is no limit on the size of the

attached file. However, some network providers may put limits on the volume of the transmission.

Using the menu

170

To send as Bluetooth :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “Bluetooth” and press .

Select Device

Send (Bluetooth)

Bluetooth is wireless communication that transmits a file to another Bluetooth within a 20-m radius (refer to page127).

To send as IrDA :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “IrDA” and press .

Select Device

Send (IrDA)

An infrared port for IrDA communication is placed at the top of SG-2520.

Files can be sent using infrared communication (refer to page128).

Using the menu

171

To send as Bluetooth :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “Move” and press .

Select position Phone.

Move

This command is to move the location that a file is saved.

A file in the Phone Image box can be moved to the image box or the User folder in the SD card.

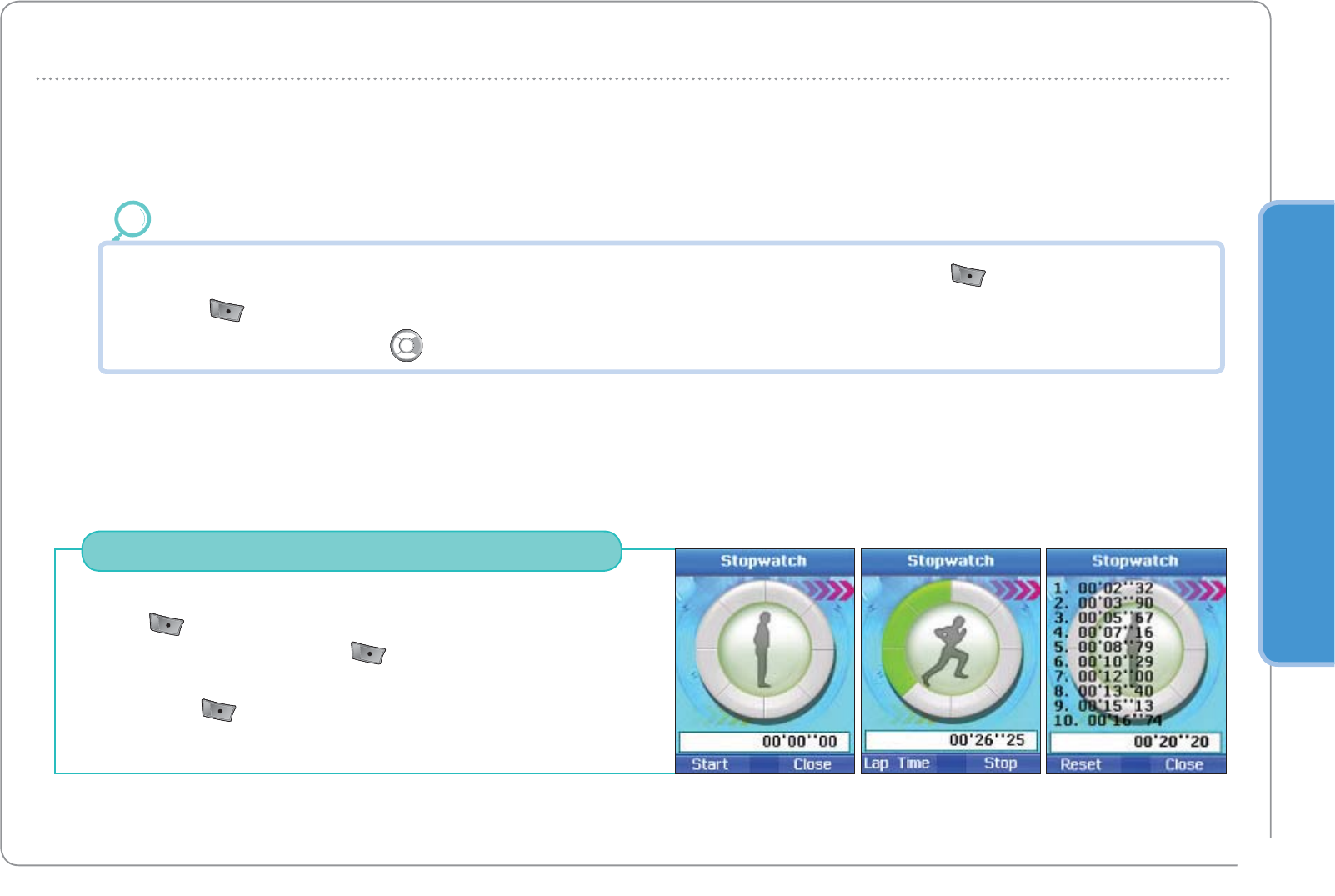

Stopwatch can record the Lap time for up to ten people.

Press to Start.

While the Stop watch is on, record Laptime.

The Lap time is recorded, until Stop is selected.

Upon Stop, changes to Reset.

11.4. Stop watch

Using the menu

172

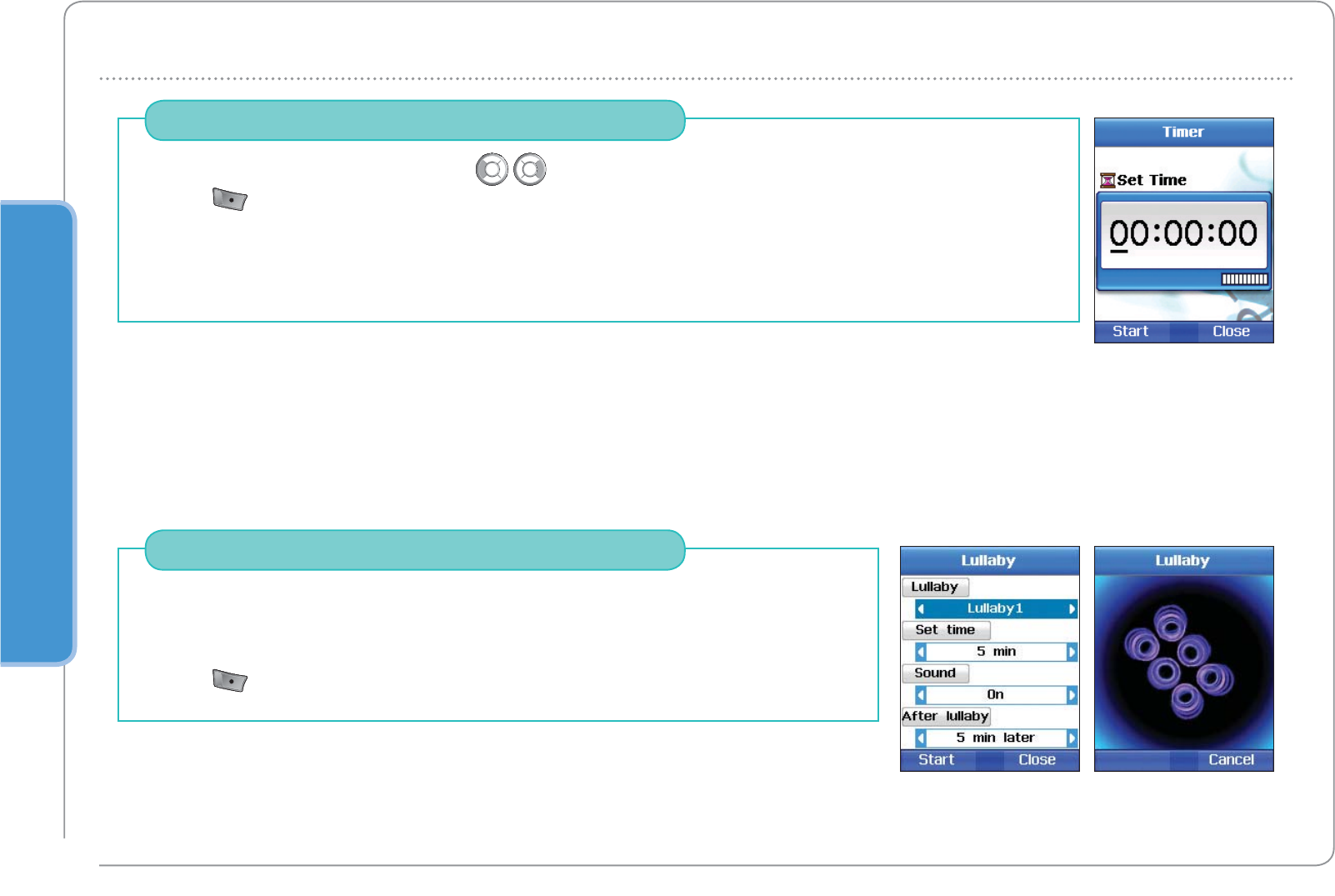

Firstly set time on the Timer using .

Press to Start. The Timer starts counting down from the time that you have set.

When the Timer screen shows “00:00:00”, Timer alarm goes off with a pop-up window displaying

“Timer Finished”. To set Timer Sound, select Setting > Profile > Option > Detail > Alarms > Timer

alarm.

11.5. Timer

Reset

Stopping and Reseting Timer.

Hide

Hiding the Timer screen once Timer starts, and moving to

the idle screen.

Lullaby, functioning as a cradle song, helps you to have a good sleep.

The Lullaby Set Time can be set for 5, 10, or 30 minutes, and After Alarm

can be set to 5, 10 or 30 minutes, or 1 or 2 hours later.

Press to Start.

11.6. Lullaby

Using the menu

173

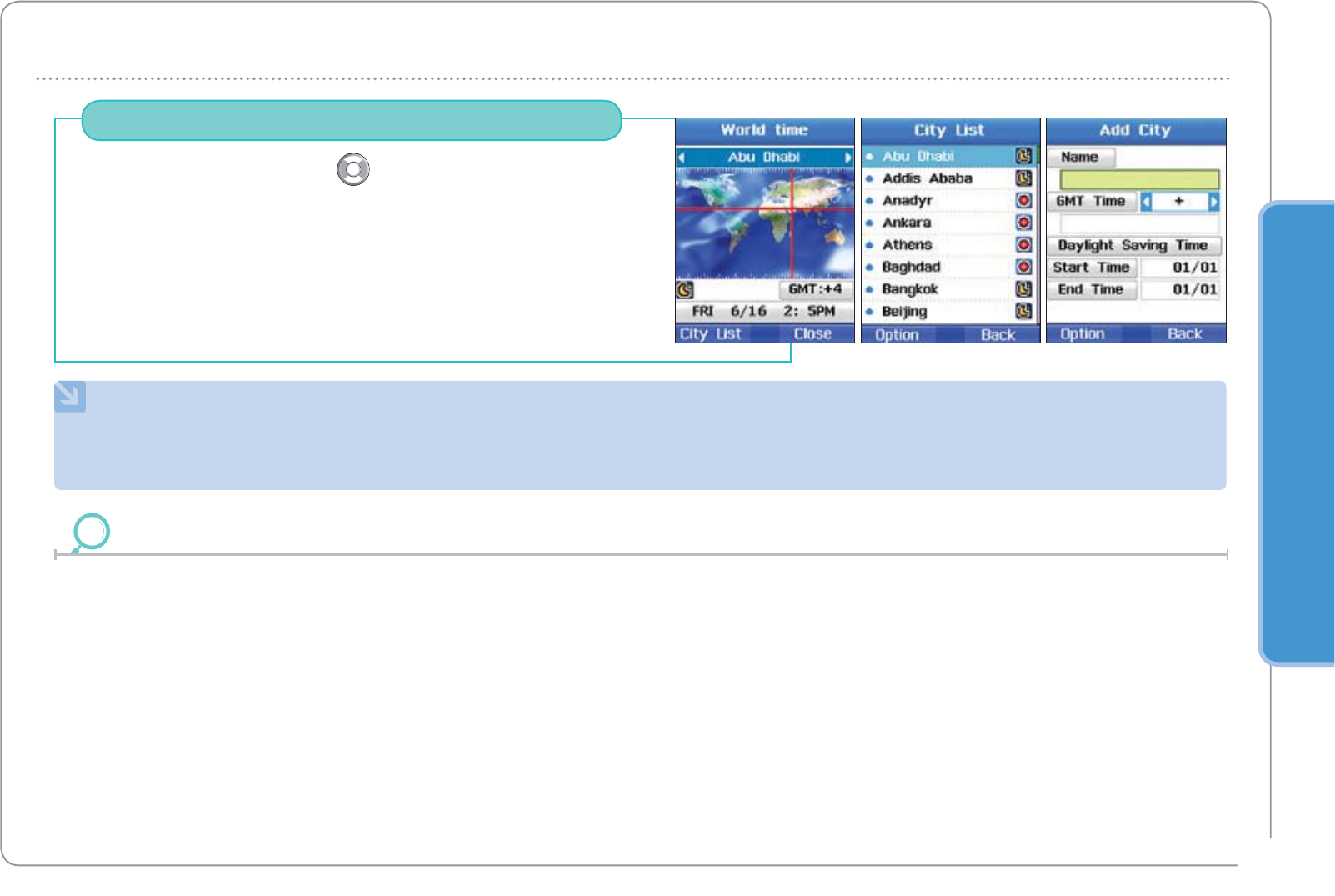

Move the Left, Right key ( ) to set the coordinates on the

world map. The capital and the position at the coordinates

are displayed, and information about date, time, and

am / pm time of the place is shown. The names of the forty

places are stored, and by selecting Add City a new city

can be added. Citis already stored in the phone cannot be

deleted, but newly added cities can be deleted.

11.7. World time

Add city

Entering and saving the data of a new city (Name, GMT time, Dayight saving time, Start time, and End Time).

Edit City

Editing the data of the existing city (Name, GMT time, Dayight saving time, Start time, and End Time).

Delete City

Deleting the data of the existing city.

Option

NOTE

The World time is calculated against the Local time.

Therefore, the inaccurate Local time on the phone may bring about the inaccurate world time.

•

Using the menu

174

12. Application

12.1. Game

12.1.1. DuiAdventure

User should jump an obstacle and use a tool to go to next stage. The more stages, the more obstacle.

Start : start game

Continue : continue game

Option : control sound and speed

Help : help description

Option

12.1.2. SpicyBoys

SpicyBoys is a shooting game. There are three characters and they use their skills to save princess. you are given five chances.

You can enjoy three games of DuiAdventure, SpicyBoys and TimeRider.

Option

Game start : start game

Ranking : rank score

Exit : exit game

Option : control sound and speed

Help : help description

12.1.3. TimeRider

TimeRider is shooting game including row and column scrolls.

Option

Start : start game

Load : continue game

Exit : exit game

Option : control sound and speed

Help : help description

Score : show score

Using the menu

175

12.2. User program

JAM (Java Application Manager)

JAM (Java Application Manager) is management software that allows to easily install, operate, delet and set up Java

Application provided in the Package (MIDlet) format. All Java Applications operated in the phone must be installed in the

JAM to operate. They can operate through JAM only. By informing if Java Application is functioning well and if there is

enough space to insall Java Application, JAM prevents in advance the packet from being used through WAP.

These JAM functions help to use Java Application in the phone more easily.

: Indicating a Java Application, when there is no icon set for Java Application (MIDlet).

: Indicating Java Applications, when there is no icon set for Java Application Package (MIDlet-Suite).

It has more than two Java Applications.

12.2.1. About the JAM icon

Installation through WAP

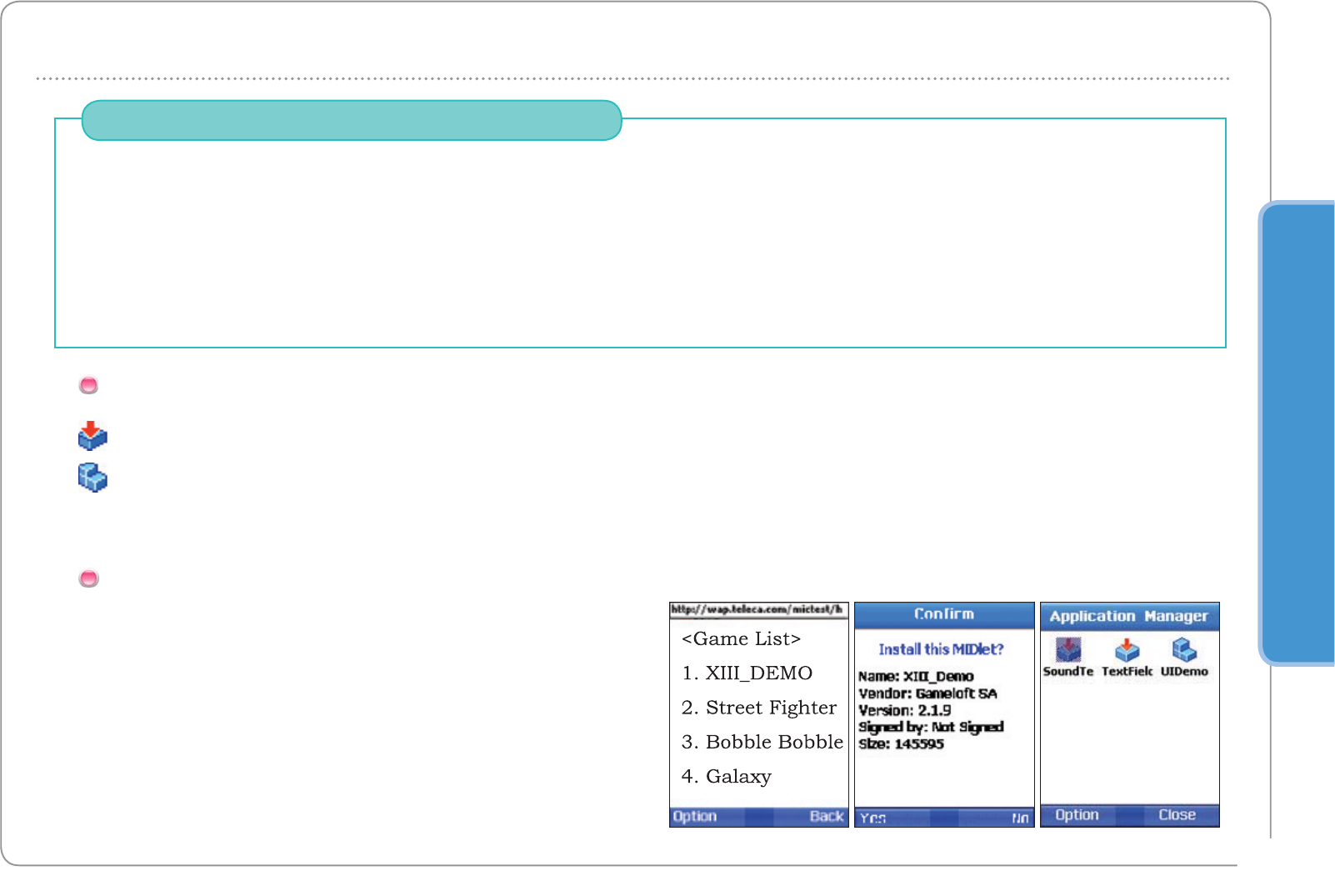

When you download Java Application through WAP, as shown

in Figure 1, JAM asks if you intend to install Java Application in

JAM, as in Figure 2.

When selecting Yes, Java Application is installed to JAM, as

illustrated in Figure 3. When selecting No, the installation stops

and the screen will show back to the WAP page.

12.2.2. Java Application Installation

Figure 1 Figure 2 Figure 3

Using the menu

176

Installation through the USB Cable

Connect the phone to the PC with a Java Application installed

through the USB Cable.

Using Active Sync, set up the connection between the

phone and the PC.

Selecti from the PC the Java Application File (Jar or Jad)

that you want to install to the phone.

Copy the selected file to the designated Directory of the phone.

Operate the copyed file in the phone.

 Ź-DG)LOHLVQRWD-DYD$SSOLFDWLRQ

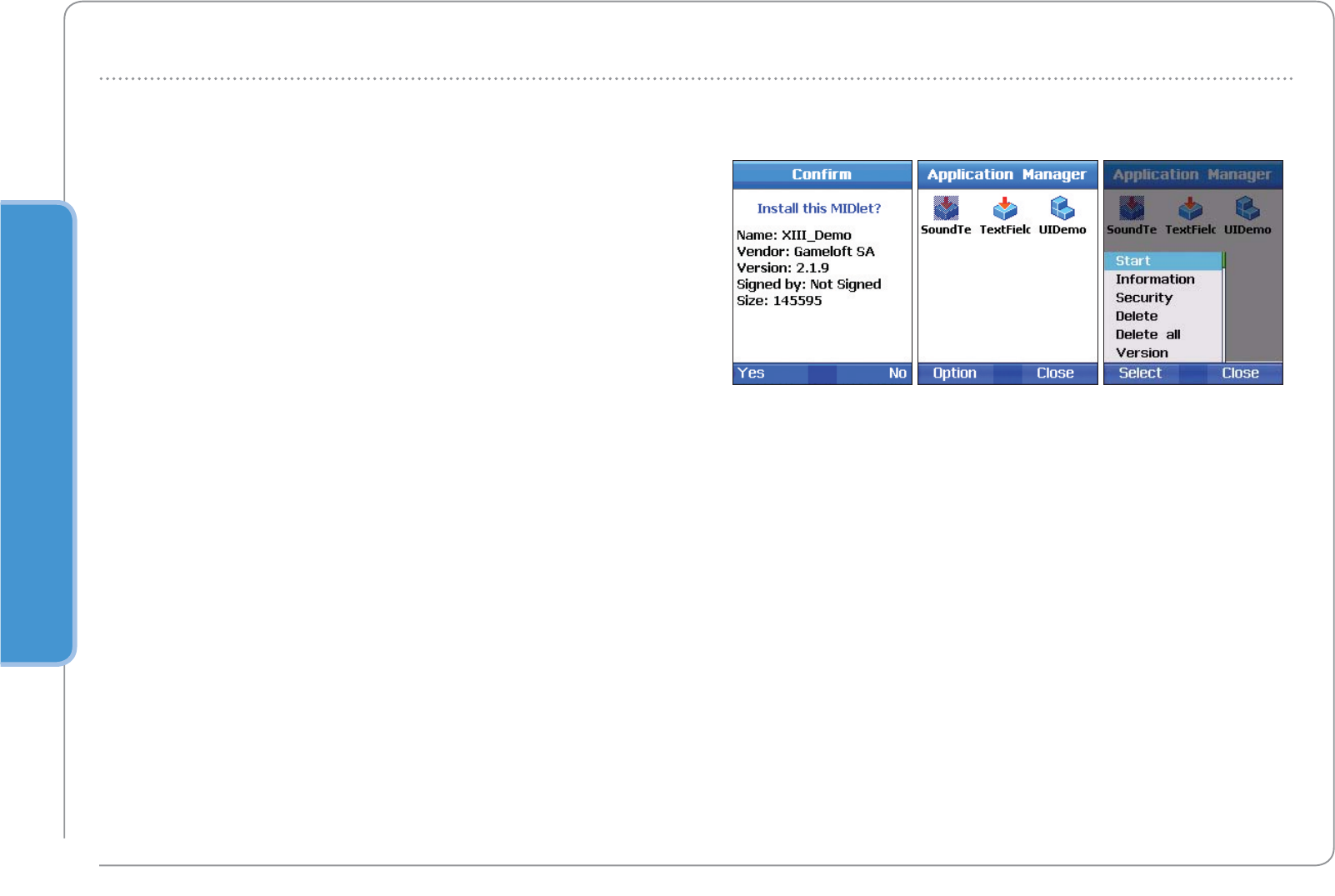

As in Figure 4, you will be asked if you want to install a Java

Application. If Yes is selected, the 5 items installed by JAM will

be displayed, as in Figure 5. When selecting No and choosing

not to install Java Application, the installatio process ends.

If a Java Application is already installed with the same name

and vendor as the Application that you want to install, then

you will be shown both the information already installed, and

the information to be installed, and asked if you want to reinstall

the Application.

For Yes, a reinstallation will be carried out, and for No,

the installation is terminated.

Figure 4 Figure 5 Figure 6

Using the menu

177

Start

Let us start with how to operate Java Application in the JAM.

Using the Navigation key select a Java Application on the JAM screen, which you want to operate.

There are two ways to operate the selected Java Application. One is to press the Ok key.

The other is to activate the menu by pressing the left Soft button (refer to Figure7), and select Start.

The Java Application starts operating, as shown in Figure 8.

To terminate the Application press the End key.

If Exit or Menu is displayed on the Command Bar on the bottom of the screen, as in Figure 8,

use the Soft button to select either command that you want.

Ź'HSHQGLQJRQWKH-DYD$SSOLFDWLRQWKHUHPD\QRWEH0HQXFRPPDQG0HQXRQWKHERWWRPRIWKHVFUHHQ

12.2.3. Getting to Know the Java Application Manager(JAM)

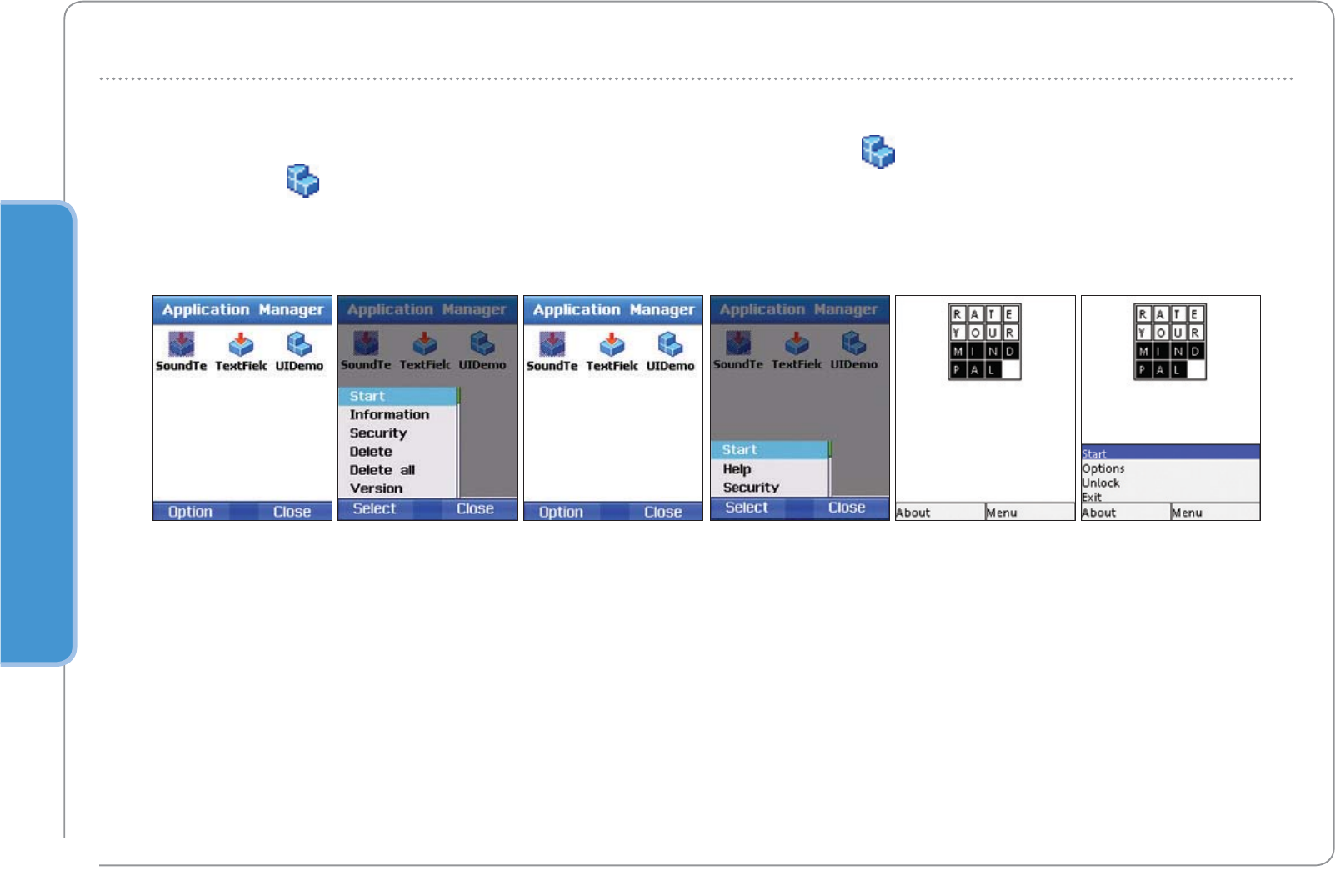

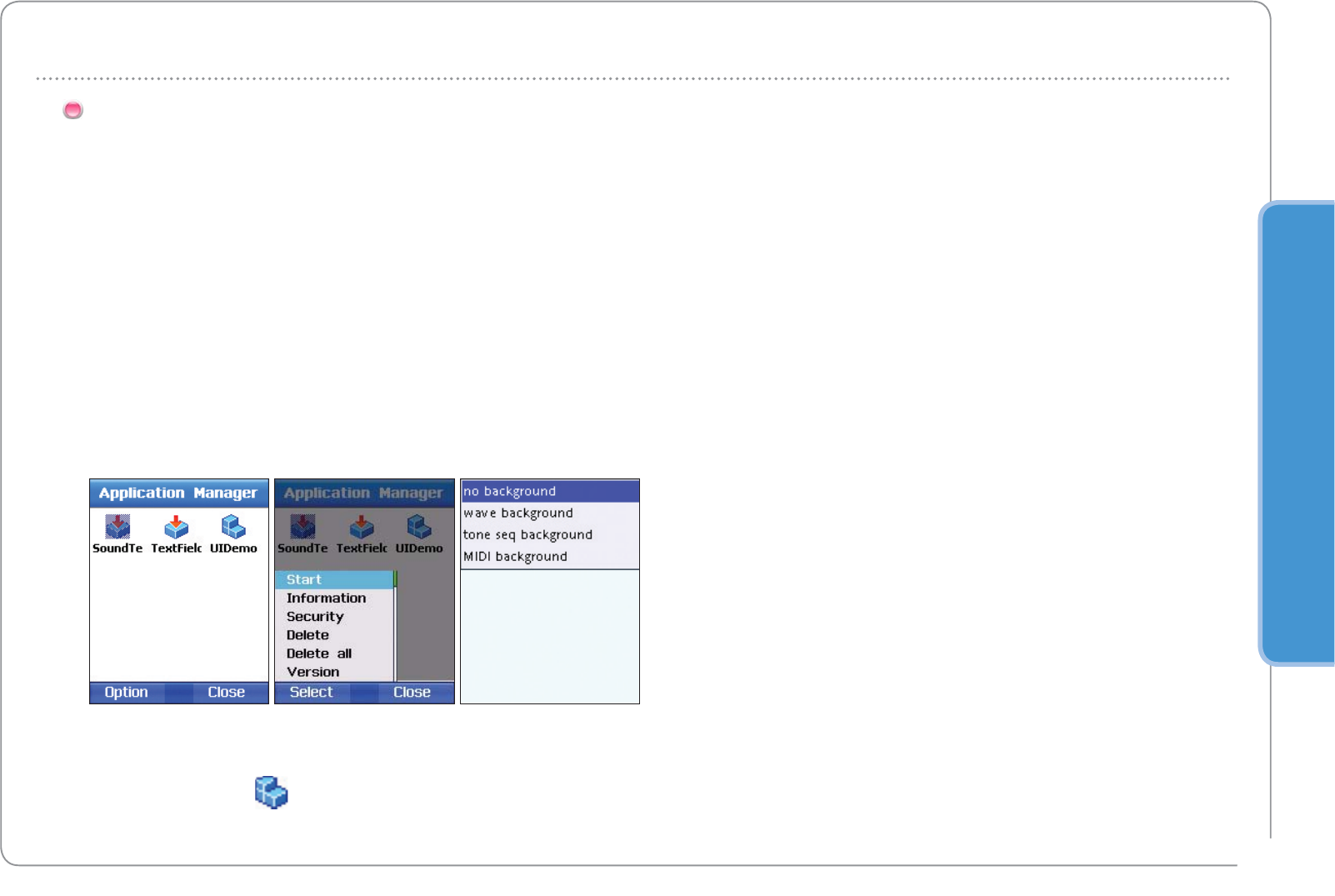

An icon looking like can be found in Figure 9.

The icon indicates that there are several Java Applications in one Java Application Package (MIDlet-Suite).

MENU Figure 7 Figure 8

Using the menu

178

For example, several icons will be shown as in Figure 11, after selecting in Figure 9, and Start.

That is, the icon icon representing the Java Application Package has a total of three Java Applications inside.

Figure 13 shows that one of the Java Applications is selected, and has started.

Use the Soft button to select the options on the Menu on the bottom of the screen.

Depending on the Java Application there may not be Menu (command Menu) on the bottom of the screen.

Information

Viewing information about the selected Java Application.

Using the Navigation key, select Java Application that you want to view.

Using the Soft-button, activate the Menu, and select Information.

Information about the Java Application is displayed.

Figure 9 Figure 10 Figure 11 Figure 12 Figure 13 Figure 14

Using the menu

179

Security

Setting the security of the Java Application that you have selected.

The settings options are as follows.

Session: While the Java Application is operating, you are asked to give consent for the use of authority once at the outset.

The consent is effective until the Application ends. After the Application ends, if you intend to operate the Application again,

you will be initially asked for consent for the use of authority once. The consent will be effective until the Application ends.

One Shot: You will be asked to give consent for the use of authority, every time consent is needed.

For example, whenver the Java Application needs a network connection, you will be asked for consent for the connection.

Blanket: For certain authority, the authority given is effective until the Application is deleted.

No: No authority is given.

1. The following authority is given to the trusted Java Applications.

NetAccess (Network Access)

Session (Default), One Shot, Blanket, No

Local Connectivity

Session, Blanket, No

App Auto Run

Session (Default), One Shot, Blanket, No

Messaging

One Shot (Default), No

Recording

One Shot (Default), Session, Blanket, No

2. The following authority is given to the untrusted Java Applications.

Net Access

One Shot (Default), Session, No

Local Connectivity

Session (Default), One Shot, No

App Auto Run

Session (Default), One Shot, No

Messaging

One Shot (Default), No

Recording

One Shot (Default), No

Using the menu

180

Delete

Uninstalling the selected Java Application.

Delete all

Uninstalling all Java Applications in the System, not the selected Java Application.

Help

Showing information about the JAM, and intent Version.

Ź When the Java Application is not installed, only the Help option will appear on the Menu.

The memory capacity of Image, Sound, Video, MP3, and User, which are being used in the Phone and the SD card,

is displayed in Kb. Each folder can also be viewed separately. Used and unused memory capacity of the Phone and

SD card are categorized into Total, Free and Used, and presented in a bar graph form for the easy view of the memory

status.

12.3. Memory manager

Open

Viewing the contents of the current folder.

Switching to File browser.

Delete

Deleting all the files in the selected folder.

Option

Using the menu

181

Managing data files saved in the Phone / SD card.

Use the Left, Right, Up, Down key ( ) to move up and

down.

When selecting Command > Copy, Move, and Paste,

you must place the Focus on the folder you want to Paste.

If Paste is selected when the Focus is placed on the ..

folder, the folder will be pasted to the upper foler on the

screen you are viewing.

This applied to the function of Create folder.

To create a folder B beneath a folder A, select Create folder when the Focus is placed on the folder A.

This is the File browser you can search a file in a folder.

File name: When you enter a file name, files below the one the Focus is placed on are searched, and a file containing

the name entered is displayed.

Recent: When entering date (in numbers), files are searched and displayed, which are added or deleted from the

present time to the entered date.

12.4. File browser

Open (it can be implemented in the file and folder.)

Open selected folder or file.

Paste (it can be implemented in the file and folder.)

It pastes saved folder or file of copy or move.

Command (it can be implemented in the file and folder.)

Implements Copy, Move and Rename.

Option

Using the menu

182

Command

Command provides Menu that you frequently use to manage files. Command performs functions such as file name

change, file transfer, and file copy. According to the type of a file, you can choose either Wallpaper or Ringing tone.

Wallpaper can be selected for- Image

Ringing tone can be selected for-Sound and MP3

Command (Rename)

The existing file name can be changed to one that you choose. When multiple files are selected, the names cannot be changed.

File names can be made in the language that you have selected. However, some special symbols, such as \, /, :, “, <, >, |,

cannot be used for a file name.

Exceptions to the instruction above are Waypoint names that consist of English and numbers only.

Up to 20 characters can be entered to rename a file name. You will see a pop-up window when more than 20 characters are

entered.

To Rename :

Select file (only one)

Press .

Scroll to “Command” and press .

Scroll to “Rename” and press .

Input file name

Press .

Scroll to “Save” and press .

Using the menu

183

Command (Move)

This command is to move the location that a file is saved.

A file in the Phone Image box can be moved to the image box or the User folder in the SD card.

To Move :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “Move” and press .

Select position Phone.

Command (Copy)

This command is to copy a file to a different location.

A file in the Phone Image box can be copied to the image box or the User folder in the SD card.

To Move :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “Copy” and press .

Select position Phone.

Using the menu

184

Send

SG-2520 supports the following functions that allow you to send files to other people.

Send (MMS)

A file selected in a Multi-media message format can be attached to an outgoing message.

The size of the attached file is limited by the volume of the transmission specified in the MMS settings.

Please refer to Creating MMS (page 87) for details.

To send as MMS :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “MMS” and press .

Refer to Creating MMS (page 87).

Send (E-mail)

The selected file can be attached to an outgoing message, like ordinary E-mail messages. There is no limit on the size of the

attached file. However, some network providers may put limits on the volume of the transmission.

To send as E-mail :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “E-mail” and press .

Refer to Composing E-mail (page 89)

Using the menu

185

Send (Bluetooth)

Bluetooth is wireless communication, which sends a file to another Bluetooth device within a 20m radius (refer to page127).

To send as Bluetooth :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “Bluetooth” and press .

Select Device.

Send (IrDA)

An infrared port for IrDA communication is placed at the top of SG-2520.

Files can be sent using infrared communication (refer to page126).

To send as IrDA :

Select file (select all, multi-select)

Press .

Scroll to “Send” and press .

Scroll to “IrDA” and press .

Select Device.

Using the menu

186

Create folder

Within the File browser you can create a file.

To create a folder B beneath a folder A, select Create folder when the Focus is placed on the folder A.

To operate Create folder :

Place the Focus on the folder to create.

Press (Option).

Scroll to “Create folder” and press .

Input folder name

Press (Option).

Press (Done).

Search (Recent)

Searching files added during the period from the current date to the data that you entered for search.

To search files using Recent :

Place the Focus on the folder that you intend to search.

Press (Option).

Scroll to “Search” and press .

Scroll to “Recent” and press .

Press .

Scroll to “Save” and press .

Using the menu

187

Search (File name)

Within the File browser you can search the file in a folder.

File name: When entering a file name, files below the one the Focus is placed on are searched, and a file containing the name

entered is displayed.

To search a folder with File name :

Place the Focus on the applicable folder.

Press . (Option)

Scroll to “Search” and press .

Scroll to “File name” and press .

Input file name.

Press .

Scroll to “Save” and press .

NOTE

The sizes of MMS, E-mail, IrDA, and Bluetooth cannot be selected.

Search (it can be only implemented in the file.)

It searches for the file name and most Recent used file.

Recent file list (20)

Delete (it can not be implemented in the file and folder.)

It deletes selected file and folder.

Create folder

It creates folder at the permitted location.

•

Using the menu

188

This menu is available if you use a SIM card that provides additional services, such as news, weather, sports,

entertainment, and location services.

Available services may vary, depending on your service provider’s plans.

For further details, see your SIM card instructions or contact your service provider.

12.5. SIM tool

SG-2520

www.thuraya.com

Additional

190

Troubleshooting

Check whether battery is discharged.

Check whether battery is properly attached.

If power cannot be switched on even with travel charger connected, contact A/S center.

•

When phone cannot be switched on

Insert SIM card.

Insert SIM card correctly.

Is the SIM card valid? SIM card itself can be annulled when wrong PUK code is entered.

Check whether SIM card contact part is clean and free of any foreign matter.

•

When message Insert SIM appears

The initial security code is on page 156.

When security code already set up is lost, go to A/S center with warranty card.

•

When security code is lost

Is data cable properly connected?

Which was chosen for data port setting? For detail instructions, refer to page 61.

Is data baud setting compatible with PC?

•

To send GPS data to PC

SG-2520 supports 12 languages. Ask service provider to supply appropriate language keypad.

•

When keypad is different from the language used

Separate battery and after drying take it to A/S center.

•

When mobile phone has been dropped in water

Additional

191

Quick access codes

1. Media center

1.1. Image box

1.2. Video box

1.3. Sound box

1.4. Mp3 box

1.5. Memory status

1.6. File browser

2. Contacts

2.1. Contacts list

2.2. Special list

2.3. Speed dial

2.4 .SIM list

2.5. My info

2.6. Helper

3 . Organizer

3.1. Monthly schedule

3.2. Weekly schedule

3.3. Daily schedule

3.4. Alarm

3.5. Planner

3.6. Note

4. Navigation

4.1. Current position

4.2. GPS acquiring

4.3. Daily schedule

4.4. Continues position

4.5. Waypoint

4.6. Route

4.7. Location track

4.8. Settings

Additional

192

5.8.1. SMS

5.8.2. MMS

5.8.3. E-mail

5.8.4. Cell Broadcast

5 . Messaging

5.1. New

5.2. Inbox

5.3. Drafts

5.4. Sent

5.5. Unsent

5.6. Reports

5.7. SIM messages

5.8. Settings

5.8.5. Spam message

6 . Network

6.1. SAT registration

6.2. System preference

6.3. Search mode

6.4. Preferred list

Additional

193

8.5.1. Image capture

8.5.2. Video capture

7 . Call log

7.1. Voice call

7.2. Packet data

7.3. Durations

7.4. Cost

8 . Camera

8.1. Image capture

8.2. Video capture

8.3. Image box

8.4. Video box

8.5. Setting

9 . Connectivity

9.1. IrDA 9.1.1. Receive mode

9.1.2. File send

9.1.3. Waypoint send

Additional

194

9.1.4. Contact send

9.1.5. My vCard send

9 . Connectivity

9.1. IrDA

9.2. Bluetooth

9.3.1. FTP server

9.3.2. FTP connect

9.3. FTP

9.4.1. Enter URL

9.4.2. Favourityes

9.4. WAP browser

9.4.3. Settings

9.5. Received file

* Settings

*.1 . Profile

*.2.1. Wallpaper

*.2 . Phone

*.2.2. Screen saver

*.2.3. Menu style

*.2.4. Greeting message

*.2.5. Theme

*.2.6. LCD adjust

Additional

195

* Settings

*.3.1. Voice calls

*.3. Calls

*.3.2. Call diverts

*.3.3. Call barring

*.3.4. Call waitting

*.3.5. External device

*.3.6. Cost

*.3.7. Send my caller ID

*.4.1. Favorite key

*.4. Shotcut

*.4.2. My menu

*.5. Access point list

*.6.1. Security settings

*.6. Security

*.6.2. Change codes

*.6.2.3. PIN 2 code

*.6.2.4. Barring code

Additional

196

*.7.1. Language

*.7.2. Auto Text

*.7.3. Dictionary

* Settings

*.6.3. Fixed dial

*.6. Security

*.6.4. Cloased user group

*.7. Language

*.8. System *.8.1. System version

*.8.2. Time & Date format

*.8.3. Time auto update

*.8.4. Setup wizard

*.8.5. Default memory

*.8.6. External connect

*.8.7. Connect speed

*.8.8. Factory reset

Additional

197

#.1.1. DuiAdventure

#.1.2. SpicyBoys

0 Extras

0.1. Calculator

0.2. Converter

0.3. Recorder

0.4. Stopwatch

0.5. Timer

0.6. Lullaby

0.7. World time

# Application

#.1. Game

#.2. User program

#.3. Memory manager

#.4. File browser

#.1.3. TimeRider

Additional

198

There are several access codes that are used by your phone and its SIM card. These codes help you protect the phone

against unauthorised use. When requested for any of the codes explained below, enter the appropriate code (displayed

as asterisks) and press . If you make a mistake, press (Clear) one or more times until the incorrect digit is cleared

and then continue entering the correct code. The access codes, except for the PUK1 and PUK2 codes, can be changed

using the Security menu (9). Notice! Avoid using access codes resembling emergency numbers, such as 112, so that you

do not accidentally dial an emergency number.

Access Codes

The Phone lock feature uses the security code to protect your phone against unauthorised use.

The phone password is supplied with the phone and is preset to “0000” at the factory.

Security Code

The PIN (Personal Identification Number) is 4 to 8 digits. It protects your SIM card against unauthorised use.

It is usually supplied with the SIM card. Entering wrong PIN code 3 times will lock the SIM card and to unlock, PUK code

must be entered. PUK code is normally supplied with SIM card.

PIN & PUK

It is required with settings related to PIN2 Network. PIN2 must be entered for Fixed Dialing. As with PIN code, entering

wrong PIN2 code 3 times will lock the SIM card and to unlock, PUK2 code must be entered.

PUK2 code is normally supplied with SIM card.

PIN2 & PUK2

It is a code controlled in the network for call restriction function. Barring code varies with different service providers and

should be supplied by your service provider when you start using the phone. When barring code is lost, it can be renewed

by asking your service provider.

Barring Code

Additional

199

LIMITED WARRANTY

SG-2520 SATELLITE/GSM HANDHELD PHONE

This Limited Warranty is provided to the original end-user purchaser (the ’Buyer’) of any new SG-2520 Satellite/GSM

Handheld Phone. This Limited Warranty is non-transferrable.

Warranty Coverage and Service

Thuraya warrants all new SG-2520 Satellite/GSM Handheld Phones (the ’Product’) under normal use and wear to be free

from defects in material and workmanship for a period of one (1) year from the date of purchase by the original Buyer

(the ’Warranty Period’). If, under normal use and wear, the Product becomes defective in materials or workmanship and is re-

turned at Buyer’s expense to a Thuraya Authorized Service Center during the Warranty Period, the Product will be repaired or

replaced, at Thuraya’ sole and exclusive option, and at no charge to Buyer. Buyer will be required to provide reasonable proof

of date of purchase. Reconditioned replacement components, parts, units or materials may be used if the Product is repaired

or replaced. Costs incurred in the removal, de-installation or reinstallation of the Product are not covered.

THIS LIMITED WARRANTY DOES NOT COVER AND THURAYA WILL NOT BE RESPONSIBLE FOR THE FOLLOWING:

This Limited Warranty will be void in its entirety if the Product is serviced by anyone other than Thuraya or a Thuraya

Authorized Service Centre. Buyer’s sole and exclusive remedy shall be the repair or replacement of the defective Product, as

specifically described above. Thuraya neither assumes nor authorizes any Authorized Service Centre or any other person or

entity to assume any other obligation or liability beyond that which is provided for in this Limited Warranty.

This Limited Warranty does not cover the following: products or accessory equipment not manufactured or provided by

Thuraya; failures or defects caused by misuse, abuse, accident, alteration or neglect; unauthorized installation, removal or

repair; failure to follow instructions; fire, flood or other acts of God; spills of food or liquids; normal wear and tear; improper

installation, maintenance, operation or repair; performance of the Product when used in combination with other products or

equipment not manufactured or provided by Thuraya; payments for labor or service to representatives or service centers not

authorized by Thuraya. This limited Warranty of the Product does not cover the operation, availability, coverage, range or

grade of service provided by the satellite and GSM systems.

Additional

200

Limitation of Liability

THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED, IMPLIED OR STATUTORY,

INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THURAYA SHALL NOT BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT,

LESS REASONABLE AMOUNT FOR USE AND WEAR, OR FOR ANY INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL

DAMAGES OF ANY NATURE WHATSOEVER, OR FOR ANY DELAYS, LOSS OF USE, TIME, PROFITS, REVENUE OR

SAVINGS, ANY COMMERCIAL LOSS, INCONVENIENCE, MILEAGE, DAMAGE TO BUYER’S OR TO OTHER PERSON’S

VEHICLE OR ANY OTHER PROPERTY, ARISING FROM THE USE OR INABILITY TO USE THE PRODUCT, OR OTHERWISE

FOR ANY FAILURE TO PERFORM.

All liability and obligations of Thuraya under this Limited Warranty shall terminate upon the expiration of the applicable

Warranty Period provided herein. This Limited Warranty sets forth the entire responsibility of Thuraya with respect to the

Product. There are no other liabilities of Thuraya arising from the sale of the Product whether based on warranty, contract,

negligence or other theories of liability. In no event shall Thuraya’ liability exceed the cost of correcting defects as provided

herein. This Limited Warranty gives specific legal rights to Buyer, and Buyer also may have other rights which may vary from

jurisdiction to jurisdiction.

Thuraya hereby declares that this mobile phone is in compliance with the essential requirements and

other relevant provisions of Directive 1999/5/EC.

This manual is published by Thuraya Satellite Telecommunications without any warranty.

Thuraya Satellite Telecommunications reserves the right to make changes and improvements to

any of the products described in this manual without prior notice.

Printed in the Republic of Korea
