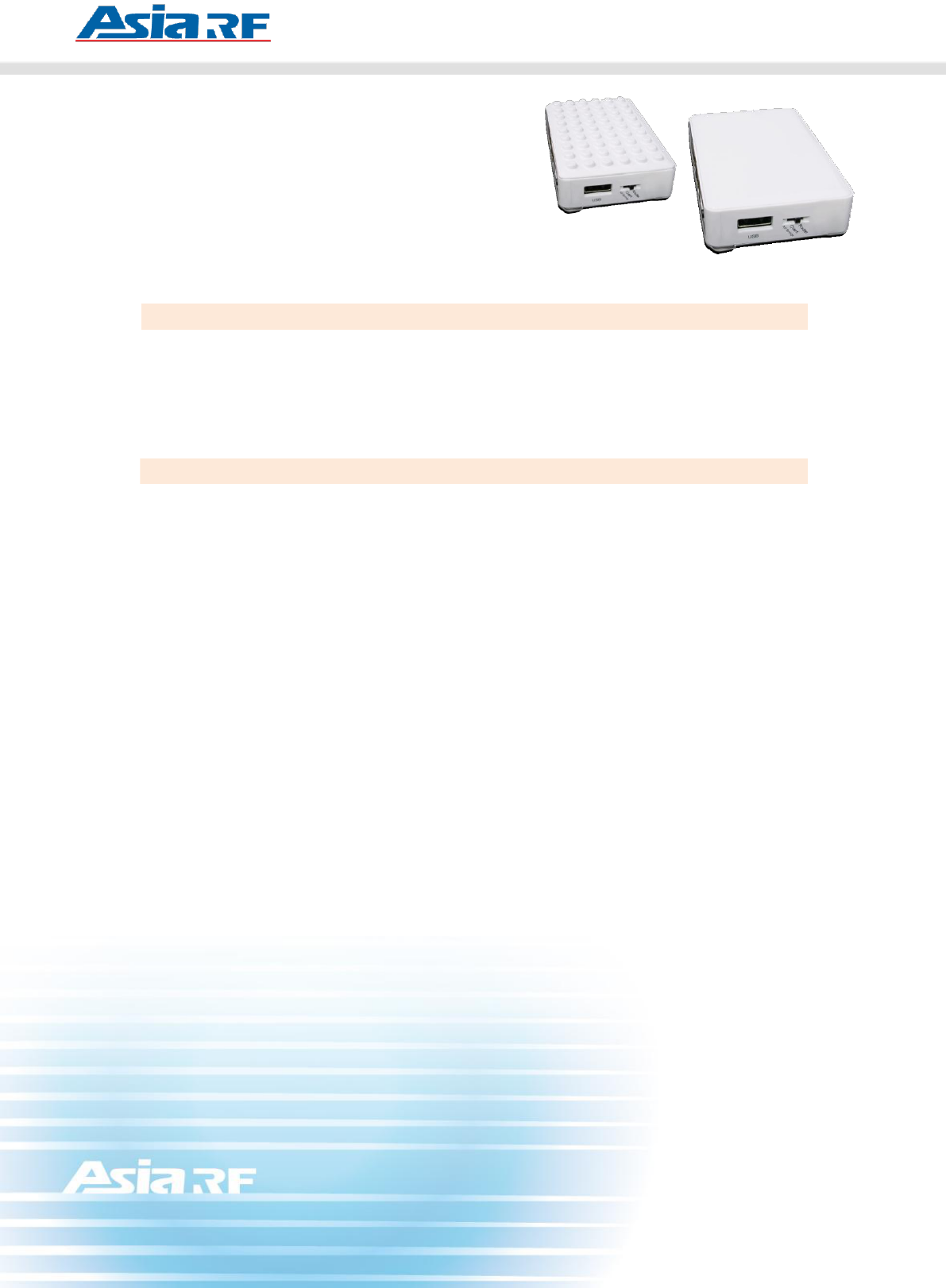

Portable Pocket 11n/g/b 300Mbps with USB AP Router
USB connect Web camera, Hard disk, WiFi USB dongle, 3G dongle
1. Description:
The Tiniest Portable Pocket 300Mbps AP Router can be linked with Web
Camera, LTE, USB WiFi LAN Card, 3G USB, Wimax as WAN, Hard disk,
Printer.
2. Features:
Advanced Multi-Functions USB 2.0 port: Web camera, LTE , USB WiFi
LAN Card, 3G USB, Wimax as WAN, Hard disk, Printer
Supports DDNS
Gaming Optimized: Giga LAN Ethernet (Optional)
Multiple Wireless network BSSID (4 groups)
MIMO 300Mbps
Portable Pocket Tiny size 86(L) x 55(W) x 17(H) mm
Supports WEB based management and configuration.
Supports UPnP, IGMP Snooping & Proxy.
Supports Dynamic DNS, NTP client service.
Supports Log table and remote Log service.
Supports Setup Wizard mode.
Supports Wireless schedule.
Compatible with IEEE 802.11b/11g/11n Specifications.
Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet
interface.
Supports bridging, routing and WISP functions between wireless and wired
Ethernet interfaces.
Supports IEEE 802.1x, 64-bit and 128-bit WEP, WPA, WPA2
encryption/decryption and WPA with Radius.
Supports DHCP server to provide clients auto IP addresses assignment and
static DHCP functions.
Supports DHCP client, static IP, PPPoE, PPTP, L2TP of WAN Interface.
Supports firewall security with port filtering, IP filtering, MAC filtering, port
forwarding, URL Filtering and DMZ hosting functions.
Supports AP mode, Client mode, WDS, AP+WDS and Universal Repeater.
Supports QoS which controls the bandwidth by IP or MAC address.
Supports Denial-of-Service.
Supports WPS (Wi-Fi Protected Setup).
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
Taipei County 234
Taiwan, R.O.C.
page: 2
Supports WAPI (Wireless Authentication Privacy Infrastructure).
Supports Green Ethernet, IEEE802.3az draft2.0, EEE (Energy Efficient
Ethernet).
3. Specification:
Hardware
Chipset
RT3052 for 2T2R 300Mbps
Operation Mode
3 sections switch, Client, AP/Bridge, Router
Interface
RJ45 x 2: 1 WAN, 1 LAN
Reset and WPS button
1 button
RF output and Antenna
2 inner Antennas
Sensitivity
-76dBm @ 54Mbps: 11g
-91dBm @ 11Mbps: 11b
-74dBm @ 135Mbps: 11n
Power Consumption
Voltage: 5V±5%
Dimension, L x W x H
89 (L) x 58(W) x 15(H)mm
Weight
15g
Radom Material
ABS
Operating Temp
0℃~ +50℃
Storage
-10℃~ +65℃
Humidity
5%~98% non-condensing
Software
Standard
IEEE 802.11b/g, 802.11n
Radio type
IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK,
BPSK)
IEEE 802.11b: DSSS(CCK/DQPSK/DBPSK)
Data Rate
IEEE 802.11n: 300Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11b: 11Mbps
Access Protocol
CSMA/CA
Number of operation channel
2.412~2.462GHz (Canada, FCC) / 11 Channels
2.412~2.484GHz (Japan, TELEC) / 14 Channels
2.412~2.472GHz (Euro, ETSI) / 13 Channels
WAN
DHCP Client
Static IP
PPPoE (for ADSL)
L2TP
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
Taipei County 234
Taiwan, R.O.C.
page: 3
PPTP
Networking
DHCP Client/Relay/Server
Dynamic DNS
NTP Client
DNS Cache/Proxy
Firewall:
MAC/IP/Port Filter
Virtual Server
DMZ
Content Filter
WIFI
2 Transmit and 2 Receive paths (2T2R)
20MHz/40MHz bandwidth
Support Multiple SSID
Support Hidden SSID
Support WPS
Clock rate up to 400MHz Legacy and High
Throughput Modes
High security: WEP64/128,TKIP, WPA,WPA2 AES,
mixed, 802.11i
802.1X Authentication with RADIUS Client
QoS-WMM, WMM-PS
Support WDS
Security
WEP 64/128、WPA、WPAII、WPA-PSK、802.1x
support
OS support
Windows 7, Vista32/64, XP32/64, 2000, Linux 2.6,
Mac 10.4
4. Package Content
AWAPN2403.a
Power Adaptor
Quick Installation guide
CD-ROM (Driver, User Manual)
5. Order Information
1. 300Mbps 2T2R with embedded antennas with USB port.
AWAPN2403.a
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device must be installed to provide a separation distance of at least 20 cm from all persons
and must not be collocated or operating in conjunction with any other antenna or transmitter.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
