Asian Express 1350-T PROTON MICRO DRONE User Manual proton IM 0515 v3 own CA
Asian Express Holding Ltd PROTON MICRO DRONE proton IM 0515 v3 own CA
User manual
![](/img.php?id=3021917&img=bg1.png)
FCC Part 15 Notice
Trim size 4.5 x 6.875 in.
Spread size 9 x 6.875 in.
Made in China
V1
Conforms to safety requirements of ASTM, CPSIA and FCC.
©2016 Rooftop Brands™ All rights reserved
Tel: + (1) 949-566-9573 • www.propelrc.com
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
CHOKING HAZARD
-
Small parts.
Not suitable for children under 3 years.
WARNING!
WARNING: Never leave product charging unattended for extended periods of
time. Always disconnect the Proton™ from charger immediately after it is
fully charged. Please refer to enclosed safety instructions.
INSTRUCTION BOOKLET
Colors and styles may slightly vary.
PACKAGE CONTAINS:
Instruction Manual
Spare Parts USB charging cord
2.4G Wireless ControllerProton™
PROTON™ MICRO DRONE
INDOOR / OUTDOOR WIRELESS QUADROCOPTER
INDUSTRY CANADA NOTICE: CANADA ONLY.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter dout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
![](/img.php?id=3021917&img=bg2.png)
A B
C1 C2 D
Arrow
Mark
1 2
TABLE OF CONTENTS
Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Remote Control Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Charging Your Proton™ Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Proton™ Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Remote Control Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Synching Your Proton™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Flight Preperation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Flying Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Recognizing The Front & Back Of The Proton™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3/4 Channel Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Channel Flight Controls (Advanced Flying) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Channel Flight Controls (Beginner Flying) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching To Medium & High Speed Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Understanding Trim Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Level Surface Gyro Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Low Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Performing A 360º Stunt Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Replacing The Propeller Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Battery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Thank you for purchasing the Proton™ 2.4 Ghz Mini Quadrocopter. Please read this instruction booklet as it
contains valuable information on how to properly fly and care for your Proton™ Drone.
FEATURES
• Built-in 6axis gyro chip for extremely stable flight.
• 2.4 Ghz digital technology allows for flight range up to 100 feet.
• 4 channel flight controls allow for incredible maneuverability including 360º aerial stunts!
• Unique Switch-Blade technology allows you to operate in either 3ch or 4ch modes for beginner to
advanced pilots

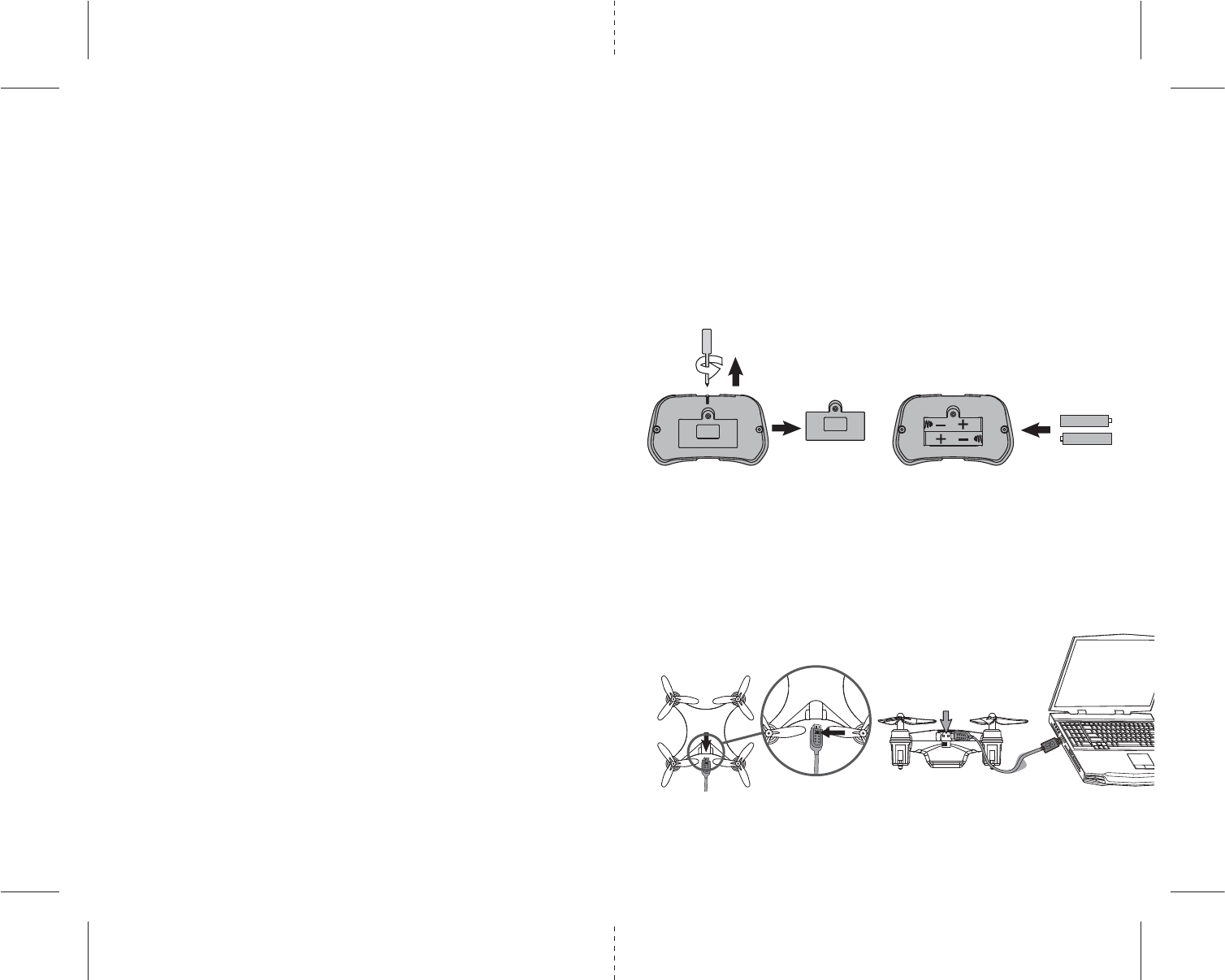

REMOTE CONTROL BATTERY INSTALLATION
1. Unscrew the battery cover from the back of the controller as shown in diagram A.
2. Install 2 “AAA” alkaline batteries into the controller as shown in diagram B.
3. Replace the battery cover.
4. Turn over the controller and turn the on/off switch to the on position the red LED will flash if batteries
are installed correctly.
CHARGING YOUR PROTON™ BATTERY
1. Switch the quadrocopter Off. Connect the power cable to the unit making sure the arrow side of the
connector is on top side facing the top of the Proton™ (see diagrams C1 and C2).
CAUTION: The USB plug fits the charging socket only in one way. Do not force it. Improper
connection will damage the Proton™.
2. Connect the USB end of the cable to your computers USB port (see diagram D).
3. The red LED on the USB plug lights up when charging is complete. Average charging time is 30 minutes.
Note: If the red LED lights up, either the charging is complete or the USB plug is not properly
connected.
A full charge will allow for about 5 minutes of flight time depending on environment and user input.
IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING CORD WHEN NOT IN USE!
![](/img.php?id=3021917&img=bg3.png)
Front Rotor Blades
Rear Rotor Blades
Charging Socket
Charging Socket
On/Off Switch

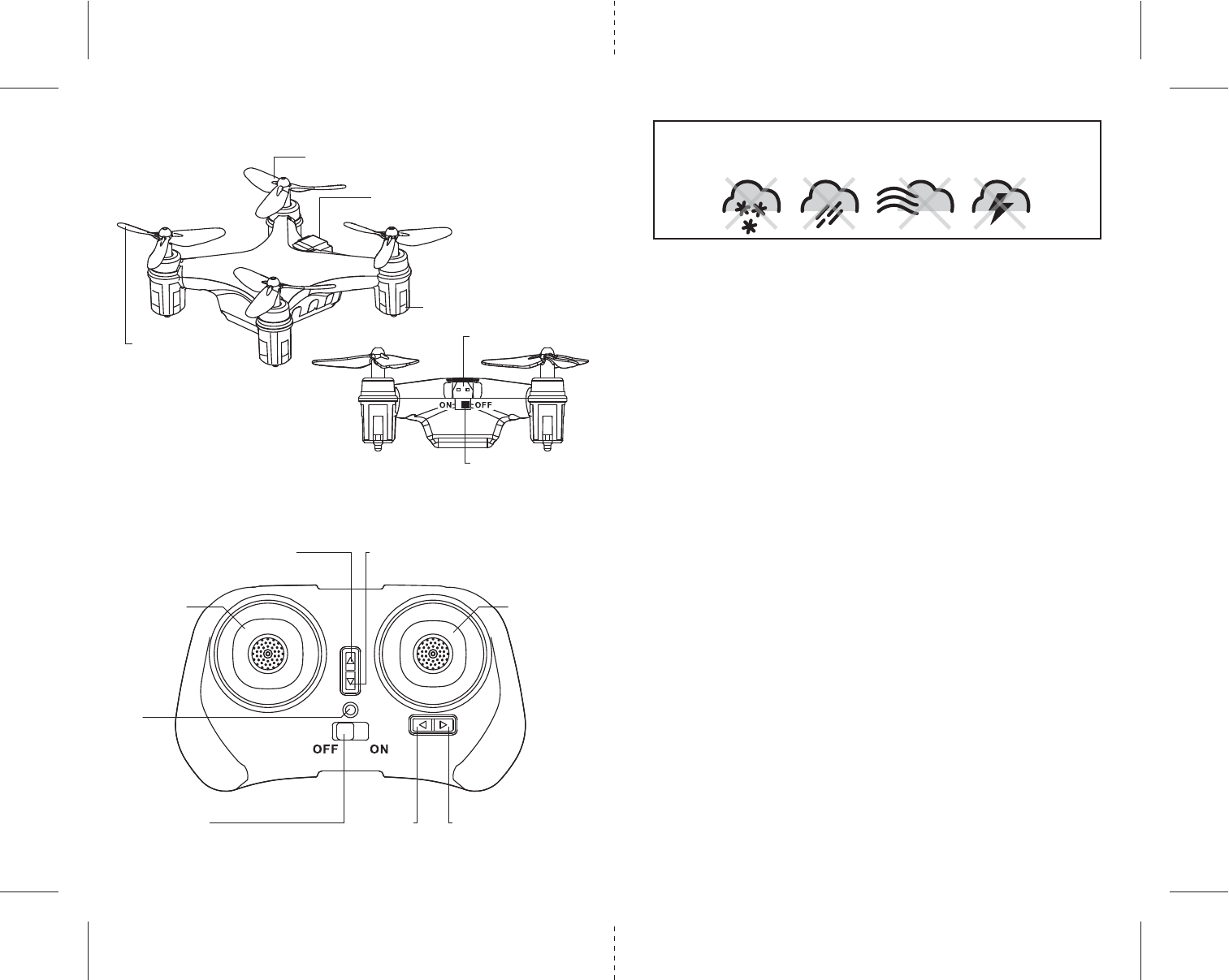

PROTON™ DIAGRAM
PROTON™ REMOTE DIAGRAM
Landing Gear
Forward Trim Backward Trim
Throttle Control Direction Control
Power
Indicator
Light
Power On/Off Switch Left Trim Right Trim
3 4
SYNCING YOUR PROTON™
Important! When syncing your Proton™ quadrocopter with the controller always make sure that
the quadrocopter is on a flat level surface and that your digital trim settings are in the center
position. This ensures that the 6 Axis gyro is properly programmed to mimic your trim settings.
Your Proton™ utilizes an automatic 2.4G channel selection system that allows up to 8 people to fly side by
side in the same wireless range with no interference.
For One-Person Play:
1. Before starting, make sure that the power on both your controller and Proton™ are in the OFF
position. Make sure that there are no other 2.4G devices in the area as well.
2. Turn ON the Proton™ and set it down on a flat surface. The LED indicator lights of the Proton™
should begin to flash rapidly.
3. Turn ON the remote, you will hear two short beeps. The Proton™’s LED lights should now flash slowly.
Push the throttle on the left all the way forward(1 beep) and then pull the throttle all the way back.
A 2nd beep will sound and the lights should turn to solid. This indicates your controller and the
quadrocopter are successfully synced. If not, repeat above steps.
For Multi Person Play:
4. Before starting, make sure that the power on all Proton™ drones and Controllers are in the OFF
position. Make sure that there are no other 2.4G devices in the area.
5. Each person will have to sync their Proton™ individually at a different time to avoid interference.
Follow steps 1 to 3 above making sure that no one else is syncing at the same time.
6. After syncing a player’s Proton™, it should be left ON until all players have synced their Proton™
quadrocopters.
7. Should there be a mistake or interference, all players must turn off their controllers and Proton™
quadrocopters for up to 60 seconds and then begin the process again.
PREPARING FOR FLIGHT
• Verify that there are 2 “AAA” batteries inside the remote control unit and the Proton™ has been
fully charged.
• Make sure your Proton™ and controller are both turned on.
• Make sure to be in a large space with an open radius of at least 50 feet.
• Make sure the empty space has no obstacles and water close by. Set your Proton™ on a clean flat
surface before take-off.
DO NOT ATTEMPT TO FLY YOUR Proton™ IF THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR LIGHTNING
OUTDOORS. IT COULD DAMAGE YOUR PRODUCT AND POSSIBLY EVEN CAUSE BODILY HARM.
FLYING TIPS
• It is recommended that you operate the Proton™ in a wide open space. The ideal space should have a
200 foot radius.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the Proton™ with others, make sure all spectators are behind you.
• For best performance, it is recommended that you operate the Proton™ in zero wind conditions,
as wind can greatly affect the performance of the aircraft.
DO NOT FLY YOUR PROTON™ IN FOUL WEATHER!
WARNING
![](/img.php?id=3021917&img=bg4.png)
G
H
I
J
N
5 6

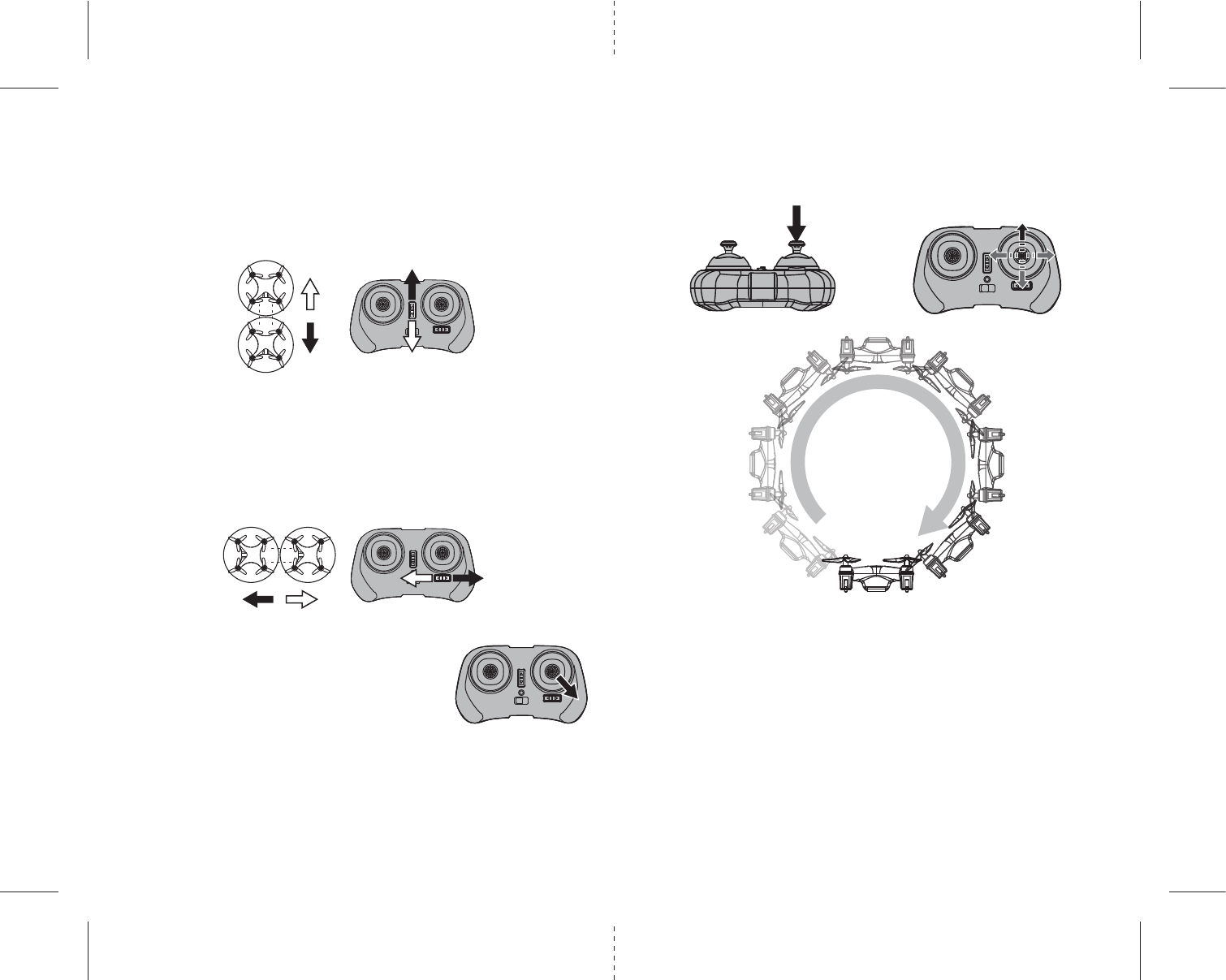

4 CHANNEL FLIGHT CONTROLS (ADVANCED FLYING)
Below is a list of basic flight functions for your long-range remote control Proton™. While learning to fly
your Proton™ it is best to start in a large space until you get used to the basic controls. As you master
flying your Proton™ you can move to more advanced maneuvering techniques. Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the left Throttle stick upwards to increase the
speed of the propellers and the Proton™ will
accelerate upwards and ascend.
Move the left Throttle stick down to decrease the
speed and the Proton™ will decelerate and descend
(see diagram G).
While in the air, move the left Throttle stick left and
the Proton™ will rotate left.
Move the left Throttle stick right and the
Proton™ will rotate right (see diagram H).
While in the air, move the right Direction Stick up
and the Proton™ will move forward.
Move the right Direction Stick down and the Proton
™ will move backward (see diagram I).
While in the air, move the right Direction Stick left
and the Proton™ will bank to the left.
Move the right Direction Stick right and the Proton™
will bank to the right (see diagram J).
SWITCHING TO MEDIUM & HIGH SPEED MODE
To change the Proton™’s flight speed from the default (low speed) to medium and high speed flight mode:
1. Turn on the remote.
2. Depress the control lever on the left side straight down as if pressing a button to switch modes (see digram N).
3. You will hear two beeps indicating that your drone speed changed to medium speed.
4. To change to high speed mode repeat step 2.
5. Three beeps indicates a speed changed to high speed mode.
6. To switch back to low speed repeat step 2 again, you will hear one beep indicating low speed mode.
7. Speed mode returns to low speed once the remote is turned off.

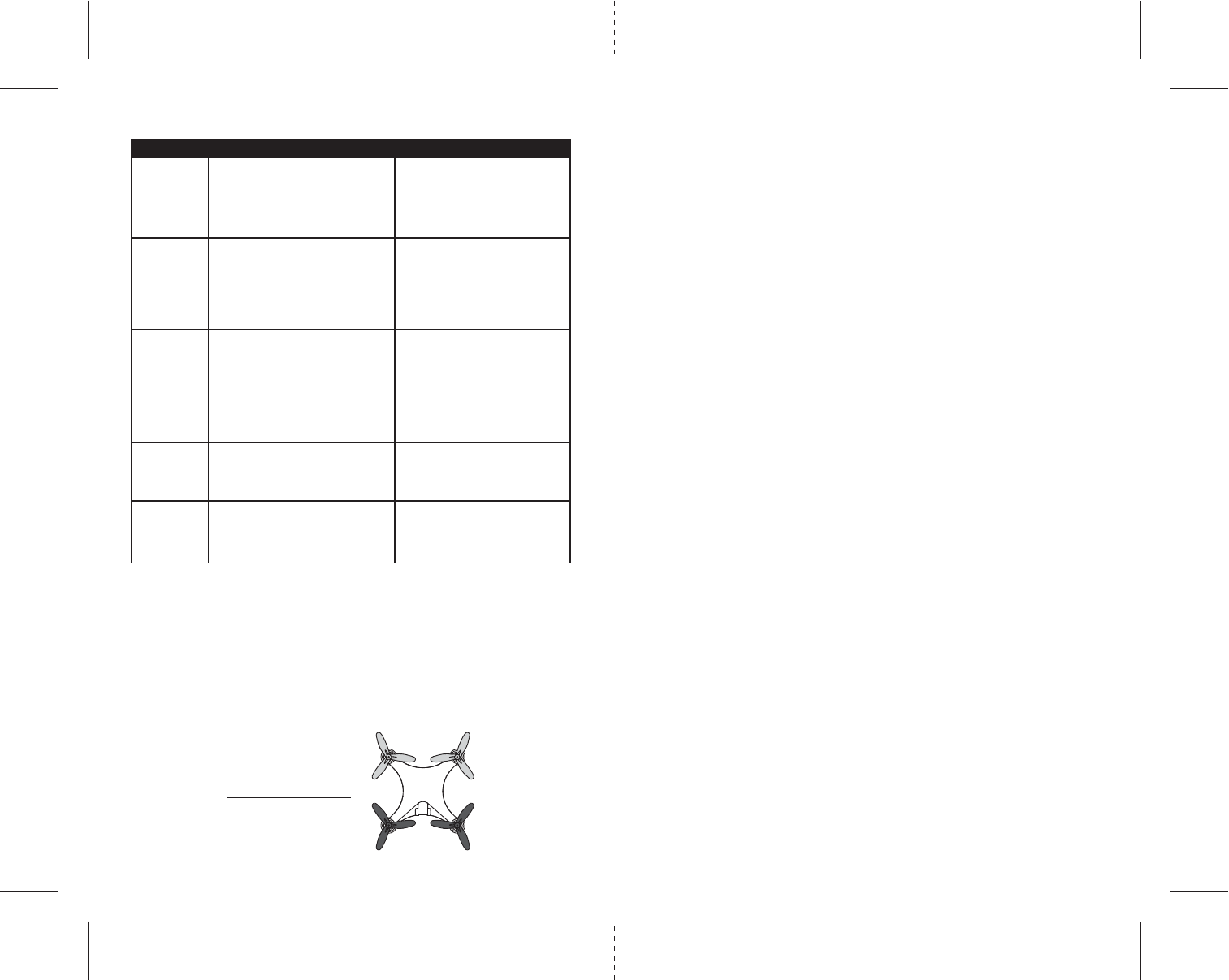

RECOGNIZING THE FRONT & BACK OF THE PROTON™
Even though the Proton™ has four rotors, there is still a “front” or forward facing direction and "back" or
backwards facing direction. The front and forward facing direction of the Proton™ is the side with two gray
propellers (see diagram E ). The rear and backwards facing of the Quadrocopter is the side with two black
propellers (see diagram E).
NOTE: The front of the Quadrocopter displays WHITE LED lights and the back of the Quadrocopter displays
RED LED lights.
E
FRONT
REAR
K
L
M

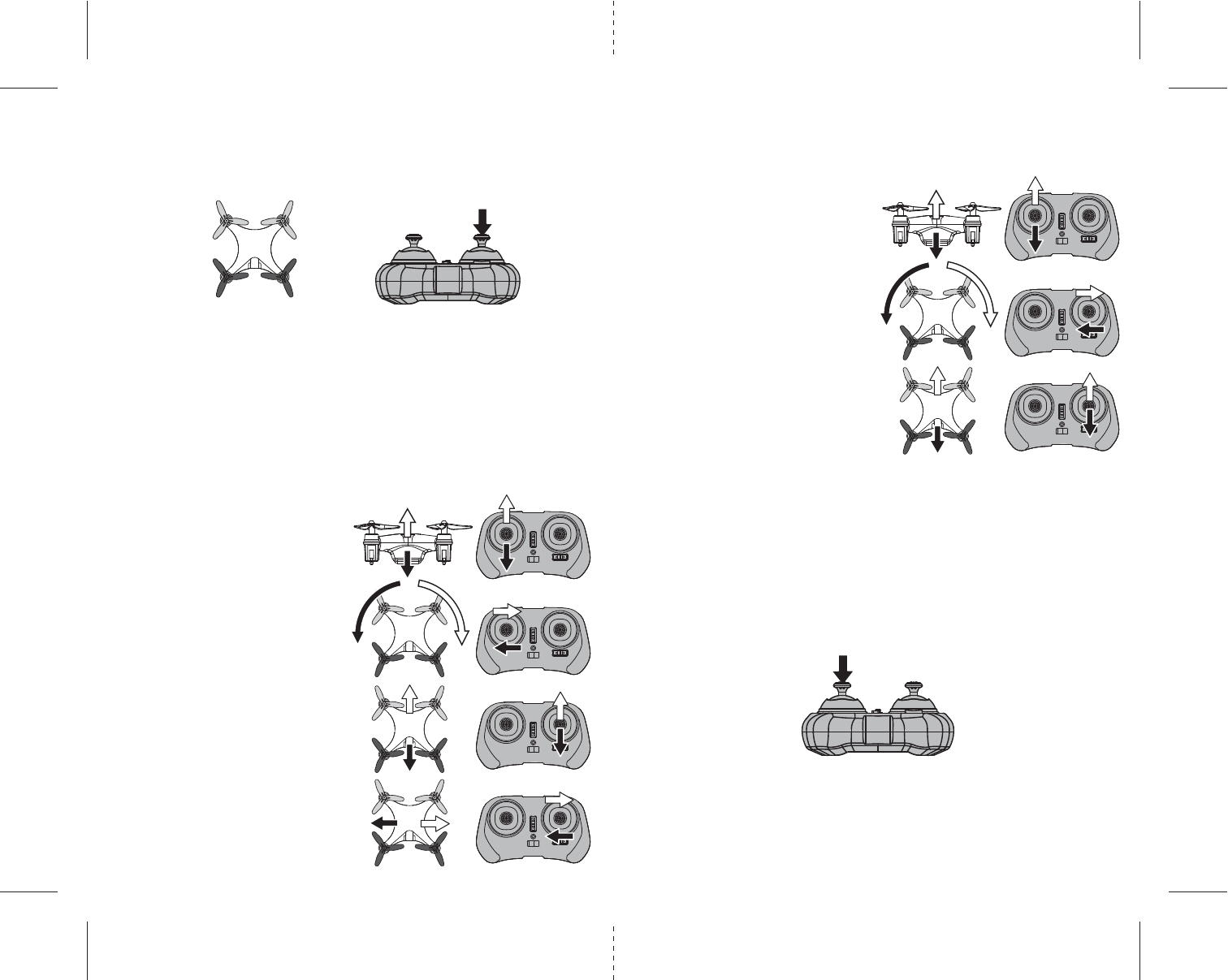

3 CHANNEL FLIGHT CONTROLS (BEGINNER FLYING)
Below is a list of basic flight functions for your long-range remote control Proton™. While learning to fly
your Proton™ it is best to start in a large space until you get used to the basic controls. As you master
flying your Proton™ you can move to more advanced maneuvering techniques. Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the left Throttle stick upwards to increase the
speed of the propellers and the Proton™ will
accelerate upwards and ascend.
Move the left Throttle stick down to decrease the
speed and the Proton™ will decelerate and descend
(see diagram K).
While in the air, move the right Throttle stick left and
the Proton™ will rotate left.
Move the left Throttle stick right and the
Proton™ will rotate right (see diagram L).
While in the air, move the right Direction Stick up
and the Proton™ will move forward.
Move the right Direction Stick down and the Proton
™ will move backward (see diagram M).
3/4 CHANNEL SELECT
Proton™ allows you to control your micro drone in 3 channel mode (beginner) or 4 channel mode (advanced
flying). The Proton™ default setting is 4 Channel mode.
To change to 3 Channel mode:
After syncing your quadrocopter, depress and hold the control stick on the right side straight down for 3
seconds, you will hear a long beep indicating the Proton™ is now set to 3CH mode. (see digram F).
To change back to 4 Channel mode:
Depress and hold the control stick on the right side straight down for 3 seconds again, you will hear a long
beep indicating the Proton™ is now set to 4CH mode. (see digram F).
F
Push Down and
hold for 3 seconds
![](/img.php?id=3021917&img=bg5.png)
O
P
Q
R
7 8
UNDERSTANDING TRIM ADJUSTMENTS
Forward/Backward Trim
• If your Proton™ is drifting forwards or backwards, you may need to adjust the FORWARD/BACKWARD
TRIM (see diagram O).
• If your Proton™ drifts forward, push and release the BACKWARD TRIM button back repeatedly
until the motion stops and proper flight is maintained.
• If your Proton™ drifts backwards, push and release the FORWARD TRIM button forward in the
same manner until the problem is resolved.
• From time to time you may have to adjust the FORWARD or BACKWARD TRIM buttons to ensure the
Proton™ will hover in mid-air and respond accurately to your commands.
Right/Left Trim
• If your Proton™ is drifting left or right, you may need to adjust the LEFT/RIGHT TRIM button
(see diagram P).
• If your Proton™ drifts left, push and release the RIGHT TRIM button repeatedly until the motion
stops and proper flight is maintained.
• If your Proton™ drifts right, push and release the LEFT TRIM button in the same manner until the
problem is resolved.
• From time to time you may have to adjust the LEFT or RIGHT TRIM buttons to ensure the
Proton™ will hover in mid-air and respond accurately to your commands.
LEVEL SURFACE GYRO CALIBRATION
If the aircraft becomes unstable during the course of flying, or after a
crash, you may need to recalibrate the onboard gyro chip.
To do so, place the Proton™ on a flat level surface. Start by syncing
the controller with the quadrocopter. Next, pull the right control stick
on the remote all the way down and to the right (approximately 45º)
and hold for a couple of seconds. The LEDs on the Proton™ will flash
quickly and then turn solid when released. This indicates your drone
has been stabilized (see diagram Q).
LOW BATTERY WARNING
If the power indicator LED on the remote lights up it means you are running at low voltage and need to
land the aircraft slowly and replace the batteries in the controller.
If the LED lights on the quadrocopter begin flashing it means you are running at low voltage and you need
to land the aircraft slowly and recharge the quadrocopter unit.
WARNING: Do not attempt a 360º flip when you are given a low voltage warning
PERFORMING A 360º STUNT ROLL
Once the Proton™ is airborne,
1. Press the right control lever straight down.
2. Move the lever in the direction you wish to perform the 360º roll (see diagram R).
![](/img.php?id=3021917&img=bg6.png)
910
PROBLEM POSSIBLE REASON SOLUTION
1. Power switched off 1. Switch the ON/OFF switch to ON
NO POWER 2. Polarity is reversed 2. Make sure all batteries are installed
correctly (see diagram B)
3. Batteries may be dead 3. Replace batteries
1. Remote is switched off 1. Switch the ON/OFF switch to ON
Remote Not 2. Proton™ is switched off 2. Switch the ON/OFF switch to ON
Responding 3. Too windy 3. Windy conditions severly affect the
operation of the Proton™
4. The Remote light is flashing 4. Replace batteries
Drone Won’t 1. Rotor speed too slow 1. Push throttle lever forward
lift off 2. Drone not fully charged 2. Recharge your Proton™
Drone
Decsends 1. Moving the throttle too quickly 1. Control the throttle slower and
Too Fast smoother
Drone Not 1. Gyroscopes not functioning 1. Turn on the Proton™ and
Responding Reset the Gyros (see diagram L)
Loss of
Proton™ 1. Drone is out of range of remote 1. Keep the drone within a 20
Control meter radius of the remote
PROTON™ WARNING:
The Proton™ is designed for INDOOR or OUTDOOR flight. Proton™ ‘s blades revolve at high speeds and can
cause damage to the user, spectators and animals. Stand away from the Proton™ to reduce the risk of
getting into the flight path. Warn spectators that you will be flying your Proton™ so that they are aware of
its position. Before flight, inspect the rotor blades to make certain that the blades are securely fastened to
the Proton™.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power switch is turned to the
ON position.
• Turn off the transmitter and Proton™ power switches when not in use.
• The included charger is built specifically for the Proton™ Li-Poly battery. Do not use it to charge any
other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying Proton™
BATTERY WARNINGS
RECHARGEABLE BATTERY:
This Proton™ uses a Li-Poly rechargeable battery. If battery no longer stays charged, dispose of battery
properly according to local disposal requirements.
CONTROLLER BATTERIES:
Remote control requires 2 “AAA” batteries (not included). Please read the important battery safety warning
below.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly
according to state or local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose batteries in a fire - batteries may leak or explode.
CARE AND MAINTENANCE
• Always remove the batteries from the wireless 2.4G remote control when it is not being used for an
extended period of time.
• To clean, gently wipe the remote control and Proton™ with a clean damp cloth.
• Keep the toy away from direct heat or sunlight.
• Do not submerge the toy into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.
TROUBLESHOOTING YOUR PROTON™
FRONT
REAR
Diagram S
REPLACING THE PROPELLER BLADES
Your Proton™ propeller system is a precision instrument that may need repair or replacement from time
to time for optimal flight function. Crash landing from high-speed aerial flights may cause damage to your
Proton™’s propellers.
1. Proton™ have four blades, two gray propellers on the front, and two black propellers on the back
Please note that the blades and the Proton™ are labeled with an embossed A or B (see the diagram S).
2. When replacing the propeller blades, gently remove the blade from the rotor shaft. Make sure to match
both the color of the blade and the indication letter on the blade with the letter on the aircraft.
3. Replace the damaged blade with the correct blade.
Gray Blade Front Left = A
Gray Blade Front Right = B
Black Blade Back Left = B
Black Blade Back Right = A
A
A
A
AB
B
B
B
