Asian Express PL-1670R ATOM X VIDEO DRONE/Photon X/Flek SD User Manual C07 TRU ATOM X IM 20170612
Asian Express Holdings Limited ATOM X VIDEO DRONE/Photon X/Flek SD C07 TRU ATOM X IM 20170612
User Manual
![](/img.php?id=3447973&img=bg1.png)
Trim size 4.5 x 6.875 in.
Spread size 9 x 6.875 in.
ARTWORK NO. DESCRIPTION MDSER DESIGNER DATE
C07-TRU ATOM X Manuals 114.3×174.6mm Amanda Cocoa 2017/6/12
备注:旧机身,带低清摄像头,带气压定高,入PDQ,无video
Conforms to safety requirements of ASTM, CPSIA and FCC.
©2017 Rooftop Brands™ All rights reserved
Tel: + (1) 949-566-9573 • www.propelrc.com
WARNING: Never leave product charging unattended for extended periods of
time. Always disconnect the
ATOM XTM
from charger immediately after it is
fully charged. Please refer to enclosed safety instructions.
INSTRUCTION BOOKLET
Colors and styles may vary slightly.
PACKAGE CONTAINS:
FCC Part 15 C Notice
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
ATOM™ X MICRO DRONE
Indoor / Outdoor Wireless Quadrocopter
BC
Instruction Manual
Spare Parts USB charging cord
2.4G Wireless ControllerATOM XTM
Made in China
V 1.0
13
Requires Speed Class 6 or higher microSD or
microSDHC card (not included)
microSDHC Logo is a trademark of SD-3C, LLC.
CHOKING HAZARD
-
Small parts.
Not suitable for children under 3 years.
WARNING!
![](/img.php?id=3447973&img=bg2.png)
C1 C2 D
1 2
TABLE OF CONTENTS
Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Remote Control Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Charging Your ATOM™ X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
ATOM™ X Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Remote Control Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Synching Your ATOM™ X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preparing For Flight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Flying Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Recognizing The Front And Rear Of The ATOM™ X. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Automatically Take Off / Land. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Speed Setting Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3/4 Channel Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Understanding The Altitude Lock Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Understanding Trim Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Channel Flight Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Channel Flight Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How To Do 360º Stunt Rolls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your On Board Camera And Video Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting Your ATOM™ X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Replacing The Propeller Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ATOM™ X Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Care And Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Thank you for purchasing the ATOM™ X 2.4 Ghz Micro Quadrocopter. Please read this instruction booklet as
it contains valuable information on how to properly fly and care for your ATOM™ X Drone.
PRODUCT
FEATURES
• On Board Camera Records Video and Captures Still Pictures.
• Streams Video to Your Mobile Device.
• 6 Axis Gyro Keeps the ATOM™ X stable in all condition.
• Air pressure sensor locks flight altitude.
• Push button 360˚ aerial stunts.
• Automatically starts and lands with push of a button.
• 3 different speed settings for beginner to more advanced quadrocopter pilots.

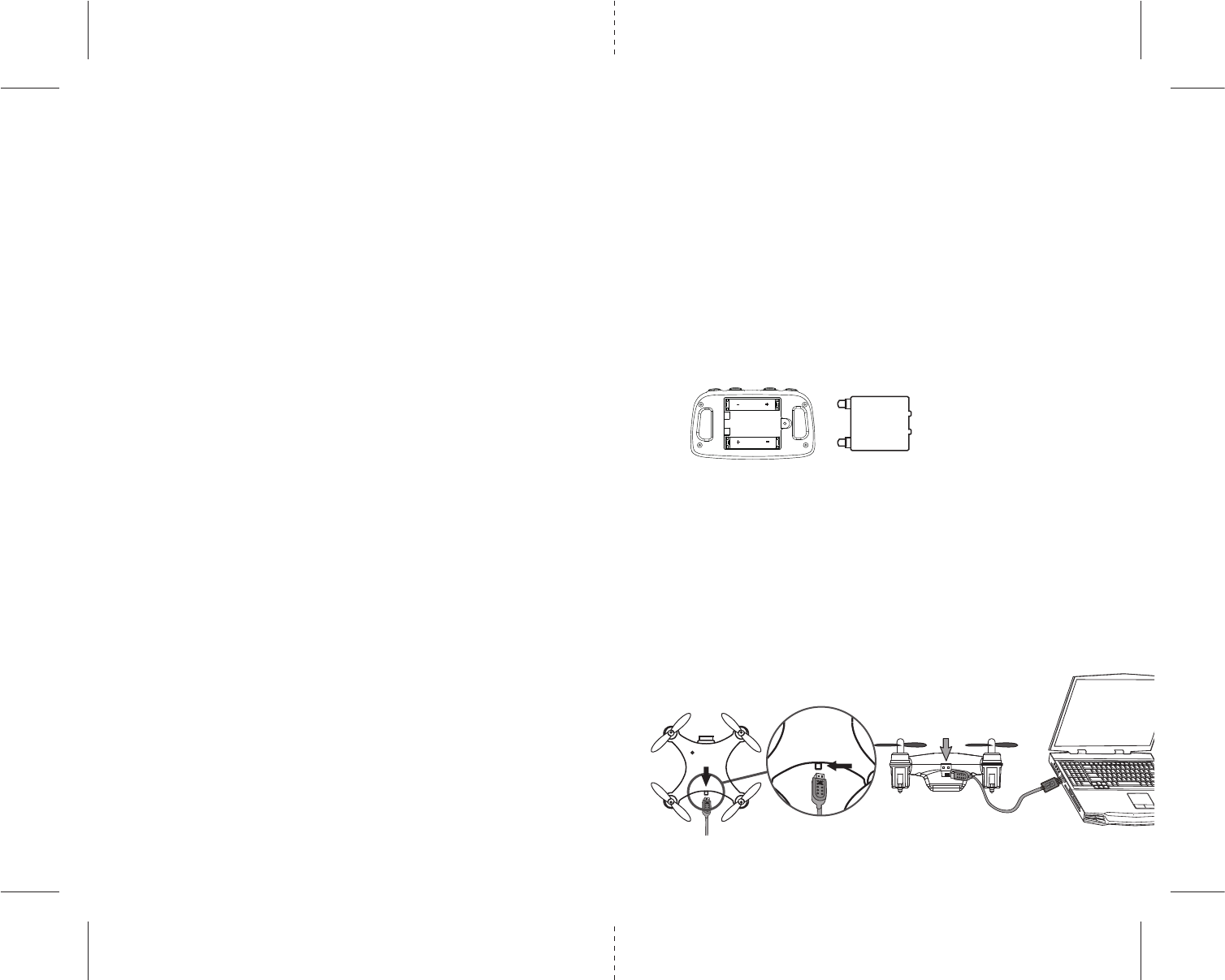

REMOTE CONTROL BATTERY INSTALLATION
1. Unscrew and slide off the battery cover from the back of the controller.
2. Install 2 “AAA” alkaline batteries into the controller as shown in diagram A.
3. Replace the battery cover and secure it.
4. Turn over the controller and turn the on/off switch to the on position If the indicator light turns on you
have installed your batteries properly.
IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING CORD WHEN NOT IN USE!
CHARGING YOUR ATOM™ X
1. Switch the quadrocopter Off. Connect the power cable to the unit making sure the arrow side of the
connector is on top side facing the top of the ATOM™ X (see diagrams C1 and C2). The red light on the
USB cord will light UP.
CAUTION: The USB plug fits the charging socket only in one way. Do not force it. Improper
connection will damage the ATOM™ X.
2. Connect the USB end of the cable to your computer’s USB port (see diagram D). The red light on the
USB cord will turn Off.
3.
The red LED on the USB plug lights up again when charging is complete. Average charging time is about 20 minutes.
Note: If the red LED lights up, either the charging is complete or the USB plug is not properly
connected.
A full charge will allow for about 5 minutes of flight time depending on environment and user input.
Battery Compartment
(2 “AAA” batteries not included)
Battery Cover
A.
![](/img.php?id=3447973&img=bg3.png)
Charging Socket
On/Off Switch
3 4
SYNCING YOUR ATOM™ X
Important! When syncing your ATOM™ X quadrocopter with the controller always make sure that
the quadrocopter is on a flat level surface and that your digital trim settings are in the center
position. This ensures that the 6 Axis gyro is properly programmed to mimic your trim settings.
Your ATOM™ X utilizes an automatic 2.4G channel selection system that allows up to 8 people to fly side by
side in the same wireless range with no interference.
For One-Person Play:
1. Before starting, make sure that the power on both your controller and ATOM™ X are in the OFF
position. Make sure that there are no other 2.4G devices in the area as well.
2. Turn ON the ATOM™ X and set it down on a flat level surface. The LED indicator lights of the ATOM™ X
should begin to flash rapidly.
3. Turn ON the remote, you will hear two beeps. Push the throttle all the way forward(1 beep) and then
pull the throttle all the way back. A 2nd beep will sound and the lights should turn to solid. This indicates
your controller and the quadrocopter are successfully synced. If not, repeat above steps.
For Multi Person Play:
4. Before starting, make sure that the power on all ATOM™ X drones and controllers are in the OFF
position. Make sure that there are no other 2.4G devices in the area.
5. Each person will have to sync their ATOM™ X individually at a different time to avoid interference.
Follow steps 1 to 3 above making sure that no one else is syncing at the same time.
6. After syncing a player’s ATOM™ X, it should be left ON until all players have synced their ATOM™ X
quadrocopters.
7. Should there be a mistake or interference, all players must turn off their controllers and ATOM™ X
quadrocopters for 60 seconds and then begin the process again.
PREPARING FOR FLIGHT
• Verify that there are 2 “AAA” batteries inside the remote control unit and the ATOM™ X has been
fully charged.
• Make sure your ATOM™ X and controller are both turned on.
• Make sure to be in a large space with an open radius of at least 50 feet.
• Make sure the empty space has no obstacles and water close by. Set your ATOM™ X on a clean flat level
surface before take-off.
DO NOT ATTEMPT TO FLY YOUR ATOM™ X IF THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR LIGHTNING
OUTDOORS. IT COULD DAMAGE YOUR PRODUCT AND POSSIBLY EVEN CAUSE BODILY HARM.
FLYING TIPS
• It is recommended that you operate the ATOM™ X in a wide open space. The ideal space should have a
200 foot radius.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the ATOM™ X with others, make sure all spectators are behind you.
• For best performance, it is recommended that you operate the ATOM™ X in zero wind conditions,
as wind can greatly affect the performance of the aircraft.
DO NOT FLY YOUR ATOM™ X IN FOUL WEATHER!
WARNING
Front Rotor Blades
Rear Rotor Blades
Camera Indicating LED Light
ATOM™ X DIAGRAM
Digital Camera
REMOTE CONTROL DIAGRAM
Speed Setting Button
Speed Indicator
Throttle/Yaw
360˚ Stunt Rolls Button
Direction Control
Power On/Off
4CH3CH
4 CH Mode
Removable Grip
3 CH Mode
Left Bank Trim Right Bank Trim
Forward Trim
Power Indicator
Backward Trim
12
TH
34C
3
CALIBRATE
VIDEO
CAMERA STUNT
START/LAND
SPEED
![](/img.php?id=3447973&img=bg4.png)
5 6

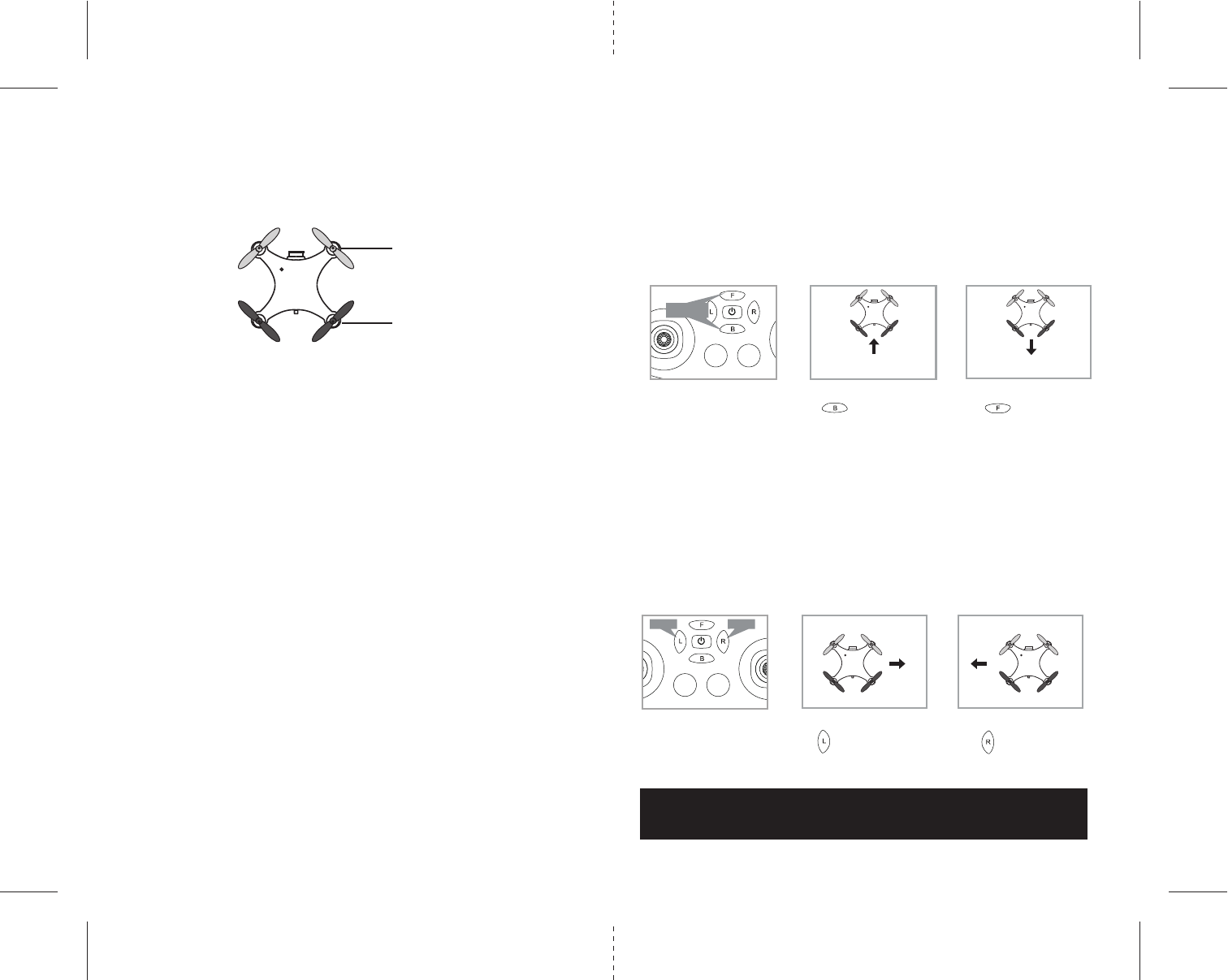

RECOGNIZING THE FRONT AND REAR OF THE ATOM™ X
Even though the ATOM™ X has four rotors, there is still a “front” or forward facing direction and "rear" or
backwards facing direction. The front or forward facing direction of the ATOM™ X is the side with two gray
propellers (see diagram E ). The rear or backwards facing of the Quadrocopter is the side with two red
propellers (see diagram E).
NOTE: The front of the Quadrocopter displays WHTIE LED lights and the back of the Quadrocopter displays
RED LED lights.
AUTOMATICALLY TAKE OFF / LAND
Make sure you have properly synced The ATOM™ X.
• Simply press the “start/land” button on the top of controller, your ATOM™ X will automatically take off.
• To stop or land the ATOM™ X just press the “START/LAND” button again and the ATOM™ X will descend and
land automatically.
Tips: You also can move the two control sticks simultaneously down to the inside corners, hold them until you
hear a “beep” and the blades start spinning. Release the control sticks and push up the throttle stick slowly to
take off manually.
In case of emergency: to stop the rotors instantly, simply press the calibrate button on the top of the
cotroller, located in the center.
SPEED SETTING BUTTON
The ATOM™ X has 3 speed settings; 1 (SLOW) , 2 (MEDIUM) and 3(HIGH). The Default setting when you first
turn on your ATOM™ X is mode 1 (SLOW) . To increase the speed simply press the speed setting button (see
remote diagram on page 3), you will hear beeping sound and the speed indicator will display the current
speed setting with letter and Numbers. Number 1 indicates slow speed, 2 indicates medium speed and 3
indicate high speed.
3/4 CHANNEL SELECT
ATOM™ X allows you to control your Quadrocopter in 3 channel mode (beginner) or 4 channel mode (advanced
flying). The ATOM™ X default setting is 4 Channel mode.
To change to 3 Channel mode: PRESS the 3CH button (see remote diagram on pg 3), you will hear 3 short beeps
and the “3 CH” will light up on the controller indicating the ATOM™ X now is set to 3CH mode.
To change back to 4 Channel mode: PRESS the 4CH button (see remote diagram on pg 3), you will hear 4 short
beeps and the “4 CH” will light up on the controller indicating the ATOM™ X is now set to 4CH mode.
UNDERSTANDING THE ALTITUDE LOCK SENSOR
The ATOM™ X has a unique Altitude Lock, air pressure sensor that allows for easier flight control and stability.
A beginners friend, it allows the user to ease into piloting the copter. The sensor locks in the altitude of the
copter while allowing the user to adjust the directional controls without having to hold the throttle.
After starting the copter, fly upwards to a safe height using the left joystick. Once at a safe height, letting go
of the left joystick should lock in the altitude and allow the user to focus on getting used to the directional
controls of the ATOM™ X. If when flying, the copter does drift downward or upward, it will automatically self
correct and go back to the last locked height.
NOTE: The altitude sensor does have some tolerance based on atmospheric conditions and could have a slight
variation in altitude.
4CH3CH
NOTE: The use of the Trim buttons are accompanied with a Beep sound. A single long Beep indicates the
product is center trimmed. If there is no beep sound after press the trim buttom, it indicates the maximum
rang of the trim on a particular side.
UNDERSTANDING TRIM ADJUSTMENTS
Forward/Backward Trim
�• If your ATOM™ X is moving forwards or backwards automatically, you may need to adjust the
FORWARD/BACKWARD TRIM buttons.
•�If your ATOM™ X flies forward, push and release the B TRIM button repeatedly until the moving stops
and proper flight is maintained.
•�If your ATOM™ X flies backwards, push and release the F TRIM button in the same manner until the
problem is resolved.
• From time to time you may have to adjust the FORWARD/BACKWARD TRIM to ensure the ATOM™ X
will hover in mid-air and respond accurately to your commands.
Banking Left/Right Trim
• If your ATOM™ X is not steadily hovering and is banking to the left or right automatically, you
may need to adjust the BANKING TRIM buttons.
•�If your ATOM™ X banks to the left, push and release the R TRIM button repeatedly until the banking
stops and proper flight is maintained.
•�If your ATOM™ X banks to the right, push and release the L TRIM button in the same manner until the
problem is resolved.
• From time to time you may need to adjust the BANKING TRIM to ensure the ATOM™ X will steadily
hover in mid-air and respond accurately to your commands.
Forward/ Backward
Trim
Forward/Backward
Trim Controls
Push backward
trim button
Push forward
trim button
If flying forward... If flying backward...
4 CH Left/Right Banking
Controls
Push the “L” trim button to
increase left banking
sensitivity
Push “R” trim button to
increase right banking
sensitivity
Bank Bank
4CH3CH
E
FRONT
Red LED lights
REAR
White LED lights
![](/img.php?id=3447973&img=bg5.png)
7 8

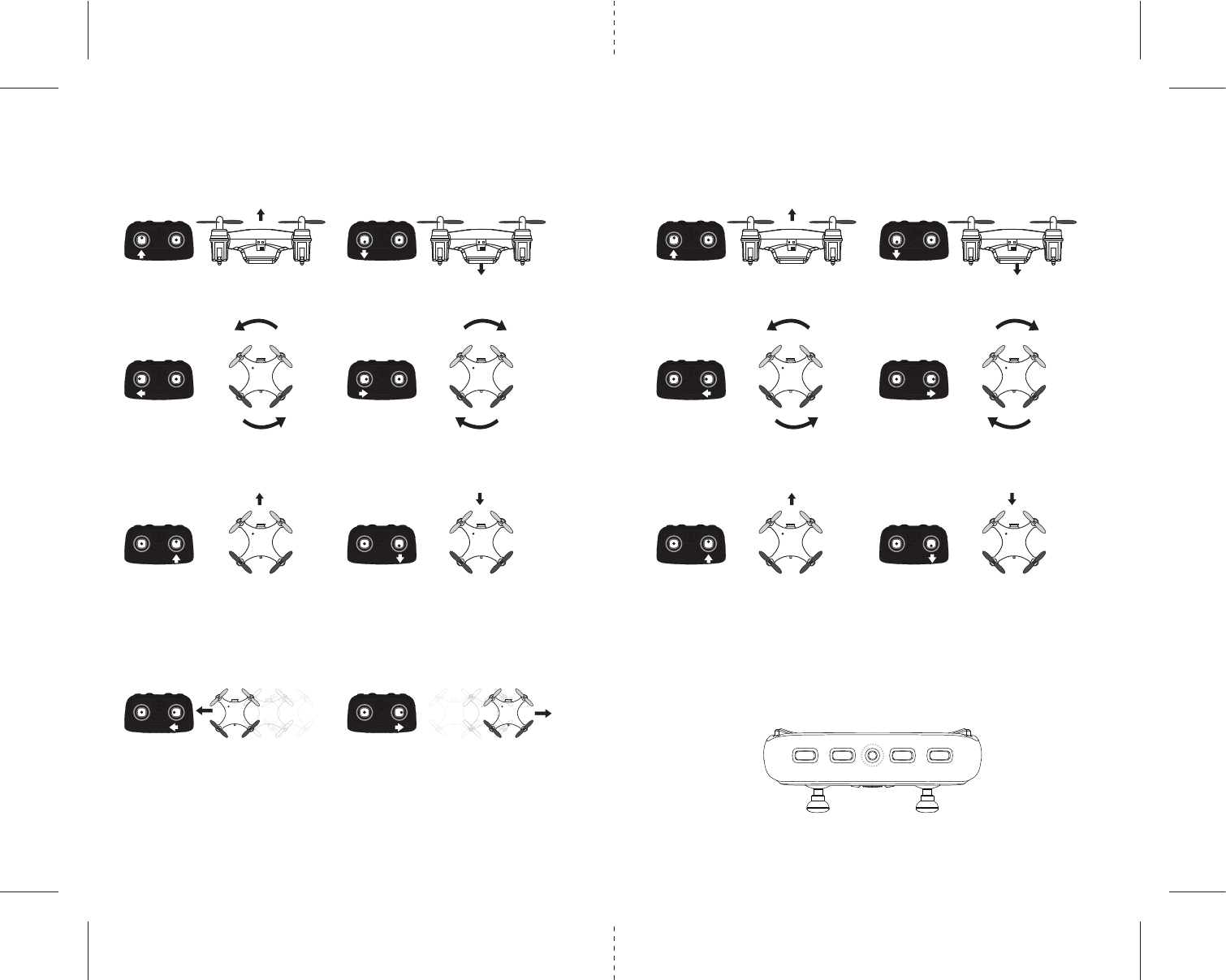

4 CHANNEL FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote control ATOM™ X. While learning to fly
your ATOM™ X it is best to start with a large space until you get used to the basic controls. As you master
flying your ATOM™ X you can move to more advanced maneuvering techniques. Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the Throttle up to increase the speed of
the motors and the ATOM™ X will rise up.
Move the Throttle down to decrease the speed of
the motors and the ATOM™ X will descend.
Move the Throttle stick left and the ATOM™ X
will rotate left.
Move the Throttle stick right and the ATOM™ X
will rotate right.
Move the Direction Control up and the
ATOM™ X will move forward.
Move the Direction Control down and the
ATOM™ X will move backward.
Move the Direction Control left and the
ATOM™ X will bank to the left.
Move the Direction Control right and the
ATOM™ X will bank to the right.
3 CHANNEL FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote control ATOM™ X. While learning to fly
your ATOM™ X it is best to start with a large space until you get used to the basic controls. As you master
flying your ATOM™ X you can move to more advanced maneuvering techniques. Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the Throttle up to increase the speed of
the motors and the ATOM™ X will rise up.
Move the Throttle down to decrease the speed of
the motors and the ATOM™ X will descend.
Move the Throttle stick left and the ATOM™ X
will rotate left.
Move the Throttle stick right and the ATOM™ X
will rotate right.
Move the Direction Control up and the
ATOM™ X will move forward.
Move the Direction Control down and the
ATOM™ X will move backward.
CALIBRATING THE ATOM™ X
If the ATOM™ X becomes unstable during the course of flying, you may need to calibrate the internal gyros.
To do this place the ATOM™ X on a flat level surface, long press the CALIBRATE button on the top of remote
controller. The LEDs on the ATOM™ X will flash quickly and then remain solid, this indicates your drone has
been recalibrated (see diagram C).
C
CALIBRATE
VIDEO
CAMERA STUNT
START/LAND
SPEED
![](/img.php?id=3447973&img=bg6.png)
910

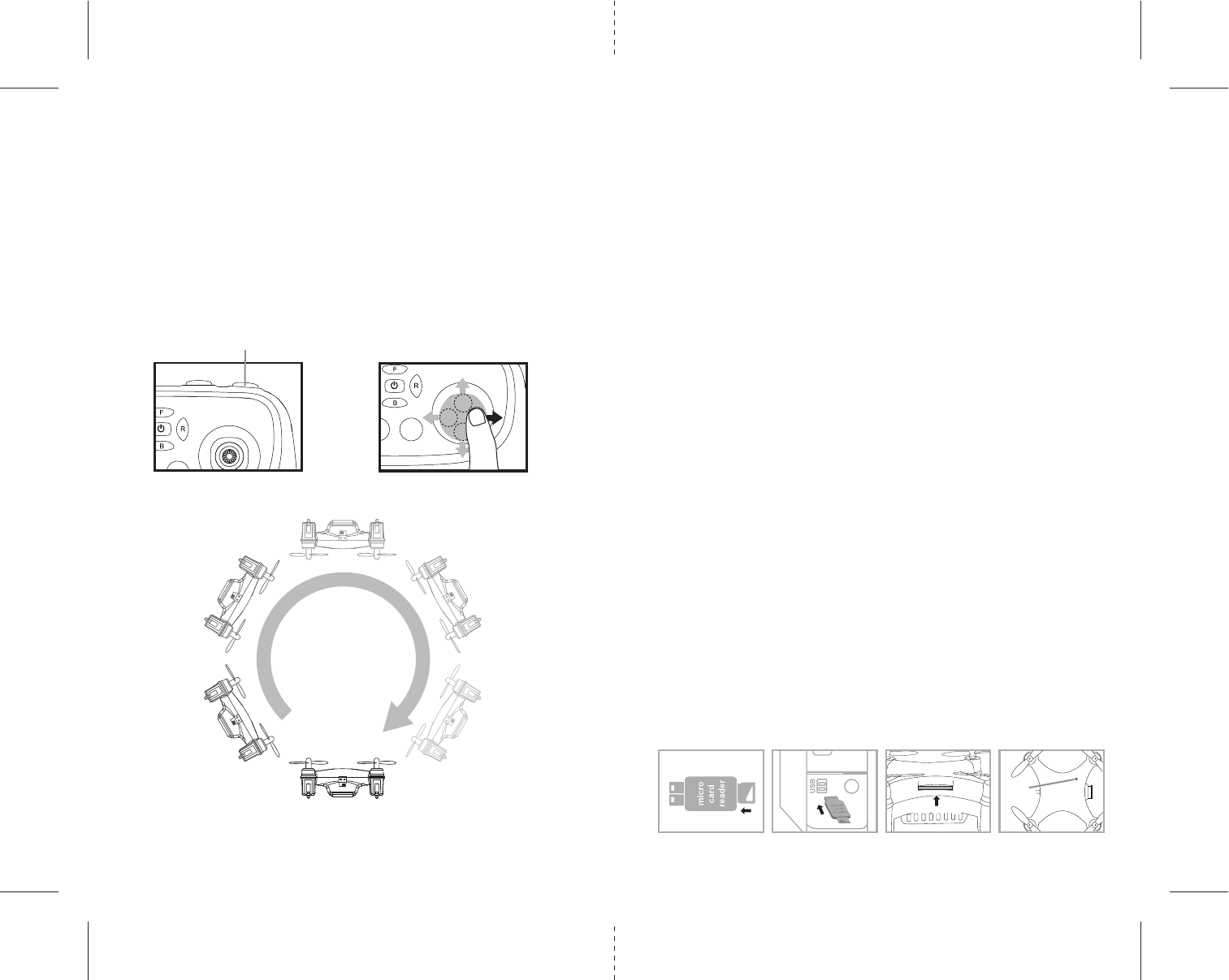

HOW TO DO 360º STUNT ROLLS
1. In order to make your ATOM™ X do 360º rolls you must fully charge your battery.
Note: The ATOM™ X will not do 360º stunt rolls in Mode1 and when the drone is running low
battery (The LED lights on the drone start flashing).
2. Once you are ready to attempt a 360º roll, short press the "STUNT" button on the top right hand side
of your controller (see Remote Diagram D), you will hear continous beeping sounds. This means you
are now in “STUNT MODE”
3. Now quickly move your right control stick in any of 4 directions; up, down, left or right and your
ATOM™ X copter will instantly roll in the associated direction(See diagram E). After stunt roll the
beeping sounds will stop.
D
360˚Stunt-Roll
E
Your ATOM™ X comes equipped with an onboard digital camera that takes both video and still
photographs
.
Now you can have hours of fun creating aerial photography and videos for family and friends.
WHAT YOU WILL NEED TO GET STARTED USING YOUR CAMERA
1. One microSDHC card (not included)
2. One microSDHC card reader (included)
3. One Computer with USB port and Windows Media Player or other Media player that can play AVI files
(not included).
FORMATTING YOUR microSDHC CARD
Before you can begin to take videos or digital photographs you must first format your microSDHC card. To
format your microSDHC card simply place the microSDHC card into the included USB card reader and plug
it into your computers USB port (See diagram 1 and 2 below). After a few moments an icon will appear on
your Desktop. Right click on the Icon and follow instructions to format your microSDHC card.
INSTALLING THE microSDHC CARD IN YOUR NEUTRONTM QUADROCOPTER
• Keep ATOM™ X power turned off.
• Place the formatted microSDHC card into the back of the quadrocopter’s digital camera port( see
diagram 3 below). Push gently and consistently until you hear and feel the microSDHC card “click” into the
digital camera slot.
• Turn on your ATOM™ X power and properly sync it to the Controller (see HOW TO SYNC YOUR DRONE on
page 4 ).
• When you have successfully installed your microSDHC card and your quadrocopter is powered up, you will
see solid green LED lights on the top of your ATOM™ X.
NOTE: If you see the green LED lights keep flashing, it means you have not installed your microSDHC card
correctly or there is a problem with your card. If this happens first make sure that the product is not in
Video Record mode and if not then please reformat and try again. If you continue to encounter problems
call our customers service line at 949.566.9573 Ext 1 for assistance.
TAKING DIGITAL PHOTOS
To take photographs simply short press the CAMERA/VIDEO button on the top of the controller (refer to
CONTROLLER DIAGRAM on pg. 3), when you push the button you will hear a "beep" and the green
indicating LED light will flash one time indicating that a picture has been taken.
RECORDING VIDEOS
To record a video first make sure that your quadrocopter is fully charged and that you have correctly
installed the microSDHC card in the quadrocopters camera port. Begin recording a video by pressing the
CAMERA/VIDEO button for a few seconds (see CONTROLLER DIAGRAM on page 3). The green LED lights on
the top ATOM™ X will flash constantly to indicate that you are in video mode and the camera is recording.
To stop the video recording, press the button again. The green LED lights on the top of the camera will
change to solid indicating that video recording has stopped and the Camera is in ready mode again.
USING YOUR ON BOARD CAMERA AND VIDEO RECORDER
Red LED
Light
microSDHC card
goes in back slot
Diagram 4Diagram 3Diagram 2Diagram 1
IMPORTANT NOTICE : You can not take photos and videos at the same time.
microSDHC card facing upmicroSDHC card facing up
![](/img.php?id=3447973&img=bg7.png)
AA
A
B
B
B
BA
ATOM™ X WARNING:
The ATOM™ X is designed for INDOOR or OUTDOOR flight. ATOM™ X ‘s blades revolve at high speeds and can
cause damage to the user, spectators and animals. Stand away from the ATOM™ X to reduce the risk of
getting into the flight path. Warn spectators that you will be flying your ATOM™ X so that they are aware of
its position. Before flight, inspect the rotor blades to make certain that the blades are securely fastened to
the ATOM™ X.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power switch is turned to the
ON position.
• Turn off the transmitter and ATOM™ X power switches when not in use.
• The included charger is built specifically for the ATOM™ X Li-Poly battery. Do not use it to charge any
other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying ATOM™ X
BATTERY WARNINGS
RECHARGEABLE BATTERY:
This ATOM™ X uses a Li-Poly rechargeable battery. If battery can no longer be charged, dispose of battery
properly according to local disposal requirements.
CONTROLLER BATTERIES:
Remote control requires 2 “AAA” batteries (not included). Please read the important battery safety warning
below.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly
according to state or local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose batteries in a fire - batteries may leak or explode.
CARE AND MAINTENANCE
• Always remove the batteries from the wireless 2.4G remote control when it is not being used for an
extended period of time.
• To clean, gently wipe the remote control and ATOM™ X with a clean damp cloth.
• Keep the toy away from direct heat or sunlight.
• Do not submerge the toy into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.

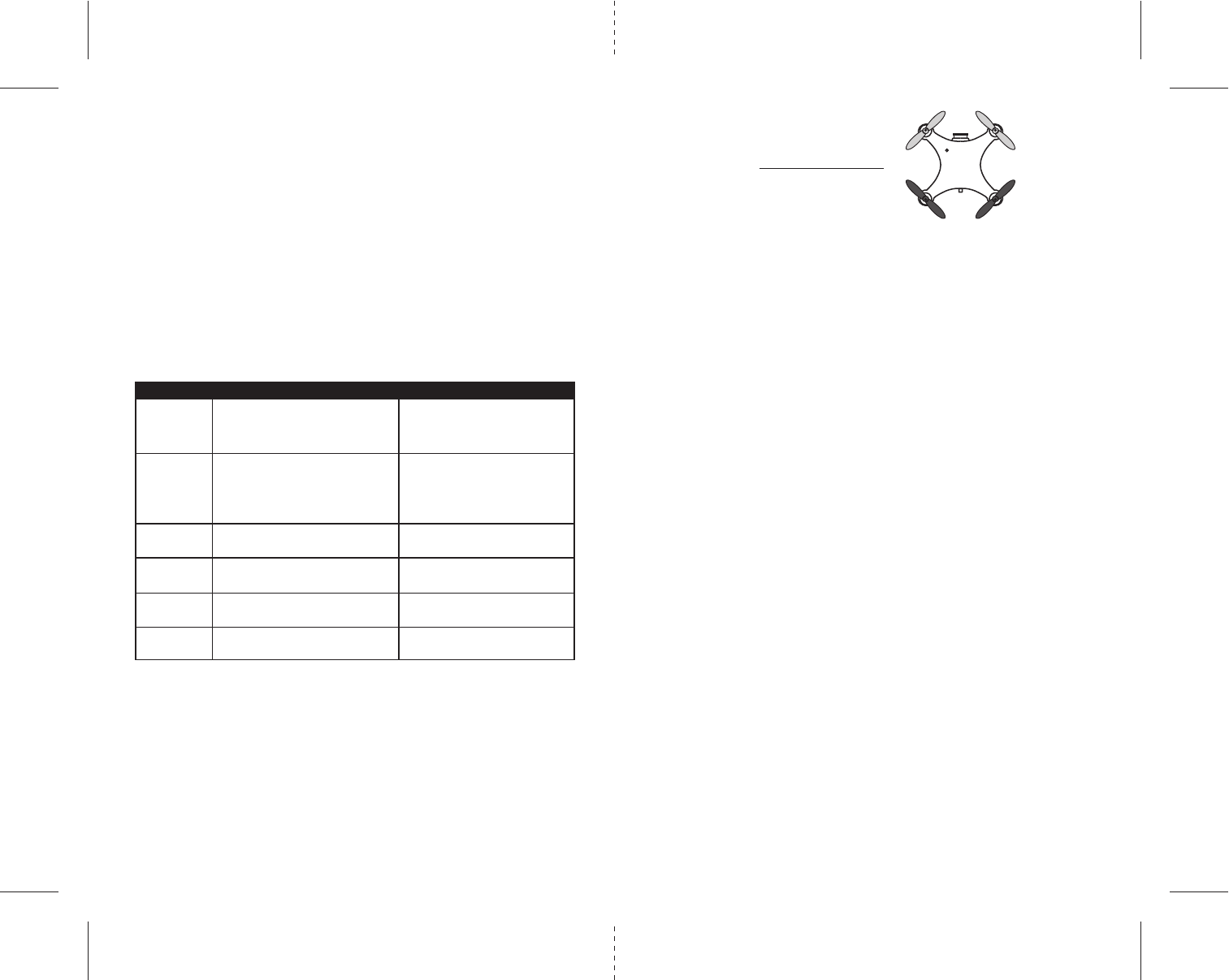

PROBLEM POSSIBLE REASON SOLUTION
TROUBLESHOOTING YOUR ATOM™ X
REPLACING THE PROPELLER BLADES
Your ATOM™ X propeller system is a precision instrument that may need repair or replacement from time
to time for optimal flight function. Crash landing from high-speed aerial flights may cause damage to your
ATOM™ X’s propellers.
1. ATOM™ X have four blades, two gray propellers on the front, and two black propellers on the back.
Please note that the blades and the ATOM™ X are labeled with an embossed A or B (see the diagram S).
2. When replacing the propeller blades, gently remove the blade from the rotor shaft. Make sure to match
both the color of the blade and the indication letter on the blade with the letter on the aircraft.
3. Replace the damaged blade with the new correct blade.
FRONT
REAR
Diagram S
Gray Blade Front Left = A
Gray Blade Front Right = B
Black Blade Rear Left = B
Black Blade Rear Right = A
1. Power switched off
2. Polarity is reversed
3. Batteries may be dead
1. Remote is switched off
2. ATOM™ X is switched off
3. Too windy
4. The Remote light is flashing
1. Rotor speed too slow
2. Drone not fully charged
1. Moving the throttle too quickly
1. Gyroscopes not functioning
1. Drone is out of range of remote
1. Switch the ON/OFF switch to ON
2. Make sure all batteries are installed
correctly (see diagram B)
3. Replace batteries
1. Switch the ON/OFF switch to ON
2. Switch the ON/OFF switch to ON
3. Windy condition severly affects the
operation of the ATOM™ X
4. Replace batteries
1. Push throttle lever forward more
2. Recharge your ATOM™ X
1. Control the throttle slower and
smoother
1. Turn on the ATOM™ X and Reset the
Gyros (see diagram C)
1. Keep the drone within a 20 meter
radius of the remote
NO POWER
Remote Not
Responding
Drone Won’t
lift off
Drone Decsends
Too Fast
Drone Not
Responding
Loss of ATOM™ X
Control
Note: The “A” and “B” marks are embossed under the propellers.
11 12
REMOVING YOUR microSDHC CARD
To remove your microSDHC card, push in gently on the back of the card until you hear and feel a
“clicking”. The microSDHC card will “pop out” slightly and is ready for removal. Simply grab and pull
gently away from the quadrocopter camera port to remove the card. Always store your microSDHC card
in a clean, safe and cool environment.
DOWNLOADING AND CLEARING SPACE ON YOUR microSDHC CARD
Plug your microSDHC card into microSDHC card reader and connect to your computer. It is best to always
download all your videos and pictures onto your computer and not store this data on your microSDHC
card.
After downloading your photos and videos, follow your computers instructions to “delete” files on your
microSDHC card.
IMPORTANT NOTICE: When your microSDHC card is full the indicator light on the bottom of your
quadrocopter will not flashing when you press the photographs or video record button. This indicates
that its time to put a new SD card in your quadrocopter or download files and clear space for new
photos and videos.
