User Manual 1
WARNING: Never leave product charging unattended for extended periods of
time. Always disconnect Neutron™ from charger immediately after the Neutron™
is fully charged. Please refer to enclosed safety instructions.
INSTRUCTION BOOKLET
Colors and styles may slightly vary.
Made in China
Conforms to safety requirements of ASTM, CPSIA and FCC.
©2014 Rooftop Brands™ All rights reserved
Tel: + (1) 949-566-9573 • www.propelrc.com
CHOKING HAZARD
-
Small parts.
Not suitable for children under 3 years.
WARNING!
PACKAGE CONTAINS:
2.4G Wireless Controller Instruction BookletSpare PartsNeutron
FCC Part 15 B Notice
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
13
F
L R
B
NEUTRONTM
2.4Ghz Indoor/Outdoor Quad Rotor Helicopter
Thank you for purchasing the Neutron™ 2.4Ghz Indoor/Outdoor Quadrocopter. Please read this
instruction booklet as it contains valuable information on how to properly fly and care for your Neutron™.
FEATURES
• Built in 6 axis gyroscopic chip keeps the Neutron™ extremely stable in all conditions.
• 4 channel flight controls allow for incredible maneuverability including 360˚ aerial stunts!
• LED directional lights makes the Neutron™ easy to follow.
• On board 6 axis gyro keeps the Neutron™ extremely stable in all conditions
• Patented switch-bladeTM technology allows you to operate in either 3ch or 4ch modes for beginner to
advanced pilots
• Records video footage on Micro SD cards
• Takes still photos
REMOTE CONTROL BATTERY INSTALLATION
1. Unscrew and slide off the battery cover from the back of the controller.
2. Install 2 “AAA” alkaline batteries into the controller as shown in diagram A
3. Replace the battery cover and secure it.
4. Turn over the controller and turn the on/off switch to the on position to
check for an LED light indicator. If the indicator light turns on you have
installed your batteries properly. Battery Compartment
(2 “AAA” batteries)
TABLE OF CONTENTS
Features............................................................................................................ 2
Remote Battery Installation....................................................................................... 2
Charging the Neutron™ Battery................................................................................. 2
Neutron™ Battery Installation................................................................................... 2
Neutron™ Diagram, Remote Diagram........................................................................... 3
Preparing For Flight...............................................................................................4
Syncing Your Neutron™...........................................................................................4
Flying Tips........................................................................................................ 4
Recognizing the Front and Back of the copter................................................................... 5
Forward / Backward Trim........................................................................................ 5
Banking Left / Right Trim........................................................................................ 6
3/4 Channel Select................................................................................................. 6
Speed & Light button............................................................................................. 6
4 Channel Flight Control........................................................................................... 7
3 Channel Flight Control........................................................................................... 7
360˚ Stunt rolls.................................................................................................... 9
Using Your on Board Camera And Video Recorder..............................................................10
Formatting Your Micro SD Card..................................................................................10
Taking Digital Photos.............................................................................................10
Recording Videos.................................................................................................10
Removing Your Micro SD Card....................................................................................11
Downloading and Clearing Space on Your Micro SD Card.....................................................11
Replacing The Propeller Blade...................................................................................12
Battery Warnings, Care and Maintenance...................................................................... 12
FCC Part 15 B Notice............................................................................................ 13
Battery Cover
Li-Poly
Battery
1 2
CHARGING THE NEUTRON™ LI-POLY BATTERY
1. Connect the battery to the adaptor as shown (see illustration B).
2. Next, connect the USB charging cord to your computer’s USB port (see diagram C )
Note: The USB plug will show a RED charging indicator light. This lets you know that
Charging is in progress.
3. When the Neutron™ battery is fully charged the Charging indicator light will turn off.
4. Average charging time is approximately 30-40 minutes. A fully charged Neutron™ can
fly for 6-8 minutes depending on environment and user input.
NOTE: You may purchase additional batteries and rapid wall charges at www.propelrc.com.
C.B.
A.
NEUTRON™ BATTERY INSTALLATION
1. Slide the fully charged battery into Neutron™ battery compartment (see diagram D).
2. Connect the power cord as shown on diagram E, the copter’s LED lights will light up and begin
flashing when you connect the power cord correctly.
3. NOTE: The Neutron™ has no on/off switch. The Neutron™ automatically turns on when the
LI-POLY battery is connected. To Switch off simply unplug the Battery
ED
IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING
CORD WHEN NOT IN USE!
CAUTION!: NEVER FORCE THE POWER CORD: The power cord fits in only one direction, use mild constant forward
pressure. If the plug seems stuck or wont move easily try turning it over and study the jack closely.
NEUTRON™ DIAGRAM
REMOTE DIAGRAM
FLYING TIPS
• It is recommended that you operate the Neutron™ in a wide space. The ideal space should have a 200
foot radius.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the Neutron™ with others, make sure all spectators are behind you.
• For best performance, it is recommended that you operate the Neutron™ in zero wind conditions.
Wind can greatly affect the performance of the Neutron™.
Important! When syncing your Neutron™ copter with the controller always make sure that the
copter is on a flat level surface and that your digital trim settings are in the center position. This
insures that the 6 Axis gyro is properly programmed to mimic your trim settings.
Your Neutron™ utilizes an automatic 2.4G channel selection system that allows up to 8 people to fly
side by side in the same wireless range with no interference.
For One Person Play:
1. Before starting, make sure that the power on both your controller and Neutron™ are in the OFF
position. Make sure that there are no other 2.4G devices in the area as well.
2. Turn ON the Neutron™ and set it down on a flat surface. The white and red LED indicators of the
Neutron™ should begin to flash.
3. Turn ON the remote, you will hear long beep, the Neutron’s white and red LED lights should change to
solid, pull the throttle all the way down. Right now your controller and the helicopter successfully
synced , Should this not happen, repeat above steps again.
For Multi Person Play:
4. Before starting, make sure that the power on all Neutrons and Controllers are in the OFF position.
Make sure that there are no other 2.4G devices in the area as well.
5. Each person will have to sync their Neutron™ individually at a different time to avoid interference.
Follow steps 1 to 3 above making sure to keep away from other people while also making sure that no
one else is syncing at the same time.
6. After syncing a player’s Neutron™, it should be left ON until all players have synced their Neutron™
copters.
7. Should there be a mistake/interference, all players must turn off their controllers and Neutron™
Quadrocopters for 60 seconds and then begin the process again.
SYNCING YOUR NEUTRON™
Power Indicator Light
Throttle Control
Speed Indicator
Lights
360˚Stunt Rolls/Speed button
Forward Trim
Backward Trim
Directional
Controls
Power On/Off
Left Banking Trim
Right Bank Trim
DO NOT FLY YOUR NEUTRON™ IN FOUL WEATHER!
WARNING
• Verify that there are 2 “AAA” batteries inside the remote control unit and the Neutron™ has been fully charged.
• Make sure your Neutron™ and controller are both turned on.
• Make sure to be in a large space with an open radius of at least 50 feet.
• Make sure the empty space has no obstacles and river. Set your Neutron™ on a clean flat surface before take-off.
DO NOT ATTEMPT TO FLY YOUR NEUTRON™ IF THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR LIGHTNING
OUTDOORS. IT COULD DAMAGE YOUR PRODUCT AND POSSIBLY EVEN CAUSE BODILY HARM.
PREPARING FOR FLIGHT
3 4
F
L R
B
Safety Cage
Front Rotor Blades
(white color)
Landing Gear
Digital Camera
Rear Rotor Blades
(black color)
4 CH + Start & Stop
Video Recording Button
3 CH + Camera Snap
Shot Button
Micro SD Card
Socket
battery
compartment
F
L R
B
Right Bank Trim
Left Bank Trim
F
L R
B
NOTE: The use of the Trim buttons are accompanied with a Beep tone. A single long Beep indicates the
product is center trimmed. Continuous long Beeps indicate the product is trimmed to the maximum on a
particular side.

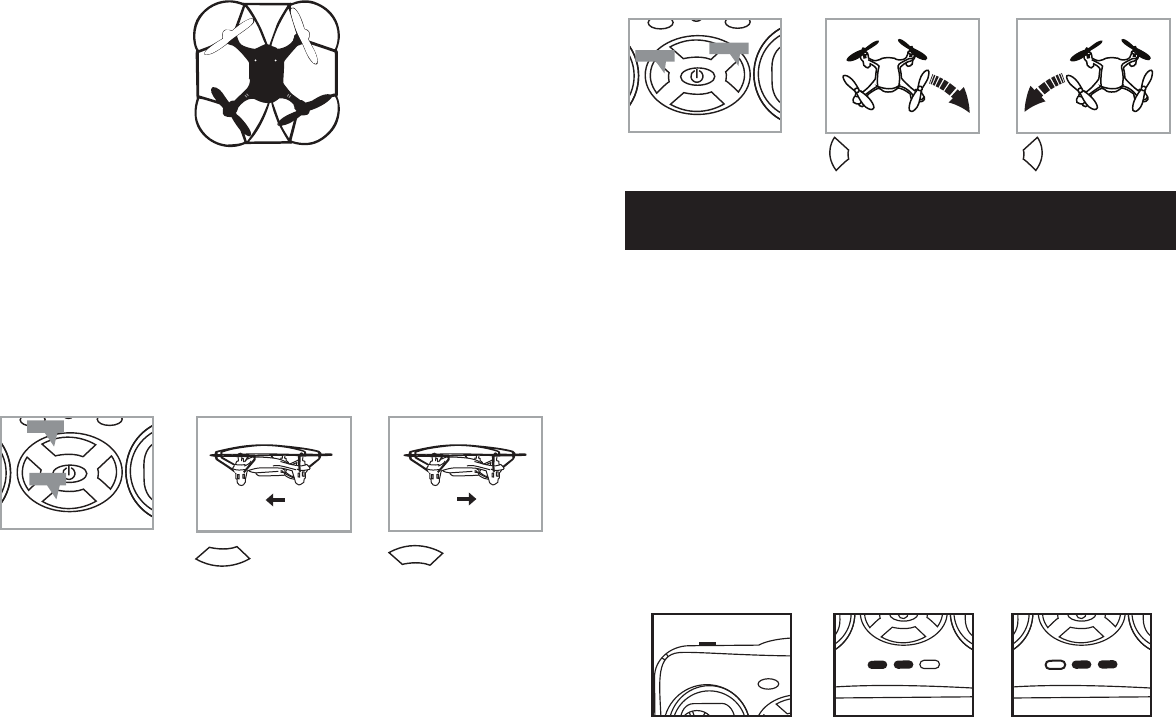

UNDERSTANDING TRIM ADJUSTMENTS
Forward/Backward Trim
• If your Neutron™ is moving forwards or backwards automatically, you may need to adjust the
FORWARD/BACKWARD TRIM buttons.
• If your Neutron™ flies forward, push and release the BACKWARD TRIM (B)button repeatedly until the
moving stops and proper flight is maintained.
• If your Neutron™ flies backwards, push and release the FORWARD TRIM (F)button in the same
manner until the problem is resolved.
• From time to time you may have to adjust the FORWARD or BACKWARD TRIM buttons to ensure the
Neutron™ will hover in mid-air and respond accurately to your commands.
Banking Left/Right Trim
�• If your Neutron™ is not steadily hovering and is banking to the left or right automatically, you
may need to adjust the LEFT BANK or RIGHT BANK Trim buttons.
• If your Neutron™ banks to the left, push and release the RIGHT BANK TRIM (R)button repeatedly until
the banking stops and proper flight is maintained.
• If your Neutron™ banks to the right, push and release the LEFT BANK TRIM (L) button in the same
manner until the problem is resolved.
• From time to time you may have to adjust the LEFT and RIGHT BANK TRIM to ensure the Neutron™
will steadily hover in mid-air and respond accurately to your commands.
SPEED SELECT BUTTON
The Neutron™ has 3 speed settings; SLOW, MEDIUM and HIGH. The Default setting when you first turn
on your Neutron™ is the SLOW speed mode. To increase the speed simply depress the speed setting
button (see diagram G) you will here a beep and the speed setting indicator light bar will show you
what speed setting you are on by the number of lights that are lit-up (see diagram H). One light
indicates slow, 2 lights indicates medium speed and all 3 lights lit up indicate full or fastest speed.
NOTE: When in 3CH mode, the speed setting indicator bar will light its LEDs from Left to Right
(see diagram H). When in 4CH mode the speed setting indicator bar will light it’s LED’s from Right to Left
(see diagram I) This is a helpful reminder as to what control channel mode you are flying in.
RECOGNIZING THE FRONT AND BACK OF THE COPTER
Even though the copter has four rotors there is still a front or "forward" facing direction and "back" or
backwards facing direction. The forward Front and forward facing direction of the Quadrocopter is the
side with two white blades (see diagram F ). The rear and back of the Quadrocopter is where the
charging socket and the two black propellers (see diagram F).
NOTE: The front of the Quadrocopter displays WHITE LED lights and the back of the copter displays RED LED
lights.
3/4 CHANNEL SELECT
Neutron™ allows you to control your Quadrocopter in 3 channel mode (beginner) or 4 channel mode
(advanced flying). The Neutron™ default setting is 4 Channel mode.
To change to 3 Channel mode:
PRESS and hold the 3CH button (see remote diagram on pg 3), you will hear 3 short beeps indicating the
Neutron™ now is set to 3CH mode.
To change back to 4 Channel mode:
PRESS and hold the 4CH button (see remote diagram on pg 3), you will hear 4 short beeps indicating the
Neutron™ is now set to 4CH mode.
Forward Trim
Backward Trim
Forward/Backward
Trim Controls
Push and release
to go backward
If flying forward... If flying backward...
Push and release
to go forward
Left/Right Banking Controls Push the left button to
increase left banking
sensitivity
Push to right button to
increase right banking
sensitivity
5 6
F
L R
B
Speed button
F
L R
B
LR
F
B
Front
F
GH
F
L R
B
I

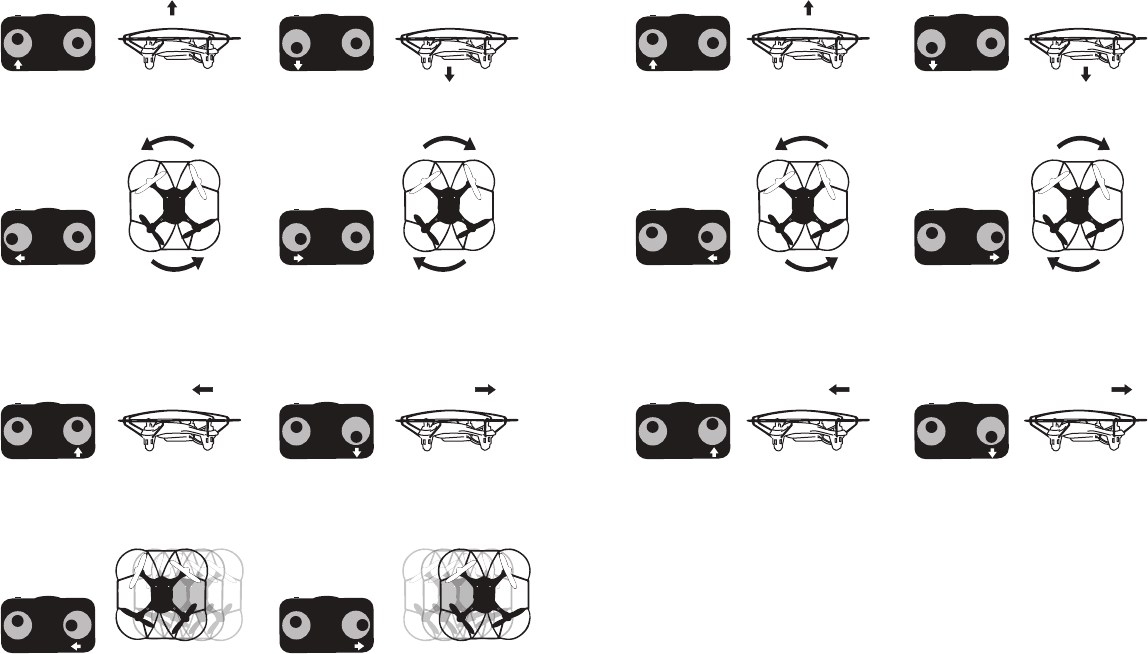

4 CHANNEL FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote control Neutron™. While learning to fly
your Neutron™ it is best to start with a large space until you get used to the basic controls. As you master
flying your Neutron™ you can move to more advanced maneuvering techniques. Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the left Throttle stick up to increase the
speed and the Neutron™ will accelerate and
ascend.
Move the left Throttle stick down to decrease the
speed and the Neutron™ will decelerate and
descend.
Move the left Throttle stick left and the
Neutron™ will turn/spin left.
Move the left Throttle stick right and the
Neutron™ will turn/spin right.
Move the right Direction Stick up and the
Neutron™ will move forward.
Move the right Direction Control down and the
Neutron™ will move backward.
3 CHANNEL FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote control Neutron™. While learning to fly
your Neutron™ it is best to start with a large space until you get used to the basic controls. As you master
flying your Neutron™ you can move to more advanced maneuvering techniques. Practice makes perfect!
When you have these basic steps down you can move to the next level.
Move the right Direction Control left and the
Neutron™ will bank to the left.
Move the right Direction Control right and the
Neutron™ will bank to the right.
7 8
Move the Left Throttle Stick up to increase the
speed and the Neutron™ will accelerate.
Move the Left Throttle Stick down to decrease
the speed and the Neutron™ will descend.
Move the Right Directional Stick Right to
spin/turn left
Move the Right Directional Stick Left to
spin/turn left
Move the Right Direction Stick forwards and
the Neutron™ will move forward.
Move the Right Direction Stick backwards down
and the Neutron™ will move backwards.

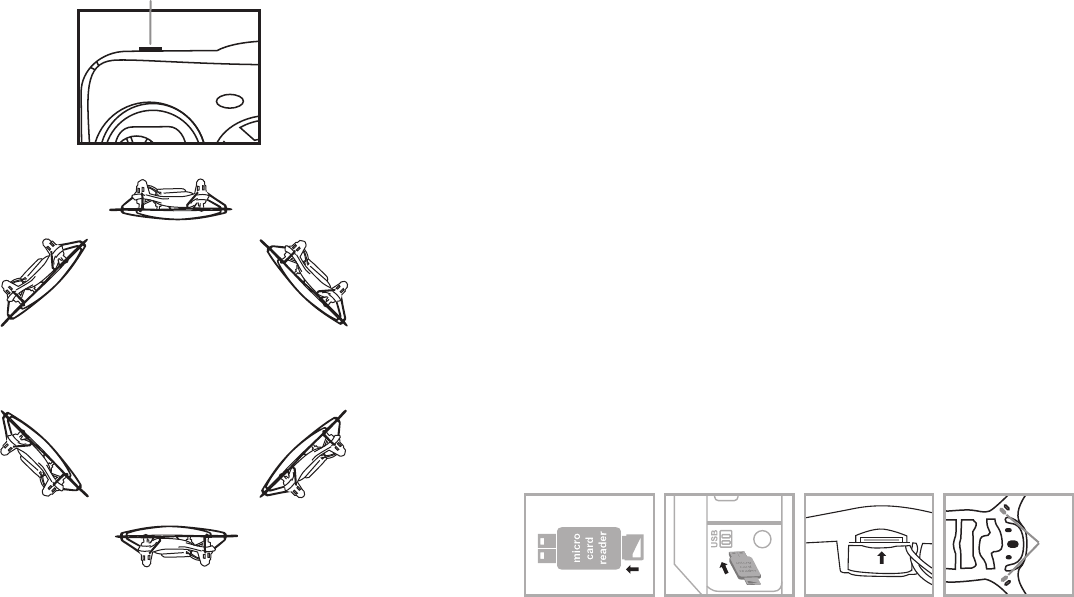

HOW TO DO 360º STUNT ROLLS
Doing 360º stunt rolls with the Neutron™ Quadrocopter is as easy as 1-2-3:
1. Hover the quadrocopter in still position making sure that you have at least 3 feet of clearance above and
below quadrocopter.
2. Press down and hold the 360 stunt button and you will enter the stunt roll mode which is indicated by
a rapid beeping (see diagram J).
3. Decide which direction you want it to flip and quickly push the right control stick in the direction you
want to flip your Quadrocopter. You have 4 choices a) Forward Roll, b) Backwards roll, c) right side roll,
d) left side roll.
IMPORTANT NOTICE: You must hold down the stunt button as you flip your helicopter.
4). To exit the Stunt Rolls mode, simply release the button and push the directional control stick in any
direction.
J
9 10
F
L R
B
360˚Stunt Rolls/Speed button
Your NEUTRON™ helicopter comes equipped with an onboard digital camera that takes both video and still
Photographs. Now you can have hours of fun creating aerial photography and videos for family and friends.
WHAT YOU WILL NEED TO GET STARTED USING YOUR CAMERA
1. One Micro SD card (not included)
2. One Micro SD card reader (included)
3. One Computer with USB port and Windows Media Player or other Media player that can play AVI files
(not included).
FORMATTING YOUR MICRO SD CARD
Before you can begin to take videos or digital photographs you must first format your Micro SD card. To format
your Micro SD card simply place the Micro SD card into the included USB SD card reader and plug it into your
computers USB port (See diagram 1 and 2 below). After a few moments an icon will appear on your Desktop.
Right click on the Icon and follow instructions to format your Micro SD card.
INSTALLING THE MICRO SD CARD IN YOUR NEUTRONTM HELICOPTER
• Disconnect the power cord between the battery and helicopter.
• Place the formatted SD card into the back of the helicopters digital camera port. ( see diagram 3 below) Push
gently and consistently until you hear and feel the micro SD card “click” into the digital camera slot.
• Turn the helicopter on and make sure that it is both fully charged and properly synced to the Controller
(see HOW TO SYNC YOUR HELICOPTER on page 4 ).
• When you have successfully installed your micro SD card and your helicopter is connect to the battery, you
will see a solid red LED lights on the helicopter belly. This red LED lights is accompanied by a separate
flashing on its side (see camera indicator light diagram 4 below). NOTE: If you see a continuous rapid flashing
light this means you have not installed your Micro SD card correctly or there is a problem with your SD card.
If this happens first make sure that the product is not in Video Record mode and if not then please reformat
and try again. If you continue to encounter problems call our customers service line at 949.566.9573 Ext 1
for assistance.
TAKING DIGITAL PHOTOS
To take photographs simply press and release the PHOTO button on the face of the controller (refer to
CONTROLLER DIAGRAM on pg. 3) the red light on the belly of the camera will flash RED 1x. As this red light is
flashing it is taking one still photo. When the camera ready light becomes solid again you are ready for your
next photograph.
RECORDING VIDEOS
To record a video first make sure that your helicopter is fully charged and that you have correctly installed the
micro SD card in the Helicopters camera port. Begin recording a video by pressing the VIDEO RECORD button
on the face of the controller (see CONTROLLER DIAGRAM on page 3). The red indicator light will continuously
flash RED indicating that VIDEO recording is in progress. To stop the video recording, press the RECORD button
a second time. The red indicator light on the belly of the camera will change to solid indicating that video
recording has stopped and the Camera is in ready mode again.
USING YOUR ON BOARD CAMERA AND VIDEO RECORDER
Red LED
Light
micro SD card facing up
micro SD card
goes in back slot
Diagram 4Diagram 3Diagram 2Diagram 1
NEUTRON™ WARNING
:
The Neutron™ is designed for INDOOR or OUTDOOR. The Neutron™ blades revolve at high speeds and can cause
damage to the user, spectators and animals. Stand away from the Neutron™ to reduce the risk of getting into the flight
path. Warn spectators that you will be flying your Neutron™ so that they are aware of its position. Before flight, inspect the
rotor blades to make certain that the blades are securely fastened to the Neutron™.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power switch is turned to the ON position.
• Turn off the transmitter and Neutron™ power switches when not in use.
• The included charger is built specifically for the Neutron™ Li-Poly battery. Do not use it to charge any other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying Neutron™.
BATTERY WARNINGS
R
ECHARGEABLE BATTERY:
This Neutron™ uses a Li-Poly rechargeable battery. If battery no longer stays charged, dispose of battery properly
according to local disposal requirements.
CONTROLLER BATTERIES:
Remote control requires 2 “AAA” batteries (not included). Please read the important battery safety warning below.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly
according to state or local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose batteries in a fire - batteries may leak or explode.
CARE AND MAINTENANCE
• Always remove the batteries from the wireless infrared remote control when it is not being used for an extended period
of time.
• To clean, gently wipe the remote control and Neutron™ with a clean damp cloth.
• Keep the toy away from direct heat or sunlight.
• Do not submerge the toy into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.
REPLACING THE PROPELLER BLADE
Your Neutron™ propeller system is a precision instrument that may need repair or replacement from time
to time for optimal flight function. Crash landing from high-speed aerial flights may cause damage to your
Neutron™ propellers.
1. The Neutron™ have four blades, two gray colors on front, and two black colors on back
(see the diagram K).
2. Pick up a blade from the included spare parts and match the color to the diagram K.
3. Replacing the correct blade to the broken blade.
K
11 12
Front
REMOVING YOUR MICRO SD CARD
To remove your Micro SD Card push in gently on the back of the SD card with your thumb or forefinger until
you hear and feel a “clicking sound”. The Micro SD card will “pop out” slightly and is ready for removal.
Simply grab and pull gently away from the helicopter camera port to remove the card. Always store your
Micro SD card in a clean, safe and cool environment.
DOWNLOADING AND CLEARING SPACE ON YOUR MICRO SD CARD
Plug your micro SD card into micro SD card reader and connect to your computer. It is best to always
download all your videos and pictures on to your computer and not store this data on your Micro SD card.
After downloading your photos and videos , follow your computers instructions to “delete” files on your
Micro SD card.
IMPORTANT NOTICE: When your Micro SD card is full the indicator light on the bottom of your helicopter
will not flashing when you press the photographs or video record button. This indicates that its time put a
new SD card in your helicopter or download files and clear space for future photos and videos.
