WARNING: Never leave product charging unattended for extended periods of
time. Always disconnect Sky MasterTM battery from charger immediately after
it is fully charged. Please refer to enclosed safety instructions.
INSTRUCTION BOOKLET
Colors and styles may slightly vary.
PACKAGE CONTAINS:
2.4G Wireless
Controller
Instruction
Manual
Spare Parts Phone HolderAC Charger
& Li-Poly
Rechargeable Battery
Sky MasterTM
2.4GHz Quadrocopter With HD Camera
INDUSTRY CANADA NOTICE: CANADA ONLY.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter dout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
ON BOARD
HD VIDEO
ON BOARD
HD CAMERA
1280 x 720 pixel
30 frames per second
PROPEL RC™ and SKY MASTER™ are trademarks of Rooftop Brands.
8619 Wall street, Suite 400, Austin, TX 78754 tel: 949.566.9573
© 2016 Rooftop Brands™. All Rights Reserved. www.propelrc.com.
ON
USB Card
Reader
PROPEL
BC
Requires Class 6 or higher microSDHC card
(not included)
microSDHC Logo is a trademark of SD-3C, LLC.
CAN ICES-3(B)/NMB-3(B)
CHOKING HAZARD
-
Small parts.
Not suitable for children under 3 years.
CHOKING HAZARD
- Pièces de petite. taille N’est
pas conçu pour des enfants de moins de 3 ans.
PELIGRO DE ASFIXIA
- Partes pequeñas. No apto
para niños menores de 3 años.
AVERTISSEMENT:
WARNING!
¡ADVERTENCIA!
*This device complies with FCC and IC radiation exposure limits set forth for an
uncontrolled environment. The device should be installed and operated with a
minimum distance of 20cm between the radiator and your body. This device must
not be collocated or operating in conjunction with any other antenna or transmitter.
![](/img.php?id=3127213&img=bg2.png)
A B
C
AC AdaptorLi-Poly Battery
4 1.5 volt “AA” Alkaline Batteries
1 2
Thank you for purchasing the Sky Master™ 2.4 Ghz Quadrocopter. Please read this instruction booklet as it
contains valuable information on how to properly fly and care for your Sky Master™ Drone.
FEATURES
• 6 Axis Gyro For Extremely Stable Flight and Maneuverability
• Wide Range Digital Radio Allows Flight Range Up To 500 Feet
• Takes Video and Still Shots With Onboard Camera
• 3 Speed Settings From Beginner To Advanced Pilots
• 360 Degree Push Button Stunt Rolls
• Air pressure sensors lock flight altitude for stable video footage
• Automatically lands with the push of a button
• 2.4 Ghz Controller, Replaceable Li-poly Battery and Additional Replacement Parts Included.

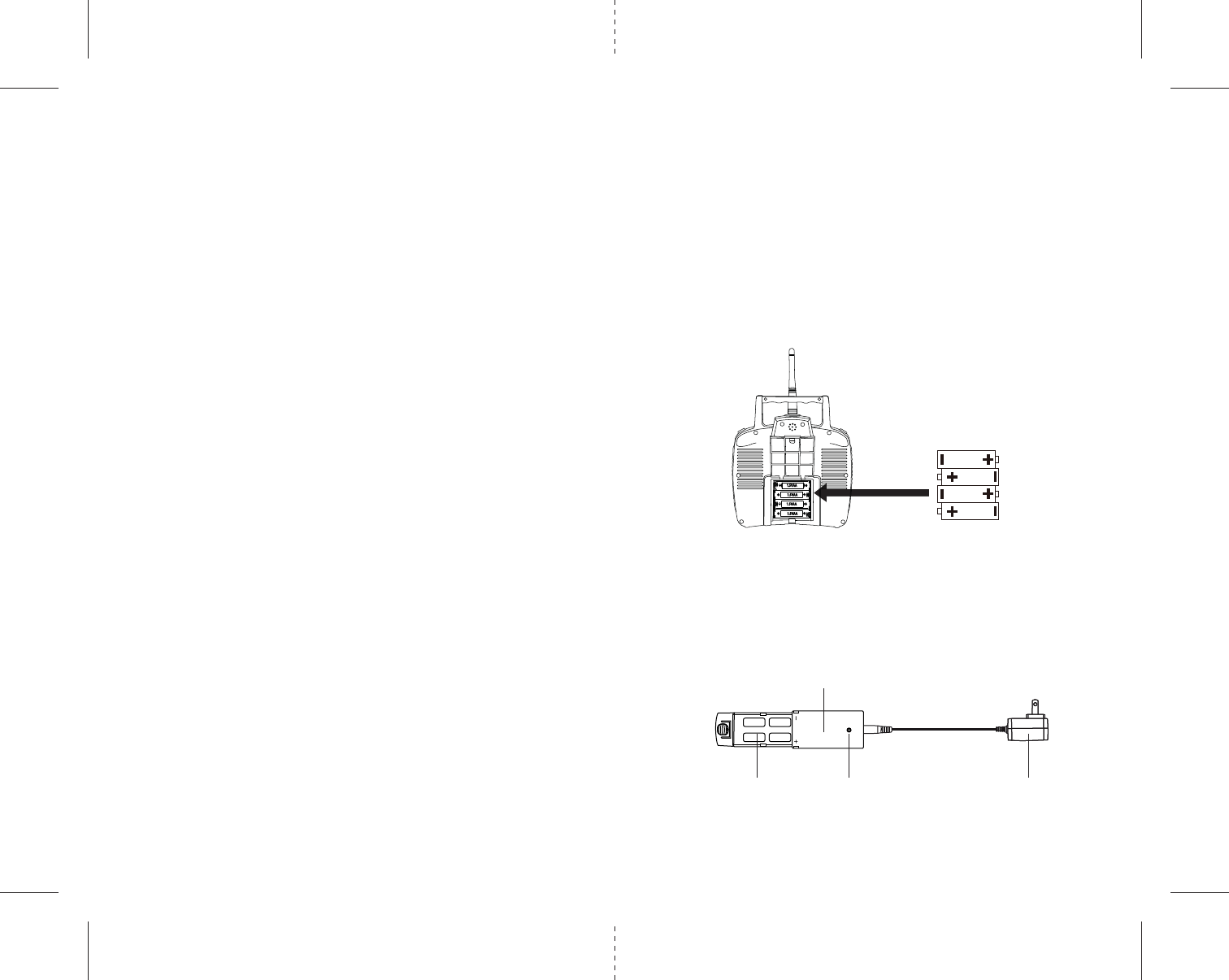

REMOTE CONTROL BATTERY INSTALLATION
1. Remove the battery cover from the back of the controller as shown in diagram A.
2. Install 4 “AA” fresh alkaline batteries into the controller as shown in diagram B. Make sure to install
batteries to their correct polarity. Do not mix old and new batteries or battery types.
3. Replace the battery cover.
CHARGING YOUR SKY MASTER™ Li-POLY BATTERY
1. Connect the battery to the charging box. Plug the adapter into the charging box and plug into standard
outlet (see diagram C).
CAUTION: improper connection may damage the Sky Master™ battery.
2. The indicator light will glow Red while the unit is charging. When the Red Led light turns off, your
battery has a complete charge.
3. Average charging time is around 100 minutes to fully charged.
4. A full charge will allow for about 7-10 minutes of flight time depending on environment and user input.
IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING CORD WHEN NOT IN USE!
TABLE OF CONTENTS
Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Remote Control Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Charging Your Sky Master™ Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Sky Master™ Quadrocopter Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Sky Master™ Remote Control Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Sky Master™ Remote LCD Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Flight Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Syncing Your Sky Master™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Flying Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Recognizing The Front & Back Of The Sky Master™. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
How To Start/Stop Rotors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Auto Land Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Channel Flight Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Calibrating the Sky Master™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Flight Practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Speed Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Headless Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How to Perform 360º Stunt Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using Your On-Board Camera and Video Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your On-Board Camera and Video Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Live Video Streaming Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Replacing The Propeller Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching the Blade Guards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Skymaster™ Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Battery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LED Indicator
Charging Box
![](/img.php?id=3127213&img=bg3.png)
ON
Propeller Blade

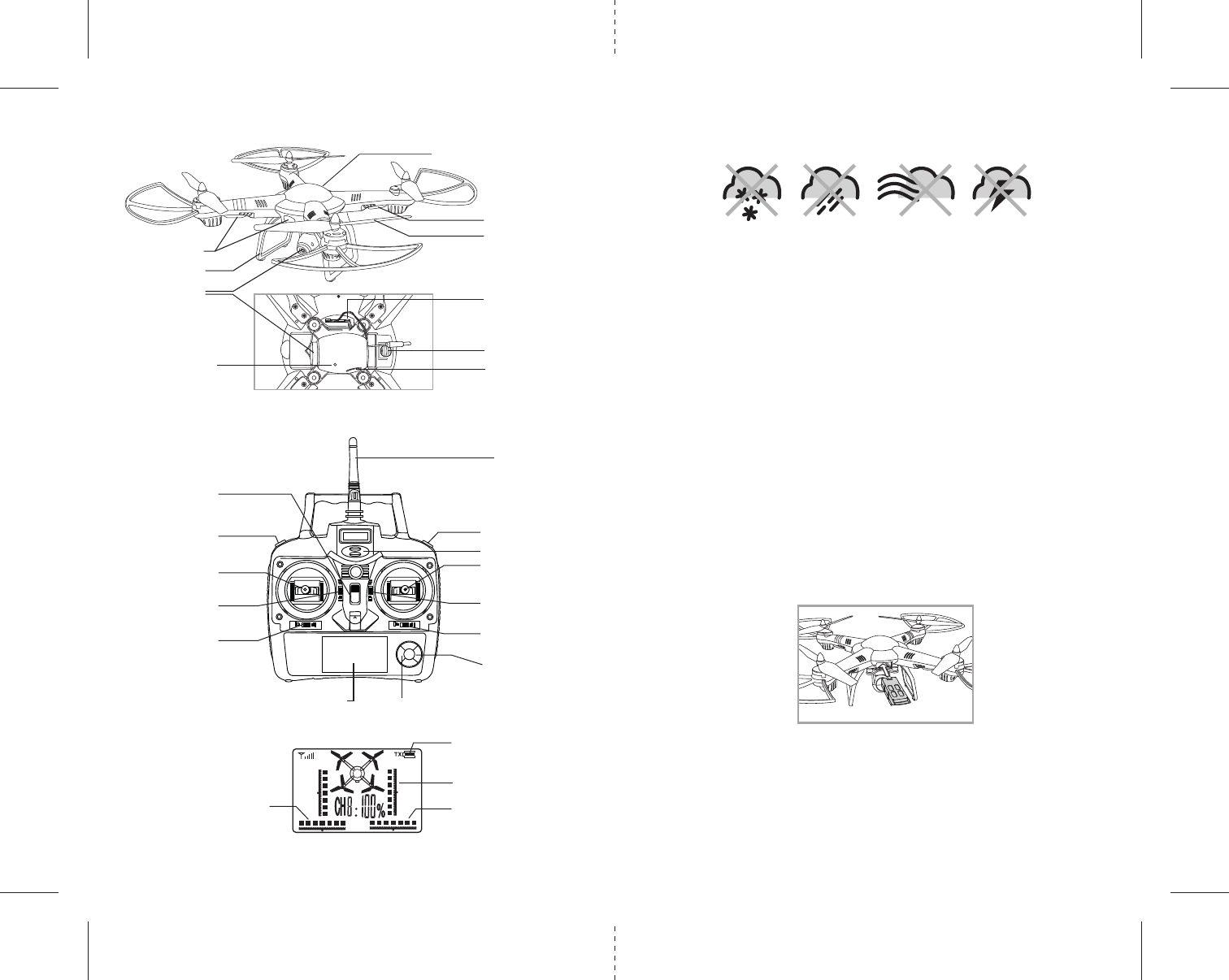

SKY MASTER™ QUADROCOPTER DIAGRAM
SKY MASTER™ REMOTE DIAGRAM
Speed Button
Camera
Angle
Throttle & Spin
Left/Right
Spin Right/Left
Trim
Power Switch
Power Indicator
Antenna
Forward/Backward
Bank Left/Right
Bank Right/Left Trim
Adjustment
360º Flip Button
Forward/Backward
Trim Adjustment
LCD Screen
D
3 4
FLIGHT PREPARATION
• Verify that there are 4 “AA” batteries inside the remote control unit and the Sky Master™ has been
fully charged.
• Make sure your Sky Master™ and controller are both turned on.
• Make sure to be in a large space with an open radius of at least 200 feet.
• Make sure the empty space has no obstacles. Set your Sky Master™ on a clean flat surface before take-off.
DO NOT ATTEMPT TO FLY YOUR SKY MASTER™ IF THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR
LIGHTNING OUTDOORS. IT COULD DAMAGE YOUR PRODUCT AND POSSIBLY EVEN CAUSE BODILY HARM.
SYNCING YOUR SKY MASTER™
Important! When syncing your Sky Master™ quadrocopter with the controller always make sure
that the quadrocopter is on a flat level surface and that your digital trim settings are in the center
position. This insures that the 6 Axis gyro is properly programmed to mimic your trim settings.
Your Sky Master™ utilizes an automatic 2.4G channel selection system that allows up to 8 people to fly side
by side in the same wireless range with no interference.
Syncing your aircraft:
1. Before starting, make sure that the power on your controller is in the OFF position and the Sky Master™
battery is not inserted. Make sure that there are no other 2.4Ghz devices in the area as well .
2. Connect the battery to the Sky Master™ and set it down on a flat surface. The LED indicator
lights of the Sky Master™ should begin to flash (see diagram D).
3. Next turn ON the remote controller. After hearing a series of beeps, the Sky Master's
TM
flashing LED
lights will change to a solid glow signaling that the drone and controller have been synced. If this
does not happen, repeat all steps above.
FLYING TIPS
• It is recommended that you operate the Sky Master™ outdoors in a wide space. The ideal space should
have a 200 foot radius.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the Sky Master™ with others, make sure all spectators are behind you.
• For best performance, it is recommended that you operate the Sky Master™ in zero wind conditions.
Wind can greatly affect the performance of the aircraft or cause injury.
DO NOT FLY YOUR SKY MASTER™ IN FOUL WEATHER!
WARNING
Li-Poly Battery Compartment
Auto Land
Headless Mode
SKY MASTER™ REMOTE LCD DIAGRAM
Rotate Left/Right Trim
Controller Battery Level
Forward/Backward
Trim
Bank Left/Right
Trim
Battery Eject lever
Front
(Green LED Lights)
Back (Red LED Lights)
Landing Gear
Digital Camera Camera data interface
Camera Indicator Light Micro SD Card Slot
40%
60%
80%
100%
![](/img.php?id=3127213&img=bg4.png)
ON
ON
ON
ON
ON
ON
ON
ON
ON
F
J
K
L
M
G
H
I
FRONT
FRONT
FRONT
FRONT
EFRONT
REAR
5 6
Forward/Backward Trim
• If your Sky Master™ drifts forward, push and
release the BACKWARD TRIM button back
repeatedly until the motion stops and proper
flight is maintained (see diagram J).
• If your Sky Master™ drifts backwards, push and
release the FORWARD TRIM button forward in
the same manner until the problem is resolved.
Right/Left Bank Trim
• If your Sky Master™ drifts left, push and release
the RIGHT TRI M button back repeatedly until
the motion stops and proper flight is
maintained (see diagram K).
• If your Sky Master™ drifts right, push and release
the LEFT TRIM button in the same manner until
the problem is resolved.
Right/Left Spin Trim
• If your Sky Master™ spins left, push and release
the RIGHT SPIN TRIM button back repeatedly
until the motion stops and proper flight is
maintained (see diagram L).
• If your Sky Master™ spins right, push and release
the LEFT SPIN TRIM button in the same manner
until the problem is resolved (see diagram M).

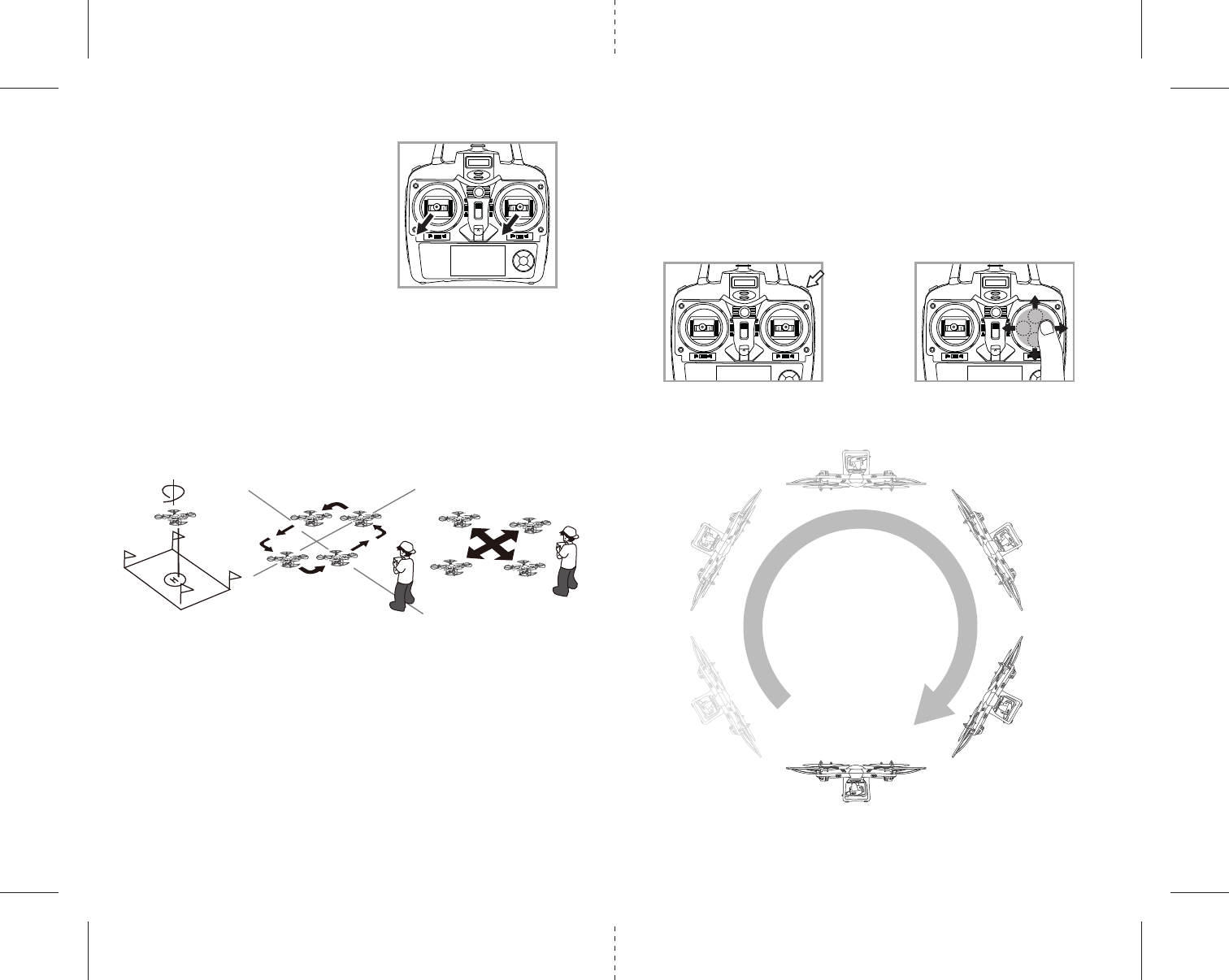

4 CHANNEL FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote control Sky Master™. While learning to
fly your Sky Master™ it is best to start with a large space until you get used to the basic controls. As you
master flying your Sky Master™ you can move to more advanced maneuvering techniques. Practice
makes perfect! When you have these basic steps down you can move to the next level.
Move the left Throttle stick left while in flight
and the Sky Master™ will rotate left.
Move the left Throttle stick right and the
Sky Master™ will rotate right (see diagram G).
Move the right Direction Stick up while in flight
and the Sky Master™ will move forward.
Move the right Direction Control down while in
flight and the Sky Master™ will move backward
(see diagram H).
Move the right Direction Stick left and the Sky
Master™ will bank to the left.
Move the right Direction Stick right and the Sky
Master™ will bank to the right (see diagram I).
Move the left Throttle stick up to increase the speed
and the Sky Master™ will accelerate and ascend.
Move the left Throttle stick down to decrease the
speed and the Sky Master™ will decelerate and
descend (see diagram F).
RECOGNIZING THE FRONT & BACK OF THE SKY MASTER™
Even though the Sky Master™ has four rotors there is still a front or "forward" facing direction and "back"
or backwards facing direction. The front of the Quadrocopter displays GREEN LED lights and the back of the
Quadrocopter displays RED LED lights when activated (see diagram E).
ADJUSTING TRIM
From time to time you may have to adjust the TRIM buttons to ensure theSky Master™ will hover in mid-air
and respond accurately to your commands (make all trim adjustments while the drone is in the air).
HOW TO START/STOP ROTORS
Make sure you have properly synced the Sky Master™ and the power is on.
• To start and stop the rotors simply move the two control sticks simultaneously down and to the
outside corners.
• Once the rotors begin to spin release the control sticks and they will return to the center position. Now you
are ready for take-off.
AUTO LAND BUTTON
The Sky Master™ has an auto land feature which allows you to land automatically. Simply press the Auto
Land button and your Sky Master™ will begin to land itself (see diagram below).
Note: you can still control the direction while auto landing to avoid obstacles
ON
Auto Land
![](/img.php?id=3127213&img=bg5.png)
ON
ON ON
Fixed-point landing Square Pattern Manuever Cross Pattern Manuever
N
O P
7 8
CALIBRATING THE SKY MASTER™
NOTE: Your Sky Master™ comes pre-calibrated out of the box
so you are ready to fly.
After several crashes and shock to your gyro sensors, you may
notice that your drone is drifting and not holding its center
position as well as it used to.
This most likely means that you need to recalibrate the 6 axis
gyro. Please follow the simple instructions below.
1. Gently set your Sky Master™ on the flat surface.
2. Make sure the Sky Master™ is on and that the controller is
synced (refer to syncing pg 4. ). Do not start the blades.
Instead move both the throttle and control stick down and to
the left corner and hold them there for 5 seconds(See
Diagram N). You will see the lights on the drone rapidly flash and stop. Once the lights stop flashing you
have completed your calibration and are ready to fly!
TROUBLE SHOOTING: If you do not see the lights flash, turn off your controller take out the battery in the
Drone and Start again. Always make sure to put your battery in first, then turn on your controller. Push the
left throttle stick up all the way and then pull back down again. When you hear the beep the Sky Master™
is synced to the controller and you are ready to calibrate.
FLIGHT PRACTICE
To master flying your aircraft try practicing the excersizes shown below. Start with simple vertical takeoffs,
landings, and left/right turning and rotating. Once those are mastered move on to square and cross
maneuvers. Good luck and have fun!
HOW TO PERFORM 360º STUNT ROLLS
Performing 360º stunt rolls with the Sky Master™ is as easy as 1-2-3:
1. Hover the Sky Master™ in still position making sure that you have at least 5 feet of clearance above
and below the quadrocopter,.
2. Press and release the 360˚ stunt button and you will enter the stunt roll mode which is indicated by a
rapid beeping (see diagram O).
3. Determine which direction you want it to flip and quickly push the right control stick in the direction
you want to flip your Cloud Force (see diagram P).
You have 4 choices a) Forward Roll, b) Backwards roll, c) Right side roll, d) Left side roll.
SPEED SELECT BUTTON
The Sky Master™ has 4 speed settings; 40%,60%,80% and 100%. The Default setting when you first turn
on your Sky Master™ is the 40% speed mode. To increase the speed simply press the Speed button (see
remote diagram on pg 3) you will hear 1 beep and the speed changed to higher level speed, the current
speed will continously flashing on the LCD screeb. Speed settings can be set before flight or during the flight.
HEADLESS MODE BUTTON
You can maintain orientation of your Sky Master™ during flight.
1. Once the Sky Master™ is activated press the headless mode button (see controller on pg.3) to activate
the internal compass.
2. The flying orientation is now locked to match the direction control lever.
![](/img.php?id=3127213&img=bg6.png)
910
USING YOUR ON-BOARD CAMERA AND VIDEO RECORDER
Your
Sky Master™
comes equipped with an onboard digital camera that takes both video and still photographs. To
enable usage of the same, download the free APP on your compatible mobile device. This will also allow you to shoot,
record and stream using the on board camera. For more details refer to page 11.
Now you can have hours of fun creating aerial photography and videos for family and friends.
GETTING STARTED
The camera enables recording directly to your mobile device (standard definition) and onto a microSDHC card(High
Definition). Note: You can directly download the Hight Definiation videos from the microSDHC card to your compatible
mobile devide.
RECORDING TO microSDHC card
To use with a microSDHC card you will need:
1. One microSDHC card (not included)
2. One microSDHC card reader (included)
3. A Computer with a USB port and Windows Media Player or other Media player that can play AVI files (not included).
FORMATTING YOUR microSDHC card
Before you can begin to take videos or digital photographs you must first format your microSDHC card. To format your
microSDHC card simply place the microSDHC card into the included USB SD card reader and plug it into your computers
USB port (See diagram W1 and W2 below). After a few moments an icon will appear on your Desktop. Right click on
the Icon and follow instructions to format your microSDHC card.

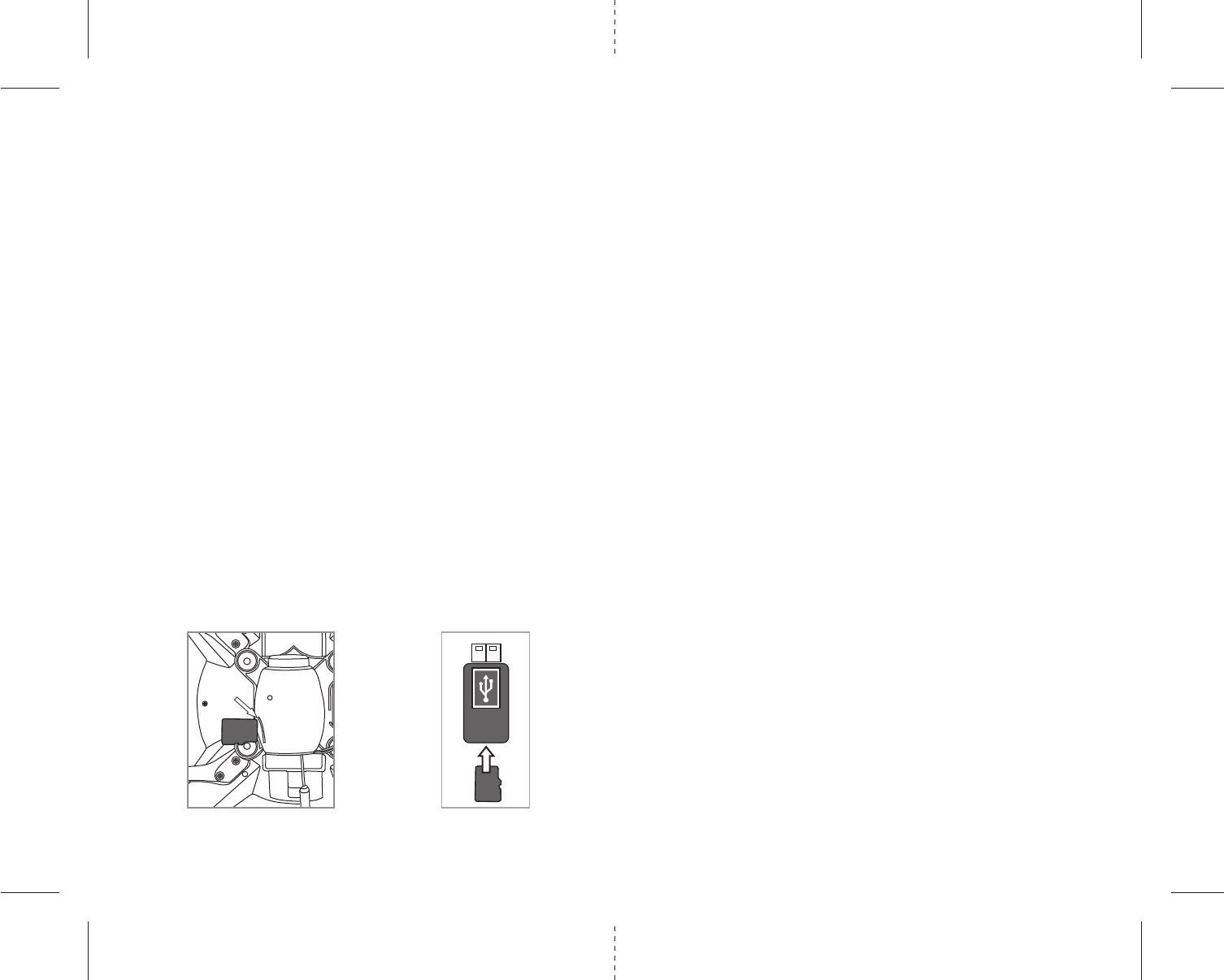

INSTALLING THE microSDHC card IN YOUR SKY MASTER™
• Place the formatted microSDHC card into the side of the
Sky Master™
’s digital camera port (see diagram Q below).
Push gently until you hear and feel the microSDHC card “click” into the digital camera slot.
• Turn the
Sky Master™
on and make sure that it is both fully charged and properly synced to the Controller
(see HOW TO SYNC YOUR QUADROCOPTER on page 4 ).
REMOVING YOUR microSDHC card
To remove your microSDHC card push in gently on the back of the SD card with your thumb or forefinger
until you hear and feel a “clicking sound”. The microSDHC card will “pop-out” slightly and is ready for
removal. Simply grab and pull gently away from the Sky Master™’s camera port to remove the card. Always
store your microSDHC card in a clean, safe and cool environment.
DOWNLOADING AND CLEARING SPACE ON YOUR microSDHC card
Plug your microSDHC card into the microSDHC card reader and connect to your computer. It is best to
always download all your videos and pictures on to your computer and not store this data on your
microSDHC card. After downloading your photos and videos , follow your computers instructions to “delete”
files on your microSDHC card.
Note: The Sky Master™ + FPV can record video files upto 2 minutes of length. When attempting to
record longer videos, it will automatically split the video into multiple files, each approximately 2
minutes in length. Still photos are recorded simultaneously on device and microSDHC card when
inserted, but Videos are recorded only onto SD card when included. To record onto phone directly make
sure to remove microSDHC card from the quadrocopter camera.
QR
![](/img.php?id=3127213&img=bg7.png)
LIVE VIDEO STREAMING SETUP
Your Sky Master™ comes equipped with an onboard digital camera that takes both video and still photographs to
your mobile devices.
WHAT YOU WILL NEED TO GET STARTED USING YOUR CAMERA
1. One Apple or Andriod phone* (not included)
2. Propel Sky Master™ APP installed (app store or Andriod market available)
PHONE HOLDER AND PHONE INSTALLATION
Insert the included phone holder hook (a) to the slots on the top of the controller properly, see the
illustration below, When you install the phone holder correctly you can use it to hold your phone
(see diagram S)
PROPEL SKY MASTER™ FPV APP INSTALLATION
1. Make sure you are using a compatible Android™ or Apple® iOS device.
2. Make sure your device has access to the Internet.
3. For Apple® iOS devices, within the App Store, search and select “Propel Sky Master”. Hit the
Install button and the “Propel Sky Master” App should download and install automatically.
4. For Android™ OS devices, visit the Google Play store and search for “Propel Sky Master”. Selecting the
“Propel Sky Master” App will download the App and automatically install it on your device.
5. After the “Propel Sky Master” App is installed, it should create an icon on your screen. Click
the “Propel Sky Master” icon to run the App to make sure that it has installed correctly on your device.
If not, please delete and repeat the process again.
PAIRING SKY MASTER™ TO YOUR COMPATIBLE DEVICE
1. After completely charging your Sky Master™ battery, install the battery to your Sky Master™.
2. In the Settings menu of your mobile device, locate the Wi-Fi option.
3. Turn ON the Wi-Fi option.
4. Select “Propel Sky Master” from the Wi-Fi list. Wait for your Sky Master™ to be connected. Return to the
Main Menu.
S
11 12
IMPORTANT NOTICE : You can not take photos and videos at the same time. When you are in video mode
your camera/ photo button is disabled. If you want to take photos you must first turn off video mode.
QUICK START
1. When you install the App correctly and have paired to the drone successfully, you can hit the “Propel Sky
Master” App icon. Tap “START” on the bottom right hand side of the screen. You should see the real-time
video from your Sky Master ‘s camera.
2. This App also allows you to control your Sky Master™ by your mobile device. To activate the control sticks,
tap the “ON” button at the top right hand side of the screen. This will start the Sky Master’s motors and
show the control sticks. You can now use your device as a traditional controller.
DETAILED APP OVERVIEW

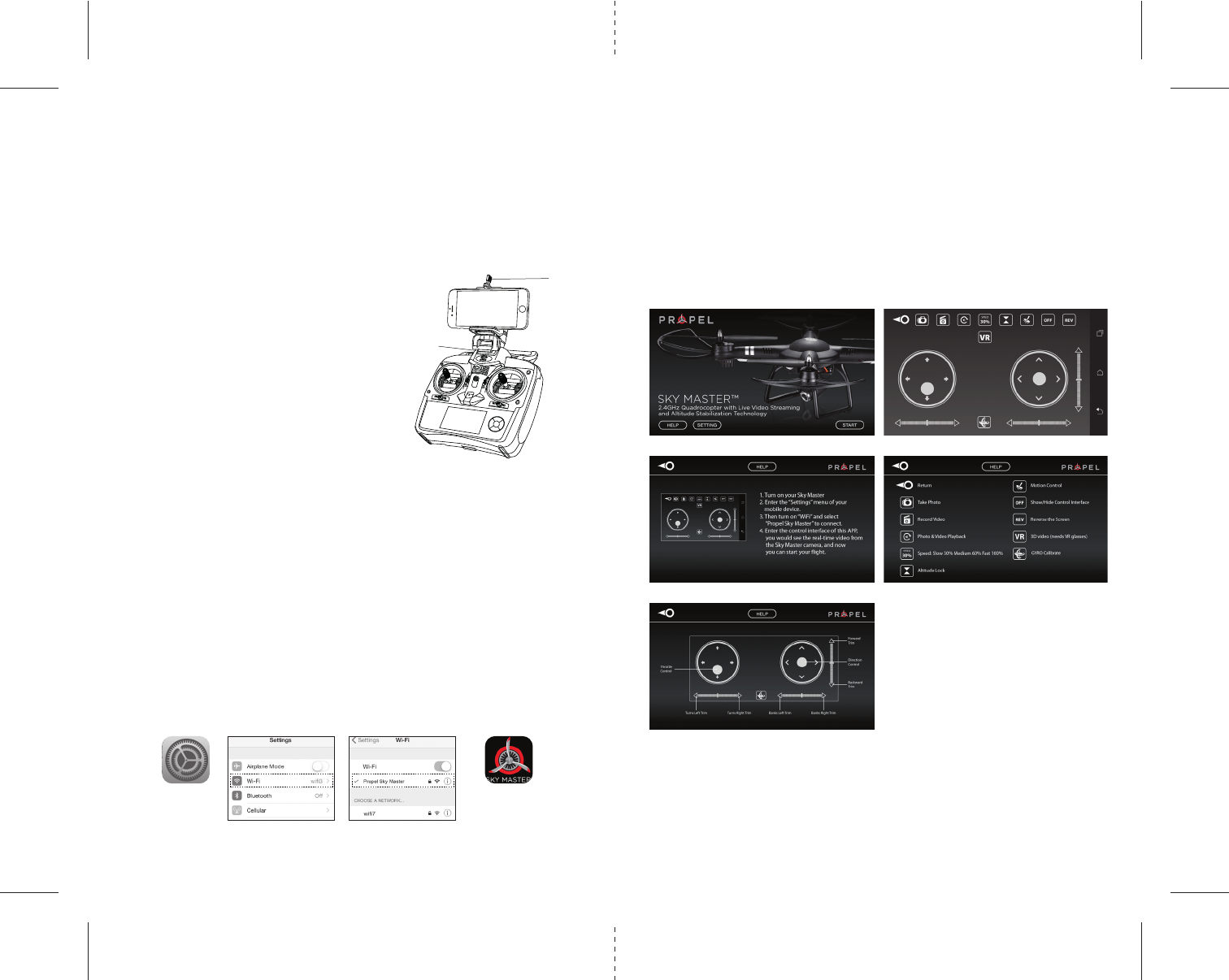

3. Please see images below for a detailed App overview. This overview is also available under the “HELP”
icon in the home screen of the App.
4. If you’re still encountering difficulties please contact our customer service department at
+1.949.566.9573.
Settings Propel Sky Master
Note: Apple® devices require the use of iOS 7.0 or higher.
ANDROID™ devices require the use of OS 4.2.2 or higher.
HOME PAGE
HELP PAGE 1 HELP PAGE 2
HELP PAGE 3
CONTROL INTERFACE
a
b
ON
![](/img.php?id=3127213&img=bg8.png)
FRONT
REAR
BA
AB
U
13 14
SKY MASTER™ WARNING:
The Sky Master™ is designed for OUTDOOR use only. The Sky Master™ blades revolve at high speeds and
can cause damage to the user, spectators and animals. Stand away from the Sky Master™ to reduce the risk
of getting into the flight path. Warn spectators that you will be flying your Sky Master™ so that they are
aware of its position. Before flight, inspect the rotor blades to make certain that the blades are securely
fastened to the Sky Master™.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power switch is turned to the
ON position.
• Turn off the transmitter and Sky Master™ when not in use.
• The included charger is built specifically for the Sky Master™ Li-Poly battery. Do not use it to charge any
other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying Sky Master™.
BATTERY WARNINGS
RECHARGEABLE BATTERY:
This Sky Master™ uses a Li-Poly rechargeable battery. If battery no longer stays charged, dispose of battery
properly according to local disposal requirements.
CONTROLLER BATTERIES:
Remote control requires 4 “AA” batteries (not included). Please read the important battery safety
warning below.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly
according to state or local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose batteries in a fire - batteries may leak or explode.
CARE AND MAINTENANCE
• Always remove the batteries from the wireless remote control when it is not being used for an
extended period of time.
• To clean, gently wipe the remote control and Sky Master™ with a clean damp cloth.
• Keep the toy away from direct heat or sunlight.
• Do not submerge the toy into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.
REPLACING THE PROPELLER BLADES
NOTE : Always disconnect the battery before replacing the propeller blades.
Your Sky Master™ propeller system is a precision instrument that may need repair or replacement from
time to time for optimal flight function. Crash landing from high-speed aerial flights may cause damage to
your Sky Master™ propellers.
The Sky Master™ has four propeller blades, two on the front and two on the back. Each one of these
propellers is marked with either A or B on the underside.
1. When replacing the propeller blades, carefully unscrew the broken propeller from the rotor shaft.
2. Replace the damaged blade with the correct new blade. Ensure that the identification letter on the
broken blade and on the new blade are the same before screwing back on (See diagram U).
PROBLEM POSSIBLE REASON SOLUTION
1. Switch the ON/OFF switch to ON
2. Make sure all batteries are installed
correctly (see diagram B)
3. Replace batteries
1. Switch the ON/OFF switch to ON
2.
Connect the battery to
Sky Master™
3. Windy conditions severely impair the
operation of the Sky Master™
4. Re-sync the remote
1. Push throttle lever forward
2. Recharge your Sky Master™
1. Control the throttle slower and
smoother
1. Turn ON the Sky Master™ and Reset
the Gyros (see diagram P)
1. Keep the aircraft within a 300 feet
radius of the remote
1. Power switched off
2. Polarity is reversed
3. Batteries may be dead
1. Remote is switched off
2. Sky Master™ battery is not connected
3. Too windy
4. The remote is not synced
1. Rotor speed too slow
2. Aircraft not fully charged
1. Moving the throttle too quickly
1. Gyroscopes not functioning
1. Aircraft is out of range of remote
TROUBLESHOOTING YOUR SKY MASTER™
No Power in
Controller
Remote Not
Properly
Responding
Aircraft Won’t
lift off
Aircraft
Descends
Too Fast
Aircraft Not
Responding
Loss of
Sky Master™
Control

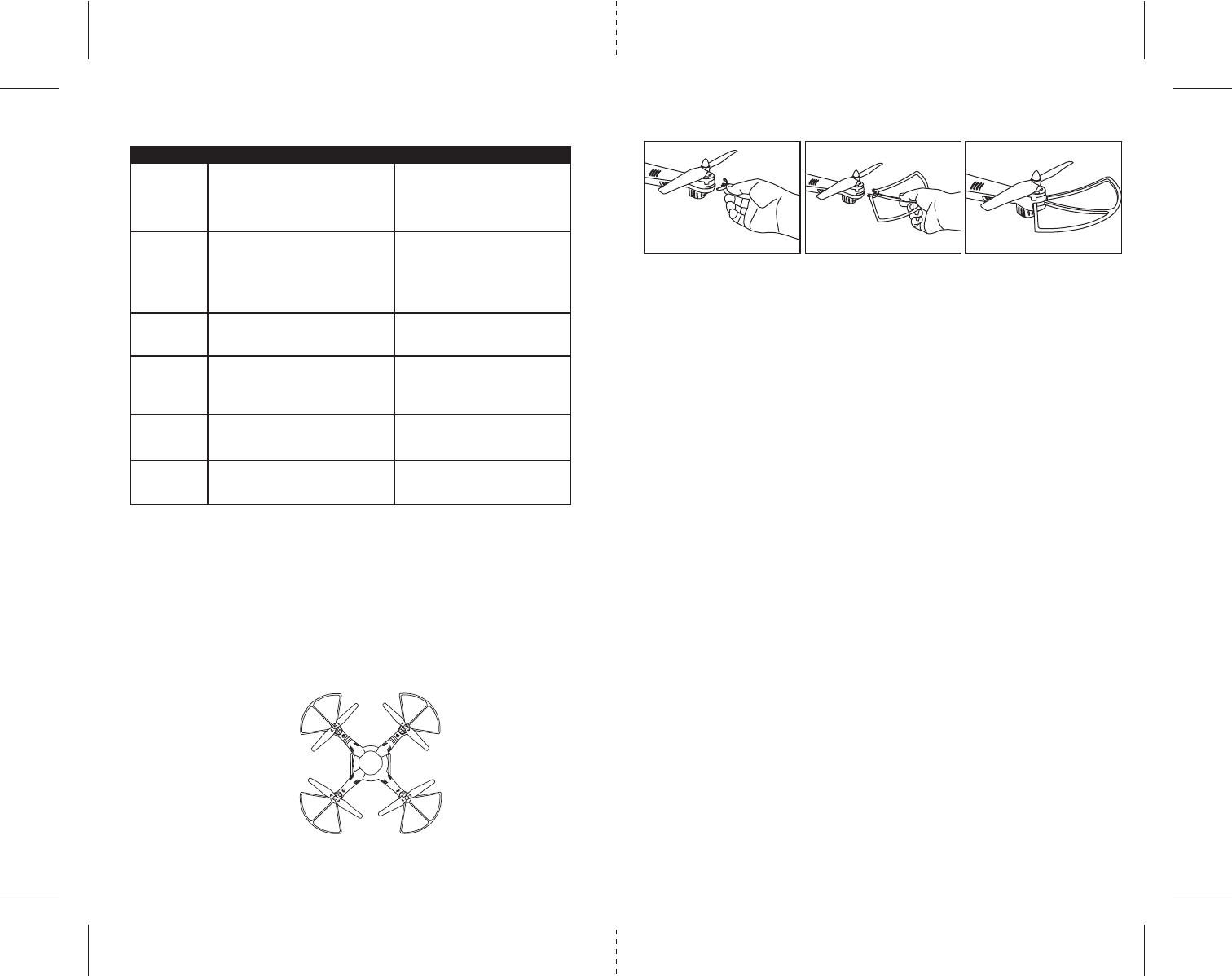

ATTACHING THE BLADE GUARDS
Your Sky Master™ is equipped with 4 blade guards for beginner flying. These can be easily removed and re-attached
when needed. To attach the blade guard, remove the clip parts from the body as show on diagram V, insert each guard
into the socket on the body near the propellor as shown. Push the blade guards all the way into place on the slots and
adjust to ensure they have been locked in securely.
V
