Asian Express SW-0327R Tie Fighter User Manual

Asian Express Holdings Limited Tie Fighter

User manual

HIGH PERFORMANCE BATTLING DRONES
HIGH PERFORMANCE BATTLE DRONES
IMPERIAL MANUAL
TIE ADVANCED X1

































CONGRATULATIONS,PILOT.















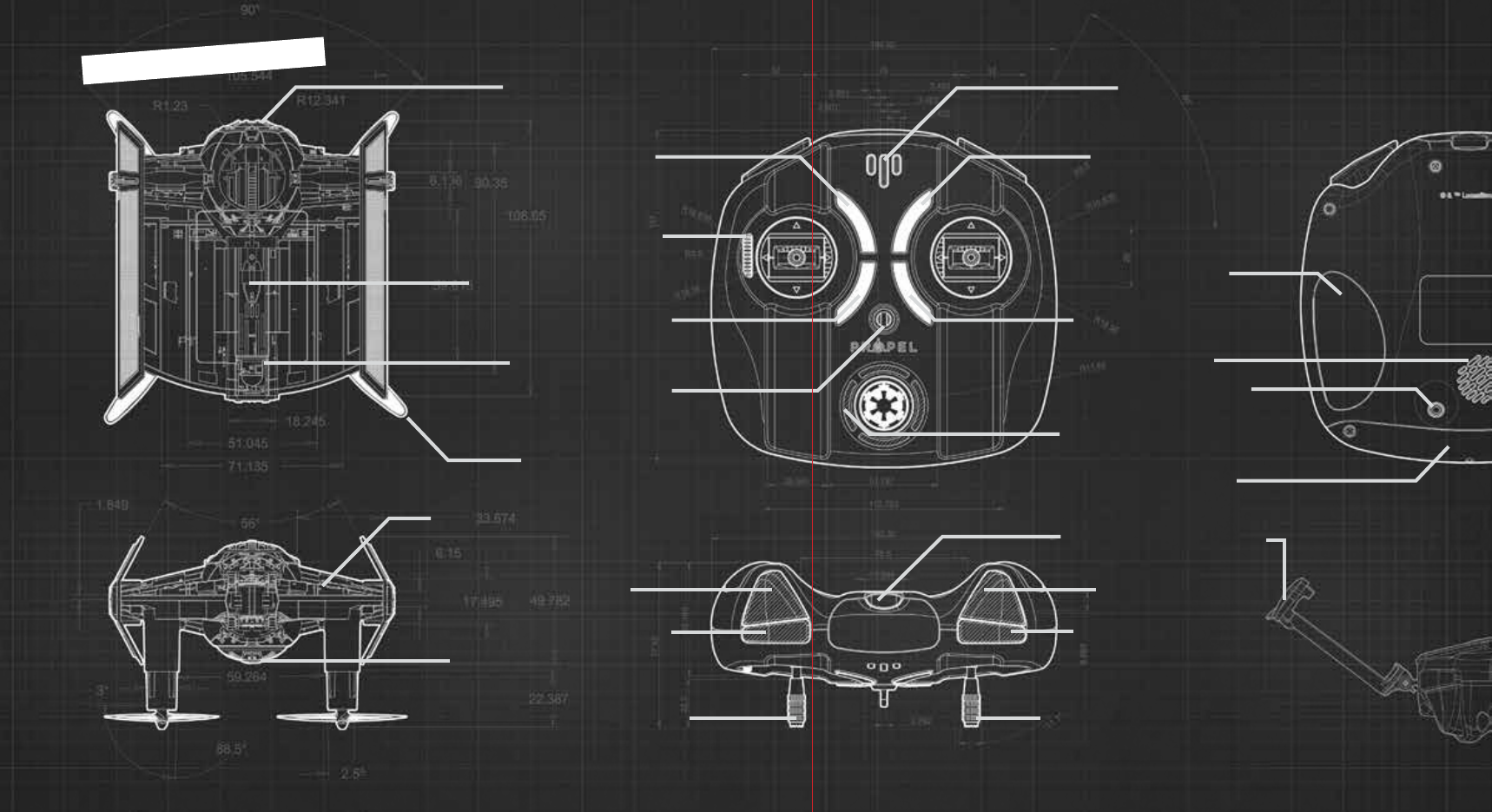

YOUR SHIP


 


 
 
 


TABLE OF CONTENTS PAGE
Table of conTenTs
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
13.
14.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.



























•

•

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

•

•
FEATURES:
7

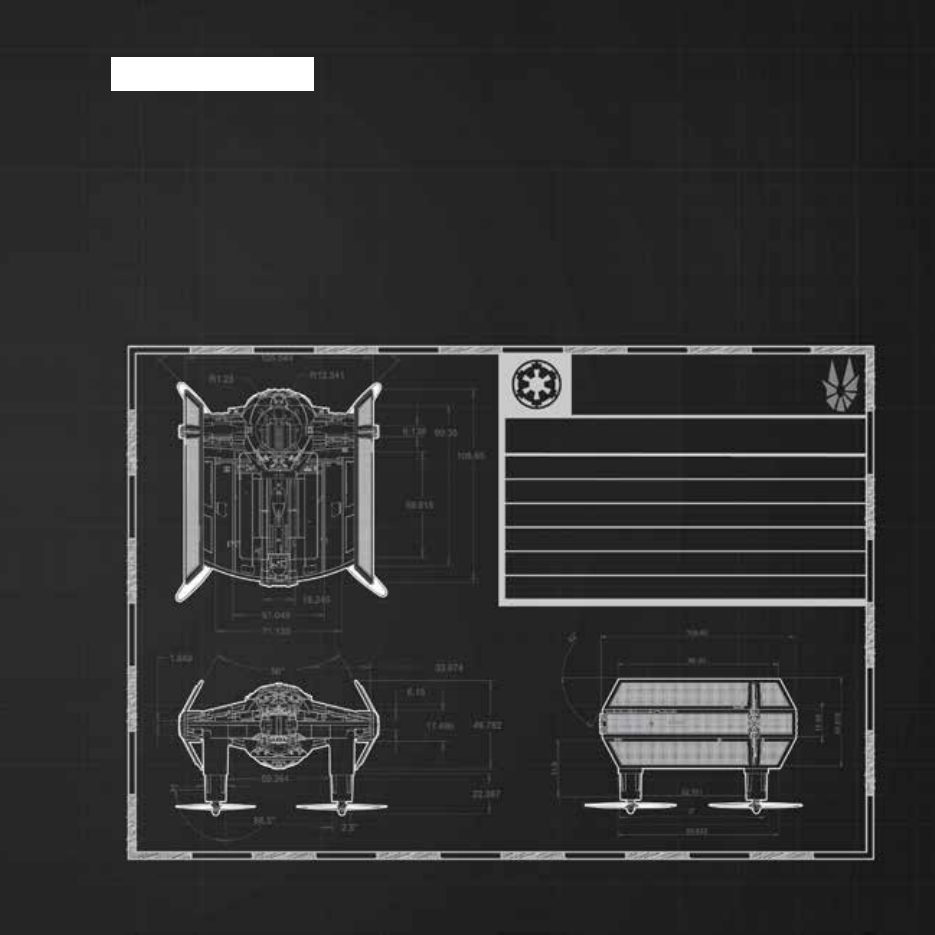

STARSHIP STATS




















PILOT’S GEAR











DON’T THROW AWAY
THE BOXES!!!
OPEN PAGE - TOP SECRET
9

































DISPLAY CASE FUNCTIONS:
REMOVING THE TIE ADVANCED
FROM THE DISPLAY CASE:




ALL THE LEDS ON THE
CONTROLLER SHOULD BE
FLASHING
REMOTE CONTROL BATTERY
INSTALLATION
USE ALCALINE OR
1.5V RECHARGABLE
BATTERIES
NOTES













11


SHIP BATTERY INSTALLATION:

















12
STEADY RED ->
BLINKING RED -> 

BLUE

GREEN



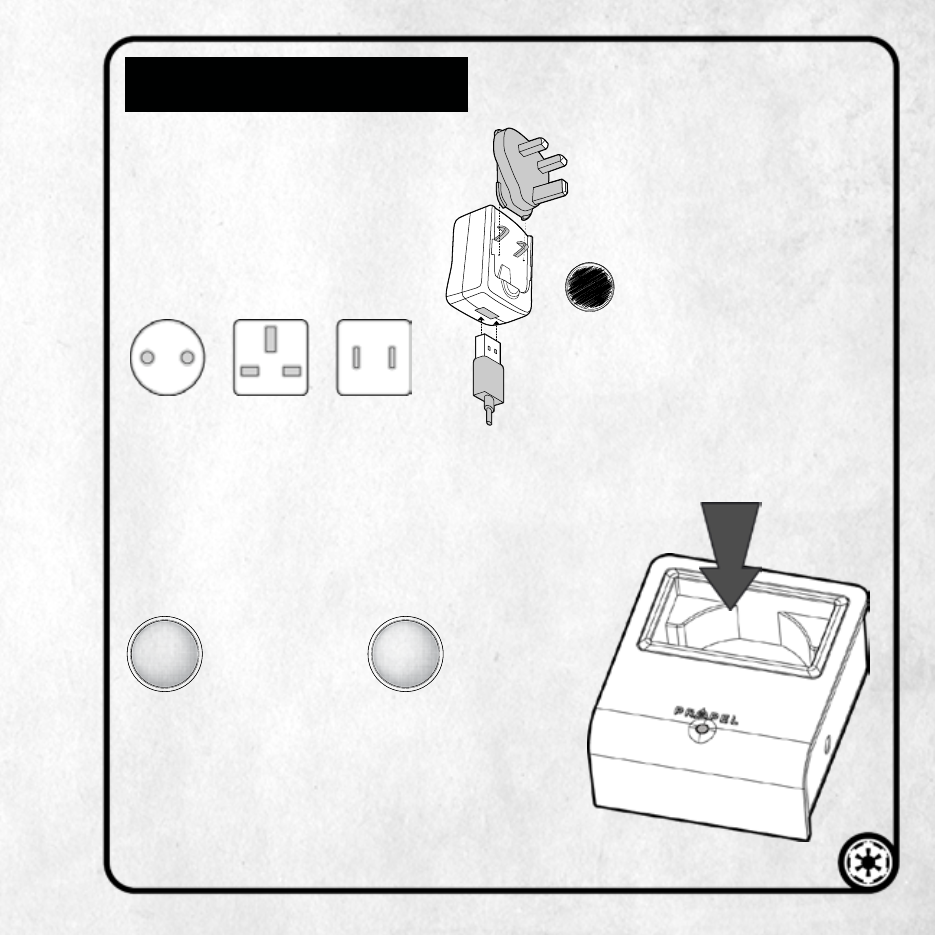

CHARGING YOUR SHIPS
LI-POLY BATTERY
















BATTERY








13














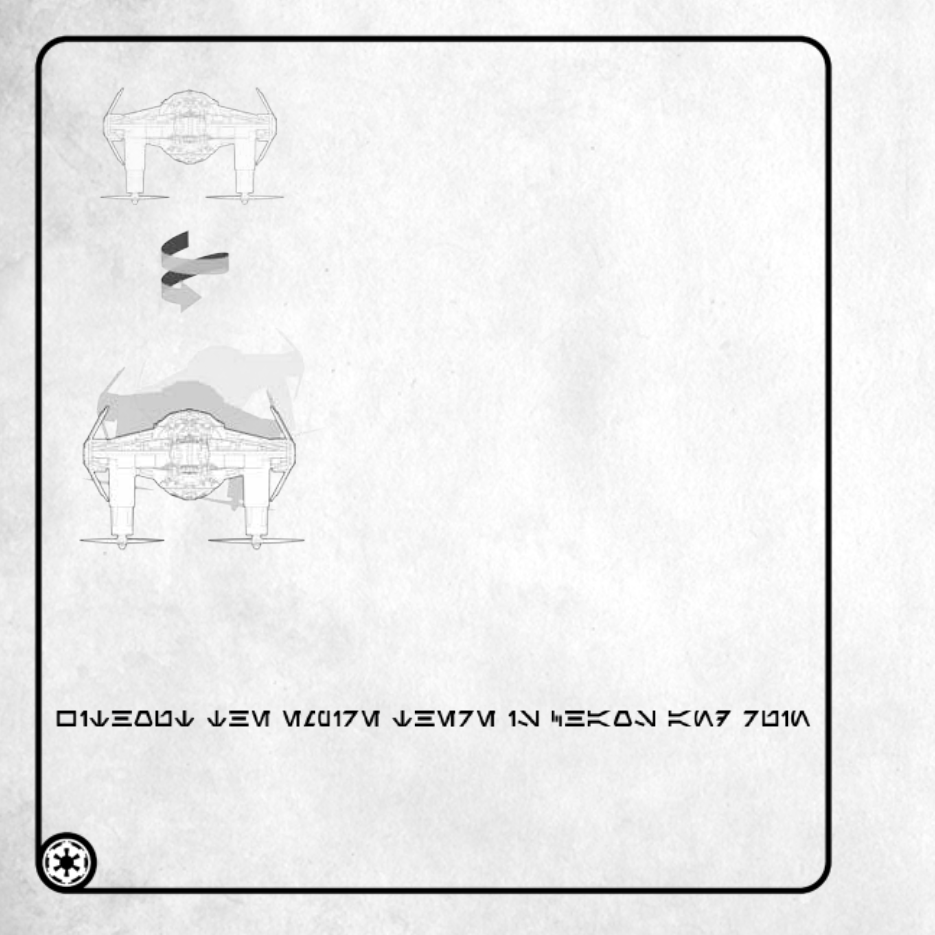

PROPELLER INSTALLATION
AND REPLACEMENT:









14
CONTROLLER POWER ON/OFF
SYNC TO SHIP: FOR SINGLE
PERSON PLAY

























2 SECOND PUSH
ON/OFF
ALL LIGHTS
FLASHING RED






15

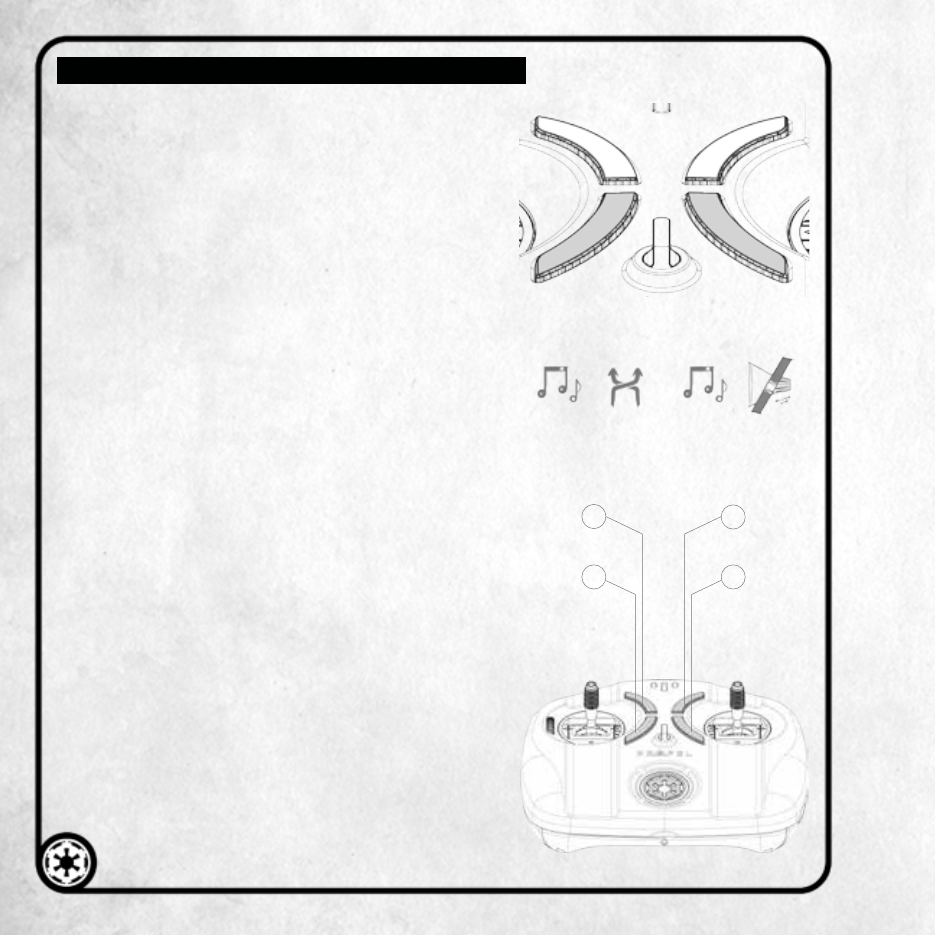

MUSIC MODE
















 




















TITLE: “THE IMPERIAL MARCH”
MOVIE: THE EMPIRE STRIKES
BACK
TITLE: “BENS DEATH AND
TIE FIGHER ATTACK”
MOVIE: A NEW HOPE
TITLE: “IMPERIAL ATTACK”
MOVIE: A NEW HOPE
TITLE: “THE ASTEROID FIELD”
MOVIE: RETURN OF THE JEDI
TITLE: ““EMPEROR’S
THRONE ROOM”
MOVIE: RETURN OF THE JEDI
TITLE: “THE STARS AWAIT”
COMPOSER: DAVID PELLICCIARO
16
LIGHTSABER SCREW DRIVER
SPEAKER
NECK STRAP ATTACHMENT
HEADPHONE JACK

























CALIBRATE
17
BAROMETRIC PRESSURE SENSOR
ON/OFF (REPULSORS ON/OFF)
SMARTPHONE HOLDER





















OFF
ON
18
LEARNING HOW TO FLY (T-MODE)
































T-MODE

19
PROTECTIVE CAGE





















20






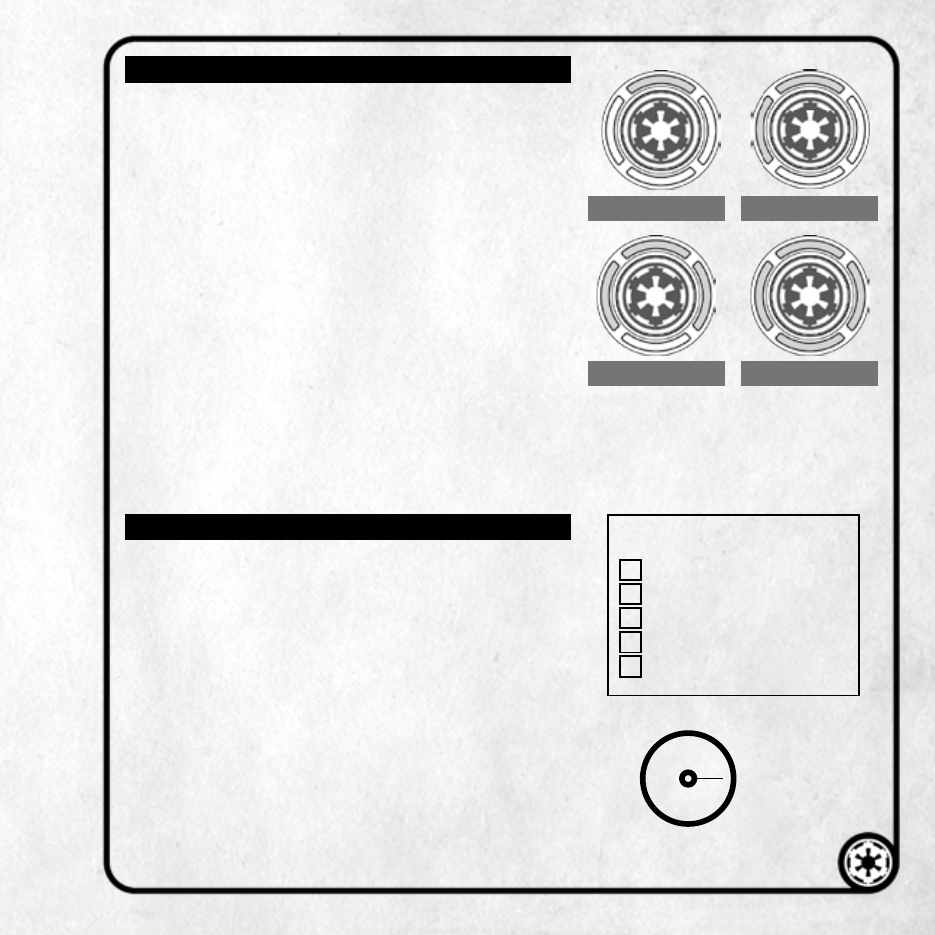

100
FEET
SPEED 1
SPEED 3
SPEED 2
T-MODE

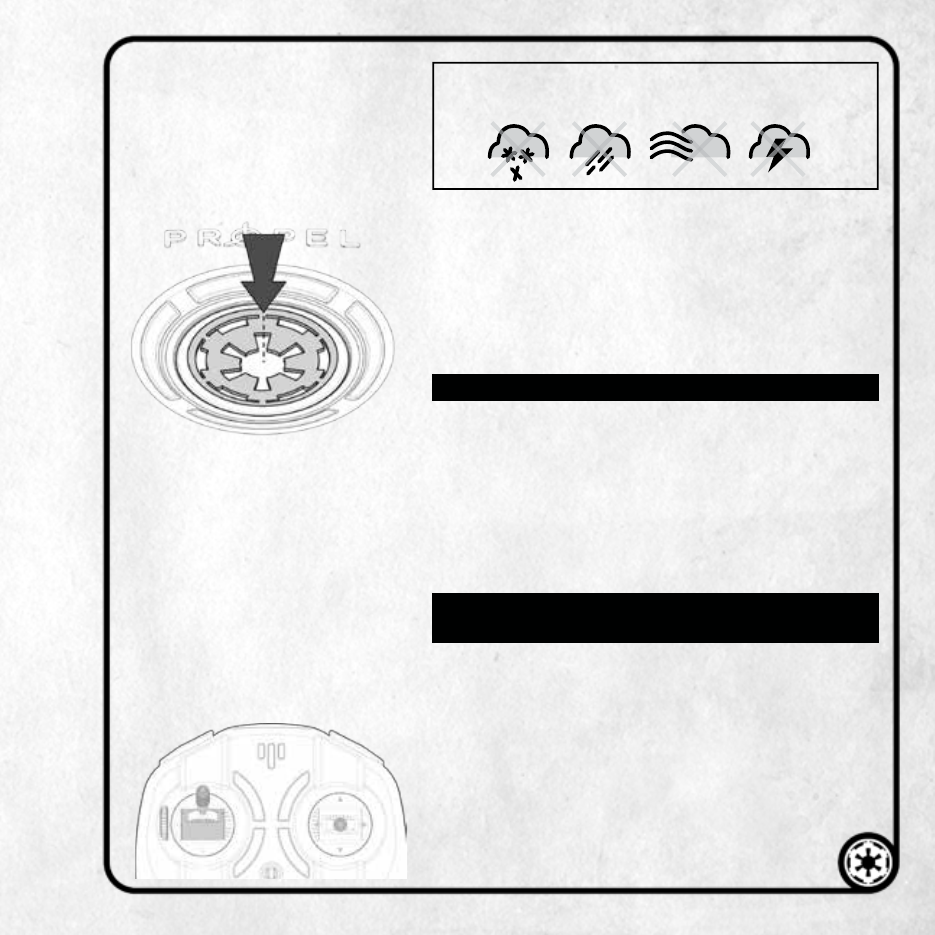

PREPARING FOR FLIGHT
FOR MULTI PERSON PLAY:

























CHECKLIST
RedLEDs

21

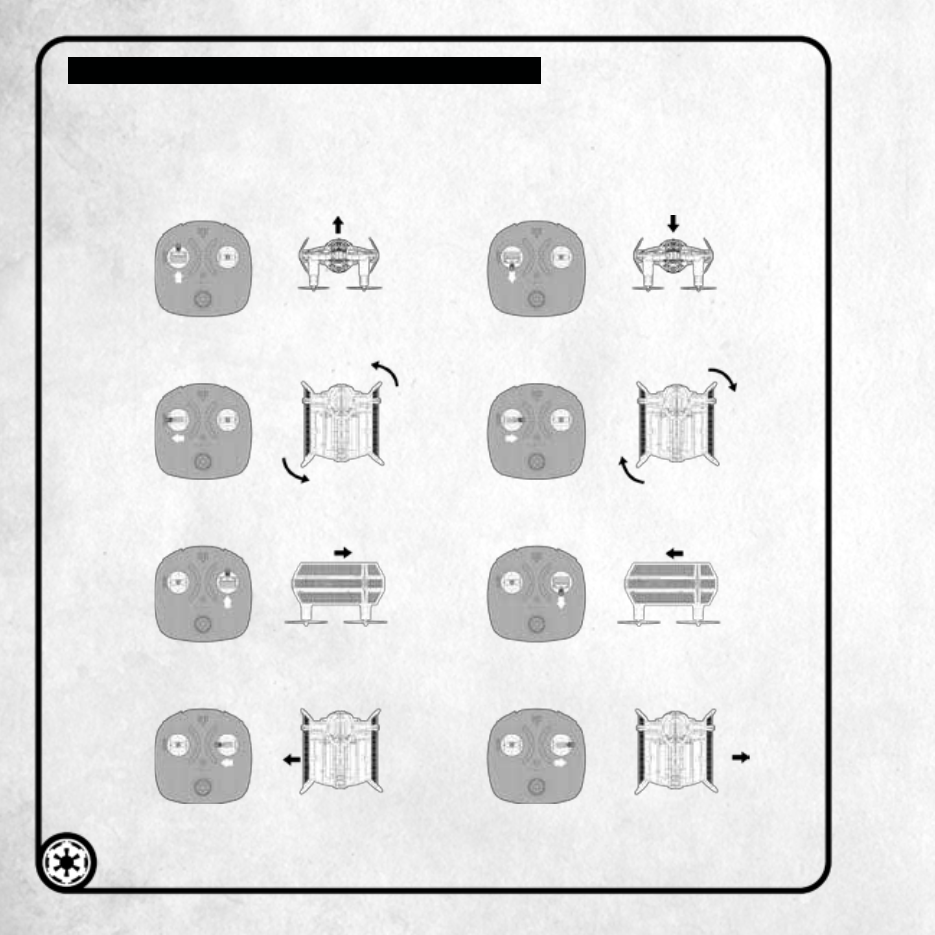

FLIGHT CONTROL






















22
FLYING TIPS
RECOGNIZING THE FRONT AND
BACK OF THE SHIP
SPEED SELECT BUTTON




















FRONT
BACK
running lights
rear lights



23


 



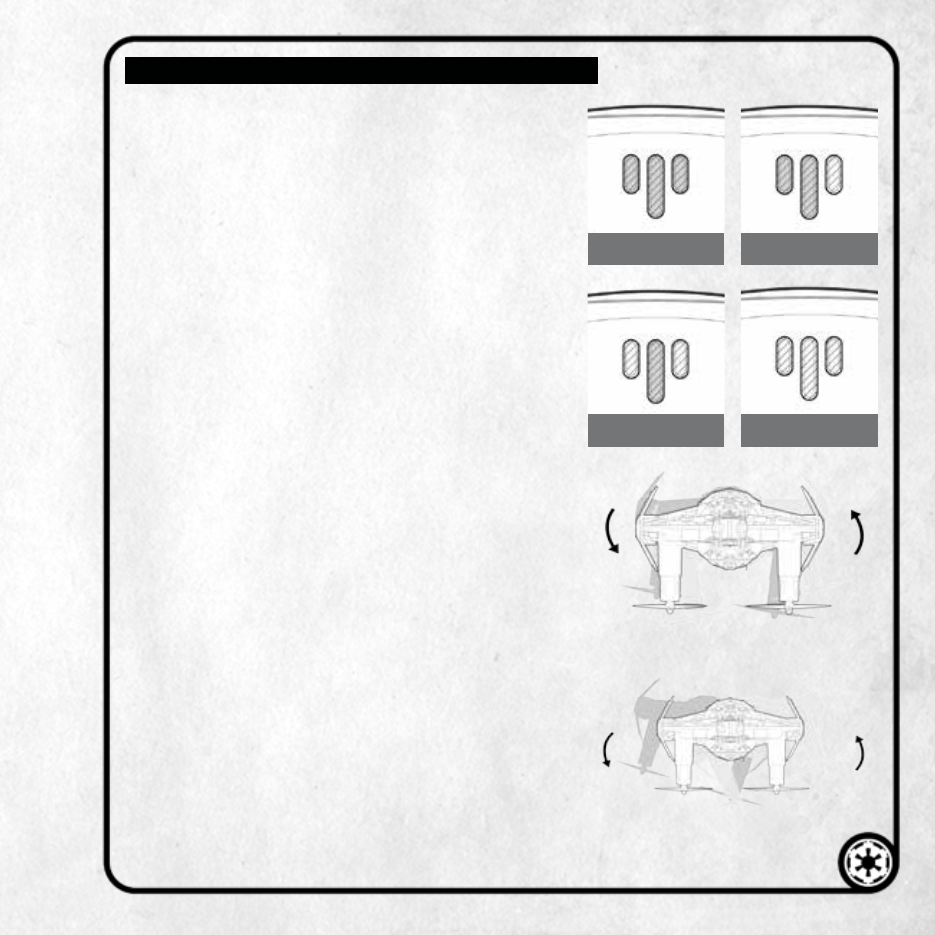

1 beep 1 beep
 
SPEED CHANGE
TURN ON/OFF LED’S AND LASERS

















Red

SPEED 1
SPEED 3
SPEED 2
T-MODE






EMERGENCY STOP
Blue
24
AUTO-START/AUTO-LAND
AUTO-START:
AUTO-LAND:
COMBAT FLIGHT




























25









CLOCKWISE ROLL (A)

COUNTER CLOCKWISE ROLL (B)


WEAPONS FIRE (C)





















26


IR BATTLING
BATTLING





























27
LASER BATTLING (UPGRADE)






























28
2ND HIT 3RD HIT
FULL LIFE 1ST HIT
LIFE LED’S:



























29
























30
C
ut
your
throttle
and
drop
beneath
the
elevation
of
a
Chasing
enemy
. p
roteCt
your
t
ie
advanCed
’
s
vulnerable
underbelly
while
maneuvering
into
attaCk
position
!
watCh
him
sail
by
!
31

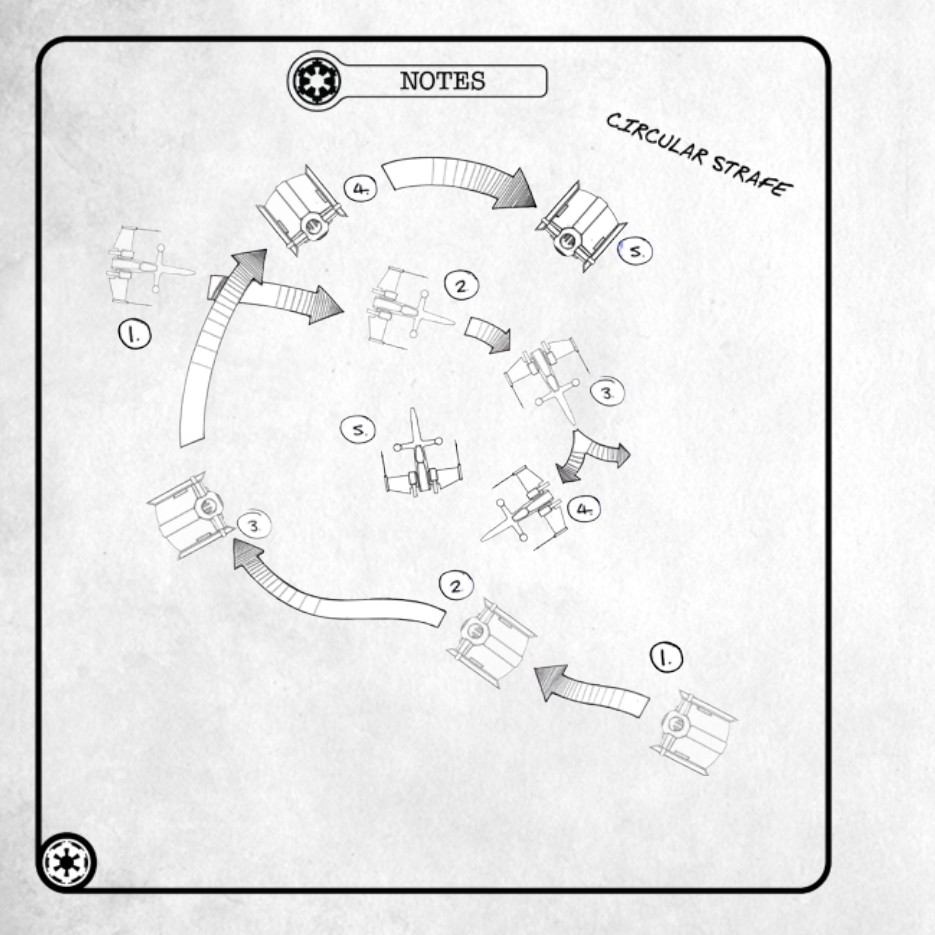

when you’re in the right spot, use a
Combination of your yaw and aileron
(sideways strafe) Controls to strafe
in a full CirCle around your opponent
if you time it right, you Can devas-
tate rebel attaCkers.
stay in front
of your
enemies
turn
watCh
for
the
Counter
turn
!
ease
into
side
slip
-
get
on
target
32

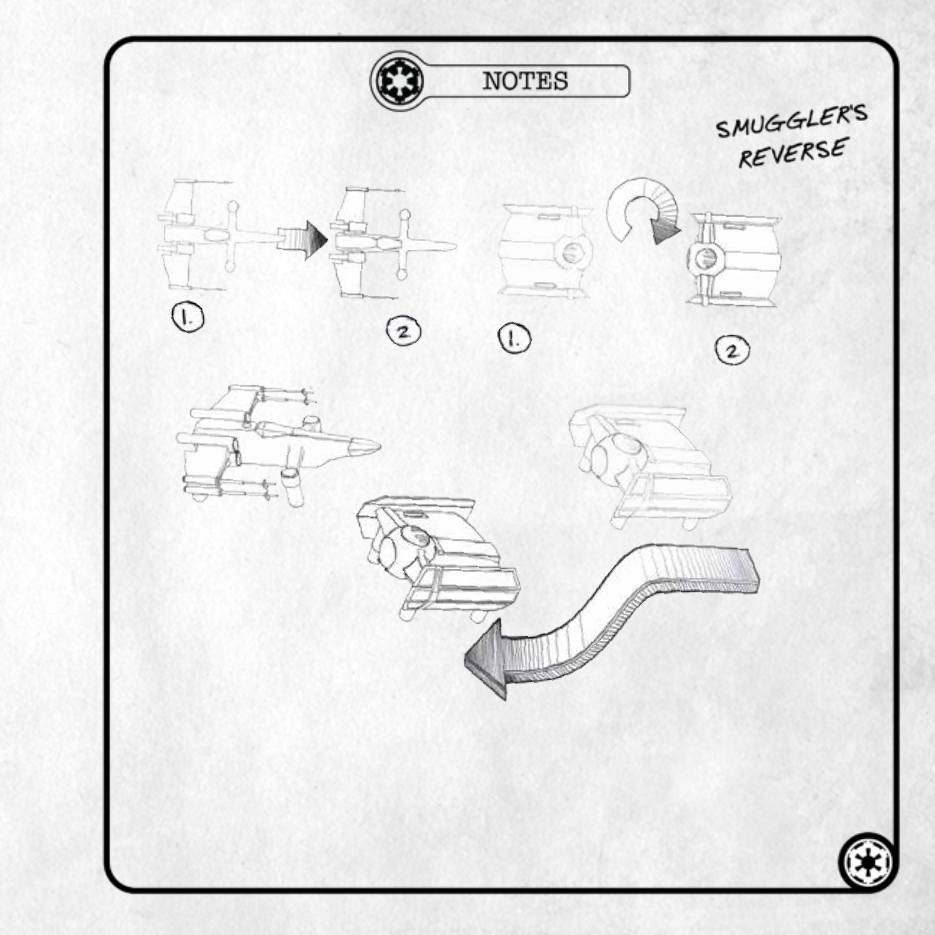

beat rebel pilots at their own game by mastering
this move. make a 180 degree turn at full
throttle, resulting in a rapid direCtional
Change with almost no turning arC. you Can then
surprise your enemy with a devastating attaCk.
prey
turns
predator
180
degree
yaw
turn
drop
below
to
attaCk
your
enemy
’
s
belly
33

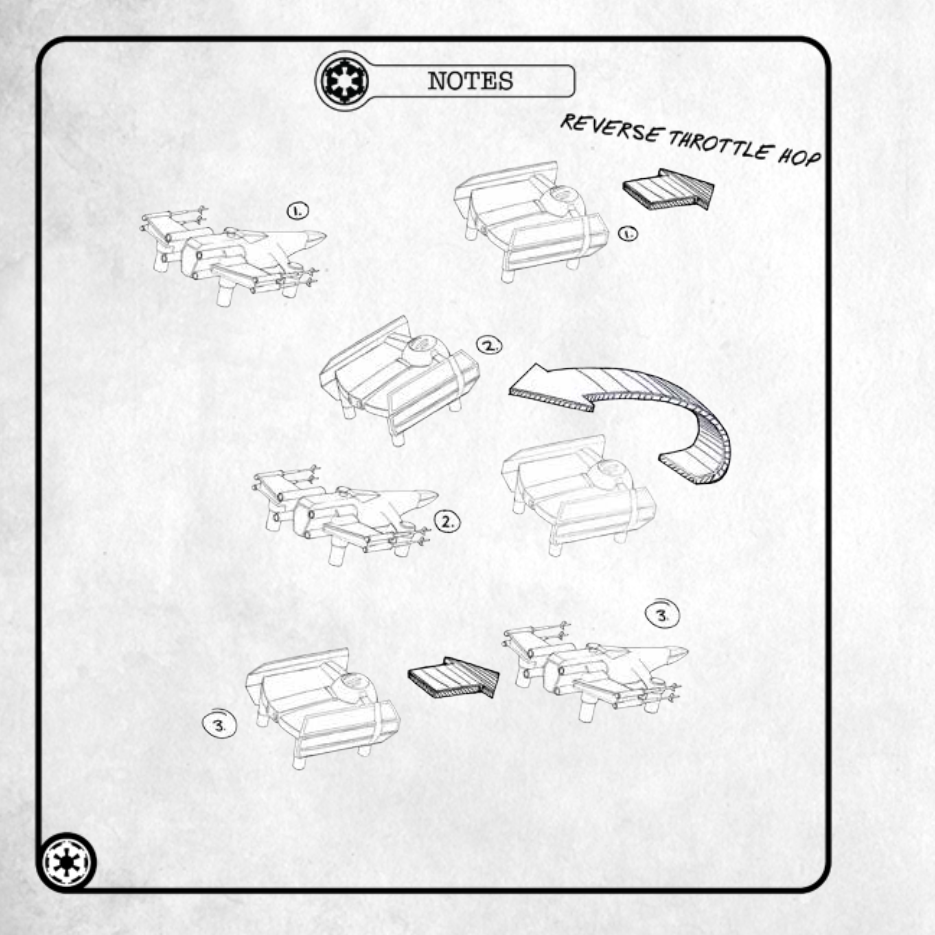

when a rebel is Closing in from your rear, exeCute a jumping hop,
by pulling up and easing off on your throttle, losing your forward
speed and dropping baCk behind them. if you do it right, you’ll find
yourself in a position for a kill shot.
say no to memory-
wiped astromeChs
get on his tail
quiCk!
n
ose
up
! p
roteCt
your
belly
34
h
e
wont
be
able
to
follow
!
named after adar tallon, imperial defeCtor who bravely aided the
allianCe, the tallon roll is a triCky teChnique that’s exeCuted when
an enemy pilot is approaChing fast from the rear.
if the pilot levels out and pulls up while rolling away from the
direCtion of the turn, they Can slip baCk in behind the enemy with
no loss of distanCe or speed.
35
TIE ADVANCED WARNING:

























36


























BATTERY WARNINGS
RECHARGEABLE BATTERY:
CARE AND MAINTENANCE
37













•
•
•

•





FCC PART 15 C NOTICE
38











™











INDUSTRY CANADA NOTICE CANADA ONLY
39
































REPAIR/REPLACE PRODUCT
LIMITED 90-DAY WARRANTY NORTH AMERICA
PREPARATION FOR SHIPPING
YOUR PRODUCT 









40
PILOT LOG
