Asiatelco Technologies AGP-V800R GSM Fixed Wireless Phone User Manual
Asiatelco Technologies Co. GSM Fixed Wireless Phone
User Manual
Asiatelco Technologies Co.
AGP-V800R GSM Fixed Wireless Phone
User Manual
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
Index
1 GENERAL INTRODUCTION ................................................................................................................... 1
2 IMPORTANT INFORMATION ................................................................................................................ 2
3 PRODUCT OVERVIEW ............................................................................................................................ 3
3.1 PACKING LIST ........................................................................................................................................ 3
3.2 PRODUCT INTRODUCTION ...................................................................................................................... 3
3.2.1 Appearance ....................................................................................................................................... 3
3.2.2 Key Definition ................................................................................................................................... 4
3.2.3 Display Icon ...................................................................................................................................... 5
4 BASIC OPERATIONS ................................................................................................................................ 5
4.1 POWER ON/OFF ..................................................................................................................................... 5
4.2 MAKE A CALL ........................................................................................................................................ 5
4.3 ANSWER A CALL .................................................................................................................................... 5
4.4 END A CALL ........................................................................................................................................... 5
5 MAIN MENU ............................................................................................................................................... 6
6 CONTACTS ................................................................................................................................................. 6
6.1 SEARCH FOR A CONTACT ....................................................................................................................... 6
6.2 ADD A NEW CONTACT ........................................................................................................................... 7
6.2.1 Add a New Contact from the Menu ................................................................................................... 7
6.2.2 Add a New Contact in Standby Mode ............................................................................................... 7
6.3 VIEW A CONTACT .................................................................................................................................. 7
6.4 DELETE A CONTACT............................................................................................................................... 7
6.5 EDIT A CONTACT ................................................................................................................................... 7
6.6 GROUP ................................................................................................................................................... 7
6.6.1 Add a Contact to the Group .............................................................................................................. 7
6.6.2 Delete a Contact from the Group ...................................................................................................... 7
6.6.3 Rename a Group ............................................................................................................................... 8
6.6.4 Set a Ring tone to a Group ................................................................................................................ 8
7 MESSAGES .................................................................................................................................................. 8
7.1 SEND A MESSAGE .................................................................................................................................. 8
7.2 RECEIVE A MESSAGE ............................................................................................................................. 8
7.3 VIEW SENT MESSAGES .......................................................................................................................... 8
7.4 SEND A MESSAGE BY USING TEMPLATES ............................................................................................... 9
7.5 MESSAGE SETTINGS ............................................................................................................................... 9
7.6 VOICE MESSAGE AND BROADCAST MESSAGE ....................................................................................... 9
8 RECENT CALLS ........................................................................................................................................ 9
8.1 MISSED CALLS ....................................................................................................................................... 9
8.2 DIALED CALLS ....................................................................................................................................... 9
8.3 RECEIVED CALLS ................................................................................................................................... 9
8.4 ERASE LISTS .......................................................................................................................................... 9
8.5 CALL DURATION .................................................................................................................................... 9
9 SETTINGS ................................................................................................................................................... 9
9.1 SET TIME AND DATE .............................................................................................................................. 9
9.2 SET LANGUAGE ................................................................................................................................... 10
9.3 SET PREFERRED INPUT METHODS ........................................................................................................ 10
9.4 SET LCD CONTRAST ............................................................................................................................ 10
9.5 SET LCD BACKLIGHT .......................................................................................................................... 10
9.6 SET DIAL DELAY ................................................................................................................................. 10
9.7 SPEED DIAL ......................................................................................................................................... 10
9.8 NETWORK SETUP ................................................................................................................................. 10
9.9 SECURITY SETUP .................................................................................................................................. 10
9.9.1 SIM Lock ......................................................................................................................................... 10
9.9.2 Phone Lock ..................................................................................................................................... 10
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
9.9.3 Auto Keypad Lock ........................................................................................................................... 11
9.9.4 Fixed Dial ....................................................................................................................................... 11
9.9.5 Barred Dial ..................................................................................................................................... 11
9.9.6 Change Password ........................................................................................................................... 11
9.10 SET ALARM .......................................................................................................................................... 11
9.11 RESTORE FACTORY SETTINGS .............................................................................................................. 11
10 SOUND ....................................................................................................................................................... 11
10.1 RINGER ................................................................................................................................................ 11
10.2 VOLUME .............................................................................................................................................. 11
10.3 RING TYPE ........................................................................................................................................... 11
10.4 ALERT .................................................................................................................................................. 11
11 CALL SERVICES ..................................................................................................................................... 12
11.1 CALLER ID ........................................................................................................................................... 12
11.2 CALL WAITING .................................................................................................................................... 12
11.3 CALL DIVERT ....................................................................................................................................... 12
11.4 CALL BARRING .................................................................................................................................... 12
11.5 CALL TIME REMINDER ......................................................................................................................... 12
11.6 AUTO REDIAL ...................................................................................................................................... 12
11.7 BLACK LIST ......................................................................................................................................... 12
1
1 General Introduction
Thank you for choosing OneCentury G-series GE-01 GSM Desktop Phone. To use your phone well, please read
this user manual carefully before you use.
The phone has been designed to operate with the latest digital communication technology - GSM. The phone
provides the following advanced features:
Large LCD with backlight, easy to read
Status Indicators
Two-way SMS, voice mail and caller ID
Call Forwarding, Call Waiting, Three-Way Calling
Emergency call
Menu driven interface for easy operation and configuration
Store 500 contacts
Save 500 SMS
Last call redials
Choice of 22 ring tones and power On/Off music
Adjustable ring and voice volume
AC power supply
Indoor antenna
Speaker phone for hand-free operation
User friendly keypad
Long battery stand-by and talk time
Easy to service and repair
GPRS
2
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
2 Important Information
The product can only be installed indoors.
Do not place the phone near high temperature objects, under direct sunlight, near source of water, near fire
or near inflammable and explosive materials. Avoid using the phone in high temperature or humidity.
The phone may interfere with heart pacemaker, hearing aid and other electronic medical devices. Therefore
please follow the instructions given by your equipment suppliers or consult your doctor. Turn your phone
OFF in health care centers if any regulations posted in the area instruct you to do so. Hospitals or health
care centers may be using equipment that may be sensitive to external RF energy.
Place the phone away from other electronic devices like TV and Radio to avoid interference.
Keep the product away from magnetic field and static electricity.
Place the phone out of the reach of small children.
Do not attempt to reassemble the phone by yourself. Only authorized personnel could service the phone
and its accessories. Faulty installation or service can be dangerous and may invalidate the warranty.
Do not clean the phone while in operation. Before attempting to clean the phone, turn the phone off,
disconnect the external power adapter and take out the battery. Use a dry, soft cloth for cleaning. Do not
use liquid or aerosol cleaners.
Do not drop, knock or shake the phone. Rough handling may break the phone body and internal circuit
boards.
Do not use the phone if the antenna is damaged. Replace the damaged antenna immediately by a qualified
technician. Use only a manufacturer approved antenna. Non-approved antennas, modifications or
attachments may impair call quality and damage the phone.
Do not hold the antenna during operation. This may affect call quality and cause the phone to operate at
unintended power levels.
Keep the antenna free from obstructions and position the antenna straight up. This will ensure best call
quality.
Only use the battery and the power adapter approved by the manufacturer. If not, it may cause an explosion
or result in a short circuit.
It is highly recommended to fully charge the battery before initial use. The battery might have been
discharged during storage and delivery.
Do not throw battery. Batteries are not to be disposed off by putting them in fire. It may explode or catch
fire.
The power adapter must be used within the specified AC voltage range.
Take out the battery if you won’t use your phone for a long time and keep the battery well.
During lightning, do not touch the power plug. It may result in an electric shock or death.
Do not touch the plug with wet hands. Always grasp and pull the plug, not the cord. Do not put heavy
things on the power cord or bend it too much.
During daily use, do not pull out the power adapter. The battery is used for backup power, which will not
cause the increasing consumption of electricity. When power adaptor is not plugged in, device can be
operated with battery only.
Don’t use the power adapter if the power cable is damaged. Contact the maintenance center immediately
and replace the adapter.
3
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
3 Product Overview
3.1 Packing List
Once you open the product package, please check the packing list to make sure there is no part missing. If any
part is missing or broken, please contact the customer service. The packing list is as follow:
No.
Name
Qty.
Remark
1
Phone Body
1
2
Handset
1
3
Antenna
1
4
Ni-MH Rechargeable Battery
1
Bonding Battery 3pcs in 1pcs
5
User Manual
1
6
Charger
1
Table 1 Packing List
3.2 Product Introduction
3.2.1 Appearance
Figure 1 AGP-V800R GSM Fixed Wireless Phone Appearance
4
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
3.2.2 Key Definition
Figure 2 Key Layout
1
Direction Keys
Move the cursor or scroll the menu.
also be Left Soft Key and Right Soft Key.
2
OK Key
Confirm your selection
In Standby mode, press OK key to enter Dialed Calls
3
Cancel
Cancel your selection
4
END Key
Reject an incoming call, end a call, return to idle mode
5
MUTE Key
Switch to silent profile
6
CALL/REDIAL Key
Make or redial a call
7
SPEAKER Key
Hand free Key, active speaker phone mode
8
0~9 Alpha Numeric
Keys and * # Key
To input numbers and characters, In text input mode, press 0 Key to input
space
5
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
3.2.3 Display Icon
The following icon may appear on the display of the phone:
No.
Icon
Description
1
Current signal strength. The more bars there are, the stronger the signal is.
2
No signal.
3
Battery capacity indicator. The more bars there are, the more capacity the battery has.
4
Supplied by charger
5
Alarm on
6
Call forwarding
7
Phone lock
8
Missed call
9
Unread message
10
Speakerphone actives
Figure 3 Display Icon
4 Basic Operations
4.1 Power On/Off
Hook up handset to your phone and put the handset to hang up position, then connect DC power supply to the
“DC IN” port at the rear of the phone or insert the battery to the battery chamber. Switch the “Power” switch (on
the rear of the Phone) to ON, then press the Power On/Off Key on the panel for 3 seconds to power on the
phone, your phone should go to idle screen and is ready to use.
You can turn the phone off directly by switching the “Power ON/OFF” switch (on the rear of the phone) to OFF
position. If the phone will not be used for long time, please turn this switch to OFF. Or you can press the Power
On/Off Key for 3 seconds to power off the Phone.
The phone can be operated without AC, this means it can work with battery only.
4.2 Make a Call
While your phone is power on and at idle screen, enter a destination number you wish to call and then press
SEND Key. (Note: To modify digits you enter, you can press BACK/CLR Key to delete wrong digits first and
then enter new digits). Once the call is connected, the phone’s screen will display the number you have dialed,
and the time duration the call has lasted.
The phone also has a speaker. To use the speaker to make a call, press SPEAKER Key, enter a phone number,
and press SEND Key.
The battery capacity of 1200 mAh is sufficient to place any calls without external AC/DC adaptor.
4.3 Answer a Call
When there is an incoming call, the phone will ring and display the Phone number of the incoming call (if the
number is available). You can pick up the handset or press SPEAKER Key to answer the incoming call. The
ring tone and ring-tone volume can be changed in the setting menu.
4.4 End a Call
You can end a call by pressing END Key. If you are using the handset for a phone call, hanging up the handset
will end the call automatically.
6
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
5 Main Menu
Press L.KEY to enter the main menu from the idle screen. The main menu includes: Contacts, Messages, Recent
Calls, Tools, and Settings. The menu tree is as follow:
Menu
Contacts
Search
New
Copy
Erase All
Groups
Owner Number
Memory Status
Messages
Write Message
Inbox
Sent Messages
Templates
Message Settings
Voice Mail
Broadcast Message
Recent Calls
Missed
Dialed
Answered
Erase Lists
Call Duration
Settings
Display
Network Setup
Security Setup
Alarm
Restore Factory Settings
Sounds
Ringer
Volume
Ring Type
Alert
Call Services
Caller ID
Call Waiting
Call Divert
Call Barring
Call Time Reminder
Auto Redial
Black List
Figure 4 Menu Tree
6 Contacts
Contacts can be used to store contact’s name and contact’s phone numbers, home number, email address, office
number and associate sound. You can store up to 500 entries to phone memory.
6.1 Search for a Contact
You can search a contact by name,
1) Select Menu → Contacts → Search,
2) Input the name for inquiry,
3) Press L.KEY to search or change input method, press OK to start search.
7
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
6.2 Add a New Contact
6.2.1 Add a New Contact from the Menu
1) Select Menu → Contacts → New, then you can choose the contact store to SIM or to Phone,
2) Scroll to Name, press L.KEY to input the name, and then press L.KEY → Done,
3) Scroll to Number, input the phone number, and then press L.KEY,
4) Scroll to the item you need to add to input or edit.
5) Then Press L.KEY to finish adding a contact, select Yes to save the contact.
6.2.2 Add a New Contact in Standby Mode
1) In idle mode, after inputting the phone number, press L.KEY to save the number directly.
2) Save the number to SIM card or to Phone.
6.3 View a Contact
There are 3 ways to view a contact.
1) Press R.KEY to view the contact list in idle mode, scroll to the desired contact, press L.KEY, scroll to
View, and then press L.KEY to view the contact information;
2) Select Menu → Contacts → Search, input nothing, press Select → Search → OK to view the
contact list. Scroll to the desired contact, press L.KEY, scroll to View, and then press L.KEY to view the
contact information;
3) Select Menu → Contacts → Groups, select the group that desired contact belongs, scroll to Member
List, then scroll to the desired contact, press L.KEY, scroll to View, and then press L.KEY to view the
contact information.
6.4 Delete a Contact
1) Press L.KEY to view the contact list in idle mode, scroll to the desired contact, press L.KEY, scroll to
Delete, and then press L.KEY,
2) You will be prompted “? Delete”, choose Yes to delete the contact.
6.5 Edit a Contact
1) Press L.KEY to view the contact list in idle mode, scroll to the desired contact, press L.KEY, scroll to Edit,
and then press L.KEY,
2) Scroll to the item you need to edit, edit directly or press L.KEY to edit.
6.6 Group
6.6.1 Add a Contact to the Group
1) Select Menu → Contacts → Groups, scroll to the group that the desired contact belongs,
2) Scroll to Member List, press L.KEY to enter the Member List, press L.KEY,
3) Scroll to Add, press L.KEY, scroll to the desired contact, press L.KEY twice to add the contact to the
group.
6.6.2 Delete a Contact from the Group
1) Select Menu → Contacts → Groups, scroll to the group that the desired contact belongs,
2) Scroll to Member List, press L.KEY to enter the Member List, press L.KEY,
8
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
3) Scroll to Delete, press L.KEY, scroll to the desired contact, and press L.KEY twice to delete the contact to
the group.
6.6.3 Rename a Group
1) Select Menu → Contacts → Groups, scroll to the group you want to rename, press L.KEY,
2) Scroll to group name, press L.KEY, edit the group, press L.KEY twice to rename the group.
6.6.4 Set a Ring tone to a Group
1) Select Menu → Contacts → Groups, scroll to the group you want to rename, press L.KEY,
2) Scroll to 2, press L.KEY, set a ring tone to the group, press L.KEY to set the new ring tone.
7 Messages
You could compose a new message, view the inbox and outbox, perform SMS setting, voice mail and broadcast
message.
In idle mode, you can enter Messages in either of the following two methods:
1) Press L.KEY and then select Messages;
2) Press SMS key directly.
7.1 Send a Message
You could send a message to one recipient or multiple recipients.
1) In Messages, press Write Message and L.KEY to compose a new message,
2) Input the text, press L.KEY twice to finish inputting the text,
3) You can choose Send Only to send to one recipient without saving, or Save and Send to send to one
recipient with saving the message to Sent Messages, or Save to save the message to Sent Messages
without sending out, or Send to Many to send multiple recipients, or Send by Group to send to all the
group members.
7.2 Receive a Message
1) If there is a new message, the phone will ring alert. In idle mode, press L.KEY to read the message,
2) Or you could read the new message in the Inbox. Press SMS Key, scroll to Inbox, press L.KEY, scroll to
the message you want to read.
3) Then press L.KEY you can
a) Reply: reply to the message
b) Delete: delete the message
c) Edit: edit in the message and then save or send
d) Forward: forward the message to other recipient(s)
e) Erase All: erase all message in the Inbox
f) Use Number: get all numbers in the message includes the sender’s number. You can dial directly, or
Send SMS directly, or save the number to phone book.
7.3 View Sent Messages
1) In Messages, scroll to Sent Messages and press L.KEY to view the outbox
2) Scroll to the message you want to read, press L.KEY to Send, Edit, Delete, Erase All, and Use
Number.
9
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
7.4 Send a Message by using Templates
1) In Messages, scroll to Templates, press L.KEY to enter template menu,
2) There are 10 template messages in Templates menu, you could edit the template or delete the template,
3) Scroll to the template message you want to use, then press L.KEY, scroll to Edit or Write Message,
press L.KEY, modify the message and then send out.
7.5 Message Settings
You can set SC Address (Message Center Number), Valid Period, Message Type, Delivery Report, Reply Path,
Preferred Storage in Message Settings, also you could read messages’ memory status in Message Settings.
7.6 Voice Message and Broadcast Message
Please contact your local operator to set the voice message and broadcast message.
8 Recent Calls
You can find Missed, Dialed, Received, Erase Lists, and Call Duration in Recent Calls menu.
In idle mode, press L.KEY and then select Recent Calls.
8.1 Missed
1) Select Missed Calls in Recent Calls menu,
2) The Missed Calls List will be displayed; you could scroll to the desired number,
3) Press L.KEY to: View the call information; Delete the call log, Save the Number to Phone Book,
Dial, Edit this number, and Send SMS to this number.
8.2 Dialed
1) Select Dialed Calls in Recent Calls menu, or press SELECT key in idle mode,
2) The Dialed Calls List will be displayed; you could scroll to the desired number,
3) Press L.KEY to: View the call information; Delete the call log, Save the Number to Phone Book,
Dial, Edit this number, and Send SMS to this number.
8.3 Received
1) Select Received Calls in Recent Calls menu,
2) The Received Calls List will be displayed; you could scroll to the desired number,
3) Press L.KEY to: View the call information; Delete the call log, Save the Number to Phone Book,
Dial, Edit this number, and Send SMS to this number.
8.4 Erase Lists
Select Erase Lists in Recent Calls menu, you could scroll the cursor to erase Missed, Dialed, Received
list.
8.5 Call Duration
Select Call Duration in Recent Calls menu, you could scroll the cursor to view duration of Last call Time,
Total Dialed, Total Received, scroll to Erase All to erase all duration.
9 Settings
9.1 Set Time and Date
1) Select Display in Settings, select Time and Date in Display,
2) Scroll to Set Time/Date, press L.KEY, and scroll to 1 to set time, scroll to 2 to set date.
3) If you want to change the format of time and date, select Display in Settings, select Time and Date in
Display, then scroll to Set Format, press L.KEY. Scroll to 1 and press L.KEY to set time format, 12hr
10
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
or 24hr; scroll to 2 and press L.KEY to set date format, DD/MM/YYYY, MM/DD/YYYY,
YYYY/MM/DD, YYYY-MM-DD.
9.2 Set Language
1) Select Display in Settings, select Language in Display,
2) Scroll to language you desired, press L.KEY to set language.
9.3 Set Preferred Input Methods
1) Select Display in Settings, select Preferred Input Methods in Display,
2) Scroll to the input method you desired, press L.KEY to set input method. The input methods include
Smart ABC, Smart abc, Multitap ABC, Multitap abc, Numeric, Multitap VI, Multitap vi.
9.4 Set LCD Contrast
1) Select Display in Settings, select Contrast in Display,
2) Press to decrease/increase the contrast of the LCD. Press L.KEY to save the setting.
9.5 Set LCD Backlight
1) Select Display in Settings, select Backlight in Display,
2) Scroll to the time you want to switch off the backlight, press L.KEY to save the setting. The time includes
5 Sec, 15 Sec, 30 Sec, 45 Sec.
9.6 Set Dial Delay
The phone can autodial after you input a number; you can set the time after you input the number by setting Dial
Delay, the phone autodial.
1) Select Display in Settings, select Dial Delay in Display,
2) Scroll to the time you desired, press L.KEY to save the setting. The time includes 5s, 6s,7s, 8s,9s or
close autodial.
9.7 Speed Dial
The phone support speed dials function. You can hold the numeric key to dial the number you set.
1) Select Display in Settings, select Speed Dial in Display,
2) If you want to use the speed dials function, you need to enable this function first. Scroll to Enable Speed
Dial, press L.KEY to enable this function,
3) Then scroll to Set Number, press L.KEY, scroll to the number you need to set. Press L.KEY twice to
select the contact you want to set the speed dials, and then press L.KEY to confirm the setting.
9.8 Network Setup
You can search or setup a new network here. We recommend that use automatic selection mode.
9.9 Security Setup
9.9.1 SIM Lock
Please consult your operator for details on this function.
9.9.2 Phone Lock
Please consult your operator for details on this function.
11
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
9.9.3 Auto Keypad Lock
1) In Settings, select Security Setup,
2) In Security Setup, select Auto Keypad Lock,
3) Scroll to the timer you want to lock your phone in idle mode, press L.KEY to save the settings.
In idle mode, to unlock the keypad, press R.KEY, your phone will prompt “Press # to Unlock Keypad”, press #
key to unlock keypad. In idle mode, press R.KEY and # key to lock the keypad.
9.9.4 Fixed Dial
Please consult your operator for details on this function.
9.9.5 Barred Dial
Please consult your operator for details on this function.
9.9.6 Change Password
Please consult your operator for details on this function.
9.10 Set Alarm
You can set 5 alarms.
1) In Settings, Select Alarm,
2) Select any one from 5 alarms, press L.KEY to edit the alarm,
3) Scroll to 1, press * key or # key to active/deactivate the alarm,
4) Scroll to 2 to set alarm time,
5) Scroll to 3 to set alarm repeat way, press * key or # key to switch the alarm repeat way, includes Once,
Everyday, Days (If the repeat way is Days, press to select the days).
9.11 Restore Factory Settings
1) In Settings, Select Restore Factory Settings,
2) The initial password is “1122”. Input the password to restore factory settings.
10 Sound
Here you can set the ring tone and volume. In main menu, select Sound, or press MUTE key to enter sound
menu.
10.1 Ringer
In Sound menu, select Ringer, then you can set the ringer for Incoming Call, Alarm, Power On, Power
Off, Message Tone, Keypad Tone.
10.2 Volume
In Sound menu, select Volume, then you can set the volume for Ring Tone, Key Tone,.
10.3 Ring Type
In Sound menu, select Ring Type, then you can sent the ring type as Single, Repeat, Ascending.
10.4 Alert
In Sound menu, select Alert, and then press L.KEY you can turn on/off the alert of Warning, Error, and
Camp on, Call Connect.
12
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
11 Call Services
11.1 Caller ID
Caller ID is a phone service, transmits a caller’s number to the called party’s phone.
1) In Call Services, Select Caller ID,
2) There are 3 choices, Set by Network, Hide ID, Send ID.
11.2 Call Waiting
If a calling party places a call to a called party which is otherwise engaged, and the called party has the call
waiting feature enabled, the called party is able to suspend the current telephone call and switch to the new
incoming call, and can then negotiate with the new or the current caller an appropriate time to ring back if the
message is important, or to quickly handle a separate incoming call.
There are 3 options in Call Waiting menu, Activate, Deactivate, Query Status. Please contact your local
operator to apply for this service. Please consult your operator for details on the operations.
11.3 Call Divert
Call Divert allows you to divert an incoming call to any other number no matter your phone is switched off or
not. You can still receive calls through the specified phone when Call Divert is activated.
There are 3 options in Call Divert menu, Divert All Voice Calls, Divert If Unreachable, Divert If No
Answer, Divert If Busy, and Cancel All Divert. Please contact your local operator to apply for this service.
Please consult your operator for details on the operations.
11.4 Call Barring
Call Barring allows the user to prevent Incoming Calls and Outgoing Calls.
There are 4 options in Call Barring menu, Outgoing Calls, Incoming Calls, Cancel All, and Change
Barring PW. Please contact your local operator to apply for this service. Please consult your operator for
details on the operations.
11.5 Call Time Reminder
Call Time Reminder will remind the user calling time.
There are 3 options in Call Time Reminder menu, Off, Single (1-3000 sec), Periodic (30-60 sec)
11.6 Auto Redial
In Call Services, scroll to Auto Redial, press L.KEY to turn on/off auto redial function.
11.7 Black List
You can add contacts to black list to block the contacts.
In Call Services, select Black List. Scroll to 1, press L.KEY to turn on/off black list function. Scroll to 2,
press L.KEY, input the number you want to block, press L.KEY to save the list.
13
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
12 Connect to network.
12.1 Use cable connects FWP and Pc.
12.2 Install the cable driver “PL2303_XP2KME98Driver_Setup.exe”
14
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400

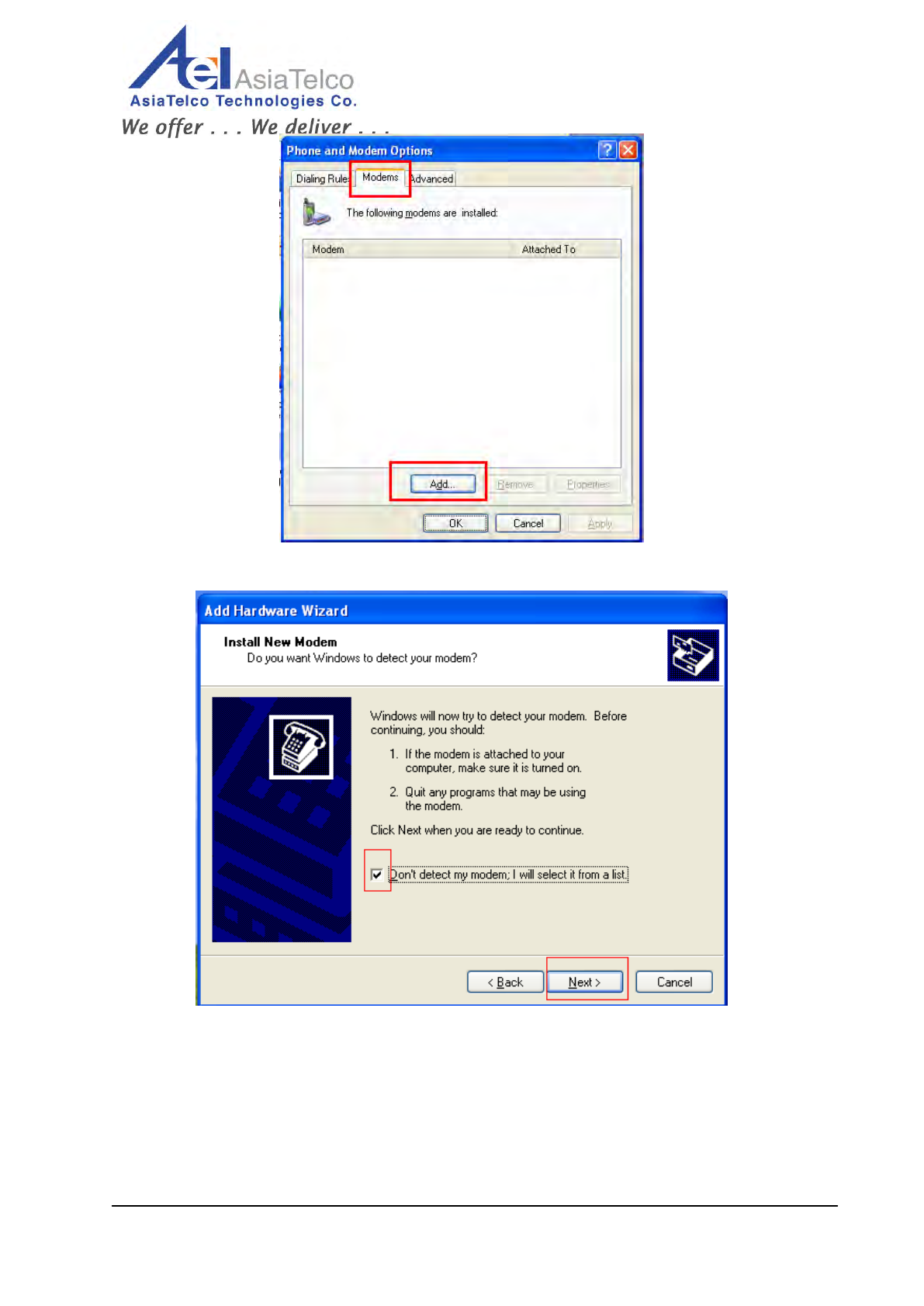

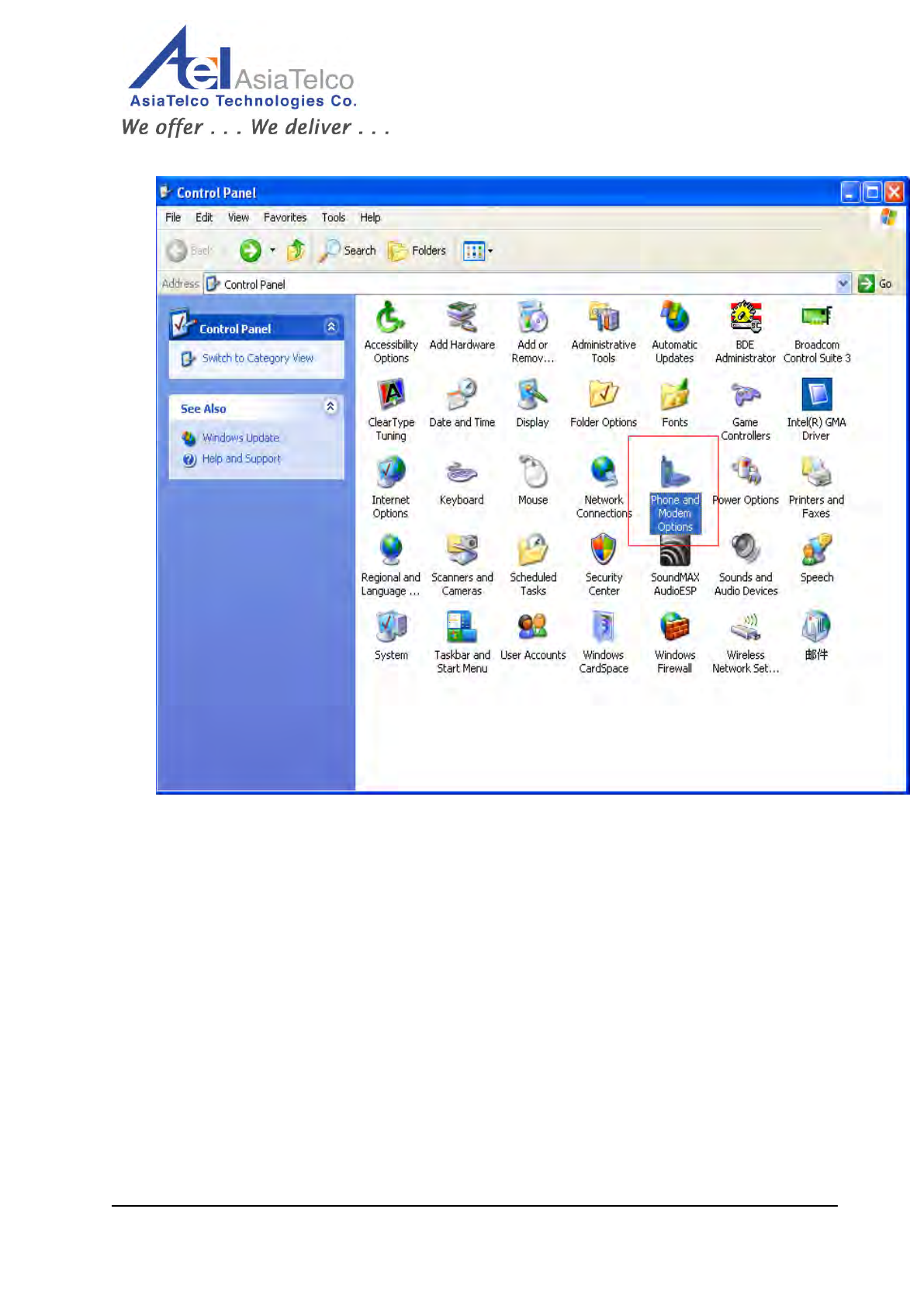

12.3 Enter the windows “Control Panel”-> “Phone and Modem Options” to Add
a Modem.
15
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
12.4 Select “Don’t detect my modem; I will select it from a list”

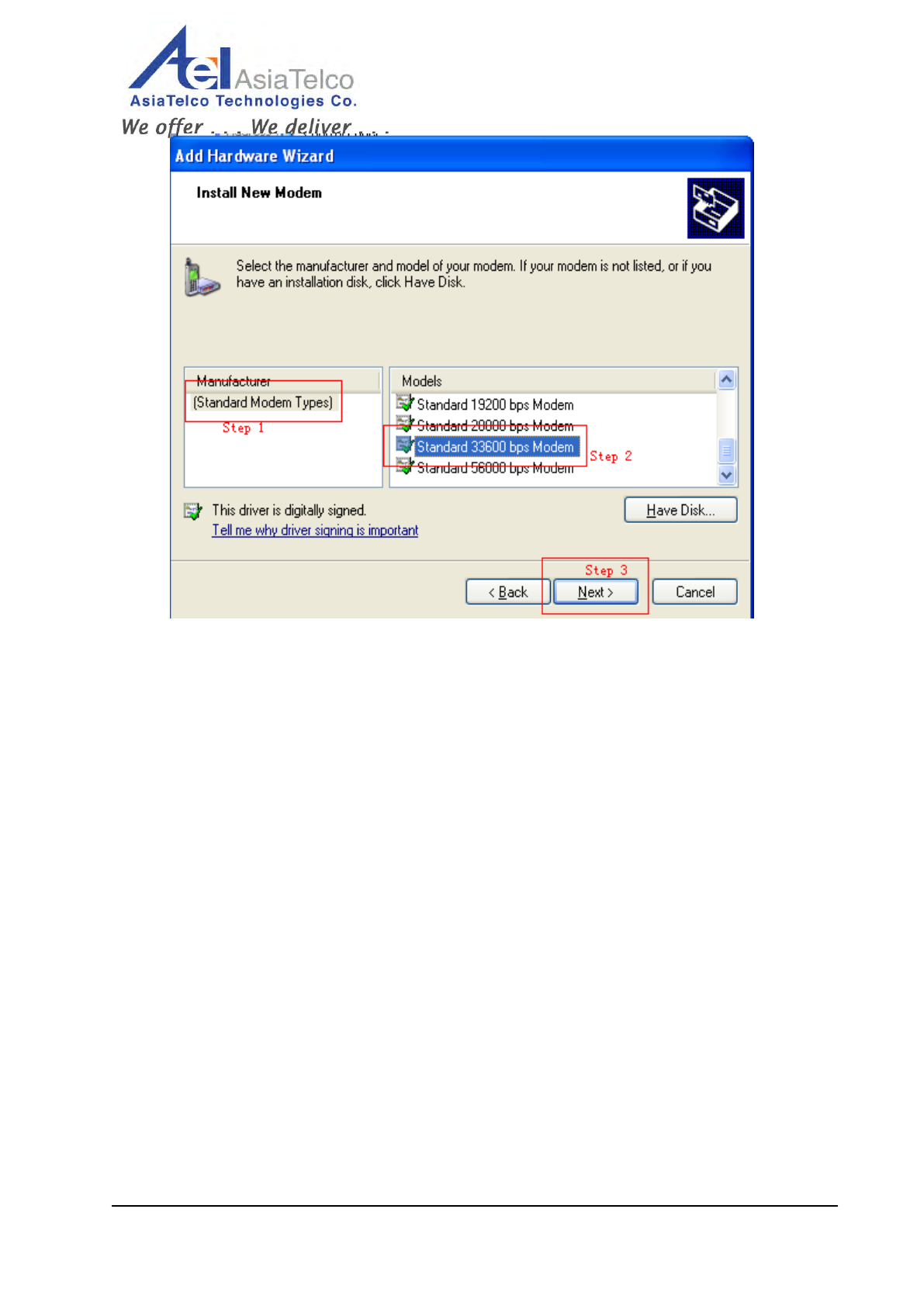

12.5 Select a Models “Standard 33600 bps Modem”
16
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400

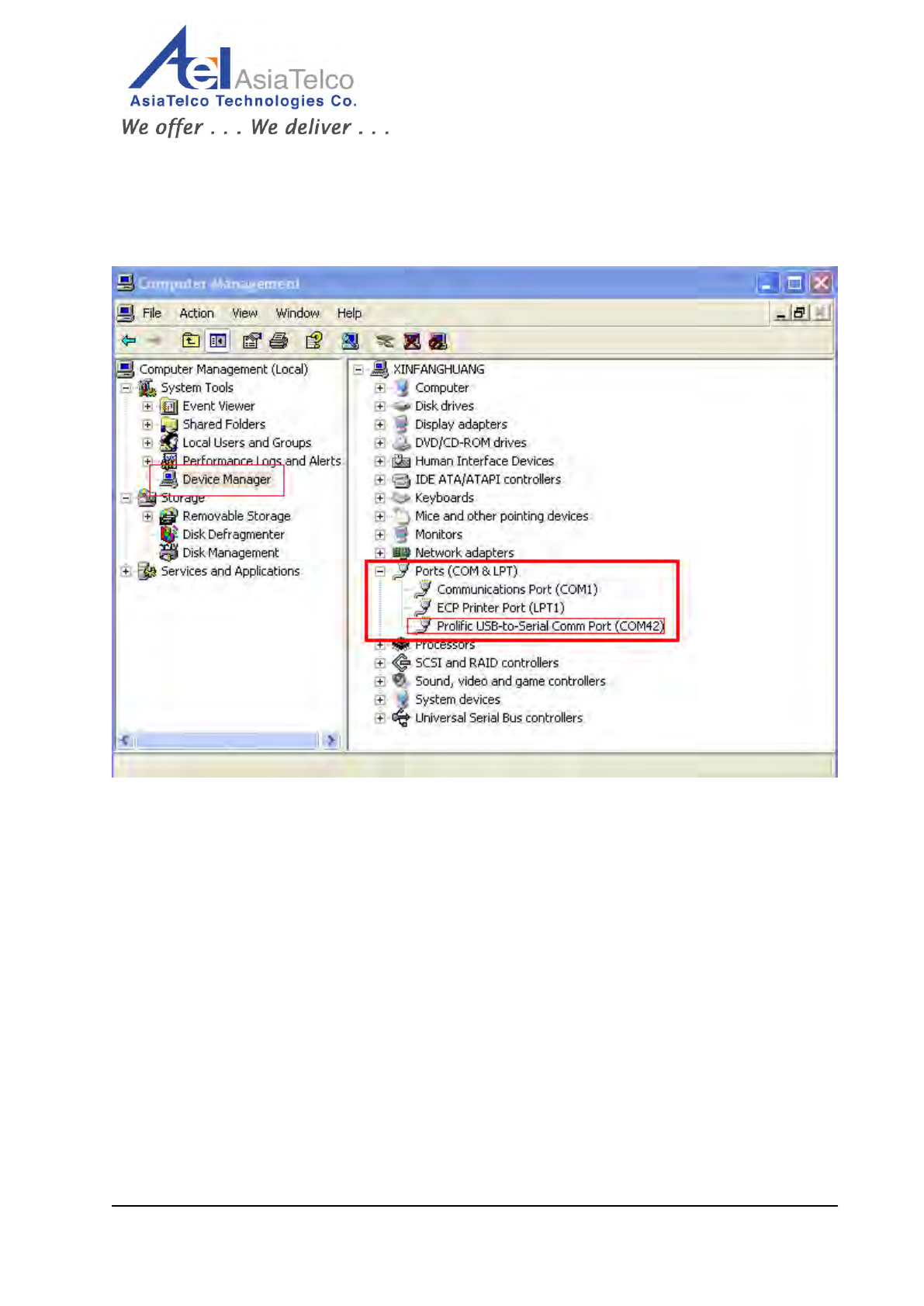

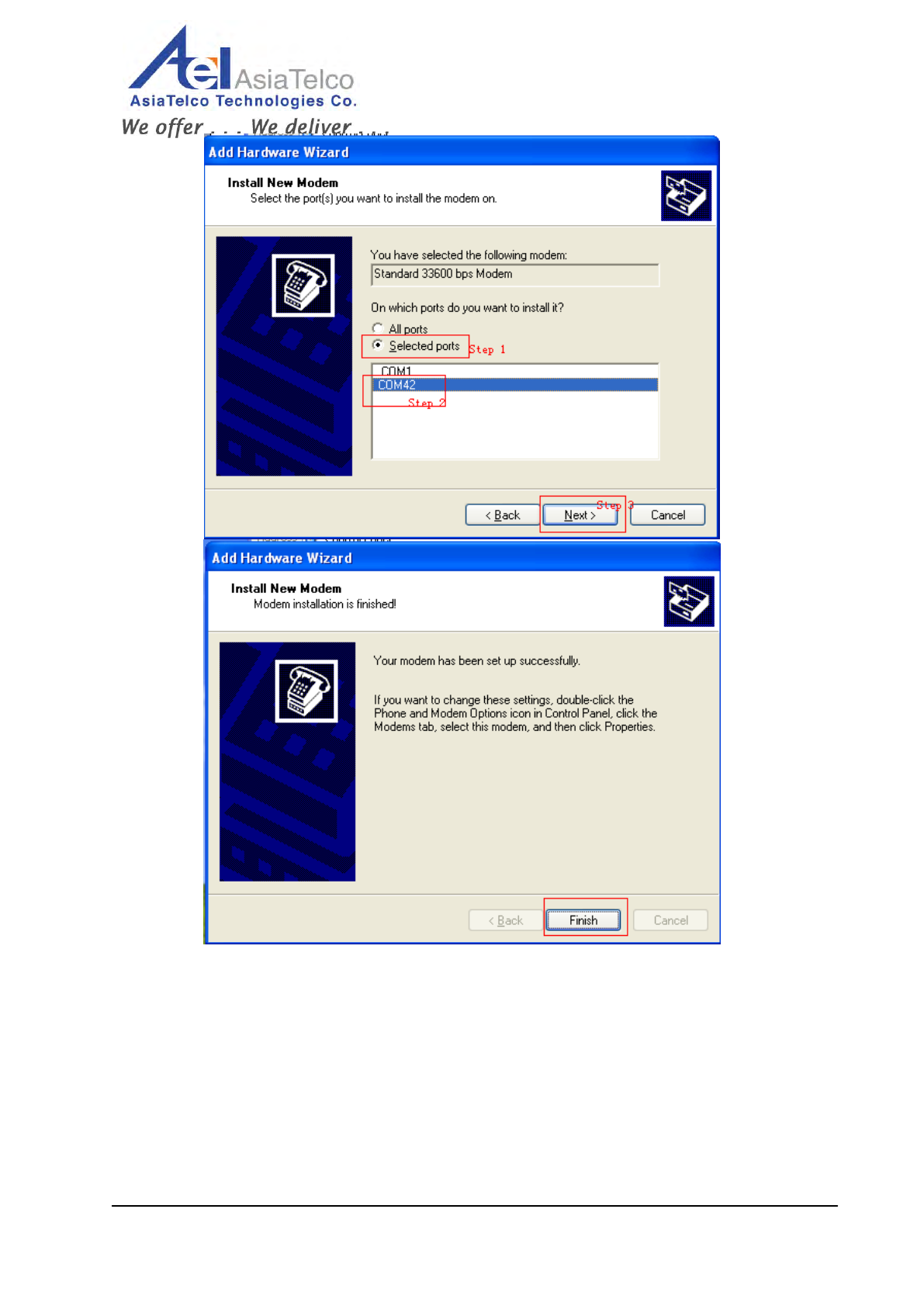

12.6 “Selected Ports”->choose a port same to the Cable’s port (eg: COM42)
17
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400

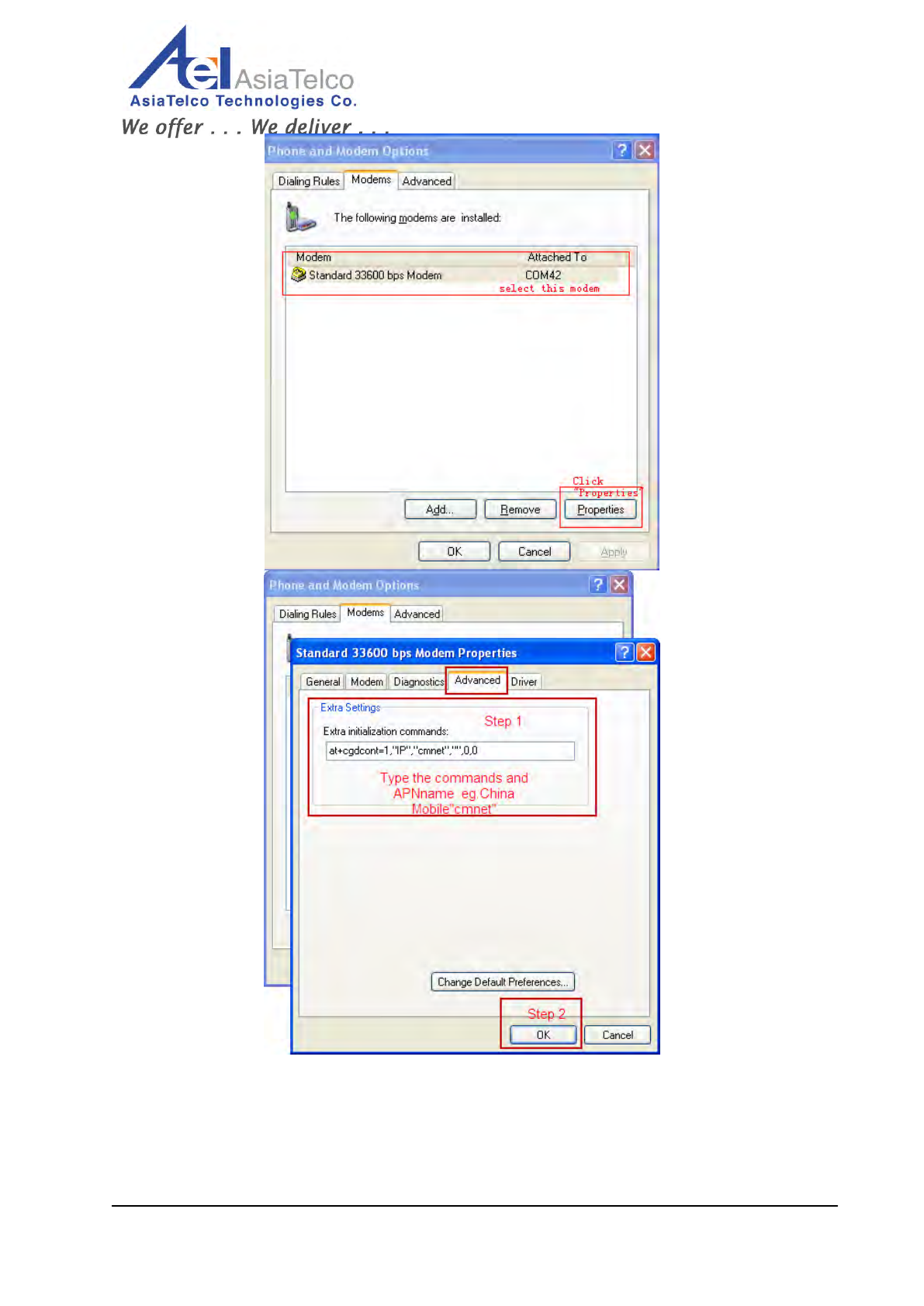

18
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400

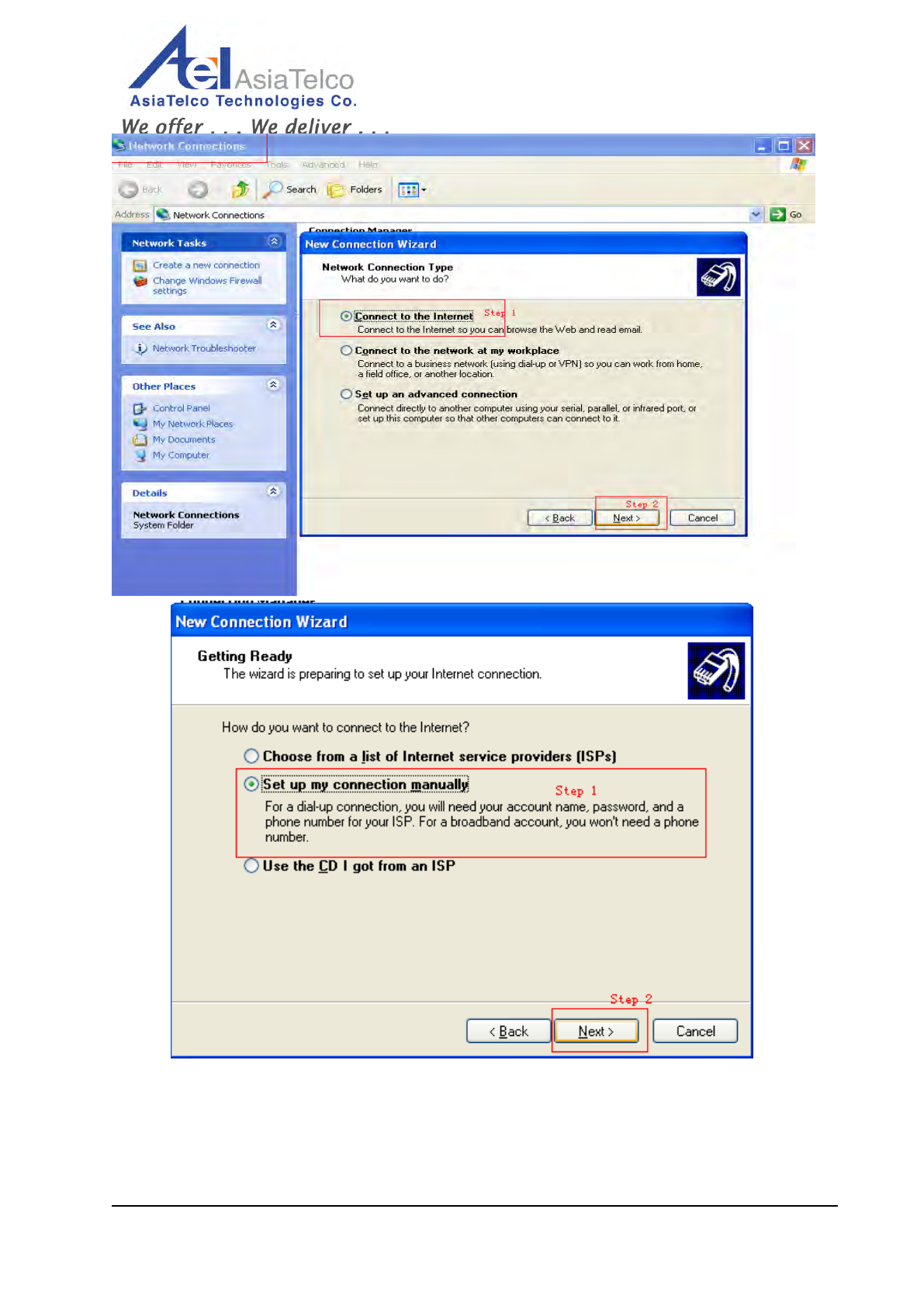

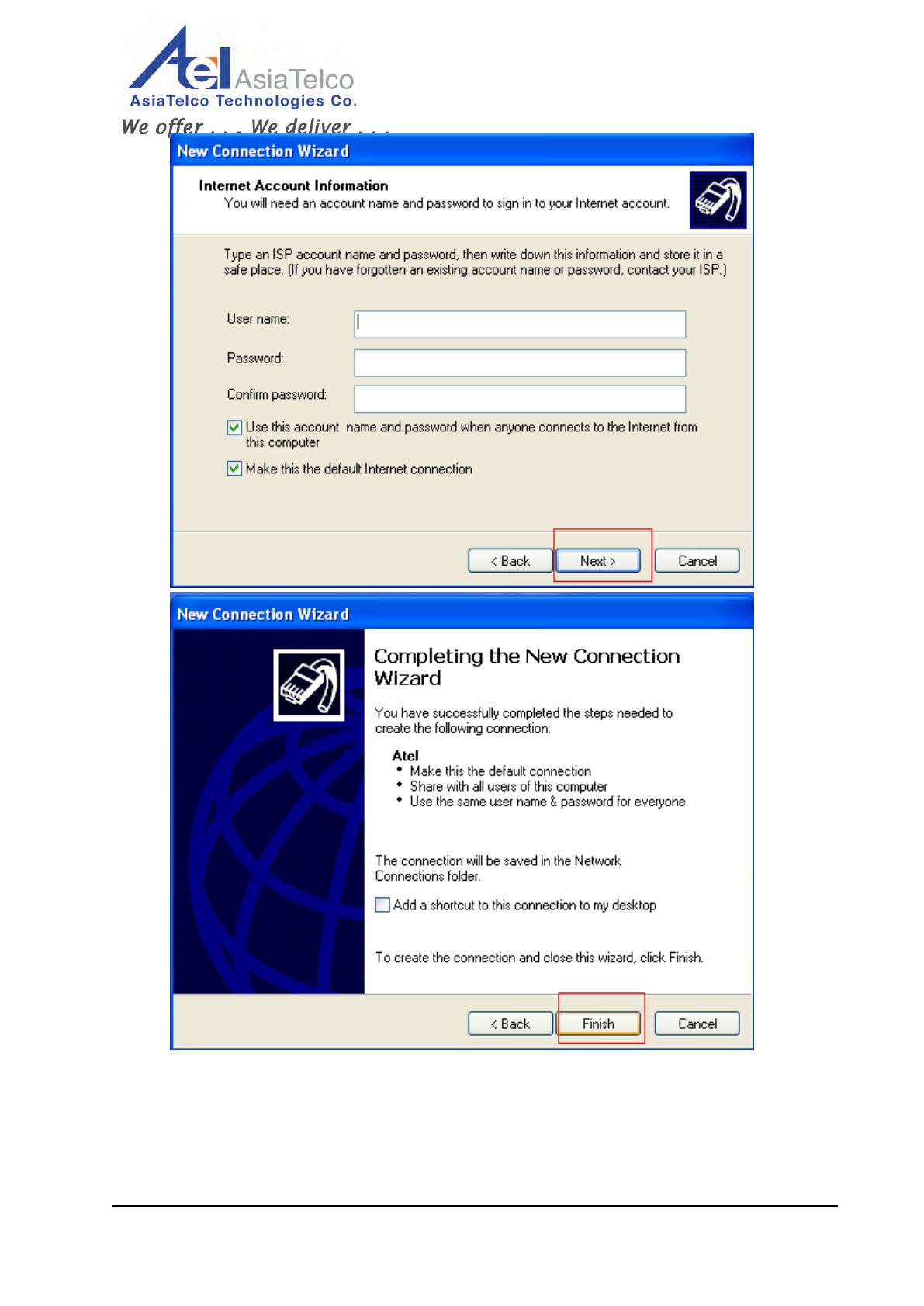

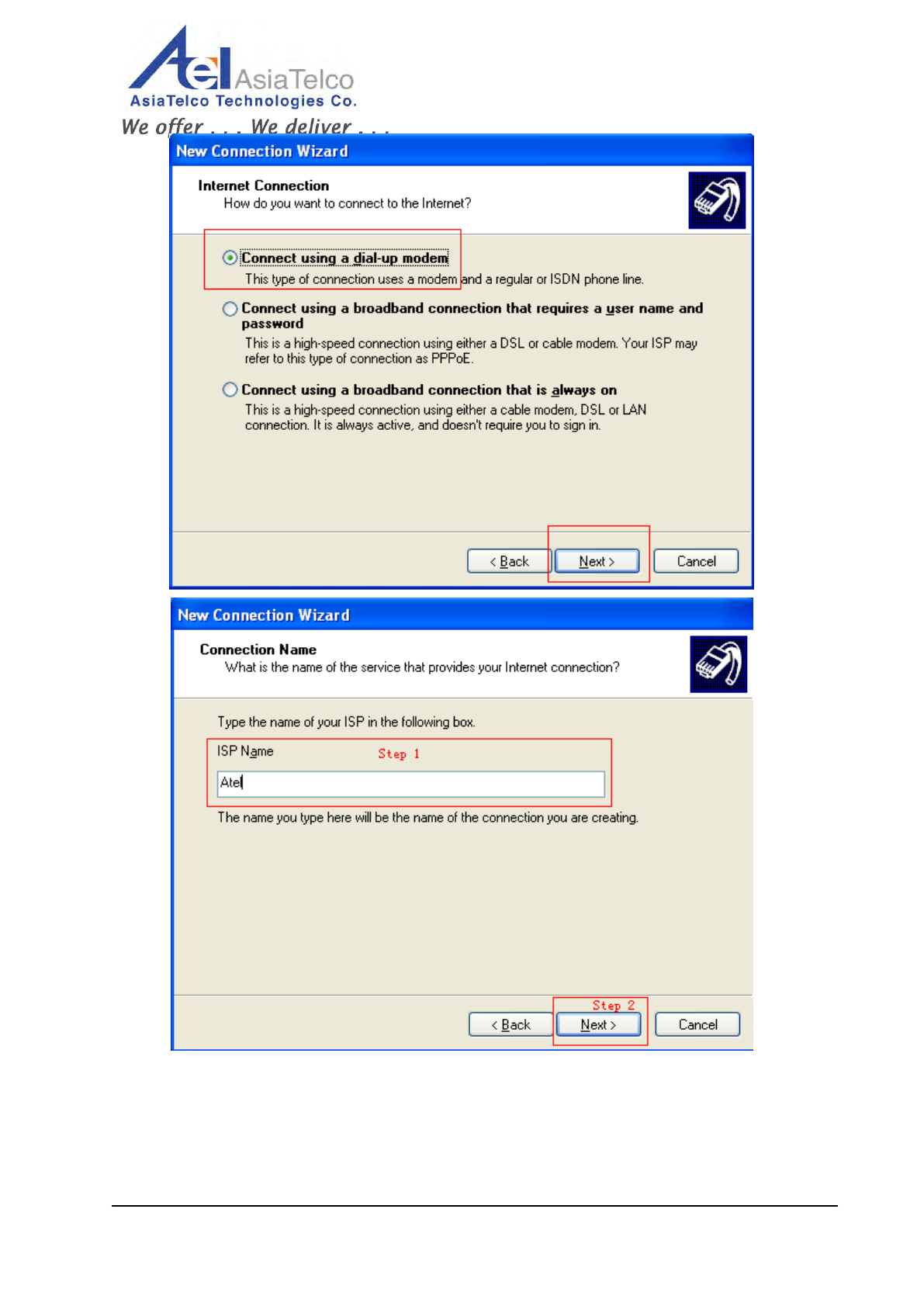

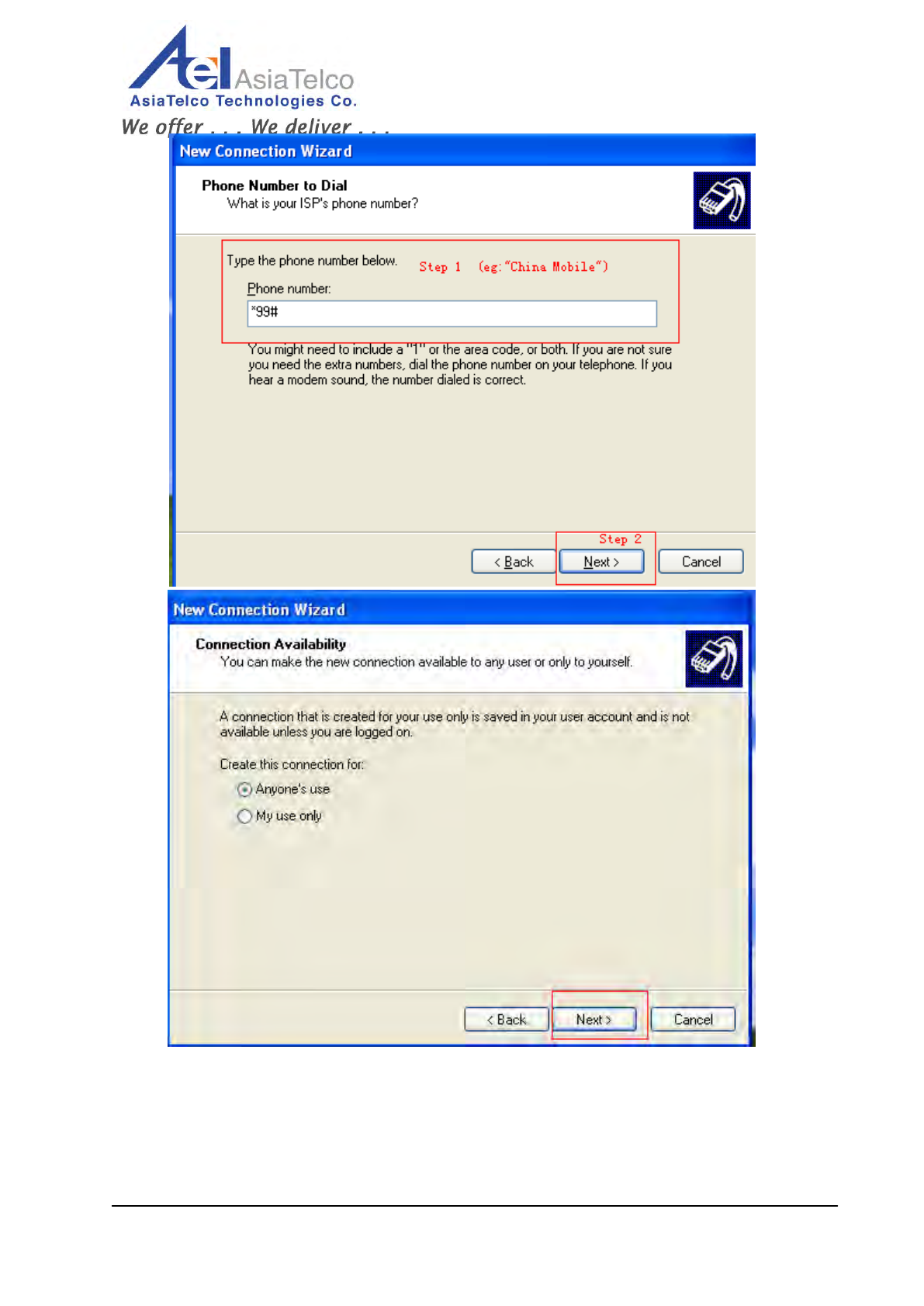

12.7 Enter “control panel”-> “Network Connections” –> “Create a new
connection”
19
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
20
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
21
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
22
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400

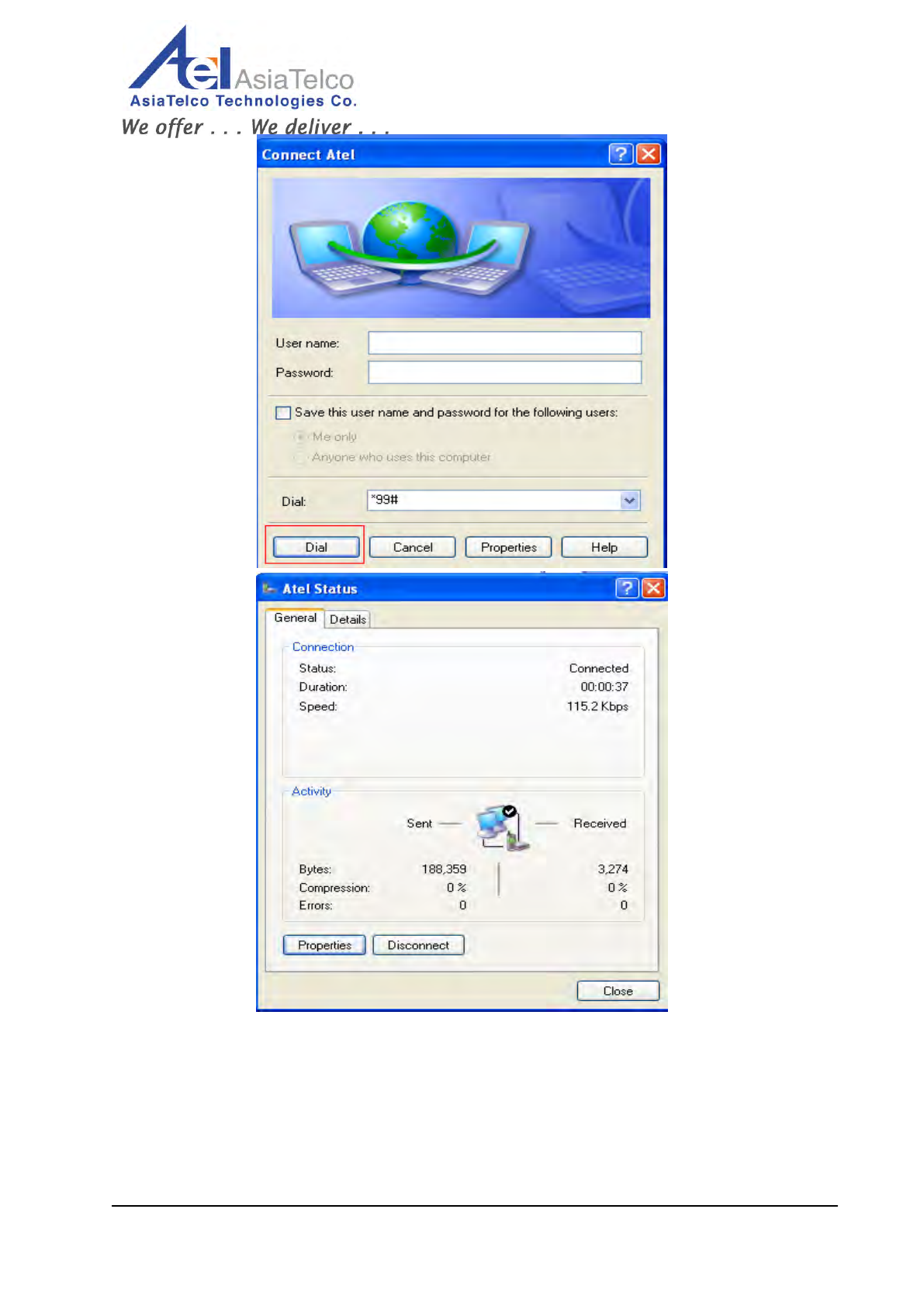

12.8 Click “Dial” button. Connect to networks successfully.
23
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
13 Technical Parameters
Charger AC Input 90 ~ 240 VAC, 50~60Hz
Charger DC Output 5.3VDC @800mA
Backup Battery 3.6V/1200mAh Li-ON Rechargeable Battery
Operation Temperature -10℃~ 50 ℃
24
#289 Bisheng Road, Building-8, 3F,
Zhangjiang Hi-Tech Park, Pudong,
Shanghai – 201 204. China
TEL: +86 21-51688806
FAX: +86 21-33932400
FCC Regulations:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
SAR Information
The SAR limit adopted by USA is 1.6 Watts/kilogram (W/kg) averaged over one gram of tissue.
This device (FCC ID: XYOAGP-V800R) was tested for typical body-worn operations with the back of
the phone in direct touch with the human body.
The highest SAR value reported to the FCC is 1.336 W/kg.
To maintain compliance with FCC RF exposure requirements, use only beltclips, holsters or similar
accessories that do not contain metallic components in its assembly. The use of accessories that do
not satisfy these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
