EC-P11 user manual-ver2

1 / 13

www.asiatelco.com

Wireless Energy Controller V1.8

model number：EC-P11

INDEX

1 DESCRIPTION --------------------------------------------------------------------------------------------- 3

2 BENEFIT ---------------------------------------------------------------------------------------------- 4

3 FEATURES ---------------------------------------------------------------------------------------------- 4

4 HARDWARE CONFIGURATION ---------------------------------------------------------------------- 5

5 ELECTRICAL SPECIFICATION ---------------------------------------------------------------------- 5

6 SIGNAL DEFINE ----------------------------------------------------------------------------------------- 7

7 DIMENSION ----------------------------------------------------------------------------------------------- 8

8 QUICK USER GUIDE ------------------------------------------------------------------------------------ 9

9 SOFTWARE USER GUIDE ------------------------------------------------------------------------------ 10

2 / 13

www.asiatelco.com

IMPORTANT ANNOUNCEMENT

**Highvoltageinthecontroller,operatorsmustbewithprofessionalknowledge.

**Thewirenamed“E‐gnd”mustbeconnectedwiththeearthgroundallthetime.

FCCWarningInformation

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This

devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.



NOTE:



***WIFIChannel12&Channel13isnotavailableinfinalproduct.Thehardwareisdisabledinside.



***ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15

oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledand

usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis

noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuseris

encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



***Besuretoleavethehumanbodymorethan20cmwhenusingthisproduct.



***Thecountrycodeisnotsupportedbythisproduct.



3 / 13

www.asiatelco.com



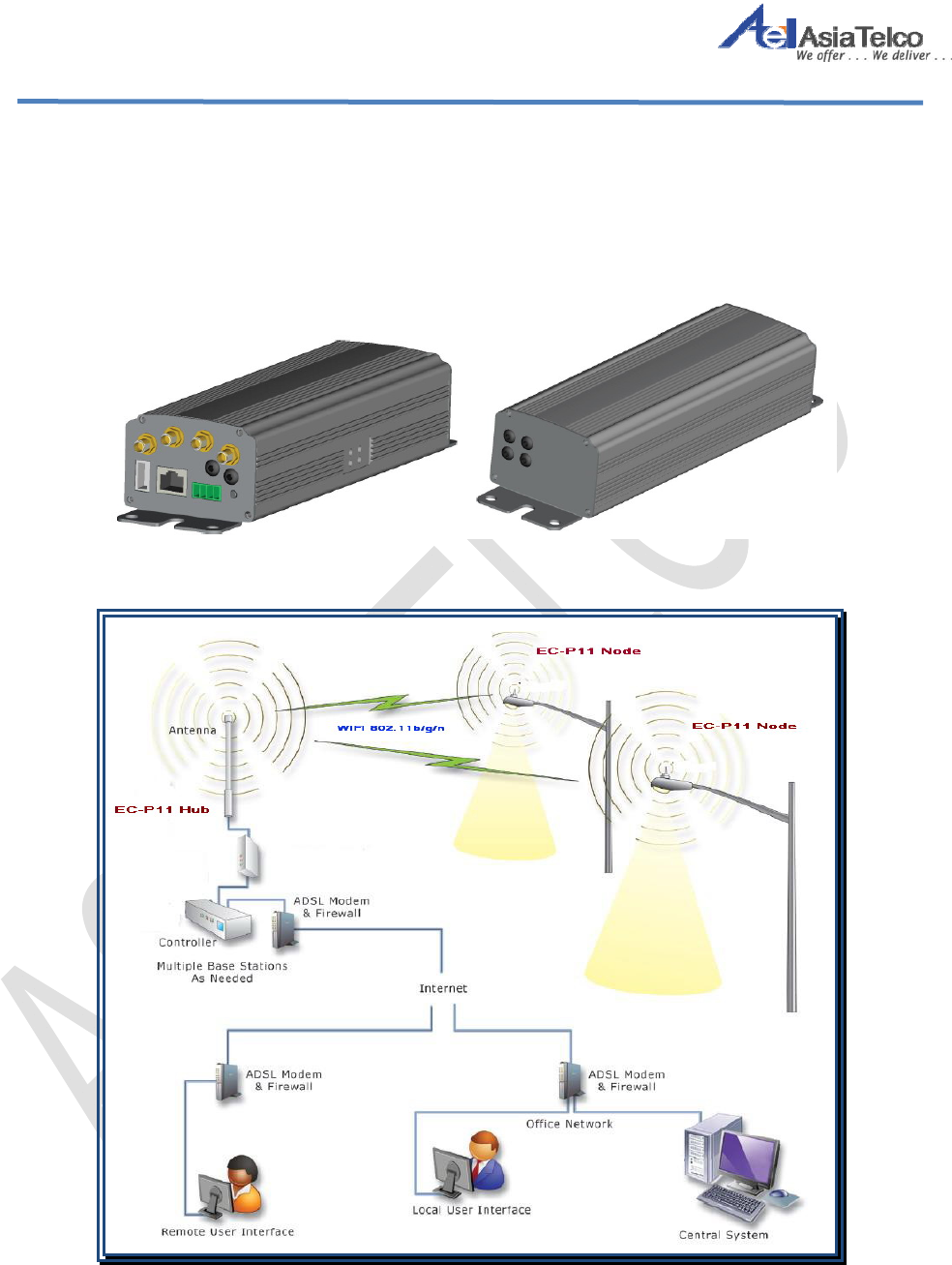

1 DESCRIPTION

The Wireless Energy Controller （model number：EC-P11）works as a controller with LED-fixture, and achieve

remote control through WIFI wireless. The controller has 2* 0-10V signal for dimming usage, and current sensor is

also integrated.

4 / 13

www.asiatelco.com

2 BENEFIT

---- Control and Schedule ON/OFF/DIM for individual fixture or groups of fixtures

---- Remote control and self programmable control mode

---- Customer defined continuous dimming

---- Adjust ON/OFF times and night trimming schedules

---- Monitor the work status & the Energy consumption of every fixture in every minute

---- Track burn hours to verify LED fixture life

---- Detect LED fixture malfunctions remotely

---- Works with any manufactures’ outdoor LED lighting fixture

---- Reduce Energy Costs

---- Reduce Carbon Emission

---- Reduce Manpower Costs

---- Reduce Maintenance Costs

3 FEATURES

---- Each device can works in Node/Hub/Mix-mode

---- Wide AC input flexibility, 110V/AC, 277 V/AC, 480V/AC

---- AC switch inside（ Low loss in AC switch, typical 16 mΩ）

---- Max output power 1000W

---- 2* 0-10V Dimming signal for LED-fixture

---- AC Current Sensor integration

---- 1*10M/100M Ethernet port

---- WIFI 802.11b/g/n

---- Ublox GPS

---- 1*Button for customer

---- 1*USB device port (reserved )

---- 4*LED for work status indicated

---- 1* Interface for General Interrupt input (reserved)

---- 1* Interface for ADC signal input (reserved)

---- 12V/0.5A DC power output (reserved)

---- Easy to install & configure

5 / 13

www.asiatelco.com

4 HARDWARE CONFIGURATION

HARDWARE CONFIGURATION

STANDARD LIST Remark

WIFI & WIFI antenna port

GPS & GPS antenna port

1 * 0-10V Dimming signal output

1 * AC switch inside

OPTIONAL LIST

2nd * 0-10V Dimming signal output

2nd * AC switch

Interface for Motion sensor input (reserved , not available now )

Interface for Light sensor input (reserved , not available now )

1*USB device port (reserved , not available now )

5 ELECTRICAL SPECIFICATION

AC/AC PART

Absolute Maximum Ratings

Items Unit Value

Max input value V / AC 500

Max output current A 2

Max output power W 1000

Operating Temperature

Range ℃ -40℃ to 85℃

Storage Temperature

Range ℃ -65℃ to 145℃

Electrical Characteristics

6 / 13

www.asiatelco.com

Items Unit

alue

Nominal input value V / AC 277

Input value range V / AC 100V/AC to 500V/AC

AC Input Frequency

range Hz 50 / 60

Switch Output value V / AC same value as input

Accuracy of AC current

sensor

±10% RMS (load current<150mA)

±5% RMS (load current>150mA)

GPS SPECIFICATION

Items SPEC

Receiver type 50 channel

GPS L1 C/A

TTFF

Cold start-----29 s

Warm start-----28 s

Hot start-----2 s

Sensitivity

tracking: -160 dBm

acquisition: -147 dBm

Horizontal position

accuracy * ＜ 10 meters

* Test environment: Open sky, 24 hours static, Qty of satellite>6, all of satellite signal

strength>-130dBm

7 / 13

www.asiatelco.com

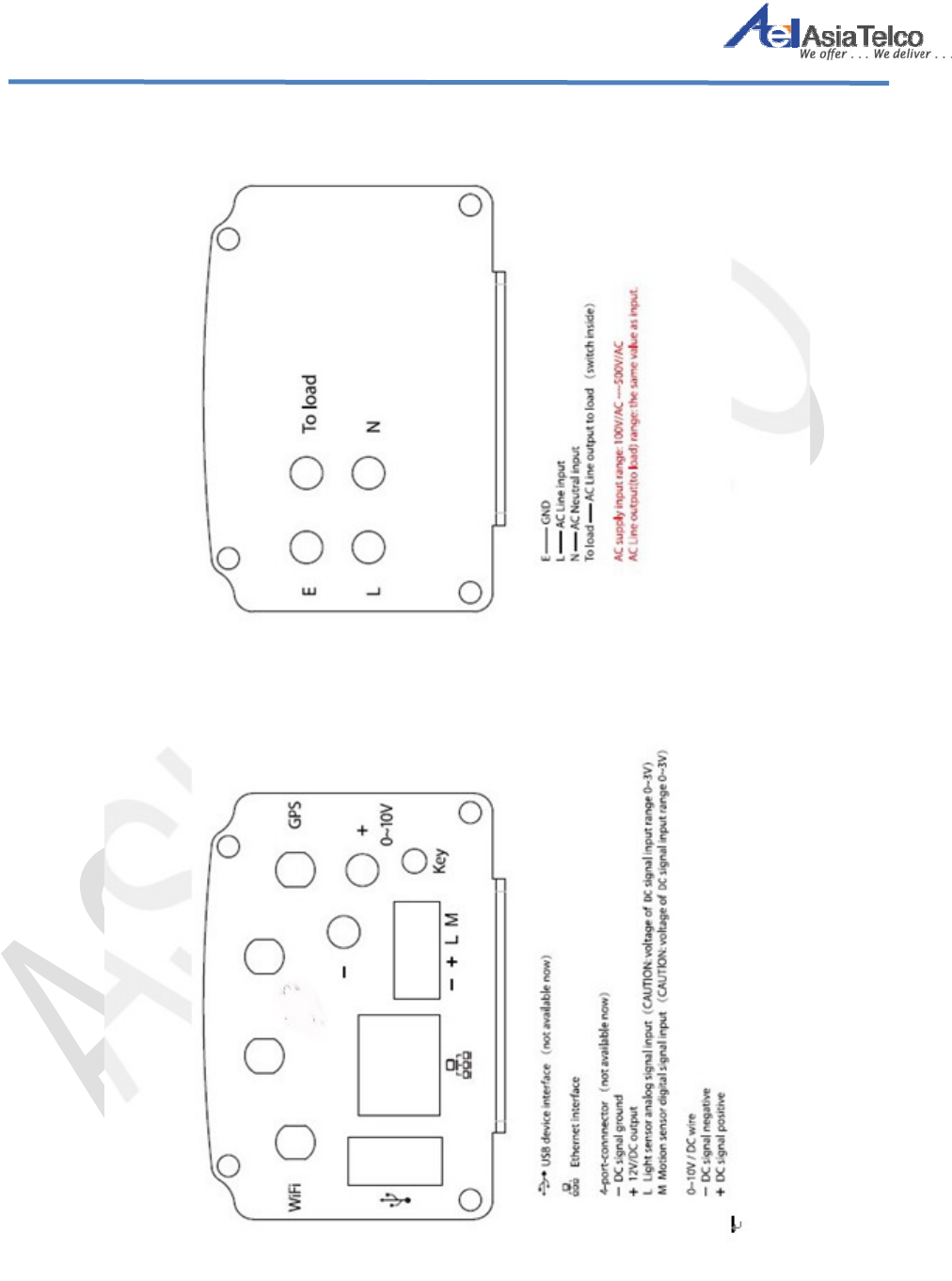

6 SIGNAL DEFINE

8 / 13

www.asiatelco.com

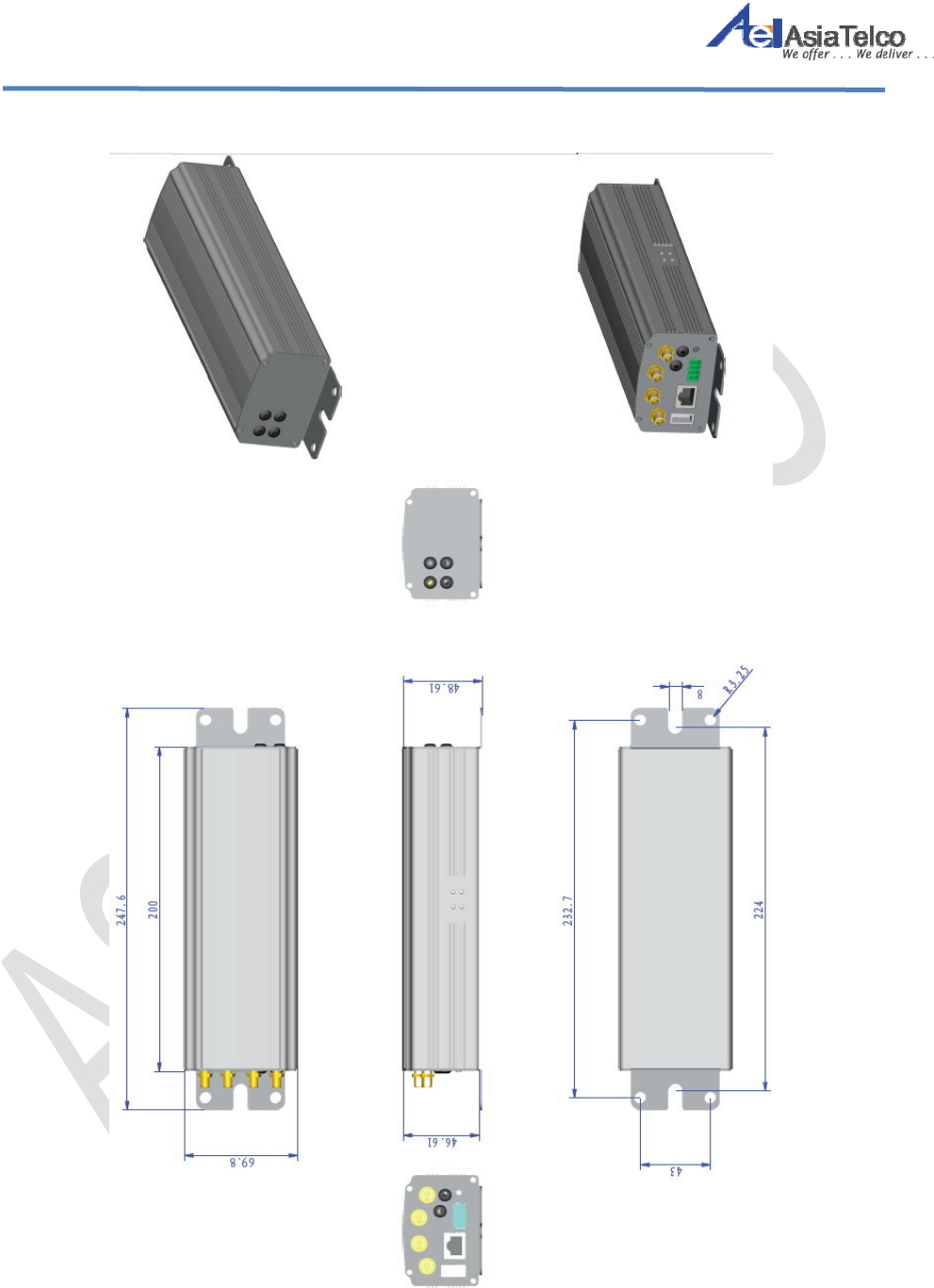

7 DIMENSION

9 / 13

www.asiatelco.com

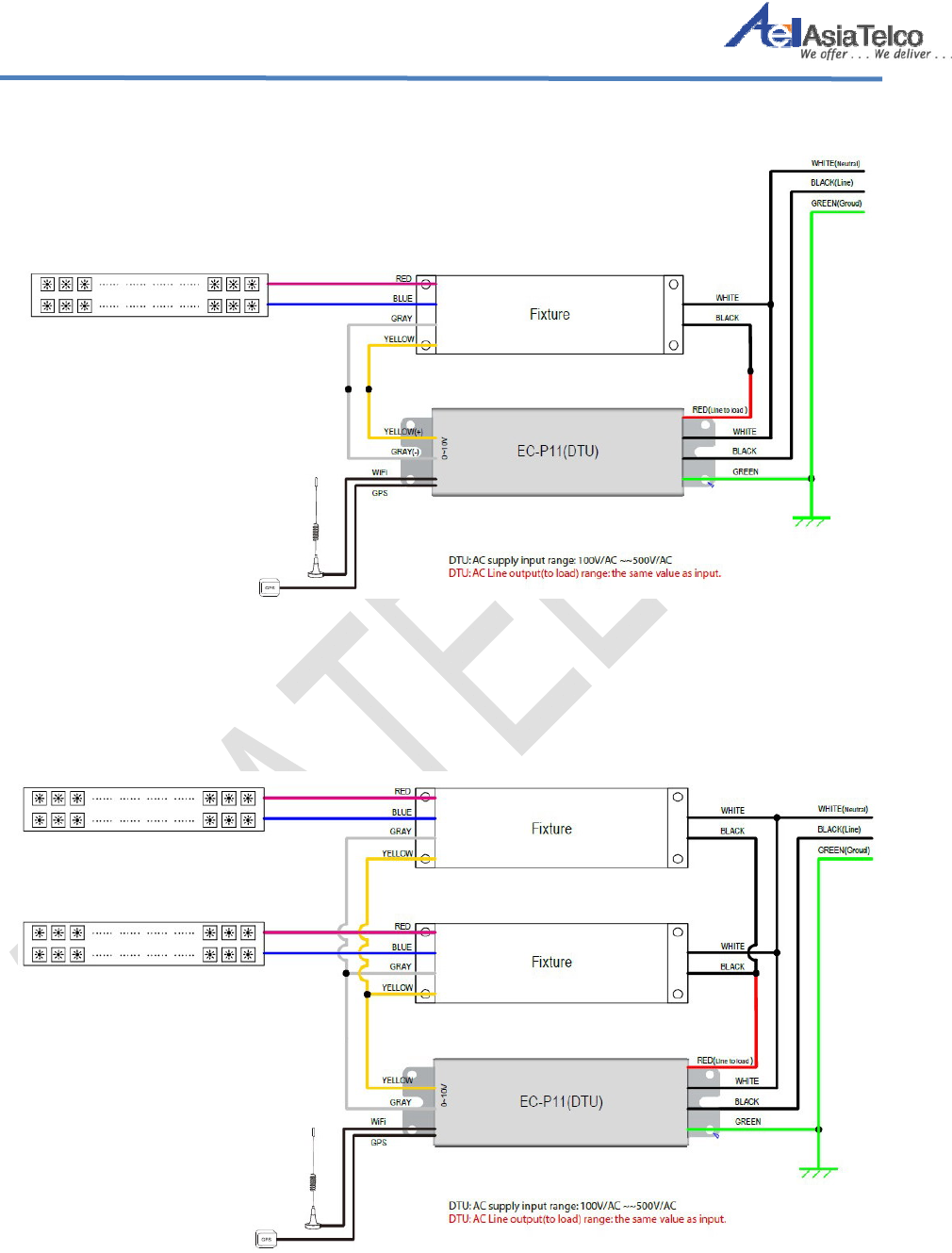

8 QUICK USER GUIDE

Case—drive 1xFixture

Case—drive 2xFixture

10 / 13

www.asiatelco.com

9 SOFTWARE USER GUIDE

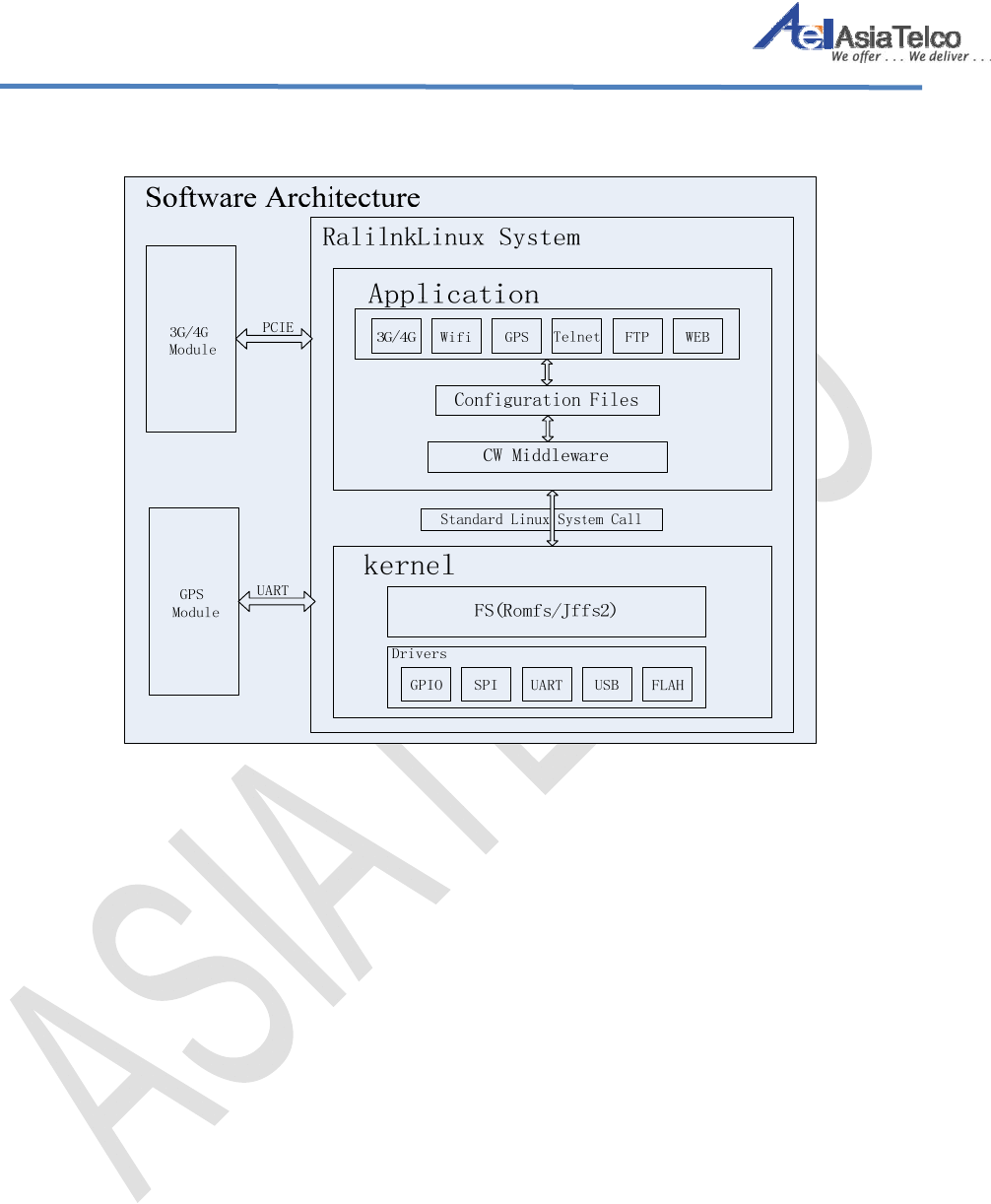

 Software Architecture

 Important Function Using

 system()

SYNOPSIS

#include <stdlib.h>

int system(const char *command);

 ioctl()

SYNOPSIS

#include <sys/ioctl.h>

int ioctl(int d, int request, ...);

 UART Interface

 Baud rate setting

#include <stdlib.h>

system("gpio U 115200 "); // Set Baud rate 115200

 Read

int fd ;

unsigned char buf[1024];

fd = open(“/dev/ttyS0”, O_RDWR);

read (fd, buf,1024);

close(fd);

 Write

int fd ;

unsigned char buf[1024];

fd = open(“/dev/ttyS0”, O_RDWR |O_NONBLOCK | O_SYNC |O_NOCTTY);

11 / 13

www.asiatelco.com

write (fd, buf,1024);

close(fd);

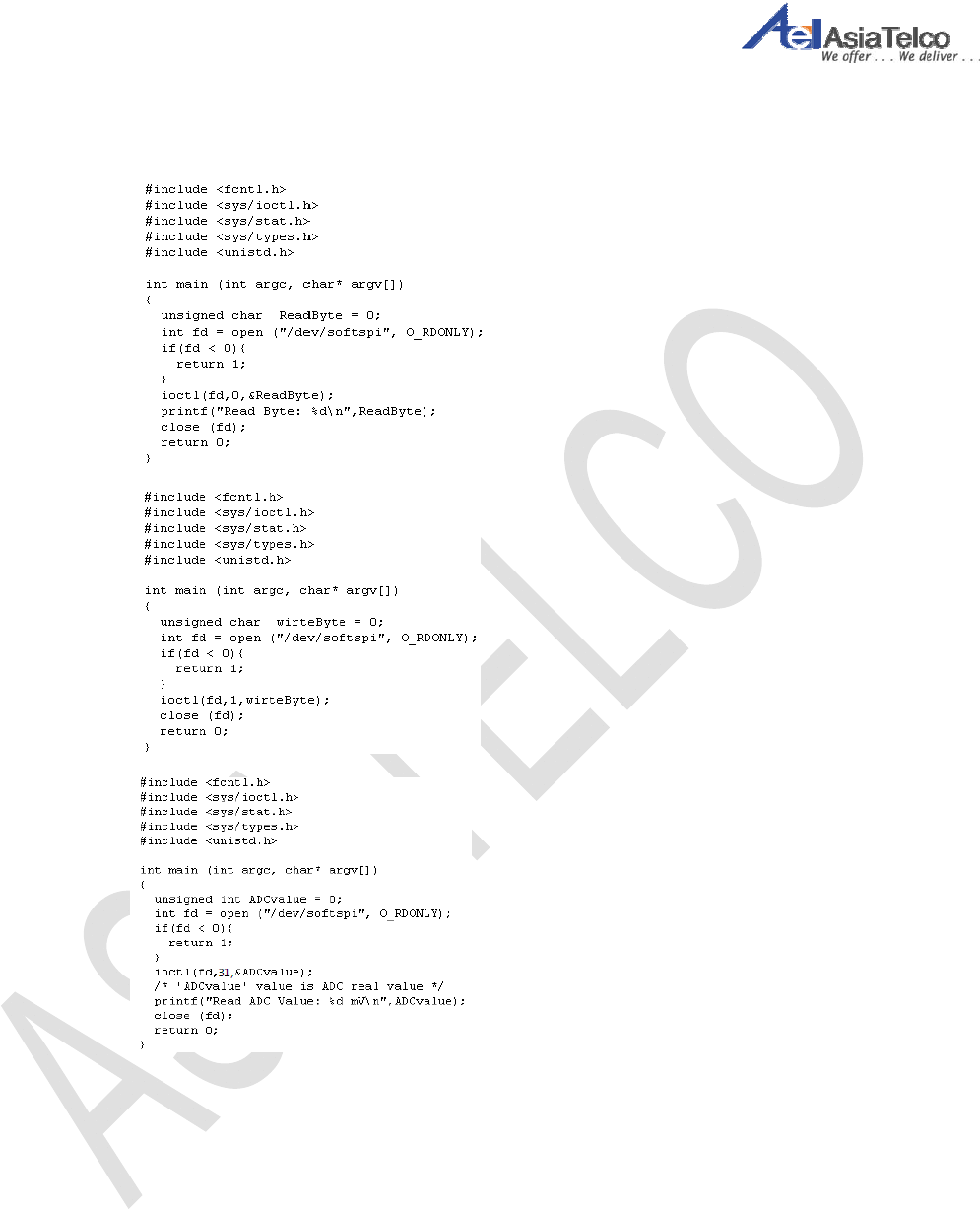

 ADC Interface

 Spi read

 Spi write

 ADC read code

 DAC Interface

 Source code

#include <stdlib.h>

Command: system("softspicmd 13 chn value");

Explain:

chn: 0~2 0 select DAC channel A2

1 select DAC channel A1

2 select DAC channel A1&A2

value: 0~4095 0~10V

Command: system("softspicmd 15");

Explain :

Executes a software clear (all CODE and DAC registers cleared to their default values)

Command: system("softspicmd 16");

Explain :

Executes a software reset (all CODE, DAC, and control registers returned to their default values)

Command: system("softspicmd 21 value ");

Explain :

12 / 13

www.asiatelco.com

This command will simultaneously writes data to all CODE registers while updating all DAC registers. It means channel A and channel B

will simultaneously update to set value.

value: 0~4095 0~3.3V

 USB Interface

 Read

Source Code:

int fd ;

unsigned char buf[1024];

fd = open(“/dev/ ttyUSB0”, O_RDWR);

read (fd, buf,1024);

close(fd);

 Write

Source Code:

int fd ;

unsigned char buf[1024];

fd = open(“/dev/ttyUSB0”, O_RDWR);

write (fd, buf,1024);

close(fd);

 GPIO Interface

 Switcher

Swith S1 GPIO number is “GPIO9”

Swith S2 GPIO number is “GPIO13”

Using methods refer to GPIO write.

• gpio w [num]: Set gpio high level. GPIO is output mode.

[num] 0 to 46

• gpio c [num]: Set gpio low level. GPIO is output mode.

[num] 0 to 46

GPS On/Off

GPIO number is “GPIO60” High Level: Open GPS Power

Current sensor On/Off

To achieve in the future

Light sensor On/Off

To achieve in the future

LED fixture On/Off

Channel 1: GPIO number is “GPIO9” High Level: Open GPS Power

Channel 2: GPIO number is “GPIO13” High Level: Open GPS Power

Indicator LED

Read LED: GPIO number is “GPIO41”

Yellow LED: GPIO number is “GPIO42”

Green1 LED: GPIO number is “GPIO43”

Green2 LED: GPIO number is “GPIO44”

 NV Interface

 NV Write Interface

nvram_set(RT2860_NVRAM, "UserStingID", "UserStingContent");

Instructions:

RT2860_NVRAM: fixed value.

"UserStingID": name of user sting.

"UserStingContent": content of user sting.

 NV Read Interface

char * UserStingContent = nvram_get(RT2860_NVRAM, " UserStingID ");

Instructions:

RT2860_NVRAM: fixed value.

"UserStingID": name of user sting.

"UserStingContent": content of user sting.

13 / 13

www.asiatelco.com

 GPS Interface

//i2ccmd i fd

int open_fd(void)

{

char nm[16];

int fd;

snprintf(nm, 16, "/dev/%s", I2C_DEV_NAME);

if ((fd = open(nm, O_RDONLY)) < 0) {

perror(nm);

exit(fd);

}

return fd;

}

int ValGetNmeaData (unsigned char * data)

{

int fd = -1;

fd = open_fd();

if (fd < 0)

{

return -1;

}

if (ioctl(fd, RT2880_I2C_READ_GPS_DATA, data) < 0)

{

perror("ioctl");

close(fd);

return -1;

}

close(fd);

return 0;

}

Data: input array[] for get data. The max size is 2048.

Example:

$GPRMC,,V,,,,,,,,,,N*53

$GPVTG,,,,,,,,,N*30

$GPGGA,,,,,,0,00,99.99,,,,,,*48

$GPGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99*30

$GPGSV,1,1,00*79

$GPGLL,,,,,,V,N*64

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The end, thanks ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

2014/03
