Askey Computer 5250 Wi-Fi Stick User Manual
Askey Computer Corp Wi-Fi Stick
user manual
WLU5250-D143(RoHS)
Quick Installation Guide
Revision: 1.0
Askey Computer Corp.
10F. No.119, Chien-Kang Rd., Chung-Ho,
Taipei, Taiwan, R.O.C.
Tel: 886-2-22287588 Fax: 886-2-32349340
Date: 8, Nov, 2013
Page 1 Confidential Askey Computer Corp
1.Appearance ……………………………………….………………………….………………2
2 Test environment ............................................................................................................. 3
................................................................................................................................. 3
................................................................................................... 3
3 Image Upgrade.................................................................................................................. 4
.................................................................... 4
4 WiFi Test ............................................................................................................................. 4
......................................................................................................... 4
Page 2 Confidential Askey Computer Corp

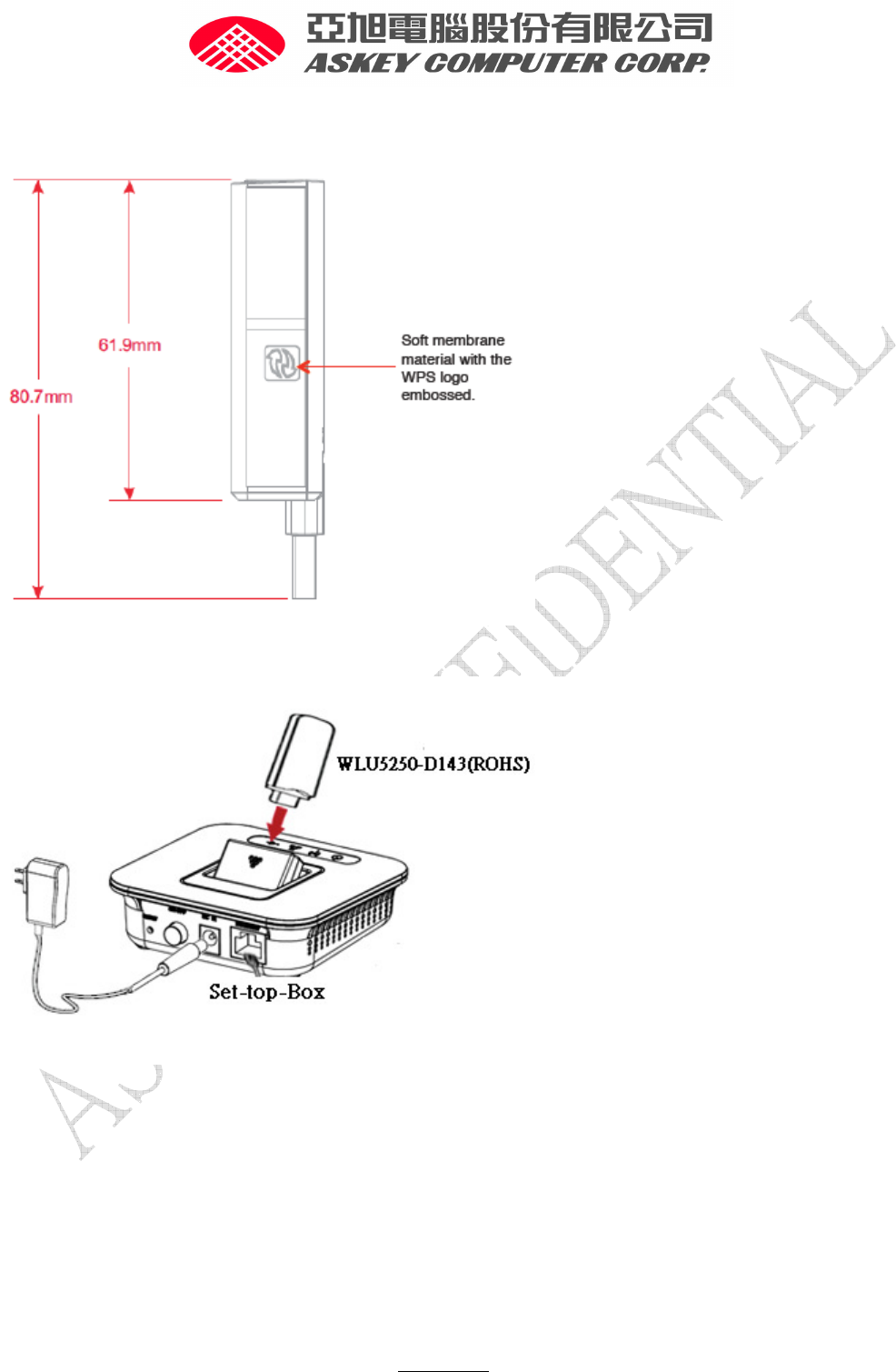

1. Appearance :
This product is a USB interface WIFI dongle can only be installed in the support VID 293C,
PID 5702 the SET-TOP-BOX products
Page 3 Confidential Askey Computer Corp
2 .Test environment
2.1 Preparation.
1.1.1 Device
- XI3( Set Top Box ) 1 EA.
- Serial-Box 1 EA.
- Serial-Cable 1 EA.
- USB Memory stick 1.1.2 File
- XI3 Loader Image (File Name: Xi3v1-H_Loader.bin)
- XI3 Kernel Image (File Name: pne_vmlinux.bin)
- XI3 RootFS Image (File Name: pne_humax.squashfs)
2.2 Procedure for setting devices
1. Connect RS232 cable to PC (Window: Hyper terminal) and Serial-Box
2. Connect cable in Serial Box to board.
3. Run hyper-terninal and it will be printed.
(It should be set configuration for serial cable on hyper-terminal.)
Page 4 Confidential Askey Computer Corp
3
33
3
«
Page 5 Confidential Askey Computer Corp
