1 Introduction
1.1 Overview
Thank you for choosing Bluetooth Modem. The Bluetooth Modem
allows you to connect your personal computer to the Internet
without cable. This is possible because it utilizes Bluetooth
technology. Bluetooth is an open specification for short-range
wireless networking standard and it is a low-cost wire-replacement
technology that enables connectivity among a wide variety of
electronic device such as computers, mobile phones, printers,
laptops, PDAs and digital cameras.
1.2 Features
• Plug-and-Play installation
• Wireless connection with all Bluetooth Devices
• Compliant with Bluetooth 1.1
• Supports File Transfer, Data Synchronization, Object
Exchange, Network Access, Dial-up Networking, Serial
Port Application
• Supports up to 8 Bluetooth enable Devices
1.3 Package Contents
Check the contents of the package against the pack contents
checklist below. If any of the items is missing, contact the dealer
from whom the equipment was purchased.
• Bluetooth Modem
• Bluetooth USB Dongle
• Installation CD
• Quick Installation Guide
• Power Adapter and Cord
Bluetooth Modem User Guide
8
1.4 Minimum System Requirements
Before installation, please check that your computer complies with
the following requirements:
• CPU 166 MHz or higher
• Minimum 16Mb RAM
• Operating System: Windows 98, Me, 2000, XP
• CD-ROM
• USB port
9
2 Bluetooth Modem Installation
Bluetooth Modem is extremely practical; it does not require
installation software or driver. Just plug the AC Power cord in the
Bluetooth Modem and it is ready for use.
For safety, make sure the telephone line is UNPLUGGED from
your modem.
2.2 Rear Panel
1. Plug one end of the RJ-11 phone cord into the LINE jack on the
Bluetooth Modem, and plug the other end into your phone jack
on the wall.
2. If you want to use a telephone on the Bluetooth Modem’s phone
line while the modem is not used, plug the telephone’s cord into
the modem’s PHONE jack.
3. Plug the AC adapter into the modem’s AC IN jack, and plug the
other end into an electrical outlet.

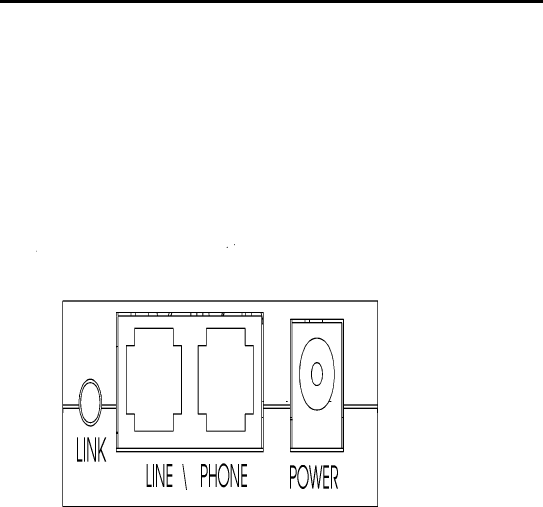

Figure 2-2 Bluetooth Modem back panel
LINK button
Bluetooth Modem User Guide
10
If the Bluetooth USB Dongle cannot find the Bluetooth Modem after
1 minute press the LINK button to try again.
2.1 LED Indicators
The Bluetooth Modem is equipped with three LEDs. Check the
table below for more information.
LEDs Color Status Description
Off No power is supplied to the unit. Power Green
Solid Power is connected to the unit.
Off Idle. Data Green
Blinking Transmitting/receiving data.
Off Modem OFF Hook. O.H. Green
Solid Modem ON Hook.

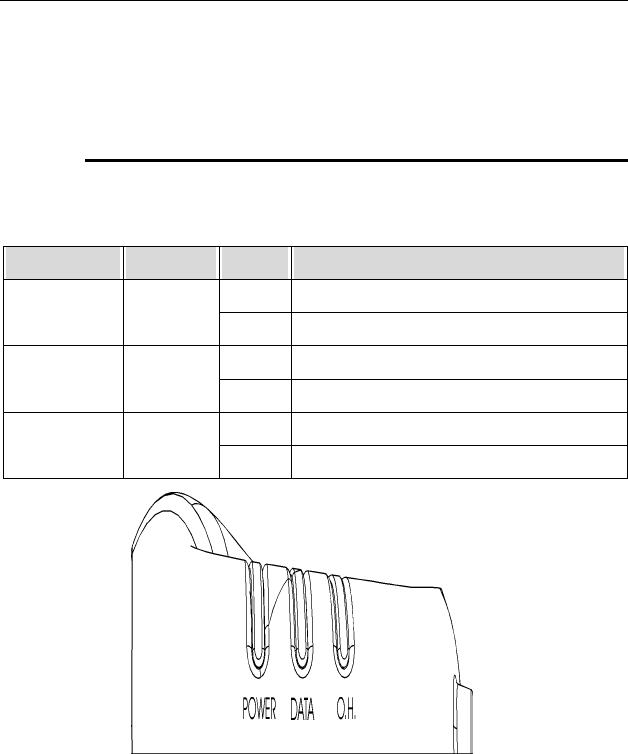

Figure 2-1 Bluetooth Modem LED
11
3 Bluetooth USB Dongle
Installation
3.1 Software Installation
First, install the software provided in the CD and ONLY insert the
Bluetooth USB Dongle after rebooting the PC. Follow the
instructions below to install the software.
1. Close all Windows programs that are running.
2. Insert the provided Software Utility CD into your CD-ROM
drive. If the installation screen does not pop up, run Setup.exe
from D:\Utility&Driver of the Software Utility CD where D is
the drive letter.

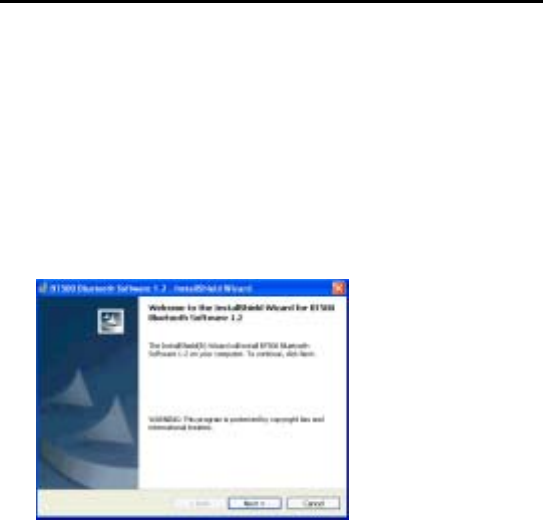

3. When the Welcome screen pops up, click Next.
4. When the License Agreement screen appears, select the I
accept the terms in the license agreement check box, and
click Next.
Bluetooth Modem User Guide
12

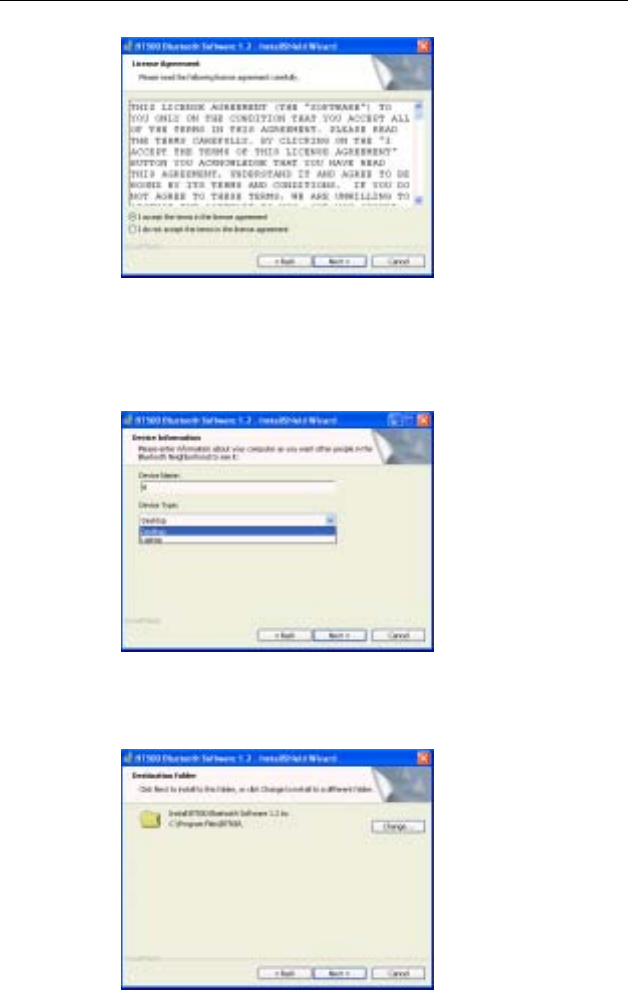

5. In the Device Information screen, enter the name of your
computer in Device Name field and select whether it is
Desktop or Laptop in Device Type.
6. To install the software to the default destination folder, click
Next. If you are to install the software into a different folder,
click Change to select another folder. Click Next to continue.

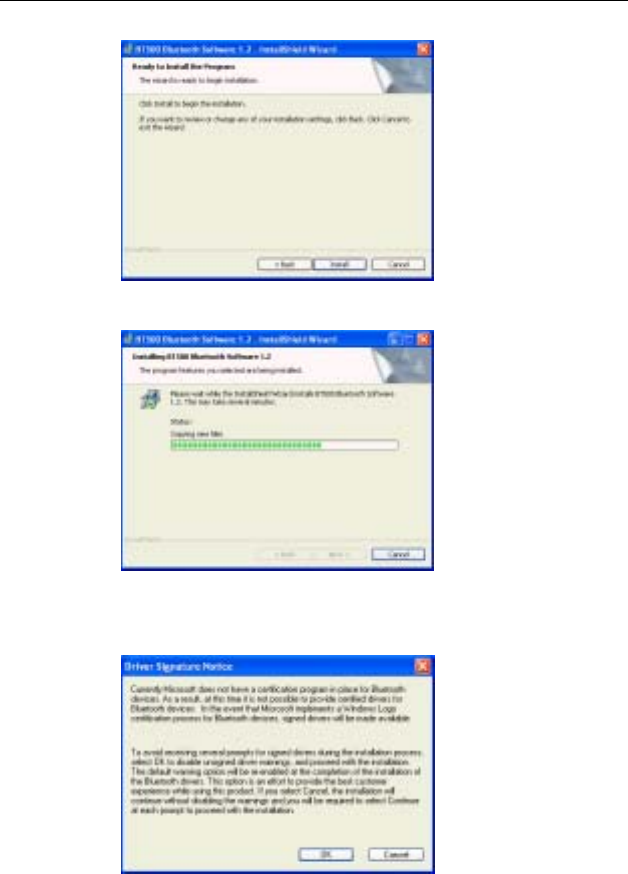

7. Click Install when the following screen appears.
3. Bluetooth USB Dongle Installation
13
8. Installation process can take some minutes, be patient.
9. On Windows XP, if the Driver Signature Notice appears, click
OK to continue the installation.
Bluetooth Modem User Guide
14

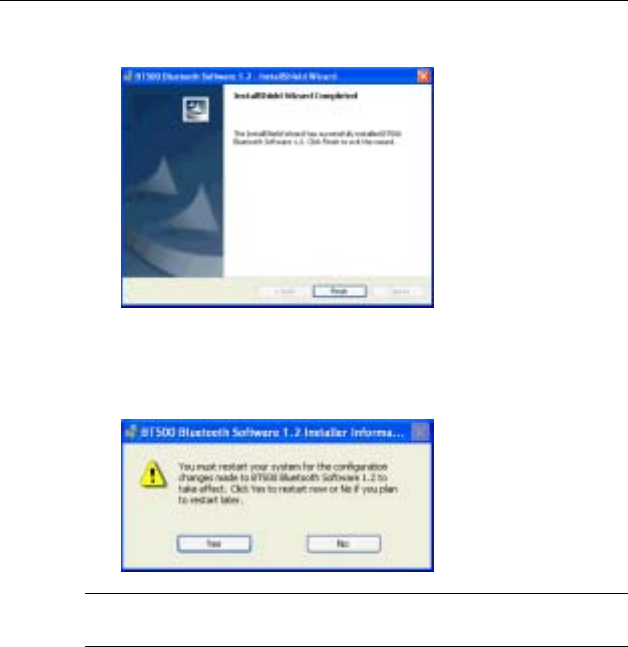

10. Click Finish when the following screen appears
11. Plug your Bluetooth USB Dongle into your computer and click
Yes to reboot.
Note: Don’t remove the installation CD until the installation process
is completely finished.
Subject to your Windows OS, different situations will occur during
or after the software installation. Follow these instructions to
complete the installation.
3. Bluetooth USB Dongle Installation
15
For Windows XP
After rebooting the Windows, plug Bluetooth USB Dongle into
your computer. The PnP wizard will appear as described below:
1. Windows Found New Hardware Wizard will pop up. Click
Next.
2. If Windows logo compatibility message appears, click
Continue Anyway.
3. Click Finish.
Now you are done with the installation procedure. You should be
able to find the Bluetooth Configuration icon located on the
system tray and My Bluetooth Places icon the Desktop. Proceed
to the next chapters to configure and obtain further information
about how to operate this device.
17
4 Making Internet Connection
4.1 Connecting to the Internet
Before you begin, make sure the Bluetooth Modem is turned on
and it’s the distance with the Bluetooth USB Dongle does not
exceed 10 meters, this is the maximum range covered by the
Bluetooth 1.1. Now, just follow the steps below described:
1. Double-click Bluetooth Configuration icon on the system
tray.
2. Double-click ZeevoEmbeddedDevice ZV-DUN icon
If the connection between the Dongle and the Modem were
successful, you will be able see this icon

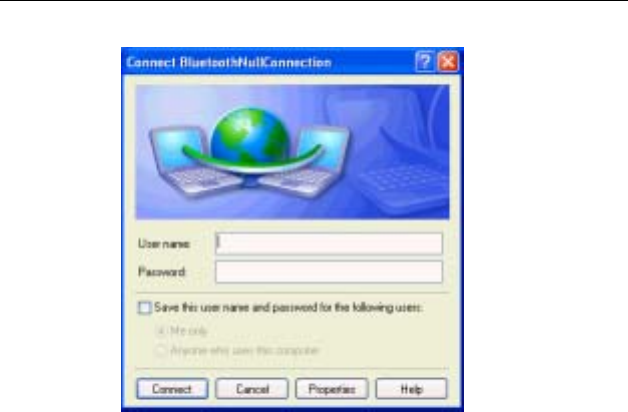

and the Connect BluetoothConnection screen will
automatically pop-up.

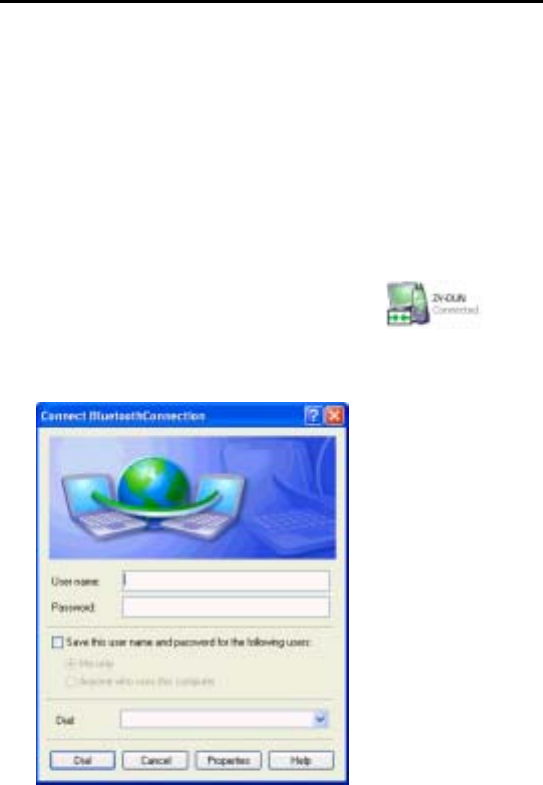

Figure 4-1 Connect BluetoothConnection screen
Bluetooth Modem User Guide
18
In the related field(User name, Password, dial) enter the
information provided by your Internet Service Provider and click
Dial.
Congratulation! You are ready to access the Internet.
4.2 Sharing Internet Connection
You might want to allow other Bluetooth enabled devices such as
computer or laptop to access the Internet using the same
connection. Follow the instructions below to deploy your wireless
personal network.
Server Side
1. Select Start > Settings > Network Connections.

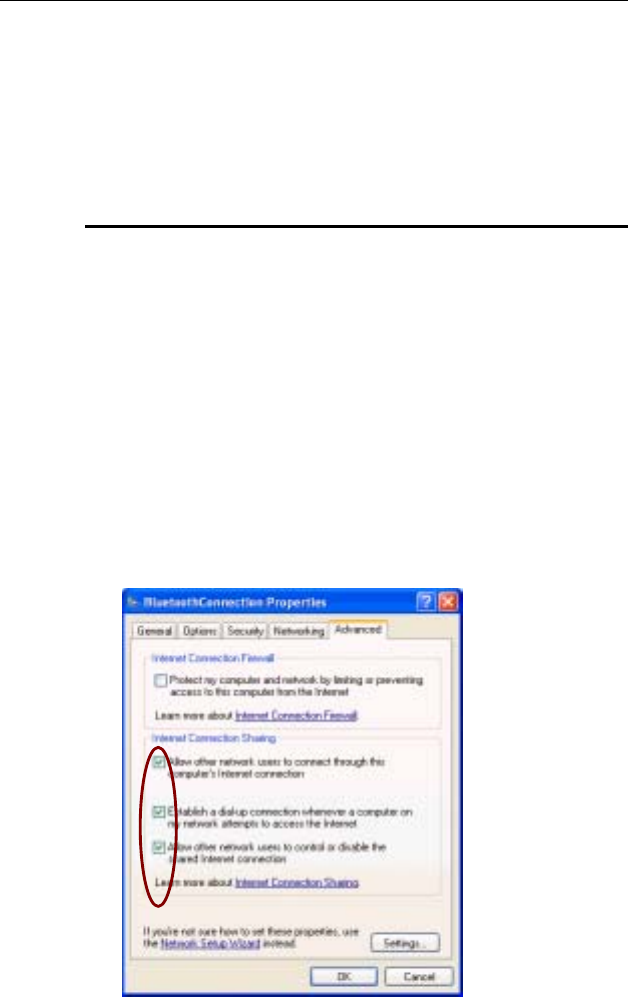

2. Right click on Bluetooth Connection icon, then click on
Properties. The following screen will pop-up. Click on
Advanced tab. On Internet Connection Sharing section,
check all boxes.
4. Making Internet Connection
19
3. Click OK to finish.
Client Side
1. Double-click Bluetooth Configuration icon on the system tray.

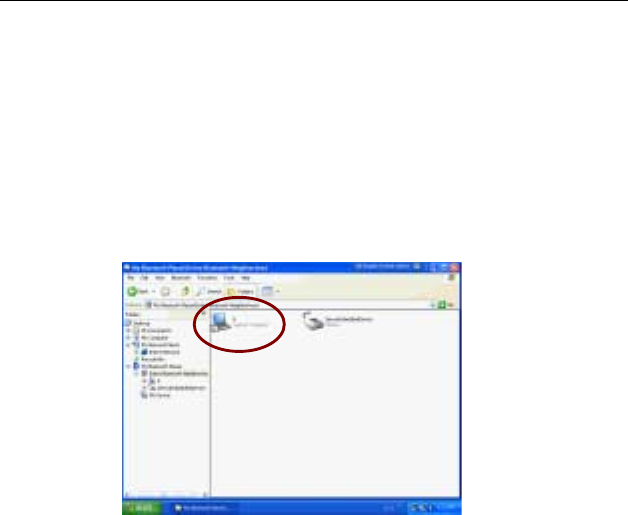

2. Select and double-click Entire Bluetooth Neighborhood.
3. Select and double-click on the computer that made the Dial-up
Connection(in this case, Laptop B).
4. Double-click Network Access icon and the following screen
will pop-up. Just click Connect. It will not initiate a real dial-up
connection, it will just register your computer on the network
and establish a connection between your computer(client) and
the computer(server) that, in fact, made the dial-up.
Bluetooth Modem User Guide
20
21
5 Removing Bluetooth Software
If for any reason you have to remove Bluetooth Configuration
software, follow the steps below:

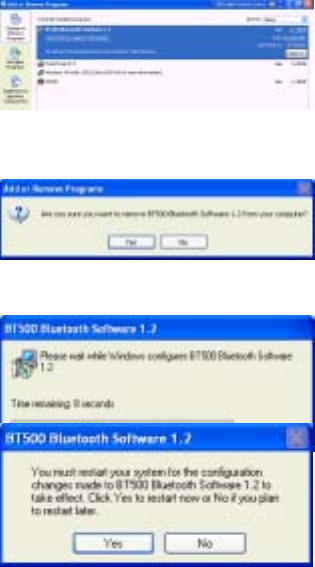

1. Click the Start > Settings > Control Panel.
2. Double-click Add or Remove Programs icon.
3. Select BT 500 Bluetooth Software 1.2 and click Remove.
4.Click Yes to continue the uninstallation.
5. Uninstallation process takes some minutes, be patient.
6. Uninstallation process is completed. Click Yes to reboot the
computer.
23
6 Specification
6.1 Bluetooth USB Dongle BT 210D
Power Supply
Power Supply 5.0 VDC USB bus-powerd
Operation Voltage 1.8V for core logic, 3.3V for RF
Power Consumption
(T=25C)
Peak current in ACL data transfer 720Kbps = 55mA
Peak current in SCO HV1 connection = 60mA
Stand by current = 100uA
RF Characteristics
Radio Output Power 0dBm (Bluetooth Spec. 1.1 class 2 device)
Receiver Sensitivity -80dBm (Single slot BER = 0.1%)
Frequency Range 2402 – 2480MHz, in 2.4GHz license-free ISM band
Carrier Frequency Drift ±25 KHz (Single slot packet)
Antenna
Type High-performance solid-state LTCC chip DRA (Dielectric
Resonance Antenna)
Impedance 50 ohm
Gain 0 – 2 dBi
VSWR 2 max
Polarization Linear
Azimuth Beamwidth Omni-directional
Bluetooth Modem User Guide
24
6.2 Bluetooth Modem 010 IC + V.90
Specifications are subject to change without notice
General Description
• External 5V DC power supply
• LED display for Power on, off-hook and data transmit
• Bluetooth profile support modem dial-up network
• Support TAM through bluetooth (E-mail station’s option)
• Support external case
• Operation distance up to 10m
• Support Firmware upgrade
Bluetooth General Description
• Bluetooth 1.1 core specification compliant
• Encryption key length can option up to 128bytes
• Support Internal antenna
V.90 Modem General Description
• ITU-T V.90 data rates 28000 bits/s – 56000 bits/s.
• ITU-T V.42 LAPM and MNP1-4 error correction.
• ITU-T V.44/V.42bis and MNP Class 5 data compression.
• TIA/EIA 578 Class 1 FAX AT command.
• TIA/EIA 602 standard for AT command set.
• DTE speed up to 115200bps
Bluetooth RF specification
• Spread-Spectrum type: Frequency Hopping
• Carrier Frequency drift: +/-25K
• Modulation Type: GFSK
• Frequency Range: 2402MHz ~ 2480MHz
• (F=2402+KMHz, K=0,1,2~78)
• Frequency Hopping times: 1600 times/sec
6. Specification
25
• Overall Rx Sensitivity: -80dBm (typical) -70dBm
(Maximum)
• Output Power: (Class 2) up to 4dBm
Bluetooth Data transmit
• Line Rate: Asymmetric mode: 721Kbps & 57.6Kbps
V.90 Modem Compatibility:
• V.90 ---
56000,54667,53333,52000,50667,49333,48000,46667,45
333,42667,41333,40000,38667,37333,36000,34667,3333
3,32000,30667,29333,28000bps.
• ITU-T V.34annex --- 33600,31200
• ITU-T V.34 --- 8800,26400,24000,21600,19200,16800bps
• ITU-T V.32 bis --- 14400,12000,9600,7200,4800bps
• ITU-T V.32 --- 9600,4800bps
V.90 Modem Modulation:
• 56000bps --- PCM
• 33600,31200bps (V.34annex) --- TCM
• 28800,26400,24000,21600,19200,16800bps (V.34) ---
TCM
• 14400,12000,9600,7200bps (V.32 bis) --- TCM
• 4800bps (V.32bis) --- QAM
• 9600,4800bps (V.32) --- TCM,QAM
• 2400bps (V.22bis) --- QAM
V.90 Modem Operation:
• Full duplex or half duplex in Data mode.
• Asynchronous operation.
• Auto dial/answer.
• Manual originate/answer.
V.90 Modem Dialing Type:
• Tone dialing.
Bluetooth Modem User Guide
26
V.90 Modem Telephone Line Interface:
• RJ-11 phone jack to PSTN line.
V.90 Modem Receive Sensitivity:
FCC/DOC JAPAN CTR21
-29 ±2 dBm -29 ±2 dBm -29 ±2 dBm
V.90 Modem Transmit Level:
FCC/DOC JAPAN CTR21
< -12 dBm -17±2dBm -15 ±2dBm
V.90 Modem DTMF Signal Level (dBm)
FCC/DOC JAPAN CTR21
Hi. G = -8 ± 1 dBm
Lo. G = -10 ± 1 dBm Hi. G = -8 ± 1 dBm
Lo. G = -10 ± 1 dBm
Hi. G = - 9 ± 1 dBm
Lo. G = -11 ± 1 Dbm
V.90 Modem M/B Ratio
FCC/DOC JAPAN CTR21
39/61±5% 10±1PPS 40/60±5% 10±1PPS 40/60±5% 10±1PPS
V.90 Modem Return Loss
FCC/DOC JAPAN CTR21
300Hz ~ 3400Hz >
10 dB
300Hz ~ 3400Hz >10
dB
300Hz ~ 3400Hz >7
dB
V.90 Modem COMMUNICATION STANDARD
• Compliant with FCC, JATE, CTR21
V.90 Modem DTMF Tone Frequency:
Low Group Frequency (Hz)
697 770 852 941
1209 1 4 7 * High
Group
Frequency
1336 2 5 8 0
6. Specification
27
1477 3 6 9 # Frequency
(Hz) 1633 A B C D
Operation Temperature and Humidity:
• +0 to 45 ¢J
• 20% to 75% (Humidity)
