5-104348-192- UserMan_20171211 rev2
User manual
DCM (Data Communication Module)
5-104348-192
DENSO CORPORATION

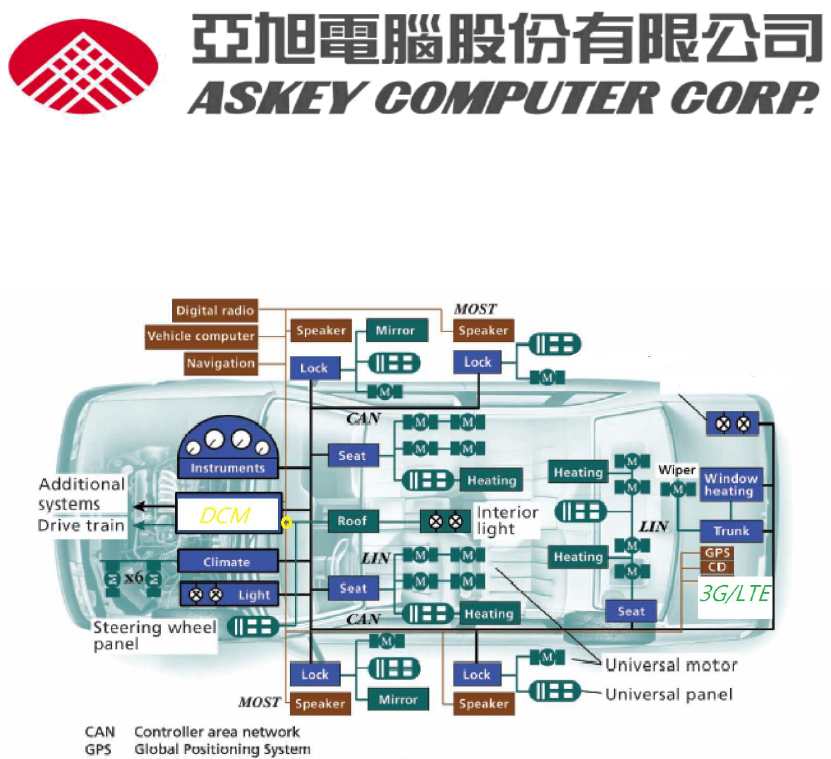

Installation
Installed by the depot operators in the car's engine room.
CAN bus connected to the vehicle computer,
for data transmission and other control.

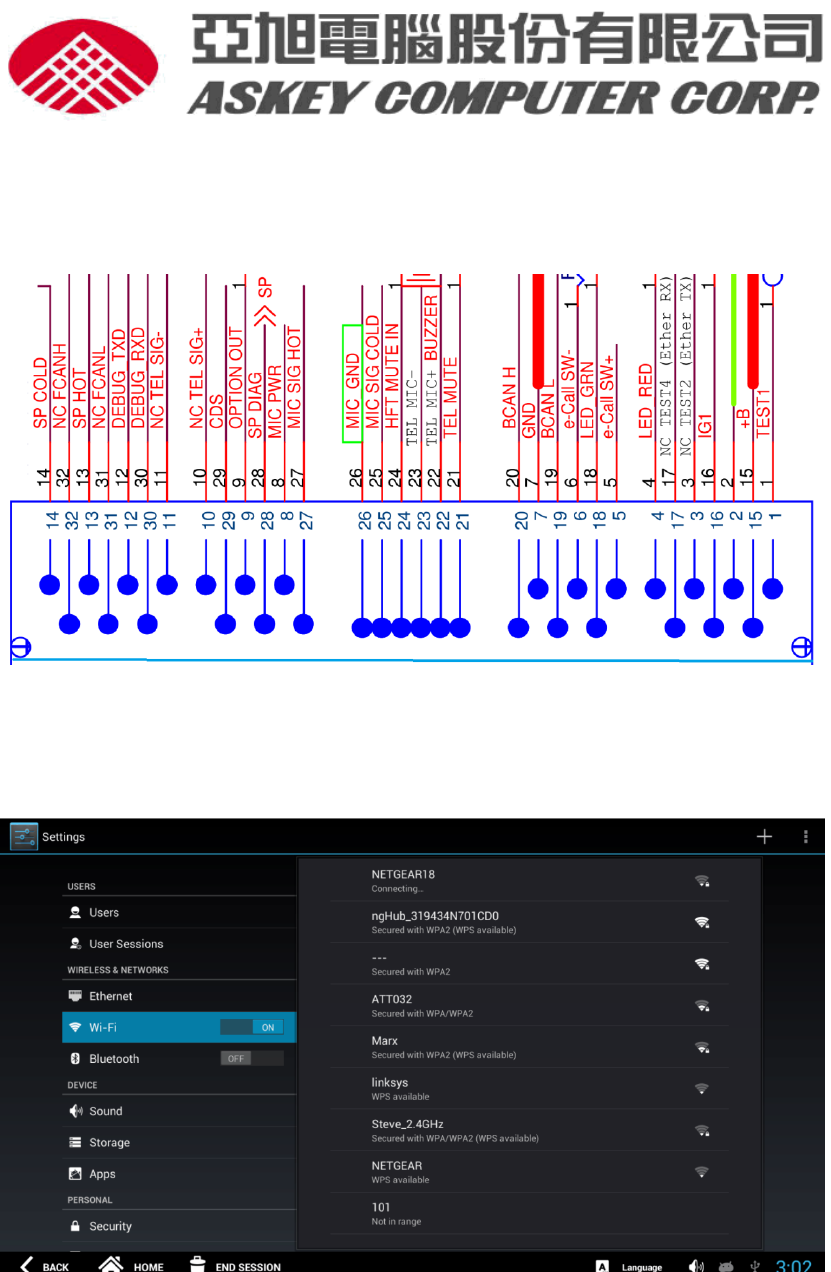

CAN bus define
RF, speaker, GPS, MIC control by Android OS

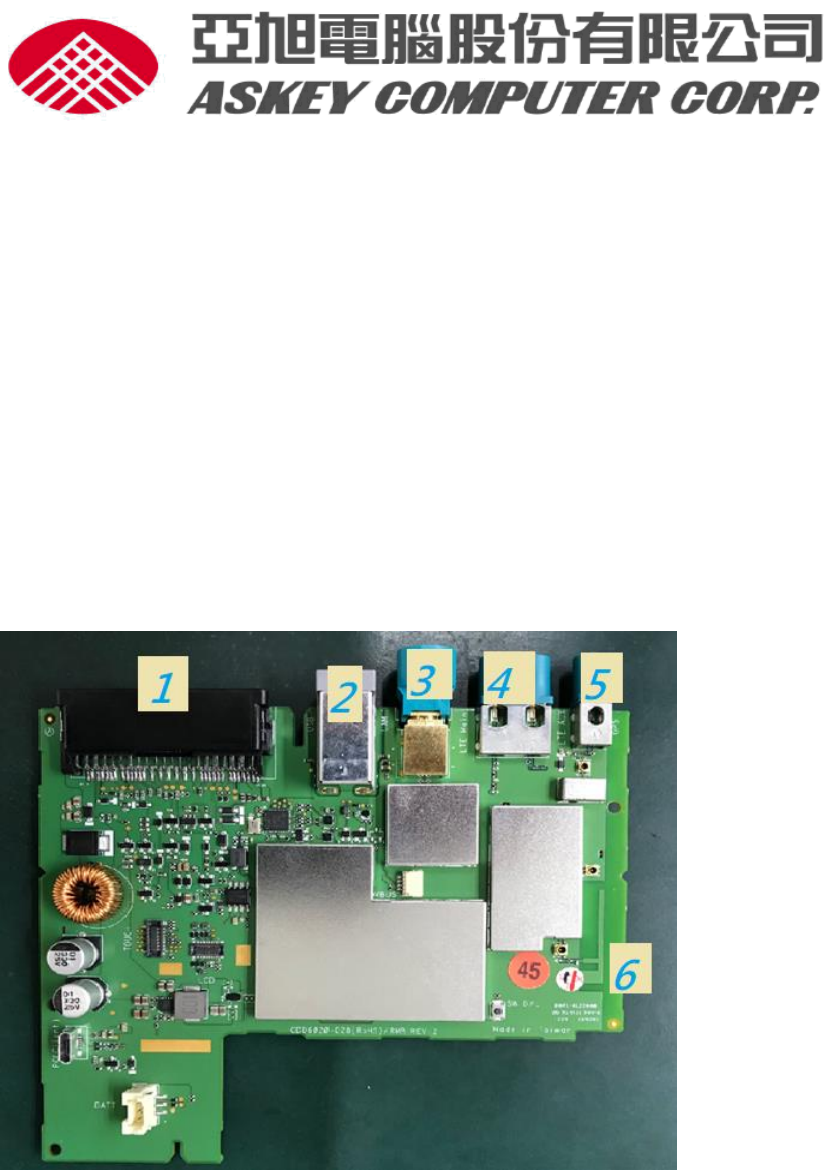

DCM function instruction
1. Power supply and data transmission
2. USB port, data transmission
3. Connected to the camera module
4. LTE antenna connector
5. GPS antenna connector
6. Support WIFI communication
Use for car communication.
DCM will be installed in the space that is near dashboard, similar to 1D or 2D car
entertainment device. DCM will connect with car computer and exchange
information via CAN bus and be responsible for communicating with external system
via WiFi or LTE(e.g. car control center, 911 for emergency call…)

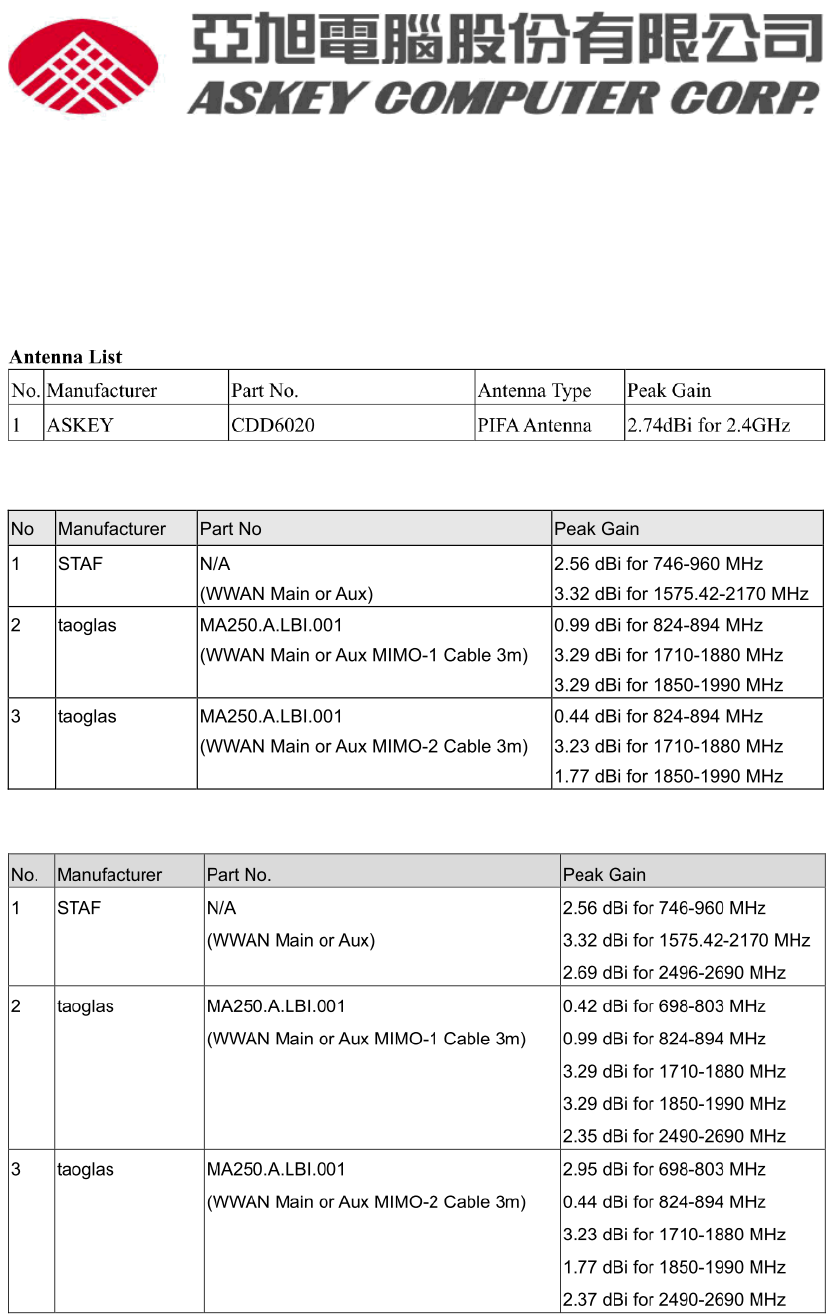

This radio transmitter FCCID: H8NCDD6020 has been approved by FCC to operate
with the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
For 3G
For LTE
Operating temperature:-30~60 degree.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provide
with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
End Product Labeling
This transmitter module is authorized only for use in device where the
antenna may be installed such that 20cm may be maintained between the
antenna and users. The final end product must be labeled in a visible area
with the following: "Contains FCC ID: H8NCDD6020”
Information for the OEMs and Integrators
The following statement must be included with all versions of this document
supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
This module is for development test only, not for sale.
Only professionals(OEMs) can install it.
