Askey Computer EAO2001S Outdoor AP User Manual

Askey Computer Corp Outdoor AP

User Manual

Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
Quick Installation Guide
EAO2001S(RoHS)
Enterprise Access Point (Outdoor)
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
Copyright Notice
This document is protected by USA copyright laws and other laws. Besides, the
document is the property of Askey, INC. You may not copy, reproduce,
distribute, publish, display, perform, or modify any part of this publication in
any form or by any means without prior written permission from Askey, INC. You
may not alter or remove any copyright or other notice from copies of the
content. All other brand and product names are claimed or registered marks
of their respective companies or organizations.
All rights reserved.
To download up-to-date version, please visit www.askey.com.tw.
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
FCC CAUTION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
This device is restricted to outdoor use when operated in the 5.15 to 5.25GHz and 5.725 to 5.825GHz
frequency range.
※ FCC requires this product to be used indoors for the frequency range 5.15 to 5.25GHz and 5.725 to
5.825GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 21cm between the radiator &
your body.
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
Taiwan NCC Statement
以下警語適用台灣地區
(1) 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
(2) 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
(3) 無線資訊傳輸設備必須具備安全功能，以保護未經授權之一方任意更改軟體進而避免發射機
操作於非經認證之頻率、輸出功率、調變形式或其他射頻參數設定。
(4) 無線資訊傳輸設備避免影響附近雷達系統之操作。
(5) 無線資訊傳輸設備高增益指向性天線只得應用於固定式點對點系統。
(6) 本器材須經專業工程人員安裝及設定，始得設置使用，且不得直接販售給一般消費者。
(7) MPE 標準值及送測產品實測值:電磁波暴露量 MPE 標準值 1mW/cm2，送測產品實測值為：
0.57194 mW/cm2，本產品使用時建議應距離人體 21cm。
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
1.
Introduction

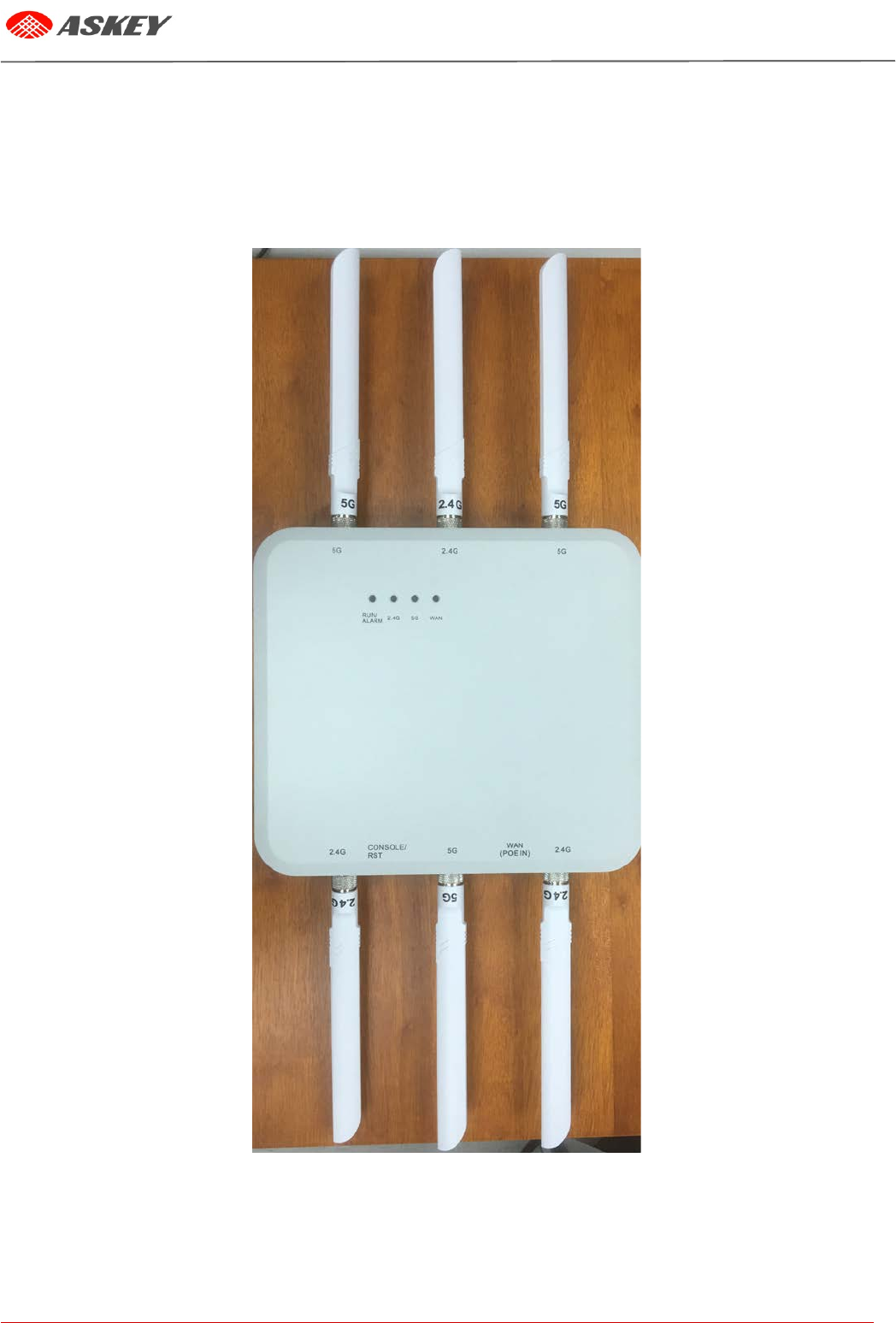

EAO2001S(RoHS) can be installed by wall-mounted installation kit in any occasion, EAO2001S(RoHS)
provide IP67 waterproof, dustproof metal cabinet design, can be against Taiwan's outdoor environment
and climate conditions, even if long-term outdoors, high and low temperature environment can operate
EAO2001S(RoHS)
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
2.

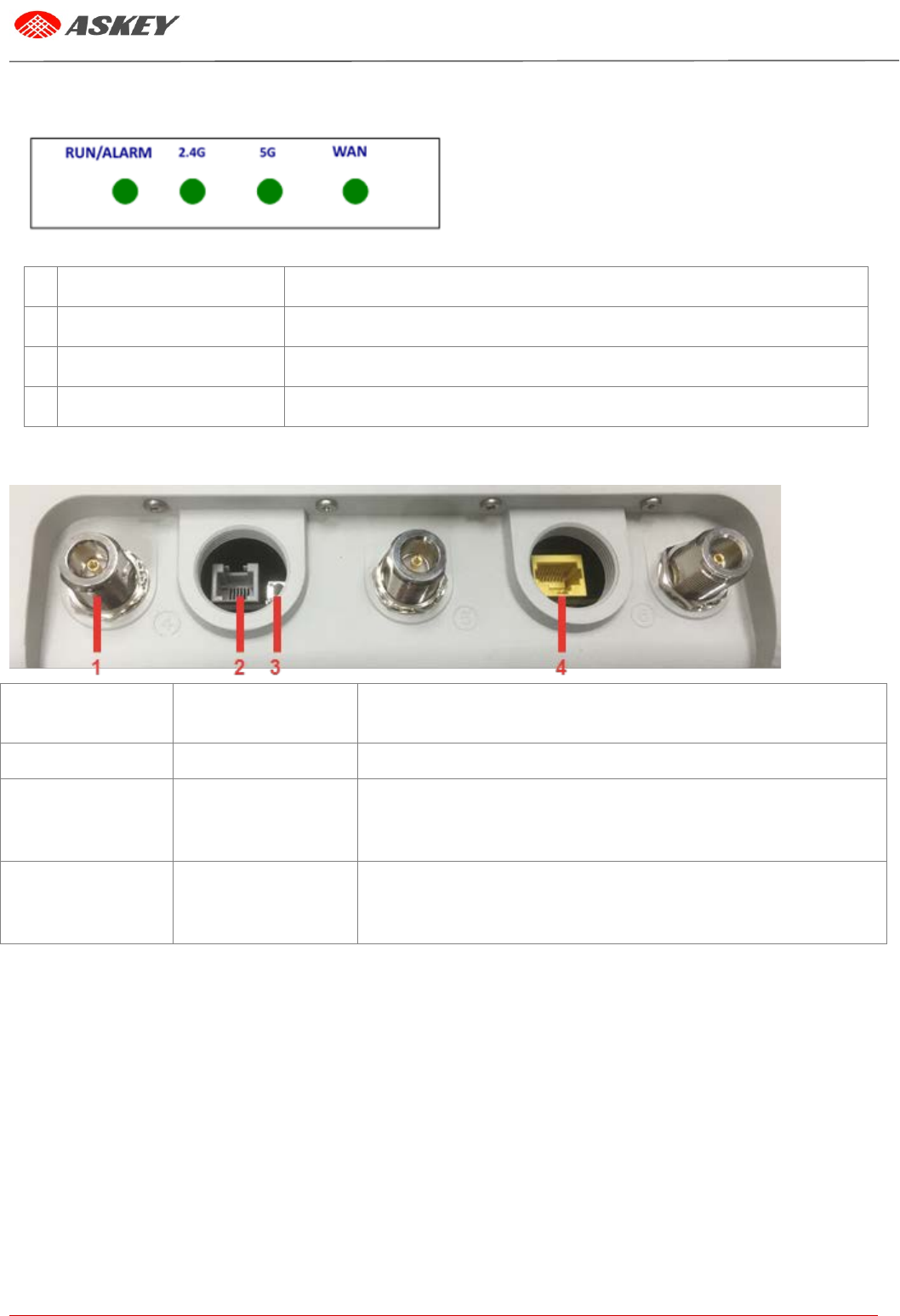

LED
1
RUN/ALARM_LED
2
2.4G_LED
3
5G_LED
4
WAN_LED
I/O Port
1
N-type Connector
For connecting to an antenna (RF Card A x 3, RF Card B x 3)
Utilize all connectors for optimized MIMO performance.
2
Console
Console port for debugging
3
Reset
Press once to restart the system; to reset the system to factory
default settings, hold for more than 5 seconds.
4
LAN
(Uplink (PoE) Port)
Offers uplink connection. This port can be used to connect to a
controller, gateway, or directly to the Internet. 802.3at PoE is
also supported
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
3.
Connecting Askey EAO2001S(RoHS) to Internet Access device
1. Connect the Ethernet to PoE injector.
2. Plug PoE Injector on.
3. Make sure the RUN/ALARM LED is on.
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
4.

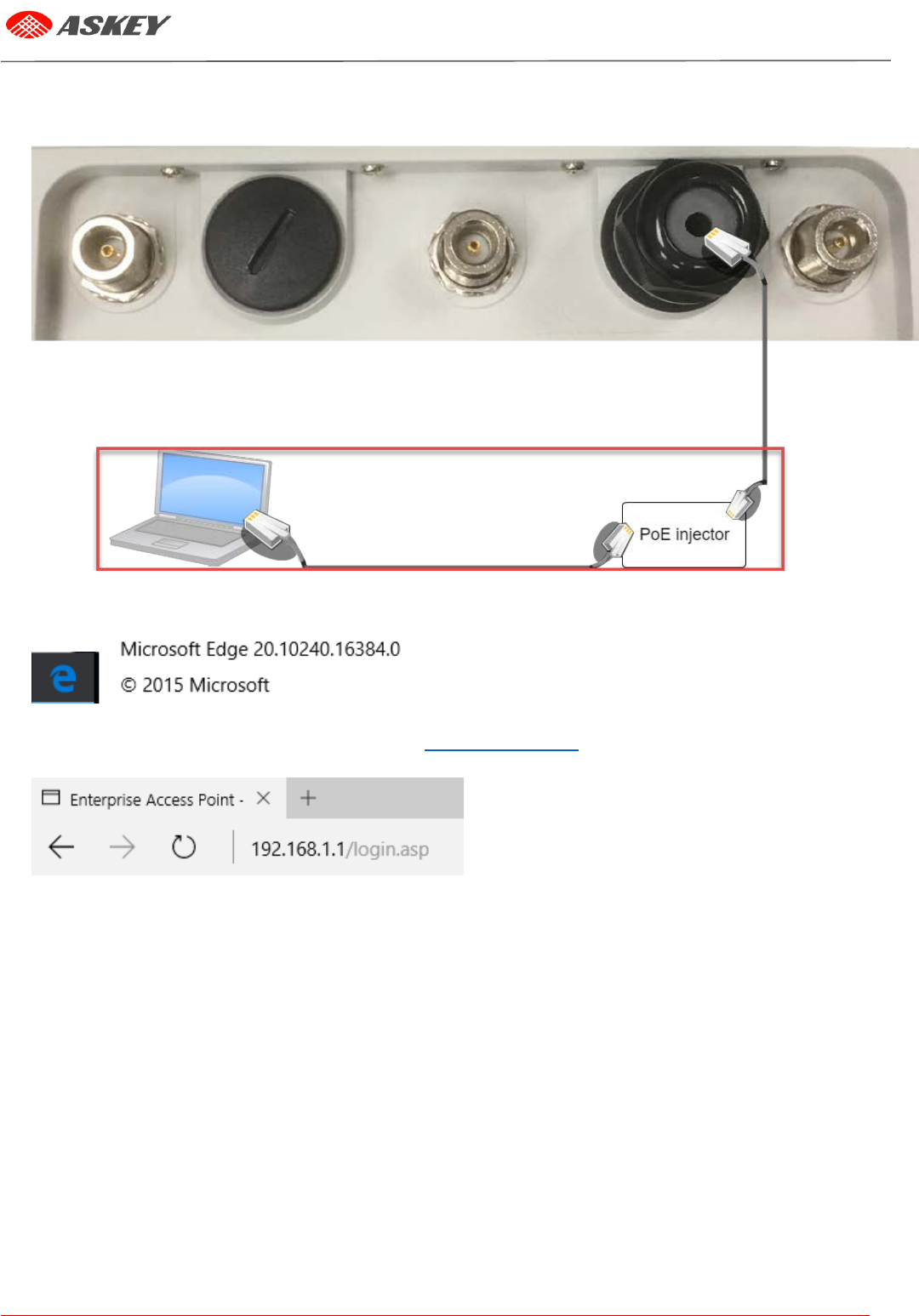

Askey EAO2001S(RoHS) setup for Windows PC.
1. Plug in RJ45 cable from your PC to the PoE Injector Ethernet port.
2. From PC and start browser, e.g. Microsoft Edge.
3. Open Microsoft Edge and fill in IP address e.g. “http://192.168.1.1” in the URL.
This default EAO2001S(RoHS) IP address is 192.168.1.1
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
5.

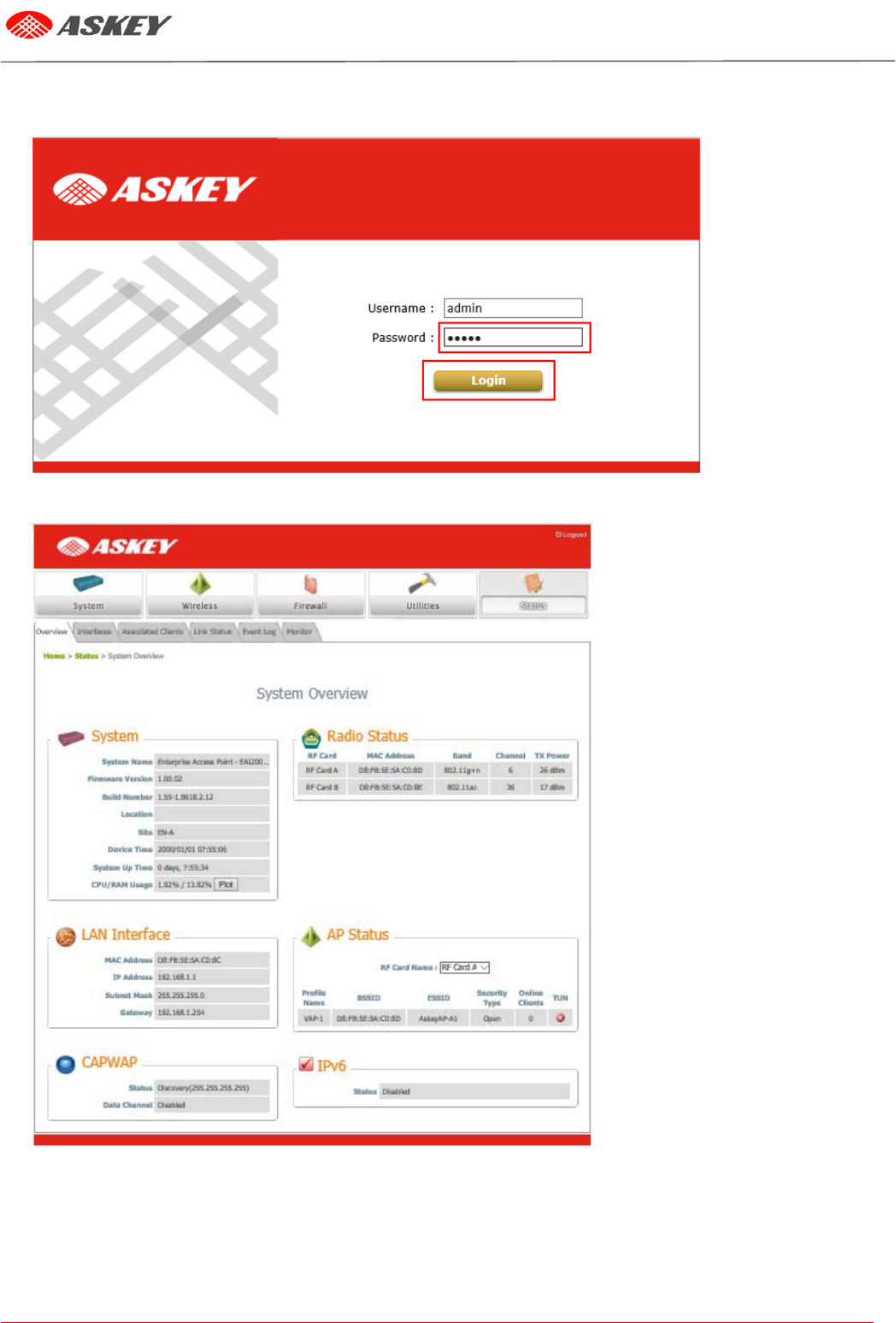

4. Pop up authorization required username and password. Default username is “admin” and password is
“admin”, then click “login” button.
5. Enter EAO2001S(RoHS) system overview status page.
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
6.

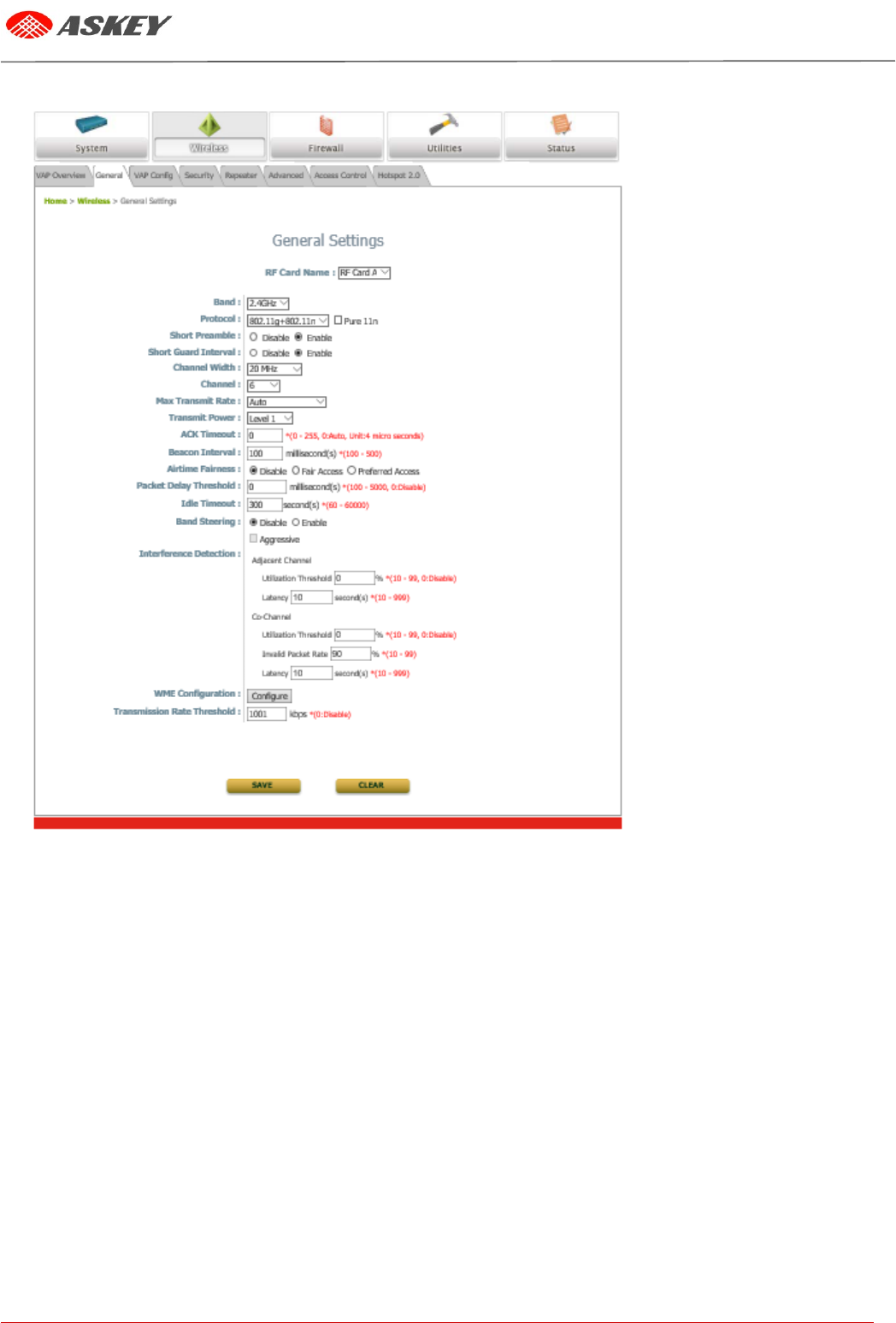

6. Change Wireless settings, please click wireless item then select general page.
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
7.

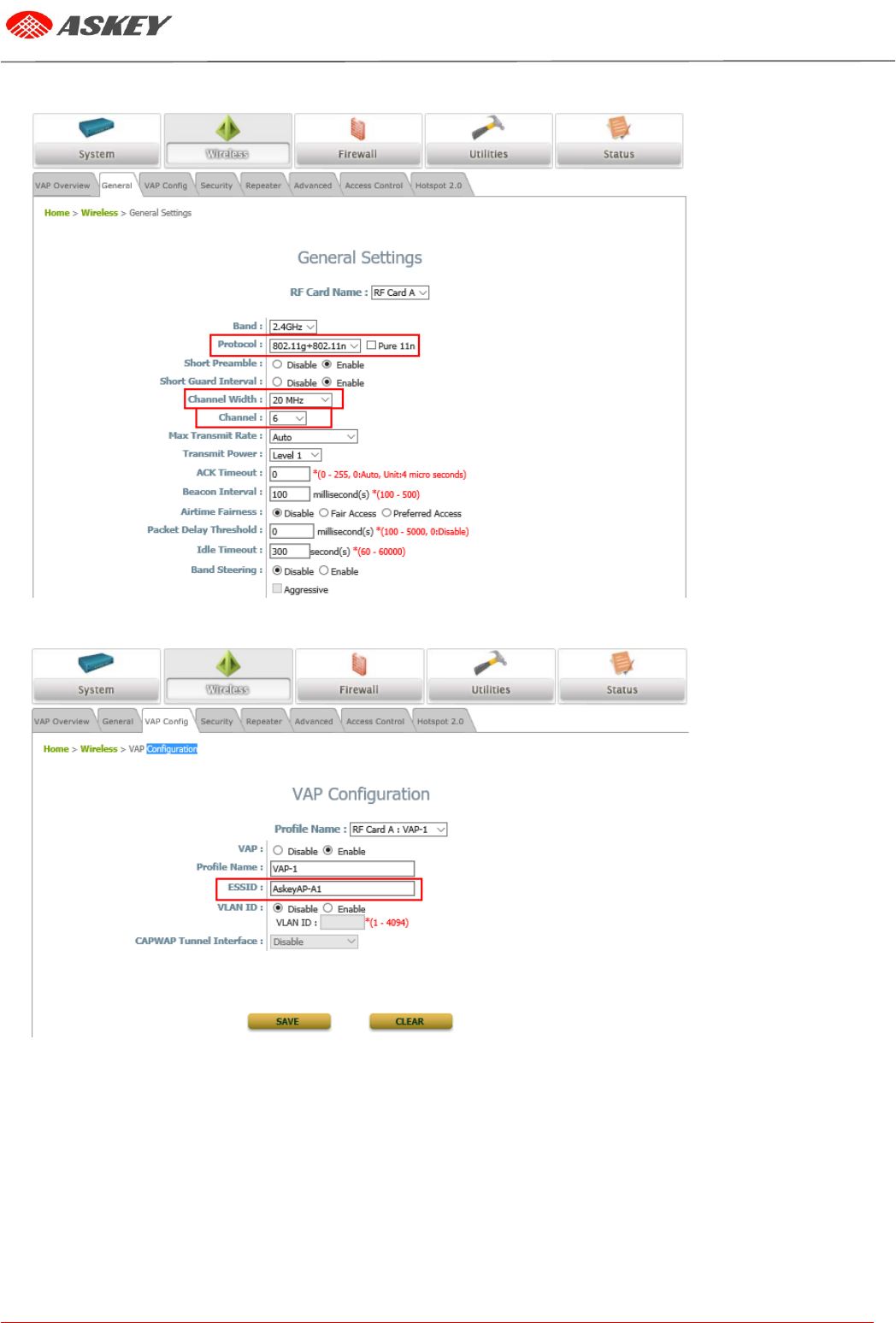

7. Home > Wireless > General Settings > Setup wireless mode, channel bandwidth and wireless channel.
8. Home > Wireless > VAP Configuration > Change Wireless SSID.
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
8.
9. Home > Wireless > Security Settings > Setup wireless security.
10. I/O port design.
One RJ45 (not shielding acts WAN/POE) IEEE 802.3u 10/100/1000 Base-T auto-sensing and
auto-crossover Ethernet connection.
Antenna connector N type.
RJ-11 Port for Console.
Reset button.( Press and hold for five seconds to return to the factory settings. )
11. Power:
PoE Input: 48V, 0.53A.
12. Environment specification
Operating Temperature: -40℃ ~ 60℃ (outdoor without heater)
Storage Temperature: -40 ~ 85℃
Operating Humidity: 10 ~ 90% RH
Storage Humidity: 5 ~ 95% RH
Water-proof level: IP67
13. Ground potential rise
It should be noted that when the fault is cleared, it is possible that the hazardous voltage remains and
may be touched for a longer period of time than the indoor equipment, so that special grounding
conditions may be required. The relevant regulations are generally specified in the electrical code.
Check the installation instructions to check their compliance.
Quick Installation Guide
EAO2001S(RoHS) Enterprise Access Point
Copyright © Askey, INC. All rights reserved.
9.
14. Safety Warning
The equipment must be installed and set up by professional engineers, was set to use, and shall
not be sold directly to the general consumer.
15. Remind the AP shall be suitable connection with ground before installation.
16. Caution: Use PoE connection shall be extended from indoor environment.

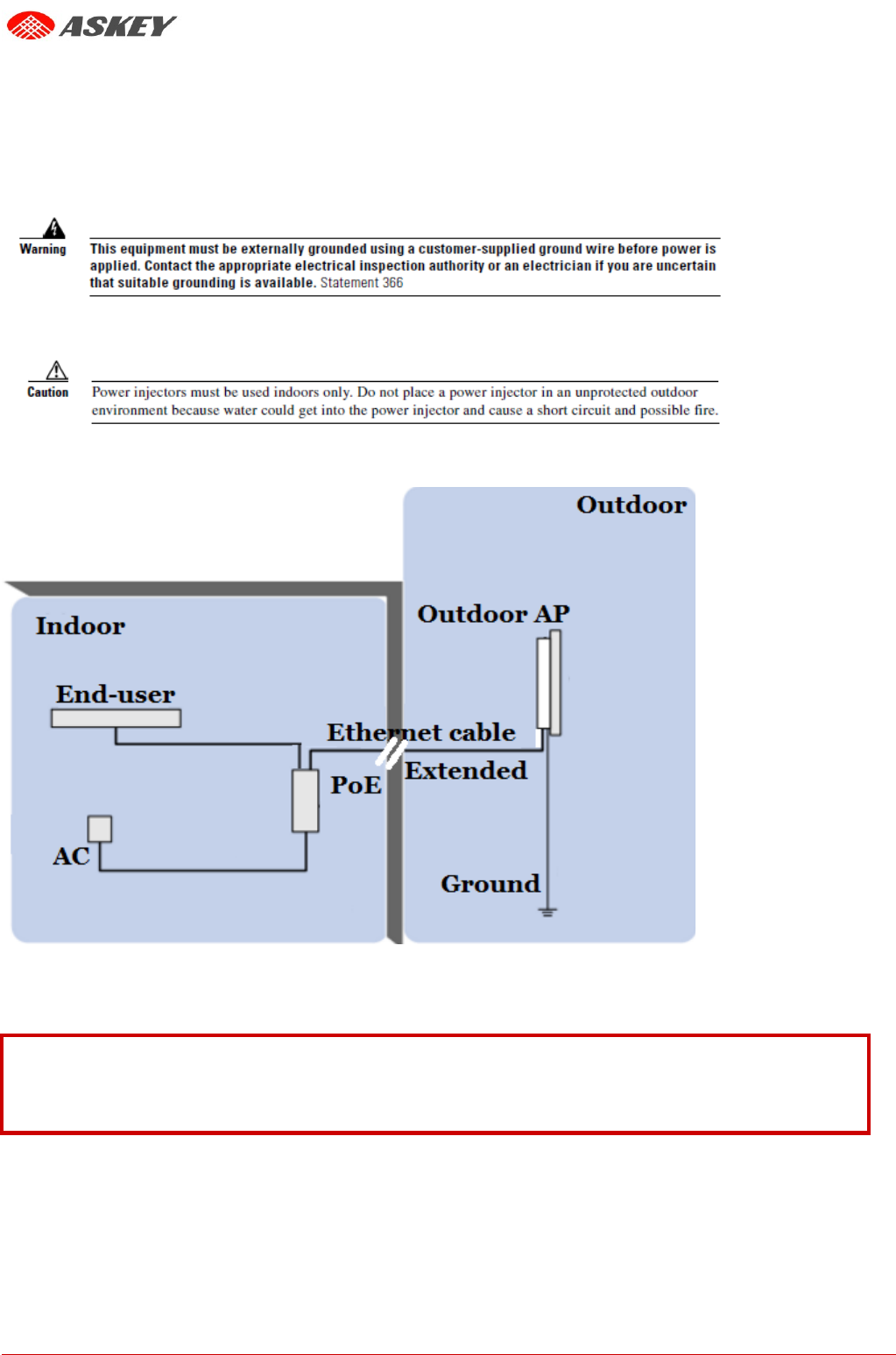

17. The setup diagram would reference below:
It is strongly recommended to make a backup copy of your configuration settings.
This device is only allowed for outdoor use purpose.
For further configuration and backup information, please refer to the User’s Manual.
