ADSL Router Product Specification
Askey Computer Corp. Page 2 of 3
Bridging Features
Supports self-learning bridge specified in IEEE 802.1D Transparent Bridging
Supports up to 4000 learning MAC addresses
Transparent Bridging between 10/100 Mb Ethernet and 802.11b wireless LAN
Routing Features
UPnP IGD2 (Internet Gateway Device) with NAT traversal capability support
NAT (Network Address Translation) / PAT (Port Address Translation) let multiple users on the
LAN to access the internet for the cost of only one IP address.
ALGs (Application Level Gateways): such as NetMeeting, FTP, Quick Time, mIRC, Real
Player, CuSeeMe, etc.
Multiple Virtual Servers (e.g., Web, FTP, Mail servers) can be setup on user’s local network.
Static routes, RFC1058 RIPv1, and RFC1723 RIPv2
DNS Relay and DNS Server3
ARP Proxy
Security Features
PAP (RFC1334), CHAP (RFC1994) for PPP session
Firewall support IP packets filtering based on IP address/Port number/Protocol type.
4Intrusion Detection provides protection from a number of attacks (such as SYN/FIN/RST
Flood, Smurf, WinNuke, Echo Scan, Xmas Tree Scan, etc)
WEP (Wired Equivalent Privacy) encryption uses RC4 with 64/128 bit key length
Configuration and Management
User-friendly embedded web configuration interface with password protection
Remote management access control
Telnet session for local or remote management
HTTP firmware upgrades via web browser GUI directly
Distribute IP addresses to end users via DHCP server provided by ADSL router
SNMPv1/v2 agent with MIB-II, PPP MIB, ADSL Line MIB
Hardware
Interface
One RJ-11 port for ADSL connection
One RJ-45 port for IEEE 802.3u 10/100 Base-T auto-sensing Ethernet connection
Hidden PCMCIA interface for IEEE 802.11b (2.4 GHz) wireless LAN connection
One hidden button for restoration of factory default settings
2 This is optional. UPnP IGD and NAT Traversal function can be provided on demand.
3 This is optional. DNS server can be provided on demand.
4 This is optional. Intrusion Detection can be provided on demand.
ADSL Router Product Specification
Askey Computer Corp. Page 1 of 3
R
RT
TA
A0
04
40
0W
W0
0D
D3
32
2
A
AD
DS
SL
L
R
Ro
ou
ut
te
er
r
RTA040W0D32 Wireless ADSL Router is a DSL broadband access device which allows
ADSL connectivity while providing wireless LAN capabilities for home or office users. It
provides a downstream rate of up to 8 Mbps and upstream rate of up to 1 Mbps for ADSL
connection, even offers auto-negotiation capability for different flavors (G.dmt, G.lite, or T1.413
Issue 2) according to central office DSLAM’s settings (Digital Subscriber Line Access
Multiplexer). Also the feature-rich routing functions are seamlessly integrated to ADSL service
for existing corporate or home users. Now users can enjoy various bandwidth-consuming
applications via RTA040W0D32 Wireless ADSL Router.
Software
ADSL Compliance
ANSI T1.413 Issue 2
ITU G.992.1 Annex A (G.dmt)
ITU G.992.2 Annex A (G.lite)
ITU G.994.1 (G.hs)
Wireless LAN Features
Fully compatible to IEEE 802.11b standard and allow operating range up to 300 meters
(open space) and 100 meters (indoor).
The Direct Sequence Spread Spectrum (DSSS) technology is exploited.
Seamless roaming within the 802.11 and 802.11b wireless LAN infrastructure
Low power consumption via efficient power management
Support the Association Control function: Only registered wireless clients can be allowed to
associate to wireless ADSL router.
ATM Features
Compliant to ATM Forum UNI 3.1 / 4.0 Permanent Virtual Circuits (PVCs)
Support up to 8 AAL5 Virtual Circuit Channels (VCCs) for UBR, CBR, VBR-rt, and VBR-nrt
with traffic shaping
TR-037 Autopvc provisioning1
RFC1483 (RFC2684) LLC Encapsulation and VC Multiplexing over AAL5
RFC2364 Point-to-Point Protocol (PPP) over AAL5
RFC2225 Classical IP and ARP over ATM
RFC2516 PPP over Ethernet: support Relay (Transparent Forwarding) and Client functions
OAM F4/F5 End-to-End/Segment Loopback Cells
1 This is optional. TR-037 Autopvc provisioning can be provided on demand.
ADSL Router Product Specification
Askey Computer Corp. Page 3 of 3
Regulatory Approvals and Compliance
EMI/Immunity: FCC part 15 and part 68 Class B
Safety: UL, CE
Power Requirement and Operation Environment Requirement
Power Adaptor: Input 110±10 or 230±10 VAC; Output 12 VDC, 1A
Power Consumption: less than 10 Walt
Ambient Temperature: 0 to 45°C (32 to 113°F)
Relative Humidity: 20% to 90% (non-condensing)
Physical

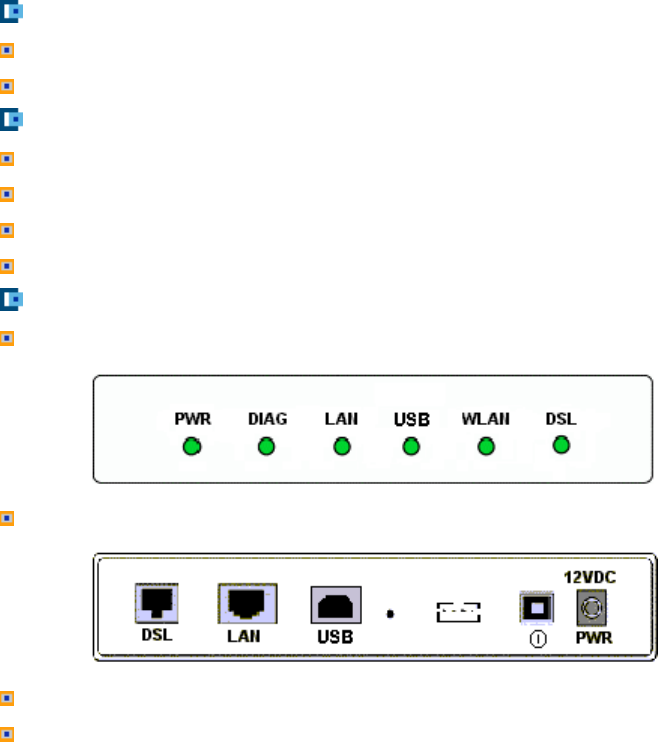

Front Panel: 5 LEDs
Back Panel
Dimensions: 215mm (L) x 160mm (W) x 40mm (H)
Weight: 600g
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received,
including interference that may cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with
FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
3. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
