TurboMate E1 –TN154W2
Quick Start Guide
1. Package
TurboMate E1 device
Charger
Micro USB Cable
Plug + Adapter (5.35V/1A)
2. Product View

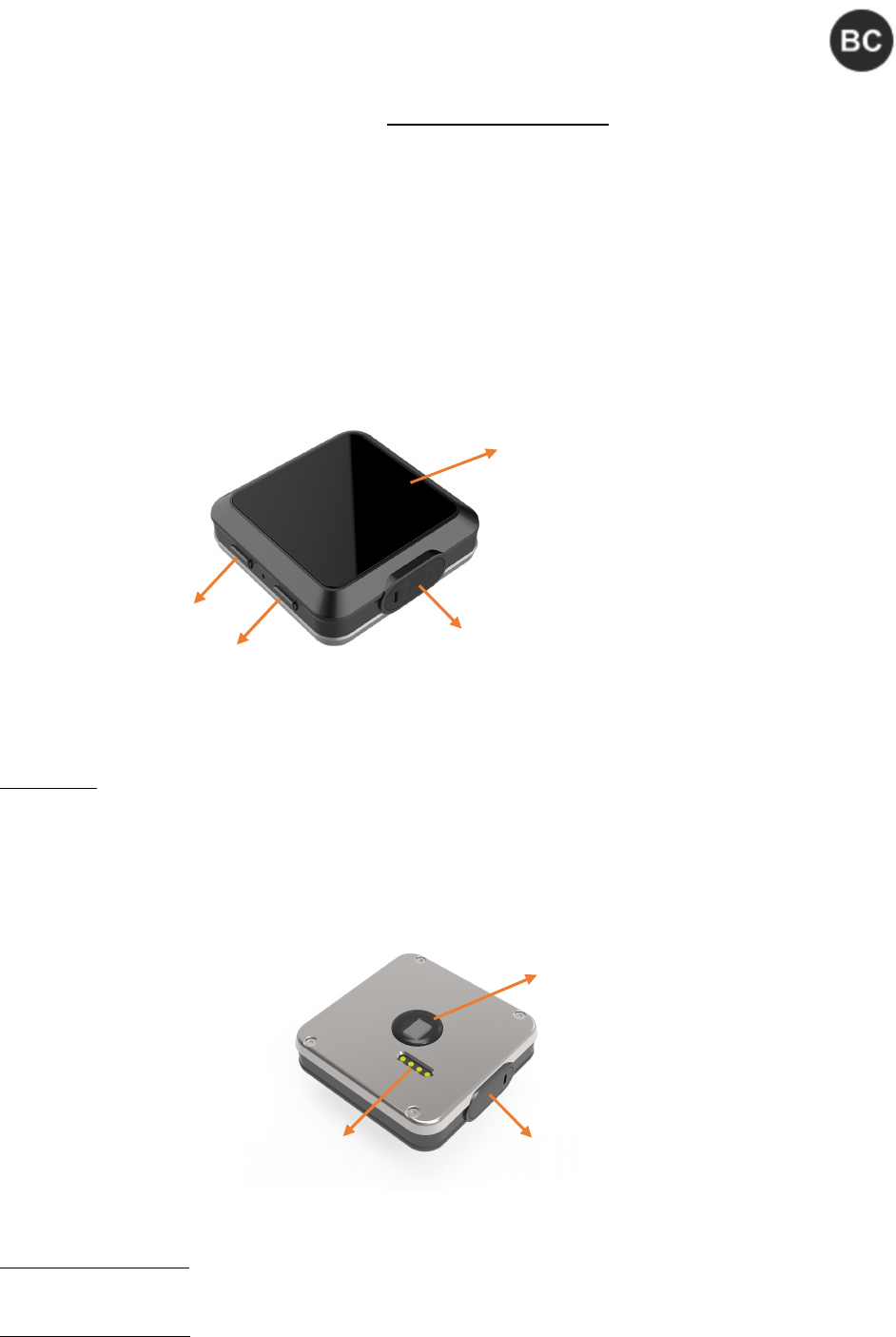

(1) Front view
Power Key: during device on, short push can make device into suspend mode (screen off and connection
stand-by. Long push can trigger “power off” or “reboot”.
(2) Rear View
Charging Connector: The charging connector slot should put properly and touch 4 pogo pins on the
charging base.
BIO Sensor (Option): The function of BIO sensor is to detect the heart rate. It should be touched well with
wrist when wearing with the wrist band.
Pogo Pin
Micro USB Port

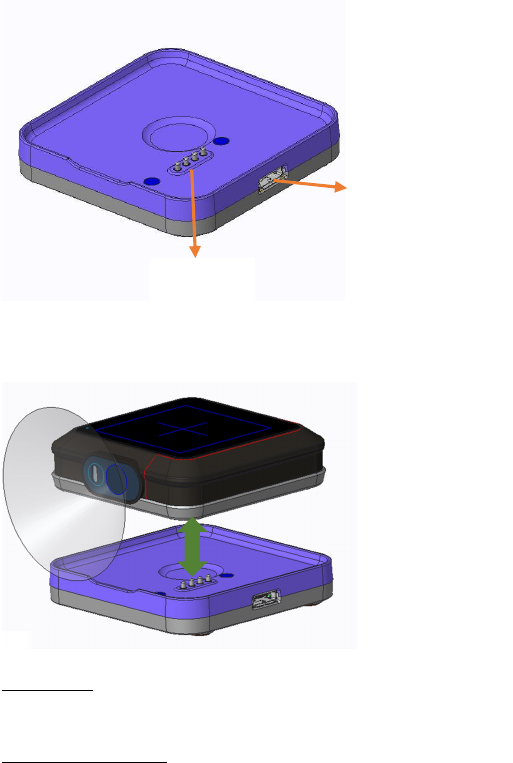

(3) Charger
Pogo Pin: When charging, pogo pin on the charger should be snapped properly with the charging connector
on the device.
Micro USB cable: Plug Micro USB connector into the Micro USB port for charging.
3. Function description: (“” “” “Back” in screen means “Back/Esc”)

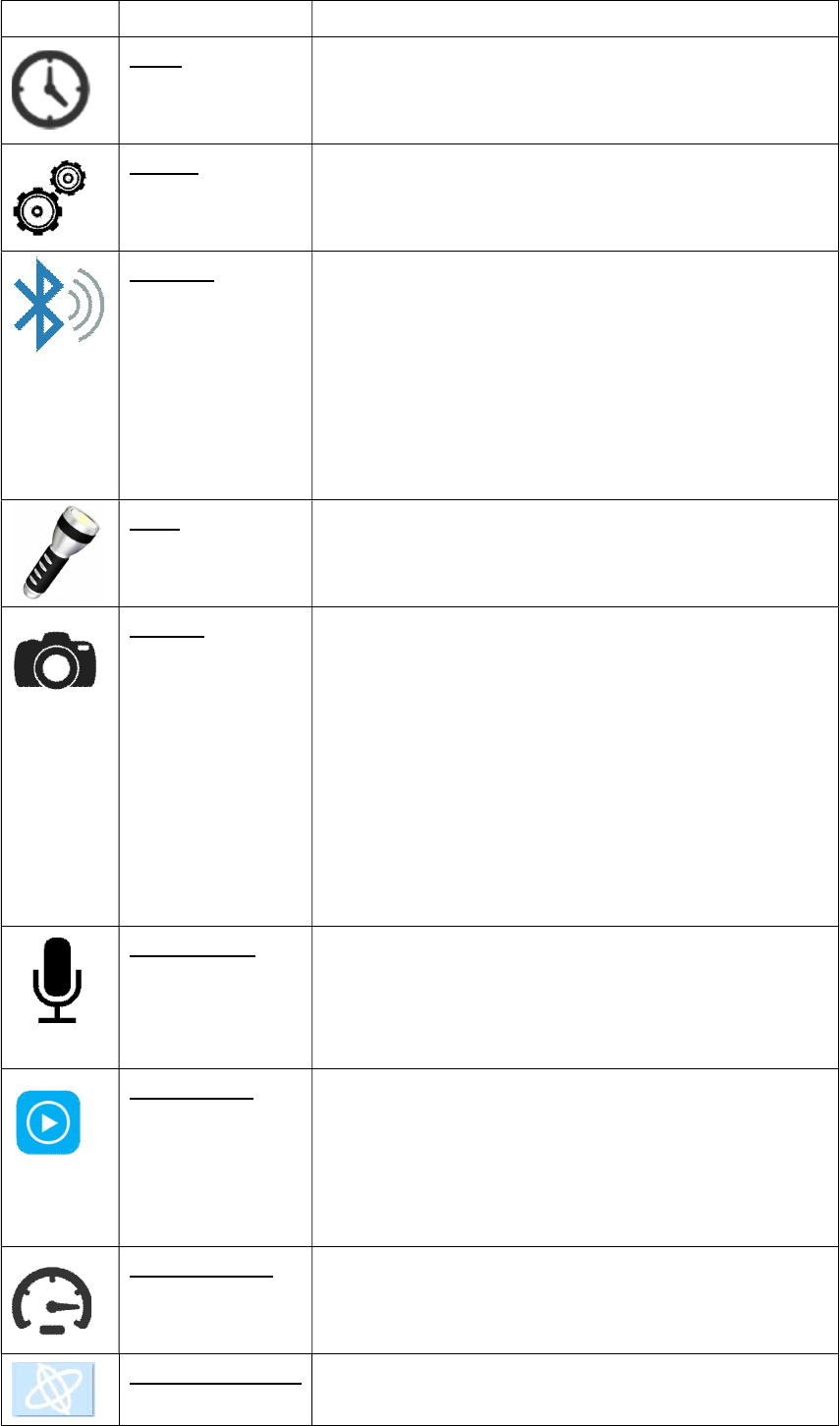

Icon Function Description and Remark
Clock checking time (P.S. it will not have RTC if not
connecting network)
Setting Switching Wifi , BT
WiFi&BT 1. Checking connection status of WiFi & BT
2. Wifi AP searching and connecting (suggest to
connect to AP which is without passcode or use
BT keyboard for insert passcode instead)
3. BT device searching and pairing (suggest to
connect device which is without pin code for
pairing)
Flash 1. Switch to turn on/off the flash.
Camera 1. Press camera icon to capture picture
2. There is also photo preview available. (but no
photo and video stored)
3. Video recording is workable but removed
currently because heating concern.
4. There is 30 seconds limited for camera preview.
(Warning!! Please do not open the camera for too
long time to avoid the increased temperature from
device will make your skin uncomfortable.)
AudioRecord 2. Press button for start recording and press again
for stop recording
3. Recorded audio is stored in Videos with mp3
format
MediaPlayer 1. “Browse” button can find demo video and
recorded audio file. All files are in “Videos”
folder. Press “Select” to enter the subfolder
2. Press “Select” and “Play” button to play the
media files.
Accelerometer Press “Enable” and move device for demo.
SensorGyrometer
Press “Enable” and move device for demo.

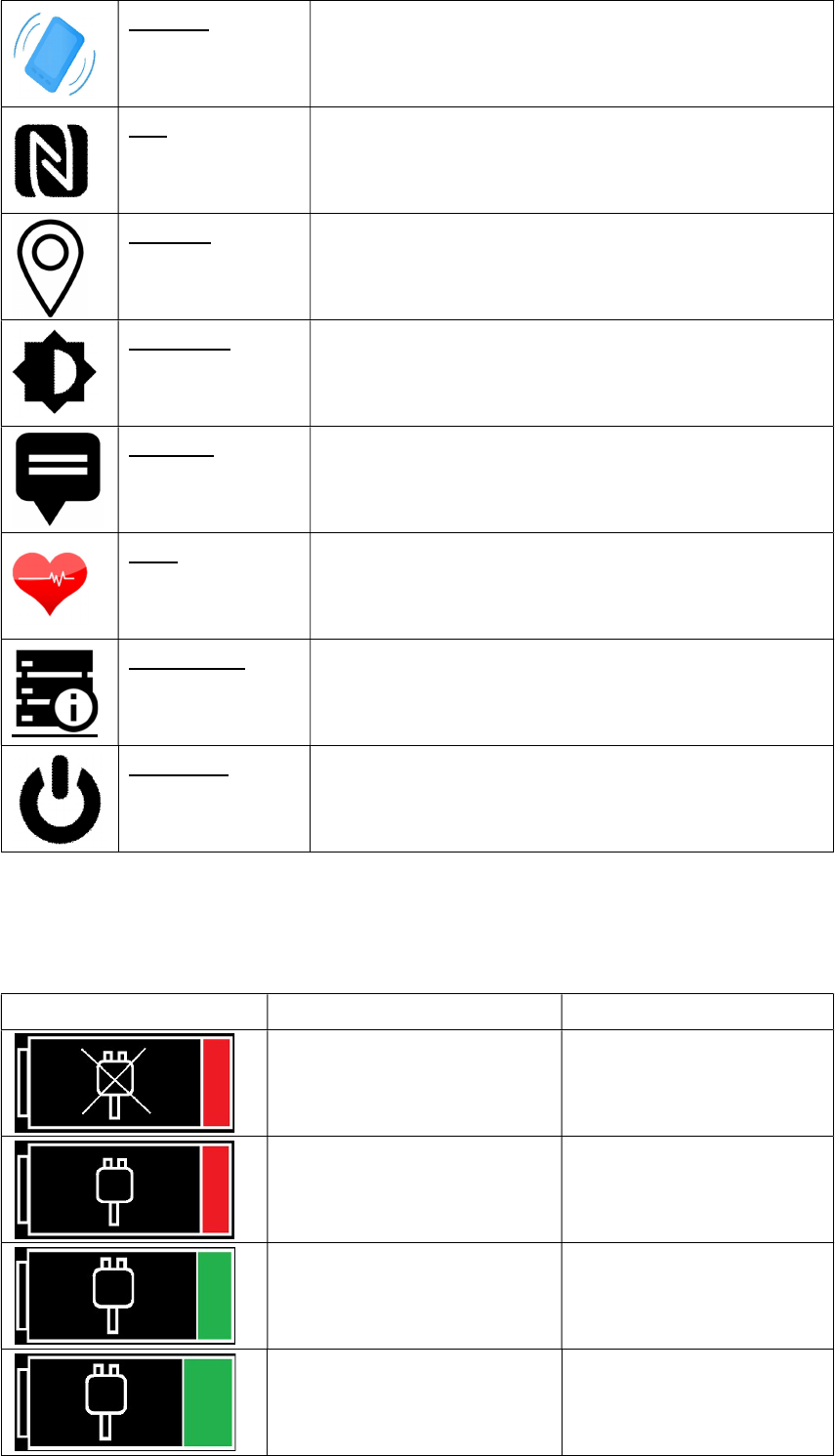

Vibrator Press “Start” for demo and will feel vibration for a
while
NFC Can read content from any tag with “NDEF format”
(ex. Sony’s NFC tag is working for sure)
Location 1. Need to switch off Wifi before using GPS.
Brightness 1. Changing the bar to change screen brightness
2. Please ignore the number of brightness on
screen
Message Can support text insert through BT scanner by
scanning barcode (need pairing in HID mode)
HRM Press the switch to “on” than measuring the heart
rate
Information To show more information about the model number,
version number and the electronic labels displaying
the certification mark and certification numbers.
Shutdown Having two options: “power off” and “reboot”.
Please shut device down by using this icon to avoid
the system won’t shut down normally.

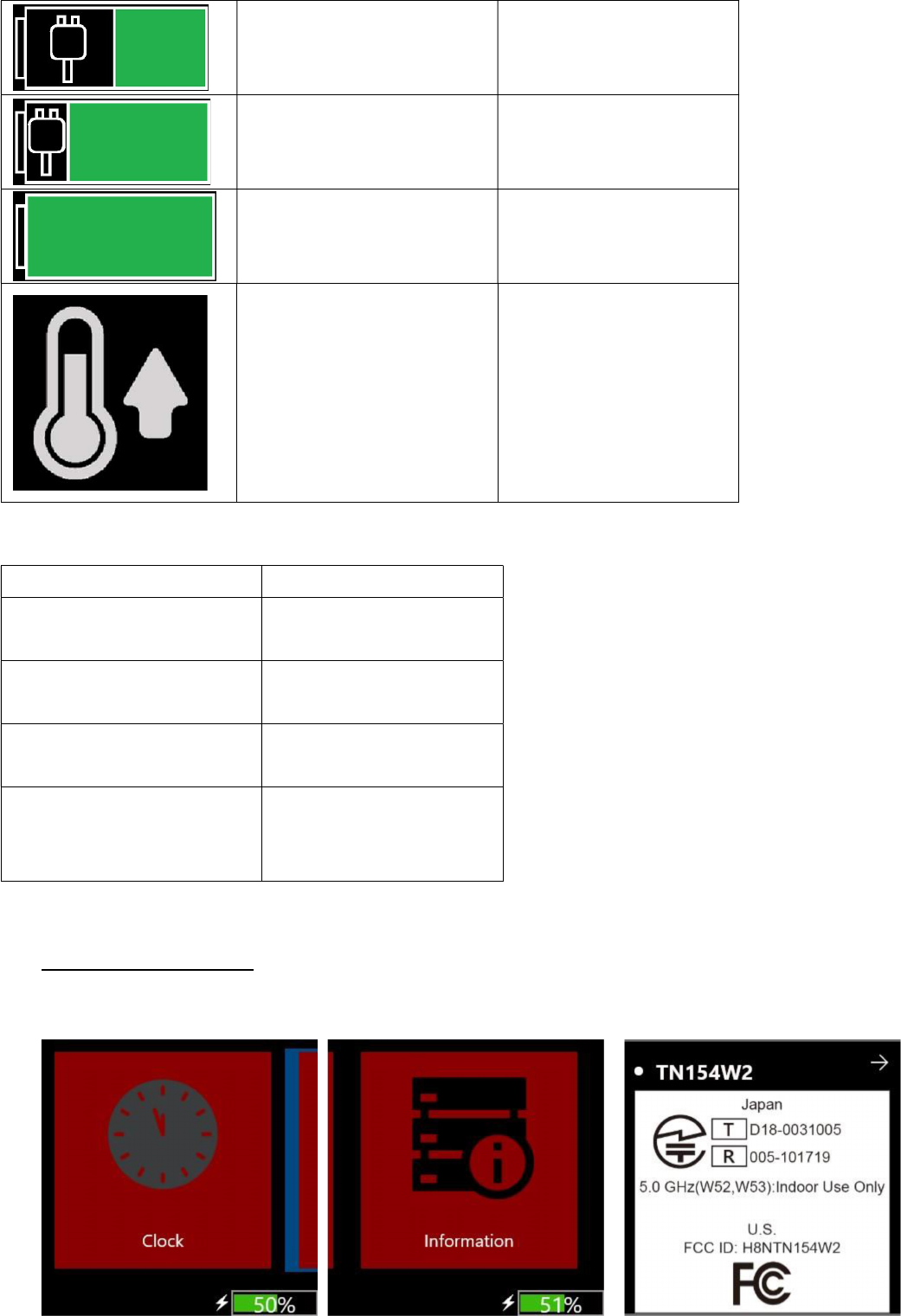

4. Charging indicator
a. TurboMate E1 is OFF
Symbol Description LED Indicator
Low battery
Discharging
Red: Off
Green: Off
Low battery
Charging
Red: On
Green: Off
Battery capacity 10% ~ 24%
Charging
(Boot up threshold: 15%)
Red: On
Green: Off
Battery capacity 25% ~ 49%
Charging
Red: On
Green: Off
Battery capacity 50% ~ 74%
Charging
Red: On
Green: Off
Battery capacity 75% ~ 99%
Charging
Red: On
Green: Off
Battery capacity 100%
Discharging
Red: Off
Green: On
Over Temperature
Discharging
(45 degree-c)
Red: Off
Green: Off
b. TurboMate E1 is ON
Description LED Indicator
Discharging Red: Off
Green: Off
Charging Red: On
Green: Off
Full Charge Red: Off
Green: On
Over Temperature
Discharging
(45 degree-c)
Red: Off
Green: Off
5. E-Label
Where to find the e-label
Power on the device the first APP is “Clock”slide the screen to “Information”enter the
“Information” and you can see the e-label
6. Caution
1. If device runs out of battery (can’t boot up), please charge by docking via micro USB cable (5V/1A is
enough). When start charging, device will boot up automatically.
2. In some cases, if the device crash or hang on certain screen, please press power key until feeling
vibration from device then the device will be hard-reset.
3. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
