Askey Computer WLU6113 802.11b/g/n Wireless Adapter User Manual
Askey Computer Corp 802.11b/g/n Wireless Adapter
User Manual
ASKEY
802.11 b/g n WLAN adaptor
WLU6113-D69
OPERATION
MANUAL
1. Description
WLU6113-D69 is an 802.11b/g/n dongle; the product is put into the TV or Blue Ray DVD
player to connect with Wireless AP Router and user, while any user need to be transmit /
receiver data through wireless, WLU6113-D69 is better choice for use.

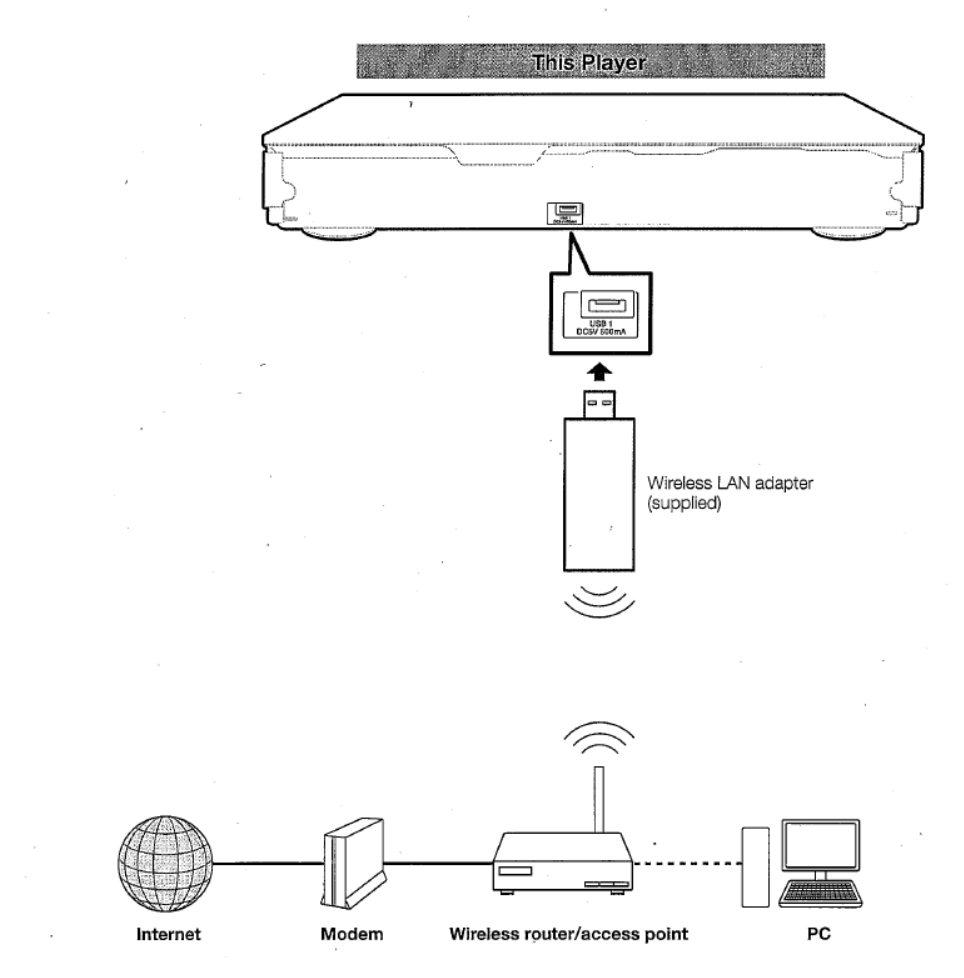

The connect diagram as below:
2. Product Spec.
Host Interfaces USB2.0
Form factor USB Wireless module
Chipset Broadcom BCM4319
Operation Voltage 3.0VDC ~ 3.6VDC
Network Standards IEEE 802.11b/g/n
Modulation Techniques DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Modulation Technology OFDM, DSSS with proprietary operation at 65Mbps(max.) within 20MHz
(HT20)
Data Rate 802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
HT20: 65 MHz (MCS7)
Network Architectures Infrastructure and Ad Hoc
Operating Frequencies 2.412 – 2.462 GHz
Antenna Type Fractal-Antenna
Operating Channels 802.11b: 11 for North America; 13 for Europe; 14 for Japan
802.11g: 11 for North America; 13 for Europe; 14 for Japan
Operation is limited in firmware to meet national regulations, not
changeable by the user.
RF Output Power 802.11b: 17.0 dBm +/- 1.5 dBm
802.11g: 17.0 dBm +/- 1.5 dBm
802.11n: 14.0 dBm +/- 1.5 dBm
Receiver sensitivity
(PER < 10%)
802.11b: -85dBm @ 11Mbps and PER < 8%
802.11g: -70dBm @ 54Mbps and PER < 10%
802.11n: -68dBm @ MCS 7 B.W 20MHz and PER < 10%
Power Consumption TX: 330mA @ 1Mbps; 215mA@54Mbps; 250mA@MCS7
RX: 120mA
Security 1. WPATM (personal) and WPA2TM (personal) certified for powerful
encryption and authentication
2. AES and TKIP in hardware for faster data encryption and IEEE
802.11iTM Compatibility.
Software Support Windows® CE 5.0, Linux®, Windows® XP
Temperatures (AMBIENT) Operates from 0 to 70°C;
Storage from -40 to 70°C
Humidity
(non-condensing)
5 to 95 %
Manufacturer ID PID: BD 16
Product ID VID: 0A5C
3. Setup Operation
Refer to operating manual of the TV or Blue Ray DVD player for how to configure the
wireless connection.
USA - Federal Communications Commission (FCC)
FCC Radiation Exposure Statement
CAUTION:
. • The radiated output power of WiFi Module 802.11bgn devices is far below the FCC radio
frequency exposure limits. Nevertheless, WiFi Module 802.11bgn devices should be used in such
a manner that the potential for human contact during normal operation is minimized. To avoid
the possibility of exceeding the FCC radio frequency exposure limits, you should keep a distance
of at least 20cm separation from the WLU6113-D69 once installed on the TV or Blue Ray DVD
player.
Interference Statement
These devices comply with Part 15 of the FCC Rules. Operation of the devices is subject to the following two
conditions: (1) The devices may not cause harmful interference, and (2) The devices must accept any
interference that might cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy. If the equipment is not installed and used in accordance with the instructions, the equipment might
cause harmful interference to radio communications.
There is no guarantee, however, that such interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception (which can be determined
by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one
or more of the following measures:
. • Relocate this device.
. • Increase the separation between the device and the receiver.
. • Connect the device into an outlet on a circuit different from that of other electronics.
. • Consult the dealer or an experienced radio technician for help.
NOTE:
. • WLU6113-D69 must be installed and used in strict accordance with the manufacturer's instructions as
described in the user documentation that comes with the product.
Any other installation or use will violate FCC Part 15 regulations. Modifications not expressly approved by
ASKEY could void your authority to operate the equipment.
. • The WLU6113-D69 must not be collocated with any other transmitters. Keep a 20cm separation from
other transmitter antennas.
