Dear Customer,

Thank you for choosing this quality product from ASKO.

We hope it will meet your expectations and fulfill your needs

for many years to come. Scandinavian design combines clean

lines, everyday functionality, and high quality. These are key

characteristics of all our products and the reason they are

greatly appreciated throughout the world.

To get the most out of your new machine, we recommend that

you read the operating instructions before using it. The

operating instructions also include information on how you

can help protect the environment.

Operating Instructions

Washing Machine

Save these instructions for future reference

ASKO W6324

4

Before using your machine for

the first time

5Transport protection

5Packing material

5Washer door

5Checking water hardness

6Important safety instructions

6Grounding instructions

7Installation

7Overflow guard function

7Transport/Winter storage

7Disposal

8Child safety

8Keep an eye on children!

9Parts of the washing machine

10Detergent compartment

11Advice and tips before washing

11Sorting your laundry

11Clothing

11Laundry labels

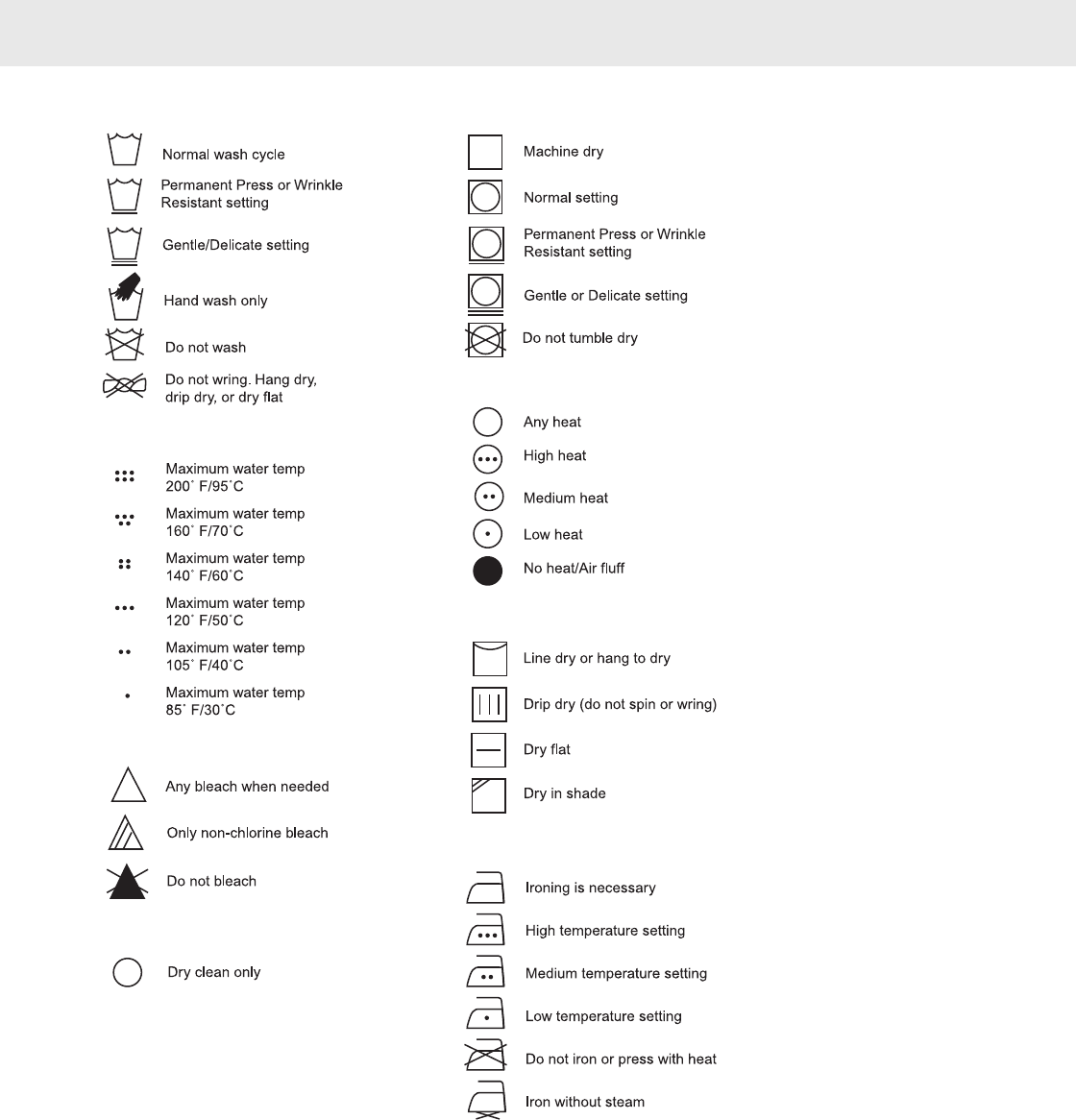

11Laundry label symbols

13Colored cotton

13Unbleached linen

13Wool

13Rayon fibers and synthetic fibers

13Reducing allergic reactions

13Economy and efficiency

13Detergents

13Dyeing fabrics

14Liquid detergents

15

Recommended detergent

amounts based on water hardness

16Operating instructions

16Sort your laundry.

16Turn on the main power switch

16

Open the washer door and load

the laundry

16

Add detergent and fabric softener,

as required

17Select the program

19Select options

19

Close the washer door and press

the Start/Stop button

19Once the program has finished

20Settings

20

You can change the following

settings:

20Door opening

21

Care and maintenance

instructions

21

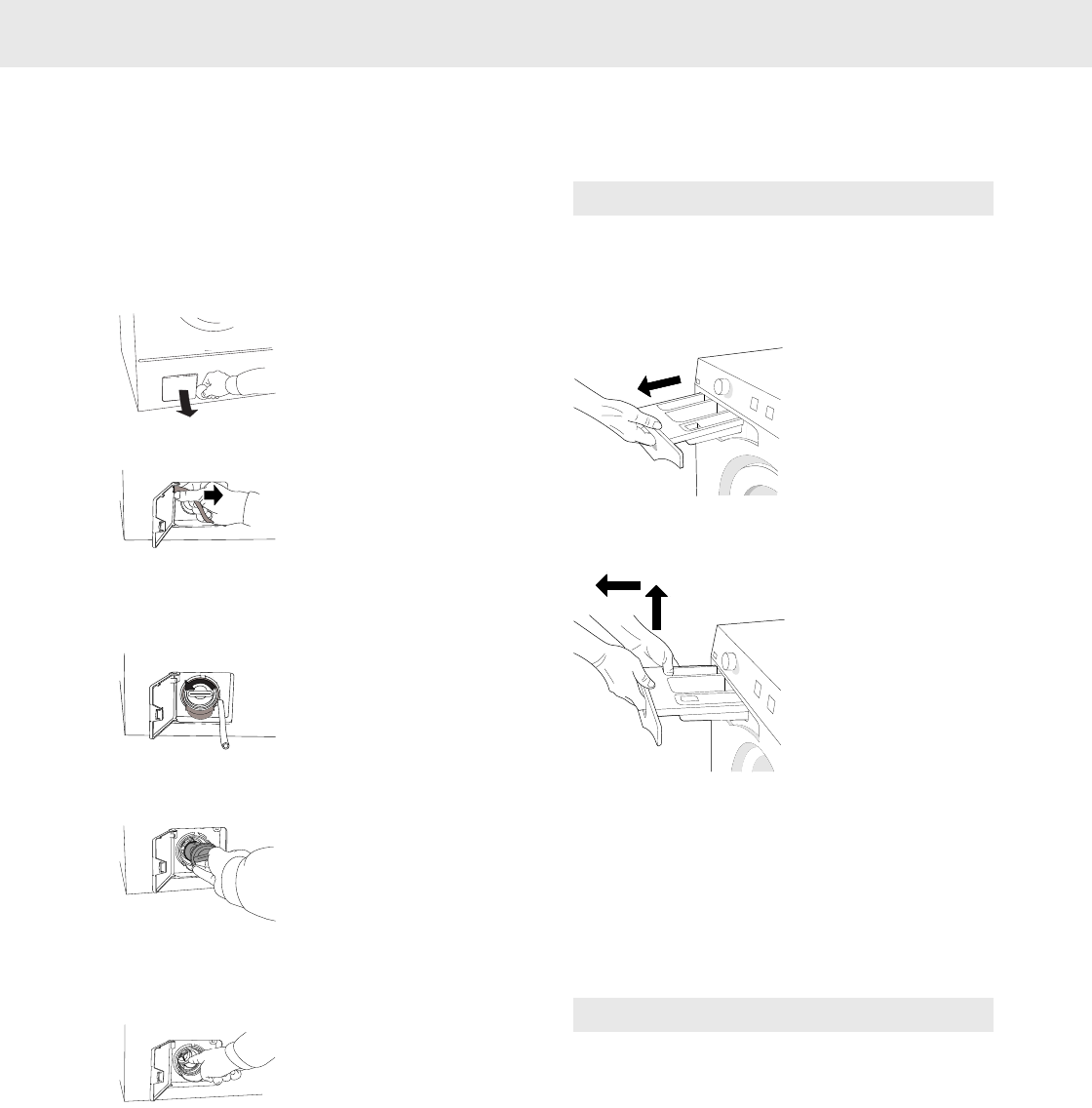

Cleaning the trap and the drain

pump

21

Cleaning the detergent

compartment

21

Cleaning the outside of the

machine

22

Cleaning the inside of the machine

to avoid unpleasant smells

23Rinse holes under the paddle

23If you have hard water

24Troubleshooting

24The washer door will not open

24The machine will not start

25Error messages

26Technical information

26Technical data

27Transport protection

Customer Care Center

1-800-898-1879

2

www.askousa.com

Contents

29Installation

29Leveling the machine

29Water supply connection

30Drain outlet connection

30Electrical Connections

30Grounding instructions

30Freestanding installation

30Stacked installation

31Built-in installation

32Service

33Warranty

33

How to contact ASKO Appliances

Inc.

36Quick guide

3Customer Care Center

1-800-898-1879

www.askousa.com

Contents

Do you need this Use&Care Guide in Spanish? Log on to www.askousa.com/customer-care to download.

¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askousa.com/customer-care

y descárguesela.

Customer Care Center

1-800-898-1879

4

www.askousa.com

Before using your machine for the first time

Transport protection

Remove any transport protection devices before

installing the machine. See the "Transport

protection" chapter.

Packing material

Please sort waste materials in accordance with

local guidelines.

Washer door

•The washer door cannot be opened until the

machine is connected to the electricity supply.

•To open the door manually, see "The washer

door will not open" in the "Troubleshooting"

chapter.

•The machine cannot be started when the door

is open.

•To open the washer door while a program is

running, see "Close the door and press the

Start/Stop button" in the "Operating

instructions" chapter.

Checking water hardness

The quantity of detergent needed depends,

among other things, on water hardness. See the

detergent pack for details. Phone your local water

company to check the water hardness in your

area.

NOTE!

Each machine is tested before leaving the

factory. A small amount of water may remain in

the drain pump, though this does not affect

quality or damage the machine.

See Quick guide on the last page

5Customer Care Center

1-800-898-1879

www.askousa.com

Before using your machine for the first time

SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE

WARNING!

To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow

basic precautions, including the following:

•Read all instructions before using the

appliance.

•Do not run appliance while you are out of the

home.

•Do not wash or dry articles that have been

previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents,

cooking oils, or other flammable or explosive

substances because they give off vapors that

could ignite or explode.

•Do not allow children to play on or in the

appliance. Close supervision of children is

necessary when the appliance is used near

children.

•Before the appliance is removed from service

or discarded, remove the door to the washing

compartment.

•Do not reach into the appliance if the drum is

moving.

•Do not install or store this appliance where it

will be exposed to the weather.

•Do not tamper with controls.

•Do not repair or replace any part of the

appliance or attempt any servicing unless

specifically recommended in the user-repair

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

•Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to

the wash water. These substances give off

vapors that could ignite or explode.

•Under certain conditions, hydrogen gas may

be produced in a hot water system that has not

been used for 2 weeks or more. HYDROGEN

GAS IS EXPLOSIVE. If the hot water system

has not been used for such a period, before

using a washing machine or combination

washer-dryer, turn on all water faucets and let

the water flow from each for several minutes.

This will release any accumulated hydrogen

gas. As the gas is flammable, do not smoke or

use an open flame during this time.

WARNING!

This appliance must be properly grounded.

This manual does not cover every possible

condition and situation that may occur. Use

common sense and caution when installing,

operating, and maintaining any appliance.

Grounding instructions

A) Grounding instructions for a grounded,

cord-connected appliance:

In the event of malfunction or breakdown,

grounding will reduce the risk of electric shock by

providing a path of least resistance for electric

current. This appliance is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. The plug must be plugged into

an appropriate outlet that is properly installed and

grounded in accordance with all local codes and

ordinances.

WARNING!

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or service

representative or personnel if you are in doubt

as to whether the appliance is properly grounded.

Do not modify the plug provided with the

appliance. If it will not fit the outlet, have a proper

outlet installed by a qualified electrician.

Customer Care Center

1-800-898-1879

6

www.askousa.com

Important safety instructions

B) Grounding instructions for a

permanently connected appliance:

This appliance must be connected to a grounded

metal, permanent wiring system, or an

equipment-grounding conductor must be run with

the circuit conductors and connected to the

equipment-grounding terminal or lead on the

appliance.

NOTE!

This manual does not cover every possible

condition and situation that may occur. Use

common sense and caution when installing,

operating, and maintaining any appliance.

Installation

See the "Installation" chapter.

Overflow guard function

If the machine’s water level rises above the normal

level, the overflow guard function begins to pump

water out and shuts off the water intake. If the

water level has not dropped within 60 seconds,

the program is terminated.

Transport/Winter storage

If the machine is to be transported or stored in

unheated premises where the temperature can

fall below freezing, do as follows:

•Empty the filter and the drain pump. See the

"Care and maintenance instructions" chapter.

•Shut off the water to the washing machine,

loosen the supply hose to the intake valve, and

let the water run out from the valve and hose.

•After emptying the pump, a small amount of

water may remain in the machine. This does

not affect quality or damage the machine.

Disposal

When the machine has reached the end of its

service life and is to be disposed of, it should

immediately be made unusable by removing the

door to the washing compartment. Contact your

local authorities for information about where your

machine should be disposed of and recycled in

the proper way. The machine is manufactured

and labeled for recycling.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

7Customer Care Center

1-800-898-1879

www.askousa.com

Important safety instructions

Keep an eye on children!

Be observant of children!

• Laundry detergents are corrosive, so always

keep them out of reach of children.

• Should a child swallow detergent, give plenty

to drink immediately, i.e., one or two glasses

of milk or water. Do not try to induce vomiting.

Seek medical advice immediately: The

National Poison center phone number is

1-800-222-1222.

• Always close the door and start the appliance

as soon as you put in the detergent.

• Always turn the power off to the machine when

it is not in use.

• Always keep small children away from the

machine when it is open. There may be some

detergent residue left inside the machine.

• If laundry detergent gets in someone’s eyes,

rinse them with plenty of water for at least 15

minutes.

Customer Care Center

1-800-898-1879

8

www.askousa.com

Child safety

1 2 3

5,6 7

4

1. Main power switch

2. Detergent compartment

3. Program panel

4. Serial number plate (on inside of washer door)

5. Drain pump cover

6. Drain pump (behind cover)

7. Washer door

9Customer Care Center

1-800-898-1879

www.askousa.com

Parts of the washing machine

1 2 3

1. Pre Wash

2. Main Wash

3. Fabric softener

The detergent drawer automatically dispenses the detergent and fabric softener at the appropriate times.

Simply pour the measured amounts of detergent and softener into the proper compartments (as illustrated)

and close the drawer.

NOTE!

To avoid oversudsing, do not put detergent in the prewash compartment unless you are using one of

the Heavy wash programs which has a prewash cycle.

Customer Care Center

1-800-898-1879

10

www.askousa.com

Detergent compartment

Here are some tips that may help you before

washing.

Sorting your laundry

Sort items according to:

•how soiled they are

•color

•material

Clothing

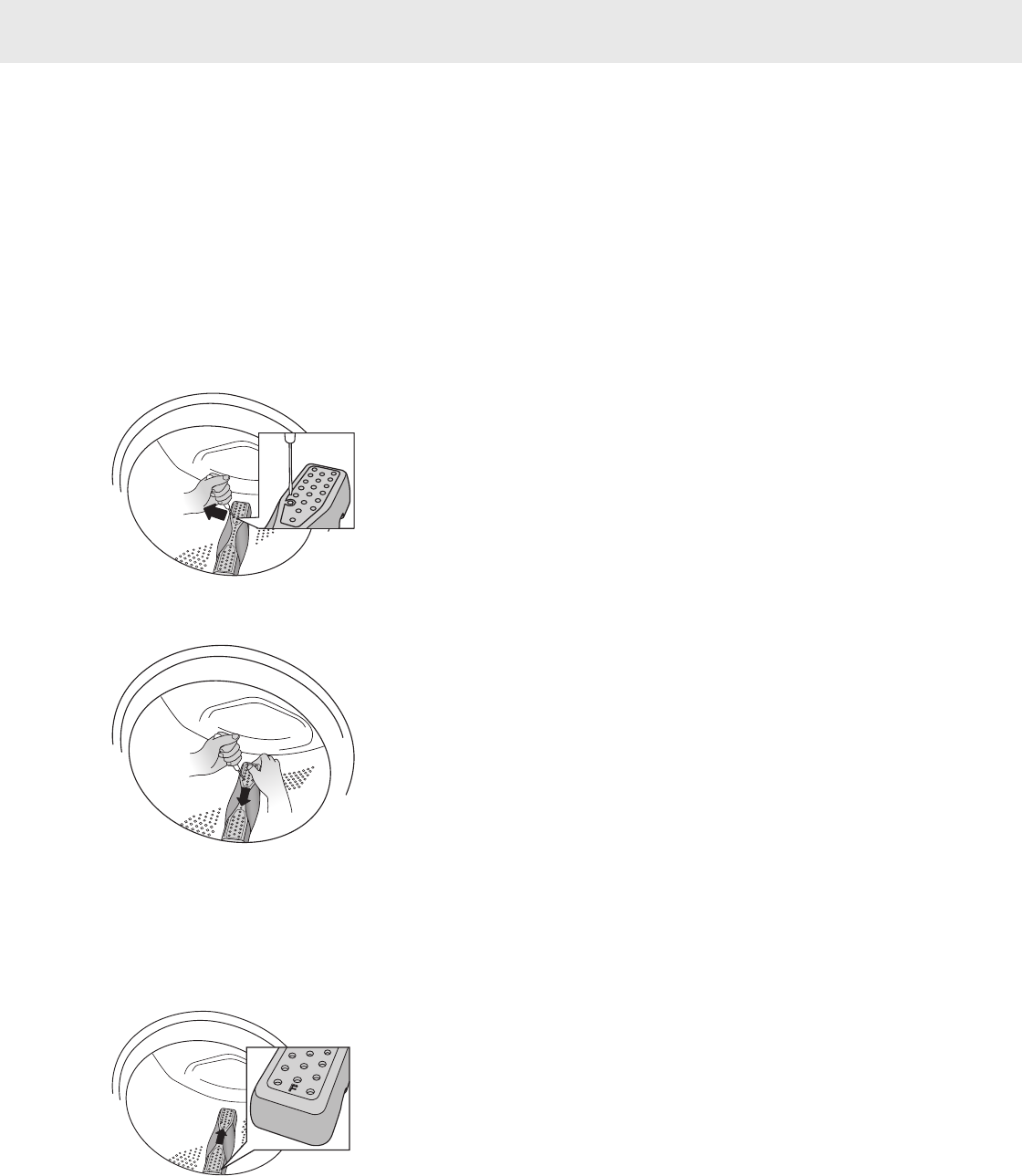

1. Close zippers and Velcro straps so they won’t

damage fabrics.

2. New colored items may contain excess dye

and should therefore be washed separately

the first few times.

3. Turn delicate items inside out. This reduces

the risk of burling and fading.

4. Empty pockets and wash them inside out if

possible.

Laundry labels

Look at the item’s laundry label. The table below

shows suitable wash programs for different

materials and wash loads. Using modern washing

machines and detergents, such as compact

detergents, you can usually wash at lower

temperatures. It is a good idea to use trial and

error to find out what produces the best results.

Laundry label symbols

Examples of washing instructions and recommended programs. Always follow the washing instructions

for each garment.

LoadProgramMaterialLaundry labels

1/1 drumSani 140 °F (60 °C) to 203 °F (95 °C)Heavily soiled cotton, linen, white, and light-

colored items.

1/1 drumQuick 140 °F (60 °C)Normally soiled cotton, linen, cot-

ton/polyester. Light and dark-colored gar-

ments.

1/1 drumPerma Press 104 °F (40 °C)Polyester, polyamide, elastane, acrylic. Light

and dark-colored garments.

1/2 drumEveryday Wear (Easy care) 104 °F (40 °C)Acrylic, viscose, modal, acetate.

1/3 drumPerma Press 86 °F (30 °C)Silk and very delicate items

1/3 drumWool/Hand Wash 86 °F (30 °C) to 104 °F (40

°C)

Wool and other very delicate garments

11Customer Care Center

1-800-898-1879

www.askousa.com

Advice and tips before washing

Ironing instructions

Special drying instructions

Tumble dry heat setting

Tumble dry cycle

Dry clean symbol

Bleach instructions

Wash water temperature

Wash cycle

Customer Care Center

1-800-898-1879

12

www.askousa.com

Advice and tips before washing

Colored cotton

Colored cotton items labeled 140 °F (60 °C)

should be washed at 140 °F (60 °C) the first time

in order to remove any excess dye. If you do not

do so, there is a risk that the color will run. Use

detergent without bleach in order to preserve the

color of the fabric.

Unbleached linen

Unbleached linen fabrics should be washed at

140 °F (60 °C), using detergent containing no

bleach or optical whiteners. Heavily-soiled linen

can occasionally be washed at higher

temperatures, but not too often as the heat can

destroy the linen’s sheen and strength.

Wool

These fabrics are labeled either machine wash

or hand wash. The Wool/Hand Wash program is

at least as gentle as washing by hand.

Wool is especially sensitive to processes such as

washing.

If you do not wish to spin dry, you can squeeze

out the water using terrycloth towels. In this case

select No spin.

To find out how to choose this setting, see the

"Operating instructions" chapter. However, most

garments can withstand a short spin. Choose a

short spin by selecting a spin speed of 800 rpm

or less.

Rayon fibers and synthetic fibers

Materials made of rayon fibers, such as viscose,

and some synthetic fibers are very delicate and

require much space to avoid wrinkling. Only half

fill the drum when washing and choose a spin

speed of 800 rpm or lower.

NOTE!

Viscose and acetates are fragile when wet.

Reducing allergic reactions

The washing machine has a Super Rinse option.

Use this for people with sensitive skin, such as

those with allergies and small children.

Economy and efficiency

You can save a lot of energy by not using higher

temperature programs than necessary.

•Select Quick if you just need to freshen up

shirts or exercise clothes, for example. This

will save both water and energy.

•If you select a fast spin speed, this reduces

energy consumption when drying in a tumble

dryer or drying cabinet.

•Always wash with a full load when using the

Sani, White, and White programs.

•Avoid pre-washing. Modern machines and

detergents clean effectively without

pre-washing. Pre-washing is only necessary

for heavily soiled laundry.

Detergents

Eco-labeled detergents are less harmful to the

environment.

Detergent overdosing does not give better

washing results; it merely causes a greater impact

on the environment.

Try to use less detergent, and increase only if you

are not satisfied with the results.

Dyeing fabrics

If you want to dye fabrics in the machine, select

the White program with the Super Rinse option.

Select the temperature according to the dye

manufacturer’s recommendations.

Choose a low spin speed if the fabric to be dyed

is a blended material, such as

polyester/cotton.

NOTE!

Add the dye directly to the washing drum – not

to the detergent compartment. After dyeing, you

should run the machine empty using the same

program. Use the normal amount of detergent.

13Customer Care Center

1-800-898-1879

www.askousa.com

Advice and tips before washing

NOTE!

Due to environmental concerns, we discourage

the use of strong chemicals.

When using agents for bleaching or stain

removal, there is a risk of rust (corrosion) and

discoloration of the machine.

Liquid detergents

We don’t recommend liquid detergents because

they tend to produce more suds than powder

detergents when used in water temperatures of

150° F or higher. If you should try a liquid

detergent, start with a very small amount, such

as 1 to 2 tablespoons. Also, liquid detergent can

be used for all programs without prewash, so add

it into the main wash compartment.

Detergents

Laundry detergents are available in low-, normal-

and high-sudsing formulas. A detergent´s ability

to clean is not relative to the amount of suds it

produces. Excess suds in a front-loading washer

actually interfere with the cleaning because they

cushion the tumbling action. Also, high-sudsing

detergents are more difficult to completely rinse

out.

The use of anything other than a low-sudsing

detergent can cause severe oversudsing, which

could cause suds to backup through the detergent

compartment and run down the front of the washer

onto the floor. If oversudsing occurs, run the wash

through one or more rinse programs until all items

are thoroughly rinsed. Remove the laundry then

run the washer through a Normal wash program

to get rid of any remaining detergent.

We recommend that you don’t use bleach in your

ASKO washer. The tumbling wash action,

temperature control options, extended wash times

and proper amount of detergent are sufficient to

remove most stains.

Recommended powder detergents

ASKO washers use 50% to 75% less detergent

than most other washers. This is because of their

low water consumption and the fact that all the

wash water is repeatedly circulated through the

laundry, ensuring that all the detergent is fully

utilized. We recommend that you use powder

detergents made specifically for front-loading

washers. These are sometimes called HE

(High-Efficiency) detergents. Please visit our

homepage www.askousa.com to see the powder

detergents we recommend for ASKO washers.

We recommend that you do not use any powder

detergent that doesn’t wash completely out of the

detergent drawer.

Detergent Amounts Based on Water

Hardness

The amount of detergent needed can vary due to

differences in water hardness. To determine the

water hardness in your area, contact your local

water utility or area water softening company. The

harder the water, the more detergent you may

need. Refer to the chart below for the

recommended detergent amounts based on water

hardness. Remember, you should adjust the

amount of detergent you use by small amounts

until you find the correct amount.

Note that 12 grains and higher is extremely hard

water and detergent alone may not be enough.

You may need to use a water softener to maximize

the performance of your washer. Also, in areas

with hard water (9+) you may need to wash at

lower temperatures to prevent hard water deposits

from forming in the tank and wash system.

Amount of detergent to use

The amount of detergent needed varies among

the different brands, but for most detergents, you

need only one or two tablespoons. Using too

much detergent can result in detergent residue

being left in your clothes, which can cause them

to appear gray or dingy. You should start with a

small amount of detergent and increase it only if

the cleaning results are unsatisfactory.

Customer Care Center

1-800-898-1879

14

www.askousa.com

Advice and tips before washing

Additionally, you should never put detergent in

the prewash compartment unless you are using

a wash program that has a prewash cycle. This

could cause excess foaming, which could damage

the machine.

The amount of detergent needed can also depend

on the hardness of the water in your area. See

the “Detergent Amounts Based on Water

Hardness” section on the next page for more

details.

Recommended detergent amounts based on water hardness

Detergent amounts

Main WashPre WashWater hardness

1 to 1-1/2 tablespoons1 teaspoonSoft (0-3 grains per gal.)

1 to 2 tablespoons1 teaspoonMedium (4-8 grains per gal.)

2 to 3 tablespoons1 teaspoonHard (9+ grains per gal.)

15Customer Care Center

1-800-898-1879

www.askousa.com

Advice and tips before washing

WARNING!

To reduce the risk of fire, electric shock, or injury

to persons, read the IMPORTANT SAFETY

INSTRUCTIONS before operating this appliance.

1Sort your laundry.

See the "Advice and Tips before washing"

section.

Place underwired bras in a laundry net.

Empty pockets. Coins, nails, and the like can

cause damage to the machine and fabrics. See

the "Advice and Tips" section before washing.

2Turn on the main power switch

3Open the washer door and load

the laundry

If the washer door is closed, press the Door

Opening button (key symbol). The door opens

once all water has drained from the machine.

Load the laundry. The wash program chart shows

how much laundry can be washed with each

program.

4Add detergent and fabric

softener, as required

The detergent packaging will have

recommendations for how much detergent you

should use. The machine holds 18 lb (8 kg) of

laundry. If you only have a small amount of

laundry in the machine, you can reduce the

amount of detergent used.

Powder detergent

Pour the powder into the main wash compartment,

and pre-wash compartment as well if desired.

Liquid detergent

When using liquid detergent, follow the chart on

page 15 for recommended detergent amounts.

We recommend always using a wash ball with

very thick liquid detergent.

Wash ball or net

If you use a wash ball or net, place it directly in

the drum and select a program without pre-wash.

NOTE!

Detergent overdosing does not give better

washing results; it merely causes a greater

impact on the environment.

Try using less detergent, and increase only if

you are not satisfied with the results.

Fabric softener

Pour the fabric softener into the compartment with

the symbol. Follow the recommendations on

the fabric softener packaging.

NOTE!

Do not fill above the compartment’s maximum

fill level. Otherwise fabric softener will be

dispensed too early, which impairs the washing

effect.

WARNING!

To reduce the risk of fire, electric shock, or injury

to persons, read the IMPORTANT SAFETY

INSTRUCTIONS before operating this appliance.

Customer Care Center

1-800-898-1879

16

www.askousa.com

Operating instructions

5Select the program

Super Wash

Super Rinse

Door opening

Selector

Main power switch Start/Stop

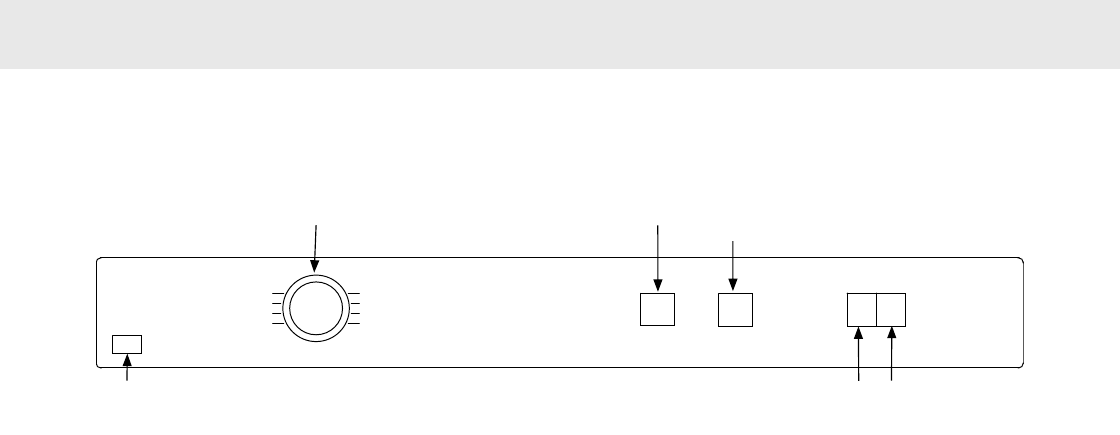

You select a program by turning the program selector. An LED lights up beside the selected program.

Use the option buttons to select any options.

1. Sani

Program for heavily soiled laundry, with dirt that

needs to be fully dissolved before the main wash.

A pre-wash is used to do this. The machine

adapts the program time and water consumption

to the load size.

2. White

A standard program for lightly to moderately soiled

laundry. Garments worn next to the skin ought to

be washed at 140 °F (60 °C). Follow the washing

instructions for each garment. The machine

adapts the program time and water consumption

to the load size.

3. Color

A standard program for lightly soiled laundry that

usually comes clean at 104 °F (40 °C). Follow the

washing instructions for each garment. The

machine adapts the program time and water

consumption to the load size.

4. Quick

Program for normally soiled cotton and/or linen

clothes for daily use. Follow the washing

instructions for each garment.

5. Perma Press

Program for synthetics, blended materials, and

permanent press cotton. Suitable for shirts and

blouses. Follow the washing instructions for each

garment. Many synthetics will come clean at 104

°F (40 °C). The spin speed is 800 rpm.

6. Wool/Hand Wash

A gentle laundry program for wool, silk, and

garments that should be washed by hand. The

temperature is 86 °F (30 °C). The spin speed is

800 rpm.

17Customer Care Center

1-800-898-1879

www.askousa.com

Operating instructions

Program chart

Program time

(approx. hrs and

min.)

Energy consump-

tion

(approx. kWh)

Water consump-

tion

(approx. gallon)

Max. load

( lb)

Spin speed

rpm

Number of

rinsesTemp. °F

Pre

WashProgram

2:401.2020,31812005140X1. Sani

1:401.215,918120031402. White

1:401.215,918120031043. Color

0:400.46,69120021044. Quick

1:200.47,9980031045. Perma Press

0:450.518,568003866. Wool/Hand Wash

Customer Care Center

1-800-898-1879

18

www.askousa.com

Operating instructions

6Select options

You can select options to adjust the wash program to suit your own specific requirements. The

available options depend on the selected program. If the option is available for the selected program,

the symbols lights up when you press the button.

The machine will remember the options you select for each program (with one exception – Delayed Start).

You can still change the selected options the next time you select a particular program.

Super Rinse

Use the Super Rinse option if you want to increase the number of rinses. The maximum number of rinses

is seven and varies depending on the selected program. Recommended for persons with extremely

sensitive skin and/or in areas with very soft water. This option cannot be selected with Quick, Rinse, or

Spin & Drain.

•Select Super Rinse by pressing the button by the symbol.

•An LED next to the button lights when this option is activated.

Super Wash

Super Wash can be selected to better dissolve difficult stains and heavy soiling on clothing. This option

adds a cold pre-wash and the wash time in cold water is extended by approximately six minutes. The

main wash time is also extended.

•Select Super Wash by pressing the button by the symbol.

•An LED next to the button lights when this option is activated.

7Close the washer door and

press the Start/Stop button

Stopping or changing a program

You can stop a program by pressing the

Start/Stop button for three seconds. To restart the

machine, select a new program, add any extra

detergent needed, and press the Start/Stop

button.

NOTE!

Do not open the detergent compartment while

the machine is running.

8Once the program has finished

Once the program has finished, all six LEDs

around Start/Stop and the Door Opening

button light up.

The washer door opens automatically once the

program has finished. If you want to deactivate

the Automatic Door Opening function, see the

"Selecting settings" section.

•Remove the laundry.

•Turn off the main power switch as this will save

energy.

If you have small children or pets at home, close

the washer door once you have removed the

laundry.

19Customer Care Center

1-800-898-1879

www.askousa.com

Operating instructions

You can change the following settings:

Automatic Door Opening.

Door opening

If you choose Automatic Door Opening, the washer door will open once the program has finished.

1. Turn off the machine using the main power switch.

2. Press and hold the Super Rinse button and then switch on the main power switch.

3. If the LEDs around the Door Opening button light up, automatic door opening is activated. If the LEDs

do not light up, the setting is not activated.

4. Press the Super Rinse button to change the setting.

5. Press the Door Opening button to save the setting.

Customer Care Center

1-800-898-1879

20

www.askousa.com

Settings

Cleaning the trap and the drain

pump

The washing machine has a trap where small

items such as coins, buttons, and hairpins can

collect. To clean the trap and the drain pump, do

as follows:

1. Make sure that the main power switch is off.

2. Open the door.

3. Unhook the drain hose from the connector

inside the door and drain the water into a

suitable container, such as a shallow bowl.

4. Turn the cover counter-clockwise to open the

pump. Remove the cover.

5. Remove any items and debris from the pump

housing and cover. Also check that the pump

impellers at the back rotate.

6. Screw on the cover, replace the drainage hose

on the hatch pin, and close the hatch.

Cleaning the detergent

compartment

NOTE!

Do not run the detergent compartment through

a dishwasher!

Pull the detergent compartment out as far as it

will go.

Lift the detergent compartment as you pull it out

to remove it from the machine.

Rinse the compartment and scrub it clean. The

fabric softener compartment cover can be

removed.

Cleaning the outside of the machine

Clean the outside of the machine and the program

panel with a mild cleaner. Do not use any

solvents, as these can damage the machine.

NOTE!

Do not hose down the machine with water!

21Customer Care Center

1-800-898-1879

www.askousa.com

Care and maintenance instructions

Cleaning the inside of the machine

to avoid unpleasant smells

Modern detergents often allow laundry to be

washed at low temperatures. This means that

small deposits can build up in the machine. These,

in turn, may lead to unpleasant odors developing.

To avoid this, we recommend running a 203 °F

(95 °C) wash program once a month. When you

do this, use a small quantity of detergent. It is not

necessary to put any laundry in the machine.

Customer Care Center

1-800-898-1879

22

www.askousa.com

Care and maintenance instructions

Rinse holes under the paddle

If you suspect that objects such as nails or paper

clips may have fallen into the wash drum, you

should check the space under the paddles. Such

objects can rust and cause spots on clothing.

Nails and other sharp objects can cause holes in

fabrics.

Do as follows:

1. Insert a screwdriver or similar tool into the hole

on the paddle as illustrated and carefully push

to the left.

2. Use your other hand to grasp the paddle and

pull it toward you.

3. Lift the paddle.

4. Remove any objects.

5. Place the paddle in the mounting hole with the

F-mark toward you. Ensure that all the paddle

fasteners are in their holes in the drum. Push

it in until it catches.

If you have hard water

If you live in an area with hard water (high

limescale content), a grayish-white coating may

form on the wash drum. To remove this coating,

pour approximately 20 gram (1 oz) of citric acid

into the wash drum and run any 203 °F (95 °C)

program. Repeat if necessary.

23Customer Care Center

1-800-898-1879

www.askousa.com

Care and maintenance instructions

The washer door will not open

1. Check that the main power switch is on.

2. Is there power? Check your home’s fuses

(circuit breakers). The washer door cannot be

opened with the door opening button (with the

key symbol) if the power is off.

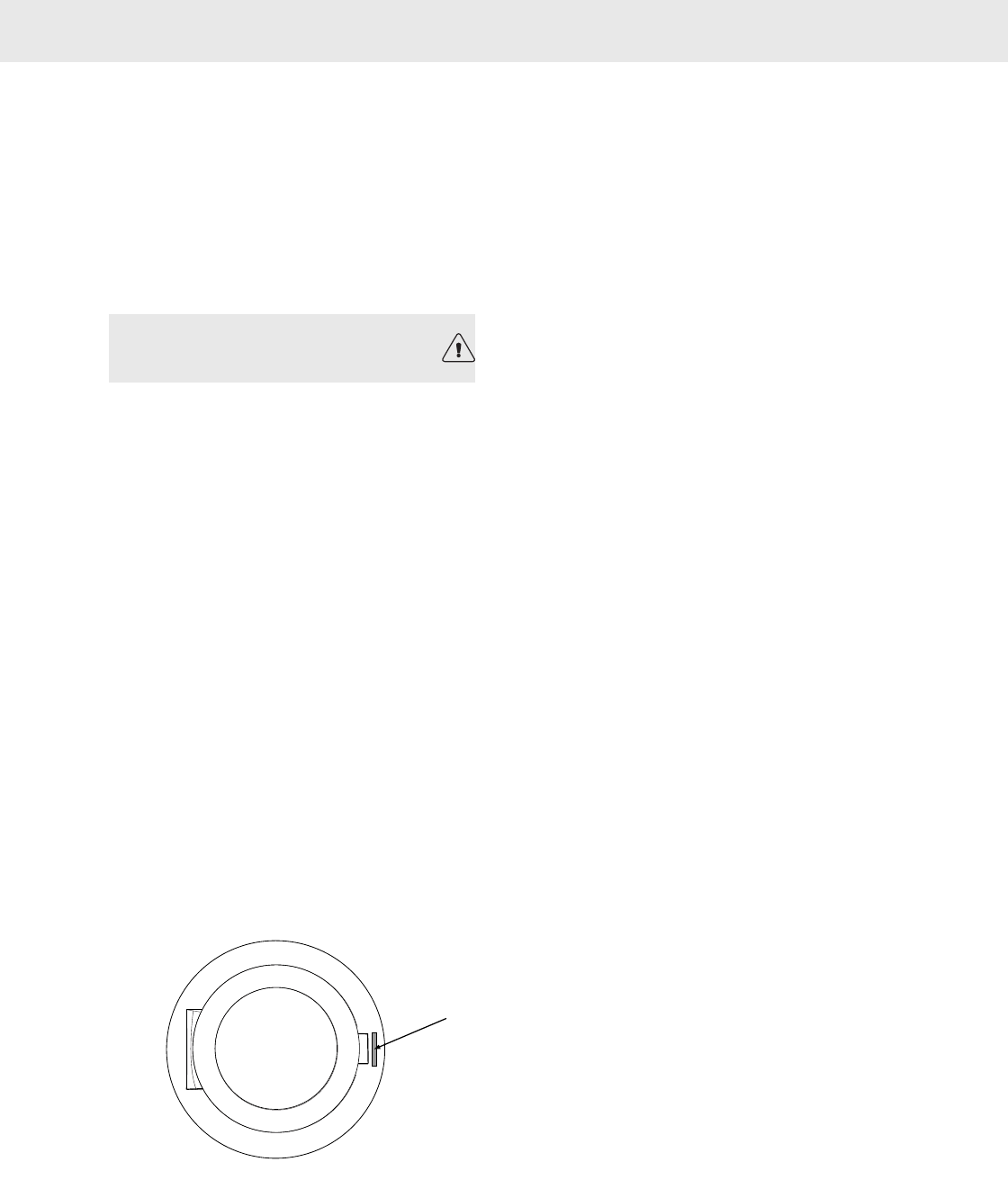

If nothing else works, the washer door can

be opened as follows:

WARNING!

The door may only be opened manually if the

electric power is cut and the machine has

been drained of water.

AEmpty the water from the machine. See

"Cleaning the trap and the drain pump" in

the "Care and maintenance instructions"

chapter.

If this does not work, the machine must be

drained manually. See "Cleaning the trap

and the drain pump" in the "Care and

maintenance instructions" chapter.

BEnsure that the main power switch is turned

off and that the plug has been removed from

the wall socket.

CTake the emergency door opening tool and

place it in the gap on the right side of the

washer door lock. This tool is found in the

enclosed plastic bag.

DPush the tool upward to open the washer

door.

If in the future the washer door does not open

when the wash program has finished, call the

Customer Care Center.

The machine will not start

1. Is the washer door properly closed? Push it

firmly.

2. Is there power? Check the fuses and residual

current devices (circuit breakers) in the

building.

Customer Care Center

1-800-898-1879

24

www.askousa.com

Troubleshooting

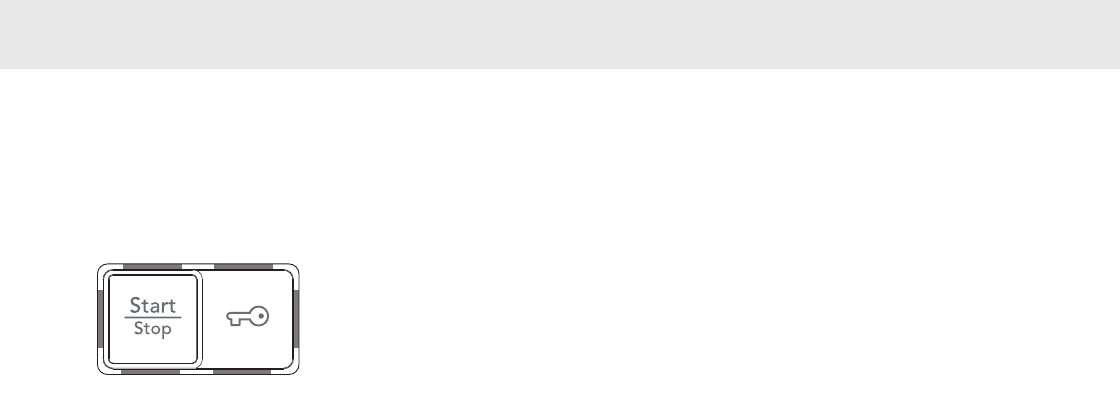

Error messages

If a fault occurred during the program cycle, an

LED will flash next to Start/Stop and the Door

Opening button.

L1

L2

L3

L4

L3

L2

L1

After taking the measures described below, turn

off the machine to exit error message mode.

L1 Overflow Fault

1. Shut off the water tap.

2. See "Drainage error".

L2 Water Outlet Fault

Check:

•that nothing is stuck in the drain hose outlet.

•that the drain pump is not blocked by foreign

objects. Clean the pump. See the "Care and

maintenance instructions" chapter.

•that there are no kinks in the drainage hose.

After taking action, run the Drain program or press

the Door Opening button (key symbol) to empty

the machine. If this does not resolve the problem,

call the Customer Care Center.

L3 Water Inlet Fault

Check:

•that the tap on the water pipe is open.

•that the filter in the machine's fill valve is not

blocked.

Action:

1. Shut off the water tap.

2. Unscrew the hose.

3. Clean the filter in the machine's fill valve.

4. Screw the hose back on.

5. Turn on the tap.

6. Run the program again to check whether the

error has been fixed.

7. If this does not resolve the problem, call the

Customer Care Center.

L4 Imbalance

The machine stops the spin cycle if there is too

much imbalance. The washing machine restarts

the spin cycle and hopefully the laundry is better

distributed in the drum. This procedure can be

repeated up to 10 times. If the machine still fails

to find a good balance, the program jumps to the

next step.

The error message requires no action.

25Customer Care Center

1-800-898-1879

www.askousa.com

Troubleshooting

Technical data

33 1/2'' (850 mm)Height:

23 1/2'' (597 mm)Width:

23 7/8" (606 mm)Depth:

161 lb (73 kg)Weight:

15,9 gal (60 l)Cylinder volume:

18 lb (8 kg)Max. laundry capacity:

400-1200Spin speed (rpm):

See serial number tag and rating plate.Rated power:

See serial number tag and rating plate.Heater output:

14-145 psiWater pressure:

Stainless steelWash drum and liquid compartment material:

Powder-coated and hot-galvanized sheet steel or

stainless steel.

Outer casing material:

59" (1.5 m) pex pipeWater connection:

67" (1.7 m) polypropylene hoseDrain:

Customer Care Center

1-800-898-1879

26

www.askousa.com

Technical information

Your washing machine has transport protection of Type A or Type B.

Type A

Before the machine is used, the three transport

screws should be removed as shown below.

1. Loosen and remove the bolts.

2. The enclosed plastic bag contains three plastic

plugs to fit in the empty screw holes.

NOTE!

If the machine is to be moved and transported,

the transport screws must be refitted to prevent

damage to the machine through shaking. If the

transport screws or plastic plugs have been lost,

you can order new ones from your retailer.

DesignationArticle number

Screw80 882 77

Plastic plug80 884 67

Order three of each item!

27Customer Care Center

1-800-898-1879

www.askousa.com

Transport protection

Type B

Remove the three transport bolts and the plastic

plugs for locking the machine for transport before

using the machine.

1. Loosen and remove the bolts as illustrated

below.

2. To remove the plastic plugs that held the bolts,

squeeze together and pull out.

3. Remove the plastic covers from the plugs.

Push the plastic covers into the three holes

that contained the plugs. Save the plastic plugs

in case the machine is moved in the future.

NOTE!

If the machine is to be transported, the bolts and

plastic plugs for locking the machine during

transport must be installed to prevent damage

to the machine through shaking. If the transport

bolts or plastic plugs have been lost, you can

order new ones from your retailer.

DesignationArticle number

Screw80 882 77

Plastic plug, transport

lock

80 901 05

Order three of each item!

Customer Care Center

1-800-898-1879

28

www.askousa.com

Transport protection

Read these instructions carefully and completely

before you install the machine. The installation

should be carried out by a qualified person who

is familiar with all local codes and ordinances for

electrical and plumbing connections.

Cosmetic damage must be reported to your dealer

within five days from the date of purchase. After

unpacking the washer, thoroughly check the unit

for cosmetic damage.

Leveling the machine

It is important that the machine is level to prevent

excessive vibrations during spin cycles. Each foot

of the washer is adjustable, so you can level the

washer on any surface. Once it is level, securely

tighten the lock nuts on the feet to prevent

excessive vibration during spin cycles.

Be sure to tighten the

lock nuts securely

when you level the

machine.

Water supply connection

Since ASKO washers have a built-in heating

element, you only need a cold water inlet. The

connection should be made by someone who is

sufficiently skilled. Use the hose supplied with the

washer. (The inlet hose is marked for correct

connection.) The water pressure must be in the

range 15–146 PSI. A valve should be fitted on the

water supply pipe. If a new supply pipe has been

installed for the washer, it should be flushed

thoroughly to remove any foreign particles that

might clog the filter in the fill valve.

NOTE!

If the unit is installed on a second storey, follow

local building codes. We recommend installing

a drip pan.

29Customer Care Center

1-800-898-1879

www.askousa.com

Installation

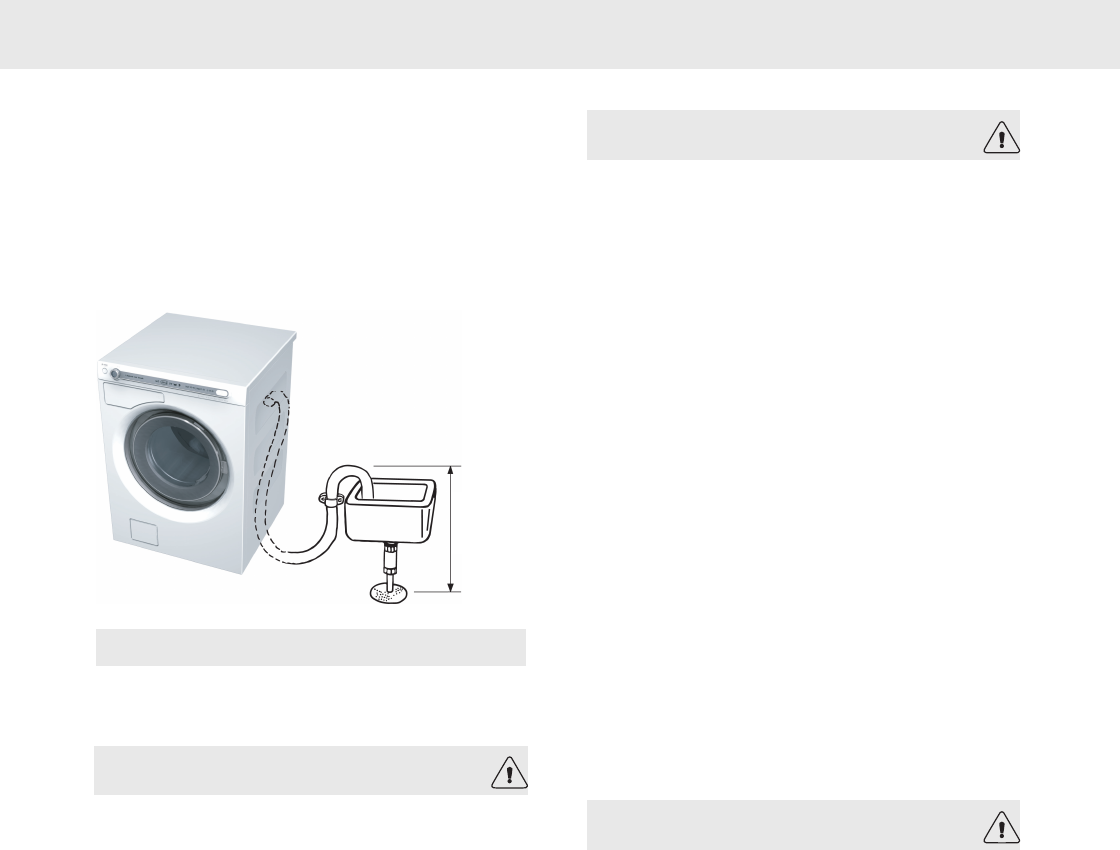

Drain outlet connection

The machine is supplied with the outlet hose

already attached. The hose should be extended

over a suitable sink edge or drain pipe at a height

of 24" to 36" (610 mm to 914 mm) above the

bottom of the unit. (The lower height is preferable.)

Make sure the hose is not kinked.

24" to

36"

NOTE!

If the hose is extended, the internal diameter of

the coupling must not be less than ½".

WARNING!

Do not extend the drain hose higher than 36"

(914 mm) from the bottom of the unit.

Electrical Connections

The machine is delivered ready-fitted with a plug

and is intended for connection to an ASKO Dryer,

which is equipped with a matching receptacle.

The plug supplied with the washer can only be

used with an ASKO Dryer. If the washer is used

separately or with another dryer, it must be on a

separate 208-240 V single-phase circuit.

If the machine is to be used in a wet area, the

supply must be protected by a residual current

device.

As supplied: 208-240 V, 60 Hz, 2000 W heating

element,16 A fuse required.

WARNING!

Connection to a permanently wired supply point

must be made only by a qualified electrician

Grounding instructions

This appliance must be grounded. In the event of

malfunction or breakdown, grounding will reduce

the risk of electric shock by providing a path of

least resistance for electric current. This appliance

is equipped with a cord having an

equipment-grounding conductor and a grounding

plug. The plug must be plugged into an

appropriate outlet that is properly installed and

grounded in accordance with all local codes and

ordinances.

Freestanding installation

The washer can be placed next to the dryer. It is

essential that the machine is leveled and the

locknuts are tightened to prevent excessive

vibration during spin cycles. Also be sure to leave

a minimum of ½" of space between the washer

and the dryer. The height adjustment for the

washer is 33½" to 34½" (850 mm to 876 mm). Do

not raise it higher than 34½" (876 mm).

WARNING!

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or serviceman

if you are in doubt as to whether the appliance

is properly grounded.

Do not modify the plug provided with the

appliance. If it will not fit the outlet, have a proper

outlet installed by a qualified electrician.

Stacked installation

ASKO washers should never be stacked on a

counter or a dryer. You can, however, stack an

ASKO dryer on an ASKO washer. Refer to your

Dryer Use and Care Guide for instructions on how

to do this.

Customer Care Center

1-800-898-1879

30

www.askousa.com

Installation

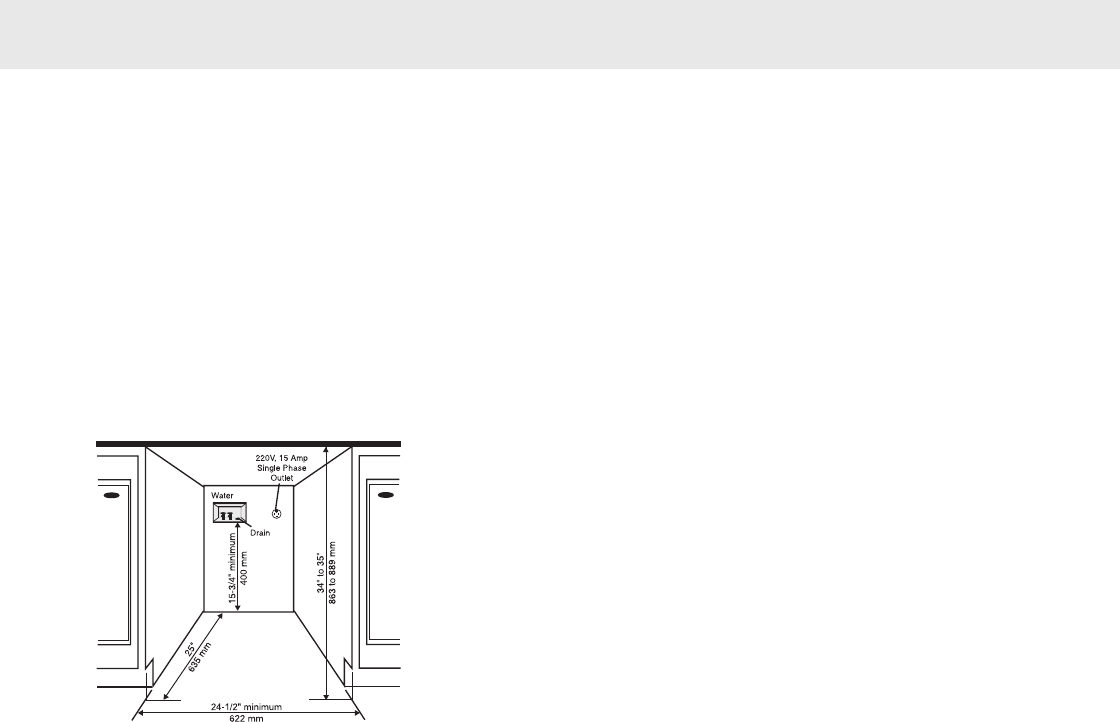

Built-in installation

ASKO washers can be installed beneath a cabinet

or worktop with a height of 34" to 35" (863 to 889

mm) or in a closet. There must be a gap of about

½" (12 mm) all around the machine, including

between the rear edge of the machine's top panel

and the back wall. The opening width must be at

least 24½" (622 mm). Space must also be

available for the fill and drain hoses. See the

illustration below for measurements and positions.

If the washer is installed in a closet the door must

be left open while the washer is running.

If the drain outlet is higher than 24"(610 mm), the

connections will need to be recessed.

31Customer Care Center

1-800-898-1879

www.askousa.com

Installation

It is important to register your product warranty by logging onto "http://www.askousa.com/customer-

care/register-my-appliance/" and filling out all required fields within 90 days from the date of purchase.

After doing so, you will be e-mailed a certificate that will extend the original warranty for one additional

year. If you do not have access to the internet, complete the warranty card included with the product

and mail it to the address on the warranty card within 90 days from the date of purchase. Cosmetic

damage must be reported to your dealer within five days from the date of purchase. After unpacking

the washer, thoroughly check the unit for cosmetic damage.

ASKO Appliances Inc. will pay for:For residential installations only

ASKO replacement parts and/or repair labor to correct

defect in materials or workmanship. Service must be

provided by an authorized ASKO service agent.

Length of warranty Two-Year Full

From date of purchase.

ASKO replacement parts and/or repair labor to correct

defect in materials or workmanship. Service must be

performed by an authorized ASKO service agent.

Third Year Full

Complete your product warranty registration

online at "http://www.askousa.com/customer-

care/register-my-appliance/" within 90 days from

the date of purchase to extend the original war-

ranty one additional year. If you do not have

access to the internet, complete the warranty

card included with the product and mail it to the

address on the warranty card within 90 days

from the date of purchase.

ASKO replacement parts (labor cost not included) for

the stainless steel tank if it exhibits a manufacturing

defect such as cracking or rusting through. Service

must be provided by an authorized ASKO service

agent.

Lifetime

ASKO replacement parts and/or repair labor to correct

defect in materials or workmanship. Service must be

provided by an authorized ASKO service agent.

For non-residential installations One-year Full

Warranty

From date of purchase.

Customer Care Center

1-800-898-1879

32

www.askousa.com

Service

Warranty

ASKO Appliances Inc. will not pay for:

• Service calls to:

1. Correct the installation of the appliance.

2. Repair damage due to shipment, delivery,

installation, misuse or abuse.

3. Instruct how to use the appliance.

4. Replace house fuses or correct house

wiring.

5. Correct house plumbing, including drainage

problems related to improper installation.

6. Clean or service air device in drain line.

• Repair and/or replacement parts for failure of

product if appliance is used for other than

home/residential use.

• Damage resulting from accident, fire, floods,

acts of God, alteration, misuse, abuse,

improper installation, or installation not in

accordance with local electrical or plumbing

codes.

• Any shipping costs for parts during the limited

warranty period.

• Replacement parts or repair labor costs for

units operated outside the continental United

States.

• Pickup and delivery. ASKO products are

designed to be repaired in the home.

In no event shall ASKO Appliances Inc.

be responsible for any incidental or

consequential damages.

Some states will not allow the exclusion or

limitation of incidental or consequential damages,

so this exclusion or limitation may not apply to

you. This warranty gives you specific legal rights

and you may also have other rights which vary

from state to state.

For warranty service, contact our

Customer Care Center at the number

listed below.

Before calling for service or contacting ASKO

Appliances Inc. regarding a warranty issue, make

a note of the model, type name, and serial

number.

How to contact ASKO Appliances

Inc.

Write to us at:

ASKO Appliances Inc.

P.O. Box 940609

Plano, TX 75094-0609

www.askousa.com

Or contact our

Customer Care Center at

1-800-898-1879

www.askousa.com

33Customer Care Center

1-800-898-1879

www.askousa.com

Service

Customer Care Center

1-800-898-1879

34

www.askousa.com

Notes

35Customer Care Center

1-800-898-1879

www.askousa.com

Notes

1Washing

1. Empty pockets and close zippers.

2. Read the item’s laundry label.

3. Sorting laundry.

NOTE!

Place underwired bras in a laundry net.

2Load the laundry

1. Pressing the main power switch.

2. If the washer door is closed, press the

Door Opening button (key symbol) and

the door will open.

3. Load the laundry and close the washer

door.

3Detergent compartment

1. Pour detergent into the main wash

compartment, and pre-wash

compartment as well if required. Pour

fabric softener into the compartment on

the right with the symbol.

2. If you use liquid detergent, follow the

detergent manufacturer’s

recommendations.

3. If you use liquid detergent, use the

accompanying divider. Place it in the

filter at the back of the detergent

compartment. Pour detergent directly

into the main wash compartment.

4Select the program

1. Select a program by turning the program

selector.

2. Select any options and settings.

3. Press the Start/Stop button.

5Program finished

1. Once the program has finished, all six

LEDs around Start/Stop and the Door

Opening button light up.

2. The washer door opens automatically

once the program has finished.

3. Remove the laundry.

4. Turn off the main power switch.

If you have small children or pets at home,

close the washer door once you have

removed the laundry.

Item No.: 80 888 22. Rev. 01. We reserve the right to make changes.

Printed on environmentally-friendly paper that meets the requirements of Miljöförbundet and Naturskyddsföreningen.

Customer Care Center

1-800-898-1879

36

www.askousa.com

Quick guide
