Motherboard
P8Z77-V LE PLUS
ii
E8001
Second Edition (V2)
December 2012
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address gpl@asus.com, stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).
iii
Contents
Safety information ...................................................................................................... vi
About this guide ........................................................................................................ vii
P8Z77-V LE PLUS specications summary ............................................................. ix
Chapter 1: Product introduction
1.1 Welcome! ....................................................................................................... 1-1
1.2 Package contents ......................................................................................... 1-1
1.3 Special features ............................................................................................ 1-2
1.3.1 Product highlights .......................................................................... 1-2
1.3.2 Dual Intelligent Processors 3 with Smart DIGI+ ........................... 1-4
1.3.3 ASUS Exclusive Features ............................................................. 1-5
1.3.4 ASUS Quiet Thermal Solutions ..................................................... 1-7
1.3.5 ASUS EZ DIY ................................................................................ 1-7
1.3.6 Other special features ................................................................... 1-8
Chapter 2: Hardware information
2.1 Before you proceed ...................................................................................... 2-1
2.2 Motherboard overview ................................................................................. 2-2

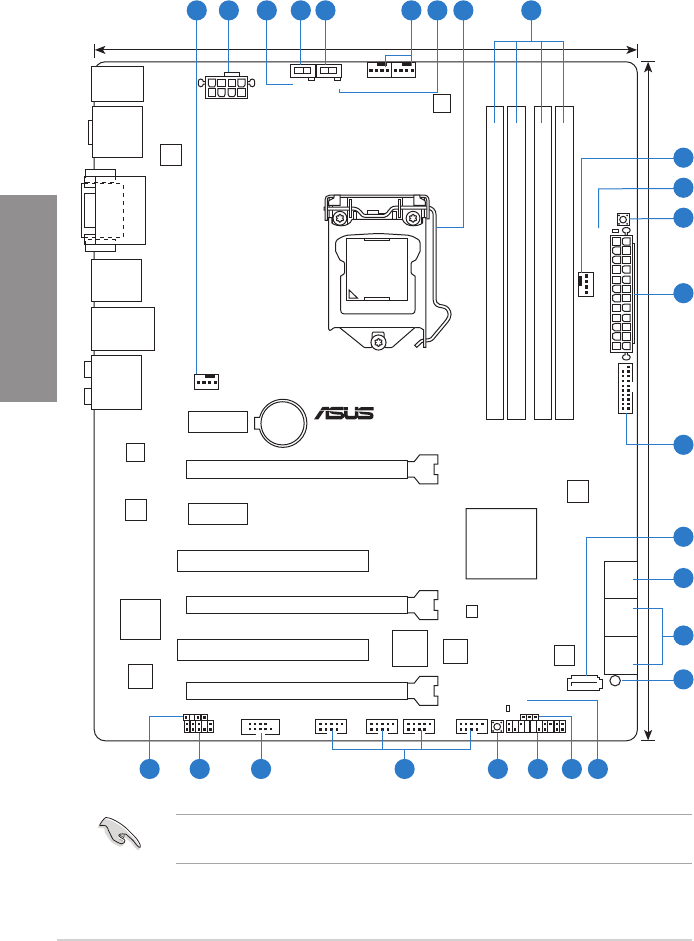

2.2.1 Motherboard layout........................................................................ 2-2
2.2.2 Central Processing Unit (CPU) ...................................................... 2-4
2.2.3 System memory ............................................................................. 2-5
2.2.4 Expansion slots ........................................................................... 2-13
2.2.5 Jumper ......................................................................................... 2-15
2.2.6 Onboard switches ........................................................................ 2-16
2.2.7 Onboard LEDs ............................................................................. 2-20
2.2.8 Internal connectors ...................................................................... 2-22
2.3 Building your computer system ................................................................ 2-29
2.3.1 Additional tools and components to build a PC system............... 2-29
2.3.2 CPU installation ........................................................................... 2-30
2.3.3 CPU heatsink and fan assembly installation ............................... 2-32
2.3.4 DIMM installation ......................................................................... 2-34
2.3.5 Motherboard installation .............................................................. 2-35
2.3.6 ATX Power connection ................................................................ 2-37
2.3.7 SATA device connection .............................................................. 2-38
2.3.8 Front I/O Connector ..................................................................... 2-39
2.3.9 Expansion Card installation ......................................................... 2-40
2.3.10 Rear panel connection................................................................. 2-41
2.3.11 Audio I/O connections ................................................................. 2-43
2.4 Starting up for the rst time ...................................................................... 2-45
2.5 Turning off the computer ........................................................................... 2-45
iv
Contents
Chapter 3: BIOS setup
3.1 Knowing BIOS ............................................................................................... 3-1
3.2 BIOS setup program ..................................................................................... 3-1
3.2.1 EZ Mode ........................................................................................ 3-2
3.2.2 Advanced Mode............................................................................. 3-3
3.3 Main menu ..................................................................................................... 3-5
3.4 Ai Tweaker menu .......................................................................................... 3-7
3.5 Advanced menu .......................................................................................... 3-15
3.5.1 CPU Conguration....................................................................... 3-16
3.5.2 PCH Conguration....................................................................... 3-18
3.5.3 SATA Conguration ..................................................................... 3-20
3.5.4 System Agent Conguration ........................................................ 3-21
3.5.5 USB Conguration ....................................................................... 3-22
3.5.6 Onboard Devices Conguration .................................................. 3-23
3.5.7 APM ............................................................................................. 3-25
3.5.8 Network Stack ............................................................................. 3-26
3.6 Monitor menu .............................................................................................. 3-27
3.7 Boot menu ................................................................................................... 3-30
3.8 Tools menu ..................................................................................................3-32
3.8.1 ASUS EZ Flash 2 Utility ............................................................... 3-32
3.8.2 ASUS O.C. Prole ....................................................................... 3-32
3.8.3 ASUS SPD Information ............................................................... 3-33
3.9 Exit menu .................................................................................................... 3-34
3.10 Updating BIOS ............................................................................................ 3-35
3.10.1 ASUS Update utility ..................................................................... 3-35
3.10.2 ASUS EZ Flash 2 utility ............................................................... 3-38
3.10.3 ASUS CrashFree BIOS 3 utility ................................................... 3-39
3.10.4 ASUS BIOS Updater ................................................................... 3-40
Chapter 4: Software support
4.1 Installing an operating system .................................................................... 4-1
4.2 Support DVD information ............................................................................ 4-1
4.2.1 Running the support DVD.............................................................. 4-1
4.2.2 Obtaining the software manuals .................................................... 4-2
4.3 Software information .................................................................................... 4-3
4.3.1 AI Suite II ....................................................................................... 4-3
4.3.2 TurboV EVO .................................................................................. 4-4
4.3.3 DIGI+ Power Control ..................................................................... 4-8
4.3.4 EPU ............................................................................................. 4-12
4.3.5 FAN Xpert+ ..................................................................................4-13
4.3.6 Probe II ........................................................................................ 4-14
4.3.7 Sensor Recorder ......................................................................... 4-15
v
4.3.8 Ai Charger+ ................................................................................. 4-16
4.3.9 USB Charger+ .............................................................................4-17
4.3.10 USB 3.0 Boost ............................................................................. 4-19
4.3.11 Network iControl ..........................................................................4-20
4.3.12 USB BIOS Flashback Wizard ...................................................... 4-24
4.3.13 MyLogo2 ...................................................................................... 4-26
4.3.14 Audio congurations .................................................................... 4-28
4.4 Introduction to Intel® 2012 Desktop responsiveness technologies ....... 4-29
4.4.1 System Requirements for Intel® 2012 Desktop responsiveness
technologies ................................................................................ 4-29
4.4.2 Intel® Smart Response Technology ............................................. 4-31
4.4.3 Intel® Rapid Start Technology ......................................................4-32
4.4.4 Intel® Smart Connect Technology ................................................ 4-38
4.5 RAID congurations ................................................................................... 4-41
4.5.1 RAID denitions ........................................................................... 4-41
4.5.2 Installing Serial ATA hard disks .................................................... 4-42
4.5.3 Setting the RAID item in BIOS..................................................... 4-42
4.5.4 Intel® Rapid Storage Technology Option ROM utility ...................4-42
4.6 Creating a RAID driver disk ....................................................................... 4-46
4.6.1 Creating a RAID driver disk without entering the OS .................. 4-46
4.6.2 Creating a RAID driver disk in Windows® .................................... 4-46
4.6.3 Installing the RAID driver during Windows® OS installation ........ 4-47
4.6.4 Using a USB oppy disk drive ..................................................... 4-48
Chapter 5: Multiple GPU technology support
5.1 ATI® CrossFireX™ technology .................................................................... 5-1
5.1.1 Requirements ................................................................................ 5-1
5.1.2 Before you begin ........................................................................... 5-1
5.1.3 Installing two CrossFireX™ graphics cards ................................... 5-2
5.1.4 Installing the device drivers ........................................................... 5-3
5.1.5 Enabling the ATI® CrossFireX™ technology .................................. 5-3
5.2 NVIDIA® SLI™ technology ........................................................................... 5-4
5.2.1 Requirements ................................................................................ 5-4
5.2.2 Installing two SLI-ready graphics cards ......................................... 5-4
5.2.3 Installing the device drivers ........................................................... 5-5
5.2.4 Enabling the NVIDIA® SLI™ technology ........................................ 5-5
5.3 LucidLogix Virtu MVP .................................................................................. 5-8
5.3.1 Installing LucidLogix Virtu MVP ..................................................... 5-8
5.3.2 Setting up your display .................................................................. 5-9
5.3.3 Conguring LucidLogix Virtu MVP ...............................................5-10
Appendices
Notices ..................................................................................................................... A-1
Contents
vi
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure
about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
vii
About this guide
This user guide contains the information you need when installing and conguring the motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports.
• Chapter 2: Hardware information
This chapter lists the hardware setup procedures that you have to perform when
installing system components. It includes description of the switches, jumpers, and
connectors on the motherboard.
• Chapter 3: BIOS setup
This chapter tells how to change system settings through the BIOS Setup menus.
Detailed descriptions of the BIOS parameters are also provided.
• Chapter 4: Software support
This chapter describes the contents of the support DVD that comes with the
motherboard package and the software.
• Chapter 5: Multiple GPU technology support
This chapter describes how to install and congure multiple ATI® CrossFireX™ and
NVIDIA® SLI™ graphics cards.
Where to nd more information
Refer to the following sources for additional information and for product and software updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
viii
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
Typography
Bold text Indicates a menu or an item to select.
Italic
s Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key.that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
Example: <Ctrl> + <Alt> + <Del>
DANGER/WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying to
complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
ix
P8Z77-V LE PLUS specications summary
(continued on the next page)
CPU LGA1155 socket for Intel® 3rd / 2nd Generation Core™ i7 / Core™ i5 /
Core™ i3 / Pentium® / Celeron® processors
Supports 22nm / 32nm CPU
Supports Intel® Turbo Boost technology 2.0*
* The Intel® Turbo Boost technology 2.0 support depends on the CPU
types.
** Refer to www.asus.com for Intel® CPU support list.
Chipset Intel® Z77 Express Chipset
Memory 4 x DIMMs, max. 32GB, DDR3 2400(O.C.) / 2200(O.C.) / 2133(O.C.) /
1866 (O.C.) / 1600 / 1333 / 1066 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Prole (XMP)
* Hyper DIMM support is subject to the physical characteristics of
individual CPUs. Please refer to the memory QVL for details.
Graphics Integrated Graphics Processor - Intel® HD Graphics support
Multi-VGA output support: DisplayPort, HDMI, DVI, RGB ports
- Supports DisplayPort 1.1a with max. resolution of 2560 x 1600 @60Hz
- Supports HDMI with max. resolution of 1920 x 1200 @60Hz
- Supports DVI with max. resolution of 1920 x 1200 @60Hz
- Supports RGB with max. resolution of 2048 x 1536 @75Hz
- Supports Intel® InTruTM 3D / InsiderTM / Quick Sync Video / Clear Video
HD Technology / HD Graphics
- Maximum shared memory of 1696MB
Multi-GPU
support
Supports NVIDIA® Quad-GPU SLI™ Technology (with 2 PCIe x16
graphics card)
Supports AMD® Quad-GPU CrossFireXTM Technology*
Supports AMD® 3-Way CrossFireXTM Technology*
Supports LucidLogix® Virtu MVP Technology**
* Disable PCIe x1_1 and PCIe x1_2 slots and manually set the PCIe
x16_3 to x4 mode in BIOS when conguring CrossFireX™ with dual
graphics cards.
** LucidLogix Virtu® MVP supports Windows® 7 operating systems.
Expansion slots 2 x PCI Express 3.0* / 2.0 x16 slots (single at x16, or dual at x8 / x8
mode)
1 x PCI Express 2.0 x16 slot [black] (max. at x4 mode, compatible with
PCIe x1 and PCIe x4 devices)**
2 x PCI Express 2.0 x1 slots
2 x PCI slots
* PCIe 3.0 speed is supported by Intel® 3rd generation CoreTM processors.
** The PCIe x16_3 slot shares the bandwidth with the PCIe x1_1 and
PCIe x1_2 slots. The default setting is x2 mode. Go to the BIOS setup
to change the settings.
x
(continued on the next page)
P8Z77-V LE PLUS specications summary
Storage Intel® Z77 Express Chipset:
- 2 x Serial ATA 6.0 Gb/s connectors (gray) with RAID 0, 1, 5, 10 support
- 4 x Serial ATA 3.0 Gb/s connectors (blue) with RAID 0, 1, 5, 10 support
- Supports Intel® Smart Response Technology, Intel® Rapid Start
Technology, Intel® Smart Connect Technology*
Marvell® PCIe SATA 6.0Gb/s controller**:
- 1 x eSATA port at the back I/O (6.0Gb/s ready)
- 1 x Serial ATA 6.0Gb/s connectors (navy blue)
* Supports on Intel® CoreTM processor family with Windows® 7 operating
systems.
** These SATA ports are for data storage only. ATAPI devices are not
supported.
LAN Realtek® 8111F Gigabit LAN controller
Audio Realtek® ALC889 8-channel High Denition Audio CODEC
- Support 192khz/24bit BD lossless sound
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming and Front Panel Jack-
Retasking
- Optical S/PDIF out ports at back I/O
USB Intel® Z77 Express Chipset - supports ASUS USB 3.0 Boost UASP
Mode*
- 2 x USB 3.0 / 2.0 ports at the mid-board for front panel support
- 2 x USB 3.0 / 2.0 ports at the back panel (blue)
Intel® Z77 Express Chipset
- 10 x USB 2.0 ports (8 ports at mid-board, 2 ports at back panel)
ASMedia USB 3.0 controllers - supports ASUS USB 3.0 Boost UASP
Mode
- 2 x USB 3.0 ports at the back panel (blue)
* The USB 3.0 ports only support Windows® 7 or later versions. UASP
standard only supports Windows® 8.
ASUS unique
features
ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control:
SMART DIGI+
- Smart DIGI+ Key - quickly delivers a higher VRM frequency, voltage,
and current for superior CPU/iGPU/DRAM overclocking performance
with one switch.
- Smart CPU Power Level (Intel® VRD 12.5 Feature Power Design)-
provides the best digital power saving conditions.
CPU Power
- Industry leading digital 8-phase power design (6-phase for CPU, 2-
phase for iGPU)
- ASUS CPU power utility
DRAM Power
- Industry leading ditital 2-phase DRAM power design
- ASUS DRAM power utility
ASUS EPU
- EPU, EPU Switch
xi
P8Z77-V LE PLUS specications summary
ASUS unique
features
ASUS TPU
- Auto Tuning, TurboV, GPU Boost, TPU switch
ASUS Exclusive Features
- ASUS USB 3.0 Boost featuring the latest USB 3.0 UASP standard
- ASUS Network iControl featuring instant network bandwidth
domination for top network program in use
- ASUS USB Charger+ featuring quick-charging function for all smart
devices
- ASUS AI Charger+
- ASUS Disk Unlocker featuring 3TB+ HDD support
- ASUS MemOK!
- ASUS AI Suite II
- ASUS Anti Surge Protection
- ASUS Low EMI
- ASUS ESD
- 100% All High-quality Conductive Polymer Capacitors
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Stylish Heat-sink & MOS Heatsink solution
- ASUS Fan Xpert+
ASUS EZ DIY
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user
interface
- ASUS USB BIOS Flashback with USB BIOS Flashback Wizard for
EZ BIOS download scheduling
- ASUS CrashFree BIOS 3
- ASUS MyLogo 2
- ASUS EZ Flash 2
ASUS Q-Design
- ASUS Q-Slot
ASUS exclusive
overclocking
features
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.005V increment
- vCCSA: 190-step system agent voltge control
- vDRAM Bus: 187-step Memory voltage control
- vPCH: 190-step Chipset voltage control
- iGPU: 127-step iGPU voltage control
- vCPU_PLL: 1-step CPU & PCH PLLvoltage control
SFS (Stepless Frequency Selection)
- BCLK/PCIE frequency tuning from 80MHz up to 300MHz at 0.1MHz
increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
(continued on the next page)
xii
P8Z77-V LE PLUS specications summary
Rear panel I/O
ports
1 x PS/2 keyboard / mouse combo port
1 x DisplayPort
1 x Optical S/PDIF output port
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ-45) port
1 x eSATA port
4 x USB 3.0/2.0 ports (blue, 1 supports USB BIOS Flashback)
2 x USB 2.0/1.1 ports
8-channel audio I/O ports
Internal I/O
connectors
1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin)
4 x USB 2.0/1/1 connectors support additional 8 USB ports
3 x SATA 6.0Gb/s connectors (2 x gray, 1 x navy blue)
4 x SATA 3.0Gb/s connectors (blue)
1 x COM connector
1 x CPU Fan connector (4-pin)
3 x Chassis Fan connectors (4-pin)
1 x Front panel audio connector
1 x S/PDIF Out header
24-pin EATX Power connector
8-pin EATX 12V Power connector
1 x System panel connector
1 x Clear CMOS jumper
1 x MemOK! button
1 x USB BIOS Flashback button
1 x EPU switch
1 x TPU switch (embeded with GPU switch)
BIOS features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7,
ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree
BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS
DRAM SPD (Serial Presence Detect) Memory information
Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories 2 x Serial ATA 6.0Gb/s cables
2 x Serial ATA 3.0Gb/s cables
1 x ASUS SLI™ bridge connector
1 x User Manual
1 x I/O Shield
1 x Support DVD
Support DVD Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form factor ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
* Specications are subject to change without notice.
ASUS P8Z77-V LE PLUS 1-1
Chapter 1
Chapter 1: Product introduction
Chapter 1
1.1 Welcome!
Thank you for buying an ASUS® P8Z77-V LE PLUS motherboard!
The motherboard delivers a host of new features and latest technologies, making it another
standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the items in
your package with the list below.
1.2 Package contents
Check your motherboard package for the following items.
• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specications may
vary with different models.
User Manual
ASUS P8Z77-V LE PLUS
motherboard User guide Support DVD
2 x Serial ATA 6.0 Gb/s cables 2 x Serial ATA 3.0 Gb/s cables 1 x ASUS SLI™ bridge
connector
1 x ASUS I/O Shield
1-2 Chapter 1: Product Introduction
Chapter 1
1.3 Special features
1.3.1 Product highlights
LGA1155 socket for Intel® 3rd / 2nd Generation Core™ i7 / Core™ i5 / Core™ i3
/ Pentium® / Celeron® Processors
This motherboard supports Intel® 3rd / 2nd generation Core™ i7 / i5 / i3 / Pentium® / Celeron®
processors in the LGA1155 package, with iGPU, memory and PCI Express controllers
integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMMs)
DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance.
Intel® 3rd / 2nd generation Core™ i7 / i5 / i3 / Pentium® / Celeron® processors are among the
most powerful and energy efcient CPUs in the world.
Intel® Z77 Express Chipset
The Intel® Z77 Express Chipset is a single-chipset design to support socket 1155 Intel® 3rd/
2nd generation Core™ i7 / i5 / i3 / Pentium® / Celeron® processors. It provides improved
performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.
Additionally, Z77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed.
Moreover, Intel® Z77 Express Chipset can also enable iGPU function, letting users enjoy the
latest Intel® integrated graphic performance.
Dual-Channel DDR3 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 1866(O.C.) / 1600 / 1333 /
1066 Support*
The motherboard supports DDR3 memory that features data transfer rates of DDR3 2400(O.
C.) / 2200(O.C.) / 2133(O.C.) / 1866 / 1600/ 1333 / 1066 MHz to meet the higher bandwidth
requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-
channel DDR3 architecture enlarges the bandwidth of your system memory to boost system
performance.
Complete USB 3.0 Integration
ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 6 USB
3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times
faster than USB 2.0. The P8Z77-V LE PLUS affords greater convenience to high speed
connectivity.
Quad-GPU SLI™ and Quad-GPU CrossFireX™ Support
Flexible Multi-GPU Solutions, Your Weapon of Choice!
P8Z77-V LE PLUS brings you the multi-GPU choice of either SLI™ or CrossFireX. The
motherboard features the most powerful Intel® Z77 platform to optimize PCIe allocation in
multiple GPU congurations. Expect a brand-new gaming style you’ve never experienced
before!
S/PDIF out connector at the back I/O
This motherboard provides convenient connectivity to external home theater audio systems
via the optical S/PDIF (SONY-PHILIPS Digital Interface) out connecor at the back I/O. The
S/PDIF transfers digital audio without converting it to analog format and keeps the best signal
quality.
ASUS P8Z77-V LE PLUS 1-3
Chapter 1
Intel® Smart Response Technology
SSD Speed with HDD Capacity
Intel® Smart Response Technology boosts overall system performance. It uses an installed
fast SSD (min 18.6GB available capacity required) as a cache for frequently accessed data.
Key benets include reduced load and wait times, and lower power consumption through the
elimination of unnecessary hard drive spin. This technology combines SSD performance with
hard drive capacity, operating up to 4X faster than a hard drive-only system, and an important
part of Green ASUS eco-friendly computing.
* Intel® Smart Response Technology is supported by 3rd / 2nd generation Intel® Core™ processor
family on Windows® 7™ operating systems.
** Operating systems must be installed on the HDD to launch Intel® Smart Response Technology.
The capacity of the SSD is reserved for caching function.
Intel® Smart Connect Technology
Your computer can receive web updates with fresh content for selected applications, even
when the system is in sleep mode. This means less time waiting for applications to update
and sync with the cloud, leading to a more efcient computing experience.
Intel® Rapid Start Technology
Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving
your system memory to the designed SSD, it provides your computer a faster wake-up
response time, while still keeping the energy use low.
Extra SATA 6Gb/s Support
The Intel® Z77 Express chipset natively supports the next-generation Serial ATA (SATA)
interface, delivering up to 6.0 Gb/s data transfer. ASUS provides extra SATA 6.0 Gb/s ports
with enhanced scalability, faster data retrieval, and double the bandwidth of current bus
systems.
PCI Express® 3.0
PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding
schemes that provide twice the performance of the current PCIe 2.0. The total bandwidth for
a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As
such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience
and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe
2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and
optimize graphic performance, as well as have the latest technology available to them.
* PCIe 3.0 speed is supported by Intel® 3rd generation CoreTM processors.
Gigabit LAN solution
The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an
ACPI management function to provide efcient power management for advanced operating
systems.
1-4 Chapter 1: Product Introduction
Chapter 1
8-channel high denition audio
The onboard 8-channel HD audio (High Denition Audio, previously codenamed Azalia)
CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that
automatically detects and identies what types of peripherals are plugged into the audio
I/O jacks and noties users of inappropriate connection, which means there will be no more
confusion of Line-in, Line-out, and Mic jacks.
100% All High-quality Conductive Polymer Capacitors
This motherboard uses all high-quality conductive polymer capacitors for durability, improved
lifespan, and enhanced thermal capacity.
1.3.2 Dual Intelligent Processors 3 with Smart DIGI+
The world’s rst Dual Intelligent Processors from ASUS pioneered twin onboard chips - TPU
(TurboV Processing Unit) and EPU (Energy Processing Unit). Dual Intelligent Processors
3 builds on that foundation with new SMART DIGI+ power control, which includes multiple
digital voltage controllers, allowing ultra-precise tuning for the CPU, iGPU and DRAM. It’s
upgraded with one-click extreme performance optimization and selectable CPU wattage
levels, offering easier power control and better power savings with the user-friendly AI Suite
II utility.
Smart DIGI+ Technology
Get incredible performance increases with TPU and the all-new SMART DIGI+.
Up to 85% CPU O.C. Performance Boost
Always at the forefront of digital power design, ASUS propels you into the future
standard of power management by SMART DIGI+ Technology, which works with the
TPU (TurboV Processing Unit) to give an exceptional increase in CPU overclocking
performance. When combined, you can adjust CPU ratios manually in the TPU and
enable the all new SMART DIGI+ Key by a single click to see an extreme boost in TPU
frequency up to 85%.
CPU Power Wattage cut in half!
SMART DIG+ Technology also includes the Smart CPU Power Level prole, which
reduces CPU power consumption to a specic indicated wattage with a single click,
creating a cooler and quieter PC. With the support for the next generation Intel® VRD
12.5 power design, ASUS once again leaps to the future of innovation.
TPU
The Ultimate Turbo Processor
Unleash your performance with ASUS’ simple onboard switch or AI Suite II utility. The TPU
chip offers precise voltage control and advanced monitoring through Auto Tuning and TurboV
functions. Auto tuning offers a user friendly way to automatically optimize the system for fast,
yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies
and ratios for optimized performance in diverse situations.
ASUS P8Z77-V LE PLUS 1-5
Chapter 1
EPU
Energy Efciency All Around
Tap into the world’s rst real-time PC power saving chip through a simple onboard switch or
AI Suite II utility. Get total system-wide energy optimization by automatically detecting current
PC loadings and intelligently moderating power consumption. This also reduces fan noise
and extends component longevity.
ASUS TurboV
Easy, Real-Time O.C. Tunings
Feel the adrenaline rush of real-time OC-now a reality with the ASUS TurboV. This easy OC
tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface
makes overclock with just a few clicks away. Moreover, the ASUS OC proles in TurboV
provides the best O.C. settings in different scenarios.
Auto Tuning
Auto Tuning is an intelligent tool that automates overclocking to achieve a total system level
up. This tool also provides stability testing. Even O.C. beginners can achieve extreme yet
stable overclocking results with Auto Tuning!
GPU Boost
Go to the Limit with iGPU Level Up!
GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-
friendly interface facilitates exible frequency adjustments. It easily delivers stable system-
level upgrades for every use.
1.3.3 ASUS Exclusive Features
USB 3.0 Boost
Faster USB 3.0 Transmission with UASP
New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the
latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device’s transmission speed
is signicantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer
speed. ASUS software automatically accelerates data speeds for compatible USB 3.0
peripherals without the need for any user interaction.
USB BIOS Flashback
Easy, Worry-free USB BIOS Flashback
A truly revolutionary hardware-based BIOS update solution. USB BIOS Flashback offers
the most convenient way to update the BIOS! It allows users to update new UEFI BIOS
versions even without hardware such as a CPU or a DRAM installed into the motherboard.
Just plug in a USB ash drive containing the BIOS le, and press the BIOS Flashback button
for 3 seconds with the power supply connected. The UEFI BIOS then automatically updates
without requiring further interaction. With its new complementary Windows® application, users
can regularly check for UEFI BIOS updates, and downloads the latest BIOS automatically.
Hassle-free updating for the ultimate convenience!
1-6 Chapter 1: Product Introduction
Chapter 1
Network iControl
Real-time Network Bandwidth Control
With a single-click on/off button, the application currently in use has its data and network
bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software
easily by conguring proles through the intuitive user interface. Within the prole, the
programs can be pre-scheduled to run in a specic time period to avoid network congestion
and long-waits on downloads. Auto PPPoE network connection provides a one-step setup.
Overall, it’s an intuitive network bandwidth control center.
MemOK!
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool
requires a mere push of a button to patch memory issues. MemOK! determines fail-safe
settings and dramatically improves your system boot success. Get your system up and
running in no time!
USB Charger+
3X Faster Charging for All Smart Devices
With a dedicated onboard controller, quick-charge all your smart devices such as iProducts,
smartphones, tablets, and more, all up to 3x faster, even when the PC is powered off, in
sleep, or hibernation mode.
AI Suite II
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features
into one simple to use software package. It allows you to supervise overclocking, energy
management, fan speed control, voltage and sensor readings. This all-in-one software offers
diverse and ease to use functions, with no need to switch back and forth between different
utilities.
ASUS MyLogo2™
This feature allows you to convert your favorite photo into a 256-color boot logo for a more
colorful and vivid image on your screen.
Precision Tweaker 2
Allows you to ne-tune the vCore voltage in 0.005V steps and DRAM voltage in 0.00625V
steps to achieve the most precise setting for the ultimate overclocking conguration.
C.P.R. (CPU Parameter Recall)
The BIOS C.P.R. feature automatically restores the CPU default settings when the system
hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and
clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically
restores the CPU parameters to their default settings.
ASUS P8Z77-V LE PLUS 1-7
Chapter 1
1.3.4 ASUS Quiet Thermal Solutions
ASUS Quiet Thermal solution makes system more stable and enhances the overclocking
capability.
Fan Xpert+
ASUS Fan Xpert+ intelligently allows you to adjust the CPU fan and chassis fan speeds
according to different ambient temperatures caused by different climate conditions in different
geographic regions and your PC’s loading. The built-in variety of useful proles offer exible
controls of fan speed to achieve a quiet and cool environment.
Fanless Design: stylish heatsink solution
The stylish heatsink features a 0-dB thermal solution that offers users a noiseless PC
environment. Not only the beautiful shape upgrades the visual enjoyment for motherboard
users, but also the heatsink design lowers the temperature of the chipset and power phase
area through high efcient heat-exchange. Combined with usability and aesthetics, the ASUS
stylish heatsink will give users an extremely silent and cooling experience with the elegant
appearance!
1.3.5 ASUS EZ DIY
ASUS UEFI BIOS (EZ Mode)
Flexible and Easy BIOS Interface
Media-renowned UEFI BIOS offers the rst mouse-controlled graphical BIOS designed
with selectable modes and native support for hard drives over 2.2 TB. Users can also drag
and drop boot priorities with the exclusive EZ Mode, while Advanced Mode offers inticrate
settings.
New upgrade! Quick and easy information for enhanced system control
- F12 BIOS snapshot hotkey
- F3 Shortcut for most accessed information
- ASUS DRAM SPD (Serial Presence Detect) information detecting faulty DIMMs,
and helping with difcult POST situations.
ASUS EZ-Flash 2
ASUS EZ Flash 2 is a user-friendly utility that allows you to update the BIOS without using a
bootable oppy disk or an OS-based utility.
ASUS Q-Slot
ASUS Q-Slot is designed to speed up and simplify the DIY process to enhance your DIY
experience.
CrashFree BIOS 3
Simply restore corrupted BIOS data from USB ash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB
ash disk containing the BIOS le. This utility saves users the cost and hassle of buying a
replacement BIOS chip.
1-8 Chapter 1: Product Introduction
Chapter 1
1.3.6 Other special features
LucidLogix Virtu MVP
LucidLogix Virtu MVP featuring HyperFormance™ Technology boosts your discrete graphics
card up to 30% beyond its original performance. Designed for Intel® processor graphics and
Windows® 7 PCs, it perfectly combines the performance of discrete graphic cards with fast
computing iGPU. Also, with newly designed Virtual Sync, users can enjoy a smoother gaming
experience by eliminating tearing artifacts. LucidLogix Virtu MVP can also dynamically assign
tasks to the best available graphics resource, based on power, performance, and system
load. This allows users to fully utilize 3x faster video conversion with Intel® Quick Sync Video
technology while retaining high-end 3D rendering and gaming performance, provided by both
NVIDIA and AMD graphic cards. When the discrete graphic cards are not required, it puts
the power use down to zero, making the system more environmentally friendly. For users
searching for perfection, LucidLogix Virtu MVP provides great graphical performance, and
best exibility and efciency.
* LucidLogix Virtu MVP supports Windows® 7 operating system.
** Intel® Quick Sync Video feature is supported by 3rd /2nd generation Intel® Core™ processor family.
DisplayPort 1.1a Support
DisplayPort is a digital display interface standard that delivers up to 10.8 Gbps of bandwidth
over standard cables, providing billions of colors and bi-directional communications, thus
enabling the fastest refresh rates, and the highest resolution digital display through a single
cable. Also, it supports HDCP copy protection for Blu-ray discs. Simply output 3D signals
through the connected DisplayPort 1.1a cable with your 3D display, then you can sit back and
enjoy a perfect 3D animation experience.
HDMI Support
Enjoy Full HD 1080p Multimedia Home-Theater Entertainment
High Denition Multimedia Surface (HDMI) is a set of digital video standards that delivers
mulit-channel audio and uncompressed digital video for full HD 1080p visuals through a
single cable. Supporting HDCP copy protection such as HD DVD and blu-ray discs, HDMI
provides you with the highest quality home theater experience.
ErP ready
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP
requires products to meet certain energy efciency requirements in regards to energy
consumptions. This is in line with ASUS vision of creating environment-friendly and energy-
efcient products through product design and innovation to reduce carbon footprint of the
product and thus mitigate environmental impacts.
ASUS P8Z77-V LE PLUS 2-1
Chapter 2
2.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Chapter 2: Hardware information
Chapter 2
2-2 Chapter 2: Hardware information
Chapter 2
2.2.1 Motherboard layout
Refer to 2.2.8 Connectors and 2.3.10 Rear panel connection for more information about
rear panel connectors and internal connectors.
2.2 Motherboard overview
ASUS P8Z77-V LE PLUS 2-3
Chapter 2
Connectors/Jumpers/Slots Page
1. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1/2/3) 2-25
2. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 2-27
3. EPU LED (EPU_LED) 2-21
4. EPU switch 2-18
5. TPU switch 2-17
6. TPU LED (TPU_LED) 2-21
7. Intel® CPU socket 2-4
8. DDR3 DIMM sockets 2-5
9. DRAM LED 2-20
10. MemOK! button 2-16
11. USB 3.0 connector (20-1 pin USB3_34) 2-26
12. Marvell® Serial ATA 6.0 Gb/s connectors (7-pin SATA 6G_E1 [navy blue]) 2-27
13. Intel® Z77 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1/2 [gray]) 2-22
14. Intel® Z77 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_1~4 [blue]) 2-23
15. Onboard LED (SB_PWR) 2-20
16. BIOS Flashback LED (FLBK_LED) 2-21
17. Clear RTC RAM (3-pin CLRTC) 2-15
18. System panel connector (20-8 pin PANEL) 2-28
19. BIOS Flashback button (BIOS_FLBK) 2-19
20. USB 2.0 connectors (10-1 pin USB3~10) 2-24
21. Serial port connectors (10-1 pin COM1) 2-26
22. Front panel audio connector (10-1 pin AAFP) 2-24
23. Digital audio connector (4-1 pin SPDIF_OUT) 2-25
Layout contents
2-4 Chapter 2: Hardware information
Chapter 2
2.2.2 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1155 socket designed for the Intel® 3rd /
2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors.
• The LGA1156 CPU is incompatible with the LGA1155 socket. DO NOT install a
LGA1156 CPU on the LGA1155 socket.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1155 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
Ensure that all power cables are unplugged before installing the CPU.
P8Z77-V LE PLUS
P8Z77-V LE PLUS CPU socket LGA1155
ASUS P8Z77-V LE PLUS 2-5
Chapter 2
2.2.3 System memory
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
Recommended memory congurations
A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR
or DDR2 memory module to the DDR3 slot.
We recommend that you install the memory modules from the blue slots for better
overclocking capability.
P8Z77-V LE PLUS
P8Z77-V LE PLUS 240-pin DDR3 DIMM sockets
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
2-6 Chapter 2: Hardware information
Chapter 2
Memory congurations
You may install 1GB, 2GB, 4GB and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM
sockets.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked
or at a higher frequency, refer to section 3.4 Ai Tweaker menu for manual memory
frequency adjustment.
• For system stability, use a more efcient memory cooling system to support a full
memory load (4 DIMMs) or overclocking condition.
• You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel conguration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
• According to Intel® CPU spec, DIMM voltage below 1.65V is recommended to protect
the CPU.
• Always install DIMMs with the same CAS latency. For optimum compatibility, we
recommend that you obtain memory modules from the same vendor.
• Due to the memory address limitation on 32-bit Windows OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Use a maximum of 3GB system memory if you are using a 32-bit Windows OS.
- Install a 64-bit Windows OS when you want to install 4GB or more on the
motherboard.
For more details, refer to the Microsoft® support site at
http://support.microsoft.com/kb/929605/en-us.
• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less
(Memory chip capacity counts in Megabit, 8 Megabit/Mb = 1 Megabyte/MB).
Visit the ASUS website for the latest QVL.
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO.
Timing Voltage DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
Transcend TX2400KLU-4GK (381850)(XMP) 4GB(2x 2GB) SS - - 9 1.65V • •
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 2400MHz capability
* The 2400MHz memory modules above are supported on Intel® 3rd generation processors by this
motherboard; however, the actual frequency support varied depending on the O.C. margin of the
installed CPU.
** Due to Intel 2nd generation processors’ behavior, DDR3 2200 (and above)/2000/1800 MHz
memory modules run at DDR3 2133/1866/1600 MHz frequency as default.
ASUS P8Z77-V LE PLUS 2-7
Chapter 2
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 2250MHz capability
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 2200MHz capability
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 2133MHz capability
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 2000MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO.
Timing Voltage DIMM socket support (Optional)
1 DIMM 2 DIMMs 4 DIMMs
Kingston KHX2250C9D3T1K2/4GX(XMP) 4GB(2x 2GB) DS - - - 1.65V • • •
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO.
Timing Voltage DIMM socket support (Optional)
1 DIMM 2 DIMMs 4 DIMMs
G.SKILL F3-17600CL8D-4GBPS(XMP) 4GB(2x 2GB) DS - - 8-8-8-24 1.65V •
KINGMAX FLKE85F-B8KJAFEIH(XMP) 4GB(2x 2GB) DS - - - 1.5V-1.7V •
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO.
Timing Voltage DIMM socket support (Optional)
1 DIMM 2 DIMMs 4 DIMMs
A-DATA AX3U2133GC2G9B-DG2(XMP) 2GB SS - - 9-11-9-27 1.55~1.75V •
CORSAIR CMT4GX3M2A2133C9(XMP) 4GB(2x 2GB) DS - - 9-10-9-24 1.65V •
CORSAIR CMT4GX3M2B2133C9(XMP) 4GB(2x 2GB) DS - - 9-10-9-27 1.50V • •
GEIL GE34GB2133C9DC(XMP) 2GB DS - - 9-9-9-28 1.65V • •
GEIL GU34GB2133C9DC(XMP) 4GB(2 x 2GB) DS - - 9-9-9-28 1.65V • • •
KINGSTON KHX2133C9AD3T1K2/4GX(XMP) 4GB(2x 2GB ) DS - - - 1.65V • • •
KINGSTON KHX2133C9AD3X2K2/4GX(XMP) 4GB(2 x 2GB) DS - - 9-11-9-27 1.65V • • •
KINGSTON KHX2133C9AD3T1K4/8GX(XMP) 8GB(4 x 2GB) DS - - 9-11-9-27 1.65V • • •
KINGSTON KHX2133C9AD3T1FK4/8GX(XMP) 8GB(4x 2GB) DS - - - 1.65V • • •
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO.
Timing Voltage DIMM socket support (Optional)
1 DIMM 2 DIMMs 4 DIMMs
Apacer 78.AAGD5.9KD(XMP) 6GB(3 x 2GB) DS - - 9-9-9-27 1.65V • • •
CORSAIR CMZ4GX3M2A2000C10(XMP) 4GB(2 x 2GB) SS - - 10-10-10-27 1.50V • • •
CORSAIR CMT6GX3M3A2000C8(XMP) 6GB(3 x 2GB) DS - - 8-9-8-24 1.65V • •
G.SKILL F3-16000CL9D-4GBFLS(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
G.SKILL F3-16000CL9D-4GBTD(XMP) 4GB(2 x 2GB) DS - - 9-9-9-27 1.65V • • •
G.SKILL F3-16000CL6T-6GBPIS(XMP) 6GB(3x 2GB ) DS - - 6-9-6-24 1.65V • •
KINGSTON KHX2000C9AD3T1K2/
4GX(XMP)
4GB(2x 2GB ) DS - - - 1.65V • • •
KINGSTON KHX2000C9AD3W1K2/
4GX(XMP)
4GB(2x 2GB ) DS - - - 1.65V • •
KINGSTON KHX2000C9AD3T1K2/
4GX(XMP)
4GB(2 x 2GB) DS - - 9 1.65V • • •
KINGSTON KHX2000C9AD3W1K3/
6GX(XMP)
6GB(3x 2GB ) DS - - - 1.65V • •
KINGSTON KHX2000C9AD3T1K3/
6GX(XMP)
6GB(3x 2GB ) DS - - - 1.65V • •
Transcend TX2000KLN-8GK(XMP) 8GB(2 x 4GB) DS - - - 1.6V • • •
* The memory modules in 2200MHz and above are supported on Intel® 3rd generation processors
by this motherboard; however, the actual frequency support varies depending on the O.C. margin
of the installed CPU.
** Due to Intel 2nd generation processors’ behavior, DDR3 2200 (and above)/2000/1800 MHz
memory modules run at DDR3 2133/1866/1600 MHz frequency as default.
* The memory modules in 2250MHz and above are supported on Intel® 3rd generation processors
by this motherboard; however, the actual frequency support varies depending on the O.C. margin
of the installed CPU.
** Due to Intel 2nd generation processors’ behavior, DDR3 2200 (and above)/2000/1800 MHz
memory modules run at DDR3 2133/1866/1600 MHz frequency as default.
2-8 Chapter 2: Hardware information
Chapter 2
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR31866MHz capability
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 1600MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO.
Timing Voltage DIMM socket support (Optional)
1 DIMM 2 DIMMs 4 DIMMs
CORSAIR CMT4GX3M2A1866C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMT6GX3MA1866C9(XMP) 6GB(3 x 2GB) DS -- 9-9-9-24 1.65V • •
CORSAIR CMZ8GX3M2A1866C9(XMP) 8GB(2 x 4GB) DS - - 9-10-9-27 1.50V • • •
G.SKILL F3-14900CL9D-
8GBXL(XMP)
8GB(2 x 4GB) DS - - 9-10-9-28 1.5V • • •
G.SKILL F3-14900CL9Q-
8GBXL(XMP)
8GB(2GB x 4) DS - - 9-9-9-24 1.6V • • •
KINGSTON KHX1866C9D3T1K3/
3GX(XMP)
3GB(3 x 1GB) SS - - - 1.65V • • •
KINGSTON KHX1866C9D3T1K3/
6GX(XMP)
6GB(3 x 2GB) DS -- - 1.65V • ••
Vendors Paart No. Size SS/
DS
Chip
Brand
Chip NO. Timing Voltage DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
A-DATA AM2U16BC2P1 2GB SS A-DATA 3CCD-150
9A EL1126T
- - • • •
A-DATA AD31600E001GM(O)U3K 3GB(3 x 1GB) SS - - 8-8-8-24 1.65V-
1.85V
• •
A-DATA AM2U16BC4P2 4GB DS A-DATA 3CCD-150
9A EL1126T
- - • • •
A-DATA AX3U1600GC4G9-2G(XMP) 8GB(2 x 4GB) DS - - 9-9-9-24 1.55V-
1.75V
• • •
A-DATA AX3U1600XC4G79-2X(XMP) 8GB(2 x 4GB) DS - - 7-9-7-21 1.55V-
1.75V
• • •
CORSAIR TR3X3G1600C8D(XMP) 3GB(3 x 1GB) SS - - 8-8-8-24 1.65V • •
CORSAIR CMD12GX3M6A1600C8(XMP) 12GB(6x2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR CMP4GX3M2A1600C8(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR CMP4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMP4GX3M2C1600C7(XMP) 4GB(2 x 2GB) DS - - 7-8-7-20 1.65V • • •
CORSAIR CMX4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • •
CORSAIR CMX4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR TR3X6G1600C8 G(XMP) 6GB(3 x 2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR TR3X6G1600C8D G(XMP) 6GB(3 x 2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR TR3X6G1600C9 G(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMP8GX3M2A1600C9(XMP) 8GB(2 x 4GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMZ8GX3M2A1600C7R(XMP) 8GB(2 x 4GB) DS - - 7-8-7-20 1.50V • • •
CORSAIR CMX8GX3M4A1600C9(XMP) 8GB(4 x 2GB) DS - - 9-9-9-24 1.65V • • •
Crucial BL25664BN1608.16FF(XMP) 6GB(3 x 2GB) DS - - - - • • •
G.SKILL F3-12800CL9D-2GBNQ(XMP) 2GB(2 x 1GB) SS - - 9-9-9-24 1.5V • • •
G.SKILL F3-12800CL7D-4GBRH(XMP) 4GB(2 x 2GB) SS - - 7-7-7-24 1.6V • • •
G.SKILL F3-12800CL7D-4GBRM(XMP) 4GB(2 x 2GB) DS - - 7-8-7-24 1.6V • • •
G.SKILL F3-12800CL8D-4GBRM(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 1.60V • • •
G.SKILL F3-12800CL9D-4GBECO(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 XMP 1.35V • • •
G.SKILL F3-12800CL9D-4GBRL(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.5V • • •
G.SKILL F3-12800CL9T-6GBNQ(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.5V~1.6V • • •
G.SKILL F3-12800CL7D-8GBRH(XMP) 8GB(2 x 4GB) DS - - 7-8-7-24 1.6V • • •
G.SKILL F3-12800CL8D-8GBECO(XMP) 8GB(2 x 4GB) DS - - 8-8-8-24 XMP 1.35V • • •
G.SKILL F3-12800CL9D-8GBRL(XMP) 8GB(2 x 4GB) DS - - 9-9-9-24 1.5V • • •
GEIL GET316GB1600C9QC(XMP) 16GB(4x
4GB)
DS - - 9-9-9-28 1.6V • • •
GEIL GV34GB1600C8DC(XMP) 2GB DS - - 8-8-8-28 1.6V • • •
KINGMAX FLGD45F-B8MF7 MAEH(XMP) 1GB SS - - 7 - • •
KINGMAX FLGE85F-B8KJ9A FEIS(XMP) 2GB DS - - - - • • •
KINGMAX FLGE85F-B8MF7 MEEH(XMP) 2GB DS - - 7 - •
KINGSTON KHX1600C9D3P1K2/4G 4GB(2 x 2GB) SS - - - 1.5V • • •
KINGSTON KHX1600C9D3K3/12GX(XMP) 12GB(3x4GB) DS - - 9-9-9-27 1.65V • • •
(continued on the next page)
ASUS P8Z77-V LE PLUS 2-9
Chapter 2
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 1333MHz capability
Vendors Paart No. Size SS/
DS
Chip
Brand
Chip NO. Timing Voltage DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
KINGSTON KHX1600C9D3T1BK3/
12GX(XMP)
12GB(3x4GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9AD3/2G 2GB DS - - -1.65V • ••
KINGSTON KVR1600D3N11/2G-ES 2GB DS KTC D1288JPN
DPLD9U
11-11-
11-28
1.35V-1.5V • • •
KINGSTON KHX1600C7D3K2/4GX(XMP) 4GB(2x 2GB ) DS - - - 1.65V • • •
KINGSTON KHX1600C8D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 8 1.65V • • •
KINGSTON KHX1600C8D3T1K2/4GX(XMP) 4GB(2 x 2GB) DS - - 8 1.65V • • •
KINGSTON KHX1600C9D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 91.65V • ••
KINGSTON KHX1600C9D3LK2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 XMP 1.35V • • •
KINGSTON KHX1600C9D3X2K2/4GX(XMP) 4GB(2 x 2GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9D3T1K3/6GX(XMP) 6GB(3x 2GB ) DS - - - 1.65V • • •
KINGSTON KHX1600C9D3K3/6GX(XMP) 6GB(3 x 2GB) DS - - 9 1.65V • • •
KINGSTON KHX1600C9D3T1BK3/6GX
(XMP)
6GB(3 x 2GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9D3K2/8GX(XMP) 8GB(2 x 4GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9D3P1K2/8G 8GB(2 x 4GB) DS - - - 1.5V • • •
Super Talent WA160UX6G9 6GB(3 x 2GB) DS - - 9 - • •
Transcend JM1600KLN-8GK 8GB(4GBx2) DS Transcend TK483
PCW3
- - • • •
Asint SLZ3128M8-EGJ1D(XMP) 2GB DS Asint 3128M8
-GJ1D
9-9-9-24 1.6V • • •
Elixir M2P2G64CB8HC9N-DG(XMP) 2GB DS - - - - • • •
Mushkin 998659(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.5~1.6V • • •
Vendors Part No. Size SS/
DS
Chip Brand Chip NO. Timing Voltage DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
A-DATA AD31333001GOU 1GB SS A-Data AD30908C8D-151C
E0906
- - • • •
A-DATA AD3U1333C2G9 2GB SS A-DATA 3CCD-1509HNA1126L - - • • •
A-DATA AD63I1B0823EV 2GB SS A-Data 3CCA-1509A - - • • •
A-DATA AM2U139C2P1 2GB SS ADATA 3CCD-1509A EL1127T - - • • •
A-DATA AX3U1333C2G9-BP 2GB SS - - - - • • •
A-DATA AD31333G001GOU 3GB
(3 x 1GB)
SS - - 8-8-8-24 1.65-
1.85V
• • •
A-DATA AXDU1333GC2
G9-2G(XMP)
4GB
(2 x 2GB)
SS - - 9-9-9-24 1.25V-
1.35V(low
voltage)
• • •
A-DATA AD31333G002GMU 2GB DS - - 8-8-8-24 1.65-
1.85V
• •
A-DATA AD63I1C1624EV 4GB DS A-Data 3CCA-1509A - - • • •
A-DATA AM2U139C4P2 4GB DS ADATA 3CCD-1509A EL1127T - - • • •
A-DATA SU3U1333W8G9-B 8GB DS ELPIDA J4208BASE-DJ-F - - •
Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808DEWSBG - - • • •
Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808FEQSBG 9 - • • •
Apacer AU02GFA33C9NBGC 2GB DS Apacer AM5D5808APQSBG - - • • •
Apacer 78.B1GDE.9L10C 4GB DS Apacer AM5D5908CEHSBG - - • • •
CORSAIR CM3X1024-1333C9 1GB SS - - 9-9-9-24 1.60V • • •
CORSAIR TR3X3G1333C9 G 3GB
(3 x 1GB)
SS - - 9-9-9-24 1.50V • • •
CORSAIR TR3X6G1333C9 G 6GB
(3x 2GB)
SS - - 9-9-9-24 1.50V • •
CORSAIR CMD24GX3M6A
1333C9(XMP)
24GB
(6 x 4GB)
DS - - 9-9-9-24 1.60V • • •
CORSAIR TW3X4G1333C9D G 4GB
(2 x 2GB)
DS - - 9-9-9-24 1.50V • • •
CORSAIR CM3X4GA1333C9N2 4GB DS CORSAIR 256MBDCJ
GELC0401136
9-9-9-24 - • • •
CORSAIR CMX4GX3M1A1333C9 4GB DS - - 9-9-9-24 1.50V • • •
CORSAIR CMD8GX3M4A1333C7 8GB
(4 x 2GB)
DS - - 7-7-7-20 1.60V • • •
(continued on the next page)
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 1600MHz capability
2-10 Chapter 2: Hardware information
Chapter 2
Vendors Part No. Size SS/
DS
Chip Brand Chip NO. Timing Voltage DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
Crucial CT12864BA1339.8FF 1GB SS Micron 9FF22D9KPT 9 - • • •
Crucial CT25664BA1339.16FF 2GB DS Micron 9KF27D9KPT 9 - •• •
Crucial BL25664BN13
37.16FF (XMP)
6GB
(3 x 2GB)
DS - - 7-7-7-24 1.65V • • •
ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage)
• • •
ELPIDA EBJ21UE8EDF0-DJ-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage)
• •
G.SKILL F3-10600CL8
D-2GBHK(XMP)
1GB SS G.SKILL - - - • • •
G.SKILL F3-10600CL
9D-2GBNQ
2GB
(2 x 1GB)
SS - -9-9-9-24 1.5V •• •
G.SKILL F3-10666CL7
T-3GBPK(XMP)
3GB
(3 x 1GB)
SS - - 7-7-7-18 1.5~1.6V • • •
G.SKILL F3-10666CL8D-
4GBECO(XMP)
4GB
(2 x 2GB)
DS - - 8-8-8-
8-24
XMP
1.35V
• • •
G.SKILL F3-10666CL
7T-6GBPK(XMP)
6GB
(3 x 2GB)
DS - - 7-7-7-18 1.5~1.6V • •
G.SKILL F3-10666C
L7D-8GBRH(XMP)
8GB
(2 x 4GB)
DS - - 7-7-7-21 1.5V • • •
GEIL GET316GB1333C9QC 16GB
(4 x 4GB)
DS - - 9-9-9-24 1.5V •
GEIL GV32GB1333C9DC 2GB
(2 x 1GB)
DS - - 9-9-9-24 1.5V • • •
GEIL GG34GB1333C9DC 4GB
(2 x 2GB)
DS GEIL GL1L128M88BA12N 9-9-9-24 1.3V(low
voltage)
• • •
GEIL GV34GB1333C9DC 4GB
(2 x 2GB)
DS - - 9-9-9-24 1.5V • • •
GEIL GVP34GB1333C7DC 4GB
(2 x 2GB)
DS - - 7-7-7-24 1.5V • • •
Hynix HMT112U6TFR8A-H9 1GB SS Hynix H5TC1G83TFRH9A - 1.35V(low
voltage)
• • •
Hynix HMT325U6BFR8C-H9 2GB SS Hynix H5TQ2G83BFRH9C - - • • •
Hynix HMT125U6TFR8A-H9 2GB DS Hynix H5TC1G83TFRH9A - 1.35V(low
voltage)
• • •
Hynix HMT351U6BFR8C-H9 4GB DS Hynix H5TQ2G83BFRH9C - - • • •
KINGMAX FLFD45F-B8KL9 NAES 1GB SS KINGMAX KKB8FNWBFGNX-27A - - • • •
KINGMAX FLFE85F-C8KF9 CAES 2GB SS KINGMAX KFC8FMFXF-DXX-15A - - • • •
KINGMAX FLFE85F-C8KL9 NAES 2GB SS KINGMAX KFC8FNLXF-DXX-15A - - • • •
KINGMAX FLFE85F-C8KM9 NAES 2GB SS KINGMAX KFC8FNMXF-BXX-15A - - • • •
KINGMAX FLFE85F-B8KL9 NEES 2GB DS KINGMAX KKB8FNWBFGNX-26A - - • • •
KINGMAX FLFF65F-C8KL9 NEES 4GB DS KINGMAX KFC8FNLXF-DXX-15A - - • • •
KINGMAX FLFF65F-C8KM9 NEES 4GB DS KINGMAX KFC8FNMXF-BXX-15A - - • • •
KINGSTON KVR1333D3
N9/1G(low prole)
1GB SS ELPIDA J1108BDBG-DJ-F 9 1.5V • • •
KINGSTON KVR1333D3
N9/2G(low prole)
2GB SS Hynix H5TQ2G83AFRH9C 9 - • • •
KINGSTON KVR1333D3S8N9/2G 2GB SS Micron IID77 D9LGK - 1.5V • • •
KINGSTON KVR1333D3S
8N9/2G-SP(low prole)
2GB SS ELPIDA J2108BCSE-DJ-F - 1.5V • • •
KINGSTON KVR1333D3
N9/2G(low prole)
2GB DS ELPIDA J1108BFBG-DJ-F 9 1.5V • • •
KINGSTON KVR1333D3N9/2G 2GB DS KTC D1288JPNDPLD9U 9 1.5V • • •
KINGSTON KVR1333D3N9/2G 2GB DS ELPIDA J1108BDSE-DJ-F 9 1.5V • • •
KINGSTON KVR1333D3
N9/2G-SP(low prole)
2GB DS KTC D1288JEMFNGD9U - 1.5V • • •
KINGSTON KVR1333D3N9/2G-
SP(low prole)
2GB DS KINGSTON D1288JPSFPGD9U - 1.5V • • •
KINGSTON KHX1333C7
D3K2/4GX(XMP)
4GB
(2 x 2GB)
DS - - 7 1.65V • • •
KINGSTON KHX1333C9D3UK2/
4GX(XMP)
4GB
(2 x 2GB)
DS - - 9 XMP
1.25V
•
KINGSTON KVR1333D
3N9/4G(low prole)
4GB DS ELPIDA J2108BCSE-DJ-F 9 1.5V • • •
KINGSTON KVR1333D
3N9/4G(low prole)
4GB DS ELPIDA J2108BCSE-DJ-F - 1.5V • • •
KINGSTON KVR1333D3N9/4G 4GB DS KTC D2568JENCNGD9U - 1.5V • • •
KINGSTON KVR1333D3N9/4G 4GB DS Hynix H5TQ2G83AFR - - • • •
KINGSTON KVR1333D3N9/4G-
SP(low prole)
4GB DS KINGSTON D2568JENCPGD9U - 1.5V • • •
Micron MT4JTF12864AZ-
1G4D1
1GB SS Micron OJD12D9LGQ - - • • •
Micron MT8JTF12864AZ-
1G4F1
1GB SS Micron 9FF22D9KPT 9 - • • •
(continued on the next page)
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 1333MHz capability
ASUS P8Z77-V LE PLUS 2-11
Chapter 2
Vendors Part No. Size SS/
DS
Chip Brand Chip NO. Timing Voltage DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
Micron MT8JTF25664AZ-
1G4D1
2GB SS Micron OJD12D9LGK - - • • •
Micron MT8JTF25664AZ-
1G4M1
2GB SS MICRON IJM22 D9PFJ - -• • •
Micron MT16JTF25664AZ-
1G4F1
2GB DS Micron 9KF27D9KPT 9 - • • •
Micron MT16JTF51264AZ-
1G4D1
4GB DS Micron OLD22D9LGK - - • • •
NANYA NT4GC64B8HG0NF-
CG
4GB DS NANYA NT5CB256M8GN-CG - - • • •
PSC AL7F8G73F-DJ2 1GB SS PSC A3P1GF3FGF - - • • •
PSC AL8F8G73F-DJ2 2GB DS PSC A3P1GF3FGF - -• • •
SAMSUNG M378B2873FHS-CH9 1GB SS SAMSUNG K4B1G0846F - - • • •
SAMSUNG M378B5773DH0-CH9 2GB SS SAMSUNG K4B2G0846D - - • • •
SAMSUNG M378B5673FH0-CH9 2GB DS SAMSUNG K4B1G0846F - - • • •
SAMSUNG M378B5273CH0-CH9 4GB DS SAMSUNG K4B2G0846C - - • • •
SAMSUNG M378B1G73AH0-CH9 8GB DS SAMSUNG K4B4G0846A-HCH9 - - • •
Super Talent W1333UA1GH 1GB SS Hynix H5TQ1G83TFR 9 - • • •
Super Talent W1333UX2G8(XMP) 2GB
(2x 1GB)
SS - - 8 - • •
Super Talent W1333UB2GS 2GB DS SAMSUNG K4B1G0846F 9 - • • •
Super Talent W1333UB4GS 4GB DS SAMSUNG K4B2G0846C - - • • •
Super Talent W1333UX6GM 6GB
(3x 2GB)
DS Micron 0BF27D9KPT 9-9-9-24 1.5V • • •
Transcend JM1333KLN-2G 2GB SS Micron 0YD77D9LGK - - • • •
Transcend JM1333KLN-2G 2GB SS Hynix H5TQ2G83BZRH9C - - • • •
Transcend JM1333KLU-2G 2GB DS Transcend TK243PDF3 - - • • •
Transcend TS256MLK64V3U 2GB DS Micron 9GF27D9KPT - - • •
Century PC3-10600 DDR3
-1333 9-9-9
1GB SS NANYA NT5CB128M8DN-CF - - • • •
Elixir M2F2G64CB88D7N-CG 2GB SS Elixir N2CB2G80DN-CG - - • •
Elixir M2F2G64CB88G7N-CG 2GB SS Elixir N2CB2G80GN-CG - - • •
Elixir M2F4G64CB8HB5N-
CG
4GB DS Elixir N2CB2G80BN-CG - - • • •
Elixir M2F4G64CB8HD5N-
CG
4GB DS Elixir N2CB2G80DN-CG - - • •
KINGSHARE KSRPCD313332G 2GB DS PATRIOT PM128M8D385-15 - - • • •
KINGSTEK KSTD3PC-10600 2GB SS MICRON PE911-125E - - • •
Kingtiger 2GB DIMM PC3-10666 2GB DS SAMSUNG SEC 904 HCH9
K4B1G0846D
- - • • •
MARKVI
SION
BMD32048M
1333C9-1123
2GB DS MARKVI
SION
M3D1288P-13 - - • • •
MARKVI
SION
BMD34096M
1333C9-1124
4GB DS MARKVI
SION
M3D2568E-13 - - • • •
PATRIOT PSD31G13332H 1GB DS - - 9 - •
PATRIOT PSD31G13332 1GB DS PATRIOT PM64M8D38U-15 - - • •
PATRIOT PSD32G13332H 2GB DS - - - - • • •
RAMAXEL RMR1870ED48
E8F-1333
2GB DS ELPIDA J1108BDBG-DJ-F - - • • •
RAMAXEL RMR1870EC58
E9F-1333
4GB DS ELPIDA J2108BCSE-DJ-F - - • • •
RiDATA C304627CB1AG22Fe 2GB DS RiDATA N/A 9 - • • •
RiDATA E304459CB1AG32Cf 4GB DS RiDATA N/A 9 - • • •
SILICON
POWER
SP001GBLTU133S01 1GB SS NANYA NT5CB128M8AN-CG 9 - • • •
SILICON
POWER
SP001GBLTU133S02 1GB SS Elixir N2CB1680AN-C6 9 - • • •
SILICON
POWER
SP002GBLTU133S02 2GB DS Elixir N2CB1680AN-C6 9 - • • •
TAKEMS TMS1GB364D081-
107EY
1GB SS - - 7-7-7-20 1.5V • •
TAKEMS TMS1GB364D081-
138EY
1GB SS - - 8-8-8-24 1.5V • •
TAKEMS TMS2GB364D081-
107EY
2GB DS - - 7-7-7-20 1.5V • •
TAKEMS TMS2GB364D081-
138EY
2GB DS - - 8-8-8-24 1.5V • •
TAKEMS TMS2GB364D082-
138EW
2GB DS - - 8-8-8-24 1.5V • •
UMAX E41302GP0-73BDB 2GB DS UMAX U2S24D30TP-13 - - • • •
WINTEC 3WVS31333-2G-CNR 2GB DS AMPO AM3420803-13H - - • • •
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 1333MHz capability
2-12 Chapter 2: Hardware information
Chapter 2
Side(s): SS - Single-sided DS - Double-sided
DIMM support:
• 1 DIMM: Supports one (1) module inserted into any slot as Single-channel memory
conguration. We suggest that you install the module into A2 slot.
• 2 DIMMs: Supports two (2) modules inserted into either the blue slots or the black slots
as one pair of Dual-channel memory conguration. We suggest that you
install the modules into slots A2 and B2 for better compatibility.
• 4 DIMMs: Supports four (4) modules inserted into both the blue and black slots as two
pairs of Dual-channel memory conguration.
• ASUS exclusively provides hyper DIMM support function.
• Hyper DIMM support is subject to the physical characteristics of individual CPUs. Load
the X.M.P. or D.O.C.P. settings in the BIOS for the hyper DIMM support.
• Visit the ASUS website for the latest QVL.
Vendors Part No. Size SS/
DS
Chip
Brand
Chip NO. Timing Voltage DIMM socket support (Optional)
1 DIMM 2 DIMMs 4 DIMMs
Crucial CT12864BA1067.8FF 1GB SS Micron 9GF22D9KPT 7 - • • •
Crucial CT25664BA1067.16FF 2GB DS Micron 9HF22D9KPT 7- • • •
ELPIDA EBJ10UE8EDF0-AE-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) • • •
ELPIDA EBJ21UE8EDF0-AE-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) • • •
KINGSTON KVR1066D3N7/1G
(low prole)
1GB SS ELPIDA J1108BFSE-DJ-F 7 1.5V • • •
KINGSTON KVR1066D3N7/2G 2GB DS ELPIDA J1108BDSE-DJ-F 7 1.5V • • •
KINGSTON KVR1066D3N7/4G 4GB DS Hynix H5TQ2G83AFR 71.5V • • •
Micron MT8JTF12864AZ-
1G1F1
1GB SS Micron 9GF22D9KPT 7 - • • •
Micron MT16JTF25664AZ-
1G1F1
2GB DS Micron 9HF22D9KPT 7 - • • •
Kingtiger 2GB DIMM PC3-8500 2GB DS Hynix H5TQ1G83AFP
G7C
- - • • •
P8Z77-V LE PLUS Motherboard Qualied Vendors Lists (QVL)
DDR3 1066MHz capability
ASUS P8Z77-V LE PLUS 2-13
Chapter 2
2.2.4 Expansion slots
Ensure to unplug the power cord before adding or removing expansion cards. Failure to do
so may cause you physical injury and damage motherboard components.
P8Z77-V LE PLUS
1
1
2
3
4
5
6
7
Slot No. Slot Description
1 PCIe 2.0 x1_1 slot
2 PCIe 3.0/2.0 x16_1 slot [navy blue] (single at x16 or dual at x8/x8 mode)
3 PCIe 2.0 x1_2 slot
4 PCI slot 1
5 PCIe 3.0/2.0 x16_2 slot [gray] (at x8 mode)
6. PCI slot 2
7. PCIe 2.0 x16_3 slot [black] (at x4 mode, compatible with PCIe x1 and x4 devices)
VGA conguration PCI Express operating mode
PCIe 3.0/2.0 x16_1 PCIe 3.0/2.0 x16_2
Single VGA/PCIe card x16
(Recommend for single VGA) N/A
Dual VGA/PCIe card x8 x8
2-14 Chapter 2: Hardware information
Chapter 2
IRQ assignments for this motherboard
A B C D E F G H
Audio Controller – – – – – – shared –
EHCI Controller – – – – – – – shared
XHCI Controller shared – – – – – – –
SATA Controller – – – shared – – – –
PCIE x16_1 shared – – – – – – –
PCIE x16_2 shared – – – – – – –
PCIE x16_3 shared –––––– –
PCIE x1_1 – – shared – – – – –
PCIE x1_2 – – – shared – – – –
PCI Slot 1 – shared – – ––– –
PCI Slot 2 – – shared – – – – –
Realtek 8111F (LAN) shared – – – – – – –
Marvell SATA 6Gb/s
Controller –– shared –––– –
ASM1042 – – – shared – – – –
• In single VGA card mode, use the PCIe 3.0/2.0 x16_1 slot (navy blue) for a PCI
Express x16 graphics card to get better performance.
• In CrossFireX™ or SLI™ mode, use the PCIe 3.0/2.0 x16_1 and PCIe 3.0/2.0 x16_2
slots for PCI Express x16 graphics cards to get better performance.
• We recommend that you provide sufcient power when running CrossFireX™ or SLI™
mode. Refer to page 2-27 for details.
• Connect a chassis fan to the motherboard connector labeled CHA_FAN1/2/3 when
using multiple graphics cards for better thermal environment. See page 2-25 for
details.
• The PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
ASUS P8Z77-V LE PLUS 2-15
Chapter 2
2.2.5 Jumper
Clear RTC RAM (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the
CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM
data. The onboard button cell battery powers the RAM data in CMOS, which include system
setup information such as system passwords.
To erase the RTC RAM
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for
about 5–10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to
re-enter data.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
• If the steps above do not help, remove the onboard battery and move the jumper again
to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For
system failure due to overclocking, use the C.P.R. (CPU Parameter Recall) feature.
Shut down and reboot the system so the BIOS can automatically reset parameter
settings to default values.
P8Z77-V LE PLUS
P8Z77-V LE PLUS Clear RTC RAM
1 2 2 3
Normal
(Default)
Clear RTC
CLRTC
2-16 Chapter 2: Hardware information
Chapter 2
2.2.6 Onboard switches
Onboard switches allow you to ne-tune performance when working on a bare or open-case
system. This is ideal for overclockers and gamers who continually change settings to enhance
system performance.
1. MemOK! switch
Installing DIMMs that are incompatible with the motherboard may cause system
boot failure, and the DRAM_LED near the MemOK! switch lights continuously. Press
and hold the MemOK! switch until the DRAM_LED starts blinking to begin automatic
memory compatibility tuning for successful boot.
• Refer to section 2.2.7 Onboard LEDs for the exact location of the DRAM_LED.
• The DRAM_LED also lights when the DIMM is not properly installed. Turn off the
system and reinstall the DIMM before using the MemOK! function.
• The MemOK! switch does not function under Windows® OS environment.
• During the tuning process, the system loads and tests failsafe memory settings. It
takes about 30 seconds for the system to test one set of failsafe settings. If the test
fails, the system reboots and test the next set of failsafe settings. The blinking speed
of the DRAM_LED increases, indicating different test processes.
• Due to memory tuning requirement, the system automatically reboots when each
timing set is tested. If the installed DIMMs still fail to boot after the whole tuning
process, the DRAM_LED lights continuously. Replace the DIMMs with ones
recommended in the Memory QVL (Qualied Vendors Lists) in this user manual or on
the ASUS website at www.asus.com.
• If you turn off the computer and replace DIMMs during the tuning process, the system
continues memory tuning after turning on the computer. To stop memory tuning, turn
off the computer and unplug the power cord for about 5–10 seconds.
• If your system fail to boot due to BIOS overclocking, press the MemOK! switch to boot
and load BIOS default settings. A message will appear during POST reminding you
that the BIOS has been restored to its default settings.
• We recommend that you download and update to the latest BIOS version from the
ASUS website at www.asus.com after using the MemOK! function.
P8Z77-V LE PLUS
P8Z77-V LE PLUS MemOK! switch
ASUS P8Z77-V LE PLUS 2-17
Chapter 2
2. TPU (GPU Boost) switch
Turning this switch to Enable will automatically optimize the system for fast, yet stable
clock speeds.
• To ensure system performance, turn the switch setting to Enable when the system is
powered off.
• When the TPU switch is set to Enable, it can be used as a GPU Boost switch.
• The TPU LED near the TPU switch lights when the switch setting is turned to Enable.
Refer to section 2.2.7 Onboard LEDs for the exact location of the TPU LED.
• If you change the switch setting to Enable under the OS environment, the TPU function
will be activated after the next system bootup.
• You may use the TurboV and Auto Tuning feature in the TurboV EVO application, adjust
the BIOS setup program, or enable the TPU switch at the same time. However, the
system will use the last setting you have made.
P8Z77-V LE PLUS TPU Boost switch
TPU Boost
P8Z77-V LE PLUS
2-18 Chapter 2: Hardware information
Chapter 2
3. EPU switch
This switch allows you to enable or disable the EPU function.
• The EPU LED near the TPU switch lights when the switch setting is turned to Enable.
• If you change the switch setting to Enable under the OS environment, the EPU function
will be activated after the next system bootup.
• You may change the EPU settings in the EPU application, change the BIOS settings, and
enable the EPU function at the same time. However, the system will use the last setting
you have made.
P8Z77-V LE PLUS EPU Boost switch
EPU Boost
P8Z77-V LE PLUS
To ensure system performance, turn the switch setting to Enable when the system is
powered off.
ASUS P8Z77-V LE PLUS 2-19
Chapter 2
4. BIOS-FLBK switch
The BIOS Flashback buttton offers the most convenient way to update the BIOS. It
allows overclockers to update new BIOS versions without having to enter their existing
BIOS or operating system. Just plug in a USB storage and press the BIOS Flashback
button for 3 seconds, and the BIOS is automatically ashed using standby power.
Hassle-free updating for the ultimate convenience!
1. Download the USB BIOS Flashback wizard from the ASUS service website (www.asus.
com). Save it to a USB portable disk, and place it in the root directory.
2. Plug the USB ash drive into the bottom port of ESATA6G_USB3_12 connector in back
I/O.
3. Press the USB BIOS Flashback button for 3 seconds, and the light will begin to ash
(on the third second).
4. The Flashback function is enabled once the light starts to ash.
5. The ashing rate of the light signal accelerates along with the updating speed.
6. BIOS update is complete once the light signal goes out.
• Do not unplug the portable disk, power off the system or press the CLR_CMOS button
while BIOS update is ongoing, otherwise update will be interrupted. In case of interruption,
please follow the recommended procedures again to complete BIOS update.
• If the light ashes for ve seconds and turns into a stable light, this means that the USB
BIOS Flashback is not operating properly. This may be caused by:
1. Improper installation of the portable disk.
2. Error in le name or incompatibility in le format. If this is the case, please restart the
system to turn off the light.
• Updating BIOS may have risks. If the BIOS program is damaged during the process
causing the system unable to reboot, please contact the local service station for help.
P8Z77-V LE PLUS BIOS Flashback switch
BIOS_FLBK
P8Z77-V LE PLUS
2-20 Chapter 2: Hardware information
Chapter 2
2.2.7 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED. The green LED lights up to indicate
that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found, the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitive way to locate the root problem
within a second.
SB_PWR
ON
Standby Power Powered Off
OFF
P8Z77-V LE PLUS
P8Z77-V LE PLUS Onboard LED
P8Z77-V LE PLUS
P8Z77-V LE PLUS DRAM LED
DRAM LED
ASUS P8Z77-V LE PLUS 2-21
Chapter 2
3. BIOS_FLBK LED
The BIOS_FLBK LED lights when the BIOS-FLBK function is enabled.
4. EPU LED
The EPU LED lights when the EPU switch is turned to Enable.
5. TPU LED
The TPU LED lights when the TPU switch is turned to Enable.
P8Z77-V LE PLUS BIOS Flashback LED
FLBK_LED
P8Z77-V LE PLUS
P8Z77-V LE PLUS EPU Boost LED
EPU_LED
P8Z77-V LE PLUS
P8Z77-V LE PLUS TPU Boost LED
TPU_LED
P8Z77-V LE PLUS
2-22 Chapter 2: Hardware information
Chapter 2
2.2.8 Internal connectors
1. Intel® Z77 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
conguration with the Intel® Rapid Storage Technology through the onboard Intel® Z77
chipset.
•
These connectors are set to [AHCI] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode Selection item in the BIOS to
[RAID]. Refer to section 3.5.3 SATA Conguration for details.
• Before creating a RAID set, refer to section 4.5 RAID congurations or the manual
bundled in the motherboard support DVD.
•
When using NCQ, set the SATA Mode Selection in the BIOS to [AHCI]. Refer to
section 3.5.3 SATA Conguration for details.
•
You must install Windows® XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows® XP SP3 or later versions.
SATA6G_2
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
SATA6G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
P8Z77-V LE PLUS
P8Z77-V LE PLUS Intel SATA 6.0Gb/s connectors
ASUS P8Z77-V LE PLUS 2-23
Chapter 2
2. Intel® Z77 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_1–4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical disc drives
via Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
conguration with the Intel® Rapid Storage Technology through the onboard Intel® Z77
chipset.
•
These connectors are set to [AHCI] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode Selection item in the BIOS to
[RAID]. Refer to section 3.5.3 SATA Conguration for details.
• Before creating a RAID set, refer to section 4.5 RAID congurations or the manual
bundled in the motherboard support DVD.
•
When using NCQ, set the SATA Mode Selection in the BIOS to [AHCI]. Refer to
section 3.5.3 SATA Conguration for details.
•
You must install Windows® XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows® XP SP3 or later versions.
P8Z77-V LE PLUS
P8Z77-V LE PLUS Intel SATA 3.0Gb/s connectors
SATA3G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA3G_4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND
SATA3G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA3G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
2-24 Chapter 2: Hardware information
Chapter 2
3. USB 2.0 connectors (10-1 pin USB 3 ~ 10)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of these
connectors, then install the module to a slot opening at the back of the system chassis.
These USB connectors comply with USB 2.0 specication that supports up to 480 Mbps
connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module cable is purchased separately.
4. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports either
HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O
module cable to this connector.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this connector, set the
Front Panel Type item in the BIOS setup to [HD]; if you want to connect an AC'97 front
panel audio module to this connector, set the item to [AC 97]. By default, this connector
is set to [HD]. Refer to 3.5.6 Onboard Devices Conguration for details.
P8Z77-V LE PLUS
P8Z77-V LE PLUS USB2.0 connectors
USB+5V
USB_P10-
USB_P10+
GND
NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
USB+5V
USB_P4-
USB_P4+
GND
NC
USB+5V
USB_P3-
USB_P3+
GND
USB34
PIN 1
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
USB56
PIN 1
P8Z77-V LE PLUS
P8Z77-V LE PLUS Front panel audio connector
AAFP
AGND
NC
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND
NC
NC
NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
ASUS P8Z77-V LE PLUS 2-25
Chapter 2
5. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot opening
at the back of the system chassis.
The S/PDIF module is purchased separately.
6. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1/2/3)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the black
wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
The CPU_FAN connector supports the CPU fan of maximum 1A (12 W) fan power.
SPDIF_OUT
+5V
SPDIFOUT
GND
P8Z77-V LE PLUS
P8Z77-V LE PLUS Digital audio connector
P8Z77-V LE PLUS
P8Z77-V LE PLUS fan connectors
CPU_FAN
CHA_FAN1
CHA_FAN2
CHA FAN PWM
CHA FAN IN
CHA FAN PWR
GND
CHA_FAN3
GND
CHA FAN PWR
CHA FAN IN
CHA FAN PWM
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA FAN PWM
CHA FAN IN
CHA FAN PWR
GND
2-26 Chapter 2: Hardware information
Chapter 2
7. USB 3.0 connector (20-1 pin USB3_34)
These connectors are for the additional USB 3.0 ports, and complies with the USB 3.0
specicaton that supports up to 4.8Gbps connection speed. If the USB 3.0 front panel
cable is available from your system chassis, with this USB 3.0 connector, you can have
a front panel USB 3.0 solution.
• You can connect the ASUS front panel USB 3.0 bracket to this connector to obtain the
front panel USB 3.0 solution.
• Due to Intel® limitations, the USB3_12 and USB3_34 only support Windows® 7
operating system.
P8Z77-V LE PLUS
P8Z77-V LE PLUS USB3.0 front panel connector
USB3_34
8. Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
The serial port bracket (COM1) module is purchased separately.
P8Z77-V LE PLUS
P8Z77-V LE PLUS Serial port (COM1) connector
PIN 1
COM1
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
ASUS P8Z77-V LE PLUS 2-27
Chapter 2
9. Marvell® Serial ATA 6.0Gb/s connector (7-pin SATA6G_E1 [navy blue])
This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s
signal cables.
• This connector is for data storage only. ATAPI device is not supported.
• You must install Windows® XP Service Pack 3 or later versions before using Serial ATA
hard disk drives.
• When using NCQ, set the Marvell Storage Controller item in the BIOS to [Enabled].
Refer to section 3.5.6 Onboard Devices Conguration for details.
10. ATX power connectors (24-pin EATXPWR; 8-pin EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are designed
to t these connectors in only one orientation. Find the proper orientation and push down
rmly until the connectors completely t.
• For a fully congured system, we recommend that you use a power supply unit (PSU)
that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum
power of 450 W.
• Do not forget to connect the 4-pin / 8-pin EATX12 V power plug; otherwise, the system
will not boot.
• We recommend that you use a PSU with higher power output when conguring a system
with more power-consuming devices. The system may become unstable or may not boot
up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
P8Z77-V LE PLUS
P8Z77-V LE PLUS Marvell®SATA 6.0 Gb/s connector
SATA6G_E1
P8Z77-V LE PLUS
P8Z77-V LE PLUS ATX power connectors
EATXPWR
PIN 1
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
EATX12V
+12V DC
+12V DC
+12V DC
+12V DC
GND
GND
GND
GND
2-28 Chapter 2: Hardware information
Chapter 2
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED cable
to this connector. The system power LED lights up when you turn on the system power,
and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns the
system on. Pressing the power switch for more than four seconds while the system is
ON turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
11. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
P8Z77-V LE PLUS
P8Z77-V LE PLUS System panel connector
PIN 1
* Requires an ATX power supply
PLED SPEAKER
PLED+
PLED-
+5V
Ground
Ground
Speaker
IDE_LED+
IDE_LED-
PWR
Ground
Reset
Ground
PANEL
IDE_LED PWRSW RESET
ASUS P8Z77-V LE PLUS 2-29
Chapter 2
2.3 Building your computer system
2.3.1 Additional tools and components to build a PC system
1 bag of screws Philips (cross) screwdriver
PC chassis Power supply unit
Intel LGA 1155 CPU Intel LGA1155 compatible CPU Fan
DIMM SATA hard disk drive
SATA optical disc drive (optional) Graphics card (optional)
The tools and components in the table above are not included in the motherboard package.
2-30 Chapter 2: Hardware information
Chapter 2
2.3.2 CPU installation
A
B
1
2
The LGA1156 CPU is incompatible with the LGA1155 socket. DO NOT install a LGA1156
CPU on the LGA1155 socket.
ASUS P8Z77-V LE PLUS 2-31
Chapter 2
A
B
C
4
5
3
2-32 Chapter 2: Hardware information
Chapter 2
2.3.3 CPU heatsink and fan assembly installation
Apply the Thermal Interface Material
to the CPU heatsink and CPU
before you install the heatsink and
fan if necessary.
To install the CPU heatsink and fan assembly
2
B
B
A
A
1
3 4
ASUS P8Z77-V LE PLUS 2-33
Chapter 2
To uninstall the CPU heatsink and fan assembly
2
A
B
B
A
1
2-34 Chapter 2: Hardware information
Chapter 2
1
2
3
To remove a DIMM
2.3.4 DIMM installation
B
A
A
ASUS P8Z77-V LE PLUS 2-35
Chapter 2
2.3.5 Motherboard installation
2
1
The diagrams in this section are for reference only. The motherboard layout may vary with
models, but the installation steps remain the same.
2-36 Chapter 2: Hardware information
Chapter 2
DO NOT overtighten the screws! Doing so can damage the motherboard.
P8Z77-V LE PLUS
3
ASUS P8Z77-V LE PLUS 2-37
Chapter 2
2.3.6 ATX Power connection
1
2
OR OR
2-38 Chapter 2: Hardware information
Chapter 2
2.3.7 SATA device connection
OR
1
OR
2
ASUS P8Z77-V LE PLUS 2-39
Chapter 2
2.3.8 Front I/O Connector
USB 2.0
AAFP
To install USB 2.0 Connector To install front panel audio connector
USB 3.0
To install USB 3.0 Connector
To install the system panel connector
2-40 Chapter 2: Hardware information
Chapter 2
2.3.9 Expansion Card installation
To install PCIe x16 cards
To install PCIe x1 cards To install PCI cards
ASUS P8Z77-V LE PLUS 2-41
Chapter 2
2.3.10 Rear panel connection
12
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under
Windows® OS environment and after the USB 3.0 driver is installed.
• Due to Intel® limitations, the USB3_12 only support Windows® 7 operating system.
• USB 3.0 devices can be used as data storage only.
• The USB3_2 port supports USB Charger+ and USB BIOS Flashback.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance for your USB 3.0 devices.
* and **: Refer to the tables on the next page for LAN port LED and audio port denitions.
Rear panel connectors
1. PS/2 Keyboard/Mouse COMBO port 7. ASMedia USB 3.0 ports 1 and 2,
support ASUS USB 3.0 Boost UASP Mode
2. Optical S/PDIF Out port
8. Intel USB 3.0 ports 1 and 2, support ASUS USB
3.0 Boost UASP Mode. Bottom port supports USB
BIOS Flashback and USB Charger+
3. Video Graphics Adapter (VGA) port 9. DVI-D port
4. External SATA 6.0Gb/s ports 10. HDMI port
5. Realtek® LAN (RJ-45) port* 11. DisplayPort
6. Audio I/O ports** 12. USB 2.0 ports 1 and 2
DO NOT insert a different connector to the external SATA port.
2-42 Chapter 2: Hardware information
Chapter 2
** Audio 2, 4, 6, or 8-channel conguration
Port Headset
2-channel 4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
* LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
• This motherboard comes with multiple VGA output that features desktop extension on
two monitors. You can connect two monitors to any two of the onboard VGA, DVI-D,
HDMI, and DisplayPort ports.
• DVI-D cannot be converted to output RGB signal to CRT and is not compatible with
DVI-I.
ASUS P8Z77-V LE PLUS 2-43
Chapter 2
2.3.11 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic
Connect to Stereo Speakers
Connect to 2.1 channel Speakers
2-44 Chapter 2: Hardware information
Chapter 2
Connect to 4.1 channel Speakers
Connect to 7.1 channel Speakers
Connect to 5.1 channel Speakers
ASUS P8Z77-V LE PLUS 2-45
Chapter 2
2.4 Starting up for the rst time
1. After making all the connections, replace the system case cover.
2. Be sure that all switches are off.
3. Connect the power cord to the power connector at the back of the system chassis.
4. Connect the power cord to a power outlet that is equipped with a surge protector.
5. Turn on the devices in the following order:
a. Monitor
b. External SCSI devices (starting with the last device on the chain)
c. System power
6. After applying power, the system power LED on the system front panel case lights up.
For systems with ATX power supplies, the system LED lights up when you press the
ATX power button. If your monitor complies with the “green” standards or if it has a
“power standby” feature, the monitor LED may light up or change from orange to green
after the system LED turns on.
The system then runs the power-on self tests or POST. While the tests are running, the
BIOS beeps (see the BIOS beep codes table below) or additional messages appear on
the screen. If you do not see anything within 30 seconds from the time you turned on
the power, the system may have failed a power-on test. Check the jumper settings and
connections or call your retailer for assistance.
7. At power on, hold down the <Delete> key to enter the BIOS Setup. Follow the
instructions in Chapter 3.
BIOS Beep Description
One short beep
VGA detected
Quick boot set to disabled
No keyboard detected
One continuous beep followed by two short
beeps then a pause (repeated) No memory detected
One continuous beep followed by three short
beeps No VGA detected
One continuous beep followed by four short
beeps Hardware component failure
2.5 Turning off the computer
While the system is ON, pressing the power switch for less than four seconds puts the system
on sleep mode or soft-off mode, depending on the BIOS setting. Pressing the power switch
for more than four seconds lets the system enter the soft-off mode regardless of the BIOS
setting.
2-46 Chapter 2: Hardware information
Chapter 2
ASUS P8Z77-V LE PLUS 3-1
Chapter 3
Chapter 3: BIOS setup
Chapter 3
3.1 Knowing BIOS
The ASUS UEFI BIOS offers a user-friendly interface that goes beyond traditional
keyboard-only BIOS controls to enable more exible and convenient mouse input. Users
can easily navigate the UEFI BIOS with the same smoothness as their operating system.
The term “BIOS” in this user manual refers to “UEFI BIOS” unless otherwise specied.
BIOS (Basic Input and Output System) stores system hardware settings such as storage
device conguration, overclocking settings, advanced power management, and boot device
conguration that are needed for system startup in the motherboard CMOS. In normal
circumstances, the default BIOS settings apply to most conditions to ensure optimum
performance. We recommend that you not change the default BIOS settings except in
the following circumstances:
• An error message appears on the screen during the system bootup and requests you to
run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or
update.
Inappropriate settings of the BIOS may result to instability or failure to boot. We strongly
recommend that you change the BIOS settings only with the help of a trained service
personnel.
3.2 BIOS setup program
A BIOS setup program is provided for BIOS item modication. When you start up the
computer, the system provides you with the opportunity to run this program. Press <Del>
during the Power-On Self-Test (POST) to enter the Setup utility. Otherwise, POST continues
with its test routines.
If you wish to enter Setup after POST, press <Ctrl> + <Alt> + <Delete>, or press the reset
button on the system chassis to restart the system. You can also turn the system off and then
turn it back on to restart the system. Do this last option only if the rst two failed.
• The BIOS setup screens shown in this section are for reference purposes only, and
may not exactly match what you see on your screen.
• Ensure that a USB mouse is connected to your motherboard if you want to use the
mouse to control the BIOS setup program.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu. See section 3.9 Exit Menu for details.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See sectionSee section 2.2.5 Jumper for information
on how to erase the RTC RAM.
• The BIOS setup program does not support the bluetooth devices.
The BIOS setup program is designed to make it as easy to use as possible. Being a
menu-driven program, it lets you scroll through the various submenus and select from the
available options using a keyboard or a USB mouse.
The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode.
You can change modes from the Exit menu or from the Exit/Advanced Mode button in the
EZ Mode/Advanced Mode screen.
3-2 Chapter 3: BIOS setup
Chapter 3
3.2.1 EZ Mode
By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press F7 hot
key for the advanced BIOS settings..
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in sectionsection 3.7 Boot memu for details.
P8Z77-V LE PLUS
BIOS Version : 0306
CPU Type : Genuine Intel(R) CPU @ 2.90GHz Speed : 2900 MHz
Total Memory : 1024 MB (DDR3 1033MHz)
Exit/Advanced Mode
Temperature Voltage Fan Speed
CPU +113.0ºF/+45.0ºC CPU 1.248V 5V 5.160V CPU_FAN 3325RPM CHA_FAN1 N/A
MB +75.2ºF/+40.0ºC 3.3V 3.344V 12V 12.248V CHA_FAN2 N/A CHA_FAN3 N/A
English
UEFI BIOS Utility - EZ Mode
Monday [9/13/2010]
Normal
Quiet
Performance Energy Saving
System Performance
Boot Menu(F8) Default(F5)
Use the mouse to drag or keyboard to navigate to decide the boot priority.
Boot Priority
Exits the BIOS setup program without saving
the changes, saves the changes and resets the
system, or enters the Advanced Mode
Selects the display language of
the BIOS setup program
Displays the CPU/motherboard temperature,
CPU/5V/3.3V/12V voltage output,
CPU/chassis/power fan speed
Power Saving mode
Normal mode ASUS Optimal mode
Loads optimized default
Selects the boot device priority
Selects the boot device priority
• The boot device options vary depending on the devices you installed to the system.
• The Boot Menu(F8) button is available only when the boot device is installed to the
system.
Displays the system properties of the
selected mode on the right hand side
Clicks to display all fan
speeds if available
Selects the Advanced
mode functions
Shortcut (F3) Advanced Mode (F7)
Displays the Advanced
mode menus
ASUS P8Z77-V LE PLUS 3-3
Chapter 3
3.2.2 Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the Advanced Mode, click Exit, then select Advanced Mode.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Enabled/Disabled the Marvell Storage
Controller.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Back Advanced\ Onboard Devices Conguration >
UEFI BIOS Utility - Advanced Mode
Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor For displaying the system temperature, power status, and changing the
fan settings.
Boot For changing the system boot conguration
Tool For conguring options for special functions
Exit For selecting the exit options and loading default settings
Navigation keys
General help
Menu bar
Submenu item
Conguration elds
Menu items
Scroll bar
Pop-up window
Back button
HD Audio Controller Enabled
Front Panel Type HD
SPDIF Out Type SPDIF
PCI Express X16_3 slot (Black) bandwidth x2 mode
Marvell Storage Controller Enabled
Marvell Storage OPROM Enabled
Realtek LAN Controller Enabled
Realtek PXE OPROM Disabled
Asmedia USB 3.0 Controller Enabled
Asmedia USB 3.0 Battery Charging Support Disabled
> Serial Port Conguration
Marvell Storage Controller
Disabled
Enabled
3-4 Chapter 3: BIOS setup
Chapter 3
Menu items
The highlighted item on the menu bar displays the specic items for that menu. For example,
selecting Main shows the Main menu items.
The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have
their respective menu items.
Back button
This button appears when entering a submenu. Press <Esc> or use the USB mouse to click
this button to return to the previous menu screen.
Submenu items
A greater than sign (>) before each item on any menu screen means that the item has a
submenu. To display the submenu, select the item and press <Enter>.
Pop-up window
Select a menu item and press <Enter> to display a pop-up window with the conguration
options for that item.
Scroll bar
A scroll bar appears on the right side of a menu screen when there are items that do not t on
the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the
other items on the screen.
Navigation keys
At the bottom right corner of the menu screen are the navigation keys for the BIOS setup
program. Use the navigation keys to select items in the menu and change the settings.
General help
At the top right corner of the menu screen is a brief description of the selected item. UseUse
<F12> key to capture the BIOS screen and save it to the removable storage device.
Conguration elds
These elds show the values for the menu items. If an item is user-congurable, you can
change the value of the eld opposite the item. You cannot select an item that is not
user-congurable.
A congurable eld is highlighted when selected. To change the value of a eld, select it and
press <Enter> to display a list of options.
ASUS P8Z77-V LE PLUS 3-5
Chapter 3
3.3 Main menu
The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup
program. The Main menu provides you an overview of the basic system information, and
allows you to set the system date, time, language, and security settings.
Security
The Security menu items allow you to change the system security settings.
• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)
RAM to clear the BIOS password. See section 2.2.5 Jumper for information on how to
erase the RTC RAM.
• The Administrator or User Password items on top of the screen show the default
Not Installed. After you set a password, these items show Installed.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
UEFI BIOS Utility - Advanced Mode
Choose the system default languageBIOS Information
BIOS Version 0306 x64
Build Date 03/23/2012
EC Version XUECA-015
ME Version 8.0.2.1410
South Bridge Stepping C1
CPU Information
Genuine Intel(R) CPU 0 @ 2.90GHz
Speed 2900 MHz
Memory Information
Total Memory 1024 MB (DDR3)
Memory Frequency 1333 MHz
System Language English
System Date [Friday 11/08/2011]
System Time [16:46:15]
Access Level Administrator
> Security
3-6 Chapter 3: BIOS setup
Chapter 3
Administrator Password
If you have set an administrator password, we recommend that you enter the administrator
password for accessing the system. Otherwise, you might be able to see or change only
selected elds in the BIOS setup program.
To set an administrator password:
1. Select the Administrator Password item and press <Enter>.
2. From the Create New Password box, key in a password, then press <Enter>.
3. Conrm the password when prompted.
To change an administrator password:
1. Select the Administrator Password item and press <Enter>.
2. From the Enter Current Password box, key in the current password, then press
<Enter>.
3. From the Create New Password box, key in a new password, then press <Enter>.
4. Conrm the password when prompted.
To clear the administrator password, follow the same steps as in changing an administrator
password, but press <Enter> when prompted to create/conrm the password. After you clear
the password, the Administrator Password item on top of the screen shows Not Installed.
User Password
If you have set a user password, you must enter the user password for accessing the system.
The User Password item on top of the screen shows the default Not Installed. After you set
a password, this item shows Installed.
To set a user password:
1. Select the User Password item and press <Enter>.
2. From the Create New Password box, key in a password, then press <Enter>.
3. Conrm the password when prompted.
To change a user password:
1. Select the User Password item and press <Enter>.
2. From the Enter Current Password box, key in the current password, then press
<Enter>.
3. From the Create New Password box, key in a new password, then press <Enter>.
4. Conrm the password when prompted.
To clear the user password, follow the same steps as in changing a user password, but press
<Enter> when prompted to create/conrm the password. After you clear the password, the
User Password item on top of the screen shows Not Installed.
ASUS P8Z77-V LE PLUS 3-7
Chapter 3
3.4 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
Scroll down to display the following items:
3-8 Chapter 3: BIOS setup
Chapter 3
Ai Overclock Tuner [Auto]
Allows you to select the CPU overclocking options to achieve the desired CPU internal
frequency. Select any of these preset overclocking conguration options:
[Auto] Loads the optimal settings for the system.
[Manual] Allows you to individually set overclocking parameters.
[X.M.P.] If you install memory modules supporting the eXtreme Memory Prole
(X.M.P.) Technology, choose this item to set the proles supported by your
memory modules for optimizing the system performance.
The following two items appear only when you set the Ai Overclocking Tuner to [Manual].
BCLK/PCIE Frequency [XXX]
Allows you to adjust the CPU and VGA frequency to enhance the system performance. Use
the <+> and <-> keys to adjust the value. You can also key in the desired value using the
numeric keypad. The values range from 80.0MHz to 300.0MHz.
eXtreme Memory Profile
This item appears only when you set the Ai Overclocking Tuner item to [X.M.P.] and
allows you to select the X.M.P. mode supported by your memory module. Conguration
options: [Prole #1] [ Prole #2]
ASUS MultiCore Enhancement [Enabled]
[Enabled] Select this option for maximum performance under XMP/Manual/User
dene memory frequency mode.
[Disabled] Select this option for default core ratio settings.
Turbo Ratio [Auto]
Allows you to set the CPU ratio automatically or manually.
[Auto] Sets all Turbo Ratio to Intel® CPU default settings automatically.
[Manual] Sets the Turbo Ratio for every core-activation condition of a full unlocked
CPU manually.
When the Turbo Ratio is set to [Manual], the following item appears:
Ratio Synchronizing Control [Disabled]
[Enabled] Allows you to set an individual Turbo Ratio for every core-activation condition
[Disabled] Allows you to set one single Turbo Ratio for all core-activation conditions.
1-Core Ratio Limit [Auto]
Allows you to set the 1-Core Ratio Limit. Select [Auto] to apply the CPU default Turbo
Ratio setting or manually assign a 1-Core Ration Limit value that is higher than or
equal to the 2-Core Ratio Limit.
2-Core Ratio Limit [Auto]
Allows you to set the 2-Core Ratio Limit. Select [Auto] to apply the CPU default Turbo
Ratio setting or manually assign a 2-Core Ratio Limit value that is higher than or equal
to the 3-Core Ratio Limit. 1-Core Ratio Limit must not be set to [Auto].
ASUS P8Z77-V LE PLUS 3-9
Chapter 3
3-Core Ratio Limit [Auto]
Allows you to set the 3-Core Ratio Limit. Select [Auto] to apply the CPU default Turbo
Ratio setting or manually assign a 3-Core Ratio Limit value that is higher than or equal
to the 4-Core Ratio Limit. 1-Core/2-Core Ratio Limit must not be set to [Auto].
4-Core Ratio Limit [Auto]
Allows you to set the 4-Core Ratio Limit. Select [Auto] to apply the CPU default Turbo
Ratio setting or manually assign a 4-Core Ratio Limit value that is higher than or equal
to the 3-Core Ratio Limit. 1-Core/2-Core/3-Core Ratio Limit must not be set to [Auto].
Internal PLL Overvoltage [Auto]
Allows you to set the Internal PLL Overvoltage. Conguration options: [Auto] [Enabled]
[Disabled]
CPU bus speed : DRAM speed ratio mode [Auto]
Allows you to set the CPU bus speed to DRAM speed ratio mode.
[Auto] DRAM speed is set to the optimized settings.
[100:133] The CPU bus speed to DRAM speed ratio is set to 100:133.
[100:100] The CPU bus speed to DRAM speed ratio is set to 100:100.
Memory Frequency [Auto]
Allows you to set the memory operating frequency. The conguration options vary with
the BCLK/PCIE Frequency item settings. Conguration options: [Auto] [DDR3-800MHz]Conguration options: [Auto] [DDR3-800MHz]
[DDR3-1066MHz] [DDR3-1333MHz] [DDR3-1400MHz] [DDR3-1600MHz] [DDR3-1800MHz]
[DDR3-1866MHz] [DDR3-2000MHz] [DDR3-2133MHz] [DDR3-2200MHz] [DDR3-2400MHz]
[DDR3-2600MHz] [DDR3-2666MHz] [DDR3-2800MHz] [DDR3-2933MHz] [DDR3-3000MHz]
Selecting a very high memory frequency may cause the system to become unstable! If this
happens, revert to the default setting.
iGPU Max. Frequency [Auto]
Allows you to set the iGPU maximum frequency. The values range from xxxxMHz (by CPU)
to 3000MHz with a 50MHz interval. Use <+>/<-> to adjust the value.
EPU Power Saving Mode [Disabled]
Allows you to enable or disable the EPU power saving function.Conguration options:
[Disabled] [Enabled]
EPU Setting [Auto]
This item appears only when you set the EPU Power Saving MODE item to [Enabled] and
allows you to select the EPU power saving mode. Conguration options: [Auto] [Light Power
Saving Mode] [Medium Power Saving Mode] [Max Power Saving Mode]
OC Tuner
OC Tuner automatically overclocks the frequency and voltage of CPU and DRAM for
enhancing the system performance. Conguration options: [OK] [Cancel]
3-10 Chapter 3: BIOS setup
Chapter 3
DRAM Timing Control
The sub-items in this menu allow you to set the DRAM timing control features. Use the <+>
and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard
and press the <Enter> key.
Changing the values in this menu may cause the system to become unstable! If this
happens, revert to the default settings.
CPU Power Management
The sub-items in this menu allow you to set the CPU ratio and features.
CPU Ratio [Auto]
Allows you to manually adjust the maximum non-turbo CPU ratio. Use <+> and <-> keys to
adjust the value. The valid value ranges vary according to your CPU model.
Enhanced Intel SpeedStep Technology [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled] Disables this function.
[Enabled] The operating system dynamically adjusts the processor voltage and
core frequency which may result in decreased average consumption and
decreased average heat production.
Turbo Mode [Enabled]
[Enabled] Allows processor cores to run faster than marked frequency in specic
conditions.
[Disabled] Disables this function.
The following three items appear only when you set Turbo Mode to [Enabled].
Long Duration Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
Long Duration Maintained [Auto]
Allows you to maintain the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
Short Duration Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
Primary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for CPU cores
Use <+> and <-> key to adjust the value at 0.125A increment. . .
Secondary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for Internal Graphics cores.
Use <+> and <-> key to adjust the value at 0.125A increment.
ASUS P8Z77-V LE PLUS 3-11
Chapter 3
DIGI+ Power Control
CPU Load-Line Calibration [Auto]
Load-line is dened by Intel VRM spec and affects CPU voltage. The CPU working voltage
will decrease proportionally to CPU loading. Higher value gets a higher voltage and better
overclocking performance, but increases the CPU and VRM thermal. This item allows you to
adjust the voltage range from the following percentages to boost the system performance:
0% (Regular), 25% (Medium), 50% (High), 75% (Ultra High) and 100% (Extreme).
Conguration options: [Auto] [Regular] [Medium] [High] [Ultra High] [Extreme]
The actual performance boost may vary depending on your CPU specication.
CPU Voltage Frequency [Auto]
Frequency switching affects the VRM transient response, and the thermal component. Higher
frequency gets quicker transient response. Conguration options: [Auto] [Manual]
DO NOT remove the thermal module when switching to Manual Mode. The thermal
conditions should be monitored.
CPU Fixed Frequency [XXX]
This item appears only when you set the CPU Voltage Frequency item to [Manual] and
allows you to set a xed CPU frequency. Use the <+> and <-> keys to adjust the value. The
values range from 200k Hz to 400k Hz with a 10k Hz interval.
VRM Spread Spectrum [Disabled]
This item becomes congurable only when you set the CPU Voltage Frequency item to
[Auto] and allows you to enable the spread spectrum to enhance system stability.
CPU Power Phase Control [Standard]
Allows you to control the power phase based on the CPU’s demands.
Conguration options: [Standard] [Optimized] [Extreme] [Manual Adjustment]
DO NOT remove the thermal module when switching to Extreme and Manual Mode. The
thermal conditions should be monitored.
CPU Power Duty Control [T.Probe]
DIGI + VRM Duty control adjusts the current and thermal conditions of every component’s
phase. Conguration options:
[T. Probe] - Select to maintain the VRM thermal balance.
[Extreme] - Select to maintain the current VRM balance.
3-12 Chapter 3: BIOS setup
Chapter 3
CPU Current Capability [100%]
Allows you to congure the total power range, and extends the overclocking frequency range
simultaneously. Conguration options: [100%] [110%] [120%] [130%] [140%]
Choose a higher value when overclocking, or under a high CPU loading for extra power
support.
CPU Power Thermal Control [125]
A higher temperature brings a wider CPU power thermal range and extends the overclocking
tolerance to enlarge the O.C. potential. Use the <+> and <-> keys to adjust the value. The
values range from 125 to 135.
DO NOT remove the thermal module. The thermal conditions should be monitored.
CPU Power Response Control [Auto]
The DIG+ VRM controller provides a faster, and precise power response rate for the CPU.
Apply a higher value for an extreme overclocking. Conguration options: [Auto] [Regular:
100%] [Medium: 150%] [Fast: 200%] [Ultra Fast: 250%]
The actual performance boost may vary depending on your CPU conguration.
iGPU Load-line Calibration [Auto]
Allows you to set the iGPU Load-line Calibration. Conguration options: [Auto] [Regular]
[High] [Extreme]
iGPU Current Capability [100%]
Allows you to set the iGPU Current Capability. Conguration options: [100%] [110%] [120%]
[130%]
Do not remove the thermal module while changing the DIGI+ VRM related parrameters .
The thermal conditions should be monitored.
DRAM Current Capability [100%]
Allows you to set the DRAM Current Capability. Conguration options: [100%] [110%] [120%]
[130%]
DRAM Voltage Frequency [Auto]
Allows you to set the DRAM Voltage Frequency automatically or manually. Conguration
options: [Auto] [Manual]
DRAM Fixed Frequency Mode [XXX]
This item appears only when you set the DRAM Voltage Frequency item to [Manual] and
allows you to set a xed DRAM frequency. Use the <+> and <-> keys to adjust the value. The
values range from 300k Hz to 500k Hz with a 50k Hz interval.
ASUS P8Z77-V LE PLUS 3-13
Chapter 3
DRAM Power Phase Control [Auto]
Allows you to set the DRAM Power Phase Control. Conguration options: [Auto] [Optimized]
[Extreme].
[Auto] Allows you to set the Auto mode.
[Optimized] Allows you to set the ASUS optimized phase tuning prole.
[Extreme] Allows you to set the full phase mode.
CPU Voltage [Offset Mode]
[Manual Mode] Allows you to set a xed CPU voltage.
[Offset Mode] Allows you to set the Offset voltage.
CPU Offset Mode Sign [+]
This item appears only when you set the CPU Voltage item to [Offset Mode].
[+] To offset the voltage by a positive value.
[–] To offset the voltage by a negative value.
CPU Offset Voltage [Auto]
This item appears only when you set the CPU Voltage item to [Offset Mode] and
allows you to set the Offset voltage. The values range from 0.005V to 0.635V with a
0.005V interval.
CPU Manual Voltage [Auto]
This item appears only when you set the CPU Voltage item to [Manual Mode] and
allows you to set a xed CPU voltage. The values range from 0.800V to 1.990V with a
0.005V interval.
Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage
may damage the CPU permanently, and setting a low voltage may make the system
unstable.
iGPU Voltage [Offset Mode]
[Manual Mode] Allows you to set a xed iGPU voltage.
[Offset Mode] Allows you to set the iGPU Offset voltage.
iGPU Offset Mode Sign [+]PU Offset Mode Sign [+]
This item appears only when you set the iGPU Voltage item to [Offset Mode].
[+] To offset the voltage by a positive value.
[–] To offset the voltage by a negative value.
iGPU Offset Voltage [Auto]
This item appears only when you set the iGPU Voltage item to [Offset Mode] and
allows you to set the Offset voltage. The values range from 0.005V to 0.635V with a
0.005V interval.
3-14 Chapter 3: BIOS setup
Chapter 3
Black Yellow Pink Red
CPU Manual Voltage 0.800V–1.070V 1.075V–1.120V 1.125V–1.170V 1.175V–1.990V
CPU Offset Voltage 0.005V–0.055V 0.060V–0.105V 0.110V–0.155V 0.160V–0.635V
iGPU Manual Voltage 0.800V–1.070V 1.075V–1.120V 1.125V–1.170V 1.175V–1.990V
iGPU Offset Voltage 0.005V–0.055V 0.060V–0.105V 0.110V–0.155V 0.160V–0.635V
DRAM Voltage 1.20000V–1.57500V 1.58000V–
1.65000V
1.65500V–
1.72500V
1.73000V–
2.13500V
VCCSA Voltage 0.610V–0.970V 0.975V–1.015V 1.020V–1.060V 1.065V–1.560V
PCH Voltage 0.735V–1.100V 1.105V–1.155V 1.160V–1.205V 1.210V–1.685V
iGPU Manual Voltage [Auto]
This item appears only when you set the iGPU Voltage item to [Manual Mode] and
allows you to set a xed iGPU voltage. The values range from 0.800V to 1.990V with a
0.005V interval.
DRAM Voltage [Auto]
Allows you to set the DRAM voltage. The values range from 1.20V to 2.135V with a 0.005V
interval.
According to Intel CPU spec, DIMMs with voltage requirement over 1.65V may damage
the CPU permanently. We recommend you install the DIMMs with the voltage requirement
below 1.65V.
VCCSA Voltage [Auto]
Allows you to set the VCCSA voltage. The values range from 0.610V to 1.560V with a 0.005V
interval.
PCH Voltage [Auto]
Allows you to set the Platform Controller Hub voltage. The values range from 0.735V to
1.685V with a 0.005V interval.
• The values of the CPU Manual Voltage, CPU Offset Voltage, iGPU Manual Voltage,
iGPU Offset Voltage, DRAM Voltage, VCCSA Voltage, and PCH Voltage items are
labeled in different color, indicating the risk levels of high voltage settings.
• The system may need better cooling system to work stably under high voltage
settings.
CPU PLL Voltage [Auto]
Allows you to set the CPU and PCH PLL voltage. The values range from 1.80V to 1.90V with
a 0.1V interval. Conguration options: [Auto] [+0.10V]
CPU Spread Spectrum [Auto]
[Auto] Automatic conguration.
[Disabled] Enhances the BCLK overclocking ability.
[Enabled] Sets to [Enabled] for EMI control.
ASUS P8Z77-V LE PLUS 3-15
Chapter 3
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
3.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
CPU Conguration Parameters
UEFI BIOS Utility - Advanced Mode
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
> CPU Conguration
> PCH Conguration
> SATA Conguration
> System Agent Conguration
> USB Conguration
> Onboard Devices Conguration
> APM
> Network Stack
3-16 Chapter 3: BIOS setup
Chapter 3
3.5.1 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items shown in this screen may be different due to the CPU you installed.
Scroll down to display the following items:
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Adjust Non-Turbo Ratio
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Back Advanced\ CPU Conguration >
UEFI BIOS Utility - Advanced Mode
CPU Conguration
Genuine Intel(R) CPU 0 @ 2.90GHz
EM64T Supported
Processor Speed 2900 MHz
Processor Stepping 306a6
Microcode Revision 4
L1 Data Cache 32 kB x 4
L1 Code Cache 32 kB x 4
L2 Cache 256 kB x 4
L3 Cache 6144 kB
Processor Cores 4
Intel HT Technology Not Supported
CPU Ratio Range 16-29
CPU Current Ratio 29
Intel Adaptive Thermal Monitor Enabled
Active Processor Cores All
Limit CPUID Maximum Disabled
Execute Disable Bit Enabled
Intel Virtualization Technology Disabled
Hardware Prefetcher Enabled
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Intel Adaptive Thermal Monitor [Enabled]
[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.
[Disabled] Disables the CPU thermal monitor function.
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Conguration options: [All] [1] [2] [3]
Adjacent Cache Line Prefetch Enabled
> CPU Power Management Conguration
ASUS P8Z77-V LE PLUS 3-17
Chapter 3
Limit CPUID Maximum [Disabled]
[Enabled] Allows legacy operating systems to boot even without support for CPUs
with extended CPUID functions.
[Disabled] Disables this function.
Execute Disable Bit [Enabled]
[Enabled] Enables the No-Execution Page Protection Technology.
[Disabled] Forces the XD feature ag to always return to zero (0).
Intel® Virtualization Technology [Disabled]
[Enabled] Allows a hardware platform to run multiple operating systems separately
and simultaneously, enabling one system to virtually function as several
systems.
[Disabled] Disables this function.
Hardware Prefetcher [Enabled]
[Enabled] Allows a hardware platform to run multiple operating systems separately
and simultaneously, enabling one system to virtually function as several
systems.
[Disabled] Disables this function.
Adjacent Cache Line Prefetch [Enabled]
[Enabled] Allows a hardware platform to perform adjacent cache line prefetching.
[Disabled] Disables this function.
CPU Power Management Conguration
CPU Ratio [Auto]
Allows you to set the ratio between the CPU Core Clock and the BCLK Frequency. Use <+>
and <-> keys to adjust the ratio. The valid value ranges vary according to your CPU model.
Enhanced Intel SpeedStep Technology [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled] The CPU runs at its default speed.
[Enabled] The operating system controls the CPU speed.
Turbo Mode [Enabled]
[Enabled] Allows processor cores to run faster than marked frequency in specic
condition.
[Disabled] Disables this function.
CPU C1E [Auto]
Allows you to enable or disable the CPU C1E.
[Auto] Set this item automatically.
[Enabled] Enables the C1E support function. This item should be enabled in order to
enable the Enhanced Halt State.
[Disabled] Disables this function.
3-18 Chapter 3: BIOS setup
Chapter 3
CPU C3 Report [Auto]
Allows you to disable or enable the CPU C3 report to OS.
[Auto] Set this item automatically.
[Enabled] Enables the C3 report function. This item should be enabled in order to
enable the Enhanced Halt State.
[Disabled] Disables this function.
CPU C6 Report [Auto]
Allows you to disable or enable the CPU C6 report to OS.
[Auto] Set this item automatically.
[Enabled] Enables the C6 report function. This item should be enabled in order to
enable the Enhanced Halt State.
[Disabled] Disables this function.
3.5.2 PCH Conguration
High Precision Timer [Enabled]
Allows you to enable or disable the High Precision Event Timer.Conguration options:
[Enabled] [Disabled]
Intel(R) Rapid Start Technology
Intel(R) Rapid Start Technology [Disabled]
Allows you to enable or disable the Intel(R) Rapid Start Technology. Conguration options:
[Enabled] [Disabled]
The following three items appear only when you set the Intel(R) Rapid Start Technology
to [Enabled].
Entry on S3 RTC Wake [Enabled]
Allows you to enable or disable the iFFS invocation upon S3 RTC wake. Conguration
options: [Enabled] [Disabled]
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Enabled/Disabled the High Precision
Event Timer.
Back Advanced\ PCH Conguration >
UEFI BIOS Utility - Advanced Mode
PCH Conguration
High Precision Timer Enabled
> Intel(R) Rapid Start Technology
> Intel(R) Smart Connect Technology
ASUS P8Z77-V LE PLUS 3-19
Chapter 3
Entry After [10 Minutes]
This item appears only when you set the Entry on S3 RTC Wake to [Enabled] and
allows you to set the RTC wake timer at S3 entry. Conguration options: [Immediately]
[1 minute] [2 minutes] [5 minutes] [10 minutes] [15 minutes] [30 minutes] [1 hour] [2
hours]
Active Page Threshold Support [Disbaled]
Allows you to enable or disable the Active Page Threshold Support. Conguration
options: [Enabled] [Disabled]
Active Memory Threshold [x]
This item appears only when you set the Active Page Threshold Support to
[Enabled] and allows you to set the Active Memory Threshold. When the partition size
is larger than the Active Page Threshold size, the system will try to support the Intel(R)
Rapid Start Technology. When the item is set to zero, the system automatically checks
whether the partition size is enough at S3 entry. Key in the desired value using the
numeric keypad.
Intel(R) Smart Connect Technology
ISCT Conguration [Disabled]
Allows you to enable or disable the ISCT conguration. Conguration options: [Enabled]
[Disabled]
3-20 Chapter 3: BIOS setup
Chapter 3
3.5.3 SATA Conguration
While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA
Port items show Not Present if no SATA device is installed to the corresponding SATA port.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Determines how SATA controller(s)
operate.
Back Advanced\ SATA Conguration >
UEFI BIOS Utility - Advanced Mode
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Scroll down to display the following items:
SATA Conguration
SATA Mode AHCI
S.M.A.R.T. Status Check Enabled
SATA 6G_1 (Gray) Empty
Hot Plug Disabled
SATA 6G_2 (Gray) Empty
Hot Plug Disabled
SATA 3G_1 (Blue) Empty
Hot Plug Disabled
SATA 3G_2 (Blue) Empty
Hot Plug Disabled
SATA 3G_3 (Blue) Empty
Hot Plug Disabled
SATA 3G_4 (Blue) Empty
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Hot Plug Disabled
SATA Mode Selection [AHCI]
Allows you to set the SATA conguration.
[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as
Parallel ATA physical storage devices.
[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI
(Advanced Host Controller Interface). The AHCI allows the onboard storage
driver to enable advanced Serial ATA features that increases storage
performance on random workloads by allowing the drive to internally
optimize the order of commands.
[RAID] Set to [RAID] when you want to create a RAID conguration from the SATA
hard disk drives.
S.M.A.R.T. Status Check [Enabled]
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When
read/write of your hard disk errors occur, this feature allows the hard disk to report warning
messages during the POST. Conguration options: [Enabled] [Disabled]
ASUS P8Z77-V LE PLUS 3-21
Chapter 3
Hot Plug [Disabled]
These items appear only when you set the SATA mode item to [AHCI] or [RAID], and allow
you to enable/disable SATA Hot Plug Support. Conguration options: [Disabled] [Enabled]
3.5.4 System Agent Conguration
Memory Remap Feature [Enabled]
[Enabled] Allow you to enable remapping the memory above 4GB.
[Disabled] Disables this function.
Graphics Conguration
Primary Display [Auto]
Allows you to select a primary display from iGPU, PCIE, or PCI graphic devices, or
select SG for switchable GFX. Conguration options: [Auto] [iGPU] [PCIE] [PCI]
iGPU Memory [64M]
Allows you to set the iGPU memory size. Conguration options: [32M] [64M] [96M]
[128M] ~ [448M] [480M] [512M] [1024M]
Render Standby [Enabled]
Allows you to enable or disable Render Standby by internal graphics devices.
Conguration options: [Disabled] [Enabled]
iGPU Multi-Monitor [Enabled]
Allows you to enable or disable the Lucid Virtu support for both the integrated and
discrete graphics. The iGPU shared memory size will be xed at 64MB. Conguration
options: [Disabled] [Enabled]
NB PCIe Conguration
Allows you to congure the NB PCI Express settings.
PCIE x16_1 [Auto]
Allows you to set the PCIE x16_1 link speed. Conguration options: [Auto] [Gen1]
[Gen2] [Gen3]
PCIE x16_2 [Auto]
Allows you to set the PCIE x16_2 link speed. Conguration options: [Auto] [Gen1]
[Gen2] [Gen3]
Main Ai Tweaker Advanced Monitor Boot Tool
Enable or disable memory remap above
4G.
Back Advanced\ System Agent Conguration >
UEFI BIOS Utility - Advanced Mode
System Agent Conguration
Memory Remap Feature Enabled
> Graphics Conguration
> NB PCIe Conguration
3-22 Chapter 3: BIOS setup
Chapter 3
3.5.5 USB Conguration
The items in this menu allow you to change the USB-related features.
The USB Devices item shows the auto-detected values. If no USB device is detected, the
item shows None.
Legacy USB Support [Enabled]
[Enabled] Enables the support for USB devices on legacy operating systems (OS).
[Disabled] The USB devices can be used only for the BIOS setup program.
[Auto] Allows the system to detect the presence of USB devices at startup. If
detected, the USB controller legacy mode is enabled. If no USB device is
detected, the legacy USB support is disabled.
Legacy USB3.0 Support [Enabled]
[Enabled] Enables the support for USB 3.0 devices on legacy operating systems
(OS).
[Disabled] Disables the function.
Intel xHCI Mode [Smart Auto]
Allows you to select the Intel xHCI Mode. Conguration options: [Smart Auto] [Auto] [Enabled]
[Disabled]
EHCI Hand-off [Disabled]
[Enabled] Enables the support for operating systems without an EHCI hand-off
feature.
[Disabled] Disables the function.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Enables Legacy USB support. AUTO
option disables legacy support if no
USB devices are connected. DISABLE
option will keep USB devices
available only for EFI applications.
Back Advanced\ USB Conguration >
UEFI BIOS Utility - Advanced Mode
USB Conguration
USB Devices:
1 Keyboard, 1 Mouse, 2 Hubs
Legacy USB Support Enabled
Legacy USB3.0 Support Enabled
Intel xHCI Mode Smart Auto
EHCI Hand-off Disabled
ASUS P8Z77-V LE PLUS 3-23
Chapter 3
3.5.6 Onboard Devices Conguration
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Enabled/Disabled Azalia HD Audio
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Back Advanced\ Onboard Devices Conguration >
UEFI BIOS Utility - Advanced Mode
HD Audio Controller [Enabled]
[Enabled] Enables the High Denition Audio Controller.
[Disabled] Disables the controller.
The following two items appear only when you set the HD Audio Controlleritem to
[Enabled].
Front Panel Type [HD]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-
denition audio depending on the audio standard that the front panel audio module supports.
[HD] Sets the front panel audio connector (AAFP) mode to high denition audio.
[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97
SPDIF Out Type [SPDIF]
[SPDIF] Sets to [SPDIF] for SPDIF audio output.
[HDMI] Sets to [HDMI] for HDMI audio output.
PCI Express X16_3 Slot (Black) bandwidth [X2 Mode]
[X2 mode] PCIe X16_3 slot runs at X2 mode with all slots enabled.
[X4 mode] PCIe X16_3 slot runs at X4 mode for high performance support.
(PCIe X1_1, PCIe X1_2 slots are disabled.)
HD Audio controller Enabled
Front Panel Type HD
SPDIF Out Type SPDIF
PCI Express X16_3 Slot (Black) bandwidth x2 mode
Marvell Storage Controller Enabled
Marvell Storage OPROM Enabled
Realtek LAN Controller Enabled
Realtek PXE OPROM Disabled
ASmedia USB 3.0 Controller Enabled
ASmedia USB 3.0 Battery Charging Support Disabled
> Serial Port Conguration
3-24 Chapter 3: BIOS setup
Chapter 3
Marvell Storage Controller [Enabled]
Allows you to enable or disable the Marvell Storage Controller.
[Disabled] Disables the Marvell storage controller.
[Enabled] Enables the Marvell storage controller.
Marvell Storage OPROM [Enabled]
Allows you to enable or disable the Marvell Storage OPROM.
[Enabled] Enables the Marvell Storage OPROM.
[Disabled] Disables the Marvell Storage OPROM.
Realtek LAN Controller [Enabled]
[Enabled] Enables the Realtek LAN controller.
[Disabled] Disables the controller.
Realtek PXE OPROM [Disabled]
This item appears only when you set the previous item to [Enabled] and allows you to enable
or disable the PXE OptionRom of the Realtek LAN controller.
Conguration options: [Enabled] [Disabled]
Asmedia USB 3.0 Controller [Enabled]
[Enabled] Enables the USB 3.0 controller.
[Disabled] Disables the controller.
Asmedia USB 3.0 Battery Charging Support [Disabled]
This item appears only when you set the previous item to [Enabled] and allows you to enable
or disable the ASmedia USB 3.0 Battery Charging Support.
[Enabled] Enables Asmedia USB 3.0 fast battery charging support for USB 3.0
devices complying with the BC 1.1 regulation.
[Disabled] Disables battery charging support.
Serial Port Conguration
The sub-items in this menu allow you to set the serial port conguration.
Serial Port [Enabled]
Allows you to enable or disable the serial port (COM). Conguration options: [Enabled]
[Disabled]
Change Settings [IO=3F8h; IRQ=4]
This item appears only when you set the Serial Port to [Enabled] and allows you
to select the Serial Port base address. Conguration options: [IO=3F8h; IRQ=4]
[IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4] [IO=2E8h; IRQ=3]
ASUS P8Z77-V LE PLUS 3-25
Chapter 3
Restore AC Power Loss [Power Off]
[Power On] The system goes into on state after an AC power loss.
[Power Off] The system goes into off state after an AC power loss.
[Last State] The system goes into either off or on state, whatever the system state was
before the AC power loss.
Power On By PS/2 Keyboard [Disabled]
[Disabled] Disables the Power On by a PS/2 keyboard.
[Space Bar] Sets the Space Bar on the PS/2 keyboard to turn on the system.
[Ctrl-Esc] Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system.
[Power Key] Sets Power key on the PS/2 keyboard to turn on the system. This feature
requires an ATX power supply that provides at least 1A on the +5VSB lead.
Power On By PCIE/PCI [Disabled]
[Disabled] Disables the PCIE/PCI devices to generate a wake-on-LAN feature of the
Intel/Realtek LAN device.
[Enabled] Enables the PCIE/PCI devices to generate a wake-on-LAN feature of the
Intel/Realtek LAN device.
Power On By Ring [Disabled]
[Disabled] Disables Ring to generate a wake event.
[Enabled] Enables Ring to generate a wake event.
Power On By RTC [Disabled]
[Disabled] Disables RTC to generate a wake event.
[Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/
Minute/Second will become user-congurable with set values.
RTC Alarm Date (Days)
This item appears only when you set the previous item to [Enabled] and allows you to select
RTC alarm time (days). When you set the time to zero, the RTC alarms everyday. Use <+>Use <+>
and <-> keys to adjust the time.
- Hour / - Mimute / - Second
Allows you to set the RTC alarm time. Use <+> and <-> keys to adjust the time.Use <+> and <-> keys to adjust the time.
3.5.7 APM
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Select AC power state when power is
re-applied after a power failure.
Back Advanced\ APM >
UEFI BIOS Utility - Advanced Mode
Restore AC Power Loss Power off
Power On By PS/2 Keyboard Disabled
Power On By PCIE/PCI Disabled
Power On By Ring Disabled
Power On By RTC Disabled
3-26 Chapter 3: BIOS setup
Chapter 3
3.5.8 Network Stack
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Enable/Disable UEFI network stack
Back Advanced\ Network Stack >
UEFI BIOS Utility - Advanced Mode
Network Stack Disable Link
Network Stack [Disable Link]
Enables or disables the UEFI network stack. Conguration options: [Disable Link] [Enabled]
Ipv4 PXE Support [Enabled]
This item appears only when you set the Network Stack item to [Enabled]. When this item is
disabled, the IPV4 PXE boot option will not be created. Conguration options: [Disable Link]
[Enabled]
Ipv6 PXE Support [Enabled]
This item appears only when you set the Network Stack item to [Enabled]. When this item is
disabled, the IPV6 PXE boot option will not be created. Conguration options: [Disable Link]
[Enabled]
ASUS P8Z77-V LE PLUS 3-27
Chapter 3
3.6 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the following items:
3-28 Chapter 3: BIOS setup
Chapter 3
CPU Temperature / MB Temperature [xxx�C/xxx�F][xxx�C/xxx�F]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select Ignore if you do not wish to display the detected temperatures.
CPU Fan Speed [xxxx RPM] or [Ignore] / [N/A]
Chassis Fan 1/2/3 Speed [xxxx RPM] or [Ignore] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld
shows N/A. Select Ignore if you do not wish to display the detected speed.
CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
CPU Q-Fan Control [Enabled]
[Disabled] Disables the CPU Q-Fan control feature.
[Enabled] Enables the CPU Q-Fan control feature.
CPU Fan Speed Low Limit [200 RPM]
This item appears only when you enable the CPU Q-Fan Control feature and allows you to
disable or set the CPU fan warning speed.
Conguration options: [Ignore] [100 RPM] [200 RPM] [300 RPM] [400 RPM] [500 RPM]
CPU Fan Profile [Standard]
This item appears only when you enable the CPU Q-Fan Control feature and allows
you to set the appropriate performance level of the CPU fan.
[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on
the CPU temperature.
[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.
[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.
[Manual] Sets to [Manual] to assign detailed fan speed control parameters.
The following four items appear only when you set CPU Fan Prole to [Manual].
CPU Upper Temperature [70]
Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range
from 40ºC to 90ºC.
CPU Fan Max. Duty Cycle(%) [100]
Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from
20% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at
the maximum duty cycle.
CPU Lower Temperature [20]
Displays the lower limit of the CPU temperature.
ASUS P8Z77-V LE PLUS 3-29
Chapter 3
CPU Fan Min. Duty Cycle(%) [20]
Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 0%
to 100%. When the CPU temperature is under 40ºC, the CPU fan will operate at the minimum
duty cycle.
Chassis1/2/3 Q-Fan Control [Enabled]
[Disabled] Disables the Chassis1/2/3 Q-Fan control feature.
[Enabled] Enables the Chassis1/2/3 Q-Fan control feature.
Chassis1/2/3 Fan Speed Low Limit [600 RPM]
This item appears only when you enable the Chassis1/2/3 Q-Fan Control feature and allows
you to disable or set the chassis1/2/3 fan warning speed.
Conguration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]
Chassis1/2/3 Fan Profile [Standard]
This item appears only when you enable the Chassis1/2/3 Q-Fan Control feature and
allows you to set the appropriate performance level of the chassis1/2/3 fan.
[Standard] Sets to [Standard] to make the chassis fan automatically adjust depending
on the chassis temperature.
[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.
[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.
[Manual] Sets to [Manual] to assign detailed fan speed control parameters.
The following four items appear only when you set Chassis1/2/3 Fan Prole to [Manual].
Chassis1/2/3 Upper Temperature [70]
Use the <+> and <-> keys to adjust the upper limit of the chassis temperature. The values range
from 40ºC to 90ºC.
Chassis1/2/3 Fan Max. Duty Cycle(%) [100]
Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range
from 20% to 100%. When the chassis temperature reaches the upper limit, the chassis fan will
operate at the maximum duty cycle.
Chassis1/2/3 Lower Temperature [40]
Displays the lower limit of the chassis temperature.
Chasis1/2/3 Fan Min. Duty Cycle(%) [60]
Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from
0% to 100%. When the chassis temperature is under 40ºC, the chassis fan will operate at the
minimum duty cycle.
Anti Surge Support [Enabled]
This item allows you to enable or disable the Anti Surge function.
Conguration options: [Disabled] [Enabled]
3-30 Chapter 3: BIOS setup
Chapter 3
3.7 Boot menu
The Boot menu items allow you to change the system boot options.
Bootup NumLock State [On]
[On] Sets the power-on state of the NumLock to [On].
[Off] Sets the power-on state of the NumLock to [Off].
Full Screen Logo [Enabled]
[Enabled] Enables the full screen logo display feature.
[Disabled] Disables the full screen logo display feature.
Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.
Post Report [5 sec]
This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to
set the waiting time for the system to display the post report. Conguration options: [1 sec] [2
sec] [3 sec] [4 sec] [5 sec] [6 sec] [7 sec] [8 sec] [9 sec] [10 sec] [Until Press ESC]
Wait For ‘F1’ If Error [Enabled]
[Disabled] Disables this function.
[Enabled] The system waits for the <F1> key to be pressed when error occurs.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Select the keyboard NumLock state
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
UEFI BIOS Utility - Advanced Mode
Bootup NumLock State On
Full Screen Logo Enabled
Wait for ‘F1’ If Error Enabled
Option ROM Messages Force BIOS
Setup Mode EZ Mode
UEFI/Legacy Boot Enable bot...
PCI ROM Priority Legacy ROM
Boot Option Priorities
Boot Override
ASUS P8Z77-V LE PLUS 3-31
Chapter 3
Option ROM Messages [Force BIOS]
[Force BIOS] The third-party ROM messages will be forced to display during the boot
sequence.
[Keep Current] The third-party ROM messages will be displayed only if the third-party
manufacturer had set the add-on device to do so.
Setup Mode [EZ Mode]
[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup
program.
[EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.
UEFI/Legacy Boot [Enable both UEFI and Legacy]
[Enable both UEFI and Legacy] Enables both UEFI and Legacy boot.
[Disable UEFI] Enables the Legacy boot, and disables the UEFI boot.
[Disable Legacy] Enables the UEFI boot, and disables the Legacy boot.
PCI ROM Priority [Legacy ROM]
Allows you to select which PCI Option ROM to launch in case there are multiple Option
ROMs (Legacy and EFI compatible). Conguration options: [Legacy ROM] [EFI Compatible
ROM].
Boot Option Priorities
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system.
• To select the boot device during system startup, press <F8> when ASUS Logo appears.
• To access Windows OS in Safe Mode, do any of the following:
- Press <F5> when ASUS Logo appears.
- Press <F8> after POST.
Boot Override
These items displays the available devices. The number of device items that appears on
the screen depends on the number of devices installed in the system. Click an item to start
booting from the selected device.
3-32 Chapter 3: BIOS setup
Chapter 3
3.8 Tools menu
The Tools menu items allow you to congure options for special functions. Select an item
then press <Enter> to display the submenu.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Be used to update BIOS
UEFI BIOS Utility - Advanced Mode
3.8.1 ASUS EZ Flash 2 Utility
Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.
For more details, refer to section 3.10.2 ASUS EZ Flash 2 utility.
> ASUS EZ Flash 2 Utility
> ASUS O.C. Prole
> ASUS SPD Information
3.8.2 ASUS O.C. Prole
This item allows you to store or load multiple BIOS settings.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Save BIOS settings to Prole
Back Tool\ ASUS O.C. Prole >
UEFI BIOS Utility - Advanced Mode
The Setup Prole Status items show Not Installed if no prole is created.
O.C. Prole Conguration
Setup Prole 1 Status : Not Installed
Setup Prole 2 Status : Not Installed
Setup Prole 3 Status : Not Installed
Setup Prole 4 Status : Not Installed
Setup Prole 5 Status : Not Installed
Setup Prole 6 Status : Not Installed
Setup Prole 7 Status : Not Installed
Setup Prole 8 Status : Not Installed
Add Your CMOS Prole
Label
Save to Prole 1
Add Your CMOS Prole
Load from Prole 1
ASUS P8Z77-V LE PLUS 3-33
Chapter 3
• DO NOT shut down or reset the system while updating the BIOS to prevent the
system boot failure!
• We recommend that you update the BIOS le only coming from the same memory/CPU
conguration and BIOS version.
Label
Allows you to input the label of the setup prole.
Save to Prole
Allows you to save the current BIOS settings to the BIOS Flash, and create a prole. Key in a
prole number from one to eight, press <Enter>, and then select Yes.
Load from Prole
Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the proleKey in the prole
number that saved your BIOS settings, press <Enter>, and then select Yes.
3.8.3 ASUS SPD Information
DIMM Slot # [DIMM_A1]
Displays the Serial Presence Detect (SPD) information of the DIMM module installed on the
selected slot. Conguration options: [DIMM_A1] [DIMM_A2] [DIMM_B1 [DIMM_B2]
3-34 Chapter 3: BIOS setup
Chapter 3
3.9 Exit menu
The Exit menu items allow you to load the optimal default values for the BIOS items, and
save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit
menu.
Load Optimized Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a conrmation window appears.
Select Yes to load the default values.
Save Changes & Reset
Once you are nished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved. When you select this option or if you press <F10>,
a conrmation window appears. Select Yes to save changes and exit.
Discard Changes & Exit
This option allows you to exit the Setup program without saving your changes. When youWhen you
select this option or if you press <Esc>, a conrmation window appears. Select Yes to
discard changes and exit..
ASUS EZ Mode
This option allows you to enter the EZ Mode screen.
Launch EFI Shell from lesystem device
This option allows you to attempt to launch the EFI Shell application (shellx64.e) from one of
the available lesystem devices.
Exit
Load Optimized Defaults
Save Changes & Reset
Discard Changes & Exit
ASUS EZ Mode
Launch EFI Shell from lesystem device
ASUS P8Z77-V LE PLUS 3-35
Chapter 3
3.10 Updating BIOS
The ASUS website publishes the latest BIOS versions to provide enhancements on system
stability, compatibility, or performance. However, BIOS updating is potentially risky. If there
is no problem using the current version of BIOS, DO NOT manually update the BIOS.
Inappropriate BIOS updating may result in the system’s failure to boot. Carefully follow the
instructions of this chapter to update your BIOS if necessary.
Visit the ASUS website (www.asus.com) to download the latest BIOS le for this
motherboard.
The following utilities allow you to manage and update the motherboard BIOS setup program.
1. ASUS Update: Updates the BIOS in Windows® environment.
2. ASUS EZ Flash 2: Updates the BIOS using a USB ash drive.
3. ASUS CrashFree BIOS 3: Restores the BIOS using the motherboard support DVD or
a USB ash drive when the BIOS le fails or gets corrupted.
4. ASUS BIOS Updater: Updates and backups the BIOS in DOS environment using the
motherboard support DVD and a USB ash disk drive.
Refer to the corresponding sections for details on these utilities.
Save a copy of the original motherboard BIOS le to a USB ash disk in case you need
to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS
Update or BIOS Updater utilities.
3.10.1 ASUS Update utility
The ASUS Update is a utility that allows you to manage, save, and update the motherboard
BIOS in Windows® environment. The ASUS Update utility allows you to:
• Update the BIOS directly from the Internet
• Download the latest BIOS le from the Internet
• Update the BIOS from an updated BIOS le
• View the BIOS version information
This utility is available in the support DVD that comes with the motherboard package.
ASUS Update requires an Internet connection either through a network or an Internet
Service Provider (ISP).
Launching ASUS Update
After installing AI Suite II from the motherboard support DVD, launch ASUS Update by
clicking Update > ASUS Update on the AI Suite II main menu bar.
Quit all Windows® applications before you update the BIOS using this utility.
3-36 Chapter 3: BIOS setup
Chapter 3
Updating the BIOS through the Internet
2. Select the ASUS FTP site nearest
you to avoid network trafc.
If you want to enable the BIOS
downgradable function and auto
BIOS backup function, check the
checkboxs before the two items on
the screen.
4. You can decide whether to change
the BIOS boot logo, which is the
image appearing on screen during
the Power-On Self-Tests (POST).
Click Yes if you want to change the
boot logo or No to continue.
5. Follow the onscreen instructions to
complete the update process.
3. Select the BIOS version that you want
to download. Click Next.
To update the BIOS through the Internet:
1. From the ASUS Update screen, select
Update BIOS from Internet, and
then click Next.
ASUS P8Z77-V LE PLUS 3-37
Chapter 3
• The screenshots in this section are for reference only. The actual BIOS information
vary by models.
• Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
Updating the BIOS through a BIOS le
2. Locate the BIOS le from the Open
window, click Open, and click Next.
3. You can decide whether to change
the BIOS boot logo. Click Yes if you
want to change the boot logo or No to
continue.
4. Follow the onscreen instructions to
complete the update process.
To update the BIOS through a BIOS le:
1. From the ASUS Update screen,
select Update BIOS from le, and
then click Next.
3-38 Chapter 3: BIOS setup
Chapter 3
3.10.2 ASUS EZ Flash 2 utility
The ASUS EZ Flash 2 feature allows you to update the BIOS without having to use a
bootable oppy disk or an OS-based utility.
Before you start using this utility, download the latest BIOS from the ASUS website
at www.asus.com.
To update the BIOS using EZ Flash 2:
1. Insert the USB ash disk that contains the latest BIOS le to the USB port.
2. Enter the Advanced Mode of the BIOS setup program. Go to theEnter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select
ASUS EZ 2 Flash Utility and press <Enter> to enable it.
3. Press <Tab> to switch to the Drive eld.
4. Press the Up/Down arrow keys to nd the USB ash disk that contains the latest BIOS,
and then press <Enter>.
5. Press <Tab> to switch to the Folder Info eld.
6. Press the Up/Down arrow keys to nd the BIOS le, and then press <Enter> to perform
the BIOS update process. Reboot the system when the update process is done.
Flash Info
MODEL: P8Z77-V LE PLUS VER: 0306 DATE: 03/23/2012
Exit
[Enter] Select or Load [Tab] Switch [Up/Down/PageUp/PageDown/Home/End] Move [Esc] Exit
fs0:\
Drive Folder Info
fs0:\ 12/15/11 10:23p 4194304 Z77VLEP.CAP
fs1:\
ASUS EZ Flash 2 Utility v01.04
File Infor
MODEL: VER: DATE:
Help Info
ASUS P8Z77-V LE PLUS 3-39
Chapter 3
3.10.3 ASUS CrashFree BIOS 3 utility
The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the
BIOS le when it fails or gets corrupted during the updating process. You can restore a
corrupted BIOS le using the motherboard support DVD or a USB ash drive that contains
the BIOS le.
• The BIOS le in the motherboard support DVD may be older than the BIOS le
published on the ASUS ofcial website. If you want to use the newer BIOS le,
download the le at support.asus.com and save it to a USB ash drive.
• Before using this utility, rename the BIOS le in the removable device into
Z77VLEP.CAP.
Recovering the BIOS
To recover the BIOS:
1. Turn on the system.
2. Insert the motherboard support DVD to the optical drive, or the USB ash drive
containing the BIOS le to the USB port.
3. The utility automatically checks the devices for the BIOS le. When found, the utility
reads the BIOS le and enters ASUS EZ Flash 2 utility automatically.
4. The system requires you to enter BIOS Setup to recover BIOS setting. To ensure
system compatibility and stability, we recommend that you press <F5> to load default
BIOS values.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause
system boot failure!
• This function can support devices such as a USB ash disk with FAT 32/16 format and
single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent system
boot failure!
Ensure to load the BIOS default settings to ensure system compatibility and stability. Select
the Load Optimized Defaults item under the Exit menu. See section 3.9 Exit Menu for
details.
3-40 Chapter 3: BIOS setup
Chapter 3
Booting the system in DOS environment
1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.
2. Boot your computer. When the ASUS Logo appears, press <F8> to show the BIOS
Boot Device Select Menu. Insert the support DVD into the optical drive and select the
optical drive as the boot device.
Welcome to FreeDOS (http://www.freedos.org)!
C:\>d:
D:\>
3. When the Make Disk menu appears, select the FreeDOS command prompt item by
pressing the item number.
4. At the FreeDOS prompt, type d: and press <Enter> to switch the disk from
Drive C (optical drive) to Drive D (USB ash drive).
3.10.4 ASUS BIOS Updater
The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also
allows you to copy the current BIOS le that you can use as a backup when the BIOS fails or
gets corrupted during the updating process.
The succeeding utility screens are for reference only. The actual utility screen displays may
not be same as shown.
Before updating BIOS
1. Prepare the motherboard support DVD and a USB ash drive in FAT32/16 format and
single partition.
2. Download the latest BIOS le and BIOS Updater from the ASUS website at http://
support.asus.com and save them on the USB ash drive.
• NTFS is not supported under DOS environment. Do not save the BIOS le and BIOS
Updater to a hard disk drive or USB ash drive in NTFS format.
• Do not save the BIOS le to a oppy disk due to low disk capacity.
3. Turn off the computer and disconnect all SATA hard disk drives (optional).
Please select boot device:
SATA: XXXXXXXXXXXXXXXX
USB XXXXXXXXXXXXXXXXX
UEFI: XXXXXXXXXXXXXXXX
Enter Setup
 ↑ and ↓ to move selection
ENTER to select boot device
ESC to boot using defaults
ASUS P8Z77-V LE PLUS 3-41
Chapter 3
4. Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS
Updater. Restart your computer.
DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure!
• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS
prompt after updating BIOS.
• Ensure to load the BIOS default settings to ensure system compatibility and stability.
Select the Load Optimized Defaults item under the Exit BIOS menu. See Chaper 3
of your motherboard user manual for details.
• Ensure to connect all SATA hard disk drives after updating the BIOS le if you have
disconnected them.
Updating the BIOS le
To update the BIOS le using BIOS Updater
1. At the FreeDOS prompt, type bupdater /pc /g and press <Enter>.
ASUSTek BIOS Updater for DOS V1.18 [2010/04/29]
Current ROM Update ROM
A:
Note
[Enter] Select or Load [Tab] Switch [V] Drive Info
[Up/Down/Home/End] Move [B] Backup [Esc] Exit
Z77VLEP.CAP 4194304 2011-12-15 17:30:48
PATH: A:\
BOARD: P8Z77-V LE PLUS
VER: 0306
DATE: 03/23/2012
BOARD: Unknown
VER: Unknown
DATE: Unknown
D:\>bupdater /pc /g
2. The BIOS Updater screen appears as below.
3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys
to select the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le
and prompts you to conrm BIOS update.
Are you sure to update BIOS?
Yes No
3-42 Chapter 3: BIOS setup
Chapter 3
ASUS P8Z77-V LE PLUS 4-1
Chapter 4
If Autorun is NOT enabled in your computer, browse the contents of the support DVD to
locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the DVD.
4.1 Installing an operating system
This motherboard supports Windows® XP/ 64-bit XP / 7 / 64-bit 7 operating systems (OS).
Always install the latest OS version and corresponding updates to maximize the features of
your hardware.
4.2 Support DVD information
The support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
4.2.1 Running the support DVD
Place the support DVD into the optical drive. The DVD automatically displays the Drivers menu if
Autorun is enabled in your computer. Click each menu tab and select the items you want to install.
• Motherboard settings and hardware options vary. Use the setup procedures presented
in this chapter for reference only. Refer to your OS documentation for detailed
information.
• Ensure that you install the Windows® XP Service Pack 3 or Windows® 64-bit XP/ 7// 7//
64-bit 7 operating systems (OS) before installing the drivers for better compatibility
and system stability.
The contents of the support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.
Chapter 4: Software support
Chapter 4
The Drivers menu shows the available
device drivers if the system detects
installed devices. Install the necessary
drivers to use the devices.
The Utilities
menu shows the
applications and
other software that
the motherboard
supports.
The Make Disk menu
contains items to
create the RAID/AHCI
driver disk.
The Manual menu contains
the list of supplementary user
manuals. Click an item to open
the folder of the user manual. Click the Contact
tab to display the
ASUS contact
information.
Click an icon
to display DVD/
motherboard
information
Click an item
to install
The Specials tab
contains the unique
features of ASUS
motherboard
4-2 Chapter 4: Software support
Chapter 4
4.2.2 Obtaining the software manuals
The software manuals are included in the support DVD. Follow the instructions below to get
the necessary software manuals.
The software manual les are in Portable Document Format (PDF). Install the Adobe®
Acrobat® Reader from the Utilities menu before opening the les.
The screenshots in this section are for reference only. The actual software manuals
containing in the support DVD vary by models.
1. Click the Manual tab. Click ASUS
Motherboard Utility Guide from
the manual list on the left.
2. The Manual folder of the support
DVD appears. Double-click the
folder of your selected software.
3. Some software manuals are
provided in different languages.
Double-click the language to
show the software manual.
ASUS P8Z77-V LE PLUS 4-3
Chapter 4
4.3 Software information
Most of the applications in the support DVD have wizards that will conveniently guide you
through the installation. View the online help or readme le that came with the software
application for more information.
4.3.1 AI Suite II
AI Suite II is an all-in-one interface that integrates several ASUS utilities and allows users to
launch and operate these utilities simultaneously.
Installing AI Suite II
To install AI Suite II on your computer
1. Place the support DVD to the optical drive. The Drivers installation tab appears if your
computer has enabled the Autorun feature.
2. Click the Utilities tab, then click AI Suite II.
3. Follow the onscreen instructions to complete installation.
Using AI Suite II
AI Suite II automatically starts when you enter the Windows® operating system (OS). The AI
Suite II icon appears in the Windows® notication area. Click the icon to open the AI Suite II
main menu bar.
Click each button to select and launch a utility, to monitor the system, to update the motherboard
BIOS, to display the system information, and to customize the settings of AI Suite II.
• The Auto Tuning button appears only on models with the TurboV EVO function.
• The applications in the Tool menu vary with models.
• The screeshots of AI Suite II in this user manual are for reference only. The actual
screenshots vary with models.
• Refer to the software manual in the support DVD or visit the ASUS website
at www.asus.com for detailed software conguration.
Shortcut to the Auto Tuning
Mode under TurboV EVO
Click to select a utility
Click to monitor sensors
or CPU frequency
Click to update the motherboard BIOS
Click to show the
system information
Click to customize
the interface settings
4-4 Chapter 4: Software support
Chapter 4
4.3.2 TurboV EVO
ASUS TurboV EVO introduces TurboV that allows you to manually adjust the CPU frequency
and related voltages as well as Auto Tuning function that offers automatic and easy
overlocking and system level up. After installing AI Suite II from the motherboard support
DVD, launch TurboV EVO by clicking Tool > TurboV EVO on the AI Suite II main menu bar.
Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
TurboV
TurboV allows you to overclock the BCLK frequency, CPU voltage, DRAM voltage, VCCSA
Voltage, CPU PLL Voltage, and PCH Voltage in WIndows® environment and takes effect in
real-time without exiting and rebooting the OS.
Refer to the CPU documentation before adjusting CPU voltage settings. Setting a high
voltage may damage the CPU permanently, and setting a low voltage may make the
system unstable.
For system stability, all changes made in TurboV will not be saved to BIOS settings and
will not be kept on the next system boot. Use the Save Prole function to save your
customized overclocking settings and manually load the prole after Windows starts.
Save the current
settings as a
new prole
Voltage
Adjustment bars
Current values
Target values
Load prole
Click to
select Mode
Click to show
settings
Applies all changes
immediately
Undoes all changes
without applying
Click to restore
all start-up
settings
ASUS P8Z77-V LE PLUS 4-5
Chapter 4
Using Advanced Mode
Click on the Advanced Mode tab to adjust the advanced voltage settings.
GPU Boost
GPU Boost overclocks the integrated iGPU for the best graphics performance.
1. Click on the GPU Boost tab.
2. Adjust the iGPU Max Frequency and iGPU Voltage.
3. Click Yes to make the change takes effect.
GPU Boost
Target values
Current values
Click to restore
all start-up
settings
Adjustment bars
Undoes all
changes without
applying
Applies all changes
Advanced mode
Applies all changes
immediately
Undoes all changes
without applying
Click to restore
all start-up
settings
Current values
Target values Voltage
Adjustment bars
4-6 Chapter 4: Software support
Chapter 4
Auto Tuning
ASUS TurboV EVO includes two auto tuning modes, providing the most exible auto-tuning
options.
• The overclocking result varies with the CPU model and the system conguration.
• To prevent overheating from damaging the motherboard, a better thermal environment
is strongly recommended.
• Fast Tuning: fast CPU overclocking
• Extreme Tuning: extreme overclocking for CPU and memory
Using Fast Tuning
1. Click the Auto Tuning tab and
then click Fast.
2. Read through the warning
messages and click OK to start
auto-overclocking.
CPU Ratio
Allows you to manually adjust the CPU ratio.
1. Click on the CPU Ratio tab.
2. Drag the adjustment bar leftwards or rightwards to the desired value.
3. Click on Apply to make the change take effect.
• Set the CPU Ratio item in BIOS to [Auto] before using the CPU Ratio function in
TurboV. Refer to the BIOS section of your motherboard user manual for details.
• The CPU Ratio bars show the status of the CPU cores, which vary with your CPU
model.
CPU Ratio
Click to restore all
start-up settings
Adjustment bar
Applies all changes
immediately
Undoes all changes
without applying
ASUS P8Z77-V LE PLUS 4-7
Chapter 4
3. TurboV automatically overclocks
the CPU, saves BIOS settings
and restarts the system. After
re-entering Windows, a message
appears indicating auto tuning
success. Click OK to exit.
Using Extreme Tuning
1. Click the Auto Tuning tab and then
click Extreme.
2. Read through the warning
messages and click OK to start
auto-overclocking.
3. TurboV automatically overclocks the
CPU and memory and restarts the
system. After re-entering Windows, a
message appears indicating the current
overclocking result. To keep the result,
click Stop.
4. If you did not click Stop in the previous
step, TurboV automatically starts further
system overclocking and stability test.
An animation appears indicating the
overclocking process. Click Stop if
you want to cancel the Overclocking
process.
5. TurboV automatically adjusts and saves
BIOS settings and restarts the system.
After re-entering Windows, a message
appears indicating auto tuning success.
Click OK to exit.
4-8 Chapter 4: Software support
Chapter 4
4.3.3 DIGI+ Power Control
DIGI+ PowerControl allows you to adjust the VRM voltage and frequency modulation to
enhance reliability and stability. It also provides prole settings to achieve the highest power
efciency, generating less heat to prolong component lifespan, and minimize power loss.
After installing AI Suite II from the motherboard support DVD, launch DIGI+ Power Control
by clicking Tool > DIGI+ Power Control on the AI Suite II main menu bar.
Select CPU Power or DRAM Power to adjust the power control settings.
5
1
2
3
4
Function no. Function description
1Smart DIGI+ Key
Quickly delivers a higher VRM frequency, voltage, and current for superior
CPU/iGPU/DRAM overclocking performance with one switch.
2Smart CPU Power Level - 45W
CPU power usage is limited to 45W to achieve the best digital power
saving conditions.
3Smart CPU Power Level - 35W
CPU power usage is limited to 35W to achieve the best digital power
saving mode.
4OC Now!
Adjusts the CPU ratio in TurboV EVO.
5Default (Smart DIGI+ Setting)
Sets your CPU/iGPU/DRAM power to default settings.
6Default (Smart CPU Power Level)
Sets your power consumption to CPU default setting.
6
• Enabling the Smart CPU Power Level may decrease the total power delivery to the
CPU, and affect the CPU performance under a heavy system load. The system
restores to its default settings on the next startup.
• Only Intel® 3rd generation processors support the Smart DIGI+ Technology feature.
Smart DIGI+
ASUS P8Z77-V LE PLUS 4-9
Chapter 4
Application aids
Apply all changes
immediately
Undo all changes
without applying
1
CPU Power
2
3
6
7
45
Application aids
Apply all changes
immediately
Undo all changes
without applying
8
9
Function no. Function description
1CPU Load-line Calibration
It allows you to adjust the voltage settings and control the system
temperature. Higher load-line calibration could get higher voltage and
good overclocking performance but increases the CPU and VRM thermal.
2CPU Current Capability
CPU Current Capability provides wider total power range for overclocking.
A higher value setting gets higher VRM power consumption delivery.
3CPU Voltage Frequency
Switching frequency will affect the VRM transient response and
component thermal. Higher frequency gets quicker transient response.
4-10 Chapter 4: Software support
Chapter 4
Function no. Function description
4iGPU Load-line Calibration
Load-line is dened by Intel VRM specications, and affects the iGPU
voltage. The iGPU working voltage decreases proportionally to integrated
graphics loading. A higher value can get a higher iGPU voltage, and a
good performance, but decreases the CPU and VRM thermal conditions.
5iGPU Current Capability
A higher value brings wider total iGPU power range, and extends the
overclocking frequency range simultaneously to enhance the iGPU
performance.
6CPU Power Phase Control
Increase phase number under heavy system loading to get more transient
and better thermal performance. Reduce phase number under light
system loading to increase VRM efciency.
* The system automatically set the default to [Extreme] when using the Intel®
iGPU.
7CPU Power Thermal Control
A higher temperature brings a wider CPU power thermal range, and
extends the overclocking tolerance to enlarge overclocking potential.
8CPU Power Response Control
The DIGI+ VRM controller provides a faster and precise power response
rate for CPU. Apply a higher value for an extreme overclocking.
9CPU Power Duty Control
CPU Power Duty Control adjusts the current of every VRM phase and the
thermal of every phase component.
ASUS P8Z77-V LE PLUS 4-11
Chapter 4
• The actual performance boost may vary depending on your CPU specication.
• Do not remove the thermal module. The thermal conditions must be monitored.
DRAM Power
Function no. Function description
1DRAM Current Capability
A higher value brings a wider total power range and extends the
overclocking frequency range simultaneously.
2DRAM Voltage Frequency
Allows you to adjust the DRAM switching frequency for system stability or
to increase OC Range.
3DRAM Power Phase Control
Select Extreme for full phase mode to increase system performance or
select Optimized for ASUS optimized phase tuning prole to increase
DRAM power efciency.
Application aids
Apply all changes
immediately
Undo all changes
without applying
1
2
3
4-12 Chapter 4: Software support
Chapter 4
4.3.4 EPU
EPU is an energy-efcient tool that satises different computing needs. This utility provides
several modes that you can select to save system power. Selecting Auto mode will have the
system shift modes automatically according to current system status. You can also customize
each mode by conguring settings like CPU frequency, GPU frequency, vCore Voltage, and
Fan Control.
Launching EPU
After installing AI Suite II from the motherboard support DVD, launch EPU by clicking
Tool > EPU on the AI Suite II main menu bar.
*• Select From EPU Installation to show the CO2 that has been reduced since you
installed EPU.
*• Select From the Last Reset to show the total CO2 that has been reduced since you
click the Clear button .
• Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
*Shifts between the
display of Total and
Current CO2 reduced
Displays the system properties of each mode
Displays the following message
if no VGA power saving engine is
detected.
Advanced settings for each mode
Multiple system
operating modes
Displays current mode
The items lighting up
means power saving
engine is activated
Displays the amount
of CO2 reduced
Displays the current
CPU power
ASUS P8Z77-V LE PLUS 4-13
Chapter 4
Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
4.3.5 FAN Xpert+
Fan Xpert+ intelligently allows you to adjust both the CPU and chassis fan speeds
according to different ambient temperatures caused by different climate conditions in
different geographic regions and your PC’s system loading. The built-in variety of useful
proles offer exible controls of fan speed to achieve a quiet and cool environment.
Launching FAN Xpert+
After installing AI Suite II from the motherboard support DVD, launch FAN Xpert+ by
clicking Tool > FAN Xpert+ on the AI Suite II main menu bar.
Fan setting
• Disable: disables the Fan Xpert+ function.
• Standard: adjusts fan speed in a moderate pattern.
• Silent: minimizes fan speed for quiet fan operation.
• Turbo: maximizes the fan speed for the best cooling effect.
• User: Allows you to congure the CPU fan prole under certain limitations.
Using FAN Xpert+
Click Fan Name to select a fan and then click Setting to select a preset mode for your
selected fan.
Click to select a fan type Click to select a fan prole
Click to apply the settings
Click to discard the settings
4-14 Chapter 4: Software support
Chapter 4
4.3.6 Probe II
Probe II is a utility that monitors the computer’s vital components, and detects and alerts you
of any problem with these components. Probe II senses fan rotations, CPU temperature,
and system voltages, among others. With this utility, you are assured that your computer is
always at a healthy operating condition.
Launching Probe II
After installing AI Suite II from the motherboard support DVD, launch Probe II by clicking
Tool > Probe II on the AI Suite II main menu bar.
Loads the default
threshold values
for each sensor
Applies your
changes
Loads your saved
conguration
Saves your
conguration
Conguring Probe II
Click the Voltage/Temperature/Fan Speed tabs to activate the sensors or to adjust the
sensor threshold values. The Preference tab allows you to customize the time interval of
sensor alerts, or change the temperature unit.
Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
ASUS P8Z77-V LE PLUS 4-15
Chapter 4
4.3.7 Sensor Recorder
Sensor Recorder monitors the changes in the system voltage, temperature, and fan speed on
a timeline. The History Record function allows you to designate specic time spans on record
to keep track of the three system statuses for certain purposes.
Launching Sensor Recorder
After installing AI Suite II from the motherboard support DVD, launch Sensor Recorder by
clicking Tool > Sensor Recorder on the AI Suite II main menu bar.
Using Sensor Recorder
Click on Voltage/ Temperature/ Fan Speed tabs for the status you want to monitor. Colored
lines will automatically appear on the diagram to indicate the immediate changes in the
system status.
Using History Record
1. Click on the History Record tab and adjust the settings on the left for Record Interval
and Record Duration according to need.
2. Click on Start Recording to start measurement and recording of each sensor.
3. To stop recording, click on Recording again.
4. To track the recorded contents, set Type/ Date/ Select display items to display the
history details.
Click on Monitor > Sensor on the AI Suite II main menu bar and a highlight of the system
statuses will appear on the right panel.
4-16 Chapter 4: Software support
Chapter 4
4.3.8 Ai Charger+
Battery Charging Version 1.1 (BC 1.1), a USB Implementers Forum (USB-IF) certied USB
charging function, is designed to make USB charging faster than the standard USB devices.
If your USB device supports the BC 1.1 function*, when you connect your USB device to your
system, the system automatically detects your USB device and starts a fast USB charging.
The charging speed may get 3 times faster than that of the standard USB devices**.
• * Check your USB device manufacturer if it fully supports the BC 1.1 function.
• ** The actual charging speed may vary with your USB device’s conditions.
• Ensure to remove and reconnect your USB device after enabling or disabling
Ai Charger+ to ensure normal charging function.
ASUS P8Z77-V LE PLUS 4-17
Chapter 4
The utility cannot detect the devices connected to your computer if the charging mode is
enabled.
4.3.9 USB Charger+
This utility allows you to fast-charge your portable USB devices even if your PC is off, in
Sleep Mode, or Hibernate Mode.
Launching the USB Charger+
To launch this utility, open the AI Suite II, then click Tool > USB Charger+.
USB fast-charging mode settings
Click the dropdown box, and select a proper charge mode when your PC is off, in Sleep
Mode, or Hibernate Mode.
• Disable: disables the USB fast-charging function.
• ASUS: fast-charges your connected ASUS devices.
• Apple: fast-charges your connected Apple devices.
• Kindle: fast-charges your Kindle devices.
• Others: charges other portable USB devices.
Application aids
Click to detect the
currently connected
device
Click to discard the
settings
Click to apply the
settings
Click to choose
the USB fast-
charging mode
settings
Displays the
status of the
connected device*
* The illustration above shows that no device connected to your PC for
fast-charging.
4-18 Chapter 4: Software support
Chapter 4
Setting up the charging function
When a portable device is connected to the USB port of the PC, the USB Charger+
automatically detects the kind of your device.
Charging the device
Click to fast-charge your device.
Disabling the charging function
Click to stop charging your device.
Click to stop
fast-charging the
connected device.
Click to fast-charge
your connected
device.
Indicates that
the portable
device is in
charging mode
Click to rescan the
connected device.
Clicking the stops the charging of your connected device, and rescans for other
detected devices. Click the to re-enable the fast-charging.
ASUS P8Z77-V LE PLUS 4-19
Chapter 4
4.3.10 USB 3.0 Boost
The ASUS exclusive USB 3.0 Boost provides speed boost for USB 3.0 devices and the
up-to-date support of USB Attached SCSI Protocol (UASP). With USB 3.0 Boost, you can
accelerate the transfer speed of your USB 3.0 devices with ease.
Launching USB 3.0 Boost
After installing AI Suite II from the motherboard support DVD, launch USB 3.0 Boost by
clicking Tool > USB 3.0 Boost on the AI Suite II main menu bar.
Conguring USB 3.0 Boost
1. Connect a USB 3.0 device to the USB 3.0 port.
2. USB 3.0 Boost automatically detects the property of the connected device and
switches to Turbo mode or UASP mode (if UASP is supported by the connected
device).
3. You can manually switch the USB 3.0 mode back to Normal mode at any time.
• Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
• Due to Intel® chipset limitation, Intel® USB 3.0 ports do not support ASUS 3.0 Boost in
Windows XP operating system.
• Use the USB 3.0 devices for high performance. The data transfer speed varies with
USB devices.
4-20 Chapter 4: Software support
Chapter 4
4.3.11 Network iControl
• Ensure to install the LAN drivers before using this function.
• Network iControl is only supported under Windows 7 and can only support the
onboard LAN.
ASUS Network iControl, a one-stop setup network control center that gives you the EZ Start,
Quick Connection, and EZ Prole functions, makes it easier for you to manage your network
bandwidth. It also allows you to automatically connect to a PPPoE network for a more
convenient online experience.
To launch Network iControl, click Tool > Network iControl from AI Suite II main menu bar.
Using EZ Start
EZ Start allows you to quickly activate Network iControl, and set the highest bandwidth
priority for your top currently running program.
To use EZ Start:
1. Click the EZ Start tab.
2. Click ON/OFF to enable/disable Network iControl.
• By default, Network iControl is set to ON.
• When switched off, the Quick Connection, EZ Prole and Info are disabled.
• You may monitor the bandwidth priority from your desktop’s taskbar.
3. Tick Set current network program as the highest priority to enable User Prole.
4. Select a prole and click Apply.
You may also apply your personal prole in EZ Start.
Select ON to activate Network iControl
Displays the
current network
programs
bandwidth
Click to apply the
settings made
Click to select a prole
Click to enable the network
program as the highest priority
ASUS P8Z77-V LE PLUS 4-21
Chapter 4
Using Quick Connection
Conguring the PPPoE connection settings
Before enabling the Network iControl’s Quick Connection functions, you must congure the
PPPoE connection settings
To congure the PPPoE settings:
Right-click in the taskbar, and select Open Network and Sharing Center.
.
Right-click the PPPoE Connection, and select Properties.
Click the Options tab, and deselect Prompt for name and password, certicate, etc.
Click OK to complete the auto PPPoE connection settings.
You only need to congure the PPPoE connection settings once.
Obtain the necessary information about your PPPoE connection from your
network provider.
1.
2.
3.
•
•
4-22 Chapter 4: Software support
Chapter 4
Conguring the Quick Connection
To congure the auto-PPPoE connection:
Click the Quick Connection tab.
Tick Automatically connect online anytime option, then select the connection name
in the Connection Name dropdown box.
Click Apply to enable PPPoE automatic network connection.
You can also enable the No Delay TCP function to help improve the network performance.
1.
2.
3.
Click to select Connection Name
Tick to set the auto
PPPoE connection
Click to apply settings
Click ON to improve
network performance
ASUS P8Z77-V LE PLUS 4-23
Chapter 4
Using EZ Prole
To use the EZ Prole:
EZ Prole allows you to load, edit, and save your own network program priority prole.
Click the EZ Prole tab. The running programs are shown in the network program
column.
Select the network program, and click to create your prole.
Click to save the changes and/or rename your prole.
Click , , or to set the program priority as High, Normal, or Low.
1.
2.
3.
4.
Click to select a
network prole
Click to save, or rename
your prole settings
Click to set
program as
High/Normal/
Low priority
Pre-schedule
your network
priorities to
avoid network
congestions
Select a
program, and
click
to edit your
network prole
Information
pane of
currently
running
programs
4-24 Chapter 4: Software support
Chapter 4
4.3.12 USB BIOS Flashback Wizard
This utility allows you to check and save the latest BIOS version to a USB storage device.
With ASUS USB BIOS Flashback hardware feature, the system BIOS is conveniently
updated without booting your system.
Scheduling the latest BIOS download
In the Download Setting eld, tick Schedule (days) and select the number of days for
the next download update available.
Click Apply to save the BIOS download schedule. Click Cancel to cancel the changes
made.
Downloading the updated BIOS
Plug the ash drive before you start downloading.
Click Check for New BIOS Update to look for an updated BIOS rmware.
Wait for the system to check the latest
BIOS rmware.
1.
2.
1.
2.
Current BIOS
information
Cancels all changes
Applies all changes
Sets the schedule
for BIOS Update
download
Click to check for
an update BIOS
rmware available
for download
ASUS P8Z77-V LE PLUS 4-25
Chapter 4
After the utility detects a new BIOS
rmware, save the BIOS rmware by
clicking from the Save to eld, select
the USB ashdrive, and click Download.
After the download is complete, click OK.
1.
2.
P8Z77-V LE
After you download the BIOS le to your ash drive, you can update the motherboard’s BIOS.
Refer to BIOS_FLBK switch section in 2.2.6 Onboard Switches for details.
4-26 Chapter 4: Software support
Chapter 4
4.3.13 MyLogo2
This MyLogo utility lets you customize the boot logo. The boot logo is the image that appears
on screen during the Power-On-Self-Tests (POST). Personalize your computer from the very
beginning!
Launching ASUS Update
After installing AI Suite II from the motherboard support DVD, launch MyLogo by clicking
Update> MyLogo on the AI Suite II main menu bar.
Using MyLogo
Select the way you would like to do update your boot logo. Then click Next and follow the
given instructions.
Change the boot logo of a downloaded BIOS le and update (or do not update) this
BIOS to the motherboard
1. At BIOS File, Browse to download the requested BIOS le to your system. This utility
will help you detect the compatibility of the BIOS version.
2. Then at Picture File, Browse to select the desired image for boot logo. Click Next.
ASUS P8Z77-V LE PLUS 4-27
Chapter 4
3. Click on Auto Tune to adjust image size compatibility or adjust the resolution bar.
4. You can click on Booting Preview to preview the boot image. Then click Next.
5. Click on Flash to start updating the image to the boot logo.
6. Click on Yes to reboot or you can also see the new logo next time you restart your
computer.
The fullscreen logo application in BIOS utility must be enabled for MyLogo to take effect.
4-28 Chapter 4: Software support
Chapter 4
4.3.14 Audio congurations
The Realtek® audio CODEC provides 8-channel audio capability to deliver the ultimate audio
experience on your computer. The software provides Jack-Detection function, S/PDIF Out
support, and interrupt capability. The CODEC also includes the Realtek® proprietary UAJ®
(Universal Audio Jack) technology for all audio ports, eliminating cable connection errors and
giving users plug and play convenience.
Follow the installation wizard to install the Realtek® Audio Driver from the support DVD that
came with the motherboard package.
If the Realtek audio software is correctly installed, you will nd
the Realtek HD Audio Manager icon on the taskbar. Double-
click on the icon to display the Realtek HD Audio Manager. Realtek HD Audio Manager
Control settings
window
Conguration
options
Information button
Exit button
Minimize button
B. Realtek HD Audio Manager for Windows XP
Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
Analog and digital connector status
A. Realtek HD Audio Manager for Windows® 7™
Control settings
Conguration option tabs (vary with the audio devices connected)
Device advanced
settings
Information button
Exit button
Minimize button
Connector settings
Set default device buttons
ASUS P8Z77-V LE PLUS 4-29
Chapter 4
4.4 Introduction to Intel® 2012 Desktop
responsiveness technologies
This document details the overview of the installation and conguration procedures of the
Intel® 2012 Desktop responsiveness technologies.
Intel® 2012 Desktop responsiveness technologies feature the three technologies:
Intel® Smart Response Technology
Intel® Rapid Start Technology
Intel® Smart Connect Technology
4.4.1 System Requirements for Intel® 2012 Desktop
responsiveness technologies
In order for the system to run smoothly for the Intel® 2012 Desktop responsiveness, you must
meet the following requirements:
1. CPU: Intel® 3rd/2nd generation Core Processor family
2. OS: Windows® 7 operating systems
3. SSD: One dedicated SSD (Solid State Disk) to support Intel® Smart Response and
Intel ® Rapid Start Technology is necessary.
Refer to the SSD Capacity Requirements table for the information of SSD size, partition
capacity, and system memory requirements.
4. HDD: At least one HDD (Hard Disk Drive) for the system OS drive.
5. DRAM: To enable Intel® Rapid Start Technology, DRAM size smaller than 8GB is
required.
Ensure to enable the acceleration of Intel® Smart Response Technology before
creating the partition for the Intel® Rapid Start Technology.
•
•
•
4-30 Chapter 4: Software support
Chapter 4
SSD Capacity Requirements
SSD Partition Capacity
Requirements
System DRAM
2GB 4GB 8GB
Intel® storage combinations
Intel® Rapid Start 2GB 4GB 8GB
Intel® Smart Response 20GB 20GB 20GB
Intel® Smart Response
and
Intel® Rapid Start
Separate 20GB
and 2GB
partition
(SSD size >
22GB)
Separate
20GB and 4GB
partition
(SSD size >
24GB)
Separate
20GB and 8GB
partition
(SSD size >
28GB)
Intel® Smart Response,
Intel® Rapid Start,
and
Intel® Smart Connect
Separate 20GB
and 2GB partition
(SSD size >
22GB)
Separate
20GB and 4GB
partition
(SSD size >
24GB)
Separate 20GB
and 8GB
partition
(SSD size >
28GB)
• The SSD used for Intel® Rapid Start and Intel® Smart Response is not allowed for
creating RAID.
• Due to OS behavior, Intel® Rapid Start Technology works inefciently with over 4G
system memory under Windows® 7 32-bit operating system.
• Only Intel® internal SATA ports (gray and blue) support Intel® 2012 Desktop
responsiveness technologies.
• The performance of Intel® Smart Response Technology and Intel® Rapid Storage
Technology vary by the installed SSD.
ASUS P8Z77-V LE PLUS 4-31
Chapter 4
4.4.2 Intel® Smart Response Technology
Intel® Smart Response Technology boosts overall system performance. It uses an installed
fast SSD (min. 20GB available) as a cache for frequently accessed operations, speeding up
hard drive/main memory interaction. Key benets are expedited hard drive speeds, reduced
load and wait times, and maximized storage utilization. Power consumption also goes down
by reducing unnecessary hard drive spin.
Before applying Intel® Smart Response Technology, setting the SATA Mode BIOS item to
[RAID] in BIOS setup is necessary. Refer to section 3.5.3 SATA Conguration for details
Installing Intel® Smart Response Technology
1. Place the support DVD to the optical drive. The Drivers installation tab appears if your
computer has enabled the Autorun feature.
2. Click the Drivers tab, then click Intel® Rapid Storage Technology Driver software.
3. Follow the onscreen instructions to complete the installation.
Using the Intel® Smart Response Technology
1. Click Accelerate to launch Smart
Response Technology settings.
2. Select the SSD you want to use to
accelerate your storage system.
b. Select the size allocated for SSD
caching.
c. Select which HDD for caching.
d. Enhanced mode: WRITE THROUGH,
write to SSD and HDD at the same
time.
Maximized mode: WRITE BACK, write
to SSD and write back to HDD in a later
time.
4-32 Chapter 4: Software support
Chapter 4
3. Select Disable Acceleration to disable
this function, and select Change Mode to
switch acceleration mode to Enhanced/
Maximized.
• To enable Intel® Smart Response Technology, you need at least one SSD ( 20GB) and
a HDD, and only one SSD can be assigned for caching.
• If you want to restore the OS, go to BIOS Option ROM > Acceleration Options and
remove the Disks/Volume Acceleration to disable Intel® Smart Response Technology.
Refer to Chapter 4, section Installing Serial ATA hard disk for the entry of BIOS Option
ROM.
• The maximum caching size on the SSD is 64GB. If it exceeds, the storage capacity left
out for caching can still be identied by the system for normal storage.
4.4.3 Intel® Rapid Start Technology
Intel® Rapid Start Technology allows you to quickly resume your computer from sleeping
mode. Saving your computer’s system memory to the congured SSD provides a faster
wake-up response time, but keeps the energy in a low prole.
• Before applying Intel® Rapid Start Technology, go to Advanced Mode > Advanced >
PCH Conguration in BIOS item, and enable Intel® Rapid Start Technology.
• Ensure to follow the procedure Creating a partition precisely to enable the Intel
Rapid Start function. Error message appears if you install the Intel® Rapid Start Utility
before creating a partition.
Creating a partition
• Ensure to backup your data before using the Microsoft partition tool. Incorrect
partitioning process will result to data loss.
• Adjusting the DRAM to a high frequency will result to unstable system performance.
1. Go to Start, right-click Computer > Manage > Disk Management.
2. Select the SSD that you want to create the partition.
>
=
ASUS P8Z77-V LE PLUS 4-33
Chapter 4
3. Right click the New Volume
that you want to shrink from,
and select Shrink Volume.
4. If your SSD is not initialized and unformatted:
a. Right click the disk that you want to create the partition, and select Initialize.
b. Right click the unallocated volume, select New Simple Volume, and follow the
remaining steps.
5. Key in the required partition
size, and must be equal to
the system DRAM memory
(1GB = 1024MB). Click
Shrink.
Go to Start > Control
Panel > System and
Security > System, and
check the DRAM size
information.
The unallocated volume is
allocated to the selected
disk.
If your SSD is smaller than 64GB, and is set to Full disk capacity caching option for Intel®
Smart Response, you can not see any volume in the Disk Management. Ensure to set your
cache memory value of 18.6GB in Intel® Smart Response to allow enough capacity for the
Intel® Rapid Start partition.
4-34 Chapter 4: Software support
Chapter 4
6. To launch the disk partitioning tool, click Start > Programs > Accessories >
Command Prompt tool.
7. Type diskpart and press Enter.
8. In the diskpart prompt, type
list disk after DISKPART,
and press Enter. Select the
disk with the unallocated
volume by typing select
disk x (x = disk number), and
press Enter .
9. Type create partition
primary, and press Enter.
10. After creating a primary
partition, type detail
disk, and press Enter
to view the details of the
partitioned disk.
11. Select the RAW volume
which has the same size
as the shrinked volume,
type select volume x
(x = number), and press
Enter to store the Intel®
Rapid Start partition.
• The value “x” refers to a disk number where you want to create the store partition.
• The value “x” refers to a disk number where you created the unallocated partition.
• Refer to step 5 for details about the unallocated disk space in the SSD.
ASUS P8Z77-V LE PLUS 4-35
Chapter 4
12. Type set id=84 override, press Enter, and wait for the “shrinking process” until
the Disk Management utility identies a new partition called Hibernation Partition.
13. Reboot the system after creating the partition.
The partition for Intel® Rapid Start Technology is incomplete if the computer is not rebooted,
and this results to function failure of Intel® Rapid Start Technology.
Enabling and disabling the Intel® Rapid Start Technology under the
OS
Install the Intel® Rapid Start Technology rst from your support DVD in order to launch the
Intel® Rapid Start Manager.
After creating the partition, launch the Intel® Rapid Start
Manager to enable or disable the Intel® Rapid Start
Technology.
1. Click the Show hidden icons arrow from the right
side of the task bar, and click Intel® Rapid Start
Technology Manager icon.
The Hibernation Partition does not appear when you choose “GPT (GUID Partition Table
store type”. Ensure the “Unallocated” disappears from the volume, and a new partition is
identied.
4-36 Chapter 4: Software support
Chapter 4
Recovering the partition
This procedure allows you to delete the Intel® Rapid Start Technology from your system, and
recover the partition you made for the Intel Rapid® Start Technology installation.
1. Run the Command Prompt tool.
2. Type diskpart and press Enter.
3. At the diskpart prompt, type
list disk after DISKPART,
and press Enter.
4. Select the disk (SSD) where the
Intel® Rapid Start Technology
is installed for volume recovery,
type select disk x
(x = number), and press Enter.
The value “x” refers to a disk number where you want to delete the store partition.
2. Tick On in the Status eld to enable the function, and click Save.
Click to enable or
disable battery
saving mode. This
function only applies
to notebooks.
Select and click to enable
or disable the function
Click to enable or disable the timer. When enabled, move
the scroll bar to the desired time. When the system is
idle for more than the time period you set, the system
automatically goes into the Intel® Rapid Start mode.
Default time is 10 minutes.
Click to save the
settings made.
Click to cancel the
settings made.
ASUS P8Z77-V LE PLUS 4-37
Chapter 4
5. Type list partition,
press Enter, and select the
partition where the Intel®
Rapid Start Technology is
installed by typing select
partition x (x = number),
and press Enter.
6. Type delete partition override, and press Enter. The diskpart utility deletes
the selected partition.
7. In the desktop, click Start, right-click Computer, and click Manage.
8. In the Computer Management window,
click Disk Management, right click the
shrinked new volume, and select Extend
Volume.
9. As the Extend Volume Wizard appears,
click Next.
The value “x” refers to a disk number where you want to delete the store partition.
4-38 Chapter 4: Software support
Chapter 4
10. Click Next after selecting the default
selected disk.
11. Extend volume setup is completed. Click Finish to recover the Intel® Rapid Start
Technology partition.
12. Reboot the system after deleting the partition.
13. Go to Start > Control Panel > Programs > Programs and Features > to remove the
Intel® Rapid Start Manager for the complete deletion of Intel® Rapid Start Technology.
4.4.4 Intel® Smart Connect Technology
The Intel® Smart Connect Technology is a feature that provides the latest content updates
and energy efciency to your computer’s platform.
Once installed and activated, the Intel® Smart Connect Technology periodically wakes up the
system from sleeping mode, performs user state gathering, and initiates re-entry to sleeping
mode to wake-up after a set time interval.
• Intel® Smart Connect Technology supports Windows® Live Mail, Microsoft Outlook, and
Seesmic applications.
• It is necessary to enable the items of the PCH Conguration in the BIOS before
applying the Intel® Smart Connect Technology. Go to Advanced Mode > Advanced >
PCH Conguration, and enable the Intel® Smart Connect Technology.
Installing the Intel® Smart Connect Technology
1. Place the support DVD to the optical drive.
2. Go to Utilities, and click Intel® Smart Connect Technology.
3. As the setup wizard appears, click Next to begin the setup.
4. Tick I accept the terms in the License Agreement, and click Next.
ASUS P8Z77-V LE PLUS 4-39
Chapter 4
5. Select all and click Next for
Custom Setup.
6. Click Install to proceed the installation.
7. Click Yes to restart your system, and for the newly installed Intel® Smart Connect
Technology to take effect.
Using the Intel® Smart Connect Technology
• Before the system goes to sleep mode, ensure to keep your applications on the
desktop, and enter the applications, passwords.
• Ensure that the internet is in connection when enabling the Intel® Smart Connect
Technology.
1. Click Start > All Programs > Intel > Intel® Smart Connect Technology.
2. In the Basic tab, click Enable Updating. When enabled, the Advanced tab is
available for advanced function settings.
Click to enable
or disable the
function
When the scroll bar
is activated, adjust
the waking up time
period for Internet
data update.
Click to congure
the basic settings
The Advanced tab is activated
when updating is enabled
Click to view version
information and help topics
When updating is
enabled, click to
reset all settings to
default.
4-40 Chapter 4: Software support
Chapter 4
3. To disable the
updating function, click
Disable Updating.
Clicking this button
automatically disables
the conguration in the
Advanced tab. To reset
to defaults, click Reset
All to Defaults.
4. In the Advanced tab,
set up the schedule
during low power usage
time period for power
saving. This setting only
applies to the assigned
time period.
5. In the Help tab, click About to view the feature’s version. Click Topics to learn more
about the Intel® Smart Connect Technology and its conguration.
ASUS P8Z77-V LE PLUS 4-41
Chapter 4
4.5 RAID congurations
The motherboard supports the following SATA RAID solutions:
• Intel® Rapid Storage Technology with RAID 0, RAID 1, RAID 10 and RAID 5 support.
• You must install Windows® XP Service Pack 3 or Windows® 64-bit XP / 7 / 64-bit 7
operating systems (OS) before using Serial ATA hard disk drives. The Serial ATA RAID
feature is available only if you are using Windows® XP SP3 or Windows® 64-bit XP / 7
/ 64-bit 7 operating systems (OS) .
• Due to Windows® XP limitation, a RAID array with the total capacity over 2TB cannot
be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.
• If you want to install a Windows® operating system to a hard disk drive included in a
RAID set, you have to create a RAID driver disk and load the RAID driver during OS
installation. Refer to section 4.6 Creating a RAID driver disk for details.
4.5.1 RAID denitions
RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in
parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a
sustained data transfer rate, double that of a single disk alone, thus improving data access
and storage. Use of two new identical hard disk drives is required for this setup.
RAID 1 (Data mirroring) copies and maintains an identical image of data from one drive to
a second drive. If one drive fails, the disk array management software directs all applications
to the surviving drive as it contains a complete copy of the data in the other drive. This RAID
conguration provides data protection and increases fault tolerance to the entire system. Use
two new drives or use an existing drive and a new drive for this setup. The new drive must be
of the same size or larger than the existing drive.
RAID 5 stripes both data and parity information across three or more hard disk drives. Among
the advantages of RAID 5 conguration include better HDD performance, fault tolerance, and
higher storage capacity. The RAID 5 conguration is best suited for transaction processing,
relational database applications, enterprise resource planning, and other business systems.
Use a minimum of three identical hard disk drives for this setup.
RAID 10 is data striping and data mirroring combined without parity (redundancy data) having
to be calculated and written. With the RAID 10 conguration you get all the benets of both
RAID 0 and RAID 1 congurations. Use four new hard disk drives or use an existing drive
and three new drives for this setup.
4-42 Chapter 4: Software support
Chapter 4
4.5.2 Installing Serial ATA hard disks
The motherboard supports Serial ATA hard disk drives. For optimal performance, install
identical drives of the same model and capacity when creating a disk array.
To install the SATA hard disks for a RAID conguration:
1. Install the SATA hard disks into the drive bays.
2. Connect the SATA signal cables.
3. Connect a SATA power cable to the power connector on each drive.
4.5.3 Setting the RAID item in BIOS
You must enable the RAID function in the BIOS Setup before creating RAID set(s) using
SATA HDDs. To do this:
1. Enter the BIOS Setup during POST.
2. Go to the Advanced menu > SATA Conguration, and then press <Enter>.
3. Set the SATA Mode Selection item to [RAID].
4. Save your changes, and then exit the BIOS Setup.
Refer to Chapter 3 for details on entering and navigating through the BIOS Setup.
Due to chipset limitation, when set any of SATA ports to RAID mode, all SATA ports run at
RAID mode together.
4.5.4 Intel® Rapid Storage Technology Option ROM utility
To enter the Intel® Rapid Storage Technology Option ROM utility:
1. Turn on the system.
2. During POST, press <Ctrl> + <I> to display the utility main menu.
Intel(R) Rapid Storage Technology - Option ROM - v10.5.1.1070
Copyright(C) 2003-10 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
1. Create RAID Volume 4. Recovery Volume Options
2. Delete RAID Volume 5. Acceleration Options
3. Reset Disks to Non-RAID 6. Exit
[ DISK/VOLUME INFORMATION ]
RAID Volumes:
 Nonedened.
Physical Devices:
Port Device Model Serial # Size Type/Status(Vol ID)
0 ST3160812AS 9LS0HJA4 149.0GB Non-RAID Disk
1 ST3160812AS 9LS0F4HL 149.0GB Non-RAID Disk
2 ST3160812AS 3LS0JYL8 149.0GB Non-RAID Disk
3 ST3160812AS 9LS0BJ5H 149.0GB Non-RAID Disk
[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu
ASUS P8Z77-V LE PLUS 4-43
Chapter 4
Creating a RAID set
To create a RAID set:
1. From the utility main menu, select 1. Create RAID Volume and press <Enter>. The
following screen appears:
2. Enter a name for the RAID set and press <Enter>.
3. When the RAID Level item is selected, press the up/down arrow key to select a RAID
level to create, and then press <Enter>.
4. When the Disks item is selected, press <Enter> to select the hard disk drives you want
to include in the RAID set. The SELECT DISKS screen appears:
The utility supports maximum four hard disk drives for RAID conguration.
The navigation keys at the bottom of the screen allow you to move through the menus
and select the menu options.
The RAID BIOS setup screens shown in this section are for reference only and may not
exactly match the items on your screen.
Intel(R) Rapid Storage Technology - Option ROM - v10.5.1.1070
Copyright(C) 2003-10 Intel Corporation. All Rights Reserved.
[ CREATE VOLUME MENU ]
[ HELP ]
Enter a unique volume name that has no special characters and is
16 characters or less.
[↑↓]Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Name: Volume0
RAID Level: RAID0(Stripe)
Disks: Select Disks
Strip Size: 128KB
Capacity: 0.0 GB
Sync: N/A
Create Volume
[ SELECT DISKS ]
Port Drive Model Serial # Size Status
0 ST3160812AS 9LS0HJA4 149.0GB Non-RAID Disk
1 ST3160812AS 9LS0F4HL 149.0GB Non-RAID Disk
2 ST3160812AS 3LS0JYL8 149.0GB Non-RAID Disk
3 ST3160812AS 9LS0BJ5H 149.0GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume.
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
4-44 Chapter 4: Software support
Chapter 4
5. Use the up/down arrow key to select a drive, and then press <Space> to select. A small
triangle marks the selected drive. Press <Enter> after completing your selection.
6. Use the up/down arrow key to select the stripe size for the RAID array (for RAID 0, 10
and 5 only),and then press <Enter>. The available stripe size values range from 4KB
to 128KB. The following are typical values:
RAID 0: 128KB
RAID 10: 64KB
RAID 5: 64KB
We recommend a lower stripe size for server systems, and a higher stripe size for
multimedia computer systems used mainly for audio and video editing.
WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST.
Are you sure you want to create this volume? (Y/N):
9. Press <Y> to create the RAID volume and return to the main menu, or <N> to go back
to the CREATE VOLUME menu.
7. When the Capacity item is selected, enter the RAID volume capacity that you want
and press <Enter>. The default value indicates the maximum allowed capacity.
8. When the Create Volume item is selected, press <Enter>. The following warning
message appears:
ASUS P8Z77-V LE PLUS 4-45
Chapter 4
Deleting a RAID set
Take caution when deleting a RAID set. You will lose all data on the hard disk drives when
you delete a RAID set.
To delete a RAID set:
1. From the utility main menu, select 2. Delete RAID Volume and press <Enter>. The
following screen appears:
Exiting the Intel® Rapid Storage Technology Option ROM utility
To exit the utility:
1. From the utility main menu, select 5. Exit, and then press <Enter>. The following
warning message appears:
2. Press <Y> to exit or press <N> to return to the utility main menu.
2. Use the up/down arrow key to select the RAID set you want to delete, and then press
<Del>. The following warning message appears:
3. Press <Y> to delete the RAID set and return to the utility main menu, or press <N> to
return to the DELETE VOLUME menu.
Intel(R) Rapid Storage Technology - Option ROM - v10.5.1.1070
Copyright(C) 2003-10 Intel Corporation. All Rights Reserved.
[ DELETE VOLUME MENU ]
[ HELP ]
Deleting a volume will reset the disks to non-RAID.
WARNING: ALL DISK DATA WILL BE DELETED.
(This does not apply to Recovery volumes)
[↑↓]-Select [ESC]-Previous Menu [DEL]-Delete Volume
Name Level Drives Capacity Status Bootable
Volume0 RAID0(Stripe) 2 298.0GB Normal Yes
ALL DATA IN THE VOLUME WILL BE LOST!
(This does not apply to Recovery volumes)
Are you sure you want to delete volume “Volume0”? (Y/N):
[ DELETE VOLUME VERIFICATION ]
Are you sure you want to exit? (Y/N):
[ CONFIRM EXIT ]
4-46 Chapter 4: Software support
Chapter 4
4.6 Creating a RAID driver disk
A oppy disk with the RAID driver is required when installing a Windows® operating system
on a hard disk drive that is included in a RAID set.
• The motherboard does not provide a oppy drive connector. You have to use a
USB oppy disk drive when creating a SATA RAID driver disk.
• Windows® XP may not recognize the USB oppy disk drive due to Windows® XP
limitation. To work around this OS limitation, refer to section 4.5.4 Using a USB
oppy disk drive.
4.6.1 Creating a RAID driver disk without entering the OS
To create a RAID driver disk without entering the OS:
1. Boot your computer.
2. Press <Del> during POST to enter the BIOS setup utility.
3. Set the optical drive as the primary boot device.
4. Insert the support DVD into the optical drive.
5. Save changes and exit BIOS.
6. When the Make Disk menu appears, press <1> to create a RAID driver disk.
7. Insert a formatted oppy disk into the USB oppy disk drive, then press <Enter>.
8. Follow the succeeding screen instructions to complete the process.
4.6.2 Creating a RAID driver disk in Windows®
To create a RAID driver disk in Windows®:
1. Start Windows®.
2. Plug the USB oppy disk drive and insert a oppy disk.
3. Place the motherboard support DVD into the optical drive.
4. Go to the Make Disk menu, and then click Intel AHCI/RAID Driver Disk to create a
RAID driver disk.
5. Select USB oppy disk drive as the destination disk.
6. Follow the succeeding screen instructions to complete the process.
Write-protect the oppy disk to avoid a computer virus infection.
ASUS P8Z77-V LE PLUS 4-47
Chapter 4
4.6.3 Installing the RAID driver during Windows® OS installation
To install the RAID driver in Windows® XP:
1. During the OS installation, the system prompts you to press the F6 key to install third-
party SCSI or RAID driver.
2. Press <F6>, and then insert the oppy disk with RAID driver into the USBoppy disk drive.
3. When prompted to select the SCSI adapter to install, select the RAID driver for the
corresponding OS version.
4. Follow the succeeding screen instructions to complete the installation.
To install the RAID driver for Windows® 7 or later OS:
1. During the OS installation, click Load Driver to allow you to select the installation
media containing the RAID driver.
2. Insert the USB ash drive with RAID driver into the USB port or the support DVD into
the optical drive, and then click Browse.
3. Click the name of the device you’ve inserted, go to Drivers > RAID, and then select
the RAID driver for the corresponding OS version. Click OK.
4. Follow the succeeding screen instructions to complete the installation.
Before loading the RAID driver from a USB ash drive, you have to use another computer
to copy the RAID driver from the support DVD to the USB ash drive.
4-48 Chapter 4: Software support
Chapter 4
4.6.4 Using a USB oppy disk drive
Due to OS limitation, Windows® XP may not recognize the USB oppy disk drive when you
install the RAID driver from a oppy disk during the OS installation.
To solve this issue, add the USB oppy disk drive’s Vendor ID (VID) and Product ID (PID) to
the oppy disk containing the RAID driver. Refer to the steps below:
1. Using another computer, plug the USB oppy disk drive, and insert the oppy disk
containing the RAID driver.
2. Right-click My Computer on the
Windows® desktop or start menu,
and then select Manage from the
pop-up window.
3. Select Device Manager. From the
Universal Serial Bus controllers,
right-click xxxxxx USB Floppy, and
then select Properties from the pop-up
window.
The name of the USB oppy disk
drive varies with different vendors.
or
4. Click Details tab. The Vendor ID (VID)
and Product ID (PID) are displayed.
5. Browse the contents of the RAID driver
disk to locate the le txtsetup.oem.
6. Double-click the le. A window appears,
allowing you to select the program for
opening the oem le.
ASUS P8Z77-V LE PLUS 4-49
Chapter 4
8. Find the [HardwareIds.scsi.iaAHCI_DesktopWorkstationServer] and
[HardwareIds.scsi.iaStor_DesktopWorkstationServer] sections in the txtsetup.oem
le.
9. Type the following line to the bottom of the two sections:
id = “USB\VID_xxxx&PID_xxxx”, “usbstor”
10. Save and exit the le.
Add the same line to both sections.
The VID and PID vary with different vendors.
7. Use Notepad to open the le.
[HardwareIds.scsi.iaAHCI_DesktopWorkstationServer]
id= “PCI\VEN_8086&DEV_1C02&CC_0106”,”iaStor”
id= “USB\VID_03EE&PID_6901”, “usbstor”
[HardwareIds.scsi.iaStor_DesktopWorkstationServer]
id= “PCI\VEN_8086&DEV_2822&CC_0104”,”iaStor”
id= “USB\VID_03EE&PID_6901”, “usbstor”
4-50 Chapter 4: Software support
Chapter 4
ASUS P8Z77-V LE PLUS 5-1
Chapter 5
5.1 ATI® CrossFireX™ technology
The motherboard supports the ATI® CrossFireX™ technology that allows you to install
multi-graphics processing units (GPU) graphics cards. Follow the installation procedures in
this section.
5.1.1 Requirements
• In Dual CrossFireX mode, you should have two identical CrossFireX-ready graphics
cards or one CrossFireX-ready dual-GPU graphics card that are ATI® certied.
• Ensure that your graphics card driver supports the ATI CrossFireX technology.
Download the latest driver from the AMD website (www.amd.com).
• Ensure that your power supply unit (PSU) can provide at least the minimum power
required by your system. See Chapter 2 for details.
5.1.2 Before you begin
For ATI CrossFireX to work properly, you have to uninstall all existing graphics card drivers
before installing ATI CrossFireX graphics cards to your system.
To uninstall existing graphics card drivers:
1. Close all current applications.
2. For Windows XP, go to Control Panel > Add/Remove Programs.
For Windows 7, go to Control Panel > Programs and Features.
3. Select your current graphics card driver/s.
4. For Windows XP, select Add/Remove.
For Windows 7, select Uninstall.
5. Turn off your computer.
• We recommend that you install additional chassis fans for better thermal environment.
• Visit the ATI Game website (http://game.amd.com) for the latest certied graphics card
and the supported 3D application list.
Chapter 5: Multiple GPU technology support
5-2 Chapter 5: Multiple GPU technology support
Chapter 5
5. Connect two independent auxiliary power
sources from the power supply to the two
graphics cards separately.
6. Connect a VGA or a DVI cable to the
graphics card.
4. Align and rmly insert the CrossFireX
bridge connector to the goldngers on
each graphics card. Ensure that the
connector is rmly in place.
5.1.3 Installing two CrossFireX™ graphics cards
The following pictures are for reference only. The graphics cards and the motherboard
layout may vary with models, but the installation steps remain the same.
1. Prepare two CrossFireX-ready graphics
cards.
2. Insert the two graphics card into the
PCIEX16 slots. If your motherboard
has more than two PCIEX16 slots,
refer to Chapter 2 in this user manual
for the locations of the PCIEX16 slots
recommended for multi-graphics card
installation.
3. Ensure that the cards are properly
seated on the slots.
goldngers
CrossFireX bridge
(bundled with
graphics cards)
ASUS P8Z77-V LE PLUS 5-3
Chapter 5
5.1.4 Installing the device drivers
Refer to the documentation that came with your graphics card package to install the device
drivers.
Ensure that your PCI Express graphics card driver supports the ATI® CrossFireX™
technology. Download the latest driver from the AMD website (www.amd.com).
5.1.5 Enabling the ATI® CrossFireX™ technology
After installing your graphics cards and the device drivers, enable the CrossFireX™ feature
through the ATI Catalyst™ Control Center in Windows environment.
Launching the ATI Catalyst Control Center
To launch the ATI Catalyst Control Center:
1. Right-click on the Windows® desktop and select
Catalyst(TM) Control Center. You can also
right-click the ATI icon in the Windows notication
area and select Cayalist Control Center.
2. The Catalyst Control Center Setup
Assistant appears when the system
detects the existance of multi-graphics
cards. Click Go to continue to the
Catalyst Control Center Advanced
View window.
Enabling Dual CrossFireX
technology
1. In the Catalyst Control Center window,
click Graphics Settings > CrossFireX >
Congure.
2. From the Graphics Adapter list, select
the graphics card to act as the display
GPU.
3. Select Enable CrossFireX.
4. Click Apply, and then click OK to exit
the window.
1
2
3
4
5-4 Chapter 5: Multiple GPU technology support
Chapter 5
5.2 NVIDIA® SLI™ technology
The motherboard supports the NVIDIA® SLI™ (Scalable Link Interface) technology that
allows you to install multi-graphics processing units (GPU) graphics cards. Follow the
installation procedures in this section.
5.2.1 Requirements
• In SLI mode, you should have two identical SLI-ready graphics cards that are NVIDIA®
certied.
• Ensure that your graphics card driver supports the NVIDIA SLI technology. Download
the latest driver from the NVIDIA website (www.nvidia.com).
• Ensure that your power supply unit (PSU) can provide at least the minimum power
required by your system. See Chapter 2 for details.
5.2.2 Installing two SLI-ready graphics cards
The following pictures are for reference only. The graphics cards and the motherboard
layout may vary with models, but the installation steps remain the same.
1. Prepare two SLI-ready graphics cards.
2. Insert the two graphics card into the
PCIEX16 slots. If your motherboard
has more than two PCIEX16 slots,
refer to Chapter 2 in this user manual
for the locations of the PCIEX16 slots
recommended for multi-graphics card
installation.
3. Ensure that the cards are properly seated
on the slots.
• We recommend that you install additional chassis fans for better thermal environment.
• Visit the NVIDIA zone website (http://www.nzone.com) for the latest certied graphics
card and supported 3D application list.
ASUS P8Z77-V LE PLUS 5-5
Chapter 5
4. Align and rmly insert the SLI bridge connector to the goldngers on each graphics
card. Ensure that the connector is rmly in place.
5. Connect two independent auxiliary power sources from the power supply to the two
graphics cards separately.
6. Connect a VGA or a DVI cable to the graphics card.
5.2.3 Installing the device drivers
Refer to the documentation that came with your graphics card package to install the device
drivers.
Ensure that your PCI Express graphics card driver supports the NVIDIA® SLI™ technology.
Download the latest driver from the NVIDIA website (www.nvidia.com).
Goldngers
SLI bridge
5.2.4 Enabling the NVIDIA® SLI™ technology
After installing your graphics cards and the device drivers, enable the SLI feature in NVIDIA®
Control Panel under the Windows® Vista™ operating system.
Launching the NVIDIA Control Panel
You can launch the NVIDIA Control Panel by the following two methods.
A. Right click on the empty space of the Windows® desktop
and select NVIDIA Control Panel.
The NVIDIA Control Panel window appears (See Step B5).
5-6 Chapter 5: Multiple GPU technology support
Chapter 5
B1. If you cannot see the NVIDIA Control Panel item in step
(A), select Personalize.
B2. From the Personalization window,
select Display Settings.
B3. From the Display Settings dialog box,
click Advanced Settings.
ASUS P8Z77-V LE PLUS 5-7
Chapter 5
B4. Select the NVIDIA GeForce tab, and
then click Start the NVIDIA Control
Panel.
B5. The NVIDIA Control Panel window
appears.
Enabling SLI settings
From the NVIDIA Control Panel window, select
Set SLI Conguration. Click Enable SLI
and set the display for viewing SLI rendered
content. When done, click Apply.
5-8 Chapter 5: Multiple GPU technology support
Chapter 5
5.3 LucidLogix Virtu MVP
LucidLogix Virtu MVP allows your computer’s VGA output and discrete graphic cards
to perform better, respond faster, and process media les smoother within a low power
environment. Its GPU virtualization assigns tasks to the best available graphic source while
the newly-designed Virtual Vsync gives you a smoother gaming experience.
• LucidLogix Virtu MVP supports Windows® 7 operating systems.
• Intel® Quick Sync Video feature is supported by the 3rd/2nd generation Intel® Core™
processor family.
• iGPU Multi-Monitor support option must be enabled in BIOS and install both Intel®
Graphics Accelerator, and graphics card driver before installing LucidLogix Virtu MVP
from ASUS support DVD. Refer to 3.5.4 System Agent Conguration for details.
• Hyperformance® and Virtual Sync are enabled when using more than one discrete
GPU at the same time.
• Supports NVIDIA® GF4xx/5xx series and AMD® HD5xxx/6xxx series graphic cards.
• We do not recommended to use LucidLogix Virtu MVP under RAID mode.
5.3.1 Installing LucidLogix Virtu MVP
To install LucidLogix Virtu MVP:
Insert the support DVD in the optical drive. The ASUS Support Wizard appears if your
computer has enabled the Autorun feature.
Click the Utilites tab, then click LucidLogix Virtu MVP Software.
Follow the succeeding onscreen instructions to complete the installation.
After you successfully installed the LucidLogix Virtu MVP, the LucidLogix Virtu MVP icon
appears in the notication area.
1.
2.
3.
ASUS P8Z77-V LE PLUS 5-9
Chapter 5
i-Mode
To use LucidLogix Virtu MVP in i-Mode, the display must be connected to the onboard video
output.
Ensure to set the Primary Display to iGPU in BIOS to activate i-Mode support.
d-Mode
To use LucidLogix Virtu MVP in d-Mode, the display must be connected to the installed
graphics card.
• Ensure to set the Primary Display to PCIE or PCIE/PCI in BIOS to enable d-Mode
support.
• d-Mode is recommended for an enhanced 3D gaming performance.
5.3.2 Setting up your display
LucidLogix Virtu MVP solution comes with two distinct modes that allows you to enjoy better
graphics either from your built-in video output (i-Mode) or from a discrete graphics card
(d-Mode).
d-Mode (VGA output from
discrete graphics card)
i-Mode (VGA output
from motherboard)
The motherboard’s IO ports and discrete graphic card is for reference only and may vary in
different models.
5-10 Chapter 5: Multiple GPU technology support
Chapter 5
5.3.3 Conguring LucidLogix Virtu MVP
Launch the Virtu MVP Control Panel to allow you to congure the main features, adjust the
performance settings and select applications for graphical virtualization.
To open the control panel, right-click LucidLogix Virtu MVP icon in the notication area and
select Open Virtu MVP Control Panel.
LucidLogix Virtu MVP is automatically activated when your system is powered on. Select
Remove from system tray if you want to remove LucidLogix Virtu MVP icon from the
notication area.
Main
Allows you to turn ON/OFF the GPU virtualization. Also from the Main tab, you can set to
show or hide the In-Game icon.
Click to turn ON/OFF the LucidLogix Virtu MVP
Select display
option for In-Game
icon
Click to restore to default
settings
Tick to show icon
in system tray
ASUS P8Z77-V LE PLUS 5-11
Chapter 5
Click to turn
Hyperformance®
ON or OFF
Click to turn
Virtual Vsync
ON or OFF
Performance
Allows you to turn ON/OFF the Hyperformance® or Virtual Vsync function.
5-12 Chapter 5: Multiple GPU technology support
Chapter 5
See the descriptions of these columns below:
D column allows you to run applications with the discrete graphic card. Select D to
enable 3D graphical performance for that application.
I column allows to run applications with iGPU. Select I for applications with media
extensive performance.
H column allows you to run applications with Hyperformance®. Tick H to enhance
graphical performance for that application.
Actual graphical performance varies with the application used and graphics card installed.
•
•
•
Applications
Allows you to select applications for graphic virtualization.
Click to select a program to run by
discrete card, iGPU, or Hyperformance®
Click to add, edit, or remove programs
ASUS P8Z77-V LE PLUS A-1
Appendices
Appendices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modications to this unit not
expressly approved by the party responsible for compliance could void the user’s authority
to operate this equipment.
IC: Canadian Compliance Statement
Complies with the Canadian ICES-003 Class B specications. This device complies with
RSS 210 of Industry Canada. This Class B device meets all the requirements of the
Canadian interference-causing equipment regulations.
This device complies with Industry Canada license exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer
un fonctionnement non souhaité de l’appareil.
Notices
A-2 Appendices
Appendices
VCCI: Japan Compliance Statement
VCCI Class B Statement
KC: Korea Warning Statement
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications.
This class B digital apparatus complies with Canadian ICES-003.
DO NOT throw the motherboard in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin
indicates that the product (electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol
of the crossed out wheeled bin indicates that the battery should not be placed in municipal
waste.
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://csr.asus.com/english/REACH.htm.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for
protecting our environment. We believe in providing solutions for you to be able to responsibly
recycle our products, batteries, other components as well as the packaging materials. Please
go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different
regions.
ASUS contact information
ASUSTeK COMPUTER INC.
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone +886-2-2894-3447
Fax +886-2-2890-7798
E-mail info@asus.com.tw
Web site www.asus.com.tw
Technical Support
Telephone +86-21-38429911
Online support support.asus.com
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone +1-812-282-3777
Fax +1-510-608-4555
Web site usa.asus.com
Technical Support
Telephone +1-812-282-2787
Support fax +1-812-284-0883
Online support support.asus.com
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, D-40880 Ratingen, Germany
Fax +49-2102-959911
Web site www.asus.de
Online contact www.asus.de/sales
Technical Support
Telephone +49-1805-010923*
Support Fax +49-2102-9599-11
Online support support.asus.com
* EUR 0.14/minute from a German xed landline; EUR 0.42/minute from a mobile phone.
EC Declaration of Conformity
We, the undersigned,
Manufacturer: ASUSTeK COMPUTER INC.
Address, City: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Country: TAIWAN
Authorized representative in Europe: ASUS COMPUTER GmbH
Address, City: HARKORT STR. 21-23, 40880 RATINGEN
Country: GERMANY
declare the following apparatus:
Product name : Motherboard
Model name : P8Z77-V LE PLUS
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
EN 55022:2010
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2008
EN 55020:2007+A11:2011
1999/5/EC-R &TTE Directive
EN 300 328 V1.7.1(2006-10)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V5.2.1(2011-05)
EN 301 908-2 V5.2.1(2011-07)
EN 301 893 V1.6.1(2011-11)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 300 330-1 V1.7.1(2010-02)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001
EN 62479:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.1.1(2009-05)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 50385:2002
EN 62311:2008
2006/95/EC-LVD Directive
EN 60950-1 / A11:2009
EN 60950-1 / A12:2011
EN 60065:2002 / A2:2010
EN 60065:2002 / A12:2011
2009/125/EC-ErP Directive
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
2011/65/EU-RoHS Directive Ver. 121001
CE marking
Declaration Date: Dec. 12, 2012
Year to begin affixing CE marking:2012
Position : CEO
Name : Jerry Shen
Signature : __________
(EC conformity marking)
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: Asus Computer International
Address: 800 Corporate Way, Fremont, CA 94539.
Phone/Fax No: (510)739-3777/(510)608-4555
hereby declares that the product
Product Name : Motherboard
Model Number : P8Z77-V LE PLUS
Conforms to the following specifications:
FCC Part 15, Subpart B, Unintentional Radiators
FCC Part 15, Subpart C, Intentional Radiators
FCC Part 15, Subpart E, Intentional Radiators
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Representative Person’s Name : Steve Chang / President
Signature :
Date : Apr. , 2012
Ver. 110101
