Contents
Chapter 1: Product introduction
Chapter 2: Hardware information
Chapter 3: BIOS setup
Chapter 4: Software support
Chapter 5: Multiple GPU technology support
- 5.1 AMD® CrossFireX™ technology
- 5.2 NVIDIA® SLI™ technology

Motherboard

SABERTOOTH

X79

E8040

Revised Edition V3

January 2013

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product may contain copyrighted software that is licensed under the General Public License (“GPL”)

and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this

product is distributed without any warranty. Copies of these licenses are included in this product.

You may obtain the complete corresponding source code (as dened in the GPL) for the GPL Software,

and/or the complete corresponding source code of the LGPL Software (with the complete machine-

readable “work that uses the Library”) for a period of three years after our last shipment of the product

including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either

(1) for free by downloading it from http://support.asus.com/download;

(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location

where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.

Legal Compliance Dept.

15 Li Te Rd.,

Beitou, Taipei 112

Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the

product for which you wish to obtain the corresponding source code and your contact details so that we

can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as

the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source

Software licenses. If however you encounter any problems in obtaining the full corresponding source code

we would be much obliged if you give us a notication to the email address gpl@asus.com, stating the

product and describing the problem (please do NOT send large attachments such as source code archives

etc to this email address).

iii

Contents

Contents ...................................................................................................................... iii

Notices vi

Safety information ..................................................................................................... vii

About this guide ....................................................................................................... viii

SABERTOOTH X79 specications summary ............................................................ x

Chapter 1: Product introduction

1.1 Welcome! .................................................................................................... 1-1

1.2 Package contents.......................................................................................1-1

1.3 Special features..........................................................................................1-2

1.3.1 Product highlights........................................................................1-2

1.3.2 “Ultimate COOL!” Thermal Solutions .......................................... 1-3

1.3.3 “TUF ENGINE!” Power Design.................................................... 1-3

1.3.4 “Safe & Stable!” Guardian Angel ................................................. 1-4

1.3.5 ASUS EZ DIY .............................................................................. 1-4

1.3.6 ASUS Exclusive Features ........................................................... 1-5

1.3.7 Other special features ................................................................. 1-5

Chapter 2: Hardware information

2.1 Before you proceed ................................................................................... 2-1

2.2 Motherboard overview ............................................................................... 2-2

2.2.1 Motherboard layout ..................................................................... 2-2

2.2.2 Central Processing Unit (CPU) ................................................... 2-4

2.2.3 System memory .......................................................................... 2-5

2.2.4 Expansion slots ......................................................................... 2-12

2.2.5 Jumper ...................................................................................... 2-14

2.2.6 Onboard switch ......................................................................... 2-15

2.2.7 Onboard LEDs .......................................................................... 2-16

2.2.8 Internal connectors....................................................................2-17

2.3 Building your computer system ............................................................. 2-26

2.3.1 Additional tools and components to build a PC system ............ 2-26

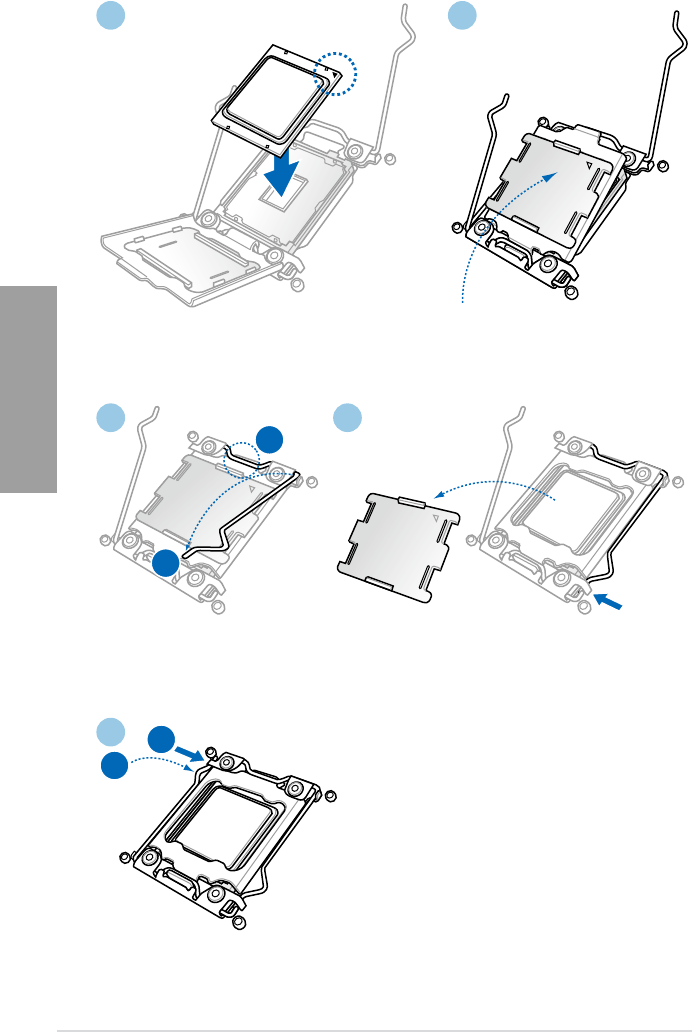

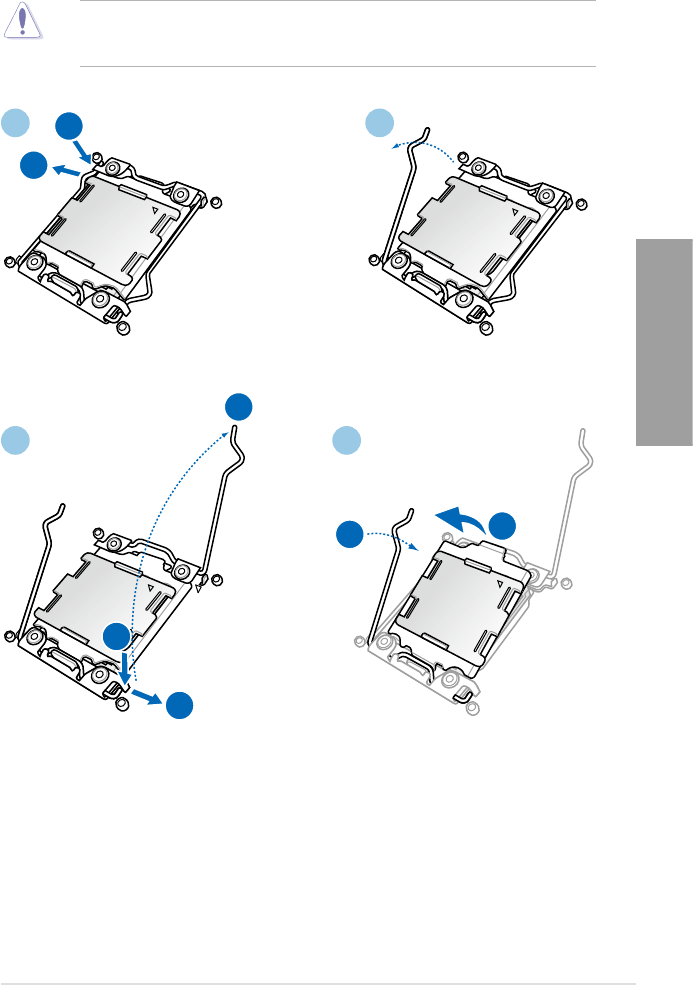

2.3.2 CPU installation.........................................................................2-27

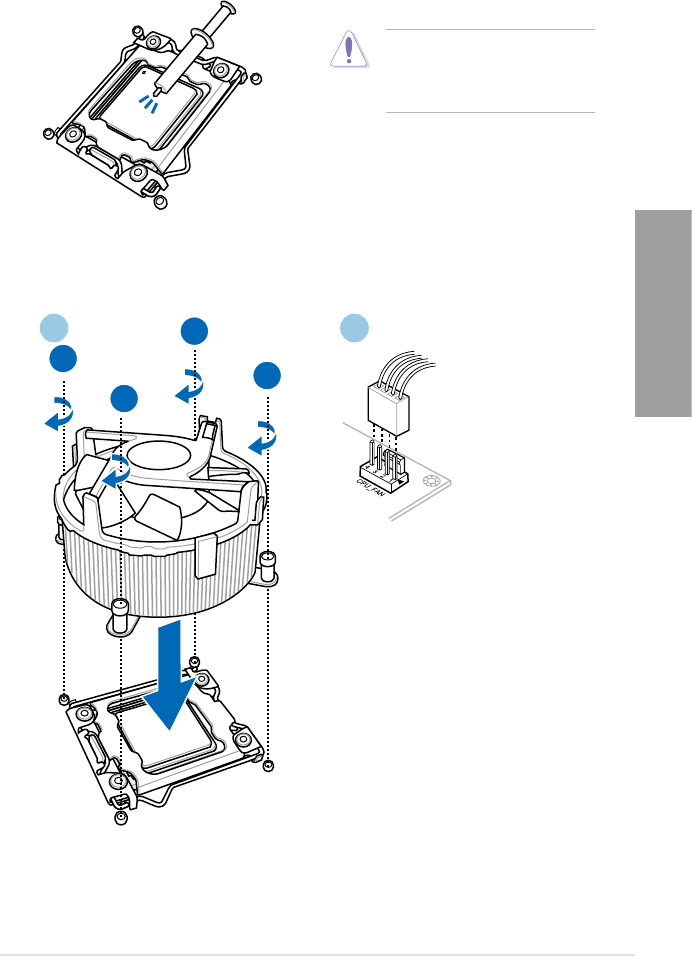

2.3.3 CPU heatsink and fan assembly installation ............................. 2-29

2.3.4 DIMM installation....................................................................... 2-30

2.3.5 Motherboard installation ............................................................ 2-31

2.3.6 Thermal Armor for ASUS SABERTOOTH X79 ......................... 2-33

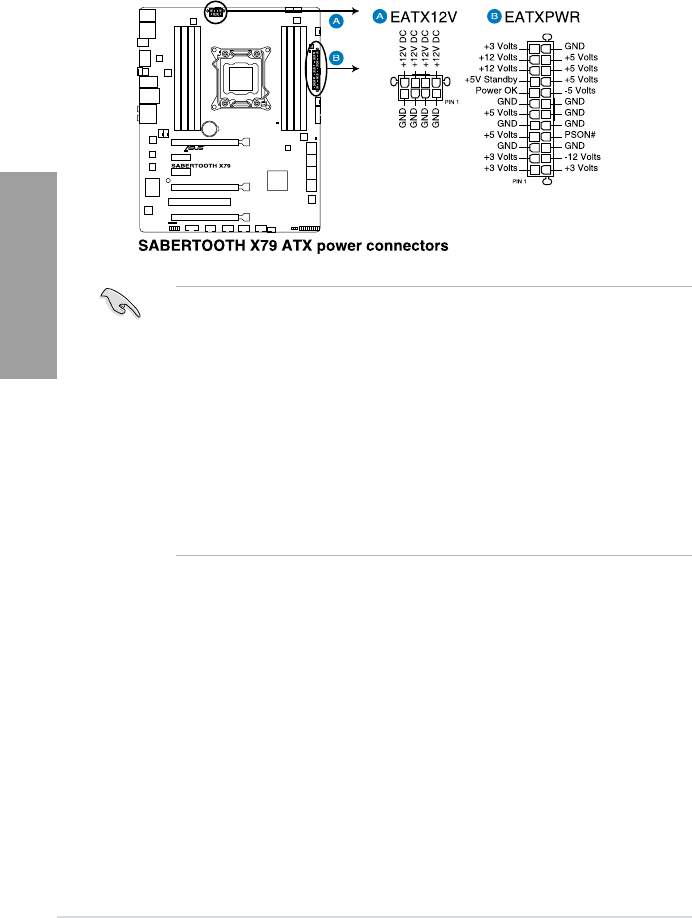

2.3.7 ATX Power connection ..............................................................2-35

2.3.8 SATA device connection ............................................................ 2-36

2.3.9 Front I/O Connector .................................................................. 2-37

Contents

2.3.10 Expension Card installation....................................................... 2-38

2.3.11 Rear panel connection .............................................................. 2-39

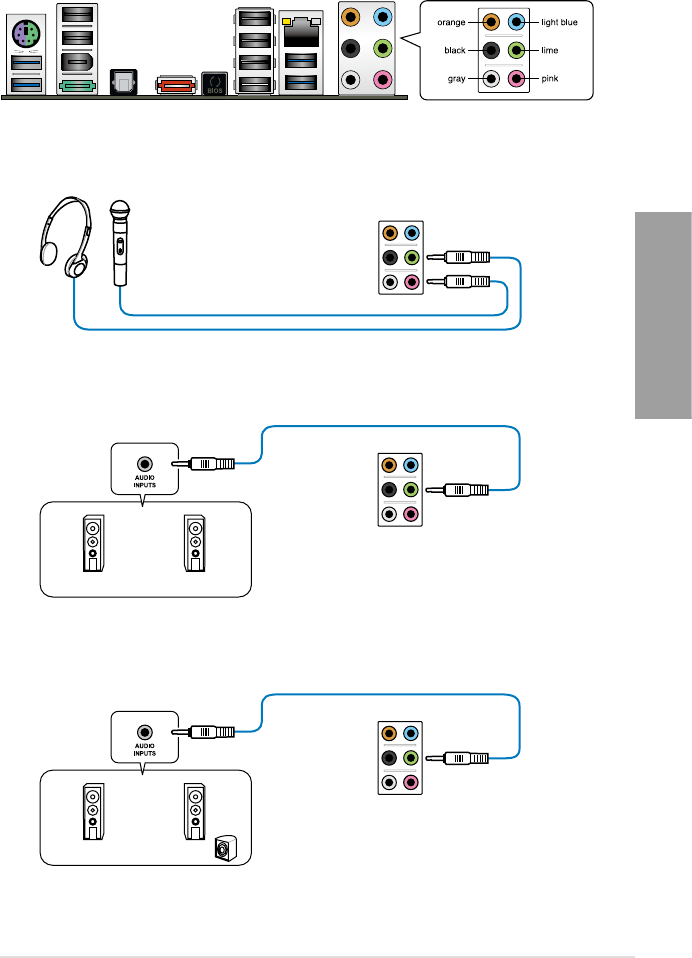

2.3.12 Audio I/O connections ............................................................... 2-41

2.3.13 USB BIOS Flashback ................................................................ 2-43

2.4 Starting up for the rst time .................................................................... 2-44

2.5 Turning off the computer .........................................................................2-44

Chapter 3: BIOS setup

3.1 Knowing BIOS ............................................................................................ 3-1

3.2 BIOS setup program .................................................................................. 3-1

3.2.1 EZ Mode......................................................................................3-2

3.2.2 Advanced Mode .......................................................................... 3-3

3.3 Main menu .................................................................................................. 3-5

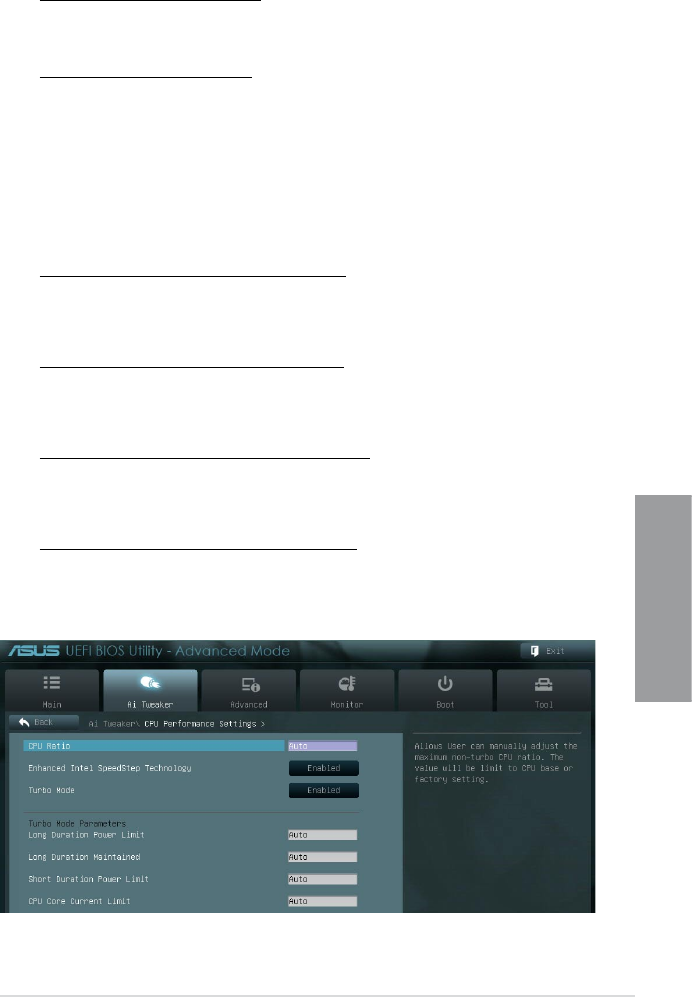

3.4 Ai Tweaker menu ........................................................................................3-7

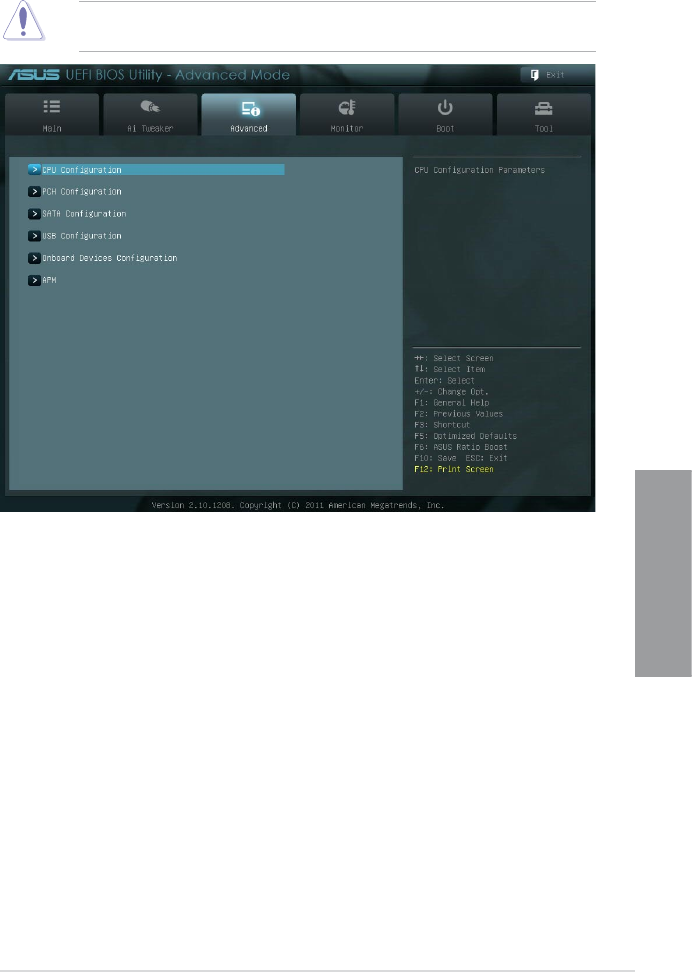

3.5 Advanced menu ....................................................................................... 3-17

3.5.1 CPU Conguration .................................................................... 3-18

3.5.2 PCH Conguration .................................................................... 3-20

3.5.3 SATA Conguration ................................................................... 3-20

3.5.4 USB Conguration .................................................................... 3-22

3.5.5 Onboard Devices Conguraton ................................................. 3-23

3.5.6 APM .......................................................................................... 3-25

3.6 Monitor menu ........................................................................................... 3-26

3.7 Boot menu ................................................................................................ 3-30

3.8 Tool menu ................................................................................................. 3-32

3.8.1 ASUS EZ Flash 2 Utility ............................................................ 3-32

3.8.2 ASUS DRAM SPD Information ................................................. 3-33

3.8.3 ASUS O.C. Prole ..................................................................... 3-34

3.8.4 ASUS Drive Xpert ..................................................................... 3-35

3.9 Exit menu .................................................................................................. 3-36

3.10 Updating BIOS .......................................................................................... 3-37

3.10.1 ASUS Update utility...................................................................3-37

3.10.2 ASUS EZ Flash 2 utility ............................................................. 3-40

3.10.3 ASUS CrashFree BIOS 3 utility................................................. 3-41

3.10.4 ASUS BIOS Updater ................................................................. 3-42

Chapter 4: Software support

4.1 Installing an operating system ................................................................. 4-1

4.2 Support DVD information .......................................................................... 4-1

4.2.1 Running the support DVD ........................................................... 4-1

Contents

4.2.2 Obtaining the software manuals.................................................. 4-2

4.3 Software information ................................................................................. 4-3

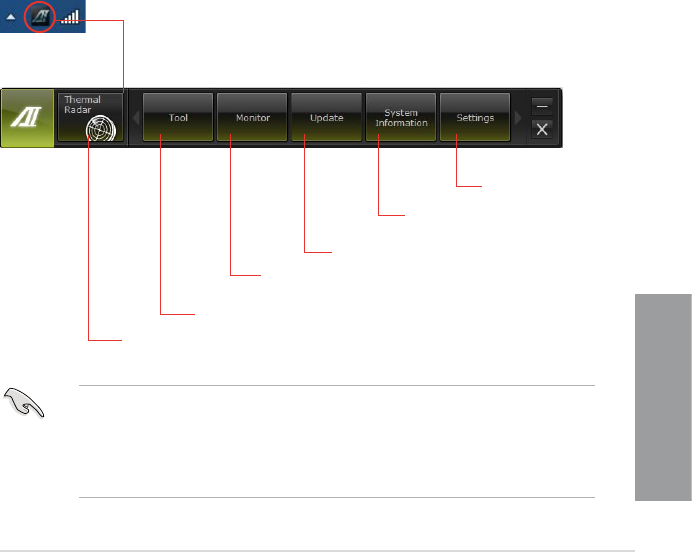

4.3.1 AI Suite II.....................................................................................4-3

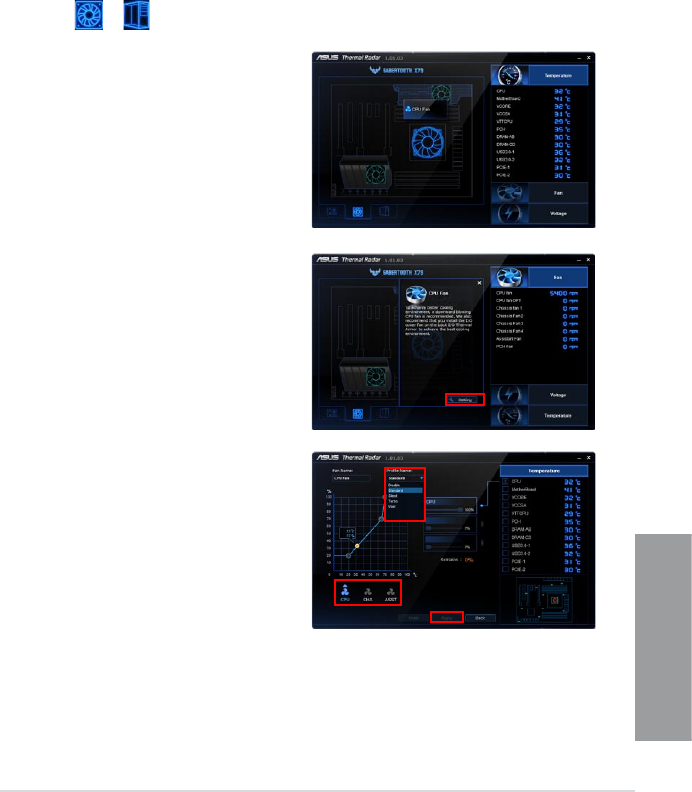

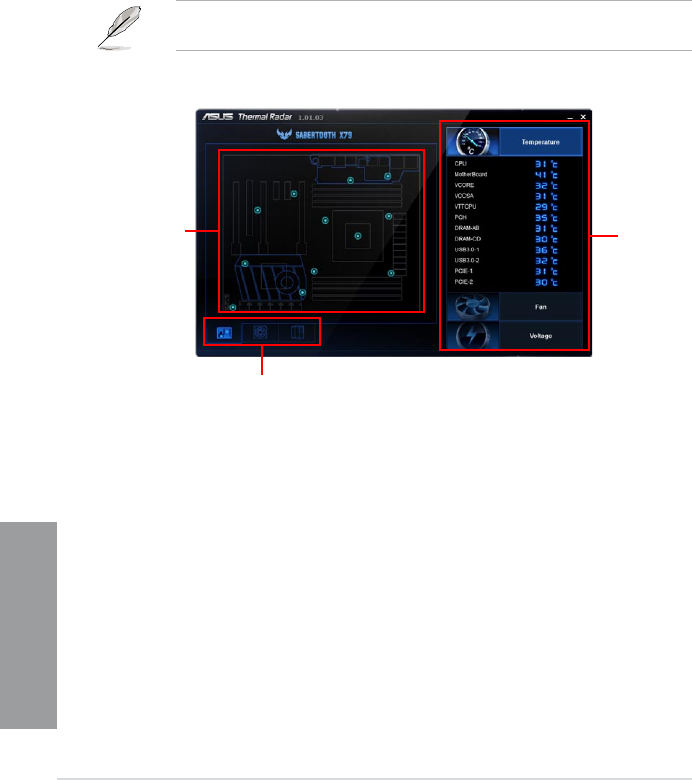

4.3.2 ASUS TUF Thermal Radar ......................................................... 4-4

4.3.3 TurboV EVO ................................................................................ 4-8

4.3.4 DIGI+ Power Control ................................................................. 4-11

4.3.5 Sensor Recorder ....................................................................... 4-13

4.3.6 USB 3.0 Boost...........................................................................4-14

4.3.7 ASUS SSD Caching .................................................................. 4-15

4.3.8 ASUS Update ............................................................................ 4-16

4.3.9 MyLogo2 ................................................................................... 4-17

4.3.10 Audio congurations.................................................................. 4-19

4.4 RAID congurations ................................................................................ 4-20

4.4.1 RAID denitions ........................................................................ 4-20

4.4.2 Installing Serial ATA hard disks ................................................. 4-21

4.4.3 Setting the RAID item in BIOS .................................................. 4-21

4.4.4 Intel® Rapid Storage Technology Option ROM utility ................ 4-21

4.4.5 Marvell RAID utility .................................................................... 4-25

4.5 Creating a RAID driver disk.....................................................................4-29

4.5.1 Creating a RAID driver disk without entering the OS ................ 4-29

4.5.2 Creating a RAID driver disk in Windows® ............................................................... 4-29

4.5.3 Installing the RAID driver during Windows® OS installation ...... 4-30

4.5.4 Using a USB oppy disk drive ................................................... 4-31

Chapter 5: Multiple GPU technology support

5.1 AMD® CrossFireX™ technology ............................................................... 5-1

5.1.1 Requirements .............................................................................. 5-1

5.1.2 Before you begin ......................................................................... 5-1

5.1.3 Installing two CrossFireX™ graphics cards ................................ 5-2

5.1.4 Installing the device drivers ......................................................... 5-3

5.1.5 Enabling the AMD® CrossFireX™ technology ............................. 5-3

5.2 NVIDIA® SLI™ technology ......................................................................... 5-4

5.2.1 Requirements .............................................................................. 5-4

5.2.2 Installing two SLI-ready graphics cards ...................................... 5-4

5.2.3 Installing the device drivers ......................................................... 5-5

5.2.4 Enabling the NVIDIA® SLI™ technology ..................................... 5-5

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with manufacturer’s instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus set out in the Radio Interference Regulations of the Canadian Department

of Communications.

This class B digital apparatus complies with Canadian ICES-003.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority

to operate this equipment.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of

Chemicals) regulatory framework, we published the chemical substances in our products at

ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to

enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin

indicates that the product (electrical and electronic equipment) should not be placed in

municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol

of the crossed out wheeled bin indicates that the battery should not be placed in municipal

waste.

vii

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

• When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard, ensure that all

power cables are unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices

could interrupt the grounding circuit.

• Ensure that your power supply is set to the correct voltage in your area. If you are not

sure about the voltage of the electrical outlet you are using, contact your local power

company.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

• Before installing the motherboard and adding devices on it, carefully read all the manuals

that came with the package.

• Before using the product, ensure all cables are correctly connected and the power

cables are not damaged. If you detect any damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may become wet.

• Place the product on a stable surface.

• If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

viii

About this guide

This user guide contains the information you need when installing and conguring the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it

supports.

• Chapter 2: Hardware information

This chapter lists the hardware setup procedures that you have to perform when

installing system components. It includes description of the switches, jumpers, and

connectors on the motherboard.

• Chapter 3: BIOS setup

This chapter tells how to change system settings through the BIOS Setup menus.

Detailed descriptions of the BIOS parameters are also provided.

• Chapter 4: Software support

This chapter describes the contents of the support DVD that comes with the

motherboard package and the software.

• Chapter 5: Multiple GPU technology support

This chapter describes how to install and congure multiple ATI® CrossFireX™ and

NVIDIA® SLI™ graphics cards.

Where to nd more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the

standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used

throughout this manual.

Typography

Bold text Indicates a menu or an item to select.

Italic

s Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means

that you must press the enclosed key.that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or

Return key.Return key.

<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key

names are linked with a plus sign (+).

Example: <Ctrl> + <Alt> + <Del>

DANGER/WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to

complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

SABERTOOTH X79 specications summary

(continued on the next page)

CPU Intel® Socket 2011 for 2nd Generation Intel® Core™ i7 Processor

Extreme Edition

Supports Intel® Turbo Boost Technology 2.0

* Refer to www.asus.com for Intel CPU support list

Chipset Intel® X79 Express Chipset

Memory 8 x DIMM, Max. 64GB*, DDR3 1866/1600/1333/1066 MHz,

ECC/non-ECC, un-buffered memory

Quad channel memory architecture

Supports Intel® Extreme Memory Prole (XMP)

* Hyper DIMM support is subject to the physical characteristics of

individual CPUs.

** Refer to www.asus.com or this user manual for the Memory

QVL (Qualied Vendors Lists)

Expansion Slots 2 x PCI Express 3.0 x16 slots (dual at x16/x16 mode)mode)

1 x PCI Express 3.0 x16 slot (PCIe x16_3 at x8 speed)

2 x PCI Express 2.0 x1 slots

1 x PCI slot

* This motherboard is ready to support PCIe 3.0 SPEC. Functions

will be available when using PCIe 3.0-compliant devices. Please

refer to www.asus.com for updated details.

Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ TechnologyQuad-GPU SLI™ Technology SLI™ Technology

Supports AMD® Quad-GPU CrossFireX™ Technology

Storage Intel® X79 Express Chipset

- 2 x SATA 6Gb/s ports with RAID 0,1,5 and 10 support (brown)

- 4 x SATA 3Gb/s ports with RAID 0,1,5 and 10 support (black)

Marvell® 9128 SATA controller

- 2 x SATA 6Gb/s ports (gray)

ASMedia® 1061 SATA controller

- 1 x Power eSATA 6Gb/s port (green)

- 1 x eSATA 6Gb/s port (red)

LAN Intel® 82579V Gigabit LAN controller

Audio Realtek® ALC892 8-channel High Denition Audio CODEC

- Absolute Pitch 192khz/24bit True BD Lossless Sound

- BD Audio Layer Content Protection

- Supports Jack-Detection, Multi-Streaming and Front Panel

Jack-Retasking

- Optical S/PDIF Out port at back I/O

IEEE 1394 VIA® VT6315N controller supports 1 IEEE 1394a port at back

panel

USB 3 x ASMedia® USB 3.0 controllers

- 2 x USB 3.0 ports at midboard for front panel support

- 4 x USB 3.0 ports at back panel (blue)

Intel® X79 Express Chipset

- 14 x USB 2.0/1.1 ports

(8 ports at midboard; 6 ports at back panel)

(continued on the next page)

SABERTOOTH X79 specications summary

Exclusive TUF Features “Ultimate COOL!” Thermal Solutions

- TUF Thermal Armor

- TUF Thermal Radar

“TUF ENGINE!” Power Design

- 8+2+2+2 Digital Phase Power Design

- TUF Components (Choke, Cap. & MOSFET; certied by

military-standard)

- ASUS DIGI+ Power Control Utility

“Safe & Stable!” Guardian Angel

- ESD Guards

- MemOK!

- Anti Surge

Other Special Features ASUS SSD Caching

USB BIOS Flashback

USB 3.0 Boost

Front Panel USB 3.0 Support

ASUS UEFI BIOS EZ Mode featuring friendly graphics user

interface

AI Suite II

ASUS Q-Connector

ASUS Q-Shield

ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

ASUS Q-Slot

ASUS Q-DIMM

ASUS O.C. Prole

ASUS CrashFree BIOS 3

ASUS EZ Flash 2

ASUS MyLogo 2™

Multi-language BIOS

Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse combo port

1 x Optical S/PDIF Output port

1 x USB BIOS Flashback Button

1 x Power eSATA 6Gb/s port (green)

1 x eSATA 6Gb/s port (red)

1 x IEEE 1394a port

1 x LAN (RJ-45) port

4 x USB 3.0/2.0 ports (blue)

6 x USB 2.0/1.1 ports

8-channel Audio I/O ports

xii

*Specications are subject to change without notice.

SABERTOOTH X79 specications summary

Internal I/O Connectors 1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0

ports (19-pin; moss green)

4 x USB 2.0/1.1 connectors support additional 8 USB 2.0/1.1

ports

4 x SATA 6Gb/s connectors (2 x brown; 2 x gray)

4 x SATA 3Gb/s connectors (black)

1 x CPU Fan connector (4-pin)

1 x CPU OPT fan connector (4-pin)

4 x Chassis Fan connectors (4-pin)

1 x Assistant Fan connector (4-pin)

1 x PCH Fan connector (4-pin)

1 x Front panel audio connector (AAFP)

1 x COM connector

1 x S/PDIF Out header

1 x 24-pin EATX Power connector

1 x 8-pin EATX 12V Power connector

1 x System Panel (Q-Connector)

1 x MemOK! button

1 x Clear CMOS jumper

BIOS Features 64 Mb Flash ROM, UEFI BIOS, PnP, DMI 2.0, WfM 2.0,

SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS,

ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Support DVD Drivers

ASUS Utilities

ASUS Update

Anti-virus software (OEM version)

Form factor ATX form factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

ASUS SABERTOOTH X79 1-1

Chapter 1

1.1 Welcome!

Thank you for buying an ASUS® SABERTOOTH X79 motherboard!

The motherboard delivers a host of new features and latest technologies, making it another

standout in the long line of ASUS quality motherboards!

Before you start installing the motherboard, and hardware devices on it, check the items in

your package with the list below.

1.2 Package contents

Check your motherboard package for the following items.

• If any of the above items is damaged or missing, contact your retailer.

• The illustrated items above are for reference only. Actual product specications may

vary with different models.

Chapter 1: Product introduction

Chapter 1

User Manual

ASUS SABERTOOTH X79

motherboard User guide Support DVD

4 x Serial ATA 6.0 Gb/s cables 2 x Serial ATA 3.0 Gb/s cables 1 x ASUS SLI™ bridge

connector

1 x ASUS Q-Shield 1 x I/O Cover Fan 1 x 2-in-1 ASUS Q-Connector kit

Five-year warranty

1 x TUF Certication card 1 x TUF Five-year warranty

manual (by region) 2 x long fan screws

1-2 Chapter 1: Product Introduction

Chapter 1

1.3 Special features

1.3.1 Product highlights

Intel® Socket 2011 for 2nd Generation Intel® Core™ i7 Process Extreme

Edition

This motherboard supports the latest Intel® 2nd Generation Core™ i7 Processor Extreme in

the LGA2011 package, with memory and PCI Express controllers integrated to quad-channel

(8 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics

performance. Intel® 2nd Generation Core™ i7 Processor Extreme is one of the most powerful

and energy efcient CPUs in the world.

Intel® X79 Express Chipset

The Intel® X79 Express Chipset is the latest single-chipset design that supports the new

socket 2011 Intel® 2nd Generation Core™ i7 Processor Extreme. It improves performance by

utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally,

the X79 comes with 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval, doubling

the bandwidth of current bus systems.

Quad-GPU SLI™ and Quad-GPU CrossFireX™ Support

SABERTOOTH X79 brings you the multi-GPU choice of either SLI™ or CrossFireX™. The™ or CrossFireX™. The

motherboard features the most powerful Intel® X79 platform to optimize PCIe allocation in

multiple GPU congurations. Expect a brand-new gaming style you’ve never experienced

before!

Quad-Channel DDR3 1866/1600/1333/1066 MHz support

The motherboard supports DDR3 memory that features data transfer rates of

1866/1600/1333/1066 MHz to meet the higher bandwidth requirements of the latest operation

system, 3D graphics, multimedia, and Internet applications. The quad-channel DDR3

architecture quadruple the bandwidth of your system memory to boost system performance.

* Due to CPU behavior, DDR3 1866 MHz memory module will run at DDR3 1600 MHz frequency as

default.

PCIe 3.0 Ready

The latest PCI Express bus standard delivers improved encoding for twice the performance

of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double

the 16GB/s of PCIe 2.0 (in x16 mode). PCIe 3.0 provides users unprecedented data speeds,

combined with the convenience and seamless transition offered by complete backward

compatibility with PCIe 1.0 and PCIe 2.0 devices It is a must-have feature PC users aiming

to improve and optimize graphics performance, as well as have the latest, most future-proof

technology.

* This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe

3.0-compliant devices. Please refer to www.asus.com for updated details.

Complete USB 3.0 Integration

ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel – 6 USB

3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times

faster than USB 2.0. The SABERTOOTH X79 affords greater convenience to high speed

connectivity.

ASUS SABERTOOTH X79 1-3

Chapter 1

Extra SATA 6.0 Gb/s Support

The Intel® X79 Express Chipset natively supports the next-generation Serial ATA (SATA)

interface, delivering up to 6.0 Gb/s data transfer. ASUS provides extra SATA 6.0 Gb/s ports

with enhanced scalability, faster data retrieval, and double the bandwidth of current bus

systems.

1.3.2 “Ultimate COOL!” Thermal Solutions

TUF Thermal Armor

New generation TUF Thermal Armor kicks cooling up a notch with dual integrated Turbo

Engine fans. This enhances the original TUF thermal design, helping direct heat away from

MOS area components and out the case via the rear I/O section. Special heat pipes propel

dissipation from critical components and make sure temps stay low across the board. The

Thermal Armor also provides modder’s and LAN party goers an extra-cool dress up option to

show off their creativity and dedication to performance.

TUF Thermal Radar

The TUF Thermal Radar monitors temps in critical parts of the motherboard in real time,

automatically adjusting fan speeds to make sure the system maintains high stability without

overheating. It consists of multiple sensors for various components on the motherboard,

giving user the ability to monitor each one individually. The Thermal Radar automatically

calculates ideal fan speeds based on different parameters selected by users for each

component, keeping everything cooler and longer lasting.

1.3.3 “TUF ENGINE!” Power Design

New DIGI+ Power Control

All-new digital CPU and DRAM power controls work perfectly together to match digital

power signal (SVID) requests from the CPU, with ultra-fast sensing and response efciently

delivering precision power. Accurate delivery reduces waste, and provides more stable CPU

Vcore voltages. With programmable digital controllers onboard, users can adjust CPU and

DRAM PWM voltages and frequencies for various overclocking scenarios, with accurate input

through UEFI BIOS tuning or the exclusive ASUS interface. This proprietary design increases

overclocking headroom to push performance to its full potential.

TUF Components (Choke, Cap. & MOSFET; certied by military-standard)

Get rugged performance even in the most challenging conditions with robust TUF chokes,

solid capacitors, and MOSFETs – certied through third-party, military-grade testing. TUF

chokes, also known as the “Ferrite Choke II”, is a made of compound of various types of

metal instead standard iron, enables the support of up to a massive 50A of rated current,

55% higher than conventional component. Furthermore, the single piece packaging also

elimates the emission of vibration noise, delivering superb characteristics as well as durability

under extreme conditions.

1-4 Chapter 1: Product Introduction

Chapter 1

1.3.4 “Safe & Stable!” Guardian Angel

MemOK!

MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool

requires a mere push of a button to patch memory issues. MemOK! determines failsafe

settings and dramatically improves your system boot success.

ESD Guards

ESD (Electrostatic Discharge) Guards provides protection against electrostatic discharges,

which can damage the motherboard’s components. The ASUS exclusive Anti-Static chip

and circuit design, and the I/O shield provide four times better protection and ensure the

motherboard’s lifespan.

1.3.5 ASUS EZ DIY

UEFI BIOS (EZ Mode)

ASUS brand new UEFI BIOS offers a user-friendly interface that goes beyond traditional

keyboard BIOS input to enable more exible and convenient mouse controls. You can easily

navigate the new UEFI BIOS with the same smoothness as their operating system. The

exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for

experienced performance enthusiasts that demand far more intricate system settings.

AI Suite II

With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features

into one simple to use software package. It allows you to supervise energy management, fan

speed control, voltage and sensor readings. This all-in-one software offers diverse and ease

to use functions, with no need to switch back and forth between different utilities.

ASUS Q-Design

ASUS Q-Design enhances your DIY experience. All of Q-LED, Q-Slot, and Q-DIMM design

speed up and simplify the DIY process!

ASUS Q-Shield

ASUS Q-Shield’s special design makes it convenient and easy to install on your

motherboard. With better electric conductivity, it ideally protects your motherboard against

static electricity and shields it against Electronic Magnetic Interference (EMI).

ASUS Q-Connector

ASUS Q-Connector allows you to easily connect or disconnect the chassis front panel cables

to the motherboard. This unique module eliminates the trouble of connecting the system panel

cables one at a time and avoiding wrong cable connections.

ASUS EZ-Flash 2

ASUS EZ Flash 2 is a user-friendly utility that allows you to update the BIOS without using a

bootable oppy disk or an OS-based utility.

ASUS SABERTOOTH X79 1-5

Chapter 1

ASUS MyLogo2™

This feature allows you to convert your favorite photo into a 256-color boot logo for a more

colorful and vivid image on your screen.

ASUS Multi-language BIOS

The multi-language BIOS allows you to select the language of your choice from the available

options. The localized BIOS setup menu helps you congure your system easier and faster.

1.3.6 ASUS Exclusive Features

ASUS SSD Caching

SSD caching from ASUS is easier than ever. At 3X faster, this feature boosts system

performance by using an installed SSD with no capacity limitations as a cache for frequently

accessed data. Harness a combination of SSD-like performance and response and hard

drive capacity with just one click, no rebooting needed and instant activation for complete

ease of use.

USB 3.0 Boost

New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol),

the latest USB 3.0 standard. With USB 3.0 Boost technology, the performance of a USB

device transmission speed is signicantly increased up to 130% (TBD), adding to an already

impressive fast USB 3.0 transfer speed. With USB 3.0 Boost technology, the system provides

a user-friendly graphical interface, which spontaneously accelerates the transfer speed

through USB 3.0 peripherals with an ASUS exclusive auto-detect setting.

USB BIOS Flashback

USB BIOS Flashback offers the most convenient way to ash the BIOS ever! It allows

overclockers to try new BIOS versions easily, without even entering their existing BIOS or

operating system. Just plug in USB storage and push the dedicated button for 3 seconds,

and the BIOS is automatically ashed using standby power. Worry-free overclocking for the

ultimate convenience!

1.3.7 Other special features

Power eSATA 6Gb/ Ready

Powered eSATA 6Gb/s combines data and power connectivity. Users enjoy 2X faster transfer

rates, and can use external SATA 6Gb/s devices with no additional power adapters. ASUS

provides two extra ports with enhanced scalability, faster data retrieval, and double the

bandwidth of current bus systems for extra speed and accessibility.

* Power eSATA requires a specially designed signal cable to provide 5V power for the external

SATA device. The cable is purchased separately.

1-6 Chapter 1: Product Introduction

Chapter 1

ErP Ready

The motherboard is European Union’s Energy-related Products (ErP) ready, and ErP requires

products to meet certain energy efciency requirement in regards to energy consumptions.

This is in line with ASUS vision of creating environment-friendly and energy-efcient products

through product design and innovation to reduce carbon footprint of the product and thus

mitigate environmental impacts.

ASUS SABERTOOTH X79 2-1

2.1 Before you proceed

Take note of the following precautions before you install motherboard components or change

any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded

object or a metal object, such as the power supply case, to avoid damaging them due

to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the

bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is

switched off or the power cord is detached from the power supply. Failure to do so

may cause severe damage to the motherboard, peripherals, or components.

Chapter 2: Hardware information

Chapter 2

2-2 Chapter 2: Hardware information

Chapter 2

Refer to 2.2.8 Internal connectors and 2.3.11 Rear panel connection for more

information about rear panel connectors and internal connectors.

2.2 Motherboard overview

2.2.1 Motherboard layout

ASUS SABERTOOTH X79 2-3

Chapter 2

Layout contents

Connectors/Jumpers/Slots Page

1. CPU, chassis, power, and assistant fan connectors

(4-pin CPU_FAN, CHA_FAN1–4, CPU_OPT, ASST_FAN) 2-22

2. DDR3 DIMM slots channel A and B 2-5

3. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 2-24

4. LGA2011 CPU socket 2-4

5. DDR3 DIMM slots channel C and D 2-5

6. MemOK! switch 2-15

7. USB 3.0 connector (20-1 pin USB3_56) 2-20

8. Intel® X79 Serial ATA 6Gb/s connectors

(7-pin SATA6G_1/2 [brown]) 2-17

9. Intel® X79 Serial ATA 3Gb/s connectors

(7-pin SATA3G_3–6 [black]) 2-18

10. Marvell® Serial ATA 6Gb/s connectors

(7-pin SATA6G_E1/E2 [gray]) 2-19

11. System panel connector (20-8 pin PANEL) 2-25

12. Clear RTC RAM (3-pin CLRTC) 2-14

13. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112,

USB1314) 2-21

14. Serial port connector (10-1 pin COM1) 2-20

15. Front panel audio connector (10-1 pin AAFP) 2-23

16. Digital audio connector (4-1 pin SPDIF_OUT) 2-21

17. Standby power LED (SB_PWR) 2-16

2-4 Chapter 2: Hardware information

Chapter 2

2.2.2 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA2011 socket designed for the Intel®

Core™ i7 Processor Extreme Edition.

• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and

the socket contacts are not bent. Contact your retailer immediately if the PnP cap

is missing, or if you see any damage to the PnP cap/socket contacts/motherboard

components. ASUS will shoulder the cost of repair only if the damage is shipment/

transit-related.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

Authorization (RMA) requests only if the motherboard comes with the cap on the

LGA2011 socket.

• The product warranty does not cover damage to the socket contacts resulting from

incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP

cap.

Ensure that all power cables are unplugged before installing the CPU.

ASUS SABERTOOTH X79 2-5

Chapter 2

Recommended memory congurations

2.2.3 System memory

The motherboard comes with eight Double Data Rate 3 (DDR3) Dual Inline Memory Modules

(DIMM) slots.

A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR

or DDR2 memory module to the DDR3 slot.

2-6 Chapter 2: Hardware information

Chapter 2

Memory congurations

You may install 1GB, 2GB, 4GB and 8GB unbuffered and non-ECC DDR3 DIMMs into the

DIMM sockets.

• You may install varying memory sizes in Channel A, Channel B, Channel C and

Channel D. The system maps the total size of the lower-sized channel for the quad-

channel conguration. Any excess memory from the higher-sized channel is then

mapped for single-channel operation.

• Due to CPU behavior, DDR3 1800 MHz memory module will run at DDR3 1600 MHz

frequency as default.

• The Max. 64GB memory capacity can be supported with DIMMs of 8GB (or above).

ASUS will update QVL once the DIMMs are available on the market.

• According to Intel CPU spec, DIMM voltage below 1.65V is recommended to protect

the CPU.

• Always install DIMMs with the same CAS latency. For optimum compatibility, we

recommend that you obtain memory modules from the same vendor.

• Due to the memory address limitation on 32-bit Windows OS, when you install 4GB

or more memory on the motherboard, the actual usable memory for the OS can be

about 3GB or less. For effective use of memory, we recommend that you do any of the

following:

- Use a maximum of 3GB system memory if you are using a 32-bit Windows OS.

- Install a 64-bit Windows OS when you want to install 4GB or more on the

motherboard.

For more details, refer to the Microsoft® support site at

http://support.microsoft.com/kb/929605/en-us.

• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less

(Memory chip capacity counts in Megabit, 8 Megabit/Mb = 1 Megabyte/MB).

• The default memory operation frequency is dependent on its Serial Presence Detect

(SPD), which is the standard way of accessing information from a memory module.

Under the default state, some memory modules for overclocking may operate at a

lower frequency than the vendor-marked value. To operate at the vendor-marked

or at a higher frequency, refer to section 3.4 Ai Tweaker menu for manual memory

frequency adjustment.

• For system stability, use a more efcient memory cooling system to support a full

memory load (4 DIMMs) or overclocking condition.

ASUS SABERTOOTH X79 2-7

Chapter 2

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1333 MHz capability

Vendors Part No. Size SS/

DS Chip Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

A-DATA AD63I1B0823EV 2GB SS A-DATA 3CCA-1509A - - • • •

A-DATA AM2U139C2P1 2GB SS A-DATA 3CCD-1509A - - • • • •

A-DATA AXDU1333GC2G9(XMP) 2GB SS - - 9-9-9-24 1.25~1.35 • • • •

A-DATA AD63I1C1624EV 4GB DS A-DATA 3CCA-1509A -- • •••

A-DATA AM2U139C4P2 4GB DS A-DATA 3CCD-1509A - - • •

A-DATA SU3U1333W8G9(XMP) 8GB DS ELPIDA J4208BASE-DJ-F - - • • • •

Apacer 78.01GC6.9L0 1GB SS Apacer AM5D5808DEJSBG 9 - • • •

Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808FEQSBG 9 - • • •

Apacer 78.B1GDE.9L10C 4GB DS Apacer AM5D5908CEHSBG 9 - • • • •

CORSAIR TW3X4G1333C9A 4GB(2x2GB) DS - -9-9-9-24 1.5 •

CORSAIR CMX8GX3M2A1333C9(XMP) 8GB(2x4GB) DS - - 9-9-9-24 1.5 • •

CORSAIR CMX8GX3M4A1333C9 8GB(4x2GB) DS - - 9-9-9-24 1.5 • •

Crucial BL25664BN1337.16FF(XMP) 2GB DS - - 7-7-7-24 1.65 • • •

ELPIDA EBJ10UE8BDF0-DJ-F 1GB SS ELPIDA J1108BDSE-DJ-F - - • •

ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F - - • • •

ELPIDA EBJ20UF8BCF0-DJ-F 2GB SS Elpida J2108BCSE-DJ-F - - • •

ELPIDA EBJ21UE8BDF0-DJ-F 2GB DS ELPIDA J1108BDSE-DJ-F - - • •

G.SKILL F3-10600CL9D-4GBNT 4GB(2x2GB) DS G.SKILL D3 128M8CE9 2GB 9-9-9-24 1.5 • • •

G.SKILL F3-10666CL8D-

4GBHK(XMP) 4GB(2x2GB) DS - - 8-8-8-21 1.5 • •

G.SKILL F3-10666CL7D-

4GBRH(XMP) 4GB(2x2GB) DS - - 7-7-7-21 1.5 • •

G.SKILL F3-10666CL8D-

4GBECO(XMP) 4GB(2x2GB) DS - - 8-8-8-24 1.35 • • •

G.SKILL F3-10666CL9D-8GBRL 8GB(2x4GB) DS - - 9-9-9-24 1.5 • •

G.SKILL F3-10666CL9D-8GBXL 8GB(2x4GB) DS - - 9-9-9-24 1.5 • • • •

GEIL GVP34GB1333C9DC 4GB(2x2GB) DS - - 9-9-9-24 1.5 • • • •

GEIL GET316GB1333C9QC 16GB(4x4GB) DS - - 9-9-9-24 1.5 • • •

GEIL GG34GB1333C9DC 4GB(2x2GB) DS GEIL GL1L128M88BA115FW 9-9-9-24 1.3 • •

GEIL GG34GB1333C9DC 4GB(2x2GB) DS GEIL GL1L128M88BA15B 9-9-9-24 1.3 •

GEIL GB34GB1333C7DC 4GB(2x2GB) DS GEIL GL1L128M88BA15FW 7-7-7-24 1.5 • •

GEIL GG34GB1333C9DC 4GB(2x2GB) DS GEIL GL1L128M88BA12N 9-9-9-24 1.3 • • •

GEIL GVP38GB1333C9DC 8GB(2x4GB) DS - - 9-9-9-24 1.5 • • •

Hynix HMT112U6TFR8A-H9 1GB SS Hynix H5TC1G83TFR - - • • •

Hynix HMT325U6BFR8C-H9 2GB SS Hynix H5TQ2G83BFR - - • • •

Hynix HMT125U6BFR8C-H9 2GB DS Hynix H5TQ1G83BFRH9C 9 - • • •

Hynix HMT125U6TFR8A-H9 2GB DS Hynix H5TC1G83TFR - - • • •

Hynix HMT351U6BFR8C-H9 4GB DS Hynix H5TQ2G83BFR - - • • •

KINGMAX FLFE85F-C8KL9 2GB SS KINGMAX KFC8FNLXF-DXX-15A - - • • • •

KINGMAX FLFE85F-C8KM9 2GB SS Kingmax KFC8FNMXF-BXX-15A - - • • •

KINGMAX FLFE85F-B8KL9 2GB DS KINGMAX KFB8FNLXL-BNF-15A - - • • •

KINGMAX FLFF65F-C8KL9 4GB DS KINGMAX KFC8FNLXF-DXX-15A - • • • •

KINGMAX FLFF65F-C8KM9 4GB DS Kingmax KFC8FNMXF-BXX-15A - - • • •

KINGSTON KVR1333D3N9/1G 1GB SS Elpida J1108BDSE-DJ-F 9 1.5 • • •

KINGSTON KVR1333D3S8N9/2G 2GB SS Micron IFD77 D9LGK - 1.5 • • • •

KINGSTON KVR1333D3N9/2G 2GB DS Kingston D1288JPNDPLD9U 9 1.5 • • •

KINGSTON KVR1333D3N9K2/4G 4GB(2x2GB) DS KINGSTON D1288JEMFPGD9U - 1.5 • • •

KINGSTON KVR1333D3E9S/4G 4GB DS Elpida J2108ECSE-DJ-F 9 1.5 • • •

MICRON MT4JTF12864AZ-1G4D1 1GB SS Micron D9LGQ - - • • •

MICRON MT8JTF25664AZ-1G4D1 2GB SS Micron D9LGK - - • • •

MICRON MT8JTF25664AZ-1G4M1 2GB SS MICRON D9PFJ - - • • • •

MICRON MT16JTF51264AZ-1G4D1 4GB DS Micron D9LGK - - • • •

MICRON MT16JTF51264AZ-1G4M1 4GB DS Micron IGM22 D9PFJ - • • • •

NANYA NT4GC64B8HG0NF-CG 4GB DS NANYA NT5CB256M8GN-CG - - • • • •

OCZ OCZ3P1333LV3GK 3GB(3x1GB) SS - - 7-7-7 1.65 • • •

OCZ OCZ3G1333LV4GK 4GB(2x2GB) DS - - 9-9-9 1.65 • •

OCZ OCZ3P1333LV4GK 4GB(2x2GB) DS - - 7-7-7 1.65 • •

OCZ OCZ3G1333LV8GK 8GB(2x4GB) DS - - 9-9-9 1.65 •

2-8 Chapter 2: Hardware information

Chapter 2

Vendors Part No. Size SS/

DS Chip Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

OCZ OCZ3G1333LV8GK 8GB(2x4GB) DS - - 9-9-9 1.65 •

OCZ OCZ3RPR1333C9LV8GK 8GB(2x4GB) DS - - 9-9-9 1.65 •

PSC PC310600U-9-10-A0 1GB SS PSC A3P1GF3FGF - - • • •

PSC PC310600U-9-10-B0 2GB DS PSC A3P1GF3FGF - -• • •

SAMSUNG M378B2873EH1-CH9 1GB SS SAMSUNG K4B1G0846E - - • • •

SAMSUNG M378B2873FHS-CH9 1GB SS SAMSUNG K4B1G0846F - - • • •

SAMSUNG M378B5773DH0-CH9 2GB SS Samsung K4B2G08460 - - • • •

SAMSUNG M378B5673FH0-CH9 2GB DS SAMSUNG K4B1G0846F - - • • •

SAMSUNG M378B5273BH1-CH9 4GB DS SAMSUNG K4B2G0846B-HCH9 9 - • • •

SAMSUNG M378B5273CH0-CH9 4GB DS SAMSUNG K4B2G0846C -- • • •

SAMSUNG M378B5273DH0-CH9 4GB DS Samsung K4B2G08460 - - • • •

SAMSUNG M378B1G73AH0-CH9 8GB DS SAMSUNG K4B4G0846A-HCH9 - - • • • •

Transcend TS256MLK64V3N(585541) 2GB SS Micron ICD77 D9LGK 9 - • • • •

Transcend TS256MLK64V3N(566577) 2GB SS Hynix H5TQ2G83BFR 9 - • • •

Transcend TS256MLK64V3N(574206) 2GB SS Micron D9LGK 9 - • • •

Transcend JM1333KLU-2G(584076) 2GB DS Micron IBG22 D9MNL 9 - • •

Transcend JM1333KLN-4G(583782) 4GB DS Transcend TK483PCW3 9 - • •

Transcend TS512MLK64V3N(585538) 4GB DS Micron IED27 D9LGK 9 - • • • •

Transcend TS512MLK64V3N(389889) 4GB DS Hynix H5TQ2G83BFR 9 - •

Transcend TS512MLK64V3N(574831) 4GB DS Micron D9LGK 9 - • • • •

ACTICA ACT1GHU64B8F1333S 1GB SS Samsung K4B1G0846F - - • • •

ACTICA ACT1GHU72C8G1333S 1GB SS Samsung K4B1G0846F(ECC) - - • • •

ACTICA ACT2GHU64B8G1333M 2GB DS Micron D9KPT - - • • •

ACTICA ACT2GHU64B8G1333S 2GB DS Samsung K4B1G0846F - - • • •

ACTICA ACT2GHU72D8G1333M 2GB DS Micron D9KPT(ECC) - - • • •

ACTICA ACT2GHU72D8G1333S 2GB DS Samsung K4B1G0846F(ECC) - - • • •

ACTICA ACT4GHU64B8H1333H 4GB DS Hynix H5TQ2G83AFR - - • •

ACTICA ACT4GHU72D8H1333H 4GB DS Hynix H5TQ2G83AFR(ECC) - - • • •

ATP AQ56M72E8BJH9S 2GB DS SAMSUNG K4B1G0846F(ECC) - - • • • •

ATP AQ12M72E8BKH9S 4GB DS SAMSUNG K4B2G0846C(ECC) - - • • • •

BUFFALO D3U1333-1G 1GB SS Elpida J1108BFBG-DJ-F - - • • •

BUFFALO D3U1333-2G 2GB DS Elpida J1108BFBG-DJ-F - • •

BUFFALO D3U1333-4G 4GB DS NANYA NT5CB256M8BN-CG - • • •

EK Memory EKM324L28BP8-I13 4GB(2x2GB) DS - - 9 - • • •

Elixir M2F2G64CB88B7N-CG 2GB SS Elixir N2CB2G808N-CG - - • • • •

Elixir M2F2G64CB88D7N-CG 2GB SS Elixir M2CB2G8BDN-CG - - • • • •

Elixir M2F4G64CB8HB5N-CG 4GB DS Elixir N2CB2G808N-CG - - • • • •

Elixir M2F4G64CB8HD5N-CG 4GB DS Elixir M2CB2G8BDN-CG - - • • • •

GoodRam GR1333D364L9/2G 2GB DS Qimonda IDSH1G-03A1F1C-13H - - • • •

KINGTIGER F10DA2T1680 2GB DS KINGTIGER KTG1333PS1208NST-C9 - - • • •

KINGTIGER KTG2G1333PG3 2GB DS - - - - • • •

Patriot PGS34G1333LLKA 4GB(2x2GB) DS - - 7-7-7-20 1.7 • • •

Patriot PVS34G1333ELK 4GB(2x2GB) DS - - 9-9-9-24 1.5 •

Patriot PVS34G1333LLK 4GB(2x2GB) DS - - 7-7-7-20 1.7 •

RiDATA C304627CB1AG22Fe 2GB DS RiDATA C304627CB1AG22Fe 9 - • •

RiDATA E304459CB1AG32Cf 4GB DS RiDATA E304459CB1AG32Cf 9 - • •

Silicon

Power SP001GBLTE133S01 1GB SS NANYA NT5CB128M8AN-CG - - • • •

Silicon

Power SP001GBLTU1333S01 1GB SS NANYA NT5CB128M8AN-CG - - • • •

Silicon

Power SP001GBLTU133S02 1GB SS S-POWER 10YT3E5 9 - • •

Silicon

Power SP002GBLTE133S01 2GB DS NANYA NT5CB128M8AN-CG - - • • •

Silicon

Power SP002GBLTU133S02 2GB DS S-POWER I0YT3E0 9 - •

Team TXD31024M1333C7(XMP) 1GB SS Team T3D1288LT-13 7-7-7-21 1.75 • •

Team TXD31048M1333C7-D(XMP) 1GB SS Team T3D1288LT-13 7-7-7-21 1.75 • • •

Team TXD32048M1333C7-D(XMP) 2GB DS Team T3D1288LT-13 7-7-7-21 1.5-1.6 •

Team TXD32048M1333C7-D(XMP) 2GB DS Team T3D1288LT-13 7-7-7-21 1.5-1.6 • • •

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1333 MHz capability (continued)

ASUS SABERTOOTH X79 2-9

Chapter 2

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1600 MHz capability

Vendors Part No. Size SS/

Chip

Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

A-DATA AX3U1600XC2G79(XMP) 2GB SS - - 9-9-9-24 1.6-1.8 •

A-DATA AX3U1600GC4G9(XMP) 4GB DS - - - 1.55~1.75 • • • •

A-DATA AX3U1600PC4G8(XMP) 4GB DS - - 8-8-8-24 1.55~1.75 •

A-DATA AX3U1600XC4G79(XMP) 4GB DS - - 7-9-7-21 1.65 •

CORSAIR HX3X12G1600C9(XMP) 12GB(6x2GB) DS - - 9-9-9-24 1.6 • • •

CORSAIR CMZ16GX3M4A1600C9(XMP) 16GB(4x4GB) DS - - 9-9-9-24 1.5 • • •

CORSAIR CMG4GX3M2A1600C6 4GB(2x2GB) DS - - 6-6-6-18 1.65 • •

CORSAIR CMD4GX3M2B1600C8 4GB(2x2GB) DS - - 8-8-8-24 1.65 • •

CORSAIR CMG4GX3M2A1600C6 4GB(2x2GB) DS - - 6-6-6-18 1.65 •

CORSAIR CMX4GX3M2A1600C8(XMP) 4GB(2x2GB) DS - - 8-8-8-24 1.65 • •

CORSAIR CMG4GX3M2A1600C7(XMP) 4GB(2x2GB) DS - - 7-7-7-20 1.65 •

CORSAIR CMP6GX3M3A1600C8(XMP) 6GB(3x2GB) DS - - 8-8-8-24 1.65 • • •

CORSAIR CMX6GX3M3C1600C7(XMP) 6GB(3x2GB) DS - - 7-8-7-20 1.65 • • •

CORSAIR TR3X6G1600C8D(XMP) 6GB(3x2GB) DS - - 8-8-8-24 1.65 •

CORSAIR CMP8GX3M2A1600C9(XMP) 8GB(2x4GB) DS - - 9-9-9-24 1.65 •

CORSAIR CMZ8GX3M2A1600C8(XMP) 8GB(2x4GB) DS - - 8-8-8-24 1.5 • •

CORSAIR CMZ8GX3M2A1600C9(XMP) 8GB(2x4GB) DS - - 9-9-9-24 1.5 • • • •

Crucial BL12864BN1608.8FF(XMP) 2GB(2x1GB) SS - - 8-8-8-24 1.65 • •

Crucial BL25664BN1608.16FF(XMP) 2GB DS - - 8-8-8-24 1.65 • • •

G.SKILL F3-12800CL9Q-16GBXL(XMP) 16GB(4x4GB) DS - - 9-9-9-24 1.5 • • • •

G.SKILL F3-12800CL9D-4GBNQ(XMP) 4GB(2x2GB) DS - - 9-9-9-24 1.5 • • •

G.SKILL F3-12800CL8D-4GBRM(XMP) 4GB(2x2GB) DS - - 8-8-8-24 1.6 • • •

G.SKILL F3-12800CL9D-4GBECO(XMP) 4GB(2x2GB) DS - - 9-9-9-24 1.35 • •

G.SKILL F3-12800CL7D-8GBXH(XMP) 8GB(2x4GB) DS - - 7-8-7-24 1.6 • • • •

G.SKILL F3-12800CL9D-8GBRL(XMP) 8GB(2x4GB) DS - - 9-9-9-24 1.5 • •

G.SKILL F3-12800CL9D-8GBSR2(XMP) 8GB(2x4GB) DS - - 9-9-9-24 1.25 • • • •

G.SKILL F3-12800CL8D-8GBECO(XMP) 8GB(2x4GB) DS - - 8-8-8-24 1.35 • •

GEIL GET316GB1600C9QC(XMP) 16GB(4x4GB) DS - - 9-9-9-28 1.6 • • •

GEIL GUP34GB1600C7DC(XMP) 4GB(2x2GB) DS - - 7-7-7-24 1.6 • • •

GEIL GVP38GB1600C8QC(XMP) 8GB(4x2GB) DS - - 8-8-8-28 1.6 • • •

KINGMAX FLGD45F-B8MF7(XMP) 1GB SS - - - - • •

KINGSTON KHX1600C9D3K3/12GX(XMP) 12GB(3x4GB) DS - - 9 1.65 • • •

KINGSTON KHX1600C9D3T1BK3/

12GX(XMP) 12GB(3x4GB) DS - - 9 1.65 • • •

KINGSTON KHX1600C9D3K3/12GX(XMP) 12GB(3x4GB) DS - - - 1.65 • • •

KINGSTON KHX1600C9D3K6/24GX(XMP) 24GB(6x4GB) DS - - 9 1.65 • • •

KINGSTON KHX1600C7D3K2/4GX(XMP) 4GB(2x2GB) DS - - - 1.65 • •

KINGSTON KHX1600C8D3K2/4GX(XMP) 4GB(2x2GB) DS - - 8 1.65 • •

KINGSTON KHX1600C9D3B1K2/4GX(XMP) 4GB(2x2GB) DS - - 9-9-9-24 1.65 •

KINGSTON KHX1600C9D3K2/4GX(XMP) 4GB(2x2GB) DS - - - 1.65 • •

KINGSTON KHX1600C9D3LK2/4GX(XMP) 4GB(2x2GB) DS - - - 1.65 • • •

KINGSTON KHX1600C9D3X1K2/4G 4GB(2x2GB) DS - - - 1.65 • •

KINGSTON KHX1600C9D3X2K2/4GX(XMP) 4GB(2x2GB) DS - - 9 1.65 • • •

KINGSTON KHX1600C9D3K3/6GX(XMP) 6GB(3x2GB) DS - - 9 1.65 • • •

KINGSTON KHX1600C9D3T1BK3/6GX(XMP) 6GB(3x2GB) DS - - 9 1.65 • • •

KINGSTON KHX1600C9D3T1K3/6GX(XMP) 6GB(3x2GB) DS - - - 1.65 • • •

KINGSTON KHX1600C9D3T1K3/6GX(XMP) 6GB(3x2GB) DS - - 9 1.65 • •

OCZ OCZ3BE1600C8LV4GK 4GB(2x2GB) DS - - 8-8-8 1.65 • •

OCZ OCZ3X1600LV4GK(XMP) 4GB(2x2GB) DS - - 8-8-8 1.65 •

OCZ OCZ3G1600LV6GK 6GB(3x2GB) DS - - 8-8-8 1.65 •

OCZ OCZ3X1600LV6GK(XMP) 6GB(3x2GB) DS - - 8-8-8 1.65 • • •

Super Talent WP160UX4G9(XMP) 4GB(2x2GB) DS - - 9 - • •

Super Talent WB160UX6G8(XMP) 6GB(3x2GB) DS - - - - • •

Super Talent WB160UX6G8(XMP) 6GB(3x2GB) DS - - 8 - • •

Asint SLZ3128M8-EGJ1D(XMP) 2GB DS Asint 3128M8-GJ1D - - • • •

2-10 Chapter 2: Hardware information

Chapter 2

Vendors Part No. Size SS/

Chip

Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

EK Memory EKM324L28BP8-I16(XMP) 4GB(2x2GB) DS - - 9 - •

EK Memory EKM324L28BP8-I16(XMP) 4GB(2x2GB) DS - - 9 - • •

GoodRam GR1600D364L9/2G 2GB DS GoodRam GF1008KC-JN - - • • •

KINGTIGER KTG2G1600PG3(XMP) 2GB DS - - - -• •

Mushkin 996805(XMP) 4GB(2x2GB) DS - - 6-8-6-24 1.65 • • •

Mushkin 998805(XMP) 6GB(3x2GB) DS - - 6-8-6-24 1.65 • • •

Patriot PX7312G1600LLK(XMP) 12GB(3x4GB) DS - - 8-9-8-24 1.65 • • •

Patriot PGS34G1600LLKA2 4GB(2x2GB) DS - - 8-8-8-24 1.7 • • •

Patriot PGS34G1600LLKA 4GB(2x2GB) DS - - 7-7-7-20 1.7 • • •

PATRIOT PGS34G1600LLKA 4GB(2x2GB) DS - - 7-7-7-20 1.7 • •

Patriot PVT36G1600LLK(XMP) 6GB(3x2GB) DS - - 8-8-8-24 1.65 •

Patriot PX538G1600LLK(XMP) 8GB(2x4GB) DS - - 8-9-8-24 1.65 • • • •

Team TXD31024M1600C8-D(XMP) 1GB SS Team T3D1288RT-16 8-8-8-24 1.65 • • •

Team TXD32048M1600HC8-D(XMP) 2GB DS Team T3D1288RT-16 8-8-8-24 1.65 • • •

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1600 MHz capability (continued)

Vendors Part No. Size SS/

Chip

Brand

Chip

NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

G.SKILL F3-14400CL9D-4GBRL(XMP) 4GB(2x2GB) DS - - 9-9-9-24 1.6 • •

KINGSTON KHX1800C9D3T1K3/6GX(XMP) 6GB(3x2GB) DS - - - 1.65 • • •

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1600 MHz capability*

* The above QVL is for the DDR3 1800 MHz memory module. Due to CPU behavior, DDR3 1800 MHz

memory module will run at DDR3 1600 MHz frequency.

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1866 MHz capability

Vendors Part No. Size SS/

Chip

Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

A-DATA AX3U1866GC4G9B(XMP) 4GB DS - - 9-11-9-27 1.55~1.75 • • • •

CORSAIR CMZ8GX3M2A1866C9(XMP) 8GB(2x4GB) DS - - 9-10-9-27 1.5 • •

G.SKILL F3-14900CL9Q-16GBXL(XMP) 16GB(4x4GB) DS - - 9-10-9-28 1.5 • •

G.SKILL F3-15000CL9D-4GBTD(XMP) 4GB(2x2GB) DS - - 9-9-9-24 1.65 • •

G.SKILL F3-14900CL9D-8GBSR(XMP) 8GB(2x4GB) DS - - 9-10-9-28 1.5 •

G.SKILL F3-14900CL9Q-8GBFLD(XMP) 8GB(2x4GB) DS - - 9-9-9-24 1.6 • •

KINGSTON KHX1866C9D3T1K3/3GX(XMP) 3GB(3x1GB) SS - - - 1.65 • •

OCZ OCZ3G1866LV4GK 4GB(2x2GB) DS - - 10-10-10 1.65 •

OCZ OCZ3RPR1866C9LV6GK 6GB(3x2GB) DS - - 9-9-9 1.65 •

Super Talent W1866UX2G8(XMP) 2GB(2x1GB) SS - - 8-8-8-24 - •

Team TXD32048M1866C9(XMP) 2GB DS Team T3D1288RT-16 9-9-9-24 1.65 • •

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1866 MHz capability*

Vendors Part No. Size SS/

Chip

Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

A-DATA AX3U2000GC4G9B(XMP) 4GB DS - - 9-11-9-27 1.55~1.75 • • •

Apacer 78.AAGD5.9KD(XMP) 6GB(3x2GB) DS - - 9-9-9-27 - • • •

CORSAIR CMT6GX3M3A2000C8(XMP) 6GB(3x2GB) DS - - 8-9-8-24 1.65 • • •

G.SKILL F3-16000CL9D-4GBTD(XMP) 4GB(2x2GB) DS - - 9-9-9-24 1.65 • •

G.SKILL F3-16000CL9T-6GBPS(XMP) 6GB(3x2GB) DS - - 9-9-9-24 1.65 •

GEIL GUP34GB2000C9DC(XMP) 4GB(2x2GB) DS - - 9-9-9-28 1.65 •

KINGSTON KHX2000C9AD3T1K3/3GX(XMP) 3GB(3x1GB) SS - - - 1.65 • • •

KINGSTON KHX2000C9AD3T1K2/4GX(XMP) 4GB(2x2GB) DS - - 9 1.65 • • •

OCZ OCZ3B2000LV6GK 6GB(3x2GB) DS - - 7-8-7 1.65 •

Transcend TX2000KLN-8GK (388375)(XMP) 4GB DS - - - 1.6 • • •

ASUS SABERTOOTH X79 2-11

Chapter 2

* The above QVL is for the DDR3 2000 MHz memory module. Due to CPU behavior, DDR3 2000 MHz

memory module will run at DDR3 1866 MHz frequency.

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 1866 MHz capability* (continued)

Vendors Part No. Size SS/

Chip

Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

AEXEA AXA3ES2G2000LG28V(XMP) 2GB DS - - - 1.65 • •

AEXEA AXA3ES4GK2000LG28V(XMP) 4GB(2x2GB) DS - - - 1.65 • • •

Gingle FA3URSS673A801A 2GB DS - - 9-9-9-24 - • •

Patriot PX7312G2000ELK(XMP) 12GB(3x4GB) DS - - 9-11-9-27 1.65 •• •

Patriot PV736G2000ELK(XMP) 6GB(3x2GB) DS - - 7-7-7-20 1.65 • • •

Silicon Power SP002GBLYU200S02(XMP) 2GB DS - - - - • • •

Team TXD32048M2000C9(XMP) 2GB DS Team T3D1288RT-20 9-9-9-24 1.5 • • •

Team TXD32048M2000C9-L(XMP) 2GB DS Team T3D1288RT-20 9-9-9-24 1.6 • • •

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 2133 MHz capability

Vendors Part No. Size SS/DS Chip Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

CORSAIR CMT4GX3M2B2133C9(XMP) 4GB(2x2GB) DS - - 9-10-9-27 1.5 • •

GEIL GE34GB2133C9DC(XMP) 4GB(2x2GB) DS - - 9-9-9-28 1.65 •

KINGSTON KHX2133C9AD3T1K2/4GX(XMP) 4GB(2x2GB) DS - - 9 1.65 • •

KINGSTON KHX2133C9AD3X2K2/4GX(XMP) 4GB(2x2GB) DS - - 9 1.65 • •

Patriot PVV34G2133C9K(XMP) 4GB(2x2GB) DS - - 9-11-9-27 1.66 • •

Vendors Part No. Size SS/DS Chip Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

G.SKILL F3-17600CL7D-4GBFLS(XMP) 4G(2x2G) DS - - 7-10-10-28 1.65 •

G.SKILL F3-17600CL8D-4GBPS(XMP) 4GB(2x2GB) DS - - 8-8-8-24 1.65 •

G.SKILL F3-17600CL9D-4GBTDS(XMP) 4GB(2x2GB) DS - - 9-9-9-24 1.65 •

GEIL GET34GB2200C9DC(XMP) 4GB(2x2GB) DS - - 9-10-9-28 1.65 • •

GEIL GET38GB2200C9ADC(XMP) 8GB(2x4GB) DS - - 9-11-9-28 1.65 •

KINGMAX FLKE85F-B8KHA(XMP) 4G(2x2G) DS - - - 1.5~1.7 • •

KINGMAX FLKE85F-B8KJAA-FEIS(XMP) 4GB(2x2GB) DS Kingmax N/A - - •

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 2133 MHz capability*

* The above QVL is for the DDR3 2200 MHz memory module. Due to CPU behavior, DDR3 2200 MHz

memory module will run at DDR3 2133 MHz frequency.

Vendors Part No. Size SS/DS Chip Brand Chip NO. Timing Voltage DIMM socket support (Optional)

2 DIMM 4 DIMM 6 DIMM 8 DIMM

CORSAIR CMGTX3(XMP) 2GB DS - - 9-11-9-27 1.65 •

CORSAIR CMGTX7(Ver5.11) 8GB(2x4GB) - - 9-9-9-24 1.65 • •

G.SKILL F3-19200CL9D-4GBPIS(XMP) 4G(2x2G) DS - - 9-11-9-28 1.65 • •

GEIL GET34GB2400C9DC(XMP) 4GB(2x2GB) DS - - 9-11-9-27 1.65 • •

Transcend TX2400KLU-4GK (381850)(XMP) 2GB DS - - - 1.65 • •

Transcend TX2400KLU-4GK(374243)(XMP) 2GB DS - - - 1.65 • •

Patriot PVV34G2400C9K(XMP) 4GB(2x2GB) DS - - 9-11-9-27 1.66 • •

SABERTOOTH X79 Motherboard Qualied Vendors Lists (QVL)

DDR3 2400 MHz capability

2-12 Chapter 2: Hardware information

Chapter 2

2.2.4 Expansion slots

Ensure to unplug the power cord before adding or removing expansion cards. Failure to do

so may cause you physical injury and damage motherboard components.

Slot No. Slot Description

1 PCIe 3.0 x16_1 slot (single at x16 or dual at x16/x16 mode)

2 PCIe 2.0 x1_1 slot

3 PCIe 2.0 x1_2 slot

4 PCIe 3.0 x16_2 slot

5 PCI slot 1

6 PCIe 3.0 x16_3 slot (at x8 mode)

VGA conguration PCI Express operating mode

PCIe x16_1 PCIe x16_2 PCIe x16_3

Single VGA/PCIe card

x16

(Recommend for

single VGA)

N/A N/A

Dual VGA/PCIe card x16 x16 N/A

ASUS SABERTOOTH X79 2-13

Chapter 2

• In single VGA card mode, use the PCIe 3.0 x16_1 slot (beige) for a PCI Express x16

graphics card to get better performance.

• In CrossFireX™ or SLI™ mode, use the PCIe 3.0 x16_1 and PCIe 3.0 x16_2 slots for

PCI Express x16 graphics cards to get better performance.

• We recommend that you provide sufcient power when running CrossFireX™ or SLI™

mode. Refer to page 2-24 for details.

• Connect a chassis fan to the motherboard connector labeled CHA_FAN1/2 when using

multiple graphics cards for better thermal environment. See page 2-22 for details.

IRQ assignments for this motherboard

A B C D E F G H

PCIEX16_1 shared – – – – – – –

PCIEX16_2 shared – – – – – – –

PCIEX16_3 shared – – – – – – –

PCIEX1_1 – – – shared – – – –

PCIEX1_2 shared – – – – – – –

USB3.0 1 – shared – – – – – –

USB3.0 2 – – shared – – – – –

USB3.0 3 – – – shared – – – –

eSATA shared – – – – – – –

Intel LAN – – shared – – – – –

Marvell 9128 – – – shared – – – –

On Chip USB1 – – – – – – – shared

On Chip USB2 – – – – – – – shared

HD Audio – – – – – – shared –

On Chip SATA – – – – shared – – –

IEEE 1394 – shared – – – – – –

PCI slot shared – – – – – – –

2-14 Chapter 2: Hardware information

Chapter 2

2.2.5 Jumper

Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the

CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM

data. The onboard button cell battery powers the RAM data in CMOS, which include system

setup information such as system passwords.

To erase the RTC RAM

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3

for about 5–10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS setup to

re-enter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default

position. Removing the cap will cause system boot failure!

• If the steps above do not help, remove the onboard battery and move the jumper again

to clear the CMOS RTC RAM data. After the CMOS clearance, reinstall the battery.

• You do not need to clear the RTC when the system hangs due to overclocking. For

system failure due to overclocking, use the C.P.R. (CPU Parameter Recall) feature.

Shut down and reboot the system so the BIOS can automatically reset parameter

settings to default values.

• Due to the chipset behavior, AC power off is required to enable C.P.R. function. You

must turn off and on the power supply or unplug and plug the power cord before

rebooting the system.

ASUS SABERTOOTH X79 2-15

Chapter 2

2.2.6 Onboard switch

The onboard switch allows you to ne-tune performance when working on a bare or open-

case system. This is ideal for overclockers and gamers who continually change settings to

enhance system performance.

MemOK! switch

Installing DIMMs that are incompatible with the motherboard may cause system boot failure,

and the DRAM_LED near the MemOK! switch lights continuously. Press and hold the

MemOK! switch until the DRAM_LED starts blinking to begin automatic memory compatibility

tuning for successful boot.

• Refer to section 2.2.7 Onboard LEDs for the exact location of the DRAM_LED.

• The DRAM_LED also lights when the DIMM is not properly installed. Turn off the

system and reinstall the DIMM before using the MemOK! function.

• The MemOK! switch does not function under Windows™ OS environment.

• During the tuning process, the system loads and tests failsafe memory settings. It

takes about 30 seconds for the system to test one set of failsafe settings. If the test

fails, the system reboots and test the next set of failsafe settings. The blinking speed

of the DRAM_LED increases, indicating different test processes.

• Due to memory tuning requirement, the system automatically reboots when each

timing set is tested. If the installed DIMMs still fail to boot after the whole tuning

process, the DRAM_LED lights continuously. Replace the DIMMs with ones

recommended in the Memory QVL (Qualied Vendors Lists) in this user manual or on

the ASUS website at www.asus.com.

• If you turn off the computer and replace DIMMs during the tuning process, the system

continues memory tuning after turning on the computer. To stop memory tuning, turn

off the computer and unplug the power cord for about 5–10 seconds.

• If your system fail to boot due to BIOS overclocking, press the MemOK! switch to boot

and load BIOS default settings. A messgae will appear during POST reminding you

that the BIOS has been restored to its default settings.

• We recommend that you download and update to the latest BIOS version from the

ASUS website at www.asus.com after using the MemOK! function.

2-16 Chapter 2: Hardware information

Chapter 2

2.2.7 Onboard LEDs

1. Standby Power LED

The motherboard comes with a standby power LED. The green LED lights up to

indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder

that you should shut down the system and unplug the power cable before removing or

plugging in any motherboard component. The illustration below shows the location of

the onboard LED.

2. POST State LEDs

The POST State LEDs of CPU, DRAM, VGA card, and HDD indicate key components

status during POST (Power-on Self Test). If an error is found , the LED next to the

error device will continue lighting until the problem is solved. This user-friendly design

provides an intuitional way to locate the root problem within a second.

ASUS SABERTOOTH X79 2-17

Chapter 2

2.2.8 Internal connectors

1. Intel® X79 Serial ATA 6Gb/s connectors (7-pin SATA6G_1/2 [brown])

These connectors connect to Serial ATA 6Gb/s hard disk drives via Serial ATA 6Gb/s

signal cables.

If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10

conguration with the Intel® Rapid Storage Technology through the onboard Intel® X79

chipset.

•

These connectors are set to [AHCI Mode] by default. If you intend to create a Serial

ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID

Mode]. Refer to section 3.5.3 SATA Conguration for details.

• Before creating a RAID set, refer to section 4.4 RAID congurations or the manual

bundled in the motherboard support DVD.

•

When using hot-plug and NCQ, set the SATA Mode in the BIOS to [AHCI Mode].

Refer to section 3.5.3 SATA Conguration for details.

•

You must install Windows® XP Service Pack 3 or later versions before using Serial

ATA hard disk drives. The Serial ATA RAID feature is available only if you are using

Windows® XP Service Pack 3 or later versions.

2-18 Chapter 2: Hardware information

Chapter 2

2. Intel® X79 Serial ATA 3Gb/s connectors (7-pin SATA3G_3–6 [black])

These connectors connect to Serial ATA 3Gb/s hard disk drives and optical disc drives

via Serial ATA 3Gb/s signal cables.

If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10

conguration with the Intel® Rapid Storage Technology through the onboard Intel® X79

chipset.

•

These connectors are set to [AHCI Mode] by default. If you intend to create a Serial

ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID

Mode]. Refer to section 3.5.3 SATA Conguration for details.

• Before creating a RAID set, refer to section 4.4 RAID congurations or the manual

bundled in the motherboard support DVD.

•

When using hot-plug and NCQ, set the SATA Mode in the BIOS to [AHCI Mode].

Refer to section 3.5.3 SATA Conguration for details.

•

You must install Windows® XP Service Pack 3 or later versions before using Serial

ATA hard disk drives. The Serial ATA RAID feature is available only if you are using

Windows® XP Service Pack 3 or later versions.

ASUS SABERTOOTH X79 2-19

Chapter 2

3. Marvell® Serial ATA 6Gb/s connectors (7-pin SATA6G_E1/E2 [gray])

These connectors connect to Serial ATA 6Gb/s hard disk drives via Serial ATA 6Gb/s

signal cables.

• The SATA6G_E1/E2 (gray) connectors do not support ATAPI devices.

• You must install Windows® XP Service Pack 3 or later versions before using Serial ATA

hard disk drives.

• For high performance of ASUS SSD Caching, please connect one HDD and one SSD

to Marvell® SATA6G_E1/E2 connectors.

• For regular usage, the SATA6G_E1/E2 connectors are recommended for data drives.

• When using hot-plug and NCQ, set the Marvell Storage Controller item in the BIOS

to [Enabled]. Refer to section 3.5.5 Onboard Devices Conguration for details.

• Press <Ctrl> + <M> during POST to enter the Marvell RAID utility to create or delete a

RAID conguration.

• If you want to install a Windows® operating system to a RAID conguration created

using the Marvell® SATA controller, you have to create a RAID driver disk using the

motherboard support DVD and load the driver during OS installation. For 32/64-bit

Windows XP OS, load rst the Marvell shared library driver, and then load Marvell

91xx SATA Controller Driver. For Windows Vista / Windows7 OS, load only the

Marvell 91xx SATA Controller Driver.

2-20 Chapter 2: Hardware information

Chapter 2

5. USB 3.0 connector (20-1 pin USB3_56)

This connector is for the additional USB 3.0 ports, and complies with the USB 3.0

specicaton that supports up to 4.8 Gbps connection speed. If the USB 3.0 front panel

cable is available from your system chassis, with this USB 3.0 connector, you can have

a front panel USB 3.0 solution.

SABERTOOTH X79

PIN 1

Vbus

IntA_P1_SSRX-

IntA_P1_SSRX+

GND

IntA_P1_SSTX-

IntA_P1_SSTX+

GND

IntA_P1_D-

IntA_P1_D+

Vbus

IntA_P2_SSRX-

IntA_P2_SSRX+

GND

IntA_P2_SSTX-

IntA_P2_SSTX+

GND

IntA_P2_D-

IntA_P2_D+

USB3_56

SABERTOOTH X79 USB3.0 connector

4. Serial port connector (10-1 pin COM1)

This connector is for a serial (COM) port. Connect the serial port module cable to this

connector, then install the module to a slot opening at the back of the system chassis.

The COM module is purchased separately.

The USB 3.0 module is purchased separately.

ASUS SABERTOOTH X79 2-21

Chapter 2

You can connect the front panel USB cable to the ASUS Q-Connector (USB, blue) rst, and

then install the Q-Connector (USB) to the USB connector onboard if your chassis supports

front panel USB ports.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

6. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112, USB1314)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of

these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specication that supports up to

480 Mbps connection speed.

SABERTOOTH X79

PIN 1

USB+5V

USB_P10-

USB_P10+

GND

USB+5V

USB_P9-

USB_P9+

GND

USB910

PIN 1

USB+5V

USB_P8-

USB_P8+

GND

USB+5V

USB_P7-

USB_P7+

GND

USB78

PIN 1

USB+5V

USB_P14-

USB_P14+

GND

USB+5V

USB_P13-

USB_P13+

GND

USB1314

PIN 1

USB+5V

USB_P12-

USB_P12+

GND

USB+5V

USB_P11-

USB_P11+

GND

USB1112

SABERTOOTH X79 USB2.0 connectors

7. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s).

Connect the S/PDIF Out module cable to this connector, then install the module to a

slot opening at the back of the system chassis.

SABERTOOTH X79

SABERTOOTH X79 Digital audio connector

SPDIF_OUT

+5V

SPDIFOUT

GND

The S/PDIF module is purchased separately.

2-22 Chapter 2: Hardware information

Chapter 2

8. CPU, chassis, and assistant fan connectors

(4-pin CPU_FAN; 4-pin CPU_OPT FAN; 4-pin CHA_FAN1-4; 4-pin ASST_FAN)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the

black wire of each cable matches the ground pin of the connector.

• The CPU_FAN connector supports the CPU fan of maximum 1A (12 W) fan power.

• If you install two VGA cards, we recommend that you plug the rear chassis fan cable

to the motherboard connector labeled CHA_FAN1 or CHA_FAN2 for better thermal

environment.

Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the

system may damage the motherboard components. These are not jumpers! Do not place

jumper caps on the fan connectors!

ASUS SABERTOOTH X79 2-23

Chapter 2

9. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports

either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel

audio I/O module cable to this connector.

• We recommend that you connect a high-denition front panel audio module to this

connector to avail of the motherboard’s high-denition audio capability.

• If you want to connect a high-denition front panel audio module to this connector, setIf you want to connect a high-denition front panel audio module to this connector, set

the Front Panel Type item in the BIOS setup to [HD]; if you want to connect an AC'97

front panel audio module to this connector, set the item to [AC97]. By default, this

connector is set to [HD].

2-24 Chapter 2: Hardware information

Chapter 2

• For a fully congured system, we recommend that you use a power supply unit

(PSU) that complies with ATX 12 V Specication 2.0 (or later version) and provides a

minimum power of 450 W.

• Do not forget to connect the 4-pin/8-pin EATX12 V power plug; otherwise, the system

will not boot.

• Use of a PSU with a higher power output is recommended when conguring a system

with more power-consuming devices. The system may become unstable or may not

boot up if the power is inadequate.

• If you want to use two or more high-end PCI Express x16 cards, use a PSU with

1000W power or above to ensure the system stability.

• If you are uncertain about the minimum power supply requirement for your system,

refer to the Recommended Power Supply Wattage Calculator at http://support.asus.

com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

10. ATX power connectors (24-pin EATXPWR; 8-pin EATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are

designed to t these connectors in only one orientation. Find the proper orientation and

push down rmly until the connectors completely t.

ASUS SABERTOOTH X79 2-25

Chapter 2

• System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED

cable to this connector. The system power LED lights up when you turn on the system

power, and blinks when the system is in sleep mode.

• Hard disk drive activity LED (2-pin IDE_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or ashes when data is read from or written to

the HDD.

• System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker

allows you to hear system beeps and warnings.

• ATX power button/soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the

system on or puts the system in sleep or soft-off mode depending on the BIOS settings.

Pressing the power switch for more than four seconds while the system is ON turns the

system OFF.

• Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without

turning off the system power.

11. System panel connector (20-8 pin PANEL)

This connector supports several chassis-mounted functions.

2-26 Chapter 2: Hardware information

Chapter 2

2.3 Building your computer system

2.3.1 Additional tools and components to build a PC system

1 bag of screws Philips (cross) screwdriver

PC chassis Power supply unit

Intel LGA 2011 CPU Intel LGA 2011 compatible CPU Fan

DIMM SATA hard disk drive

SATA optical disc drive (optional) Graphics card (optional)

The tools and components in the table above are not included in the motherboard package.

ASUS SABERTOOTH X79 2-27

Chapter 2

2.3.2 CPU installation

Please note the order in opening/ closing the double latch. Follow the instructions printed

on the metal sealing hatch or the illustrations shown below in this manual. The plastic cap

will pop up automatically once the CPU is in place and the hatch properly sealed down.

1 2

3 4

2-28 Chapter 2: Hardware information

Chapter 2

7 8

5 6

ASUS SABERTOOTH X79 2-29

Chapter 2

2.3.3 CPU heatsink and fan assembly installation

Apply the Thermal Interface Material

to the CPU heatsink and CPU

before you install the heatsink and

fan if necessary.

To install the CPU heatsink and fan assembly

1 2

2-30 Chapter 2: Hardware information

Chapter 2

To remove a DIMM

2.3.4 DIMM installation

ASUS SABERTOOTH X79 2-31

Chapter 2

2.3.5 Motherboard installation

The diagrams in this section are for reference only. The motherboard layout may vary with

models, but the installation steps remain the same.

2-32 Chapter 2: Hardware information

Chapter 2

DO NOT overtighten the screws! Doing so can damage the motherboard.

ASUS SABERTOOTH X79 2-33

Chapter 2

2.3.6 Thermal Armor for ASUS SABERTOOTH X79

The Thermal Armor for ASUS SABERTOOTH X79 consists of a rear I/O cover and a

PCH cover and fan assembly, providing effective dissipation of the heat generated from

the motherboard components. To ensure the most optimum heat dissipation, follow the

instruction below to install the I/O cover fan to the rear I/O cover.

1. Remove the two screws on the rear

I/O cover, and then remove the lid to

show the fan socket.

2. Place the rear I/O cover fan into the

fan socket, ensuring that the TUF logo

on the fan is facing up.

3. Secure the fan to the socket using

the screws removed in step 1 and the

long fan screws in accessory pack.

2-34 Chapter 2: Hardware information

Chapter 2

4. Place the fan cable into the cable slot

on the rear I/O cover.

5. Connect the fan cable to the

ASST_FAN connector on the

motherboard.

6. The PCH cover is pre-assembled with

a slim-type fan, providing effective

heat dissipation to the PCH. Remove

the protection lm on the PCH cover

before use.

If the PCH fan is not working or

the fan speed is too slow, check if

the fan cable is well-connected. If

the problem persists, refer to local

ASUS service centers for help.

ASUS SABERTOOTH X79 2-35

Chapter 2

2.3.7 ATX Power connection

OR OR

2-36 Chapter 2: Hardware information

Chapter 2

2.3.8 SATA device connection

ASUS SABERTOOTH X79 2-37

Chapter 2

2.3.9 Front I/O Connector

IDE_LED

POWER SW

RESET SW

IDE_LED-

IDE_LED+

PWR

Reset

Ground

1 2

To install ASUS Q-Connector

USB 2.0

AAFP

To install USB 2.0 Connector To install front panel audio connector

USB 3.0

To install USB 3.0 Connector

2-38 Chapter 2: Hardware information

Chapter 2

2.3.10 Expension Card installation

To install PCIe x16 cards

To install PCIe x1 cards To install PCI cards

ASUS SABERTOOTH X79 2-39

Chapter 2

2.3.11 Rear panel connection

5 6 7 8 9 11 12

2 3 41

* and **: Refer to the tables on the next page for LAN port LED and audio port denitions.

Rear panel connectors

1. PS/2 keyboard/mouse combo port 7. IEEE 1394a port

2. USB 2.0 ports 5 and 6 8. Optical S/PDIF Out port

3. External SATA port 9. USB BIOS Flashback button

4. LAN (RJ-45) port* 10. USB 2.0 ports 1,2,3 and 4

5. USB 3.0 ports 3 and 4 11. USB 3.0 ports 1 and 2

6. Power eSATA 6G port 12. Audio I/O ports**

2-40 Chapter 2: Hardware information

Chapter 2

• DO NOT insert a different connector to the external SATA port.

• DO NOT connect a keyboard/mouse to any USB 3.0 port when installing Windows®

operating system.

• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under

Windows® OS environment and after the USB 3.0 driver installation.

• USB 3.0 devices can only be used as data storage only.

• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster

and better performance for your USB 3.0 devices.

• If you want to use the hot-plug function of the external SATA ports, you have to set

the ASM1061 Storage Controller item in the BIOS setting to [AHCI Mode] and install

the Asmedia SATA Controller Driver from the motherboard support DVD. Refer to

section 3.5.5 Onboard Devices Conguration for details.

** Audio 2, 4, 6, or 8-channel conguration

Port Headset

2-channel

4-channel 6-channel 8-channel

Light Blue Line In Line In Line In Line In

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Orange – – Center/Subwoofer Center/Subwoofer

Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out

Gray – – – Side Speaker Out

* LAN ports LED indications

SPEED

LED

ACT/LINK

LED

LAN port

Activity Link LED Speed LED

Status Description Status Description

OFF No link OFF 10 Mbps connection

ORANGE Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

ASUS SABERTOOTH X79 2-41

Chapter 2

Connect to Headphone and Mic

Connect to 2.1 channel Speakers

Connect to Stereo Speakers

2.3.12 Audio I/O connections

Audio I/O ports

2-42 Chapter 2: Hardware information

Chapter 2

Connect to 4.1 channel Speakers

Connect to 5.1 channel Speakers

Connect to 7.1 channel Speakers

ASUS SABERTOOTH X79 2-43

Chapter 2

Updating BIOS may have risks. If the BIOS program is damaged during the process

causing the system unable to reboot, please contact the local service station for help.

2.3.13 USB BIOS Flashback

1. Download the BIOS ROM le from the ASUS service website (www.asus.com). Save

the ROM le to a USB portable disk.

2. On the rear I/O port, plug the USB disk to the USB port with the WHITE interior. (See

red box in the image below)

3. Press the BIOS Flashback button for 3 seconds, and the light will begin to ash (on the

third second).

4. The Flashback function is enabled once the light starts to ash.

5. The ashing rate of the light signal accelerates along with the updating speed.

2-44 Chapter 2: Hardware information

Chapter 2

2.4 Starting up for the rst time

1. After making all the connections, replace the system case cover.

2. Be sure that all switches are off.

3. Connect the power cord to the power connector at the back of the system chassis.

4. Connect the power cord to a power outlet that is equipped with a surge protector.

5. Turn on the devices in the following order:

a. Monitor

b. External SCSI devices (starting with the last device on the chain)

c. System power

6. After applying power, the system power LED on the system front panel case lights up.

For systems with ATX power supplies, the system LED lights up when you press the

ATX power button. If your monitor complies with the “green” standards or if it has a

“power standby” feature, the monitor LED may light up or change from orange to green

after the system LED turns on.

The system then runs the power-on self tests or POST. While the tests are running, the

BIOS beeps (refer to the BIOS beep codes table below) or additional messages appear

on the screen. If you do not see anything within 30 seconds from the time you turned

on the power, the system may have failed a power-on test. Check the jumper settings

and connections or call your retailer for assistance.

7. At power on, hold down the <Delete> key to enter the BIOS Setup. Follow the

instructions in Chapter 3.

BIOS Beep Description

One short beep VGA detected

Quick boot set to disabled

No keyboard detected

One continuous beep followed by two

short beeps then a pause (repeated)

No memory detected

One continuous beep followed by three

short beeps

No VGA detected

One continuous beep followed by four

short beeps

Hardware component failure

2.5 Turning off the computer

While the system is ON, pressing the power switch for less than four seconds puts the system

on sleep mode or soft-off mode, depending on the BIOS setting. Pressing the power switch

for more than four seconds lets the system enter the soft-off mode regardless of the BIOS

setting.

ASUS SABERTOOTH X79 3-1

Chapter 3

Chapter 3: BIOS setup

Chapter 3

3.1 Knowing BIOS

The new ASUS UEFI BIOS is an Unied Extensible Firmware Interface that complies with

UEFI architecture, offering a user-friendly interface that goes beyond traditional keyboard-

only BIOS controls to enable more exible and convenient mouse input. Users can easily

navigate the new UEFI BIOS with the same smoothness as their operating system. The

term “BIOS” in this user manual refers to “UEFI BIOS” unless otherwise specied.

BIOS (Basic Input and Output System) stores system hardware settings such as storage

device conguration, overclocking settings, advanced power management, and boot device

conguration that are needed for system startup in the motherboard CMOS. In normal

circumstances, the default BIOS settings apply to most conditions to ensure optimum

performance. We recommend that you not change the default BIOS settings except in

the following circumstances:

• An error message appears on the screen during the system bootup and requests you to

run the BIOS Setup.

• You have installed a new system component that requires further BIOS settings or

update.

Inappropriate settings of the BIOS may result to instability or failure to boot. We strongly

recommend that you change the BIOS settings only with the help of a trained service

personnel.ç

3.2 BIOS setup program

A BIOS setup program is provided for BIOS item modication. When you start up the

computer, the system provides you with the opportunity to run this program. Press <Del>

during the Power-On Self-Test (POST) to enter the Setup utility. Otherwise, POST continues

with its test routines.

If you wish to enter Setup after POST, press <Ctrl> + <Alt> + <Delete>, or press the reset

button on the system chassis to restart the system. You can also turn the system off and then

turn it back on to restart the system. Do this last option only if the rst two failed.

• The BIOS setup screens shown in this section are for reference purposes only, and

may not exactly match what you see on your screen.

• Ensure that a USB mouse is connected to your motherboard if you want to use the

mouse to control the BIOS setup program.

• If the system becomes unstable after changing any BIOS setting, load the default

settings to ensure system compatibility and stability. Select the Load Optimized

Defaults item under the Exit menu. See section 3.9 Exit Menu for details.

• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and

reset the motherboard to the default value. See sectionSee section 2.2.5 Jumper for information

on how to erase the RTC RAM.

• The BIOS setup program does not support the bluetooth devices.

The BIOS setup program is designed to make it as easy to use as possible. Being a

menu-driven program, it lets you scroll through the various submenus and select from the

available options using a keyboard or a USB mouse.

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode.

You can change modes from the Exit menu or from the Exit/Advanced Mode button in the

EZ Mode/Advanced Mode screen.

3-2 Chapter 3: BIOS setup

Chapter 3

3.2.1 EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ

Mode provides you an overview of the basic system information, and allows you to select

the display language, system performance mode and boot device priority. To access the

Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode.

The default screen for entering the BIOS setup program can be changed. Refer to the

Setup Mode item in sectionsection 3.7 Boot memu for details.

Exits the BIOS setup program without saving

the changes, saves the changes and resets

the system, or enters the Advanced Mode

Selects the display language of

the BIOS setup program

Displays the CPU/motherboard temperature,

CPU/5V/3.3V/12V voltage output,

CPU/CPU_OPT/Chassis fan speed

Power Saving mode

Normal mode ASUS Optimal mode

Loads optimized default

Selects the boot device priority

• The boot device options vary depending on the devices you installed to the system.

• The Boot Menu(F8) button is available only when the boot device is installed to the

system.

Displays the system properties of the

selected mode on the right hand side

Clicks to display all fan

speeds if available

Quick switch to frequently

used menus.

ASUS SABERTOOTH X79 3-3

Chapter 3

3.2.2 Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to congure

the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the

following sections for the detailed congurations.

To access the EZ Mode, click Exit, then select ASUS EZ Mode.

Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system conguration

Ai Tweaker For changing the overclocking settings

Advanced For changing the advanced system settings

Monitor For displaying the system temperature, power status, and changing the fan settings.

Boot For changing the system boot conguration

Tool For conguring options for special functions

Exit For selecting the exit options and loading default settings

Navigation keys

General help

Menu bar

Submenu item

Conguration elds

Scroll barPop-up window

Menu items

3-4 Chapter 3: BIOS setup

Chapter 3

Menu items

The highlighted item on the menu bar displays the specic items for that menu. For example,

selecting Main shows the Main menu items.

The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have

their respective menu items.

Back button

This button appears when entering a submenu. Press <Esc> or use the USB mouse to click

this button to return to the previous menu screen.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a

submenu. To display the submenu, select the item and press <Enter>.

Pop-up window

Select a menu item and press <Enter> to display a pop-up window with the conguration

options for that item.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not t on

the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the

other items on the screen.

Navigation keys

At the bottom right corner of the menu screen are the navigation keys for the BIOS setup

program. Use the navigation keys to select items in the menu and change the settings. Use

<F12> key to capture the BIOS screen and save it to the removable storage device.

General help

At the top right corner of the menu screen is a brief description of the selected item.

Conguration elds

These elds show the values for the menu items. If an item is user-congurable, you can

change the value of the eld opposite the item. You cannot select an item that is not

user-congurable.

A congurable eld is highlighted when selected. To change the value of a eld, select it and

press <Enter> to display a list of options.

ASUS SABERTOOTH X79 3-5

Chapter 3

3.3 Main menu

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup

program. The Main menu provides you an overview of the basic system information, and

allows you to set the system date, time, language, and security settings.

Security

The Security menu items allow you to change the system security settings.

• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)

RAM to clear the BIOS password. See section 2.2.5 Jumper for information on how to

erase the RTC RAM.

• The Administrator or User Password items on top of the screen show the default

Not Installed. After you set a password, these items show Installed.

3-6 Chapter 3: BIOS setup

Chapter 3

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator

password for accessing the system. Otherwise, you might be able to see or change only

selected elds in the BIOS setup program.

To set an administrator password:

1. Select the Administrator Password item and press <Enter>.

2. From the Create New Password box, key in a password, then press <Enter>.

3. Conrm the password when prompted.

To change an administrator password:

1. Select the Administrator Password item and press <Enter>.

2. From the Enter Current Password box, key in the current password, then press

<Enter>.

3. From the Create New Password box, key in a new password, then press <Enter>.

4. Conrm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator

password, but press <Enter> when prompted to create/conrm the password. After you clear

the password, the Administrator Password item on top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system.

The User Password item on top of the screen shows the default Not Installed. After you set

a password, this item shows Installed.

To set a user password:

1. Select the User Password item and press <Enter>.

2. From the Create New Password box, key in a password, then press <Enter>.

3. Conrm the password when prompted.

To change a user password:

1. Select the User Password item and press <Enter>.

2. From the Enter Current Password box, key in the current password, then press

<Enter>.

3. From the Create New Password box, key in a new password, then press <Enter>.

4. Conrm the password when prompted.

To clear the user password, follow the same steps as in changing a user password, but press

<Enter> when prompted to create/conrm the password. After you clear the password, the

User Password item on top of the screen shows Not Installed.

ASUS SABERTOOTH X79 3-7

Chapter 3

3.4 Ai Tweaker menu

The Ai Tweaker menu items allow you to congure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld

values can cause the system to malfunction.

The conguration options for this section vary depending on the CPU and DIMM model you

installed on the motherboard.

Scroll down to display the following items:

3-8 Chapter 3: BIOS setup

Chapter 3

Scroll down to display the following items:

Ai Overclock Tuner [Auto]

Allows you to select the CPU overclocking options to achieve the desired CPU internal

frequency. Select any of these preset overclocking conguration options:

[Auto] Loads the optimal settings for the system.

[Manual] Allows you to individually set overclocking parameters.

The following three items appear only when you set the Ai Overclocking Tuner item to

[Manual].

BCLK Frequency [XXX]

Allows you to adjust the CPU and VGA frequency to enhance the system performance.

Use the <+> and <-> keys to adjust the value. You can also key in the desired value

using the numeric keypad. The values range from 80.0MHz to 300.0MHz.

CPU Strap [Auto]

Conguration options: [Auto] [100MHz] [125MHz] [166MHz] [250MHz]

ClockGen Full Reset [Enabled]

[Enabled] Enabled for better overclocking.

[Disabled] To skip system shutdown at BCLK frequency adjustment.

CPU Clock Gen Filter [Auto]

When enabled, this item may help maximize the CPU overclockability.

Conguration options: [Auto] [Enabled] [Disabled]

Memory Frequency [Auto]

Forces a DDR3 frequency slower than the common tCK detected via SPD.

Conguration options: [Auto] [DDR3-800MHz] [DDR3-1066MHz] [DDR3-1333MHz] [DDR3-

1600MHz] [DDR3-1866MHz] [DDR3-2133MHz] [DDR3-2400MHz] [DDR3-2666MHz]

Selecting a very high memory frequency may cause the system to become unstable! If this

happens, revert to the default setting.

ASUS SABERTOOTH X79 3-9

Chapter 3

EPU Power Saving Mode [Disabled]

Allows you to enable or disable the EPU power saving function.

Conguration options: [Disabled] [Enabled]

OC Tuner

OC Tuner automatically overclocks the frequency and voltage of CPU and DRAM for

enhancing the system performance. Conguration options: [OK] [Cancel]

DRAM Timing Control

The sub-items in this menu allow you to set the DRAM timing control features. Use the <+>

and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard

and press the <Enter> key.

Changing the values in this menu may cause the system to become unstable! If this

happens, revert to the default settings.

Primary Timings

DRAM CAS# Latency [Auto]

Conguration options: [Auto] [3 DRAM Clock] – [15 DRAM Clock]

DRAM RAS# to CAS# Delay [Auto]

Conguration options: [Auto] [4 DRAM Clock] – [15 DRAM Clock]

DRAM RAS# PRE Time [Auto]

Conguration options: [Auto] [4 DRAM Clock] – [15 DRAM Clock]

DRAM RAS# ACT Time [Auto]

Conguration options: [Auto] [4 DRAM Clock] – [40 DRAM Clock]

3-10 Chapter 3: BIOS setup

Chapter 3

DRAM COMMAND Mode [Auto]

Conguration options: [Auto] [1 DRAM Clock] [2 DRAM Clock] [3 DRAM Clock]

Secondary Timings

DRAM RAS# to RAS# Delay [Auto]

Conguration options: [Auto] [4 DRAM Clock] – [7 DRAM Clock]

DRAM REF Cycle Time [Auto]

Conguration options: [Auto] [48 DRAM Clock] – [511 DRAM Clock]

DRAM WRITE Recovery Time [Auto]

Conguration options: [Auto] [5 DRAM Clock] – [31 DRAM Clock]

DRAM READ to PRE Time [Auto]

Conguration options: [Auto] [4 DRAM Clock] – [15 DRAM Clock]

DRAM FOUR ACT WIN Time [Auto]

Conguration options: [Auto] [16 DRAM Clock] – [63 DRAM Clock]

DRAM WRITE to READ Delay [Auto]

Conguration options: [Auto] [4 DRAM Clock] – [15 DRAM Clock]

DRAM Write to Latency [Auto]

Conguration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]

Third Timings

tRRDR [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [7 DRAM Clock]

tRRDD [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [7 DRAM Clock]

tWWDR [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [7 DRAM Clock]

tWWDD [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [7 DRAM Clock]

tRWDR [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [15 DRAM Clock]

tRWDD [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [15 DRAM Clock]

tWRDR [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [7 DRAM Clock]

tWRDD [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [7 DRAM Clock]

tRWSR [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [15 DRAM Clock]

tCCD [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [7 DRAM Clock]

ASUS SABERTOOTH X79 3-11

Chapter 3

Latency Timings

DRAM RTL (CHA/B/C/D D0/1 R0/1 [Auto])

Conguration options: [Auto] [Advance 14 Clock] [Advance 12 Clock] – [Advance 4

Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] – [Delay 12 Clock]

[Delay 14 Clock]

DRAM IOL (CHA/B/C/D D0/1 R0/1 [Auto])

Conguration options: [Auto] [Advance 14 Clock] – [Advance 1 Clock] [Normal] [Delay

1 Clock] – [Delay 14 Clock]

others

DRAM CLK Period [Auto]

Conguration options: [Auto] [1 DRAM Clock] – [8 DRAM Clock]

Enhanced Training (CHA/B/C/D) [Auto]

Conguration options: [Auto] [Disabled] [Enabled]

MCH Duty Sense (CHA/B/C/D) [Auto]

Conguration options: [Auto] [0 DRAM Clock] – [31 DRAM Clock]

MCH Recheck [Auto]

Conguration options: [Auto] [Disabled] [Enabled]

DIGI+ Power Control

Do not remove the thermal module while changing the DIGI+ Power Control related

parameters . The thermal conditions should be monitored.

3-12 Chapter 3: BIOS setup

Chapter 3

Some of the following items are adjusted by typing the desired values using the numeric

keypad and press the <Enter> key. You can also use the <+> and <-> keys to adjust the

value. To restore the default setting, type [auto] using the keyboard and press the <Enter>

key.

CPU Load-Line Calibration [Auto]

CPU Load-line is dened by Intel VRM spec and affects CPU voltage. The CPU

working voltage will decrease proportionally to CPU loading. Higher load-line

calibration would get higher voltage and better overclocking performance, but increase

the CPU and VRM thermal. This item allows you to adjust the voltage range from the

following percentages to boost the system performance: 0% (Regular), 25% (Medium),

50% (High), 75% (Ultra High) and 100% (Extreme).

Conguration options: [Auto] [Regular] [Medium] [High] [Ultra High] [Extreme]

The actual performance boost may vary depending on your CPU specication.

CPU Current Capability [Auto]

This item provides wider total power range for overclocking. A higher value brings a

wider total power range and extends the overclocking frequency range simultaneously.

Conguration options: [Auto] [100%] [110%] [120%] [130%] [140%]

CPU VCORE Boot Up Voltage [Auto]

This item controls the voltage for CPU at initial boot. Set higher value for better

overclockability. The values range from 0.800V to 1.700V with a 0.005V interval.The values range from 0.800V to 1.700V with a 0.005V interval.

VCCSA Load-line calibration [Auto]

The behavior of the DRAM controller is decided by VCCSA Load-Line. Set to a higher

value for system performance, or to a lower value for better thermal solution.

Conguration options: [Auto] [Regular] [High] [Extreme]

VCCSA Current Capability [100%]

Allows you to set the VCCSA current capability. A higher value brings wider total DRAM

controller power range and extends the overclocking frequency range simultaneously.

Conguration options: [100%] [110%] [120%] [130%]

CPU VCCSA Boot Up Voltage [Auto] [Auto]

This item controls the voltage for CPU VCCSA at initial boot. Set higher value for better

overclockability. The values range from 0.800V to 1.700V with a 0.005V interval.The values range from 0.800V to 1.700V with a 0.005V interval.

CPU Voltage Frequency [Auto]

Switching frequency will affect the transient response and component thermal. Higher

frequency gets quicker transient response.

Conguration options: [Auto] [Manual]

CPU Fixed Frequency [XXX]

This item appears only when you set the CPU Voltage Frequency item to [manual]

and allows you to set a CPU xed frequency. The values range from 300kHz to 500kHz

with a 10kHz interval.

CPU Spread Spectrum [Diasbled]

[Disabled] Enhances the BCLK overclocking ability.

[Enabled] Sets to [Enabled] for EMI control.

ASUS SABERTOOTH X79 3-13

Chapter 3

CPU Power Duty Control [T.Probe]

[T.Probe] Maintains the VRM thermal balance.

[Extreme] Maintains the VRM current balance.

CPU Power Phase Control [Auto]

Phase number is the number of working VRM phase. Increasing phase number under

heavy system loading to get more transient and better thermal performance. Reducing

phase number under light system loading to increase VRM efciency

[Standard] Proceeds phase control depending on the CPU loading.

[Optimized] Loads the ASUS optimized phase tuning prole.

[Extreme] Proceeds the full phase mode.

[Manual Adjustment] Allows manual adjustment for Regular/Medium/Fast/Ultra

Fast options.

DRAM-AB/DRAM-CD Current Capability [100%]

Setting a higher value brings a wider total power range and extends the overclocking

frequency range simultaneously.

Conguration options: [100%] [110%] [120%] [130%]

DRAM-AB/DRAM-CD Voltage Frequency [Auto]

This item allows you to adjust the DRAM switching frequency. Assign a xed high

DRAM frequency to increase O.C range or a lower DRAM frequency for better system

stability. Conguration options: [Auto] [manual]Conguration options: [Auto] [manual]

DRAM-AB/DRAM-CD Fixed Frequency Mode [XXX]

This item appears only when you set the DRAM-AB/DRAM-CD Voltage Frequency

item to [manual] and allows you to set a DRAM xed frequency. The values range from

300kHz to 500kHz with a 50kHz interval.

DRAM-AB/DRAM-CD Power Phase control [Auto]

[Optimized] Allows you to set ASUS optimized phase tuning prole.

[Extreme] Allows you to set the Full phase mode.

CPU Performance Settings

3-14 Chapter 3: BIOS setup

Chapter 3

CPU Ratio [Auto]

Allows you to manually adjust the maximum non-turbo CPU ratio. Use <+> and <-> keys to

adjust the value. The valid value ranges vary according to your CPU model.

Enhanced Intel SpeedStep Technology [Enabled]

Allows you to enable or disable the Enhanced Intel® SpeedStep Technology.

[Disabled] Disables this function.

[Enabled] The operating system dynamically adjusts the processor voltage and

core frequency which may result in decreased average consumption and

decreased average heat production.

Turbo Mode [Enabled]

[Disabled] Disables this function.

[Enabled] Allows processor cores to run faster than marked frequency in specic

condition.

The following items appear only when you set the Turbo Mode items to [Enabled].

Turbo Mode Parameters

Long Duration Power Limit [Auto]

The default setting of this item will be TDP (130W). For Sandy Bridge-E, Turbo Ratio

can be kept a time duration exceed TDP for maximum performance. Any value under

255 can be programmed. Use the <+> and <-> keys to adjust the value.

Long Duration Maintained [Auto]

This value can vary from 1 to 32, which indicates the time window for Turbo Ratio over

TDP should be maintained. Use the <+> and <-> keys to adjust the value.

Short Duration Power Limit [Auto]

This is the second power limit to provide rapid protection when package power

exceeds Power Limit 1. Default setting is 1.25 times Power Limit 1. For Intel

recommend, platform must be capable of supporting over Power Limit 2 for up to 10

msec. ASUS board can support over Power Limit 2 for a long duration. Use the <+>

and <-> keys to adjust the value.

Additional Turbo Voltage [Auto]

This item allows user to set the maximum additional voltage applied to the CPU when

Turbo Boost is engaged. Use the <+> and <-> keys to adjust the value.

CPU Core Current Limit [Auto]

This item allows user to enter CPU Current Limit, unit in 0.125A. Use the <+> and <->

keys to adjust the value.

CPU VCORE Voltage [Offset Mode]

[Manual Mode] Allows you to set a xed CPU voltage.

[Offset Mode] Allows you to set the Offset voltage.

CPU VCORE Manual Voltage [Auto]

This item appears only when you set the CPU VCORE Voltage item to [Manual Mode]

and allows you to set a xed CPU voltage. The values range from 0.800V to 1.700V

with a 0.005V interval.

ASUS SABERTOOTH X79 3-15

Chapter 3

Offset Mode Sign [+]

This item appears only when you set the CPU VCORE Voltage item to [Offset Mode].

[+] To offset the voltage by a positive value.

[–] To offset the voltage by a negative value.

CPU VCORE Offset Voltage [Auto]

This item allows you to set the Offset voltage. The values range from 0.005V to 0.635V

with a 0.005V interval.

Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage

may damage the CPU permanently, and setting a low voltage may make the system

unstable.

CPU VCCSA Voltage [Offset Mode]

[Manual Mode] Allows you to set a xed CPU VCCSA voltage.

[Offset Mode] Allows you to set the CPU VCCSA Offset voltage.

CPU VCCSA Manual Voltage [Auto]Manual Voltage [Auto]

This item appears only when you set the CPU VCCSA Voltage item to [Manual Mode]

and allows you to set a xed CPU voltage. The values range from 0.800V to 1.700V

with a 0.005V interval.

Offset Mode Sign [+]

This item appears only when you set the CPU VCCSA Voltage item to [Offset Mode].

[+] To offset the voltage by a positive value.

[–] To offset the voltage by a negative value.

CPU VCCSA Offset Voltage [Auto]

This item allows you to set the Offset voltage. The values range from 0.005V to 0.635V

with a 0.005V interval.

DRAM Voltage (CHA, CHB) [Auto]

Allows you to set the DRAM voltage. The values range from 1.20V to 1.99V with a 0.005V

interval.

DRAM Voltage (CHC, CHD) [Auto]

Allows you to set the DRAM voltage. The values range from 1.20V to 1.99V with a 0.005V

interval.

According to Intel CPU spec, DIMMs with voltage requirement over 1.65V may damage

the CPU permanently. We recommend you install the DIMMs with the voltage requirement

below 1.65V.

CPU PLL Voltage [Auto]

Allows you to set the CPU and PCH PLL voltage. The values range from 1.80V to 2.10V with

a 0.00625V interval.

3-16 Chapter 3: BIOS setup

Chapter 3

VTTCPU Voltage [Auto]

Allows you to set the VTTCPU voltage. The values range from 1.05V to 1.70V with a

0.00625V interval.

PCH 1.1v Voltage [Auto]

Allows you to set the 1.1v Platform Controller Hub voltage. The values range from 1.10V to

1.70V with a 0.00625V interval.

PCH 1.5v Voltage [Auto]

Allows you to set the 1.5v Platform Controller Hub voltage. The values range from 1.50V to

1.80V with a 0.00625V interval.

VTTDDR Voltage (CHA, CHB) [Auto]

Allows you to set the CHA, CHB VTTDDR voltage. The values range from 0.6250V to 1.10V

with a 0.00625V interval.

VTTDDR Voltage (CHC, CHD) [Auto]

Allows you to set the CHC, CHD VTTDDR voltage. The values range from 0.6250V to 1.10V

with a 0.00625V interval.

DRAM CTRL REF Voltage on CHA/B/C/D

The values range from 0.3950x to 0.6300x with a 0.0050x interval.

DRAM DATA REF Voltage on CHA/B/C/D

The values range from 0.3950x to 0.6300x with a 0.0050x interval.

DRAM Read REF Voltage on CHA/B/C/D

The values range from 0.38500x to 0.61500x with a 0.0050x interval.

CPU Spread Spectrum [Auto]

[Disabled] Enhances the BCLK overclocking ability.

[Enabled] Sets to [Enabled] for EMI control.

PCIE Spread Spectrum [Auto]

[Disabled] Enhances the PCIE overclocking ability.

[Enabled] Sets to [Enabled] for EMI control.

ASUS SABERTOOTH X79 3-17

Chapter 3

Be cautious when changing the settings of the Advanced menu items. Incorrect eld values

can cause the system to malfunction.

3.5 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system

devices.

3-18 Chapter 3: BIOS setup

Chapter 3

Intel Adaptive Thermal Monitor [Enabled]

[Disabled] Disables the CPU thermal monitor function.

[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.

Hyper-threading [Enabled]

The Intel Hyper-Threading Technology allows a hyper-threading processor to appear as two

logical processors to the operating system, allowing the operating system to schedule two

threads or processes simultaneously.

[Disabled] Only one thread per activated core is enabled.

[Enabled] Two threads per activated core are enabled.

Active Processor Cores [All]

Allows you to choose the number of CPU cores to activate in each processor package.

Conguration options: [All] or by CPU specication

Limit CPUID Maximum [Disabled]

[Enabled] Allows legacy operating systems to boot even without support for CPUs

with extended CPUID functions.

[Disabled] For Windows® XP OS, select this option to disable this function.

3.5.1 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically

detects.

The items shown in this screen may be different due to the CPU you installed.

ASUS SABERTOOTH X79 3-19

Chapter 3

Execute Disable Bit [Enabled]

[Enabled] Enables the No-Execution Page Protection Technology.

[Disabled] Forces the XD feature ag to always return to zero (0).

Intel Virtualization Tech [Enabled]

[Enabled] Allows a hardware platform to run multiple operating systems separately

and simultaneously, enabling one system to virtually function as several

systems.

[Disabled] Disables this function.

CPU Power Management Conguration

CPU Ratio [Auto]

Allows you to set the ratio between the CPU Core Clock and the BCLK Frequency. Use

<+> and <-> keys to adjust the ratio. The valid value ranges vary according to your

CPU model.

Enhanced Intel SpeedStep Technology [Enabled]

Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).

[Disabled] The CPU runs at its default speed.

[Enabled] The operating system controls the CPU speed.

Turbo Mode [Enabled]

[Disabled] Disables this function.

[Enabled] Allows processor cores to run faster than marked frequency in specic

condition.

CPU C1E [Auto]

[Disabled] Disables this function.

[Enabled] Enables the C1E support function. This item should be enabled in order to

enable the Enhanced Halt State.

CPU C3 Report [Auto]

Allows you to disable or enable the CPU C3 report to OS.

CPU C6 Report [Auto]

Allows you to disable or enable the CPU C6 report to OS.

CPU C7 Report [Auto]

Allows you to disable or enable the CPU C7 report to OS.

3-20 Chapter 3: BIOS setup

Chapter 3

High Precision Timer [Enabled]

Allows you to enable or disable the High Precision Event Timer.

Conguration options: [Disabled] [Enabled]

3.5.3 SATA Conguration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA

Port items show Not Present if no SATA device is installed to the corresponding SATA port.

3.5.2 PCH Conguration

SATA Mode [AHCI Mode]

Allows you to set the SATA conguration.

[Disabled] Disables the SATA function.

[IDE Mode] Set to [IDE Mode] when you want to use the Serial ATA hard disk drives as

Parallel ATA physical storage devices.

[AHCI Mode] Set to [AHCI Mode] when you want the SATA hard disk drives to use the

AHCI (Advanced Host Controller Interface). The AHCI allows the onboard

storage driver to enable advanced Serial ATA features that increases

storage performance on random workloads by allowing the drive to

internally optimize the order of commands.

[RAID Mode] Set to [RAID Mode] when you want to create a RAID conguration from the

SATA hard disk drives.

ASUS SABERTOOTH X79 3-21

Chapter 3

The following two items appear only when you set the SATA Mode item to [IDE Mode].

Serial-ATA Controller 0 [Enhanced]

Allows you to enabled/disabled the Serial-ATA Controller 0.

Conguration options: [Disabled] [Enhanced] [Compatible]

Serial-ATA Controller 1 [Enhanced]

Allows you to enabled/disabled the Serial-ATA Controller 1.

Conguration options: [Disabled] [Enhanced]

S.M.A.R.T. Status Check [Enabled]

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When

read/write of your hard disk errors occur, this feature allows the hard disk to report warning

messages during the POST. Conguration options: [Enabled] [Disabled]Conguration options: [Enabled] [Disabled]

Hot Plug [Disabled]

These items appear only when you set the SATA Mode item to [AHCI Mode] or [RAID Mode]

and allow you to enable/disable SATA Hot Plug Support.

Conguration options: [Disabled] [Enabled].

3-22 Chapter 3: BIOS setup

Chapter 3

3.5.4 USB Conguration

The items in this menu allow you to change the USB-related features.

The USB Devices item shows the auto-detected values. If no USB device is detected, the

item shows None.

Legacy USB Support [Enabled]

[Disabled] The USB devices can be used only for the BIOS setup program.

[Enabled] Enables the support for USB devices on legacy operating systems (OS).

[Auto] Allows the system to detect the presence of USB devices at startup. If

detected, the USB controller legacy mode is enabled. If no USB device is

detected, the legacy USB support is disabled.

Legacy USB3.0 Support [Enabled]

[Disabled] Disables the function.

[Enabled] Enables the support for USB 3.0 devices on legacy operating systems

(OS).

EHCI Hand-off [Disabled]

[Disabled] Disables the function.

[Enabled] Enables the support for operating systems without an EHCI hand-off

feature.

ASUS SABERTOOTH X79 3-23

Chapter 3

3.5.5 Onboard Devices Conguraton

Azalia HD Audio [Enabled]

[Disabled] Disables the controller.

[Enabled] Enables the High Denition Audio Controller.

The following two items appear only when you set the HD Audio Controller item to

[Enabled].

Front Panel Type [HD]

Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-

denition audio depending on the audio standard that the front panel audio module supports.

[HD] Sets the front panel audio connector (AAFP) mode to high denition audio.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97

SPDIF Out Type [SPDIF]

[SPDIF] Sets to [SPDIF] for SPDIF audio output.

[HDMI] Sets to [HDMI] for HDMI audio output.

Intel LAN Controller [Enabled]

[Disabled] Disables the controller.

[Enabled] Enables the Intel LAN controller.

Intel PXE OPROM [Disabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable

or disable the PXE OptionRom of the Intel LAN controller.

Conguration options: [Enabled] [Disabled]

3-24 Chapter 3: BIOS setup

Chapter 3

VIA 1394 Controller [Enabled]

This item allows user to enabled/disabled VIA 1394 controller.

Conguration options: [Disabled] [Enabled]

PCI Express x1_1 Slot Conguration [Auto]

[AUTO] The system auto-detects the occupied PCIEx1_1 slot or SATA6G_E1/E2

connector. When both are occupied, only PCIEx1_1 slot can work.

[SATA6G_E1/E2] If SATA6G_E1/E2 (Marvell controller) is enabled, PCIEx1_1 slot will be

blocked and you can connect devices to the SATA6G_E1/E2 connector.

Asmedia USB 3.0 Controller [Enabled]

This item allows user to enabled/disabled Asmedia USB 3.0.

Conguration options: [Disabled] [Enabled]

Marvell Storage Controller [Enabled]

Allows you to select the Marvell storage controller operating mode.

[Disabled] Disables the controller.

[Enabled] Set to [Enabled] when you want use the function of Marvell RAID.

Marvell Storage OPROM [Enabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable

or disable the OptionRom of the Marvell storage controller.

Conguration options: [Disabled] [Enabled]

ASM1061 Storage Controller [AHCI Mode]

Allows you to enable or disable the ASM1061 storage controller.

Conguration options: [Disabled] [IDE Mode] [AHCI Mode][Disabled] [IDE Mode] [AHCI Mode]

If you want to use the full functin of the ASM1061 storage contorller (ex. AHCI), we

recommend that you set this item to [AHCI Mode] and install the ASM1061 Controller

Driver from the motherboard support DVD.

ASM1061 Storage OPROM [Enabled]

This item appears only when you set the previous item to [IDE Mode] or [AHCI Mode] and

allows you to enable or disable the OptionRom of the ASM1061 storage controller.

Conguration options: [Disabled] [Enabled]

Serial Port Conguration

Serial Port [Enabled]

Allows you to enable or disable the serial port (COM).

Conguration options: [Enabled] [Disabled]

Change Settings [IO=3F8h; IRQ=4]

Allows you to select the Serial Port base address.

Conguration options: [IO=3F8h; IRQ=4] [IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4]

[IO=2E8h; IRQ=3]

ASUS SABERTOOTH X79 3-25

Chapter 3

Restore AC Power Loss [Power Off]

[Power On] The system goes into on state after an AC power loss.

[Power Off] The system goes into off state after an AC power loss.

[Last State] The system goes into either off or on state, whatever the system state was

before the AC power loss.

Power On By Keyboard [Disabled]

Allows you to disable the Power On by keyboard function or set specic keys on the

keyboard to turn on the system.

Conguration options: [Disabled] [Space Bar] [Ctrl-Esc] [Power Key]

Power On By Mouse [Disabled]

[Disabled] Disables the Power On by a mouse.

[Enabled] Enables the Power On by a mouse.

Power On By PCIE/PCI [Disabled]

[Disabled] Disables the PCIE devices to generate a wake event.

[Enabled] Enables the PCIE devices to generate a wake event.

Power On By Ring [Disabled]

[Disabled] Disables Ring to generate a wake event.

[Enabled] Enables Ring to generate a wake event.

Power On By RTC [Disabled]

[Disabled] Disables RTC to generate a wake event.

[Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/

Minute/Second will become user-congurable with set values.

ErP Ready [Disabled]

This item allows user to switch off some power at S5 to get the system ready for ErP

requirement. When set to Enabled, all other PME options will be switched off.

Conguration options: [Disabled] [Enabled]

3.5.6 APM

3-26 Chapter 3: BIOS setup

Chapter 3

3.6 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change

the fan settings.

CPU Temperature / MB Temperature [xxx�C/xxx�F][xxx�C/xxx�F]

The onboard hardware monitor automatically detects and displays the CPU and motherboard

temperatures. Select Ignore if you do not wish to display the detected temperatures.

CPU Fan Speed; CPU OPT Fan Speed; Chassis Fan 1/2/3/4 Speed;

Assistant Fan Speed; PCH Fan Speed [xxxx RPM] or [Ignore] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU fan, CPU OPT

fan, chassis fan, assistant fan, and PCH fan speed in rotations per minute (RPM). If the fan

is not connected to the motherboard, the eld shows N/A. Select Ignore if you do not wish to

display the detected speed.

CPU Q-Fan Control [Enabled]

[Disabled] Disables the CPU Q-Fan control feature.

[Enabled] Enables the CPU Q-Fan control feature.

CPU Fan Speed Low Limit [600 RPM]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to

disable or set the CPU fan warning speed.

Conguration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

ASUS SABERTOOTH X79 3-27

Chapter 3

CPU Fan Profile [Standard]

This item appears only when you enable the CPU Q-Fan Control feature and allows

you to set the appropriate performance level of the CPU fan.

[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on

the CPU temperature.

[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.

[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

The following four items appear only when you set CPU Fan Prole to [Manual].

CPU Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range

from 20ºC to 75ºC.

CPU Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from

0% to 100%. The minimum value can not lower than the setting of Min duty cycle. When the

CPU temperature reaches 75 degree, fan will run up to full speed.

CPU Lower Temperature [20]

Displays the lower limit of the CPU temperature.

CPU Fan Min. Duty Cycle(%) [20]

Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 0% minimum CPU fan duty cycle. The values range from 0%The values range from 0%

to 100%. When the CPU temperature is under 40ºC, the CPU fan will operate at the minimumWhen the CPU temperature is under 40ºC, the CPU fan will operate at the minimum

duty cycle.

Chassis 1/2/3/4 Q-Fan Control [Enabled]

[Disabled] Disables the Chassis Q-Fan control feature.

[Enabled] Enables the Chassis Q-Fan control feature.

Chassis 1/2/3/4 Fan Speed Low Limit [600 RPM]

This item appears only when you enable the Chassis 1/2/3/4 Q-Fan Control feature and

allows you to disable or set the chassis fan warning speed.

Conguration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Chassis 1/2/3/4 Fan Profile [Standard]

This item appears only when you enable the Chassis Q-Fan Control feature and

allows you to set the appropriate performance level of the chassis fan.

[Standard] Sets to [Standard] to make the chassis fan automatically adjust depending

on the chassis temperature.

[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.

[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

3-28 Chapter 3: BIOS setup

Chapter 3

The following four items appear only when you set Chassis 1/2/3/4 Fan Prole to

[Manual].

Chassis 1/2/3/4 Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the chassis temperature. The values range

from 40ºC to 90ºC.

Chassis 1/2/3/4 Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range from

60% to 100%. The minimum value can not lower than the setting of Min duty cycle. When the

chassis temperature reaches 95 degree, fan will run up to full speed.

Chassis 1/2/3/4 Lower Temperature [40]

Displays the lower limit of the chassis temperature.

Chassis 1/2/3/4 Fan Min. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from

60% to 100%. When the chassis temperature is under 40ºC, the chassis fan will operate at the

minimum duty cycle.

Assistant/PCH Q-Fan Control [Enabled]

[Disabled] Disables the Assistant / PCH Q-Fan control feature.

[Enabled] Enables the Aassistant / PCH Q-Fan control feature.

Assistant/PCH Fan Speed Low Limit [600 RPM]

This item appears only when you enable the Assistant/PCH Q-Fan Control feature and

allows you to disable or set the chassis fan warning speed.

Conguration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Assistant/PCH Fan Profile [Standard]

This item appears only when you enable the Assistant/PCH Q-Fan Control feature

and allows you to set the appropriate performance level of the assistant/PCH fan.

[Standard] Sets to [Standard] to make the assistant/PCH fan automatically adjust

depending on the assistant/PCH temperature.

[Silent] Sets to [Silent] to minimize the fan speed for quiet assistant/PCH fan

operation.

[Turbo] Sets to [Turbo] to achieve maximum assistant/PCH fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

The following four items appear only when you set Assistant/PCH Fan Prole to [Manual].

Assistant/PCH Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the assistant/PCH temperature. The values

range from 40ºC to 90ºC.

Assistant/PCH Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum assistant/PCH fan duty cycle. The values

range from 60% to 100%. The minimum value can not lower than the setting of Min duty cycle.

When the assistant/PCH temperature reaches 95 degree, fan will run up to full speed.

ASUS SABERTOOTH X79 3-29

Chapter 3

Assistant/PCH Lower Temperature [40]

Displays the lower limit of the assistant/PCH temperature.

Assistant/PCH Fan Min. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the minimum assistant/PCH fan duty cycle. The values

range from 60% to 100%. When the assistant/PCH temperature is under 40ºC, the assistant/

PCH fan will operate at the minimum duty cycle.

CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard

voltage regulators. Select Ignore if you do not want to detect this item.

Anti Surge Support [Enabled]

This item allows you to enable or disable the Anti Surge function.

Conguration options: [Disabled] [Enabled]

3-30 Chapter 3: BIOS setup

Chapter 3

3.7 Boot menu

The Boot menu items allow you to change the system boot options.

Bootup NumLock State [On]

[On] Sets the power-on state of the NumLock to [On].

[Off] Sets the power-on state of the NumLock to [Off].

Full Screen Logo [Enabled]

[Enabled] Enables the full screen logo display feature.

[Disabled] Disables the full screen logo display feature.

Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.

Wait For ‘F1’ If Error [Enabled]

[Disabled] Disables this function.

[Enabled] The system waits for the <F1> key to be pressed when error occurs.

Option ROM Messages [Force BIOS]

[Force BIOS] The third-party ROM messages will be forced to display during the boot

sequence.

[Keep Current] The third-party ROM messages will be displayed only if the third-party

manufacturer had set the add-on device to do so.

ASUS SABERTOOTH X79 3-31

Chapter 3

Setup Mode [EZ Mode]

[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup

program.

[EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.

Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The

number of device items that appears on the screen depends on the number of devices

installed in the system.

• To select the boot device during system startup, press <F8> when ASUS Logo appears.

• To access Windows OS in Safe Mode, press <F8> after POST.

Boot Override

These items displays the available devices. The number of device items that appears on

the screen depends on the number of devices installed in the system. Click an item to start

booting from the selected device.

3-32 Chapter 3: BIOS setup

Chapter 3

3.8 Tool menu

The Tool menu items allow you to congure options for special functions. Select an item then

press <Enter> to display the submenu.

3.8.1 ASUS EZ Flash 2 Utility

Allows you to run ASUS EZ Flash 2 Utility. When you press <Enter>, a conrmation message

appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to

conrm your choice.

For more details, refer to section 3.10.2 ASUS EZ Flash 2 utility.

ASUS SABERTOOTH X79 3-33

Chapter 3

3.8.2 ASUS DRAM SPD Information

This menu showed the DIMM slot related informatons.

3-34 Chapter 3: BIOS setup

Chapter 3

3.8.3 ASUS O.C. Prole

This item allows you to store or load multiple BIOS settings.

The Setup Prole Status items show Not Installed if no prole is created.

• DO NOT shut down or reset the system while updating the BIOS to prevent the

system boot failure!

• We recommend that you update the BIOS le only coming from the same memory/CPU

conguration and BIOS version.

Label

Allows you to input the label of setup prole.

Save to Prole

Allows you to save the current BIOS settings to the BIOS Flash, and create a prole. Key in a

prole number from one to eight, press <Enter>, and then select Yes.

Load from Prole

Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the proleKey in the prole

number that saved your BIOS settings, press <Enter>, and then select Yes.

ASUS SABERTOOTH X79 3-35

Chapter 3

3.8.4 ASUS Drive Xpert

• Before using the Drive Xpert function, ensure that you have connected the SATA

signal cables and installed SATA hard disk drives to the SATA6G_E1 and SATA6G_E2

connectors.

• You can only make one Drive Xpert change a time before you save BIOS settings and

restart the computer.

Drive Xpert Mode

[Normal Mode] Allows you to use the SATA6G_E1 and SATA6G_E2 connectors as normal

SATA connectors.

[Super Speed] Allows you to use the Super Speed function that combines two hard drives

as one single drive partition.

[EZ Backup] Allows you to use the EZ Backup function that copies and maintains an

identical image of data from the SATA6G_E1 drive to the SATA6G_E2

drive.

When using only one hard disk in Normal Mode, connect the hard disk to the SATA6G_E1

connector on the motherboard.

• All original data of the two hard drives will be erased for Super Speed setup.

• All original data of the SATA6G_E2 hard disk will be erased for EZ Backup setup.

Drive Xpert Device(s) List:

SATA 6G E1 (Gray white) / SATA 6G E2 (Gray white)

Press <Enter> to display the information of the hard disks which are connected to the

SATA6G_E1 and SATA6G_E2 connectors on the motherboard.

3-36 Chapter 3: BIOS setup

Chapter 3

3.9 Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and

save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit

menu.

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup

menus. When you select this option or if you press <F5>, a conrmation window appears.

Select Yes to load the default values.

Save Changes & Reset

Once you are nished making your selections, choose this option from the Exit menu to

ensure the values you selected are saved. When you select this option or if you press <F10>,

a conrmation window appears. Select Yes to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When youWhen you

select this option or if you press <Esc>, a conrmation window appears. Select Yes to

discard changes and exit..

ASUS EZ Mode

This option allows you to enter the EZ Mode screen.

Launch UEFI Shell from lesystem device

This option allows you to attempt to launch the UEFI Shell application (shellx64.e) from one

of the available lesystem devices.

Exit

Load Optimized Defaults

Save Changes & Reset

Discard Changes & Exit

ASUS EZ Mode

Launch UEFI Shell from lesystem device

ASUS SABERTOOTH X79 3-37

Chapter 3

3.10 Updating BIOS

The ASUS website publishes the latest BIOS versions to provide enhancements on system

stability, compatibility, or performance. However, BIOS updating is potentially risky. If there

is no problem using the current version of BIOS, DO NOT manually update the BIOS.

Inappropriate BIOS updating may result in the system’s failure to boot. Carefully follow the

instructions of this chapter to update your BIOS if necessary.

Visit the ASUS website (www.asus.com) to download the latest BIOS le for this

motherboard.

The following utilities allow you to manage and update the motherboard BIOS setup program.

1. ASUS Update: Updates the BIOS in Windows® environment.

2. ASUS EZ Flash 2: Updates the BIOS using a USB ash drive.

3. ASUS CrashFree BIOS 3: Restores the BIOS using the motherboard support DVD or

a USB ash drive when the BIOS le fails or gets corrupted.

4. ASUS BIOS Updater: Updates and backups the BIOS in DOS environment using the

motherboard support DVD and a USB ash disk drive.

Refer to the corresponding sections for details on these utilities.

Save a copy of the original motherboard BIOS le to a USB ash disk in case you need

to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS

Update or BIOS Updater utilities.

3.10.1 ASUS Update utility

The ASUS Update is a utility that allows you to manage, save, and update the motherboard

BIOS in Windows® environment. The ASUS Update utility allows you to:

• Update the BIOS directly from the Internet

• Download the latest BIOS le from the Internet

• Update the BIOS from an updated BIOS le

• Save the current BIOS le

• View the BIOS version information

This utility is available in the support DVD that comes with the motherboard package.

ASUS Update requires an Internet connection either through a network or an Internet

Service Provider (ISP).

Launching ASUS Update

After installing AI Suite II from the motherboard support DVD, launch ASUS Update by

clicking Update > ASUS Update on the AI Suite II main menu bar.

Quit all Windows® applications before you update the BIOS using this utility.

3-38 Chapter 3: BIOS setup

Chapter 3

Updating the BIOS through the Internet

To update the BIOS through the Internet:

1. From the ASUS Update screen,

select Update BIOS from Internet,

and then click Next.

2. Select the ASUS FTP site nearest

you to avoid network trafc.

If you want to enable the BIOS

downgradable function and auto

BIOS backup function, check the

checkboxs before the two items on

the screen.

4. You can decide whether to change

the BIOS boot logo, which is the

image appearing on screen during

the Power-On Self-Tests (POST).

Click Yes if you want to change the

boot logo or No to continue.

5. Follow the onscreen instructions to

complete the update process.

3. Select the BIOS version that you

want to download. Click Next.

ASUS SABERTOOTH X79 3-39

Chapter 3

• The screenshots in this section are for reference only. The actual BIOS information

vary by models.

• Refer to the software manual in the support DVD or visit the ASUS website at

www.asus.com for detailed software conguration.

Updating the BIOS through a BIOS le

To update the BIOS through a BIOS le:

1. From the ASUS Update screen,

select Update BIOS from le, and

then click Next.

2. Locate the BIOS le from the Open

window, click Open, and click Next.

3. You can decide whether to change

the BIOS boot logo. Click Yes if you

want to change the boot logo or No to

continue.

4. Follow the onscreen instructions to

complete the update process.

3-40 Chapter 3: BIOS setup

Chapter 3

3.10.2 ASUS EZ Flash 2 utility

The ASUS EZ Flash 2 feature allows you to update the BIOS without having to use a

bootable oppy disk or an OS-based utility.

Before you start using this utility, download the latest BIOS from the ASUS website

at www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB ash disk that contains the latest BIOS le to the USB port.

2. Enter the Advanced Mode of the BIOS setup program. Go to theEnter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select

ASUS EZ Flash Utility and press <Enter> to enable it.

3. Press <Tab> to switch to the Drive eld.

4. Press the Up/Down arrow keys to nd the USB ash disk that contains the latest BIOS,

and then press <Enter>.

5. Press <Tab> to switch to the Folder Info eld.

6. Press the Up/Down arrow keys to nd the BIOS le, and then press <Enter> to perform to perform

the BIOS update process. Reboot the system when the update process is done.

ASUS SABERTOOTH X79 3-41

Chapter 3

3.10.3 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the

BIOS le when it fails or gets corrupted during the updating process. You can restore a

corrupted BIOS le using the motherboard support DVD or a USB ash drive that contains

the BIOS le.

The BIOS le in the motherboard support DVD may be older than the BIOS le published

on the ASUS ofcial website. If you want to use the newer BIOS le, download the le at

support.asus.com and save it to a USB ash drive.

Recovering the BIOS

To recover the BIOS:

1. Turn on the system.

2. Insert the motherboard support DVD to the optical drive, or the USB ash drive

containing the BIOS le to the USB port.

3. The utility automatically checks the devices for the BIOS le. When found, the utility

reads the BIOS le and enters ASUS EZ Flash 2 utility automatically.

4. The system requires you to enter BIOS Setup to recover BIOS setting. To ensure

system compatibility and stability, we recommend that you press <F5> to load default

BIOS values.

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause

system boot failure!

• This function can support devices such as a USB ash disk with FAT 32/16 format and

single partition only.

• DO NOT shut down or reset the system while updating the BIOS to prevent system

boot failure!

Ensure to load the BIOS default settings to ensure system compatibility and stability. Select

the Load Optimized Defaults item under the Exit menu. See section 3.9 Exit Menu for

details.

3-42 Chapter 3: BIOS setup

Chapter 3

Booting the system in DOS environment

1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.

2. Boot your computer. When the ASUS Logo appears, press <F8> to show the BIOS

Boot Device Select Menu. Insert the support DVD into the optical drive and select the

optical drive as the boot device.

Welcome to FreeDOS (http://www.freedos.org)!

C:\>d:

D:\>

3. When the Make Disk menu appears, select the FreeDOS command prompt item by

pressing the item number.

4. At the FreeDOS prompt, type d: and press <Enter> to switch the disk from

Drive C (optical drive) to Drive D (USB ash drive).

3.10.4 ASUS BIOS Updater

The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also

allows you to copy the current BIOS le that you can use as a backup when the BIOS fails or

gets corrupted during the updating process.

The succeeding utility screens are for reference only. The actual utility screen displays may

not be same as shown.

Before updating BIOS

1. Prepare the motherboard support DVD and a USB ash drive in FAT32/16 format and

single partition.

2. Download the latest BIOS le and BIOS Updater from the ASUS website at http://

support.asus.com and save them on the USB ash drive.

• NTFS is not supported under DOS environment. Do not save the BIOS le and BIOS

Updater to a hard disk drive or USB ash drive in NTFS format.

• Do not save the BIOS le to a oppy disk due to low disk capacity.

3. Turn off the computer and disconnect all SATA hard disk drives (optional).

Please select boot device:

SATA: XXXXXXXXXXXXXXXX

USB XXXXXXXXXXXXXXXXX

UEFI: XXXXXXXXXXXXXXXX

Enter Setup

 ↑ and ↓ to move selection

ENTER to select boot device

ESC to boot using defaults

ASUS SABERTOOTH X79 3-43

Chapter 3

2. The BIOS Updater backup screen appears indicating the BIOS backup process. When

BIOS backup is done, press any key to return to the DOS prompt.

ASUSTek BIOS Updater for DOS V1.18 [2011/04/29]

Current ROM Update ROM

Note

Saving BIOS:

PATH: A:\

BOARD: SABERTOOTH X79

VER: 0401

DATE: 09/16/2011

BOARD: Unknown

VER: Unknown

DATE: Unknown

BIOS backup is done! Press any key to continue.

D:\>bupdater /oOLDBIOS1.rom

Filename Extension

Backing up the current BIOS

To backup the current BIOS le using the BIOS Updater

Ensure that the USB ash drive is not write-protected and has enough free space to save

the le.

1. At the FreeDOS prompt, type bupdater /o[lename] and press <Enter>.

The [lename] is any user-assigned lename with no more than eight alphanumeric

characters for the lename and three alphanumeric characters for the extension.

3-44 Chapter 3: BIOS setup

Chapter 3

4. Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS

Updater. Restart your computer.

DO NOT shut down or reset the system while updating the BIOS to prevent system boot

failure!

• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS

prompt after updating BIOS.

• Ensure to load the BIOS default settings to ensure system compatibility and stability.

Select the Load Optimized Defaults item under the Exit BIOS menu. See Chaper 3

of your motherboard user manual for details.

• Ensure to connect all SATA hard disk drives after updating the BIOS le if you have

disconnected them.

Updating the BIOS le

To update the BIOS le using BIOS Updater

1. At the FreeDOS prompt, type bupdater /pc /g and press <Enter>.

ASUSTek BIOS Updater for DOS V1.18 [2011/04/29]

Current ROM Update ROM

Note

[Enter] Select or Load [Tab] Switch [V] Drive Info

[Up/Down/Home/End] Move [B] Backup [Esc] Exit

SABERX79.ROM 4194304 2011-08-05 17:30:48

PATH: A:\

BOARD: SABERTOOTH X79

VER: 0401

DATE: 09/16/2011

BOARD: Unknown

VER: Unknown

DATE: Unknown

D:\>bupdater /pc /g

2. The BIOS Updater screen appears as below.

3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys

to select the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le

and prompts you to conrm BIOS update.

Are you sure to update BIOS?

Yes No

ASUS SABERTOOTH X79 4-1

Chapter 4

If Autorun is NOT enabled in your computer, browse the contents of the support DVD to

locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run

the DVD.

4.1 Installing an operating system

This motherboard supports Windows® XP/ 64-bit XP/ Vista / 64-bit Vista / 7 / 64-bit 764-bit Vista / 7 / 64-bit 7

operating systems (OS). Always install the latest OS version and corresponding updates to

maximize the features of your hardware.

4.2 Support DVD information

The support DVD that comes with the motherboard package contains the drivers, software

applications, and utilities that you can install to avail all motherboard features.

4.2.1 Running the support DVD

Place the support DVD into the optical drive. The DVD automatically displays the Drivers menu if

Autorun is enabled in your computer. Click each menu tab and select the items you want to install.

• Motherboard settings and hardware options vary. Use the setup procedures presented

in this chapter for reference only. Refer to your OS documentation for detailed

information.

• Ensure that you install the Windows® XP Service Pack 2 or later versions before

installing the drivers for better compatibility and system stability.

The contents of the support DVD are subject to change at any time without notice. Visit the

ASUS website at www.asus.com for updates.

Chapter 4: Software support

Chapter 4

The Drivers menu shows the available

device drivers if the system detects

installed devices. Install the necessary

drivers to use the devices.

The Utilities

menu shows the

applications and

other software that

the motherboard

supports.

The Make Disk menu

contains items to

create the RAID/AHCI

driver disk.

The Manual menu contains

the list of supplementary user

manuals. Click an item to open

the folder of the user manual.

Click the Contact

tab to display the

ASUS contact

information.

Click an icon

to display DVD/

motherboard

information

Click an item

to install

4-2 Chapter 4: Software support

Chapter 4

4.2.2 Obtaining the software manuals

The software manuals are included in the support DVD. Follow the instructions below to get

the necessary software manuals.

The software manual les are in Portable Document Format (PDF). Install the Adobe®

Acrobat® Reader from the Utilities menu before opening the les.

The screenshots in this section are for reference only. The actual software manuals

containing in the support DVD vary by models.

1. Click on the Manual tab. Click

on ASUS Motherboard Utility

Guide from the manual list on the

left.

2. The Manual folder of the support

DVD appears. Double-click the

folder of your selected software.

3. Some software manuals are

provided in different languages.

Double-click the language to

show the software manual.

ASUS SABERTOOTH X79 4-3

Chapter 4

4.3 Software information

Most of the applications in the support DVD have wizards that will conveniently guide you

through the installation. View the online help or readme le that came with the software

application for more information.

4.3.1 AI Suite II

AI Suite II is an all-in-one interface that integrates several ASUS utilities and allows users to

launch and operate these utilities simultaneously.

Installing AI Suite II

To install AI Suite II on your computer

1. Place the support DVD to the optical drive. The Drivers installation tab appears if your

computer has enabled the Autorun feature.

2. Click the Utilities tab, then click AI Suite II.

3. Follow the onscreen instructions to complete installation.

Using AI Suite II

AI Suite II automatically starts when you enter the Windows® operating system (OS). The AI

Suite II icon appears in the Windows® notication area. Click the icon to open the AI Suite II

main menu bar.

Click each button to select and launch a utility, to monitor the system, to update the motherboard

BIOS, to display the system information, and to customize the settings of AI Suite II.

• The applications in the Tool menu vary with models.

• The screeshots of AI Suite II in this user manual are for reference only. The actual

screenshots vary with models.

• Refer to the software manual in the support DVD or visit the ASUS website

at www.asus.com for detailed software conguration.

Shortcut to Thermal Radar

Click to select a utility

Click to monitor sensors

or CPU frequency

Click to update the motherboard BIOS

Click to show the

system information

Click to customize

the interface settings

4-4 Chapter 4: Software support

Chapter 4

4.3.2 ASUS TUF Thermal Radar

The TUF Thermal Radar monitors temps in critical parts of the motherboard in real time,

automatically adjusting fan speeds to make sure the system maintains high stability without

overheating. It consists of multiple sensors for various components on the motherboard,

giving user the ability to monitor each one individually. The Thermal Radar automatically

calculates ideal fan speeds based on different parameters selected by users for each

component, keeping everything cooler and longer lasting.

Launching Thermal Radar

After installing AI Suite II from the motherboard support DVD, launch Thermal Radar by

clicking the Thermal Radar icon on the AI Suite II main menu bar.

The software screen captures in this manual are for reference only, but the operation

steps remain the same.

Using the Thermal Radar main screen

• Click any thermal sensor on the sensor map to read the detail information of the selected

sensor.

• On the right part of the Thermal Radar main screen, click Temperature, Fan or Voltage

to see the real-time system thermal, fan and voltage information.

System thermal,

fan and voltage

information

Function list

System thermal

sensor map

ASUS SABERTOOTH X79 4-5

Chapter 4

Conguring system fan settings

The TUF Thermal Radar provides easy-to-use fan proles for adjusting the CPU fan,

assistant fan (I/O cover fan), PCH fan, and the chassis fan speeds according to different

ambient temperatures caused by different climate conditions in different geographic

regions and your PC’s system loading. Thermal Radar also provides fully-customizable fan

speed control, offering the most exible controls of fan speed to achieve a quiet and cool

environment.

Loading default fan proles

To load the system default fan proles

1. Click or from the function list on the bottom of the Thermal Radar main

screen.

2. Click a fan to congure. For example,

click CPU Fan.

3. Read the introduction and notice of the

selected fan. Click Setting.

4. Select a fan prole in the Prole Name

drop-down list and click Apply. You can

also congure other system fans by

clicking the CHA and ASST icon below.

4-6 Chapter 4: Software support

Chapter 4

You can also assign the specic system component(s) to monitor and have Thermal Radar to

dynamically adjust the fan speeds in real-time when the temperature of the monitored system

component reaches to certain degree.

To customize the fan speed with advanced options

1. Select User in the Prole Name drop-

down list.

2. Drag the paper clip icon to the system

component(s) listed on the right of the

Thermal Radar window. You can assign

maximum three components to monitor.

Conguring user-customizable fan settings

You can customize the fan speed to meet different computing and environment needs.

To fast customize the fan speed

1. Select User in the Prole Name drop-

down list.

2. Drag the control points on the fan speed

curve to set the fan speed percentage.

3. Click Apply.

3. Adjust the slider(s) under each

component you selected for a

combination of 100% and click Apply.

For example, you assign 60% to

motherboard, 20% to VCORE, and

20% to VCCSA and click Apply,

Thermal Radar automatically sets the

required fan speed by calculating the

overall temperature of the monitored

components.

ASUS SABERTOOTH X79 4-7

Chapter 4

4. If you are not sure how to choose

the proper components to monitor

and the percentage to adjust, click

Auto and have Thermal Radar do the

recommended settings for you. Click

Apply for the setting to take effect.

4-8 Chapter 4: Software support

Chapter 4

4.3.3 TurboV EVO

ASUS TurboV EVO introduces TurboV that allows you to manually adjust the CPU frequency

and related voltage values. After installing AI Suite II from the motherboard support DVD,

launch TurboV EVO by clicking Tool > TurboV EVO on the AI Suite II main menu bar.

Refer to the software manual in the support DVD or visit the ASUS website at

www.asus.com for detailed software conguration.

TurboV

TurboV allows you to overclock the BCLK frequency, CPU voltage, IMC voltage, and DRAM

Bus voltage in Windows® environment and takes effect in real-time without exiting and

rebooting the OS.

Refer to the CPU documentation before adjusting CPU voltage settings. Setting a high

voltage may damage the CPU permanently, and setting a low voltage may make the

system unstable.

For system stability, all changes made in TurboV will not be saved to BIOS settings and

will not be kept on the next system boot. Use the Save Prole function to save your

customized overclocking settings and manually load the prole after Windows starts.

Save the current

settings as a

new prole

Voltage

Adjustment

bars

Current values

Target values

Load prole

Click to show

settings

Applies all changes

immediately

Undoes all changes

without applying

Click to restore

all start-up

settings

ASUS SABERTOOTH X79 4-9

Chapter 4

Using Advanced Mode

Click on the Advanced Mode tab to adjust the advanced voltage settings.

Advanced mode

Applies all changes

immediately

Undoes all changes

without applying

Click to restore

all start-up

settings

Current values

Target values Voltage

Adjustment

bars

CPU Ratio

Allows you to manually adjust the CPU ratio.

1. Click the CPU Ratio tab.

2. Click ON to activate the CPU Ratio function. The system automatically reboots for the

changes to take effect.

3. After system reboot, launch TurboV EVO again, and then click the CPU Ratio tab. Drag

the adjustment bar upwards or downwards to the desired value.

4. Click Apply to make the change take effect.

CPU Ratio

Click to restore

all start-up

settings

Adjustment bar

Applies all changes

immediately

Undoes all changes

without applying

• Set the CPU Ratio Setting item in BIOS to [Auto] before using the CPU Ratio function

in TurboV. Refer to Chapter 3 of your motherboard user manual for details.

• The CPU Ratio bars show the status of the CPU cores, which vary with your CPU

model.

4-10 Chapter 4: Software support

Chapter 4

CPU Strap

Allows you to manually adjust CPU Strap.

1. Click the CPU Strap tab.

2. Drag the adjustment bar to the desired value. The graph on the right will change value

accordingly.

3. Click Apply and reboot the system to make the change take effect.

CPU Strap

Click to restore

all start-up

settings

Adjustment bar

Applies all changes

immediately

Undoes all changes

without applying

• Applied settings in CPU Ratio affect CPU Strap results.

• The value on the CPU Strap diagram varies with your CPU model.

ASUS SABERTOOTH X79 4-11

Chapter 4

4.3.4 DIGI+ Power Control

DIGI+ PowerControl allows you to adjust VRM voltage and frequency modulation to enhance

reliability and stability. It also provides the highest power efciency, generating less heat to

longer component lifespan and minimize power loss.

After installing AI Suite II from the motherboard support DVD, launch DIGI+ Power Control

by clicking Tool > DIGI+ Power Control on the AI Suite II main menu bar.

Select CPU Power or DRAM Power to adjust the power control settings.

Function no. Function description

1CPU Load-line Calibration

It allows you to adjust the voltage settings and control the system temperature.

Higher load-line calibration could get higher voltage and good overclocking

performance but increases the CPU and VRM thermal.

2CPU Current Capability

CPU Current Capability provides wider total power range for overclocking. A higher

value setting gets higher VRM power consumption delivery.

3CPU Voltage Frequency

Switching frequency will affect the VRM transient response and component thermal.

Higher frequency gets quicker transient response.

4VCCSA Load-line Calibration

The behavior of the DRAM Controller is decided by the VCCSA Load-line. Set to a

higher value for system performance, or to a lower value for better thermal solution.

5VCCSA Current Capability

A higher value brings wider total DRAM Controller power range and extends the

overclocking frequency range simultaneously.

6CPU Power Phase Control

Increase phase number under heavy system loading to get more transient and

better thermal performance. Reduce phase number under light system loading to

increase VRM efciency.

7CPU Power Duty Control

CPU Power Duty Control adjusts the current of every VRM phase and the thermal of

every phase component.

Application aids

Apply all changes

immediately

Undo all changes

without applying

CPU Power

4-12 Chapter 4: Software support

Chapter 4

• The actual performance boost may vary depending on your CPU and DRAM

specication.

• Do not remove the thermal module. The thermal conditions should be monitored.

Function no. Function description

1DRAM Current Capability

A higher value brings a wider total power range and extends the overclocking

frequency range simultaneously.

2DRAM Voltage Frequency

Allows you to adjust the DRAM switching frequency for system stability or to

increase OC Range.

3DRAM Power Phase Control

Set Manual Adjustment to faster phase response to increase system performance or

to slower phase response to increase DRAM power efciency.

DRAM Power

Application aids

Apply all changes

immediately

Undo all changes

without applying

ASUS SABERTOOTH X79 4-13

Chapter 4

4.3.5 Sensor Recorder

Sensor Recorder monitors the changes in the system voltage, temperature, and fan speed on

a timeline. The History Record function allows you to designate specic time spans on record

to keep track of the three system statuses for certain purposes.

Launching Sensor Recorder

After installing AI Suite II from the motherboard support DVD, launch Sensor Recorder by

clicking Tool > Sensor Recorder on the AI Suite II main menu bar.

Using Sensor Recorder

Click on Voltage/ Temperature/ Fan Speed tabs for the status you want to monitor. Colored

lines will automatically appear on the diagram to indicate the immediate changes in the

system status.

Using History Record

1. Click on the History Record tab and adjust the settings on the left for Type, Date,

Record Interval, and Record Duration according to need.

2. Colored lines will then appear on the diagram to indicate the changes in the requested

status of the given time.

3. Click on Recording to record the history changes.

Click on Monitor > Sensor on the AI Suite II main menu bar and a highlight of the system

statuses will appear on the right panel.

4-14 Chapter 4: Software support

Chapter 4

4.3.6 USB 3.0 Boost

The ASUS exclusive USB 3.0 Boost provides speed boost for USB 3.0 devices and the

up-to-date support of USB Attached SCSI Protocol (UASP). With USB 3.0 Boost, you can

accelerate the transfer speed of your USB 3.0 devices with ease.

Launching USB 3.0 Boost

After installing AI Suite II from the motherboard support DVD, launch USB 3.0 Boost by

clicking Tool > USB 3.0 Boost on the AI Suite II main menu bar.

Conguring USB 3.0 Boost

1. Connect a USB 3.0 device to the USB 3.0 port.

2. USB 3.0 Boost automatically detects the property of the connected device and

switches to Turbo mode or UASP mode (if UASP is supported by the connected

device).

3. You can manually switch the USB 3.0 mode back to Normal mode at any time.

Refer to the software manual in the support DVD or visit the ASUS website at

www.asus.com for detailed software conguration.

ASUS SABERTOOTH X79 4-15

Chapter 4

4.3.7 ASUS SSD Caching

This feature boosts system performance by using an installed SSD with no capacity

limitations as a cache for frequently accessed data. Harness a combination of SSD-like

performance and response and hard drive capacity with just one click. No rebooting is

needed with instant activation for complete ease of use.

Launching ASUS SSD Caching

After installing AI Suite II from the motherboard support DVD, launch ASUS SSD Caching

by clicking Tool > ASUS SSD Caching on the AI Suite II main menu bar.

Conguring ASUS SSD Caching

1. Connect one HDD and one SSD to the

the Marvell® SATA ports (SATA6G_E1/

E2). ASUS SSD Caching automatically

detects the HDD and SSD.

2. Click on Caching Now! to initialize the

connected disks. Initialization status is

shown on the program interface.

3. Caching function will be activated once

initialization is complete.

4. Click on Disable when deactivating SSD

caching.

• During initialization, you can proceed with doing any system operations. You can

check the caching status later or wait for a pop-up message notifying that initialization

is completed.

• For regular usage, the SATA6G_E1/E2 connectors are recommended for data drives.

• After disabling SSD Caching, the SSD will become a non-congurable disk in

Windows OS. To use the SSD again for normal functions, go to Disk Management to

recongure the SSD.

4-16 Chapter 4: Software support

Chapter 4

4.3.8 ASUS Update

ASUS Update lays out the options for updating BIOS on your system. Update BIOS utility

on your system or simply save the utility for later use just by following the directions on this

convenient updating feature.

Launching ASUS Update

After installing AI Suite II from the motherboard support DVD, launch ASUS Update by

clicking Update> ASUS Update on the AI Suite II main menu bar.

Using ASUS Update

Select the way you would like to do with the BIOS utility. Click on Next and follow the

instructions to complete your request.

• Update BIOS from Internet

Download the latest BIOS utility from the ASUS service website (www.asus.com) and

follow the suggested procedures to update the BIOS version on your system.

• Download BIOS from Internet

Download the latest BIOS utility from the ASUS service website (www.asus.com) and

save for later use.

• Update BIOS from le

Use the BIOS utility demanded from a source le to update the BIOS version on your

system.

• Save BIOS to le

Back up the current BIOS utility on your system to another le or USB disk to save for

later use.

There may be risks of system crash when updating BIOS. Backing up the original BIOS

utility is recommended before updating.

ASUS SABERTOOTH X79 4-17

Chapter 4

4.3.9 MyLogo2

This MyLogo utility lets you customize the boot logo. The boot logo is the image that appears

on screen during the Power-On-Self-Tests (POST). Personalize your computer from the very

beginning!

Launching ASUS Update

After installing AI Suite II from the motherboard support DVD, launch MyLogo by clicking

Update> MyLogo on the AI Suite II main menu bar.

Using MyLogo

Select the way you would like to do update your boot logo. Then click Next and follow the

given instructions.

Change the BIOS boot logo of my motherboard

1. Under Current BIOS, click Browse and choose the desired image for your boot logo.

Then click on Next.

4-18 Chapter 4: Software support

Chapter 4

2. Click on Auto Tune to adjust image size compatibility or adjust the resolution bar.

3. You can click on Booting Preview to preview the boot image. Then click Next.

4. Click on Flash to start updating the image to the boot logo.

5. Click on Yes to reboot or you can also see the new logo next time you restart your

computer.

Change the boot logo of a downloaded BIOS le and update (or do not update) this

BIOS to the motherboard

1. At BIOS File, Browse to download the requested BIOS le to your system. This utility

will help you detect the compatibility of the BIOS version.

2. Then at Picture File, Browse to select the desired image for boot logo. Click Next.

3. Follow steps 2-5 in Change the BIOS boot logo of my motherboard to complete

logo update.

The fullscreen logo application in BIOS utility must be enabled for MyLogo to take effect.

ASUS SABERTOOTH X79 4-19

Chapter 4

4.3.10 Audio congurations

The Realtek® audio CODEC provides 8-channel audio capability to deliver the ultimate audio

experience on your computer. The software provides Jack-Detection function, S/PDIF Out

support, and interrupt capability. The CODEC also includes the Realtek® proprietary UAJ®

(Universal Audio Jack) technology for all audio ports, eliminating cable connection errors and

giving users plug and play convenience.

Follow the installation wizard to install the Realtek® Audio Driver from the support DVD that

came with the motherboard package.

If the Realtek audio software is correctly installed, you will nd

the Realtek HD Audio Manager icon on the taskbar. Double-

click on the icon to display the Realtek HD Audio Manager. Realtek HD Audio Manager

A. Realtek HD Audio Manager for Windows® Vista™

Control

settings

window

Conguration

option tabs

Information

button

Exit button

Minimize

button

Device

advanced

settings

Connector

settings

Analog

and digital

connector

status

Set default device

button

Control settings

window

Conguration

options

Information button

Exit button

Minimize button

B. Realtek HD Audio Manager for Windows XP

Refer to the software manual in the support DVD or visit the ASUS website at

www.asus.com for detailed software conguration.

4-20 Chapter 4: Software support

Chapter 4

4.4 RAID congurations

The motherboard comes with the Intel® X79 chipset and Marvell SATA controller that allow

you to congure Serial ATA hard disk drives as RAID sets. The motherboard supports the

following RAID congurations:

• Intel® Rapid Storage Technology with RAID 0, RAID 1, RAID 10 and RAID 5 support.

• Marvell® RAID utility with RAID 0 and RAID 1 support.

• You must install Windows® XP Service Pack 3 or later versions before using Serial

ATA hard disk drives. The Serial ATA RAID feature is available only if you are using

Windows® XP Service Pack 3 or later versions.

• Due to Windows® XP / Vista limitation, a RAID array with the total capacity over 2TB

cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk

only.

• If you want to install a Windows® operating system to a hard disk drive included in a

RAID set, you have to create a RAID driver disk and load the RAID driver during OS

installation. Refer to section 4.5 Creating a RAID driver disk for details.

4.4.1 RAID denitions

RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in

parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a

sustained data transfer rate, double that of a single disk alone, thus improving data access

and storage. Use of two new identical hard disk drives is required for this setup.

RAID 1 (Data mirroring) copies and maintains an identical image of data from one drive to

a second drive. If one drive fails, the disk array management software directs all applications

to the surviving drive as it contains a complete copy of the data in the other drive. This RAID

conguration provides data protection and increases fault tolerance to the entire system. Use

two new drives or use an existing drive and a new drive for this setup. The new drive must be

of the same size or larger than the existing drive.

RAID 5 stripes both data and parity information across three or more hard disk drives. Among

the advantages of RAID 5 conguration include better HDD performance, fault tolerance, and

higher storage capacity. The RAID 5 conguration is best suited for transaction processing,

relational database applications, enterprise resource planning, and other business systems.

Use a minimum of three identical hard disk drives for this setup.

RAID 10 is data striping and data mirroring combined without parity (redundancy data) having

to be calculated and written. With the RAID 10 conguration you get all the benets of both

RAID 0 and RAID 1 congurations. Use four new hard disk drives or use an existing drive

and three new drives for this setup.

ASUS SABERTOOTH X79 4-21

Chapter 4

4.4.2 Installing Serial ATA hard disks

The motherboard supports Serial ATA hard disk drives. For optimal performance, install

identical drives of the same model and capacity when creating a disk array.

To install the SATA hard disks for a RAID conguration:

1. Install the SATA hard disks into the drive bays.

2. Connect the SATA signal cables.

3. Connect a SATA power cable to the power connector on each drive.

4.4.3 Setting the RAID item in BIOS

You must enable the RAID function in the BIOS Setup before creating RAID set(s) using

SATA HDDs. To do this:

1. Enter the BIOS Setup during POST.

2. Go to the Advanced menu > SATA Conguration, and then press <Enter>.

3. Set the SATA Mode item to [RAID Mode].

4. Save your changes, and then exit the BIOS Setup.

Refer to Chapter 3 for details on entering and navigating through the BIOS Setup.

Due to chipset limitation, when set any of SATA ports to RAID mode, all SATA ports run at

RAID mode together.

4.4.4 Intel® Rapid Storage Technology Option ROM utility

To enter the Intel® Rapid Storage Technology Option ROM utility:

1. Turn on the system.

2. During POST, press <Ctrl> + <I> to display the utility main menu.

Intel(R) Rapid Storage Technology - Option ROM - v10.0.0.1032

[ MAIN MENU ]

1. Create RAID Volume 3. Reset Disks to Non-RAID

2. Delete RAID Volume 4. Recovery Volume Options

5. Exit

[ DISK/VOLUME INFORMATION ]

RAID Volumes:

None dened.

Physical Devices:

Port Device Model Serial # Size Type/Status(Vol ID)

0 ST3160812AS 9LS0HJA4 149.0GB Non-RAID Disk

1 ST3160812AS 9LS0F4HL 149.0GB Non-RAID Disk

2 ST3160812AS 3LS0JYL8 149.0GB Non-RAID Disk

3 ST3160812AS 9LS0BJ5H 149.0GB Non-RAID Disk

[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu

4-22 Chapter 4: Software support

Chapter 4

Creating a RAID set

To create a RAID set:

1. From the utility main menu, select 1. Create RAID Volume and press <Enter>. The

following screen appears:

2. Enter a name for the RAID set and press <Enter>.

3. When the RAID Level item is selected, press the up/down arrow key to select a RAID

level to create, and then press <Enter>.

4. When the Disks item is selected, press <Enter> to select the hard disk drives you want

to include in the RAID set. The SELECT DISKS screen appears:

The utility supports maximum four hard disk drives for RAID conguration.

The navigation keys at the bottom of the screen allow you to move through the menus

and select the menu options.

The RAID BIOS setup screens shown in this section are for reference only and may not

exactly match the items on your screen.

Intel(R) Rapid Storage Technology - Option ROM - v10.0.0.1032

[ CREATE VOLUME MENU ]

[ HELP ]

Enter a unique volume name that has no special characters and is

16 characters or less.

[↑↓]Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select

Name: Volume0

RAID Level: RAID0(Stripe)

Disks: Select Disks

Strip Size: 128KB

Capacity: 0.0 GB

Sync: N/A

Create Volume

[ SELECT DISKS ]

Port Drive Model Serial # Size Status

0 ST3160812AS 9LS0HJA4 149.0GB Non-RAID Disk

1 ST3160812AS 9LS0F4HL 149.0GB Non-RAID Disk

2 ST3160812AS 3LS0JYL8 149.0GB Non-RAID Disk

3 ST3160812AS 9LS0BJ5H 149.0GB Non-RAID Disk

Select 2 to 6 disks to use in creating the volume.

[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done

ASUS SABERTOOTH X79 4-23

Chapter 4

5. Use the up/down arrow key to select a drive, and then press <Space> to select. A small

triangle marks the selected drive. Press <Enter> after completing your selection.

6. Use the up/down arrow key to select the stripe size for the RAID array (for RAID 0, 10

and 5 only),and then press <Enter>. The available stripe size values range from 4KB

to 128KB. The following are typical values:

RAID 0: 128KB

RAID 10: 64KB

RAID 5: 64KB

We recommend a lower stripe size for server systems, and a higher stripe size for

multimedia computer systems used mainly for audio and video editing.

WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST.

Are you sure you want to create this volume? (Y/N):

9. Press <Y> to create the RAID volume and return to the main menu, or <N> to go back

to the CREATE VOLUME menu.

7. When the Capacity item is selected, enter the RAID volume capacity that you want

and press <Enter>. The default value indicates the maximum allowed capacity.

8. When the Create Volume item is selected, press <Enter>. The following warning

message appears:

4-24 Chapter 4: Software support

Chapter 4

Deleting a RAID set

Take caution when deleting a RAID set. You will lose all data on the hard disk drives when

you delete a RAID set.

To delete a RAID set:

1. From the utility main menu, select 2. Delete RAID Volume and press <Enter>. The

following screen appears:

Exiting the Intel® Rapid Storage Technology Option ROM utility

To exit the utility:

1. From the utility main menu, select 5. Exit, and then press <Enter>. The following

warning message appears:

2. Press <Y> to exit or press <N> to return to the utility main menu.

2. Use the up/down arrow key to select the RAID set you want to delete, and then press

<Del>. The following warning message appears:

3. Press <Y> to delete the RAID set and return to the utility main menu, or press <N> to

return to the DELETE VOLUME menu.

Intel(R) Rapid Storage Technology - Option ROM - v10.0.0.1032

[ DELETE VOLUME MENU ]

[ HELP ]

Deleting a volume will reset the disks to non-RAID.

WARNING: ALL DISK DATA WILL BE DELETED.

(This does not apply to Recovery volumes)

[↑↓]-Select [ESC]-Previous Menu [DEL]-Delete Volume

Name Level Drives Capacity Status Bootable

Volume0 RAID0(Stripe) 2 298.0GB Normal Yes

ALL DATA IN THE VOLUME WILL BE LOST!

(This does not apply to Recovery volumes)

Are you sure you want to delete volume “Volume0”? (Y/N):

[ DELETE VOLUME VERIFICATION ]

Are you sure you want to exit? (Y/N):

[ CONFIRM EXIT ]

ASUS SABERTOOTH X79 4-25

Chapter 4

4.4.5 Marvell RAID utility

The onboard Marvell SATA 6.0 Gb/s controller allows you to create a RAID 0 or

RAID 1 array using two SATA hard disk drives. Refer to Chapter 2 of your motherboard user

manual for the exact location of the Marvell SATA 6.0 Gb/s connector.

To enter the Marvell utility, press <Ctrl> + <M> during POST.

All exisiting data on the hard disk drives will be erased when creating or deleting a RAID

array. Ensure that you have back up all your data in your hard disk drives before making

any change to the drive status.

Topology Information

Help

Marvell RAID on chip controller.

ENTER: Operation F10: Exit/Save ESC: Return

HBA 0: Marvell 0

├ Virtual Disks

└ Free Physical Disks

├ PD 0: ST3160812AS

└ PD 8: ST3160812AS

Vendor ID : 1B4B

Device ID : 9130

Revision ID : B1

BIOS Version : 1.0.0.1028

Firmware Version: 2.2.0.1105

PCIe Speed Rate : 5.0Gbps

Congure SATA as: AHCI Mode

▶ ▶

Create a RAID Array

1. Move the selection bar to HBA 0: Marvell 0 and press <Enter>.

2. Select Conguration Wizard and press <Enter>.

3. Press <Space> to select the hard drives to be included in the RAID array.

An asterisk (*) appears in front of the selected hard drive. After selecting all the drives

needed for the RAID array, press <Enter> to continue.

Congure->Select free disks

Help

Use space bar to select the free disks to be used in the array.

ENTER: Operation SPACE: Select F10: Exit/Save ESC: Return

HBA 0: Marvell 0

├ Virtual Disks

└ Free Physical Disks

* ├ PD 0: ST3160812AS

└ PD 8: ST3160812AS

Port ID : 0

PD ID : 0

Type : SATA PD

Status : Uncongured

Size : 152626MB

Feature Support : MCQ 3G 48Bits

Current Speed : 3G

Model : ST3160812AS

Serial : 9LS0F4HL

FW Version : 3.AAE

▶ ▶

4-26 Chapter 4: Software support

Chapter 4

4. Use the up or down arrow key to move the selection bar and press <Enter> to

congure further RAID settings.

RAID Level: Select a RAID Level. Conguration options: [RAID 0] [RAID 1]

Stripe Size: Species the size of single data block on the virtual disk. In general, a

larger stripe size is recommended for applications requiring large data transfers such

as audio, video, and graphics. A smaller stripe size is better for applications with

content in much smaller size, such as e-mails and documents.

Conguration options: [32K] [64K]

Gigabyte Rounding: In the event of a single physical disk failure in a RAID 1 virtual

disk, Gigabyte Rounding allows the replacement physical disk to be of a size slightly

smaller than the existing physical disk. The capacity of the rebuilt virtual disk equals

to the size of the smaller physical disk included in the RAID 1 array. The conguration

options represent the tolerance value of drive capacity difference.

Conguration options: [None] [1G] [10G]

Name: Enter a name with 1–10 letters (no special characters) for the RAID array.

5. Move the selection bar to Next and press <Enter>. The following warning message

appears:

Do you want to create this virtual disk ?

Yes No

Create Virtual Disk

Press <Y> to create the RAID array, or press <N> to cancel. The new RAID array

appears under Virtual Disks, as shown in the image below.

Congure->Select free disksCreate Virtual Disk

Help

Virtual disk congurations.

ENTER: Select F10: Exit/Save ESC: Return

HBA 0: Marvell 0

├ Virtual Disks

└ Free Physical Disks

* ├ PD 0: ST3160812AS

* └ PD 8: ST3160812AS

RAID Level : RAID 0

Max Size(MB) : 305253

Stripe Size : 64KB

Gigabyte Rounding : 1G

Quick Init : Yes

Name : Default

Threshold(%) : 90

▶ ▶

ASUS SABERTOOTH X79 4-27

Chapter 4

6. Press <F10>. The following warning message appears:

Press <Y> to save the RAID setting and exit the Marvell RAID utility.

Do you want to exit from Marvell BIOS Setup?

Yes No

Exit

Delete an existing RAID Array

1. Select the RAID array to delete and press <Enter>. Select Delete and press <Enter>.

Help

Delete the selected virtual disk.

ENTER: Operation F10: Exit/Save ESC: Return

HBA 0: Marvell 0

├ Virtual Disks

│ └ VD 0: New_VD

│ ├ PD 0: ST3160812AS

│ └ PD 8: ST3160812AS

└ Free Physical Disks

ID : 0

Name : New_VD

Status : Functional

Stripte Size : 64K

RAID Mode : RAID0

Size : 304128MB

BGA Status : N/A

Number of PDs : 2

Members : 0 8

▶ ▶

Topology Information

[Delete]

Help

Marvell RAID on chip controller.

ENTER: Operation F10: Exit/Save ESC: Return

HBA 0: Marvell 0

├ Virtual Disks

│ └ VD 0: New_VD

│ ├ PD 0: ST3160812AS

│ └ PD 8: ST3160812AS

└ Free Physical Disks

Vendor ID : 1B4B

Device ID : 9130

Revision ID : B1

BIOS Version : 1.0.0.1028

Firmware Version: 2.2.0.1105

PCIe Speed Rate : 5.0Gbps

Congure SATA as: AHCI Mode

▶ ▶

Topology Information

4-28 Chapter 4: Software support

Chapter 4

Do you want to delete this virtual disk ?

Yes No

Delete Virtual Disk

2. The following warning message appears:

Press <Y> to delete the selected RAID array. The following warning message appears:

Do you want to delete MBR from this virtual disk ?

Yes No

Delete MBR

Press <Y> to delete the Master Boot Record (MBR) from the selected RAID array.

3. Press <F10>. The following warning message appears:

Press <Y> to save the RAID setting and exit the Marvell RAID utility.

Do you want to exit from Marvell BIOS Setup?

Yes No

Exit

ASUS SABERTOOTH X79 4-29

Chapter 4

4.5 Creating a RAID driver disk

A oppy disk with the RAID driver is required when installing a Windows® operating system

on a hard disk drive that is included in a RAID set.

• The motherboard does not provide a oppy drive connector. You have to use a

USB oppy disk drive when creating a SATA RAID driver disk.

• Windows® XP may not recognize the USB oppy disk drive due to Windows® XP

limitation. To work around this OS limitation, refer to section 4.5.4 Using a USB

oppy disk drive.

4.5.1 Creating a RAID driver disk without entering the OS

To create a RAID driver disk without entering the OS:

1. Boot your computer.

2. Press <Del> during POST to enter the BIOS setup utility.

3. Set the optical drive as the primary boot device.

4. Insert the support DVD into the optical drive.

5. Save changes and exit BIOS.

6. When the Make Disk menu appears, press <1> to create a RAID driver disk.

7. Insert a formatted oppy disk into the USB oppy disk drive, then press <Enter>.

8. Follow the succeeding screen instructions to complete the process.

4.5.2 Creating a RAID driver disk in Windows®

To create a RAID driver disk in Windows®:

1. Start Windows®.

2. Plug the USB oppy disk drive and insert a oppy disk.

3. Place the motherboard support DVD into the optical drive.

4. Go to the Make Disk menu, and then click Intel AHCI/RAID Driver Disk to create a

RAID driver disk.

5. Select USB oppy disk drive as the destination disk.

6. Follow the succeeding screen instructions to complete the process.

Write-protect the oppy disk to avoid a computer virus infection.

4-30 Chapter 4: Software support

Chapter 4

4.5.3 Installing the RAID driver during Windows® OS installation

To install the RAID driver in Windows® XP:

1. During the OS installation, the system prompts you to press the F6 key to install third-

party SCSI or RAID driver.

2. Press <F6>, and then insert the oppy disk with RAID driver into the USB oppy disk drive.

3. When prompted to select the SCSI adapter to install, select the RAID driver for the

corresponding OS version.

4. Follow the succeeding screen instructions to complete the installation.

To install the RAID driver for Windows® Vista or later OS:

1. During the OS installation, click Load Driver to allow you to select the installation

media containing the RAID driver.

2. Insert the USB ash drive with RAID driver into the USB port or the support DVD into

the optical drive, and then click Browse.

3. Click the name of the device you’ve inserted, go to Drivers > RAID, and then select

the RAID driver for the corresponding OS version. Click OK.

4. Follow the succeeding screen instructions to complete the installation.

Before loading the RAID driver from a USB ash drive, you have to use another computer

to copy the RAID driver from the support DVD to the USB ash drive.

ASUS SABERTOOTH X79 4-31

Chapter 4

4.5.4 Using a USB oppy disk drive

Due to OS limitation, Windows® XP may not recognize the USB oppy disk drive when you

install the RAID driver from a oppy disk during the OS installation.

To solve this issue, add the USB oppy disk drive’s Vendor ID (VID) and Product ID (PID) to

the oppy disk containing the RAID driver. Refer to the steps below:

1. Using another computer, plug the USB oppy disk drive, and insert the oppy disk

containing the RAID driver.

2. Right-click My Computer on the

Windows® desktop or start menu,

and then select Manage from the

pop-up window.

3. Select Device Manager. From the

Universal Serial Bus controllers,

right-click xxxxxx USB Floppy, and

then select Properties from the pop-up

window.

The name of the USB oppy disk

drive varies with different vendors.

4. Click Details tab. The Vendor ID (VID)

and Product ID (PID) are displayed.

5. Browse the contents of the RAID driver

disk to locate the le txtsetup.oem.

6. Double-click the le. A window appears,

allowing you to select the program for

opening the oem le.

4-32 Chapter 4: Software support

Chapter 4

8. Find the [HardwareIds.scsi.iaAHCI_DesktopWorkstationServer] and

[HardwareIds.scsi.iaStor_DesktopWorkstationServer] sections in the txtsetup.oem

le.

9. Type the following line to the bottom of the two sections:

id = “USB\VID_xxxx&PID_xxxx”, “usbstor”

10. Save and exit the le.

Add the same line to both sections.

The VID and PID vary with different vendors.

7. Use Notepad to open the le.

[HardwareIds.scsi.iaAHCI_DesktopWorkstationServer]

id= “PCI\VEN_8086&DEV_1C02&CC_0106”,”iaStor”

id= “USB\VID_03EE&PID_6901”, “usbstor”

[HardwareIds.scsi.iaStor_DesktopWorkstationServer]

id= “PCI\VEN_8086&DEV_2822&CC_0104”,”iaStor”

id= “USB\VID_03EE&PID_6901”, “usbstor”

ASUS SABERTOOTH X79 5-1

Chapter 5

Chapter 5: Multiple GPU technology support

5.1 AMD® CrossFireX™ technology

The motherboard supports the AMD® CrossFireX™ technology that allows you to install

multi-graphics processing units (GPU) graphics cards. Follow the installation procedures in

this section.

5.1.1 Requirements

• In Dual CrossFireX mode, you should have two identical CrossFireX-ready graphics

cards or one CrossFireX-ready dual-GPU graphics card that are AMD® certied.

• Ensure that your graphics card driver supports the AMD CrossFireX technology.

Download the latest driver from the AMD website (www.amd.com).

• Ensure that your power supply unit (PSU) can provide at least the minimum power

required by your system. See Chapter 2 for details.See Chapter 2 for details.

5.1.2 Before you begin

For AMD CrossFireX to work properly, you have to uninstall all existing graphics card drivers

before installing AMD CrossFireX graphics cards to your system.

To uninstall existing graphics card drivers:

1. Close all current applications.

2. For Windows XP, go to Control Panel > Add/Remove Programs.

For Windows Vista, go to Control Panel > Programs and Features.

3. Select your current graphics card driver/s.

4. For Windows XP, select Add/Remove.

For Windows Vista, select Uninstall.

5. Turn off your computer.

• We recommend that you install additional chassis fans for better thermal environment.

• Visit the AMD Game website (http://game.amd.com) for the latest certied graphics

card and the supported 3D application list.

5-2 Chapter 5: Multiple GPU technology support

Chapter 5

5. Connect two independent auxiliary power

sources from the power supply to the two

graphics cards separately.

6. Connect a VGA or a DVI cable to the

graphics card.

4. Align and rmly insert the CrossFireX

bridge connector to the goldngers on

each graphics card. Ensure that the

connector is rmly in place.

5.1.3 Installing two CrossFireX™ graphics cards

The following pictures are for reference only. The graphics cards and the motherboard

layout may vary with models, but the installation steps remain the same.

1. Prepare two CrossFireX-ready graphics

cards.

2. Insert the two graphics card into the

PCIEX16 slots. If your motherboard

has more than two PCIEX16 slots,

refer to Chapter 2 in this user manual

for the locations of the PCIEX16 slots

recommended for multi-graphics card

installation.

3. Ensure that the cards are properly

seated on the slots.

goldngers

CrossFireX bridge

(bundled with

graphics cards)

ASUS SABERTOOTH X79 5-3

Chapter 5

2. The VISION Engine Control Center

Setup Assistant appears when the

system detects the existance of multi-

graphics cards. Click Go to continue

to the VISION Engine Control Center

Advanced View window.

5.1.4 Installing the device drivers

Refer to the documentation that came with your graphics card package to install the device

drivers.

Ensure that your PCI Express graphics card driver supports the AMD® CrossFireX™

technology. Download the latest driver from the AMD website (www.amd.com).

5.1.5 Enabling the AMD® CrossFireX™ technology

After installing your graphics cards and the device drivers, enable the CrossFireX™ feature

through the AMD Catalyst™ Control Center in Windows environment.

Launching the AMD VISION Engine Control Center

To launch the AMD VISION Engine Control Center:

1. Right-click on the Windows® desktop and select

AMD VISION Engine Control Center. You can

also right-click the AMD icon in the Windows

noticAMDon area and select Vision Engine

Control Center.

Enabling Dual CrossFireX technology

1. In the Catalyst Control Center window,

click Graphics Settings > Performance

> AMD CrossFireXTM Conguration.

2. From the Graphics Adapter list, select the

graphics card to act as the display GPU.

3. Select Enable CrossFireXTM.

4. Click Apply, and then click OK to exit the

window. 1

5-4 Chapter 5: Multiple GPU technology support

Chapter 5

5.2 NVIDIA® SLI™ technology

The motherboard supports the NVIDIA® SLI™ (Scalable Link Interface) technology that

allows you to install multi-graphics processing units (GPU) graphics cards. Follow the

installation procedures in this section.

5.2.1 Requirements

• In SLI mode, you should have two identical SLI-ready graphics cards that are NVIDIA®

certied.

• Ensure that your graphics card driver supports the NVIDIA SLI technology. Download

the latest driver from the NVIDIA website (www.nvidia.com).

• Ensure that your power supply unit (PSU) can provide at least the minimum power

required by your system. See Chapter 2 for details.

5.2.2 Installing two SLI-ready graphics cards

The following pictures are for reference only. The graphics cards and the motherboard

layout may vary with models, but the installation steps remain the same.

1. Prepare two SLI-ready graphics cards.

2. Insert the two graphics card into the

PCIEX16 slots. If your motherboard

has more than two PCIEX16 slots,

refer to Chapter 2 in this user manual

for the locations of the PCIEX16 slots

recommended for multi-graphics card

installation.

3. Ensure that the cards are properly seated

on the slots.

• We recommend that you install additional chassis fans for better thermal environment.

• Visit the NVIDIA zone website (http://www.nzone.com) for the latest certied graphics

card and supported 3D application list.

ASUS SABERTOOTH X79 5-5

Chapter 5

4. Align and rmly insert the SLI bridge connector to the goldngers on each graphics

card. Ensure that the connector is rmly in place.

5. Connect two independent auxiliary power sources from the power supply to the two

graphics cards separately.

6. Connect a VGA or a DVI cable to the graphics card.

5.2.3 Installing the device drivers

Refer to the documentation that came with your graphics card package to install the device

drivers.

Ensure that your PCI Express graphics card driver supports the NVIDIA® SLI™ technology.

Download the latest driver from the NVIDIA website (www.nvidia.com).

Goldngers

SLI bridge

5.2.4 Enabling the NVIDIA® SLI™ technology

After installing your graphics cards and the device drivers, enable the SLI feature in NVIDIA®

Control Panel under the Windows® Vista™ operating system.

Launching the NVIDIA Control Panel

You can launch the NVIDIA Control Panel by the following two methods.

A. Right click on the empty space of the Windows® desktop

and select NVIDIA Control Panel.

The NVIDIA Control Panel window appears (See Step B5).

5-6 Chapter 5: Multiple GPU technology support

Chapter 5

B1. If you cannot see the NVIDIA Control Panel item in step

(A), select Personalize.

B2. From the Personalization window,

select Display Settings.

B3. From the Display Settings dialog box,

click Advanced Settings.

ASUS SABERTOOTH X79 5-7

Chapter 5

B4. Select the NVIDIA GeForce tab, and

then click Start the NVIDIA Control

Panel.

B5. The NVIDIA Control Panel window

appears.

Enabling SLI settings

From the NVIDIA Control Panel window, select

Set SLI Conguration. Click Enable SLI

and set the display for viewing SLI rendered

content. When done, click Apply.

5-8 Chapter 5: Multiple GPU technology support

Chapter 5

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone +886-2-2894-3447

Fax +886-2-2890-7798

E-mail info@asus.com.tw

Web site www.asus.com.tw

Technical Support

Telephone +86-21-38429911

Online support support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Telephone +1-812-282-3777

Fax +1-510-608-4555

Web site usa.asus.com

Technical Support

Telephone +1-812-282-2787

Support fax +1-812-284-0883

Online support support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany

Fax +49-2102-959911

Web site www.asus.de

Online contact www.asus.de/sales

Technical Support

Telephone +49-1805-010923*

Support Fax +49-2102-9599-11

Online support support.asus.com

* EUR 0.14/minute from a German xed landline; EUR 0.42/minute from a mobile phone.

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Responsible Party Name: Asus Computer International

Address: 800 Corporate Way, Fremont, CA 94539.

Phone/Fax No: (510)739-3777/(510)608-4555

hereby declares that the product

Product Name : Motherboard

Model Number : SABETOOTH X79

Conforms to the following specifications:

FCC Part 15, Subpart B, Unintentional Radiators

FCC Part 15, Subpart C, Intentional Radiators

FCC Part 15, Subpart E, Intentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Representative Person’s Name : Steve Chang / President

Signature :

Date : Sep. 16, 2011

Ver. 110101

EC Declaration of Conformity

We, the undersigned,

Manufacturer: ASUSTeK COMPUTER INC.

Address, City: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN

Country: TAIWAN

Authorized representative in Europe: ASUS COMPUTER GmbH

Address, City: HARKORT STR. 21-23, 40880 RATINGEN

Country: GERMANY

declare the following apparatus:

Product name : Motherboard

Model name : SABERTOOTH X79

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2006+A1:2007

EN 61000-3-2:2006+A2:2009

EN 55013:2001+A1:2003+A2:2006

EN 55024:1998+A1:2001+A2:2003

EN 61000-3-3:2008

EN 55020:2007+A11:2011

1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1(2006-10)

EN 300 440-1 V1.6.1(2010-08)

EN 300 440-2 V1.4.1(2010-08)

EN 301 511 V9.0.2(2003-03)

EN 301 908-1 V5.2.1(2011-05)

EN 301 908-2 V5.2.1(2011-07)

EN 301 893 V1.6.1(2011-11)

EN 302 544-2 V1.1.1(2009-01)

EN 302 623 V1.1.1(2009-01)

EN 300 330-1 V1.7.1(2010-02)

EN 300 330-2 V1.5.1(2010-02)

EN 50360:2001

EN 62479:2010

EN 301 489-1 V1.9.2(2011-09)

EN 301 489-3 V1.4.1(2002-08)

EN 301 489-4 V1.4.1(2009-05)

EN 301 489-7 V1.3.1(2005-11)

EN 301 489-9 V1.4.1(2007-11)

EN 301 489-17 V2.1.1(2009-05)

EN 301 489-24 V1.5.1(2010-09)

EN 302 326-2 V1.2.2(2007-06)

EN 302 326-3 V1.3.1(2007-09)

EN 301 357-2 V1.4.1(2008-11)

EN 50385:2002

EN 62311:2008

2006/95/EC-LVD Directive

EN 60950-1 / A11:2009

EN 60950-1 / A12:2011

EN 60065:2002 / A2:2010

EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008

Regulation (EC) No. 642/2009

Regulation (EC) No. 278/2009

2011/65/EU-RoHS Directive Ver. 121001

CE marking

Declaration Date: Jan. 04, 2013

Year to begin affixing CE marking:2013

Position : CEO

Name : Jerry Shen

Signature : __________

(EC conformity marking)
