Notices
Chapter 1: Product introduction
Chapter 2: Installation
Chapter 3: ASUS Host Management
Controller Set-up
- 3.1 ASUS Host Management Controller Setup
Chapter 4: Web-based user
interface
Appendix: Reference information

ASMB8-iKVM

Server Management Board

E9428

First Edition V1

May 2014

No part of this manual, including the products and software described in it, may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language in any form or by any means,

except documentation kept by the purchaser for backup purposes, without the express written permission

of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

iii

Contents

Notices ....................................................................................................................... vi

Safety information .................................................................................................... viii

About this guide ......................................................................................................... ix

ASMB8-iKVM specifications summary..................................................................... xi

Chapter 1: Product introduction

1.1 Welcome! ....................................................................................................1-2

1.2 Package contents ......................................................................................1-2

1.3 Features ......................................................................................................1-3

1.4 System requirements .................................................................................1-4

1.5 Network setup ............................................................................................1-5

Chapter 2: Installation

2.1 Before you proceed ...................................................................................2-2

2.2 Hardware installation .................................................................................2-2

2.3 Firmware update and IP configuration .....................................................2-4

2.3.1 Firmware update ......................................................................... 2-4

2.3.2 Congure BMC IP source static IP.............................................. 2-5

2.3.3 Congure BMC IP source DHCP ................................................ 2-6

2.4 BIOS configuration ....................................................................................2-7

2.4.1 Running the BIOS BMC conguration......................................... 2-7

2.4.2 BMC network conguration ......................................................... 2-8

2.4.3 System Event Log ....................................................................... 2-9

2.4.4 IPv6 BMC Network Conguration ............................................. 2-10

2.5 Running the ASMC8 utility ...................................................................... 2-12

2.5.1 Conguring the LAN controller .................................................. 2-14

2.5.2 Conguring the user name and password ................................ 2-15

Chapter 3: ASUS Host Management Controller Set-up

3.1 ASUS Host Management Controller Setup ...................................................3-2

3.1.1 Installing and launching the ASUS Host Management

Controller Setup utility ................................................................. 3-2

3.1.2 Command elds .......................................................................... 3-3

3.1.3 Initial ............................................................................................3-3

3.1.4 View ............................................................................................3-3

3.1.5 Set ...............................................................................................3-6

3.1.6 Monitor ........................................................................................3-8

3.1.7 Help .............................................................................................3-9

Contents

Chapter 4: Web-based user interface

4.1 Web-based user interface .........................................................................4-2

4.1.1 Loging in the utility ...................................................................... 4-2

4.1.2 Using the utility ............................................................................ 4-3

4.2 FRU Information ......................................................................................... 4-4

4.3 Server Health .............................................................................................. 4-5

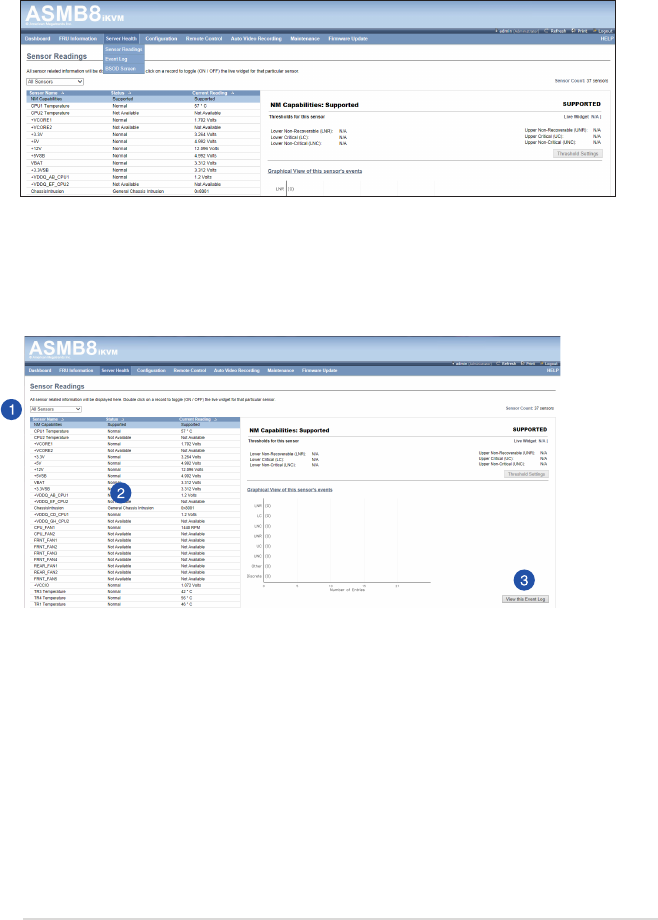

4.3.1 Sensor Readings (with Thresholds) ............................................ 4-5

4.3.2 Event Log .................................................................................... 4-6

4.3.3 BSOD Screen..............................................................................4-6

4.4 Configuration ..............................................................................................4-7

4.4.1 Active Directory ........................................................................... 4-7

4.4.2 DNS...........................................................................................4-10

4.4.3 Event Log .................................................................................. 4-10

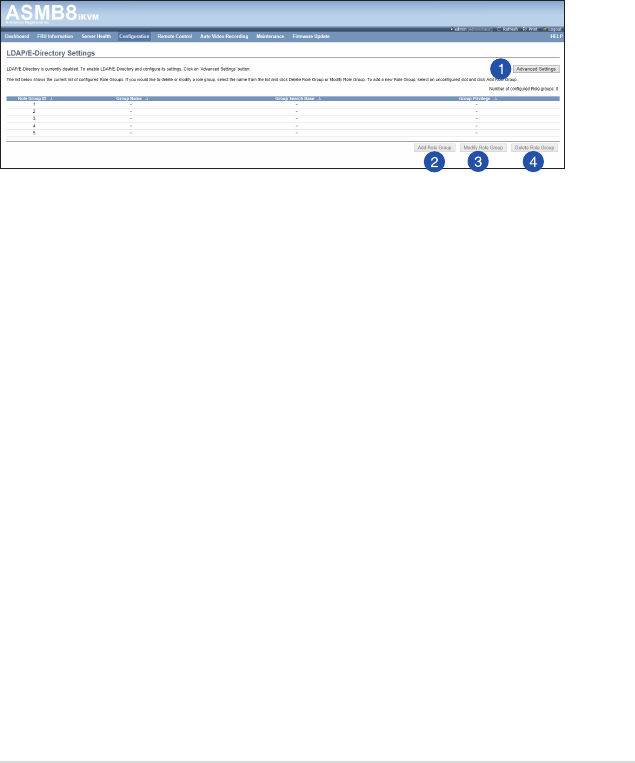

4.4.4 LDAP/E-Directory ...................................................................... 4-11

4.4.5 Mouse Mode ............................................................................. 4-14

4.4.6 Network ..................................................................................... 4-14

4.4.7 Network Bond............................................................................4-15

4.4.8 NTP ........................................................................................... 4-15

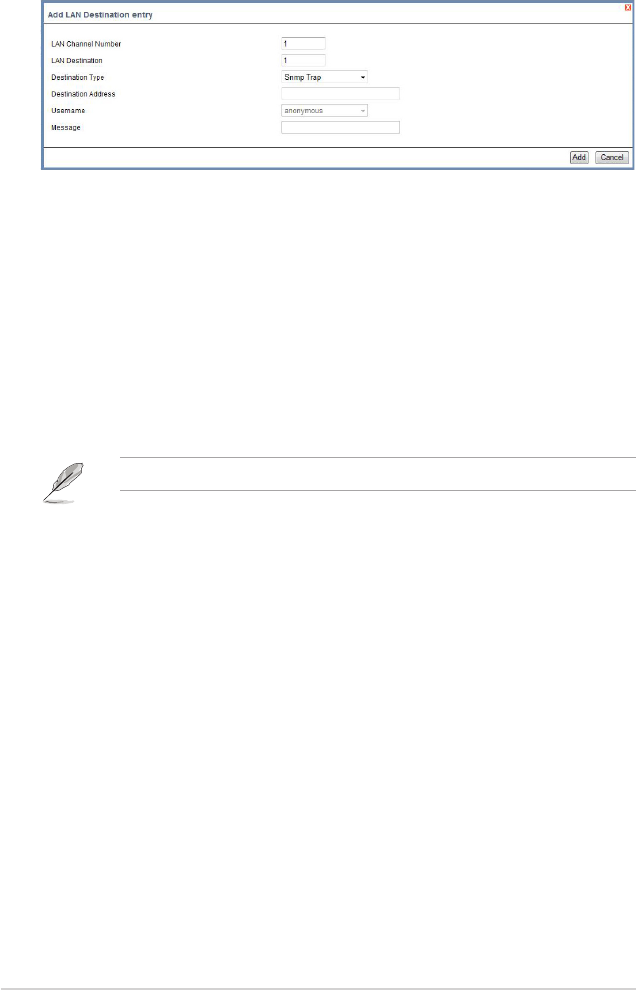

4.4.9 PEF ...........................................................................................4-16

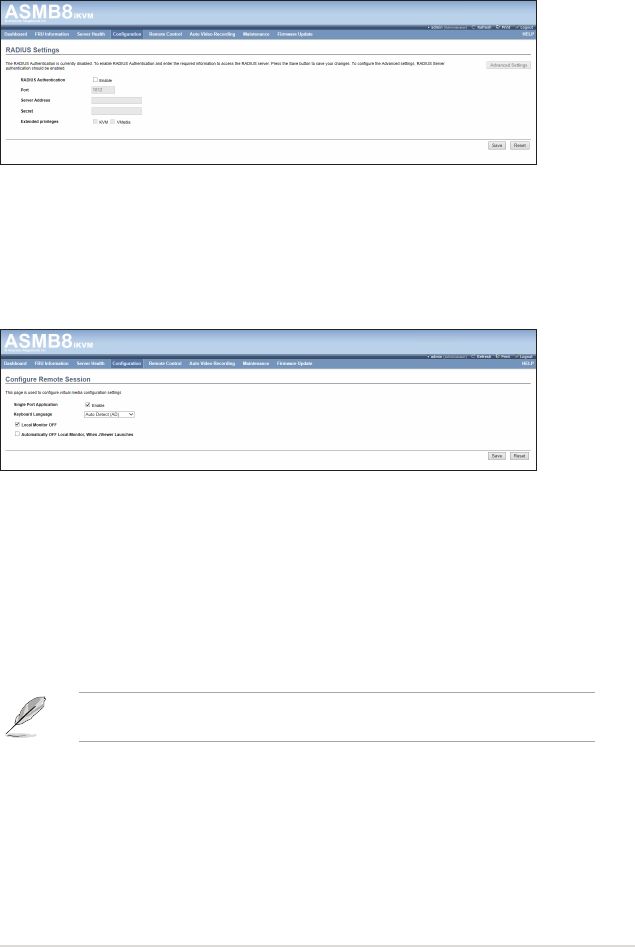

4.4.10 RADIUS.....................................................................................4-23

4.4.11 Remote Session ........................................................................ 4-23

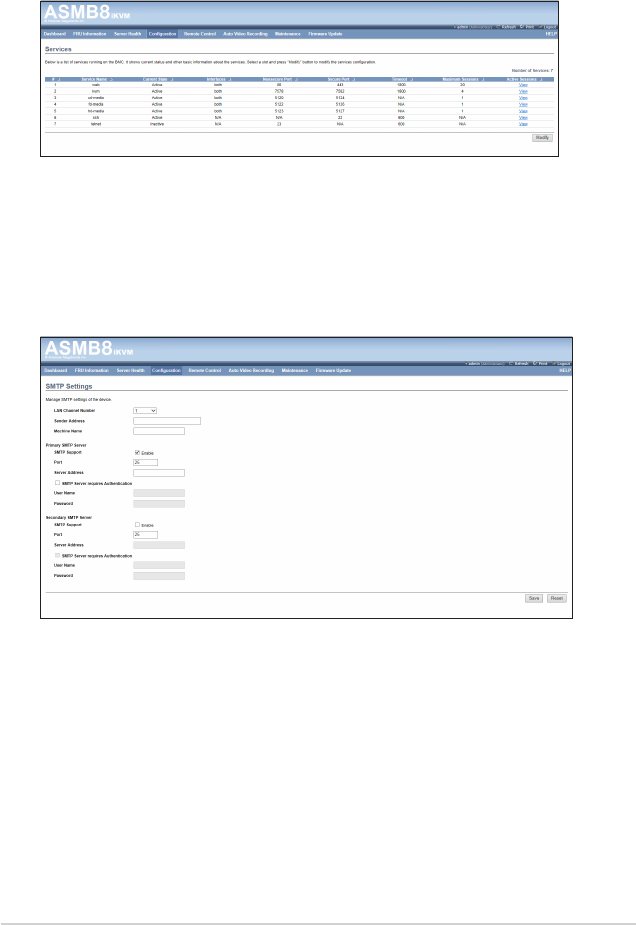

4.4.12 Services ....................................................................................4-24

4.4.13 SMTP ........................................................................................4-24

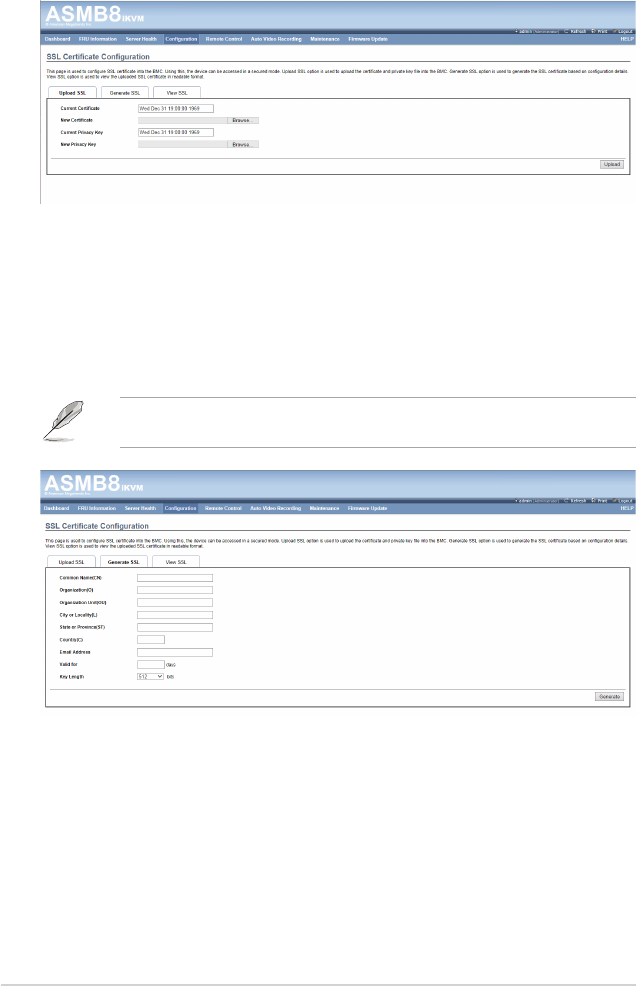

4.4.14 SSL ...........................................................................................4-25

4.4.15 Users .........................................................................................4-30

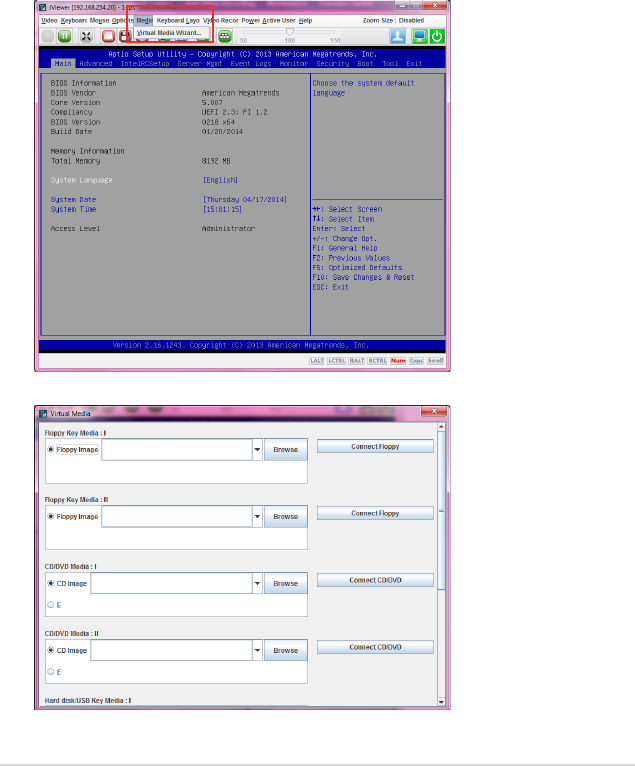

4.4.16 Virtual Media ............................................................................. 4-32

4.5 Remote Control ........................................................................................4-33

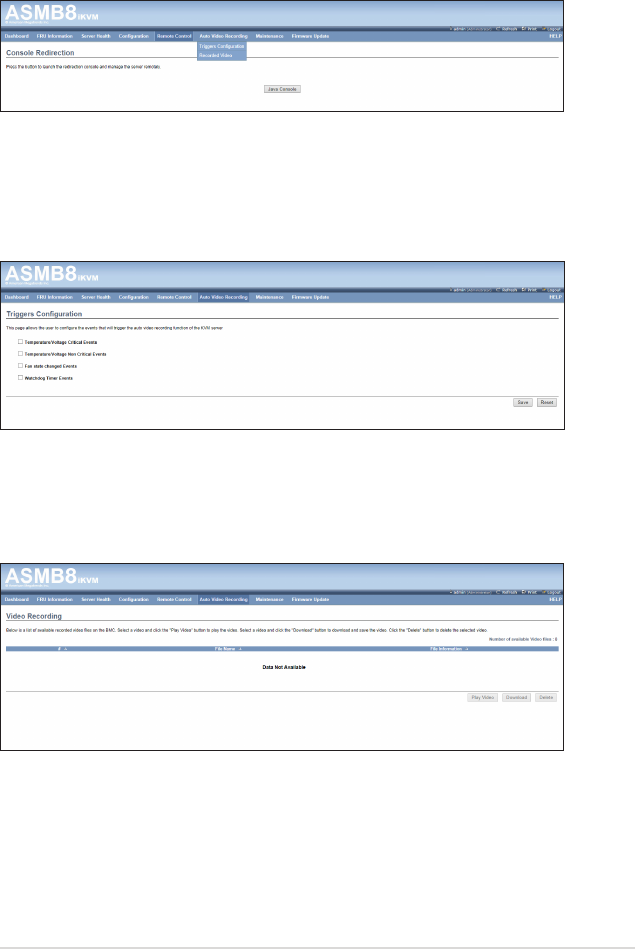

4.5.1 Console Redirection .................................................................. 4-33

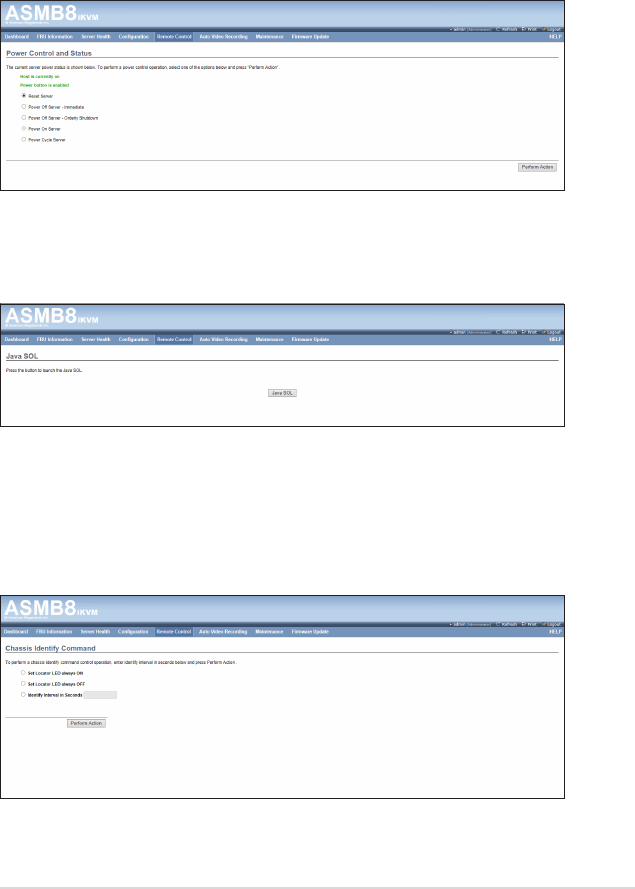

4.5.2 Server Power Control ................................................................ 4-41

4.5.3 Java SOL ..................................................................................4-41

4.5.4 Chassis Identify Command ....................................................... 4-41

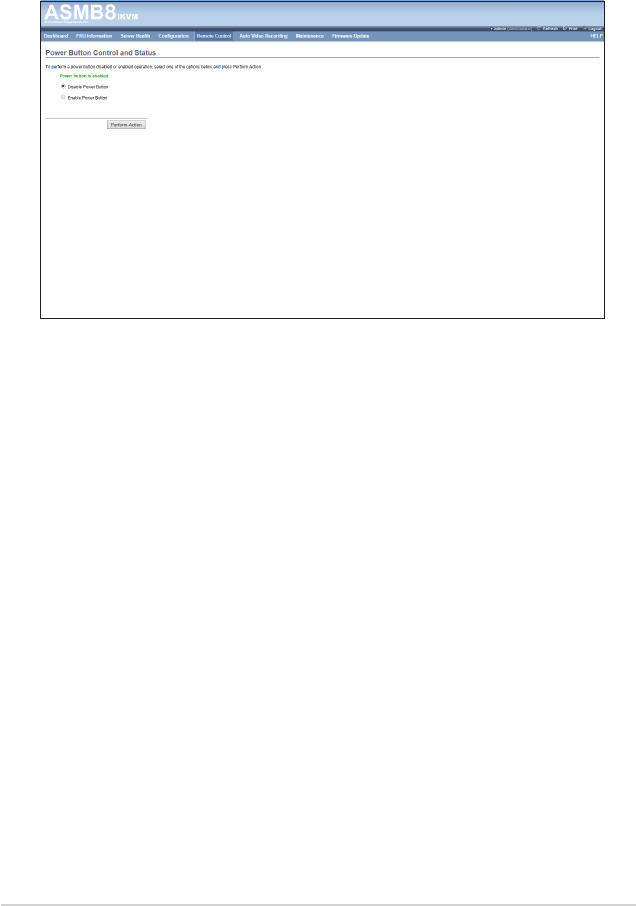

4.5.5 Power Button Control ................................................................ 4-42

4.6 Auto Video Recording .............................................................................4-43

4.6.1 Triggers Conguration............................................................... 4-43

4.6.2 Recorded Video ........................................................................ 4-43

4.7 Maintenance .............................................................................................4-44

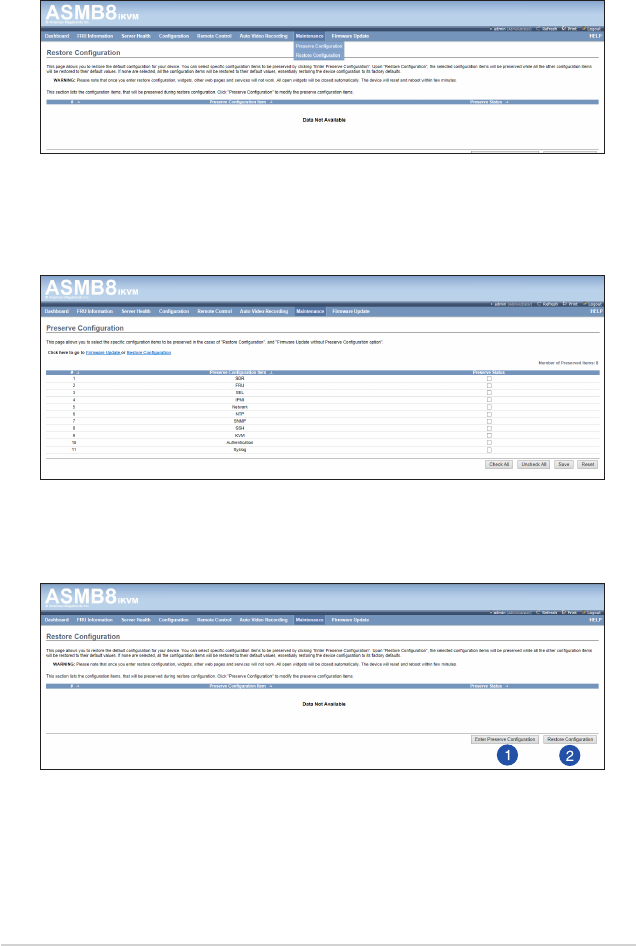

4.7.1 Preserve Conguration ............................................................. 4-44

4.7.2 Restore Conguration ............................................................... 4-44

4.8 Firmware Update ...................................................................................... 4-45

Contents

Appendix: Reference information

A.1 BMC connector .......................................................................................... A-2

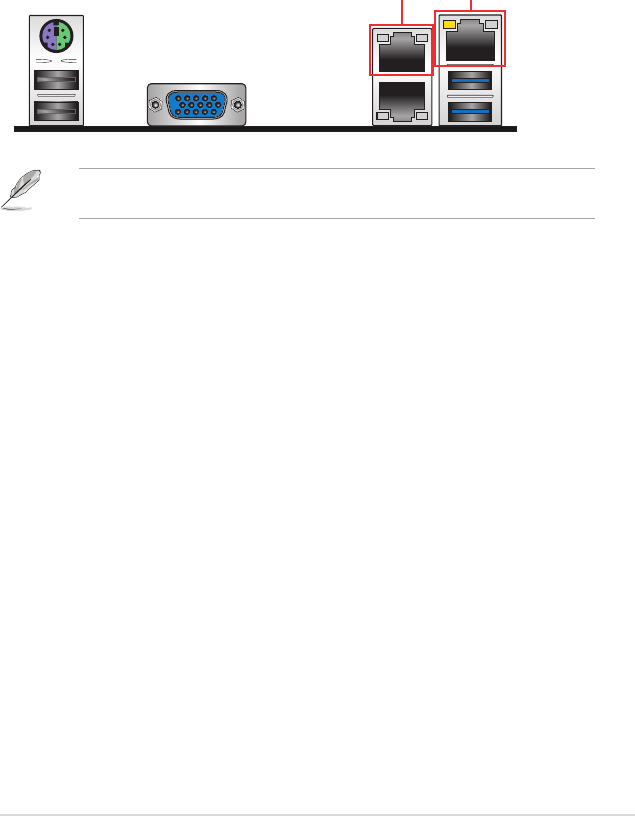

A.2 LAN ports for server management .......................................................... A-3

A.3 Troubleshooting ........................................................................................ A-4

A.4 Sensor Table.............................................................................................. A-5

ASUS contact information .......................................................................................... 1

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with manufacturer’s instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority

to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus set out in the Radio Interference Regulations of the Canadian Department of

Communications.

This class B digital apparatus complies with Canadian ICES-003.

vii

REACH

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of

Chemicals) regulatory framework, we published the chemical substances in our products at

ASUS website at http://csr.asus.com/english/REACH.htm.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards

for protecting our environment. We believe in providing solutions for you to be able to

responsibly recycle our products, batteries, other components as well as the packaging

materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling

information in different regions.

DO NOT throw the motherboard in municipal waste. This product has been designed to

enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin

indicates that the product (electrical and electronic equipment) should not be placed in

municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol

of the crossed out wheeled bin indicates that the battery should not be placed in municipal

waste.

viii

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the server.

• When adding or removing devices to or from the server, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing server before you add a device.

• Before connecting or removing signal cables from the server, ensure that all power

cables are unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices

could interrupt the grounding circuit.

• Make sure that your power supply is set to the correct voltage in your area. If you are

not sure about the voltage of the electrical outlet you are using, contact your local power

company.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

• Before installing any component to the server, carefully read all the manuals that came

with the package.

• Before using the product, make sure all cables are correctly connected and the power

cables are not damaged. If you detect any damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may become wet.

• Place the product on a stable surface.

• If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

About this guide

This user guide contains the information you need when installing and conguring the server

management board.

How this guide is organized

This guide contains the following parts:

• Chapter1:Productintroduction

This chapter describes the server management board features and the new

technologies it supports.

• Chapter2:Installation

This chapter provides instructions on how to install the board to the server system and

install the utilities that the board supports.

• Chapter3:ASUSHostManagementControllerSet-up

This chapter tells you how to use the ASUS Host Controller Set-up that the server

management board supports.

• Chapter4:Web-baseduserinterface(ASMB8-iKVMonly)

This chapter tells you how to use the web-based user interface that the server

management board supports.

• Appendix:ReferenceInformation

The Appendix shows the location of the LAN ports for server management and BMC

connector on server motherboards. This section also presents common problems that

you may encounter when installing or using the server management board.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the

standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used

throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to

complete a task

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign

means that you must press the enclosed key.

Example: <Enter> means that you must press the Enter

or Return key.

<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the

key names are linked with a plus sign (+).

Example: <Ctrl> + <Alt> + <Del>

Command Means that you must type the command exactly as

shown, then supply the required item or value enclosed

in brackets.

Example: At DOS prompt, type the command line:

format A:/S

ASMB8-iKVM specications summary

Chipset Aspeed 2400

Internal RAM 224 MB for system

32 MB for video

Internal ROM 32 MB

Timers 32-bit Watchdog Timer

Main features IPMI 2.0-compliant and supports

KVM over LAN

Web-based user interface (remote management)

Virtual media

Network Bonding support

Form factor 22 mm x 17 mm

* Specifications are subject to change without notice.

xii

Chapter 1: Product introduction

This chapter describes the server management

board features and the new technologies it

supports.

Chapter 1: Product introduction

1-2 Chapter 1: Product introduction

1.1 Welcome!

Thank you for buying an ASUS® ASMB8-iKVM server management board!

The ASUS ASMB8-iKVM is an Intelligent Platform Management Interface (IPMI) 2.0-compliant

board that allows you to monitor, control, and manage a remote server from the local

or central server in your local area network (LAN). With ASMB8-iKVM in your server

motherboard, you can completely and efciently monitor your server in real-time. The solution

allows you to reduce IT management costs and increase the productivity.

Before you start installing the server management board, check the items in your package

with the list below.

If any of the above items is damaged or missing, contact your retailer.

1.2 Package contents

Check your server management board package for the following items.

• ASUS ASMB8-iKVM Card

• Support CD

• User guide

ASUS ASMB8-iKVM 1-3

1.3 Features

1. IPMI 2.0

• System interface (KCS)

• LAN interface (support RMCP+)

• System Event Log (SEL)

• Sensor Data Record (SDR)

• Field Replaceable Unit (FRU)

• Remote Power on/off, reboot

• Serial Over LAN (SOL)

• Authentication Type: RAKP-HMAC-SHA1

• Encryption (AES)

• Platform Event Filtering (PEF)

• Platform Event Trap (PET)

• Watchdog Timer

2. Private I2C Bus

• Auto Monitoring sensors (temperature, voltage, fan speed and logging events)

3. PMBus*

• Support Power supply for PMBus device

4. PSMI*

• Support Power supply for PSMI bus device

5. Web-base GUI

• Monitor Sensor, show SDR, SEL, FRU, congure BMC, LAN

• Support SSL (HTTPS)

• Multiple user permission level

• Upgrade BMC rmware

1-4 Chapter 1: Product introduction

1.4 System requirements

Before you install the ASMB8-iKVM board, check if the remote server system meets the

following requirements:

• ASUS server motherboard with Baseboard Management Controller (BMC) connector*

• LAN (RJ-45) port for server management**

• Microsoft® Internet Explorer 5.5 or later; Firefox

* Visit www.asus.com for an updated list of server motherboards that support the

ASMB8-iKVM.

** See the Appendix for details.

* A power supply supported PMBus and PSMI is necessary.

** Specifications are subject to change without notice.

6. Update Firmware

• DOS Tool

• Web GUI (Windows® XP/Vista/2003/2008, RHEL5.2, SLES10SP2)

7. Notification

• PET

• SNMP Trap

• e-Mail

8. KVM over Internet

• Web-based remote console

9. Remote Update BIOS

• Use Remote oppy to update BIOS

10. Remote Storage (Virtual Media)

• Support two remote storage for USB/CD-ROM/DVD and image

11. Remote Install OS

• Use remote storage to remote install OS

ASUS ASMB8-iKVM 1-5

1.5 Network setup

The ASMB8-iKVM server management board installed on the remote server connects to

a local/central server via direct LAN connection or through a network hub. Below are the

supported server management congurations.

Remote server

with ASMB8-iKVM

Hub or router

Direct LAN connection

LAN connection through a network hub

Remote server

with ASMB8-iKVM

RJ-45 cable

Remote console with web-

based browser

Remote console with web-

based browser

1-6 Chapter 1: Product introduction

Chapter 2: Installation

This chapter provides instructions on how to install

the board to the server system and install the

utilities that the board supports.

Chapter 2: Installation

2-2 Chapter 2: Installation

2.2 Hardware installation

To install the server management board:

2.1 Before you proceed

Take note of the following precautions before you install the server management board to the

remote server system.

• Unplugtheserversystempowercordfromthewallsocketbeforetouching

any component.

• Useagroundedwriststraportouchasafelygroundedobjectortoametal

object,suchasthepowersupplycase,beforehandlingcomponentsto

avoid damaging them due to static electricity.

• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.

• Wheneveryouuninstallanycomponent,placeitonagroundedantistatic

pad or in the bag that came with the component.

• Beforeyouinstallorremoveanycomponent,ensurethatthepowersupply

is switched off or the power cord is detached from the power supply. Failure

todosomaycauseseveredamagetothemotherboard,peripherals,and/or

components.

1. LocatetheBaseboardManagement

Cardheaderonthemotherboard.

2. OrientandpresstheManagementCard

in place.

The motherboard illustration is for reference only. The motherboard layout and appearance

mayvarydependingonthemodel,buttheinstallationstepsremainthesame.

ASUS ASMB8-iKVM 2-3

3. Presstheboardrmlyuntilitiscompletelyseatedinplace.

4. InserttheLANcableplugtotheLANportforservermanagement.

RefertotheAppendixforthelocationoftheLANportforservermanagement.

5. FordirectLANconguration,connecttheotherendoftheLANcabletothelocal/central

serverLANport.

 Forconnectiontoanetworkhuborrouter,connecttheotherendoftheLANcableto

the network hub or router.

6. EnsuretheVGA,USB,PS/2cablesarecorrected,thenconnectthepowerplugtoa

grounded wall socket.

EverytimeaftertheACpowerisre-plugged,youhavetowaitforabout70secondsforthe

system power up.

2-4 Chapter 2: Installation

2.3 FirmwareupdateandIPconguration

YouneedtoupdatetheASMB8-iKVMrmwareandcongureIPsourcebeforeyoustart

usingtheASMB8-iKVMboard.

2.3.1 Firmware update

Toupdatethermware:

1. InsertthesupportCDintotheopticaldrive.

2. Restarttheremoteserverthenpress<Del>duringPOSTtoentertheBIOSsetup.

3. GotoBootmenuandsettheBootDevicePriorityitemto[CD-ROM].

4. Whennished,press<F10>tosaveyourchangesandexittheBIOSsetup.

5. Onreboot,selectASMB8-iKVM Firmware Update for Clear Configuration from the

mainmenuandpress<Enter>toenterthesub-menu.

6. Fromtheconrmationmessage,select<Yes>toupdatethermware.

7. Waitforthermwareupdatingprocesstonish.

FreeDOS command prompt

Configure BMC IP Source Static IP for Shared LAN

Configure BMC IP Source DHCP IP for Shared LAN

Configure BMC IP Source Static IP for DM_LAN1

Configure BMC IP Source DHCP IP for DM_LAN1

ASMB8 Firnware Updated for Preserve Configuration (SDR, LAN, Username)

ASMB8 Firnware Updated for Clear Configuration (SDR, LAN, Username)

ASUS Server Z10PA-D8 Series System

WARNING !!!

UPDATE ASMB8 FIRMWARE NOW !

DO YOU WANT TO CONTINUE ?

No Yes

Youmayupdatethermwarefromtheweb-baseduserinterface.RefertotheFirmware

Update section for more information.

ASUS ASMB8-iKVM 2-5

2.3.2 Configure BMC IP source static IP

1. InsertthesupportCDintotheopticaldrive.

2. Restarttheremoteserverthenpress<Del>duringPOSTtoentertheBIOSsetup.

3. GotoBootmenuandsettheBootDevicePriorityitemto[CD-ROM].

4. Whennished,press<F10>tosaveyourchangesandexittheBIOSsetup.

5. Onreboot,selectConfigure BMC IP Source Static IP for Shared LAN (or DM_LAN1)

from the main menu andpress<Enter>toenterthesub-menu.

7. Waitforthecongurationtonish.Whendone,pressanykeytocontinue.

6. Select<Yes>fromtheconrmationwindow.

8. GotoBIOSmenutosettheIP.Formoreinformation,refertotheIP settings in BIOS

menu section.

FreeDOS command prompt

Configure BMC IP Source Static IP for Shared LAN

Configure BMC IP Source DHCP IP for Shared LAN

Configure BMC IP Source Static IP for DM_LAN1

Configure BMC IP Source DHCP IP for DM_LAN1

ASMB8 Firnware Update for Preserve Configuration (SDR, LAN, Username)

ASMB8 Firnware Update for Clear Configuration (SDR, LAN, Username)

ASUS Server Z10PA-D8 Series System

WARNING !!!

CONFIGURE BMC IP Source STATIC IP NOW !

DO YOU WANT TO CONTINUE ?

No Yes

Detect: MotherBoard - > (Z10PA-D8 Series)

Detect: KCS Interface

New BMC IP Source : Static IP

Press any key to continue . . . _

2-6 Chapter 2: Installation

2.3.3 Configure BMC IP source DHCP

1. InsertthesupportCDintotheopticaldrive.

2. Restarttheremoteserverthenpress<Del>duringPOSTtoentertheBIOSsetup.

3. GotoBootmenuandsettheBootDevicePriorityitemto[CD-ROM].

4. Whennished,press<F10>tosaveyourchangesandexittheBIOSsetup.

5. Onreboot,selectConfigure BMC IP Source DHCP for Shared LAN (or DM_LAN1) from

themainmenuandpress<Enter>toenterthesub-menu.

6. Select<Yes>fromtheconrmationwindow.

8. TheDHCPserverwillassignandIPforyou.

FreeDOS command prompt

Configure BMC IP Source Static IP for Shared LAN

Configure BMC IP Source DHCP IP for Shared LAN

Configure BMC IP Source Static IP for DM_LAN1

Configure BMC IP Source DHCP IP for DM_LAN1

ASMB8 Firnware Update for Preserve Configuration (SDR, LAN, Username)

ASMB8 Firnware Update for Clear Configuration (SDR, LAN, Username)

ASUS Server Z10PA-D8 Series System

WARNING !!!

CONFIGURE BMC IP Source DHCP NOW !

DO YOU WANT TO CONTINUE ?

No Yes

Detect: MotherBoard - > (Z10PA-D8 Series)

Detect: KCS Interface

New BMC IP Source : DHCP

Press any key to continue . . . _

7. Waitforthecongurationtonish.Whendone,pressanykeytocontinue.

ASUS ASMB8-iKVM 2-7

2.4 BIOSconguration

YouneedtoadjustthesettingsintheBIOSsetupoftheremoteserverforcorrect

congurationandconnectiontothecentralserver.

•  UpdatetheremoteserverBIOSlefollowingtheinstructionsinthemotherboard/

systemuserguide.VisittheASUSwebsite(www.asus.com)todownloadthelatest

BIOSleforthemotherboard.

•  TheBIOSsetupscreensshowninthissectionareforreferencepurposesonly,and

maynotexactlymatchwhatyouseeonyourscreen.

2.4.1 Running the BIOS BMC configuration

ToconguretheBMCintheBIOS:

1. Restarttheremoteserver,thenpress<Del>duringPOSTtoentertheBIOSsetup.

2. Go to the Server Mgmtmenu,thenselecttheBMC network configuration sub-menu.

Usethissub-menutoconguretheBMCsettings.

3. Whennished,press<F10>tosaveyourchangesandexittheBIOSsetup.

2-8 Chapter 2: Installation

Configuration Source [Previous State]

AllowsyoutoselecttheIPaddresssourcetype.SettheLANchannelparameters

statically or dynamically.

The following items are available when you set Configuration Sourceto[Static].

Station IP Address

AllowsyoutosettheBMCIPaddress.

Subnet Mask

AllowsyoutosettheBMCsubnetmask.Werecommendthatyouusethesame

SubnetMaskyouhavespeciedontheoperatingsystemnetworkfortheused

network card.

Gateway IP Address

AllowsyoutosettheGatewayIPaddress.

Select to configure LAN

channel parameters

statically or dynamically

(by BIOS or BMC)

→ ← : Select Screen

↑ ↓ : Select Item

Enter: Selectv

+/- : Change Opt.

F1: General Help

F2: Previous Values

F5: Optimized Defaults

F10: Save & Exit

ESC: Exit

BMC Network Configuration

DM_LAN1

DM_LAN1 IP Address in BMC : 192.168.254.020

DM_LAN1 Subnet Mask in BMC : 255.255.255.020

DM_LAN1 Gateway Address in BMC : 000.000.000.000

DM_LAN1 MAC Address in BMC : 00.E1.E2.3A020

DM_LAN1 MAC Address in BMC : 00.E1.E2.3A.3B.3C

Configuration Address Source [Previous State]

Shared LAN

Shared LAN IP Address in BMC : 192.168.254.020

Shared LAN Subnet Mask in BMC : 255.255.255.020

Shared LAN Gateway Address in BMC 000.000.000.000

Shared LAN MAC Address in BMC : 00.E1.E2.3A020

Shared LAN MAC Address in BMC : 00.E1.E2.3A.3B.3C

Configuration Address Source [Previous State]

Main Advanced IntelRCSetup Server Mgmt Event Logs Monitor Security Boot Tool Exit

2.4.2 BMC network configuration

AllowsyoutosettheBMCLANParametersettings.

ASUS ASMB8-iKVM 2-9

2.4.3 System Event Log

AllowsyoutoviewalltheeventsintheBMCeventlog.Itwilltakeamaximumof15seconds

toreadalltheBMCSELrecords.

SEL Components [Disabled]

Allowsyoutoenableordisableallfeaturesofsystemeventlogduringbooting.

ThefollowingitemsbecomecongurablewhenyousetSEL Componentsto[Enabled].

Erase SEL [No]

AllowsyoutoselecthowtoeraseSEL.

Congurationoptions:[No][Yes,Onnextreset][Yes,Oneveryreset]

When SEL is Full [Do Nothing]

AllowsyoutoselectwhattodotoafullSEL.

Congurationoptions:[DoNothing][EraseImmediately]

Version2.01.1204.Copyright(C)2010AmericanMegatrends,Inc.

Select to configure LAN

channel parameters

statically or dynamically

(by BIOS or BMC)

→ ← : Select Screen

↑ ↓ : Select Item

Enter: Selectv

+/- : Change Opt.

F1: General Help

F2: Previous Values

F5: Optimized Defaults

F10: Save & Exit

ESC: Exit

Enabling/Disabling Options:

SEL Components [Disabled]

Erasing Settings

Erase SEL [No]

When SEL is Full [Do Nothing]

NOTE: All values changed here do not take effect

until computer is restarted.

Server Mgmt

2-10 Chapter 2: Installation

2.4.4 IPv6 BMC Network Configuration

DisplaystheLANchannelparametersandallowsyoutoconguretheIPv6BMCLAN

settings.

IPv6 BMC DM_LAN1 IP Address Source [Previous State]

AllowsyoutoselecttheIPaddresssourcetypeandsettheLANchannelparameters

statically or dynamically.

Congurationoptions:[PreviousState][Static][Dynamic-ObtainedbyBMCrunning

DHCP]

Server Mgmt

Select to configure LAN

channel parameters

statically or dynamically

(by BIOS or BMC)

→ ← : Select Screen

↑ ↓ : Select Item

Enter: Selectv

+/- : Change Opt.

F1: General Help

F2: Previous Values

F5: Optimized Defaults

F10: Save & Exit

ESC: Exit

IPv6 BMC Network Configuration

IPv6 Display Full Field [Enable]

IPv6 Display Full Formula [Enable]

IPv6 Display Letter Case [Upper Case]

IPv6 BMC DM_LAN1:

IPv6 BMC Lan Option [Enable]

IPv6 BMC Lan IP Address Source [Previous State]

DM_LAN1 IP Address in BMC :

-> 0:0:0:0:0:0:0:0

DM_LAN1 Prefix Length in BMC : 0

DM_LAN1 Gateway Address in BMC : 0

-> 0:0:0:0:0:0:0:0

DM_LAN1 MAC Address in BMC : 00.E1.E2.3A.3B.3C

DM_LAN1 Address Source in BMC : DHCP Mode

IPv6 BMC Shared LAN:

IPv6 BMC Lan Option [Enable]

IPv6 BMC Lan IP Address Source [Previous State]

Shared LAN IP Address in BMC :

-> 0:0:0:0:0:0:0:0

Shared LAN Prefix Length in BMC : 0

Shared LAN Gateway Address in BMC : 0

-> 0:0:0:0:0:0:0:0

ASUS ASMB8-iKVM 2-11

ThefollowingitemsareavailablewhenyousetIPv6BMCDM_LAN1IPAddressSourceto

[Static].

IPv6 BMC DM_LAN1 IP Address

AllowsyoutosettheIPv6BMCDM_LAN1IPaddress.

IPv6 BMC DM_LAN1 IP Prefix Length

AllowsyoutosettheIPv6BMCDM_LAN1IPPrexlength.

IPv6 BMC DM_LAN1 Default Gateway

AllowsyoutosettheIPv6BMCDM_LAN1GatewayIPaddress.

IPv6 BMC Shared LAN IP Address Source [Previous State]

AllowsyoutoselecttheIPaddresssourcetypeandsettheLANchannelparameters

staticallyordynamically.Congurationoptions:[PreviousState][Static][Dynamic-

ObtainedbyBMCrunningDHCP]

ThefollowingitemsareavailablewhenyousetIPv6BMCSharedLANIPAddressSource

to[Static].

IPv6 BMC Shared LAN IP Address

AllowsyoutosettheIPv6BMCSharedLANIPaddress.

IPv6 BMC Shared LAN IP Prefix Length

AllowsyoutosettheIPv6BMCSharedLANIPPrexlength.

IPv6 BMC Shared LAN Default Gateway

AllowsyoutosettheIPv6BMCSharedLANGatewayIPaddress.

2-12 Chapter 2: Installation

2.5 RunningtheASMC8utility

TheASMC8utilityallowsyoutoupdatetheASMB8-iKVMrmware,conguretheLANsettings

fortheremoteserver,andchangetheusername/passwordinDOSenvironment.Thisutilityis

availablefromthesupportCDthatcamewiththepackage.

ToruntheASMC8utility:

1. InsertthesupportCDintotheopticaldrive.

2. Restarttheremoteserverthenpress<Del>duringPOSTtoentertheBIOSsetup.

3. GotoBootmenuandsettheBootDevicePriorityitemto[CD-ROM].

4. Whennished,press<F10>tosaveyourchangesandexittheBIOSsetup.

5. Onreboot,selectFreeDOS command prompt from the main menu then press

<Enter>.

Pressanykeytoseenextpage.

6. From the C:>prompt,typeASMC8 -?thenpress<Enter>todisplaytheASMC8Utility

HelpMenu(asshownbelow).

FreeDOS command prompt

Configure BMC IP Source Static IP for Shared LAN

Configure BMC IP Source DHCP IP for Shared LAN

Configure BMC IP Source Static IP for DM_LAN1

Configure BMC IP Source DHCP IP for DM_LAN1

ASMB8 Firnware Update for Preserve Configuration (SDR, LAN, Username)

ASMB8 Firnware Update for Clear Configuration (SDR, LAN, Username)

ASUS Server Z10PA-D8 Series System

+ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +

| ASUS Server Management card Utility 8.00 Help Menu |

+ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +

Usage:

ASMC8 -kcs[smic/bt/pci_smic] NetFn command data . . . .

ASMC8 -bmc_ip_source source[1:Static, 2:DHCP]

ASMC8 -bmc_ip ip_addr[10.10.10.20]

ASMC8 -bmc_mask ip_mask[255.255.255.0]

ASMC8 -bmc_gateway ip_addr[10.10.10.254]

ASMC8 -ipv6_source source[1:Static, 2:DHCP]

ASMC8 -ipv6 ipv6_addr[2001: 0db8 : 1234 : 5678 : 8769 : e1cb : aabb : ccdd]

ASMC8 -ipv6_prefix prefix_length[64]

ASMC8 -pet_ip_mac ip_addr[10.10.10.20] mac_addr[010203040506]

ASMC8 -bmc_ip_s_lan1 source[1:Static, 2:DHCP]

ASMC8 -bmc_ip_lan1 ip_addr[10.10.10.20]

ASMC8 -bmc_mask_lan1 ip_mask[255.255.255.0]

ASMC8 -bmc_g_lan1 ip_addr[10.10.10.254]

ASMC8 -ipv6_s_lan1 source[1:Static, 2:DHCP]

ASMC8 -ipv6_lan1 ip_addr[2001: 0db8 : 1234 : 5678 : 8769 : e1cb : aabb : ccdd]

ASMC8 -ipv6_prefix_lan1 prefix_length[64]

ASMC8 -pet_ip_m_lan1 ip_addr[10.10.10.20] mac_addr[010203040506]

ASUS ASMB8-iKVM 2-13

ASMC8 Help Menu options

Options Description

-kcs[smic/bt/pci_smic]NetFncommanddata.... SendIPMIcommand

-bmc_ip_sourcesource[1:Static,2:DHCP] SettheIPsource

-bmc_ip[ip_addr]

(e.g.,bmc_ip10.10.10.20)

WritetheBMCIPaddressfor

dedicatedLAN

-bmc_mask[ip_mask]

(e.g.,bmc_mask255.255.255.0)

Writethesubnetmaskfordedicated

LAN

-bmc_gateway[ip_addr]

(e.g.,bmc_gateway10.10.10.254)

Writethegatewayaddressfor

dedicatedLAN

-pet_ip_mac[ip_addr][mac_addr]

(e.g.,pet_ip_mac10.10.10.20010203040506)

WritethePETdestinationIPandMAC

addressesfordedicatedLAN

-bmc_ip_s_lan1source[1:Static,2:DHCP] SettheIPsourceforsharedLAN

-bmc_ip_lan1[ip_addr]

(e.g.,bmc_ip10.10.10.20)

WritetheBMCIPaddressforshared

LAN

-bmc_mask_lan1[ip_mask]

(e.g.,bmc_mask255.255.255.0)

WritethesubnetmaskforsharedLAN

-bmc_g_lan1[ip_addr]

(e.g.,bmc_gateway10.10.10.254)

Writethegatewayaddressforshared

LAN

-pet_ip_m_lan1[ip_addr][mac_addr]

(e.g.,pet_ip_mac10.10.10.20010203040506)

WritethePETdestinationIPandMAC

addressesforsharedLAN

-adm_name new_name_string Changetheadministrationname

-user_name new_name_string Changetheusername

-adm_password new_adm_password Changetheadministrationpassword

-user_password new_user_password Changetheuserpassword

-sol_baud[baudrate]

(e.g.,sol_baud57600)

SetthecommunicationBaudrate

-bmc_info DisplaystheBMCandPETIPand

MACaddresses

-fru-viewfru_id DisplaysthesystemFRUinformation

-fru-loadfru_le UpdatesystemFRUdatafromle

-fru-savefru_idfru_le SavesystemFRUdatatole

-sel -clear Clearsystemeventlog

2-14 Chapter 2: Installation

2.5.1 Configuring the LAN controller

BeforeyoucanestablishaconnectiontotheASMB8-iKVMboard,youmustcongurethe

LANportforservermanagementusedbytheremoteservertoconnecttothelocal/central

server.

ToconguretheLANportoftheremoteserver:

1. RuntheASMC8utilityfromthesupportCDfollowingtheinstructionsintheprevious

section.

2. SetIPsource:

a. Type

ASMC8 -bmc_ip_source 1 ifyouwanttosetastaticIPaddress.

b. Type

ASMC8 -bmc_ip_source 2ifyouwanttogetIPfromDHCPserver.

3. Type

ASMC8 -bmc_ip xxx.xxx.xxx.xxxthenpress<Enter>toassignanyIP

addresstotheremoteserverLANport(ifnecessary).Thescreendisplaystherequest

and response buffer.

WritetheremoteserverIPaddressinapieceofpaperforreference.

c:\>ASMC8 -bmc_ip 10.10.10.243

Detect MotherBoard -> (Z10PA-D8 Series)

Detect KCS Interface

New BMC IP : 10.10.10.243

c:\>

 Whennished,theutilityreturnstotheDOSprompt.

MakesurethattheassignedIPaddressforbothremoteandlocal/centralserversareinthe

samesubnet.YoucanusethenetworksettingsutilityinyourOStocheck.

4. Congureyoursubnetmaskandgatewayaddressifnecessary.

a. Type ASMC8 -bmc_mask xxx.xxx.xxx.xxx(yoursubnetmaskencodedin

hexadecimalsystem)

b. Type

ASMC8 -bmc_gateway xxx.xxx.xxx.xxx(yourgatewayaddress

encodedinhexadecimalsystem)

5. Restarttheremoteserver,entertheBIOSsetup,thenbootfromtheharddiskdrive.

6. Adjustthelocal/centralservernetworksettings,ifnecessary.

ASUS ASMB8-iKVM 2-15

2.5.2 Configuring the user name and password

YoumaychangeyourusernameandpasswordfromtheASMC8utility.

To change the user name and password:

1. InsertthesupportCDintotheopticaldrive.

2. Restarttheremoteserverthenpress<Del>duringPOSTtoentertheBIOSsetup.

3. GotoBootmenuandsettheBootDevicePriorityitemto[CD-ROM].

4. Whennished,press<F10>tosaveyourchangesandexittheBIOSsetup.

5. Onreboot,selectFreeDOS command prompt from the main menu then press

<Enter>.

6. From the C:>prompt, type ASMC8 -user_name xxxxxthenpress<Enter>to

change the user name.

7. TypeASMC8 -user_password xxxxxxxx,thenpress<Enter>tochangethe

password.

8. Restarttheremoteserver,entertheBIOSsetup,thenbootfromtheharddiskdrive.

c:\>ASMC8 -user_name super

Detect MotherBoard -> (Z10PA-D8 Series)

Detect KCS Interface

Change User Name to super

c:\>

2-16 Chapter 2: Installation

ASUS Host Management

Controller Set-up

Chapter 3: ASUS Host Management

Controller Set-up

This chapter shows you how to set-up the ASUS

Host Management Controller that the server

management board supports.

3-2 Chapter 3: ASUS Host Management Controller Set-up

Chapter 3: ASUS Host Management

Controller Set-up

3.1 ASUS Host Management Controller Setup

The ASUS Host Management Controller Setup utility provides precise conguration and basic

functions including System Event Log (SEL) generation and System Data Record (SDR)

reading in DOS mode.

This utility also supplies conguration sequences for the type of host interface as well as

direct real-time monitoring of system information including CPU temperature(s), fan speeds

and system voltages.

3.1.1 Installing and launching the ASUS Host Management

Controller Setup utility

To install the ASUS Host Management Controller Setup utility:

1. Boot the server in DOS mode using the support CD.

2. At the prompt, type ASMC8, then press <Enter> to display the ASMC8 Utility Help

Menu. The screen appears as shown.

3. From the main utility screen, press <Enter>.

C:\>ASMC8

ASUS Host Management Controller Setup Menu

Initial View Set Monitor Help

: Select Menu ESC: Exit Up/Down KCS

ASMC8 Setup Utility

Version 8.00 Build 0000

ASUS ASMB8-iKVM 3-3

3.1.2 Command fields

The utility menu bar has ve commands: Initial, View, Set, Monitor and Help. You can select

a command using the left or right arrow button on the keyboard. After selecting a command,

use the down arrow key to display available options. Select a command, then press <Enter>

to execute.

3.1.4 View

The View command displays the Baseboard Management Controller (BMC) data record

including the System Event Log (SEL), the System Data Record (SDR), and general BMC

information.

3.1.3 Initial

The Initial command allows you to clear the SEL information or exit the utility.

Go to Initial command, then select Clear SEL to empty all System Event Log information

for a refresh set of data records. Use the Clear SEL command when creating a new log that

begins at an exact time for precise system monitoring.

Select Exit to close the utility and return to the DOS prompt.

Menu options

Menu bar

ASUS Host Management Controller Setup Menu

Initial View Set Monitor Help

Clear SEL

Exit

ASUS Host Management Controller Setup Menu

Initial View Set Monitor Help

Clear SEL

Exit

ASUS Host Management Controller Setup Menu

Initial View Set Monitor Help

BMC SEL

BMC SDR

BMC Info

3-4 Chapter 3: ASUS Host Management Controller Set-up

Chapter 3: ASUS Host Management

Controller Set-up

To view the System Event Log (SEL):

1. Select

BMC SEL from the View command option, then press <Enter>. A complete

list of system event records appear on the left pane. The right pane displays the SEL

information.

The number on the left bottom of the window shows the system event displayed in the

right window pane over the total number of system events in the remote host.

2. Use the down arrow key to display the next sensor event.

3. Press <Esc> to return to the main screen.

ASUS Host Management Controller Setup Menu

: Select Menu ESC: Exit Up/Down KCS

Initial View Set Monitor Help

Systen Event Log: (Hex)

01 00 02 09 4E 98 45 20

00 04 02 3A 01 50 19 09

1/202

Record ID : 0001h

Record Type : 02h (System Event Record)

Date & Date : Fri Jan 21 20:43:00 2011

General ID : 2008h

EvM Rev : 04h (IPMI 1.5)

Sensor Type : 02h (Voltage)

Sensor Number: 3Ah (+1.1V_IOH)

Event Dir : 01h (Threshold)

Event Datal : 50h

Event Value : 19h (0.2 V)

Threshold : 09h 1.0 V)

Offset: Lower Non-critical - going low

ASUS ASMB8-iKVM 3-5

To view the System Data Record (SDR):

1. Select

BMC SDR from the View command option, then press <Enter>. A complete

list of data records appears on the left pane. The right pane displays the sensor data

information.

The number on the bottom left of the screen indicates the data record displayed in the

right window pane over the total number of sensor data records in the remote host.

2. Use the down arrow key to display the next sensor data record.

3. Press <Esc> to return to the main screen.

ASUS Host Management Controller Setup Menu

: Select Menu ESC: Exit Up/Down KCS

Initial View Set Monitor Help

Sensor Data Record:(Hex)

01 00 02 09 4E 98 45 20

00 04 02 3A 01 50 19 09

01 00 02 09 4E 98 45 20

00 04 02 3A 01 50 19 09

01 00 02 09 4E 98 45 20

00 04 02 3A 01 50 19 09

01 00 02 09 4E 98 45 20

00 04 02 3A 01 50 19 09

1/28

Record ID : 0001h

SDR Version : 51h

Record Type : 01h (Full Sensor Record)

Owner ID/Lun : 20h/08h

Sensor Number : 31h (CPU1 Temperature)

Sensor Initial: 7Fh

Capabilities : 68h

Sensor Type : 81h (Temperature)

Event Type : 01h (Threshold)

Assert Mask : 0280h

Deassert Mask : 3200h

Reading Mask : 1010h

Nominal Read : 20h (40 ºC)

Upper Critical: 50h (80 ºC)

Upper Warning : 50h (80 ºC)

Lower Warning : 18h (24 ºC)

Lower Critical: 18h (16 ºC)

ID String : CPU1 Temperature

3-6 Chapter 3: ASUS Host Management Controller Set-up

Chapter 3: ASUS Host Management

Controller Set-up

3.1.5 Set

The Set command controls the host interface type and the correct BMC time.

To view the BMC information:

1. Select

BMC Info from the View command option, then press <Enter>. A list of BMC

information appears on the left pane.

2. Use the down arrow button to select a BMC information. The BMC information is

displayed in the right pane.

3. Press <Esc> to return to the main screen.

ASUS Host Management Controller Setup Menu

Initial View Set Monitor Help

Host Interface

BMC Timer

ASUS Host Management Controller Setup Menu

: Select Menu ESC: Exit Up/Down KCS

Initial View Set Monitor Help

Device ID : 20h

Device Revision : 01h (No SDR)

Firmware Revision : 1.04

IPMI Version : 2.0

Manufacturer ID : 001043h

Product ID : 0B43h

IPMI Device Support:

Chassis Device -> Support

Bridge -> No Support

IPMB Event Generator -> Support

FRU Inventory Device -> Support

SEL Device -> Support

SDR Repository Device -> Support

Sensor Device -> Support

IPMI Information

SEL Information

SDR Information

BMC Real Time Clock

ASUS ASMB8-iKVM 3-7

You can select from the following interfaces:

KCS Interface - Keyboard Controller Style

SMIC Interface - Server Management Interface Chip

BT Interface - Block Transfer

PCI Interface - Peripheral Component Interconnect

KCS2 Interface - Keyboard Controller 2 Style

3. When nished, press <Esc> to return to the main screen.

To set the BMC Timer:

1. Select

BMC Timer from the Set command option, then press <Enter>.

2. Set the BMC IPMI timer to the current system time.

3. When nished, press <Esc> to return to the main screen.

To select the host interface:

1. Select

Host Interface from the Set command option, then press <Enter>. The screen

displays the host interfaces supported by the server management board.

2. Use the down arrow button to select a host interface, then press <Enter>.

ASUS Host Management Controller Setup Menu

: Select Menu ESC: Exit Up/Down KCS

Initial View Set Monitor Help

Set Host Interface

[-] KCS Interface

[ ] SMIC Interface

[ ] BT Interface

[ ] PCI Interface

[ ] KCS2 Interface

Cancel

3-8 Chapter 3: ASUS Host Management Controller Set-up

Chapter 3: ASUS Host Management

Controller Set-up

3.1.6 Monitor

The Monitor command displays real-time data on the remote server system and CPU

temperatures, voltages, and fan speeds.

To display a remote server information:

1. Select a sensor from the Monitor command options, then press <Enter>. A list of

server information appears on the left pane.

2. Use the down arrow button to select a monitor information. The selected monitor

information details are displayed in the right pane.

3. Press <Esc> to return to the main screen.

ASUS Host Management Controller Setup Menu

Sun Jan 30 18:10:39 2011 0/0000000045 00 00 00:16 KCS

Initial View Set Monitor Help

CPU1 Temperature : (24h) 36 ºC

MB1 Temperature : (17h) 23 ºC

All Sensor

Temperature

Voltage

Fan Speed

ASUS Host Management Controller Setup Menu

Initial View Set Monitor Help

All Sensor

Temperature

Voltage

Fan Speed

ASUS ASMB8-iKVM 3-9

3.1.7 Help

The Help command displays the available utility options, utility version, and copyright

information.

ASUS Host Management Controller Setup Menu

Initial View Set Monitor Help

Help

About

3-10 Chapter 3: ASUS Host Management Controller Set-up

Chapter 3: ASUS Host Management

Controller Set-up

Web-based user

interface

This chapter tells you how to use the web-based

user interface that the server management board

supports.

Chapter 4: Web-based user

interface

4-2 Chapter 4: Web-based user interface

4.1 Web-based user interface

The web-based user interface allows you to easily monitor the remote server’s hardware

information including temperatures, fan rotations, voltages, and power. This application also

lets you instantly power on/off or reset the remote server.

To enter the Web-based user interface:

1. Enter the BIOS Setup during POST.

2. Go to the Advanced Menu > Runtime Error Logging > CPU II0 Bridge

Configuration > Launch Storage OpROM, then press <Enter>.

3. Set

Launch Storage OpROM to [Enabled].

4. Go to the Server Mgmt Menu > BMC network configuration > Configuration

Address source, then press <Enter>.

5. Enter the IP Address in BMC, Subnet Mask in BMC and Gateway Address in BMC.

6. Press <F10> to save your changes and exit the BIOS Setup.

You should install JRE on remote console rst before using web-based management.

You can nd JRE from the folder JAVA of the ASMB8-iKVM support CD. You can also

download JRE from http://www.oracle.com/technetwork/java/javase/downloads/index.

html

4.1.1 Loging in the utility

1. Ensure that the LAN cable of the computer is connected to the LAN port of the remote

server.

2. Open the web browser and type in the same IP address as the one in the remote

server.

3. The below screen appears. Enter the default user name (admin) and password (admin).

Then click Login.

ASUS ASMB8-iKVM 4-3

4.1.2 Using the utility

The web-based graphics user interface displays when you login in the utility successfully.

1. Menu bar: Click a menu to display available function lists.

2. Function list: Click each function key to start using its specic functions.

3. Function title: Displays the function title.

4. Help menu: Click to display the brief description of the selected function.

4-4 Chapter 4: Web-based user interface

4.2 FRU Information

This section contains detailed information for various FRU deviced present in this system.

ASUS ASMB8-iKVM 4-5

4.3.1 Sensor Readings (with Thresholds)

The Sensor Readings page displays the system sensor information, including readings and

status.

1. Select a sensor type category: Allows you to select the type of sensor readings to be

displayed in the list.

2. Status List: Shows the type of sensor readings list that you selected in the drop-down

list.

3. View this event logt: Click to enable or disable the Live Widget function.

4.3 Server Health

This section contains the data related to the server health such as the Sensor Readings,

Event log, and BSOD Screen. Click each item to start using its specic functions.

4-6 Chapter 4: Web-based user interface

4.3.3 BSOD Screen

This page displays the snapshot of the blue screen captured if the host system crashed since

last reboot.

4.3.2 Event Log

The Event Log page displays a table of system event log.

1. Select an event log category: Allows you to select the type of events to be displayed

in the list.

2. Clear Event Log: Click to clear the event log.

ASUS ASMB8-iKVM 4-7

4.4 Conguration

This section allows you to congure the system settings. Click each function key to start using

its specic functions

4.4.1 Active Directory

An active directory does a variety of function including the ability to provide the information on

objects, helps organize these objects for easy retrieval and access, allows access by users

and administrators, and allows the administrators to set security up for the directory. To open

Active Directory Settings page, click Configuration > Active Directory from the main menu.

A sample screenshot of Active Directory Settings Page is shown in the screenshot below.

1. Role Group ID: The name that identies the role group in the Active Directory. Role

Group Name is a string of 255 alpha-numeric characters. Special symbols hyphen and

underscore are allowed.

2. Add Role Group: To add a new role group to the device.

3. Modify Role Group: To modify that role group. Alternatively, double click on the

congured slot.

4. Delete Role Group: To delete an existing Role Group.

5. Advanced Settings:This option is used to congure Active Directory Advanced

Settings. Options are Enable Active Directory Authentication, User Domain name, Time

Out and up to three Domain Controller Server Addresses.

4-8 Chapter 4: Web-based user interface

Procedure:

Entering the details in Advanced Active Directory Settings Page

1. Click on Advanced Settings to open the Advanced Active Directory Settings page.

2. In the Active Directory Settings Page, enter the following details.

•

Active Directory Authentication: To enable/disable Active Directory, check or

uncheck the Enable checkbox respectively.

If you have enabled Active Directory Authentication, enter the required information to

access the Active Directory server.

• Secret Username: Key in a username.

• Secret Password: Key in a password.

• User Domain Name: For the user in the User Domain Name eld. e.g. asus.com

•

IP addresses: Domain Controller Server Address1, Domain Controller Server

Address2 & Domain Controller Server Address 3.

3. Click

Save to save the settings and return to Active Directory Settings Page or click

Cancel to cancel the entry and return to Active Directory Settings Page.

ASUS ASMB8-iKVM 4-9

To add a new Role Group

1. In the Active Directory Settings Page, select a blank row and click Add Role Group to

open the Add Role group Page as shown in the screenshot below.

2. In the Role Group Name eld, enter the name that identies the role group in the

Active Directory.

1. Role Group Name is a string of 255 alpha-numeric characters.

2. Special symbols hyphen and underscore are allowed.

3. In the Role Group Domain eld, enter the domain where the role group is located.

1. Domain Name is a string of 255 alpha-numeric characters.

2. Special symbols hyphen, underscore and dot are allowed.

4. In the Role Group Privilege eld, enter the level of privilege to assign to this role

group.

5. Click

Add to save the new role group and return to the Role Group List.

6. Click

Cancel to cancel the settings and return to the Role Group List.

To Modify Role Group

1. In the Advanced Directory Settings Page, select the row that you wish to modify and

click Modify Role Group.

2. Make the necessary changes and click Save.

To Delete a Role Group

In the Advanced Directory Settings Page, select the row that you wish to delete and click

Delete Role Group.

4-10 Chapter 4: Web-based user interface

4.4.2 DNS

The page allows you to manage DNS settings of the device.

4.4.3 Event Log

This page is used to congure the System Event log information .

ASUS ASMB8-iKVM 4-11

4.4.4 LDAP/E-Directory

The Lightweight Directory Access Protocol (LDAP) is an application protocol for querying

and modifying data of directory services implemented in Internet Protocol (IP) networks. If

you have an LDAP server congured on your network, you can use it as an easy way to add,

manage and authenticate MegaRAC® card users. This is done by passing login requests to

your LDAP Server. This means that there is no need to dene an additional authentication

mechanism, when using the MegaRAC card. Since your existing LDAP Server keeps an

authentication centralized, you will always know who is accessing the network resources and

can easily dene the user or group-based policies to control access.

To open LDAP Settings page, click Configuration > LDAP from the main menu. A sample

screenshot of LDAP Settings Page is shown in the screenshot below. LDAP Settings Page

1. Advanced Settings: To congure LDAP Advanced Settings. Options are

Enable LDAP Authentication, IP Address, Port and Search base.

2. Add Role Group: To add a new role group to the device. Alternatively,

double click on a free slot to add a role group.

3. Modify Role Group: To modify the particular role group.

4. Delete Role Group: To be delete a role group from the list.

4-12 Chapter 4: Web-based user interface

Procedure

Entering the details in Advanced LDAP Settings Page

1. In the LDAP Settings Page, click Advanced Settings. A sample screenshot of LDAP

Settings page is given below.

2. To enable/disable LDAP Authentication, check or uncheck the Enable checkbox

respectively.

During login prompt, use username to login as an ldap Group member.

3. Enter the IP address of LDAP server in the IP Address eld.

a. IP Address made of 4 numbers separated by dots as in 'xxx.xxx.xxx.xxx'.

b. Each Number ranges from 0 to 255.

c. First Number must not be 0.

d. Supports IPv4 Address format and IPv6 Address format.

4. Specify the LDAP Port in the Port eld.

Default Port is 389. For Secure connection, default port is 636.

5. Enter the Search Base. The Search base tells the LDAP server which part of the

external directory tree to search. The search base may be something equivalent to the

organization, group of external directory.

6. Click

Save to save the settings.

7. Click

Cancel to cancel the modied changes.

ASUS ASMB8-iKVM 4-13

To add a new Role Group

1. In the LDAP Settings Page, select a blank row and click Add Role Group to open the

Add Role group Page as shown in the screenshot below.

2 In the Role Group Name eld, enter the name that identies the role group.

3. In the Role Group Search Base eld, enter the path from where the role group is

located to Base DN.

a. Search Base is a string of 255 alpha-numeric characters.

b. Special symbols hyphen, underscore and dot are allowed.

4. In the Role Group Privilege eld, enter the level of privilege to assign to this role

group.

5. Click

Add to save the new role group and return to the Role Group List.

6. Click Cancel to cancel the settings and return to the Role Group List.

To Modify Role Group

1. In the LDAP Settings Page, select the row that you wish to modify and click Modify

Role Group.

2. Make the necessary changes and click Save.

To Delete a Role Group

In the LDAP Settings Page, select the row that you wish to delete and click Delete Role

Group.

4-14 Chapter 4: Web-based user interface

4.4.5 Mouse Mode

The Mouse Mode page allows you to select the mouse mode.

1. Save: Select the desired mouse mode, and then click Save to apply the setting.

4.4.6 Network

The Network page allows you to congure the network settings.

1. MAC Address: Select whether to obtain the IP address automatically or manually

congure one.

2. IP Address/Subnet Mask/Default Gateway: If you congure a static IP, enter the

requested address, subnet mask and

gateway in the given eld.

ASUS ASMB8-iKVM 4-15

4.4.7 Network Bond

This page allows you to enable or disable networking bonding feature and congure the

default interfaces.

4.4.8 NTP

This page allows you to congure the NTP server or view and modify the device’s Date and

Time settings.

4-16 Chapter 4: Web-based user interface

4.4.9 PEF

Platform Event Filtering (PEF) provides a mechanism for conguring the BMC to take

selected actions on event messages that it receives or has internally generated. These

actions include operations such as system power-off, system reset, as well as triggering the

generation of an alert. A PEF implementation is recommended to provide at least 16 entries

in the event lter table. A subset of these entries should be pre-congured for common

system failure events, such as over-temperature, power system failure, fan failure events, etc.

To open PEF Management Settings page, click Configurations > PEF from the main menu.

A sample screenshot of PEF Management Settings Page is shown in the screen shot below.

1. PEF ID: This eld displays the ID for the newly congured PEF entry (read-only).

2. Filter configuration: Check box to enable the PEF settings.

3. Event Filter Action: Check box to enable PEF Alert action. This is a mandatory eld.

4. Event Severity: To choose any one of the Event severity from the list.

5. Sensor Name: To choose the particular sensor from the sensor list.

6. Add: To add the new event lter entry and return to Event lter list.

7. Modify: To modify the existing entries.

8. Cancel: To cancel the modication and return to Event lter list.

ASUS ASMB8-iKVM 4-17

Procedure:

1. Click the Event Filter Tab to congure the event lters in the available slots

2. To Add an Event Filter entry, select a free slot and click Add to open the Add event

Filter entry Page. A sample screenshot of Add Event Filter Page is in seen the

screenshot below.

3. In the Event Filter Conguration section,

• PEF ID displays the ID for congured PEF entry (read-only).

• In lter conguration, check the box to enable the PEF settings.

• In Event Severity, select any one of the Event severity from the list.

4. In the Filter Action conguration section,

• Event Filter Action is a mandatory eld and checked by default, which enable PEF

Alert action (read-only).

• Select any one of the Power action either Power down, Power reset or Power

cycle from the drop down list

• Choose any one of the congured alert policy number from the drop down list.

Alert Policy has to be congured - under Conguration->PEF->Alert Policy.

5. In the Generator ID conguration section,

• Check Generator ID Data option to ll the Generator ID with raw data.

• Generator ID 1 eld is used to give raw generator ID1 data value.

• Generator ID 2 eld is used to give raw generator ID2 data value.

In RAW data eld, to specify hexadecimal value prex with '0x'.

4-18 Chapter 4: Web-based user interface

Alert Policy Tab

This page is used to congure the Alert Policy and LAN destination. You can add, delete or

modify an entry in this page.

The elds of PEF Management – Alert Policy Tab are explained below.

1. Policy Entry #: Displays Policy entry number for the newly congured entry (read-

only).

2. Policy Number: Displays the Policy number of the conguration.

3. Policy Configuration: To enable or disable the policy settings.

4. Policy Set: To choose any one of the Policy set values from the list.

0 - Always send alert to this destination.

1 - If alert to previous destination was successful, do not send alert to this destination.

Proceed to next entry in this policy set.

2 - If alert to previous destination was successful, do not send alert to this destination.

Do not process any more entries in this policy set.

3 - If alert to previous destination was successful, do not send alert to this destination.

Proceed to next entry in this policy set that is to a different channel.

4 - If alert to previous destination was successful, do not send alert to this destination.

Proceed to next entry in this policy set that is to a different destination type.

5. LAN Interface: To choose a particular channel from the available channel list.

6. Destination Selector: To choose a particular destination from the congured

destination list.

LAN Destination has to be congured - under Conguration->PEF->LAN Destination.

ASUS ASMB8-iKVM 4-19

7. Add: To save the new alert policy and return to Alert Policy list.

8. Modify: To modify the existing entries.

9. Cancel: To cancel the modication and return to Alert Policy list.

Procedure:

LAN Destination has to be congured under Conguration->PEF->LAN Destination. If you

select the number 4 for destination selector in Alert Policy Entry page, then you have to

congure the fourth slot (LAN Destination Number 4) in the LAN Destination tab.

1. In the Alert Policy Tab, select the slot for which you have to congure the Alert policy.

That is, In the Event Filter Entry Page, if you have chosen Alert Policy number as 4,

you have to congure the 4th slot (the slot with Policy Number 4) in the Alert Policy

Tab.

2. Select the slot and click Add to open the Add Alert Policy Entry Page.

3. Policy Entry # is a read only eld.

4. Select the Policy Number from the list.

5. In the Policy Configuration eld, check Enable if you wish to enable the policy

settings.

6. In the Policy Set eld, choose any of the Policy set from the list.

7. In the LAN Interface eld, choose a particular LAN interface from the available list.

8. In the Destination Selector field, choose particular destination from the congured

destination list.

4-20 Chapter 4: Web-based user interface

9. In the Alert String eld, enable the check box if the Alert policy entry is Event Specic.

10. In the Alert String Key eld, choose any one value that is used to look up the Alert

String to send for this Alert Policy entry.

11. Click

Add to save the new alert policy and return to Alert Policy list.

12. Click

Cancel to cancel the modication and return to Alert Policy list.

13. In the Alert Policy list, to modify a conguration, select the slot to be modied and click

Modify.

14. In the Modify Alert Policy Entry Page, make the necessary changes and click

Modify.

15. In the Alert Policy list, to delete a conguration, select the slot and click Delete.

ASUS ASMB8-iKVM 4-21

PEF Management LAN Destination Page

This page is used to congure the Event lter, Alert Policy and LAN destination. A sample

screenshot of PEF Management LAN Destination Page is given below.

The elds of PEF Management – LAN Destination Tab are explained below.

1. LAN Destination: Displays Destination number for the newly congured entry (read-

only).

2. Destination Type: Destination type can be either an SNMP Trap or an Email alert.

For Email alerts, the 3 elds - destination Email address, subject and body of the

message needs to be lled. The SMTP server information also has to be added - under

Conguration->SMTP. For SNMP Trap, only the destination IP address has to be lled.

3. Destination Address: If Destination type is SNMP Trap, then enter the IP address of

the system that will receive the alert. Destination address will support the following:

- IPv4 address format.

- IPv6 address format.

If Destination type is Email Alert, then give the email address that will receive the email.

4. Subject & Message: These elds must be congured if email alert is chosen as

destination type. An email will be sent to the congured email address in case of any

severity events with a subject specied in subject eld and will contain the message

eld's content as the email body.

5. Add: To save the new LAN destination and return to LAN destination list.

6. Cancel: To cancel the modication and return to LAN destination list.

4-22 Chapter 4: Web-based user interface

Procedure:

6. Select the User Name from the list of users.

7. In the Subject field, enter the subject.

8. In the Message field, enter the message.

9. Click

Add to save the new LAN destination and return to LAN destination list.

10. Click

Cancel to cancel the modication and return to LAN destination list.

11. In the LAN Destination Tab, to modify a conguration, select the row to be modied

and click Modify.

12. In the Modify LAN Destination Entry page, make the necessary changes and click

Modify.

13. In the LAN Destination Tab, to delete a conguration, select the slot and click Delete.

If Destination type is Email Alert, then give the email address that will receive the email.

1. In the LAN Destination Tab, choose the slot to be congured. This should be the

same slot that you have selected in the Alert Policy Entry- Destination Selector eld.

That is if you have chosen the Destination Selector as 4 in the Alert Policy Entry page

of Alert Policy Tab, then you have to congure the 4th slot of LAN Destination Page.

2. Select the slot and click Add. This opens the Add LAN Destination entry..

3. In the LAN Destination field, the destination for the newly congured entry is

displayed and this is a read only eld.

4. In the Destination Type field, select the one of the types.

5. In the Destination Address field, enter the destination address.

ASUS ASMB8-iKVM 4-23

4.4.10 RADIUS

This page is used to enable or disable RADIUS authentication and enter the required

information to access the RADIUS server.

4.4.11 Remote Session

The Remote Session page allows you to enable or disable encryption on KVM or data during

the redirection session.

1. Single Port Application: Tick to enable.

2. Keyboard Language: Select the keyboard language from the drop down list box.

3. Local Monitor OFF: Tick to enable or disable.

4. Automatically OFF Local Monitor, When JViewer Launches: Tick to enable or

disable.

5. Save: Click to save the current changes.

It will automatically close the existing remote redirection either KVM or Virtual media

sessions, if any.

6. Reset: Click to reset the modied changes.

4-24 Chapter 4: Web-based user interface

4.4.12 Services

This page lists services running on the BMC. It shows current status and other basic

information about the services. Press Modify to modify the services conguration.

4.4.13 SMTP

The SMTP page allows you to congure SMTP mail server. Enter the IP address of the mail

server, and then click Save to apply the settings.

ASUS ASMB8-iKVM 4-25

4.4.14 SSL

The Secure Socket Layer protocol was created by Netscape to ensure secure transactions

between web servers and browsers. The protocol uses a third party, a Certificate Authority

(CA), to identify one end or both end of the transactions.

To open SSL Certicate Conguration page, click Configuration > SSL from the main menu.

There are three tabs in this page.

1. Upload SSL option is used to upload the certicate and private key le into the BMC.

2. Generate SSL option is used to generate the SSL certicate based on conguration

details.

3. View SSL option is used to view the uploaded SSL certicate in readable format.

4-26 Chapter 4: Web-based user interface

The elds of SSL Certicate Conguration – Upload SSL tab are explained below.

1. Current Certificate: Current certicate information will be displayed (read-only).

2. New Certificate: Certicate le should be of pem type

3. Current Privacy Key: Current privacy key information will be displayed (read-only).

4. New Privacy Key: Privacy key le should be of pem type

5. Upload: To upload the SSL certicate and privacy key into the BMC.

Upon successful upload, HTTPs service will get restarted to use the newly uploaded SSL

certicate.

The elds of SSL Certicate Conguration – Generate SSL tab are explained below.

1. Common Name(CN): Common name for which certicate is to be generated.

- Maximum length of 64 characters.

- Special characters '#' and '$' are not allowed.

ASUS ASMB8-iKVM 4-27

2. Organization(O): Organization name for which the certicate is to be generated.

- Maximum length of 64 characters.

- Special characters '#' and '$' are not allowed.

3. Organization Unit(OU): Over all organization section unit name for which certicate is

to be generated.

- Maximum length of 64 characters.

- Special characters '#' and '$' are not allowed.

4. City or Locality(L): City or Locality of the organization (mandatory).

- Maximum length of 64 characters.

- Special characters '#' and '$' are not allowed.

5. State or Province(ST): State or Province of the organization (mandatory).

- Maximum length of 64 characters.

- Special characters '#' and '$' are not allowed.

6. Country(C): Country code of the organization (mandatory).

- Only two characters are allowed.

- Special characters are not allowed.

7. Email Address: Email Address of the organization (mandatory).

8. Valid for: Validity of the certicate.

- Value ranges from 1 to 3650 days.

9. Key Length: The key length bit value of the certicate.

10. Generate: To generate the new SSL certicate.

HTTPs service will get restarted, to use the newly generated SSL certicate.

4-28 Chapter 4: Web-based user interface

The elds of SSL Certicate Conguration – Generate SSL tab are explained below.

1. Basic Information: This section displays the basic information about the uploaded

SSL certicate. It displays the following elds.

• Version

• Serial Number

• Signature Algorithm

• Public Key

2. Issued From: This section describes the following Certicate Issuer information

• Common Name(CN)

• Organization(O)

• Organization Unit(OU)

• City or Locality(L)

• State or Province(ST)

• Country(C)

• Email Address

3. Validity Information: This section displays the validity period of the uploaded

certicate.

• Valid From

• Valid To

ASUS ASMB8-iKVM 4-29

4. Issued To: This section display the information about the certicate issuer.

• Common Name(CN)

• Organization(O)

• Organization Unit(OU)

• City or Locality(L)

• State or Province(ST)

• Country(C)

• Email Address

Procedure

1. Click the Upload SSL Tab, Browse the New Certificate and New Privacy key.

2. Click

Upload to upload the new certicate and privacy key.

3. In

Generate SSL tab, enter the following details in the respective elds

• The Common Name for which the certicate is to be generated.

• The Name of the Organization for which the certicate is to be generated.

• The Overall Organization Section Unit name for which certicate to be

generated.

• The City or Locality of the organization

• The State or Province of the organization

• The Country of the organization

• The email address of the organization.

• The number of days the certicate will be valid in the Valid For eld.

4. Choose the Key Length bit value of the certicate

5. Click

Generate to generate the certicate.

6. Click

View SSL tab to view the uploaded SSL certicate in user readable format.

a. Once you Upload/Generate the certicates, only HTTPs service will get restarted.

b. You can now access your Generic MegaRAC® SP securely using the following format

in your IP Address eld from your Internet browser: https://<your MegaRAC® SP’s IP

address here>

c. For example, if your MegaRAC® SP’s IP address is 192.168.0.30, enter the following:

https://192.168.0.30

d. Please note the <s> after <http>.You must accept the certicate before you are able to

access your Generic MegaRAC® SP.

4-30 Chapter 4: Web-based user interface

4.4.15 Users

The User Management page allows you to view the current list of user slots for the server.

You can add a new user and modify or delete the existing users.

To open User Management page, click Configuration > Users from the main menu. A

sample screenshot of User Management Page is shown in the screenshot below.

1. User ID: Displays the ID number of the user. Note: The list contains a maximum of ten

users only.

2. User Name: Displays the name of the user.

3. User Access: To enable or disable the access privilege of the user.

4. Network Privilege: Displays the network access privilege of the user.

5. SNMP Status: Displays if the SNMP status for the user is enabled or Disabled.

6. Email ID: Displays email address of the user. Add User: To add a new user.

7. Add User: To add a new user.

8. Modify User: To modify an existing user.

9. Delete User: To delete an existing user.

Add a new user:

1. To add a new user, select a free slot and click Add User.

2. Enter the name of the user in the User Name eld.

3. In the Password and Conrm Password elds, enter and conrm your new password.

4. Password must be at least 8 characters long. White space is not allowed. This eld will

not allow more than 20 characters.

ASUS ASMB8-iKVM 4-31

5 Enable or Disable the User Access Privilege.

6. In the Network Privilege eld, enter the network privilege assigned to the user which

could be Administrator, Operator, User or No Access.

7. Check the SNMP Status check box to enable SNMP access for the user. NOTE:

Password eld is mandatory, if SNMP Status is enabled.

8. Choose the SNMP Access level option for user from the SNMP Access dropdown list.

Either it can be Read Only or Read Write.

9. Choose the Authentication Protocol to use for SNMP settings from the drop down list.

NOTE: Password eld is mandatory, if Authentication protocol is changed.

10. Choose the Encryption algorithm to use for SNMP settings from the Privacy protocol

dropdown list.

11. In the Email ID eld, enter the email ID of the user. If the user forgets the password, the

new password will be mailed to the congured email address.

AMI-Format:

The subject of this mail format is 'Alert from (your Hostname)'. The mail

content shows sensor information, ex: Sensor type and Description.

Fixed-Subject Format: This format displays the message according to user's setting.

You must set the subject and message for email alert.

12. In the New SSK Key eld, click Browse and select the SSH key le. Note: SSH key le

should be of pub type.

13. Click

Add to save the new user and return to the users list.

14. Click

Cancel to cancel the modication and return to the users list.

Modify an existing User

1. Select an existing user from the list and click Modify User. This opens the Add User

screen as shown in the screenshot below.

2. Edit the required elds.

3. To change the password, enable the Change Password option.

4. After editing the changes, click Modify to return to the users list page.

Delete an existing User

To delete an existing user, select the user from the list and click Delete User.

4-32 Chapter 4: Web-based user interface

4.4.16 Virtual Media

The following option will allow to congure virtual media devices. Below, you can select the

number of instances that are be supported for each type of virtual media devices.

ASUS ASMB8-iKVM 4-33

4.5 Remote Control

This section allows you to perform remote operations on the server. Click each function key

to start using its specic functions

4.5.1 Console Redirection

The remote console application, which is started using the WebGUI, allows you to control

your server's operating system remotely, using the screen, mouse, and keyboard, and to

redirect local CD/DVD, Floppy diskette and Hard disk/USB thumb drives as if they were

connected directly to the server.

Browser Settings

For Launching the KVM, pop-up block should be disabled. For Internet explorer, enable the

download le options from the settings.

4-34 Chapter 4: Web-based user interface

Java Console:

This is an OS independent plug-in which can be used in Windows as well as Linux with the

help of JRE. JRE should be installed in the client’s system. You can install JRE from the

following link. http://www.java.com/en/download/manual.jsp

The Java Console can be launched in two ways

1. Open the Dashboard Page and in Remote control section, click Launch for Java

Console.

2. Open

Remote Control>Console Redirection Page and click Java Console.

This will download the .jnlp le from BMC.

To open the .jnlp le, use the appropriate JRE version (Javaws) When the downloading is

done, it opens the Console Redirection window.

The Console Redirection main menu consists of the following menu items.

• Video

• Keyboard

• Mouse

• Options

• Media

• Keyboard Layout

• Video Record

• Power

• Active Users

• Help

A detailed explanation of these menu items are given below.

ASUS ASMB8-iKVM 4-35

Video

This menu contains the following sub menu items.

1. Pause redirection: This option is used for pausing Console Redirection.

2. Resume Redirection: This option is used to resume the Console Redirection when the

session is paused.

3. Refresh Video: This option can be used to update the display shown in the Console

Redirection window.

4. Turn ON Host display: If you enable this option, the display will be back in the server

screen.

5. Compression Mode: Allows you to choose the compression settings for the video.

6. DCT Quantization Table: Allows you to set the quality that ranges from 0 (Worst

Quality) to 7 (Best Quality).

7. Turn OFF Host display: If you enable this option, the server display will be blank but

you can view the screen in Console Redirection.

8. Capture Screen: This option allows you to screen capture the console redirection

screen.

9. Exit: This option is used to exit the console redirection screen

4-36 Chapter 4: Web-based user interface

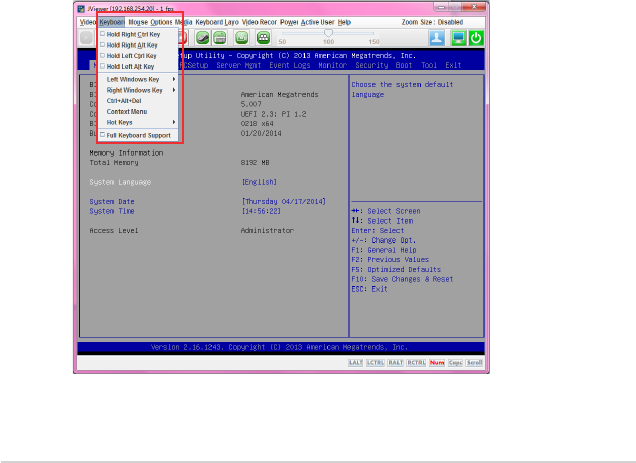

Keyboard

This menu contains the following sub menu items.

1. Hold Right Ctrl Key: This menu item can be used to act as the right-side <CTRL> key

when in Console Redirection.

2. Hold Right Alt Key: This menu item can be used to act as the right-side <ALT> key

when in Console Redirection.

3. Hold Left Ctrl Key: This menu item can be used to act as the left-side <CTRL> key

when in Console Redirection.

4. Hold Left Alt Key: This menu item can be used to act as the left-side <ALT> key when

in Console Redirection.

5. Left Windows Key: This menu item can be used to act as the left-side <WIN> key

when in Console Redirection. You can also decide how the key should be pressed:

Hold Down or Press and Release.

6. Right Windows Key: This menu item can be used to act as the right-side <WIN> key

when in Console Redirection. You can also decide how the key should be pressed:

Hold Down or Press and Release.

7. Alt+Ctrl+Del: This menu item can be used to act as if you depressed the <CTRL>,

<ALT> and <DEL> keys down simultaneously on the server that you are redirecting.

8. Context menu: This menu item can be used to act as the context menu key, when in

Console Redirection.

9. Hot Keys: This menu item can be used to add hot keys for frequently used keys.

10. Full Keyboard support: Tick this item for full keyboard support.

ASUS ASMB8-iKVM 4-37

Mouse

1. Show Cursor: This menu item can be used to show or hide the local mouse cursor on

the remote client system.

2. Mouse Calibration: This menu item can be used only if the mouse mode is relative.

In this step, the mouse threshold settings on the remote server will be discovered. The local

mouse cursor is displayed in RED color and the remote cursor is part of the remote video

screen. Both the cursors will be synchronized in the beginning. Please use '+' or '-' keys to

change the threshold settings until both the cursors go out of synch. Please detect the rst

reading on which cursors go out of synch. Once this is detected, use 'ALT-T' to save the

threshold value.

3. Mouse Mode: This menu item allows you to select the mode or type of mouse support.

4-38 Chapter 4: Web-based user interface

Options

Band width: The Bandwidth Usage option allows you to adjust the bandwidth. You can select

one of the following:

1. Auto Detect: This option is used to detect client system keyboard layout automatically

and send the key event to the host based on the Layout detected.

2. 256 Kbps

3. 512 Kbps

4. 1 Mbps

5. 10 Mbps

6. 100 Mbps

Keyboard/Mouse Encryption: This option allows you to encrypt keyboard inputs and mouse

movements sent between the connections.

Zoom:

This option is available only when you launch the Java Console.

1. Zoom In: For increasing the screen size. This zoom varies from 100% to 150% with an

interval of 10%

2. Zoom Out: For decreasing the screen size. This zoom varies from 100% to 50% with

an interval of 10%

ASUS ASMB8-iKVM 4-39

Media

Virtual Media Wizard:

To add or modify a media, select and click 'Virtual Media Wizard' button, which pops out

a box named “Virtual Media” where you can congure the media. A sample screenshot of

Virtual media screen is given below. Virtual Media.

Floppy Key Media: This menu item can be used to start or stop the redirection of a physical

oppy drive and oppy image types such as img.

CD/DVD Media: This menu item can be used to start or stop the redirection of a physical

DVD/CD-ROM drive and cd image types such as iso.

Hard disc/USB Key Media: This menu item can be used to start or stop the redirection of a

Hard Disk/USB key image and USB key image such as img.

Virtual Media Wizard

4-40 Chapter 4: Web-based user interface

Keyboard Layout

Auto Detect: This option is used to detect keyboard layout automatically. The languages

supported automatically are English – US, French – France, Spanish – Spain, German-

Germany, Japanese- Japan. If the client and host languages are same, then for all the

languages other than English mentioned above, you must select this option to avoid typo

errors.

Soft Keyboard: This option allows you to select the keyboard layout. It will show the dialog

as similar to onscreen keyboard. If the client and host languages are different, then for all the

languages other than English mentioned above, you must select the appropriate language in

the list shown in JViewer and use the softkeyboard to avoid typo errors. Note: Soft keyboard

is applicable only for JViewer Application not for other application in the client system. Soft

keyboard is applicable only for JViewer Application not for other application in the client

system

ASUS ASMB8-iKVM 4-41

4.5.2 Server Power Control

The Server Power Control page displays the current server power status and allows you to

change the current settings. Select the desired option, and then click Perform Action to

execute the selected action.

4.5.3 Java SOL

The Java SOL page allows lets you launch the Java SOL application.

4.5.4 Chassis Identify Command

The Chassis Identify Command page allows you to perform a chassis identify command

control operation. You can set the Locator LED either always ON or OFF. You can also key in

an identify interval in seconds then click Perform Action to start the command.

4-42 Chapter 4: Web-based user interface

4.5.5 Power Button Control

The Power Button Control page allows you to enable or disable power buttons. Select an

option then click Perform Action to conrm the selection .

ASUS ASMB8-iKVM 4-43

4.6 AutoVideoRecording

This section allows you to congure the events that will trigger the auto video recording

function of the KVM server and display the list of available recorded video les on the BMC.

4.6.1 Triggers Configuration

This page allows you to congure the events that will trigger the auto video recording function

of the KVM server.

4.6.2 Recorded Video

This section displays the list of available recorded video les on the BMC and lets play,

download and save, or delete a selected video.

4-44 Chapter 4: Web-based user interface

4.7 Maintenance

The Maintenance menu allows you to select specic conguration items to be preserved or to

restore the default conguration for your device.

4.7.1 Preserve Configuration

This page allows you to select specic conguration items to be preserved in the cases of

Restore Conguration and Firmware Update without Preserve Conguration option.

4.7.2 Restore Configuration

This page allows you to restore the default conguration for your device.

1. Enter Preserve Configuration. Click to select specic conguration items to be

preserved

2. Restore Configuration. Selected conguration items will be preserved while

all the other conguration items will be restored to their default values. If none

are selected, all the conguration items will be restored to their default values,

essentially restoring the device conguration to its factory defaults.

ASUS ASMB8-iKVM 4-45

4.8 Firmware Update

This section allows you to update the rmware of the device.

4-46 Chapter 4: Web-based user interface

Appendix: Reference information

The Appendix shows the location of the LAN ports

for server management and BMC connector on

server motherboards. This section also presents

common problems that you may encounter when

installing or using the server management board.

Appendix: Reference information

A-2 Appendix: Reference information

A.1 BMC connector

The ASUS server motherboards that support the ASMB8-iKVM comes with a Baseboard

Management Controller (BMC) connector.

Refer to the illustration below to locate the BMC connector on different server motherboards.

The motherboard illustration is for reference only. The motherboard layout and appearance

may vary depending on the model..

ASUS ASMB8-iKVM A-3

A.2 LAN ports for server management

The ASUS server motherboards that support ASMB8-iKVM comes with three (3) LAN (RJ-45)

ports: one for network connection and the other two for server management.

For easy identication, the LAN ports for server management are Shared LAN and DM_LAN1

ports. You must use the Shared LAN and DM_LAN1 ports for server management to connect

the remote server to the local/central host (direct LAN connection) or to the network hub or

router.

Refer to the illustration below to identify the Shared LAN and DM_LAN1 ports for server

management on some server motherboards.

Refer to your motherboard's user guide for the location of Shared LAN and DM_LAN1

ports.

DM_LAN1Shared LAN

A-4 Appendix: Reference information

A.3 Troubleshooting

Problem Solution

The local/central server cannot connect

to the ASMB8-iKVM board

1. Check if the LAN cable is connected

to the LAN port.

2. Make sure that the IP address of

both the remote and local/central

servers are on the same subnet.

(Refer to chapter 2 for details.)

Try “ping xx.xx.xx.xx” (remote

server ip) on local/central server

and make sure remote server could

reply the ping request.

3. Check if the IP source is set to

[DHCP]. When set to [DHCP], you’ll

not be able to congure the IP

address.

All the SEL (System Event Log)

cannot be displayed

The maximum SEL number is 900 events.

The date/time shown in SEL (System

Event Log) screen is incorrect

Refer to section 4.4.9 to check if the time

zone is set up correctly.

ASMB8-iKVM has network connection

problems in Firewall environment

Ask MIS to add the following port

numbers in Firewall:

5123 (virtual oppy) (TCP)

5120 (virtual CDROM) (TCP)

623 (IPMI) (TCP & UDP)

80 (HTTP) (TCP)

7578 (iKVM) (TCP)

443 (HTTPs) (TCP)

161 (SNMP) (UDP)

The Java redirection screen cannot be

displayed normally

Click Refresh Page button to refresh the

redirection screen.

This troubleshooting guide provides answers to some common problems that you may

encounter while installing and/or using ASUS ASMB8-iKVM. These problems require simple

troubleshooting that you can perform by yourself. Contact the Technical Support if you

encounter problems not mentioned in this section.

The ASMB JAVA console only works with the onboard VGA. Other add-on video cards may

not properly display the ASMB JAVA console.

ASUS ASMB8-iKVM A-5

A.4 Sensor Table

Memory ECC

Sensor

No. Sensor Name Sensor Type Sensor Type

code Sensor Value or Event Type Event Data 3

0xD1

CPU1_ECC1

Memory ECC Sensor

0x0C

Discrete(0x6F)

0x01: Correctable ECC

0x02: Uncorrectable ECC

0x40: Presence detected

0x00: DIMM_A1, 0x01: DIMM_A2,

0x02: DIMM_A3, 0x03:DIMM_A4,

0x04: DIMM_B1, 0x05: DIMM_B2,

0x06: DIMM_B3, 0x07: DIMM_B4,

0x08: DIMM_C1, 0x09: DIMM_C2,

0x0A: DIMM_C3, 0x0B: DIMM_C4,

0x0C: DIMM_D1, 0x0D: DIMM_D2,

0x0E: DIMM_D3, 0x0F: DIMM_D4

0xD2

CPU1_ECC2

OEM Memory ECC Sensor

(For Intel DP platform only --

ASUS Z8 series server MB;

-E6 server system)

0xC1

Discrete(0x6F)

0x01: Read ECC error

0x02: ECC Error occurred on a scrub

0x04: Write Parity Error

0x08: Error in Redundant memory

0x10: Sparing Error

0x20: Memory access out of Range

0x40: Address Parity Error

0x80: Byte Enable Parity

0x00: DIMM_A1, 0x01: DIMM_A2,

0x02: DIMM_A3, 0x03:DIMM_A4,

0x04: DIMM_B1, 0x05: DIMM_B2,

0x06: DIMM_B3, 0x07: DIMM_B4,

0x08: DIMM_C1, 0x09: DIMM_C2,

0x0A: DIMM_C3, 0x0B: DIMM_C4,

0x0C: DIMM_D1, 0x0D: DIMM_D2,

0x0E: DIMM_D3, 0x0F: DIMM_D4

0xD3

CPU2_ECC1

Memory ECC Sensor

0x0C

Discrete(0x6F)

0x01: Correctable ECC

0x02: Uncorrectable ECC

0x40: Presence detected

0x00: DIMM_D1, 0x01: DIMM_D2,

0x02: DIMM_D3, 0x03: DIMM_D4,

0x04: DIMM_E1, 0x05:DIMM_E2,

0x06: DIMM_E3, 0x07: DIMM_E4,

0x08: DIMM_F1, 0x09: DIMM_F2,

0x0A: DIMM_F3, 0x0B: DIMM_F4,

0x0C: DIMM_G1, 0x0D: DIMM_G2,

0x0E: DIMM_G3, 0x0F: DMM_G4,

0x10: DIMM_H1, 0x11: DIMM_H2,

0x12: DIMM_H3, 0x13: DIMM_H4,

0x14: DIMM_C1, 0x15: DIMM_C2,

0x16: DIMM_C3, 0x17: DIMM_C4

0xD4 CPU2_ECC2 OEM Memory ECC Sensor

(For Intel DP platform only --

ASUS Z8 series server MB;

-E6 server system)

0xC1 Discrete(0x6F)

0x01: Read ECC error

0x02: ECC Error occurred on a scrub

0x04: Write Parity Error

0x08: Error in Redundant memory

0x10: Sparing Error

0x20: Memory access out of Range

0x40: Address Parity Error

0x80: Byte Enable Parity

0x00: DIMM_D1, 0x01: DIMM_D2,

0x02: DIMM_D3, 0x03: DIMM_D4,

0x04: DIMM_E1, 0x05:DIMM_E2,

0x06: DIMM_E3, 0x07: DIMM_E4,

0x08: DIMM_F1, 0x09: DIMM_F2,

0x0A: DIMM_F3, 0x0B: DIMM_F4,

0x0C: DIMM_G1, 0x0D: DIMM_G2,

0x0E: DIMM_G3, 0x0F: DMM_G4,

0x10: DIMM_H1, 0x11: DIMM_H2,

0x12: DIMM_H3, 0x13: DIMM_H4,

0x14: DIMM_C1, 0x15: DIMM_C2,

0x16: DIMM_C3, 0x17: DIMM_C4

A-6 Appendix: Reference information

Backplane HD

Sensor No. Sensor Name Sensor Type Sensor Type Code Sensor Value or Event Type

0x68

Backplane1 HD1

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x69

Backplane1 HD2

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x6A

Backplane1 HD3

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x6B

Backplane1 HD4

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x6C

Backplane1 HD5

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x6D

Backplane1 HD6

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x6E

Backplane1 HD7

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x6F

Backplane1 HD8

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x78

Backplane2 HD1

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x79

Backplane2 HD2

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x7A

Backplane2 HD3

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x7B

Backplane2 HD4

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x7C

Backplane2 HD5

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x7D

Backplane2 HD6

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x7E

Backplane2 HD7

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

0x7F

Backplane2 HD8

Drive Slot

0x0D

Discrete(0x6F)

0x01: Drive Presence

0x02: Drive Fault

0x80: Rebuild

ASUS ASMB8-iKVM A-7

Power Supply

Sensor No. Sensor Name Sensor Type Sensor Type Code Sensor Value or Event Type

0x81

PSU1 Temp

Temperature

0x01

Threshold(0x01)

Upper Non-Critical - going high

Upper Critical - going high

0x82

PSU1 Fan1

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0x83

PSU1 Fan2

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0x92

PSU1 Over Temp

Temperature

0x01

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x40: Transition to Non-Recoverable

0x93

PSU1 FAN Low

FAN

0x04

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x94

PSU1 AC

Power Supply

0x08

Discrete(0x6F)

0x01: Presence Detected

0x08: Power Supply input lost (AC/DC)

0x95

PSU1 Slow FAN1

FAN

0x04

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x40: Transition to Non-Recoverable

0x96

PSU1 Slow FAN2

FAN

0x04

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x40: Transition to Non-Recoverable

0x97

PSU1 PWR Detect

Power Supply

0x08

Discrete(0x6F)

0x01: Presence Detected

0x02: Power Supply Failure Detected

0x84

PSU2 Temp

Temperature

0x01

Threshold(0x01)

Upper Non-Critical - going high

Upper Critical - going high

0x85

PSU2 Fan1

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0x86

PSU2 Fan2

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0x9A

PSU2 Over Temp

Temperature

0x01

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x40: Transition to Non-Recoverable

0x9B

PSU2 FAN Low

FAN

0x04

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x9C

PSU2 AC Lost

Power Supply

0x08

Discrete(0x6F)

0x01: Presence Detected

0x08: Power Supply input lost (AC/DC)

0x9D

PSU2 Slow FAN1

FAN

0x04

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x40: Transition to Non-Recoverable

0x9E

PSU2 Slow FAN2

FAN

0x04

Discrete(0x07)

0x01: Transition to OK

0x10: Transition to Non-Critical from more severe

0x40: Transition to Non-Recoverable

0x9F

PSU2 PWR Detect

Power Supply

0x08

Discrete(0x6F)

0x01: Presence Detected

0x02: Power Supply Failure Detected

A-8 Appendix: Reference information

Hardware Monitor

Sensor No. Sensor Name Sensor Type Sensor Type Code Sensor Value or Event Type

0x31

CPU1 Temperature

Temperature

0x01

Threshold(0x01)

Upper Non-critical - going high

Upper Critical - going high

0x32

CPU2 Temperature

Temperature

0x01

Threshold(0x01)

Upper Non-critical - going high

Upper Critical - going high

0xCC

TR1 Temperature

Temperature

0x01

Threshold(0x01)

Upper Non-critical - going high

Upper Critical - going high

0xCD

TR2 Temperature

Temperature

0x01

Threshold(0x01)

Upper Non-critical - going high

Upper Critical - going high

0x34

VCORE1

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x35

VCORE2

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x36

+3.3V

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x37

+5V

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x38

+12V

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x39

+1.5V_ICH

(For Intel DP platform only -- ASUS Z8

series server MB; -E6 server system)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x3A

+1.1V_IOH

(For Intel DP platform only -- ASUS Z8

series server MB; -E6 server system)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x3B

+5VSB

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x3C

VBAT

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x3D

P1VTT

(For Intel DP platform only -- ASUS Z8

series server MB; -E6 server system)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x3E

+1.5V_P1DDR3

(For Intel platform only -- ASUS Z8 series

server MB; -E6 server system)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

ASUS ASMB8-iKVM A-9

0x3F

P2VTT

(For Intel DP platform only -- ASUS Z8

series server MB; -E6 server system)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x40

+3.3VSB

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x41

+1.5V_P2DDR3

(For Intel DP platform only -- ASUS Z8

series server MB; -E6 server system)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x42

P1DDR3

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x42

+1.5V

(For Intel UP platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x43

P2DDR3

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x44

P1_+1.2V

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x45

P2_+1.2V

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x46

P1_VDDNB

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x47

+1.8V

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x48

+1.2V

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x49

+1.1V

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0x4A

VTT

(For AMD platform only)

Voltage

0x02

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

Upper Non-critical - going high

Upper Critical - going high

0xA0

CPU_FAN1

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA1

CPU_FAN2

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

A-10 Appendix: Reference information

0xA2

FRNT_FAN1

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA3

FRNT_FAN2

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA4

FRNT_FAN3

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA5

FRNT_FAN4

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA6

REAR_FAN1

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA7

REAR_FAN2

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA8

FRNT_FAN5

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xA9

FRNT_FAN6

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0xAA

FRNT_FAN7

FAN

0x04

Threshold(0x01)

Lower Non-critical - going low

Lower Critical - going low

0x4F

Chassis Intrusion

Physical

Security

(Chassis

Intrusion)

0x05

Discrete(0x6F)

0x01: General Chassis Intrusion

0x02: Drive Bay Intrusion

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone +886-2-2894-3447

Fax +886-2-2890-7798

E-mail info@asus.com.tw

Web site http://www.asus.com

Technical Support

Telephone +86-21-38429911

Fax +86-21-58668722 ext: 9101

Online Support http://support.asus.com/techserv/techserv.aspx

ASUSTeK COMPUTER INC. (Taiwan)

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone +886-2-2894-3447

Fax +886-2-2890-7798

E-mail info@asus.com.tw

Web site http://www.asus.com.tw

Technical Support

Telephone +886-2-2894-3447 (0800-093-456)

Online Support http://support.asus.com/techserv/techserv.aspx

ASUSTeK COMPUTER INC. (China)

Address No.508, Chundong Road, Xinzhuang Industrial Zone,

Minhang District, Shanghai, China.

Telephone +86-21-5442-1616

Fax +86-21-5442-0099

Web site http://www.asus.com.cn

Technical Support

Telephone 400-620-6655

Online Support http://support.asus.com/techserv/techserv.aspx

ASUS contact information

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Fax +1-510-608-4555

Web site http://usa.asus.com

Technical Support

Support fax +1-812-284-0883

General support +1-812-282-2787

Online support http://support.asus.com/techserv/techserv.aspx

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany

Fax +49-2102-959911

Web site http://www.asus.de

Online contact http://www.asus.de/sales

Technical Support

Telephone +49-1805-010923

Support Fax +49-2102-959911

Online support http://support.asus.com/techserv/techserv.aspx

ASUS Czech Service s.r.o. (Europe)

Address Na Rovince 887, 720 00 Ostrava – Hrabová, Czech

Republic

Telephone +420-596766888

Web site http://www.asus.cz

Technical Support

Telephone +420-596-766-891

Fax +420-596-766-329

E-mail advance.rma.eu@asus.com

Online Support http://support.asus.com/techserv/techserv.aspx

ASUS contact information

ASUS Holland BV (The Netherlands)

Address Marconistraat 2, 7825GD EMMEN, The Netherlands

Web site http://www.asus.com

Technical Support

Telephone +31-(0)591-5-70292

Fax +31-(0)591-666853

E-mail advance.rma.eu@asus.com

Online Support http://support.asus.com/techserv/techserv.aspx

ASUS Polska Sp. z o.o. (Poland)

Address Ul. Postępu 6, 02-676 Warszawa, Poland

Web site http://pl.asus.com

Technical Support

Telephone +48-225718033

Online Support http://support.asus.com/techserv/techserv.aspx

ASK-Service (Russia and CIS)

Address г.Москва, ул. Орджоникидзе, д.10, Россия

Telephone (495) 640-32-75

Web site http://ru.asus.com

Technical Support

Telephone 008-800-100-ASUS (008-800-100-2787)

Online Support http://vip.asus.com/eservice/techserv.aspx?SLanguage=ru

EC Declaration of Conformity

We, the undersigned,

Manufacturer: ASUSTeK COMPUTER INC.

Address: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN

Authorized representative in Europe: ASUS COMPUTER GmbH

Address, City: HARKORT STR. 21-23, 40880 RATINGEN

Country: GERMANY

declare the following apparatus:

Product name :

Management card

Model name :

ASMB8-iKVM

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011

EN 61000-3-2:2006+A2:2009

EN 55013:2001+A1:2003+A2:2006

EN 55024:2010

EN 61000-3-3:2008

EN 55020:2007+A11:2011

1999/5/EC-R&TTE Directive

EN 300 328 V1.7.1(2006-10)

EN 300 440-1 V1.6.1(2010-08)

EN 300 440-2 V1.4.1(2010-08)

EN 301 511 V9.0.2(2003-03)

EN 301 908-1 V5.2.1(2011-05)

EN 301 908-2 V5.2.1(2011-07)

EN 301 893 V1.6.1(2011-11)

EN 302 544-2 V1.1.1(2009-01)

EN 302 623 V1.1.1(2009-01)

EN 50360:2001

EN 62479:2010

EN 50385:2002

EN 62311:2008

EN 301 489-1 V1.9.2(2011-09)

EN 301 489-3 V1.4.1(2002-08)

EN 301 489-4 V1.4.1(2009-05)

EN 301 489-7 V1.3.1(2005-11)

EN 301 489-9 V1.4.1(2007-11)

EN 301 489-17 V2.2.1(2012-09)

EN 301 489-24 V1.5.1(2010-09)

EN 302 326-2 V1.2.2(2007-06)

EN 302 326-3 V1.3.1(2007-09)

EN 301 357-2 V1.4.1(2008-11)

EN 302 291-1 V1.1.1(2005-07)

EN 302 291-2 V1.1.1(2005-07)

2006/95/EC-LVD Directive

EN 60950-1 / A12:2011 EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008

Regulation (EC) No. 642/2009

Regulation (EC) No. 278/2009

Regulation (EC) No. 617/2013

2011/65/EU-RoHS Directive Ver. 140331

CE marking

Declaration Date: 09/05/2014

Year to begin affixing CE marking: 2014

Position : CEO

Name :

Jerry Shen

Signature :

__________

(EC conformity marking)

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Responsible Party Name:

Asus Computer International

Address: 800 Corporate Way, Fremont

, CA 94539.

Phone/Fax No: (510)739-3777/(510)608-4555

hereby declares that the product

Product Name : Management card

Model Number : ASMB8-IKVM

Conforms to the following specifications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Representative Person’s Name : Steve Chang / President

Signature :

Date : May. 09, 2014

Ver. 140331
