Motherboard
M5A87
ii
Copyright © 2011 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product may contain copyrighted software that is licensed under the General Public License (“GPL”)
and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this
product is distributed without any warranty. Copies of these licenses are included in this product.
You may obtain the complete corresponding source code (as dened in the GPL) for the GPL Software,
and/or the complete corresponding source code of the LGPL Software (with the complete machine-
readable “work that uses the Library”) for a period of three years after our last shipment of the product
including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either
(1) for free by downloading it from http://support.asus.com/download;
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source code
we would be much obliged if you give us a notication to the email address gpl@asus.com, stating the
product and describing the problem (please do NOT send large attachments such as source code archives
etc to this email address).
E6526
First Edition (V1)
March 2011
iii
Contents
Notices ......................................................................................................... vi
Safety information ..................................................................................... vii
About this guide ....................................................................................... viii
M5A87 specications summary ................................................................ ix
Chapter 1: Product introduction
1.1 Welcome! ...................................................................................... 1-1
1.2 Package contents ......................................................................... 1-1
1.3 Special features ............................................................................ 1-1
1.3.1 Product highlights ........................................................... 1-1
1.3.2 Innovative ASUS features ............................................... 1-3
1.4 Before you proceed ..................................................................... 1-5
1.5 Motherboard overview ................................................................. 1-6
1.5.1 Placement direction ........................................................ 1-6

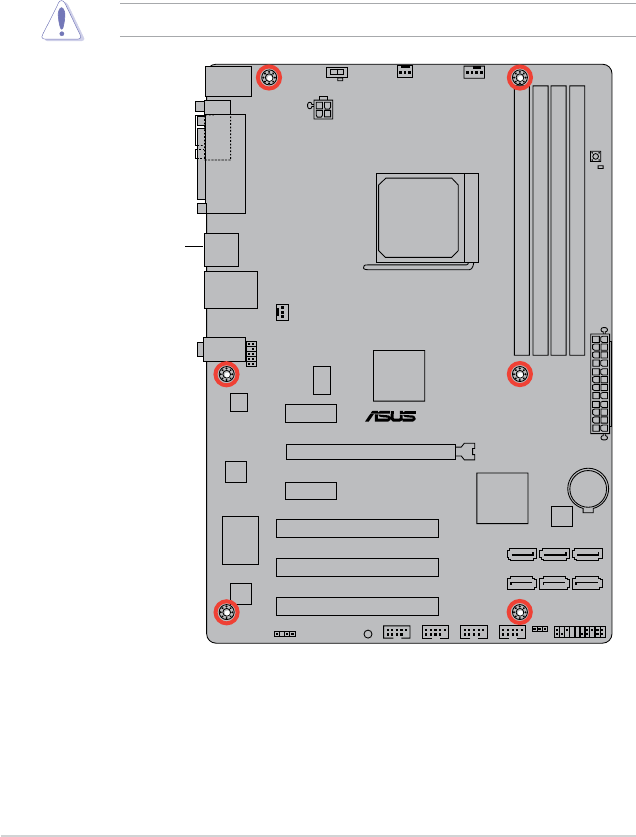

1.5.2 Screw holes .................................................................... 1-6
1.5.3 Motherboard layout ......................................................... 1-7
1.5.4 Layout contents ............................................................... 1-7
1.6 Central Processing Unit (CPU) ................................................... 1-8
1.6.1 Installing the CPU ........................................................... 1-8
1.6.2 Installing the heatsink and fan ...................................... 1-10
1.7 System memory ......................................................................... 1-11
1.7.1 Overview ........................................................................1-11
1.7.2 Memory congurations .................................................. 1-12
1.7.3 Installing a DIMM .......................................................... 1-17
1.7.4 Removing a DIMM ........................................................ 1-17
1.8 Expansion slots .......................................................................... 1-18
1.8.1 Installing an expansion card ......................................... 1-18
1.8.2 Conguring an expansion card ..................................... 1-18
1.8.3 PCI slots ........................................................................ 1-18
1.8.4 PCI Express x1 slots ..................................................... 1-18
1.8.5 PCI Express x16 slot ..................................................... 1-18
1.9 Jumpers ...................................................................................... 1-19
1.10 Connectors ................................................................................. 1-20
1.10.1 Rear panel ports ........................................................... 1-20
1.10.2 Internal connectors ....................................................... 1-21
iv
Contents
1.11 Onboard switch .......................................................................... 1-27
1.12 Onboard LEDs ............................................................................ 1-29
1.13 Software support ........................................................................ 1-30
1.13.1 Installing an operating system ...................................... 1-30
1.13.2 Support DVD information .............................................. 1-30
Chapter 2: BIOS information
2.1 Managing and updating your BIOS ............................................ 2-1
2.1.1 ASUS Update .................................................................. 2-1
2.1.2 ASUS EZ Flash 2 ............................................................ 2-2
2.1.3 ASUS CrashFree BIOS 3 ................................................ 2-3
2.2 BIOS setup program .................................................................... 2-4
2.2.1 BIOS menu screen .......................................................... 2-5
2.2.2 Menu bar ......................................................................... 2-5
2.2.3 Navigation keys ............................................................... 2-5
2.2.4 Menu items ..................................................................... 2-6
2.2.5 Submenu items ............................................................... 2-6
2.2.6 Conguration elds ......................................................... 2-6
2.2.7 Pop-up window ............................................................... 2-6
2.2.8 Scroll bar ......................................................................... 2-6
2.2.9 General help ................................................................... 2-6
2.3 Main menu .................................................................................... 2-7
2.3.1 System Time [xx:xx:xx] ................................................... 2-7
2.3.2 System Date [Day xx/xx/xxxx] ......................................... 2-7
2.3.3 SATA6G_1/2/3/4/5/6 ....................................................... 2-7
2.3.4 SATA Conguration ......................................................... 2-8
2.3.5 System Information ......................................................... 2-9
2.4 Ai Tweaker menu ........................................................................ 2-10
2.4.1 CPU Level UP [Auto]..................................................... 2-10
2.4.2 CPU OverClocking [Auto] ..............................................2-11
2.4.3 CPU Ratio [Auto] ........................................................... 2-12
2.4.4 DRAM Frequency [Auto] ............................................... 2-12
2.4.5 CPU/NB Frequency [Auto] ............................................ 2-12
2.4.6 HT Link Speed [Auto] .................................................... 2-12
2.4.7 DRAM Timing Conguration ......................................... 2-13
v
Contents
2.4.8 DRAM Driving Conguration ......................................... 2-14
2.4.9 CPU & NB Voltage Mode [Offset].................................. 2-14
2.4.10 DRAM Voltage [Auto] .................................................... 2-15
2.4.11 HT Voltage [Auto] .......................................................... 2-15
2.4.12 NB Voltage [Auto] .......................................................... 2-15
2.4.13 CPU Load-Line Calibration [Auto] ................................. 2-15
2.4.14 CPU/NB Load-Line Calibration [Auto] ........................... 2-15
2.5 Advanced menu ......................................................................... 2-15
2.5.1 CPU Conguration ........................................................ 2-15
2.5.2 Chipset .......................................................................... 2-16
2.5.3 Onboard Devices Conguration .................................... 2-17
2.5.4 PCIPnP ......................................................................... 2-18
2.5.5 USB Conguration ........................................................ 2-18
2.6 Power menu ................................................................................ 2-20
2.6.1 Suspend Mode [Auto] ................................................... 2-20
2.6.2 ACPI 2.0 Support [Enabled] .......................................... 2-20
2.6.3 ACPI APIC Support [Enabled] ....................................... 2-20
2.6.4 APM Conguration ........................................................ 2-20
2.6.5 HW Monitor Conguration ............................................. 2-21
2.6.6 Anti Surge Support [Enabled] ....................................... 2-21
2.7 Boot menu .................................................................................. 2-22
2.7.1 Boot Device Priority ...................................................... 2-22
2.7.2 Boot Settings Conguration .......................................... 2-22
2.7.3 Security ......................................................................... 2-23
2.8 Tools menu ................................................................................. 2-25
2.8.1 ASUS EZ Flash 2 .......................................................... 2-25
2.8.2 ASUS O.C. Prole ......................................................... 2-25
2.9 Exit menu .................................................................................... 2-26
vi
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modications to this unit not
expressly approved by the party responsible for compliance could void the user’s authority
to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications.
This class B digital apparatus complies with Canadian ICES-003.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards
for protecting our environment. We believe in providing solutions for you to be able to
responsibly recycle our products, batteries, other components as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling
information in different regions.
vii
DO NOT throw the motherboard in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin
indicates that the product (electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol
of the crossed out wheeled bin indicates that the battery should not be placed in municipal
waste.
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://csr.asus.com/english/REACH.htm.
Safety information
Electrical safety
• To prevent electric shock hazard, disconnect the power cable from the electric outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
•
Before installing the motherboard and adding devices on it, carefully read all the manuals
that came with the package.
•
Before using the product, ensure that all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
•
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
•
Place the product on a stable surface.
•
If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
viii
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying to
complete a task.
NOTE: Tips and additional information to help you complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Typography
Bold text Indicates a menu or an item to select.
Italics
Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
Example: <Ctrl>+<Alt>+<D>
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports.
• Chapter 2: BIOS information
This chapter tells how to change system settings through the BIOS Setup menus.
Detailed descriptions of the BIOS parameters are also provided.
ix
M5A87 specications summary
(continued on the next page)
CPU AMD® Socket AM3+ for AMD® FX™ / Phenom™ II /
Athlon™ II / Sempron™ 100 series processors
AMD® 140W CPU support
AMD® Cool ‘n’ Quiet™ Technology
* 32nm AM3+ CPU is supported by BIOS version 0401 and later.
** Refer to www.asus.com for the AMD® CPU support list
Chipset AMD® 870 / SB850
System bus Up to 5200 MT/s HyperTransport™ 3.0 interface
Memory Dual-channel memory architecture
4 x 240-pin DIMM slots support maximum 16GB unbuffered
ECC and non-ECC DDR3 2000(O.C.) / 1866(O.C.) /
1600(O.C.) / 1333 / 1066MHz memory modules
* AMD® FX™ Series CPU on this motherboard supports up to
DDR3 1866MHz as its standard memory frequency.
** Due to CPU spec., AMD® 100 and 200 series CPUs support
up to DDR3 1066MHz. With ASUS design, this motherboard
can support up to DDR3 1333MHz.
*** When overclocking, some AMD CPU models may not
support DDR3 1600 MHz or higher frequency DIMMs.
**** Refer to www.asus.com for the latest Memory QVL (Qualied
Vendors List).
***** Use a 64-bit Windows® OS if you want to install 4GB or more
memory on the motherboard.
Expansion slots 1 x PCIe 2.0 x16 slot
2 x PCIe x1 slots
3 x PCI slots
Storage / RAID AMD® SB850 southbridge:
6 x Serial ATA 6.0Gb/s connectors support RAID 0, RAID 1,
RAID 5, RAID 10 and JBOD congurations
LAN Realtek® RTL8111E PCIe Gigabit LAN controller
Audio ALC887 supports 8-channel* High Denition Audio
- Supports Multi-recording, Anti-pop Function, and Front Panel
Retasking (HD mode only)
- Support S/PDIF out interface
* Use the chassis with HD audio module in the front panel to
support 8-channel audio output.
USB AMD® SB850 southbridge:
- 12 x USB 2.0/1.1 ports (8 ports at the mid-board, 4 ports
at the back panel)
Asmedia USB3.0 controller:
- 2 x USB 3.0/2.0 ports (blue, at the back panel)
x
M5A87 specications summary
ASUS unique features ASUS Hybrid Switch
- Core Unlocker
- MemOK!
ASUS Power Solutions
- ASUS Anti-Surge Protection
- ASUS EPU
ASUS Exclusive Features
- TurboV
ASUS EZ DIY
- ASUS AI Suite II
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2™
100% All high quality conductive polymer capacitors
ASUS exclusive
overclocking features
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.003125V increment
- vChipset (VDDNB): Adjustable chipset voltage at
0.003125V increment
- vDIMM: Adjustable DRAM voltage at 0.010V increment
Intelligent overclocking tools:
- Turbo Key
SFS (Stepless Frequency Selection):
- HT frequency tuning from 100MHz up to 550MHz at
1MHz increment
- PCIe frequency tuning from 100MHz up to 150MHz at
1MHz increment
Overclocking Protection:
- ASUS C.P.R (CPU Parameter Recall)
Back panel I/O ports 1 x PS/2 keyboard / mouse combo port
1 x COM port
1 x LPT port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
3 x Audio jacks
(continued on the next page)
xi
M5A87 specications summary
Internal I/O connectors /
buttons / switches
4 x USB 2.0/1.1 connectors support additional 8 USB
2.0/1.1 ports
6 x SATA connectors
1 x CPU fan connector
1 x Chassis fan connector
1 x Power fan connector
1 x Front panel audio connector
1 x S/PDIF output connector
1 x System panel connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x MemOK! button
1 x Core Unlocker switch
BIOS 16Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0,
ACPI2.0a, SM BIOS 2.6
Accessories 2 x Serial ATA 6.0Gb/s cables
1 x I/O shield
1 x User Manual
1 x Support DVD
Support DVD Drivers
ASUS Update
ASUS utilities
Anti-Virus software (OEM version)
Form factor ATX form factor: 12.0 in x 8.4 in (30.5 cm x 21.3 cm)
*Specications are subject to change without notice.
xii
1.2 Package contents
Check your motherboard package for the following items.
Motherboard ASUS M5A87 motherboard
Cables 2 x Serial ATA 6.0Gb/s cables
Accessories 1 x I/O shield
Application DVD ASUS motherboard Support DVD
Documentations User Manual
If any of the above items is damaged or missing, contact your retailer.
Chapter 1
Product introduction
1.3 Special features
1.3.1 Product highlights
1.1 Welcome!
Thank you for buying an ASUS® M5A87 motherboard!
The motherboard delivers a host of new features and latest technologies, making it another
standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the items in
your package with the list below.
AMD® FX™ / Phenom™ II / Athlon™ II / Sempron™ 100 series
CPU support
This motherboard supports AMD® Socket AM3+ multi-core processors
with unique L3 cache and delivers better overclocking capabilities with
less power consumption. It features dual-channel DDR3 memory support
and accelerates data transfer rate up to 5200MT/s via HyperTransport™
3.0-based system bus. This motherboard also supports AMD® CPUs in
the new 32nm manufacturing process.
ASUS M5A87 1-1
AMD® 870 Chipset
The AMD® 870 Chipset is designed to support up to 5200MT/s
HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express 2.0
x16 graphics. It is optimized with AMD’s latest AM3 multi-core CPUs to
provide excellent system performance and overclocking capabilities.
HyperTransport™ 3.0 support
HyperTransport™ 3.0 technology provides 2.6 times more bandwidth
than HT1.0 that radically improves system efciency for a smoother and
faster computing environment.
AMD Cool ‘n’ Quiet Technology
This motherboard supports the AMD Cool ‘n’ Quiet technology which
monitors system operation and automatically adjusts CPU voltage and
frequency for a cool and quiet operating environment.
Dual-Channel DDR3 2000(O.C.) support
This motherboard supports DDR3 memory that features data transfer
rates of 2000 (O.C.)/1600 (O.C.)/1333/1066 MHz to meet the higher
bandwidth requirements of the latest operating system, 3D graphics,
multimedia, and Internet applications.
USB 3.0 support
Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 – the latest
connectivity standard. Built to connect easily with next-generation
components and peripherals, USB 3.0 transfers data 10x faster and is
also backward compatible with USB 2.0 components.
Serial ATA 6.0 Gb/s technology
The AMD® SB850 chipset natively supports the next generation SATA
6.0 Gb/s data transfer rate, enhances scalability, provides faster data
retrieval, and doubles the bandwidth of the current bus systems.
Gigabit LAN solution
The onboard LAN controller is a highly integrated Gb LAN controller. It is
enhanced with an ACPI management function to provide efcient power
management for advanced operating systems.
8-channel high denition audio
The onboard 8-channel HD audio (High Denition Audio, previously
codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio
jack-sensing feature, retasking functions, and multi-streaming technology.
100% All High-quality Conductive Polymer Capacitors
This motherboard uses all high-quality conductive polymer capacitors for
durability, improved lifespan, and enhanced thermal capacity.
Chapter 1: Product introduction1-2
1.3.2 Innovative ASUS features
Core Unlocker
ASUS Core Unlocker simplies the activation of a latent AMD® CPU—
with just a simple switch. Enjoy an instant performance boost by simply
unlocking the extra cores, without performing complicated BIOS changes.
ASUS TurboV
Feel the adrenaline rush of real-time OC-now a reality with the ASUS
TurboV. This easy OC tool allows you to overclock without exiting or
rebooting the OS; and its user-friendly interface makes overclock with just
a few clicks away. Moreover, the ASUS OC proles in TurboV provides
the best O.C. settings in different scenarios.
ASUS Turbo Key
ASUS Turbo Key allows you to turn the PC power button into
an overclocking button. After the easy setup, Turbo Key boosts
performances without interrupting ongoing work or games, simply through
pressing the button.
MemOK!
MemOK! guickly ensures memory boot compatibility. This remarkable
memory rescue tool requires a mere push of the button to patch memory
issues. MemOK! determines failsafe settings and dramatically improves
your system boot success. Get your system up and running in no time.
ASUS Anti-Surge Protection
This special design protects expensive devices and the motherboard
from damage caused by power surges from switching power supply unit
(PSU).
ASUS EPU
ASUS EPU is a unique power saving technology that detects the current
system loadings and adjusts the power consumption in real time.
AI Suite II
With its fast user-friendly interface, ASUS AI Suite II consolidates all the
exclusive ASUS features into one simple to use software package. It
allows you to supervise overclocking, energy management, fan speed
control, and voltage and sensor readings. This all-in-one software offers
diverse and ease to use functions, with no need to switch back and forth
between different utilities.
ASUS M5A87 1-3
ASUS EZ Flash 2
ASUS EZ Flash 2 is a user-friendly utility that allows you to update the
BIOS without using a bootable oppy disk or an OS-based utility.
ASUS MyLogo 2™
Turn your favorite photos into 256-color boot logos to personalize your
system.
ASUS CrashFree BIOS 3
ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to
restore a corrupted BIOS le using the bundled support DVD or a USB
ash disk that contains the BIOS le.
C.P.R. (CPU Parameter Recall)
The BIOS C.P.R. feature automatically restores the CPU default settings
when the system hangs due to overclocking failure. C.P.R. eliminates the
need to open the system chassis and clear the RTC data. Simply shut
down and reboot the system, and the BIOS automatically restores the
CPU parameters to their default settings.
ErP ready
The motherboard is European Union´s Energy-related Products (ErP)
ready, and ErP requires products to meet certain energy efciency
requirements in regards to energy consumptions. This is in line with
ASUS vision of creating environment-friendly and energy-efcient
products through product design and innovation to reduce carbon
footprint of the product and thus mitigate environmental impacts.
Chapter 1: Product introduction1-4
1.4 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due to
static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, switch off the ATX power supply and
detach its power cord. Failure to do so may cause severe damage to the motherboard,
peripherals, or components.
ASUS M5A87 1-5
M5A87
1.5 Motherboard overview
1.5.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
DO NOT overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis.
1.5.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Chapter 1: Product introduction1-6
1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. Power, CPU and chassis fan connectors
(3-pin PWR_FAN, 4-pin CPU_FAN and 3-pin
CHA_FAN)
1-21 8. SATA 6.0Gb/s connectors (7-pin SATA6G1~6) 1-23
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-22 9. System panel connector (20-8 pin PANEL) 1-24
3. Core Unlocker switch (CORE_UNLOCKER) 1-27 10. Clear RTC RAM (3-pin CLRTC) 1-19
4. Core Unlocker LED (02LED1) 1-29 11. USB connectors (10-1 pin USB78, USB910,
USB1112, USB1314)
1-26
5. DDR3 DIMM slots 1-11 12. Standby power LED (SB_PWR) 1-29
6. MemOK! switch 1-28 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-25
7. DRAM LED (DRAM_LED) 1-29 14. Front panel audio connector (10-1 pin AAFP) 1-25
M5A87
PCIEX16
PCIEX1_1
PCIEX1_2
PCI2
PCI3
PCI1
USB78 USB910 USB1112 USB1314
SPDIF_OUT
AAFP
ATX12V
EATXPWR
CPU_FAN
PWR_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC887
Realtek
RTL8111E
ICS
9LPRS483
KB_USB56
16Mb
BIOS
SB_PWR PANEL
CLRTC
21.3cm(8.4in)
DDR3 DIMM_B1 (64bit, 240-pin module)
SOCKET AM3+
DDR3 DIMM_B2 (64bit, 240-pin module)
DDR3 DIMM_A1 (64bit, 240-pin module)
DDR3 DIMM_A2 (64bit, 240-pin module)
SATA6G_1
SATA6G_2
SATA6G_3
SATA6G_2
SATA6G_5
SATA6G_6
AUDIO
LPT
COM1
LAN1_USB12
USB3_12
30.5cm(12.0in)
AMD®
SB850
AMD®
870
CORE_UNLOCKER
DRAM_LED
02LED1
MemOK!
2 3 4 1 1 61
2
5
911 10
12
1314
7
8
asmedia
ASM1042
ASUS M5A87 1-7
1.6 Central Processing Unit (CPU)
This motherboard comes with an AM3+ socket designed for FX™ / Phenom™ II / Athlon™ II /
Sempron™ 100 series processors.
1.6.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
2. Press the lever sideways to unlock the
socket, then lift it up to a 90°-100° angle.
Ensure that the socket lever is lifted up to a 90°-100° angle; otherwise, the CPU will not t
in completely.
3. Position the CPU above the socket such that the CPU
corner with the gold triangle matches the socket corner
with a small triangle.
4. Carefully insert the CPU into the socket until it ts in place.
The CPU ts only in one correct orientation.
DO NOT force the CPU into the socket to
prevent bending the pins and damaging the
CPU!
The AM3+ socket has a different pinout from the AM2+/AM2 socket. Ensure that you use a
CPU designed for the AM3+ socket. The CPU ts in only one correct orientation. DO NOT
force the CPU into the socket to prevent bending the pins and damaging the CPU!
M5A87 CPU socket AM3+
M5A87
Gold triangle
Small triangle
Socket lever
Chapter 1: Product introduction1-8

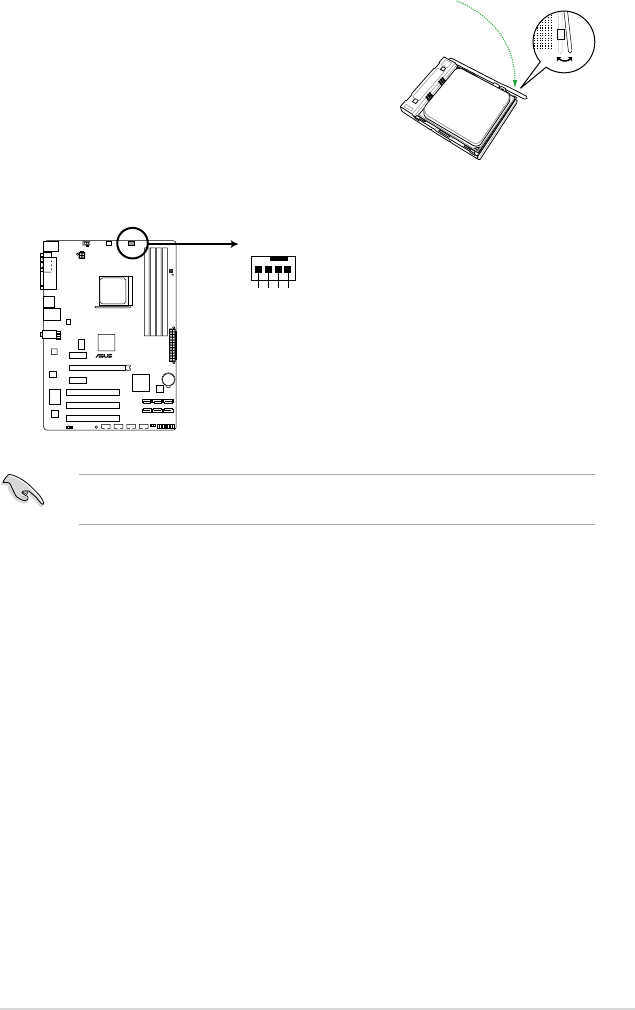

5. When the CPU is in place, push down the socket
lever to secure the CPU. The lever clicks on the side
tab to indicate that it is locked.
6. Install a CPU heatsink and fan following the
instructions that comes with the heatsink package.
You can also refer to section 1.6.2 Installing
heatsink and fan for instructions.
7. Connect the CPU fan cable to the CPU_FAN connector on the motherboard.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
M5A87 CPU fan connector
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
M5A87
ASUS M5A87 1-9
1.6.2 Installing the heatsink and fan
Ensure that you use only AMD-certied heatsink and fan assembly.
To install the CPU heatsink and fan:
1. Place the heatsink on top of the installed CPU, ensuring that the heatsink ts properly
on the retention module base.
• The retention module base is already installed on the motherboard upon purchase.
• You do not have to remove the retention module base when installing the CPU or
installing other motherboard components.
• If you purchased a separate CPU heatsink and fan assembly, ensure that a Thermal
Interface Material is properly applied to the CPU heatsink or CPU before you install the
heatsink and fan assembly.
CPU Fan
CPU Heatsink
Retention bracket
Retention bracket lock
Retention Module Base
Your boxed CPU heatsink and fan assembly should come with installation instructions for
the CPU, heatsink, and the retention mechanism. If the instructions in this section do not
match the CPU documentation, follow the latter.
2. Attach one end of the retention bracket to the retention module base.
Chapter 1: Product introduction1-10
3. Align the other end of the retention bracket to the retention module base. A clicking
sound denotes that the retention bracket is in place.
Ensure that the fan and heatsink assembly perfectly ts the retention mechanism module
base, otherwise you cannot snap the retention bracket in place.
4. Push down the retention bracket lock on the retention mechanism to secure the
heatsink and fan to the module base.
5. When the fan and heatsink assembly is in place, connect the CPU fan cable to the
connector on the motherboard labeled CPU_FAN.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
1.7 System memory
1.7.1 Overview
This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets. A DDR3 module has the same physical dimensions as a DDR2 DIMM but
is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are
developed for better performance with less power consumption. The gure illustrates the
location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
M5A87 240-pin DDR3 DIMM sockets
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
M5A87
ASUS M5A87 1-11
1.7.2 Memory congurations
You may install 512MB, 1GB, 2GB, and 4GB unbuffered ECC and non-ECC DDR3 DIMMs
into the DIMM sockets.
M5A87 Motherboard Qualied Vendors Lists (QVL)
DDR3-2000(O.C.)MHz capability
Vendor Part No. Size SS/
DS
Chip
Brand
Chip
NO. CL Voltage DIMM support
A* B* C*
Transcend TX2400KLU-4GK(XMP) 4GB ( 2x 2GB ) DS - - 9-11-9-28 1.65V • •
• You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel conguration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
• We recommend that you install the memory modules from the blue slots for better
overclocking capability.
• Always install DIMMs with the same CAS latency. For optimum compatibility, we
recommend that you obtain memory modules from the same vendor.
• AMD® FX™ Series CPU on this motherboard supports up to DDR3 1866MHz as its
standard memory frequency.
• Due to CPU spec., AMD® 100 and 200 series CPUs support up to DDR3 1066MHz. With
ASUS design, this motherboard can support up to DDR3 1333MHz.
• When overclocking, some AMD CPU models may not support DDR3 1600 MHz or
higher frequency DIMMs.
• Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Install a maximum of 3GB system memory if you are using a 32-bit Windows®
OS.
- Use a 64-bit Windows® OS if you want to install 4GB or more memory on the
motherboard.
• This motherboard does not support DIMMs made up of 256 megabits (Mb) chips or less.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked or at a
higher frequency, refer to section 2.4 Ai Tweaker menu for manual memory frequency
adjustment.
• For system stability, use a more efcient memory cooling system to support a full
memory load (4 DIMMs) or overclocking condition.
Chapter 1: Product introduction1-12
DDR3-1600(O.C.)MHz capability
Vendor Part No. Size SS/
DS
Chip
Brand
Chip
NO.
CL Voltage DIMM support
A* B* C*
OCZ OCZ3P18004GK 4GB(2 x 2GB) DS - - 8-8-8-27 1.9V • •
DDR3-1800(O.C.)MHz capability
Vendor Part No. Size SS/
DS
Chip
Brand
Chip
NO.
CL Voltage DIMM support
A* B* C*
A-Data AD31600E001GM(O)U3K 3GB(3 x 1GB) SS - - 8-8-8-24 1.65V-1.85V • • •
CORSAIR TR3X3G1600C8D(XMP) 3GB(3 x 1GB) SS - - 8-8-8-24 1.65V • • •
CORSAIR CMP4GX3M2A1600C8(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR CMT4GX3M2A1600C6(XMP) 4GB(2 x 2GB) DS - - 6-6-6-20 1.65V • • •
CORSAIR CMX4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • •
CORSAIR CMX4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR TR3X6G1600C8D G(XMP) 6GB(3 x 2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR TR3X6G1600C9 G(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMX8GX3M4A1600C9(XMP) 8GB(4 x 2GB) DS - - 9-9-9-24 1.65V • • •
Crucial BL25664BN1608.16FF(XMP) 6GB(3 x 2GB) DS - - - - • •
G.SKILL F3-12800CL9D-2GBNQ(XMP) 2GB(2 x 1GB) SS - - 9-9-9-24 1.5V~1.6V • •
G.SKILL F3-12800CL7D-4GBRH(XMP) 4GB(2 x 2GB) SS - - 7-7-7-24 1.6V • • •
G.SKILL F3-12800CL7D-4GBECO(XMP) 4GB(2 x 2GB) DS - - 7-7-8-24 XMP 1.35V • • •
G.SKILL F3-12800CL7D-4GBRM(XMP) 4GB(2 x 2GB) DS - - 7-8-7-24 1.6V • • •
G.SKILL F3-12800CL8D-4GBRM(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 1.60V • • •
G.SKILL F3-12800CL9T-6GBNQ(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.5V~1.6V • • •
GEIL GET316GB1600C9QC(XMP) 16GB(4 x 4GB) DS - - 9-9-9-28 1.6V • • •
GEIL GV34GB1600C8DC(XMP) 2GB DS - - 8-8-8-28 1.6V • •
Kingmax FLGD45F-B8KG9(XMP) 1GB SS Kingmax KFB8FNGXF-
ANX-12A
- - • • •
Kingmax FLGE85F-B8KG9(XMP) 2GB DS Kingmax KFB8FNGXF-
ANX-12A
- - • • •
KINGSTON KHX1600C9D3K3/12GX(XMP) 12GB(3x4GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C7D3K2/4GX(XMP) 4GB ( 2x 2GB ) DS - - - 1.65V • • •
Kingston KHX1600C8D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 8 1.65V • • •
Kingston KHX1600C8D3T1K2/4GX(XMP) 4GB(2 x 2GB) DS - - 8 1.65V • • •
KINGSTON KHX1600C9D3T1K3/6GX(XMP) 6GB ( 3x 2GB ) DS - - - 1.65V • • •
Kingston KHX1600C9D3K3/6GX(XMP) 6GB(3 x 2GB) DS - - 91.65V • • •
OCZ OCZ3BE1600C8LV4GK 4GB(2 x 2GB) DS - - 8-8-8-24 1.65V • • •
OCZ OCZ3BE1600LV4GK 4GB(2 x 2GB) DS - - 7-7-7-24 1.65V • • •
OCZ OCZ3G16004GK 4GB(2 x 2GB) DS - - 8-8-8-24 1.7V • • •
OCZ OCZ3OB1600LV4GK 4GB(2 x 2GB) DS - - - 1.65V • • •
OCZ OCZ3P1600EB4GK 4GB(2 x 2GB) DS - - 7-7-6-24 1.8V • • •
OCZ OCZ3P1600LV4GK 4GB(2 x 2GB) DS - - 7-7-7-24 1.65V • • •
OCZ OCZ3P1600LV4GK 4GB(2 x 2GB) DS - - 7-7-7-24 1.65V • •
OCZ OCZ3G1600LV6GK 6GB(3 x 2GB) DS - - 8-8-8-24 1.65V • • •
Super Talent WA160UX6G9 6GB(3 x 2GB) DS - - 9- • • •
Asint SLZ3128M8-EGJ1D(XMP) 2GB DS Asint 3128M8-
GJ1D
9-9-9-24 1.6V • • •
Elixir M2Y2G64CB8HA9N-DG(XMP) 2GB DS - - - - • • •
Kingtiger KTG2G1600PG3 2GB DS - - - - • •
Mushkin 998659(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 - • •
Mushkin 998659(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.5~1.6V • • •
PATRIOT PGS34G1600LLKA 4GB(2 x 2GB) DS - - 7-7-7-20 1.7V • • •
Vendor Part No. Size SS/
DS
Chip
Brand
Chip
NO.
CL Voltage DIMM support
A* B* C*
Corsair CMT4GX3M2A1866C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • •
Kingston KHX1866C9D3T1K3/3GX(XMP) 3GB(3 x 1GB) SS - - - 1.65V • •
Kingston KHX1866C9D3T1K3/6GX(XMP) 6GB(3 x 2GB) SS - - - 1.65V • •
OCZ OCZ3G1866LV4GK 4GB(2 x 2GB) DS - - 10-10-10-27 1.65V • •
OCZ OCZ3P1866LV4GK 4GB(2 x 2GB) DS - - 9-9-9-27 1.65V • •
DDR3-1866(O.C.)MHz capability
ASUS M5A87 1-13
DDR3-1333MHz capability
Vendor Part No. Size SS/
DS
Chip
Brand
Chip
NO.
CL Voltage DIMM
support
A* B* C*
A-Data AD31333001GOU 1GB SS A-Data AD30908C8D-151C
E0906
- - • • •
A-Data AD31333G001GOU 3GB(3 x 1GB) SS - - 8-8-8-24 1.65-1.85V • • •
A-Data AD31333002GOU 2GB DS A-Data AD30908C8D-151C
E0903
- - • • •
Apacer 78.A1GC6.9L1 2GB DS APACER AM5D5808DEWSBG - - • • •
Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808FEQSBG 9 - • • •
CORSAIR CM3X1024-1333C9DHX 1GB SS - - 9-9-9-24 1.60V • •
CORSAIR CM3X1024-1333C9 1GB SS - - 9-9-9-24 1.60V • • •
CORSAIR TR3X3G1333C9 G 3GB(3 x 1GB) SS - - 9-9-9-24 1.50V • •
CORSAIR TR3X3G1333C9 G 3GB(3 x 1GB) SS - - 9-9-9-24 1.50V • •
CORSAIR TR3X3G1333C9 3GB(3 x 1GB) SS - - 9-9-9-24 1.50V • • •
CORSAIR CM3X1024-1333C9DHX 1GB DS Corsair - - - • •
CORSAIR CM3X2048-1333C9DHX 2GB DS - - - - • •
CORSAIR TW3X4G1333C9 G 4GB(2 x 2GB) DS - - 9-9-9-24 1.50V • • •
CORSAIR CMX8GX3M4A1333C9 8GB(4 x 2GB) DS - - 9-9-9-24 1.50V • • •
Crucial CT12864BA1339.8FF 1GB SS Micron 9FF22D9KPT 9 - • • •
Crucial CT12872BA1339.9FF 1GB SS Micron 91F22D9KPT(ECC) 9 - • • •
Crucial CT25664BA1339.16FF 2GB DS Micron 9KF27D9KPT 9 - • • •
Crucial CT25672BA1339.18FF 2GB DS Micron 91F22D9KPT(ECC) 9 - • • •
Crucial BL25664BN1337.16FF (XMP) 6GB(3 x 2GB) DS - - 7-7-7-24 1.65V • • •
ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage)
• • •
ELPIDA EBJ21UE8EDF0-DJ-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage)
• •
G.SKILL F3-10600CL8D-2GBHK(XMP) 1GB SS G.SKILL - - - • • •
G.SKILL F3-10666CL7T-3GBPK(XMP) 3GB(3 x 1GB) SS - - 7-7-7-18 1.5~1.6V • • •
G.SKILL F3-10666CL9T-3GBNQ 3GB(3 x 1GB) SS - - 9-9-9-24 1.5~1.6V • • •
G.SKILL F3-10600CL8D-4GBHK(XMP) 4GB(2 x 2GB) DS - - 8-8-8-21 1.5-1.6V • • •
G.SKILL F3-10666CL8D-
4GBECO(XMP)
4GB(2 x 2GB) DS - - 8-8-8-
8-24
XMP 1.35V • • •
GEIL GV32GB1333C9DC 2GB(2 x 1GB) DS - - 9-9-9-24 1.5V • •
GEIL GV34GB1333C7DC 2GB DS - - 7-7-7-24 1.5V • •
GEIL GG34GB1333C9DC 4GB(2 x 2GB) DS GEIL GL1L128M88BA12N 9-9-9-24 1.3V(low
voltage)
• •
GEIL GV34GB1333C9DC 4GB(2 x 2GB) DS - - 9-9-9-24 1.5V • • •
Hynix HMT125U6TFR8A-H9 2GB DS HYNIX H5TC1G83TFRH9A - 1.35V(low
voltage)
• • •
KINGMAX FLFD45F-B8KL9 1GB SS KINGMAX KKB8FNWBFGNX-27A - - • • •
KINGMAX FLFE85F-B8KL9 2GB DS KINGMAX KKB8FNWBFGNX-26A - - • • •
Kingston KVR1333D3N9/1G 1GB SS ELPIDA J1108BDBG-DJ-F 9 1.5V • • •
KINGSTON KVR1333D3N9/2G(low prole) 2GB DS ELPIDA J1108BDBG-DJ-F 9 1.5V • • •
Kingston KVR1333D3N9/2G 2GB DS KTC D1288JPNDPLD9U 9 1.5V • • •
Kingston KVR1333D3N9/2G 2GB DS ELPIDA J1108BDSE-DJ-F 9 1.5V • • •
Kingston KHX1333C7D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 7 1.65V • • •
Kingston KHX1333C9D3UK2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 XMP 1.25V • • •
KINGSTON KVR1333D3N9/4G(low prole) 4GB DS HYNIX H5TQ2G83AFRH9C 9 1.5V • • •
KINGSTON KVR1333D3N9/4G 4GB DS Hynix H5TQ2G83AFR - - • • •
MICRON MT4JTF12864AZ-1G4D1 1GB SS MICRON D9LGQ - - • • •
Micron MT8JTF12864AZ-1G4F1 1GB SS Micron 9FF22D9KPT 9 - • • •
Micron MT9JSF12872AZ-1G4F1 1GB SS Micron 91F22D9KPT(ECC) 9 - • • •
MICRON MT8JTF25664AZ-1G4D1 2GB SS MICRON D9LGK - - • • •
Micron MT16JTF25664AZ-1G4F1 2GB DS Micron 9KF27D9KPT 9 - • • •
Micron MT18JSF25672AZ-1G4F1 2GB DS Micron 91F22D9KPT(ECC) 9 - • • •
MICRON MT16JTF51264AZ-1G4D1 4GB DS MICRON D9LGK - - • • •
OCZ OCZ3G1333LV3GK 3GB(3 x 1GB) DS - - 9-9-9-20 1.65V • •
OCZ OCZ3F13334GK 4GB(2 x 2GB) DS - - 9-9-9-20 1.7V • • •
OCZ OCZ3G13334GK 4GB(2 x 2GB) DS - - 9-9-9-20 1.7V • •
OCZ OCZ3G1333LV4GK 4GB(2 x 2GB) DS - - 9-9-9-20 1.65V • •
OCZ OCZ3P1333LV4GK 4GB(2 x 2GB) DS - - 7-7-7-20 1.65V • • •
OCZ OCZ3RPX1333EB4GK 4GB(2 x 2GB) DS - - 6-5-5-20 1.85V • • •
OCZ OCZ3X13334GK(XMP) 4GB(2 x 2GB) DS - - 7-7-7-20 1.75V • • •
OCZ OCZ3G1333LV6GK 6GB(3 x 2GB) DS - - 9-9-9-20 1.65V • • •
(continued on the next page)
Chapter 1: Product introduction1-14
Vendor Part No. Size SS/
DS
Chip
Brand
Chip
NO.
CL Voltage DIMM
support
A* B* C*
OCZ OCZ3P1333LV6GK 6GB(3 x 2GB) DS - - 7-7-7-20 1.65V • • •
OCZ OCZ3X1333LV6GK(XMP) 6GB(3 x 2GB) DS - - 8-8-8-20 1.60V • • •
OCZ OCZ3G1333LV8GK 8GB ( 2x 4GB ) DS - - 9-9-9-20 1.65V • • •
PSC AL7F8G73D-DG1 1GB SS PSC A3P1GF3DGF928M9B05 8-8-8-24 1.5V • • •
PSC AL8F8G73D-DG1 2GB DS PSC A3P1GF3DGF928M9B05 8-8-8-24 1.5V • • •
SAMSUNG M378B2873DZ1-CH9 1GB SS Samsung SEC 846 HCH9
K4B1G08460
- - • • •
SAMSUNG M378B2873EH1-CH9 1GB SS Samsung SEC 913 HCH9
K4B1G0846E
- - • • •
SAMSUNG M378B2873FHS-CH9 1GB SS Samsung K4B1G0846F - - • • •
SAMSUNG M391B2873DZ1-CH9 1GB SS Samsung K4B1G0846D-
HCH9(ECC)
- - • • •
SAMSUNG M378B5673DZ1-CH9 2GB DS Samsung K4B1G0846D-HCH9 - - • • •
SAMSUNG M378B5673EH1-CH9 2GB DS Samsung SEC 913 HCH9
K4B1G0846E
- - • •
SAMSUNG M378B5673FH0-CH9 2GB DS Samsung K4B1G0846F - - • • •
SAMSUNG M391B5673DZ1-CH9 2GB DS Samsung K4B1G0846D-
HCH9(ECC)
- - • • •
SAMSUNG M378B5273CH0-CH9 4GB DS Samsung K4B2G0846C - - • • •
Super
Talent
W1333UA1GH 1GB SS HYNIX H5TQ1G83TFR 9- • • •
Super
Talent
W1333X2GB8(XMP) 1GB SS - - - - • • •
Super
Talent
W1333UB2GS 2GB DS Samsung K4B1G0846F 9 - • • •
Super
Talent
W1333UB4GS 4GB DS Samsung K4B2G0846C - - • • •
Super
Talent
W1333UX6GM 6GB(3x 2GB) DS Micron 0BF27D9KPT 9-9-9-24 1.5V • • •
Transcend TS256MLK64V3U 2GB DS Micron 9GF27D9KPT - - • • •
Transcend TS256MLK64V3U 2GB DS Elpida J1108BDBG-DJ-F 9 - • • •
Century PC3-10600 DDR3-1333 9-9-9 1GB SS Micron 8FD22D9JNM - - • •
Elixir M2F2G64CB88B7N-CG 2GB DS Elixir N2CB2G808N-CG - - • • •
Elixir M2Y2G64CB8HC9N-CG 2GB DS Elixir - - - • • •
Elixir M2F4G64CB8HB5N-CG 4GB DS Elixir N2CB2G808N-CG - - • • •
Kingtiger 2GB DIMM PC3-10666 2GB DS Samsung SEC 904 HCH9
K4B1G0846D
- - • • •
Kingtiger KTG2G1333PG3 2GB DS - - - - • • •
PATRIOT PSD31G13332H 1GB DS - - 9- • • •
PATRIOT PSD31G13332 1GB DS Patriot PM64M8D38U-15 - - • • •
SILICON
POWER
SP001GBLTU133S01 1GB SS NANYA NT5CB128M8AN-CG 9 - • • •
SILICON
POWER
SP002GBLTU133S02 2GB DS elixir N2CB1680AN-C6 9 - • • •
TAKEMS TMS1GB364D081-107EY 1GB SS - - 7-7-7-20 1.5V • • •
TAKEMS TMS1GB364D081-138EY 1GB SS - - 8-8-8-24 1.5V • • •
TAKEMS TMS2GB364D081-107EY 2GB DS - - 7-7-7-20 1.5V • • •
TAKEMS TMS2GB364D081-138EY 2GB DS - - 8-8-8-24 1.5V • • •
TAKEMS TMS2GB364D082-138EW 2GB DS - - 8-8-8-24 1.5V • • •
UMAX E41302GP0-73BDB 2GB DS UMAX U2S24D30TP-13 - - • • •
V-Color TD2G16C9-Z8 2GB DS HYNIX H5TQ1G83AFP - - • • •
DDR3-1333MHz capability
ASUS M5A87 1-15
DDR3-1066MHz capability
SS: Single-sided / DS: Double-sided
DIMM support:
• A*: Supports one module inserted into any slot as single-channel memory conguration.
• B*: Supports one pair of modules inserted into either the blue slots or the black slots
as one pair of dual-channel memory conguration.
• C*: Supports two pairs of modules inserted into both the blue slots and the black slots
as two pairs of dual-channel memory conguration.
Visit the ASUS website at www.asus.com for the latest QVL.
When using a DDR3 2000MHz memory module, ensure to install it on the A1 slot for better
overclocking capability.
• AMD® FX™ Series CPU on this motherboard supports up to DDR3 1866MHz as its
standard memory frequency.
• Due to CPU spec., AMD® 100 and 200 series CPUs support up to DDR3 1066MHz. With
ASUS design, this motherboard can support up to DDR3 1333MHz.
• When overclocking, some AMD CPU models may not support DDR3 1600 MHz or
higher frequency DIMMs.
Vendor Part No. Size SS/
DS
Chip
Brand
Chip
NO.
CL Voltage DIMM support
A* B* C*
Crucial CT12864BA1067.8FF 1GB SS Micron 9GF22D9KPT 7 - • • •
Crucial CT12872BA1067.9FF 1GB SS Micron 9HF22D9KPT(ECC) 7 - • • •
Crucial CT25664BA1067.16FF 2GB DS Micron 9HF22D9KPT 7 - • • •
Crucial CT25672BA1067.18FF 2GB DS Micron 9GF22D9KPT(ECC) 7 - • • •
ELPIDA EBJ10UE8EDF0-AE-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage)
• • •
ELPIDA EBJ11UD8BAFA-AE-E 1GB DS Elpida J5308BASE-AC-E - - • • •
ELPIDA EBJ21UE8EDF0-AE-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage)
• • •
KINGSTON KVR1066D3E7/1G 1GB SS ELPIDA J1108BDBG-DJ-
F(ECC)
7 1.5V • • •
KINGSTON KVR1066D3N7/1G 1GB SS KTC D1288JPNDPLD9U 7 1.5V • • •
KINGSTON KVR1066D3N7/2G 2GB DS ELPIDA J1108BDSE-DJ-F 7 1.5V • • •
KINGSTON KVR1066D3N7/4G 4GB DS Hynix H5TQ2G83AFR 7 1.5V • • •
Micron MT8JTF12864AZ-1G1F1 1GB SS Micron 9GF22D9KPT 7 - • • •
Micron MT9JSF12872AZ-1G1F1 1GB SS Micron 9HF22D9KPT(ECC) 7 - • • •
Micron MT16JTF25664AZ-1G1F1 2GB DS Micron 9HF22D9KPT 7 - • • •
Micron MT18JSF25672AZ-1G1F1 2GB DS Micron 9GF22D9KPT(ECC) 7 - • • •
OCZ OCZ3G1066LV4GK 4GB(2 x 2GB) DS Micron 9BF27D9KPV 7-7-7-20 1.65V • • •
SAMSUNG M378B2873EH1-CF8 1GB SS Samsung SEC 901 HCF8
K4B1G0846E
- - • • •
SAMSUNG M378B5273BH1-CF8 4GB DS SAMSUNG 846 K4B2G0846B-
HCF8
- - • • •
Chapter 1: Product introduction1-16
1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Unlocked retaining clip
1
DIMM notch
2
1
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clips. The DIMM might get damaged
when it ips out with extra force.
DIMM notch
1
1
2
DIMM slot key
ASUS M5A87 1-17
1.8 Expansion slots
In the future, you may need to install expansion cards. The following sub-sections describe
the slots and the expansion cards that they support.
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
1.8.1 Installing an expansion card
To install an expansion card:
1. Before installing the expansion card, read the documentation that came with it and
make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later
use.
4. Align the card connector with the slot and press rmly until the card is completely
seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that
the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI
groups, making the system unstable and the card inoperable.
1.8.3 PCI slots
The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that
comply with PCI specications.
1.8.2 Conguring an expansion card
After installing the expansion card, congure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for
information on BIOS setup.
2. Assign an IRQ to the card.
3. Install the software drivers for the expansion card.
1.8.4 PCI Express x1 slots
This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that
comply with the PCI Express specications.
1.8.5 PCI Express x16 slot
This motherboard supports a PCI Express x16 graphics card that complies with the PCI
Express specications.
Chapter 1: Product introduction1-18
1.9 Jumpers
Clear RTC RAM (CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can
clear the CMOS memory of date, time, and system setup parameters by erasing
the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in
CMOS, which include system setup information such as system passwords.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3
for about 5~10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter
data.
• If the steps above do not help, remove the onboard battery and move the jumper again
to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For
system failure due to overclocking, use the CPU Parameter Recall (C.P.R) feature. Shut
down and reboot the system so the BIOS can automatically reset parameter settings to
default values.
M5A87
M5A87 Clear RTC RAM
1 2 2 3
Normal
(Default)
Clear RTC
CLRTC
ASUS M5A87 1-19
1.10 Connectors
1.10.1 Rear panel ports
1. PS/2 Keyboard/Mouse Combo port (purple/green). This port is for a PS/2 keyboard
or PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection LAN port
SPEED
LED
ACT/LINK
LED
4. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime). This port connects to a headphone or a speaker. In the 4, 6, and
8-channel congurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink). This port connects to a microphone.
Refer to the audio conguration table on the next page for the function of the audio ports in
a 2, 4, 6, or 8-channel conguration.
2
9
1
10
4 53
68 7
Chapter 1: Product introduction1-20
7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for
USB 2.0/1.1 devices.
8. USB 3.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for USB
3.0 devices.
9. Serial port. This 9-pin COM1 port is for pointing devices or other serial devices.
10. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are for
USB 2.0/1.1 devices.

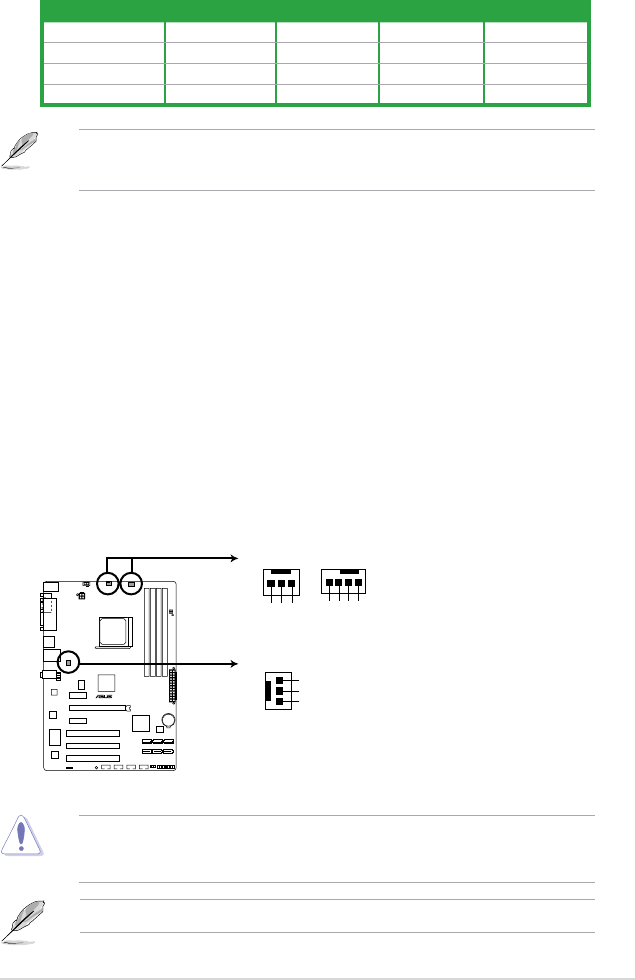

Audio 2, 4, 6, or 8-channel conguration
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) – – – Side Speaker Out
To congure an 8-channel audio output:
Use the chassis with HD audio module in the front panel to support 8-channel audio output.
1.10.2 Internal connectors
1. Power, CPU and chassis fan connectors (3-pin PWR FAN, 4-pin CPU_FAN and
3-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Only the 4-pin CPU fan supports the ASUS Q-Fan feature.
DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow inside
the system may damage the motherboard components. These are not jumpers! DO NOT
place jumper caps on the fan connectors.
M5A87 Fan connectors
Rotation
+12V
GND
PWR_FAN
GND
+12V
Rotation
CHA_FAN
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
M5A87
ASUS M5A87 1-21
2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for an ATX power supply. The plugs from the power supply are
designed to t these connectors in only one orientation. Find the proper orientation and
push down rmly until the connectors completely t.
•
We recommend that you use an ATX 12V Specication 2.0-compliant power supply unit
(PSU) with a minimum of 300W power rating. This PSU type has 24-pin and 4-pin power
plugs.
•
If you intend to use a PSU with 20-pin and 4-pin power plugs, ensure that the 20-pin
power plug can provide at least 15 A on +12 V and that the PSU has a minimum power
rating of 300W. The system may become unstable or may not boot up if the power is
inadequate.
•
DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will
not boot up.
• We recommend that you use a PSU with higher power output when conguring a
system with more power-consuming devices or when you intend to install additional
devices. The system may become unstable or may not boot up if the power is
inadequate.
•
If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
M5A87 ATX power connectors
EATXPWR
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
ATX12V
PIN 1
+12V DC
+12V DC
GND
GND
M5A87
Chapter 1: Product introduction1-22

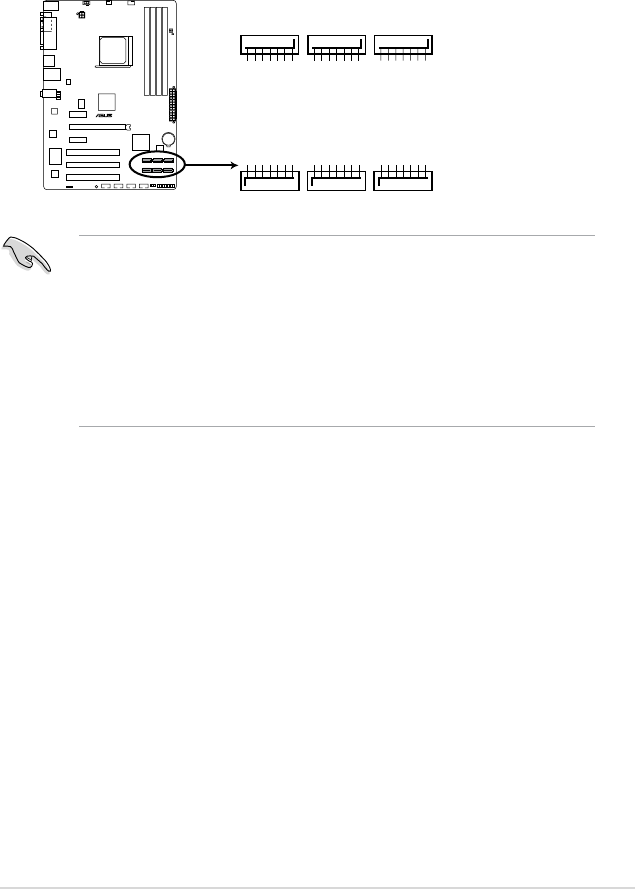

3. AMD® SB850 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1~6)
These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard
disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you can
create a RAID 0, RAID 1, RAID 5, or RAID 10 conguration through the onboard AMD®
SB850 controller.
• These connectors are set to IDE mode by default. In IDE mode, you can connect Serial
ATA boot/data hard disk drives to these connectors. If you intend to create a Serial ATA
RAID set using these connectors, set the type of the SATA connectors in the BIOS to
[RAID]. See section 2.3.4 SATA Conguration for details.
• You must install Windows® XP Service Pack 3 or later version before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows® XP SP3 or later version.
• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to
[AHCI]. See section 2.3.4 SATA Conguration for details.
SATA6G_1
SATA6G_2
SATA6G_3
SATA6G_4
SATA6G_5
SATA6G_6
GND
RSATA_RXN2
RSATA_RXP2
GND
RSATA_TXN2
RSATA_TXP2
GND
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
GND
RSATA_RXN4
RSATA_RXP4
GND
RSATA_TXN4
RSATA_TXP4
GND
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND
RSATA_RXN6
RSATA_RXP6
GND
RSATA_TXN6
RSATA_TXP6
GND
GND
RSATA_TXP5
RSATA_TXN5
GND
RSATA_RXP5
RSATA_RXN5
GND
M5A87 SATA 6.0Gb/s connectors
M5A87
ASUS M5A87 1-23
4. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
M5A87
M5A87 System panel connector
PIN 1
* Requires an ATX power supply
PLED SPEAKER
PLED+
PLED-
+5V
Ground
Ground
Speaker
IDE_LED+
IDE_LED-
PWR
Ground
Reset
Ground
PANEL
IDE_LED PWRSW RESET
Chapter 1: Product introduction1-24
5. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Ensure that the audio device of Sound playback is Realtek High Denition Audio (the
name may be different based on the OS). Go to Start > Control Panel > Sounds and
Audio Devices > Sound Playback to congure the setting.
The S/PDIF module is purchased separately.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard high-denition audio capability.
• If you want to connect a high denition front panel audio module to this connector, set
the Front Panel Select item in the BIOS to [HD Audio]. See section 2.5.3 Onboard
Devices Conguration for details.
• The front panel audio I/O module is purchased separately.
6. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
SPDIF_OUT
+5V
SPDIFOUT
GND
M5A87 Digital audio connector
M5A87
M5A87
M5A87 Front panel audio connector
AAFP
PIN 1
SENSE2_RETUR
SENSE1_RETUR
PRESENCE#
GND
PORT2 L
SENSE_SEND
PORT2 R
PORT1 R
PORT1 L
HD-audio-compliant
pin definition
PIN 1
NC
NC
NC
AGND
Line out_L
NC
Line out_R
MICPWR
MIC2
Legacy AC’97
compliant definition
ASUS M5A87 1-25
7. USB connectors (10-1 pin USB78, USB910, USB1112, USB1314)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
M5A87
M5A87 USB2.0 connectors
USB+5V
USB_P12-
USB_P12+
GND
NC
USB+5V
USB_P11-
USB_P11+
GND
USB1112
PIN 1
USB+5V
USB_P14-
USB_P14+
GND
NC
USB+5V
USB_P13-
USB_P13+
GND
USB1314
PIN 1
USB+5V
USB_P10-
USB_P10+
GND
NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
Chapter 1: Product introduction1-26
1.11 Onboard switch
Onboard switches allow you to ne-tune performance when working on a bare or open-case
system. This is ideal for overclockers and gamers who continually change settings to
enhance system performance.
1. Core Unlocker switch
This switch allows you to unlock the extra cores of your CPU.
To ensure system performance, turn the switch setting to Enable when the system is
powered off.
• The O2LED1 LED near the Core Unlocker switch lights when the switch setting is turned
to Enable. Refer to section 1.12 Onboard LEDs for the exact location of the O2LED1
LED.
• You may also press <4> during the Power-On-Self-Test (POST) or enable the ASUS
Core Unlocker item in the BIOS menu to activate the Core Unlocker function.
• The system will use the last setting you have made.
• If you load the BIOS setup defaults, the ASUS Core Unlocker item in the BIOS menu
follows the current setting of the Core Unlocker switch.
• If you clear the CMOS, the Core Unlocker feature will be disabled regardless of the
current settings of the BIOS setup and the Core Unlocker switch.
M5A87 Core Unlocker switch
M5A87
ASUS M5A87 1-27
2. MemOK! switch
Installing DIMMs that are incompatible with the motherboard may cause system
boot failure, and the DRAM_LED near the MemOK! switch lights continuously. Press
and hold the MemOK! switch until the DRAM_LED starts blinking to begin automatic
memory compatibility tuning for successful boot.
• Refer to section 1.12 Onboard LEDs for the exact location of the DRAM_LED.
• The DRAM_LED also lights when the DIMM is not properly installed. Turn off the system
and reinstall the DIMM before using the MemOK! function.
• The MemOK! switch does not function under Windows® OS environment.
• During the tuning process, the system loads and tests failsafe memory settings. It takes
about 30 seconds for the system to test one set of failsafe settings. If the test fails,
the system reboots and test the next set of failsafe settings. The blinking speed of the
DRAM_LED increases, indicating different test processes.
• Due to memory tuning requirement, the system automatically reboots when each timing
set is tested. If the installed DIMMs still fail to boot after the whole tuning process, the
DRAM_LED lights continuously. Replace the DIMMs with ones recommended in the
Memory QVL (Qualied Vendors Lists) in this user manual or on the ASUS website at
www.asus.com.
• If you turn off the computer and replace DIMMs during the tuning process, the system
continues memory tuning after turning on the computer. To stop memory tuning, turn off
the computer and unplug the power cord for about 5–10 seconds.
• If your system fail to boot due to BIOS overclocking, press the MemOK! switch to boot
and load BIOS default settings. A message will appear during POST reminding you that
the BIOS has been restored to its default settings.
• We recommend that you download and update to the latest BIOS version from the
ASUS website at www.asus.com after using the MemOK! function.
M5A87 MemOK! switch
M5A87
Chapter 1: Product introduction1-28
1.12 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.
3. Core Unlocker LED
The Core Unlocker LED lights when the Core Unclocker switch is turned to Enable.
The Core Unlocker LED keeps on
lighting even though the ASUS Core
Unlocker item in the BIOS menu is set
to [Disabled].
M5A87 DRAM LED
DRAM LED
M5A87
SB_PWR
ON
Standby Power Powered Off
OFF
M5A87 Onboard LED
M5A87
M5A87 Core Unlocker LED
O2LED1
M5A87
ASUS M5A87 1-29
1.13 Software support
1.13.1 Installing an operating system
This motherboard supports Windows® XP / Vista / 7 Operating Systems (OS). Always install
the latest OS version and corresponding updates to maximize the features of your hardware.
• Motherboard settings and hardware options vary. Refer to your OS documentation for
detailed information.
• Ensure that you install Windows® XP Service Pack 3 or later versions / Windows® Vista
Service Pack 1 or later versions before installing the drivers for better compatibility and
system stability.
1.13.2 Support DVD information
The Support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
The contents of the Support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.

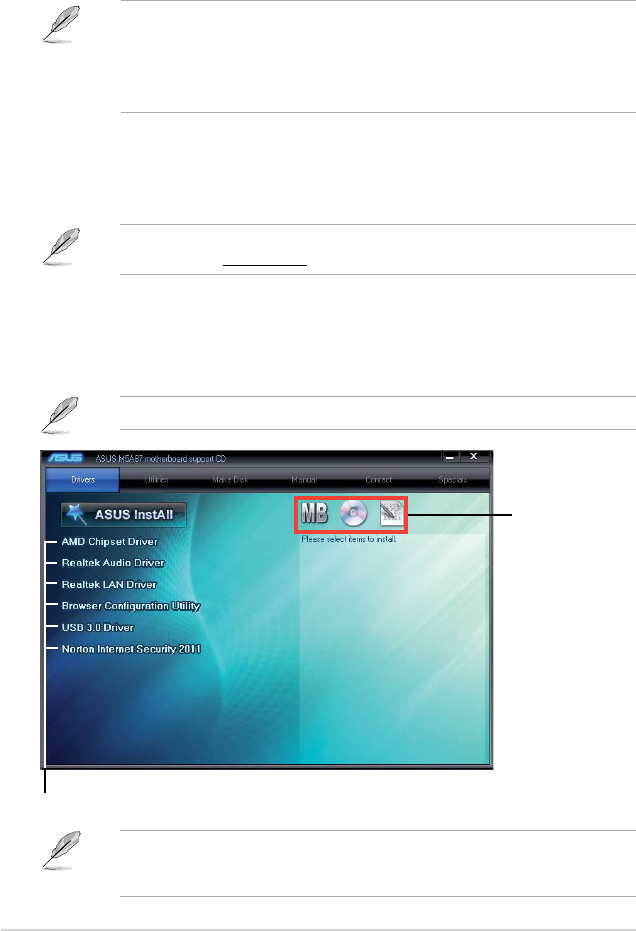

To run the Support DVD
Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the DVD
automatically displays the Specials screen. Click Drivers, Utilities, Make Disk, Manual, and
Contact tabs to display their respective menus.
If Autorun is NOT enabled on your computer, browse the contents of the Support DVD to
locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the DVD.
Click an item to install
Click an icon to
display Support DVD/
motherboard information
The following screen is for reference only.
Chapter 1: Product introduction1-30
ASUS M5A87 2-1
Chapter 2
BIOS information
2.1 Managing and updating your BIOS
Save a copy of the original motherboard BIOS le to a USB ash disk in case you need to
restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update
utility.
• ASUS Update requires an Internet connection either through a network or an Internet
Service Provider (ISP).
• This utility is available in the support DVD that comes with the motherboard package.
2.1.1 ASUS Update
The ASUS Update is a utility that allows you to manage, save, and update the motherboard
BIOS in Windows® environment.
Installing ASUS Update
To install ASUS Update:
1. Place the support DVD in the optical drive. The Drivers menu appears.
2. Click the Utilities tab, then click AI Suite II.
3. Follow the onscreen instructions to complete the installation.
Quit all Windows® applications before you update the BIOS using this utility.
Updating the BIOS
To update the BIOS:
1. From the Windows® desktop, click Start > Programs > ASUS > AI Suite II > AI Suite
II X.XX.XX to launch the AI Suite II utility. The AI Suite II Quick Bar appears.
2. Click Update button from the Quick Bar, and then click ASUS Update from the popup
menu. The ASUS Update main screen appears. From the list, select either of the
following methods:
Updating from the Internet
a. Select Update BIOS from the Internet, then click Next.
b. Select the ASUS FTP site nearest you to avoid network trafc, then click Next.
c. From the FTP site, select the BIOS version that you wish to download then click
Next.
2-2 Chapter 2: BIOS information
ASUSTek EZ Flash 2 BIOS ROM Utility V4.14
Current ROM Update ROM
C:
Note
PATH: C:\
BOARD: M5A87
VER: 0302 (H:00 B:01)
DATE: 03/08/2011
BOARD: Unknown
VER: Unknown
DATE: Unknown
[Enter] Select or Load [Tab] Switch [V] Drive Info
[Up/Down/Home/End] Move [B] Backup [ESC] Exit
Updating from a BIOS file
a. Select Update BIOS from a le, then click Next.
b. Locate the BIOS le from the Open window, then click Open.
3. Follow the onscreen instructions to complete the updating process.
The ASUS Update utility is capable of updating itself through the Internet. Always update
the utility to avail all its features.
To update the BIOS using EZ Flash 2:
1. Insert the USB ash disk that contains the latest BIOS le to the USB port, then launch
EZ Flash 2 in either of these two ways:
• Press <Alt> + <F2> during POST.
• Enter the BIOS setup program. Go to the Tools menu to select EZ Flash 2 and
press <Enter> to enable it.
Press <Tab> to switch between drives until the correct BIOS le is found.
2.1.2 ASUS EZ Flash 2
The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based
utility.
Before you start using this utility, download the latest BIOS le from the ASUS website at
www.asus.com.
2. When the correct BIOS le is found, EZ Flash 2 performs the BIOS update process
and automatically reboots the system when done.
ASUS M5A87 2-3
• This function supports USB ash disks with FAT 32/16 format and single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure!
2.1.3 ASUS CrashFree BIOS 3
ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS le
when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS
le using the motherboard support DVD or a USB ash drive that contains the BIOS le.
• Before using this utility, rename the BIOS le in the USB ash drive into
M5A87.ROM.
• Download the latest BIOS le from the ASUS website at www.asus.com.
Recovering the BIOS
To recover the BIOS:
1. Turn on the system.
2. Insert the support DVD to the optical drive or the removable device that contains the
BIOS le to the USB port or to the oppy disk drive, if supported.
3. The utility automatically checks the devices for the BIOS le. When found, the utility
reads the BIOS le and starts ashing the corrupted BIOS le.
4. Turn off the system after the utility completes the updating process and turn on again.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause
system boot failure!
Ensure to load the BIOS default settings to ensure system compatibility and stability. Select
the Load Setup Defaults item under the Exit menu. Refer to section 2.9 Exit menu for
details.
2-4 Chapter 2: BIOS information
2.2 BIOS setup program
Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS
screens include navigation keys and brief online help to guide you in using the BIOS Setup
program.
Entering BIOS Setup at startup
To enter BIOS Setup at startup:
• Press <Delete> during the Power-On Self-Test (POST). If you do not press <Delete>,
POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
• Press <Ctrl>+<Alt>+<Delete> simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the rst two options.
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force
reset from a running operating system can cause damage to your data or system. We
recommend that you always shut down the system properly from the operating system.
• The default BIOS settings for this motherboard apply to most conditions to ensure
optimum performance. If the system becomes unstable after changing any BIOS
settings, load the default settings to ensure system compatibility and stability. Select the
Load Setup Defaults item under the Exit menu. See section 2.9 Exit Menu.
• The BIOS setup screens in this chapter are for reference only. They may not exactly
match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS le for this
motherboard.
ASUS M5A87 2-5
2.2.1 BIOS menu screen
2.2.2 Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Power For changing the advanced power management (APM) conguration
Boot For changing the system boot conguration
Tools For conguring options for special functions
Exit For selecting the exit options and loading default settings.
To select an item on the menu bar, press the right or left arrow key on the keyboard until the
desired item is highlighted.
2.2.3 Navigation keys
At the bottom right corner of a menu screen are the navigation keys for that particular menu.
Use the navigation keys to select items in the menu and change the settings.
Menu items
Select Screen
Select Item
+- Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
M5A87 BIOS Setup
Main Ai Tweaker Advanced Power Boot Tools Exit
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system
Time.
System Time [16:34:30]
System Date [Tue 01/11/2011]
SATA6G_1 :[Not Detected]
SATA6G_2 :[Not Detected]
SATA6G_3 :[Not Detected]
SATA6G_4 :[Not Detected]
SATA6G_5 :[Not Detected]
SATA6G_6 :[Not Detected]
SATA Conguration
System Information
Main Settings
Menu bar Conguration elds General help
Navigation keys
Submenu items
Some of the navigation keys differ from one screen to another.
Version 0302
2-6 Chapter 2: BIOS information
2.2.4 Menu items
The highlighted item on the menu bar displays the specic items for that menu. For example,
selecting Main shows the Main menu items.
The other items (Advanced, Power, Boot, Tools, and Exit) on the menu bar have their
respective menu items.
2.2.5 Submenu items
A solid triangle before each item on a menu screen means that the item has a submenu. To
display the submenu, select the item and press <Enter>.
2.2.6 Conguration elds
These elds show the values for the menu items. If an item is user- congurable, you can
change the value of the eld opposite the item. You cannot select an item that is not
user-congurable.
A congurable eld is enclosed in brackets, and is highlighted when selected. To change the
value of a eld, select it then press <Enter> to display a list of options. Refer to 2.2.7 Pop-up
window.
2.2.7 Pop-up window
Select a menu item then press
<Enter> to display a pop-up window
with the conguration options for
that item.
2.2.8 Scroll bar
A scroll bar appears on the right side
of a menu screen when there are
items that do not t on the screen.
Press the <Up> / <Down> arrow
keys or <Page Up> /<Page Down>
keys to display the other items on
the screen.
2.2.9 General help
At the top right corner of the menu screen is a brief description of the selected item.
Select Screen
Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2011, American, American Megatrends, Inc.
M5A87 BIOS Setup
Main Ai Tweaker Advanced Power Boot Tools Exit
Suspend Mode [Auto]
ACPI 2.0 Support [Disabled]
ACPI APIC support [Enabled]
APM Conguration
HW Monitor Conguration
Anti Surge Support [Enabled]
Use [ENTER], [TAB] or
[SHIFT-TAB] to select
a eld.
Use [+] or [-] to
congure system
Time.
Options
S1 (POS) only
S3 only
Auto
Pop-up window
Scroll bar
Version 0302
Power Settings
ASUS M5A87 2-7
2.3 Main menu
When you enter the BIOS Setup program, the Main menu screen appears, giving you an
overview of the basic system information.
Refer to section 2.2.1 BIOS menu screen for information on the menu screen items and
how to navigate through them.
2.3.1 System Time [xx:xx:xx]
Allows you to set the system time.
2.3.2 System Date [Day xx/xx/xxxx]
Allows you to set the system date.
2.3.3 SATA6G_1/2/3/4/5/6
While entering Setup, the BIOS automatically detects the presence of SATA devices. There
is a separate submenu for each SATA device. Select a device item then press <Enter> to
display the SATA device information.
The BIOS automatically detects the values opposite the dimmed items (Device, Vendor, Size,
LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART monitoring). These
values are not user-congurable. These items show Not Detected if no IDE/SATA device is
installed in the system.
Type [Auto]
Selects the type of SATA drive. Setting this item to [Auto] allows automatic selection of the
appropriate SATA device type. Select [CDROM] if you are specically conguring a CD-ROM
drive. Select [ARMD] (ATAPI Removable Media Device) if your device is either a ZIP, LS-120,
or MO drive. Conguration options: [Not Installed] [Auto] [CDROM] [ARMD]
Select Screen
Select Item
+- Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
M5A87 BIOS Setup
Main Ai Tweaker Advanced Power Boot Tools Exit
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system
Time.
System Time [16:34:30]
System Date [Tue 01/11/2011]
SATA6G_1 :[Not Detected]
SATA6G_2 :[Not Detected]
SATA6G_3 :[Not Detected]
SATA6G_4 :[Not Detected]
SATA6G_5 :[Not Detected]
SATA6G_6 :[Not Detected]
SATA Conguration
System Information
Main Settings
Version 0302
This item only appears in the SATA6G_5/6 menus.
2-8 Chapter 2: BIOS information
LBA/Large Mode [Auto]
Enables or disables the LBA mode. Setting this item to [Auto] enables the LBA mode if the
device supports this mode, and if the device was not previously formatted with LBA mode
disabled. Conguration options: [Disabled] [Auto]
Block (Multi-Sector Transfer) Mode [Auto]
Enables or disables data multi-sectors transfers. When this item is set to [Auto], the data
transfer from and to the device occurs multiple sectors at a time if the device supports multi-
sector transfer feature. When this item is set to [Disabled], the data transfer from and to the
device occurs one sector at a time. Conguration options: [Disabled] [Auto]
PIO Mode [Auto]
Selects the PIO mode. Conguration options: [Auto] [0] [1] [2] [3] [4]
DMA Mode [Auto]
Selects the DMA mode. Conguration options: [Auto]
SMART Monitoring [Auto]
Sets the Smart Monitoring, Analysis, and Reporting Technology.
Conguration options: [Auto] [Disabled] [Enabled]
32Bit Data Transfer [Enabled]
Enables or disables 32-bit data transfer. Conguration options: [Disabled] [Enabled]
2.3.4 SATA Conguration
The SATA Conguration menu allows you to congure your storage devices. Select an item
then press <Enter> to display the submenu.
OnChip SATA Channel [Enabled]
Enables or disables onboard channel SATA port. Conguration options: [Disabled] [Enabled]
SATA Port1 - Port4 [IDE]
Allows you to set the SATA conguration.
[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as
Parallel ATA physical storage devices.
[RAID] Set to [RAID] when you want to create a RAID conguration from the SATA
hard disk drives.
[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI
(Advanced Host Controller Interface). The AHCI allows the onboard
storage driver to enable advanced Serial ATA features that increases
storage performance on random workloads by allowing the drive to
internally optimize the order of commands.
• When this item is set to [AHCI], the information of the SATA connectors 1–6 can be seen
only under the OS environment or during POST.
• For Windows® XP OS, you have to install the AHCI driver, so that you could use the
SATA connectors 1–6 in AHCI mode under the OS environment.
The following two items only appear when you set OnChip SATA Channel to [Enabled].
ASUS M5A87 2-9
2.3.5 System Information
This menu gives you an overview of the general system specications. The BIOS
automatically detects the items in this menu.
BIOS information
Displays the auto-detected BIOS information.
Processor
Displays the auto-detected CPU specication.
System Memory
Displays the auto-detected system memory.
SATA Port5 - Port6 [IDE]
Setting this item to [IDE] instead of [RAID] or [AHCI] allows the system to recognize the optical
dirves connected to the SATA connectors 5 or 6 when installing OS.
If you use a SATA optical drive to run the OS installation disk, we strongly recommend that
you install the optical dirve to the SATA connectors 5/6 and set them to [IDE] mode.
2-10 Chapter 2: BIOS information
2.4 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this chapter vary depending on the CPU and DIMM model you
installed on the motherboard.
Scroll down to display the following items:
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
M5A87 BIOS Setup
Main Ai Tweaker Advanced Power Boot Tools Exit
Warning: this function
belongs to overclock-
ing, and it may cause
instability.
Select a CPU level,
and the rest will be
auto-adjusted. If you
want to adjust more,
set Ai Overclock Tuner
to Manual after you
select a CPU level.
←→ Select Screen
↑↓ Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Congure System Performance Settings
Target CPU Frequency : 3000MHz
Target DRAM Frequency: 1333MHz
CPU Level UP [Auto]
-------------------------------------------------
CPU OverClocking [Auto]
CPU Ratio [Auto]
DRAM Frequency [Auto]
CPU/NB Frequency [Auto]
HT Link Speed [Auto]
DRAM Timing Conguration
DRAM Driving Conguration
******* Please key in numbers directly! *******
CPU & NB Voltage Mode [Offset]
CPU Offset Voltage 1.350 [Auto]
CPU/NB Offset Voltage 1.100 [Auto]
DRAM Voltage 1.500 [Auto]
HT Voltage 1.200 [Auto]
Version 0302
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
NB Voltage 1.100 [Auto]
***********************************************
CPU Load-Line Calibration [Auto]
CPU/NB Load-Line Calibration [Auto]
←→ Select Screen
↑↓ Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
2.4.1 CPU Level UP [Auto]
Allows you to select a CPU level, and the related parameters will be automatically adjusted
according to the selected CPU level. If you want to manually congure the settings in detail,
set CPU Overclocking to [Manual] after selecting a CPU level.
Conguration options: [Auto] [Phenom II-955] [Phenom II-3.4G] [Phenom II-3.6G]
• The conguration options vary depending on the CPU model you install on the
motherboard.
• The CPU Level UP function support depends on CPU types.
ASUS M5A87 2-11
The conguration options for the following sub-items vary depending on the CPU/DIMMs
you install on the motherboard.
OC From CPU Level UP [Auto]
This item appears only when you set the CPU OverClocking item to [Manual] and allows you
to select a CPU level. The related parameters will be automatically adjusted according to the
selected CPU level.
CPU/HT Reference Clcok (MHz) [XXX]
This item appears only when you set the CPU OverClocking item to [Manual] and displays
the frequency sent by the clock generator to the system bus and PCI bus. Use the <+> and
<-> keys to adjust the CPU Bus frequency. You can also key in the desired frequency using
the numeric keypad. The values range from 100MHz to 550MHz.
PCIE Frequency [XXX]
This item appears only when you set the CPU OverClocking item to [Manual] and allows you
to set the PCI Express frequency. Use the <+> and <-> keys to adjust the PCIE frequency.
You can also key in the desired value using the numeric keypad. The values range from
100MHz to 150MHz.
DRAM O.C. Prole [DDR3-1600MHz]
This item appears only when you set the CPU OverClocking item to [D.O.C.P.] and allows
you to select a DRAM O.C. prole, which applies different settings to DRAM frequency,
DRAM timing and DRAM voltage. Conguration options: [DDR3-1600MHz] [DDR3-1800MHz]
[DDR3-1866MHz] [DDR3-2000MHz]
Prole Info : xxxxMHz–x-x-x-xx
This item appears only when you set the CPU OverClocking item to [D.O.C.P.] and displays
the current DRAM prole information. The prole information varies according to the DRAM
O.C. Prole you’ve selected.
Overclock Options [Auto]
This item appears only when you set the CPU OverClocking item to [Overclock Prole] and
allows you to select an overclocking prole. Conguration options: [Auto] [Overclock 2%]
[Overclock 5%] [Overclock 8%] [Overclock 10%]
2.4.2 CPU OverClocking [Auto]
Allows you to select the CPU overclocking options to achieve the desired CPU internal
frequency. Select any of these preset overclocking conguration options:
Manual Allows you to individually set overclocking parameters.
Auto Loads the optimal settings for the system.
D.O.C.P Allows you to select a DRAM O.C. prole, and the related parameters will be
adjusted automatically.
CPU Level UP Allows you to select a CPU level, and the related parameters will be adjusted
automatically.
Overclock Prole Allows you to select an overclocking prole.
TestMode Allows you to set the overclocking parameter to 5%.
2-12 Chapter 2: BIOS information
2.4.3 CPU Ratio [Auto]
Allows you to set the ratio between the CPU Core Clock and the FSB Frequency. Use the
<+> and <-> keys to adjust the ratio. The valid value ranges vary according to your CPU
model.
The following two items only appear when you install a 6-core CPU.
AMD Turbo CORE technology [Enabled]
Enables or disables the AMD Turbo Core technology. Conguration options: [Disabled]
[Enabled]
Turbo CORE Ratio [Auto]
Sets the Turbo Core ratio. Use the <+> / <-> keys to adjust the ratio. The valid value ranges
vary depending on your CPU model. Conguration options: [Auto]
2.4.4 DRAM Frequency [Auto]
Allows you to set the DDR3 operating frequency. Conguration options: [Auto] [800MHz]
[1067MHz] [1333MHz] [1600MHz]
Selecting a very high DRAM frequency may cause the system to become unstable! If this
happens, revert to the default setting.
2.4.5 CPU/NB Frequency [Auto]
Allows you to set the ratio between the NB Clock and the CPU Bus Frequency. Conguration
options: [Auto] [1400MHz] [1600MHz] [1800MHz] [2000MHz]
2.4.6 HT Link Speed [Auto]
Allows you to select the HyperTransport link speed. Conguration options: [Auto] [200MHz]
[400MHz] [600MHz] [800MHz] [1000MHz] [1200MHz] [1400MHz] [1600MHz] [1800MHz]
[2000MHz]
ASUS M5A87 2-13
2.4.7 DRAM Timing Conguration
The conguration options for some of the following items vary depending on the DIMMs
you install on the motherboard.
DRAM CAS# Latency [Auto]
Conguration options: [Auto] [4 CLK] ~ [12 CLK]
DRAM RAS# to CAS# Delay [Auto]
Conguration options: [Auto] [5 CLK] ~ [12 CLK]
DRAM RAS# PRE Time [Auto]
Conguration options: [Auto] [5 CLK] ~ [12 CLK]
DRAM RAS# ACT Time [Auto]
Conguration options: [Auto] [15 CLK] ~ [30 CLK]
DRAM READ to PRE Time [Auto]
Conguration options: [Auto] [4 CLK] [5 CLK] [6 CLK] [7 CLK]
DRAM Row Cycle Time [Auto]
Conguration options: [Auto] [11 CLK] ~ [41 CLK]
DRAM WRITE Recovery Time [Auto]
Conguration options: [Auto] [5 CLK] [6 CLK] [7 CLK] [8 CLK] [10 CLK] [12 CLK]
DRAM RAS# to RAS# Delay [Auto]
Conguration options: [Auto] [4 CLK] [5 CLK] [6 CLK] [7 CLK]
DRAM READ to WRITE Delay [Auto]
Conguration options: [Auto] [3 CLK] ~ [17 CLK]
DRAM WRITE to READ Delay(DD) [Auto]
Conguration options: [Auto] [2 CLK] ~ [10 CLK]
DRAM WRITE to READ Delay(SD) [Auto]
Conguration options: [Auto] [4 CLK] [5 CLK] [6 CLK] [7 CLK]
DRAM WRITE to WRITE Timing [Auto]
Conguration options: [Auto] [3 CLK] ~ [10 CLK]
DRAM READ to READ Timing [Auto]
Conguration options: [Auto] [3 CLK] ~ [10 CLK]
DRAM REF Cycle Time [Auto]
Conguration options: [Auto] [90ns] [110ns] [160ns] [300ns] [350ns]
DRAM Refresh Rate [Auto]
Conguration options: [Auto] [Every 7.8ms] [Every 3.9ms]
DRAM Command Rate [Auto]
Conguration options: [Auto] [1T] [2T]
2-14 Chapter 2: BIOS information
2.4.8 DRAM Driving Conguration
The conguration options for some of the following items vary depending on the DIMMs
you install on the motherboard.
CKE drive strength [Auto]
Conguration options: [Auto] [1x] [1.25x] [1.5x] [2x]
CS/ODT drive strength [Auto]
Conguration options: [Auto] [1x] [1.25x] [1.5x] [2x]
ADDR/CMD drive strength [Auto]
Conguration options: [Auto] [1x] [1.25x] [1.5x] [2x]
MEMCLK drive strength [Auto]
Conguration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]
Data drive strength [Auto]
Conguration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]
DQS drive strength [Auto]
Conguration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]
Processor ODT [Auto]
Conguration options: [Auto] [240 ohms +/- 20%] [120 ohms +/- 20%] [60 ohms +/- 20%]
Some of the following items are adjusted by typing the desired values using the numeric
keypad and press the <Enter> key. You can also use the <+> and <-> keys to adjust the
value. To restore the default setting, type [auto] using the keyboard and press the <Enter>
key.
2.4.9 CPU & NB Voltage Mode [Offset]
Allows you to set the CPU & CPU/NB Voltage Mode. Different sub-items appear according to
the CPU & NB Voltage Mode item setting. Conguration options: [Offset] [Manual]
CPU Offset Voltage [Auto]
This item appears only when you set the CPU & NB Voltage Mode item to [Offset] and
allows you to set the CPU Offset voltage. The values range from 0.003125V to 0.500000V
with a 0.003125V interval.
CPU/NB Offset Voltage [Auto]
This item appears only when you set the CPU & NB Voltage Mode item to [Offset]
and allows you to set the CPU/NB Offset voltage. The values range from 0.003125V to
0.500000V with a 0.003125V interval.
CPU Voltage [Auto]
This item appears only when you set the CPU & NB Voltage Mode item to [Manual] and
allows you to set a xed CPU voltage.
CPU/NB Voltage [Auto]
This item appears only when you set the CPU & NB Voltage Mode item to [Manual] and
allows you to set a xed CPU/NB voltage.
ASUS M5A87 2-15
2.4.10 DRAM Voltage [Auto]
Allows you to set the DRAM voltage. The values range from 1.35000V to 2.30000V with a
0.01000V interval.
2.4.11 HT Voltage [Auto]
Allows you to set the HyperTransport voltage. The values range from 1.20000V to 1.38000V
with a 0.01000V interval.
2.4.12 NB Voltage [Auto]
Allows you to set the Northbridge voltage. The values range from 1.10000V to 1.60000V with
a 0.01000V interval.
2.4.13 CPU Load-Line Calibration [Auto]
Allows you to select the CPU Load-Line mode.
Conguration options: [Auto] [Disabled] [Enabled]
2.4.14 CPU/NB Load-Line Calibration [Auto]
Allows you to select the CPU/NB Load-Line mode.
Conguration options: [Auto] [Disabled] [Enabled]
2.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Take caution when changing the settings of the Advanced menu items. Incorrect eld
values can cause the system to malfunction.
2.5.1 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
M5A87 BIOS Setup
Main Ai Tweaker Advanced Power Boot Tools Exit
CPU Conguration
Chipset
Onboard Devices Conguration
PCIPnP
USB Conguration
Select Screen
Select Item
+- Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
Congure CPU.
Advanced Settings
Version 0302
2-16 Chapter 2: BIOS information
GART Error Reporting [Disabled]
This option should remain disabled for the normal operation. The driver developer may
enable it for testing purpose. Conguration options: [Disabled] [Enabled]
Microcode Updation [Enabled]
Enables or disables Microcode Updation. Conguration options: [Disabled] [Enabled]
Secure Virtual Machine Mode [Disabled]
Enables or disables Secure Virtual Machine Mode (SVM) Conguration options: [Disabled]
[Enabled]
Cool ‘n’ Quiet [Enabled]
Enables or disables the AMD Cool ‘n’ Quiet technology. Conguration options: [Enabled]
[Disabled]
ACPI SRAT Table [Enabled]
Enables or disables the building of ACPI SRAT table. Conguration options: [Enabled]
[Disabled]
C1E Support [Disabled]
Enables or disables the CPU Enhanced Halt (C1E) function, a CPU power-saving function
in system halt state. When this item is enabled, the CPU core frequency and voltage will be
reduced during the system halt state to decrease power consumption.
Conguration options: [Disabled] [Enabled]
ASUS Core Unlocker [Disabled]
Enables the ASUS Core Unlocker to get the full computing power of the processor. Select
[Disabled] to disable this function. Conguration options: [Enabled] [Disabled]
CPU Core Activation [Auto]
Allows you to set the active CPU cores. Conguration options: [Auto] [Manual]
The following items appear only when you set CPU Core Activation to
[Manual].
2nd Core [On]
Enables or disables the second CPU core. Conguration options: [On] [Off]
3rd Core [On]
Enables or disables the third CPU core. Conguration options: [On] [Off]
4th Core [On]
Enables or disables the fourth CPU core. Conguration options: [On] [Off]
2.5.2 Chipset
NorthBridge Conguration
DRAM Controller Conguration
Bank Interleaving [Auto]
Allows you to enable the bank memory interleaving. Conguration options: [Disabled] [Auto]
ASUS M5A87 2-17
Channel Interleaving [Auto]
Allows you to enable the channel memory interleaving.
Conguration options: [Disabled] [Address bits 6] [Address bits 12] [Auto]
[XOR of Address bits [20:16, 6]] [XOR of Address bits [20:16, 9]]
Enable Clock to All DIMMs [Disabled]
Enables unused Clocks to DIMMs even though memory slots are not populated. Conguraiton
options: [Enabled] [Disabled]
MemClk Tristate C3/ATLVID [Disabled]
Allows you to enable or disable MemClk Tri-Stating during C3 and Alt VID.
Conguration options: [Disabled] [Enabled]
Memory Hole Remapping [Enabled]
Allows you to enable or disable memory remapping around memory hole.
Conguration options: [Disabled] [Enabled]
DCT Unganged Mode [Always]
Allows you to select the unganged DRAM mode (64-bit width).
Conguration options: [Auto] [Always]
Power Down Enable [Disabled]
Allows you to enable or disable DDR power down mode.
Conguration options: [Disabled] [Enabled]
ECC Conguration
ECC Mode [Disabled]
Enables or disables the DRAM ECC that allows the hardware to report and correct memory errors
automatically. Conguration options: [Disabled] [Basic] [Good] [Super] [Max] [User]
Internal Graphics
Primary Display Adapter [GFX-GPP-PCI]
Selects the primary display adapter. Conguration options: [GFX-GPP-PCI] [GPP-GFX-PCI]
[PCI-GFX-GPP]
GFX: primary video controller on a PCIe x16 slot
GPP: primary video controller on a PCIe x1 slot
PCI: primary video controller on a PCI slot
2.5.3 Onboard Devices Conguration
Serial Port1 Address [3F8/IRQ4]
Allows you to select the Serial Port1 base address. Conguration options: [Disabled]
[3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]
Parallel Port Address [378]
Allows you to select the Parallel Port base addresses. Conguration options: [Disabled] [378]
[278] [3BC]
Parallel Port Mode [Normal]
Allows you to select the Parallel Port mode. Conguration options: [Normal] [EPP] [ECP]
[EPP+ECP]
2-18 Chapter 2: BIOS information
Parallel Port IRQ [IRQ7]
Conguration options: [IRQ5] [IRQ7]
HDAudio Controller [Enabled]
Enables or disables the high denition audio controller. Conguration options: [Disabled]
[Enabled]
Front Panel Select [HD Audio]
Conguration options: [AC97] [HD Audio]
OnBoard LAN Controller [Enabled]
Conguration options: [Disabled] [Enabled]
OnBoard LAN Boot ROM [Disabled]
Conguration options: [Disabled] [Enabled]
USB3.0 Controller [Enabled]
Enables and disables the USB 3.0 controller. Conguration options: [Disabled] [Enabled]
Plug and Play O/S [No]
When this item is set to [No], BIOS congures all the devices in the system. When this item
is set to [Yes] and if you install a Plug and Play operating system, the operating system
congures the Plug and Play devices not required for boot. Conguration options: [No] [Yes]
2.5.4 PCIPnP
The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.
The menu includes setting IRQ and DMA channel resources for either PCI/PnP or legacy ISA
devices, and setting the memory size block for legacy ISA devices.
Take caution when changing the settings of the PCI PnP menu items. Incorrect eld values
can cause the system to malfunction.
2.5.5 USB Conguration
The items in this menu allows you to change the USB-related features. Select an item then
press <Enter> to display the conguration options.
The Module Version and USB Devices Enabled items show the auto-detected values. If no
USB device is detected, the item shows None.
USB Functions [Enabled]
Allows you to enable or disable the USB functions. Conguration options: [Disabled]
[Enabled]
Legacy USB Support [Auto]
Allows you to enable or disable support for Legacy USB storage devices, including USB ash
drives and USB hard drives. Setting to Auto allows the system to detect the presence of USB
devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device
is detected, the legacy USB support is disabled. Conguration options: [Disabled] [Enabled]
[Auto]
ASUS M5A87 2-19
The following items only appear when a USB storage device is plugged in.
USB Mass Storage Device Conguration
USB Mass Storage Reset Delay [20 Sec]
Sets the maximum time that the BIOS waits for the USB storage device to initialize.
Conguration options: [10 Sec] [20 Sec] [30 Sec] [40 Sec]
Emulation Type [Auto]
Allows you to set the emulation type. Conguration options: [Auto] [Floppy]
[Forced FDD] [Hard Disk] [CDROM]
USB 2.0 Controller Mode [HiSpeed]
Allows you to congure the USB 2.0 controller in HiSpeed (480Mbps) or Full Speed
(12Mbps). Conguration options: [FullSpeed] [HiSpeed]
2-20 Chapter 2: BIOS information
2.6 Power menu
The Power menu items allow you to change the settings for the Advanced Conguration and
Power Interface (ACPI) and the Advanced Power Management (APM). Select an item then
press <Enter> to display the conguration options.
2.6.1 Suspend Mode [Auto]
Allows you to select the Advanced Conguration and Power Interface (ACPI) state to be used
for system suspend. Conguration options: [S1 (POS) Only] [S3 Only] [Auto]
2.6.2 ACPI 2.0 Support [Enabled]
Allows you to enable or disable the Advanced Conguration and Power Interface (ACPI) 2.0
support. Conguration options: [Disabled] [Enabled]
2.6.3 ACPI APIC Support [Enabled]
Allows you to enable or disable the Advanced Conguration and Power Interface (ACPI)
support in the Advanced Programmable Interrupt Controller (APIC). When set to Enabled, the
ACPI APIC table pointer is included in the RSDT pointer list. Conguration options: [Disabled]
[Enabled]
2.6.4 APM Conguration
Restore on AC Power Loss [Power Off]
When this item is set to [Power Off], the system goes into off state after an AC power loss.
When this item is set to [Power On], the system goes on after an AC power loss. When this
item set to [Last State], the system goes into either off or on state, whatever the system
state was before the AC power loss. Conguration options: [Power Off] [Power On] [Last
State]
Power on From S5 By PME# [Disabled]
Enables or disables PME wake from sleep states. Conguration options: [Disabled] [Enabled]
Power on From S5 By Ring [Disabled]
Enables or disables ring to generate a wake event. Conguration options: [Disabled]
[Enabled]
Select Screen
Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
Suspend Mode [Auto]
ACPI 2.0 Support [Enabled]
ACPI APIC Support [Enabled]
APM Conguration
HW Monitor Conguration
Anti Surge Support [Enabled]
Select the ACPI state
used for System
Suspend.
M5A87 BIOS Setup
Main Ai Tweaker Advanced Power Boot Tools Exit
Power Settings
Version 0302
ASUS M5A87 2-21
Power on By PS/2 Keyboard [Disabled]
Enables or disables PS/2 Keyboard to generate a wake event.
Conguration options: [Disabled] [Space Bar] [Power Key] [Ctrl-Esc]
Power On By PS/2 Mouse [Disabled]
When set to [Enabled], this parameter allows you to use the PS/2 mouse to turn on the
system. This feature requires an ATX power supply that provides at least 1A on the +5VSB
lead. Conguration options: [Disabled] [Enabled]
Power on From S5 By RTC Alarm [Disabled]
Enables or disables RTC to generate a wake event. Conguration options: [Disabled]
[Enabled]
2.6.5 HW Monitor Conguration
CPU Temperature [xxxºC/xxxºF] or [Ignored]
MB Temperature [xxxºC/xxxºF] or [Ignored]
The onboard hardware monitor automatically detects and displays the motherboard and CPU
temperatures. Select Ignored if you do not wish to display the detected temperatures.
CPU / Chassis / Power Fan Speed [N/A], [xxxxRPM], or [Ignored]
The onboard hardware monitor automatically detects and displays the CPU / Chassis / Power
fan speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the
eld shows N/A. Select [gnored] if you do not want the detected speed to be displayed.
VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage [xx.xxxV] or [Ignored]
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators.
CPU Q-Fan Function [Enabled]
Enables or disables the ASUS Q-Fan feature that smartly adjusts the CPU fan speeds for
more efcient system operation. Conguration options: [Disabled] [Enabled]
The following item appears only when you set CPU Q-Fan Function to [Enabled].
CPU Fan Speed Low Limit [200 RPM]
Allows you to manually set a lower limit for the CPU fan speed. If the CPU fan speed is below the
specied limit, the system sends out warning beeps. Conguration options: [500 RPM] [400 RPM]
[300 RPM] [200 RPM] [100 RPM] [Ignored]
CPU Q-Fan Mode [Standard]
Allows you to set the appropriate performance level of the CPU fan.
[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on the
CPU temperature.
[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.
[Turbo] Set to [Turbo] to achieve maximum CPU fan speed.
[Manual] Allows you to individually set the CPU fan parameters.
2.6.6 Anti Surge Support [Enabled]
Allows you to enable or disable the Anti-Surge protection feature.
Conguration options: [Disabled] [Enabled]
2-22 Chapter 2: BIOS information
2.7 Boot menu
The Boot menu items allow you to change the system boot options. Select an item then
press <Enter> to display the submenu.
2.7.1 Boot Device Priority
1st ~ xxth Boot Device
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system. Conguration options: [Removable Dev.] [Hard Drive]
[ATAPI CD-ROM] [Disabled]
• To select the boot device during system startup, press <F8> when ASUS logo appears.
• To access Windows OS in Safe Mode, do any of the following:
• Press <F5> when ASUS logo appears.
• Press <F8> after POST.
2.7.2 Boot Settings Conguration
Quick Boot [Enabled]
Enabling this item allows the BIOS to skip some power on self tests (POST) while booting
to decrease the time needed to boot the system. When this item is set to [Disabled], BIOS
performs all the POST items. Conguration options: [Disabled] [Enabled]
Full Screen Logo [Enabled]
Enables or disables the full screen logo display feature. Conguration options: [Disabled]
[Enabled]
Set this item to [Enabled] to use the ASUS MyLogo2™ feature.
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
Boot Settings Conguration
Security
Species the Boot
Device Priority
sequence.
A virtual oppy disk
drive (Floppy Drive B:)
may appear when you set
the CD-ROM drive as the
rst boot device.
M5A87 BIOS Setup
Main Ai Tweaker Advanced Power Boot Tools Exit
Boot Device Priority
Boot Settings
Version 0302
AddOn ROM Display Mode [Force BIOS]
Sets the display mode for option ROM. Conguration options: [Force BIOS] [Keep Current]
ASUS M5A87 2-23
Bootup Num-Lock [On]
Selects the power-on state for the NumLock. Conguration options: [Off] [On]
Wait for ‘F1’ If Error [Enabled]
When this item is set to [Enabled], the system waits for the F1 key to be pressed when error
occurs. Conguration options: [Disabled] [Enabled]
Hit ‘DEL’ Message Display [Enabled]
When this item is set to [Enabled], the system displays the message Press DEL to run
Setup during POST. Conguration options: [Disabled] [Enabled]
If you forget your BIOS password, you can clear it by erasing the CMOS Real Time Clock
(RTC) RAM. See section 1.9 Jumpers for information on how to erase the RTC RAM.
2.7.3 Security
The Security menu items allow you to change the system security settings. Select
an item then press <Enter> to display the conguration options.
Change Supervisor Password
Select this item to set or change the supervisor password. The Supervisor Password item
on top of the screen shows the default Not Installed. After you set a password, this item
shows Installed.
To set a Supervisor Password:
1. Select the Change Supervisor Password item and press <Enter>.
2. On the password box, key in a password containing up to six letters, or numbers, or
both, then press <Enter>.
3. Conrm the password when prompted.
The message Password Installed appears after you successfully set your password.
To change the supervisor password, follow the same steps as in setting a supervisor
password.
To clear the supervisor password, select the Change Supervisor Password then press
<Enter> twice. The message Password uninstalled appears.
After you have set a supervisor password, the other items appear to allow you to change
other security settings.
User Access Level [Full Access]
This item allows you to select the access restriction to the Setup items. Conguration options:
[No Access] [View Only] [Limited] [Full Access]
No Access prevents user access to the Setup utility.
View Only allows access but does not allow change to any eld.
Limited allows changes only to selected elds, such as Date and Time.
Full Access allows viewing and changing all the elds in the Setup utility.
2-24 Chapter 2: BIOS information
Change User Password
Select this item to set or change the user password. The User Password item on top of the
screen shows the default Not Installed. After you set a password, this item shows Installed.
To set a User Password:
1. Select the Change User Password item and press <Enter>.
2. On the password box, key in a password containing up to six letters, or numbers, or
both, then press <Enter>.
3. Conrm the password when prompted.
The message “Password Installed” appears after you set your password successfully.
To change the user password, follow the same steps as in setting a user password.
Clear User Password
Select this item to clear the user password.
Password Check [Setup]
When set to [Setup], BIOS checks for user password when accessing the Setup utility. When
set to [Always], BIOS checks for user password both when accessing Setup and booting the
system. Conguration options: [Setup] [Always]
ASUS M5A87 2-25
2.8 Tools menu
The Tools menu items allow you to congure options for special functions. Select an item
then press <Enter> to display the sub-menu.
2.8.1 ASUS EZ Flash 2
Allows you to run ASUS EZ Flash 2. When you press <Enter>, a conrmation message
appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to
conrm your choice. See section 2.1.2 for details.
Select Screen
Select Item
Enter Go to Sub
Screen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2011, American Megatrends, Inc.
ASUS EZ Flash 2
ASUS O.C. Prole
Press ENTER to run
the utility to select
and update BIOS. This
utility supports:
1.FAT 12/16/32 (r/w)
2.NTFS (read only)
3.CD-DISC (read only)
M5A87 BIOS Setup
Main Advanced Power Boot Tools Exit Version 0302
Tools Settings
2.8.2 ASUS O.C. Prole
This item allows you to store or load multiple BIOS settings.
Add Your CMOS Prole
Allows you to save the current BIOS le to the BIOS Flash. In the Name sub-item, key in
your prole name and press <Enter>, and then choose a prole number to save your CMOS
settings in the Save to sub-item.
Load CMOS Proles.
Allows you to load the previous BIOS settings saved in the BIOS Flash. Press <Enter> to
load the le.
Start O.C. Prole
Allows you to run the utility to save and load CMOS. Press <Enter> to run the utility.
• This function can support devices such as a USB ash disk with FAT 32/16 format and
single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent the system
boot failure!
• We recommend that you update the BIOS le only coming from the same memory/CPU
conguration and BIOS version.
• Only the CMO le can be loaded.
2-26 Chapter 2: BIOS information
Exit & Save Changes
Once you are nished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved to the CMOS RAM. An onboard backup battery
sustains the CMOS RAM so it stays on even when the PC is turned off. When you select this
option, a conrmation window appears. Select OK to save changes and exit.
Exit & Discard Changes
Select this option only if you do not want to save the changes that you made to the Setup
program. If you made changes to elds other than System Date, System Time, and
Password, the BIOS asks for a conrmation before exiting.
Discard Changes
This option allows you to discard the selections you made and restore the previously saved
values. After selecting this option, a conrmation appears. Select OK to discard any changes
and load the previously saved values.
Load Setup Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a conrmation window appears.
Select OK to load default values. Select Exit & Save Changes or make other changes before
saving the values to the non-volatile RAM.
2.9 Exit menu
The Exit menu items allow you to load the optimal or failsafe default values for the BIOS
items, and save or discard your changes to the BIOS items.
Pressing <Esc> does not immediately exit this menu. Select one of the options from this
menu or <F10> from the legend bar to exit.
Exit Options
Exit & Save Changes
Exit & Discard Changes
Discard Changes
Load Setup Defaults
Exit system setup
after saving the
cahnges.
F10 key can be used
for this operation.
M5A87 BIOS Setup
Main Advanced Power Boot Tools Exit Version 0302
ASUS contact information
ASUSTeK COMPUTER INC.
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone +886-2-2894-3447
Fax +886-2-2890-7798
E-mail info@asus.com.tw
Web site www.asus.com.tw
Technical Support
Telephone +86-21-38429911
Online support support.asus.com
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone +1-510-739-3777
Fax +1-510-608-4555
Web site usa.asus.com
Technical Support
Telephone +1-812-282-2787
Support fax +1-812-284-0883
Online support support.asus.com
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, D-40880 Ratingen, Germany
Fax +49-2102-959911
Web site www.asus.de
Online contact www.asus.de/sales
Technical Support
Telephone (Component) +49-1805-010923*
Telephone (System/Notebook/Eee/LCD) +49-1805-010920*
Support Fax +49-2102-9599-11
Online support support.asus.com
* EUR 0.14/minute from a German xed landline; EUR 0.42/minute from a mobile phone.
EC Declaration of Conformity
We, the undersigned,
Manufacturer: ASUSTek COMPUTER INC.
Address, City: No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C.
Country: TAIWAN
Authorized representative in Europe: ASUS COMPUTER GmbH
Address, City: HARKORT STR. 21-23, 40880 RATINGEN
Country: GERMANY
declare the following apparatus:
Product name : MotherBoard
Model name : M5A87
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
EN 55022:2006+A1:2007
EN 61000-3-2:2006
EN 55013:2001+A1:2003+A2:2006
EN 55024:1998+A1:2001+A2:2003
EN 61000-3-3:2008
EN 55020:2007
1999/5/EC-R &TTE Directive
EN 300 328 V1.7.1(2006-05)
EN 300 440-1 V1.4.1(2008-05)
EN 300 440-2 V1.2.1(2008-03)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V3.2.1(2007-05)
EN 301 908-2 V3.2.1(2007-05)
EN 301 893 V1.4.1(2005-03)
EN 302 544-2 V1.1.1(2009-01)
EN 50360:2001
EN 50371:2002
EN 50385:2002
EN 301 489-1 V1.8.1(2008-04)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.3.1(2002-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.1.1(2009-05)
EN 301 489-24 V1.4.1(2007-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.3.1(2006-05)
EN 302 623 V1.1.1(2009-01)
2006/95/EC-LVD Directive
EN 60950-1:2006
EN 60950-1:2006+A11:2009
EN 60065:2002+A1:2006+A11:2008
2009/125/EC-ErP Directive
Regulation (EC) No. 1275/2008
EN 62301:2005
Regulation (EC) No. 642/2009
EN 62301:2005
Regulation (EC) No. 278/2009
EN 62301:2005
Ver. 110101
CE marking
Declaration Date: Mar. 15, 2011
Year to begin affixing CE marking:2011
Position : CEO
Name : Jerry Shen
Signature : __________
(
EC conformit
y
markin
g)
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: Asus Computer International
Address: 800 Corporate Way, Fremont, CA 94539.
Phone/Fax No: (510)739-3777/(510)608-4555
hereby declares that the product
Product Name : MotherBoard
Model Number : M5A87
Conforms to the following specifications:
FCC Part 15, Subpart B, Unintentional Radiators
FCC Part 15, Subpart C, Intentional Radiators
FCC Part 15, Subpart E, Intentional Radiators
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Representative Person’s Name : Steve Chang / President
Signature :
Date : Mar. 15, 2011
Ver. 110101
