ยี่หอสินคา ASUSTek Computer Inc. 10/06/2003
รุนและรหัสสินคา P4S800-MX w.LAN / 12-TWA-FP720 BIOS 1002
ขนาดของสินคา MicroATX Form Factor : 9.6" x 9.6" (24.5 cm x 24.5 cm)
PCB Rev1.02
Winbond I/O
W83697HF
สินคาที่ใกลเคียง P4S533-MX, P4P800-VM
ระบบขั้นต่ําที่ตองการ CPU Pentium4 (Socket 478) FSB 400/533/800 MHz
Package / รูปภาพสินคาและอุปกรณ
CD Driver M-352 User Guide E1399 Power LED 2 to 3 Pin
Cable FDD & HDD133/100/66/33 I/O Shield
รูปลักษณะของบอรด
Back Panel
Page
2
2
Overview Feature / คุณสมบัติ
รองรับการทํางานซีพียูอินเทล Prescott ที่วิ่งดวยความเร็ว FSB 800MHz อยางเต็มประสิทธิภาพ
Crash-Free BIOS การกูคืนไบออสที่มีปญหาจากการทํางานที่ผิดพลาดหรือการโอเวอรคล็อกลมเหลว

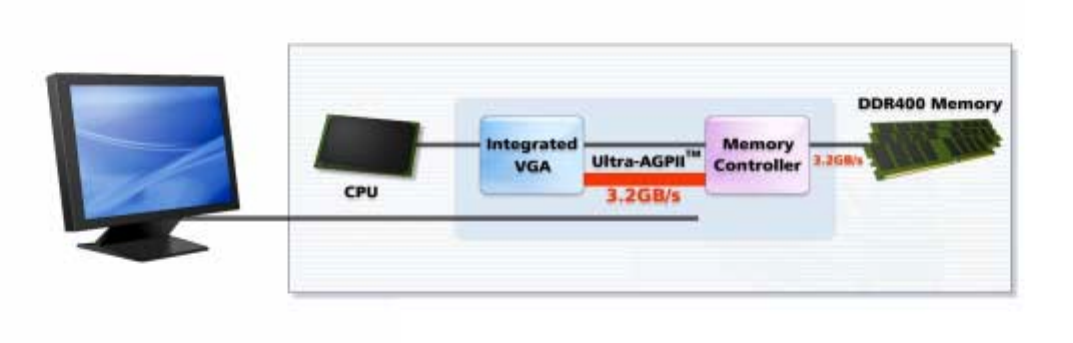

สนับสนุนการแสดงผลดวยชิปกราฟฟค SiS Real256E Share Memory (Ultra-AGPII™ Technology)
Universal Serial Bus 2.0 จํานวน 6 พอรต สามารถตอพวงอุปกรณตางๆ ไดถึง 127 อุปกรณ
ระบบเสียง Surround รอบทิศทาง 6 Channel Audio CODEC

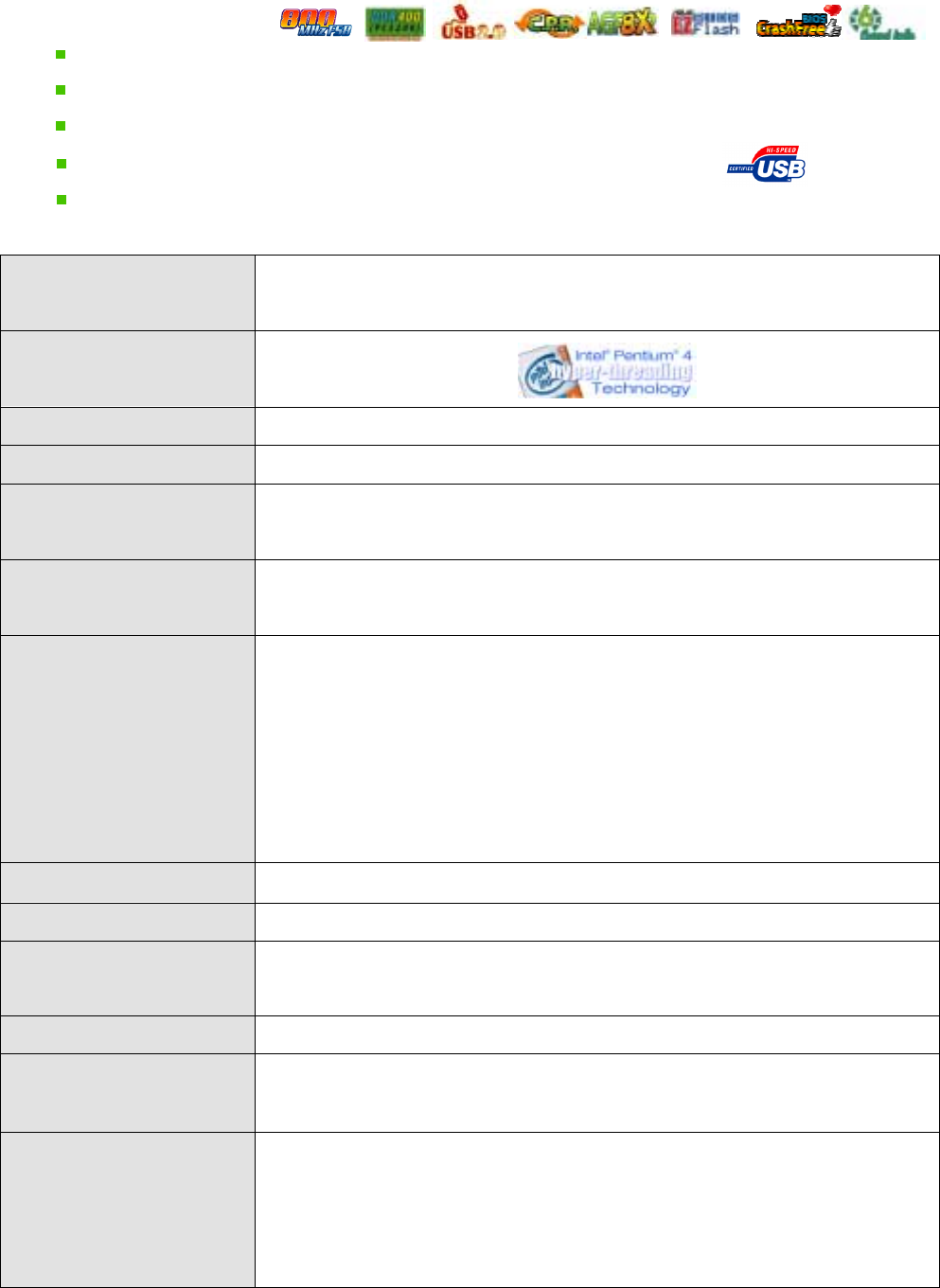

Specification / รายละเอียดทางเทคนิค
PROCESSOR
(Processor Support)
• Socket 478 On-die 512/256KB L2 Cache with full speed (Hyper-Threading Technology)
• Intel Pentium 4 / Intel Pentium 4 Northwood / Prescott CPU 1.4 up to 3.6+ GHz)
CHIPSET • North Bridge : SiS 661FX
• South Bridge : SiS 963L
System Bus (FSB) • Supports 800/533/400 MHz
On-board VGA • Intergrated 4X AGP 2D 128-bit / 3D 256-bit SiS Real256E Graphics (SMA 32, 64MB)
EXPANSION SLOTS
• 3 x PCI Slots (32-bit PCI 2.2)
• 1 x AGP 8X/4X (AGP 3.0/3.5) slot (1.5V Only) Lock Card Control
SYSTEM MEMORY • 2 x 184-pin DDR DIMM Sockets Support PC3200/2700/2100 unbuffered non-ECC
• Total Memory size = 2 GB Max.
Rear panel I/O
• 1 Floppy Port (up to 2.88MB,3 Mode Floppy Supported & LS-120) 1 Drive A: support
• 1 Serial Ports (16550 Fast UART Compatible)
• 1 PS/2 Mouse, 1 PS/2 Keyboard, 1 Parallel Port (ECP, EPP Port)
• 4 USB 2.0/1.1 Connector (Rev1.1/2.0), Additional 2 USB 2.0/1.1
• 1 Game/MIDI ports On-board Int. connector (Optional)
• 1 RJ45, 1 S/PDIF Out Int (Optional)., Line In / Line Out / Microphone ports
On Board Audio • ADI AD1888 6-channel AC’97 Compliant (3D) Audio Codec , with S/P DIF-Out
On Board LAN • Integrated MAC, VIA 6103L 10/100 Mbps LAN PHY controller (00-0B-6A-F4-D8-E8)
ON BOARD PCI IDE • 2 x UltraDMA133 Bus Master IDE Ports (ATA 133 / 100 / 66 / 33)
ATAPI IDE CD-ROM, DVD, CDR/RW, LS-120 & Tape Backup Supported
ATX Power Connector • 3V, 5V and 12V 20-pin ATX Power Connector, Soft Power Off Support, 2 Fans Con.
BIOS Feature • Aword Bios Size 2 Mb Flash EEPROM, PNP , ASUS® JumperFree™ , SM BIOS2.3
• DMI2.0 / WfM2.0 / Green / TCAV , C.P.R (CPU Parameter Recall), CrashFree BIOS
Special Features • Power Loss Restart, ASUS® JumperFree, Support Digital audio via an S/PDIF Out Int.
• ASUS MyLogo™, STR (Suspend-to-RAM), ASUS EZ Flash™, Ext. AGP 4X/8X
• Wake-Up-On (LAN, Modem, PCI Device, Keyboard, Mouse,USB)
• 6 USB 2.0/1.1 Ports (Build-in 4 ports + Optional 2 ports)
Page
3
3
Motherboard layout :
GAME/MIDI connector (16-1 pin GAME1) Optional USB header (10-1 pin USB56)
Page
4
4

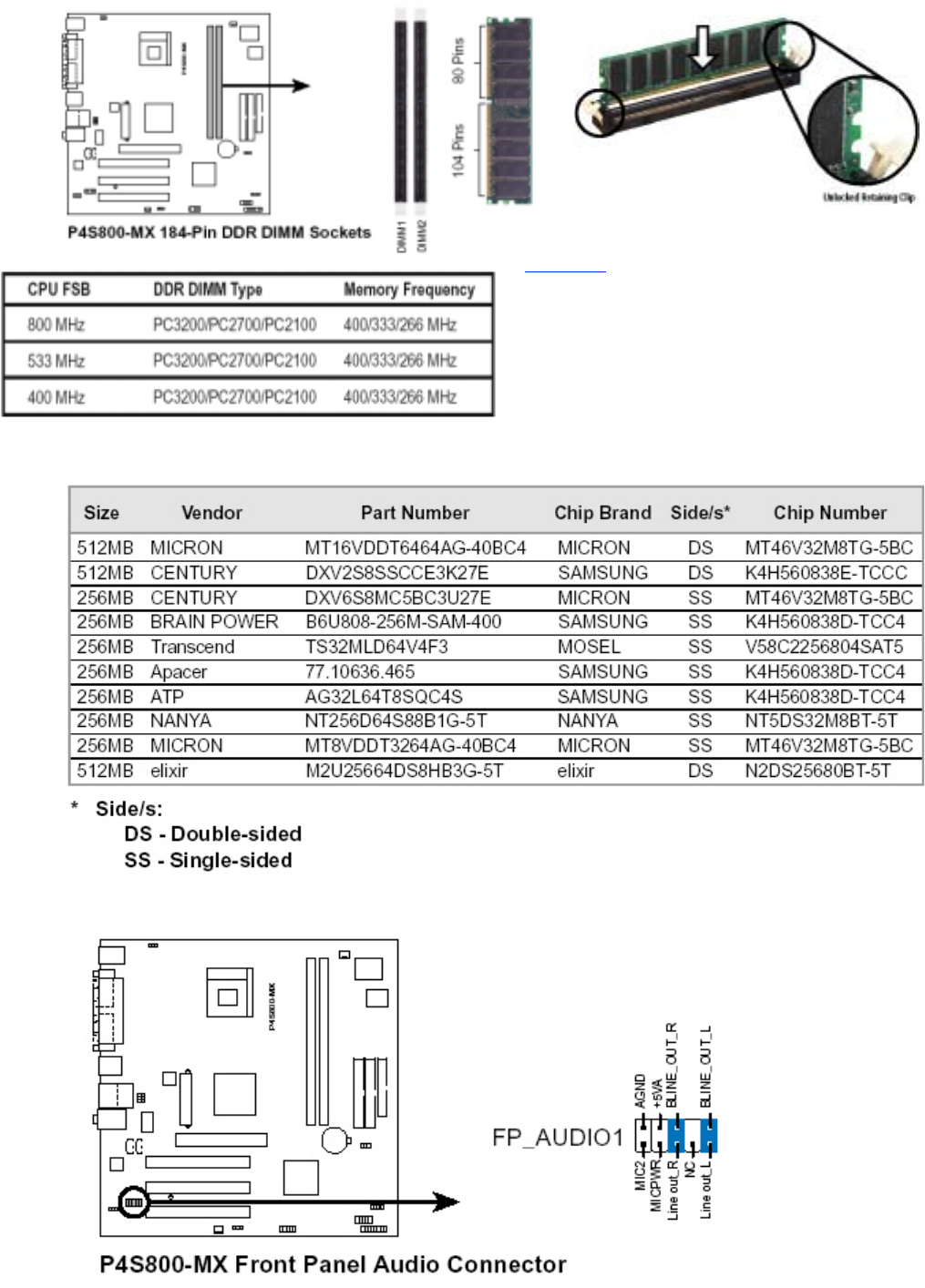

Memory Configuration :
Bios Setup : CPU Bus Frequency (Auto/Manual)
"Advance BIOS Setting CPU Bus Frequency (Auto/Manual)
"CPU/Memory Frequency Ratio FSB 400/533/800 MHz
By SPD ………… Auto DDR 400/400/400 MHz
………… [ ] DDR 333/333/333 MHz
………… [ ] DDR 266/266/266 MHz
Memory DDR400 Qualified Vendor List (QVL by ASUSTEK)
Front panel audio connector (10-1 pin FP_AUDIO1)
Page
5
5
Digital audio connector (4-1 pin SPDIF_OUT1)
Speak out connector (4-pin SPEAK1)
Power LED Lead (3-1 pin PLED1) * มีเฉพาะรุนตั้งแต PCB 1.03 ขึ้นไปจะให 2 Connectors สําหรับใชงานตอไฟหนาเคส
Page
6
6
Block Diagram Chipset : SiS661FX / SiS963L
Chipset Information Status :
Page
7
7

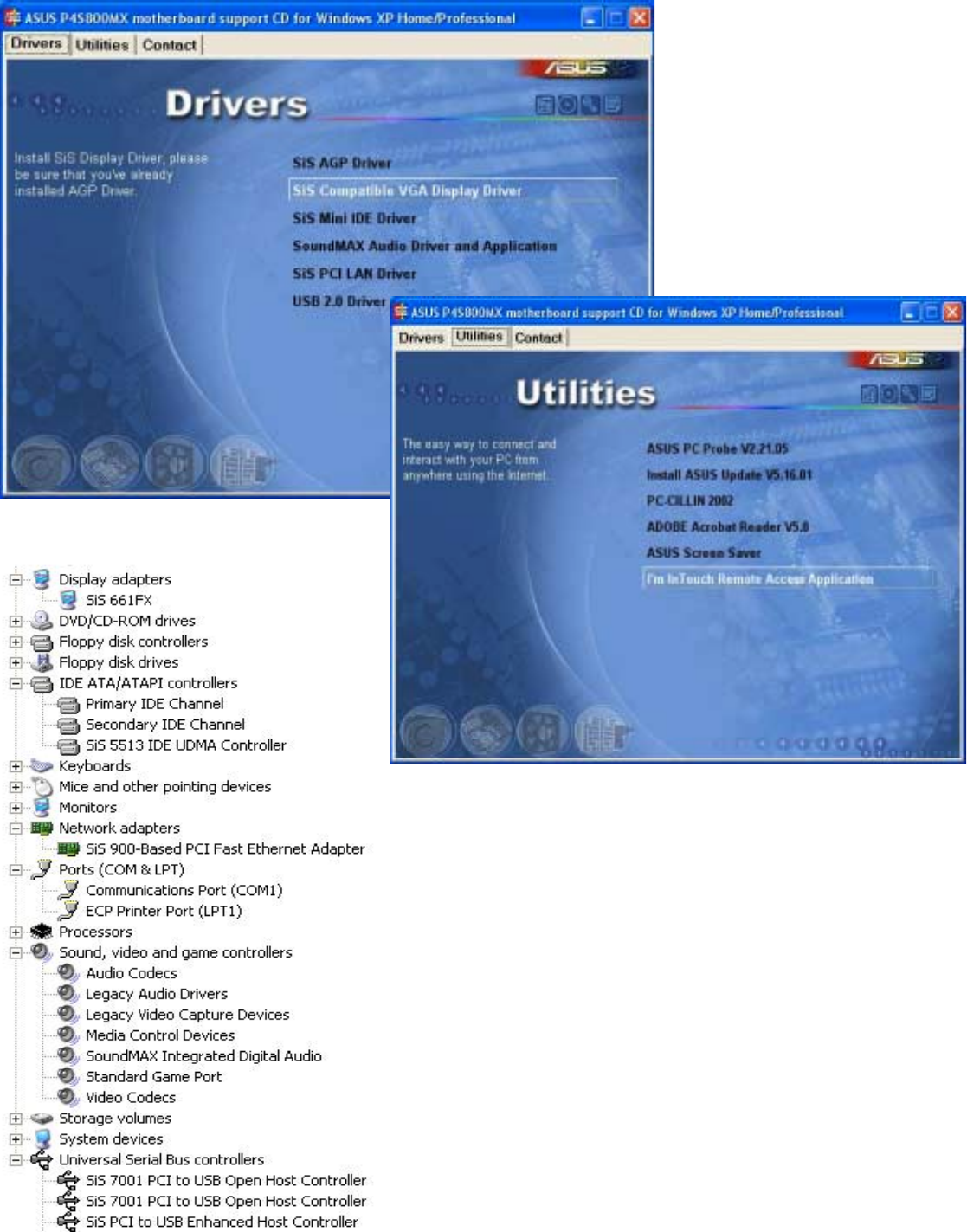

Installation / การติดตั้งและการใชงาน CD Driver Rev.66.01 (M352)
My Computer System Device Managers
Page
8
8

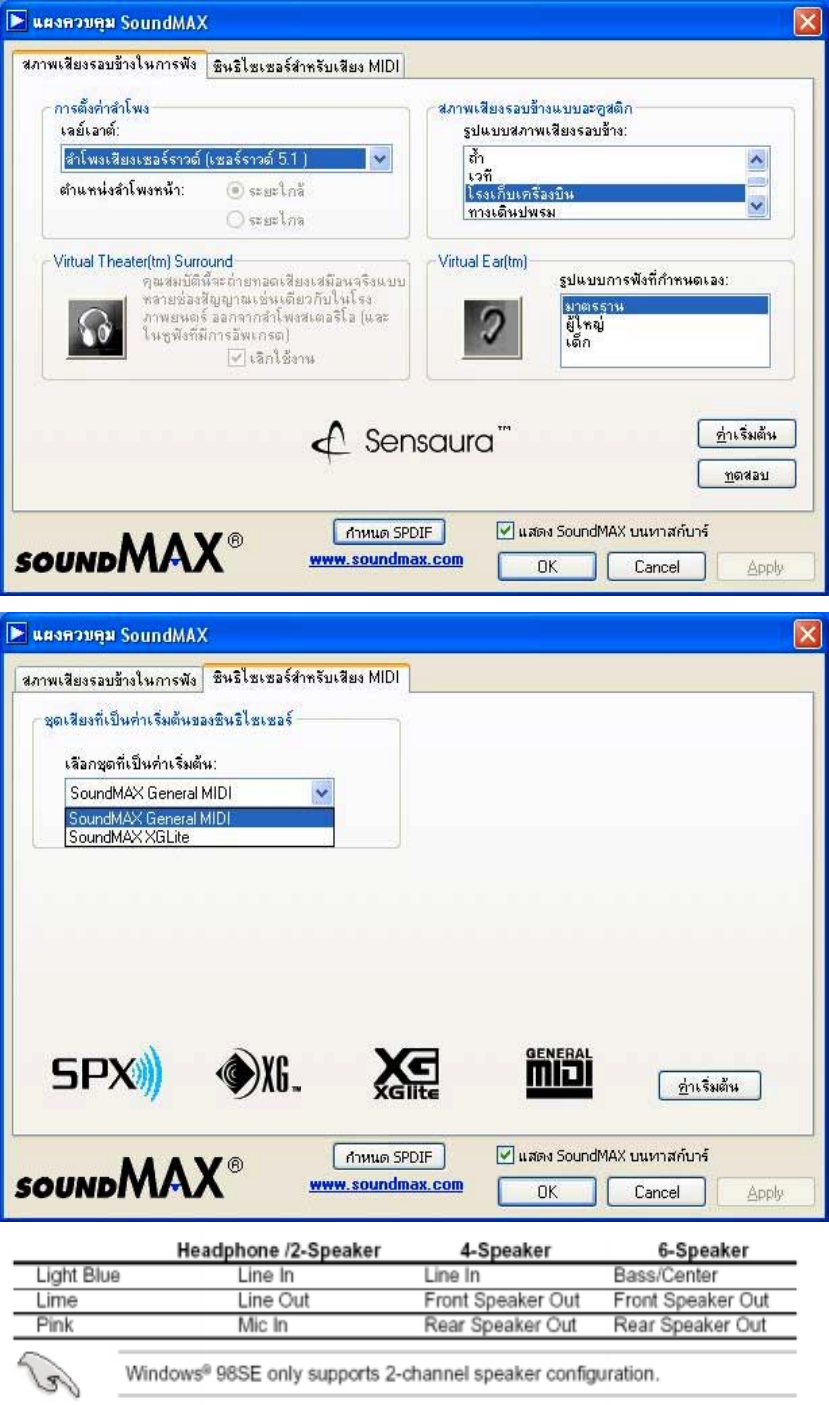

SoundMAX ADI AD1888 6-Channel AC’97 Audio Codec (การตั้งคาลําโพงใหม ตองรีสตารทเครื่องใหมทุกครั้ง)
Page
9
9
การทดสอบ
- ทดสอบติดตั้งกับ OS-Software Application ตางๆดังนี้ Win98SE, WinME, W2K SP3, WinXP Pro SP1
- ทดสอบติดตั้งกับ CPU Speed Pentium 4 Socket478 1.9GHz / 2.4B GHz / 2.80C GHz
- ทดสอบกับ VGA Card Asustek V9950/TD DDR 128MB AGP8X
- ทดสอบกับ Hard Disk ST340014A
- ทดสอบกับ Memory ติดตั้ง Memory ทุก BANK
- ทดสอบประสิทธิภาพของ Main Board โดยใช Software Benchmark
Testing / ผลการทดสอบ :
CPU
Pentium IV 1.9GHz (Socket478) FSB400
Pentium IV 2.4BGHz (Socket478) FSB533
Pentium IV 2.80C GHz (Socket478) FSB800
Pass
Pass
Pass
M/B Temperature : 25-30 องศา C
CPU Temperature : 35-48 องศา C
Memory DDR400 Support FSB 533/800 MHz
2x DDR SDRAM 256MB PC2700 Kingmax
1x DDR SDRAM 256MB PC3200 Kingmax MBAR
2x DDR SDRAM 256MB PC3200 Samsung PAA
Pass
Pass
Pass
VGA High Performance 333MHz RAMDAC
Onboard Share Memory (32MB / 64 MB)
Max. Res. 2048x1536x32@75 Hz
Pass For Win NT4.0 ( Driver Non-Support, Non-Include )
External AGP VGA Card 4X/8X Support
ASUS V9950/TD AGP8X DDR 128MB
Pass
HardDisk
ST340014A ATA100 PATA
For Win ME, Win2000 Pro SP4 , Win98SE, WinXP Pro SP1
Pass
Integrated LAN PHY On-board Controller
VIA® 6103L 10/100 Mbps Fast Ethernet
Pass
Sound On-board
ADI AD1888 6-CH AC’97 CODEC Audio
Pass
CD-ROM
LiteOn 52X
For Win ME, Win2000 Pro , Win98SE, WinXP Pro SP1
Pass
USB
Onboard SiS 963L USB 2.0/1.1 6 Ports
Pass (KingMax USB Flash Drive 128 MB)
Software OS
Windows ME / 98SE / NT4.0
Windows 2000Pro SP3 / XP Pro SP1
Linux TLE 5.0 (Kernel 2.40)
Nick Karaoke Pro
Pass
Pass
Pass
Pass
Page
10
10

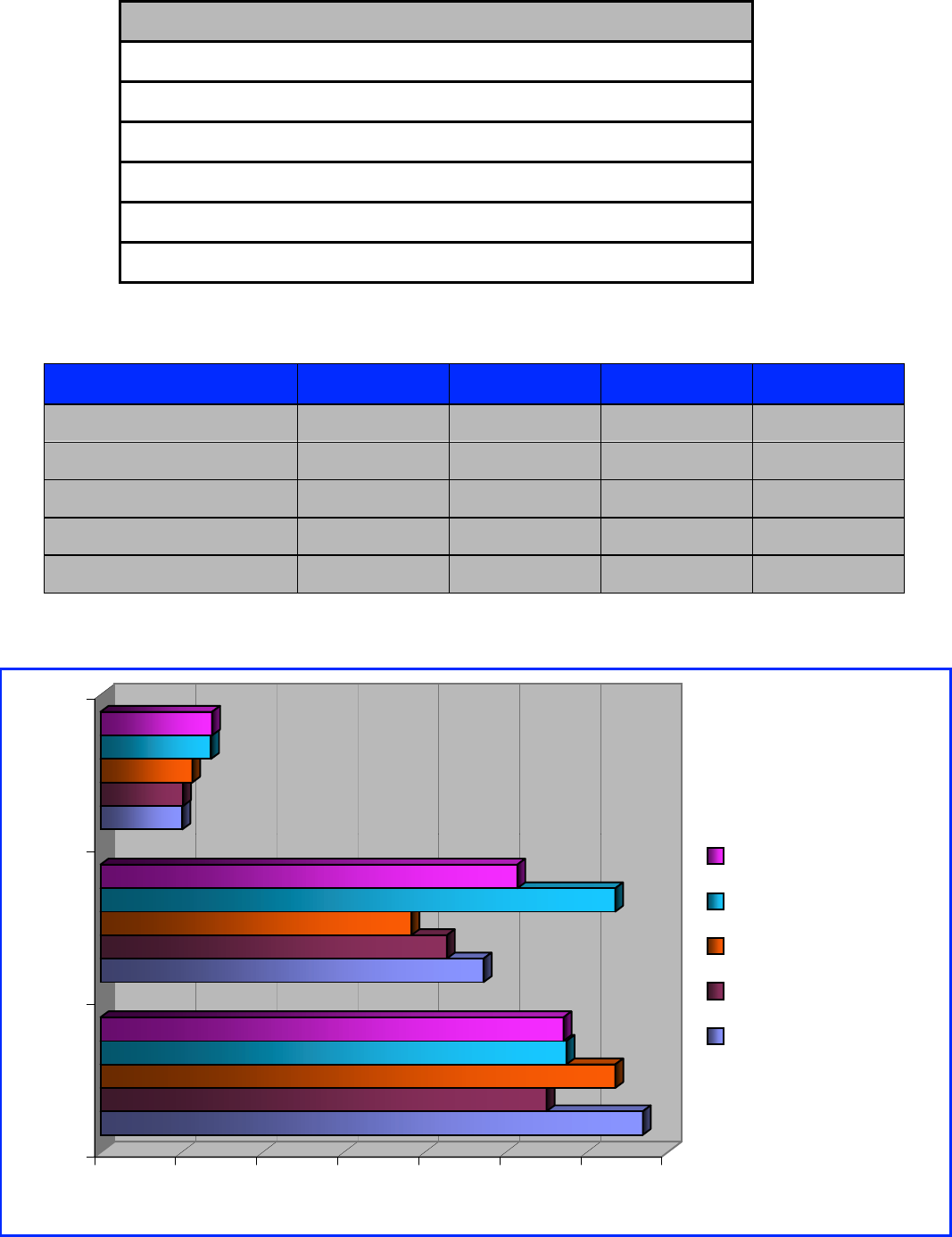

Spec ในการทดสอบประสิทธิภาพ
SPEC ในการทดสอบ
CPU Pentium IV 2.4B / 2.80C GHz FSB 533/800 MHz
Windows ME/XP Pro SP1 , DirectX (8.1,9.0b) , Driver VGA ASUS 44.71 Non-WHQL
VGA On-board SiS Real256E Share Memory 32MB,64MB AGP4X
VGA Asustek V9950TD DDR 128MB AGP8X
Hard Disk ST340014A 7200 rpm
DDR SDRAM 2x256MB PC3200 KINGMAX MPXB62D-38KX3 PAA Gold PCB
Performance / ประสิทธิภาพในการทํางาน
Sisoft Sandra Pro 2003.1.9.26 P4B533-VM 2.8 P4P800-VM 2.4B P4S800-MX 2.4B ES-676M 2.4B
CPU Arithmetic Benchmark 4916 / 1839 / 3695 4124 / 1558 / 3094 4087 / 1563 / 3100 4575 / 1824 / 3670
CPU Multi-Media Benchmark 11205 / 14223 9360 / 11911 9382 / 11940 11106 / 14107
File System Benchmark 27556 36598 35915 27897
Memory Bandwidth Benchmark 1622 / 1559 3058 / 2890 2375 / 2372 1570 / 1491
Cache & Memory Benchmark 30758 25888 25963 30576
PC Mark 2002 Pro Build 100
6695
5506 6355
5752
5717
4729
4276
3838 6354
5146
1010
1019
1133
1364
1378
0 1000 2000 3000 4000 5000 6000 7000
CPU
Memory
Harddisk
P4S800-MX SMA32 2.4B
P4P800-VM 2.4B
DFI PM12-TC 2.4B
ES-676M 2.4B
P4B533-VM 2.8
Page
11
11
1306 2511
1470 3574
2760
1051 1882
1090 3364
2234
714 1585
704 2688
1632
464 835
456 1873
1105
0 500 1000 1500 2000 2500 3000 3500 4000
640x480x32
800x600x32
1024x768x32
1280x1024x32
P4S800-MX SMA32 2.4B
P4P800-VM SMA32 2.4B
DFI PM12-TC SMA32 2.80GHz
P4B533-VM SMA8 2.80GHz
ES-676M SMA32 2.80GHz

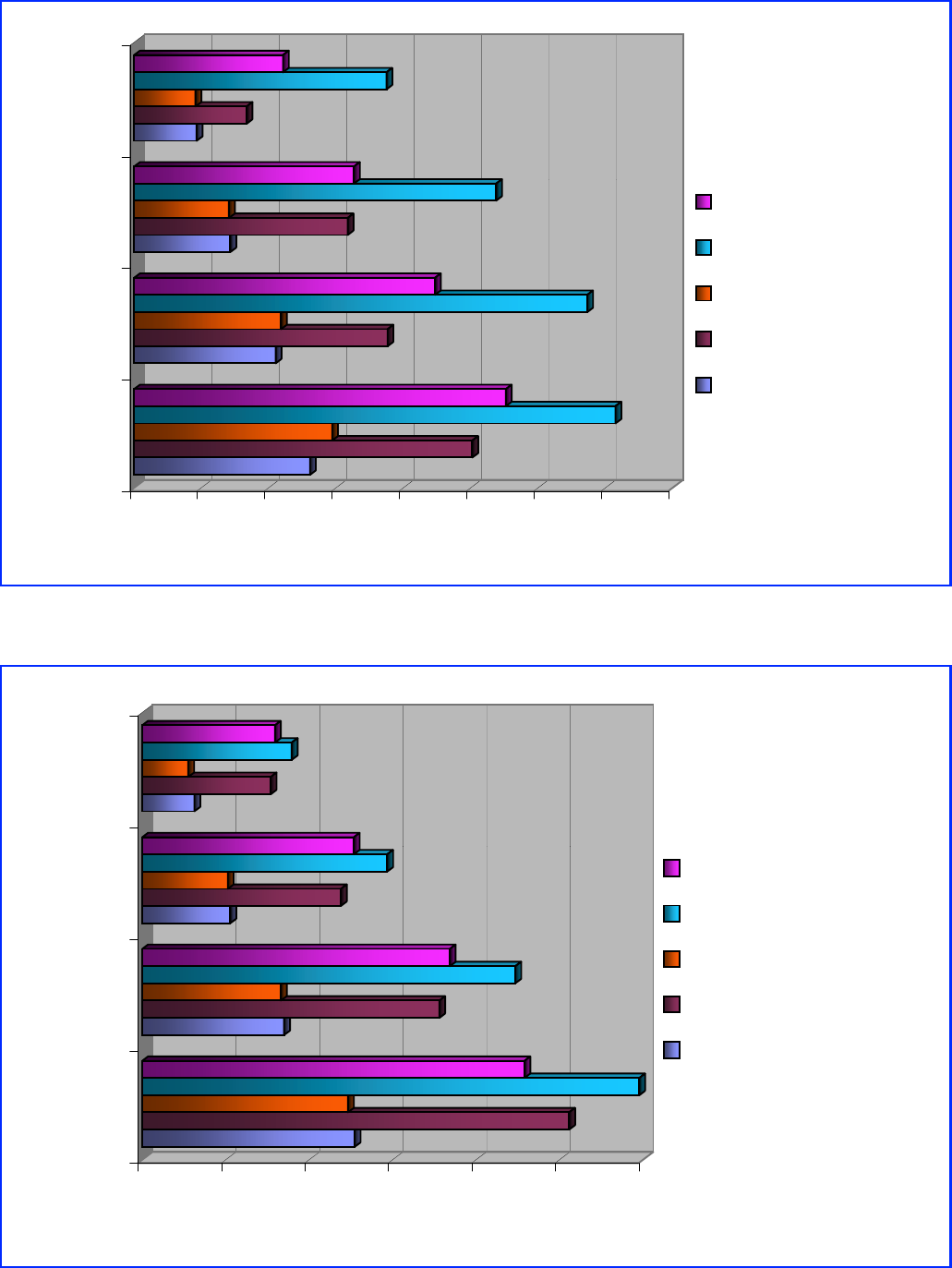

3D Mark 2001SE Build 330
Quake III Arena 1.11
50.9 102.3
49.3 119.1
91.6
34 71.2
33.2 89.4
73.7
21.1 47.6
20.5 58.7
50.7
12.5 30.8
11 35.8
31.8
0 20 40 60 80 100 120
640x480x16
800x600x16
1024x768x16
1280x1024x16
P4S800-MX SMA32 2.4B
P4P800-VM SMA32 2.4B
DFI PM12-TC SMA32 2.80GHz
P4B533-VM SMA8 2.80GHz
ES-676M SMA32 2.80GHz
Page
12
12

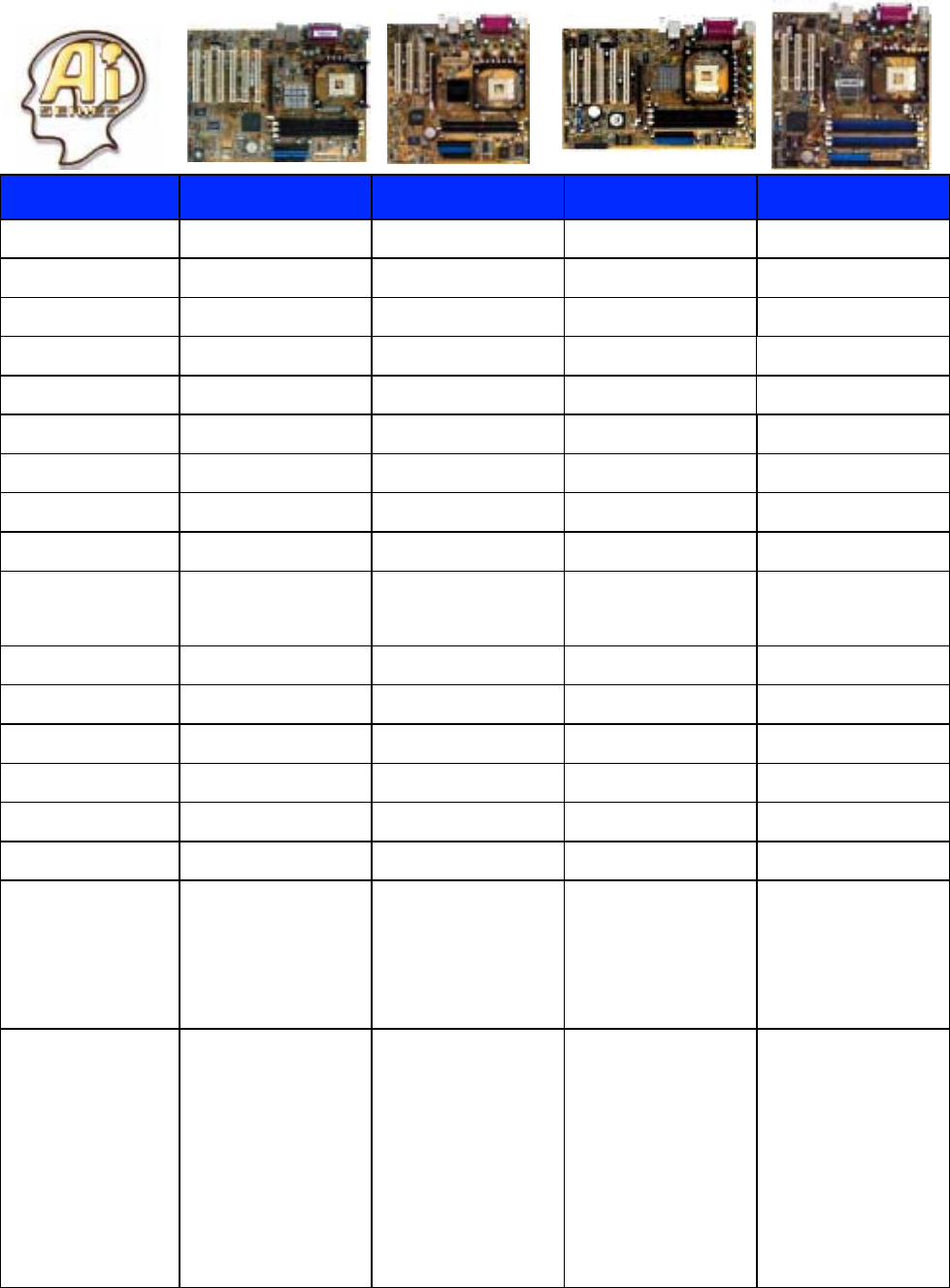

Comparison / ตารางเปรียบเทียบ Main Board
Model P4PE-X P4S800-MX P4V800-X P4P800-VM
North Bridge 82845PE MCH SiS 661FX VIA PT800 82865G GMCH
South Bridge 82801DB ICH4 SiS 963L VIA VT8237 82801EB ICH5
North / South Bridge 266MB/s 533MB/s 533MB/s 266MB/s
Processor Pentium 4 HYPT Pentium 4 HYPT Pentium 4 HYPT Pentium 4 HYPT
Front Side Bus 800*/533/400 MHz 800/533/400 MHz 800/533/400 MHz 800/533/400 MHz
Memory DDR PC3200/2700/2100/1600 Singel DDR PC3200 Singel DDR PC3200 Dual DDR PC3200
Max. Memory 4 GB 2GB 3GB 4GB
AGP Support AGP 4X 1.5V Only AGP 8X 1.5V Only AGP 8X 0.8/1.5V Only AGP 8X 0.8/1.5V Only
IDE ATA100 ATA 133 ATA 133 ATA 100
Sound Onboard ADI AD1980 6-CH AC’
97 Codec, S/P DIF-Out
ADI AD1888 6-CH AC’
97 Codec, S/P DIF-Out
ADI AD1980 6-CH AC’
97 Codec, S/P DIF-Out
ADI AD1980 6-CH AC’
97 Codec, S/P DIF-Out
PCI Device / Slot 6 3 PCI 5 PCI 3 PCI
LAN BroadCOM 4401 VIA 6103L 10/100 Realtek RTL8201BL Intel 82562EZ 10/100
Serial Port 2 1 1 2
USB 6 USB 2.0/1.1 6 USB 2.0/1.1 8 USB 2.0/1.1 8 USB 2.0/1.1
VIA IEEE 1394 - - - -
Serial-ATA - - Yes Yes
Bios Features JumperFree™ ,
CrashFree Bios2 & CPR
EZ-Flash
Over Clocking
JumperFree™ ,
CrashFree Bios & CPR
EZ-Flash
JumperFree™ ,
CrashFree Bios 2 & CPR
EZ-Flash
Over Clocking
JumperFree™ ,
CrashFree Bios 2 & CPR
EZ-Flash
Special Features MyLogo
S/P DIF out interface
Power Loss Restart
Power Loss Restart
S/PDIF out interface
EZ Flash™
Single-Channel Memory
MyLogo™
Power Loss Restart
S/PDIF out interface
EZ Flash™
SATA RAID 0,1, JBOD
Single-Channel Memory
MyLogo2™
Power Loss Restart
S/PDIF out interface
EZ Flash™
Serial-ATA
Dual-Channel Memory
Page
13
13

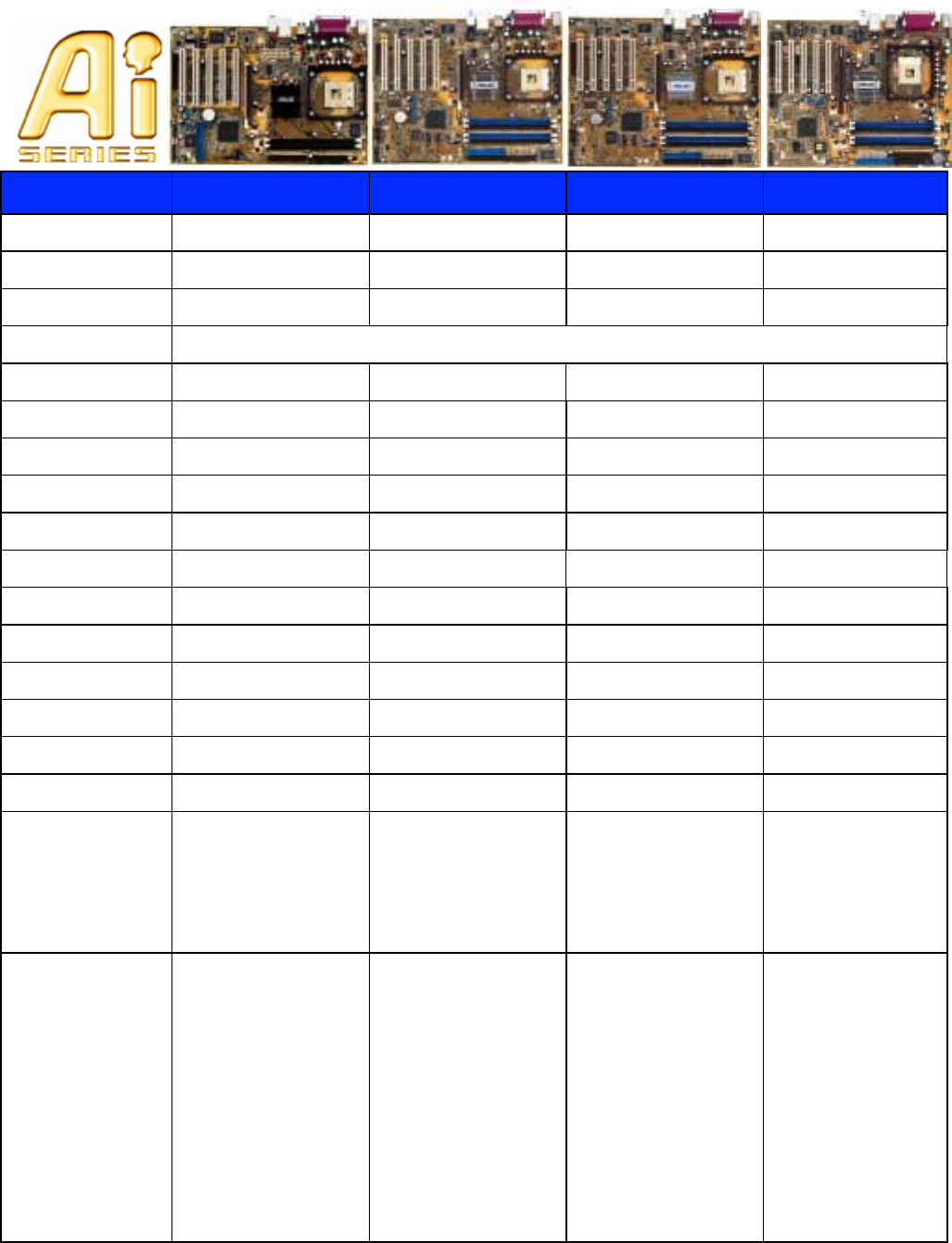

Model P4P800S P4P8X P4P800 P4C800
North Bridge 82848P MCH 82865P MCH 82865PE MCH 82875P
South Bridge 82801EB ICH5 82801EB ICH5 82801ER ICH5R 82801ER ICH5R
North / South Bridge 266MB/s 266MB/s 266MB/s 266MB/s
Processor Socket 478 Pentium 4 HYPT Prescott CPU up to 3.6 GH+
Front Side Bus 800/533/400 MHz 800*/533/400 MHz 800/533/400 MHz 800/533/400 MHz
Memory DDR Single DDR PC3200/2700 Dual DDR PC3200/2700 Dual DDR PC3200 Dual DDR PC3200
Max. Memory 2GB 4GB 4GB 4GB
AGP Support AGP 8X 0.8/1.5V Only AGP 8X 0.8/1.5V Only AGP 8X 0.8/1.5V Only AGP 8X 0.8/1.5V Only
IDE ATA 100 ATA 100 ATA 100 ATA 100
Sound Onboard ADI1888 6-CH AC’97 ADI1985 6-CH AC’97 ADI1985 6-CH AC’97 ADI1985 6-CH AC’97
PCI Device / Slot 5 PCI, 1 WiFi 5 PCI, 1 WiFi 5 PCI, 1 WiFi 5 PCI, 1 WiFi
LAN Realtec RTL8100C 10/100 3COM 3C940 Gbit 3COM 3C940 Gbit 3COM 3C940 Gbit
Serial Port 1 2 2 2
USB 8 USB 2.0/1.1 8 USB 2.0/1.1 8 USB 2.0/1.1 8 USB 2.0/1.1
VIA IEEE 1394 - - - -
Serial-ATA ! ! ! !
Bios Features JumperFree™ , CrashFree
Bios 2 & CPR
EZ-Flash
AI Over Clocking
JumperFree™ , CrashFree
Bios 2 & CPR
EZ-Flash
AI Over Clocking
JumperFree™ , CrashFree
Bios 2 & CPR
EZ-Flash
AI Over Clocking
JumperFree™ ,
CrashFree Bios 2 & CPR
EZ-Flash
AI Over Clocking
Special Features
Instant Music~Lite
Power Loss Restart
S/PDIF out interface
EZ Flash™
Q-Fan technology
Serial-ATA
Single-Channel Memory
Intelligent CPU Tuner
AI NET, AI Audio
Power Loss Restart
S/PDIF out interface
EZ Flash™
Q-Fan technology
Serial-ATA
Dual-Channel Memory
Intelligent CPU Tuner
AI NET, AI Audio
Power Loss Restart
S/PDIF out interface
EZ Flash™
Q-Fan technology
Serial-ATA RAID 0,1
Dual-Channel Memory
Intelligent CPU Tuner
AI NET, AI Audio
Power Loss Restart
S/PDIF out interface
EZ Flash™
Q-Fan technology
Serial-ATA RAID 0,1
Dual-Channel Memory
Intelligent CPU Tuner
Page
14
14
SiS MuTIOL® Media I/O Family - Comparison Chart
South Bridge 961 961B 962 962L 963 963L 964
MuTIOL® 533MB/s 533MB/s 533MB/s 533MB/s 1GB/s 1GB/s 1GB/s
AC 97 Interface O O O O O O O
Fast Ethernet /
Home Network O O O O O O O
ATA 133 N/A O O O O O O
USB 2.0 N/A N/A O O O O O
USB port 6 6 6 6 6 6 8
IEEE 1394a N/A N/A O N/A O N/A N/A
Serial ATA & RAID
Function N/A N/A N/A N/A N/A N/A O
Chipsets P4X266 P4X266A P4M266 P4M266A P4X400 SiS661FX SiS645DX SiS648
Northbridge VT8753 VT8753A VT8751 VT8751A VT8754 SiS661FX SiS645DX SiS648
Southbridge VT8233, VT8233C or
VT8233A VT8233 VT8235 VT8235 SiS963L SiS961B SiS963
System Bus 400MHz 400MHz 400/533MHz 400/533MHz 400/533/800MHz 400/533MHz 400/533MHz
Bridges
Interconnect V-Link Hub
Architecture V-Link Hub Architecture V-Link Hub
Architecture MuTIOL MuTIOL MuTIOL
Peak Interconnect
Bandwidth 266MB/s 533MB/s 533MB/s 1GB/s 533MB/s 1GB/s
Max. Memory 4GB 2GB 3GB 2GB 3GB 3GB
Memory Type DDR200/266
PC100/133 SDRAM DDR200/266 DDR266/333/400 DDR266/333/400 DDR266/333 DDR266/333
2.1GB/s
Peak Memory
Bandwidth 1.06GB/s 2.1GB/s 3.2GB/s 3.2GB/s 2.7GB/s 2.7GB/s
Max. PCI Slots 5 3 6 6 6 6
USB Support 1.1 1.1 2.0 2.0 2.0 1.1 2.0
Max. USB Ports 6 6 6 6 8 (6 Ports) 6 6
AGP Transfer Rate 4x 4x 4x 8x 4x 4x 8X
ATA Transfer Rate
(MB/s) 100 @ VT8233,8233C
133 @ VT8233A 100 133 133 133 133 133
Page
15
15
จุดเดน
- Support CPU Intel Pentium4 / Celeron / Prescott Socket 478 FSB. 800/533/400 MHz Up to 3.6GHz+ (HYPT)
- Support Single Channel Memory DDR400 Ram Max.2 GB PC3200/2700/2100 unbuffered non-ECC DDR
- Support ASUS® JumperFree, ASUS® CrashFree BIOS, ASUS® EZ Flash™, ASUS MyLogo™
- Sound AC’97 SoundMax AD1888 6-ch Codec S/PDIF-out interface Int. (Optional)
- Support VGA On-board SiS Real256E Share Memory (Ultra-AGPII™ Technology) up to 3.2 GB/s with DDR400
- Support External AGP 8X/4X 1.5 Volt Only with Lock Card Control
- Support Universal Serial Bus 2.0/1.1 แตสามารถเชื่อมตอไดเพียง จํานวน 6 พอรตเทานั้น
- Support STR (Suspend-to-RAM), ASUS® C.P.R. (CPU Parameter Recall) , Power Loss Restart
- Support Wake-On-LAN, Wake-On-Modem, Wake-On-PCI Device , Wake-On KB & Mouse, Wake-On-USB
- ระบบเสียงสามารถเลน Karaoke ได
ขอควรระวัง
- ควรศึกษาคูมือการใชงานโดยละเอียดกอนการติดตั้งทุกครั้ง
- ควรใช Power Supply ATX 2.03 12V หรือ Micro ATX 2.03 12V เทานั้น

Navigation menu
