Asus P5Ql Em Motherboard Micro Atx Users Manual

2014-12-12

: Asus Asus-P5Ql-Em-Motherboard-Micro-Atx-Users-Manual-118942 asus-p5ql-em-motherboard-micro-atx-users-manual-118942 asus pdf

Open the PDF directly: View PDF .
Page Count: 64

About this guide
Notices
P5QL-EM specifications summary
Safety information
Chapter 1
- Product introduction
Chapter 2
- BIOS information

Motherboard

P5QL-EM

E4403

Third Edition V3

December 2008

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

iii

Contents

Notices ......................................................................................................... vi

Safety information ..................................................................................... vii

About this guide ........................................................................................ vii

P5QL-EM specications summary ............................................................ ix

Chapter 1 Product introduction

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents ......................................................................... 1-1

1.3 Special features ............................................................................ 1-1

1.3.1 Product highlights ........................................................... 1-1

1.3.2 ASUS Special features ................................................... 1-2

1.4 Before you proceed ..................................................................... 1-4

1.5 Motherboard overview ................................................................. 1-5

1.5.1 Placement direction ........................................................ 1-5

1.5.2 Screw holes .................................................................... 1-5

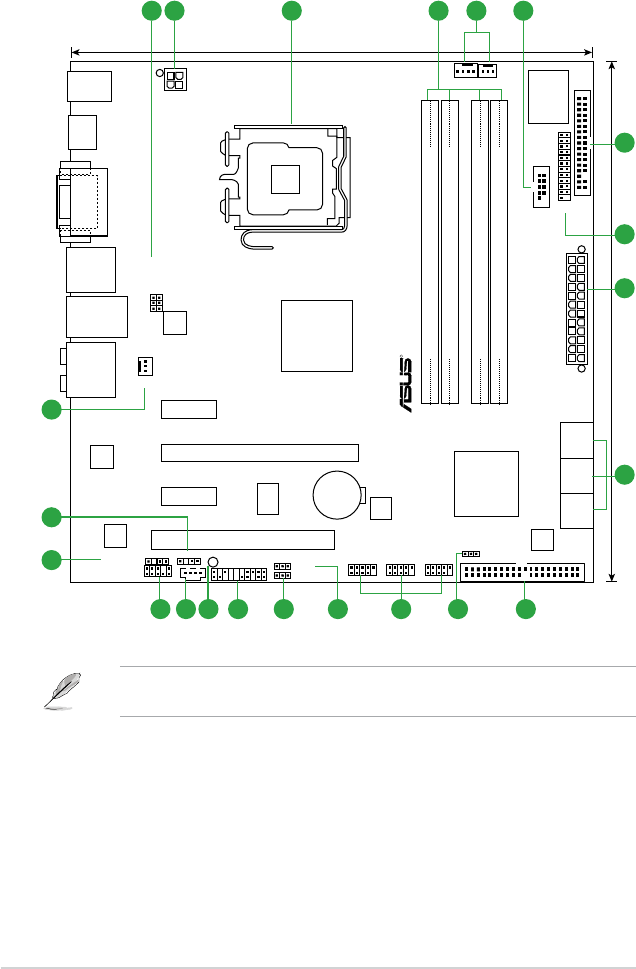

1.5.3 Motherboard layout ......................................................... 1-6

1.5.4 Layout contents ............................................................... 1-7

1.6 Central Processing Unit (CPU) ................................................... 1-7

1.6.1 Installing the CPU ........................................................... 1-8

1.6.2 Installing the CPU heatsink and fan .............................. 1-10

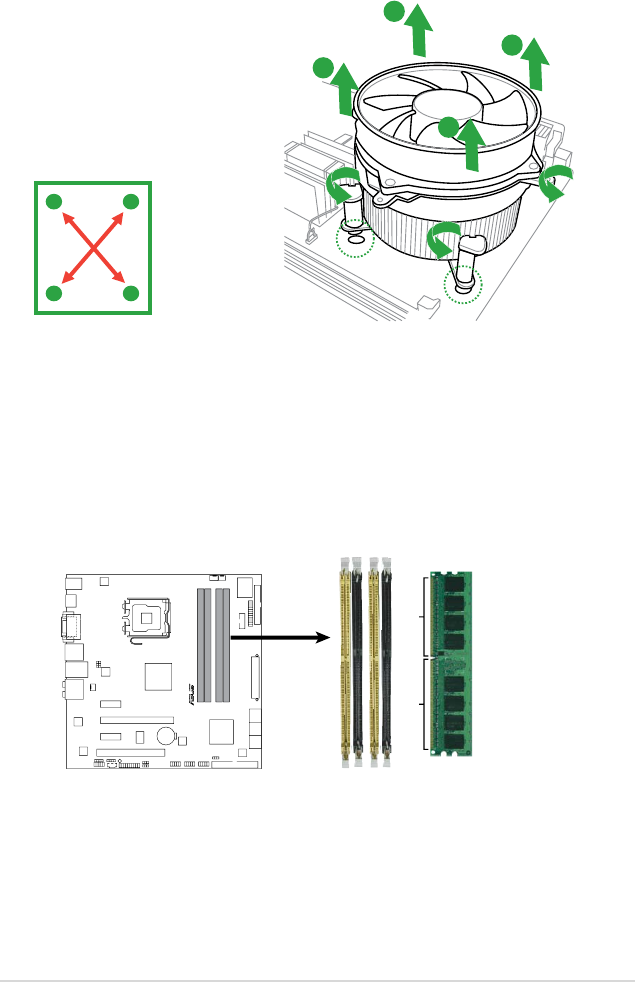

1.6.3 Uninstalling the CPU heatsink and fan ..........................1-11

1.7 System memory ......................................................................... 1-11

1.7.1 Overview ........................................................................1-11

1.7.2 Memory congurations .................................................. 1-12

1.7.3 Installing a DIMM .......................................................... 1-16

1.7.4 Removing a DIMM ........................................................ 1-16

1.8 Expansion slots .......................................................................... 1-17

1.8.1 Installing an expansion card ......................................... 1-17

1.8.2 Conguring an expansion card ..................................... 1-17

1.8.4 PCI slots ........................................................................ 1-17

1.8.5 PCI Express x1 slot ....................................................... 1-17

1.8.6 PCI Express x16 slot ..................................................... 1-17

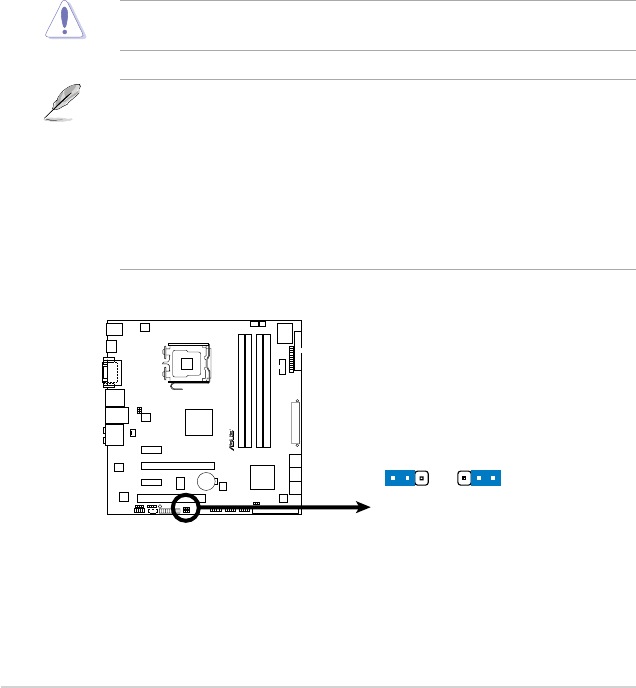

1.9 Jumper ........................................................................................ 1-18

1.10 Connectors ................................................................................. 1-20

1.10.1 Rear panel connectors .................................................. 1-20

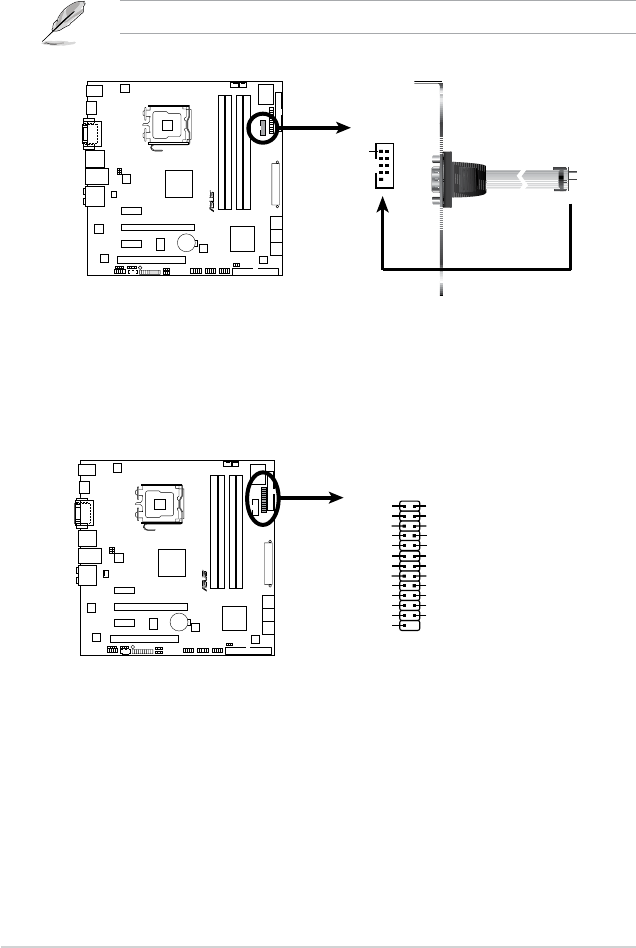

1.10.2 Internal connectors ....................................................... 1-22

Contents

1.11 Software support ........................................................................ 1-29

1.11.1 Installing an operating system ...................................... 1-29

1.11.2 Support DVD information .............................................. 1-29

Chapter 2 BIOS information

2.1 Managing and updating your BIOS ............................................ 2-1

2.1.1 ASUS Update utility ........................................................ 2-1

2.1.2 Creating a bootable oppy disk ....................................... 2-2

2.1.3 ASUS EZ Flash 2 utility ................................................... 2-3

2.1.4 AFUDOS utility ................................................................ 2-4

2.1.5 ASUS CrashFree BIOS 3 utility ...................................... 2-5

2.2 BIOS setup program .................................................................... 2-7

2.2.1 BIOS menu screen .......................................................... 2-8

2.2.2 Menu bar ......................................................................... 2-8

2.2.3 Navigation keys ............................................................... 2-8

2.2.4 Menu items ..................................................................... 2-9

2.2.5 Sub-menu items .............................................................. 2-9

2.2.6 Conguration elds ......................................................... 2-9

2.2.7 Pop-up window ............................................................... 2-9

2.2.8 Scroll bar ......................................................................... 2-9

2.2.9 General help ................................................................... 2-9

2.3 Main menu .................................................................................. 2-10

2.3.1 System Time ................................................................. 2-10

2.3.2 System Date ................................................................. 2-10

2.3.3 Legacy Diskette A ......................................................... 2-10

2.3.4 SATA 1~6 ...................................................................... 2-10

2.3.5 Storage Conguration ....................................................2-11

2.3.6 System Information ........................................................2-11

2.4 Advanced menu ......................................................................... 2-12

2.4.1 JumperFree Conguration ............................................ 2-12

2.4.2 CPU Conguration ........................................................ 2-13

2.4.3 Chipset .......................................................................... 2-15

2.4.4 Onboard Devices Conguration .................................... 2-16

2.4.5 USB Conguration ........................................................ 2-16

2.4.6 PCI PnP ........................................................................ 2-17

2.5 Power menu ................................................................................ 2-17

Contents

2.5.1 Suspend Mode .............................................................. 2-18

2.5.2 ACPI 2.0 Support .......................................................... 2-18

2.5.3 ACPI APIC Support ....................................................... 2-18

2.5.4 APM Conguration ........................................................ 2-18

2.5.5 Hardware Monitor ......................................................... 2-19

2.6 Boot menu .................................................................................. 2-19

2.6.1 Boot Device Priority ...................................................... 2-20

2.6.2 Boot Settings Conguration .......................................... 2-20

2.6.3 Security ......................................................................... 2-20

2.7 Tools menu ................................................................................. 2-22

2.7.1 ASUS EZ Flash 2 .......................................................... 2-22

2.7.2 Express Gate ................................................................ 2-22

2.7.3 AI NET 2........................................................................ 2-23

2.8 Exit menu .................................................................................... 2-23

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

•

This device may not cause harmful interference, and

•

This device must accept any interference received including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with manufacturer’s instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus set out in the Radio Interference Regulations of the Canadian Department

of Communications.

This class B digital apparatus complies with Canadian ICES-003.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority

to operate this equipment.

DO NOT throw the motherboard in municipal waste. This product has been designed to

enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin

indicates that the product (electrical and electronic equipment) should not be placed in

municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol

of the crossed out wheeled bin indicates that the battery should not be placed in municipal

waste.

vii

Safety information

Electrical safety

•

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

•

When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you add a device.

•

Before connecting or removing signal cables from the motherboard, ensure that all

power cables are unplugged.

•

Seek professional assistance before using an adpater or extension cord. These devices

could interrupt the grounding circuit.

• Make sure that your power supply is set to the correct voltage in your area. If you are

not sure about the voltage of the electrical outlet you are using, contact your local power

company.

•

If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all the manuals

that came with the package.

•

Before using the product, make sure all cables are correctly connected and the power

cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may become wet.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it

supports.

• Chapter 2: BIOS information

This chapter tells how to change system settings through the BIOS Setup menus.

Detailed descriptions of the BIOS parameters are also provided.

viii

Where to nd more information

Refer to the following sources for additional information and for product and software

updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the

standard package.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used

throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself

when trying to complete a task.

CAUTION: Information to prevent damage to the components

when trying to complete a task.

NOTE: Tips and additional information to help you complete a

task.

IMPORTANT: Instructions that you MUST follow to complete a

task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means

that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or

Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key

names are linked with a plus sign (+).

Example: <Ctrl>+<Alt>+<D>

Command Means that you must type the command exactly as shown,

then supply the required item or value enclosed in brackets.

Example: At the DOS prompt, type the command line:

afudos /i[lename]

afudos /iP5QLEM.ROM

P5QL-EM specications summary

(continued on the next page)

CPU LGA775 socket for Intel® Core™ 2 Quad / Core™ 2 Duo

/ Core ™ 2 Extreme / Pentium® Extreme / Pentium® D

/ Pentium® 4 / Celeron® processors

Supports Intel® next generation 45nm CPU

Supports Enhanced Intel SpeedStep® Technology (EIST)

Supports Intel® Hyper-Threading Technology

*Refer to www.asus.com for Intel CPU support list

Chipset Intel G43

Intel ICH10

Front Side Bus 1333 / 1066 / 800 MHz

Memory Dual-channel memory architecture

4 x 240-pin DIMM sockets support unbufferred non-ECC

DDR2-1066 (O.C.) / 800 / 667 / memory

modules

Supports up to 8 GB system memory

* Due to chipset limitation, this motherboard only

supports up to the total of four ranks(four sides in total)

of RAM at max.

* Supports two DIMM modules only for yellow DIMMs

when overclock to DDR2-1066.

Graphics Integrated Intel GMA X4500 graphics with DirectX10

support

Maximum shared memory of 352MB

Supports HDMI™ Technology with HDCP compliant with

max. resolution 1920 x 1080p (@ 60Hz)

Supports DVI-D with HDCP compliant with max.

resolution 1900 x 1200 (@60Hz)

Supports RGB with max. resolution 2048 x 1536 (@75Hz)

Dual VGA output support

DVI & RGB

RGB & HDMI

DVI & HDMI

Expansion Slots 1 x PCI Express x16 slot

2 x PCI Express x1 slots

1 x PCI slot

Supports PCIe 2.0/1.0 Architecature

LAN PCIe Gb LAN controller featuring AI NET 2

USB Max. 12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports

at back panel)

BIOS features 8 MB Flash ROM, AMI BIOS, Special H/W write protection,

PnP, DMI v2.0, WfM2.0, SMBIOS 2.5, ACPI

Audio Realtek ALC1200 8-channel High Denition Audio

CODEC

Supports S/PDIF out interface

Audio Jack-dectect, Multi-Streaming and Jack-Retasking

Technology

P5QL-EM specications summary

*Specications are subject to change without notice.

Storage ICH10 Southbridge:

- 6 x Serial ATA 3Gb/s devices

Ext PATA and SATA controller supports:

- 1 x UltraDMA 133/100 for up to 2 PATA devices

- 1 x External Serial ATA 3Gb/s (SATA On-the-go)

ASUS overclocking

features

SFS (Stepless Frequency Selection):

- FSB turning from 200MHz up to 600MHz at 1MHz

increment

ASUS C.P.R. (CPU Parameter Recall)

ASUS Special Features ASUS CrashFree BIOS 3

ASUS Q-Fan

ASUS EZ Flash 2

ASUS MyLogo 2

ASUS AI Nap

ASUS EPU

ASUS Express Gate

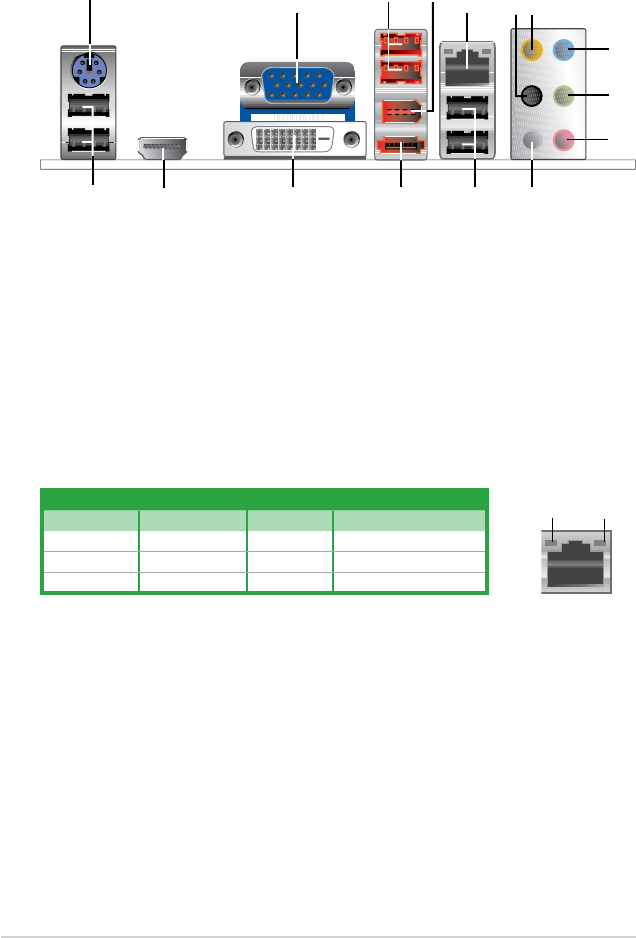

Rear panel 1 x DVI port

1 x HDMI port

1 x VGA port

1 x External Serial ATA

1 x IEEE 1394a port

1 x PS/2 Mouse / Keyboard port

1 x LAN (RJ45) port

6 x USB 2.0/1.1 ports

8-channel Audio I/O port

Internal connectors 1 x High denition Front Panel Audio connector

1 x S/PDIF out connector

1 x Chassis intrusion connector

1 x System panel connector

3 x USB connectors for additional six USB 2.0 ports

1 x CPU/ 1 x Chassis/ 1 x Power Fan connector

1 x CD audio in connector

1 x Floppy disk drive connector

1 x IDE connector

1 x COM connector

1 x LPT connector

1 x 24-pin ATX power connector

1 x 4-pin ATX 12 V power connector

Manageability WOL by PME, WOR by PME, WOR by Ring

Support DVD Drivers

ASUS PC Probe II

ASUS LiveUpdate Utility

Supported OS Windows Vista/XP

Accessories 2 x Serial ATA cables

1 x 2 in 1 Serial ATA power cable

1 x UltraDMA 133/100 cable

1 x FDD cable

1 x I/O shield

User manual

Form factor uATX Form Factor: 9.6 in x 9.6 in (24.4 cm x 24.4 cm)

ASUS P5QL-EM 1-1

Chapter 1

Product introduction

1.1 Welcome!

Thank you for buying an ASUS® P5QL-EM motherboard!

The motherboard delivers a host of new features and latest technologies, making it another

standout in the long line of ASUS quality motherboards!

Before you start installing the motherboard, and hardware devices on it, check the items in

your package with the list below.

1.2 Package contents

Check your motherboard package for the following items.

If any of the above items is damaged or missing, contact your retailer.

1.3 Special features

1.3.1 Product highlights

Green ASUS

This motherboard and its packaging comply with the European Union’s Restriction on the

use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating

environment-friendly and recyclable products/packaging to safeguard consumers’ health

while minimizing the impact on the environment.

LGA775 Intel® Core™2 and Quad-core Processor Ready

This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It

also can support Intel® next generation 45nm Multi-Core CPU. With new Intel® Core™

microarchitecture technology and 1333/1066/800 MHz FSB, Intel® Core™2 processor is one

of the most powerful and efcient CPU in the world.

Motherboard ASUS P5QL-EM motherboard

Cables 2 x Serial ATA cables

1 x Ultra DMA 133 / 100 cable

1 x 2 in 1 Serial ATA power cable

1 x Floppy disk drive cable

Accessories 1 x I/O shield

Application DVD ASUS motherboard support DVD

Documentation User Manual

1-2 Chapter 1: Product introduction

Dual channel DDR2 1066(O.C.)

The motherboard supports DDR2 memory that features data transfer rates of 667 / 800 / 1066

(overclocking) MHz to meet the higher bandwidth requirements of the latest 3D graphics,

multimedia, and Internet applications.

PCIe 2.0 support

This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth

which enhances system performance.

HDMI™ Interface

HDMI (High-Denition Multimedia Interface) is the rst and only industry-supported,

uncompressed, all digital audio and video interface via a single cable and is HDCP compliant

allowing playback of HD DVD, Blu-ray Disc and other protected content.The interface of this

motherboard supports dual VGA output both HDMI and RGB.

Serial ATA 3 Gb/s technology and SATA-On-the-Go

This motherboard supports next-generation SATA hard drives based on the Serial

ATA(SATA) 3Gb/s storage specication,delivering enhanced scalability and doubling the bus

bandwidth for high -speed data retrieval and saves.The external SATA port located at the

back I/O provide smart setup and hot-plug function.Easily backup photos,videos and other

entertainment contents to external devices.

High Denition Audio

Enjoy high-quality sound system on your PC! The onboard 8-channel HD audio (High

Denition Audio, previously codenamed Azalia) CODEC enables high-quality audio output,

jack-detect feature automatically.

IEEE 1394a

IEEE 1394a interface provides high speed digital interface for audio/video appliances such as

digital television, digital video camcorders, storage peripherals & other PC portable devices.

Uses 100% All High-quality conductive Polymer Capacitors!

This motherboard uses all high-quality conductive polymer capacitors onboard for durability,

improved lifespan, and enhanced thermal capacity.

1.3.2 ASUS Special features

ASUS EPU

The ASUS EPU utilizes innovative technology to digitally monitor and netune the CPU

power supply with improved VR responses in heavy or light loadings.

ASUS P5QL-EM 1-3

ASUS AI Nap

Minimize noise and power consumption when temporarily away! With AI Nap, users can

instantly snooze your PC without terminating the tasks. System will continue operating at

minimum power and noise when user is temporarily away. It keeps downloading les or

running applications in quietest state while you´re sleeping. Simply click keyboard or mouse,

you can swiftly wake up the system in few seconds.

ASUS Q-Fan technology

The ASUS Q-Fan technology smartly adjusts the fan speeds according to the system loading

to ensure quiet, cool, and efcient operation.

C.P.R.(CPU Parameter Recall)

When the system hangs due to overclocking failure, there is no need to open the case to

clear CMOS data. Just simply restart the system, the BIOS would show the previous setting

and then users can amend the CPU setting again.

ASUS MyLogo2™

This feature allows you to convert your favorite photo into a 256-color boot logo for a more

colorful and vivid image on your screen. See page 2-20 for details.

ASUS EZ Flash 2

EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predened hotkey to launch

the utility and update the BIOS without entering the OS. Update your BIOS easily without

preparing a bootable diskette or using an OS-based ash utility. See page 2-3 for details.

ASUS CrashFree BIOS 3

The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB

ash disk containing the BIOS le. This utility saves users’ the cost and hassle of buying a

replacement BIOS chip.

ASUS Express Gate

Taking only 5 seconds to go online from bootup, Express Gate is the one-stop gateway to

instant fun! It’s a unique motherboard built-in OS. You can utilize the most popular Instant

Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch

with friends, or quickly check on the weather and E-mails just before leaving your house.

What’s more, the user-friendly picture manager lets you view your pictures without entering

Windows at anytime!

• The actual boot time depends on the system conguration.

• ASUS Express Gate supports le uploading from SATA HDDs, ODDs and USB drive

and downloading to USB drives only.

1-4 Chapter 1: Product introduction

1.4 Before you proceed

Take note of the following precautions before you install motherboard components or change

any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Use a grounded wrist strap or touch a safely grounded object or a metal object, such

as the power supply case, before handling components to avoid damaging them due to

static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the

bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is

switched off or the power cord is detached from the power supply. Failure to do so may

cause severe damage to the motherboard, peripherals, and/or components.

Onboard LED

The motherboard comes with a standby power LED that lights up to indicate that the

system is ON, in sleep mode, or in soft-off mode. This is a reminder that you must

shut down the system and unplug the power cable before removing or plugging in any

motherboard component. The illustration below shows the location of the onboard LED.

P5QL-EM Onboard LED

P5QL-EM

SB_PWR

Standby

Power

OFF

Powered

Off

ASUS P5QL-EM 1-5

1.5 Motherboard overview

Before you install the motherboard, study the conguration of your chassis to ensure that the

motherboard ts into it.

Ensure that you unplug the power cord before installing or removing the motherboard.

Failure to do so can cause you physical injury and damage motherboard components.

1.5.1 Placement direction

When installing the motherboard, make sure that you place it into the chassis in the correct

orientation. The edge with external ports goes to the rear part of the chassis as indicated in

the image below.

1.5.2 Screw holes

Place eight screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards

the rear of the chassis

P5QL-EM

1-6 Chapter 1: Product introduction

1.5.3 Motherboard layout

Refer to 1.10 Connectors for more information about rear panel ports and internal

connectors.

P5QL-EM

24.4cm(9.6in)

PCIEX16

PCIEX1_2

PCI1

PCIEX1_1

USB1112 USB910

USBPW9-12

USBPW78

USB78

PS2_USBPW5-6

USBPW1-4

8Mb

BIOS

Super I/O

CR2032 3V

Lithium Cell

CMOS Power

24.4cm(9.6in)

PS/2KBMS

USB56

RTL

81111C

LGA775

PWR_FAN

CPU_FAN

Intel ICH10

Marvell

6111B2

Intel G43

FLOPPY

COM1

SATA12

SATA34

SATA56

CLRTC

SB_PWR

DDR2 DIMM_A1 (64 bit,240-pin module)

DDR2 DIMM_A2 (64 bit,240-pin module)

DDR2 DIMM_B1 (64 bit,240-pin module)

DDR2 DIMM_B2 (64 bit,240-pin module)

PANEL

JMB381

PRI_EIDE

RTM870T-945

ALC1200

LPT

AAFP

SPDIF_OUT CHASSIS

LAN1_USB12

1394

ESATA

USB34

AUDIO

HDMI

DVI_VGA

CHA_FAN

ATX12V

EATXPWR

2 3 31 54 6

1012113141516

ASUS P5QL-EM 1-7

1.5.4 Layout contents

Connectors/Jumpers/Slots Page

1. USB device wake-up (3-pin PS2_USBPW) 1-19

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-27

3. LGA775 CPU Socket 1-7

4. DDR2 DIMM slots 1-11

5. CPU, Chassis, and Power fan connectors (4-pin CPU_FAN, 3-pin

CHA_FAN, 3-pin PWR_FAN))

1-24

6. Serial port connectors (10-1 pin COM1) 1-26

7. Floppy disk drive connector (34-1 pin FLOPPY) 1-22

8. LPT connector (26-1 pin LPT) 1-26

9. ICH10 Serial ATA connectors (7-pin SATA1-6) 1-22

10. IDE connector (40-1 pin PRI_EIDE) 1-23

11. USB connectors (10-1 pin USB78, USB910, and USB1112) 1-24

12. Clear RTC RAM (3-pin CLRTC) 1-18

13. System panel connector (20-8 pin PANEL) 1-28

14. Standby power LED 1-4

15. Optical drive audio connector (4-pin CD) 1-27

16. Front panel audio connector (10-1 pin AAFP) 1-25

17. Digital audio connector (4-1 pin SPDIF_OUT) 1-23

18. Chassis intrusion connector (4-1 pin CHASSIS) 1-25

1.6 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA775 socket designed for the Core™2

Quad / Core™2 Extreme / Core™2 Duo / Pentium® D / Pentium® Extreme / Pentium® 4 and

Celeron® processors.

• Ensure that all power cables are unplugged before installing the CPU.

• Connect the chassis fan cable to the CHA_FAN connector to ensure system stability.

• Upon purchase of the motherboard, make sure that the PnP cap is on the socket and

the socket contacts are not bent. Contact your retailer immediately if the PnP cap

is missing, or if you see any damage to the PnP cap/socket contacts/motherboard

components. ASUS will shoulder the cost of repair only if the damage is shipment/

transit-related.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

Authorization (RMA) requests only if the motherboard comes with the cap on the

LGA775 socket.

• The product warranty does not cover damage to the socket contacts resulting from

incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP

cap.

1-8 Chapter 1: Product introduction

1.6.1 Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

Before installing the CPU, ensure that the socket box is facing towards you and the load

lever is on your left.

To prevent damage to the socket

pins, do not remove the PnP cap

unless you are installing a CPU.

2. Press the load lever with your thumb

(A), then move it to the left (B) until it is

released from the retention tab.

4. Lift the load plate with your thumb and

forenger to a 100º angle (4A), then

push the PnP cap from the load plate

window to remove (4B).

3. Lift the load lever in the direction of the

arrow to a 135º angle.

Load lever

Retention tab

Load plate

PnP cap

P5QL-EM

CPU Socket 775

P5QL-EM

ASUS P5QL-EM 1-9

5. Position the CPU over the socket,

ensuring that the gold triangle is on the

bottom-left corner of the socket then t

the socket alignment key into the CPU

notch.

6. Apply several drops of Thermal Interface

Material to the exposed area of the CPU

that the heatsink will be in contact with,

ensuring that it is spread in an even thin

layer.

DO NOT eat the Thermal Interface Material. If it gets into your eyes or touches your skin,

ensure that you wash it off immediately, and seek professional medical help.

Some heatsinks come with pre-

applied thermal paste. If so, skip this

step.

To prevent contaminating the paste, DO NOT spread the paste with your nger directly.

7. Close the load plate (A), then push

the load lever (B) until it snaps into the

retention tab.

The motherboard supports Intel®

LGA775 processors with the

Intel® Enhanced Intel SpeedStep®

Technology (EIST) and Hyper-

Threading Technology.

Gold

triangle

mark

Alignment key

CPU notch

1-10 Chapter 1: Product introduction

1.6.2 Installing the CPU heatsink and fan

The Intel® LGA775 processor requires a specially designed heatsink and fan assembly to

ensure optimum thermal condition and performance.

•

When you buy a boxed Intel® processor, the package includes the CPU fan and

heatsink assembly. If you buy a CPU separately, ensure that you use only Intel®-certied

multi-directional heatsink and fan.

• Your Intel® LGA775 heatsink and fan assembly comes in a push-pin design and requires

no tool to install.

• If you purchased a separate CPU heatsink and fan assembly, make sure that you have

properly applied Thermal Interface Material to the CPU heatsink or CPU before you

install the heatsink and fan assembly.

Ensure that you have installed the motherboard to the chassis before you install the CPU

fan and heatsink assembly.

The type of CPU heatsink and fan assembly may differ, but the installation steps and

fucntions should remain the same. The illustration above is for reference only.

To install the CPU heatsink and fan:

1. Place the heatsink on top of the installed

CPU, making sure that the four fasteners

match the holes on the motherboard.

2. Push down two fasteners at a time in a

diagonal sequence to secure the heatsink

and fan assembly in place.

3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.

Do not forget to connect

the CPU fan connector!

Hardware monitoring errors

can occur if you fail to plug

this connector.

P5QL-EM CPU

Fan Connector

P5QL-EM

CPU_FAN

GND

CPU FAN PWR

CPU FAN IN

CPU FAN PWM

ASUS P5QL-EM 1-11

1.6.3 Uninstalling the CPU heatsink and fan

To uninstall the CPU heatsink and fan

1. Disconnect the CPU fan cable from

the connector on the motherboard.

2. Rotate each fastener

counterclockwise.

3. Pull up two fasteners at a time in

a diagonal sequence to disengage

the heatsink and fan assembly

from the motherboard.

4. Carefully remove the heatsink and fan assembly from the motherboard.

1.7 System memory

1.7.1 Overview

The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory Modules

(DIMM) sockets.

The gure illustrates the location of the DDR2 DIMM sockets:

P5QL-EM

240-pin DDR2 DIMM Sockets

P5QL-EM

128 Pins 112 Pins

DIMM_A2

DIMM_B1

DIMM_B2

DIMM_A1

1-12 Chapter 1: Product introduction

1.7.2 Memory congurations

You may install 256MB, 512MB, 1GB and 2GB unbuffered non-ECC DDR2 DIMMs into the

DIMM sockets.

• You may install varying memory sizes in Channel A and Channel B. The system maps

the total size of the lower-sized channel for the dual-channel conguration. Any excess

memory from the higher-sized channel is then mapped for single-channel operation.

• Always install DIMMs with the same CAS latency. For optimum compatibility, it is

recommended that you obtain memory modules from the same vendor.

• Due to the memory address limitation on 32-bit Windows OS, when you install 4GB

or more memory on the motherboard, the actual usable memory for the OS can be

about 3GB or less. For effective use of memory, we recommend that you install a 64-bit

Windows OS when having 4GB or more memory installed on the motherboard.

• Due to chipset limitation, this motherboard only supports up to the total of four ranks (four

sides in total) of RAM at max.

• This motherboard does not support DIMMs made up of 256 megabit (Mb) chips or less.

Mode DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

One DIMM DS/SS - - -

- DS/SS - -

- - DS/SS -

- - - DS/SS

Two DIMMs DS/SS - DS/SS -

DS/SS - - DS/SS

- DS/SS DS/SS -

- DS/SS - DS/SS

Three DIMMs SS SS DS/SS -

SS SS - DS/SS

DS/SS - SS SS

- DS/SS SS SS

Four DIMMs SS SS SS SS

• When using only one memory module, start installing the DDR2 DIMM from slot

DIMM_A1 or DIMM_B1 for better overclocking capability.

• For dual-channel conguration, you may:

- install identical DIMMs in all four sockets OR

- install identical DIMM pair in DIMM_A1 and DIMM_B1 (yellow sockets) and

another identical DIMM pair in DIMM_A2 and DIMM_B2 (black sockets)

• Always use identical DDR2 DIMM pairs for dual channel mode. For optimum

compatibility, we recommend that you obtain memory modules from the same vendor.

ASUS P5QL-EM 1-13

P5QL-EM Motherboard Qualied Vendors Lists (QVL)

DDR2-667MHz capability

(continued on the next page)

Size Vendor Part No. CL Chip

Brand

SS/

DS Chip No.

DIMM support

A* B* C*

512MB Kingston KVR667D2N5/512 N/A Hynix SS HY5PS12821EFP-Y5 • • •

1G Kingston KVR667D2N5/1G N/A Hynix DS HY5PS12821EFP-Y5 • •

2G Kingston KVR667D2N5/2G N/A Micron DS 7RE22 D9HNL • •

512MB Qimonda HYS64T64000EU-3S-B2 5 Qimonda SS HYB18T512B00B2F3SFSS28171 • • •

1G Qimonda HYS64T128020EU-3S-B2 5 Qimonda DS HYB18T512B00B2F3SFSS28171 • •

1G Corsair VS1GB667D2 N/A Corsair DS MID095D62864M8CEC • •

1G Corsair XMS2-5400 4 Corsair DS Heat-Sink Package • •

1G HY HYMP512U64CP8-Y5 AB 5 Hynix DS HY5PS12521CFP-Y5 • •

512MB Kingmax KLCC28F-A8KB5 N/A Kingmax SS KKEA88B4LAUG-29DX • • •

1G Kingmax KLCD48F-A8KB5 N/A Kingmax DS KKEA88B4LAUG-29DX • •

512MB Apacer AU512E667C5KBGC 5 Apacer SS AM4B5708GQJS7E06332F • • •

512MB Apacer 78.91G92.9K5 5 Apacer SS AM4B5708JQJS7E0751C • • •

1G Apacer 78.01G9O.9K5 5 Apacer SS AM4B5808CQJS7E0751C • • •

1G Apacer AU01GE667C5KBGC N/A Apacer DS AM4B5708GQJS7E0636B • •

1G Apacer AU01GE667C5KBGC 5 Apacer DS AM4B5708MIJS7E0627B • •

2G Apacer 78.A1G9O.9K4 5 Apacer DS AM4B5808CQJS7E0749B • •

1G Transcend 506010-4894 5 Elpida DS E5108AJBG-6E-E • •

512MB ADATA M2OAD5G3H3160Q1C52 N/A ADATA SS AD29608A8A-3EG20813 • • •

1G ADATA M2OAD5G314170Q1C58 N/A ADATA DS AD29608A8A-3EG80814 • •

2G ADATA M2OAD5H3J4170I1C53 N/A ADATA DS AD20908A8A-3EG 30724 • •

512MB PSC AL6E8E63J-6E1 5 PSC SS A3R12E3JFF717B9A00 • • •

1G PSC AL7E8E63J-6E1 5 PSC DS A3R12E3JFF717B9A01 • •

1G PSC AL7E8F73C-6E1 5 PSC SS A3R1GE3CFF734MAA0J • • •

512MB Nanya NT512T64U88A1BY-3C N/A Nanya SS NT5TU64M8AE-3C • • •

1G Nanya NT1GT64U8HB0BY-3C 5 Nanya DS NT5TU64M8BE-3C72155700CP • •

1G GEIL GX21GB5300SX 3 GEIL DS Heat-Sink Package • •

2G GEIL GX22GB5300LX 5 GEIL DS Heat-Sink Package • •

2G GEIL GX24GB5300LDC 5 GEIL DS Heat-Sink Package • •

1G(kit of 2) G.SKILL F2-5400PHU2-2GBNT 5-5-5-15 G.SKILL DS D2 64M8CCF 0815 C7173S • •

2G(kit of 2) G.SKILL F2-5300CL5D-4GBMQ 5-5-5-15 G.SKILL DS Heat-Sink Package • •

667 1G Super

Talent

T667UB1GV 5 Super

Talent

DS PG 64M8-800 0750 • •

512MB Twinmos 8D-A3JK5MPETP 5 PSC SS A3R12E3GEF633ACAOY • • •

4G Samsung M378T5263AZ3-CE6 N/A Samsung DS K4T2G084QA-HCE6 • •

1G Kingtiger E0736001024667 N/A Kingtiger DS KTG667PS6408NST-C6 GDBTX • •

1G ELIXIR M2Y1G64TU8HA2B-3C 5 ELIXIR DS M2TU51280AE-3C717095R28F • •

1G ELIXIR M2Y1G64TU8HBOB-3C 5 ELIXIR DS N2TU51280BE-3C639009W1CF • •

1G Leadmax LRMP512U64A8-Y5 N/A Hynix DS HY5PS12821CFP-Y5 C 702AA • •

DDR2-800MHz capability

Size Vendor Part No. CL Chip

Brand

SS/

DS Chip No. DIMM support

A* B* C*

1G Kingston KHX6400D2LL/1G N/A Kingston DS Heat-Sink Package • •

512MB Kingston KHX6400D2LLK2/1GN N/A Kingston SS Heat-Sink Package • • •

512MB Kingston KVR800D2N5/512 N/A Promos SS V59C1512804QCF25SY032406PECPA • • •

1G(Kit of 2) Kingston KHX6400D2K2/2G N/A Kingston DS Heat-Sink Package • •

512MB Kingston KVR800D2N6/512 N/A Elpida SS E5108AJBG-8E-E • • •

1G Kingston KVR800D2N6/1G N/A Elpida DS E5108AJBG-8E-E • •

2G Kingston KVR800D2N5/2G N/A Elpida DS E1108ACBG-8E-E • •

2G Kingston KHX6400D2/2G N/A Kingston DS Heat-Sink Package • •

4G Kingston KVR800D2N6/4G N/A Elpida DS E2108ABSE-8G-E • •

512MB Samsung M378T6553GZS-CF7 6 Samsung SS K4T51083QG-HCF7 • • •

1G Samsung M378T2863QZS-CF7 6 Samsung SS K4T1G084QQ-HCF7 • • •

1G Samsung M378T2953GZ3-CF7 6 Samsung DS K4T51083QG-HCF7 • •

2G Samsung M37875663QZ3-CF7 6 Samsung DS K4T1G084QQ-HCF7 • •

4G Samsung M378T5263AZ3-CF7 N/A Samsung DS K4T2G084QA-HCF7 • •

512MB Qimonda HYS64T64000EU-2.5-B2 6 Qimonda SS HYB18T512800B2F25FSS28380 • • •

1-14 Chapter 1: Product introduction

Size Vendor Part No. CL Chip

Brand

SS/

DS Chip No. DIMM support

A* B* C*

1G Qimonda HYS64T128020EU-2.5-B2 6 Qimonda DS HYB18T512800B2F25FSS28380 • •

1G Corsair XMS2-6400 4 Corsair DS Heat-Sink Package • •

1G Corsair XMS2-6400 5 Corsair DS Heat-Sink Package • •

2G(Kit of 2) Corsair CM2X2048-6400C5DHX 5 Corsair DS Heat-Sink Package • •

2G(Kit of 2) Corsair CM2X2048-6400C5 5 Corsair DS Heat-Sink Package • •

512MB HY HYMP564U64CP8-S5 AB 5 Hynix SS HY5PS12821CFP-S5 • • •

1G HY HYMP512U64CP8-S5 AB 5 Hynix DS HY5PS12821CFPS5 • •

512MB Kingmax KLDC28F-A8KI5 N/A Kingmax SS KKA8FF1XF-JFS-25A • • •

1G Kingmax KLDD48F-A8K15 N/A Kingmax DS KKA8FFIXF-HFS-25A • •

512MB Apacer 78.91G91.9K5 5 Apacer SS AM4B5708JQJS8E0751C • • •

1G Apacer 78.01GA0.9K5 5 Apacer SS AM4B5808CQJS8E0749D • • •

2G Apacer 78.A1GA0.9K4 5 Apacer DS AM4B5808CQJS8E0740E • •

2G Apacer 78.A1GA0.9K4 5 Apacer DS AM4B5808CQJS8E0747D • •

1G ADATA AD2800E001GU 444-

N/A SS Heat-Sink Package • • •

1G Transcend TS128MLQ64V8J 5 Mircon DS 7HD22D9GMH • •

512MB Transcend TS64MLQ64V8J512MB 5 Micron SS 7HD22 D9GMH • • •

1G Transcend TS128MLQ64V8J 5 Transcend DS TQ123PJF8F0801 • •

512MB ADATA M2OAD6G3H3160Q1E58 N/A ADATA SS AD29608A8A-25EG80812 • • •

512MB VDATA M2GVD6G3H3160Q1E52 N/A VDATA SS VD29608A8A-25EG20813 • • •

1G ADATA M2OAD6G314170Q1E58 N/A ADATA DS AD29608A8A-25EG80810 • •

1G VDATA M2GVD6G314170Q1E58 N/A VDATA DS VD29608A8A-25EG80813 • •

1G PSC AL7E8F73C-8E1 5 PSC SS A3R1GE3CFF734MAA0E • • •

2G PSC AL8E8F73C-8E1 5 PSC DS A3R1GE3CFF734MAA0E • •

1G GEIL GB22GB6400C4DC 4 GEIL DS GL2L64M088BA30EB • •

1G GEIL GB24GB6400C4QC 4 GEIL DS GL2L64M088BA30EB • •

1G GEIL GB22GB6400C5DC 5 GEIL DS GL2L64M088BA30EB • •

1G GEIL GB24GB6400C5QC 5 GEIL DS GL2L64M088BA30EB • •

1G GEIL GX22GB6400DC 5 GEIL DS Heat-Sink Package • •

1G GEIL GE22GB800C4DC 4 GEIL DS Heat-Sink Package • •

1G GEIL GE24GB800C4QC 4 GEIL DS Heat-Sink Package • •

1G GEIL GX22GB6400UDC 4 GEIL DS Heat-Sink Package • •

1G GEIL GE22GB800C5DC 5 GEIL DS Heat-Sink Package • •

1G GEIL GE24GB800C5QC 5 GEIL DS Heat-Sink Package • •

2G GEIL GB24GB6400C4DC 4 GEIL DS GL2L128M88BA25AB • •

2G GEIL GB24GB6400C5DC 5 GEIL DS GL2L128M88BA25AB • •

2G GEIL GB28GB6400C5QC 5 GEIL DS GL2L128M88BA25AB • •

2G GEIL GB28GB6400C4QC 4 GEIL DS GL2L128M88BA25AB • •

2G GEIL GX22GB6400LX 5 GEIL DS Heat-Sink Package • •

2G GEIL GX24GB6400DC 5 GEIL DS Heat-Sink Package • •

2G GEIL GE28GB800C5QC 5 GEIL DS Heat-Sink Package • •

2G GEIL GE28GB800C4QC 4 GEIL DS Heat-Sink Package • •

2G GEIL GX22GB6400CUSC 4 GEIL DS Heat-Sink Package • •

2G GEIL GE24GB800C4DC 4 GEIL DS Heat-Sink Package • •

2G GEIL GE24GB800C5DC 5 GEIL DS Heat-Sink Package • •

1G Super

Talent

T800UB1GC4 4 Super

Talent

DS Heat-Sink Package • •

1G G.SKILL F2-6400CL5D-2GBNQ 5 G.SKILL DS Heat-Sink Package • •

1G G.SKILL F2-6400CL4D-2GBPK 4 G.SKILL DS Heat-Sink Package • •

1G G.SKILL F2-6400CL4D-2GBHK 4 G.SKILL DS Heat-Sink Package • •

2G G.SKILL F2-6400CL5D-4GBPQ 5 G.SKILL DS Heat-Sink Package • •

2G G.SKILL F2-6400CL4D-4GBPK 4 G.SKILL DS Heat-Sink Package • •

512MB(Kit

of 2)

G.SKILL F2-6400CL5D-1GBNQ 5-5-

G.SKILL SS Heat-Sink Package • • •

1G OCZ OCZ2RPR8002GK 4 OCZ DS Heat-Sink Package • •

1G OCZ OCZ2G800R22GK 5 OCZ DS Heat-Sink Package • •

1G OCZ OCZ2P800R22GK 4 OCZ DS Heat-Sink Package • •

1G OCZ OCZ2VU8004GK 6 OCZ DS Heat-Sink Package • •

2G OCZ OCZ2P8004GK 5 OCZ DS Heat-Sink Package • •

1G Elixir M2Y1G64TU8HB0B-25C 5 Elixir DS N2TU51280BE-25C802006Z1DV • •

ASUS P5QL-EM 1-15

DDR2-1066MHz capability

Visit the ASUS website for the latest DDR2-667/800/1066(O.C.)MHz QVL.

Size Vendor Part No. CL Chip Brand SS/

DS Chip No. DIMM support

A* B* C*

512MB Kingston KHX8500D2/512 N/A Kingston SS Heat-Sink Package • •

512MB Kingston KVR1066D2N7/512 N/A Elpida SS E5108AJBG-1J-E • •

512MB Kingston KHX8500D2K2/1GN N/A Kingston SS Heat-Sink Package • •

1G Kingston KVR1066D2N7/1G N/A Elpida DS E5108AJBG-1J-E •

1G Kingston KHX8500D2/1G N/A Kingston DS Heat-Sink Package • •

1G Qimonda HYS64T128020EU-

19F-C

6 Qimonda DS HYB18T512800CF19FF

SS24313

• •

1G Kingmax KLED48F-A8K15 N/A Kingmax DS KKA8FFIXF-JFS-18A • •

1G Corsair CM2X1024-8500C5 N/A Corsair DS Heat-Sink Package • •

1G GEIL GB24GB8500C5QC 5 GEIL SS GL2L128M88BA25AB • •

1G GEIL GE22GB1066C5DC 5 GEIL DS Heat-Sink Package •

4G(kit of 2) GEIL GX24GB8500C5UDC 5 N/A DS Heat-Sink Package • •

2G(kit of 2) G.SKILL F2-8500CL5D-2GBPK 5-5-5-15 N/A DS Heat-Sink Package • •

4G(kit of 2) G.SKILL F2-8500CL5D-4GBPK 5-5-5-15 N/A DS Heat-Sink Package •

1G G.SKILL F2-8500CL5S-1GBPK 5-5-5-15 G.SKILL DS Heat-Sink Package • •

SS - Single-sided / DS - Double - sided

DIMM support:

• A*: Supports one module inserted into any slot as Single-channel memory

conguration.

• B*: Supports one pair of modules inserted into either the yellow slots or the black slots

as one pair of Dual-channel memory conguration (supports two DIMM modules

only for yellow DIMMs when overclock to DDR2-1066).

• C*: Supports 4 modules inserted into both the yellow and black slots as two pairs of

Dual-channel memory conguration.

1-16 Chapter 1: Product introduction

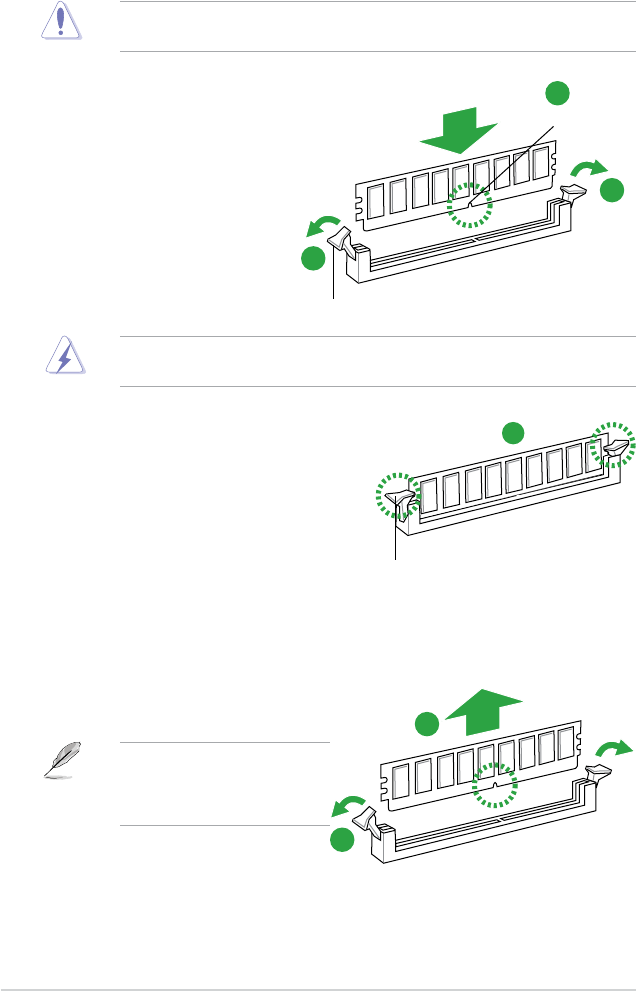

1.7.3 Installing a DIMM

Unplug the power supply before adding or removing DIMMs or other system components.

Failure to do so can cause severe damage to both the motherboard and the components.

1. Unlock a DDR2 DIMM

socket by pressing

the retaining clips

outward.

2. Align a DIMM on the

socket such that the

notch on the DIMM

matches the break on

A DDR2 DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a

DIMM into a socket to avoid damaging the DIMM.

3. Firmly insert the DIMM into the socket

until the retaining clips snap back in place

and the DIMM is properly seated.

1.7.4 Removing a DIMM

To remove a DIMM:

1. Simultaneously press the retaining clips

outward to unlock the DIMM.

2. Remove the DIMM from the socket.

Support the DIMM lightly with your

ngers when pressing the retaining

clips. The DIMM might get damaged

when it ips out with extra force.

Unlocked retaining clip

DDR2 DIMM notch

Locked Retaining Clip

DDR2 DIMM notch

ASUS P5QL-EM 1-17

1.8 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe

the slots and the expansion cards that they support.

Ensure to unplug the power cord before adding or removing expansion cards. Failure to do

so may cause you physical injury and damage motherboard components.

1.8.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and

make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later

use.

4. Align the card connector with the slot and press rmly until the card is completely

seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.8.2 Conguring an expansion card

After installing the expansion card, congure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for

information on BIOS setup.

2. Assign an IRQ to the card.

3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that

the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI

groups, making the system unstable and the card inoperable.

1.8.4 PCI slots

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that

comply with PCI specications.

1.8.5 PCI Express x1 slot

This motherboard supports PCI Express x1 network cards, SCSI cards and other cards that

comply with the PCI Express specications.

1.8.6 PCI Express x16 slot

This motherboard supports a PCI Express x16 graphics card that complies with the PCI

Express specications.

1-18 Chapter 1: Product introduction

1.9 Jumper

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can

clear the CMOS memory of date, time, and system setup parameters by erasing

the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in

CMOS, which include system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3

for about 5-10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter

data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default

position. Removing the cap will cause system boot failure!

• If the steps above do not help, remove the onboard battery and move the jumper again

to clear the CMOS RTC RAM data. After the CMOS clearance, reinstall the battery.

• You do not need to clear the RTC when the system hangs due to overclocking. For

system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut

down and reboot the system, then the BIOS automatically resets parameter settings to

default values.

• Due to the chipset limitation, AC power off is required before you use the C.P.R.

function. You must turn off and on the power supply or unplug and plug the power cord

before rebooting the system.

P5QL-EM

Clear RTC RAM

P5QL-EM

CLRTC

Normal Clear CMOS

(Default)

1 2 2 3

ASUS P5QL-EM 1-19

2. USB device wake-up (3-pin PS2_USBPW)

Set these jumpers to +5V to wake up the computer from S1 sleep mode (CPU stopped,

DRAM refreshed, system running in low power mode) using the connected USB

devices. Set to +5VSB to wake up from S3 and S4 sleep modes (no power to CPU,

DRAM in slow refresh, power supply in reduced power mode).

• The USB device wake-up feature requires a power supply that can

provide 500mA on the +5VSB lead for each USB port; otherwise,

the system would not power up.

• The total current consumed must NOT exceed the power supply

capability (+5VSB) whether under normal condition or in sleep mode.

P5QL-EM

USB Device Wake Up

P5QL-EM

USBPW1-4

+5V

(Default)

+5VSB

PS2_USBPW5-6

+5V

(Default)

+5VSB

USBPW9-12

+5V

(Default)

+5VSB

USBPW78

+5V

(Default)

+5VSB

1-20 Chapter 1: Product introduction

1.10 Connectors

1.10.1 Rear panel connectors

52 3 4 7

111213

1415

1. PS/2 mouse / keyboard port (green). This port is for a PS/2 mouse / keyboard.

2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

3. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0 devices.

4. IEEE1394a port. This 6-pin IEEE 1394a port provides high-speed connectivity for

audio/video devices, storage peripherals, PCs, or portable devices.

5. LAN (RJ-45) port. Supported by Marvell Gigabit LAN controller, this port allows Gigabit

connection to a Local Area Network (LAN) through a network hub. Refer to the table

below for the LAN port LED indications.

Activity/Link LED Speed LED

Status Description Status Description

OFF No link OFF 10 Mbps connection

ORANGE Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

LAN port LED indications

SPEED

LED

ACT/LINK

LED

LAN port

6. Rear Speaker Out port (black). This port connects the rear speakers in a 4-channel,

6-channel, or 8-channel audio conguration..

7. Center / Subwoofer port (orange). This port connects the center / subwoofer

speakers.

8. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio

sources.

9. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 6-

channel, and 8-channel conguration, the function of this port becomes Front Speaker

Out.

10. Microphone port (pink). This port connects a microphone.

ASUS P5QL-EM 1-21

11. Side Speaker Out port (gray). This port connects the side speakers in an 8-channel

audio conguration.

12. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0 devices.

13. External SATA port. This port connects to an external Serial ATA hard disk drive.

Audio 2, 4, 6, or 8-channel conguration

Port Headset

2-channel

4-channel 6-channel 8-channel

Light Blue Line In Line In Line In Line In

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Orange – – Center/Subwoofer Center/Subwoofer

Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out

Gray – – – Side Speaker Out

Refer to the audio conguration table below for the function of the audio ports in 2, 4, 6 or

8-channel conguration.

DO NOT insert different connectors to the external SATA port.

14. DVI port. This port is for any DVI-D compatible device. DVI-D can’t be converted to

output RGB Signal to CRT and isn’t compatible with DVI-I.

15. HDMI port. This port is for a High-Denition Multimedia Interface (HDMI) connector,

and is HDCP compliant allowing playback of HD DVD, Blu-Ray and other protected

content

• This motherboard

comes with dual-VGA output. If you connect 2 monitors to both VGA

and DVI-D / HDMI out ports, each controller can drive same or different display contents

to different resolutions and refresh rates.

• To play HD DVD or Blu-Ray Disc, ensure to use an HDCP compliant monitor.

Playback of HD DVD and Blu-Ray Discs

The speed and bandwidth of the CPU/Memory, DVD player, and drivers will affect

the playback quality. Using the CPU/Memory of higher speed and bandwidth with the

higher-version DVD player and drivers will upgrade the playback quality.

16. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0 devices.

1-22 Chapter 1: Product introduction

1.10.2 Internal connectors

1. Floppy disk drive connector (34-1 pin FLOPPY)

This connector is for the oppy disk drive (FDD) signal cable. Insert one end of the

cable to this connector, then connect the other end to the signal connector at the back

of the oppy disk drive.

• Pin 5 on the connector is removed to prevent incorrect cable connection when using a

FDD cable with a covered Pin 5.

P5QL-EM

Floppy Disk Drive Connector

P5QL-EM

NOTE: Orient the red markings on

the floppy ribbon cable to PIN 1.

PIN 1

FLOPPY

2. ICH10 Serial ATA connectors (7-pin SATA1, SATA2, SATA3, SATA4, SATA5,

SATA6)

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.

Connect the right-angle side of SATA

signal cable to SATA device. Or you

may connect the right-angle side of

SATA cable to the onboard SATA

port to avoid mechanical conict with

huge graphics cards.

right-angle side

P5QL-EM

SATA Connectors

P5QL-EM

GND

RSATA_TXP1

RSATA_TXN1

GND

RSATA_RXP1

RSATA_RXN1

GND

SATA1

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA_RXP2

RSATA_RXN2

GND

SATA2

GND

RSATA_TXP3

RSATA_TXN3

GND

RSATA_RXP3

RSATA_RXN3

GND

SATA3

GND

RSATA_TXP4

RSATA_TXN4

GND

RSATA_RXP4

RSATA_RXN4

GND

SATA4

GND

RSATA_TXP5

RSATA_TXN5

GND

RSATA_RXP5

RSATA_RXN5

GND

SATA5

GND

RSATA_TXP6

RSATA_TXN6

GND

RSATA_RXP6

RSATA_RXN6

GND

SATA6

ASUS P5QL-EM 1-23

4. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect

the S/PDIF Out module cable to this connector, then install the module to a slot

opening at the back of the system chassis.

The S/PDIF module is purchased separately.

3. IDE connector (40-1 pin PRI_EIDE)

The onboard IDE connector is for the Ultra DMA 133/100/66/33 signal cable. There are

three connectors on each Ultra DMA 133/100/66/33 signal cable: blue, black, and gray.

Connect the blue connector to the motherboard’s IDE connector, then select one of the

following modes to congure your device.

Drive jumper setting Mode of device(s) Cable connector

Single device Cable-Select or Master - Black

Two devices

Cable-Select Master Black

Slave Gray

Master Master Black or gray

Slave Slave

• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA

cable connector. This prevents incorrect insertion when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 133/100/66/33 IDE devices.

If any device jumper is set as

“Cable-Select,” make sure all other

device jumpers have the same

setting.

P5QL-EM

IDE Connector

P5QL-EM

NOTE: Orient the red markings

(usually zigzag) on the ID

ribbon cable to PIN 1.

PRI_EIDE PIN1

P5QL-EM

Digital Audio Connector

P5QL-EM

+5V

SPDIFOUT

GND

SPDIF_OUT

1-24 Chapter 1: Product introduction

5. CPU, Chassis, and Power fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN, 3-pin

PWR_FAN)

The fan connectors support cooling fans of a total of 1A~2.2A (26.4W max.) at +12V.

Connect the fan cables to the fan connectors on the motherboard, making sure that the

black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the

system may damage the motherboard components. These are not jumpers! DO NOT place

jumper caps on the fan connectors.

P5QL-EM

Fan Connectors

P5QL-EM

CPU_FAN

GND

CPU FAN PWR

CPU FAN IN

CPU FAN PWM

PWR_FAN

GND

Rotation

+12V

CHA_FAN

GND

Rotation

+12V

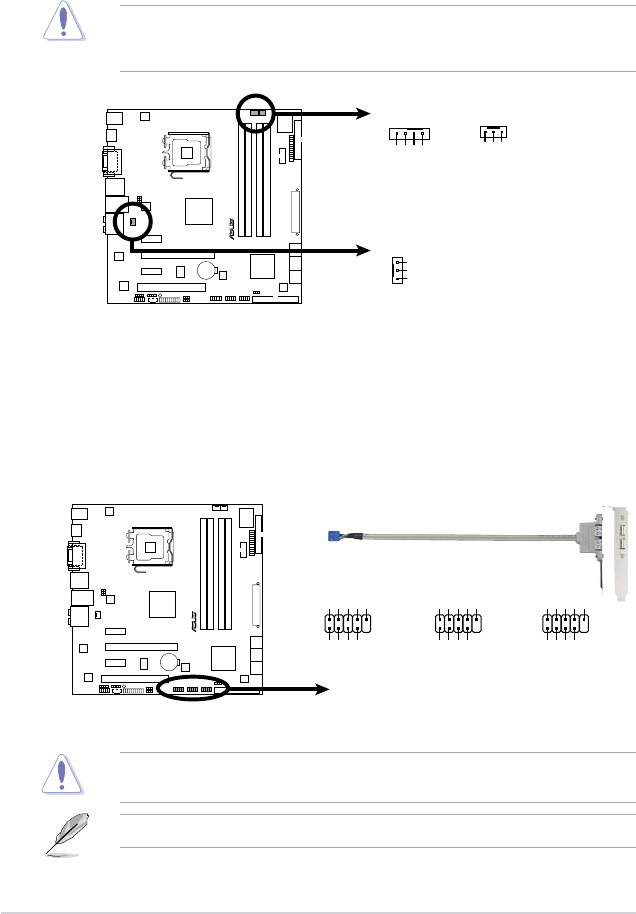

6. USB connectors (10-1 pin USB1112, USB910, USB78)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of

these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specication that supports up to

480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the

motherboard!

The USB module is purchased separately.

P5QL-EM

USB 2.0 Connectors

USB78

USB+5V

USB_P8-

USB_P8+

GND

USB+5V

USB_P7-

USB_P7+

GND

USB910

USB+5V

USB_P10-

USB_P10+

GND

USB+5V

USB_P9-

USB_P9+

GND

USB1112

USB+5V

USB_P12-

USB_P12+

GND

USB+5V

USB_P11-

USB_P11+

GND

ASUS P5QL-EM 1-25

7. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports

either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel

audio I/O module cable to this connector.

•

We recommend that you connect a high-denition front panel audio module to this

connector to avail of the motherboard’s high-denition audio capability.

• By default, this connector is set to HD Audio. If you want to connect an AC97 front panel

audio module to this connector, set the Front Panel Support Type item in the BIOS to

[AC97]. See section “2.4.4 Chipset” for details.

P5QL-EM

Front Panel Audio Connector

P5QL-EM

SENSE2_RETUR

PORT1L

PORT1R

PORT2R

SEBSE_SEND

PORT2L

SENSE1_RETUR

PRESENSE#

GND

AAFP

Legacy AC’97

compliant definition

MIC2

Line out_R

Line out_L

MICPWR NC

AGND

HD-audio-compliant

pin definition

8. Chassis intrusion connector (4-1 pin CHASSIS)

This connector is for a chassis-mounted intrusion detection sensor or switch. Connect

one end of the chassis intrusion sensor or switch cable to this connector. The chassis

intrusion sensor or switch sends a high-level signal to this connector when a chassis

component is removed or replaced. The signal is then generated as a chassis intrusion

event.

By default, the pins labeled “Chassis Signal” and “Ground” are shorted with a jumper

cap. Remove the jumper caps only when you intend to use the chassis intrusion

detection feature.

P5QL-EM

Intrusion Connector

P5QL-EM

CHASSIS

+5VSB_MB

Chassis Signal

GND

(Default)

1-26 Chapter 1: Product introduction

9. Serial port connectors (10-1 pin COM1)

The connector is for a serial (COM) port. Connect the serial port module cable to the

connector, then install the module to a slot opening at the back of the system chassis.

The serial port bracket (COM1) is purchased separately.

10. LPT connector (26-1 pin LPT)

The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT

standardizes as IEEE 1394, which is the parallel port interface on IBM PC-compatible

computers.

P5QL-EM

COM Port Connector

P5QL-EM

PIN 1

COM1

P5QL-EM

Parallel Port Connector

P5QL-EM

LPT

STB# AFD

PD0 ERR#

PD1

INIT#

PD2 SLIN#

PD3 GND

PD4

GND

PD7

PD6

PD5 GND

GND

ACK# GND

BUSY

SLCT

GND

ASUS P5QL-EM 1-27

11. ATX power connectors (24-pin EATXPWR, 4-pin EATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are

designed to t these connectors in only one orientation. Find the proper orientation and

push down rmly until the connectors completely t.

•

For a fully congured system, we recommend that you use a power supply unit (PSU)

that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum

power of 350 W.

• Do not forget to connect the 4-pin ATX12V power plug; otherwise, the system will not

boot.

• Use of a PSU with a higher power output is recommended when conguring a system

with more power-consuming devices. The system may become unstable or may not boot

up if the power is inadequate.

• If you are uncertain about the minimum power supply requirement for your system,

refer to the Recommended Power Supply Wattage Calculator at http://support.asus.

com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

• The ATX 12 V Specication 2.0-compliant (350W) PSU has been tested to support the

motherboard power requirements.

P5QL-EM ATX Power Connector

P5QL-EM

EATXPWR

+3 Volts

Ground

+5 Volts

Ground

Power OK

+5V Standby

+12 Volts

-5 Volts

+5 Volts

+3 Volts

-12 Volts

Ground

PSON#

Ground

+5 Volts

+12 Volts

+3 Volts

+5 Volts

Ground

ATX12V

GND

+12V DC

GND

+12V DC

12. Optical drive audio connector (4-pin CD)

These connectors allow you to receive stereo audio input from sound sources such as

a CD-ROM, TV tuner, or MPEG card.

P5QL-EM Internal Audio Connector

P5QL-EM

(black)

Right Audio Channel

Left Audio Channel

Ground

Enable the CD-IN function in the audio utility when using this connector.

1-28 Chapter 1: Product introduction

13. System panel connector (20-8 pin F_PANEL)

This connector supports several chassis-mounted functions.

•

System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED

cable to this connector. The system power LED lights up when you turn on the system

power, and blinks when the system is in sleep mode.

•

Hard disk drive activity LED (2-pin IDE_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or ashes when data is read from or written to

the HDD.

•

System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker

allows you to hear system beeps and warnings.

•

ATX power button/soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns

the system on or puts the system in sleep or soft-off mode depending on the BIOS

settings. Pressing the power switch for more than four seconds while the system is ON

turns the system OFF.

•

Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without

turning off the system power.

P5QL-EM

System Panel Connector

P5QL-EM

*Requires an ATX power supply

NEL

PLED-

PWR

+5V

Speaker

Ground

RESET

Ground

Reset

Ground

PWRSW

PLED+

IDE_LED-

IDE_LED+

IDE_LED

PLED SPEAKER

ASUS P5QL-EM 1-29

1.11 Software support

1.11.1 Installing an operating system

This motherboard supports Windows® XP/Vista Operating Systems (OS). Always install the

latest OS version and corresponding updates to maximize the features of your hardware.

• Motherboard settings and hardware options vary. Use the setup procedures presented in

this section for reference only. Refer to your OS documentation for detailed information.

• Ensure that you install Windows® XP Service Pack 2 or later versions before installing

the drivers for better compatibility and system stability.

1.11.2 Support DVD information

The Support DVD that came with the motherboard package contains the drivers, software

applications, and utilities that you can install to avail all motherboard features.

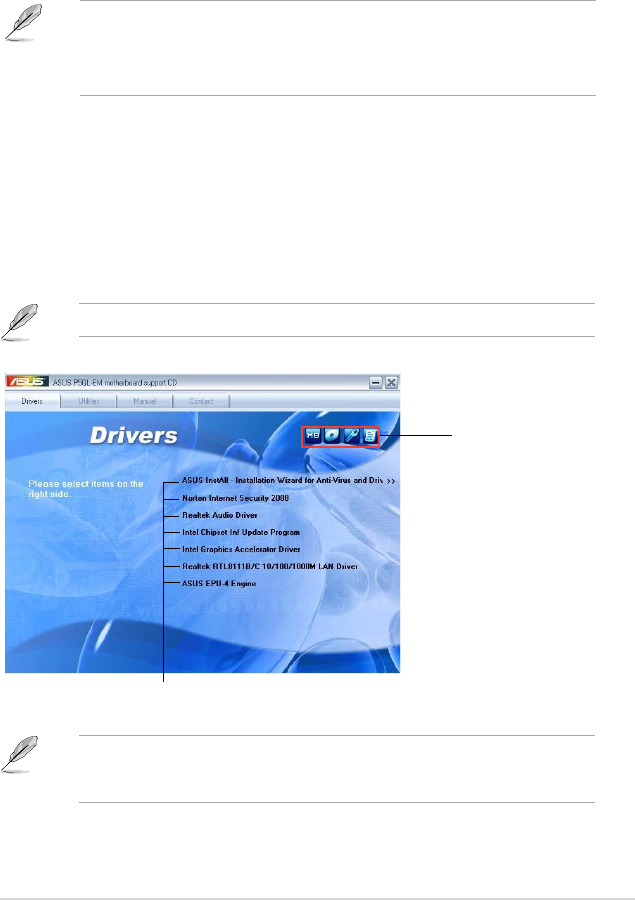

To run the Support DVD

Place the Support DVD to the optical drive. The DVD automatically displays the Drivers menu

if Autorun is enabled in your computer.

Click an item to install

Click an icon to

display Support DVD/

motherboard information

If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to

locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run

the DVD.

The following screen is used for reference only.

1-30 Chapter 1: Product introduction

ASUS P5QL-EM 2-1

Chapter 2

BIOS information

2.1 Managing and updating your BIOS

The following utilities allow you to manage and update the motherboard Basic Input/Output

System (BIOS) setup.

1. ASUS Update: Updates the BIOS in Windows® environment.

2. ASUS EZ Flash 2: Updates the BIOS in DOS mode using a oppy disk or a USB ash

disk.

3. ASUS AFUDOS: Updates the BIOS in DOS mode using a bootable oppy disk.

4. ASUS CrashFree BIOS 3: Updates the BIOS using a oppy disk, a USB ash disk or

the motherboard support DVD when the BIOS le fails or gets corrupted.

Refer to the corresponding sections for details on these utilities.

Save a copy of the original motherboard BIOS le to a bootable oppy disk or a USB ash

disk in case you need to restore the BIOS in the future. Copy the original motherboard

BIOS using the ASUS Update or AFUDOS utilities.

2.1.1 ASUS Update utility

The ASUS Update is a utility that allows you to manage, save, and update the motherboard

BIOS in Windows® environment. The ASUS Update utility allows you to:

• Save the current BIOS le

• Download the latest BIOS le from the Internet

• Update the BIOS from an updated BIOS le

• Update the BIOS directly from the Internet, and

• View the BIOS version information.

This utility is available in the support DVD that comes with the motherboard package.

ASUS Update requires an Internet connection either through a network or an Internet

Service Provider (ISP).

Installing ASUS Update

To install ASUS Update:

1. Place the support DVD in the optical drive. The Drivers menu appears.

2. Click the Utilities tab, then click Install ASUS Update.

3. The ASUS Update utility is copied to your system.

Quit all Windows® applications before you update the BIOS using this utility.

2-2 Chapter 2: BIOS setup

Updating the BIOS through the Internet

To update the BIOS through the Internet:

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start >

Programs > ASUS > ASUS Update > ASUS Update.

2. Select Update BIOS from the Internet from the drop-down menu, then click Next.

3. Select the ASUS FTP site nearest you to avoid network trafc, or click Auto Select

then click Next.

4. From the FTP site, select the BIOS version that you wish to download then click Next.

5. Follow the screen instructions to complete the update process.

The ASUS Update utility is capable of updating itself through the Internet. Always update

the utility to avail all its features.

Updating the BIOS through a BIOS le

To update the BIOS through a BIOS le:

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start >

Programs > ASUS > ASUS Update > ASUS Update.

2. Select Update BIOS from a le from the drop-down menu, then click Next.

3. Locate the BIOS le from the Open window, then click Open.

4. Follow the screen instructions to complete the update process.

2.1.2 Creating a bootable oppy disk

1. Do any one of the following to create a bootable oppy disk.

DOS environment

a. Insert a 1.44MB oppy disk into the drive.

b. At the DOS prompt, type format A:/S then press <Enter>.

Windows® XP environment

a. Insert a 1.44 MB oppy disk to the oppy disk drive.

b. Click Start from the Windows® desktop, then select My Computer.

c. Select the 3 1/2 Floppy Drive icon.

d. Click File from the menu, then select Format. A Format 3 1/2 Floppy

Disk window appears.

e. Select Create an MS-DOS startup disk from the format options eld,

then click Start.

Windows® Vista environment

a. Insert a formatted, high density 1.44 MB oppy disk to the oppy disk

drive.

b. Click from the Windows® desktop, then select Computer.

c. Right-click Floppy Disk Drive then click Format to display the

Format 3 1/2 Floppy dialog box.

ASUS P5QL-EM 2-3

d. Select the Create an MS-DOS startup disk check box.

e. Click Start.

2. Copy the original or the latest motherboard BIOS le to the bootable oppy disk.

2.1.3 ASUS EZ Flash 2 utility

The ASUS EZ Flash 2 feature allows you to update the BIOS without having to go through

the long process of booting from a oppy disk and using a DOS-based utility. The EZ Flash 2

utility is built-in the BIOS chip so it is accessible by pressing <Alt> + <F2> during the Power-

On Self Tests (POST).

To update the BIOS using EZ Flash 2:

1. Visit the ASUS website at www.asus.com to download the latest BIOS le for this

motherboard.

2. Save the BIOS le to a oppy disk or a USB ash disk, then restart the system.

3. You can launch the EZ Flash 2 in two ways.

(1) Insert the oppy disk / USB ash disk that contains the BIOS le to the oppy disk

drive or the USB port.

Press <Alt> + <F2> during POST to display the following.

ASUSTek EZ Flash 2 BIOS ROM Utility V3.25

Current ROM Update ROM

Note

FLASH TYPE: MXIC 25L8005

PATH: A:\

BOARD: P5QL-EM

VER: 0303 (H:00 B:26)

DATE: 06/19/2008

BOARD: Unknown

VER: Unknown

DATE: Unknown

[Enter] Select or Load [Tab] Switch [V] Drive Info

[Up/Down/Home/End] Move [B] Backup [ESC] Exit

(2) Enter BIOS setup program. Go to the Tools menu to select EZ Flash 2 and press

<Enter> to enable it.

You can switch between drives by pressing <Tab> before the correct le is found.

Then press <Enter>.

4. When the correct BIOS le is found, EZ Flash 2 performs the BIOS update process

and automatically reboots the system when done.

• This function can support devices such as USB ash disks, or oppy disks with FAT

32/16 format and single partition only.

• Do not shut down or reset the system while updating the BIOS to prevent system boot

failure!

2-4 Chapter 2: BIOS setup

2.1.4 AFUDOS utility

The AFUDOS utility allows you to update the BIOS le in DOS environment using a bootable

oppy disk with the updated BIOS le. This utility also allows you to copy the current BIOS

le that you can use as backup when the BIOS fails or gets corrupted during the updating

process.

Copying the current BIOS

To copy the current BIOS le using the AFUDOS utility:

• Make sure that the oppy disk is not write-protected and has at least 1.2MB free space

to save the le.

• The succeeding BIOS screens are for reference only. The actual BIOS screen displays

may not be the same as shown.

1. Copy the AFUDOS utility (afudos.exe) from the motherboard support DVD to a

bootable oppy disk.

2. Boot the system in DOS mode.

3. At the prompt key in afudos /o[lename]

where the [lename] is any user-assigned lename of not more than eight

alphanumeric characters for the main lename and three alphanumeric characters for

the extension name.

Main lename Extension name

A:\>afudos /oOLDBIOS1.rom

then press <Enter> to copy the current BIOS le to the oppy disk.

4. The utility returns to the DOS prompt after copying the current BIOS le.

Updating the BIOS le

To update the BIOS le using the AFUDOS utility:

1. Visit the ASUS website (www.asus.com) and download the latest BIOS le for the

motherboard. Save the BIOS le to a bootable oppy disk.

We recommend that you write the BIOS lename on a piece of paper; you will need to key

in the exact BIOS lename at the DOS prompt later.

2. Copy the AFUDOS utility (afudos.exe) from the motherboard support DVD to a

bootable oppy disk.

3. Boot the system in DOS mode.

4. At the prompt key in afudos /i[lename]

where [lename] is the latest or the original BIOS le in the bootable oppy disk.

A:\>afudos /iP5QLEM.ROM

then press <Enter>.

Do not shut down or reset the system while updating the BIOS to prevent system boot

failure!

ASUS P5QL-EM 2-5

5. The utility returns to the DOS prompt after the BIOS update process is completed.

Reboot the system from the hard disk drive.

A:\>afudos /iP5QLEM.ROM

AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))

WARNING!! Do not turn off power during ash BIOS

Reading le ....... done

Reading ash ...... done

Advance Check ......

Erasing ash ...... done

Writing ash ...... done

Verifying ash .... done

Please restart your computer

A:\>

2.1.5 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the

BIOS le when it fails or gets corrupted during the updating process. You can update a

corrupted BIOS le using the motherboard support DVD, a oppy disk or a USB ash

disk that contains the updated BIOS le.

• Prepare the motherboard support DVD, the oppy disk or the USB ash disk containing

the updated motherboard BIOS before using this utility.

• Always connect the SATA cable to the SATA1 / SATA 2 connector; otherwise, the utility

will not function.

Recovering the BIOS from a oppy disk

To recover the BIOS from a oppy disk:

1. Turn on the system.

2. Insert the oppy disk with the original or updated BIOS le to the oppy disk drive.

3. The utility displays the following message and automatically checks the oppy disk for

the original or updated BIOS le.

Bad BIOS checksum. Starting BIOS recovery...

Checking for oppy...

When found, the utility reads the BIOS le and starts ashing the corrupted BIOS le.

Bad BIOS checksum. Starting BIOS recovery...

Checking for oppy...

Floppy found!

Reading le “P5QLEM.ROM”. Completed.

Start ashing...

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause

system boot failure!

2-6 Chapter 2: BIOS setup

4. Restart the system after the utility completes the updating process.

Recovering the BIOS from the support DVD

To recover the BIOS from the support DVD:

1. Turn on the system.

2. Insert the motherboard support DVD to the optical drive.

3. The utility displays the following message and automatically checks the DVD for the

BIOS le.

Bad BIOS checksum. Starting BIOS recovery...

Checking for oppy...

If no oppy disk is found, the utility automatically checks the optical drive for the

original or updated BIOS le. The utility then updates the corrupted BIOS le.

Bad BIOS checksum. Starting BIOS recovery...

Checking for oppy...

Floppy not found!

Checking for DVD-ROM...

DVD-ROM found!

Reading le “P5QLEM.ROM”. Completed.

Start ashing...

4. Restart the system after the utility completes the updating process.

The recovered BIOS may not be the latest BIOS version for this motherboard. Visit the

ASUS website (www.asus.com) to download the latest BIOS le.

Recovering the BIOS from a USB ash disk

To recover the BIOS from a USB ash disk:

1. Insert a USB ash disk that contains BIOS le to the USB port.

2. Turn on the system.

3. The utility will automatically checks the devices for the BIOS le When found, the utility

reads the BIOS le and starts ashing the corrupted BIOS le.

4. Restart the system after the utility completes the updating process.

• Only the USB ash disk with FAT 32/16 format and single partition can support ASUS

CrashFree BIOS 3. The device size should be smaller than 8GB.

• DO NOT shut down or reset the system while updating the BIOS! Doing so can cause

system boot failure!

ASUS P5QL-EM 2-7

2.2 BIOS setup program

This motherboard supports a programmable Serial Peripheral Interface (SPI) chip that you

can update using the provided utility described in section “2.1 Managing and updating your

BIOS.”

Use the BIOS Setup program when you are installing a motherboard, reconguring your

system, or prompted to “Run Setup.” This section explains how to congure your system

using this utility.

Even if you are not prompted to use the Setup program, you can change the conguration of

your computer in the future. For example, you can enable the security password feature or

change the power management settings. This requires you to recongure your system using

the BIOS Setup program so that the computer can recognize these changes and record them

in the CMOS RAM of the SPI chip.

The SPI chip on the motherboard stores the Setup utility. When you start up the computer,

the system provides you with the opportunity to run this program. Press <Del> during the

Power-On Self-Test (POST) to enter the Setup utility; otherwise, POST continues with its test

routines.

If you wish to enter Setup after POST, reboot the system by doing any of the following

procedures:

• Restart using the OS standard shut-down procedure.

• Press <Ctrl>+<Alt>+<Del> simultaneously.

• Press the reset button on the system chassis.

• Press the power button to turn the system off then back on.

Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from

a running operating system can cause damage to your data or system. We recommend to

always shut-down the system properly from the operating system.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven

program, it lets you scroll through the various sub-menus and make your selections from the

available options using the navigation keys.

• The default BIOS settings for this motherboard apply for most conditions to ensure

optimum performance. If the system becomes unstable after changing any BIOS

settings, load the default settings to ensure system compatibility and stability. Select the

Load Setups Default item under the Exit Menu. See section 2.8 Exit Menu.

• The BIOS setup screens shown in this section are for reference purposes only, and may

not exactly match what you see on your screen.

• Visit the ASUS website at www.asus.com to download the latest BIOS le for this

motherboard.

2-8 Chapter 2: BIOS setup

2.2.1 BIOS menu screen

Select Screen

Select Item

+- Change Field

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

System Time [14:14:35]

System Date [Wed 04/16/2008]

Legacy Diskette A [1.44M, 3.5 in.]

SATA 1 :[Not Detected]

SATA 2 :[Not Detected]

SATA 3 :[Not Detected]

SATA 4 :[Not Detected]

SATA 5 :[Not Detected]

SATA 6 :[Not Detected]

Storage Conguration

System Information

Use [ENTER], [TAB] or

[SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system Time.

Navigation keys

General help

Menu bar

Sub-menu items

Conguration eldsMenu items

2.2.2 Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system conguration

Advanced For changing the advanced system settings

Power For changing the advanced power management (APM) conguration

Boot For changing the system boot conguration

Tools For conguring options for special functions

Exit For selecting the exit options and loading default settings.

To select an item on the menu bar, press the right or left arrow key on the keyboard until the

desired item is highlighted.

2.2.3 Navigation keys

At the bottom right corner of a menu screen are the navigation keys for that particular menu.

Use the navigation keys to select items in the menu and change the settings.

Some of the navigation keys differ from one screen to another.

ASUS P5QL-EM 2-9

2.2.4 Menu items

The highlighted item on the

menu bar displays the specic

items for that menu. For

example, selecting Main shows

the Main menu items.

The other items (Advanced,

Power, Boot, Tools and Exit)

on the menu bar have their

respective menu items.

2.2.5 Sub-menu items

A solid triangle before each item on any menu screen means that the iteam has a sub-menu.

To display the sub-menu, select the item and press <Enter>.

2.2.6 Conguration elds

These elds show the values for the menu items. If an item is user- congurable, you can

change the value of the eld opposite the item. You cannot select an item that is not user-

congurable.

A congurable eld is enclosed in brackets, and is highlighted when selected. To change the

value of a eld, select it then press <Enter> to display a list of options. Refer to 2.2.7 Pop-up

window.

Select Screen

Select Item

+- Change Field

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

System Time [14:14:35]

System Date [Wed 04/16/2008]

Legacy Diskette A [1.44M, 3.5 in]

SATA 1 [Not Detected]

SATA 2 [Not Detected]

SATA 3 [Not Detected]

SATA 4 [Not Detected]

SATA 5 [Not Detected]

SATA 6 [Not Detected]

Storage Conguration

System Information

[ENTER] to select

oppy type.

Options

Disabled

720K, 3.5 in.

1.44M, 3.5 in.

Pop-up window

Scroll bar

2.2.7 Pop-up window

Select a menu item then press

<Enter> to display a pop-up window

with the conguration options for

that item.

2.2.8 Scroll bar

A scroll bar appears on the right side

of a menu screen when there are

items that do not t on the screen.

Press the

<Up> / <Down> arrow keys or

<Page Up> /<Page Down> keys to

display the other items on the screen.

2.2.9 General help

At the top right corner of the menu screen is a brief description of the selected item.

Main menu items

Select Screen

Select Item

+- Change Field

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

System Time [14:14:35]

System Date [Wed 04/16/2008]

Legacy Diskette A [1.44M, 3.5 in.]

SATA 1 [Not Detected]

SATA 2 [Not Detected]

SATA 3 [Not Detected]

SATA 4 [Not Detected]

SATA 5 [Not Detected]

SATA 6 [Not Detected]

Storage Conguration

System Information

Use [ENTER], [TAB] or

[SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system Time.

2-10 Chapter 2: BIOS setup

2.3 Main menu

When you enter the BIOS Setup program, the Main menu screen appears, giving you an

overview of the basic system information.

Refer to section 2.2.1 BIOS menu screen for information on the menu screen items and

how to navigate through them.

Select Screen

Select Item

+- Change Field

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

System Time [14:14:35]

System Date [Wed 04/16/2008]

Legacy Diskette A [1.44M, 3.5 in]

SATA 1 [Not Detected]

SATA 2 [Not Detected]

SATA 3 [Not Detected]

SATA 4 [Not Detected]

SATA 5 [Not Detected]

SATA 6 [Not Detected]

Storage Conguration

System Information

Use [ENTER], [TAB] or

[SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system time.

2.3.1 System Time [xx:xx:xx]

Allows you to set the system time.

2.3.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.3.3 Legacy Diskette A [1.44M, 3.5 in.]

Sets the type of oppy drive installed. Conguration options: [Disabled] [360K, 5.25 in]

[1.2M, 5.25 in] [720K, 3.5 in.] [1.44M, 3.5 in.] [2.88M, 3.5 in]

2.3.4 SATA 1~6

While entering Setup, the BIOS automatically detects the presence of SATA devices. There

is a separate sub-menu for each SATA device. Select a device item then press <Enter> to

display the SATA device information.

The BIOS automatically detects the values opposite the dimmed items (Device, Vendor, Size,

LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART monitoring). These

values are not user-congurable. These items show N/A if no SATA device is installed in the

system.

Type [Auto]

Selects the type of SATA drive. Setting to [Auto] allows automatic selection of the appropriate

SATA device type. Select [CDROM] if you are specically conguring a CD-ROM drive.

Select [ARMD] (ATAPI Removable Media Device) if your device is either a ZIP, LS-120, or

MO drive. Conguration options: [Not Installed] [Auto] [CDROM] [ARMD]

ASUS P5QL-EM 2-11

LBA/Large Mode [Auto]

Enables or disables the LBA mode. Setting to [Auto] enables the LBA mode if the device

supports this mode, and if the device was not previously formatted with LBA mode disabled.

Conguration options: [Disabled] [Auto]

Block (Multi-sector Transfer) M [Auto]

Enables or disables data multi-sectors transfers. When set to [Auto], the data transfer from

and to the device occurs multiple sectors at a time if the device supports multi-sector transfer

feature. When set to [Disabled], the data transfer from and to the device occurs one sector

at a time. Conguration options: [Disabled] [Auto]

PIO Mode [Auto]

Selects the PIO mode. Conguration options: [Auto] [0] [1] [2] [3] [4]

DMA Mode [Auto]

Selects the DMA mode. Conguration options: [Auto]

SMART Monitoring [Auto]

Sets the Smart Monitoring, Analysis, and Reporting Technology.

Conguration options: [Auto] [Disabled] [Enabled]

32Bit Data Transfer [Enabled]

Enables or disables 32-bit data transfer. Conguration options: [Disabled] [Enabled]

2.3.5 Storage Conguration

The items in this menu allow you to set or change the congurations for the SATA devices

installed in the system. Select an item then press <Enter> if you want to congure the item.

SATA Conguration [Enhanced]

Conguration options: [Disabled] [Compatible] [Enhanced]

Configure SATA as [IDE]

Sets the conguration for the Serial ATA connectors supported by the Southbridge chip.

Conguration options: [IDE] [AHCI]

Due to Intel chipset driver support regulation, the AHCI mode is not supported in Windows

XP environment. The AHCI mode is only supported by Windows Vista with OS built-in

driver.

Hard Disk Write Protect [Disabled]

Disables or enables device write protection. This will be effective only if device is accessed

throuh BIOS. Conguration option: [Disabled] [Enabled]

IDE Detect Time Out [35]

Selects the time out value for detecting ATA/ATAPI devices.

Conguration options: [0] [5] [10] [15] [20] [25] [30] [35]

2.3.6 System Information

This menu gives you an overview of the general system specications. The BIOS

automatically detects the items in this menu.

Bios Information

Displays the auto-detected BIOS information.

2-12 Chapter 2: BIOS setup

Processor

Displays the auto-detected CPU specication.

System Memory

Displays the auto-detected system memory.

2.4 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system

devices.

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

JumperFree Conguration

CPU Conguration

Chipset

Onboard Devices Conguration

USB Conguration

PCIPnP

Adjust system

frequency/voltage

Take caution when changing the settings of the Advanced menu items. Incorrect eld

values can cause the system to malfunction.

2.4.1 JumperFree Conguration

AI Overclocking [Auto]

Allows selection of CPU overclocking options to achieve desired CPU internal frequency.

Select either one of the preset overclocking. Conguration options:

Manual - allows you to individually set overclocking parameters.

Auto - loads the optimal settings for the system.

Overclock Prole - loads overclocking proles with optimal parameters for stability when

overclocking.

The following item appears only when you set the AI Overclocking item to [Manual].

FSB / CPU External Frequency Synchronization

CPU Frequency [XXX]

Displays the frequency sent by the clock generator to the system bus and PCI bus. The

value of this item is auto-detected by the BIOS. Use the <+> and <-> keys to adjust the CPU

frequency. You can also type the desired CPU frequency using the numeric keypad. The

values range from 133 to 600. Refer to the table below for the correct Front Side Bus and

CPU External Frequency settings.

Front Side Bus CPU External Frequency

FSB 1333 333 MHz

FSB 1066 266 MHz

FSB 800 200 MHz

ASUS P5QL-EM 2-13

The following item appears only when you set the AI Overclocking item to [Overclock

Prole].

Overclock Options [Overclock 5%]

Allows you to select the overclock options. Conguration options: [Overclock 5%]

[Overclock 10%] [Overclock 15%] [Overclock 20%] [Overclock 30%]

DRAM Frequency [Auto]

Allows you to set the DDR2 operating frequency. Conguration options: [Auto] [667 MHz]

[800 MHz] [1067 MHz]

Selecting a very high DRAM frequency may cause the system to become unstable! If this

happens, revert to the default setting.

Memory Over Voltage

Allows you to adjust Memory Over voltage and each step is 6.25mV.

NB Voltage [Auto]

Allows you to set the NB voltage. Conguration options: [Auto] [1.1V] [1.198V] [1.3V] [1.388V]

The following table shows the DRAM Frequency options that appear when the FSB value is

1333, 1066, and 800.

FSB DRAM Frequency

Auto 667MHz 800MHz 960MHz 1000MHz 1067MHz 1100MHz 1200MHz

1333 v v v v v

1066 v v v v

800 v v v

CPU Voltage [Auto]

Allows you to set the CPU VCore voltage. The values range from 0.8500V to 1.55V with a

0.00625V interval. Conguration options: [Auto]

Setting a very high voltage may damage the component permanently, and setting a very

low voltage may cause the system to become unstable.

Setting a very high voltage may damage the component permanently, and setting a very

low voltage may cause the system to become unstable.

2.4.2 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically

detects.

2-14 Chapter 2: BIOS setup

Key in ratio numbers directly.

C1E Support [Enabled]

Allows you to enable or disable Inter CPU Enhanced Halt (C1E) function, a CPU power-

saving function in system halt state. When enable, the CPU core frequency and voltage

will be reduced during the system halt state to decrease power consumption. Conguration

options: [Disabled] [Enabled]

Max CPUID Value Limit [Disabled]

Allows you to determine whether to limit CPUID maximum value. Set this item to [Disabled]

for Windows XP operating system; set this item to [Enabled] for legacy operating system

such as Windows NT4.0. (Default: Disabled)

Conguration options: [Disabled] [Enabled]

Vanderpool Technology [Enabled]

Enables or disables Intel® Vanderpool Technology. Vanderpool enhanced by Intel®

Vanderpool Technology allows a platform to run multiple operating systems and applications

in independent partitions. With vanderpool, one computer system can function as multiple

virtual systems. Conguration options: [Enabled] [Disabled]

CPU TM Function [Enabled]

Enables or disables Intel® CPU Thermal Monitor (TM) function, a CPU overheating protection

function. When enabled, the CPU core frequency and voltage are reduced when the CPU

overheats. Conguration options: [Disabled] [Enabled]

Execute Disable Bit [Enabled]

Enables or disables Intel® Execute Disable Bit function. This function enhance protection

of your computer, reducing exposure to viruses and malicious buffer overow attacks when

working with its supporting software and system.Conguration options: [Disabled] [Enabled]

The following item appears only when you installed an Intel® Pentium® 4 or later CPU that

supports the Enhanced Intel SpeedStep® Technology (EIST).

CPU Ratio Setting [Auto]

Allows you to set the ratio between CPU core clock and the FSB frequency.Conguration

options: [Auto]

If an invalid ratio is set in CMOS, the actual value may be different from the set value.

Intel (R) SpeedStep Technology [Enabled]

Allows you to use the Enhanced Intel® SpeedStep® Technology. When set to [Enabled], you

can adjust the system power settings in the operating system to use the EIST feature. Set

this item to [Disabled] if you do not want to use the EIST. Conguration options: [Enabled]

[Disabled]

ASUS P5QL-EM 2-15

2.4.3 Chipset

The Chipset menu allows you to change the advanced chipset settings. Select an item then

press <Enter> to display the sub-menu.

North Bridge Conguration

Memory Remap Feature [Disabled]

Allows you to enable or disable the remapping of overlapped PCI memory above the total

physical memory. We recommend that you set this item to Enabled when you install 4GB

memory. Conguration options: [Enabled] [Disabled]

Congure DRAM Timing by SPD [Enabled]

Allows you to enable or disable conguring DRAM Timing by SPD.

Conguration options: [Enabled] [Disabled]

Initiate Graphic Adapter [PEG/PCI]

Allows you to select the graphics controller as the primary boot device.Conguration options:

[IGD] [PCI/IGD] [PCI/PEG] [PEG/IGD] [PEG/PCI]

IGD Graphics Mode Select [Enabled, 32MB]

Sets the IGD graphics mode.

Conguration options: [Disabled] [Enabled, 32MB] [Enabled, 64MB] [Enabled, 128MB]

DVMT Mode Select [DVMT Mode]

Allows you to select the graphics memory type.

Conguration options: [DVMT Mode]

DVMT Memory [256MB]

Configuration options: [128MB] [256MB] [Maximum DVMT]

This option only appears when installing 1GB DDR2 DIMMs into the DIMM sockets.

Protect Audio Video Path Mode [Lite]

Allows you to set PAVP mode.

Conguration options: [Disabled] [Lite] [Paranoid]

To use the High-Bandwidth Digital Content Protection (HDCP) function, set this option to

either [Lite] or [Paranoid]. If you select Paranoid Mode, the system reserves 96MB for

playing and storing the decrypted contents. The operation system and other programs cannot

use this reserved memory, and Vista Aero (DWM) is disabled.

Feature PAVP Lite PAVP Paranoid

Compressed video buffer is encrypted Yes Yes

HW 128-bit AES decryption Yes Yes

Protected memory (96MB reserved during boot) No Yes

2-16 Chapter 2: BIOS setup

South Bridge Conguration

Audio Controller [Enabled]

Allows you to set the audio controller. Conguration options: [Enabled] [Disabled]

Front Panel Support Type [HD Audio]

Allows you to select the front panel support type. If High Denition Audio Front Panel

used, please set HD Audio mode. Conguration options: [AC97] [HD Audio]

SPDIF_OUT Mode Setting [SPDIF Output]

Allows you to select SPDIF_OUT mode setting. Conguration options: [HDMI Output]

[SPDIF Output]

2.4.4 Onboard Devices Conguration

Onboard LAN [Enabled]

Allows you to enable or disable the onboard LAN controller.

Conguration options: [Enabled] [Disabled]

LAN Option ROM [Disabled]

Allows you to enable or disable the LAN option ROM in the onboard LAN controller.

This item appears only when the Onboard LAN item is set to Enabled. Conguration

options: [Disabled] [Enabled]

Marvell IDE controller [Enabled]

Allows you to enable or disable Marvell IDE controller.

Conguration options: [Enabled] [Disabled]

1394 controller [Enabled]

Allows you to enable or disable 1394 controller.

Conguration options: [Enabled] [Disabled]

Serial Port1 Address [3F8/IRQ4]

Allows you to select the Serial Port1 base address.

Conguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]

Parallel Port Address [378]

Allows you to select the Parallel Port base addresses.

Conguration options: [Disabled] [378] [278] [3BC]

Parallel Port Mode [ECP]

Allows you to select the Parallel Port mode.

Conguration options: [Normal] [Bi-Directional] [EPP] [ECP]

ECP Mode DMA Channel [DMA3]

Appears only when the Parallel Port Mode is set to [ECP]. This item allows you to set

the Parallel Port ECP DMA. Conguration options: [DMA0] [DMA1] [DMA3]

Parallel Port IRQ [IRQ7]

Allows you to select parallel port IRQ. Conguration options: [IRQ5] [IRQ7]

2.4.5 USB Conguration

The items in this menu allows you to change the USB-related features. Select an item then

press <Enter> to display the conguration options.

The Module Version and USB Devices Enabled items show the

auto-detected values. If no USB device is detected, the item shows None.

ASUS P5QL-EM 2-17

Take caution when changing the settings of the PCI PnP menu items. Incorrect eld values

can cause the system to malfunction.

Plug and Play O/S [No]

When set to [No], BIOS congures all the devices in the system. When set to [Yes] and if you

install a Plug and Play operating system, the operating system congures the Plug and Play

devices not required for boot. Conguration options: [No] [Yes]

USB Functions [Enabled]

Allows you to disable or select the different values of the USB functions. Conguration

options: [Disabled] [Enabled]

USB 2.0 Controller [Enabled]

Allows you to enable or disable USB 2.0 controller.

Conguration options: [Enabled] [Disabled]

Legacy USB Support [Auto]

Allows you to enable or disable support for Legacy USB storage devices, including USB ash

drives and USB hard drives. Setting to Auto allows the system to detect the presence of USB

devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device

is detected, the legacy USB support is disabled. Conguration options: [Disabled] [Enabled]

[Auto]

USB 2.0 Controller Mode [HiSpeed]

Allows you to congure the USB 2.0 controller in HiSpeed (480 Mbps) or Full Speed (12

Mbps). Conguration options: [FullSpeed] [HiSpeed]

2.4.6 PCI PnP

The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.

The menu includes setting IRQ and DMA channel resources for either PCI/PnP or legacy ISA

devices, and setting the memory size block for legacy ISA devices.

2.5 Power menu

The Power menu items allow you to change the settings for the Advanced Power

Management (APM). Select an item then press <Enter> to display the conguration options.

Suspend Mode [Auto]

ACPI 2.0 Support [Disabled]

ACPI APIC Support [Enabled]

APM Conguration

Hardware Monitor

Select the ACPI state

used for System

Suspend.

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

2-18 Chapter 2: BIOS setup

2.5.1 Suspend Mode [Auto]

Allows you to select the Advanced Conguration and Power Interface (ACPI) state to be used

for system suspend. Conguration options: [S1 (POS) Only] [S3 Only] [Auto]

[S1(POS) Only] - Enables the system to enter the ACPI S1 (Power on Suspend) sleep state.

In S1 sleep state, the system appears suspended and stays in a low

power mode. The system can be resumed at any time.

[S3 Only] - Enables the system to enter the ACPI S3 (Suspend to RAM) sleep state (default).

In S3 sleep state, the system appears to be off and consumes less power than

in the S1 state. When signaled by a wake-up device or event, the system

resumes to its working state

exactly where it was left off.

[Auto] - Detected by OS.

2.5.2 ACPI 2.0 Support [Disabled]

Allows you to add more tables for Advanced Conguration and Power Interface (ACPI) 2.0

specications. Conguration options: [Disabled] [Enabled]

2.5.3 ACPI APIC Support [Enabled]

Allows you to enable or disable the Advanced Conguration and Power Interface (ACPI)

support in the Application-Specic Integrated Circuit (ASIC). When set to Enabled, the ACPI

APIC table pointer is included in the RSDT pointer list. Conguration options: [Disabled]

[Enabled]

2.5.4 APM Conguration

Restore on AC Power Loss [Power Off]

When set to Power Off, the system goes into off state after an AC power loss. When set to

Power On, the system goes on after an AC power loss. When set to Last State, the system

goes into either off or on state, whatever the system state was before the AC power loss.

Conguration options: [Power Off] [Power On] [Last State]

Power On By PS/2 KB/Mouse [Disabled]

When set to [Enabled], this parameter allows you to use the PS/2 KB/mouse to turn on the

system. This feature requires an ATX power supply that provides at least 1A on the +5VSB

lead. Conguration options: [Disabled] [Enabled]

Resume On Ring [Disabled]

Allows you to enable or disable RI to generate a wake event.

Conguration options: [Disabled] [Enabled]

Resume On PCI Devices [Disabled]

When set to [Enabled], this parameter allows you to wake the system through a PCI LAN

or modem card. This feature requires an ATX power supply that provides at least 1A on the

+5VSB lead. Conguration options: [Disabled] [Enabled]

Resume On PCIE Devices [Disabled]

When set to [Enabled], this parameter allows you to wake the system through a PCI Express

card. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead.

Conguration options: [Disabled] [Enabled]

ASUS P5QL-EM 2-19

Resume On RTC Alarm [Disabled]

Allows you to enable or disable RTC to generate a wake event. When this item is set to

Enabled, the items RTC Alarm Date, RTC Alarm Hour, RTC Alarm Minute, and RTC Alarm

Second appear with set values. Conguration options: [Disabled] [Enabled]

2.5.5 Hardware Monitor

CPU/MB Temperature [xxxºC/xxxºF]

The onboard hardware monitor automatically detects and displays the CPU/

motherboard temperatures. Select Ignored if you do not wish to display the

detected temperatures.

CPU Fan Speed (RPM) [xxxxRPM] or [N/A] or [Ignored]

The onboard hardware monitor automatically detects and displays the CPU fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

CPU Q-Fan Control [Disabled]

Allows you to enable or disable the Q-Fan control.

Conguration options: [Disabled] [Enabled]

Chassis Fan Speed [Ignored] or [N/A]

The onboard hardware monitor automatically detects and displays the Chassis fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

Chassis Q-Fan Control [Disabled]

Allows you to enable or disable the Chassis Q-Fan control. Conguration options: [Disabled]

[Enabled]

Power Fan Speed [Ignored] or [N/A]

The onboard hardware monitor automatically detects and displays the Power fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard

voltage regulators.

2.6 Boot menu

The Boot menu items allow you to change the system boot options. Select an item then press

<Enter> to display the sub-menu.

Boot Settings

Boot Device Priority

Boot Settings Conguration

Security

Species the Boot

Device Priority

sequence.

A virtual oppy disk

drive (Floppy Drive B:)

may appear when you set

the CD-ROM drive as the

rst boot device.

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

2-20 Chapter 2: BIOS setup

2.6.1 Boot Device Priority

1st ~ xxth Boot Device [1st Floppy Drive]

These items specify the boot device priority sequence from the available devices. The

number of device items that appears on the screen depends on the number of devices

installed in the system. Conguration options: [xxxxx Drive] [Disabled]

2.6.2 Boot Settings Conguration

Quick Boot [Enabled]

Enabling this item allows the BIOS to skip some power on self tests (POST) while booting to

decrease the time needed to boot the system. When set to [Disabled], BIOS performs all the

POST items.

Conguration options: [Disabled] [Enabled]

Full Screen Logo [Enabled]

This allows you to enable or disable the full screen logo display feature. Conguration

options: [Disabled] [Enabled]

Set this item to [Enabled] to use the ASUS MyLogo2™ feature.

Add On ROM Display Mode [Force BIOS]

Sets the display mode for option ROM. Conguration options: [Force BIOS]

[Keep Current]

Bootup Num-Lock [On]

Allows you to select the power-on state for the NumLock.

Conguration options: [Off] [On]

Wait for ‘F1’ If Error [Enabled]

When set to Enabled, the system waits for the F1 key to be pressed when error occurs.

Conguration options: [Disabled] [Enabled]

Hit ‘DEL’ Message Display [Enabled]

When set to Enabled, the system displays the message “Press DEL to run Setup” during

POST. Conguration options: [Disabled] [Enabled]

2.6.3 Security

The Security menu items allow you to change the system security settings. Select an item

then press <Enter> to display the conguration options.

Change Supervisor Password

Select this item to set or change the supervisor password. The Supervisor Password item on

top of the screen shows the default Not Installed. After you set a password, this item shows

Installed.

ASUS P5QL-EM 2-21

To set a Supervisor Password:

1. Select the Change Supervisor Password item and press <Enter>.

2. From the password box, type a password composed of at least six letters and/or

numbers, then press <Enter>.

3. Conrm the password when prompted.

The message “Password Installed” appears after you successfully set your password.

To change the supervisor password, follow the same steps as in setting a user password.

To clear the supervisor password, select the Change Supervisor Password then press

<Enter>. The message “Password Uninstalled” appears.

If you forget your BIOS password, you can clear it by erasing the CMOS Real Time Clock

(RTC) RAM. See section “1.9 Jumper” for information on how to erase the RTC RAM.

After you have set a supervisor password, the other items appear to allow you to change

other security settings.

User Access Level [Full Access]

This item allows you to select the access restriction to the Setup items. Conguration options:

[No Access] [View Only] [Limited] [Full Access]

No Access prevents user access to the Setup utility.

View Only allows access but does not allow change to any eld.

Limited allows changes only to selected elds, such as Date and Time.

Full Access allows viewing and changing all the elds in the Setup utility.

Change User Password

Select this item to set or change the user password. The User Password item on top of the

screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a User Password:

1. Select the Change User Password item and press <Enter>.

2. On the password box that appears, type a password composed of at least six letters

and/or numbers, then press <Enter>.

3. Conrm the password when prompted.

The message “Password Installed” appears after you set your password successfully.

To change the user password, follow the same steps as in setting a user password.

Clear User Password

Select this item to clear the user password.

Password Check [Setup]

When set to [Setup], BIOS checks for user password when accessing the Setup utility. When

set to [Always], BIOS checks for user password both when accessing Setup and booting the

system. Conguration options: [Setup] [Always]

2-22 Chapter 2: BIOS setup

ASUS EZ Flash 2

Express Gate [Enabled]

Enter OS Timer [10 Seconds]

Reset User Data [No]

AI NET 2

Press ENTER to run

the utility to select

and update BIOS.

This utility doesn't

support :

1.NTFS format

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

2.7 Tools menu

The Tools menu items allow you to launch special functions. Select an item then press

<Enter> to display the sub-menu.

2.7.1 ASUS EZ Flash 2

Allows you to run ASUS EZ Flash 2. When you press <Enter>, a conrmation message

appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to

conrm your choice. Please see section 2.1.3 for details.

This function only supports FAT 32/16 format.

2.7.2 Express Gate [Enabled]

Allows you to enable or disable the ASUS Express Gate feature. The ASUS Express Gate

feature is a unique instant-on environment that provides quick access to the Internet browser

and Skype. Conguration options: [Enabled] [Disabled]

Enter OS Timer [10 Seconds]

Sets countdown duration that the system waits at the Express Gate’s rst screen before

starting Windows or other installed OS. Choose [Prompt User] to stay at the rst screen of

Express Gate for user action.

Conguration options: [Prompt User] [1 second] [3 seconds] [5 seconds]

[10 seconds] [15 seconds] [20 seconds] [30 seconds]

Reset User Data [No]

Allows you to clear Express Gate’s user data.

Conguration options: [No] [Reset]

When setting this item to [Reset], make sure to save the setting to the BIOS so that the

user data will be cleared the next time you enter the Express Gate. User data includes

the Express Gate’s settings as well as any personal information stored by the web

browser (bookmarks, cookies, browsing history, etc.). This is useful in the rare case

where corrupt settings prevent the Express Gate environment from launching properly.

The rst time wizard will run again when you enter the Express Gate environment after

clearing its settings.

ASUS P5QL-EM 2-23

2.7.3 AI NET 2

Check Realtek LAN cable [Disabled]

Enables or disables checking of the Realtek LAN cable during the Power-On Self-Test

(POST). Conguration options: [Disabled] [Enabled]

2.8 Exit menu

The Exit menu items allow you to load the optimal or failsafe default values for the BIOS

items, and save or discard your changes to the BIOS items.

Exit system setup

after saving the

changes.

F10 key can be used

for this operation.

Select Screen

Select Item

Enter Go to Sub-screen

F1 General Help

F10 Save and Exit

ESC Exit

Exit Options

Exit & Save Changes

Exit & Discard Changes

Discard Changes

Load Setup Defaults

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

Pressing <Esc> does not immediately exit this menu. Select one of the options from this

menu or <F10> from the legend bar to exit.

Exit & Save Changes

Once you are nished making your selections, choose this option from the Exit menu to

ensure the values you selected are saved to the CMOS RAM. An onboard backup battery

sustains the CMOS RAM so it stays on even when the PC is turned off. When you select this

option, a conrmation window appears. Select OK to save changes and exit.

Exit & Discard Changes

Select this option only if you do not want to save the changes that you made to the Setup

program. If you made changes to elds other than System Date, System Time, and

Password, the BIOS asks for a conrmation before exiting.

Discard Changes

This option allows you to discard the selections you made and restore the previously saved

values. After selecting this option, a conrmation appears. Select OK to discard any changes

and load the previously saved values.

Load Setup Defaults

This option allows you to load the default values for each of the parameters on the Setup

menus. When you select this option or if you press <F5>, a conrmation window appears.

Select OK to load default values. Select Exit & Save Changes or make other changes

before saving the values to the non-volatile RAM.

2-24 Chapter 2: BIOS setup
