Motherboard
P8B75-M
ii
E9142
Revised Edition (v4)
March 2014
Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product may contain copyrighted software that is licensed under the General Public License (“GPL”)
and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this
product is distributed without any warranty. Copies of these licenses are included in this product.
You may obtain the complete corresponding source code (as dened in the GPL) for the GPL Software,
and/or the complete corresponding source code of the LGPL Software (with the complete machine-
readable “work that uses the Library”) for a period of three years after our last shipment of the product
including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either
(1) for free by downloading it from http://support.asus.com/download;
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source code
we would be much obliged if you give us a notication to the email address gpl@asus.com, stating the
product and describing the problem (please do NOT send large attachments such as source code archives
etc to this email address).
iii
Contents
Safety information ...................................................................................... vi
About this guide ......................................................................................... vi
P8B75-M specications summary ........................................................... viii
Chapter 1 Product introduction
1.1 Welcome! ...................................................................................... 1-1
1.2 Package contents ......................................................................... 1-1
1.3 Special features ............................................................................ 1-1
1.3.1 Product highlights ........................................................... 1-1
1.3.2 Innovative ASUS features ............................................... 1-3
1.4 Before you proceed ..................................................................... 1-5
1.5 Motherboard overview ................................................................. 1-6
1.5.1 Placement direction ........................................................ 1-6

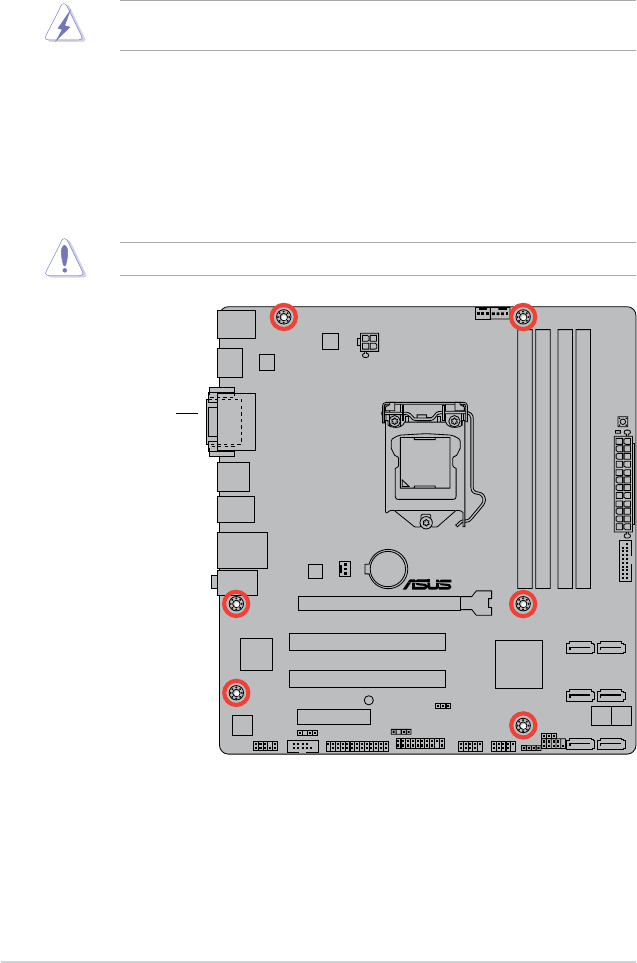

1.5.2 Screw holes .................................................................... 1-6

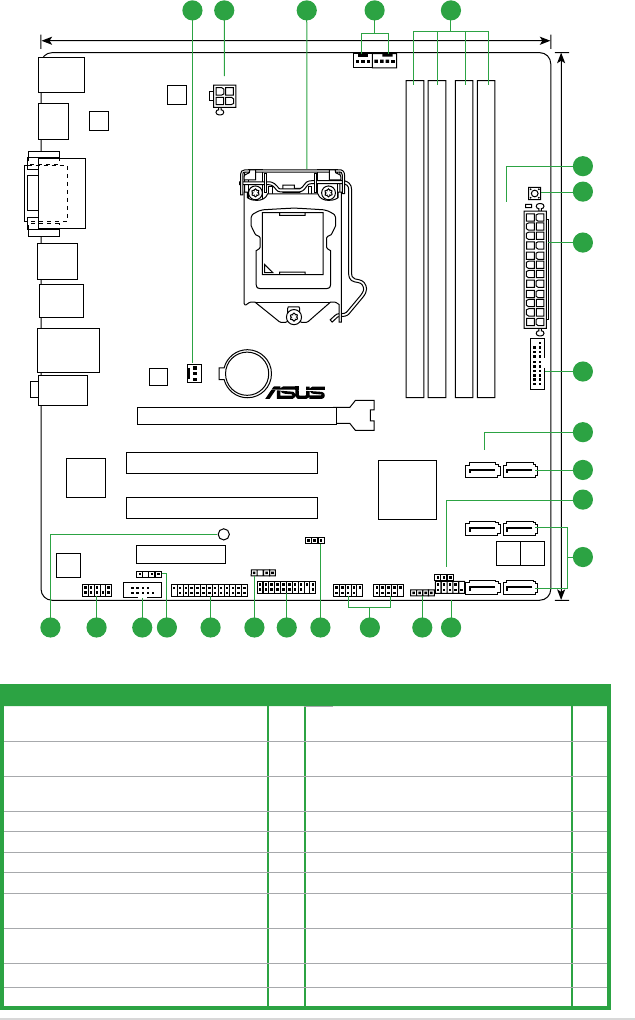

1.5.3 Motherboard layout ......................................................... 1-7
1.5.4 Layout contents ............................................................... 1-7
1.6 Central Processing Unit (CPU) ................................................... 1-8

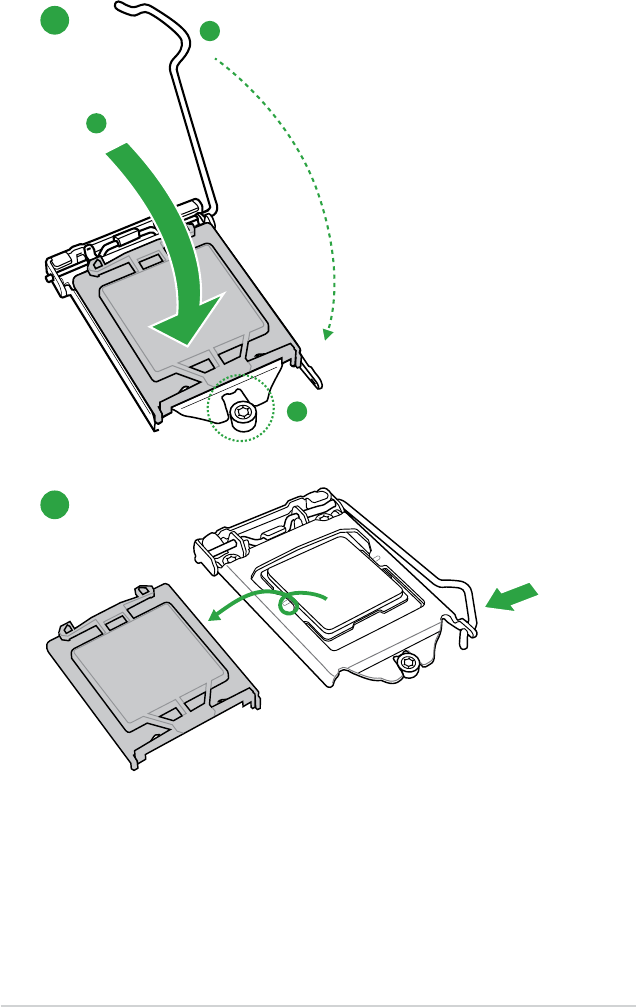

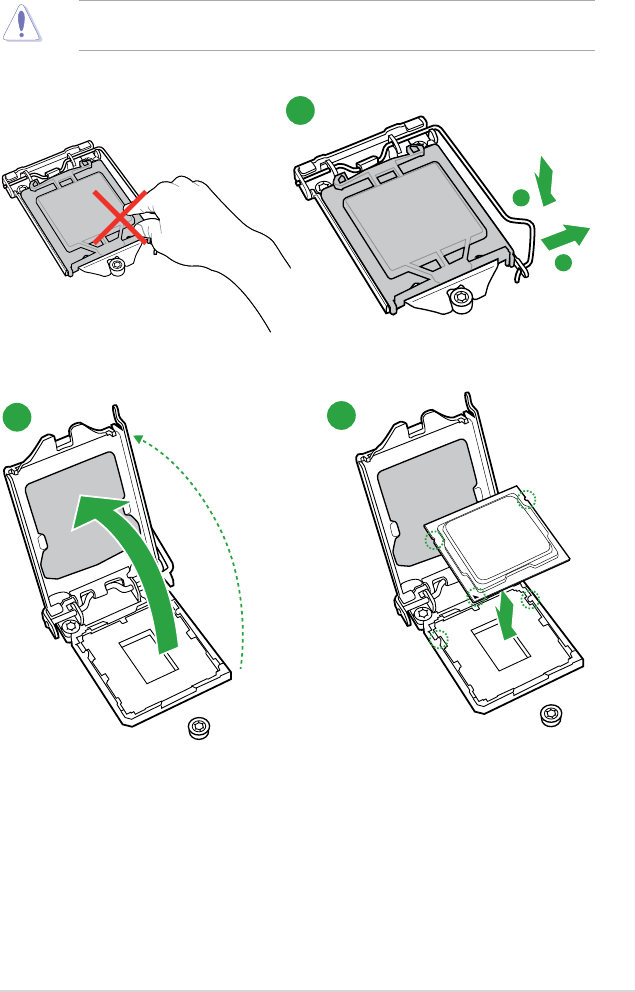

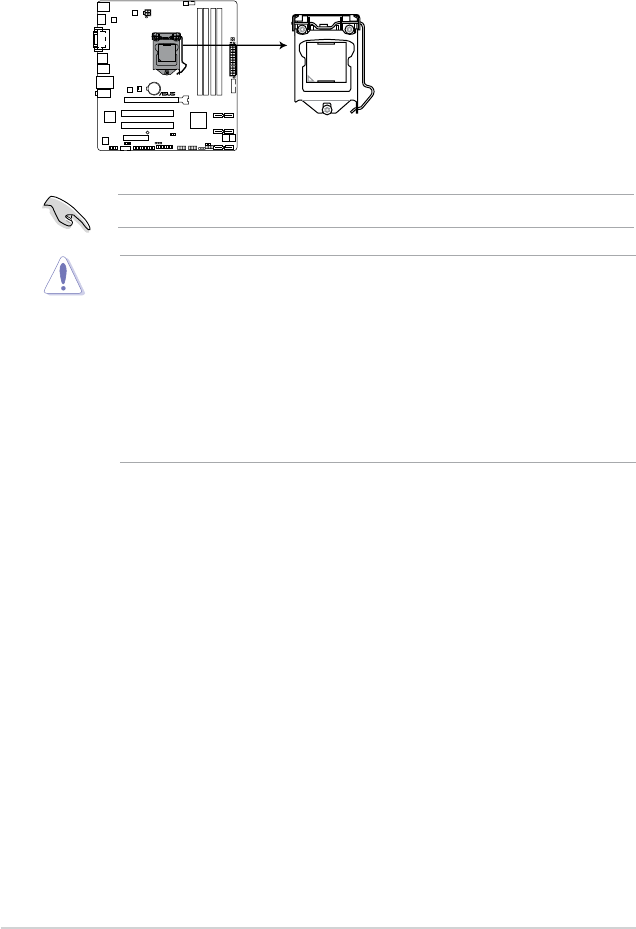

1.6.1 Installing the CPU ........................................................... 1-9

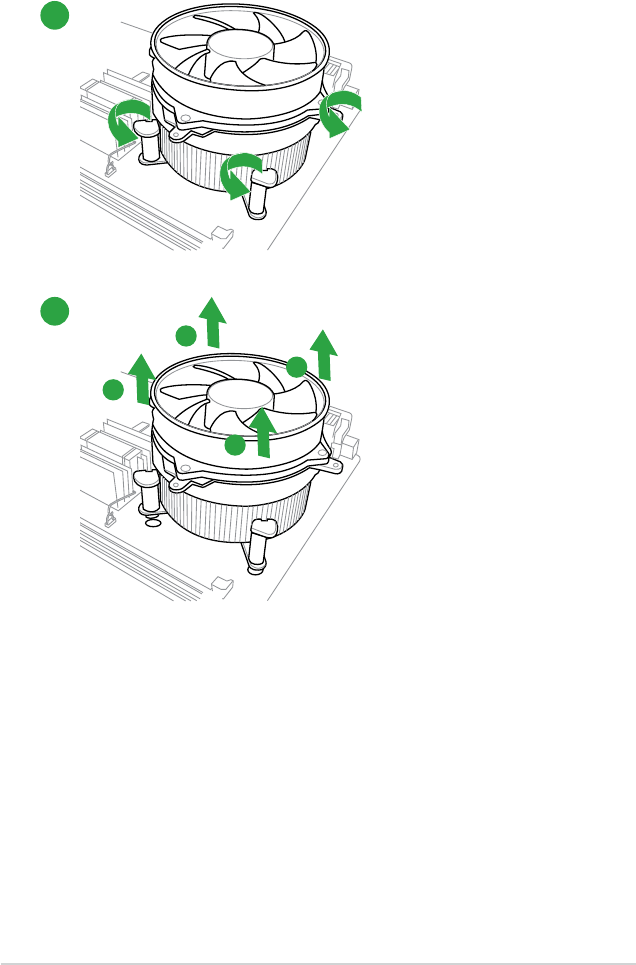

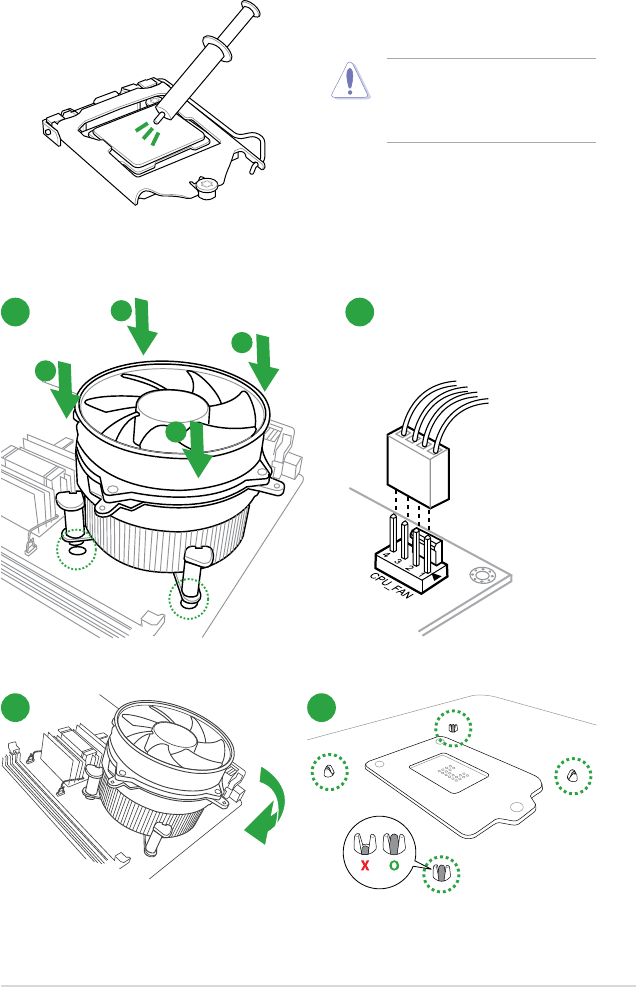

1.6.2 CPU heatsink and fan assembly installation ..................1-11
1.7 System memory ......................................................................... 1-13
1.7.1 Overview ....................................................................... 1-13
1.7.2 Memory congurations .................................................. 1-13

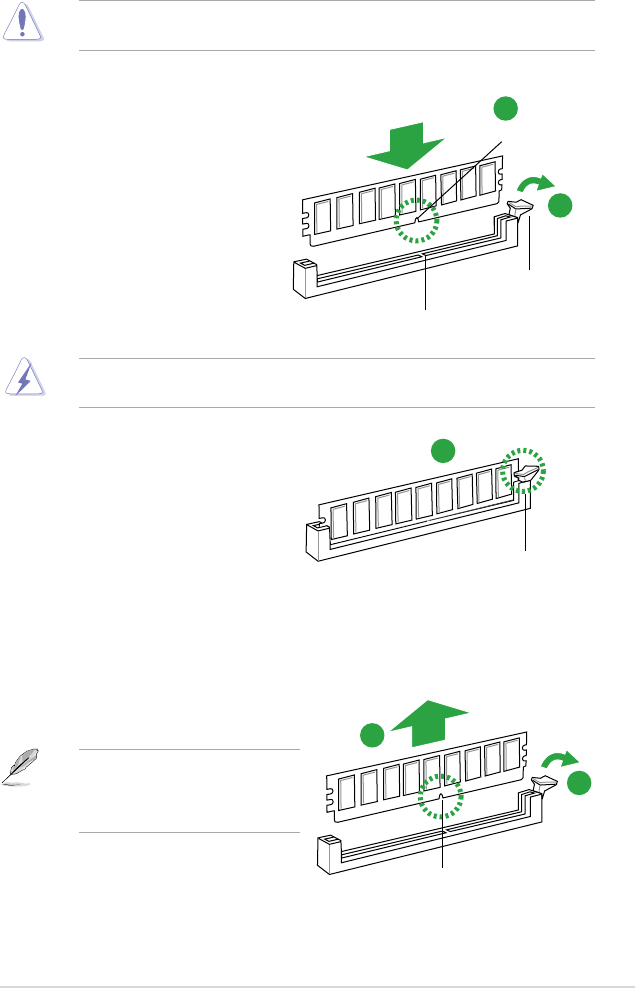

1.7.3 Installing a DIMM .......................................................... 1-19
1.7.4 Removing a DIMM ........................................................ 1-19
1.8 Expansion slots .......................................................................... 1-20
1.8.1 Installing an expansion card ......................................... 1-20
1.8.2 Conguring an expansion card ..................................... 1-20
1.8.3 PCI slot ......................................................................... 1-20
1.8.4 PCI Express x4 slot ....................................................... 1-20
1.8.5 PCI Express x16 slot ..................................................... 1-20
1.9 Jumpers ...................................................................................... 1-21
1.10 Connectors ................................................................................. 1-23

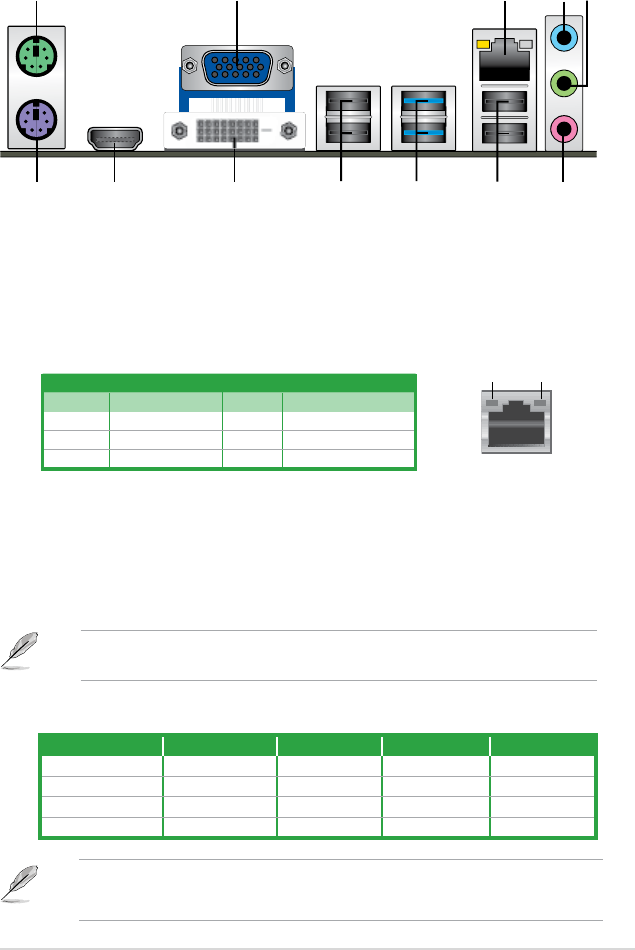

1.10.1 Rear panel connectors .................................................. 1-23
1.10.2 Internal connectors ....................................................... 1-25
1.11 Onboard switches ...................................................................... 1-32
1.12 Onboard LEDs ............................................................................ 1-33
iv
Contents
1.13 Software support ........................................................................ 1-34
1.13.1 Installing an operating system ...................................... 1-34
1.13.2 Support DVD information .............................................. 1-34
1.13.3 Intel® SBA support ......................................................... 1-35
Chapter 2 BIOS information
2.1 Managing and updating your BIOS ............................................ 2-1
2.1.1 ASUS Update utility ........................................................ 2-1

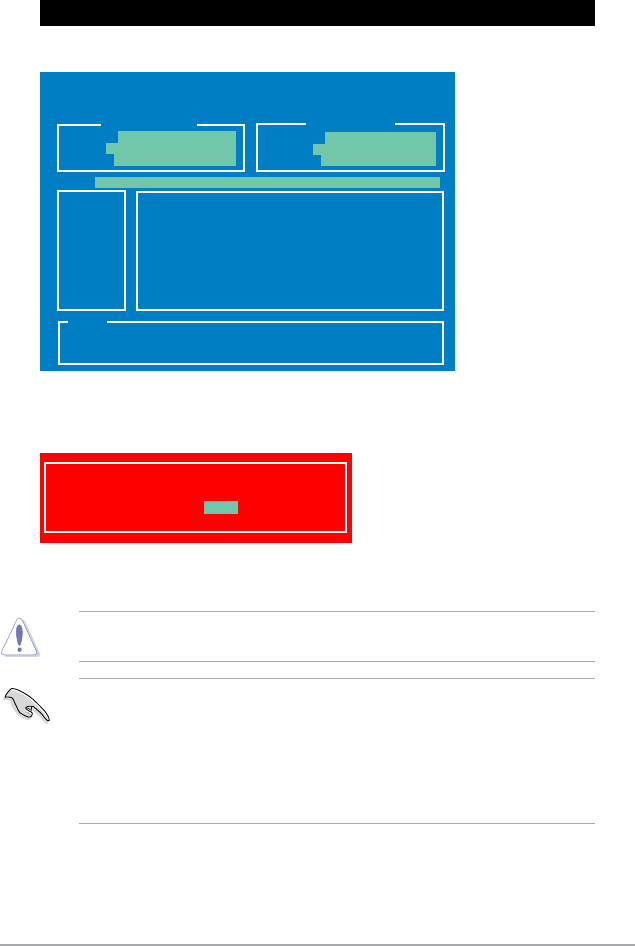

2.1.2 ASUS EZ Flash 2 ............................................................ 2-2
2.1.3 ASUS CrashFree BIOS 3 utility ...................................... 2-3
2.1.4 ASUS BIOS Updater ....................................................... 2-4

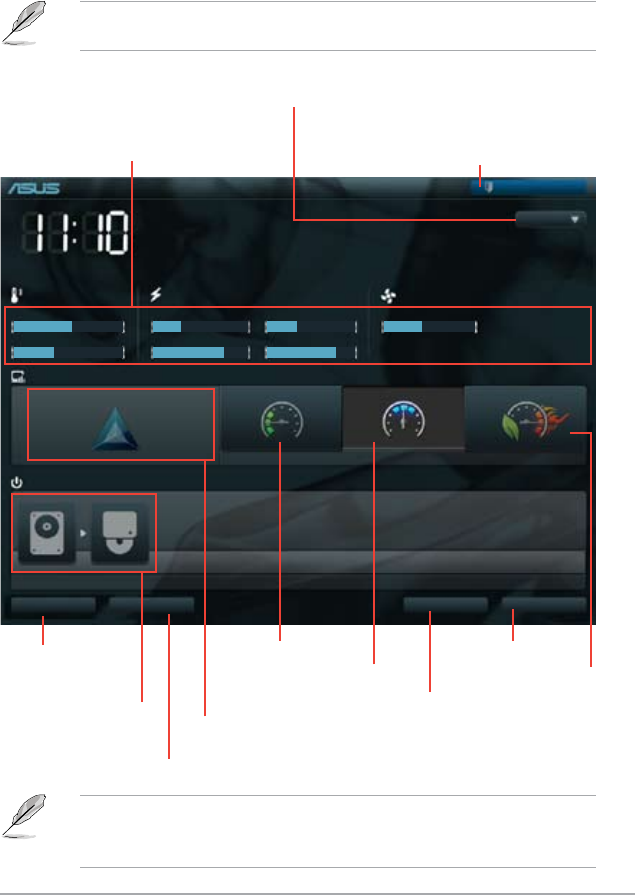

2.2 BIOS setup program .................................................................... 2-6
2.3 Main menu .................................................................................. 2-10
2.3.1 System Language [English] .......................................... 2-10
2.3.2 System Date [Day xx/xx/xxxx] ....................................... 2-10
2.3.3 System Time [xx:xx:xx] ................................................. 2-10
2.3.4 Security ......................................................................... 2-10
2.4 Ai Tweaker menu ........................................................................ 2-12
2.4.1 CPU bus speed : DRAM speed ratio mode [Auto] ........ 2-12
2.4.2 Memory Frequency [Auto] ............................................. 2-12
2.4.3 EPU Power Saving Mode [Disabled] ............................ 2-13
2.4.4 GPU Boost [OK] ............................................................ 2-13
2.4.5 DRAM Timing Control ................................................... 2-13
2.4.6 CPU Power Management ............................................. 2-13
2.4.7 Offset Mode Sign [+] ..................................................... 2-14
2.4.8 DRAM Voltage [Auto] .................................................... 2-14
2.4.9 VCCIO Voltage [Auto] ................................................... 2-14
2.4.10 VCCSA Voltage [Auto] .................................................. 2-14
2.4.11 CPU PLL Voltage [Auto] ................................................ 2-14
2.4.12 PCH Voltage [Auto] ....................................................... 2-15
2.4.13 Load-Line Calibration [Auto] ......................................... 2-15

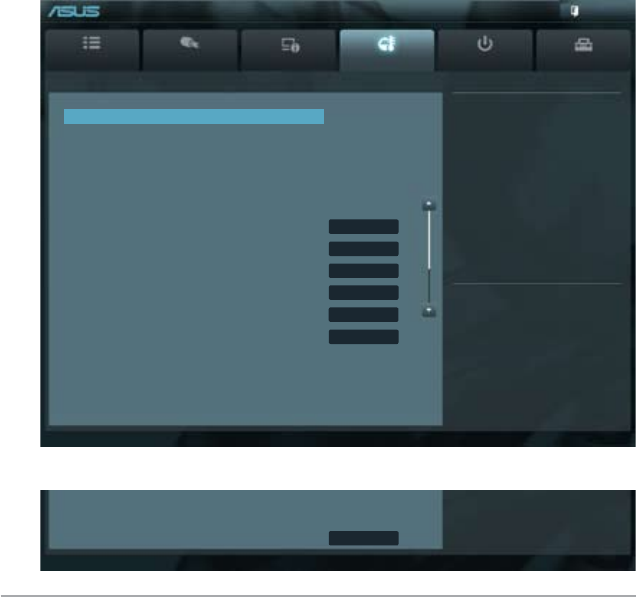

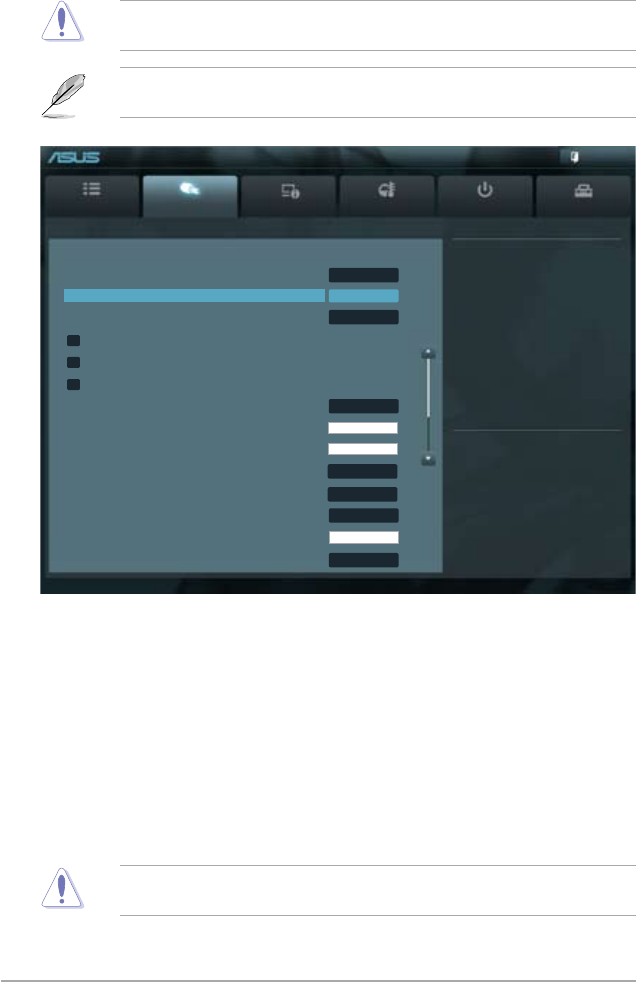

2.5 Advanced menu ......................................................................... 2-15
2.5.1 Trusted Computing ........................................................ 2-16
2.5.2 CPU Conguration ........................................................ 2-16
2.5.3 PCH Conguration ........................................................ 2-17
2.5.4 SATA Conguration ....................................................... 2-17
v
Contents
2.5.5 System Agent Conguration ......................................... 2-18
2.5.6 ME Subsystem .............................................................. 2-18
2.5.7 AMT Conguration ........................................................ 2-19
2.5.8 USB Conguration ........................................................ 2-19
2.5.9 Onboard Devices Conguration .................................... 2-20
2.5.10 APM .............................................................................. 2-21
2.6 Monitor menu ............................................................................. 2-22
2.5.11 Network Stack ............................................................... 2-22
2.6.1 CPU Temperature / MB Temperature [xxxºC/xxxºF] ...... 2-23
2.6.2 CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A] 2-23
2.6.3 CPU Q-Fan Control [Enabled] ...................................... 2-23
2.6.4 Chassis Q-Fan Control [Enabled] ................................. 2-24
2.6.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage .. 2-24
2.6.6 Anti Surge Support [Enabled] ....................................... 2-24
2.7 Boot menu .................................................................................. 2-25
2.7.1 Bootup NumLock State [On] ......................................... 2-25
2.7.2 Full Screen Logo [Enabled] ........................................... 2-25
2.7.3 Wait for ‘F1’ If Error [Enabled] ....................................... 2-25
2.7.4 Option ROM Messages [Force BIOS] ........................... 2-26
2.7.5 Setup Mode [EZ Mode] ................................................. 2-26
2.7.6 UEFI/Legacy Boot [Enabled both UEFI and Legacy] .... 2-26
2.7.7 PCI ROM Priority [Legacy ROM] .................................. 2-26
2.7.8 Boot Option Priorities .................................................... 2-26
2.7.9 Boot Override ................................................................ 2-26

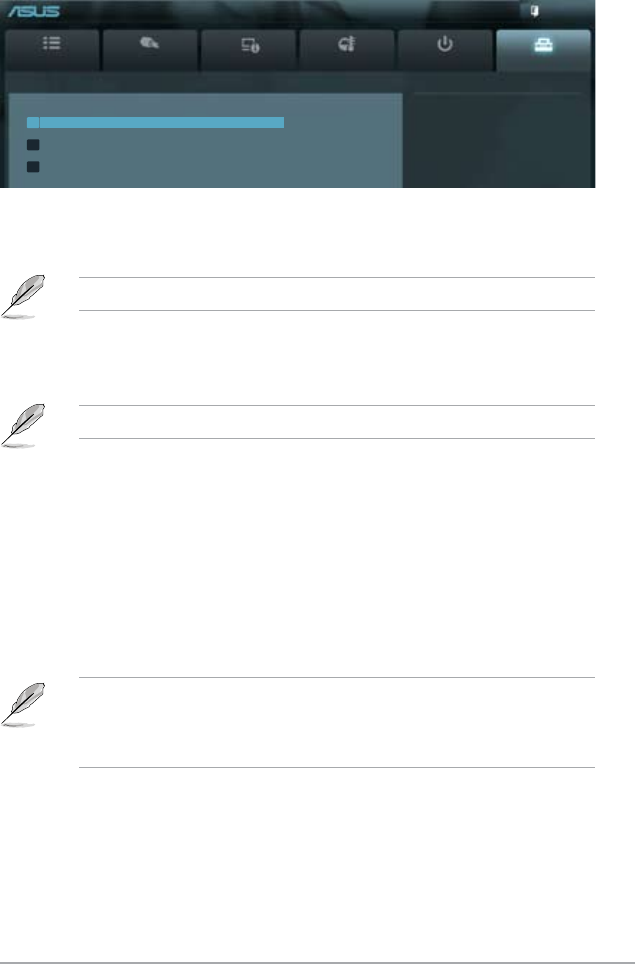

2.8 Tools menu ................................................................................. 2-27
2.8.1 ASUS EZ Flash 2 Utility ................................................ 2-27
2.8.2 ASUS O.C. Prole ......................................................... 2-27
2.8.3 ASUS SPD Information ................................................. 2-27
2.9 Exit menu .................................................................................... 2-28
Appendices
Notices .......................................................................................................A-1
vi
Safety information
Electrical safety
• To prevent electric shock hazard, disconnect the power cable from the electric outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
•
Before installing the motherboard and adding devices on it, carefully read all the manuals
that came with the package.
•
Before using the product, ensure that all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
•
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
•
Place the product on a stable surface.
•
If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports.
• Chapter 2: BIOS information
This chapter tells how to change system settings through the BIOS Setup menus.
Detailed descriptions of the BIOS parameters are also provided.
vii
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying to
complete a task.
NOTE: Tips and additional information to help you complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Typography
Bold text Indicates a menu or an item to select.
Italics
Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
Example: <Ctrl>+<Alt>+<D>
viii
P8B75-M specications summary
(continued on the next page)
CPU LGA1155 socket for Intel® 3rd/2nd Generation Core™ i7 /
Core™ i5 / Core™ i3, Pentium®, Celeron® processors
Supports Intel 22/32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the
CPU types.
** Refer to www.asus.com for Intel® CPU support list.
Chipset Intel® B75 Express Chipset

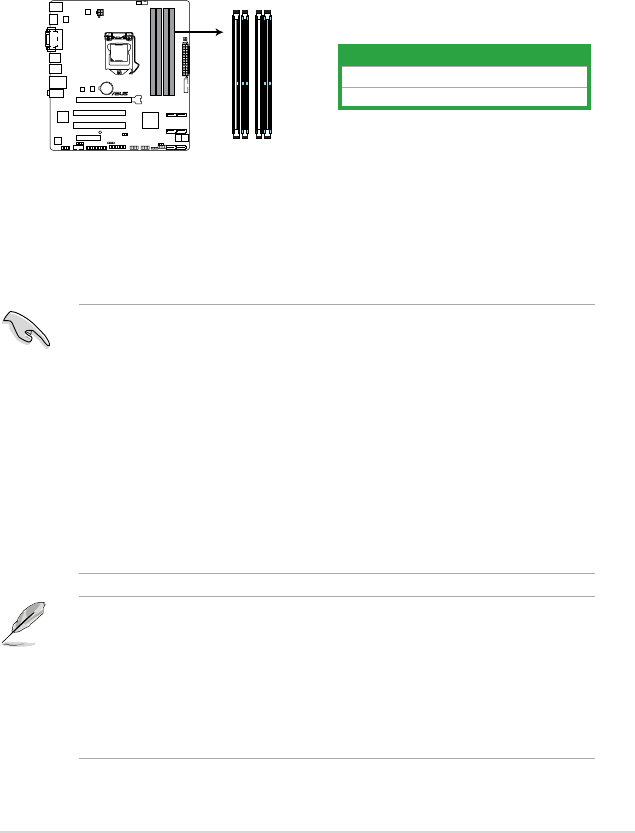

Memory 4 x DIMM, max. 32GB, DDR3 /2200(O.C.) /2000(O.C.) /1800(O.C.)
/1600 / 1333 / 1066 MHz, non-ECC,
un-buffered memory
Dual-channel memory architecture
* DDR3 1600 MHz and above memory frequency is supported by
Intel® 3rd generation processors.
** Refer to www.asus.com for the latest Memory QVL (Qualied
Vendors List).
*** When you install a total memory of 4GB capacity or more,
Windows® 32-bit operating system may only recognize less
than 3GB. We recommend a maximum of 3GB system memory
if you are using a Windows® 32-bit operating system.
Graphics Integrated graphics processor
Multi-VGA output support: HDMI, DVI-D, and D-Sub ports
Supports HDMI with max.resolution of 1920 x 1200 @60Hz
Supports DVI with max.resolution of 1920 x 1200 @60Hz
Supports D-Sub with max. resolution of 2048 x 1536 @75Hz
Maximum shared memory of 1 GB
Expansion slots 1 x PCI Express 3.0/2.0 x16 slot*
1 x PCI Express 2.0 x4 slot
2 x PCI slots
* PCIe 3.0 speed is supported by Intel® 3rd generation Core™
processors.
Storage Intel® B75 Express Chipset:
- 5 x Serial ATA 3.0 Gb/s connectors (blue)
- 1 x Serial ATA 6.0 Gb/s connector (gray)
LAN Realtek® 8111F-VB-CG PCIe Gigabit LAN controller
Audio VIA® VT1708S 8-channel* High Denition Audio CODEC
- Supports jack-detection, multi-streaming, anti-pop function,
and front panel jack-retasking
* Use a chassis with HD audio module in the front panel to
support an 8-channel audio output.
USB Intel® B75 Express Chipset
- 4 x USB 3.0/2.0 ports (2 ports at mid-board, 2 ports at back
panel)
- 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back
panel)
ix
P8B75-M specications summary
ASUS unique features ASUS Exclusive Features:
- ASUS EPU
- GPU Boost
- Network iControl featuring instant network bandwidth
domination for top network program in use
- ASUS USB 3.0 Boost

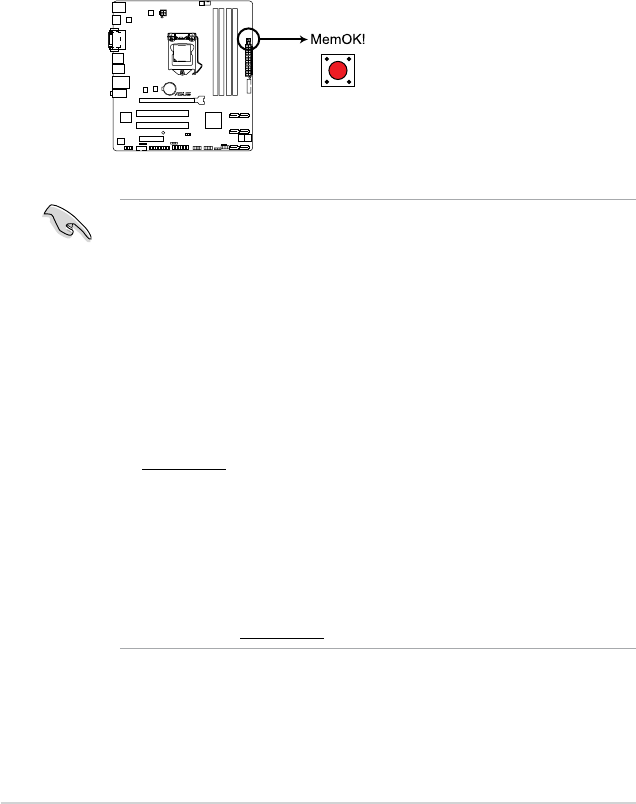

- MemOK!
- ASUS AI Suite II
- Ai Charger
- ASUS Anti-Surge Protection
- ASUS UEFI BIOS featuring graphics user interface
ASUS Quiet Thermal Solution:
- ASUS Q-Fan 2
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2™
Rear panel ports 1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x HDMI port
1 x DVI-D port
1 x D-Sub port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports (blue)
3 x Audio jacks
Internal connectors/
switches/ buttons

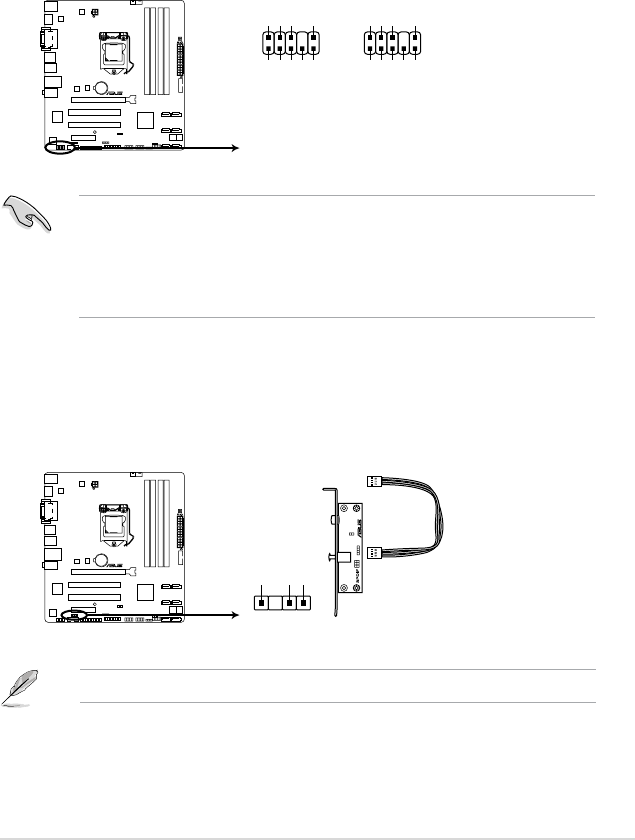

1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0
ports
2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1
ports

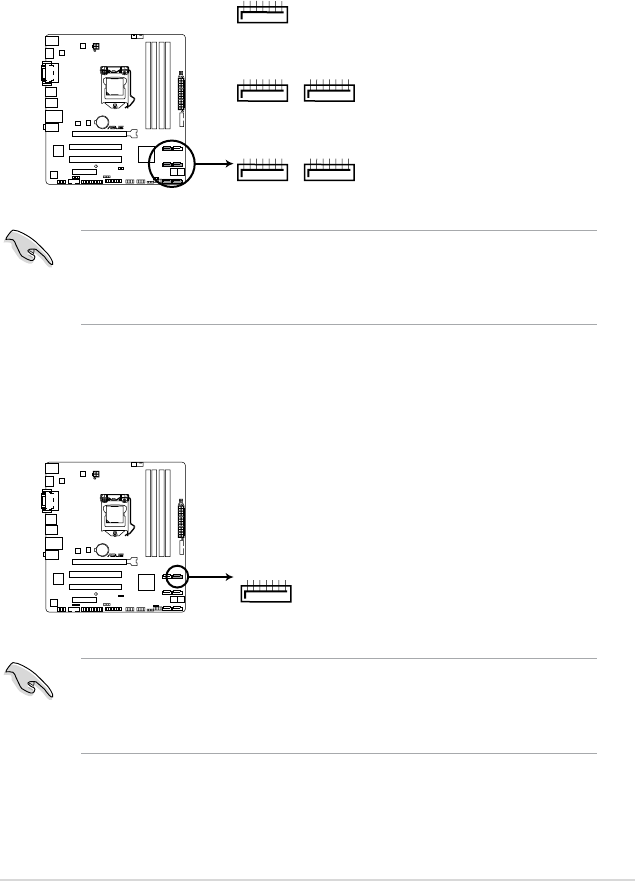

5 x SATA 3.0 Gb/s connectors (blue)
1 x SATA 6.0 Gb/s connector (gray)
1 x CPU fan connector
2 x Chassis fan connectors
1 x Chassis intrusion connector
1 x TPM connector

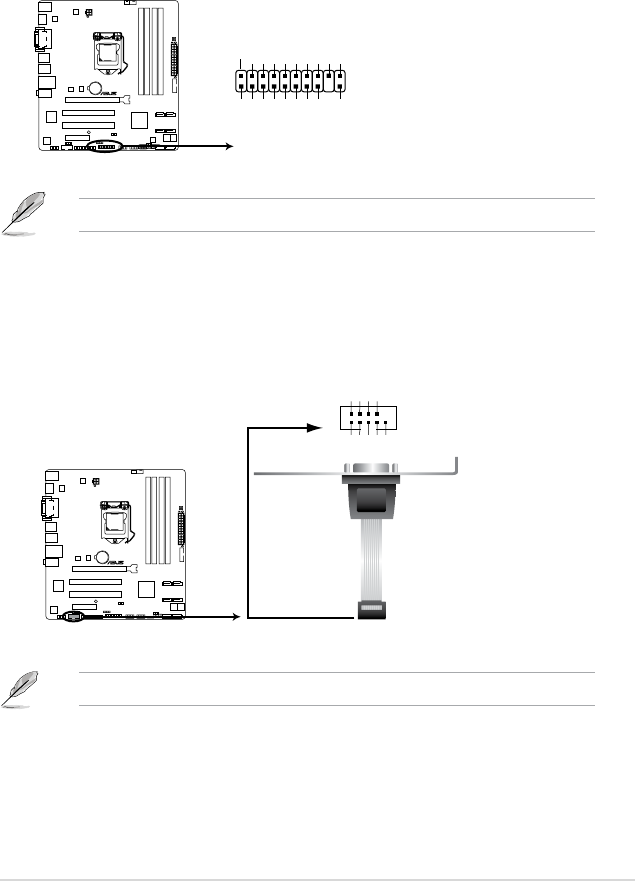

1 x COM connector
1 x LPT connector
1 x Front panel audio connector (AAFP)
1 x S/PDIF output connector
1 x System panel connector
1 x Speaker connector

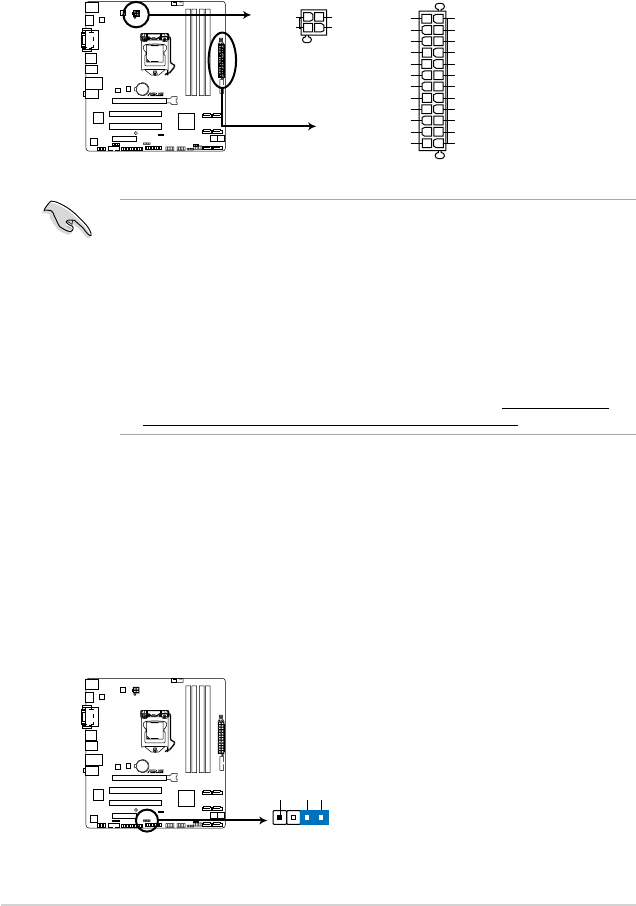

1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x MemOK! button

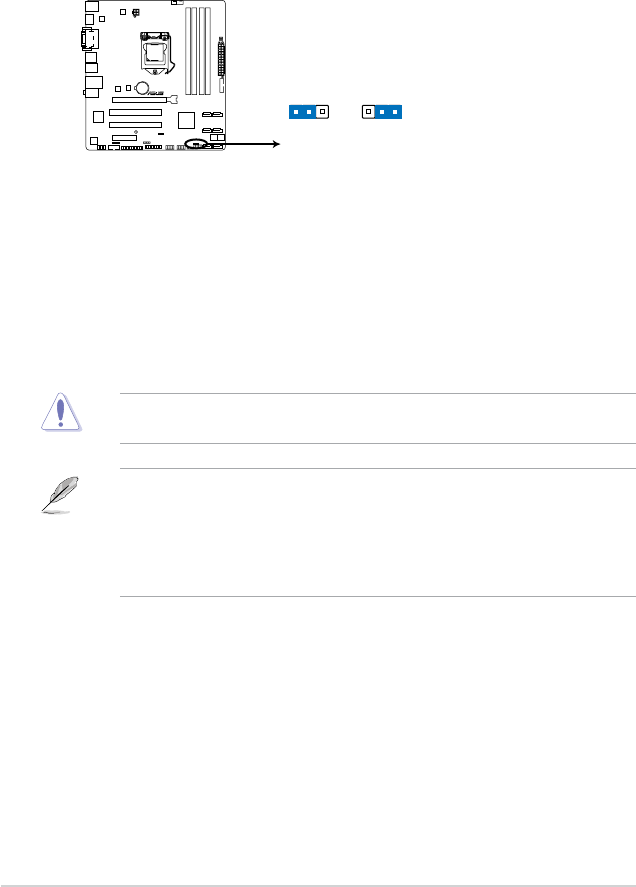

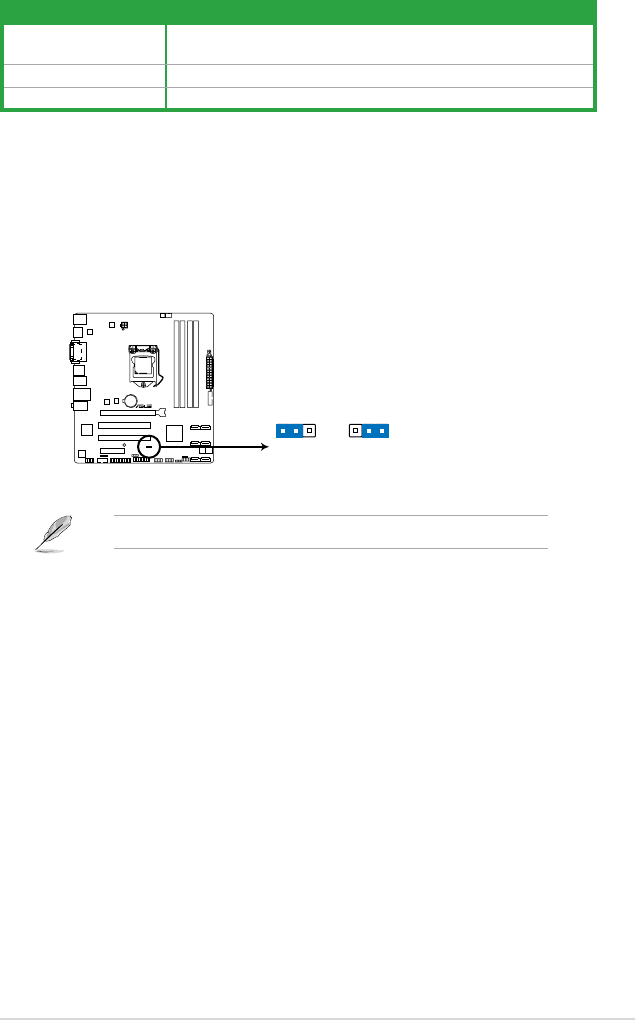

1 x Clear CMOS jumper
1 x DIS_ME jumper
(continued on the next page)
x
* Specications are subject to change without notice.
BIOS features 128 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM 2.0,
ACPI v2.0a, SM BIOS v2.5, Multi-language BIOS, ASUS
CrashFree BIOS 3, ASUS EZ Flash 2, F12 PrintScreen
function, F3 Shortcut function, and ASUS DRAM SPD (Serial
Presence Detect) memory information
Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories 1 x Serial ATA 3.0Gb/s cable
1 x Serial ATA 6.0Gb/s cable
1 x I/O shield
1 x User Manual
1 x Support DVD
Support DVD Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
Form factor MicroATX form factor: 9.6 in x 8.9 in (24.4 cm x 22.6 cm)
P8B75-M specications summary
1-1Chapter 1: Product introduction
Chapter 1
Product introduction
Motherboard ASUS P8B75-M motherboard
Cables 1 x Serial ATA 6.0Gb/s cable
1 x Serial ATA 3.0Gb/s cable
Accessories 1 x I/O shield
Application DVD ASUS motherboard support DVD
Documentation User Manual
If any of the above items is damaged or missing, contact your retailer.
1.3 Special features
1.3.1 Product highlights
LGA1155 socket for Intel® 3rd/2nd Generation Core™ i7 /
Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
This motherboard supports the Intel® 3rd/2nd generation Core™ i7/i5/
i3/Pentium®/Celeron® processors in the LGA1155 package, with iGPU,
memory, and PCI Express controllers integrated to support onboard
graphics out with dedicated chipsets, 2-channel (4 DIMMs) DDR3
memory, and 16 PCI Express 3.0/2.0 lanes. This provides great graphics
performance. Intel® 3rd/2nd generation Core™ i7 / i5 / i3 / Pentium® /
Celeron® processors are among the most powerful and energy efcient
CPUs in the world.
1.1 Welcome!
Thank you for buying an ASUS® P8B75-M motherboard!
The motherboard delivers a host of new features and latest technologies, making it another
standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the items in
your package with the list below.
1.2 Package contents
Check your motherboard package for the following items.
ASUS P8B75-M1-2
Intel® B75 Express Chipset
The Intel® B75 Express Chipset is a single-chipset designed to support
the 1155 socket Intel® 3rd/2nd generation Core™ i7 / i5 / i3 / Pentium®/
Celeron® processors. It provides improved performance by utilizing
serial point-to-point links, allowing increased bandwidth and stability.
Additionally, B75 chipset provides 4 USB 3.0 ports for 10 times faster
data retrieval speed.
Dual-Channel DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600 /
1333 / 1066MHz support
The motherboard supports DDR3 memory that features data transfer
rates of 2200(O.C.) / 2000(O.C.) / 1800(O.C.) /1600 / 1333 / 1066
MHz to meet the higher bandwidth requirements of the latest 3D
graphics, multimedia, and Internet applications. The dual-channel DDR3
architecture enlarges the bandwidth of your system memory to boost
system performance.
Native SATA 6.0 Gb/s support
The Intel® B75 Express Chipset natively supports next-generation Serial
ATA (SATA) storage interface. This motherboard delivers up to 6.0 Gb/s
data transfer rates. Additionally, get enhanced scalability, faster data
retrieval, double the bandwidth of current bus systems.
Complete USB 3.0 Integration
ASUS facilitates strategic USB 3.0 accessibility for both the front and
rear panel – 4 USB 3.0 ports in total. Experience the latest plug &
play connectivity at speeds up to 10 times faster than USB 2.0. This
motherboard affords greater convenience to high speed connectivity.
HDMI Support
High Denition Multimedia Interface (HDMI) is a set of digital video
standards that delivers multi-channel audio and uncompressed digital
video via a single cable. Supporting HDCP copy protection such as HD
DVD and Blu-ray discs, HDMI provides you with the highest quality home
theater experience.
PCI Express® 3.0
PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with
improved encoding schemes that provide twice the performance of the
current PCIe 2.0. The total bandwidth for a x16 link reaches a maximum
of 32Gb/s, double the 16 Gb/s of PCIe 2.0 (in x16 mode). As such, PCIe
3.0 provides users an unprecendented data speeds, combined with the
convenience and seamless transition offerred by complete backward
compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become
a must-have feature for users who wish to improve and optimize graphic
performance, as well as have the latest technology available to them.
* PCI 3.0 speed is supported by Intel® 3rd generation Core™ processors.
1-3Chapter 1: Product introduction
1.3.2 Innovative ASUS features

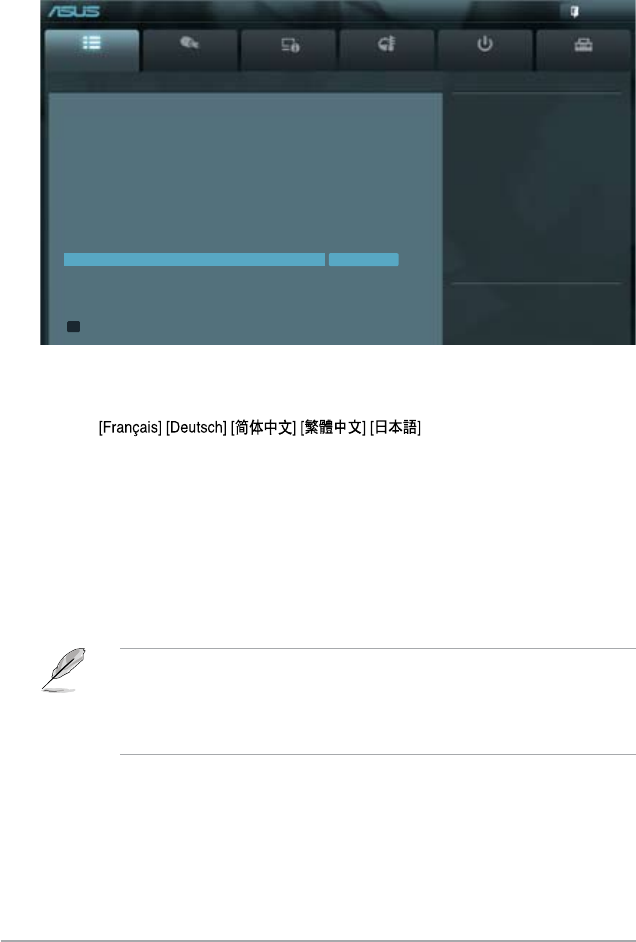

ASUS UEFI BIOS
Flexible and Easy BIOS Interface
ASUS UEFI BIOS offers the rst mouse-controlled graphical BIOS
designed with selectable modes, providing a user-friendly interface
that goes beyond the traditional keyboard-only controls. It also natively
supports fully-utilized hard drives larger than 2.2TB in 64-bit operating
systems.
ASUS exclusive interface
EZ Mode displays frequently-accessed info. Users can choose system
performance settings, and drag and drop boot priorities. Advanced Mode
for performance enthusiasts includes detailed DRAM settings via a
dedicated memory info page for complete insight.
New upgrade! Quick and easy information for enhanced system
control
- F12 BIOS snapshot hotkey for sharing UEFI information and
troubleshooting
- New F3 Shortcut for most accessed information
- ASUS DRAM SPD (Serial Presence Detect) information for accessing
memory information, detecting faulty DIMMs, and helping with difcult
POST situations.
USB 3.0 Boost
With USB 3.0 Boost technology, a USB device’s transmission speed is
signicantly increased, adding to an already impressive fast USB 3.0
transfer speed. ASUS software automatically accelerates data speeds for
compatible USB 3.0 peripherals without the need for any user interaction.
Network iControl
With a one-click on/off button, the software currently in use is set as
top priority over all other network programs, dominating the network
bandwidth with ease. Moreover, you can prioritize your favorite software
easily by conguring proles through the intutive user interface. Within
the prole, programs can be pre-scheduled to run in a specic time period
to avoid network clogging and long-waits on downloads. Auto PPPoE
network connection gives a one-step setup and an intuitive network
bandwidth control center.
GPU Boost
Go to the Limit with iGPU Level Up!
GPU Boost accelerates the integrated GPU for extreme graphics
performance. The user-friendly interface facilitates exible frequency
adjustments. It easily delivers stable system-level upgrades for every use.
ASUS P8B75-M1-4
MemOK!
MemOK! quickly ensures memory boot compatibility. This remarkable
memory rescue tool requires a mere push of the button to patch memory
issues. MemOK! determines failsafe settings and dramatically improves
your system boot success. Get your system up and running in no time.
AI Suite II
With its fast user-friendly interface, ASUS AI Suite II consolidates all the
exclusive ASUS features into one simple to use software package. It
allows you to supervise overclocking, energy management, fan speed
control, and voltage and sensor readings. This all-in-one software offers
diverse and ease to use functions, with no need to switch back and forth
between different utilities.
ASUS Anti-Surge Protection
This special design prevents expensive devices and the motherboard
from damage caused by power surges from switching power supply
(PSU).
ASUS Q-Fan 2
The ASUS Q-Fan 2 technology intelligently adjusts both CPU and chassis
fan speeds according to system loading to ensure quiet, cool and efcient
operation.
ASUS EPU
Tap into the world’s rst real-time PC power saving chip through the AI
Suite II utility. Get total system-wide energy optimization by automatically
detecting current PC loadings and intelligently moderating power
consumption. This also reduces fan noise and extends component
longevity.
ASUS MyLogo2™
This feature allows you to convert your favorite photo into a 256-color
boot logo for a more colorful and vivid image on your screen.
ASUS CrashFree BIOS 3
ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to
restore a corrupted BIOS le using the bundled support DVD or USB
ash disk that contains the latest BIOS le.
ASUS EZ Flash 2
ASUS EZ Flash 2 is a utility that allows you to update the BIOS without
using an OS-based utility.
1-5Chapter 1: Product introduction
1.4 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due to
static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so may
cause severe damage to the motherboard, peripherals, or components.
C.P.R. (CPU Parameter Recall)
The BIOS C.P.R. feature automatically restores the CPU default settings
when the system hangs due to overclocking failure. C.P.R. eliminates the
need to open the system chassis and clear the RTC data. Simply shut
down and reboot the system, and the BIOS automatically restores the
CPU parameters to their default settings.
ErP ready
The motherboard is European Union´s Energy-related Products (ErP)
ready, and ErP requires products to meet certain energy efciency
requirements in regards to energy consumptions. This is in line with
ASUS vision of creating environment-friendly and energy-efcient
products through product design and innovation to reduce carbon
footprint of the product and thus mitigate environmental impacts.
ASUS P8B75-M1-6
P8B75-M
1.5 Motherboard overview
Before you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Ensure that you unplug the power cord before installing or removing the motherboard.
Failure to do so can cause you physical injury and damage motherboard components.
1.5.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
1.5.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis
1-7Chapter 1: Product introduction
1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors (4-pin
CPU_FAN, 3-pin CHA_FAN1/2)
1-27 12. Speaker connector (4-pin SPEAKER) 1-28
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-26 13. USB 2.0 connectors (10-1 pin USB56, USB78) 1-30
3. Intel® LGA1155 CPU socket 1-8 14. Intel® ME jumper (3-pin DIS_ME) 1-21
4. DDR3 DIMM slots 1-13 15. TPM connector (20-1 pin TPM) 1-31
5. DRAM LED (DRAM_LED) 1-33 16. Chassis intrusion connector (4-1 pin CHASSIS) 1-26
6. MemOK! switch 1-32 17. LPT connector (26-1 pin LPT) 1-27
7. USB 3.0 connector (20-1 pin USB3_34) 1-30 18. Digital audio connector (4-1 pin SPDIF_OUT) 1-25
8. Intel® B75 Serial ATA 3.0Gb/s connectors (7-pin
SATA3G_1~5 [blue])
1-29 19. Serial port connector (10-1 pin COM1) 1-31
9. Intel® B75 Serial ATA 6.0Gb/s connectors
(7-pin SATA6G_1 [gray])
1-29 20. Front panel audio connector (10-1 pin AAFP) 1-25
10. Clear RTC RAM (3-pin CLRTC) 1-22 21. Onboard LED (SB_PWR) 1-33
11. System panel connector (10-1 pin F_PANEL) 1-28
ASUS P8B75-M1-8
1.6 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1155 socket designed for the Intel®
3rd/2nd Generation Core™ i7 / Core™ i5 / Core™ i3, Pentium®, Celeron® processors.
Unplug all power cables before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the
socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing,
or if you see any damage to the PnP cap/socket contacts/motherboard components.
ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1155 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
Right
P8B75-M
P8B75-M CPU socket LGA1155
1-9Chapter 1: Product introduction
1.6.1 Installing the CPU
1
23
The LGA1156 CPU is incompatible with the LGA1155 socket. DO NOT install a LGA1156
CPU on the LGA1155 socket.
A
B
ASUS P8B75-M1-10
A
B
C
5
4
1-11Chapter 1: Product introduction
1.6.2 CPU heatsink and fan assembly installation
Apply the Thermal Interface Material
to the CPU heatsink and CPU
before you install the heatsink and
fan if necessary.
To install the CPU heatsink and fan assembly
2
B
A
A
B
3
1
4
ASUS P8B75-M1-12
A
B
B
A
To uninstall the CPU heatsink and fan assembly
2
1
1-13Chapter 1: Product introduction
P8B75-M
P8B75-M 240-pin DDR3 DIMM sockets
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
1.7 System memory
1.7.1 Overview
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets. A DDR3 module has the same physical dimensions as a DDR2 DIMM but
is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are
developed for better performance with less power consumption.
The gure illustrates the location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
1.7.2 Memory congurations
You may install 1GB, 2GB, 4GB, and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM
sockets.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked or at a
higher frequency, refer to section 2.4 Ai Tweaker menu for manual memory frequency
adjustment.
• For system stability, use a more efcient memory cooling system to support a full
memory load (4 DIMMs) or overclocking condition.
• You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel conguration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
• Always install DIMMs with the same CAS latency. For optimum compatibility, we
recommend that you obtain memory modules from the same vendor.
• Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Use a maximum of 3GB system memory if you are using a 32-bit Windows® OS.
- Install a 64-bit Windows® OS when you want to install 4GB or more on the
motherboard.
• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less.
ASUS P8B75-M1-14
P8B75-M Motherboard Qualied Vendors Lists (QVL)
DDR3-2400 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO. Timing Voltage DIMM socket support (Optional)
2 DIMMs 4 DIMMs
G.SKILL F3-19200CL11Q-
16GBZHD(XMP1.3) 16GB(4 x4GB) DS - - 11-11-11-31 1.65V • •
G.SKILL F3-19200CL9D-
4GBPIS(XMP) 4GB(2x 2GB) DS - - 9-11-9-28 1.65V • •
GEIL GET34GB2400C9DC(XMP) 2GB DS - - 9-11-9-27 1.65V • •
Transcend TX2400KLU-
4GK(374243)(XMP) 4GB(2x 2GB) DS - - 9 1.65V • •
DDR3-2200 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO. Timing Voltage DIMM socket support (Optional)
2 DIMMs 4 DIMMs
G.SKILL F3-17600CL8D-
4GBPS(XMP) 4GB(2 x2GB) DS - - 8-8-8-24 1.65V •
Kingmax FLKE85F-
B8KHAEEIH(XMP) 4GB(2x 2GB) DS - - - 1.5V-1.7v • •
DDR3-2133 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO. Timing Voltage
DIMM socket support
(Optional)
2 DIMMs 4 DIMMs
CORSAIR CMT16GX3M4X2133C9(XMP 1.3) 16GB(4 x4GB) DS - - 9-11-10-27 1.50V • •
CORSAIR CMT4GX3M2A2133C9(XMP) 4GB(2x 2GB) DS - - 9-10-9-24 1.65V • •
CORSAIR CMT4GX3M2B2133C9(XMP) 4GB(2x 2GB) DS - - 9-10-9-27 1.50V • •
GEIL GE34GB2133C9DC(XMP) 2GB DS - - 9-9-9-28 1.65V • •
GEIL GU34GB2133C9DC(XMP) 4GB(2 x 2GB) DS - - 9-9-9-28 1.65V • •
KINGSTON KHX2133C9AD3T1K2/4GX(XMP) 4GB(2x 2GB ) DS - - - 1.65V • •
KINGSTON KHX2133C9AD3T1K4/8GX(XMP) 8GB(4 x 2GB) DS - - 9-11-9-27 1.65V • •
KINGSTON KHX2133C9AD3T1FK4/
8GX(XMP) 8GB(4x 2GB) DS - - - 1.65V • •
PATRIOT PGD38G2133C11K(XMP) 16GB(4GB x4) DS - - 11-11-11-30 1.65V • •
DDR3-2000 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand Chip NO. Timing Voltage
DIMM socket support
(Optional)
2 DIMMs 4 DIMMs
CORSAIR CMZ4GX3M2A2000C10(XMP) 4GB(2 x 2GB) SS - - 10-10-10-27 1.50V • •
G.SKILL F3-16000CL6T-6GBPIS(XMP) 6GB (3x 2GB ) DS - - 6-9-6-24 1.65V • •
GEIL GUP34GB2000C9DC(XMP) 4GB(2 x 2GB) DS - - 9-9-9-28 1.65V • •
KINGSTON KHX2000C9AD3T1K2/4GX(XMP) 4GB(2x 2GB ) DS - - - 1.65V • •
KINGSTON KHX2000C9AD3W1K2/4GX(XMP) 4GB(2x 2GB ) DS - - - 1.65V • •
KINGSTON KHX2000C9AD3T1K2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 1.65V • •
KINGSTON KHX2000C9AD3W1K3/6GX(XMP) 6GB(3x 2GB ) DS - - - 1.65V • •
Asint SLA302G08-ML2HB(XMP) 4GB DS HYNIX H5TQ2G83BFR
H9C - - • •
DDR3-1866 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
NO. Timing Voltage
DIMM socket support
(Optional)
2 DIMMs 4 DIMMs
CORSAIR CMT4GX3M2A1866C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • •
CORSAIR CMT6GX3MA1866C9(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.65V • •
CORSAIR CMZ8GX3M2A1866C9(XMP) 8GB(2 x 4GB) DS - - 9-10-9-27 1.50V • •
G.SKILL F3-14900CL9Q-16GBZL(XMP1.3) 16GB(4 x4GB) DS - - 9-10-9-28 1.5V • •
G.SKILL F3-14900CL10Q2-
64GBZLD(XMP1.3) 64GB(8GBx 8) DS - - 10-11-10-30 1.5V • •
G.SKILL F3-14900CL9D-8GBXL(XMP) 8GB(2 x 4GB) DS - - 9-10-9-28 1.5V • •
G.SKILL F3-14900CL9Q-8GBXL(XMP) 8GB(2GBx4) DS - - 9-9-9-24 1.6V • •
KINGSTON KHX1866C9D3T1K3/3GX(XMP) 3GB(3 x 1GB) SS - - - 1.65V • •
KINGSTON KHX1866C9D3K4/16GX(XMP) 16GB 4GB x4 ) DS - - - 1.65V • •
KINGSTON KHX1866C9D3T1K3/6GX(XMP) 6GB(3 x 2GB) DS - - - 1.65V • •
KINGSTON KHX1866C11D3P1K2/8G 8GB(4GB x 2) DS - - - 1.5V • •
1-15Chapter 1: Product introduction
DDR3-1600 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand Chip NO. Timing Voltage
DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
A-DATA AM2U16BC2P1 2GB SS A-DATA 3CCD-1509A
EL1126T - - • • •
A-DATA AD31600E001GM(O)U3K 3GB(3 x 1GB) SS - - 8-8-8-24 1.65V-
1.85V • •
A-DATA AX3U1600XB2G79-2X(XMP) 4GB(2 x 2GB) DS - - 7-9-7-21 1.55V-
1.75V • • •
A-DATA AM2U16BC4P2 4GB DS A-DATA 3CCD-1509A
EL1126T - - • • •
A-DATA AX3U1600GC4G9-2G(XMP) 8GB(2 x 4GB) DS - - 9-9-9-24 1.55V-
1.75V • •
A-DATA AX3U1600XC4G79-2X(XMP) 8GB(2 x 4GB) DS - - 7-9-7-21 1.55V-
1.75V • • •
CORSAIR TR3X3G1600C8D(XMP) 3GB(3 x 1GB) SS - - 8-8-8-24 1.65V • •
CORSAIR CMD12GX3M6A1600C8(XMP) 12GB(6x2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR CMP4GX3M2A1600C8(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR CMP4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMP4GX3M2C1600C7(XMP) 4GB(2 x 2GB) DS - - 7-8-7-20 1.65V • • •
CORSAIR CMX4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMX4GX3M2A1600C9(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR TR3X6G1600C8 G(XMP) 6GB(3 x 2GB) DS - - 8-8-8-24 1.65V • •
CORSAIR TR3X6G1600C8D G(XMP) 6GB(3 x 2GB) DS - - 8-8-8-24 1.65V • • •
CORSAIR TR3X6G1600C9 G(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMP8GX3M2A1600C9(XMP) 8GB(2 x 4GB) DS - - 9-9-9-24 1.65V • • •
CORSAIR CMX8GX3M4A1600C9(XMP) 8GB(4 x 2GB) DS - - 9-9-9-24 1.65V • • •
Crucial BL25664BN1608.16FF(XMP) 6GB(3 x 2GB) DS - - - - • • •
G.SKILL F3-12800CL9D-2GBNQ(XMP) 2GB(2 x 1GB) SS - - 9-9-9-24 1.5V • • •
G.SKILL F3-12800CL7D-4GBRH(XMP) 4GB(2 x 2GB) SS - - 7-7-7-24 1.6V • • •
G.SKILL F3-12800CL7D-4GBECO(XMP) 4GB(2 x 2GB) DS - - 7-7-8-24 XMP 1.35V • • •
G.SKILL F3-12800CL7D-4GBRM(XMP) 4GB(2 x 2GB) DS - - 7-8-7-24 1.6V • • •
G.SKILL F3-12800CL8D-4GBRM(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 1.60V • • •
G.SKILL F3-12800CL9D-4GBECO(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 XMP 1.35V • • •
G.SKILL F3-12800CL9D-4GBRL(XMP) 4GB(2 x 2GB) DS - - 9-9-9-24 1.5V • • •
G.SKILL F3-12800CL9T-6GBNQ(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.5V~1.6V • • •
G.SKILL F3-12800CL7D-8GBRH(XMP) 8GB(2 x 4GB) DS - - 7-8-7-24 1.6V • • •
G.SKILL F3-12800CL8D-8GBECO(XMP) 8GB(2 x 4GB) DS - - 8-8-8-24 XMP 1.35V • • •
G.SKILL F3-12800CL9D-8GBRL(XMP) 8GB(2 x 4GB) DS - - 9-9-9-24 1.5V • • •
GEIL GET316GB1600C9QC(XMP) 16GB(4 x
4GB) DS - - 9-9-9-28 1.6V • • •
GEIL GV34GB1600C8DC(XMP) 2GB DS - - 8-8-8-28 1.6V • •
KINGMAX FLGD45F-B8MF7 MAEH(XMP) 1GB SS - - 7 - • • •
KINGMAX FLGE85F-B8MF7 MEEH(XMP) 2GB DS - - 7 - • • •
KINGSTON KHX1600C9D3P1K2/4G 4GB(2 x 2GB) SS - - - 1.5V • • •
KINGSTON KHX1600C9D3K3/12GX(XMP) 12GB(3x4GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9D3T1BK3/12GX(XMP) 12GB(3x4GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9AD3/2G 2GB DS - - - 1.65V • •
KINGSTON KVR1600D3N11/2G-ES 2GB DS KTC D1288JPNDPLD9U 11-11-
11-28 1.35V-1.5V • • •
KINGSTON KHX1600C7D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - - 1.65V • • •
KINGSTON KHX1600C8D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 8 1.65V • • •
KINGSTON KHX1600C8D3T1K2/4GX(XMP) 4GB(2 x 2GB) DS - - 8 1.65V • • •
KINGSTON KHX1600C9D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 1.65V • • •
KINGSTON KHX1600C9D3LK2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 XMP 1.35V • • •
KINGSTON KHX1600C9D3X2K2/4GX(XMP) 4GB(2 x 2GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9D3T1K3/6GX(XMP) 6GB(3 x 2GB) DS - - - 1.65V • • •
KINGSTON KHX1600C9D3K3/6GX(XMP) 6GB(3 x 2GB) DS - - 9 1.65V • • •
KINGSTON KHX1600C9D3T1BK3/6GX(XMP) 6GB(3 x 2GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9D3K2/8GX(XMP) 8GB(2 x 4GB) DS - - 9-9-9-27 1.65V • • •
KINGSTON KHX1600C9D3P1K2/8G 8GB(2 x 4GB) DS - - - 1.5V • •
Super
Talent WA160UX6G9 6GB(3 x 2GB) DS - - 9 - • • •
Transcend JM1600KLN-8GK 8GB(4GB x 2) DS Transcend TK483PCW3 - - • • •
Asint SLZ3128M8-EGJ1D(XMP) 2GB DS Asint 3128M8-GJ1D 9-9-9-24 1.6V • • •
Elixir M2P2G64CB8HC9N-DG(XMP) 2GB DS - - - - • • •
Kingtiger KTG2G1600PG3 2GB DS - - - - • •
Mushkin 998659(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 - • • •
Mushkin 998659(XMP) 6GB(3 x 2GB) DS - - 9-9-9-24 1.5~1.6V • • •
PATRIOT PGS34G1600LLKA 4GB(2 x 2GB) DS - - 7-7-7-20 1.7V • • •
ASUS P8B75-M1-16
(continued on the next page)
DDR3-1333 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand Chip NO. Timing Voltage
DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
A-DATA AD31333001GOU 1GB SS A-Data AD30908C8D-151C
E0906 - - •
A-DATA AD3U1333C2G9 2GB SS A-DATA 3CCD-1509HNA1126L - - • • •
A-DATA AD63I1B0823EV 2GB SS A-Data 3CCA-1509A - - • • •
A-DATA AM2U139C2P1 2GB SS ADATA 3CCD-1509A EL1127T - - • • •
A-DATA AX3U1333C2G9-BP 2GB SS - - - - • • •
A-DATA AD31333G001GOU 3GB(3 x 1GB) SS - - 8-8-8-24 1.65-1.85V • •
A-DATA AXDU1333GC2G9-2G(XMP) 4GB(2 x 2GB) SS - - 9-9-9-24
1.25V-
1.35V(low
voltage)
• • •
A-DATA AD31333G002GMU 2GB DS - - 8-8-8-24 1.65-1.85V • • •
A-DATA AD63I1C1624EV 4GB DS A-Data 3CCA-1509A - - • • •
A-DATA AM2U139C4P2 4GB DS ADATA 3CCD-1509A EL1127T - - • • •
A-DATA SU3U1333W8G9-B 8GB DS ELPIDA J4208BASE-DJ-F - - • • •
Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808DEWSBG - - • • •
Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808FEQSBG 9 - • •
Apacer AU02GFA33C9NBGC 2GB DS Apacer AM5D5808APQSBG - - • • •
Apacer 78.B1GDE.9L10C 4GB DS Apacer AM5D5908CEHSBG - - • • •
CORSAIR CM3X1024-1333C9 1GB SS - - 9-9-9-24 1.60V • • •
CORSAIR TR3X3G1333C9 G 3GB(3 x 1GB) SS - - 9-9-9-24 1.50V • • •
CORSAIR TR3X6G1333C9 G 6GB(3x 2GB) SS - - 9-9-9-24 1.50V • • •
CORSAIR CMD24GX3M6A1333C9(XMP) 24GB(6x4GB) DS - - 9-9-9-24 1.60V • • •
CORSAIR TW3X4G1333C9D G 4GB(2 x 2GB) DS - - 9-9-9-24 1.50V • • •
CORSAIR CM3X4GA1333C9N2 4GB DS CORSAIR 256MBDCJGELC
0401136 9-9-9-24 - • • •
CORSAIR CMX4GX3M1A1333C9 4GB DS - - 9-9-9-24 1.50V • • •
CORSAIR CMD8GX3M4A1333C7 8GB(4 x 2GB) DS - - 7-7-7-20 1.60V • • •
Crucial CT12864BA1339.8FF 1GB SS Micron 9FF22D9KPT 9 - • • •
Crucial CT25664BA1339.16FF 2GB DS Micron 9KF27D9KPT 9 - • •
Crucial BL25664BN1337.16FF (XMP) 6GB(3 x 2GB) DS - - 7-7-7-24 1.65V • • •
ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage) • • •
ELPIDA EBJ21UE8EDF0-DJ-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage) • • •
G.SKILL F3-10600CL8D-2GBHK(XMP) 1GB SS G.SKILL - - - • • •
G.SKILL F3-10600CL9D-2GBNQ 2GB(2 x 1GB) SS - - 9-9-9-24 1.5V • •
G.SKILL F3-10666CL7T-3GBPK(XMP) 3GB(3 x 1GB) SS - - 7-7-7-18 1.5~1.6V • • •
G.SKILL F3-10666CL8D-4GBECO(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 XMP 1.35V • • •
G.SKILL F3-10666CL7T-6GBPK(XMP) 6GB(3 x 2GB) DS - - 7-7-7-18 1.5~1.6V • • •
G.SKILL F3-10666CL7D-8GBRH(XMP) 8GB(2 x 4GB) DS - - 7-7-7-21 1.5V • • •
GEIL GET316GB1333C9QC 16GB(4 x
4GB) DS - - 9-9-9-24 1.5V • •
GEIL GV32GB1333C9DC 2GB(2 x 1GB) DS - - 9-9-9-24 1.5V • • •
GEIL GG34GB1333C9DC 4GB(2 x 2GB) DS GEIL GL1L128M88BA12N 9-9-9-24 1.3V(low
voltage) • • •
GEIL GV34GB1333C9DC 4GB(2 x 2GB) DS - - 9-9-9-24 1.5V • •
GEIL GVP34GB1333C7DC 4GB(2 x 2GB) DS - - 7-7-7-24 1.5V • • •
Hynix HMT112U6TFR8A-H9 1GB SS Hynix H5TC1G83TFRH9A - 1.35V(low
voltage) • • •
Hynix HMT325U6BFR8C-H9 2GB SS Hynix H5TQ2G83BFRH9C - - • • •
Hynix HMT125U6TFR8A-H9 2GB DS Hynix H5TC1G83TFRH9A - 1.35V(low
voltage) • •
Hynix HMT351U6BFR8C-H9 4GB DS Hynix H5TQ2G83BFRH9C - - • • •
KINGMAX FLFD45F-B8KL9 NAES 1GB SS KINGMAX KKB8FNWBFGNX-27A - - • • •
KINGMAX FLFE85F-C8KF9 CAES 2GB SS KINGMAX KFC8FMFXF-DXX-15A - - • • •
KINGMAX FLFE85F-C8KL9 NAES 2GB SS KINGMAX KFC8FNLXF-DXX-15A - - • • •
KINGMAX FLFE85F-C8KM9 NAES 2GB SS KINGMAX KFC8FNMXF-BXX-15A - - • • •
KINGMAX FLFE85F-B8KL9 NEES 2GB DS KINGMAX KKB8FNWBFGNX-26A - - • • •
KINGMAX FLFF65F-C8KL9 NEES 4GB DS KINGMAX KFC8FNLXF-DXX-15A - - • • •
KINGMAX FLFF65F-C8KM9 NEES 4GB DS KINGMAX KFC8FNMXF-BXX-15A - - • •
KINGSTON KVR1333D3N9/1G(low prole) 1GB SS ELPIDA J1108BDBG-DJ-F 9 1.5V • • •
KINGSTON KVR1333D3N9/2G(low prole) 2GB SS Hynix H5TQ2G83AFRH9C 9 - • • •
KINGSTON KVR1333D3S8N9/2G-SP(low
prole) 2GB SS ELPIDA J2108BCSE-DJ-F - 1.5V • • •
KINGSTON KVR1333D3N9/2G 2GB DS KTC D1288JPNDPLD9U 9 1.5V • • •
KINGSTON KVR1333D3N9/2G 2GB DS ELPIDA J1108BDSE-DJ-F 9 1.5V • • •
KINGSTON KVR1333D3N9/2G-SP(low
prole) 2GB DS KTC D1288JEMFNGD9U - 1.5V • • •
KINGSTON KVR1333D3N9/2G-SP(low
prole) 2GB DS KINGSTON D1288JPSFPGD9U - 1.5V • • •
KINGSTON KHX1333C7D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 7 1.65V • • •
KINGSTON KHX1333C9D3UK2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 XMP 1.25V • • •
KINGSTON KVR1333D3N9/4G(low prole) 4GB DS ELPIDA J2108BCSE-DJ-F 9 1.5V • • •
1-17Chapter 1: Product introduction
DDR3-1333 MHz capability
Vendors Part No. Size SS/
DS Chip Brand Chip NO. Timing Voltage
DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
KINGSTON KVR1333D3N9/4G(low prole) 4GB DS ELPIDA J2108BCSE-DJ-F - 1.5V • • •
KINGSTON KVR1333D3N9/4G 4GB DS KTC D2568JENCNGD9U - 1.5V • • •
KINGSTON KVR1333D3N9/4G 4GB DS Hynix H5TQ2G83AFR - - • •
KINGSTON KVR1333D3N9/4G-SP(low
prole) 4GB DS KINGSTON D2568JENCPGD9U - 1.5V • • •
Micron MT4JTF12864AZ-1G4D1 1GB SS Micron OJD12D9LGQ - - • • •
Micron MT8JTF12864AZ-1G4F1 1GB SS Micron 9FF22D9KPT 9 - • • •
Micron MT8JTF25664AZ-1G4D1 2GB SS Micron OJD12D9LGK - - • • •
Micron MT8JTF25664AZ-1G4M1 2GB SS MICRON IJM22 D9PFJ - - • • •
Micron MT16JTF25664AZ-1G4F1 2GB DS Micron 9KF27D9KPT 9 - • •
Micron MT16JTF51264AZ-1G4D1 4GB DS Micron OLD22D9LGK - - • • •
NANYA NT4GC64B8HG0NF-CG 4GB DS NANYA NT5CB256M8GN-CG - - • •
PSC AL7F8G73F-DJ2 1GB SS PSC A3P1GF3FGF - - • •
PSC AL8F8G73F-DJ2 2GB DS PSC A3P1GF3FGF - - • • •
SAMSUNG M378B2873FHS-CH9 1GB SS SAMSUNG K4B1G0846F - - • • •
SAMSUNG M378B5773DH0-CH9 2GB SS SAMSUNG K4B2G0846D - - • • •
SAMSUNG M378B5673FH0-CH9 2GB DS SAMSUNG K4B1G0846F - - • • •
SAMSUNG M378B5273CH0-CH9 4GB DS SAMSUNG K4B2G0846C - - • • •
SAMSUNG M378B1G73AH0-CH9 8GB DS SAMSUNG K4B4G0846A-HCH9 - - • •
Super Talent W1333UA1GH 1GB SS Hynix H5TQ1G83TFR 9 - • • •
Super Talent W1333UX2G8(XMP) 2GB(2x
1GB) SS - - 8 - • • •
Super Talent W1333UB2GS 2GB DS SAMSUNG K4B1G0846F 9 - • • •
Super Talent W1333UB4GS 4GB DS SAMSUNG K4B2G0846C - - • • •
Super Talent W1333UX6GM 6GB(3x
2GB) DS Micron 0BF27D9KPT 9-9-9-24 1.5V • • •
Transcend JM1333KLN-2G 2GB SS Micron 0YD77D9LGK - - • • •
Transcend JM1333KLN-2G 2GB SS Hynix H5TQ2G83BZRH9C - - • • •
Transcend JM1333KLU-2G 2GB DS Transcend TK243PDF3 - - • • •
Transcend TS256MLK64V3U 2GB DS Micron 9GF27D9KPT - - • • •
Century PC3-10600 DDR3-1333 9-9-9 1GB SS NANYA NT5CB128M8DN-CF - - • • •
Elixir M2F2G64CB88B7N-CG 2GB SS Elixir N2CB2G80BN-CG - - • • •
Elixir M2F2G64CB88D7N-CG 2GB SS Elixir N2CB2G80DN-CG - - • • •
Elixir M2F2G64CB88G7N-CG 2GB SS Elixir N2CB2G80GN-CG - - • • •
Elixir M2F4G64CB8HB5N-CG 4GB DS Elixir N2CB2G80BN-CG - - • • •
Elixir M2F4G64CB8HD5N-CG 4GB DS Elixir N2CB2G80DN-CG - - • • •
KINGSHARE KSRPCD313332G 2GB DS PATRIOT PM128M8D385-15 - - • • •
KINGSTEK KSTD3PC-10600 2GB SS MICRON PE911-125E - - • • •
Kingtiger 2GB DIMM PC3-10666 2GB DS SAMSUNG SEC 904 HCH9
K4B1G0846D - - • • •
Kingtiger KTG2G1333PG3 2GB DS - - - - • • •
MARKVISION BMD32048M1333C9-1123 2GB DS MARKVISION M3D1288P-13 - - • • •
MARKVISION BMD34096M1333C9-1124 4GB DS MARKVISION M3D2568E-13 - - • • •
PATRIOT PSD31G13332H 1GB DS - - 9 - • • •
PATRIOT PSD31G13332 1GB DS PATRIOT PM64M8D38U-15 - - • • •
PATRIOT PSD32G13332H 2GB DS - - - - • • •
PATRIOT PG38G1333EL(XMP) 8GB DS - - 9-9-9-24 1.5V • • •
RAMAXEL RMR1870ED48E8F-1333 2GB DS ELPIDA J1108BDBG-DJ-F - - • • •
RAMAXEL RMR1870EC58E9F-1333 4GB DS ELPIDA J2108BCSE-DJ-F - - • •
RiDATA C304627CB1AG22Fe 2GB DS RiDATA N/A 9 - • • •
RiDATA E304459CB1AG32Cf 4GB DS RiDATA N/A 9 - • •
SILICON
POWER SP001GBLTU133S01 1GB SS NANYA NT5CB128M8AN-CG 9 - • • •
SILICON
POWER SP001GBLTU133S02 1GB SS Elixir N2CB1680AN-C6 9 - • • •
SILICON
POWER SP002GBLTU133S02 2GB DS Elixir N2CB1680AN-C6 9 - • • •
TAKEMS TMS1GB364D081-107EY 1GB SS - - 7-7-7-20 1.5V • • •
TAKEMS TMS2GB364D081-107EY 2GB DS - - 7-7-7-20 1.5V • • •
TAKEMS TMS2GB364D081-138EY 2GB DS - - 8-8-8-24 1.5V • • •
TAKEMS TMS2GB364D082-138EW 2GB DS - - 8-8-8-24 1.5V • • •
UMAX E41302GP0-73BDB 2GB DS UMAX U2S24D30TP-13 - - • • •
WINTEC 3WVS31333-2G-CNR 2GB DS AMPO AM3420803-13H - - • • •
ASUS P8B75-M1-18
DDR3-1066 MHz capability
Side(s): SS - Single-sided DS - Double-sided
DIMM support:
• 1 DIMM: Supports one (1) module inserted into any slot as Single-channel memory
conguration. We suggest that you install the module into A2 slot.
• 2 DIMMs: Supports two (2) modules inserted into either the blue slots or the black slots
as one pair of Dual-channel memory conguration. We suggest that you
install the modules into slots A2 and B2 for better compatibility.
• 4 DIMMs: Supports four (4) modules inserted into both the blue and black slots as two
pairs of Dual-channel memory conguration.
• DDR3 1600 MHz and above memory frequency is supported by Intel® 3rd generation
processors.
• Visit the ASUS website at www.asus.com for the latest QVL.
Vendors Part No. Size SS/DS Chip
Brand Chip NO. Timing Voltage
DIMM socket support
(Optional)
1 DIMM 2 DIMMs 4 DIMMs
Crucial CT12864BA1067.8FF 1GB SS Micron 9GF22D9KPT 7 - • • •
Crucial CT25664BA1067.16FF 2GB DS Micron 9HF22D9KPT 7 - • • •
ELPIDA EBJ10UE8EDF0-AE-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage) • • •
ELPIDA EBJ21UE8EDF0-AE-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage) • • •
KINGSTON KVR1066D3N7/1G(low prole) 1GB SS ELPIDA J1108BFSE-DJ-F 7 1.5V • • •
KINGSTON KVR1066D3N7/2G 2GB DS ELPIDA J1108BDSE-DJ-F 7 1.5V • • •
KINGSTON KVR1066D3N7/4G 4GB DS Hynix H5TQ2G83AFR 7 1.5V • • •
Micron MT8JTF12864AZ-1G1F1 1GB SS Micron 9GF22D9KPT 7 - • • •
Micron MT16JTF25664AZ-1G1F1 2GB DS Micron 9HF22D9KPT 7 - • • •
Kingtiger 2GB DIMM PC3-8500 2GB DS Hynix H5TQ1G83AFP
G7C - - • • •
1-19Chapter 1: Product introduction
1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clips. The DIMM might get damaged
when it ips out with extra force.
DIMM notch
1
2
Unlocked retaining clip
DIMM notch
2
1
DIMM slot key
ASUS P8B75-M1-20
1.8 Expansion slots
In the future, you may need to install expansion cards. The following sub-sections describe
the slots and the expansion cards that they support.
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
1.8.1 Installing an expansion card
To install an expansion card:
1. Before installing the expansion card, read the documentation that came with it and
make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later
use.
4. Align the card connector with the slot and press rmly until the card is completely
seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
1.8.2 Conguring an expansion card
After installing the expansion card, congure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for
information on BIOS setup.
2. Assign an IRQ to the card.
3. Install the software drivers for the expansion card.
When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that
the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI
groups, making the system unstable and the card inoperable.
1.8.3 PCI slot
The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that
comply with PCI specications.
1.8.4 PCI Express x4 slot
This motherboard supports PCI Express x4 network cards, SCSI cards, and other cards that
comply with the PCI Express specications.
1.8.5 PCI Express x16 slot
This motherboard has a PCI Express 3.0 x16 slot that supports PCI Express 3.0/2.0 x16
graphic cards complying with the PCI Express specications.
1-21Chapter 1: Product introduction
IRQ assignments for this motherboard
A B C D E F G H
Intel PCH SATA controller #0 – – – shared – – – –
Intel PCH SATA controller #1 – – – shared – – – –
Realtek 8111F controller – shared – – – – – –

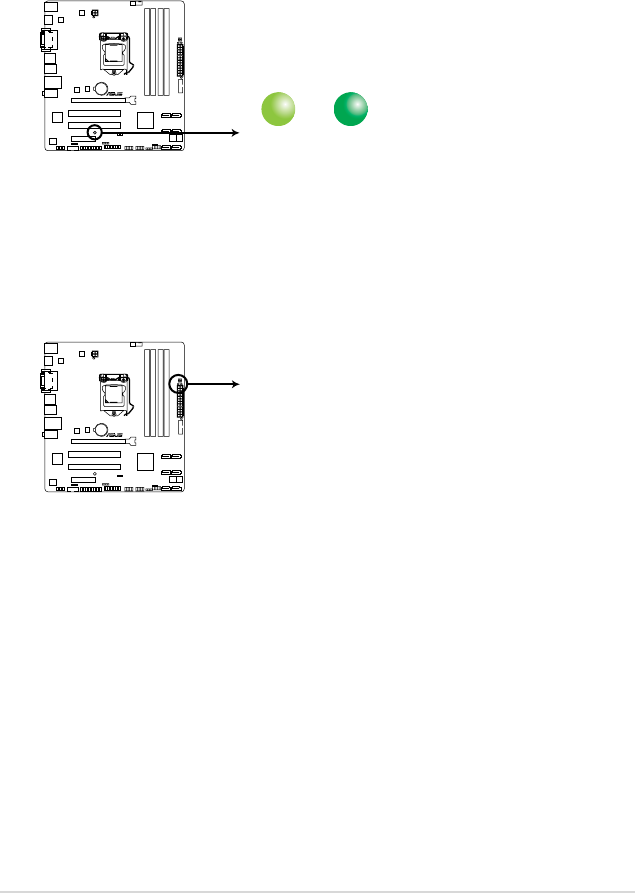

1.9 Jumpers
1. Intel® ME jumper (3-pin DIS_ME)
This jumper allows you to enable or disable the Intel® ME function. Set this jumper to
pins 1-2 to enable (default) the Intel® ME function and to pins 2-3 to disable it.
Disable the Intel® ME function only when you want to update it.
2 2 3
Normal
(Default)
Disable ME
DIS_ME
1
P8B75-M
P8B75-M Intel® ME jumper
ASUS P8B75-M1-22
2. Clear RTC RAM (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can
clear the CMOS memory of date, time, and system setup parameters by erasing
the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in
CMOS, which include system setup information such as system passwords.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
• If the steps above do not help, remove the onboard battery and move the jumper again
to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For
system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut
down and reboot the system, then the BIOS automatically resets parameter settings to
default values.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3
for about 5-10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter
data.
P8B75-M
P8B75-M Clear RTC RAM
1 2 2 3
Normal
(Default)
Clear RTC
CLRTC
1-23Chapter 1: Product introduction
1.10 Connectors
1.10.1 Rear panel connectors
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
LAN port
Speed
LED
Activity Link
LED
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
4. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
5. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel,
6-channel, and 8-channel congurations, the function of this port becomes Front
Speaker Out.
6. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table below for the function of the audio ports in the 2, 4, 6,
or 8-channel conguration.
Audio 2, 4, 6, 8-channel conguration
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) - - - Side Speaker Out
To congure an 8-channel audio output:
Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
23
71011 9 8
4 5
6
1
12
ASUS P8B75-M1-24
7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0/1.1 devices.
8. USB 3.0 ports 1 and 2. These two 9-pin Universal Serial Bus (USB) ports connect to
USB 3.0/2.0 devices.
• DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows®
operating system.
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows®
OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance for your USB 3.0 devices.
9. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0/1.1 devices.
10. DVI-D port. This port is for any DVI-D compatible device. DVI-D can’t be converted to
output RGB Signal to CRT and isn’t compatible with DVI-I.
11. HDMI port. This port is for a High-Denition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
12. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.
1-25Chapter 1: Product introduction
1.10.2 Internal connectors
1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this connector, set
the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97
front panel audio module to this connector, set the item to [AC97]. By default, this
connector is set to [HD]. See section 2.5.8 Onboard Devices Conguration for details.
2. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
P8B75-M
P8B75-M Front panel audio connector
AAFP
PIN 1
AGND
NC
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND
NC
NC
NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
P8B75-M
P8B75-M Digital audio connector
SPDIF_OUT
+5V
SPDIFOUT
GND
ASUS P8B75-M1-26
• For a fully congured system, we recommend that you use a power supply unit (PSU)
that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum
power of 350 W.
• DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will
not boot up.
• We recommend that you use a PSU with higher power output when conguring a
system with more power-consuming devices. The system may become unstable or may
not boot up if the power is inadequate.
•
If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
3. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation and
push down rmly until the connectors completely t.
4. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusion sensor or switch sends a high-level signal to this connector when a chassis
component is removed or replaced. The signal is then generated as a chassis intrusion
event.
By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
P8B75-M
P8B75-M ATX power connectors
EATXPWR
PIN 1
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
ATX12V
+12V DC
+12V DC
GND
GND
P8B75-M
P8B75-M Chassis intrusion connector
+5VSB_MB
Chassis Signal
GND
CHASSIS
1-27Chapter 1: Product introduction

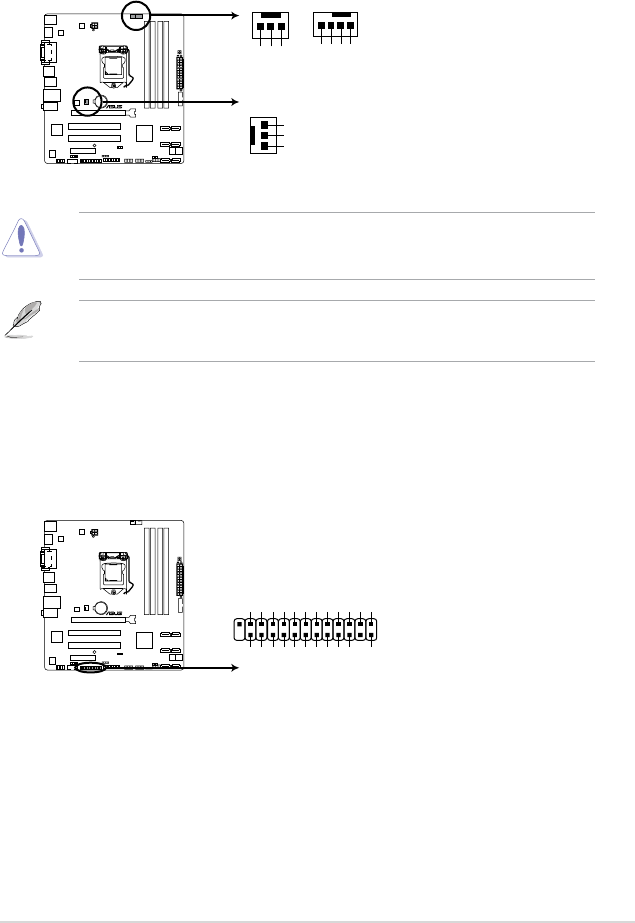

Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
5. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN1/2)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
• The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
• Only the 4-pin CPU fan supports the ASUS FanXpert and Q-Fan 2 feature.
6. LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT is
standardized as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
CHA_FAN1
CHA_FAN2
P8B75-M
P8B75-M fan connectors
GND
+12V
Rotation
Rotation
+12V
GND
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
P8B75-M
P8B75-M LPT connector
LPT
PIN 1
SLCT
PE
BUSY
ACK#
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
STB#
GND
GND
GND
GND
GND
GND
GND
GND
SLIN#
INIT#
ERR#
AFD
ASUS P8B75-M1-28
7. System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
•
Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
•
ATX power button/soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
•
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
8. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P8B75-M
P8B75-M System panel connector
PIN 1
PWRBTN
PLED+
PLED-
PWR
GND
HD_LED+
HD_LED-
Ground
Reset
F_PANEL
PLED
+HDLED RESET
P8B75-M
P8B75-M Speaker out connector
+5V
GND
GND
Speaker Out
SPEAKER
PIN 1
1-29Chapter 1: Product introduction
9. Intel® B75 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~5 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
• You must install Windows® XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to
[AHCI]. See section 2.5.4 SATA Conguration for details.
10. Intel® B75 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• You must install Windows® XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to
[AHCI]. See section 2.5.4 SATA Conguration for details.
SATA3G_5
GND
RSATA_RXP5
RSATA_RXN5
GND
RSATA_TXN5
RSATA_TXP5
GND
SATA3G_4
GND
RSATA_RXP4
RSATA_RXN4
GND
RSATA_TXN4
RSATA_TXP4
GND
SATA3G_3
GND
RSATA_RXP3
RSATA_RXN3
GND
RSATA_TXN3
RSATA_TXP3
GND
SATA3G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
SATA3G_2
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
P8B75-M
P8B75-M Intel® SATA 3.0Gb/s connectors
SATA6G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
P8B75-M
P8B75-M Intel® SATA 6.0Gb/s connector
ASUS P8B75-M1-30

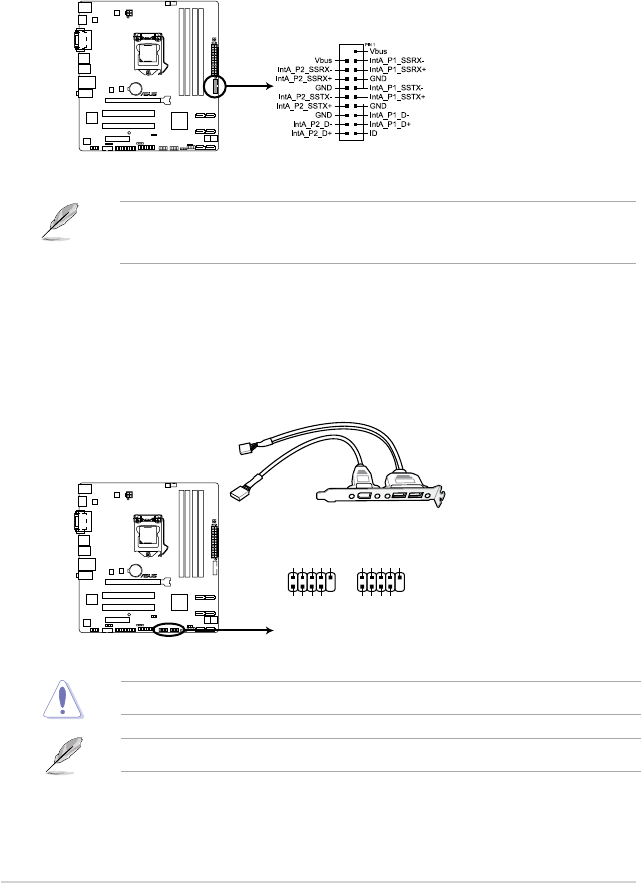

11. USB 3.0 connector (20-1 pin USB3_34)
This connector is for the additional USB 3.0 ports. Connect the USB 3.0 bracket cable
to this connector, then install the USB 3.0 bracket to the rear side of the chassis. If your
chassis support customized front panel installation, with ASUS USB 3.0 header, you
can have a front panel USB 3.0 solution.
• The USB 3.0 module is purchased separately.
• Due to Intel® limitations, the USB3_34 only supports Windows® 7 operating system.
12. USB 2.0 connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
The USB module cable is purchased separately.
P8B75-M
P8B75-M USB3.0 Front panel connector
USB3_34
P8B75-M
P8B75-M USB2.0 connector
PIN 1
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
USB56
1-31Chapter 1: Product introduction
13. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can
securely store keys, digital certicates, passwords, and data. A TPM system also
helps enhance network security, protects digital identities, and ensures platform
integrity.
The TPM module is purchased separately!
14. Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
The COM module is purchased separately.
P8B75-M
P8B75-M TPM connector
PIN 1
TPM
SB_SUS_STAT
GND
+3VSB
SMBSCL
LAD0
+3V
LAD3
PCIRST#
FRAME
PCICLK
RESET
GPIO
SERIRQ
SMBSDA
GND
LAD1
LAD2
PWROWN
GND
P8B75-M
P8B75-M Serial port (COM1) connector
PIN 1
COM1
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
ASUS P8B75-M1-32
MemOK! switch
Installing DIMMs that are incompatible with the motherboard may cause system boot failure,
and the DRAM_LED near the MemOK! switch lights continuously. Press and hold the
MemOK! switch until the DRAM_LED starts blinking to begin automatic memory compatibility
tuning for successful boot.
• Refer to section 1.12 Onboard LEDs for the exact location of the DRAM_LED.
• The DRAM_LED also lights when the DIMM is not properly installed. Turn off the system
and reinstall the DIMM before using the MemOK! function.
• The MemOK! switch does not function under Windows® OS environment.
• During the tuning process, the system loads and tests failsafe memory settings. It takes
about 30 seconds for the system to test one set of failsafe settings. If the test fails,
the system reboots and test the next set of failsafe settings. The blinking speed of the
DRAM_LED increases, indicating different test processes.
• Due to memory tuning requirement, the system automatically reboots when each timing
set is tested. If the installed DIMMs still fail to boot after the whole tuning process, the
DRAM_LED lights continuously. Replace the DIMMs with ones recommended in the
Memory QVL (Qualied Vendors Lists) in this user manual or on the ASUS website at
www.asus.com.
• If you turn off the computer and replace DIMMs during the tuning process, the system
continues memory tuning after turning on the computer. To stop memory tuning, turn off
the computer and unplug the power cord for about 5–10 seconds.
• If your system fail to boot due to BIOS overclocking, press the MemOK! switch to boot
and load BIOS default settings. A message will appear during POST reminding you that
the BIOS has been restored to its default settings.
• We recommend that you download and update to the latest BIOS version from the
ASUS website at www.asus.com after using the MemOK! function.
1.11 Onboard switches
Onboard switches allow you to ne-tune performance when working on a bare or open-case
system. This is ideal for overclockers and gamers who continually change settings to
enhance system performance.
P8B75-M
P8B75-M MemOK! switch
1-33Chapter 1: Product introduction
1.12 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.
SB_PWR
ON
Standby Power Powered Off
OFF
P8B75-M
P8B75-M Onboard LED
P8B75-M
P8B75-M DRAM LED
DRAM LED
ASUS P8B75-M1-34
1.13 Software support
1.13.1 Installing an operating system
This motherboard supports Windows® XP / 7 Operating Systems (OS). Always install the
latest OS version and corresponding updates to maximize the features of your hardware.
• Motherboard settings and hardware options vary. Refer to your OS documentation for
detailed information.
• Ensure that you install Windows® XP Service Pack 3 or later versions or later versions
before installing the drivers for better compatibility and system stability.

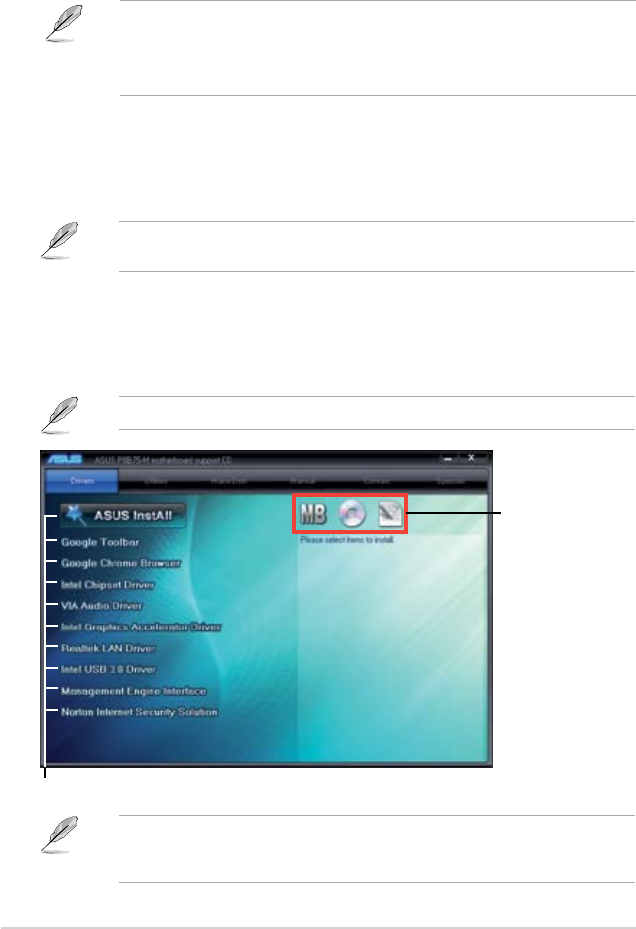

1.13.2 Support DVD information
The Support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to
locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the DVD.
The following screen is for reference only.
The contents of the Support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.
To run the Support DVD
Place the Support DVD to the optical drive. If Autorun is enabled in your computer, the DVD
automatically displays the Specials screen. Click Drivers, Utilities, Manual, Contact, and
Specials tabs to display their respective menus.
Click an item to install
Click an icon to
display Support DVD/
motherboard information
1-35Chapter 1: Product introduction
1.13.3 Intel® SBA support
Intel® SBA (Small Business Advantage) is a combination of hardware and software that
provides unique security and productivity capabilities designed for small businesses.
Intel® SBA requires MEI driver (AMT host software kit) installed.
Platform requirements:
• Windows® 7 (32/64bit)
• Panther Point PCH with Core™ Ivy Bridge CPU or Sandy Bridge CPU (Chief River/
Maho Bay platforms) with 5MB vPro ME 8.0 rmware load
CPU and chipset requirements:
* Intel® Core™ i3 with B75 Express Chipset
* Intel® Core™ i5 with B75 Express Chipset
* Intel® Core™ i7 with B75 Express Chipset
* Intel® Core™ i5 vPro™ with one of these chipsets: B75, Q77
* Intel® Core™ i7 vPro™ with one of these chipsets: B75, Q77
• The Intel® Management Engine software kit must be installed (The Local Manageability
Service and the Intel® Management Engine Interface must be installed and running.)
• Local Administrator rights on the target machine
• Intel® SBA does not support the 800 x 600 screen resolution.
• Visit the ASUS website at www.asus.com for the latest CPU QVL (Qualied Vendors
List).
ASUS P8B75-M1-36
Chapter 2: BIOS information 2-1
Chapter 2
BIOS information
Save a copy of the original motherboard BIOS le to a USB ash disk in case you need to
restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update
utility.
• ASUS Update requires an Internet connection either through a network or an Internet
Service Provider (ISP).
• This utility is available in the support DVD that comes with the motherboard package.
Updating the BIOS
To update the BIOS:
1. From the Windows® desktop, click Start > Programs > ASUS > AI Suite II > AI Suite II X.XX.XX to
launch the AI Suite II utility. The AI Suite II Quick Bar appears.
2. Click Update button from the Quick Bar, and then click ASUS Update from the popup menu. The
ASUS Update main screen appears. From the list, select either of the following methods:
Updating from the Internet
a. Select Update BIOS from the Internet, then click Next.
b. Select the ASUS FTP site nearest you to avoid network trafc, then click Next.
c. From the FTP site, select the BIOS version that you wish to download then click Next.
2.1.1 ASUS Update utility
The ASUS Update is a utility that allows you to manage, save, and update the motherboard
BIOS in Windows® environment.
Installing ASUS Update
To install ASUS Update:
1. Place the support DVD in the optical drive. The Specials menu appears.
2. Click the Utilities tab, then click AI Suite II.
3. Follow the onscreen instructions to complete the installation.
Quit all Windows® applications before you update the BIOS using this utility.
2.1 Managing and updating your BIOS
2-2 ASUS P8B75-M

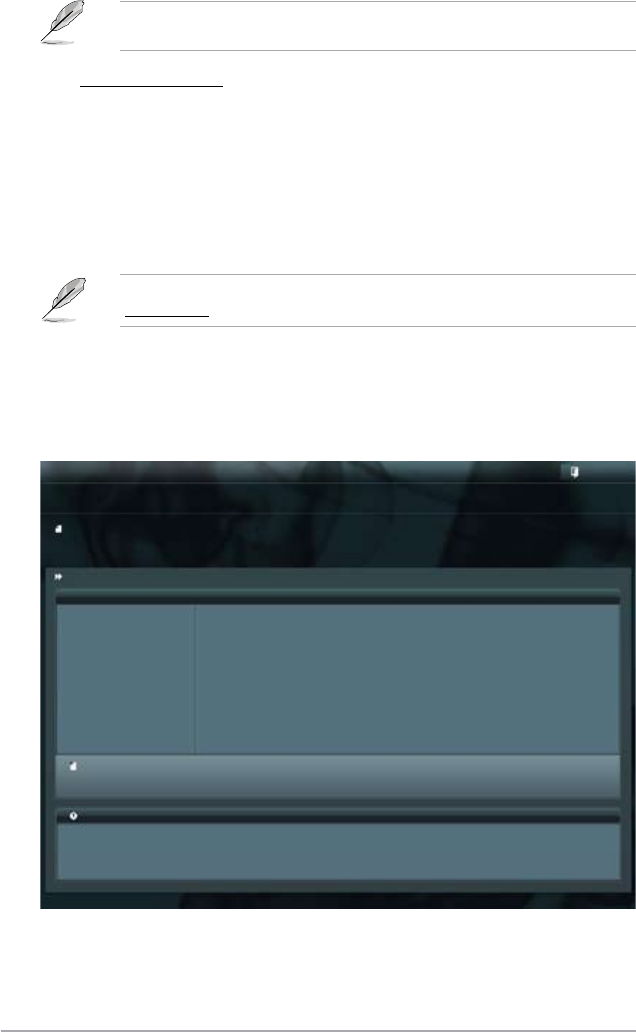

2.1.2 ASUS EZ Flash 2
The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based
utility.
Before you start using this utility, download the latest BIOS le from the ASUS website at
www.asus.com.
To update the BIOS using EZ Flash 2:
1. Insert the USB ash disk that contains the latest BIOS le to the USB port.
2. Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select ASUS EZ
Flash 2 Utility and press <Enter> to enable it.
The ASUS Update utility is capable of updating itself through the Internet. Always update
the utility to avail all its features.
Updating from a BIOS file
a. Select Update BIOS from le, then click Next.
b. Locate the BIOS le from the Open window, then click Open.
3. Follow the onscreen instructions to complete the updating process.
Flash Info
MODEL: P8B75-M VER: 0303 DATE: 02/16/2012
Exit
[Enter] Select or Load [Tab] Switch [Up/Down/PageUp/PageDown/Home/End] Move [Esc] Exit
File Path: fs0:\
Drive Info Folder Info
fs0:\ 02/16/2012 10:23p 8390656 P8B75.CAP
ASUS EZ Flash 2 Utility V01.04
File Info
MODEL: VER: DATE
Help Info
Chapter 2: BIOS information 2-3
• This function supports USB ash disks with FAT 32/16 format and single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure!
2.1.3 ASUS CrashFree BIOS 3 utility
The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS le
when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS
le using the motherboard support DVD or a USB ash drive that contains the updated BIOS
le.
• Before using this utility, rename the BIOS le in the removable device into
P8B75.CAP.
• The BIOS le in the support DVD may not be the latest version. Download the latest
BIOS le from the ASUS website at www.asus.com.
Recovering the BIOS
To recover the BIOS:
1. Turn on the system.
2. Insert the support DVD to the optical drive or the USB ash drive that contains the BIOS le to the
USB port.
3. The utility automatically checks the devices for the BIOS le. When found, the utility reads the BIOS
le and enters ASUS EZ Flash 2 utility automatically.
4. The system requires you to enter BIOS Setup to recover BIOS setting. To ensure system
compatibility and stability, we recommend that you press <F5> to load default BIOS values.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause
system boot failure!
3. Press <Tab> to switch to the Drive eld.
4. Press the Up/Down arrow keys to nd the USB ash disk that contains the latest BIOS, and then
press <Enter>.
5. Press <Tab> to switch to the Folder Info eld.
6. Press the Up/Down arrow keys to nd the BIOS le, and then press <Enter> to perform the BIOS
update process. Reboot the system when the update process is done.
2-4 ASUS P8B75-M
Welcome to FreeDOS (http://www.freedos.org)!
C:\>d:
D:\>
3. When the Make Disk menu appears, select the FreeDOS command prompt item by pressing the
item number.
4. At the FreeDOS prompt, type d: and press <Enter> to switch the disk from
Drive C (optical drive) to Drive D (USB ash drive).
Please select boot device:
SATA: XXXXXXXXXXXXXXXX
USB XXXXXXXXXXXXXXXXX
UEFI: XXXXXXXXXXXXXXXX
Enter Setup
 ↑and ↓ to move selection
ENTER to select boot device
ESC to boot using defaults
2.1.4 ASUS BIOS Updater
The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also
allows you to copy the current BIOS le that you can use as a backup when the BIOS fails or
gets corrupted during the updating process.
The succeeding utility screens are for reference only. The actual utility screen displays may
not be same as shown.
Before updating BIOS
1. Prepare the motherboard support DVD and a USB ash drive in FAT32/16 format and single
partition.
2. Download the latest BIOS le and BIOS Updater from the ASUS website at
http://support.asus.com and save them on the USB ash drive.
NTFS is not supported under DOS environment. Do not save the BIOS le and BIOS
Updater to a hard disk drive or USB ash drive in NTFS format.
3. Turn off the computer and disconnect all SATA hard disk drives (optional).
Booting the system in DOS environment
1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.
2. Boot your computer. When the ASUS Logo appears, press <F8> to show the BIOS Boot Device
Select Menu. Insert the support DVD into the optical drive and select the optical drive as the boot
device.
Chapter 2: BIOS information 2-5
Updating the BIOS le
To update the BIOS le using BIOS Updater
1. At the FreeDOS prompt, type bupdater /pc /g and press <Enter>.
ASUSTek BIOS Updater for DOS V1.28
Current ROM Update ROM
A:
Note
[Enter] Select or Load [Tab] Switch [V] Drive Info
[Up/Down/Home/End] Move [Esc] Exit
P8B75.CAP 8390656 2012-01-05 17:30:48
PATH: A:\
BOARD: P8B75-M
VER: 0303
DATE: 02/16/2012
BOARD: Unknown
VER: Unknown
DATE: Unknown
D:\>bupdater /pc /g
2. The BIOS Updater screen appears as below.
3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys to select
the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le and prompts you to
conrm BIOS update.
Are you sure to update BIOS?
Yes No
4. Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS Updater.
Restart your computer.
DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure!
• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS prompt
after updating BIOS.
• Ensure to load the BIOS default settings to ensure system compatibility and stability.
Select the Load Optimized Defaults item under the Exit menu. Refer to section 2.9
Exit menu for details.
• Ensure to connect all SATA hard disk drives after updating the BIOS le if you have
disconnected them.
2-6 ASUS P8B75-M
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from
a running operating system can cause damage to your data or system. We recommend to
always shut down the system properly from the operating system.

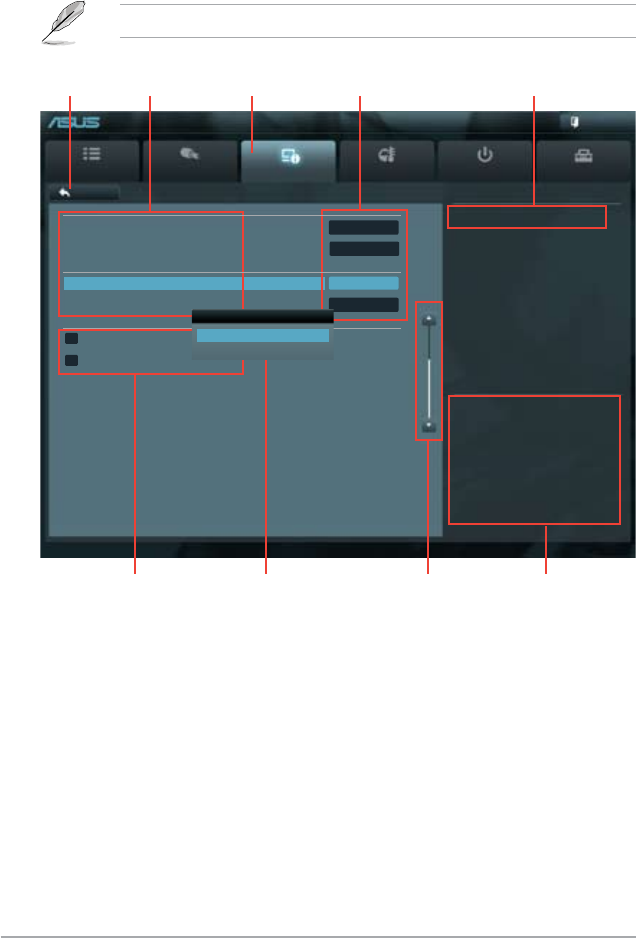

• The BIOS setup screens shown in this section are for reference purposes only, and may
not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS le for this
motherboard.
• Ensure that a USB mouse is connected to your motherboard if you want to use the
mouse to control the BIOS setup program.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu. See section 2.9 Exit Menu for details.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See section 1.9 Jumpers for information on
how to erase the RTC RAM.
2.2 BIOS setup program
Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS
screens include navigation keys and brief online help to guide you in using the BIOS Setup
program.
Entering BIOS Setup at startup
To enter BIOS Setup at startup:
• Press <Delete> during the Power-On Self Test (POST). If you do not press <Delete>,
POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
• Press <Ctrl>+<Alt>+<Del> simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the rst two options.
BIOS menu screen
The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode.
You can change modes from the Exit menu or from the Exit/Advanced Mode button in the
EZ Mode/Advanced Mode screen.
Chapter 2: BIOS information 2-7
EZ Mode
By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press F7 hot
key for the advanced BIOS settings.
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section 2.7 Boot menu for details.
• The boot device options vary depending on the devices you installed to the system.
• The Boot Menu(F8) button is available only when the boot device is installed to the
system.
P8B75-M
BIOS Version : 0303 Build Date : 02/16/2012
CPU Type : Intel(R) Core(TM) i5-2500 CPU 0 @ 3.30GHz Speed : 3300 MHz
Total Memory : 1024 MB (DDR3 1333MHz)
Exit/Advanced Mode
Temperature Voltage Fan Speed
CPU +113.0ºF/+45.0ºC CPU 1.248V 5V 5.160V CPU_FAN 3325RPM CHA_FAN1 N/A
MB +75.2ºF/+40.0ºC 3.3V 3.344V 12V 12.248V CHA_FAN2 N/A
English
UEFI BIOS Utility - EZ Mode
Friday [10/08/2010]
Normal
Quiet
Performance Energy Saving
System Performance
Boot Menu(F8) Default(F5)
Use the mouse to drag or keyboard to navigate to decide the boot priority.
Boot Priority
Exits the BIOS setup program without saving
the changes, saves the changes and resets
the system, or enters the Advanced Mode
Selects the display language of
the BIOS setup program
Displays the CPU/motherboard temperature,
CPU/5V/3.3V/12V voltage output,
CPU/chassis fan speed
Power Saving mode
Normal mode ASUS Optimal mode
Loads optimized default
Selects the boot
device priority
Selects the boot device priority
Displays the system properties of the
selected mode on the right hand side
Advanced Mode(F7)Shortcut (F3)
Selects the Advanced
mode functions
Displays the Advanced mode menus
2-8 ASUS P8B75-M
Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Enabled/Disabled Realtek Controller.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Back Advanced\ Onboard Devices Conguration >
UEFI BIOS Utility - Advanced Mode
Navigation keys
General help
Menu bar Conguration elds
Menu items
Scroll bar
Pop-up window
Back button
Menu items
The highlighted item on the menu bar displays the specic items for that menu. For example,
selecting Main shows the Main menu items.
The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have
their respective menu items.
Back button
This button appears when entering a submenu. Press <Esc> or use the USB mouse to click
this button to return to the previous menu screen.
Submenu items
A greater than sign (>) before each item on any menu screen means that the item has a
submenu. To display the submenu, select the item and press <Enter>.
HD Audio Controller Enabled
Front Panel Type HD
Realtek LAN Controller Enabled
Realtek PXE OPROM Disabled
> Serial Port Conguration
> Parallel Port Conguration
Realtek LAN Controller
Disabled
Enabled
Submenu items
Chapter 2: BIOS information 2-9
Pop-up window
Select a menu item and press <Enter> to display a pop-up window with the conguration
options for that item.
Scroll bar
A scroll bar appears on the right side of a menu screen when there are items that do not t on
the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the
other items on the screen.
Navigation keys
At the bottom right corner of the menu screen are the navigation keys for the BIOS setup
program. Use the navigation keys to select items in the menu and change the settings.
General help
At the top right corner of the menu screen is a brief description of the selected item.
Conguration elds
These elds show the values for the menu items. If an item is user-congurable, you can
change the value of the eld opposite the item. You cannot select an item that is not
user-congurable.
A congurable eld is highlighted when selected. To change the value of a eld, select it and
press <Enter> to display a list of options.
2-10 ASUS P8B75-M
2.3.1 System Language [English]
Allows you to choose the BIOS language version from the options. Conguration options:
[English] [Español] [РРРРРРР]
2.3.2 System Date [Day xx/xx/xxxx]
Allows you to set the system date.
2.3.3 System Time [xx:xx:xx]
Allows you to set the system time.
2.3.4 Security
The Security menu items allow you to change the system security settings.
• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)
RAM to clear the BIOS password. See section 1.9 Jumpers for information on how to
erase the RTC RAM.
• The Administrator or User Password items on top of the screen show the default Not
Installed. After you set a password, these items show Installed.
2.3 Main menu
The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup
program. The Main menu provides you an overview of the basic system information, and
allows you to set the system date, time, language, and security settings.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
UEFI BIOS Utility - Advanced Mode
Choose the system default languageBIOS Information
BIOS Version 0303 x64
Build Date 02/16/2012
ME Version 8.0.0.1351
South Bridge Stepping C1
CPU Information
Intel(R) Core(TM) i5-2500 CPU @ 3.30GHz
Speed 3300 MHz
Memory Information
Total Memory 1024 MB (DDR3)
Memory Frequency 1333 MHz
System Language English
System Date [Mon 12/27/2010]
System Time [16:46:15]
Access Level Administrator
> Security
Chapter 2: BIOS information 2-11
Administrator Password
If you have set an administrator password, we recommend that you enter the administrator
password for accessing the system. Otherwise, you might be able to see or change only
selected elds in the BIOS setup program.
To set an administrator password:
1. Select the Administrator Password item and press <Enter>.
2. From the Create New Password box, key in a password, then press <Enter>.
3. Conrm the password when prompted.
To change an administrator password:
1. Select the Administrator Password item and press <Enter>.
2. From the Enter Current Password box, key in the current password, then press <Enter>.
3. From the Create New Password box, key in a new password, then press <Enter>.
4. Conrm the password when prompted.
To clear the administrator password, follow the same steps as in changing an administrator
password, but press <Enter> when prompted to create/conrm the password. After you clear
the password, the Administrator Password item on top of the screen shows Not Installed.
User Password
If you have set a user password, you must enter the user password for accessing the system.
The User Password item on top of the screen shows the default Not Installed. After you set
a password, this item shows Installed.
To set a user password:
1. Select the User Password item and press <Enter>.
2. From the Create New Password box, key in a password, then press <Enter>.
3. Conrm the password when prompted.
To change a user password:
1. Select the User Password item and press <Enter>.
2. From the Enter Current Password box, key in the current password, then press <Enter>.
3. From the Create New Password box, key in a new password, then press <Enter>.
4. Conrm the password when prompted.
To clear the user password, follow the same steps as in changing a user password, but press
<Enter> when prompted to create/conrm the password. After you clear the password, the
User Password item on top of the screen shows Not Installed.
2-12 ASUS P8B75-M
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Forces a DDR3 frequency slower than the
common tCK detected via SPD.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
UEFI BIOS Utility - Advanced Mode
2.4 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
2.4.1 CPU bus speed : DRAM speed ratio mode [Auto]
Allows you to set the CPU bus speed to DRAM speed ratio mode.
[Auto] DRAM speed is set to the optimized settings.
[100:133] The CPU bus speed to DRAM speed ratio is set to 100:133.
[100:100] The CPU bus speed to DRAM speed ratio is set to 100:100.
2.4.2 Memory Frequency [Auto]
Allows you to set the memory operating frequency. Conguration options: [Auto] [DDR3-
800MHz] [DDR3-1066MHz] [DDR3-1333MHz] [DDR3-1600MHz] [DDR3-1866MHz] [DDR3-
2133MHz] [DDR3-2400MHz]
Selecting a very high memory frequency may cause the system to become unstable! If this
happens, revert to the default setting.
Target DRAM Speed : 1333MHz
CPU Bus speed : DRAM speed ratio mode Auto
Memory Frequency Auto
EPU Power Saving Mode Disabled
> GPU Boost
> DRAM Timing Control
> CPU Power Management
CPU Offset Mode Sign +
CPU Offset Voltage Auto
DRAM Voltage 1.500V Auto
VCCIO Voltage Auto
VCCSA Voltage Auto
CPU PLL Voltage Auto
PCH Voltage 1.050V Auto
Load-Line Calibration Auto
Chapter 2: BIOS information 2-13
2.4.3 EPU Power Saving Mode [Disabled]
Allows you to enable or disable the EPU power saving function.
Conguration options: [Disabled] [Enabled]
EPU Setting [Auto]
This item appears only when you set the EPU Power Saving Mode item to [Enabled] and
allows you to select the EPU power saving mode. Conguration options: [Auto] [Light Power
Saving Mode] [Medium Power Saving Mode] [Max Power Saving Mode]
2.4.4 GPU Boost [OK]
[OK] Select [OK] to automatically optimize the iGPU frequency.
[Cancel] Select [Cancel] to use a xed iGPU frequency.
2.4.5 DRAM Timing Control
The sub-items in this menu allow you to set the DRAM timing control features. Use the <+>
and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard
and press <Enter>.
Changing the values in this menu may cause the system to become unstable! If this
happens, revert to the default settings.
2.4.6 CPU Power Management
The sub-items in this menu allow you to set the CPU ratio and features.
CPU Ratio [Auto]
Allows you to manually adjust the maximum non-turbo CPU ratio. Use <+> and <-> keys or
the numeric keypad to adjust the value. The valid value ranges vary according to your CPU
model.
Enhanced Intel SpeedStep Technology [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled] Disables this function.
[Enabled] The operating system dynamically adjusts the processor voltage and
core frequency which may result in decreased average consumption and
decreased average heat production.
Turbo Mode [Enabled]
This item appears only when you set the previous item to [Enabled].
[Enabled] Allows processor cores to run faster than marked frequency in specic
conditions.
[Disabled] Disables this function.
The following three items appear only when you set both the Enhanced Intel SpeedStep
Technology and Turbo Mode items to [Enabled].
Long Duration Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
2-14 ASUS P8B75-M
Long Duration Maintained [Auto]
Allows you to maintain the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
Short Duration Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
Primary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for CPU cores
Use <+> and <-> key to adjust the value at 0.125A increment. .
Secondary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for Internal Graphics cores.
Use <+> and <-> key to adjust the value at 0.125A increment.
Some of the following items are adjusted by typing the desired values using the numeric
keypad and press the <Enter> key. You can also use the <+> and <-> keys to adjust the
value. To restore the default setting, type [auto] using the keyboard and press the <Enter>
key.
2.4.7 Offset Mode Sign [+]
[+] To offset the voltage by a positive value.
[–] To offset the voltage by a negative value.
CPU Offset Voltage [Auto]
Allows you to set the CPU Offset voltage. The values range from 0.005V to 0.635V with a 0.005V
interval.
Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage
may damage the CPU permanently, and setting a low voltage may make the system
unstable.
2.4.8 DRAM Voltage [Auto]
Allows you to set the DRAM voltage. The values range from 1.20V to 2.13V with a 0.01V
interval.
According to Intel CPU specication, DIMMs with voltage requirement over 1.65V may
damage the CPU permanently. We recommend you install the DIMMs with the voltage
requirement below 1.65V.
2.4.9 VCCIO Voltage [Auto]
Allows you to set the VCCIO voltage. Conguration options: [Auto] [+0.10V]
2.4.10 VCCSA Voltage [Auto]
Allows you to set the VCCSA voltage. Conguration options: [Auto] [+0.05V]
2.4.11 CPU PLL Voltage [Auto]
Allows you to set the CPU and PCH PLL voltage. Conguration options: [Auto] [+0.10V]
Chapter 2: BIOS information 2-15
2.4.12 PCH Voltage [Auto]
Allows you to set the Platform Controller Hub voltage. The values range from 0.7350V to
1.6850V with a 0.0050V interval.
• The values of the CPU Offset Voltage, DRAM Voltage, and PCH Voltage items are
labeled in different color, indicating the risk levels of high voltage settings.
• The system may need better cooling system to work stably under high voltage settings.
2.4.13 Load-Line Calibration [Auto]
Load-line is dened by Intel VRM specication and affects CPU voltage. The CPU working
voltage will decrease proportionally to CPU loading. Higher load-line calibration would get
higher voltage and better overclocking performance, but increase the CPU and VRM thermal.
This item allows you to set this function for better system performance. Conguration options:
[Auto] [Enabled] [Disabled]
The actual performance boost may vary depending on your CPU specication.
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.

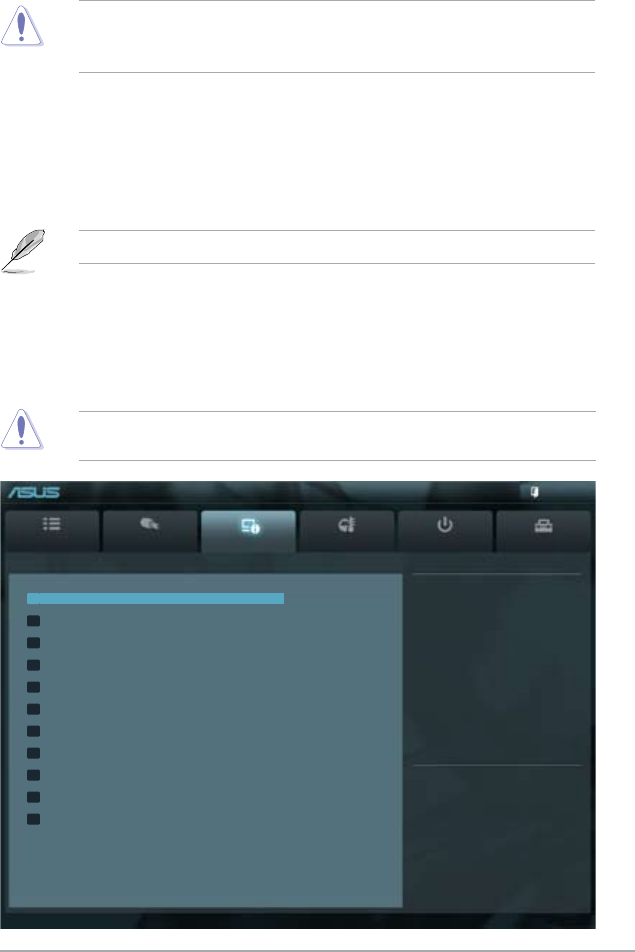

2.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Trusted Computing (TPM) settings
UEFI BIOS Utility - Advanced Mode
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
> Trusted Computing
> CPU Conguration
> PCH Conguration
> SATA Conguration
> System Agent Conguration
> ME Subsystem
> AMT Conguration
> USB Conguration
> Onboard Devices Conguration
> APM
> Network Stack
2-16 ASUS P8B75-M
2.5.2 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items shown in submenu may be different due to the CPU you installed.
Intel Adaptive Thermal Monitor [Enabled]
[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.
[Disabled] Disables the CPU thermal monitor function.
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Conguration options: [All] [1] [2] [3]
Limit CPUID Maximum [Disabled]
[Enabled] Allows legacy operating systems to boot even without support for CPUs
with extended CPUID functions.
[Disabled] Disables this function.
Execute Disable Bit [Enabled]
[Enabled] Enables the No-Execution Page Protection Technology.
[Disabled] Forces the XD feature ag to always return to zero (0).
Intel® Virtualization Technology [Disabled]
[Enabled] Allows a hardware platform to run multiple operating systems separately
and simultaneously, enabling one system to virtually function as several
systems.
[Disabled] Disables this function.
Hardware Prefetcher [Enabled]
[Enabled] Turns on the Mid Level Cache (L2) streamer prefetcher.
[Disabled] Turns off off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch [Enabled]
[Enabled] Allows a hardware platform to perform adjacent cache line prefetching.
[Disabled] Disables this function.
2.5.1 Trusted Computing
The items in this menu allow you to set the TPM (Trusted Platform Module) feature.
The following items function only when a TPM module is installed in this motherboard.
TPM Support [Enabled]
Allows you to enable or disable the TPM support. Conguration options: [Disabled] [Enabled]
Chapter 2: BIOS information 2-17
CPU Power Management Conguration
CPU Ratio [Auto]
Allows you to set the ratio between the CPU Core Clock and the BCLK Frequency. Use <+> and
<-> keys to adjust the ratio. The valid value ranges vary according to your CPU model.
Enhanced Intel SpeedStep Technology [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled] The CPU runs at its default speed.
[Enabled] The operating system controls the CPU speed.
Turbo Mode [Enabled]
This item appears only when you set the Enhanced Intel SpeedStep Technology item to
[Enabled] and allows you to enable or disable the Intel® Turbo Mode Technology.
[Enabled] Allows processor cores to run faster than marked frequency in specic condition.
[Disabled] Disables this function.
CPU C1E [Auto]
Enables or disables the C1E support function. This item should be enabled in order to enable the
Enhanced Halt State. Conguration options: [Auto] [Enabled] [Disabled]
CPU C3 Report [Auto]
Allows you to disable or enable the CPU C3 report to OS. Conguration options: [Auto] [Enabled]
[Disabled]
CPU C6 Report [Auto]
Allows you to disable or enable the CPU C6 report to OS. Conguration options: [Auto] [Enabled]
[Disabled]
2.5.3 PCH Conguration
High Precision Timer [Enabled]
Allows you to enable or disable the High Precision Event Timer.
Conguration options: [Enabled] [Disabled]
Intel® Rapid Start Technology [Disabled]
Allows you to enable or disable the Intel(R) Rapid Start Technology.
Conguration options: [Enabled] [Disabled]
Intel® Smart Connect Technology [Disabled]
ISCT Configuration [Disabled]
Allows you to enable or disable the ISCT conguration. Conguration options: [Enabled] [Disabled]
2.5.4 SATA Conguration
While entering Setup, the BIOS automatically detects the presence of SATA devices. The
SATA Port items show Empty if no SATA device is installed to the corresponding SATA port.
SATA Mode Selection [IDE]
Allows you to set the SATA conguration.
[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as
Parallel ATA physical storage devices.
[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI
(Advanced Host Controller Interface). The AHCI allows the onboard storage
driver to enable advanced Serial ATA features that increases storage
performance on random workloads by allowing the drive to internally
optimize the order of commands.
2-18 ASUS P8B75-M
S.M.A.R.T. Status Check [Enabled]
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When
read/write of your hard disk errors occur, this feature allows the hard disk to report warning
messages during the POST. Conguration options: [Enabled] [Disabled]
Hot Plug [Disabled]
This item only appears when you set the SATA Mode Selection item to [AHCI] and allows you
to enable or disable the hot-plug support for each SATA port. Conguration options: [Enabled]
[Disabled]
2.5.5 System Agent Conguration
Memory Remap Feature [Enabled]
[Enabled] Allow you to enable remapping the memory above 4GB.
[Disabled] Disables this function.
Graphics Conguration
Primary Display [Auto]
Allows you to decide which graphics controller to use as the primary boot device. Conguration
options: [Auto] [iGPU] [PCIE] [PCI]
iGPU Memory [64M]
Allows you to select the amount of system memory allocated to DVMT 5.0 used by the iGPU.
Conguration options: [32M] [64M] [96M] [128M] ~ [416M] [448M] [480M] [512M]
Render Standby [Enabled]
Allows you to enable the Intel Graphics Render Standby support to reduce the iGPU power use
when idle. Conguration options: [Disabled] [Enabled]
iGPU Multi-Monitor [Enabled]
Allows you to enable the iGPU Multi-Monitor. iGPU shared system memory size is xed in 64MB.
Conguration options: [Disabled] [Enabled]
NB PCIe Conguration
Allows you to congure the NB PCI Express settings.
PCIEX16_1 Link Speed [Auto]
Allows you to congure the PCIE x16_1 speed. Conguration options: [Auto] [Gen1] [Gen2]
2.5.6 ME Subsystem
The items in this menu allow you to change the Intel® Management Engine (ME) feature.
ME Subsystem [Enabled]
Allows you to enable or disable accessing the ME subsystem. Conguration options:
[Enabled] [Disabled]
End of Post Message [Enabled]
This item appears only when you set the ME Subsystem item to [Enabled]. Conguration
options: [Enabled] [Disabled]
Execute MEBx [Enabled]
Allows you to enable or disable the Intel® Management Engine BIOS Extension (MEBx)
feature. Conguration options: [Enabled] [Disabled]
Chapter 2: BIOS information 2-19
2.5.7 AMT Conguration
The items in this menu allow you to change the Intel® Active Management Technology (AMT)
feature.
Intel AMT [Enabled]
Allow you to enable or disable the Intel® Active Management Technology (AMT) in the BIOS
extension. Conguration options: [Enabled] [Disabled]
iAMT H/W is always enabled. This option just controls the BIOS extension execution. If
enabled, this requires additional rmware in the SPI device.
BIOS Hotkey Pressed [Disabled]
Allow you to enable or disable using the BIOS hotkeys. Conguration options: [Enabled]
[Disabled]
MEBx Selection Screen [Disabled]
Allows you to enable or disable the MEBx selection screen. Conguration options: [Enabled]
[Disabled]
Un-Congure ME [Disabled]
Sets this item to [Disabled] to uncongure AMT/ME without using a password or set it to
[Enabled] to use a password. Conguration options: [Enabled] [Disabled]
WatchDog [Disabled]
When set to [Enabled], the WatchDog Timer will monitor the time taken for each task
performed by a software or hardware. Conguration options: [Enabled] [Disabled]
The following two items become congurable only when you set the WatchDog Timer item
to [Enabled].
OS Timer [0]
Use the <+> and <-> keys to adjust the value or key in a number directly.
BIOS Timer [0]
Use the <+> and <-> keys to adjust the value or key in a number directly.
The USB Devices item shows the auto-detected values. If no USB device is detected, the
item shows None.
Legacy USB Support [Enabled]
[Enabled] Enables the support for USB devices on legacy operating systems (OS).
[Disabled] The USB devices can be used only for the BIOS setup program.
[Auto] Allows the system to detect the presence of USB devices at startup. If
detected, the USB controller legacy mode is enabled. If no USB device is
detected, the legacy USB support is disabled.
2.5.8 USB Conguration
The items in this menu allow you to change the USB-related features.
2-20 ASUS P8B75-M
Legacy USB3.0 Support [Enabled]
This item appears only on P8Q67-M DO/USB3/TPM.
[Enabled] Enables the support for USB 3.0 devices on legacy operating systems
(OS).
[Disabled] Disables the function.
Intel xHCI Mode [Enabled]
Allows you to select an operation mode for the Intel xHCI controller. Conguration options:
[Smart Auto] [Auto] [Enabled] [Disabled]
EHCI Hand-off [Disabled]
[Enabled] Enables the support for operating systems without an EHCI hand-off
feature.
[Disabled] Disables the function.
2.5.9 Onboard Devices Conguration
HD Audio Controller [Enabled]
[Enabled] Enables the High Denition Audio Controller.
[Disabled] Disables the controller.
The following item appears only when you set the HD Audio Controller item to [Enabled].
Front Panel Type [HD]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-
denition audio depending on the audio standard that the front panel audio module supports.
[HD] Sets the front panel audio connector (AAFP) mode to high denition audio.
[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97
Realtek LAN Controller [Enabled]
[Enabled] Enables the Realtek LAN controller.
[Disabled] Disables the controller.
Realtek PXE OPROM [Disabled]
This item appears only when you set the previous item to [Enabled] and allows you to
enable or disable the PXE OptionRom of the Realtek LAN controller. Conguration options:
[Enabled] [Disabled]
Serial Port Conguration
The sub-items in this menu allow you to set the serial port conguration.
This item functions only if there is a serial port (COM1) connector on the motherboard.
Serial Port [Enabled]
Allows you to enable or disable the serial port (COM).
Conguration options: [Enabled] [Disabled]
Chapter 2: BIOS information 2-21
Change Settings [IO=3F8h; IRQ=4]
Allows you to select the Serial Port base address. Conguration options: [IO=3F8h; IRQ=4]
[IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4] [IO=2E8h; IRQ=3]
Parallel Port Conguration
The sub-items in this menu allow you to set the parallel port conguration.
Parallel Port [Enabled]
Allows you to enable or disable the parallel port (LPT/LPTE).
Conguration options: [Enabled] [Disabled]
Change Settings [Auto]
Allows you to select an optimal setting for Super I/O devices. Conguration options: [Auto]
[IO=378h; IRQ=5;] [IO=378h; IRQ=5,6,7,9,10,11,12;] [IO=278h; IRQ=5,6,7,9,10,11,12;] [IO=3BCh;
IRQ=5,6,7,9,10,11,12;]
Device Mode [STD Printer Mode]
Allows you to select the Printer Port mode. Conguration options: [STD Printer Mode] [SPP Mode]
[EPP-1.9 and SPP Mode] [EPP-1.7 and SPP Mode] [ECP Mode] [ECP and EPP 1.9 Mode] [ECP
and EPP 1.7 Mode]
2.5.10 APM
Restore AC Power Loss [Power Off]
[Power On] The system goes into on state after an AC power loss.
[Power Off] The system goes into off state after an AC power loss.
[Last State] The system goes into either off or on state, whatever the system state was
before the AC power loss.
Power On By PS/2 Keyboard [Disabled]
[Disabled] Disables the Power On by a PS/2 keyboard.
[Space Bar] Sets the Space Bar on the PS/2 keyboard to turn on the system.
[Ctrl-Esc] Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system.
[Power Key] Sets Power key on the PS/2 keyboard to turn on the system. This feature
requires an ATX power supply that provides at least 1A on the +5VSB lead.
Power On By PCIE/PCI [Disabled]
[Disabled] Disables the PCIE/PCI devices to generate a wake event.
[Enabled] Enables the PCIE/PCI devices to generate a wake event.
Power On By Ring [Disabled]
[Disabled] Disables Ring to generate a wake event.
[Enabled] Enables Ring to generate a wake event.
Power On By RTC [Disabled]
[Disabled] Disables RTC to generate a wake event.
[Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/
Minute/Second will become user-congurable with set values.
2-22 ASUS P8B75-M

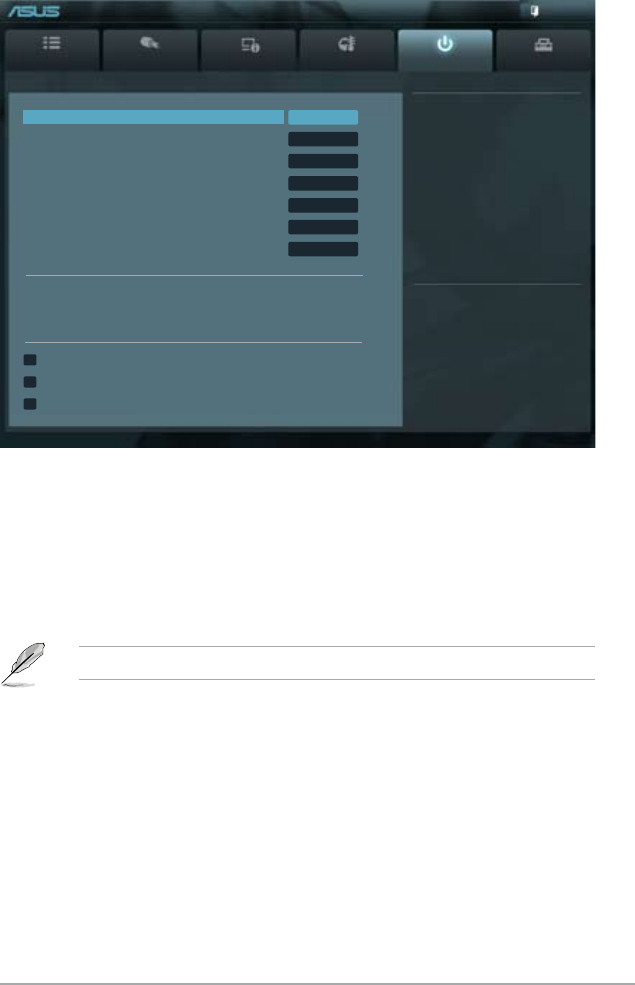

2.6 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the following items:
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
EFI BIOS Utility - Advanced Mode
CPU Temperature +45ºC / +113ºF
MB Temperature +34ºC / +93ºF
CPU Fan Speed 3325 RPM
Chassis Fan 1 Speed N/A
Chassis Fan 2 Speed N/A
CPU Q-Fan Control Enabled
CPU Fan Speed Low Limit 200 RPM
CPU Fan Prole Standard
Chassis Q-Fan Control Enabled
Chassis Fan Speed Low Limit 600 RPM
Chassis Fan Prole Standard
CPU Voltage +1.184 V
3.3V Voltage +3.312 V
5V Voltage +5.080 V
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
12V Voltage +12.192 V
Anti Surge Support Enabled
2.5.11 Network Stack
Network Stack [Disable Link]
This item allows user to disable or enable the UEFI network stack. Conguration options:
[Disable Link] [Enable]
Ipv4 PXE Support [Enabled]
This item appears only when you set the Network Stack item to [Enabled]. When this item is
disabled, the IPV4 PXE boot option will not be created. Conguration options: [Disable Link]
[Enabled]
Ipv6 PXE Support [Enabled]
This item appears only when you set the Network Stack item to [Enabled]. When this item is
disabled, the IPV6 PXE boot option will not be created. Conguration options: [Disable Link]
[Enabled]
Chapter 2: BIOS information 2-23
2.6.1 CPU Temperature / MB Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select Ignore if you do not wish to display the detected temperatures.
2.6.2 CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld
shows N/A. Select Ignore if you do not wish to display the detected speed.
2.6.3 CPU Q-Fan Control [Enabled]
[Disabled] Disables the CPU Q-Fan control feature.
[Enabled] Enables the CPU Q-Fan control feature.
CPU Fan Speed Low Limit [200 RPM]
This item appears only when you enable the CPU Q-Fan Control feature and allows you to
disable or set the CPU fan warning speed.
Conguration options: [Ignore] [100 RPM] [200 RPM] [300 RPM] [400 RPM] [500 RPM]
CPU Fan Profile [Standard]
This item appears only when you enable the CPU Q-Fan Control feature and allows you to set the
appropriate performance level of the CPU fan.
[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on the CPU
temperature.
[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.
[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.
[Manual] Sets to [Manual] to assign detailed fan speed control parameters.
The following four items appear only when you set CPU Fan Prole to [Manual].
CPU Upper Temperature [70]
Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range
from 20ºC to 75ºC.
CPU Fan Max. Duty Cycle(%) [100]
Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from
20% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at
the maximum duty cycle.
CPU Lower Temperature [20]
Use the <+> and <-> keys to adjust the lower limit of the CPU temperature. The values range
from 20ºC to 75ºC.
CPU Fan Min. Duty Cycle(%) [20]
Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 0%
to 100%. When the CPU temperature is under 40ºC, the CPU fan will operate at the minimum
duty cycle.
2-24 ASUS P8B75-M
2.6.4 Chassis Q-Fan Control [Enabled]
[Disabled] Disables the Chassis Q-Fan control feature.
[Enabled] Enables the Chassis Q-Fan control feature.
Chassis Fan Speed Low Limit [600 RPM]
This item appears only when you enable the Chassis Q-Fan Control feature and allows you
to disable or set the chassis fan warning speed.
Conguration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]
Chassis Fan Profile [Standard]
This item appears only when you enable the Chassis Q-Fan Control feature and allows you to set
the appropriate performance level of the chassis fan.
[Standard] Sets to [Standard] to make the chassis fan automatically adjust depending on the
chassis temperature.
[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.
[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.
[Manual] Sets to [Manual] to assign detailed fan speed control parameters.
The following four items appear only when you set Chassis Fan Prole to [Manual].
Chassis Upper Temperature [70]
Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range
from 40ºC to 90ºC.
Chassis Fan Max. Duty Cycle(%) [100]
Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range
from 60% to 100%. When the chassis temperature reaches the upper limit, the chassis fan will
operate at the maximum duty cycle.
Chassis Lower Temperature [40]
Displays the lower limit of the chassis temperature.
CPU Fan Min. Duty Cycle(%) [60]
Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from
60% to 100%. When the chassis temperature is under 40ºC, the chassis fan will operate at the
minimum duty cycle.
2.6.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
2.6.6 Anti Surge Support [Enabled]
This item allows you to enable or disable the Anti Surge function.
Conguration options: [Disabled] [Enabled]
Chapter 2: BIOS information 2-25
2.7 Boot menu
The Boot menu items allow you to change the system boot options.
2.7.1 Bootup NumLock State [On]
[On] Sets the power-on state of the NumLock to [On].
[Off] Sets the power-on state of the NumLock to [Off].
2.7.2 Full Screen Logo [Enabled]
[Enabled] Enables the full screen logo display feature.
[Disabled] Disables the full screen logo display feature.
Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.
Post Report [5 sec]
This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to
set the waiting time for the system to display the post report. Conguration options: [1 sec] [2
sec] [3 sec] [4 sec] [5 sec] [6 sec] [7 sec] [8 sec] [9 sec] [10 sec] [Until Press ESC]
2.7.3 Wait for ‘F1’ If Error [Enabled]
When this item is set to [Enabled], the system waits for the F1 key to be pressed when error
occurs. Conguration options: [Disabled] [Enabled]
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Select the keyboard NumLock state
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Shortcut
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
UEFI BIOS Utility - Advanced Mode
Bootup NumLock State On
Full Screen Logo Enabled
Wait For ‘F1’ If Error Enabled
Option ROM Messages Force BIOS
Setup Mode EZ Mode
UEFI/Legacy Boot Enabled both...
PCI ROM Priority Legacy ROM
Boot Option Priorities
Boot Option #1 SATA: xxxxxxx
Boot Option #2 SATA: xxxxxxx
Boot Override
> SATA: xxxxxxxxxxxx
> Hard Drive BBS Priorities
> CD/DVD ROM Drive BBS Priorities
2-26 ASUS P8B75-M
2.7.4 Option ROM Messages [Force BIOS]
[Force BIOS] The third-party ROM messages will be forced to display during the boot
sequence.
[Keep Current] The third-party ROM messages will be displayed only if the third-party
manufacturer had set the add-on device to do so.
2.7.5 Setup Mode [EZ Mode]
[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup
program.
[EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.
2.7.6 UEFI/Legacy Boot [Enabled both UEFI and Legacy]
[Enable both UEFI and Legacy] Enables both UEFI and Legacy boot.
[Disable UEFI] Enables the Legacy boot, and disables the UEFI boot.
[Disable Legacy] Enables the UEFI boot, and disables the Legacy boot.
2.7.7 PCI ROM Priority [Legacy ROM]
[Legacy ROM] Launch Legacy ROM
[EFI Compatibe ROM] Launch UEFI Compatible ROM
2.7.8 Boot Option Priorities
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system.
• To select the boot device during system startup, press <F8> when ASUS Logo appears.
• To access Windows OS in Safe Mode, press <F8> after POST.
2.7.9 Boot Override
These items displays the available devices. The number of device items that appears on
the screen depends on the number of devices installed in the system. Click an item to start
booting from the selected device.
Chapter 2: BIOS information 2-27
2.8 Tools menu
The Tools menu items allow you to congure options for special functions. Select an item
then press <Enter> to display the submenu.
2.8.1 ASUS EZ Flash 2 Utility
Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.
For more details, see section 2.1.2 ASUS EZ Flash 2.
2.8.2 ASUS O.C. Prole
This item allows you to store or load multiple BIOS settings.
The Setup Prole Status items show Not Installed if no prole is created.
Label
Allows you to input the label of the setup prole.
Save to Prole
Allows you to save the current BIOS settings to the BIOS Flash, and create a prole. Key in a
prole number from one to eight, press <Enter>, and then select Yes.
Load from Prole
Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the prole
number that saved your CMOS settings, press <Enter>, and then select Yes.
• DO NOT shut down or reset the system while updating the BIOS to prevent the system
boot failure!
• We recommend that you update the BIOS le only coming from the same memory/CPU
conguration and BIOS version.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Be used to update BIOS
UEFI BIOS Utility - Advanced Mode
> ASUS EZ Flash 2 Utility
> ASUS O.C. Prole
> ASUS SPD Information
2.8.3 ASUS SPD Information
DIMM Slot # [DIMM_A1]
Displays the Serial Presence Detect (SPD) information of the DIMM module installed on the
selected slot. Conguration options: [DIMM_A1] [DIMM_A2] [DIMM_B1] [DIMM_B2]
2-28 ASUS P8B75-M
2.9 Exit menu
The Exit menu items allow you to load the optimal default values for the BIOS items, and
save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit
menu.
Load Optimized Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a conrmation window appears.
Select Yes to load the default values.
Save Changes & Reset
Once you are nished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved. When you select this option or if you press <F10>,
a conrmation window appears. Select Yes to save changes and exit.
Discard Changes & Exit
This option allows you to exit the Setup program without saving your changes. When you
select this option or if you press <Esc>, a conrmation window appears. Select Yes to
discard changes and exit.
ASUS EZ Mode
This option allows you to enter the EZ Mode screen.
Launch EFI Shell from lesystem device
This option allows you to attempt to launch the EFI Shell application (shellx64.e) from one of
the available devices that have a lesystem.
Exit
Load Optimized Defaults
Save Changes & Reset
Discard Changes & Exit
ASUS EZ Mode
Launch EFI Shell from lesystem device
ASUS P8B75-M A-1
Appendices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modications to this unit not
expressly approved by the party responsible for compliance could void the user’s authority
to operate this equipment.
IC: Canadian Compliance Statement
Complies with the Canadian ICES-003 Class B specications. This device complies with RSS
210 of Industry Canada. This Class B device meets all the requirements of the Canadian
interference-causing equipment regulations.
This device complies with Industry Canada license exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer
un fonctionnement non souhaité de l’appareil.
Notices
A-2 Appendices
VCCI: Japan Compliance Statement
VCCI Class B Statement
KC: Korea Warning Statement
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications.
This class B digital apparatus complies with Canadian ICES-003.
DO NOT throw the motherboard in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin
indicates that the product (electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol
of the crossed out wheeled bin indicates that the battery should not be placed in municipal
waste.
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://csr.asus.com/english/REACH.htm.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for
protecting our environment. We believe in providing solutions for you to be able to responsibly
recycle our products, batteries, other components as well as the packaging materials. Please
go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different
regions.
ASUS contact information
ASUSTeK COMPUTER INC.
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone +886-2-2894-3447
Fax +886-2-2890-7798
E-mail info@asus.com.tw
Web site www.asus.com
Technical Support
Telephone +86-21-38429911
Telephone +86-21-58668722, ext. 9101#
Online support http://support.asus.com/techserv/techserv.aspx
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone +1-510-739-3777
Fax +1-510-608-4555
Web site http://usa.asus.com
Technical Support
Telephone +1-812-282-2787
Support fax +1-812-284-0883
Online support http://support.asus.com/techserv/techserv.aspx
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, D-40880 Ratingen, Germany
Fax +49-2102-959931
Web site http://www.asus.com/de
Online contact http://eu-rma.asus.com/sales
Technical Support
Telephone +49-2102-5789555
Support Fax +49-2102-959911
Online support http://support.asus.com/techserv/techserv.aspx
EC Declaration of Conformity
We, the undersigned,
Manufacturer: ASUSTeK COMPUTER INC.
Address, City: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Country: TAIWAN
Authorized representative in Europe: ASUS COMPUTER GmbH
Address, City: HARKORT STR. 21-23, 40880 RATINGEN
Country: GERMANY
declare the following apparatus:
Product name : Motherboard
Model name : P8B75-M
