PRODUCT DATASHEET
ASEDrive PAC

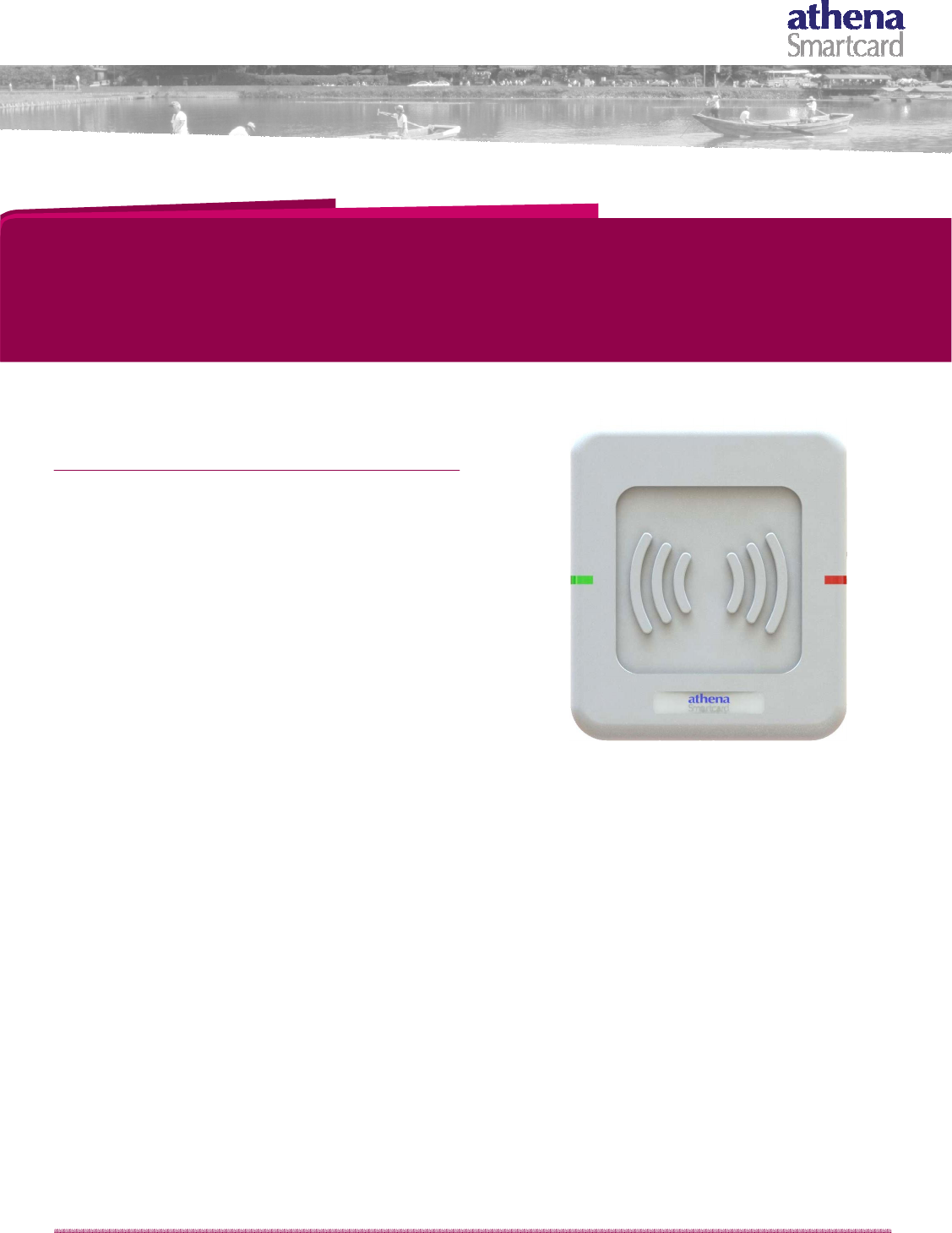

The ASEDrive PAC Sector Readers/Writers family are fully-featured smartcard proximity
readers/writers, ideal for highly secured facilities as well as other facilities that wish to utilize access
control , intrusion, detection or time and attendance applications.
ASEDrive PAC Contactless
CPU Smartcard Reader
The ASEDrive PAC introduces patented, industry
first technology encased in a anti-vandal body, thus
combining smart card technology with anti-vandal
protection.
General Description
Programming of the reader is done by firmware
upgrade, using Athena Smart Card Programmer.
The reader scans information stored within a
smartcard, sends the data to a connected access
control system, and allows the integrator to set
secret keys for different sectors on the card. This
established a unique network with proprietary
cards, where no card can possibly have the same
ID on the same location and with the same reader
key.
The readers meet IP65 and are suitable for both
indoor and outdoor use. The interface is a 10-wire
pigtail (including Wiegand, USB & RS232) that
allows you to connect the unit to a control panel.
Main Features
• Advanced, secure, multi-application
functionality for intelligent applications.
• Easy to deploy in the field with the
configuration card (Master card) for secure
sector reading of data from the sectors.
• Configurable multi output format, supports
various Wiegand formats and many more.
• Multiple keypad transmission formats
(optional)
• Microsoft® Windows Compatible software for
Master and User Card configuration.
Advanced Features
• Reads ISO14443 A/B & Mifare Standard
cards.
• Dedicated LED and buzzer control inputs.
• Optical tamper sensor for case and wall
tamper detection.
• Reads dedicated customer’s sector or
serial number.
• Internal Secure Access Module (SAM)
socket (optional).
• Outdoor use and weather-resistance (IP65)
• 3 years HW warranty
System Components
The Readers are compatible with USB desktop
card programmer and its associated software.
![](/img.php?id=2145721&img=bg2.png)
Technical Specification
The readers are compatible with a variety of
industry controllers.
.
Athena ASEDrive IIIe PAC (27082012)
Asia
North
America
L
AT
AM
&
Iberia
EMEA
&
International
Poland
&
Central
ww
w
. ath e n a
-
scs.co
m
ELECTRICAL CHARACTERISTICS ASEDrive PAC
Operating Voltage Range:
5-16 VDC
Standby Input Current:
110mA
Maximum Input Current:
150mA
Tamper Output:
Open Controller, active low, max sink current 30Ma
OPERATIONAL CHATACTERISTICS
Inputs:
Programmable LED Control / Buzzer control Input, N.O, Dry Contact
Indicators:
2 LED indicators
Output Formats:
Wiegand 26
-
bit
, Clock & Data, Wiegand 32 bit,
Wiegand 37 bit, RS232,USB
Built-In Proximity Reader:
Operating Frequency: 13.56MHz
Compatible ISO 14443 A/B
Max. Proximity read range:
45mm (1.772 ``)
ENVIRONMENTAL CHARATERISTICS
Operating Environment:
Water resistant, suitable for outdoor use (meets IP65)
Operating Temperature
-30ºC to 60ºC
Operating Humidity:
0% to 95% (Non-Condensing)
MECHANICAL CHARATERISTICS
Dimensions (H x W x D):
65
mm x
55
mm x
27
mm
2.56 x 2.16 x 1.06 inch
Weight:
250g (0.55 lbs.)
![](/img.php?id=2145721&img=bg3.png)
PRODUCT DATASHEET
Specifications
are subject to change without notice.
All trademarks and trade names are property of their respective owners.
