Athentek AT502 Smart Tracker User Manual

Athentek Corp. Smart Tracker Users Manual

Users Manual

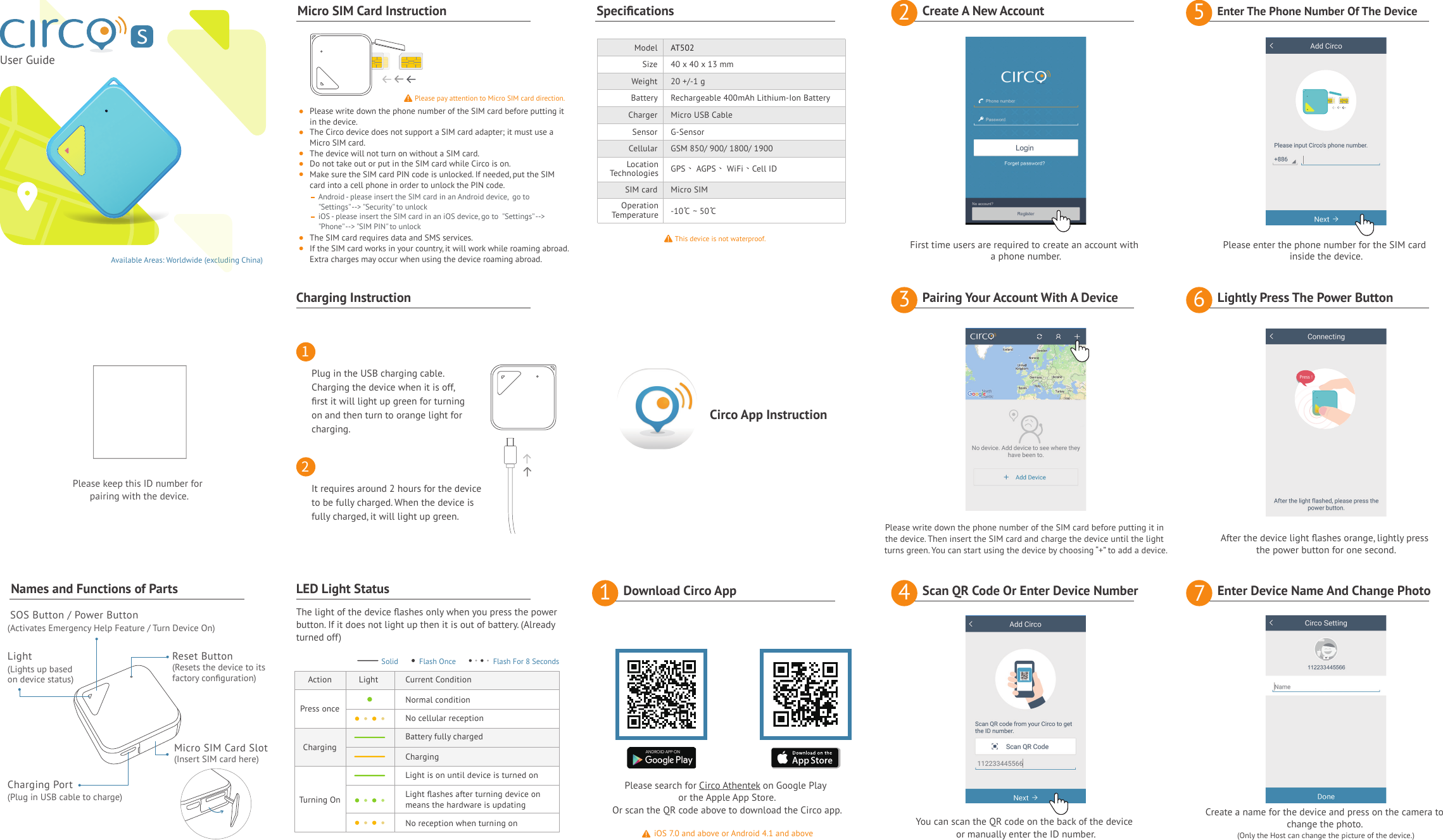

Available Areas: Worldwide (excluding China)Names and Functions of PartsMicro SIM Card Instruction SpecificationsCharging InstructionPlease search for Circo Athentek on Google Play or the Apple App Store.Or scan the QR code above to download the Circo app.Download Circo App1(Lights up based on device status)Light(Resets the device to its factory configuration)Reset Button(Insert SIM card here)Micro SIM Card Slot(Plug in USB cable to charge)Charging Port (Activates Emergency Help Feature / Turn Device On)SOS Button / Power ButtonPlease pay attention to Micro SIM card direction.Please write down the phone number of the SIM card before putting it in the device.The Circo device does not support a SIM card adapter; it must use a Micro SIM card.The device will not turn on without a SIM card.Do not take out or put in the SIM card while Circo is on.Make sure the SIM card PIN code is unlocked. If needed, put the SIM card into a cell phone in order to unlock the PIN code.The SIM card requires data and SMS services.If the SIM card works in your country, it will work while roaming abroad.Extra charges may occur when using the device roaming abroad.Plug in the USB charging cable.Charging the device when it is off,first it will light up green for turning on and then turn to orange light for charging.1It requires around 2 hours for the device to be fully charged. When the device is fully charged, it will light up green.2LightAction Current ConditionChargingNo cellular receptionLight is on until device is turned onNormal conditionBattery fully chargedLight flashes after turning device on means the hardware is updatingLED Light StatusSizeModel40 x 40 x 13 mmAT502GSM 850/ 900/ 1800/ 1900Weight 20 +/-1 gSIM card Micro SIM-10 ~ 50BatteryCellularRechargeable 400mAh Lithium-Ion BatteryCharger Micro USB CableSensor G-SensorLocationTechnologies GPS、 AGPS、 WiFi、Cell IDThis device is not waterproof.iOS 7.0 and above or Android 4.1 and aboveCirco App InstructionCreate A New Account2First time users are required to create an account with a phone number.Pairing Your Account With A Device3Please write down the phone number of the SIM card before putting it in the device. Then insert the SIM card and charge the device until the light turns green. You can start using the device by choosing “+” to add a device.Scan QR Code Or Enter Device Number4You can scan the QR code on the back of the device or manually enter the ID number.Enter The Phone Number Of The Device5The light of the device flashes only when you press the power button. If it does not light up then it is out of battery. (Already turned off)Lightly Press The Power Button6Please enter the phone number for the SIM card inside the device.After the device light flashes orange, lightly press the power button for one second.Enter Device Name And Change Photo7Create a name for the device and press on the camera to change the photo. (Only the Host can change the picture of the device.)No reception when turning onPress onceChargingTurning OnSolid Flash Once Flash For 8 SecondsPlease keep this ID number for pairing with the device.Press !User GuideAndroid - please insert the SIM card in an Android device, go to "Settings" --> "Security" to unlockiOS - please insert the SIM card in an iOS device, go to "Settings" --> "Phone" --> "SIM PIN" to unlockSOperationTemperature CC

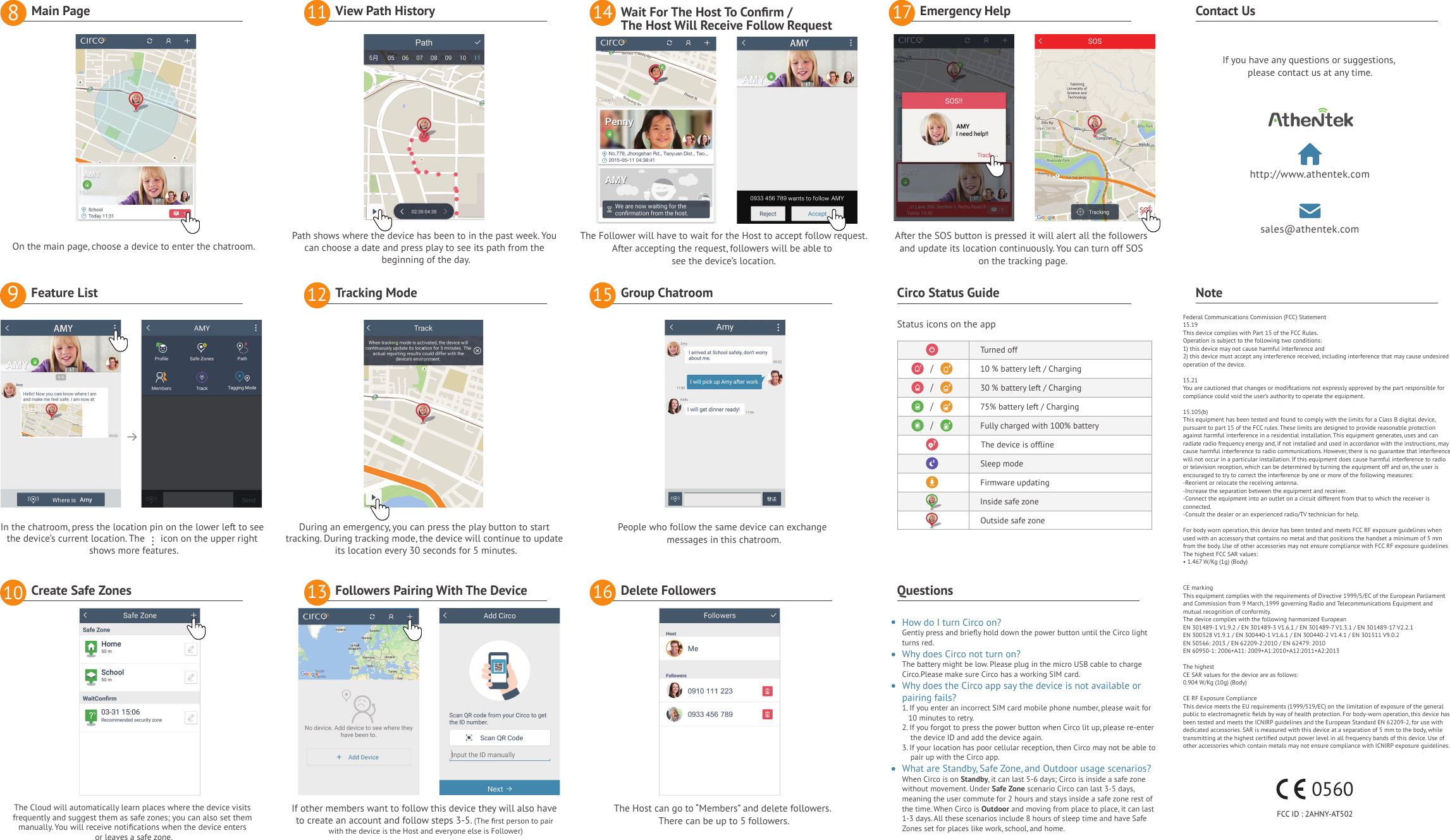

FCC ID : 2AHNY-AT5020560How do I turn Circo on?Gently press and briefly hold down the power button until the Circo light turns red.Why does Circo not turn on?The battery might be low. Please plug in the micro USB cable to charge Circo.Please make sure Circo has a working SIM card.Why does the Circo app say the device is not available or pairing fails?1. If you enter an incorrect SIM card mobile phone number, please wait for 10 minutes to retry. 2. If you forgot to press the power button when Circo lit up, please re-enter the device ID and add the device again.3. If your location has poor cellular reception, then Circo may not be able to pair up with the Circo app.What are Standby, Safe Zone, and Outdoor usage scenarios?When Circo is on Standby, it can last 5-6 days; Circo is inside a safe zone without movement. Under Safe Zone scenario Circo can last 3-5 days, meaning the user commute for 2 hours and stays inside a safe zone rest of the time. When Circo is Outdoor and moving from place to place, it can last 1-3 days. All these scenarios include 8 hours of sleep time and have Safe Zones set for places like work, school, and home.QuestionsFeature List9Create Safe Zones10In the chatroom, press the location pin on the lower left to see the device’s current location. The icon on the upper right shows more features.The Cloud will automatically learn places where the device visits frequently and suggest them as safe zones; you can also set them manually. You will receive notifications when the device enters or leaves a safe zone.View Path History11Main Page8Path shows where the device has been to in the past week. You can choose a date and press play to see its path from the beginning of the day.Tracking Mode12Followers Pairing With The Device13During an emergency, you can press the play button to start tracking. During tracking mode, the device will continue to update its location every 30 seconds for 5 minutes.If other members want to follow this device they will also have to create an account and follow steps 3-5. (The first person to pair with the device is the Host and everyone else is Follower)Wait For The Host To Confirm /The Host Will Receive Follow Request14Group Chatroom15Delete Followers16The Follower will have to wait for the Host to accept follow request.After accepting the request, followers will be able to see the device’s location.People who follow the same device can exchange messages in this chatroom.Emergency Help17After the SOS button is pressed it will alert all the followers and update its location continuously. You can turn off SOS on the tracking page.The Host can go to “Members” and delete followers. There can be up to 5 followers.On the main page, choose a device to enter the chatroom.If you have any questions or suggestions, please contact us at any time.Contact Ushttp://www.athentek.comsales@athentek.com10 % battery left / ChargingTurned offThe device is offlineOutside safe zone75% battery left / ChargingSleep mode30 % battery left / ChargingFully charged with 100% batteryFirmware updatingInside safe zoneCirco Status GuideStatus icons on the app////NoteFederal Communications Commission (FCC) Statement15.19This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) this device may not cause harmful interference and2) this device must accept any interference received, including interference that may cause undesired operation of the device.15.21You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.15.105(b)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.For body worn operation, this device has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 5 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelinesThe highest FCC SAR values:• 1.467 W/Kg (1g) (Body) CE markingThis equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity. The device complies with the following harmonized EuropeanEN 301489-1 V1.9.2 / EN 301489-3 V1.6.1 / EN 301489-7 V1.3.1 / EN 301489-17 V2.2.1EN 300328 V1.9.1 / EN 300440-1 V1.6.1 / EN 300440-2 V1.4.1 / EN 301511 V9.0.2EN 50566: 2013 / EN 62209-2:2010 / EN 62479: 2010EN 60950-1: 2006+A11: 2009+A1:2010+A12:2011+A2:2013The highestCE SAR values for the device are as follows:0.904 W/Kg (10g) (Body)CE RF Exposure ComplianceThis device meets the EU requirements (1999/519/EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. For body-worn operation, this device has been tested and meets the ICNIRP guidelines and the European Standard EN 62209-2, for use with dedicated accessories. SAR is measured with this device at a separation of 5 mm to the body, while transmitting at the highest certified output power level in all frequency bands of this device. Use of other accessories which contain metals may not ensure compliance with ICNIRP exposure guidelines.Tagging Mode
