1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 / FAX (800) 765-3435 AtlasSound.com

Specifications subject to change without notice

© 2002 Atlas Sound Printed in U.S.A. 000202 SL1-1192

One

STRATEGY SERIES™

SURFACE MOUNT LOUDSPEAKERS

SM52T-B

SM52T-W

SM52T-B SM52T-W

SPECIFICATIONS

MODEL: SM52T(-B)(-W)

POWER RATING (RMS):100 W

(Transformer Limited)

FREQUENCY RESPONSE (± 3dB):85Hz to 20kHz

SENSITIVITY (1W/1M):90dB

WOOFER SIZE: 51⁄4"

CONE: Polypropylene

SURROUND: Rubber

MAGNET: 20 oz

TWEETER SIZE: 1" (25mm)

DIAPHRAM

MATERIAL: Mylar

MAGNET: 1.39 oz

CROSSOVER FREQUENCY: 5000 Hz

CROSSOVER TYPE: 1st Order Low Pass,

2nd Order High Pass

SELECTOR– 70.7 Volt Taps: .94, 1.9, 3.7, 7.5,

15, 30 Watts

DIMENSIONS: 103⁄16"H x 67⁄8"W x 57⁄8"D

28.5cm x 17.5cm x 14.85cm

WEIGHT (WITH BRACKET):8.4 lbs. (3.2kg)

Model SM52 (8 Ohm) Version also available, see SL1-1191

FEATURES:

• Compact, 2-way loudspeaker systems for exceptional performance

in music and sound reinforcement systems

• Weather-resistant construction for year-round indoor or outdoor use:

UV-resistant-talc-impregnated-polypropylene injection molded enclosure,

powder coated aluminum grilles and all brass hardware inserts

• Conforms to 100HR salt spray test per ASTM B117

• Color matched heavy-duty zinc chromate plated and powder coated

"C" bracket (included)

• Highly efficient 51⁄4" polypropylene woofer

• 1" FerroFluid™ cooled dome tweeter

• Atlas Sound TRX WAVEGUIDE™– A constant directivity style

high frequency wave guide system provides accurate, even

high frequency coverage

• Atlas Sound POLYGUARD™ high frequency circuit diverts damaging

transient signals to protect the tweeter

• Screwdriver adjustable 30-Watt 70.7V/100V transformer for

distributed sound applications

• All 1⁄4"-20 hardware inserts allow easy integration of "off-the-shelf"

security hardware

• OMNIMOUNT™ 25 series compatible

• Available in black or white

• Five-year warranty

APPLICATIONS:

Use surface-mount Atlas Sound SM52T Series loudspeaker systems

for commercial, professional and residential applications or where

high-fidelity sound and weather-resistance is desired. Full-range

frequency response makes these systems ideal for indoor and outdoor

installation, in monaural and stereo foreground or background music

systems, and for applications in boutiques/shops, restaurants/cafes,

leisure, recreation/sports centers and houses of worship. Multi-position,

C-shaped mounting bracket and rugged construction provide optimum

installation flexibility and assurance of long-term service.

GENERAL DESCRIPTION:

Environment-resistant SM Series loudspeaker systems offer quality

sound reproduction and contemporary styling in a compact enclosure.

System components consist of a highly efficient woofer section and

FerroFluid cooled, titanium dome high frequency device. Vocal and

musical clarity is optimized by the mathematically conceived,

advanced design of the Atlas Sound TRX Control WaveGuide high

frequency director. This design provides smooth, even sound coverage

(90˚H x 90˚V). The high frequency section is symmetrical, for equal

coverage in both vertical and horizontal cabinet mounting positions.

High frequency component protection is provided by the Atlas Sound

PolyGuard protection circuit. The SM52T includes an internally mounted

30 Watt 70.7V/100V line matching transformer with screwdriver adjustable

tap selection for use in distributed sound applications.

To withstand the harshest environments, the new Strategy Series

SM52T surface mount loudspeakers are constructed of weather

resistant materials: UV-resistant, talc impregnated, polypropylene

injection molded cabinets; polypropylene woofer cones; powder

coated aluminum grilles and all brass hardware. The Strategy Series

speaker systems include a versatile, yet simple, C-bracket designed to

provide easy vertical or horizontal installation on just about any surface.

2.5

Specifications subject to change without notice

© 2002 Atlas Sound Printed in U.S.A. 000202 SL1-1192

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 / FAX (800) 765-3435 AtlasSound.com

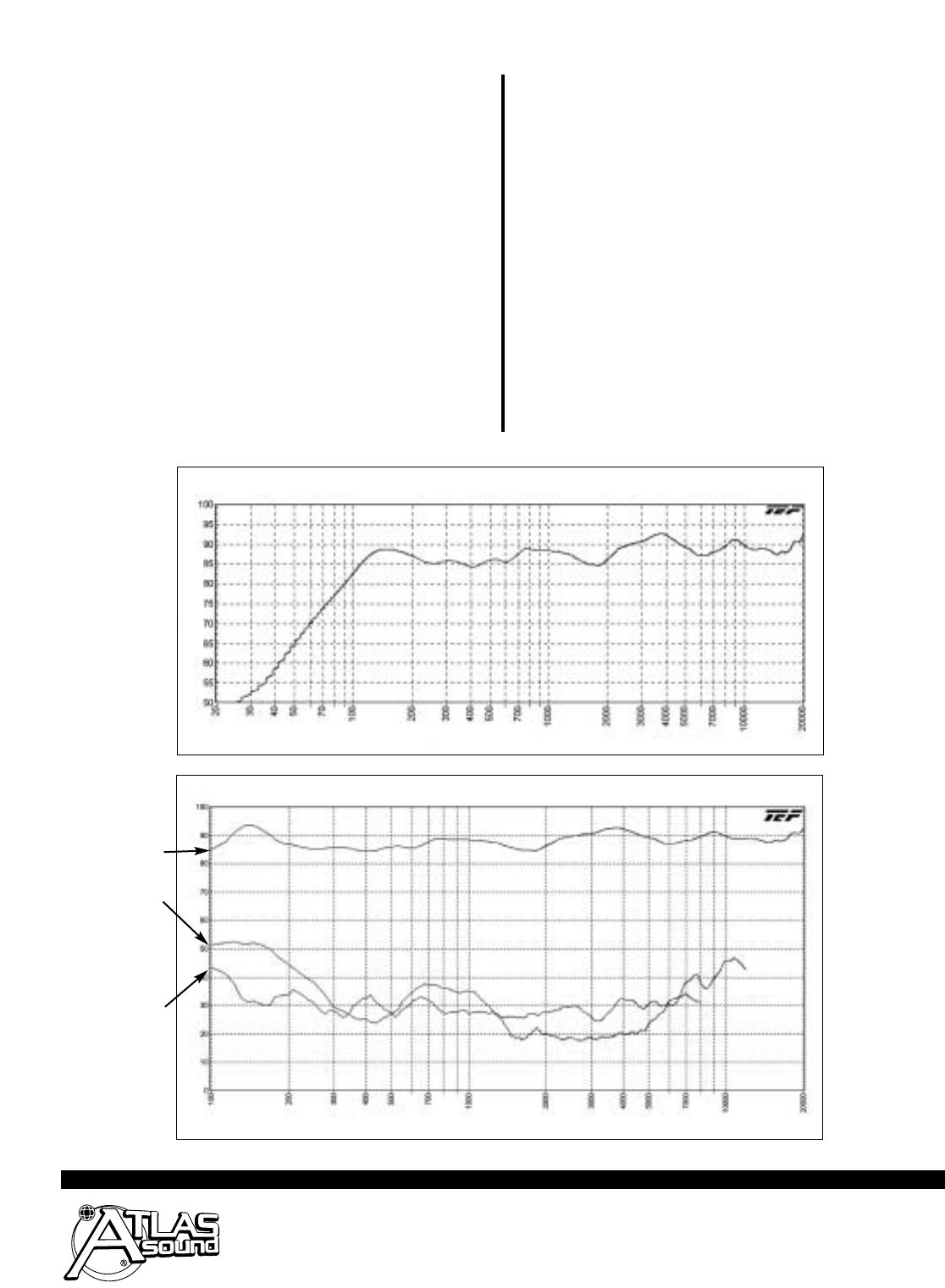

SM52T Frequency Response

(Transformer Bypassed)

SM52T Harmonic DIstortion

FREQUENCY (Hz)

FREQUENCY (Hz)

SPL in dB

SPL in dB

FUNDAMENTAL

3RD HARMONIC

2ND HARMONIC

Care should be taken to ensure that the chosen fixing point is strong

enough to support the SM52T. Care should also be taken to ensure

that the SM52T is not exposed to direct precipitation. A 5⁄8"-27 threaded

hole is provided on the C-bracket to allow the SM52T series speaker

to be mounted on any Atlas Sound microphone stand for near-field live

sound applications. 23⁄8" OC brass inserts are also provided on the rear

of the SM52T to accommodate OMNIMOUNT™ 25 series brackets.

All inserts for mounting knobs are standard 1⁄4"-20 to allow easy substi-

tution of off-the-shlelf vandal-proof torx head or "one-way" hardware.

Input connectors include a two pole barrier strip with wire capture

"caps" capable of accepting up to (2) #14AWG cable. .94, 1.9, 3.7,

7.5, 15, and 30 watt taps are screwdriver selectable via a sealed

switch located near the input section on the rear of the cabinet.

A tongue-in-groove cover with rubber wire exit grommet is provided to

protect the input connections and transformer switch assembly from

moisture. Systems are available in black or white and can be painted

to accommodate any architectural considerations.

ARCHITECT AND ENGINEER SPECIFICATIONS

The indoor/outdoor mini-loudspeaker system shall be Atlas Sound

Model __________ (SM52T-B or SM52T-W) or approved equal.

Assemblies shall consist of 2-way, woofer and tweeter, within

environment-resistant housings. Enclosure shall be constructed

of paintable UV-resistant, talc impregnated, polypropylene, injection

molded plastic finished in black (SM52T-B) or white (SM52T-W).

Each unit shall include a stamped, powder coated, aluminum grille

and removable C-shaped mounting bracket. All hardware inserts shall

be brass and threaded 1⁄4"-20. The 100-Watt RMS system shall have a

51⁄4" (133mm) woofer, constructed of reinforced polypropylene, and a

1" (25mm) FerroFluid tweeter. The dividing network crossover frequency

shall be 5000 Hz. The dividing network shall include protection circuits

for the high-frequency component. Each unit shall include an internally

mounted 30 watt 70.7V/100V line matching transformer for use in

distributed sound applications wattage taps shall be screwdriver selec-

table via a sealed switch located near the input section. Wattage taps

shall be .94, 1.9, 3.7, 7.5, 15, 30 @ 70.7V. The loudspeaker system

shall meet the following performance criteria: Power handling, 100 Watts

RMS (Transformer limited); Frequency response, ±3dB from 85 Hz to

20 kHz; Pressure sensitivity, 90dB SPL at one watt, 100 Hz to 10 kHz

measured at a distance of one meter on axis. Input connectors shall

include a two-pole barrier strip capable of accepting up to (2) #14AWG

cable. A tongue-in-groove cover with rubber wire exit grommet shall be

provided to protect the input connectors from corrosion. The unit shall

be 103⁄16"(25.8cm) high, 67⁄8" (17.5cm) wide, 57⁄8" (14.85cm) deep.

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 / FAX (800) 765-3435 AtlasSound.com

Specifications subject to change without notice

© 2002 Atlas Sound Printed in U.S.A. 000202 SL1-1192

One

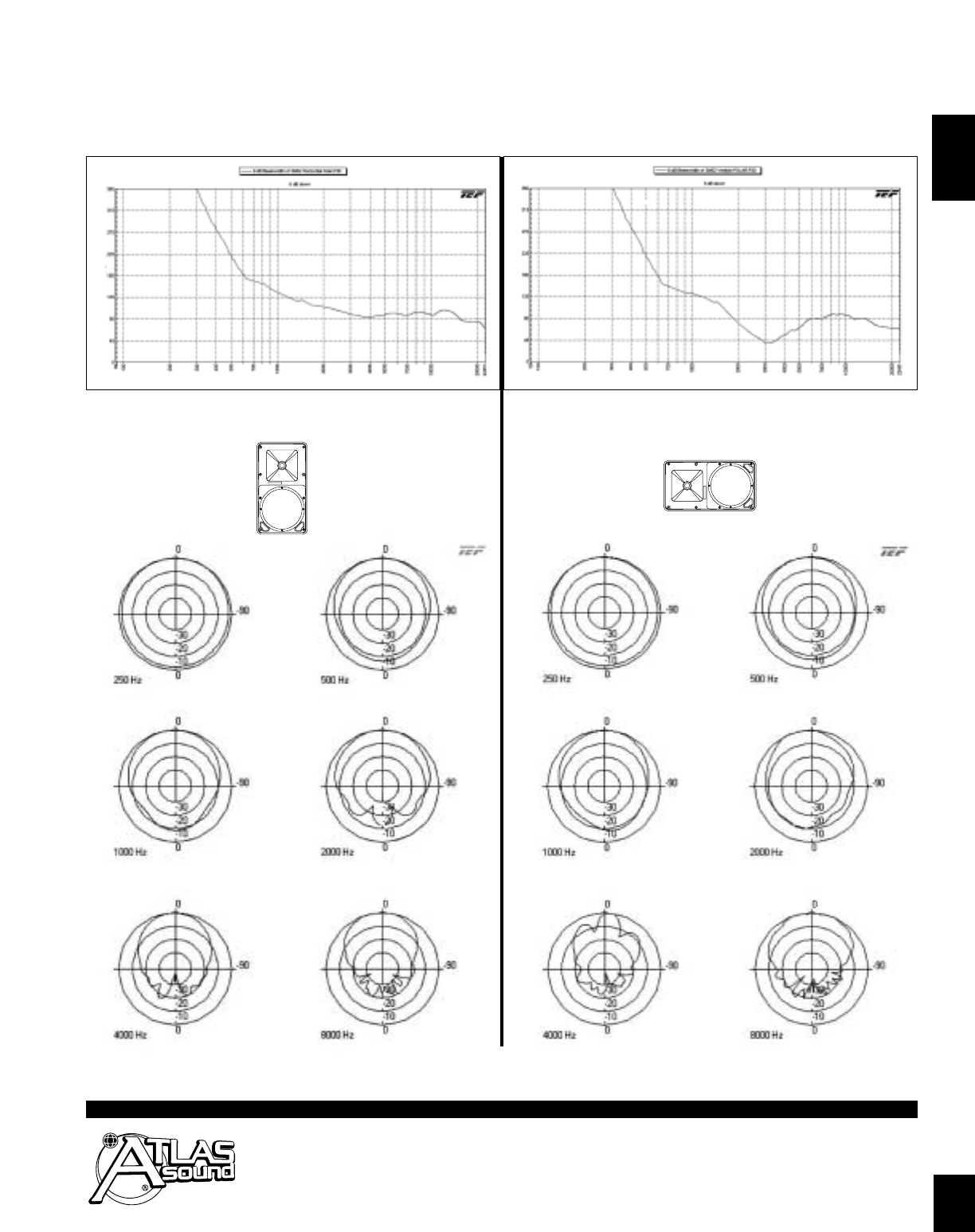

SM52T Horizontal Polar SM52T Vertical Polar

SM52T Horizontal Beamwidth vs. Frequency SM52T Vertical Beamwidth vs. Frequency

FREQUENCY (Hz)

Beamwidth (degrees)

FREQUENCY (Hz)

Beamwidth (degrees)

2.7
