Users manual

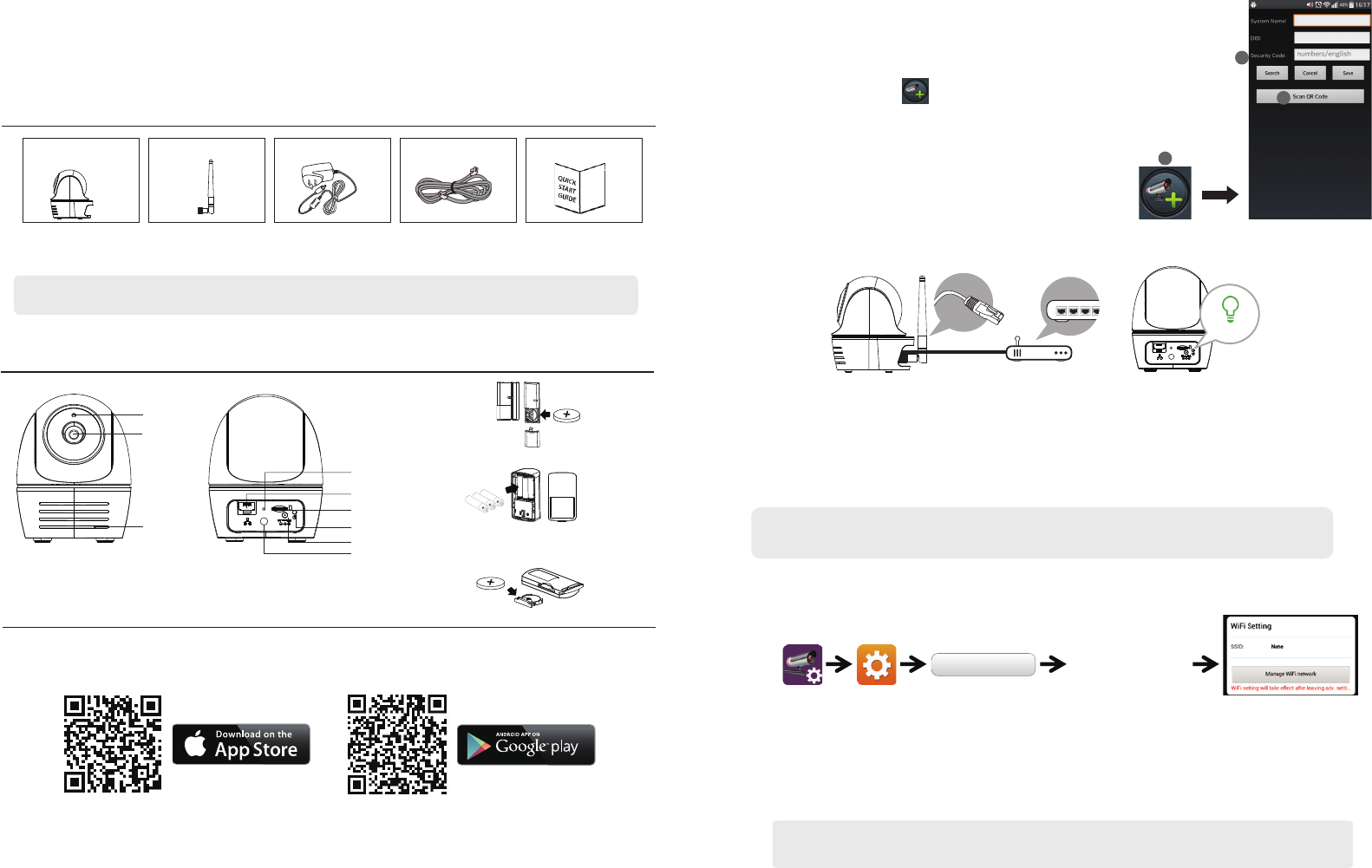

QUICK START GUIDE
KIT CONTENT :
Optional item for limited models:
- Motion PIR - Window/ Door Contact - Panic Remote
Camera AntennaPan/Tilt Wireless
Appcam
x 1 x 1
Power Adapter
x 1
Quick Start Guide
x 1
x 1
Ethernet cable
HARDWARE OVERVIEW
SETUP THE CAMERA
Note: For video recording, BE SURE TO use CLASS 10 memory card or above (not included). Other kinds of memory card
may cause unexpected results and should be avoided.
For iOS For Android
1. APP Download
Download and install the "OMGuard HD" APP to your device.
2. Power up The Camera
Power on the camera and wait until the GREEN LED indicator becomes steady on. This process would
be nished within 45 seconds and make sure the LED is ashing in GREEN.
3a.Wireless Connection
(1) In the Wi-Fi setting of your smart device. Choose the Wi-Fi router with
prex of HD-xxxxxx (xxxxxx=Camera ID numbers). Enter the default
password 12345678 and save the settings.
(2) Launch the APP, tap to add the camera.
(3) Tap (QR code icon) and scan the QR code label on the back of the camera
to bring up the DID information. Or tap "Search" to locate the camera.
(4) Enter the default password 123456 and save the settings.
(5) Later, APP will request user to modify default password to
private password .
3b.Wired Connection
(1) Make sure your smartphone is connected your Wi-Fi router.
(2) Connect the camera to the Wi-Fi router with an Ethernet cable.
(3) Launch the APP, tap the “Search” to locate the camera.
(4) Enter the default password 123456 and save the settings.
(5) Later, APP will request user to modify default password to private password .
Note: In soft AP mode, the GREEN LED long ashes once followed by 2 short ashes. In normal mode, the LED
is ashing in green. For more details, please refer to the user manual.
4. Wi-Fi Setting
4a.
4b. The Camera will oine for around 40 seconds to reboot for Wi connection. When camera
connects to Wi-Fi router correctly, the Green LED will stay ON.
4c. In the Wi-Fi setting on your smart device again, make sure the Wi-Fi router you are connecting
to is the same as the camera. If not, manually assign to it.
Advanced Enter Admin Password
(default 123456)
Choose the appropriate Wi-Fi
router on your local network
2
3
4
Note: If you fail to add the camera for several times, please press and hold the “Reset” button for 5 seconds to reset it.
Then follow steps 3a or 3b again.
Steady ON
Mag
PIR
Panic Remote
Microphone
Micro SD Card Slot
Antenna
Power
Power LED
LAN Port
Reset
Lens
Light Sensor
Panic Remote
SETUP SENSOR PIR/MAG
POSITION YOUR CAMERA & SENSOR

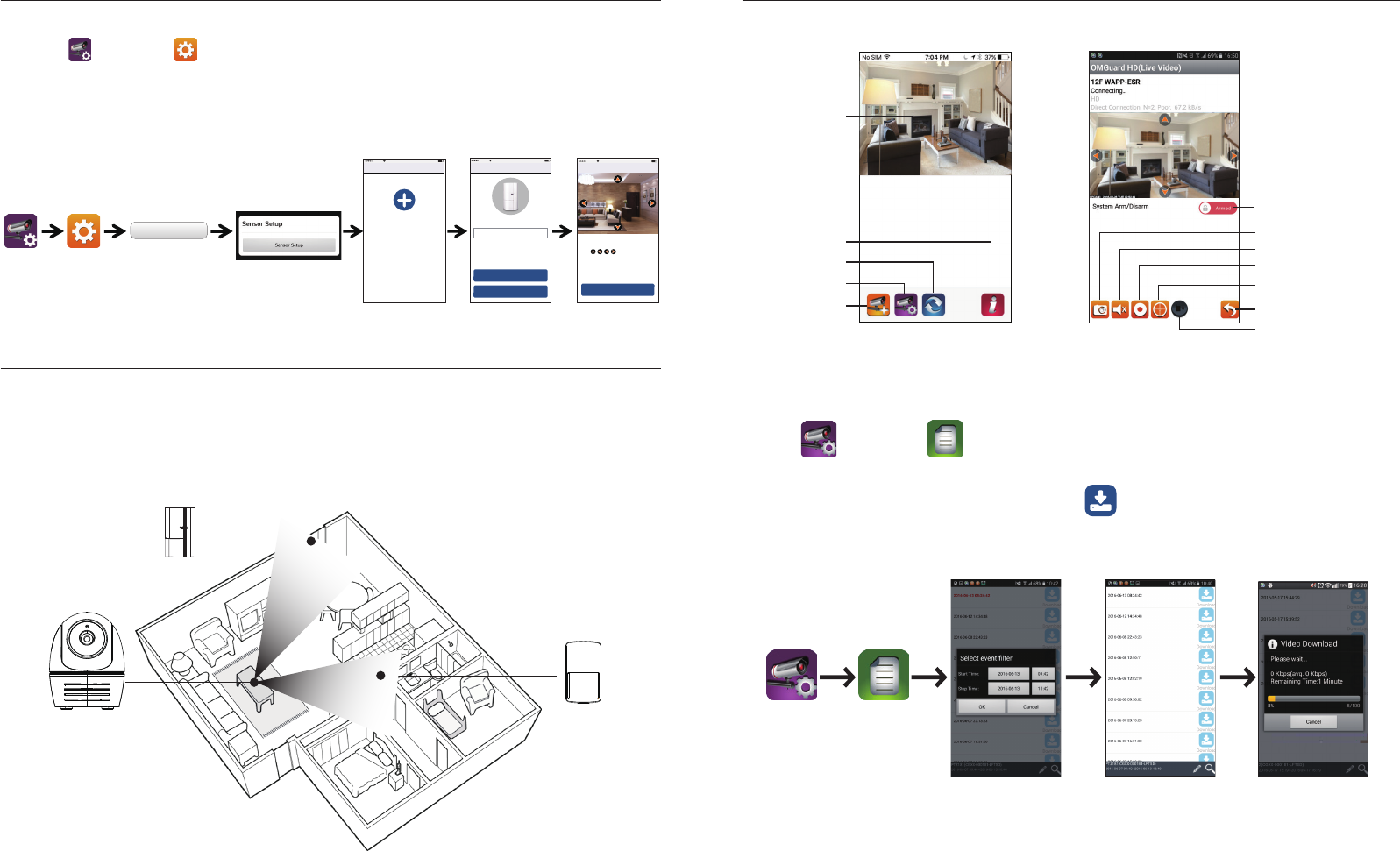

APP INTRODUCTION
Follow the steps below for Event Playback.
1. Tap and then the
2. Select the time interval for the event list.
3. Tap to select the le for playback.
4. If you want to store the les in mobile device, tap to download the le (Best while under
Wi-Fi enviornment due to larger high denation data size).
(1) (1)-1
(2) (3) (4)
Add Sensor Device
(1) Tap then choose
(2) In the advanced section, enter admin password default 123456.
(3) Select sensor setup, tap “+” to add sensor device.
(4) Name your device and tap”Save”.
(5) Tap “Camera Pan control” to calibrate the camera position, and save the settings
Advanced
Enter Admin Password
(default 123456)
Event Trigger Auto-Position
- When an intruder is detected, the camera can immediately and automatically position itself to
capture video image of the intruder as evidence. With every event, the camera will immediately
send out push notications to your mobile device.
- If you move or relocate the camera, please recalibrate the camera position again.
(1) (1)-1
(3)-1 (4) (5)
(2) (3)
Camera rotate
to the scene
Mag
PIR
Sensor SetupBack
75%9:41 AMCarrier
Add Sensor
SaveTrigger PresetCancel
75%9:41 AMCarrier
Reset
- Make sure camera & sensor are in fixed position.
- Slide to position camera angle.
- Tap “save” to save setting and exit.
Sensor Name:
Front Door
Sensor EditBack Save
75%9:41 AMCarrier
Trigger Preset
Delete
Live-View
Camera List
Information
Refresh
Camera Setting
Add Camera
Live View
Snapshot
Video Record
Talking Button
Return
Mute
Setup Camera Position
Arm/Disarm

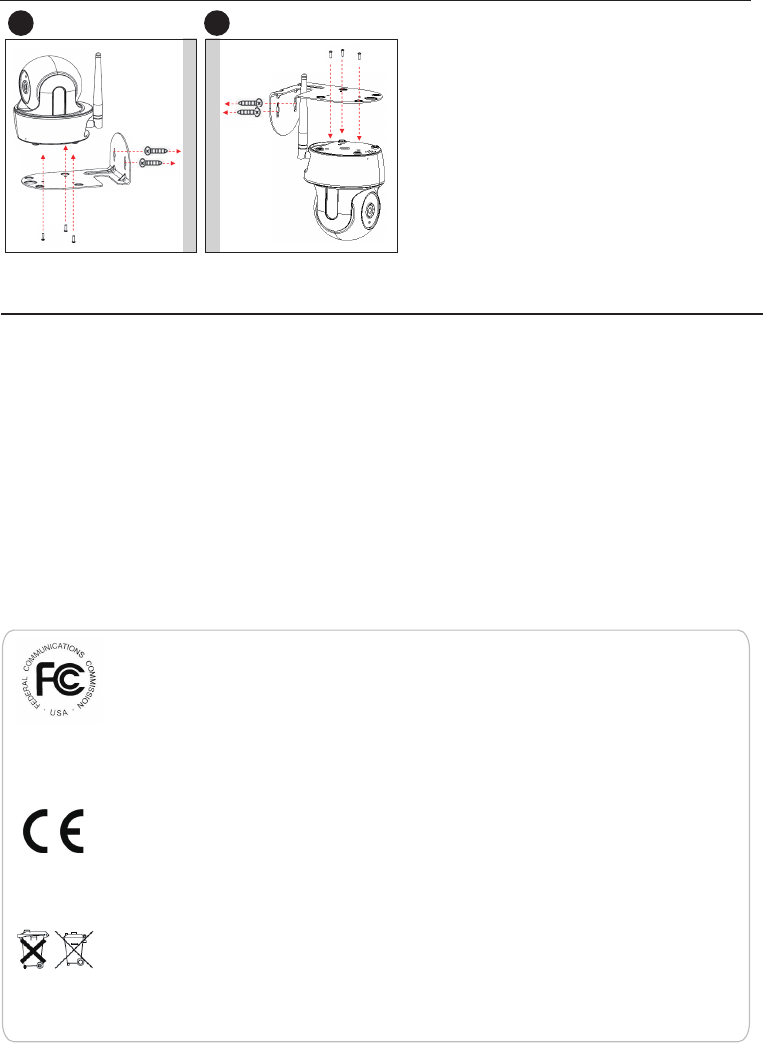

CAMERA INSTALLATION
1. Place the mounting bracket on the mount
ing surface as a pattern to mark the holes.
2. Drill the mounting holes and use the wall
plug screws to secure the bracket to the wall.
3. Fasten the camera to the bracket using the
tapping screws.
4. Hang the camera and plate onto the hanger
screws. Arrange cable properly so that it will
not block pan/tile operation.
For optimum detection, we suggest the camera is to be mounted 7 to 8 feet (2.1m to 2.4m) from the oor
, and:
• On a rigid vibration-free surface.
• So the expected movement of an intruder is across the elds of the detection pattern.
To avoid false alerts, please note this device is equipped with a PIR Motion Sensor that operates by
detecting temperature changes in the area in front of the device; Please avoid placing the device under
the following environments:
(1) Aiming the PIR at windows or glass doors.
(2) Where small animals may enter the detection area.
(3) Where a heat source (sunlight, incandescent light, car headlights, etc) may aect the motion sensor.
(4) Where sudden temperature changes inside or around the detection area caused by hot or cold wind
(fans, air conditioners, etc.).
MOTION DETECTION / CAMERA SETTING TIPS
A B
Products with CE Marking comply with EMC Directive
(2014/30/EU); Low Voltage Directive (2014/35/EU); RED
(2014/53/EU); ROHS Directive (2011/65/EU) issued by the
Commission of the European Community. Compliance
with these directives implies conformity to the following
European Norms:
EMC: EN 301 489
LVD: EN 60950
Radio: EN 300 328
If the camera system no longer functions or can no longer be repaired, it must be disposed of according to the valid statutory regulations.
Disposal of spent batteries/accumulators:
You are required by law (Battery Ordinance) to return all spent batteries and accumulators. Disposing of spent batteries/accumulators with
common household waste is prohibited! Batteries/accumulators that contain hazardous substances are marked with the symbols on the
side. These symbols indicate that it is prohibited to dispose of these batteries/accumulators in the household waste. The abbreviations for the
respective heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead. You can return spent batteries and accumulators that can no longer be
charged to the designated collection points in your community, outlets or wherever batteries or accumulators are sold. Following these
instructions will allow you to fulll the legal requirements and contribute to the protection of our environment!
Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
