Atoms Labs AWFB15 Battery Operated Wireless Network Camera User Manual
Atoms Labs LLC Battery Operated Wireless Network Camera
User Manual
Wireless SAPP Camera
Installation and Operating Instructions
Model: AWFB15
Version 1.2
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
CONTENTS
INTRODUCTION .............................................................................................. 1
Please Read Before You Start ..................................................................................1
Wireless Devices Operating Range ...........................................................................1
Installation/Camera Setting Tips ...............................................................................2
Important Safety Precautions ....................................................................................3
FCC/CE ....................................................................................................................4
KIT CONTENT ................................................................................................. 5
CAMERA OVERVIEW ...................................................................................... 6
CAMERA INSTALLATION ................................................................................ 7

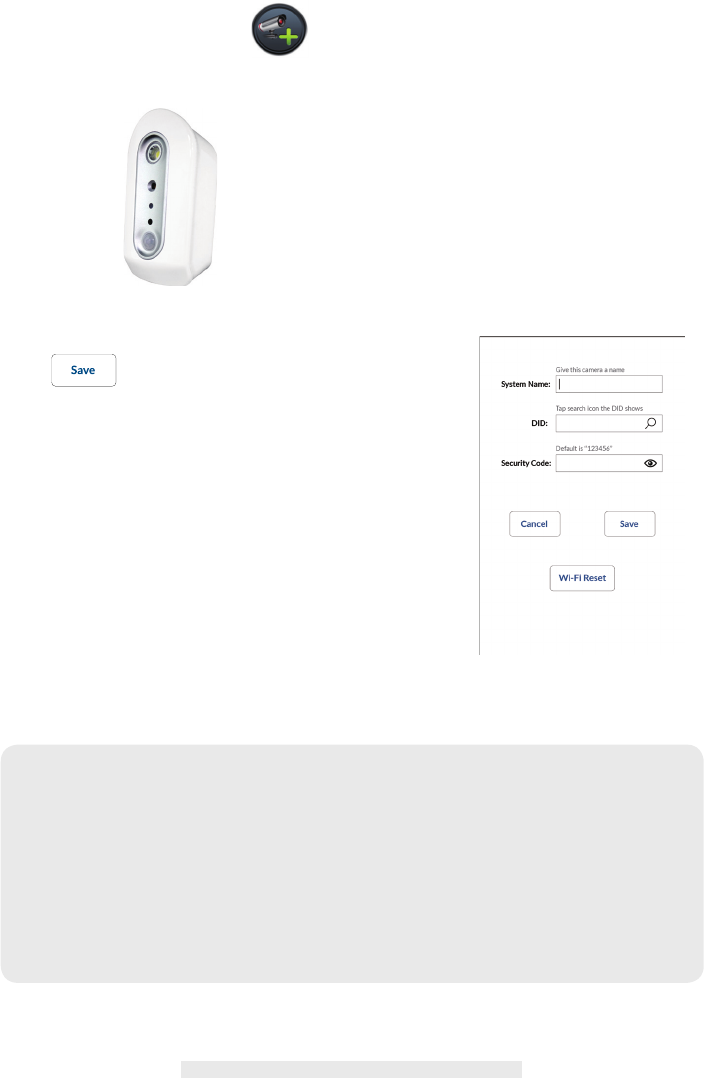

DOWNLOAD AND SETUP THE APP ............................................................... 8

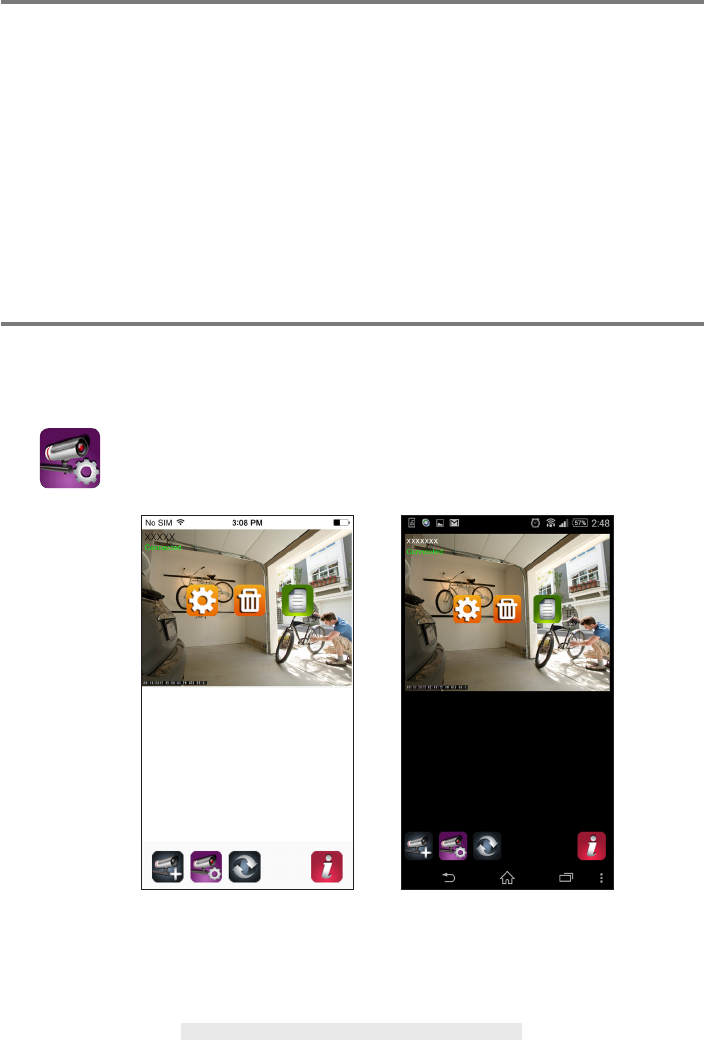

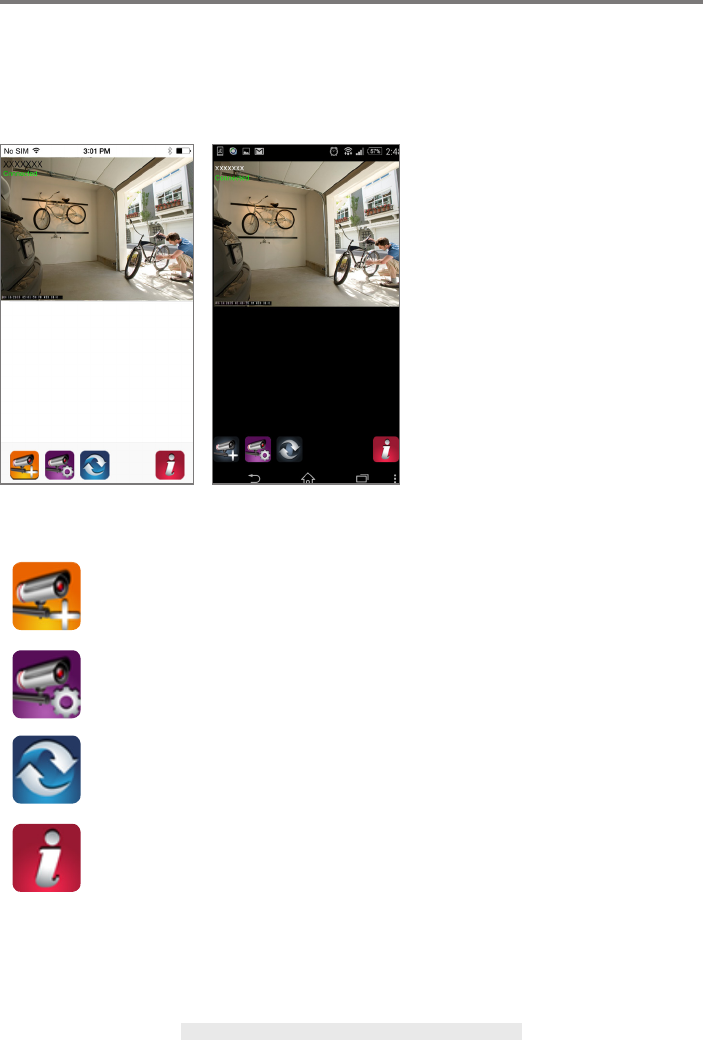

MAIN PAGE OVERVIEW ................................................................................ 11

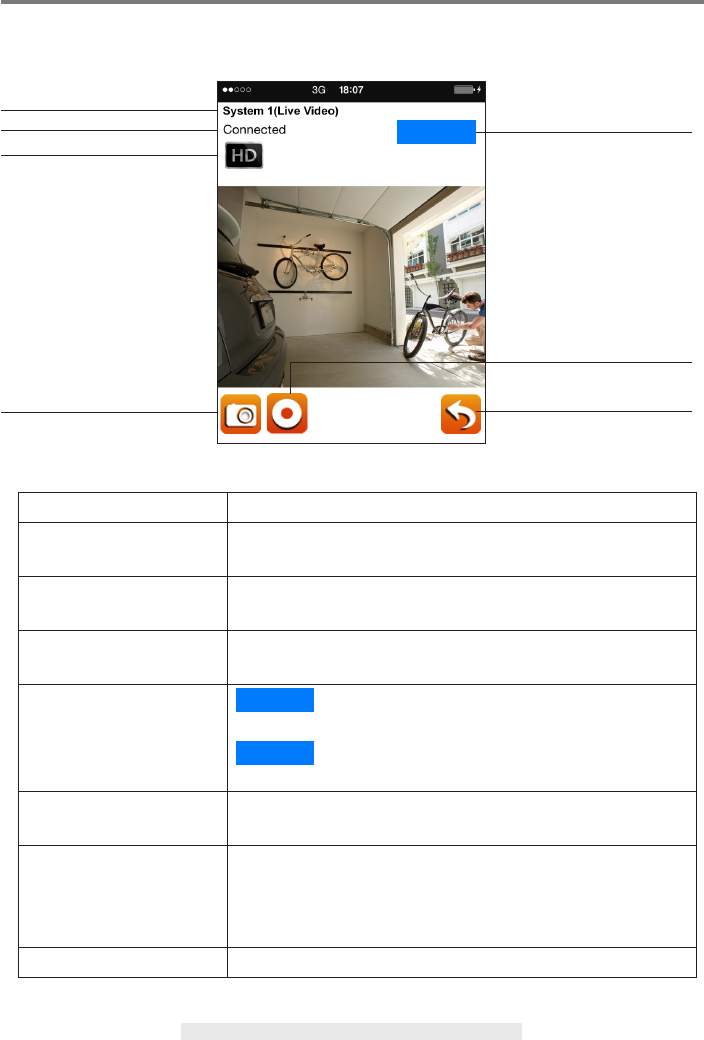

LIVE VIEW / SNAPSHOT / RECORDING ....................................................... 15
VIEWING YOUR SNAPSHOTS ...................................................................... 17

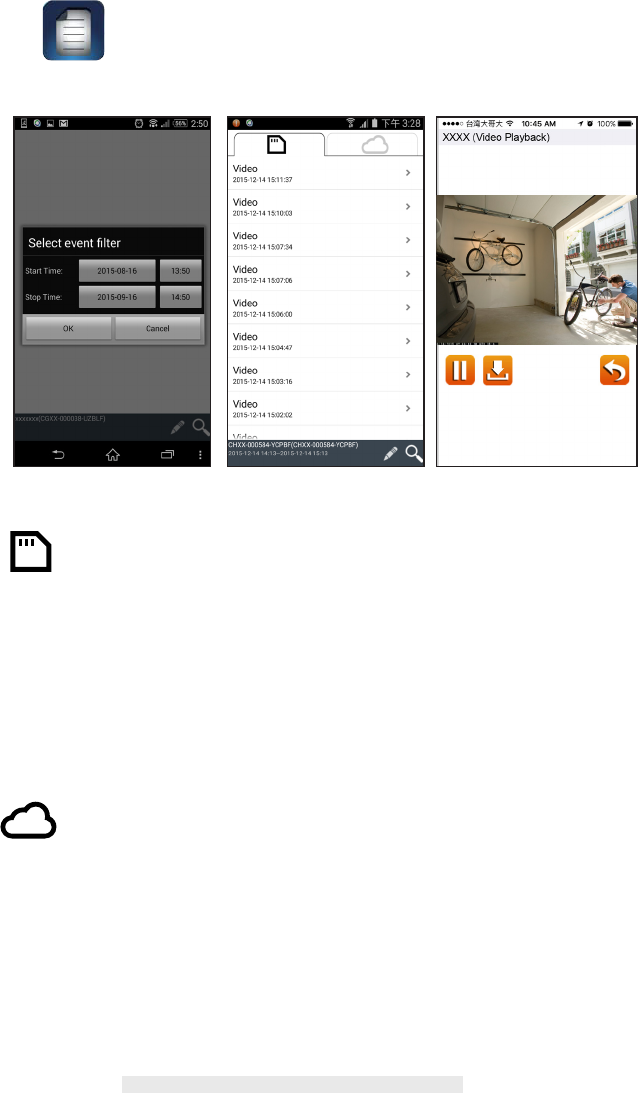

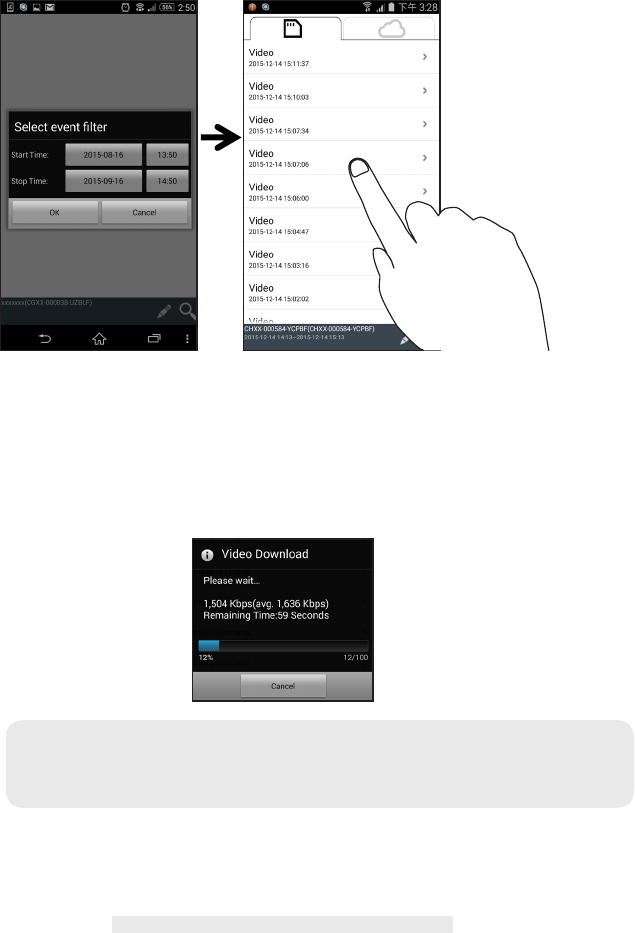

PLAYBACK YOUR VIDEOS ........................................................................... 17
ADVANCED SETTING ................................................................................... 21
Admin Password .....................................................................................................22

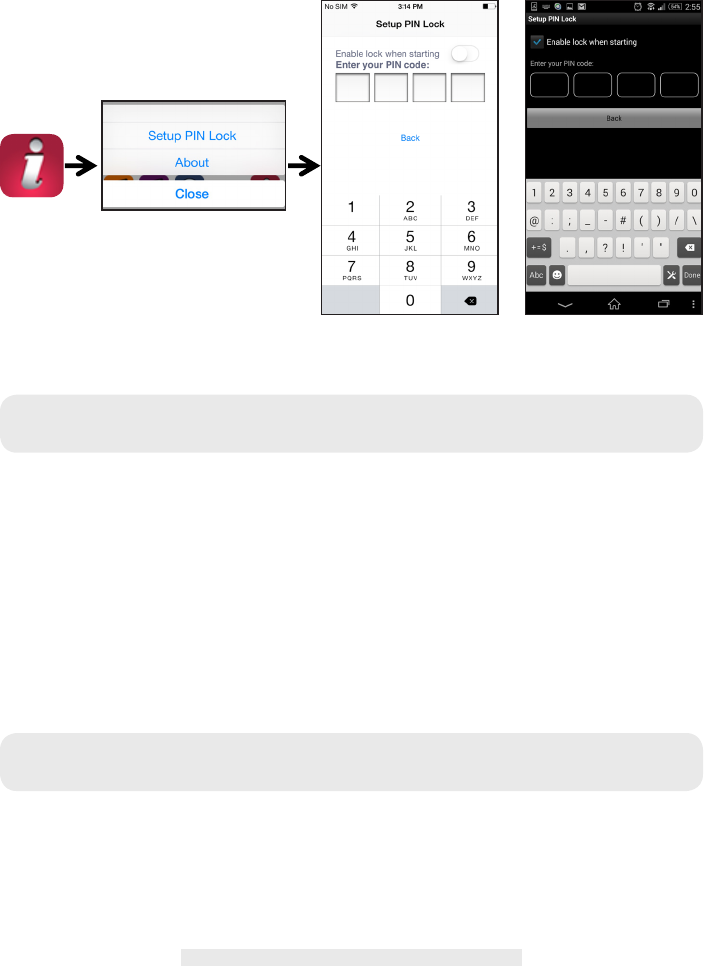

Device Security Code .............................................................................................22

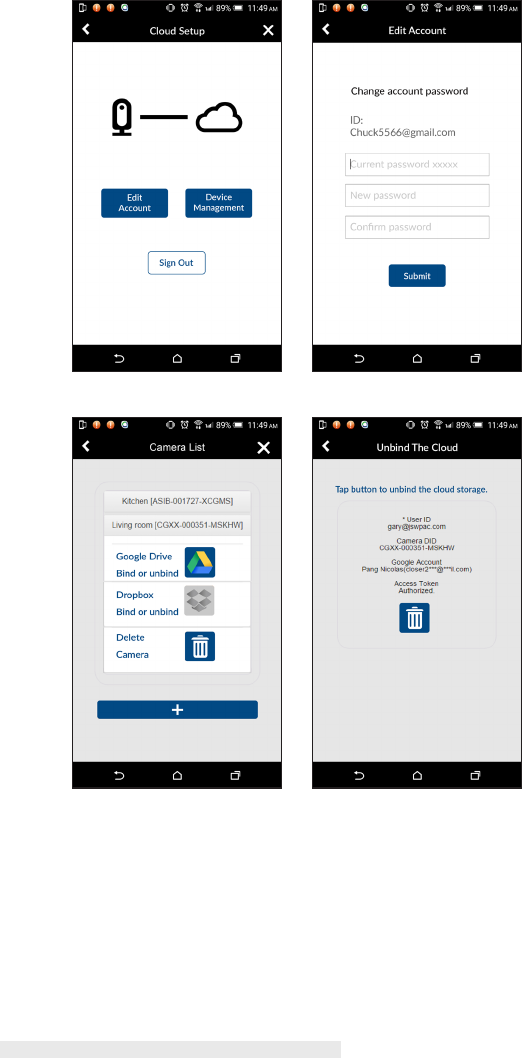

Cloud Setting ..........................................................................................................23
Video Quality ..........................................................................................................24
Brightness ..............................................................................................................25
Wi-Fi ....................................................................................................................... 25

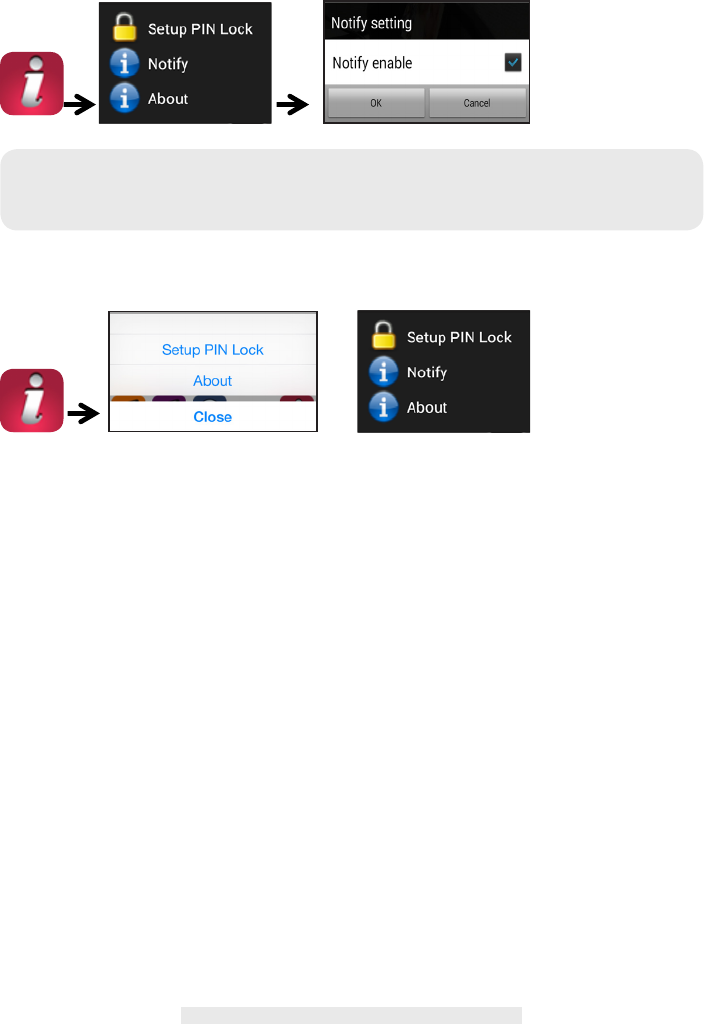

Notify Enable ..........................................................................................................26
Motion Detect .........................................................................................................26
LED Light ................................................................................................................26
SDcard Overwrite ...................................................................................................26

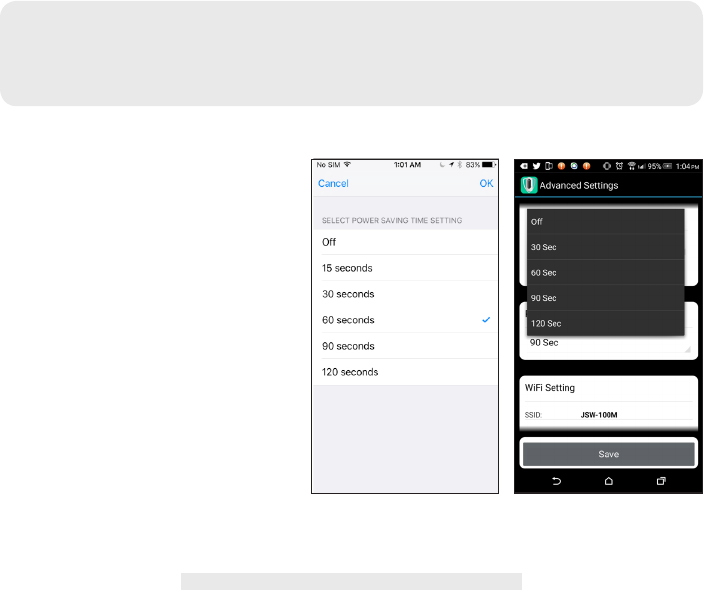

Power Saving Timer ................................................................................................ 26

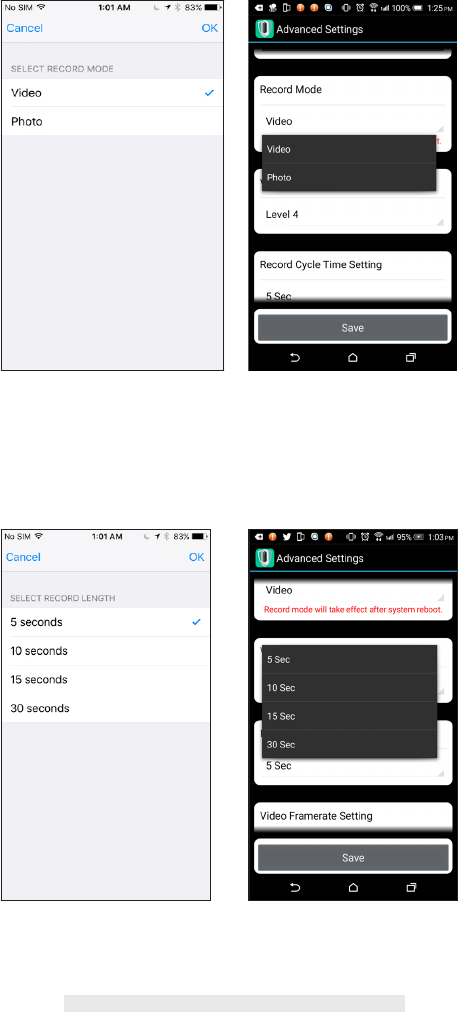

Record Mode ..........................................................................................................27
Record Cycle Time .................................................................................................27

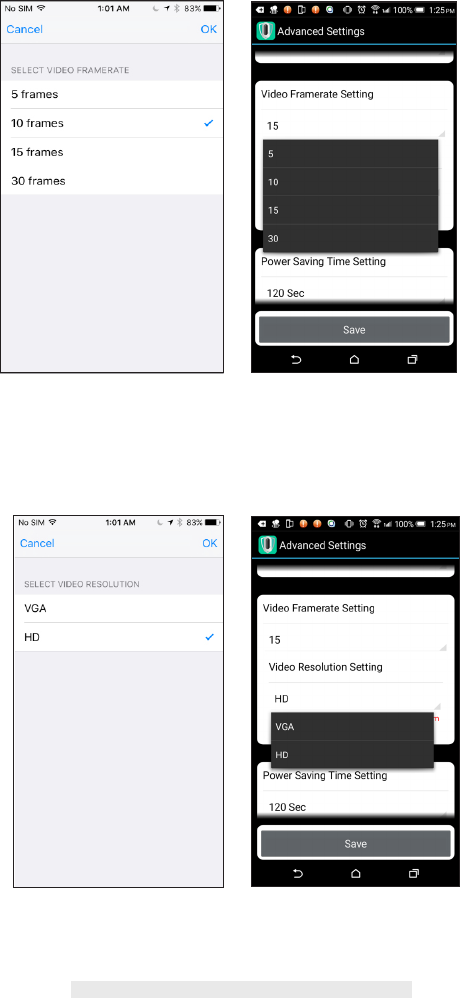

Video Framerate .....................................................................................................28
Video Resolution .....................................................................................................28

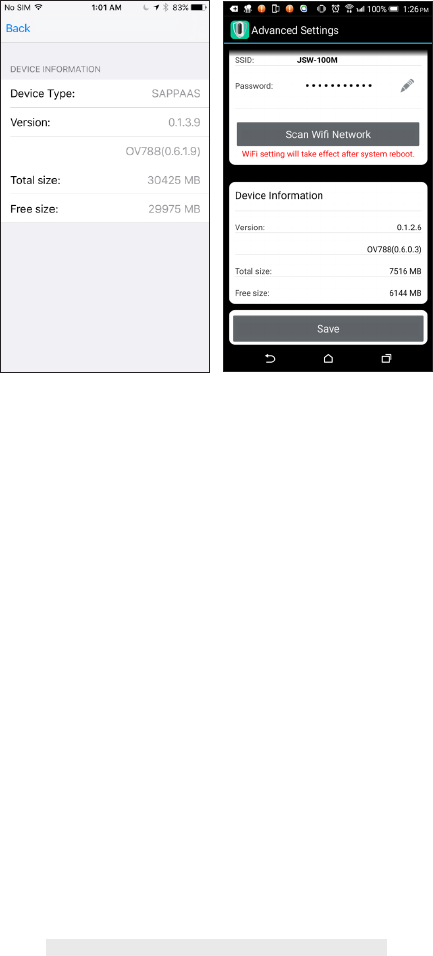

Device Information .................................................................................................. 29
TROUBLE SHOOTING .................................................................................. 30
PRODUCT SPECIFICATION .......................................................................... 32
APPENDIX: COMPATIBLE LIST .................................................................... 33
1
INTRODUCTION
I
PLEASE READ BEFORE YOU START
Always use discretion when installing CCTV equipment, especially when there is perceived
policy. Enquire relevant local regulations applicable to the lawful installation of video recording/
surveillance. Third party consent may be required.
WIRELESS DEVICES OPERATING RANGE
Ensure the signal reception viewed from the wireless camera(s) is the best reception between
the camera(s) and the Wi-Fi router. If necessary, reduce the distance between the camera(s)
and the Wi-Fi router to improve overall system performance. Wireless Color Camera
Recordable CCTV Kit operating on a secure digital 2.4GHz frequency which could greatly
reduce interference from product such as wireless routers, cordless phones or microwave
ovens.
The state of art Portable Event Camera is capable of delivering High Denition (HD) video. We
recommend that you use (obtain) fast internet service form the local internet service provider
(ISP ) for the large data transmission. Depending on the local internet environment and
conditions, your device(s) may temporary display black-screen or temporary disconnect with
the camera. To improve performance:
* Make sure the camera is operating with sufcient internet bandwidth, 1Mbps upload/
download speed is suggested.
* The smart-devices need to be on Wi-Fi or 4G mobile network for maximum data transfer
speed.
Your camera will automaticity switch to Relay Mode under lower internet transmission,
rerouting the data to be transferred to your APP via different servers. It may improve the data
transfer performance by setting lower the Frame Per Second (FPS) in the advance setting
section.
* Your internet bandwidth is limited, best avoiding multiple connections simultaneously.
* Make sure your devices are equipped with up-to-date technology, 1.5GHz dual core
processor or equivalent is suggested.
* If the signal strength of your Wi-Fi router is weak, you can:
‧ Use Wi-Fi repeater/extender to maximize the Wi-Fi router service range.
‧ Switch your router to 11b/11g mode to improve router service range.
* Please make sure the memory card used is CLASS10 rated for fast read/write speed.
2
INSTALLATION/CAMERA SETTING TIPS
For optimum detection, we suggest the camera is to be mounted 7 to 8 feet (2.1m to 2.4m)
from the oor, and:
• On a rigid vibration-free surface.
• The expected movement of an intruder is across the elds of the detection pattern.
To avoid false alerts, please note the camera is equipped with a PIR Motion Sensor that
operates by detecting temperature changes in the area in front of the camera; Please avoid
placing the camera under the following environments where false alerts may happen:
(1) Aiming the camera at windows or glass doors.
(2) Where small animals may enter the detection area.
(3) Where a heat source (sunlight, incandescent light, car headlights, etc) may affect the
motion sensor.
(4) Where sudden temperature changes inside or around the detection area caused by hot
or cold wind (fans, air conditioners, etc.).

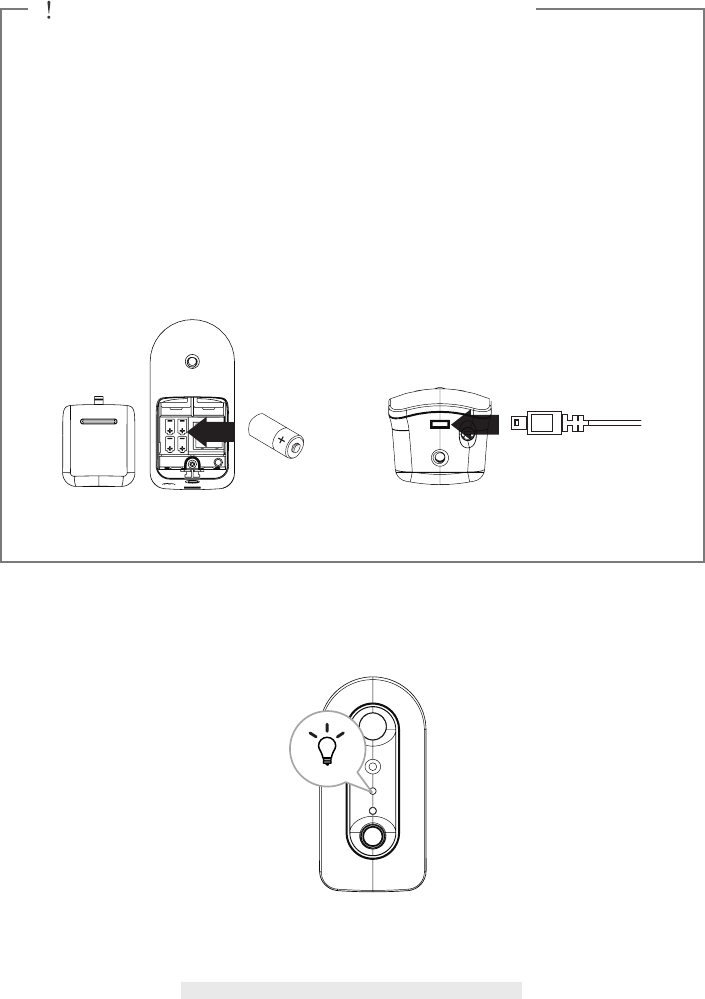

Please note the camera supports operation using both batteries (CR-123A Non-rechargeable
Battery) and DC power via 5V USB port; however, there are certain function limitation when
power on the camera using batteries ONLY.
* Once the camera is in sleep mode; user can no longer access the camera. The camera
will only become online when the motion detector has detected an event, or by pressing
the power button at the bottom. The camera will return to sleep mode after:
The camera cannot secure Wi-Fi connection with the router after trigger event. Depending
on your sleep timer setting (30s, 60s, 90s, 120s), the camera will enter still attempt to
establish connection with router during the countdown. If the camera is able to establish
connection, the camera will enter sleep mode after data transfer (to cloud) completes.
How to Maximized Battery Power:
When the camera is using battery power, we suggest using the following setting to maximize
battery power
• Install the camera where it can receive excellent Wi-Fi network signals (Weak Wi-Fi signal
will force camera to operate using higher Wi-Fi Power, which may consume more power).
• Set Auto Sleep Timer to 30 seconds.
• Place the camera in a brighter lighting environment and turn off night vision.
• Do not stay in live view or system setting mode unless it’s necessary.
3
IMPORTANT SAFETY PRECAUTIONS
Damages caused by non-compliance with this operating manual will void the warranty! We will
not assume any liability for damages to items or persons caused by improper handling or non-
compliance with the safety notices! Any warranty claim will be null and void in such cases.
1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided.
2. Avoid all contact with water, and dry hands before using.
3. Never tug on the power cords. Use the plug to unplug it from the wall outlet.
4. Do not expose the camera to high temperature or leave it in direct sunlight. Doing so may
damage the camera or cause camera temporary malfunction.
5. Use the devices with care. Avoid pressing hard on the camera body.
6. For your own safety, avoid using the camera or power off the camera when there is a storm or
lightning.
7. Remove the power adapter during long periods between usages.
8. Use only the accessories and power adapters supplied by the manufacturer.
9. To meet the regulations pertaining to parental responsibility, keep the devices out of the reach of
infants.
10. Check power cables, do not get crushed or damaged by sharp edges whenever the devices are
in operation.
4
FCC/CE WARNING
This equipment has been tested and found to comply with limits for a Class B digital device,
pursuant to Part 15 of the FCC rules and ETSI(EN) 300328. These limits are designed to provide
reasonable protection against harmful interference in residential installations. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does interference to radio or
television equipment reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.
You are cautioned that any change or modications to the equipment not expressly
approved by the party responsible for compliance could void your authority to operate
such equipment.
DISPOSAL
If the camera system no longer functions or can no longer be repaired, it must be
disposed of according to the valid statutory regulations.
Disposal of spent batteries/accumulators:
You are required by law (Battery Ordinance) to return all spent batteries and
accumulators. Disposing of spent batteries/accumulators with common household waste is
prohibited! Batteries/accumulators that contain hazardous substances are marked with the symbols
on the side. These symbols indicate that it is prohibited to dispose of these batteries/accumulators
in the household waste. The abbreviations for the respective heavy metals are: Cd=cadmium,
Hg=mercury, Pb=lead. You can return spent batteries and accumulators that can no longer be
charged to the designated collection points in your community, outlets or wherever batteries or
accumulators are sold. Following these instructions will allow you to fulll the legal requirements
and contribute to the protection of our environment!
FCC Compliance Statement: This
device complies with Part 15 of the
FCC rules. Operation is subjected to
the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Products with CE Marking comply
with EMC Directive (2004/108/
EC); Low Voltage Directive (73/23/
EEC); R&TTE(1999/5/EC); ROHS
Directive (2011/65/EU) issued by the Commission
of the European Community. Compliance with
these directives implies conformity to the following
European Norms:
EMC: EN 301 489
LVD: EN 60950
Radio: EN 300 328
The device complies with RF specifications when the device used at 20cm from your body.
5
For best system performance:
- iOS: iPhone5 / iPad2 / Mini iPad with iOS 7.0 or above.
- Android: 1.5G dual core processor dual core procesor with 1G RAM or above.
- Storage: Class 10 memory card.
- Bandwidth: 1Mbps or above upload/download speed suggested.
*The 5V/1.5A adaptor unit is not supplied. You may pick up suitable adaptor unit at local electronic
stores.

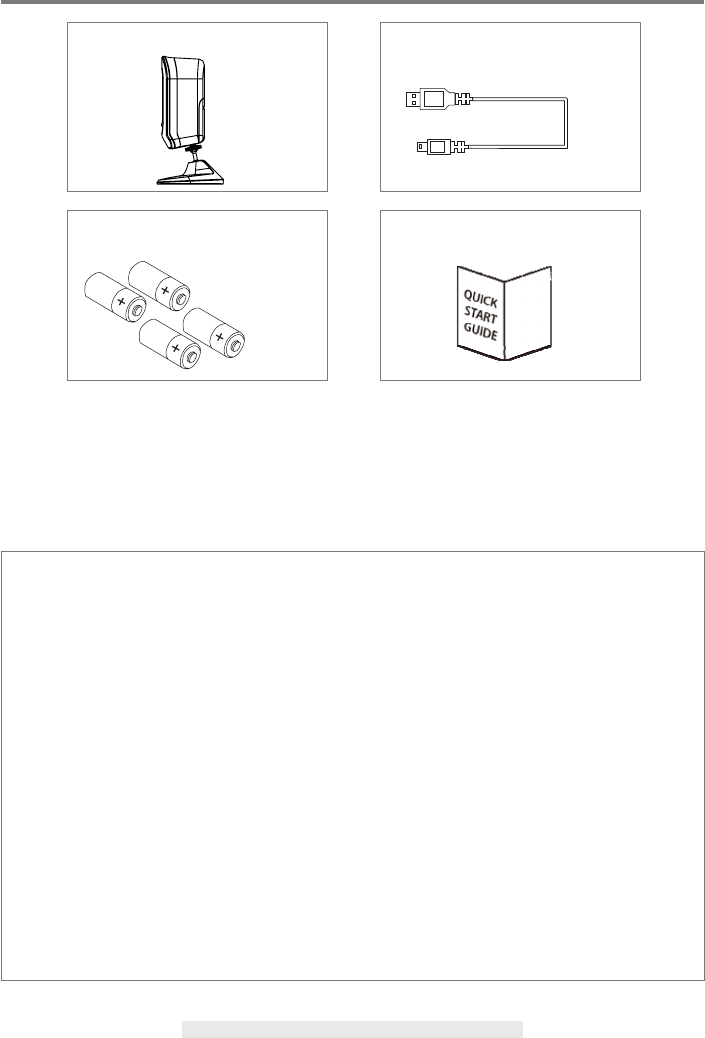

Portable Event Camera
CR123 Battery
Mini-USB Cable*
x 1
x 4
Tools Required:
‧Electric drill
‧5mm masonry drill bit
‧15mm masonry drill bit
‧No. 2 Philips screwdriver
x 1
Quick Start Guide
x 1
KIT CONTENT
6

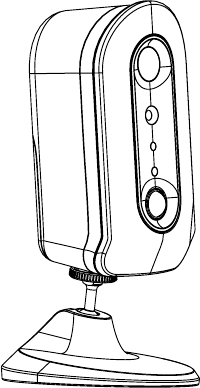

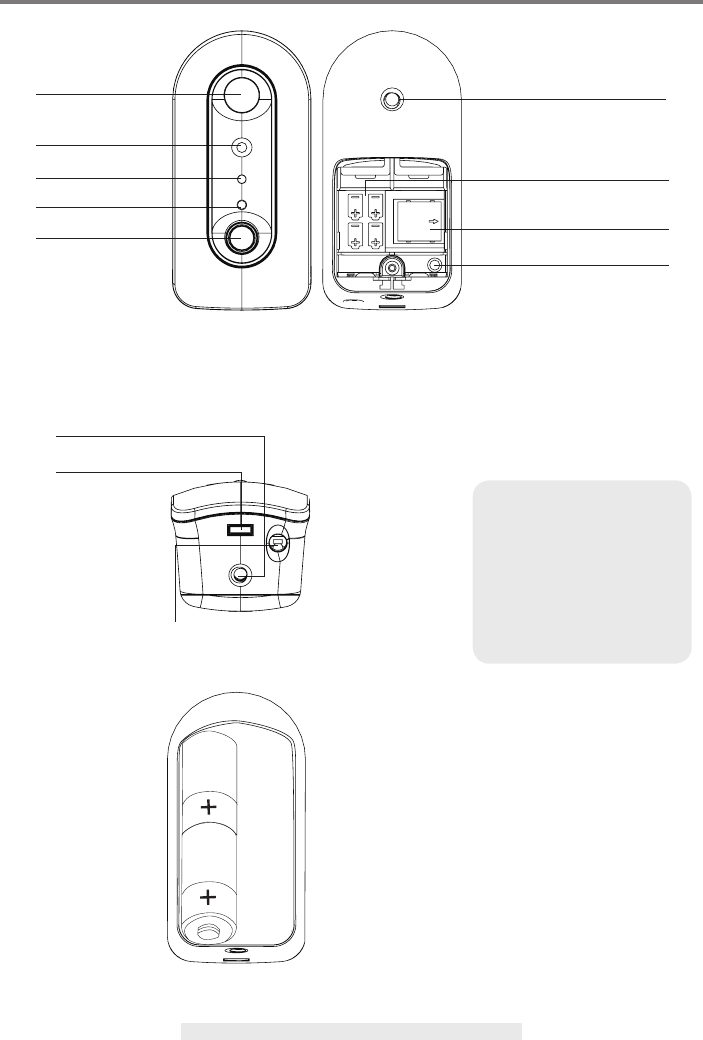

CAMERA HARDWARE OVERVIEW
To Activate Motion Alert:
Long press for 5 sec until
Red LED blink once
To Deactivate Motion Alert:
Long press for 5 sec until
Blue LED blink once.
White-Light LED Stand Mounting (Rear)
Reset Key
- Press and hold the reset
button for 5 seconds, the
camera will be restored to
default setting.
- The status LED will ash
blue/red alternatively when
reset success.
Stand Mounting (Bottom)
5V Micro USB Power Input
Wake Up Button (Short Press)
Motion Alert On/Off Switch (Long Press)
Battery Compartment
(CR-123A x 4*)
Memory Card Slot
(Support up to 32GB)
HD Camera
Status LED
Motion Sensor
Light Sensor
*The camera will work with only two CR123A
(in series, either on left/right side). Use four
CR123A to extend the operation period.
7

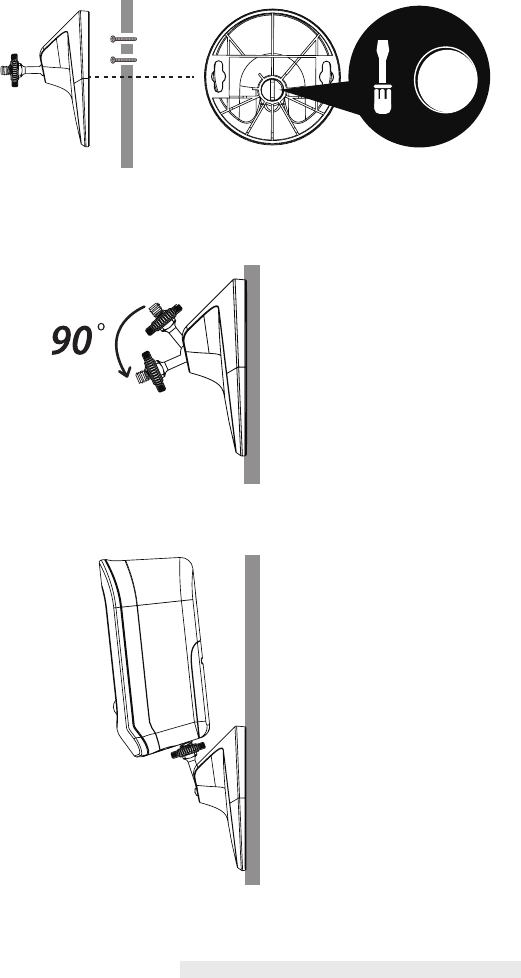

CAMERA INSTALLATION
1. Secure the camera stand on a stable surface
Tighten the screw inside the
stand with screw driver or
coin to x the T-bolt Position
if needed
2. Loosen up the thumb screw
3. Adjust proper view angle, then secure the joint with T-bolt.
$
8
IMPORTANT
Please Notice Below Before You Setup The SensorCam:
- SensorCam offers public cloud storage function, to use this function please have Google Drive
or Dropbox account information ready.
- Please download and install the "Sensorcam" APP to your device.
- Make sure MicroSD card is inserted into the camera as the camera will not function properly
without it. For maximum performance, please only use Class 10 rated MicroSD card.
SETUP THE APP
The Portable Event Camera is designed to deliver high denition video footages to your smart-
devices, with the option of using Google Drive cloud or Dropbox as free storage service. If you do
wish to activate the cloud storage function, prior to the camera/app setup process, make sure you
have existing Google Drive or Dropbox account. To sign up for the service:
Google Drive: https://www.google.com/drive/
Dropbox: https://www.dropbox.com/
For camera/app setup, the in-app wizard will take you step by step to rst complete the Network/
Router Setup, following with Cloud Storage Setup. You may skip the Cloud Storage Setup until a
later time if preferred.
If you skip the Cloud Storage Setup the camera can still function. Without cloud storage all motion
triggered video event les will only be saved in the camera's memory card.
With the Cloud Storage function setup and enabled, all video events recorded les will be saved
in the memory card, and copies of the les will also be transferred to Google Drive or Dropbox for
anytime-anywhere access (smart phone/ tablet must connecting to internet).
The storage space of the camera's memory card is limited therefore once reaching its maximum
capacity, the camera will automatically delete the oldest video event files to free up the space
for new ones. Event les transferred to Google Drive or Dropbox will require manual delete once
reaching its maximum storage capacity, or you can purchase additional storage space.
For iSO For Android
Note: The cloud storage function is optional and may set up at a later time. Without the
cloud storage, captured video les will store in the MicroSD card.
9
App Download
From your smart-device, go to App Store or Google Play to search and download "SensorCam".
Wi-Fi Network Setting
Before launching the APP, power on the camera with the batteries supplied. The status LED will
ashing in blue/red alternatively.
△
BEFORE LAUNCH the APP at the FIRST TIME
‧ MUST power on the camera before launching the APP at the rst time.
‧ Power on the camera via batteries/power adapter.
‧ Launch the APP after status LED is ashing.
‧ Follow the steps in the App Wizard to complete the setup.
‧
It is possible to power the camera using both battery and external USB power at the same
time. When doing so the USB power would be the main power source for the camera and
with battery as power backup.
‧
The camera's system clock will reset to factory default after a period of time with the removal
of battery and external USB power. When this happens please setup system via app.
Power on the camera via battery and/or mini-USB cable and adaptor
(5V/1.5A adaptor unit not supplied).
10

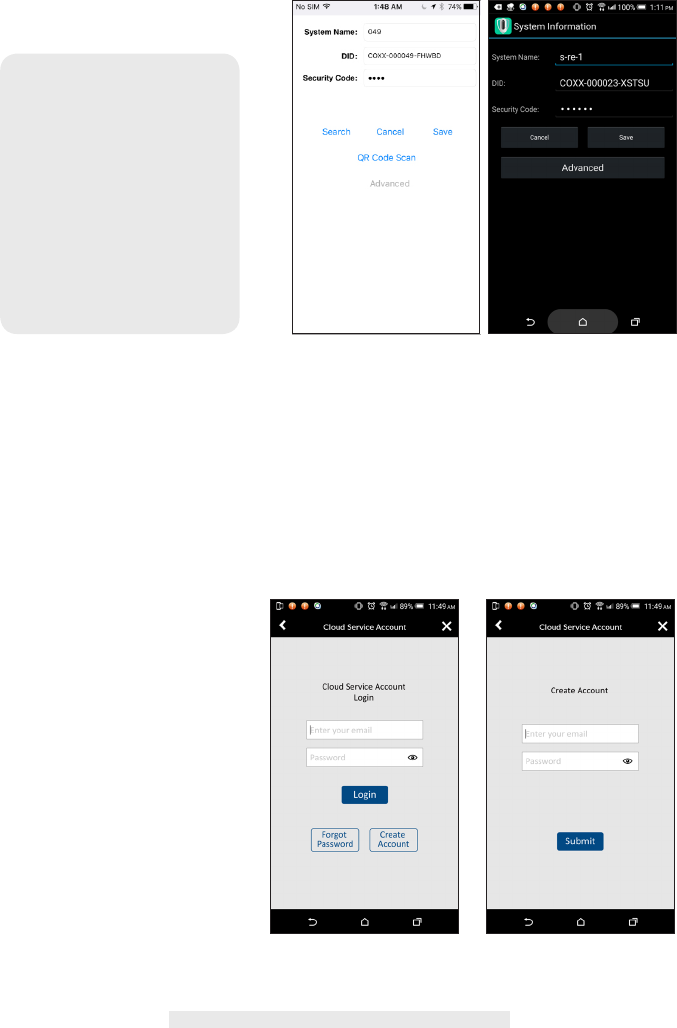

1. Launch SensorCam app and tap
2. Tap Scan DID Label to scan for DID or manually type in the DID information.
3. Name your camera (max. 20 characters).
4. Enter default Security Code: 123456.
5. Tap to save information and follow the in-app wizard
to complete the setup process.
5.1 During the process, the in-app wizard will ask you to connect
with camera via its SSID, please reference below:
Default SSID: SensorCam-000000 (example)
Default SSID PW: 12345678
Wi-Fi Reset
This function will only be available/appear in app after initial setup
(See P11). Only use this when switching router.
Note:
In most cases, you can successfully add the camera according to the steps above.
However, the camera will not find the network if Wi-Fi router turns off the SSID
broadcasting function. Please enable the SSID broadcasting to complete the settings.
Most Wi-Fi routers broadcast the Service Set Identifier (SSID) by default. This is the
name of your wireless network, and SSID broadcasting is how Wi-Fi-enabled devices nd
networks.
The camera will only accept SSID composed with English alphabet characters and Arabic
numbers. Non-English and special characters (!@#$%, etc.) will not be accepted.
(3)
(4)
(5)
Camera DID: COXX-123456-ABCDE (example)
Default Security Code: 123456
11
MAIN PAGE OVERVIEW
The MAIN PAGE section offers you an overview for all cameras registered and access to different
management functions.
Camera List
- List of all registered cameras. You
can quickly access preferred camera
in the list even when multiple cameras
are registered by scrolling the list up or
down.
- Tap the camera to enter Live-View.
- The Connection Status (Connected
or Disconnected) and Camera Mode
(Battery or USB) are also indicated for
each camera in the list.
Add Camera : Register additional camera(s).
Camera Setting : Access point for "Camera Information (enter to find "Advanced
Setting Section" and "Wi-Fi Reset), "Camera Delete" and "Event List".
Refresh : Refresh connections of all the cameras in the list.
Information : Access Camera/App firmware version information and app PIN Lock
setup.
(iOS) (Android)
12

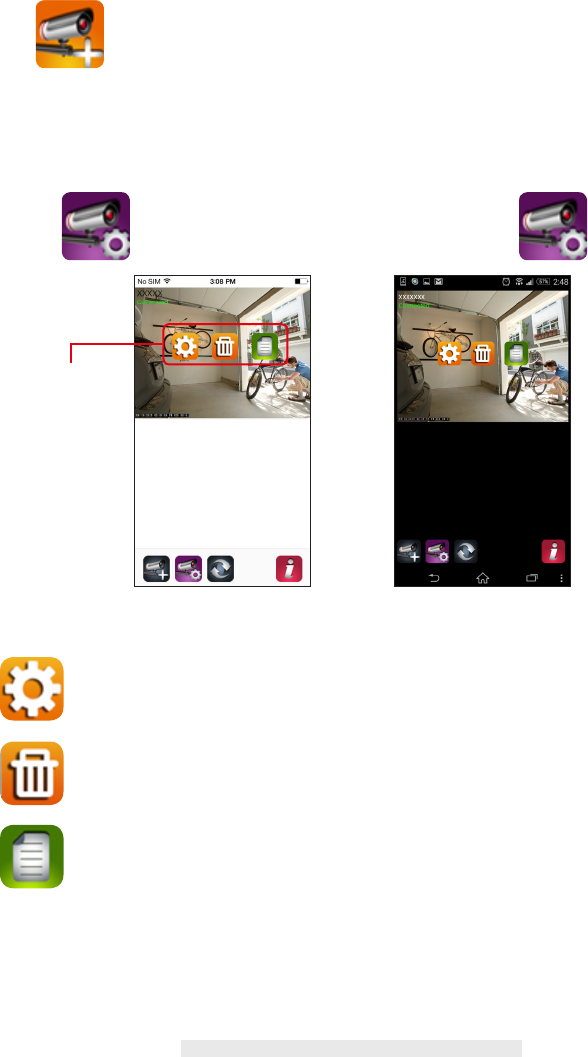

ADD CAMERA
Tap to add camera to app. Please refer to page-9 - "APP Setup" section for more
details.
SETTING
Tap the and additional setup selection icons will appear. Tap to exit.
CAMERA INFORMATION : Change camera name, reset Wi-Fi router setting and access
camera's Advanced Setting section (see page-21).
DELETE CAMERA : Remove the camera.
EVENT LIST : View and playback the list of motion triggered event(s) for the particular
camera(see page-17).
(iOS) (Android)
Additional setup
selection
13
SETUP PIN LOCK
MUST enter PIN code when you have enable PIN lock function with launching the APP.
1. Enable "Enable lock when starting" and enter your PIN code.
2. Conrm PIN code entered.
NOTIFY (PUSH NOTIFICATION)
The WAPP camera supports motion detection. When a motion is detected, you’ll receive push
notication on the mobile devices for the event recognized by the camera.
For iOS
If you want to enable/disable it, please follow the steps below:
1. Launch Settings from your Home screen.
2. Tap Notications.
3. Scroll down to nd "OMGuard SensorCam" APP and tap on it.
4. Adjust the notication settings, such as On/Off, Sounds, Alert Display, etc.
Note:
If you forgot the PIN code, please delete and reinstall the app.
Note:
It takes time for the changes to take effect in iOS.
(iOS) (Android)
14
For Android
If you want to enable/disable it, please follow the steps below.
ABOUT APP/API Version Info
Tap the ABOUT icon to check the APP Version when necessary.
Note:
The internet connection and wireless network interference may inuence the performance
of push notication service.
(iOS) (Android)
15
LIVE VIEW / SNAPSHOT / VIDEO RECORD
Main page
Function Description
System Name & View Mode Display the name of the camera assigned by user and current
view mode (Live-View or Playback).
Connection Status Indicating the connection status (Connected or Disconnected)
between the app and the camera.
Video Resolution Indicating the video resolution, either VGA (640*480) or HD
(1280*720)
Camera Mode Battery Mode - power by battery, camera on only
after detects motion to conserve battery power.
USB Mode - power by adaptor, camera always on
for anytime remote view.
Snapshot Tap icon to take snapshot(s). Captured images are stored in the
mobile device.
Video Record Tap icon to manually start recording. Each recording session
will last for 5s, 10s, 15s or 30s and cannot be stopped during
the recording period. Captured videos are stored in the memory
card of the camera.
Return Tap icon to return to the main page (device list).
System Name & View Mode
Camera Mode
Return
Video Record
Connection Status
Video Resolution
Snapshot
Battery
Battery
USB
16

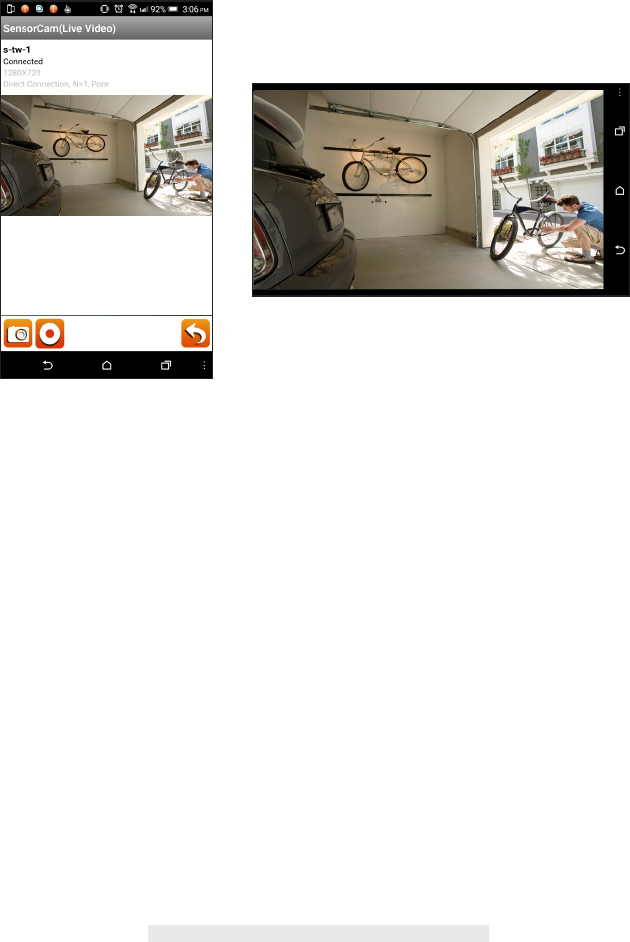

Live View
The app allows you to access real-time streaming video (Live-View) from the main page, where you
could select the camera preferred. In Live-View section you can take snapshots and record video
by demand. For full screen display simply position the phone horizontally.
Live View
Full screen
17
VIEW SNAPSHOTS
For iOS
Your snapshots will be named with the time stamp and saved into the Camera Roll location of your
mobile device.
For Android
Your snapshots will be named with the time stamp and saved into the Photo Gallery > snapshot
folder on your mobile device.
EVENT VIDEO PLAYBACK
The recorded video is automatically saved to the memory card. You can remotely access the le(s)
for playback.
Tap on the main page.
(iOS) (Android)
18
Tap and the Date-Time lter would appear. User may dene the period for
system to display all available recorded le(s) for playback.
The app offers two different type of event list, (A) Local Memory Card Event List and (B)
Cloud Storage Event List. Tap on the icon to view available event list.
All available triggered events will be stored in the memory card. The number of
available events will depend on the memory card storage capacity. Files stored
in the memory card will be transferred to cloud if (A) you have activated the cloud
storage service (Google Drive or DropBox) and (B) sufcient cloud storage space
is available. Files will not be transferred to cloud if the maximum cloud storage
has been reached. To free up more space for the cloud storage please manually
delete the les stored.
Once reaching maximum storage capacity the camera will begin overwrite by
removing the oldest event(s). Please backup the les periodicaly if necessary.
The cloud storage event list display all available triggered events stored on the
cloud side. The number of available events will depend on the cloud storage
capacity. Files stored in the cloud are rst transferred from the local memory card,
and the camera will stop transfer les to cloud. If maximum storage on the cloud
side has reached. To expand the cloud storage capacity please contact Google
Drive or DropBox directly.
Once reaching maximum storage capacity, either Google Drive or DropBox will
remove any of the les stored within the account. You will have to remove le(s)
19

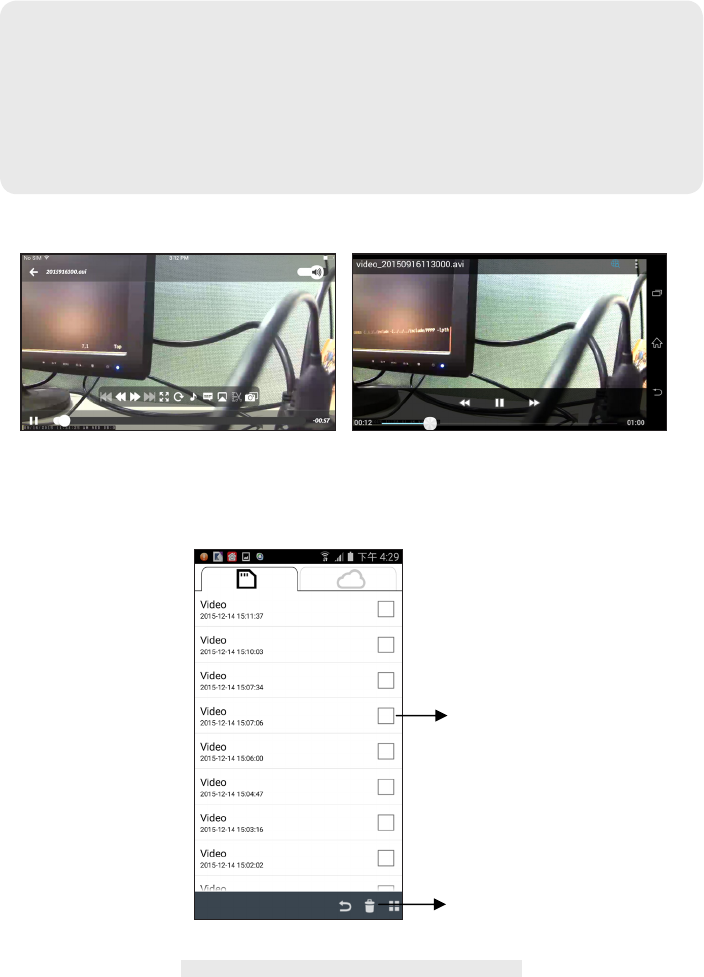

For playback, select the file from either local or cloud event section. During the playback
you can tap the Pause icon to pause/resume the playback. The local network environment
condition (example: upload/download speed) may cause improper video playback, such as
black screen. When it happens please leave the playback mode and try again later when
the internet condition improved. We strongly suggest that using Wi-Fi for better performance
playback.
App layout may varie depending on the desplay panel size of your smart-device. Please refer
to the release note from the App Store/Google Play for more details.
‧DOWNLOAD
If you want to keep a particular event le on you mobile device, long press the event le
and pop-up will appear, indicating download progress.
Note:
While one user is downloading the event le, the camera's recording and live-view
function of the camera will not be available for other user(s).
Tap once for playback,
long press to download
the le to mobile device.
20
This function allows user to conveniently retrieve important event les. It is best to download the event
files using Wi-Fi network (WLAN), where minimum 1Mbps (upload/download) bandwidth is available.
Download may not be available if the bandwidth do not meet the specied requirement.
‧DELETE
Select the le(s) and tap delete icon. It supports multiple les can be delete.
Note:
For iOS system, please use "Oplayer Lite" APP for playback downloaded video les(s).
You can nd "Oplayer Lite" from App Store (free of charge).
If necessary, for Android system, please use "MX Player" APP for playback downloaded
video le(s). You can nd "MX Player" from Google Play (free of charge).
If you are experiencing scattering video image, please switch the decoder function of the
MX Player to "S/W Decoder".
Check the video clip
Then tap the trash can icon
21
ADVANCED SETTING
This chapter explains the advanced settings for administrator. Administrator is the one who owns
the administration password and has the full control to the WAPP camera. The administrator can
access all WAPP functions and settings, while general users can receive the surveillance images
for live view/screen capture/video recording and may not manage the camera settings.
Admin Password The security code required to enter Advanced Setting for system setting
management.
Device Security Code Setup/Change the password of the particular camera required for
remote access.
Cloud Setting Enter to (A) setup cloud storage service if you have not done so. The in-
app wizard will take you through step by step to complete the setup, (B)
Edit account password and (C) manage device.
WiFi Manage the Wi-Fi network setting (available for Android verison app).
Notify Enable Activate/Deactivate push notication function for the particular camera
and entire registered users.
Motion Detect Activate/Deactivate the motion detection function for the particular
camera.
LED Light Activate/Deactivate the white LED (for night view) function for the
particular camera.
SDCard Overwrite Activate/Deactivate the data storage overwrite function for the particular
camera.
Brightness Adjust the brightness level of the particular camera.
Power Saving Timer Adjust the power saving timer setting of the particular camera.
Device Information Access to view camera and app rmware versions.
Data Format Format the memory card inserted in the camera - all data will be erased.
Video Record Time Setup the length of video record when camera detects motion.
Record Mode Select capture snapshots or videos when camera detects motion.
Video Framerate Setup the number of frame per second for the video record.
Video Resolution Setup the video resolution for the video record.
Note:
It may take a few minutes for some routers to update the registered camera. When you
complete advanced settings and return to device list, please wait for a while allowing your
router to transfer the new setting(s) to the camera.
22
ADMIN PASSWORD
This is the password for entering camera advanced setting section and by default the password is
123456.
This password can have absolute control over the detail settings. It is required to enter this
password everytime accessing the camera advanced setting. If you have multiple cameras register
to the app, each camera can have its own admin password.
DEVICE SECURITY CODE
The code required for app to remotely connect and operate the camera. The default security code
is 123456. When setup the camera, the APP will ask you to change the default security code.
This password can have access to view and operate the camera.
It is not required to enter the security code everytime accessing the camera(s). The camera security
code is saved to the app (see page-12, camera setting).
If you have multiple cameras registered to the app, each can have
its own security code.

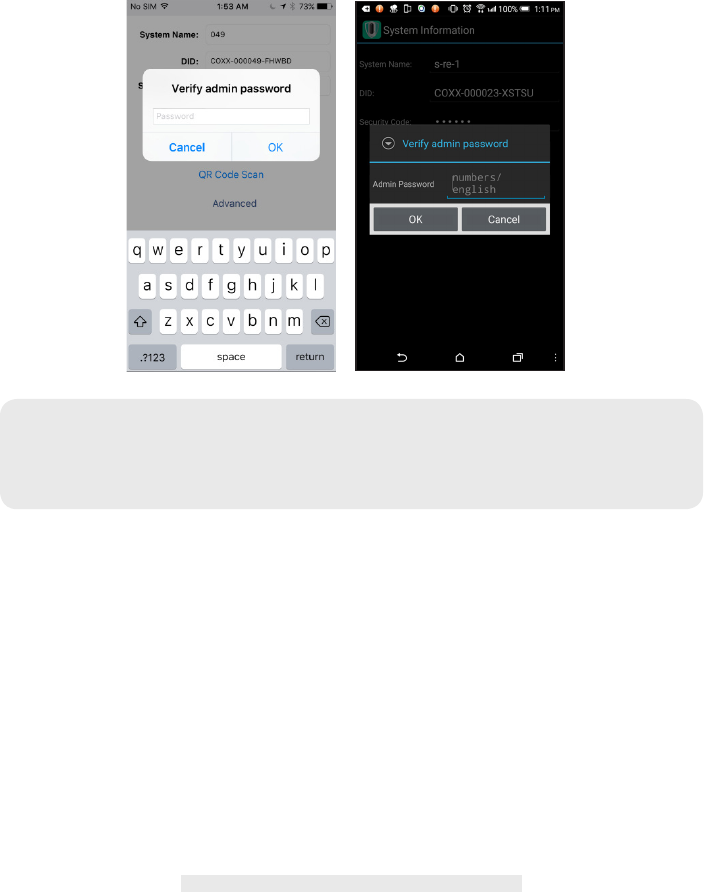

1. Type in the old password.
Note:
If you forget the admin password, MUST reset the camera default security code (Please
refer to page-6). After reset the camera setting, which will be erased and restored to
factory default. You will need to recongure all settings.
iOS Android
23
2. Type in the new password and conrm the new password again.
3. Tap OK to save the setting.
CLOUD SETTING
In this section you can create/setup/manage camera(s) cloud account and storage.
Creat Cloud Account
If you have not create a cloud account at the time setting up, the camera you can do so here at
anytime. The app automatically detect the fact that cloud account/storage do not exist and direct
you to the in-app wizard. The wizard will take you step by step to setup your private cloud, using
your personal Google Drive or DropBox as storage site.
Note:
If you forget the admin
password, MUST reset the
camera default security
code (Please refer to page-
6). After reset the camera
setting, which will be erased
and restored to factory
default. You will need to
recongure all settings.
iOS Android
The cloud account is different then
your Google Drive/DropBox account,
and is for management of single
or multiple cameras, where each
camera is registered to the same
cloud account, and then bondle with
either Google Drive or DropBox.
24
Edit Account
Enter here to modify your cloud
account password.
Device Management
Enter here to see all the
cameras registered under
the cloud account. You can
unbondle the selected camera
with existing Google Drive or
DropBox and then bondle the
camera to new Google Drive or
DropBox.
You can also remove the
camera from the cloud account
to stop using Google Drive or
DropBox as cloud storage.
The video les will be recorded
to the memory card.
VIDEO QUALITY
In this section, you can adjust the quality of the video streaming. To view high denition video by
selecting better video image. By selecting better streaming will allow the video to display more
smoothly (quality depend on local internet environment).
Only select better image when you have sufcient bandwidth and updated mobile device(s). Please
refer to P.4 for system requirment.
25
BRIGHTNESS
To adjust the brightness level, with level 1 being the lowest and
level 7 being highest.
WI-FI
Here you can manage the setting of Wi-Fi network (available for
Android version app).
The app will automatically scan for available W-Fi router (SSID).
Select the one you prefer to make the connection and enter router's
password if necessary.
Due to security concern, it is suggested to activate router's WPA/
WPA2/WPA2-PSK protocol. Please refer to router's manual for
more details.
Note:
1. After new Wi-Fi connection is completed the camera will
reboot.
2. If app cannot locate the Wi-Fi router, please check your
router SSID is enabled.
3. If camera fail to connect to the Wi-Fi router, please reset
your camera (see page-7) and restart the process again.
iOS Android
26
NOTIFY ENABLE
By disable the notication alert here all user will not be able to receive push notication on their
smart-device, even if they have push notication enabled.
MOTION DETECT
While the app is connected with the camera, you can disable/enable the motion detection function
here. The camera will not take snapshots, record videos or send out push notications if the motion
detection function is disabled. You can also manually enable/disable the motion detection function
via.
LED LIGHT
You can disable the LED light on camera. The LED on camera will not light up when detecting
movements at night, but will still record video and send out push notications. The recorded videos
may be too dard to allow you to identify the situation.
SDCARD OVERWRITE
This function will overwrite the oldest files when the micro memory card is full. Turning on this
function will enable the system to start overwriting the old les when the available memory card
capacity is not enough. This ensures the most up to date video recordings can be saved so that
you won’t miss any important information.
POWER SAVING TIMER
Select the length of time for the
camera to stay awake after trigger.
This is useful only when your camera
is battery powered, by selecting shorter
length of stay awak time can preserve
more battery power, and by selecting
longer awake time will allow sufcient time
for you establish camera connection via
app while you are away.
Note:
To reformat the memory card time to time to ensure the condition of the storage device.
Your camera system will not work properly if the memory card become corrupted.
iOS Android
27
RECORD MODE
You can take snapshots or video after detecting motion.
RECORD CYCLE TIME
You can dene the length of video record here. The longer length of video record will consume
more battery power and take longer to upload to cloud, which also consume additional battery
power.
iOS
iOS
Android
Android
28
VIDEO FRAMERATE
You can dene the frame rate of the video record here. The higher the frame rate will result in
larger video le data, but better playback quality.
VIDEO RESOLUTION
You can define the resolution quality of snapshots and video record in VGA (640*480) or HD
(1280*720). The higher resolution will give you better viewing experience, at the same time it would
require more storage space, longer upload time and more power consumption.
iOS
iOS
Android
Android
29
DEVICE INFORMATION
This section contains information about the camera, such as rmware version, total and available
space of the memory card inserted.
iOS Android
30
TROUBLE SHOOTING
IF SOLUTION
App cannot connect to the
camera
‧Make sure the router is powered on.
‧Make sure the camera is powered on.
‧Make sure the router supports DHCP protocol.
Wi-Fi router is not shown
in the drop down list
‧ Make sure SSID broadcasting function is enabled in the Wi-
Fi router. Consult your Wi-Fi router manufacturer for the settings if
necessary.
‧ Change the wireless security protocol of your Wi-Fi router into
WPA/WPA2/WPA2-PSK. Due to security concerns, WEP protocol
is not suggested for some Wi-Fi routers.
No image appears ‧ Make sure the camera is powered on.
‧ Make sure the router is powered on.
‧ Relocate the camera or the router for better reception.
‧ Make sure the app is properly congured.
‧ Make sure the smart-device has internet connection.
Low wireless signal
Poor image quality
‧ Other wireless device(s) also operating on 2.4GHz may intefere
with the camera/router wireless transmission, make sure they are
not close by the camera/router or simply turn them off.
‧ Relocate the camera or router for better reception.
‧ Clean the camera lens using lens cleaning cloth. Spots or dust on
the lens can also cause image quality problems.
Motion detection is not
functioning
‧ Make sure the router is powered on.
‧ Make sure the camera is powered on.
‧ Make sure the motion detection function is activated.
Motion detection is
triggered excessively
Please refer to page-2, INSTALLATION/CAMERA SETTING TIPS
for more details.
App cannot record video
clips or capture snapshots
‧ Make sure the memory card is inserted and has sufcient space.
‧ Make sure the memory card is not damaged.
‧ Make sure the motion detection function is enabled.
‧ Make sure the memory card is Class 10 rated.
Note:
WPA/WPA2/WPA2-PSK encryption protocols are newer and
more effective security standards for wireless networks than
the older and less-secure WEP protocol.
31
Push notication is not
functioning
‧ Make sure the push notication is enabled (including Admin
setting).
‧ Make sure the motion detection function is enabled.
‧ Make sure the camera is powered on.
‧ Make sure the router is powered on.
Bright white spot(s)
appearing in the videos
and/or snapshots
‧ Make sure the camera is not pointing directly at area/object that
reects light.
‧ Please refer to page-2, INSTALLATION/CAMERA SETTING TIPS
for more detials.
Memory card error ‧ Make sure the memory card is inserted.
‧ Make sure the memory card is formatted properly.
‧ Make sure the memory card is Class 10 rated.
Note:
Please backup the data before formatting. Format function
will erase all the data on the memory card.
32
PRODUCTION SPECIFICATION
Networking Parameter
Wireless Technology IEEE 802.11 b/g/n
Network Connection Wi-Fi
Network Protocols TCP/IP, UDP, SMTP, NTP, DHCP, ARP
Simultaneous Viewers 3 concurrent sessions
Security WEP/WPA/WPA2 (TKIP. 128 bit AES)
Camera Parameter
Image Sensor ¼” Mega Pixel
Antenna Internal 3dBi Dipole
Housing ABS Plastic
Environment Rating (Ingress) Indoor Use Only
Light Source Environment Indoor (50Hz); Indoor (60Hz)
Local Storage Support Micro Memory Card (Up To 32GB, Not Included)
Viewing angle H:60°±3°, V: 30°±3°
Lens 3.6mm±5%mm
Min. Illumination 1~8 lux
Number of LEDs Single High Power White LED for Color Night View
IR Distance Up To 5 Meters
Video Audio Parameter
Image Compression H.264
Image Resolution HD 1280x720
Recording Frame Rate 720P@20 FPS
Supported Mobile Device
iOS requirement iPhone 4S / iPad Mini / iPad 2 with iOS 7.0 or above
Android requirement Android 4.1X or above
Hardware requirement 1.5GHz dual core or above
1GB or above internal memory
General Parameter
Power Requirements CR123 Battery*2PCS Min./4PCS Max. or Optional USB Power
Input (Not Included)
Operating Temperature -10°C~+50°C
33
APPENDIX: COMPATIBLE LIST
WiFi Compatible Router List
Brand Product Name
ASUS RT-N53
BUFFALO WIR-HP-C300NH2
BUFFALO WZR-HP-G450
Cisco ERT120
D-Link DIR-816L
Huawei WSR20
INTELBRAS WRN300
NETGEAR Wndr3700v4
NETGEAR WGR614
Tenda FS395
TP-link TL-WR941N
