TH146-N-DE 400-280-000-G 9/22/06 1/8
TH146-N-DE
Installation Guide
Non-programmable Heat Pump Controller
The TH146-N-DE electronic controller can be used to control a heat
pump system. The following devices can be connected to the con-
troller:
heat pump
auxiliary heating (furnace)
air recirculation fan
humidifier
dual-register meter (dual energy)
remote control device (for the unoccupied mode)
• CT280-HP-2H1C control module
• TH146 console with two wall anchors and mounting screws
• AC144-03 outdoor temperature sensor (3 m or 10 ft) with
mounting clip (see section 2.7)
• RC845 relay (see section 2.5)
• AC146-410 plenum temperature sensor (see section 2.8)
• CT241 telephone controller (see section 2.10)
Install the control module on the furnace’s electrical panel, away
from the heat source.
Install the console in the area where you wish to measure the tem-
perature and humidity. Avoid locations where there are air drafts
(e.g., top of staircase or air outlet) or stagnant air (behind a door).
Do not install the console on a wall hiding air ducts nor expose it to
direct sunlight.
NOTE: If this controller replaces an existing thermostat, the wires
that were connected to the thermostat can be used to connect the
console. The maximum wire length is 30 m (100 feet).
1) Choose a location about 5 ft. (1.5 m) above the floor on an
inside wall.
2) Loosen the captive screw under the console.
3) Detach the console from its base by pulling the bottom section.
4) Secure the base using the wall anchors and screws.
5) Connect the console to controller terminals TH and TH (no
polarity).
Connect the heat pump to the controller as follows:
• Controller terminals R and C to heat pump terminals R and C
(see section 2.4)
• Controller terminal Y to heat pump terminal Y
• Controller terminal O/B to heat pump terminal O
• Controller terminal WW to heat pump terminal WW
AC144-03 Outdoor
Temperature Sensor
TH146 User Console CT280-HP-2H1C Control Module
1. Introduction
1.1 Applications
1.2 Supplied Parts
1.3 Accessories
2. Installation
2.1 Control Module (CT280-HP-2H1C)
2.2 User Console (TH146)
2.3 Heat Pump
TH146-N-DE 400-280-000-G 9/22/06 2/8
• Controller terminal L to heat pump terminal L
• Controller terminal W to heat pump terminal W (see section
2.5)
• Controller terminal G to heat pump terminal G (see section
2.5)
You might need a 24 V transformer if you have an add-on installa-
tion. Connect the transformer to the controller terminals R and C (24
Vac In).
If you have an add-on installation, you might need a relay such as
Aube’s RC845 to connect the furnace (auxiliary heating) and its fan
to the controller. Install the relay near the control module. Connect
the wires of the RC845 relay as follows:
• relay terminals W, G and C to controller terminals W, G and
C.
• relay terminals T and T to the appropriate furnace terminals:
T and T (oil); TH and TH (gas); R and W (electric).
NOTE: Refer to the relay’s installation instructions for more details.
Connect the humidifier to controller terminals C and H (no polarity).
The outdoor sensor is required for the following:
• balance points
• automatic humidity control
• outdoor temperature display
• defrost point
When installing the sensor, observe the following guidelines:
• Avoid locations where the sensor can be covered with snow
or exposed to direct sunlight.
• Avoid air outlets and concealed chimneys or stove pipes.
Install the sensor using its mounting clip and connect it to controller
terminals OS and CS (no polarity).
NOTE: The maximum wire length is 30 m (100 feet).
The plenum sensor measures the temperature inside the plenum.
This data is required for high pressure protection during the defrost
cycle (see section 4.3).
NOTE: The plenum sensor is generally needed for add-on installa-
tions only. It is not needed if the heat pump is not connected to the
controller terminal WW.
Install the sensor on the side of the plenum and
position it such that its aperture faces the air
flow.
Connect the sensor to controller terminals PS
and CS (no polarity). For more information,
refer to the instructions provided with the sen-
sor.
NOTE: The maximum wire length is 30 m (100
feet).
The dual-energy input can be connected to the dual-register meter
equipped with a normally open (NO) dry contact. Connect the termi-
nals DE and CC of the controller to the terminals (yellow and red
wires) of the dual-register meter.
When the contact is open, the heat pump and auxiliary heating
operate as usual. The contact closes when the outdoor temperature
drops below the set threshold. When the contact is closed, the heat
pump is disabled and only the auxiliary heat can be used.
To use the unoccupied mode, the controller requires a remote con-
trol device such as Aube’s telephone controller CT241 equipped
with a dry-contact output (normally open). The unoccupied mode is
activated when the contact closes. (See section 5.6.)
To access the 3 configuration switches, loosen the captive screw
under the console and separate the console from its base by pulling
it from the bottom part.
2.4 24 V Transformer
2.5 RC845 Relay
2.6 Humidifier
2.7 Outdoor Sensor (AC144-03)
2.8 Plenum Sensor (AC146-410)
2.9 Dual-energy Input
2.10 Unoccupied Mode Input

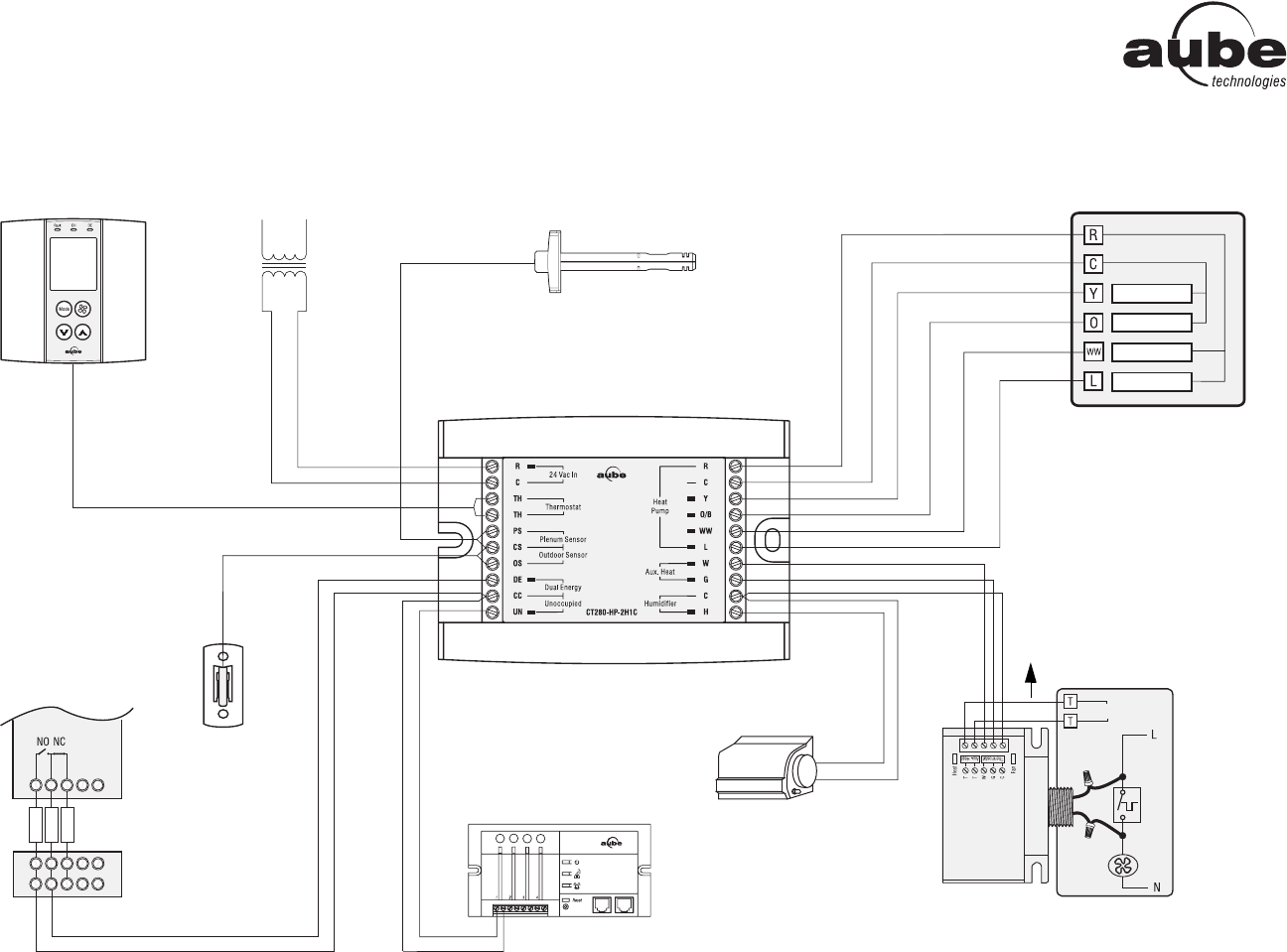

2.11Wiring Table
24 Vac In R
C
Power; 24 Vac
Thermostat TH
TH
Console connection
Plenum
Sensor
PS
CS
Plenum temperature sensor connection
Outdoor
Sensor
OS
CS
Outdoor temperature sensor connection
Dual Energy DE
CC
Dual energy connection
(requires a normally open contact)
Unoccupied UN
CC
Unoccupied mode connection
(requires a normally open contact)
Heat Pump R
C
Power; 24 Vac / 3 A
Y Output; 24 Vac / 1 A (compressor)
O/B Output; 24 Vac / 1 A
(reversing valve; energized on cool)
WW Input; 24 Vac / 2 mA (defrost)
L Input; 24 Vac / 2 mA (fault)
Aux. Heat W
G
Output; 24 Vac / 1 A (auxiliary heat and fan)
Humidifier C
H
Output; 24 Vac / 1 A
3. Configuration
3.1 Switch Configuration
TH146-N-DE 400-280-000-G 9/22/06 3/8
3.1.1 Backlight (SW1)
BL ON: The screen is always backlit.
AUTO: The screen is backlit only when a button is pressed. The
backlight remains on for 12 seconds.
3.1.2 Access Mode (SW2)
INST: Installer mode. Gives access to all configuration parameters.
NOTE: In this mode, the short-cycle protection is disabled and
the interstage delay is reduced to 1 minute.
USER: User mode. Gives access to configuration parameter 12
(humidity setpoint or humidity offset) only.
3.1.3 Keypad Lock (SW3)
I: The keypad is locked. Settings cannot be changed.
O: The keypad is unlocked.
nPlace the controller in Installer mode (INST) using the SW2
selector switch on the back of the console.
oPress the Mode button for 3 seconds to access the configura-
tion menu (see page 4). The first menu item (parameter) is dis-
played.
pTo view another menu item, briefly press the Mode button.
The following table shows the order in which the parameters
appear as well as a description of each parameter.
qTo modify a parameter, press either button.
rTo exit the configuration menu, press .
sReturn the controller to User mode (USER) using the SW2
selector switch.
With automatic heating/cooling mode changeover, there’s no need
to adjust the controller at every change of season or weather condi-
tion. The controller switches automatically between heating mode
and cooling mode to maintain the desired temperature. The mode
changeover occurs as follows:
• The controller switches to cooling mode when the indoor tem-
perature is higher than the setpoint by more than 1.5°C (2.5°F)
for 15 minutes.
• The controller switches to heating mode when the indoor tem-
perature is lower than the setpoint by more than 1.5°C (2.5°F)
for 15 minutes.
Balance points are used to disable the heat pump operation or aux-
iliary heating below or above a certain temperature.
• When the outdoor temperature is below the balance point low
(bP L), the heat pump is disabled and only auxiliary heating can
be used (see page 4, item 2).
• When the outdoor temperature is above the balance point high
(bP H), the auxiliary heat is disabled (see page 4, item 3) and
only the heat pump can be used.
NOTE: Balance points will not work if the AC144-03 outdoor tem-
perature sensor is not connected to the controller.
The auxiliary heat is activated during defrost except under the fol-
lowing conditions:
• When the outdoor temperature is above the defrost point (see
page 4, item 4). NOTE: This condition will not apply if the
AC144-03 outdoor sensor is not connected to the controller.
• When the plenum temperature is above 40°C (104°F). The
auxiliary heat is re-activated when the plenum temperature
drops below 32°C (90°F). NOTE: This condition will not apply if
the AC146-410 plenum sensor is not connected to the control-
ler.
NOTE: The auxiliary heat’s short-cycle protection is disabled during
defrost.
The controller can be configured for either of the following types of
heat pump installations (see page 4, item 5).
•Add-on Installation: This type of installation is performed
when adding a heat pump to an existing furnace. When the
heat pump is installed, the furnace becomes the auxiliary heat
source. In this type of installation, the indoor coils are usually
installed downstream of the auxiliary heat source. When the
controller is configured for an add-on installation, the heat
pump is disabled during auxiliary heating to prevent overpres-
sure.
•New Installation: In this type of installation, as there is not
already a furnace, the auxiliary heat source is installed at the
same time as the heat pump. In this type of installation, the
indoor coils are located upstream of the auxiliary heat. When
the controller is configured for a new installation, the heat pump
and the auxiliary heat can operate simultaneously.
When “smart fan” is enabled (see page 4, item 7), the fan operates
as follows:
• During the unoccupied mode (i.e., when you are away from
home), the fan operates only when heating or cooling is acti-
vated.
• The fan operates continuously the rest of the time.
NOTE: “Smart fan” is useful only when the fan is set to On (see sec-
tion 5.2).
The interstage delay is the time that the temperature has to return to
an acceptable value when it deviates too much from the setpoint.
After this delay, auxiliary heating is activated. Auxiliary heating will
be deactivated once the temperature returns to an acceptable value
(see page 4, item 8).
3.2 Software Configuration
4. Principles of Operation
4.1 Automatic Heating/Cooling Changeover
4.2 Balance Points
4.3 Heating During Defrost
4.4 Types of Heat Pump Installations
4.5 “Smart Fan”
4.6 Interstage Delay
TH146-N-DE 400-280-000-G 9/22/06 4/8
Configuration Menu
Item Parameters Display Options Default Description
1 Temperature scale °C / °F °C Select the temperature display format.
2 Balance point low -30°C to 10°C
(-22°F to 50°F)
-10°C
(14°F) Set the bP L value (see section 4.2).
3 Balance point high -5°C to 30°C
(23°F to 86°F)
5°C
(41°F) Set the bP H value (see section 4.2).
4 Defrost point -10°C to 15°C
(14°F to 59°F)
10°C
(50°F)
During defrost, auxiliary heating is activated when the outside
temperature is below the defrost point (see section 4.3).
5 Installation type Ad / nr Ad
Set according to the type of heat pump installation (see section
4.4).
Ad (add-on): Use this setting when the indoor coils are located
downstream of the auxiliary heat source. This is generally the
case for add-on installations.
nr (normal): Select this setting when the indoor coils are located
upstream of the auxiliary heat source. This is generally the case
for new installations.
6 Cycles per hour 2 to 6 4 Allows you to select the number of cycles per hour. It is recom-
mended to use the default setting except in exceptional cases.
7 “Smart fan” On / OF OF On: “smart fan” is On (see section 4.5).
OF: “smart fan” is Off.
8 Interstage delay 5 to 90 min. 10 min. Set the interstage delay (see section 4.6).
9Outdoor
temperature display On / OF On
Select between displaying the outdoor temperature or display-
ing the indoor humidity level.
On: Displays the outdoor temperature.
OF (Off): Displays the indoor humidity level.
NOTE: To display the outdoor temperature, the outdoor sensor
must be connected.
10 Humidifier
operating mode HE / Fn HE
HE (Heat): The humidifier can operate only when heating is
activated.
Fn (Fan): The humidifier can operate as long as the fan is run-
ning.
NOTE: The humidifier is disabled when cooling is activated.
11 Automatic humidity
adjustment On / OF OF
Allows you to place the humidity adjustment to automatic mode.
On (automatic): The humidity level is automatically regulated by
the controller according to the outdoor temperature to avoid
condensation or ice formation on windows (see item 12).
OF (manual): The user manually sets the humidity level (see
item 12).
12
Humidity setpoint 5% to 60% 5%
Set the desired humidity level. This parameter is available only
when the humidity control is placed in manual mode (see item
11).
Humidity offset -9% to 9% 0%
Allows the user to apply an offset to the automatic humidity con-
trol. For example, the user can enter a negative offset if there is
still ice formation or condensation on the windows. This param-
eter is available only when the humidity control is placed in
automatic mode (see item 11).
NOTE: Only the humidity setpoint or humidity offset (item 12) is available when the controller is placed in user mode (SW2 switch).
TH146-N-DE 400-280-000-G 9/22/06 5/8
Connection Diagram — New Installation
TH146
AC144-03
AC146-410
CT241
Humidifier
Heat Pump
Compressor
Fault
CT280-HP-2H1C
Auxiliary Heat
Defrost
Fan
Valve
Red
Yellow
Green
Dual Energy
16 - 18 AWG
16 - 22 AWG
16 - 22 AWG
16 - 22 AWG
16 - 22 AWG
16 - 22 AWG
16 - 18 AWG
TH146-N-DE 400-280-000-G 9/22/06 6/8
Connection Diagram — Add-on Installation
TH146 24 V Transformer
Dual Energy
AC144-03
AC146-410
CT241
RC845
Humidifier
Auxiliary
Heating
System
Heat Pump
CT280-HP-2H1C
Red
Compressor
Valve
Defrost
Fault
Furnace
Fan Limit
Yellow
Green
16 - 22 AWG
16 - 22 AWG
16 - 22 AWG
16 - 18 AWG
16 - 22 AWG
16 - 18 AWG
16 - 22 AWG
16 - 18 AWG
16 - 22 AWG
16 - 18 AWG
TH146-N-DE
User’s Guide
Non-programmable Heat Pump Controller
TH146-N-DE 400-280-000-G 9/22/06 7/8
Press MODE to place the controller in one of the following modes.
Press the button to select the fan operating mode.
• In automatic mode, the fan runs only when heating or cooling is
activated.
• In continuous mode, the fan runs continuously and the sym-
bol is displayed. NOTE: If the “smart fan” feature is enabled,
the fan will run only when heating or cooling will be activated
during unoccupied mode.
Depending on how the controller has been configured (see page 4,
item 9), it displays either the measured indoor humidity level or the
measured outdoor temperature.
The actual (measured) temperature is normally displayed. To view
the temperature setpoint, press one of the buttons once. The
setpoint is displayed for 5 seconds and is indicated by the sym-
bol.
To modify the temperature setpoint, press one of the buttons
until the desired temperature is displayed.
NOTE: If the controller is in automatic heat/cool changeover, the
setpoint is automatically reduced or raised by 1°C (2°F) when the
controller switches to heating mode or to cooling mode respectively.
For example, if you place the setpoint at 24°C (75°F) while in heat-
ing mode, the setpoint will become 25°C (77°F) in cooling mode and
will return to 24°C (75°F) when the controller switches back to heat-
ing mode.
The humidity adjustment can be placed in manual mode or in auto-
matic mode (see page 4, item 11).
Manual Adjustment
In manual mode, the user sets the humidity level (5% to 60%).
Automatic Adjustment
In automatic mode, the controller sets the humidity level based on
the outdoor temperature to prevent ice formation or condensation
on windows. However, the user can apply an offset (-9% to 9%). For
example, the user can enter a negative offset if there is too much
condensation on the windows.
Procedure
The procedure to set the humidity level (in manual mode) or the off-
set (in automatic mode) is as follows:
1) Press the Mode button for 3 seconds.
One of the following displays appears:
System fault
Temperature adjustment
Fan operating
mode selection
System operating
mode selection
System
operating mode
Fan is in continuous mode
Unoccupied
mode is On
Outdoor
temperature or
indoor humidity
Indoor temperature
Auxiliary heat is On
Heating is On
Cooling is On
Emergency heat
mode Dual-energy
mode
Humidifier
is On
Appears when the
temperature setpoint
is displayed
5. Operation
5.1 System Operating Mode (Heating/Cooling)
HEAT The system is in heating mode.
COOL The system is in cooling mode.
AUTO
The system is in automatic changeover. (The system
switches between heating mode and cooling mode to main-
tain the desired temperature.)
OFF Both heating or cooling are off.
EHEAT The system is in emergency heat mode. Only auxiliary heat-
ing is used when there is a call for heat.
5.2 Fan Operating Mode (On/Auto)
5.3 Indoor Humidity / Outdoor Temperature Display
Outdoor
temperature Indoor
humidity
5.4 Temperature Adjustment
5.5 Humidity Adjustment
TH146-N-DE 400-280-000-G 9/22/06 8/8
2) Set the humidity level or offset using the buttons.
• humidity level: 5% to 60%
• offset: -9% to 9%
3) Press the button to exit.
The symbol is displayed when the humidifier is On.
The controller can be placed in unoccupied mode via a remote con-
trol device such as Aube’s CT241 telephone controller (see section
2.10). In this mode, the setpoint is set back by 4.5°C (8°F); it is low-
ered in heating mode or raised in cooling mode. The icon
appears during the unoccupied mode.
NOTE: Automatic changeover is disabled during the unoccupied
mode.
If you change the temperature setpoint (using the buttons) in
unoccupied mode, the controller temporarily bypasses the current
setpoint. The new setpoint will be maintained for 2 hours, after
which the controller will return to the previous setpoint. The icon
flashes during the bypass.
CT280-HP-2H1C Control Module
Power supply: 24 VAC
Current consumption: 150 mA
Maximum load per output: 1 A @ 24 VAC
Short cycle protection: 2 minutes
Control cycles: 2 to 6 per hour
Operating temperature: 0°C to 50°C (32°F to 122°F)
Storage temperature: -20°C to 50°C (-4°F to 122°F)
Humidity conditions: 0% to 95%, non-condensing
Dimensions: 76 mm x 109 mm x 25 mm (3 in. x 4.3 in. x 1 in.)
TH146 Console
Temperature setpoint range: 5°C to 30°C (40°F to 86°F)
Humidity setpoint range: 5% to 60%
Indoor temperature display range: 0°C to 70°C (32°F to 158°F)
Outdoor temp. display range: -50°C to 70°C (-58°F to 158°F)
Temperature display resolution: 0.5°C (1°F)
Program protection: non-volatile memory
Operating temperature: 0°C to 50°C (32°F to 122°F)
Storage temperature: -20°C to 50°C (-4°F to 122°F)
Humidity conditions: 0% to 95%, non-condensing
Dimensions: 79 mm x 79 mm x 24 mm (3.1 in. x 3.1 in. x 1 in.)
Aube warrants this product, excluding battery, to be free from
defects in the workmanship or materials, under normal use and
service, for a period of three (3) years from the date of purchase by
the consumer. If at any time during the warranty period the product
is determined to be defective or malfunctions, Aube shall repair or
replace it (at Aube's option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to
the place from which you purchased it, or
(ii) contact Aube. Aube will make the determination whether the
product should be returned, or whether a replacement product
can be sent to you.
This warranty does not cover removal or reinstallation costs. This
warranty shall not apply if it is shown by Aube that the defect or
malfunction was caused by damage which occurred while the
product was in the possession of a consumer.
Aube's sole responsibility shall be to repair or replace the product
within the terms stated above. AUBE SHALL NOT BE LIABLE FOR
ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING,
DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY
WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE
OF THIS PRODUCT. Some provinces and states do not allow the
exclusion or limitation of incidental or consequential damages, so
this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY AUBE
MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IS HEREBY LIMITED TO THE THREE-YEAR
DURATION OF THIS WARRANTY. Some provinces and states do
not allow limitations on how long an implied warranty lasts, so the
above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have
other rights which vary by province, state or region.
If you have any questions about the product installation or
operation, or concerning the warranty, contact us at the address
shown below.
For more information on our products, visit us at:
www.aubetech.com
5.6 Unoccupied Mode
5.7 Temporary Bypass
6. Technical Specifications
Humidity
level set
by user
Offset set
by user
Humidity level
set by controller
7. Warranty
8. Support
705 Montrichard
Saint-Jean-sur-Richelieu, Quebec
J2X 5K8
Canada
Tel: (450) 358-4600
Toll-free: 1-800-831-AUBE
Fax: (450) 358-4650
Email: aube.service@honeywell.com
10, rue Ampère
95500 Gonesse
France
Tel: 33 (0) 1 34 07 99 00
Fax: 33 (0) 1 34 07 99 19
Email: advaube@comintes.com

Navigation menu
