ATR2500-USB
Instruction Manual
ATR2500-USB
Cardioid Condenser USB Microphone
Contents
Introduction & features 2
Setting up your microphone with pivot mount & desk stand 3
Preliminary setup with Mac OS X 4
Preliminary setup with Windows XP 6
Preliminary setup with Windows Vista 9
Preliminary setup with Windows 7 10
Using headphones 13
Selecting software 13
Setting your software levels 13
Positioning your microphone 13
Protecting your microphone 13
Specifications 14
Warranty 15
![](asset-2.png)
2
Thank you for buying the Audio-Technica ATR2500-USB cardioid condenser microphone. Designed for
computer-based recording, this microphone is ideal for digitally capturing music or any acoustic audio
source using your favorite recording software.
Equipped with a USB output for easy connection to your computer, the ATR2500-USB offers studio-
quality articulation and intelligibility perfect for home studio recording, field recording, podcasting, and
voiceover use.
The ATR2500-USB also features a built-in headphone jack with volume control that allows you to
directly monitor your microphone’s output during recording. The microphone’s focused pickup pattern
delivers excellent off-axis rejection, while its A/D converter with a 16-bit, 44.1/48 kHz sampling rate
ensures clear, articulate sound reproduction.
Audio-Technica’s state-of-the-art design and manufacturing techniques ensure that the microphone
complies with the company’s renowned consistency and reliability standards.
Features
• Side-address studio condenser microphone with USB output for easy connection to your computer
• Ideal for podcasting, home studio recording, field recording, and voiceover use
• Built-in headphone jack allows you to directly monitor your microphone’s output without audible delay
• Adjust headphone volume with easy-to-use controls on the front of the microphone
• High-quality A/D converter with 16-bit, 44.1/48 kHz sampling rate
• Compatible with Windows and Mac
• Low-mass diaphragm provides excellent frequency response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of
desired sound source
• Low self-noise – ideally suited for digital recording equipment
• Pivoting, threaded stand mount attaches securely for easy and precise placement of
the microphone
• Tripod desk stand with folding legs for secure and easily portable tabletop use
Compliance with FCC rules (USA only)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC WARNING
You are cautioned that any changes or modifications not expressly approved in this manual could
void your authority to operate this equipment.
Canada only
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB -003 du Canada.
![](asset-3.png)
3
OFF
ON

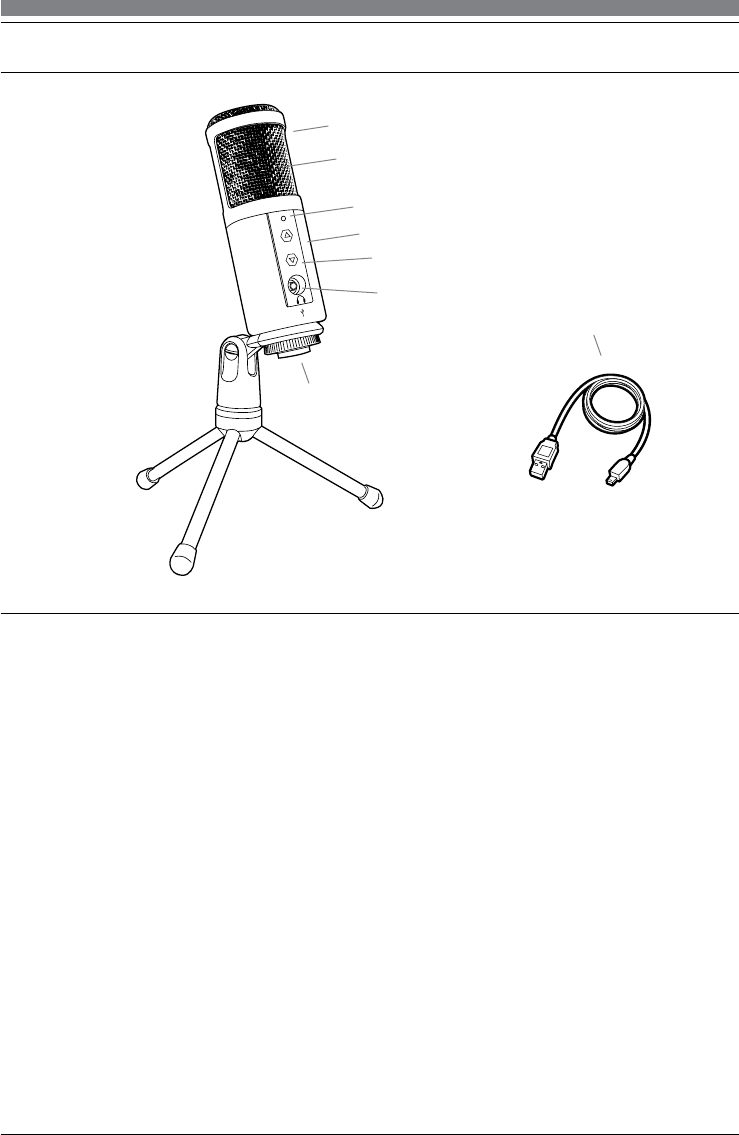

1. Windscreen–Multi-stage grille design offers excellent protection against plosives and sibilance
without compromising high-frequency clarity
2. Capsule–Condenser microphone element with cardioid polar pattern
3. Blue LED–Blue light shows mic is receiving USB power
4. Metal construction–Tough, durable, resilient design
5. Headphone level control–Soft-touch buttons control headphone volume
6. Headphone jack–1
/8-inch (3.5 mm) stereo jack for connecting your headphones
7. USB–USB connector for connection to your Mac or PC
8. USB cable
Setting up your microphone with included pivot mount and tripod desk stand
A. Screw the pivot mount microphone adapter onto the threaded portion of the desk stand.
B. Extend the tripod legs to provide a wide, secure base. Place the tripod desk stand on a flat surface.
C. Install the ATR2500-USB microphone through the tapered side of the collar of the pivot mount.
While holding the microphone in place, screw the threaded ring to the threaded portion of the
microphone that extends through the collar, and tighten.
D. The front of the microphone should be facing the sound source. (The USB icon and LED indicate
the front of the microphone.)
E. Use a screwdriver or coin to loosen and tighten the pivot screw for angle adjustment.
F. Plug the provided USB cable into the USB output at the base of the microphone.
Note: Many recording software programs are available online. Audacity is widely used free software
for recording and editing sounds. It is available online at http://audacity.sourceforge.net/
1
2
3
5
4
6
7
8
ATR2500-USB
![](asset-4.png)
4
1. Plug the free end of the provided USB cable into the USB port on your computer. The microphone’s
blue LED will illuminate, indicating the microphone is receiving power.Your computer will
automatically recognize the USB device and install a driver.

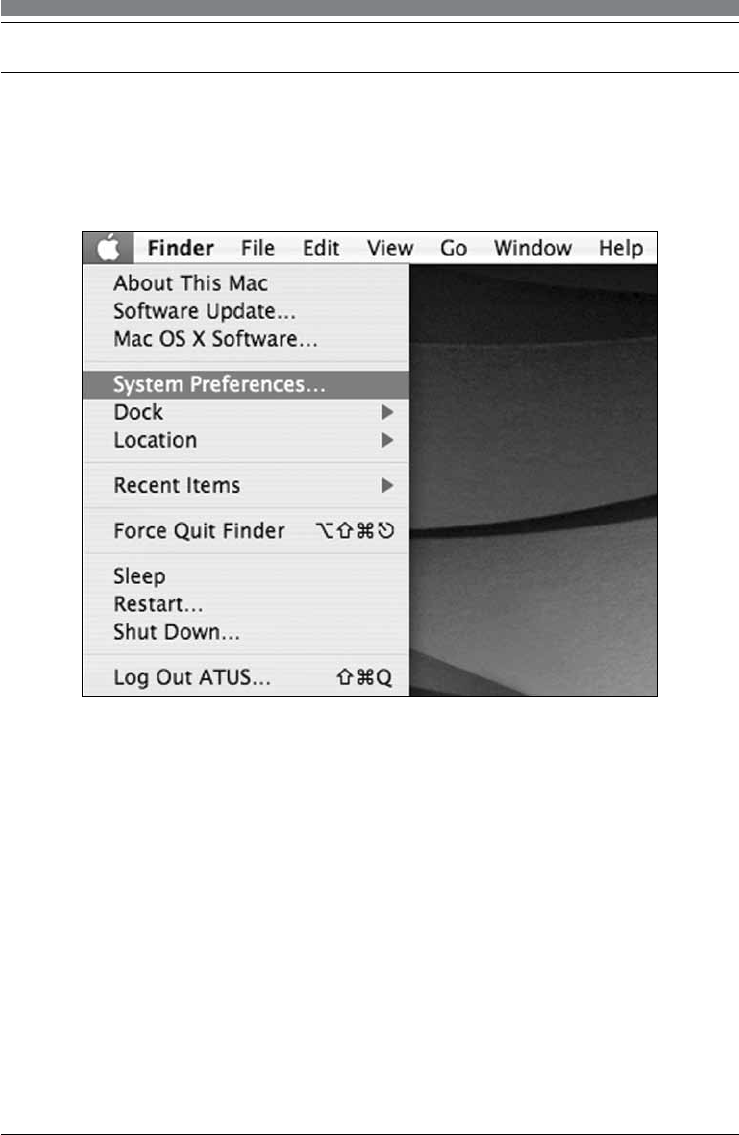

2. To select the ATR2500-USB as your audio input, first, open your System Preferences.
Preliminary setup with Mac OS X
![](asset-5.png)
5
ATR2500-USB USB
3. Next, click Sound to display the Sound preference pane.
4. Click the Input tab and select the ATR2500-USB as the device for sound input.
Your preferences are now set to use the ATR2500-USB on your Mac with GarageBand or another
recording program of your choice.
![](asset-6.png)
6
(Service Pack 2; other operating systems may vary slightly)
1. Plug the free end of the USB cable into the USB port on your computer. The microphone’s blue
LED will illuminate, indicating the mic is receiving power. Your computer will automatically
recognize the USB device and install a driver.
2. In the lower right portion of your screen you may see a message that new hardware was found;
or you may see a driver software installation notice.

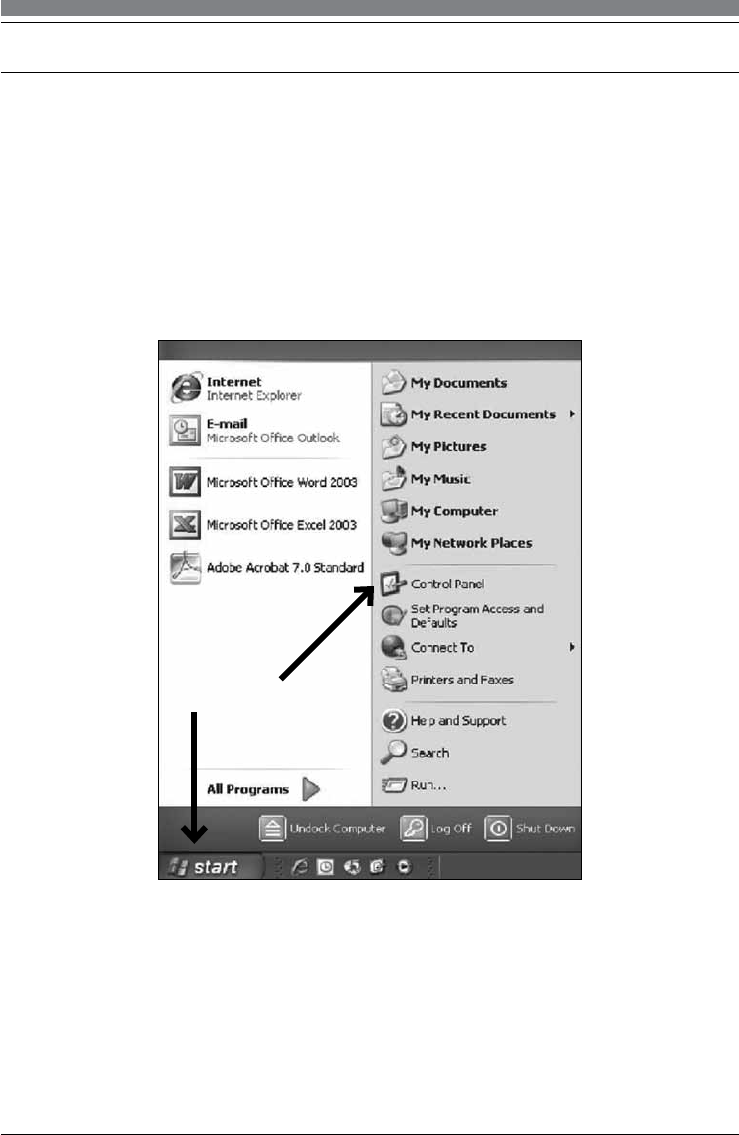

3. To select the ATR2500-USB as your default recording device, begin at your Start menu.
Select Control Panel.
Preliminary setup with Windows XP
![](asset-7.png)
7

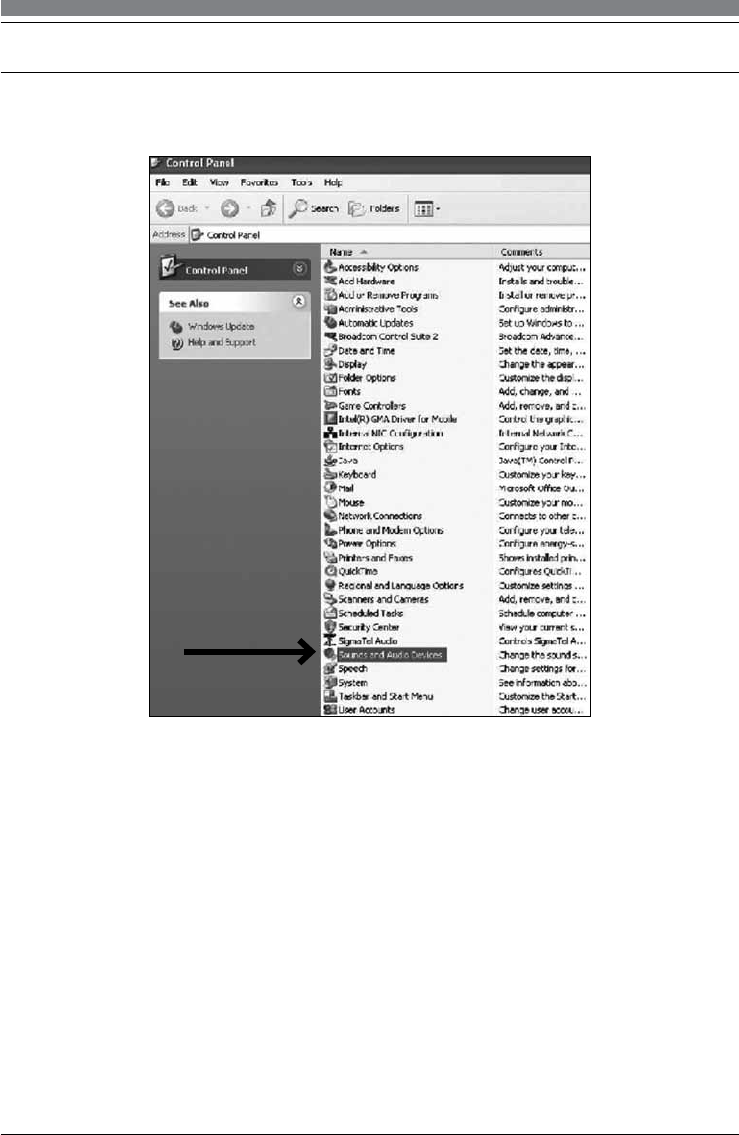

4. Select Sounds and Audio Devices.
![](asset-8.png)
8

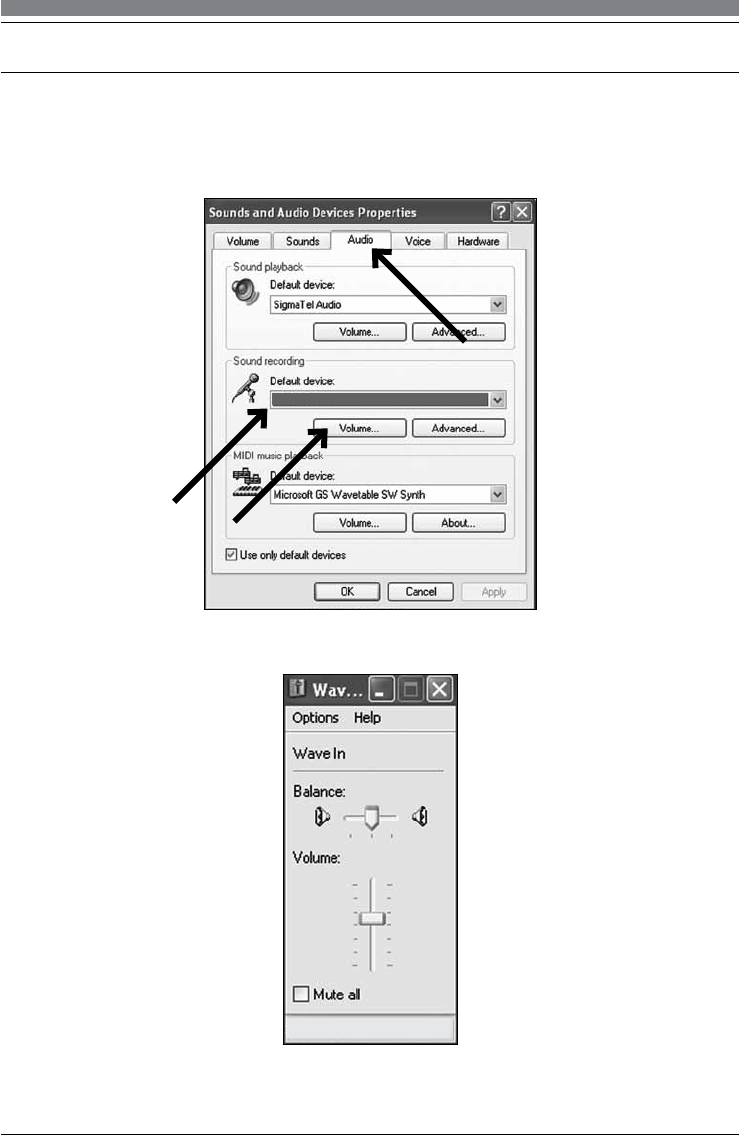

5. Select the Audio tab, and choose ATR2500-USB as the default device.
6. Adjust computer volume by clicking on the Volume button beneath Sound recording Default device.
Preliminary setup with Windows XP (continued)
ATR2500-USB
7. Through the Wave In window, you can set the computer volume or mute the microphone.
Your preferences are now set to use the ATR2500-USB with Windows XP with the recording program
of your choice.
ATR2500-USB
![](asset-9.png)
9
Microphone
ATR USB Mic
Working
Microphone
SigmaTel C-Major Audio
Working
Preliminary setup with Windows Vista
1. Plug the free end of the USB cable into the USB port on your computer. The microphone’s blue
LED will illuminate, indicating the mic is receiving power. Your computer will automatically
recognize the USB device and install a driver.
2. In the lower right portion of your screen you may see a message that new hardware was found;
or you may see a driver software installation notice.

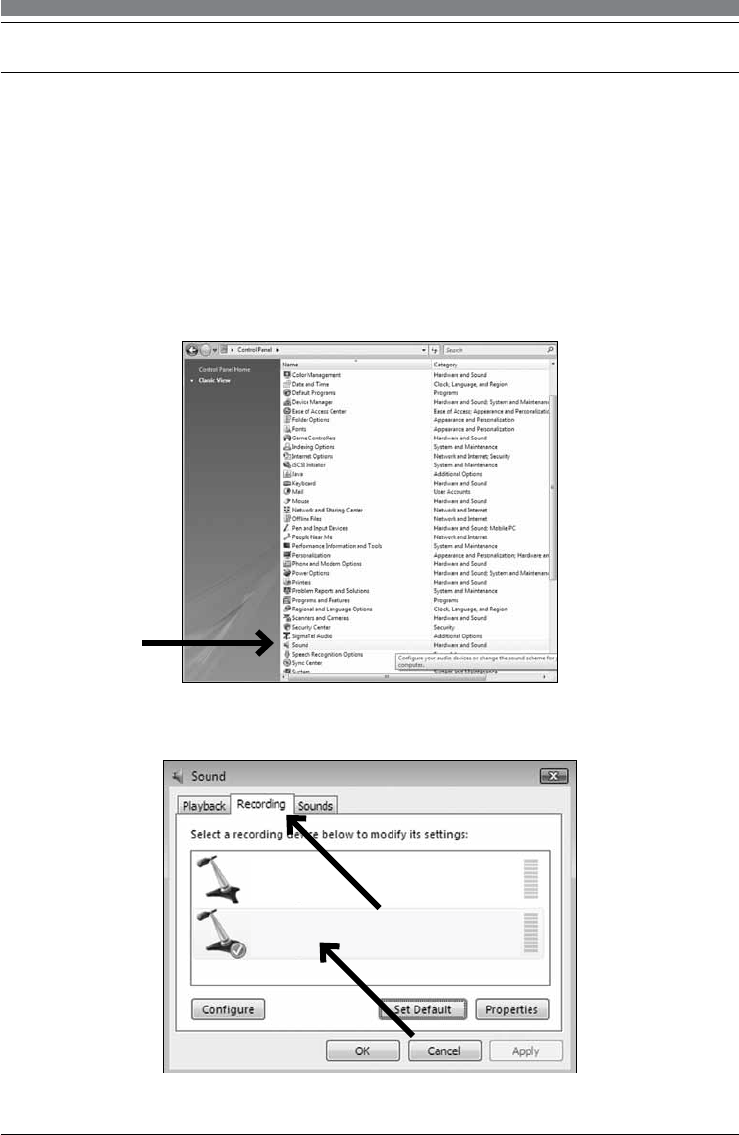

3. To select the ATR2500-USB as your default recording device, begin at your Start menu.
Select Control Panel.
4. Select (double-click) Sound.
5. Select the Recording tab. Make sure that the AT2500-USB microphone is set as the default
recording device. (You should see a green check mark beside the USB microphone icon.)
Your preferences are now set to use the ATR2500-USB with Windows Vista with the recording
program of your choice.
![](asset-a.png)
10
1. Plug the free end of the USB cable into the USB port on your computer. The microphone’s blue
LED light will illuminate, indicating the mic is receiving power. Your computer will automatically
recognize the USB device and install a driver.
2. In the lower right portion of your screen you may get a message that new hardware was found;
or you may see a driver software installation notice.

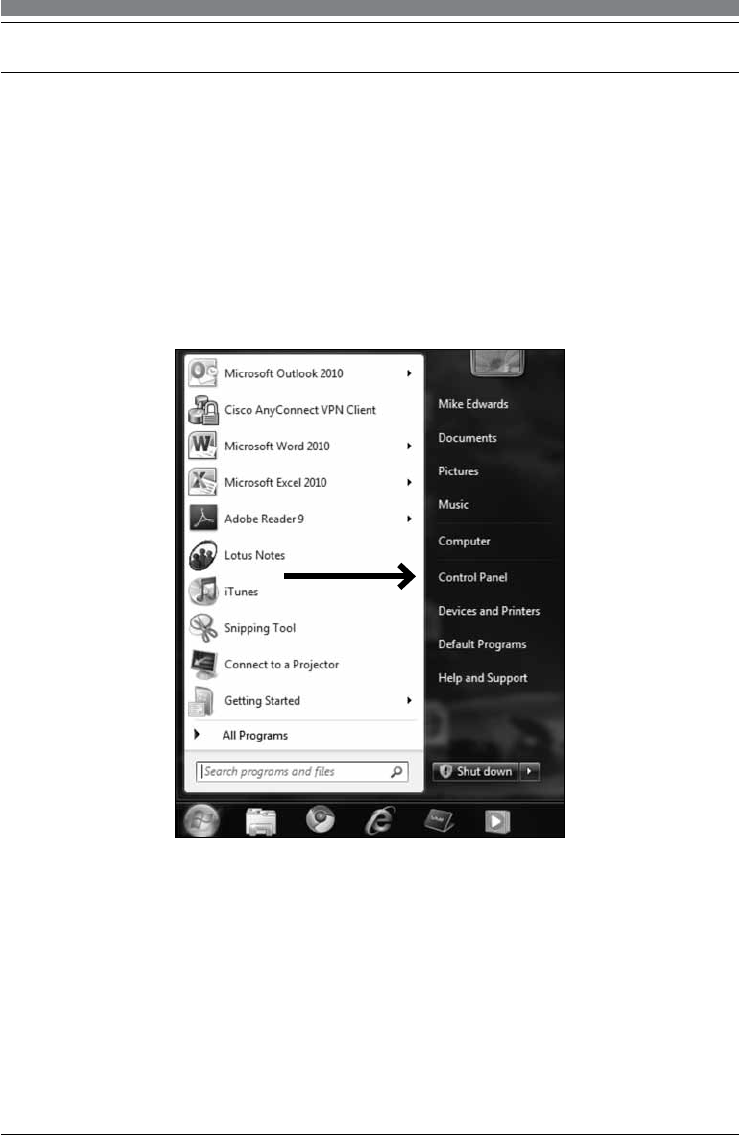

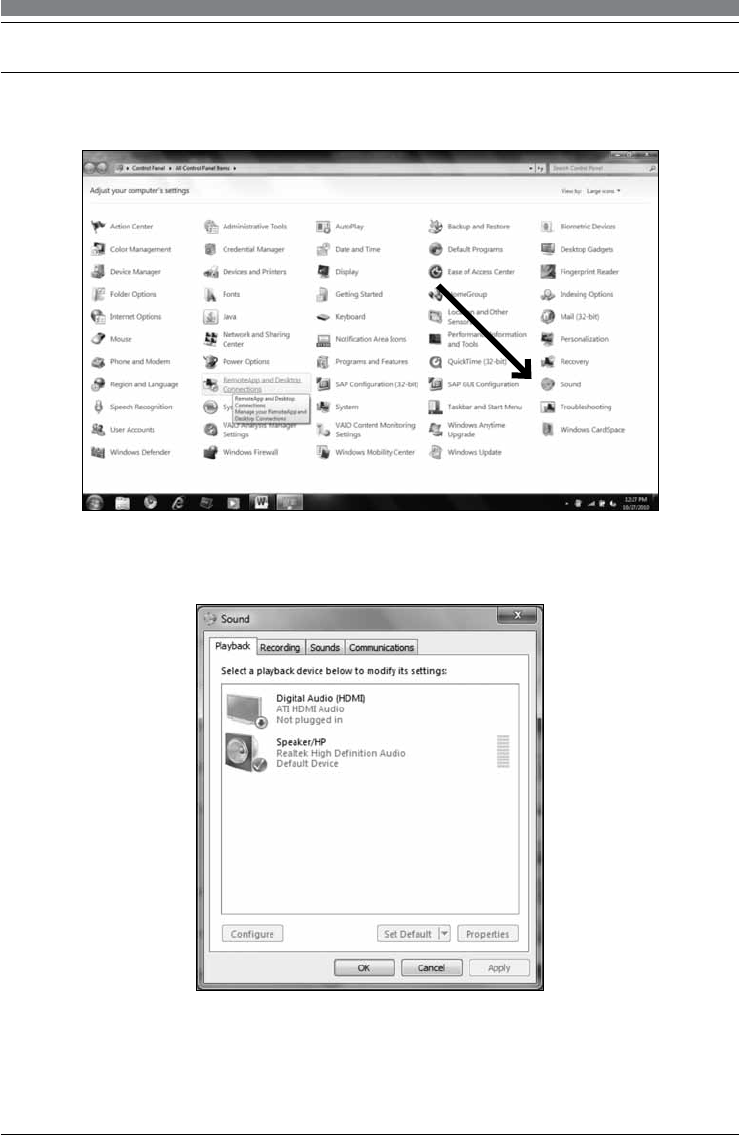

3. Start menu > Control Panel > Sound
To select the ATR2500-USB as your default recording device, begin at your Start menu.
Select Control Panel.
Preliminary setup with Windows 7
![](asset-b.png)
11
4. Select Sound.
5. The following screen will pop up:
![](asset-c.png)
12

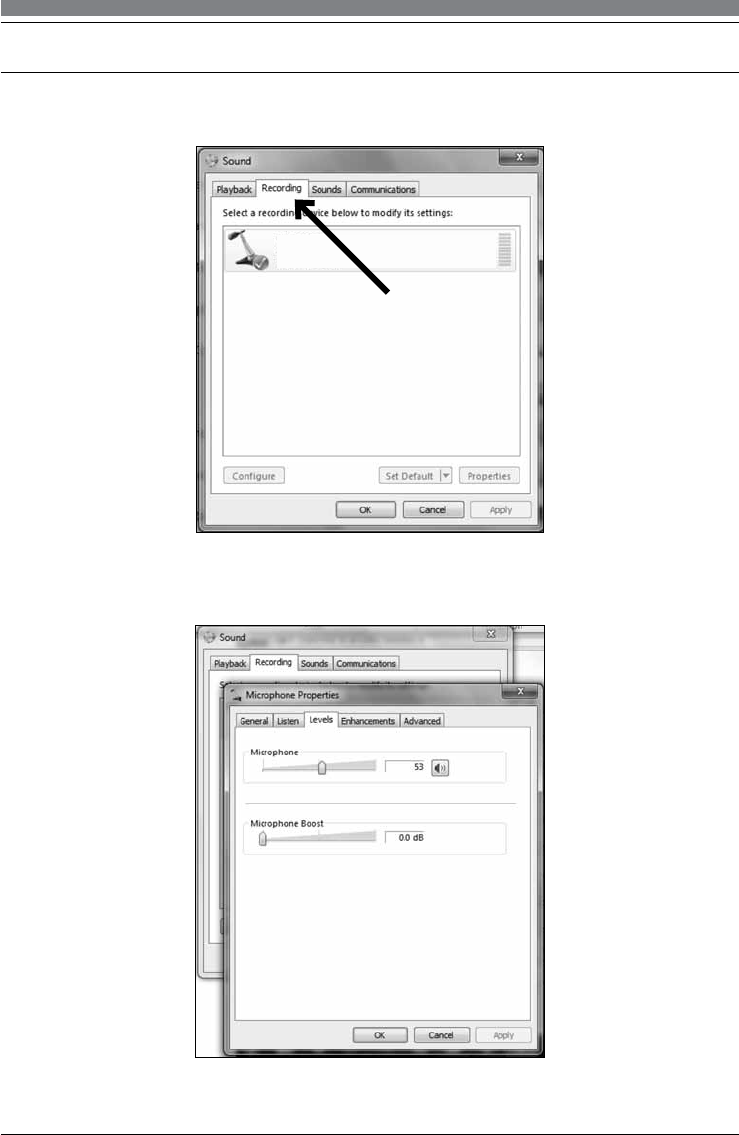

6. Select the Recording tab, and choose ATR-USB MIC as the default device.
7. Double click on the ATR-USB-Mic icon to open the Microphone Properties window. Select the
levels tab to adjust microphone level (loudness). You may need to come back to this window to
readjust the level after you begin recording.
Preliminary setup with Windows 7 (continued)
Your preferences are now set to use the ATR2500-USB with Windows 7 with the recording program
of your choice.
Microphone
ATR-USB-Mic
Default Device
![](asset-d.png)
13
Using Headphones
The 1
/8" (3.5 mm) headphone jack on the bottom of the microphone allows you to directly monitor
your recording with a pair of headphones. When your preliminary setup is completed, and your USB
microphone is connected to your computer’s USB port (the microphone’s blue LED is illuminated), plug
your headphones into the headphone jack on the bottom of the microphone. While talking into the
microphone, you should hear yourself in the headphones. Adjust the volume up or down by pressing
the Up and Down buttons on the front of the microphone. Note: The Up and Down buttons only adjust
the volume of the mic’s headphone output; they do not adjust the microphone level.
Selecting software
You have many choices in recording software. Audacity, available for free online at
http://audacity.sourceforge.net/, is a widely used software program that provides basic recording software.
Setting your software levels
Correct adjustment of microphone level is important for optimum performance. Ideally, the microphone
level should be as high as possible without overloading the input of your computer. If you hear
distortion, or if your recording program shows levels that are consistently overloaded (at peak levels),
turn the microphone volume (or level) down, either through your control panel (or system preferences)
settings, or through your recording software. If your recording program shows insufficient level, you
can increase the microphone gain either from the control panel (or system preferences) settings or
through your recording program.
No further microphone level adjustments should be needed, as long as the acoustic input does not
change significantly.
Positioning your microphone
It is important to position the microphone directly in line (on axis) with the person speaking/singing
or instrument (or other sound source) to achieve the best frequency response of the microphone.
For use in speaking/singing applications, the ideal placement for the microphone is directly in front of
the person speaking/singing. The same placement is optimal when miking an instrument such as an
acoustic guitar, drums or piano. Experiment with different mic placements to find the best sound for
your particular setup.
Protecting your microphone
Avoid leaving your microphone in the open sun or in areas where temperatures exceed 110° F (43° C)
for extended periods. Extremely high humidity should also be avoided.
Additional Information
![](asset-e.png)
14
Element: Condenser
Polar Pattern: Cardioid
Frequency Response: 30 – 15,000 Hz
Power Requirements: USB Power (5V DC)
Bit Depth: 16 bit
Sample Rate: 44.1 kHz/48 kHz
Weight: 366 g (12.9 oz)
Dimensions: 155.0 mm (6.10") long, 50.0 mm (1.97") maximum body diameter
Output Connector: USB-type
Headphone Output Power: 10 mW @ 16 ohms
Headphone Volume Control: Up/Down buttons for level adjustment on front of microphone
Headphone Jack: 3.5 mm (1
/8”) TRS (stereo)
Accessories Furnished: Pivoting stand mount for 5/8"-27 threaded stands; tripod desk stand; 1.8 m
(5.9') mini USB cable
System Requirements: Macintosh: Mac OS X; USB 1.0 or 2.0; 64 MB RAM (minimum);
Windows: XP/ Vista / Windows 7; USB 1.0 or 2.0; 64 MB RAM (minimum)
†In the interest of standards development, A.T.U.S. offers full details on its test methods to other industry professionals on request.
Specifications are subject to change without notice.
ATR2500-USB Specifications†
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
SCALE IS 5 DECIBELS PER DIVISION
240˚
180˚
210˚
270˚
300˚
330˚ 0˚
150˚
120˚
90˚
30˚
60˚
12" or more on axis
LEGEND
Frequency in Hertz
Response in dB
10 dB
100
50 200 10k
5k
1k
500 2k 20k
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
SCALE IS 5 DECIBELS PER DIVISION
240˚
180˚
210˚
270˚
300˚
330˚ 0˚
150˚
120˚
90˚
30˚
60˚
12" or more on axis
LEGEND
Frequency in Hertz
Response in dB
10 dB
100
50 200 10k
5k
1k
500 2k 20k
Frequency Response
Polar Pattern
![](asset-f.png)
15
This product is warranted in the U.S.A. by Audio-Technica U.S., Inc. (A.T.U.S.) for the lifetime of the
original purchaser. During the warranty period, A.T.U.S. will repair or replace these products, provided
they are sent prepaid to the address below, with proof of original purchase and $15.00 for handling and
return to a U.S. address. Check or money order required; no cash or stamps. A.T.U.S. reserves the right
to replace any product with one of equal value.
Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for any
consequential, incidental, or special damages; any warranty of merchantability or tness for particular
purpose expires when this warranty expires. This warranty gives you specic legal rights, and you may
have other rights which vary from state to state.
Outside the U.S.A., please contact your local dealer for warranty details.
Register your product at audio-technica.com
Audio-Technica U.S., Inc.
1221 Commerce Drive, Stow, Ohio 44224 USA
ATR2500-USB U.S. Lifetime Limited Warranty
![](asset-10.png)
Audio-Technica U.S., Inc.
1221 Commerce Drive, Stow, Ohio 44224 USA +1 (330) 686-2600
©2011 Audio-Technica U.S., Inc. P52300
To reduce the environmental impact of a multi-language printed document, product information is
available online at www.audio-technica.com in a selection of languages.
An de réduire l’impact sur l’environnement de l’impression de plusieurs, les informations concernant
les produits sont disponibles sur le site www.audio-technica.com dans une large sélection de langue.
Para reducir el impacto al medioambiente, y reducir la producción de documentos en varios leguajes,
información de nuestros productos están disponibles en nuestra página del Internet:
www.audio-technica.com.
ATR2500-USB
