Audio-Technica Corporation WIRELESS MICROPHONE RECEIVER P52524 System10 Camera Mount OM indd
User Manual
System 10 Portable Camera-Mount Wireless
Digital Wireless System
Installation and Operation
ATW-1701
UniPak® Transmitter System
ATW-1702
Handheld Microphone System
RX
TX
RF
PEAK
PAIR
SYSTEM
ID
PAIR
MONITOR CHARGE
System 10 Portable Camera-Mount Wireless Installation and Operation
2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
CAUTION on handling receiver battery
• Battery packs may explode or release toxic materials. Risk of re or burns. Do not open,
crush, modify, disassemble, heat above 140°F (60°C) or incinerate.
• Battery must be replaced and recycled by qualied service personnel. Do not attempt to
replace battery on your own.
• If the battery leaks and the liquid contacts your skin or clothing, immediately ush with
clean water.
• If the battery leaks and the liquid contacts your eyes, immediately wash thoroughly with
clean water and seek medical assistance.
• Do no short circuit; may cause burns or catch re.
• Charge battery only with the supplied AC adapter and USB cable.
Thank you for choosing an Audio-Technica professional wireless
system. You have joined thousands of other satised customers who
have chosen our products because of their quality, performance and
reliability. This wireless microphone system is the successful result of
years of design and manufacturing experience.
Audio-Technica’s System 10 Portable Camera-Mount is a digital wireless
system designed to provide rock-solid performance along with easy
setup and clear, natural sound quality. Featuring a compact design,
System 10 Portable Camera-Mount is available in handheld, lavalier
and body-pack congurations. Operating in the 2.4 GHz range, far
from TV and DTV interference, System 10 Portable Camera-Mount
offers extremely easy operation and instantaneous channel selection.
Up to eight channels may be used together without any frequency
coordination problems or group selection issues.
System 10 wireless ensures clear communications by providing three
levels of diversity assurance: frequency, time, and space. Frequency
Diversity sends the signal on two dynamically allocated frequencies
for interference-free communication. Time Diversity sends the signal
in multiple time slots to maximize immunity to multipath interference.
Finally, Space Diversity uses two antennas on each transmitter and
receiver to maximize signal integrity.
Each System 10 professional digital wireless system includes a receiver
and camera shoe mount, and either a body-pack transmitter or a
handheld microphone/transmitter.
Because System 10 packaging is designed to hold all versions of
the system, some compartments in the carton may be intentionally
left empty.
The ATW-R1700 receiver includes a switching power supply that
automatically adapts to changes in mains voltage.

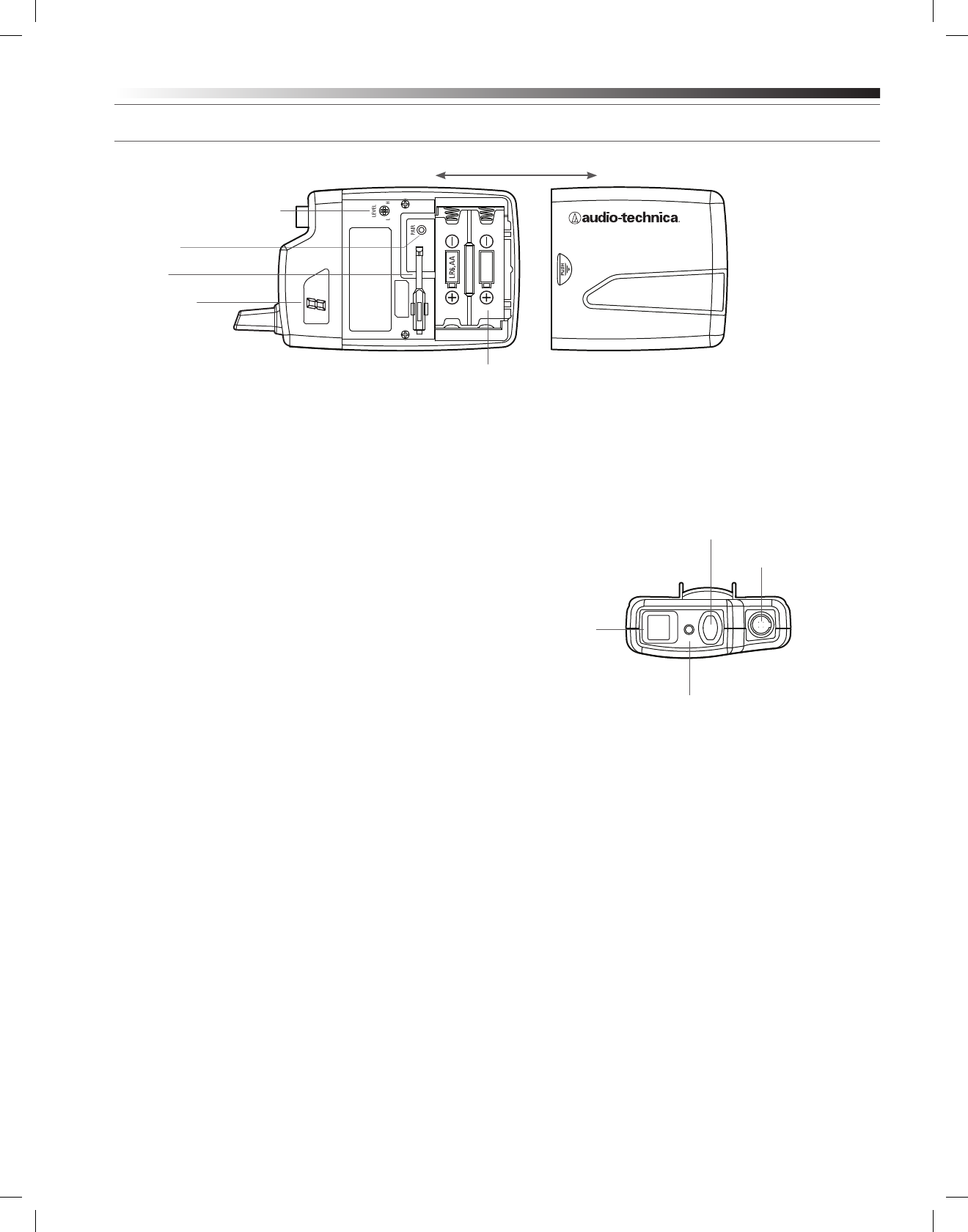

The versatile ATW-T1001 UniPak® body-pack transmitter has both a high-
impedance input for instruments, and a low-impedance input with bias
connection for use with dynamic and electret condenser microphones.

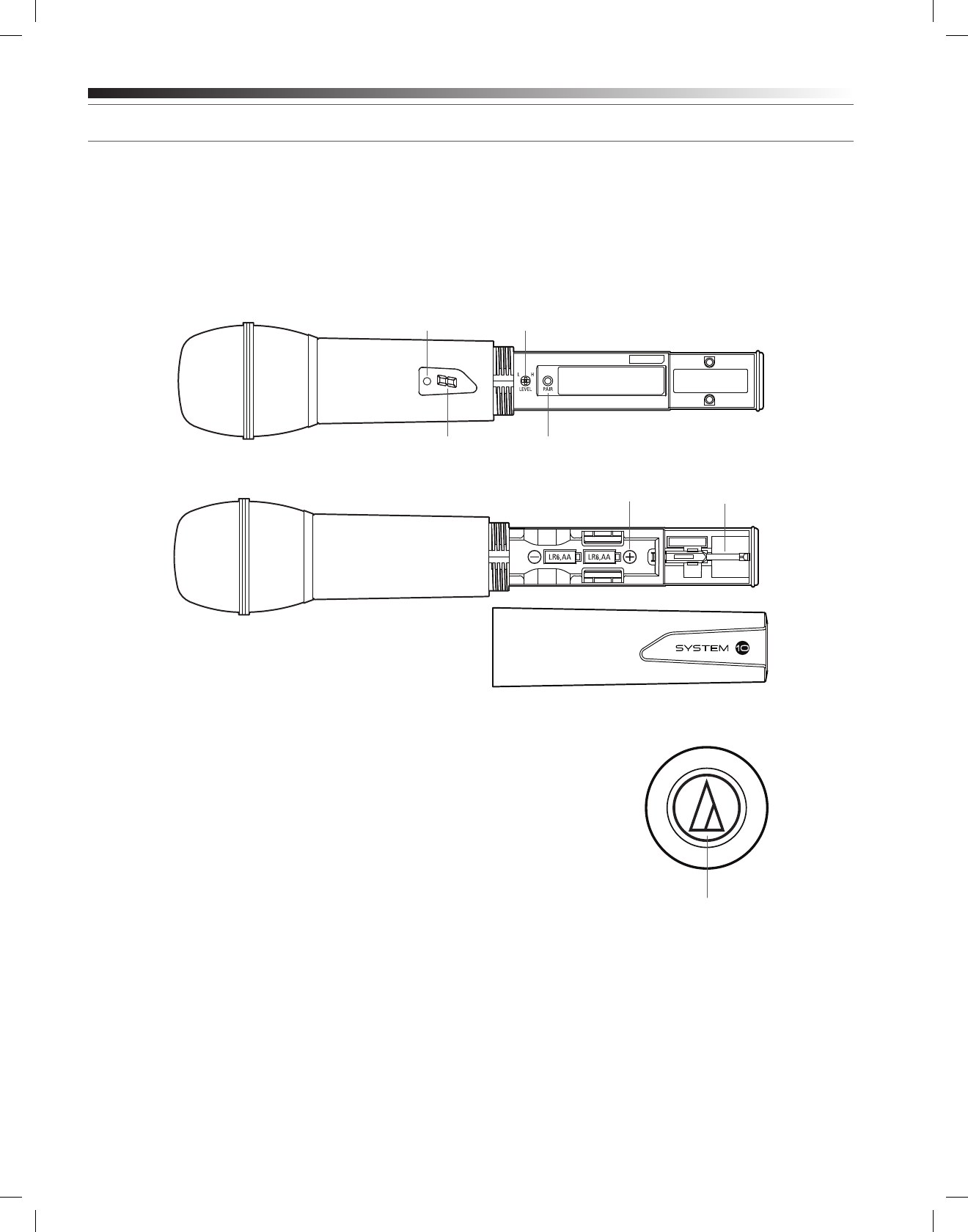

The ATW-T1002 handheld transmitter features a unidirectional dynamic
microphone element.
Both the body-pack and handheld transmitters use internal AA batteries
and have Power/Mute switches and input Trim (level) adjustments.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE
APPLIANCE TO RAIN OR MOISTURE.
CERTIFICATION: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. THIS DEVICE
COMPLIES WITH INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Cet appareil est conforme à la/aux norme(s) CNR exempte(s) de licence d’Industrie Canada.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas
causer d’interférence et (2) cet appareil doit accepter toutes les interférences, y compris celles
susceptibles de provoquer un fonctionnement non souhaité.
WARNING: Changes or modications not expressly approved in writing by Audio-Technica may
void the user’s authority to operate this equipment.
RF Exposure Statement: This transmitter must not be co-located or operated in conjunction
with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the
IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure evaluation. (MPE). But it is desirable
that it should be installed and operated keeping the radiator at least 20cm or more away from
person’s body.
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées
pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences
radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui
est considérée conforme sans évaluation de l ’exposition maximale autorisée. Cependant, il
est souhaitable qu'il devrait être installé et utilisé en gardant une distance de 20 cm ou plus
entre le dispositif rayonnant et le corps.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil umerique de la
classe B est conforme a la norme NMB-003 du Canada.
CAUTION! Electrical shock can result from removal of the receiver cover. Refer servicing
to qualied service personnel. No userserviceable parts inside. Do not expose to rain or
moisture. The circuits inside the receiver and transmitter have been precisely adjusted for
optimum performance and compliance with federal regulations. Do not attempt to open the
receiver or transmitter. To do so will void the warranty, and may cause improper operation.
Danger of explosion if battery is replaced incorrectly. If battery dies, send receiver to
Audio-Technica or other qualied service center so battery can be replaced with same or
equivalent type. Likewise, send damaged, inoperable receivers to Audio-Technica or other
qualied service center for recycling—do not throw away receiver as its battery contains
toxic materials.
Notice to individuals with implanted cardiac pacemakers or AICD devices: Any
source of RF (radio frequency) energy may interfere with normal functioning of the implanted
device. All wireless microphones have low-power transmitters (less than 0.05 watts output)
which are unlikely to cause difculty, especially if they are at least a few inches away.
However, since a “body-pack” mic transmitter typically is placed against the body, we suggest
attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent
to the medical device. Note also that any medical-device disruption will cease when the RF
transmitting source is turned off. Please contact your physician or medical-device provider
if you have any questions, or experience any problems with the use of this or any other RF
equipment.
System 10 Portable Camera-Mount Wireless Installation and Operation
3
Receiver Installation
Location
For best operation the receiver should be at least 3' (1 m) above the
ground and at least 3' (1 m) away from a wall or metal surface to minimize
reections. Keep the receiver antennas away from noise sources such
as other digital wireless equipment, microwave ovens, as well as away
from large metal objects. Keep System 10 receiver 30' (9 m) away from
wireless access points. In multi-channel systems, position receivers at
least 3' (1 m) apart and keep operating transmitters at least 6' (2 m) from
the receivers to help assure maximum RF performance.
Output Connection
The ATW-R1700 has a single audio output jack that accepts the 3.5 mm
(1/8") cable included in the package.
Use the Audio Output Selector Switch to choose between a balanced
and an unbalanced dual mono signal.
The 3.5 mm (1/8") Headphone Monitor output works with mono or stereo
headphones (the output sends a dual mono audio signal to stereo
headphones). Use the Headphone Level Control to adjust the volume.
Power Connection
NOTE: Use only the supplied AC adapter and power cord to power or
charge receiver. To use AC power, connect the power cord’s USB A-type
male port to the AC adapter and connect the Micro-USB B port to the
USB Power Input on the side of the receiver. Next, plug the adapter
into a standard 120 Volt 60 Hz or 230 volt 50 Hz (depending on global
location) AC power outlet. The AC adapter and USB cable also charges
the receiver’s internal battery. Charge battery in an environment with
moderate temperature (41°F – 95°F). The system will not charge in
temperatures below 32°F or above 104°F in order to prevent potential
damage to battery. For safety and to conserve energy, unplug the
AC adapter from the AC outlet when the system is not in use. Store
receiver in a cool place.
Antennas
For best reception, position the removable antennas in the shape of a
“V” so that both tilt 45°.

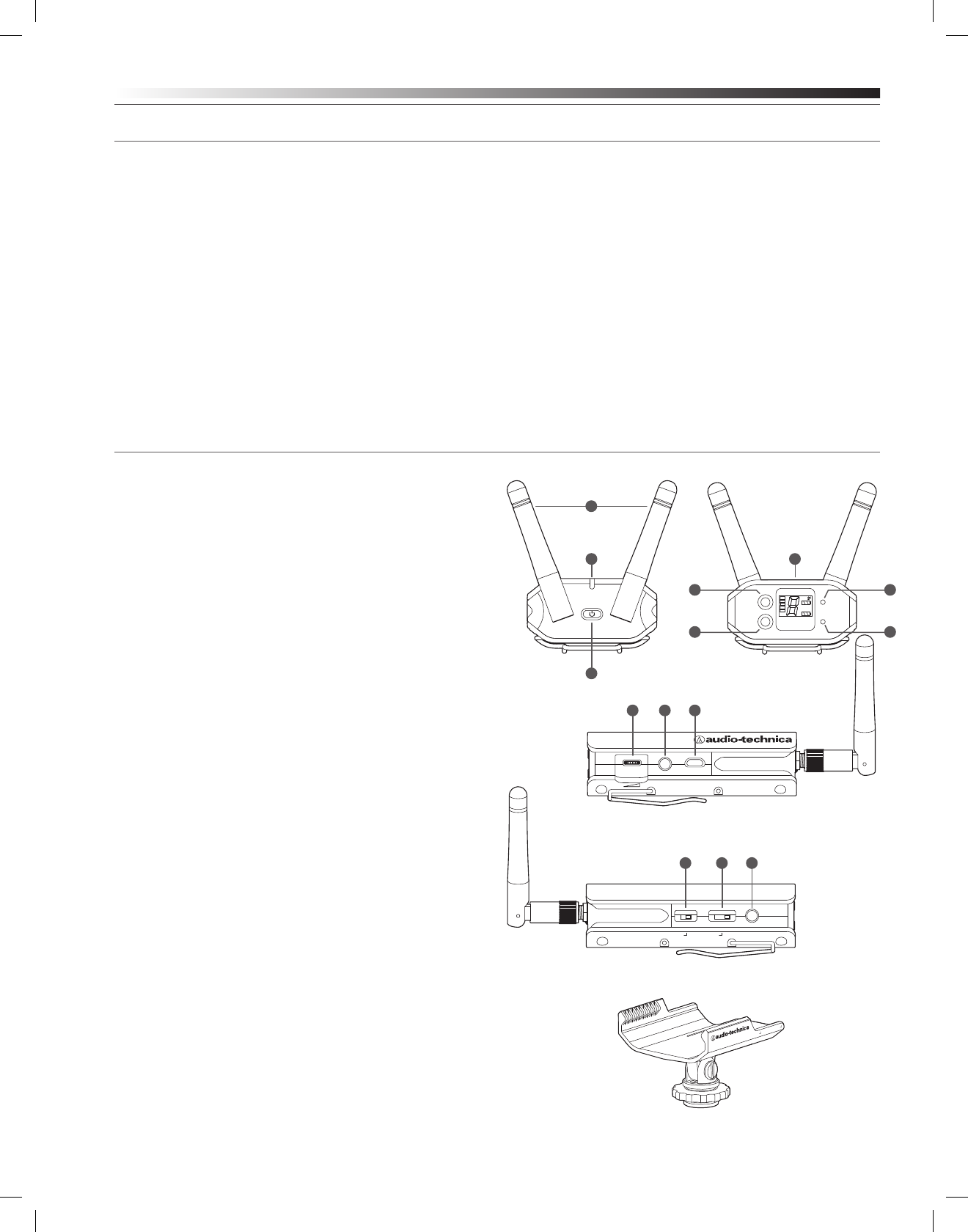

ATW-R1700 Receiver Controls and Functions
Figure A — Front Panel Controls and Functions
1. Removable Antennas: Position the antennas as shown.
2. Power/Battery Indicator: Glows green when receiver is on and
battery is charged. Flashes green when battery needs to be
charged. Glows red when battery is charging.
3. Power Switch: Press and hold to turn receiver on or off.
Figure B — Rear Panel Controls and Functions
4. System ID Select Switch: Press to cycle through System ID
numbers. (System ID is the identical number assigned to a paired
receiver and transmitter.)
5. Pairing Switch: Press to initiate pairing
6. LCD System Display contains:
a. RF Signal Level Indicator: shows strength of the RF signal
received from the transmitter
b. The System ID Display: shows the System ID number
c. The Receiver Battery Gauge RX: shows the capacity of the
receiver’s internal battery/charging status
d. The Transmitter Battery Gauge TX: shows the capacity of the
transmitter’s batteries
7. AF Peak Indicator: Only lights when audio distortion is present at
maximum modulation. Attenuator does not affect the indicator.
8. Pairing Indicator: Flashes green in pair mode. Glows green when
transmitter is paired.
Figure C — Right Side Controls and Functions
9. Headphone Level Control: This control is used to adjust the volume
of the signal sent to the headphones. Roll control to the right to
increase the volume.
10. Headphone Monitor: Accepts 3.5 mm (1/8") connector. Plug in
either a mono or stereo headphone to monitor receiver signal.
11. Power Input: Connect the AC Power Supply adapter included in
the system to charge/operate the receiver.
Figure D— Left Side Controls and Functions
12. Audio Output Selector Switch: Move left for balanced output or
right for unbalanced (dual mono) output.
13. Audio Output Attenuator Switch: Default is 0 dB. Move one stop left
to reduce he audio output by 10 dB or two stops left to reduce
output by 20 dB.
14. Audio Output Jack: TRS balanced or unbalanced (dual mono)
3.5 mm (1/8") jack. Can be connected to the input of a camera or mixer.
Figure E— Camera Shoe Mount
Camera Shoe Mount allows receiver to be attached to a camera or tripod.
Slide mount onto receiver from the rear so mount engages the grooves
on the sides of the receiver and slips under the clip on the bottom. Slide
until rear of mount is ush with rear of receiver. The mount bracket
PEAK
RX
TX
RF
SYSTEM
ID
PAIRPAIR
MONITOR CHARGE
OUTPUT
DUAL MONO
|
BAL ATT. -20
|
-10
|
0
DUAL MONO
|
BAL ATT. -20
|
-10
|
0
1
2
9
12
10
13
11
14
6
3
Figure A
Figure C
Figure D
Figure E
Figure B
4 7
5 8
connects to the hot shoe of most DSLR cameras: slide into shoe and
tighten nut to secure. The bracket’s ¼" socket also allows it to be attached
to a tripod, shoulder rig or other device with a ¼" screw.
System 10 Portable Camera-Mount Wireless Installation and Operation
4
ATW-T1002 Transmitter Setup Controls and Functions
Battery Selection and Installation
Two alkaline AA batteries are recommended. When inserting the battery,
observe correct polarity as marked inside the battery compartment.
Figure F — ATW-T1002 Handheld Transmitter
Handheld Transmitter Battery Installation
1. While holding the upper part of the transmitter body just below the
ball-screen, unscrew the lower body cover and slide it off to expose
the battery compartment (Fig. F).
2. Carefully insert two fresh AA alkaline batteries, observing
polarity markings.
3. Screw the body back together. Do not overtighten.
Handheld Transmitter Battery Condition Indicator
After the batteries are installed, press and hold the Power/Mute switch
on the bottom of the handheld transmitter until the indicator LED turns
green. If the indicator LED does not light up when the Power/Mute
switch is pressed, the batteries are installed incorrectly or they are
dead. The indicator LED will ash to show low-battery condition.
Handheld Transmitter Mute Function
With the transmitter on, a slight touch of the power switch will toggle
between muted and unmuted operation. Red indicator LED shows
muted operation. Green indicator LED shows unmuted operation.
Handheld Transmitter Mute Lock Function
Transmitter must be off to activate mute lock. Press and hold the Pairing
Switch and then press and hold the Power/Mute button until transmitter
powers on. Note: There is no dot next to the System ID when mute
lock is activated.
Transmitter must be off to deactivate mute lock. Press and hold the
Pairing Switch and then press and hold the Power/Mute button until
transmitter powers on. When deactivated, a dot will display next to the
System ID.
Level Control
System ID Display Pairing Switch
Screwdriver
Power/Mute Switch
Battery
Compartment
Power / Battery / Mute
Status Indicator
Handheld Transmitter Pairing Switch
Used to complete pairing sequence. See page 6.
Handheld Transmitter Level Control
Used to set microphone level. See page 6.
Handheld Transmitter Screwdriver
Used to adjust Level Control. See page 6.
Handheld Transmitter System ID Display
Shows System ID. See page 6. Note: System ID is an identical number
assigned to a paired receiver and transmitter for identication purposes.
When Power is applied, the System ID Display on the transmitter glows
bright and then turns off to conserve battery life. To turn the System ID
Display back on, mute and unmute the transmitter.
System 10 Portable Camera-Mount Wireless Installation and Operation
5
Figure G — ATW-T1001 UniPak®
Transmitter
UniPak® Transmitter Battery Installation
1. Slide off the battery cover.
2. Carefully insert two fresh AA alkaline batteries, observing polarity
markings.
3. Replace the battery cover (Fig. G).
UniPak® Transmitter Power/Mute/Battery Indicator
After the battery is installed, press and hold the Power/Mute button
until the indicator LED turns green (Fig. H). If the indicator LED does not
light up when the power button is pressed, the batteries are installed
incorrectly or they are dead. The indicator LED will ash to show low-
battery condition.
UniPak® Transmitter Mute Function
With the transmitter on, a slight touch of the Power/Mute button will
toggle between muted and unmuted operation. Red indicator LED shows
muted operation. Green indicator LED shows unmuted operation.
UniPak® Transmitter Mute Lock Function
Transmitter must be off to activate mute lock. Press and hold the Pairing
Switch and then press and hold the Power/Mute button until transmitter
powers on. Note: There is no dot next to the System ID when mute
lock is activated.
Transmitter must be off to deactivate mute lock. Press and hold the
Pairing Switch and then press and hold the Power/Mute button until
transmitter powers on. When deactivated, a dot will display next to the
System ID.
UniPak® Transmitter Input Connection
Connect an audio input device (microphone or guitar cable) to the
audio input connector on the top of the transmitter. A number of
Audio-Technica professional microphones and cables are available
separately, pre-terminated with a UniPak® input connector (see
www.audio-technica.com).
UniPak® Transmitter Antenna
The UniPak® transmitter includes a permanently-attached antenna. If
the received signal is marginal, experiment with different transmitter
positions on your body or instrument; or try repositioning the receiver.
Do not attempt to remove, replace or change the length of the
transmitting antenna.
UniPak® Transmitter Pairing Switch
Used to complete pairing sequence. See page 6.
UniPak® Transmitter Microphone/Instrument Level Control
Used to set microphone/instrument level. See page 6.
LR6,AA
Figure H — UniPak® Transmitter
Antenna
Input
Connector
Power/Mute
Button
System ID Display
Screwdriver
Microphone / Instrument Level Control
Pairing Switch
Indicator LED
(Power/Mute/Battery)
Battery Compartment
UniPak® Transmitter Screwdriver
Used to adjust Level Control. See page 6.
UniPak® Transmitter System ID Display
Shows System ID. See page 6. Note: System ID is an identical number
assigned to a paired receiver and transmitter for identication purposes.
When power is applied, the System ID Display on the transmitter glows
bright and then turns off to conserve battery life. To turn the System ID
Display back on, mute and unmute the transmitter.
System 10 Portable Camera-Mount Wireless Installation and Operation
6
System Operation
Turn down the headphone volume control and the camera/mixer
level before starting up the wireless system. Do not switch on the
transmitter yet.
Receiver on...
Press and hold receiver power button to turn receiver on. Power/Battery
indicator will glow green and the blue System ID number on the front
panel will illuminate.
If the Power/Battery indicator ashes green, the receiver’s battery
needs to be charged. You can charge the battery with the supplied
AC adapter and USB cable, following the instructions under Power
Connection on page 3. The LCD RX Battery Gauge will blink during
charging and a lightning bolt symbol will appear to the right of “RX.” The
Power/Battery indicator will glow red while the battery is charging and
turn green when charging is complete. Audio-Technica recommends
fully charging the internal battery before using the receiver for the rst
time. Average charge time takes 4 hours 30 minutes. To help maintain
the battery, it is best to operate the receiver (at least occasionally)
without the AC power supply and recharge when needed. Also, avoid
storing a fully charged receiver for a long period of time.
Transmitter on...
When the transmitter is switched on, the receiver's green pair indicator
will light, and two indicators light on the transmitter: the transmitter
Power / Battery / Mute status indicator will glow green; and the
transmitter blue System ID display will illuminate. The blue System ID
display on the transmitter and receiver turns off after 30 seconds to
conserve battery power; the transmitter Power / Battery / Mute status
indicator will remain illuminated, indicating transmitter status.
To re-illuminate System ID display, press the Power / Mute switch.
Note: this will alter the transmitter mute status. A slight touch of the
power switch toggles between muted and unmuted operation.
The transmitter’s Power / Battery / Mute status indicator glows red
when transmitter is muted, or green to indicate unmuted status. In a
low-battery situation, the Power / Battery / Mute status indicator begins
to blink.
The transmitters have a soft-touch power switch. When the switch is
set to “Mute” (red indicator LED), the transmitter produces RF with
no audio signal. When the switch is “On” (green indicator LED) the
transmitter produces both RF and audio. Excessive audio input to the
transmitter will cause the receiver’s red AF Peak indicator to light.
Receiver Attenuator
Typically, the receiver Audio Output Attenuator switch should be set
at 0dB, and the overall gain should be adjusted from the camera. If a
camera lacks that capability or if sensitivity is too high, use the Audio
Output Attenuator switch to reduce the gain until the signal does
not distort.
Input Level Adjustment
Input trimmer controls in the transmitters enable you to maximize
performance for a particular microphone or guitar sensitivity, or to
adjust for different acoustic input levels.
Adjusting Input Level — UniPak® Transmitter
Slide the battery cover off the transmitter and remove the screwdriver
from its clip. Using the screwdriver, gently turn the “VOL” (Volume
– Microphone/Instrument Level) all the way up (clockwise, toward
“H”). Check for excessive gain by speaking / singing into the
microphone at typically loud levels while watching the receiver’s
Peak Indicator. If the Peak indicator does light, turn the “VOL” control
slightly counterclockwise until the Peak indicator no longer lights with
maximum audio input to the transmitter.
Adjusting Input Level — Handheld Transmitter
Unscrew the lower body cover and slide it off, exposing the screwdriver
and "LEVEL" (Gain Trimmer) control (Fig. C). Remove the screwdriver
from its clip. Gently turn the "LEVEL" control to its full clockwise
position (toward the side marked “H”), the factory setting. Check for
excessive gain by speaking/singing into the microphone at typically loud
levels while watching the receiver’s AF Peak indicator. If the AF Peak
indicator does light, turn the "LEVEL" control slightly counterclockwise
until the AF Peak indicator no longer lights with maximum audio input
to the mic/transmitter.
Return the screwdriver to its clip and close and secure the lower body.
No further transmitter gain adjustments should be needed, as long as
the acoustic input does not change signicantly.
CAUTION! The small trimmer controls are delicate; use only the
supplied screwdriver. Do not force the trimmers beyond their normal
190° range of rotation.
Return the screwdriver to its storage clip when not in use.
Setting System ID Number & Pairing your Transmitter and Receiver
Your system has been precongured at the factory to operate with no
other pairing setup required; it will work out of the box. That is, your
receiver and transmitter are already a digital pair, and they have been
assigned the same System ID number.
The pairing instructions outlined below will help you if you nd
it necessary to change system ID numbers in multiple-system
congurations, or pair a new transmitter to an existing receiver.
NOTE: System ID is an identical number assigned to a paired
receiver and transmitter for identication purposes. The System ID
number is not related to transmitting frequency. Due to the dynamic
nature of System 10 automatic frequency selection, the actual
transmitting frequencies may change during power-up or performance.
These frequency changes are seamless and imperceptible to the ear.
Single System — Pairing/System ID Instructions
Note: Up to eight transmitters can be paired with a single receiver,
however the multiple transmitters cannot be used simultaneously.
1. Turn on the receiver and the rst transmitter
2. Press the System ID button on the receiver to choose an ID number.
The receiver’s display will show the new ID and begin to blink.
3. Within 15 seconds, press the Pair button on the receiver. Hold it
for a second. The Pair light will blink green. The receiver is now in
Pair mode.
Note: If the Pair button isn’t pressed within 15 seconds, the system
ID number will revert to its earlier setting.
4. Open the transmitter. Press and hold its Pair button within 30
seconds of entering Pair mode. The transmitter display will show
the System ID number chosen on the receiver. If the pairing is
successful, the Pair light will glow steadily on the receiver.
5. To pair an additional system, turn off the rst transmitter by pressing
and holding its Power/Mute button. Turn on the second transmitter
and repeat steps 2-4. Be sure to assign a different ID number to
each transmitter. Turn off all paired transmitters before adding
another one.
System 10 Portable Camera-Mount Wireless Installation and Operation
7
For future reference, please record your system information here (the serial number
appear on each transmitter, and on the bottom of each receiver):
Receiver
Model ATW-R1700 Serial Number
Transmitter
Model ATW-T100 Serial Number
1 or 2
System Frequencies
Multiple Systems — Pairing/System ID Instructions
Note: Up to eight systems may be used together without any
frequency coordination problems or group selection issues.
1. Turn the rst receiver and rst transmitter on.
2. Push the System ID button on your rst receiver to choose an ID
number from 1 to 8. The receiver’s display will show your new ID
and begin to blink.
3. Within 15 seconds, push and hold the Pair button on your rst
receiver for about one second. The pair light will begin to blink
green. Your rst receiver is now in Pair mode.
Note: If the receiver pair button is not pushed within 15 seconds,
the system ID number will revert to its previous setting.
4. Open your rst transmitter and push its Pair button within 30
seconds* of entering Pair mode. The rst transmitter display
will now show the System ID number you have chosen for your
rst receiver. The Pair light will glow steady, indicating you have
successfully paired your rst system.
5. Repeat for each additional system, identifying each system with its
own unique ID number.
Note: While unique System ID numbers are not required, we
recommend assigning unique System ID numbers for each transmitter-
receiver pair. As noted previously, System ID numbers are not related to
transmitter frequency; they are provided for user convenience only.
*If transmitter pair button is not pushed within 30 seconds, the system
will revert to its previous settings.
Ten Tips to Obtain the Best Results
1. Use only fresh alkaline or fully charged replaceable batteries for the
transmitter.
2. Position the receiver so that it has the fewest possible obstructions
between it and the normal location of the transmitter. Line-of-sight
is best.
3. The transmitter and the receiver should be as close together as con-
veniently possible, but not less than 6' (2 m).
4. While System 10 has been designed to conveniently mount on
cameras, please keep other wireless devices (including wireless
systems and routers) away from System 10 receivers. For best
performance, some routers and Wi-Fi-based wireless systems may
need to be up to 30 feet away from System 10 receivers.
5. The receiver antennas should be kept away from any metal.
6. Use the transmitter level control to optimize performance for your
sound source.
7. If the receiver output is set too low, the overall signal-to-noise ratio
of the system may be reduced. Conversely, if the Attenuator of the
receiver is set too high, it may over-drive the input of the camera/
mixer, causing distortion. Adjust the output level of the receiver so
the highest sound pressure level going into the camera/mixer causes
no input overload, and yet permits the camera/mixer level controls
to operate in their “normal” range (not set too high or too low). This
provides the optimum signal-to-noise for the entire system.
8. Turn the transmitter off when not in use. Remove the battery if the
transmitter is not to be used for a period of time.
9. Unplug the receiver from the AC outlet when the system is not
in use.
System Operating Frequencies
Automatic Frequency Selection
System 10 wireless systems operate in automatically selected frequen-
cies in the 2.4 GHz range, far from TV and DTV interference. Up to eight
channels may be used together without any frequency coordination
problems or group selection issues. Every time a receiver/transmitter
pair is powered on, it automatically selects clear frequencies. Due to
the dynamic nature of System 10 automatic frequency selection, these
transmitting frequencies may change during power-up or performance if
interference is encountered. These frequency changes occur at both the
receiver and transmitter; they are seamless and imperceptible to the ear.
System 10 Portable Camera-Mount Wireless Installation and Operation
Audio-Technica Corporation
audio-technica.com ©2014 Audio-Technica P52524
43
2
1
OVERALL SYSTEM
Operating Frequencies 2.4 GHz ISM band
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Range 30 m (100') radius, 60 m (200')
diameter typical
Open range environment with no interfering signals
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at
very low temperatures
Frequency Response 20 Hz to 20 kHz
Depending on microphone type
Audio Sampling 24 bit / 48 kHz
RECEIVER
Receiving System Diversity (frequency/time/space)
Maximum Output Level 3.5 mm (
1/8"), TRS
balanced: +6 dBV Dual
mono, unbalanced: 0 dBV
Monitor Output Level 3.5 mm (
1/8"):
70 mW +70 mW (32Ω)
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A
switched mode USB-type external
power supply
Internal Battery 3.7V rechargeable Li-ion battery
Battery Life 12 hours
Depending on environmental conditions
Battery Charging Time 4 hours 30 minutes
Depending on environmental conditions
Charging Temperature Range 5° C to +35° C (41° F to 95° F)
Dimensions 56.0 mm (2.20") W x 91.4 mm (3.60") H x
27.8 mm (1.09") D
Net Weight 105 grams (3.7 oz)
Accessories Included Two antennas; camera shoe mount; AC
adapter (USB-type); USB cable; 3.5 mm
(
1/8"
) stereo cable
UNIPAK® TRANSMITTER
RF Output Power 10 mW
Spurious Emissions Following federal and national regulations
Input Connection Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries (not included) Two 1.5V AA
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x
24.9 mm (0.98") D
Net Weight (without batteries) 100 grams (3.5 oz)
HANDHELD TRANSMITTER
RF Output Power 10 mW
Spurious Emissions Following federal and national regulations
Batteries (not included) Two 1.5V AA
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 254.8 mm (10.03") long,
50.0 mm (1.97") diameter
Net Weight (without batteries) 280 grams (9.9 oz)
Accessory Included AT8456a Quiet-Flex™ stand clamp
† In the interest of standards development, A.T.U.S. offers full details on its test methods to
other industry professionals on request.
Specications
To reduce the environmental impact of a multi-language printed document, product information
is available online at www.audio-technica.com in a selection of languages.
An de réduire l’impact sur l’environnement de l’impression de plusieurs langues, les
informations concernant les produits sont disponibles sur le site www.audio-technica.com dans
une large sélection de langue.
Para reducir el impacto al medioambiente, y reducir la producción de documentos en varios
leguajes, información de nuestros productos están disponibles en nuestra página del Internet:
www.audio-technica.com.
Para reduzir o impacto ecológico de um documento impresso de várias linguas, a Audio-Technica
providência as informações dos seus produtos em diversas linguas na www.audio-technica.com.
Per evitare l’impatto ambientale che la stampa di questo documento determinerebbe, le
informazioni sui prodotti sono disponibili online in diverse lingue sul sito www.audio-technica.com.
Der Umwelt zuliebe nden Sie die Produktinformationen in deutscher Sprache und weiteren
Sprachen auf unserer Homepage: www.audio-technica.com.
Om de gevolgen van een gedrukte meertalige handleiding op het milieu te verkleinen, is
productinformatie in verschillende talen “on-line” beschikbaar op: www.audio-technica.com.
www.audio-technica.com
本公司基于减少对环境的影响，将不作多语言文檔的印刷，有关产品信息可在
www.audio-technica.com的官方网页上选择所属语言和浏览。
