Audio Technica SR5BT WIRELESS HEADPHONES User Manual
Audio-Technica Corporation WIRELESS HEADPHONES Users Manual
Users Manual
ATH-SR5BT Wireless Headphones
User Manual
ATH-SR5BT
Wireless Headphones
Model name: ATH-SR5BT-BK
ATH-SR5BT-WH
2
Thank you for purchasing the Audio-Technica product.
Before using the product, read through this user manual to ensure that you will use the product correctly. Also, keep this
manual handy for easy reference when needed.
Caution
Read these cautions before using the product.
To ensure safety, observe all warnings and cautions while using the product.
• Do not use the product near medical equipment. Radio
waves may affect cardiac pacemakers and medical
electronic equipment. Do not use the product inside
medical facilities.
• Do not use the product in aircrafts. Radio waves may
affect electronic equipment and cause accidents due to
malfunction.
• Do not use the product near automatic control devices
such as automatic doors and fire alarms. Radio waves
may affect electronic equipment and cause accidents
due to malfunction.
• Disconnect the product from the devise if you encounter
any malfunction like noise, smoke, smell, heat or damage
with the product. In such case, contact your local Audio-
Technica dealer.
• Do not disassemble, modify or attempt to repair the
product to avoid electric shock, malfunction or fire.
• Do not subject the product to strong impact to avoid
electric shock, malfunction or fire.
• Do not handle the product with wet hands to avoid
electric shock or injury.
• Do not allow the product to get wet to avoid electric
shock or malfunction.
• Do not put foreign matter such as combustible materials,
metal, or liquid in the product.
• Do not cover the product with a cloth to avoid fire or
injury by overheating.
• Follow applicable laws regarding mobile phone and
headphone use if using headphones while driving.
• Do not use the product in places where the inability to
hear ambient sound presents a serious risk (such as at
railroad crossings, train stations, and construction sites).
• To prevent damage to your hearing, do not raise the
volume too high. Listening to loud sound for an extended
period may cause temporary or permanent hearing loss.
• Discontinue use if skin irritation results from direct
contact with the product.
• Be careful to avoid pinching yourself between the
housing and the arm of product.
• Do not store the product under direct sunlight, near
heating devices or in a hot, humid or dusty place to avoid
malfunction.
• To ensure compatibility and correct usage, always
consult the user manual of any device before connecting
the product to it.
• On public transport systems or in other public places,
keep the volume low so as not to disturb other people.
• Audio-Technica will not be liable in any way for any loss
of data in the unlikely event that such losses should
occur while using the product.
• Minimize the volume on your audio device before
connecting the product in order to avoid hearing damage
from sudden exposure to excessive volume.
• When using the product in a dry environment, you may
feel a tingling sensation in your ears. This is caused
by static electricity accumulated on your body, not by
product malfunction.
• Because the product includes metal, it can become cold.
• When the product is used for a long time, the product
may become discolored due to ultraviolet light (especially
direct sunlight) or wear.
• The included cable may become caught or severed if the
product is placed in a bag or pocket without adequate
protection. Always store the product in the included
pouch after disconnecting the cable.
• Connect/disconnect the included cable by holding the
plug. Pulling directly on the cable can result in a broken
wire and the risk of electric shock.
• Do not subject the button or switch to excessive force to
avoid damaging it.
• Reception on the product is available only through the
mobile telephone network. Note that performance of
other types of phone reception (phones using other
wireless applications) cannot be guaranteed.
• If you use the product close to an electronic device or
transmitter (such as a mobile phone), a noise may be
generated in the product. In this case, keep the product
away from the electronic device or transmitter.
• If you use the product near a TV or radio antenna, noise
may be generated in the television or radio. In this case,
keep the product away from the TV or radio antenna.
• Do not use cables other than the included ones. Doing
so can result in malfunction.
Introduction
Safety precaution
English
3
Safety precaution
Caution for rechargeable battery
The product is equipped with a rechargeable battery (lithium polymer battery).
• If battery fluid gets into eyes, do not rub them. Rinse
thoroughly with clean water such as tap water and
consult a doctor immediately.
• If battery fluid leaks, do not touch fluid with bare
hands. If fluid remains inside the product, it may cause
malfunction. If battery fluid leaks, contact your local
Audio-Technica dealer.
– If fluid gets in your mouth, gargle thoroughly with
clean water such as tap water and consult a doctor
immediately.
– If your skin or clothing comes in contact with fluid,
immediately wash the affected skin or clothing with
water. If you experience skin irritation, consult a doctor.
• Never heat, disassemble or modify the battery, nor
dispose of it in a fire to avoid leakage, generation of heat
or explosion.
• Do not attempt to pierce with a nail, hit with a hammer
or step on the battery to avoid generation of heat,
damage or ignition.
• Do not drop the product or subject it to strong impact
to avoid leakage, generation of heat or explosion.
• Do not get the battery wet to avoid generation of heat,
explosion or ignition.
• Do not use, leave or store the battery in the following places:
– Area exposed to direct sunlight or high temperatures
and humidity
– Inside of a car under the blazing sun
– Near heat sources such as heat registers

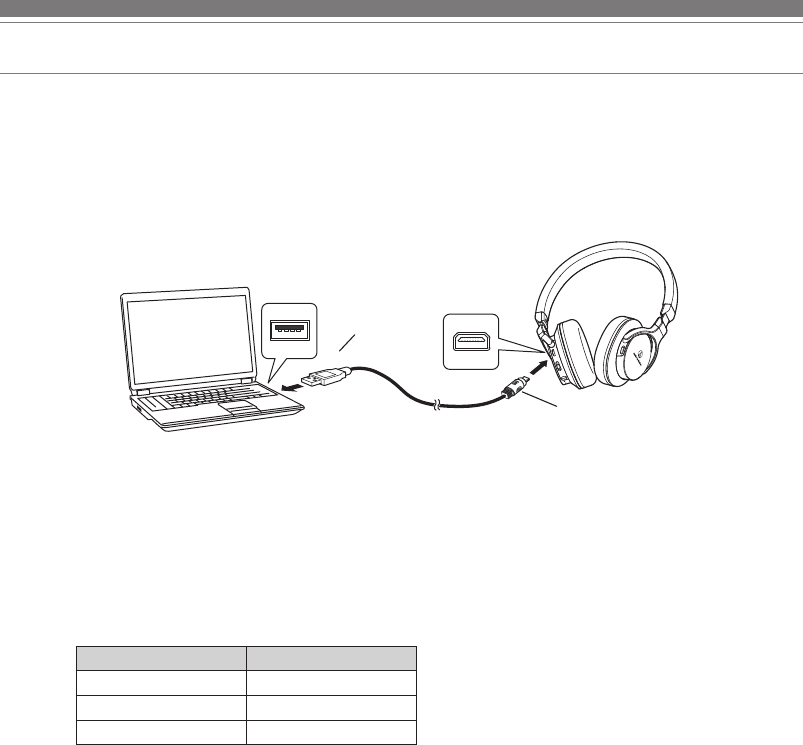

• Charge only with the included USB cable to avoid
malfunction or fire.
• After using the device, be sure to switch it off. Leakage
often occurs due to battery drain that results from a
failure to switch off device.
• To protect the built-in rechargeable battery, charge it at
least once every half year. If you leave it too long, you
will have less rechargeable battery life or the battery may
not recharge at all.
• The battery may have reached the end of its service life if
the usage time becomes shorter even though the battery
is fully charged or if charging is still not complete after
more than 4 hours of continuous charging. In this case,
contact your local Audio-Technica dealer.
For customers in the USA
FCC Notice
Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
Caution
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
− Reorient or relocate the receiving antenna.
− Increase the separation between the equipment and
receiver.
− Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
− Consult the dealer or an experienced radio/TV
technician for help.
RF Exposure Statement
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter used in
other systems. This device complies with FCC radiation
exposure limits set forth for an uncontrolled environment
and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low levels of RF
energy that is deemed to comply without testing of specific
absorption rate (SAR).
For customers in Canada
IC statement
This device complies with INDUSTRY CANADA R.S.S. 210,
en conformité avec IC: RSS-210/CNR210.
Operation is subject to the following conditions: (1) This
device may not cause harmful interference and (2) this
device must accept any interference received, including
interference which may cause undesired operation.
CAN ICES-3 (B)/NMB-3(B)
Under Industry Canada regulations, this radio transmitter
may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful
communication.
• When you dispose of the product, you need to discard the built-in rechargeable battery. Contact your local Audio-Technica dealer about the method of disposal.
This device complies with Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
For customers in the Canada
IC statement
Notice) If you take the cover off which is the EarPad(left side),
you can see the information of FCC ID on it immediately.
4
Part names and functions
Included accessories
• Detachable 1.2 m (3.9’) headphone
cable for smartphones with in-line
controller/microphone unit (3.5 mm
(1/8”) gold-plated stereo mini-plug
(4 pole/L-shaped))
• USB charging cable • Pouch
Microphone
Use for phone calls
on the product.
Battery jack
Connect the included USB
charging cable to charge.

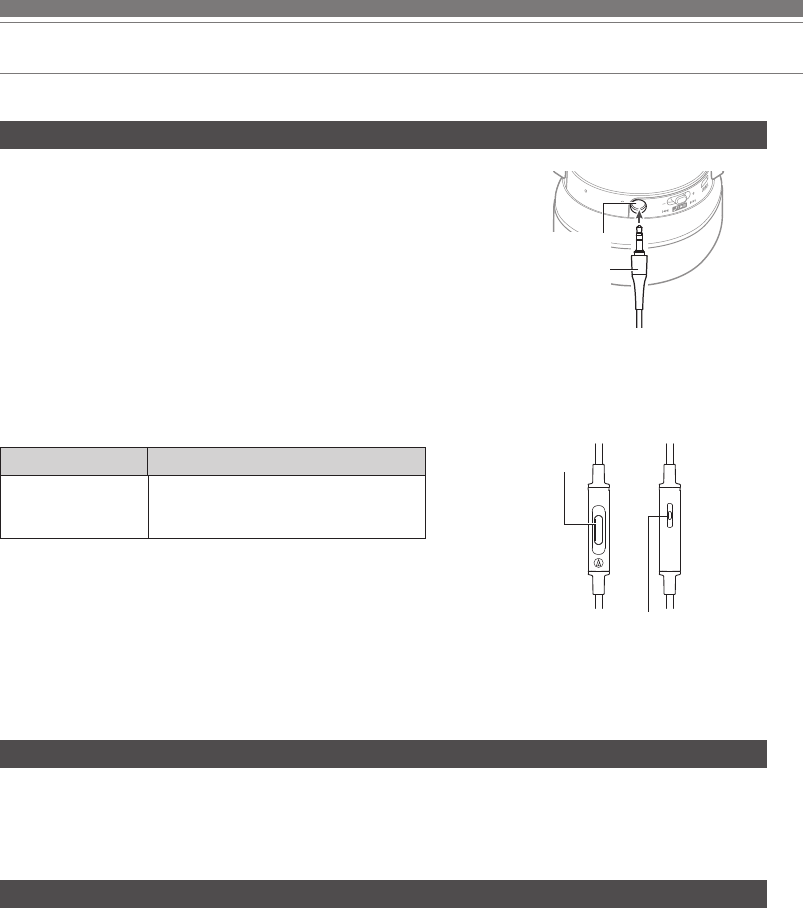

Headphone jack
Connect the included
headphone cable.

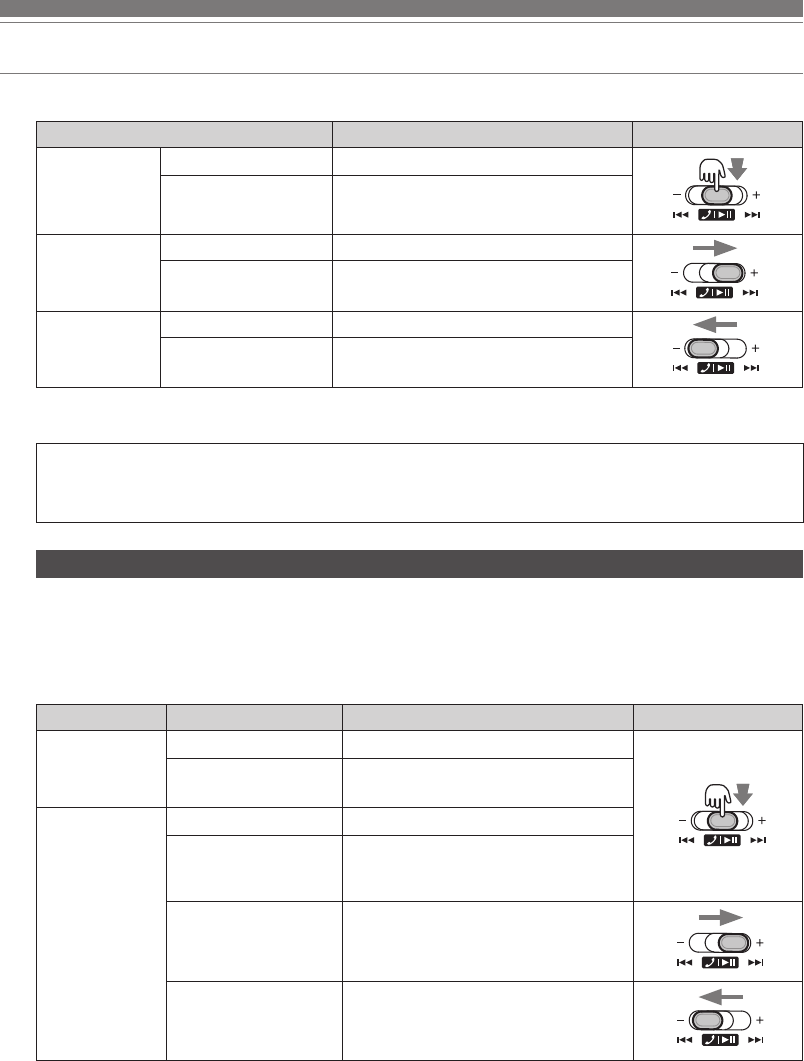

Jog switch
Use to turn the volume up/down,
play or pause music and video,
and go to the next/previous track.
Indicator lamp
Displays the
operating status of
the product.

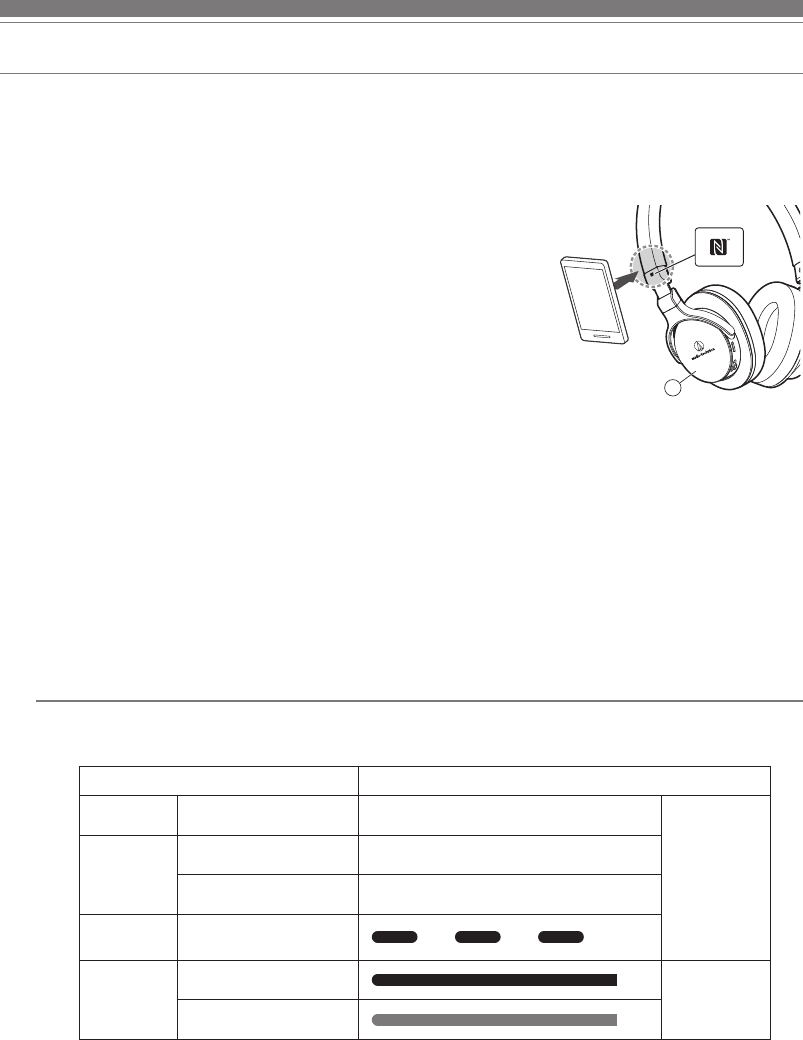

N-Mark
Shows the location
for detecting NFC.
Housing
Slider
Left/right (L/R)
indicator
Arm
Earpad

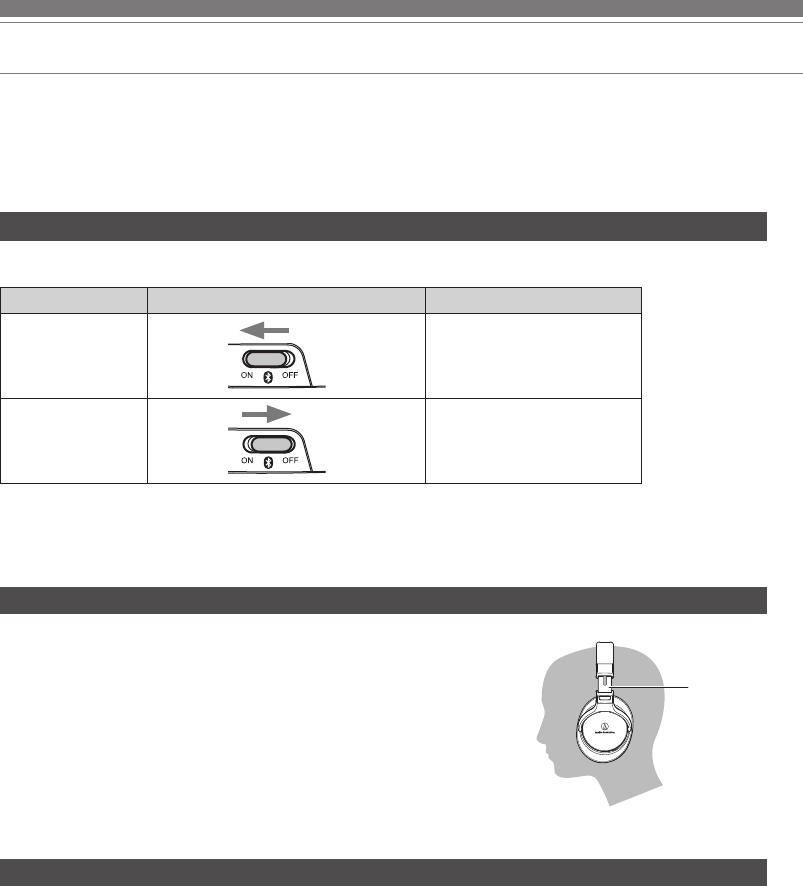

Power/pairing switch
Turns the power on/off.
Also performs pairing
when the power is
turned on.
Headband
(FCC ID in.)
English
5
How to charge
• Fully charge the battery when using for the first time.
• It takes about 4 hours to charge the battery fully. (It varies depending on service conditions.)
• The
Bluetooth
® wireless technology is disconnected during charging.
• The product is reset (via the reset function) when charging starts.
1 Connect the included USB charging cable (the micro USB terminal side) to the headphones’ battery
jack.
* The included USB charging cable is specifically designed to charge the product. Data cannot be
transferred to and from a computer.
2 Connect the included USB charging cable (the Type A side) to the computer and start charging.
3 During charging, the indicator lamp turns on/flashes as follows:
Indicator lamp Charging status
Lights in red Charging
Lights in blue Complete
Flashes in red Error*
* In case of a charging error, disconnect the product from your device and contact your Audio-Technica
dealer.
Computer
USB port Battery jack
USB charging cable (included)
Micro USB terminal
Type A
Battery jack
USB port
Type A
USB chargning cable (included)
Micro USB terminal
6

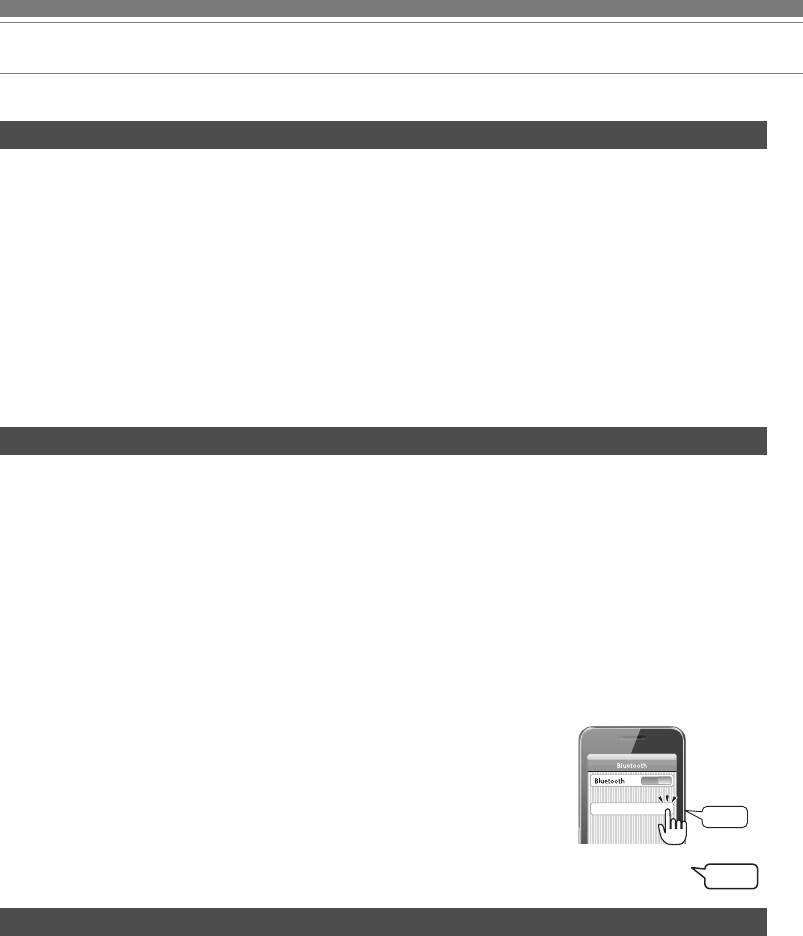

How to connect
About pairing
How to connect to an NFC-compatible device
How to perform pairing
To connect the product to a
Bluetooth
device, the product needs to pair (register) with the device. Once
they are paired, you do not need to pair them again.
However, you will need to pair again in the following cases:
- If the product is deleted from the
Bluetooth
device's connection history.
- If the product is sent out for repair.
- If the product is paired with 9 devices or more.
(The product can be paired with up to 8 devices. When you pair with a new device after pairing with 8
devices, pairing information for the device with the oldest connection date will be overwritten by the
information for new device.)
NFC (Near Field Communication) is a technology enabling short-range wireless communication between
various devices, such as mobile phones and tablets. By using the NFC function, the product performs
pairing and is connected with a
Bluetooth
device, just by touching the relevant symbol or designated
location on NFC-compatible devices.
OS of NFC compatible device: Android 4.1 or later
• Read the user manual for the
Bluetooth
device.
• Place the device within 1 m (3.3') of the product to perform pairing correctly.
• Wear the product to confirm pairing by listening for sound.
1 Starting with the product turned off, slide the power/pairing switch to the “ON” position.
The indicator lamp will begin flashing red/blue.
If wearing the product, you will hear a beep indicating the pairing process has begun.
2 The pairing process will begin and the
Bluetooth
device will search for the product.
When the product is found, “ATH-SR5BT” will display on the
Bluetooth
device.
* For more information on how to use the
Bluetooth
device, read the user manual for the device.
3 Select “ATH-SR5BT” and register the device to be connected.
* Some devices may ask for a passkey. In this case, enter “0000”.
The passkey is also called passcode, PIN code, PIN number or
password.
If wearing the product, you will hear a sound indicating the pairing
process has been successfully completed.
ATH-SR5BT
Device
ON
Select
Select
English
7
How to connect
Connect
1 Set your NFC-compatible device so that the NFC function can be used.*
* Refer to the user manual of your NFC-compatible device.
2 Slide the power/pairing switch of the product to the “ON”
position.
3 Touch your NFC-compatible device on the part just above
N-Mark on the product as shown in the figure and complete the
connection from your device.*
* Refer to the user manual of your NFC-compatible device for the
designated location to be touched on your device or how to
complete the connection from your device.
Disconnect
Touch your NFC-compatible device to the part just above the N-Mark on the product again to disconnect
the product from your device.
Switch the device
• If the product is connected to a
Bluetooth
device and is then touched by an NFC-compatible device, the
connection will switch to this NFC device.
• If you have an NFC-compatible device connected with the product and touch that device to another NFC-
compatible device with
Bluetooth
wireless technology, the first NFC-compatible device will disconnect
from the product and connect with the second NFC-compatible device.
About indicator lamp display
The indicator lamp of the product displays the following operating status by flashing or turning on.
L
Operating status LED display patterns ● Red ● Blue
Pairing Searching for device ●●●●●●●●●●●●●●●...
Flashing
Connect
Waiting to be connected ●−−−−−−−−−●−−−−...
Connecting ●−−−−−−−−−●−−−−...
Remaining
battery level Remaining battery level low −− −− −−...
Charge
Charging ...
Lighting
Complete ...
8
How to use
The product is capable of making
Bluetooth
connections, playing music and receiving incoming phone
calls. Use the product for whichever of these purposes suit your needs.
Note that Audio-Technica cannot guarantee the operation of usage with
Bluetooth
devices.
Power supply
Listening to music
How to wear
Slide the power/pairing switch to the ON/OFF position.
To connect for the first time, refer to “How to connect” and pair the product with a
Bluetooth
device and
connect. Once pairing has been performed, if the
Bluetooth
connection of the
Bluetooth
device is turned
on, just turning on the product enables automatic connection.
Play and enjoy music according to the user manual of the
Bluetooth
device.
The following operations are available by using the jog switch on the product.
Place the product on your head to fit the earpads over
your ears with the side marked “L” over your left ear and
“R” over your right ear, and adjust the headband length
by sliding the adjustable slider as shown in the figure so
that the earpads cover your ears completely.
* You can hear a sound indicating the switching between on/off when wearing the product.
Power supply Power/pairing switch operation Indicator lamp
ON* Lights once quickly in red/
blue (appearing like purple)
and flashes in red/blue.
OFF* Lights once quickly in red/
blue (appearing like purple)
and turns off.
Slider
Slider
English
9
Taking a phone call
You can make a phone call using the product with a device such as a mobile phone with
Bluetooth
wireless technology.
The music stops when you get a call while listening to music.
The music resumes when you end the call.*
* Audio playback will not automatically restart on some
Bluetooth
devices.
* You will hear a "beep" when the volume reaches its maximum/minimum.
** Some smartphones do not support playback and pause functionality for music/movie files.
* When you hear the beep, release the switch.
Some smartphones do not support the operations listed above during a call.
Compatible codecs
The product is compatible with SBC/aptX/AAC codecs. The appropriate codec will be determined automatically by
the
Bluetooth
device during the pairing process. However, you may encounter problems with hearing sound from
aptX codec compatible devices. In this case, disable the aptX codec of the
Bluetooth
device before connection.
Action Operation Jog switch operation
Press Press and release Plays or pauses music and video.
Press and hold (while
playing music or
during phone calls)
Activates a device’s speech recognition
feature, such as Siri on iOS devices.
Slide to + side Slide and release The volume turns up by one level.*
Slide and hold** Goes to the next track.
Slide to - side Slide and release The volume turns down by one level.*
Slide and hold** Goes to the previous track.
When Action Operation Jog switch operation
Incoming call Press and release Takes a call
Press and hold
(for about 2 seconds)
Rejects a call
During a call Press and release Ends a call
Press and hold
(for about 2 seconds)
Switches between accessing the call
via the mobile phone and accessing it
via the product.*
Slide to + side and
release
The volume turns up by one level.
Slide to - side and
release
The volume turns down by one level.
How to use
10
Other functions
Play-through function
Auto power off function
Reset function
The product features the play-through function that allows it to
operate like portable headphones and play music from a portable
device even if the product runs out of battery.*
Connect the straight plug on the included headphone cable for
smartphones to the product's headphone jack and connect the
L-shaped plug to the portable device.**
* Disconnect the
Bluetooth
connection by attaching the cable to the
headphone jack on the product.
** Plug the straight plug into the product's headphone jack until it clicks.
The product automatically turns off after 5 minutes of not being connected to a device with the power
turned on.
If the product does not work or other malfunctions occur, start charging by connecting the included USB
charging cable, which will automatically reset the product.
Resetting the product will not affect the pairing setting and volume setting.
• Some smartphones do not support playback and pause
functionality for music/movie files.
• Audio-Technica does not provide support for how to use
smartphones.
Using the headphone cable for smartphones
Control button Operation
Press the control
button once.
Playback/pause for music/ movies
Answering/ending phone calls
Headphone jack
Straight plug
Control button
Microphone
Front Back
Microphone
Control button
Headphone jack
Straight plug
English
11
Cleaning
Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use
alcohol, paint thinners or other solvents for cleaning purposes.
• Wipe the main unit with a dry cloth to clean the product and remote control with microphone.
• Wipe the included cable with a dry cloth after use if there is sweat or other dirt present. Using an unclean
cable continuously will deteriorate and harden the included cable, resulting in product malfunction.
• Wipe the plugs on included cables with a dry cloth if dirty. Using the plug without cleaning it can cause
sound skipping or distortion.
• To clean the earpads and headband, wipe with a dry cloth. Earpads and headband may fade if sweat
or water dries on them. If the earpads and headband get wet, we recommend wiping them with a dry
cloth and allowing them to dry in the shade.
• For long-time storage, keep the product in a well-ventilated place free from high temperatures and
humidity.
• Earpads will deteriorate over time due to use and storage. Replace when necessary. For information
about replacing earpads or other parts, or for information about other serviceable parts, contact your
local Audio-Technica dealer.
12
Troubleshooting
Problem Solution
Power is not supplied. • Charge the product.
Unable to pair. • Pairing is available on devices that support
Bluetooth
version 2.1+EDR or
later.
• Bring the product and the
Bluetooth
device closer together within the
range of 1 m (3.3').
• Set profiles for the
Bluetooth
device. For procedures on how to set
profiles, refer to the user manual for the
Bluetooth
device.
No sound comes out / sound is
faint.
• Turn on the power of the product and the
Bluetooth
device.
• Turn up the volume of the product and the
Bluetooth
device.
• If the product is set to the HFP/HSP connection, switch to the A2DP
connection.
• Remove obstacles between the product and the
Bluetooth
device. Bring
them closer together.
• Switch the output of the
Bluetooth
device to the
Bluetooth
connection.
Sound flutters / noise is present /
sound is interrupted.
• Turn down the volume of the product and the
Bluetooth
device.
• Keep microwaves and other devices such as wireless routers away from
the product.
• Keep TVs, radios and devices with built-in tuners away from the product.
It can affect these devices.
• Turn off the equalizer settings of the
Bluetooth
device.
• Remove obstacles between the product and the
Bluetooth
device. Bring
them closer together.
Cannot hear the person on the
other end / voice of the person on
the other end sounds too quiet.
• Turn on the power of the product and the
Bluetooth
device.
• Turn up the volume of the product and the
Bluetooth
device.
• If the product is set to the A2DP connection, switch to the HFP/HSP
connection.
• Switch the output of the
Bluetooth
device to the
Bluetooth
connection.
Unable to connect by NFC. • Check if your device is compatible with NFC.
• Set your NFC-compatible device so that the NFC function can be used.
• Touch the product to the correct location of your NFC-compatible device.
• Depending on the NFC-compatible device you are using, the NFC
sensitivity may not be strong enough to connect the product with just
one touch. In this case, follow the procedure described in the user
manual of your NFC-compatible device.
• Depending on the NFC-compatible device you are using, it may need
some time to receive NFC. Keep the product and the device touching
until the connection is completed.
• Remove your NFC-compatible device from the case so that your device
can react to the touching.
The product cannot be charged. • Securely connect the USB charging cable and charge.
• For operation of the
Bluetooth
device, refer to the device’s user manual.
• If the problem still remains, reset the product. For the procedure for resetting the device, refer to “Reset function”.
English
13
Communication specifications
Communication system
Bluetooth
version 4.1
Output
Bluetooth
Specification Power Class 2
Maximum communication range Line of sight - approx. 10 m (33’)
Frequency band 2.402 GHz to 2.480 GHz
Modulation method FHSS
Compatible
Bluetooth
profiles A2DP, AVRCP, HFP, HSP
Support codec SBC/aptX/AAC
Supported content protection method SCMS-T
Headphones component
Type Closed-back dynamic
Driver 45 mm
Output sound pressure level 100 dB/mW
Frequency response 5 to 40,000 Hz
Transmission band 20 to 20,000 Hz
Impedance 35 ohms
Input jack 3.5 mm (1/8”) stereo mini jack
Microphone component (Headphone cable for smartphones)
Type Electret condenser
Polar pattern Omnidirectional
Sensitivity -40 dB (1 V/Pa, at 1 KHz)
Frequency response 50 to 4,000 Hz
Other
Power supply DC 3.7 V lithium polymer battery
Charging time Approx. 4 hours*
Operating time
Continuous transmission time including music playback time : Approx. 15 hours
*
Continuous standby time : Max. 200 hours*
Weight Approx. 170 g (without cable)
Operating temperature 5°C to 40°C
Included accessories ・ Detachable 1.2 m (3.9’) headphones cable for smartphones with
in-line controller/microphone unit (3.5 mm (1/8”) gold-plated stereo
mini-plug (4 pole/L-shaped))
・ USB charging cable
・ Pouch
* The above figures depend on operating conditions.
(For product improvement, the product is subject to modification without notice.)
• The
Bluetooth
word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Audio-Technica Corporation is
under license. All other trademarks are property of their respective owners.
• “AAC” logo is a trademark of Dolby Laboratories.
CSR’s copyright and trade mark notice:
“© 2013 CSR plc and its group companies.
The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be
registered in one or more jurisdictions.”
• The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
• Android is a trademark of Google Inc.
Specifications
