Installation Guide
Bentley Rear Seat Entertainment System Installation Manual
621
BY62PDS-182
Name:
Ian Briggs
E-mail address:
ian.briggs@bentley.co.uk
Telephone number:
+447507889462
Created on (date):
28/04/2014
Current issue level
1.2
Issue date:
28/04/2011
Bentley Motors Ltd
Pyms Lane
Crewe
Cheshire
CW1 3PL
England
Tel: +44 (0)1270 255155
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
1
LIST OF CONTENTS
List Of Contents 1
Revision History 2
Abbreviations and Definitions used in this Document 3
Confidentiality and Security 4
1.1 Feature Description 4
1.1.1 General Overview 4
1.1.2 Component Description(s) 5
2 Installation Requirements 6
2.1 RSE Control Unit 6
2.1.1 General Information 8
2.1.2 Installation 9
2.1.3 Removal 10
2.2 DVD Loader unit 11
2.2.1 Installation Guide 13
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
2
REVISION HISTORY
Version
Issue date
Reason for change
V1
Initial Version
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
3
ABBREVIATIONS AND DEFINITIONS USED IN THIS DOCUMENT
The following table lists the terms used in this document.
Term
Definition
The following table lists the abbreviations used in this document.
Abbreviation
Meaning
RSE
Rear Seat Entertainment
DVD
Digital Video Disc
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
4
CONFIDENTIALITY AND SECURITY
The information contained within this Specification is of a confidential nature and a
Confidentiality Agreement must exist between our companies before you may examine any
part of this document.
If you are not aware of any such agreement you must seek an Agreement without delay by
contacting the undersigned. Pending such agreement you will treat all information contained
within this Specification as being strictly private and confidential and all reasonable steps will be
taken by you to preserve such confidentiality, including not taking copies or converting it into
an alternative format without the prior written consent of Bentley Motors Ltd, and will not be
used for any purpose other than in order to evaluate it.
A list of authorised personnel should be available for inspection. Visitors should only be allowed
access with the prior permission of Bentley Motors Ltd. All information stored electronically
must only be accessible by authorised personnel. Adequate protection should be taken to
ensure data could not be read by any other source. All hard copy information must similarly be
restricted to authorised personnel only.
This document remains the property of Bentley Motors Ltd, the supplier shall at any time at the
request of Bentley Motors Ltd. return all materials and copies of documentation relating to the
specification or project whether supplied by Bentley Motors Ltd. or otherwise.
To the extent it so desires, Bentley Motors Ltd shall receive free of charge exclusive,
irrevocable, perpetual, geographically unlimited, transferable and sub-licensable rights of use and
exploitation with respect to all work results and products representing a special development
for us or VW group companies or developed exclusively for us or VW group companies. VW
group companies shall enjoy the same rights.
You shall inform us of any and all innovations arising within your organization in connection
with the performance of the contractual work, including without limitation inventions,
suggestions for technical improvements, know-how, and any other individually identifiable
intellectual property, and you shall furnish all documentation necessary to assess such
innovations.
1.1 FEATURE DESCRIPTION
1.1.1 GENERAL OVERVIEW
The components described in this document shall be the components to make up a brand new
rear seat entertainment system for the Bentley 621 project.
The systems will provide the user the following high level features:
RSE High
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
5
1. Access to the internet via a 3G UMTS module (Package protection to be included for
LTE module as part of design). User accessible SIM slot.
2. Use of the system as an in-car Wi-Fi hotspot for up to 5 devices.
3. The ability to listen to music in the vehicle using the vehicle speakers and/or
headphones.
4. The ability to connect 3rd party devices to use the internet
5. The ability to listen to internet radio
6. The ability to bring their media to the car and be able to watch & listen to it (SD Cards
and USB devices including apple devices).
7. The ability to have any customer accessible USB connections.
8. Controlling the system via the supplied Touch screen remote control, or a 3rd Party
application on a compatible device (device application development not part of this
specification) via a Bluetooth or Wi-Fi (third party) link
9. Provide Diagnostics on CAN for the Dealers to diagnose faults.
10. The ability to watch videos using the provided screens in the car.
11. The ability to display location based map data to the customer via Bing maps.
12. The ability to watch DVD’s
13. The system shall allow the user to watch TV. There is a group TV tuner fitted to the
vehicle with a component output.
14. The system shall enable the user to use wireless headphones.
1.1.2 COMPONENT DESCRIPTION(S)
1.1.2.1 General
The system shall be made up of four fundamental units. The system shall have one primary
diagnostics address on CAN to report diagnostic information to the vehicle and also to
integrate with the vehicle power management system.
1.1.2.2 RSE Control Unit 4W0.907.157.X
This 1 DIN unit shall go in the glove box. This unit should deal with connectivity and vehicle
integration.
1.1.2.3 DVD Loader unit 4W0.035.123.X (2 off)
DVD Loader, USB, SD and a HDMI in interface. Located in the Front seatbacks
1.1.2.4 LCD Monitor 4W0.919.607 (2 off)
10” Screens Mounted on the Seatbacks
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
6
2 INSTALLATION REQUIREMENTS
2.1 RSE CONTROL UNIT
In order to meet the legislation for the FCC & IC requirements the system needs to have some
minimum separation distances from the surface that the user could touch for the SAR
regulations.
CAUTION: FCC REGULATORY REQUIREMENTS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1 - This device may not cause harmful interference, and
2 - This device must accept any interference received, including interference that may cause
undesired operation.
Any change or modification to the product not expressly approved by the manufacturer could
void the user's authority to operate the device.
FCC RF Radiation Exposure Statement:
This equipment contains a radio transmitter. It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency energy set by the Federal Communication
Commission (FCC) of the US Government in accordance with part 2.1091 of the FCC Rules
for an uncontrolled environment.

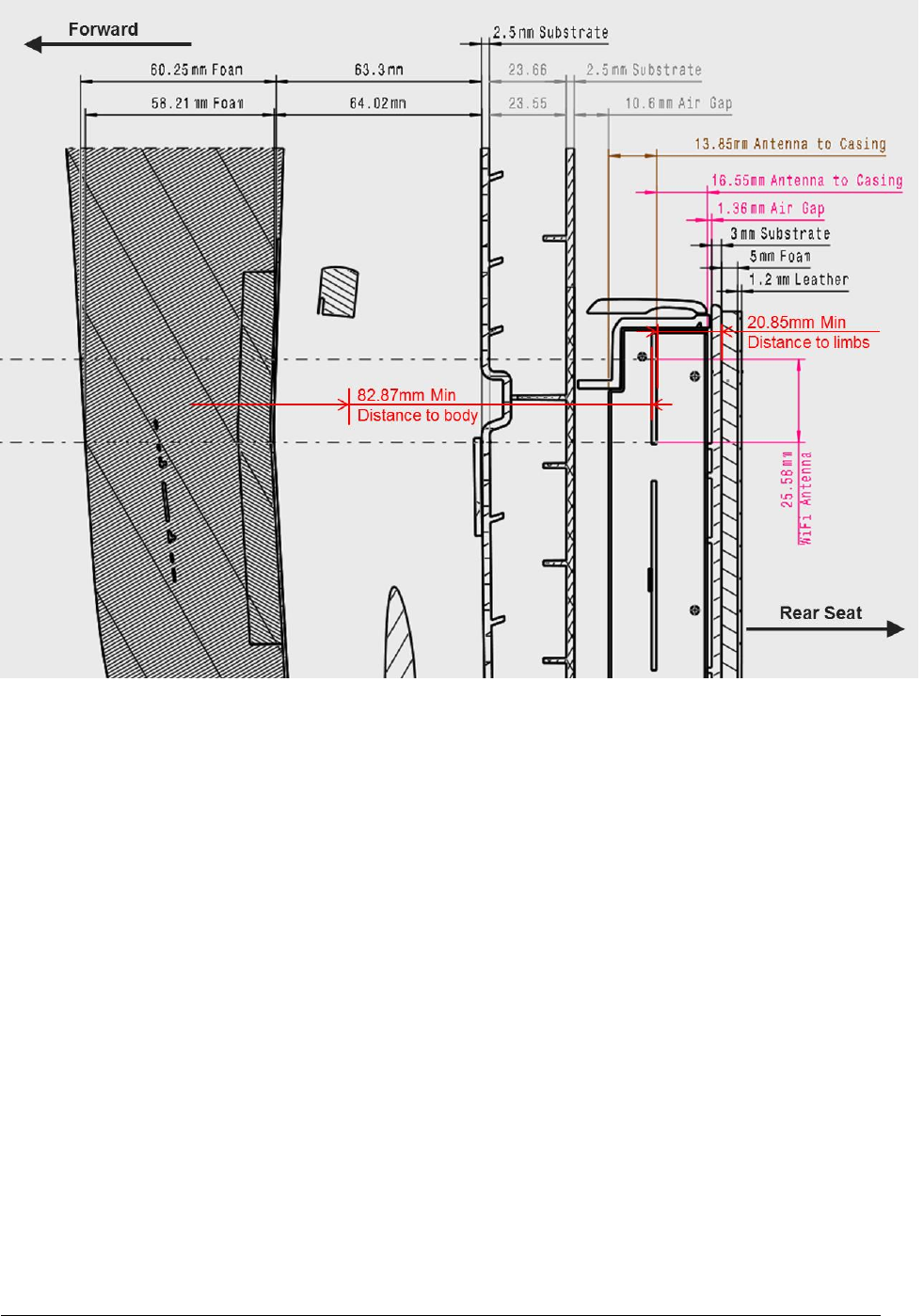

The equipment is installed to ensure a minimum 20 cm distance between the two antennas and,
with a minimum safe operating distance of 20 cm between the respective antennas and the car
occupants
CAUTION: IC REGULATORY REQUIREMENTS
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
1 - This device may not cause interference.
2 - This device must accept any interference, including interference that may cause
undesired operation of the device.
Any change or modification to the product not expressly approved by the manufacturer could
void the user's authority to operate the device.
IC RF Radiation Exposure Statement:
This equipment contains a radio transmitter. It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency energy as stated within the Industry Canada
RSS standard(s).
This radio transmitter (IC: 11196A-D189070) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
Antenna Models:
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
7
For GSM / UMTS: Smarteq Antenna AB; part No: 3W7.035.524.A
For Bluetooth / WLAN: WISI Automotive GmbH & Co. KG; part: Wisi AG91 WLAN Bentley
4W0.962.131
The equipment is installed to ensure a minimum 20 cm distance between the two antennas and,
with a minimum safe operating distance of 20 cm between the respective antennas and the car
occupants.
ATTENTION: IC EXIGENCES RÉGLEMENTAIRES
Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard (s). Son
fonctionnement est soumis aux deux conditions suivantes:
1 - Ce dispositif ne peut causer des interférences.
2 - Ce dispositif ne peut causer des interférences.
Tout changement ou modification au produit non expressément approuvés par le fabricant
peuvent annuler le droit de l'utilisateur à utiliser l'appareil.
IC Rayonnement RF de Déclaration d'exposition:
Cet appareil contient un émetteur radio. Il est conçu et fabriqué pour ne pas dépasser les
limites d'émission pour l'exposition à l'énergie de radiofréquence comme indiqué dans la norme
(s) d'Industrie Canada RSS
Le présent émetteur radio (IC: 11196A-D189070) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal
et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette
liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
Modèles d'antenne:
Pour GSM / UMTS: Smarteq Antenna AB; part No: 3W7.035.524.A
Pour Bluetooth / WLAN: WISI Automotive GmbH & Co. KG; part: Wisi AG91 WLAN Bentley
4W0.962.131
L'équipement est installé pour assurer une distance minimale de 20 cm entre les deux antennes
et, avec une distance de fonctionnement minimale de sécurité de 20 cm entre les antennes
respectives et les occupants de la voiture.
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
8
2.1.1 GENERAL INFORMATION
Figure 1 Location of RSE Control Unit in the front glove box
Figure 2 Removal tool WT 10221
The Control unit 2 for information
electronics -J829- -arrowed- is
located inside the glove box on the
outboard side.
Note
Image shows a right hand drive
vehicle. Left hand drive vehicle is a
mirror image.
Replacement control units require
additional programming via the
Vehicle tester. Refer to Installation
instructions.
Special tools and workshop
equipment required
1. Removal tool -WT 10221-
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
9

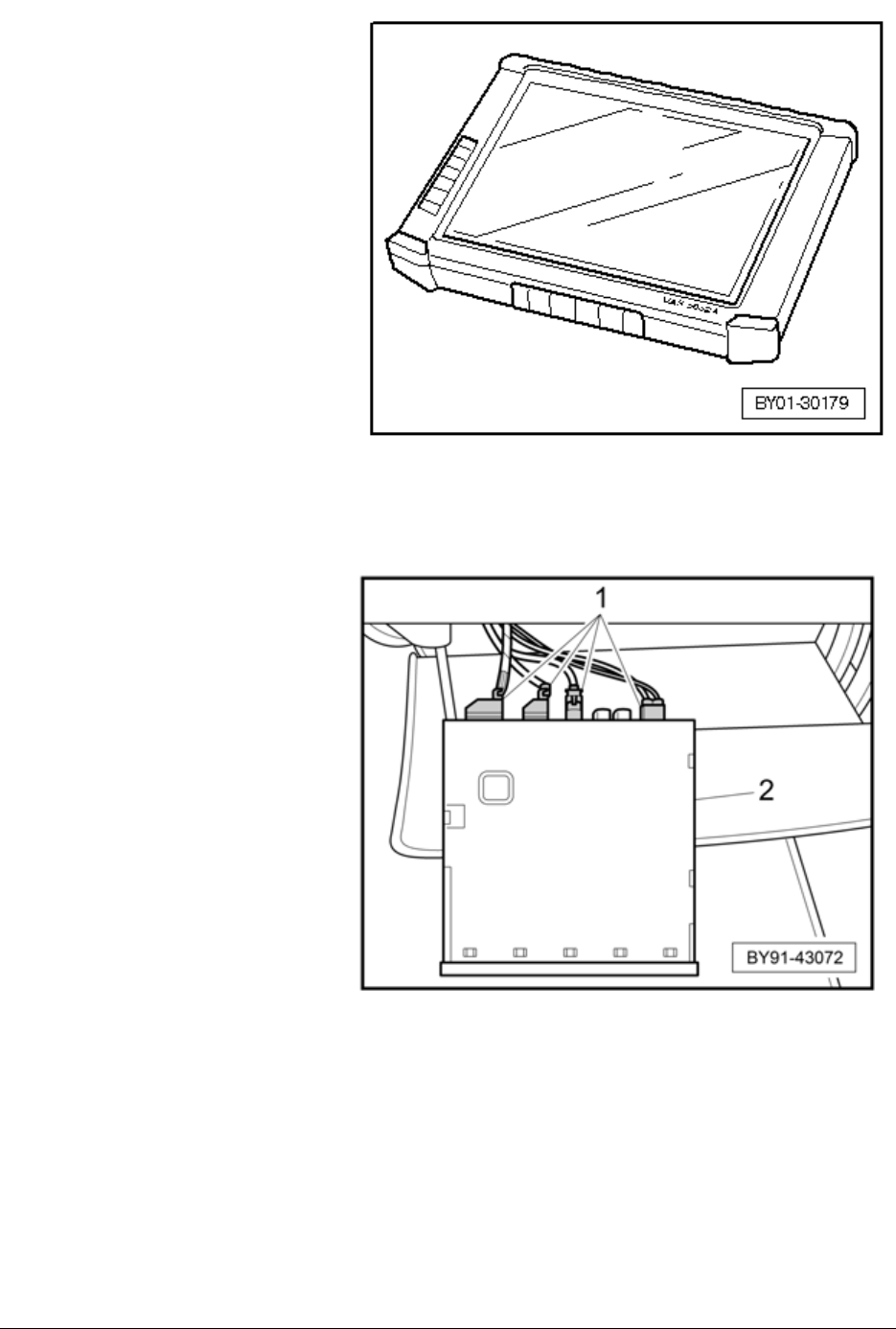

Figure 3 Vehicle tester
2.1.2 INSTALLATION

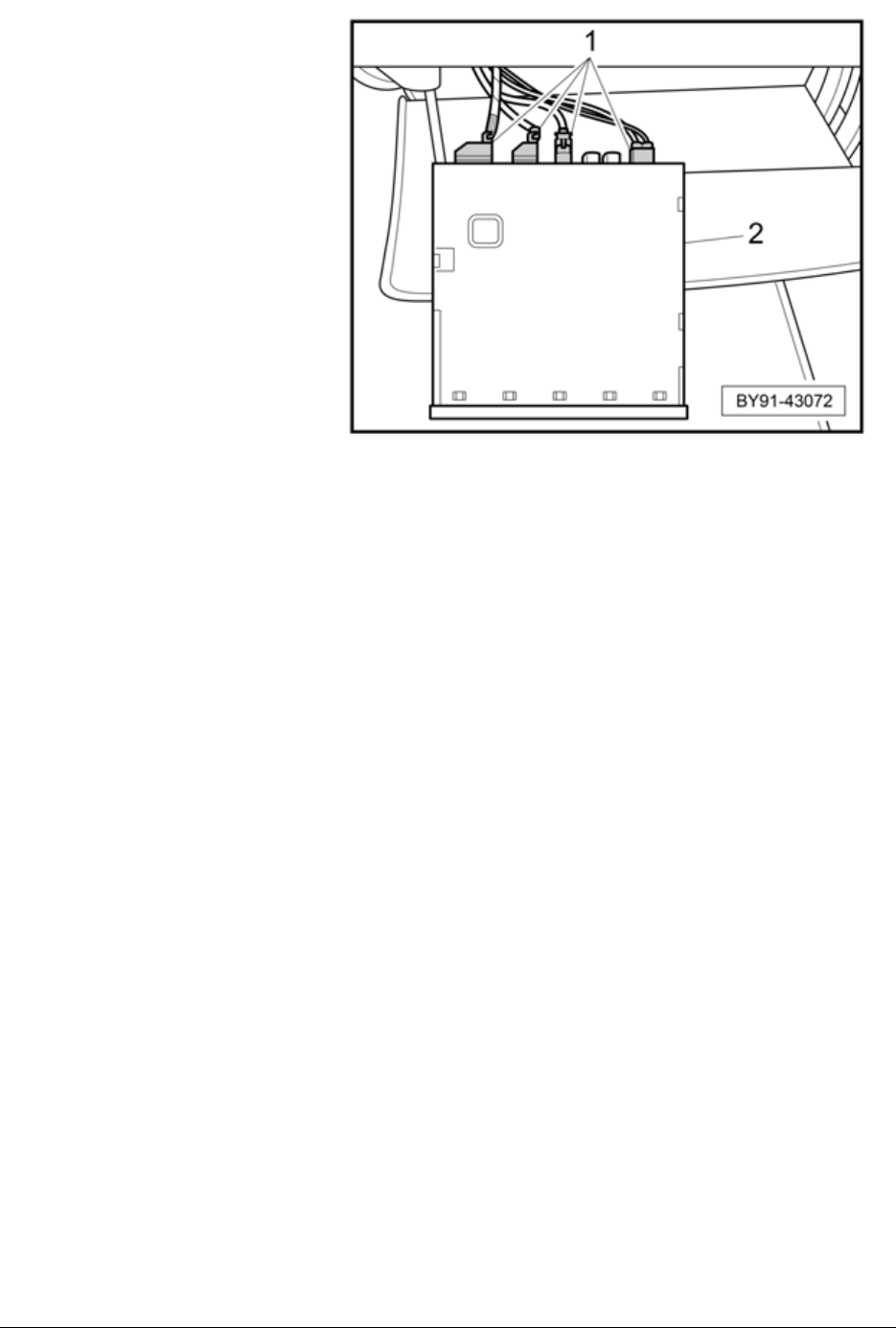

Figure 4 RSE Control Unit - Electrical Connections behind
RSE Control Unit
Removal
2. Vehicle tester
Torque tightening values
Unless otherwise shown,
standard torque values apply.
→
Rep.-Gr.00
1. Ensure all electrical
connectors are connected
correctly.
2. Insert the unit into the slot
in the Glove box.
3. After installation ensure the
catches secure the control
unit on both sides. This can be
confirmed by an audible click
being heard and then
attempting to withdraw the
control unit without using the
removal tools.
4. A new control unit will
require coding. Connect the
Vehicle tester to the vehicle
and run Software Version
Management (SVM). Refer to
"Diagnostic system - Guided
functions/Component
replacement".
→ Rep.-Gr.97
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
10
2.1.3 REMOVAL

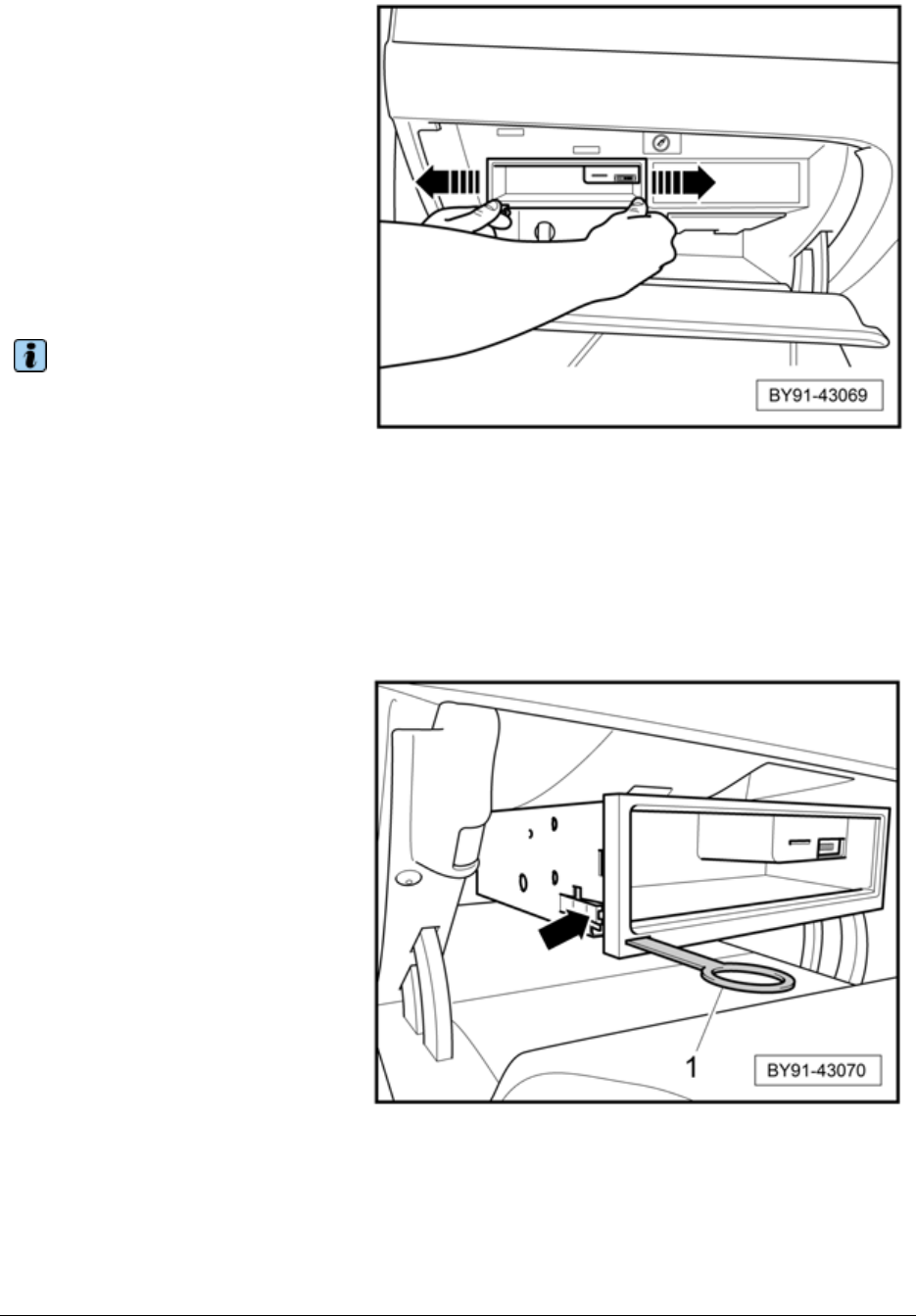

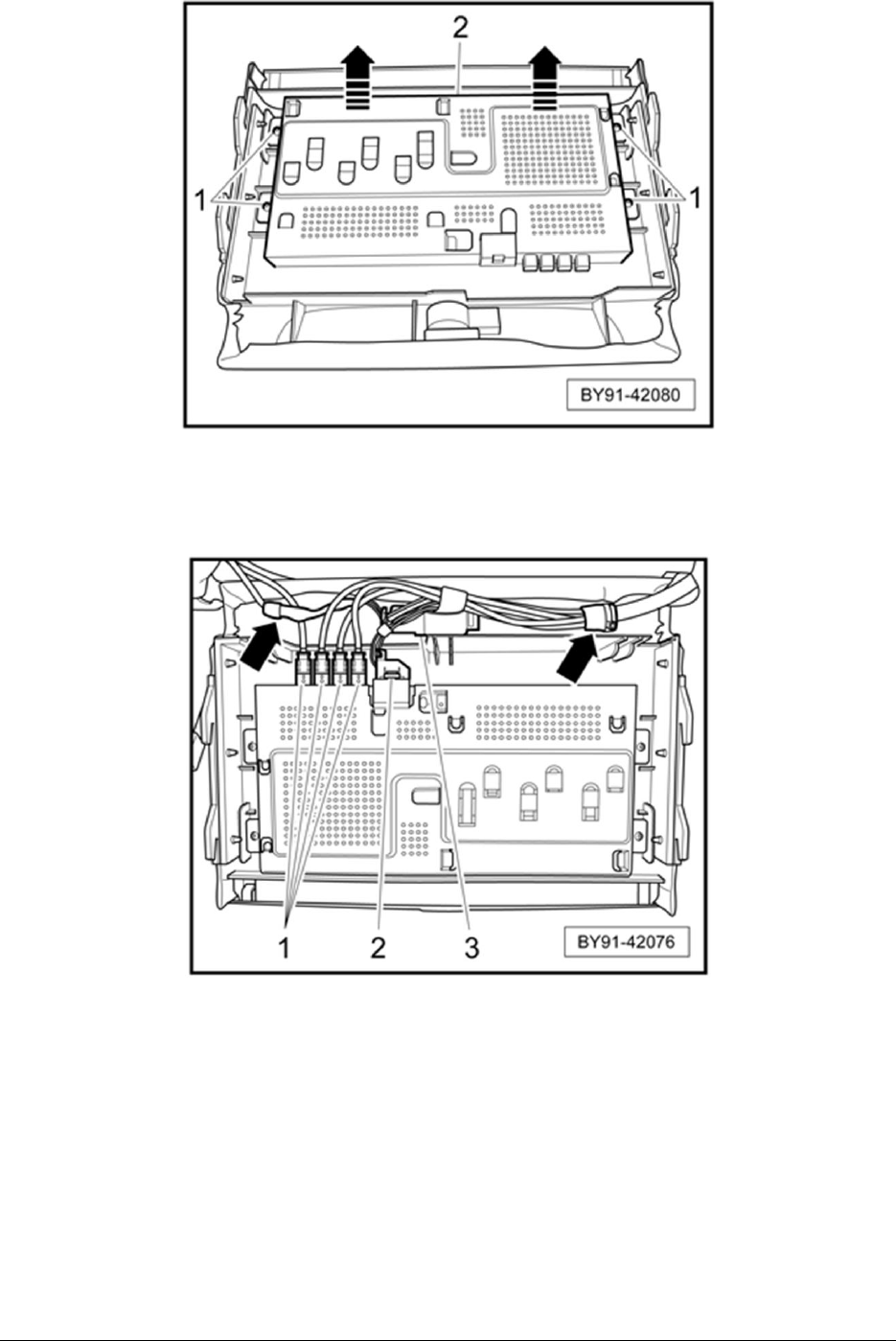

Figure 5 RSE Control Unit - Removal of RSE Control Unit
Figure 6 RSE Control Unit – Extracting removal tool
The following procedure is
based on a right hand drive
vehicle. The procedure is the
same for both left hand and
right hand drive.
1. Switch off the ignition
2. Insert the removal tools -
WT
3. 10221- into the slots in the
control unit until they locate
Note
Ensure that both tools click
into position before attempting
to remove the control unit.
Push and hold the tools
outwards in the direction of the
-arrows- to release the
retaining clips, then pull
rearwards evenly to slide out
the control unit.
Press the retaining clips -
arrowed- inwards on both
sides to release the removal
tools -1-.
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
11
Figure 7 RSE Control Unit - Removal of Electrical Connectors
2.2 DVD LOADER UNIT
In order to meet legislation for the FCC & IC requirements the system needs to have some
minimum separation distances from the surfaces that the user could touch for the SAR
regulations.
CAUTION: FCC REGULATORY REQUIREMENTS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1 - This device may not cause harmful interference, and
2 - This device must accept any interference received, including interference that may cause
undesired operation.
Any change or modification to the product not expressly approved by the manufacturer could
void the user's authority to operate the device.
FCC RF Radiation Exposure
Statement:
This equipment contains a radio transmitter. It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency energy set by the Federal Communications
Commission (FCC) of the US Government. This equipment complies with the FCC radiation
exposure limits set forth for an uncontrolled environment in accordance with Part 2.1093 of
the FCC Rules and KDB 447498.
CAUTION: IC REGULATORY REQUIREMENTS
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
1 - This device may not cause interference.
Disconnect the harness
connectors -1- and remove
the control unit -2- from the
vehicle.
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
12
2 - This device must accept any interference, including interference that may cause undesired
operation of the device.
Any change or modification to the product not expressly approved by the manufacturer could
void the user's authority to operate the device.
IC RF Radiation Exposure Statement:
This equipment contains a radio transmitter. It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency energy as stated within the Industry Canada
RSS standard(s).
This equipment is compliant with RSS-102, exemption from routine evaluation limits for
uncontrolled environments.
ATTENTION: IC EXIGENCES RÉGLEMENTAIRES
Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard (s). Son
fonctionnement est soumis aux deux conditions suivantes:
1 - Ce dispositif ne peut causer des interférences.
2 - Ce dispositif ne peut causer des interférences.
Tout changement ou modification au produit non expressément approuvés par le fabricant
peuvent annuler le droit de l'utilisateur à utiliser l'appareil IC Rayonnement RF de Déclaration
d'exposition:
Cet appareil contient un émetteur radio. Il est conçu et fabriqué pour ne pas dépasser les
limites d'émission pour l'exposition à l'énergie de radiofréquence comme indiqué dans la norme
(s) d'Industrie Canada RSS.
Cet équipement est conforme à la norme RSS-102, l'exonération des limites d'évaluation de
routine pour les
environnements non contrôlés.
For the IC certification the minimum distance is not maintained without the surrounding
components such that any modification to the system must meet the requirements as follows:
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
13
Figure 8 Minimum required separation distances required to be maintained between Antenna and
Body or Limbs
2.2.1 INSTALLATION GUIDE
Installing the DVD loader as per this guide will ensure that the minimum distances as
mentioned in Figure 8 are met.
Connect the harness connections prior to refitting the DVD loader to the front seat squab.
Torque tighten all fixings.

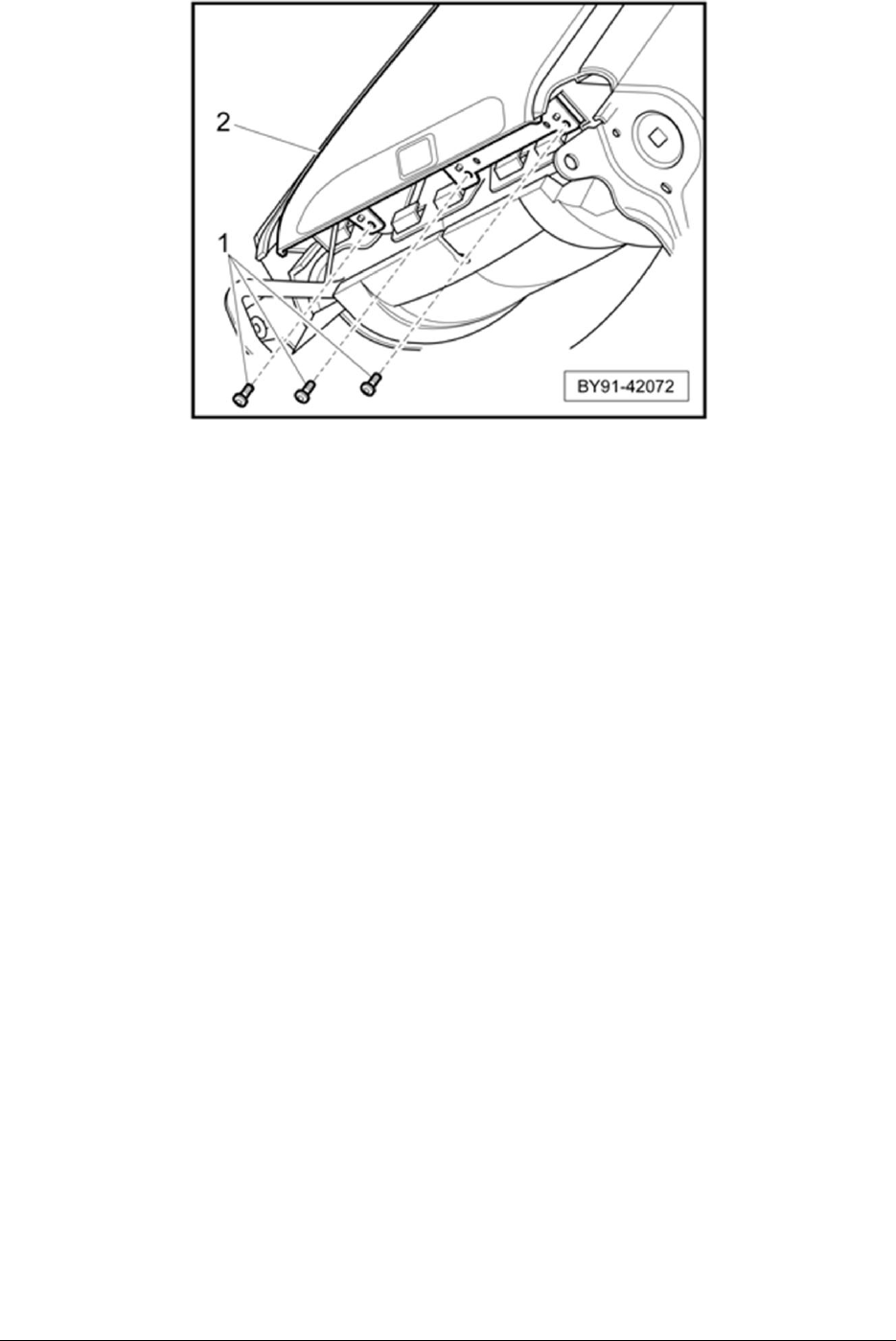

Slide the DVD Loader unit Figure 9-2- down over the catches on the front. And insert the
fixings Figure 9-1- (1.8Nm).
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
14
Figure 9 DVD Loader Unit Installation – Mounting to map pocket
Connect the DVD loader unit harness connections to the leads coming off the seat as shown in
Figure 10.
Figure 10 DVD Loader Unit Installation - Harness Connection
Offer the DVD Loader Unit and map pocket to the seat and slide upwards to engage the
catches at the side inserting the 3 fixings as shown in Figure 11.
Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14
15
Figure 11 DVD Loader Unit Installation - mounting to seat
