VIDEO CASSETTE PLAYER

DC OPERATION W/SPECIALIZED TAPE MECHANISM

DLC COATED VIDEO HEAD

BACKLIGHTING OF FUNCTION BUTTONS

AVP-7000 OPERATING INSTRUCTIONS

AUDIOVDX ~peCI.WZED APPUCAT1ONS. LLC.

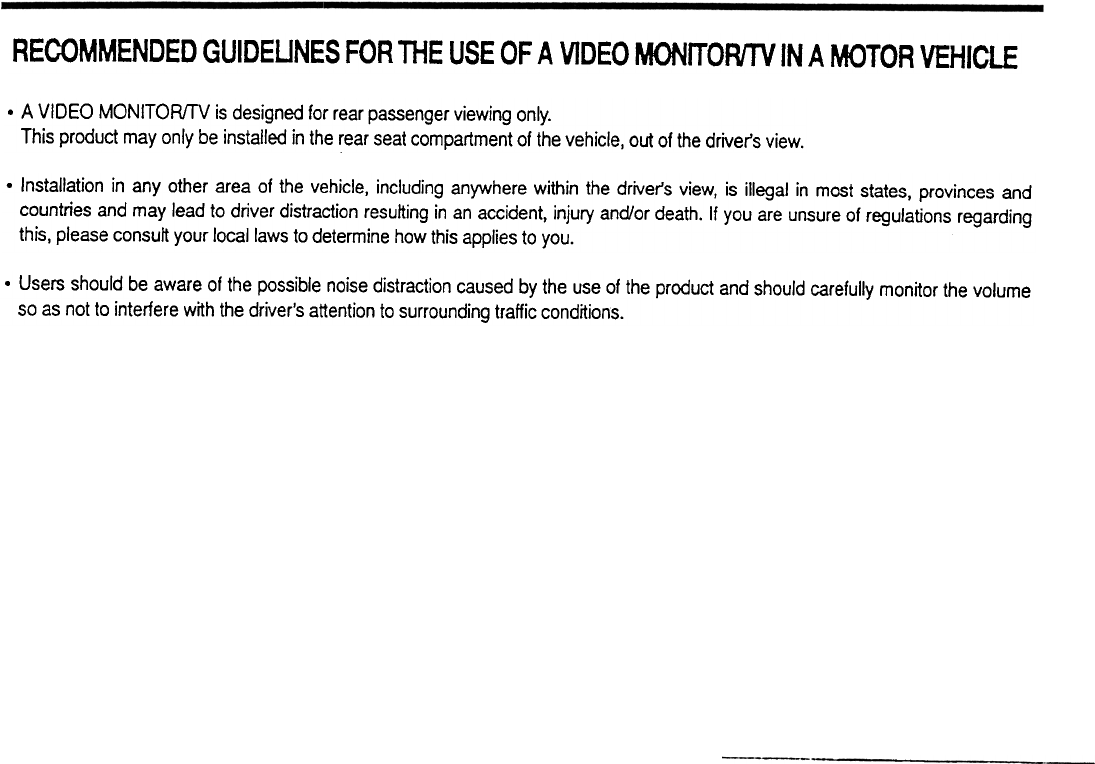

RECOMMENDED GUIDEUNES FOR THE USE OF A VIDEO MONITORf1V IN A MOTOR VEHICLE

.A VIDEO MONITOR!TV is designed for rear passenger viewing only.

This product may only be installed in the rear seat compartment of the vehicle, out of the driver's view.

.Installation in any other area of the vehicle, including anywhere within the driver's view, is illegal in most states, provinces and

countries and may lead to driver distraction resulting in an accident, injury and/or death. If you are unsure of regulations regarding

this, please consult your local laws to determine how this applies to you.

.Users should be aware of the possible noise distraction caused by the use of the product and should carefully monitor the volume

so as not to interfere with the driver's attention to surrounding traffic conditions.

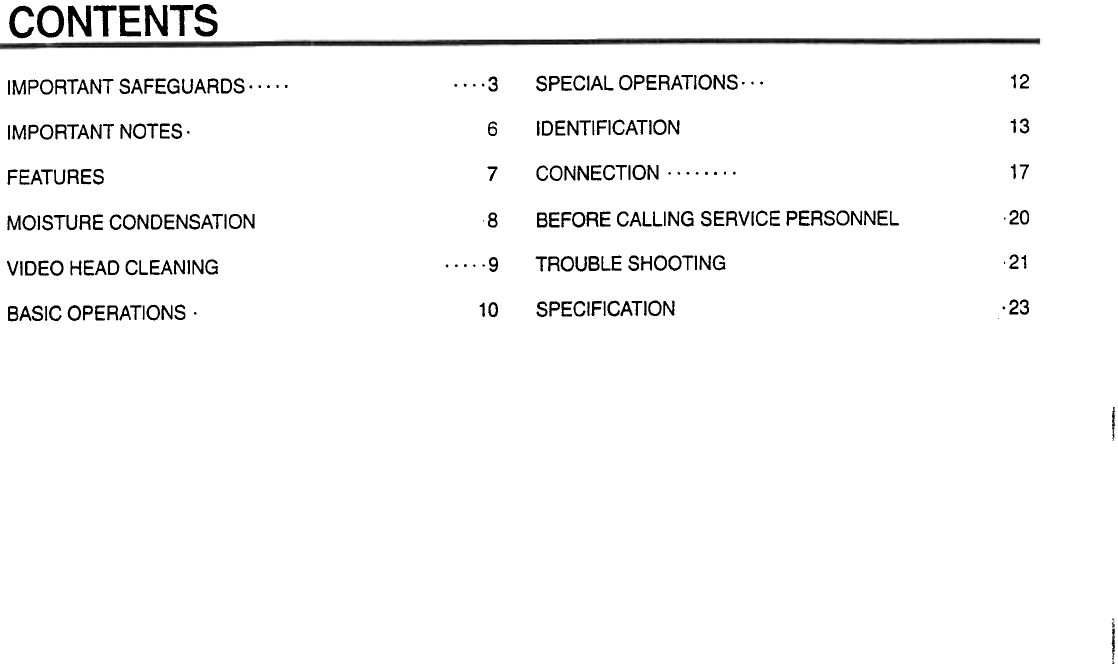

CONTENTS

12

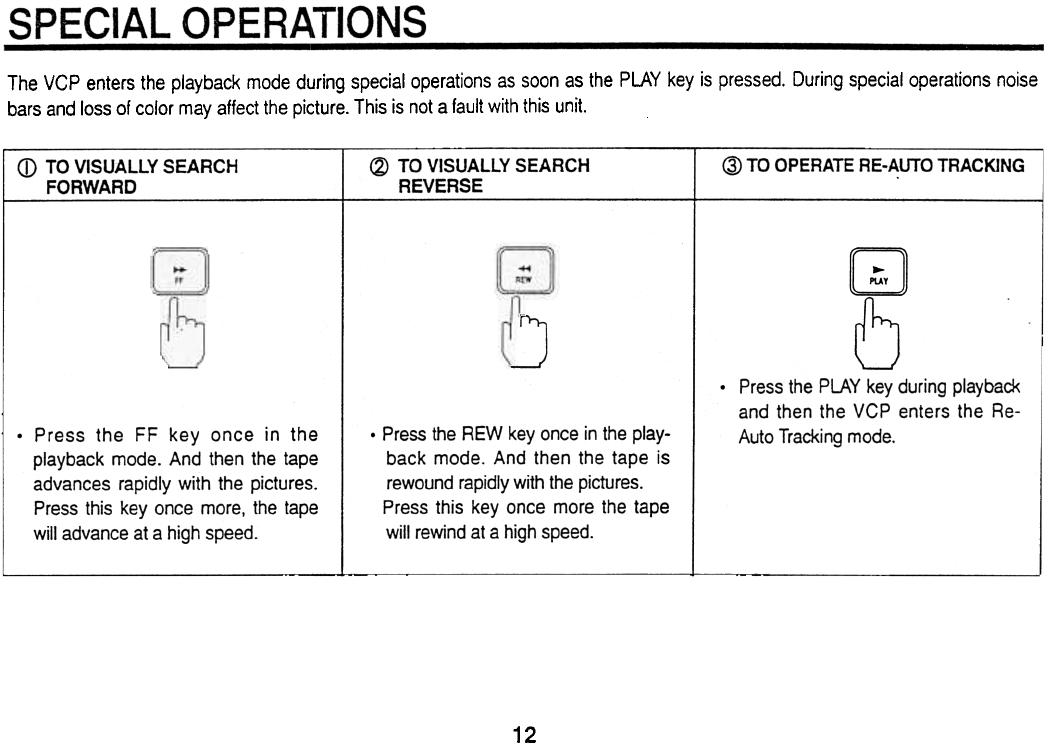

SPECIAL OPERATIONS. ..

IMPORTANT SAFEGUARDS. 3

IDENTIFICATION 13

6

IMPORTANT NOTES .

17

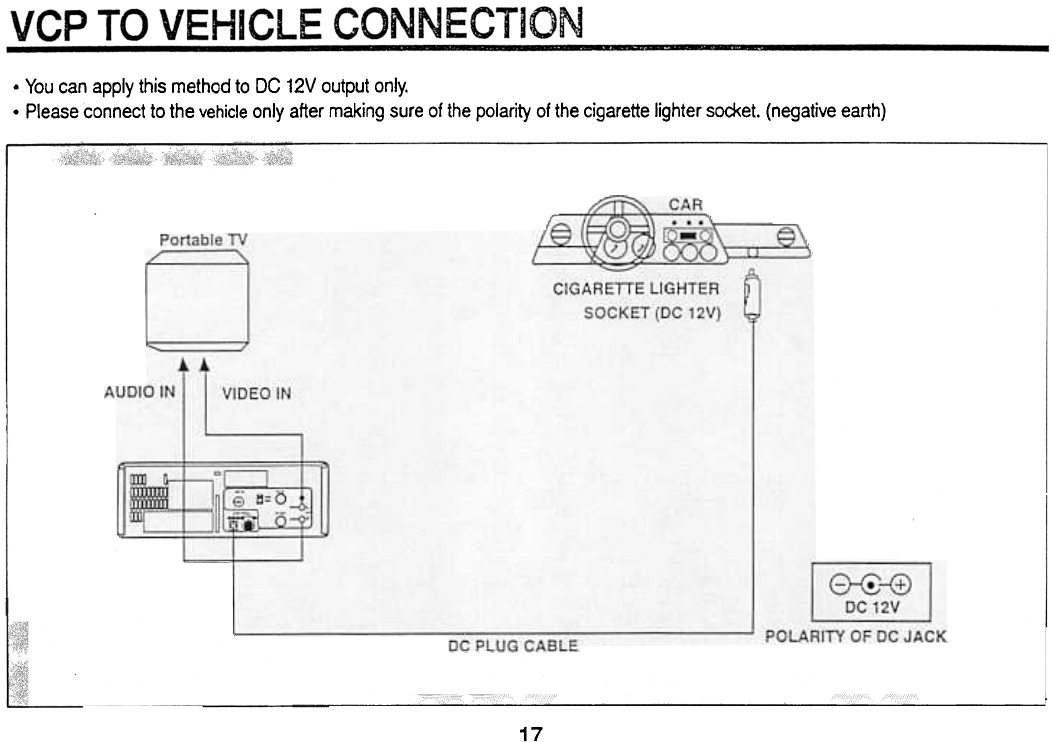

CONNECTION.7

FEATURES

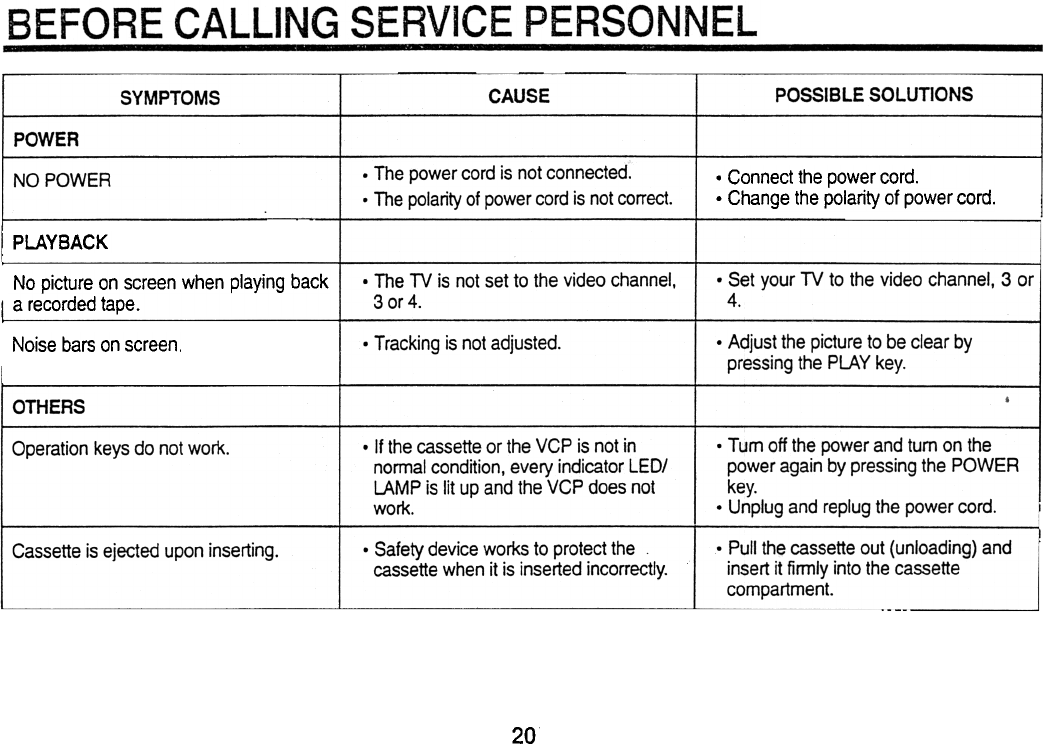

BEFORE CALLING SERVICE PERSONNEL .20

8

MOISTURE CONDENSATION

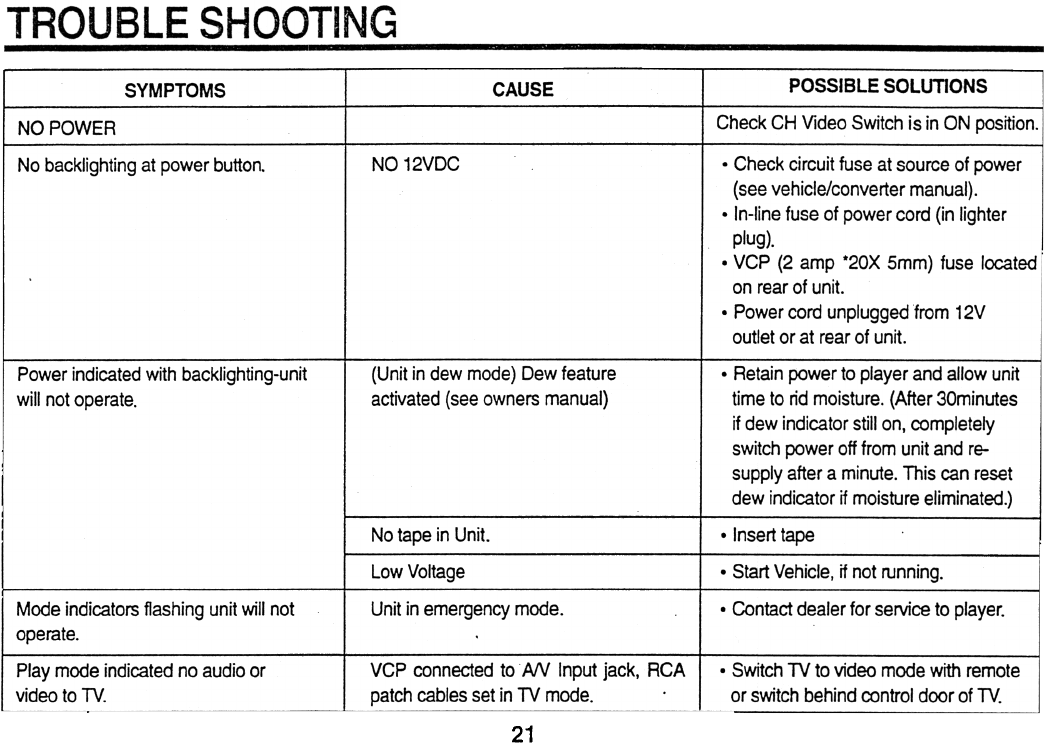

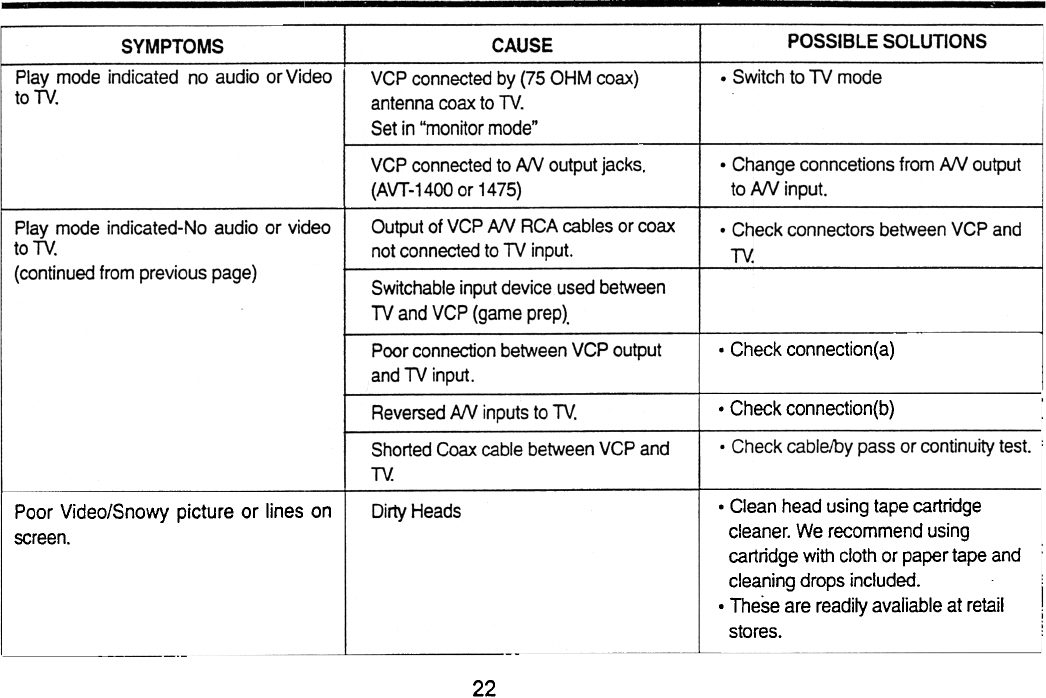

TROUBLE SHOOTING .21

9

VIDEO HEAD CLEANING

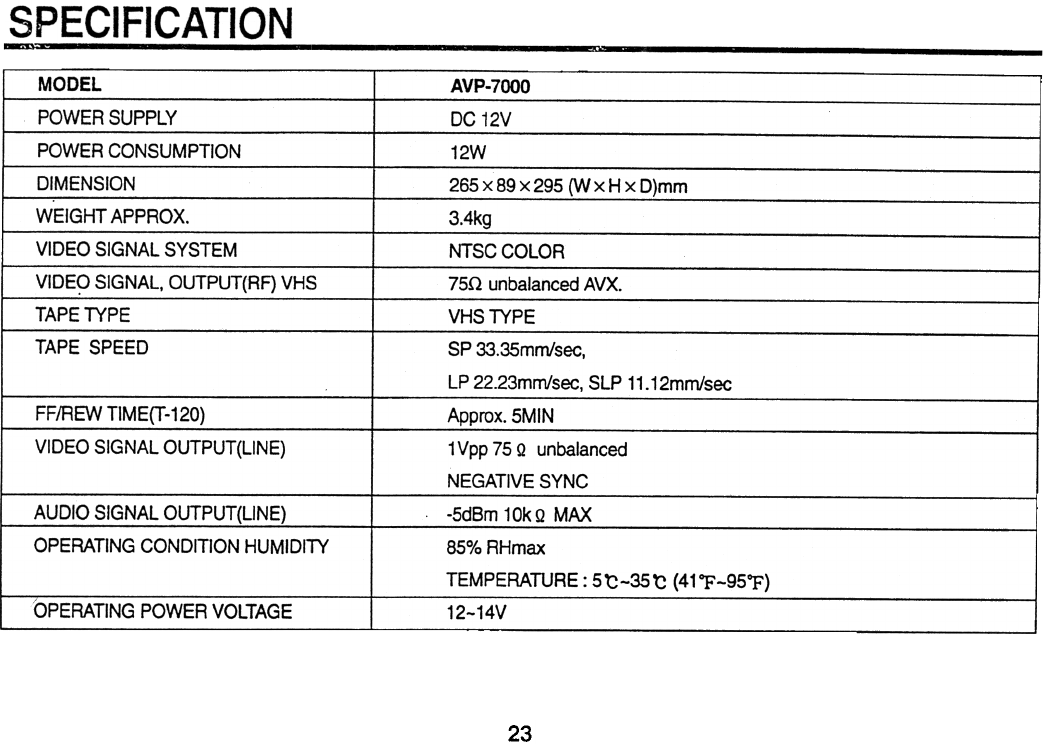

SPECIFICATION .23

10

BASIC OPERATIONS .

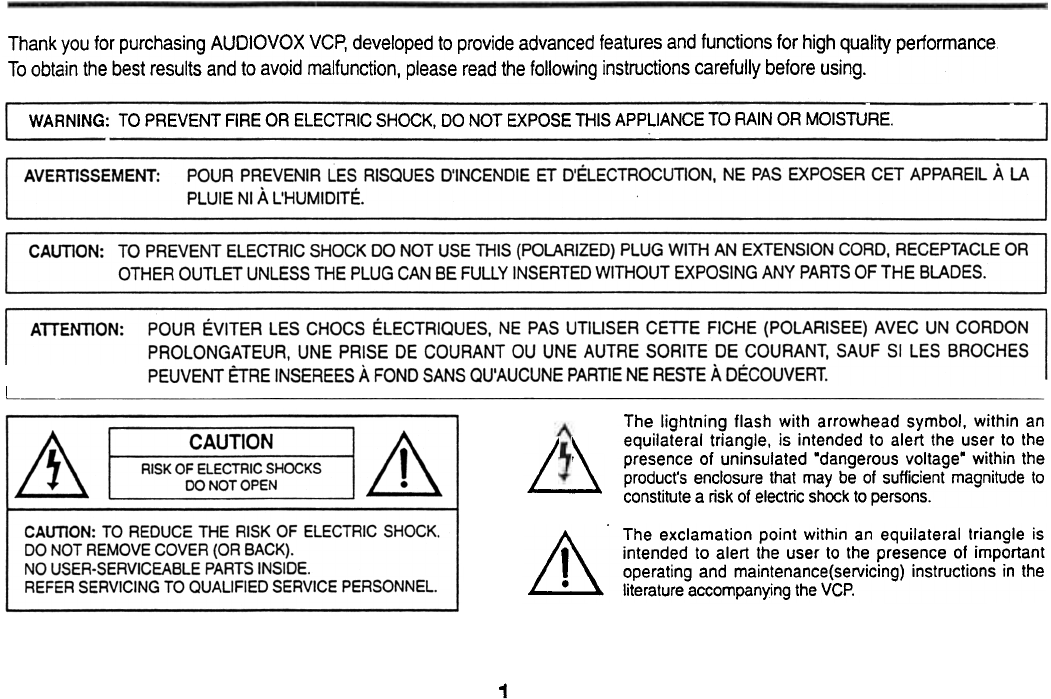

Thank you for purchasing AUDIOVOX VCP, developed to provide advanced features and functions for high quality performance

To obtain the best results and to avoid malfunction, please read the following instructions carefully before using.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol. within an

equilateral triangle. is intended to alert the user to the

presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

Q

A The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

, operating and maintenance(servicing) instructions in the

.literature accompanying the VGP.

1

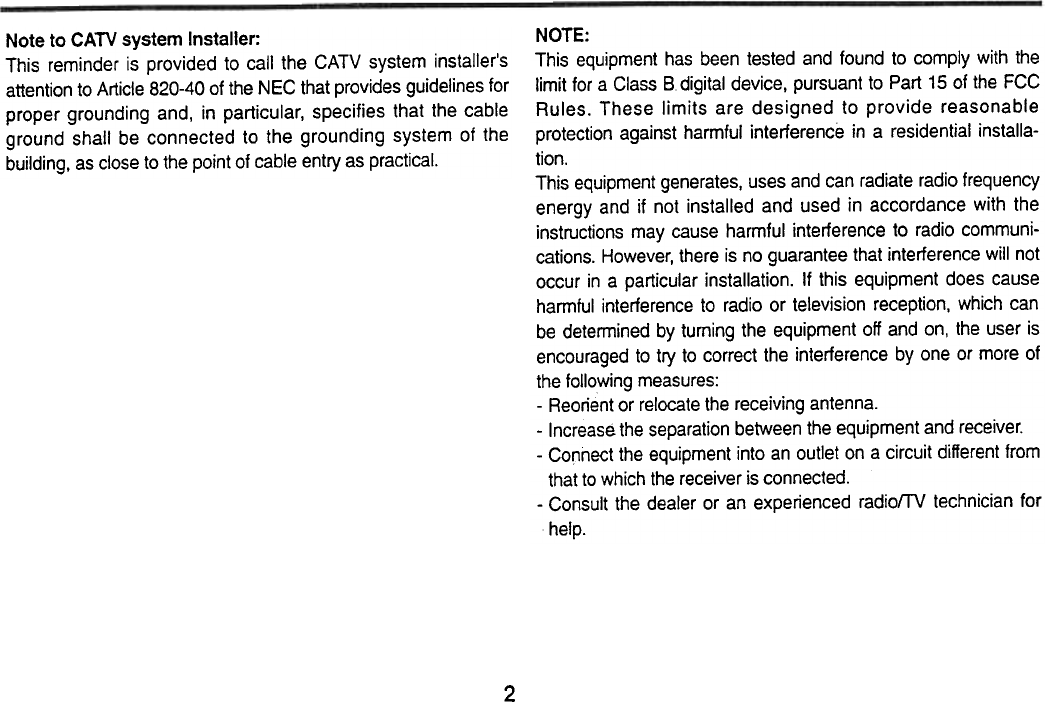

Note to CATV system Installer:

This reminder is provided to call the CATV system installer's

attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical.

NOTE:

This equipment has been tested and found to comply with the

limit for a Class Bdigital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installa-

tion.

This equipment generates, uses and can radiate radio frequency

energy and if not installed and used in accordance with the

instructions may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

-Consult the dealer or an experienced radiorrv technician for

help.

2

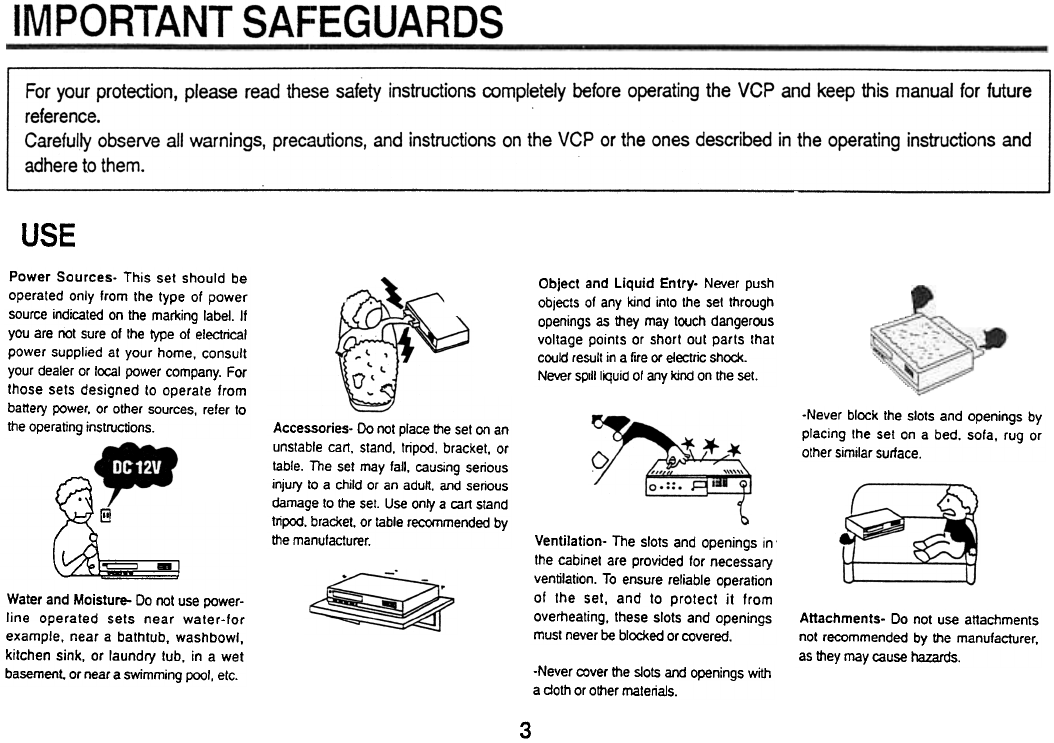

USE

Power Sources- This set should be

operated only from the type of power

source indicated on the marking label. If

you are not sure of the type of electrical

power supplied at your home. consult

your dealer or local power company. For

those sets designed to operate from

battery power, or other sources, refer to

the operating instructions.

ObJect and Liquid Entry- Never push

obJects of any kind into the set through

openings as they may touch dangerous

voltage points or short out parts Ihat

could result in a fire or electric shock.

Never spill Iquid of any kind on the set.

-Never block the slots and openings by

placing Ihe set on a bed. sofa. rug or

other similar surface.

G@

~

Water and Moisture. Do not use power-

line operated sets near water-for

example. near a bathtub, washbowl,

kitchen sink, or laundry tub. in a wet

basement, or near a swimming pool. etc.

Ventilation- The slots and openings in

the cabinet are provided for necessary

ventilation. To ensure reliable operation

of the set, and to protect it from

overheating, these slots and openings

must never be blocked or covered.

A"achments. Do not use attachments

not recommended by the manufacturer.

as they may cause hazards.

-Never cover the slots and openings with

a doth or other materials.

3

Accessories- Do not place the set on an

unstable cart, stand, tripod. bracket, or

table. The set may fall, causing serious

injury to a child or an adult, and serious

damage to the set. Use only a cart stand

tripod, bracket, or table recommended by

the manufacturer.

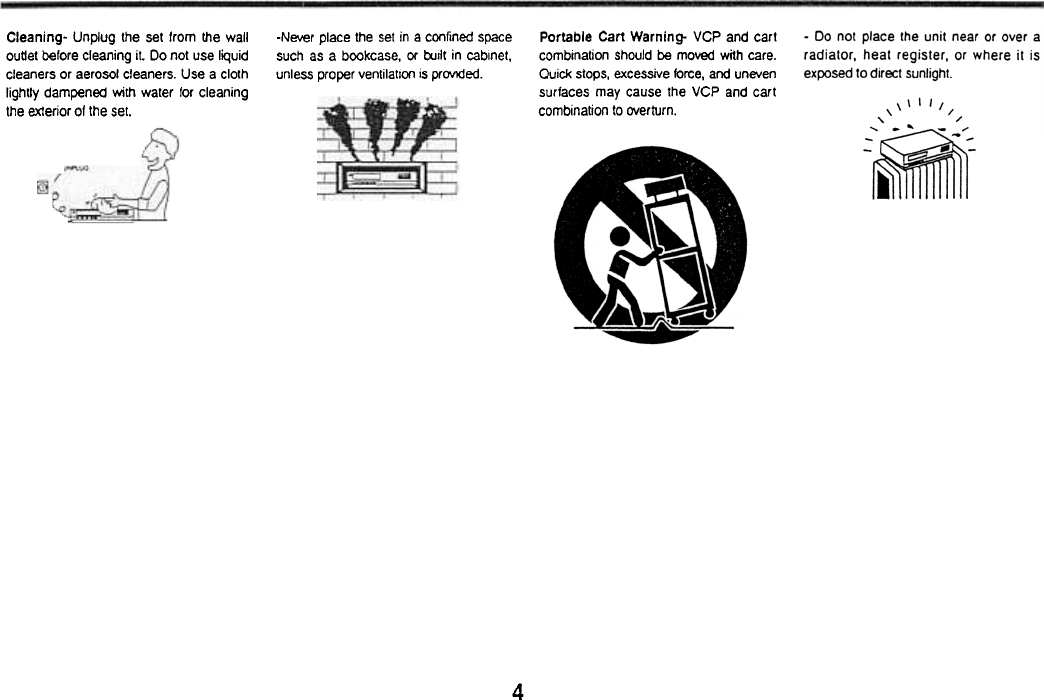

Cleaning- Unplug the set from the wall

outlet before cleaning it. Do not use liquid

cleaners or aerosol cleaners. Use a cloth

lightly dampened with water tor cleaning

the exterior of the set.

-Never place the set in a confined space

such as a bookcase, or txJlit in cabinet,

unless proper ventilation is provIded.

Portable Cart Warning. VGP and cart

combination should be moved with care.

Quick stops, excessive force, and uneven

surfaces may cause the VGP and cart

combination to overturn.

4

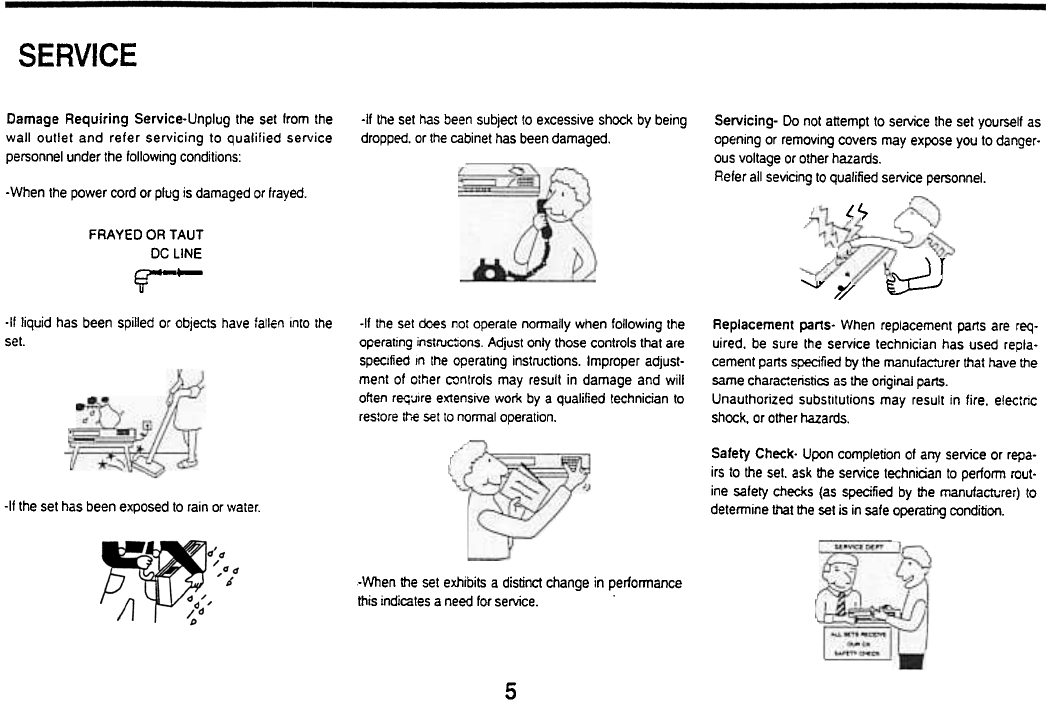

SERVICE

Damage Requiring Service-Unplug the set from the

wall outlet and refer servicing to qualified service

personnel under the following conditions

-If the set has been subject to excessive shock by being

dropped. or the cabinet has been damaged.

Servicing- Do not attempt to service the set yourself as

opening or removing covers may expose you to danger-

ous voltage or other hazards.

Refer all sevicing to qualified service personnel.

-When the power cord or plug is damaged or frayed.

L7

FRAYEO OR TAUT

OC LINE

r-

" '(

'b::::.J

.If liquid has been spilled or objects have fallen into the

set.

-If the set does not operate normally when following the

operating instruC:;ons. Adjust only those controls that are

specified In the operating instructions. Improper adjust-

ment of other controls may result in damage and will

often req"ire extensive wor1< by a qualified technician to

restore tt'.e set to normal operation.

'.JYT/

Replacement parts- When replacement par1s are req-

uired. be sure the service technician has used repla-

cement par1s specified by the manufac:urer that have the

same charac:eristics as the original par1S.

Unauthorized substitutions may result in fire. electric

shock. or other hazards.

Safety Check- Upon completion of any service or repa-

irs to the set. ask the service technician to perfolT11 rout-

ine safety checks (as specified by the manufactl;rer) to

detelT11ine that the set is in safe operating condition.

-If the set has been exposed to rain or wale(

,When the set exhibits a distinct change in perfonnance

this indicates a need for service.

5

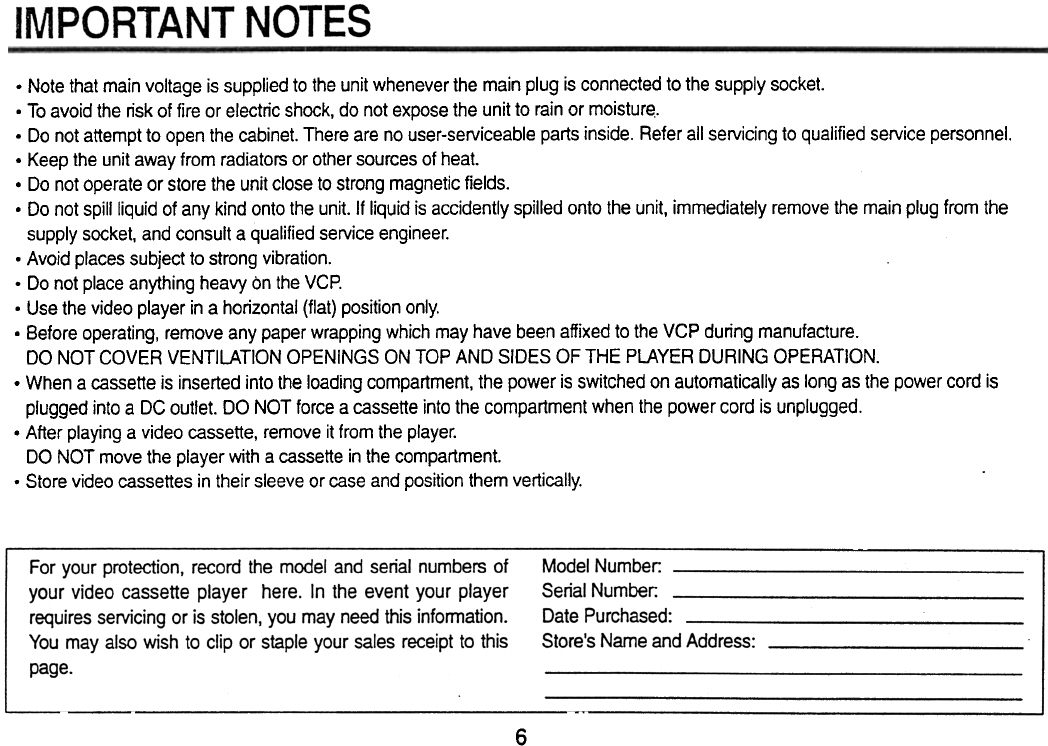

.Note that main voltage is supplied to the unit whenever the main plug is connected to the supply socket.

.To avoid the risk of fire or electric shock, do not expose the unit to rain or moisture,

.Do not attempt to open the cabinet. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel.

.Keep the unit away from radiators or other sources of heat.

.Do not operate or store the unit close to strong magnetic fields-

.Do not spill liquid of any kind onto the unit. If liquid is accidently spilled onto the unit, immediately remove the main plug from the

supply socket, and consult a qualified service engineer.

.Avoid places subject to strong vibration.

.Do not place anything heavy on the VCP.

.Use the video player in a horizontal (flat) position only.

.Before operating, remove any paper wrapping which may have been affixed to the VCP during manufacture.

DO NOT COVER VENTILATION OPENINGS ON TOP AND SIDES OF THE PLAYER DURING OPERATION.

.When a cassette is inserted into the loading compartment, the power is switched on automatically as long as the power cord is

plugged into a DC outlet. DO NOT force a cassette into the compartment when the power cord is unplugged.

.After playing a video cassette, remove it from the player.

DO NOT move the player with a cassette in the compartment.

.Store video cassettes in their sleeve or case and position them vertically.

6

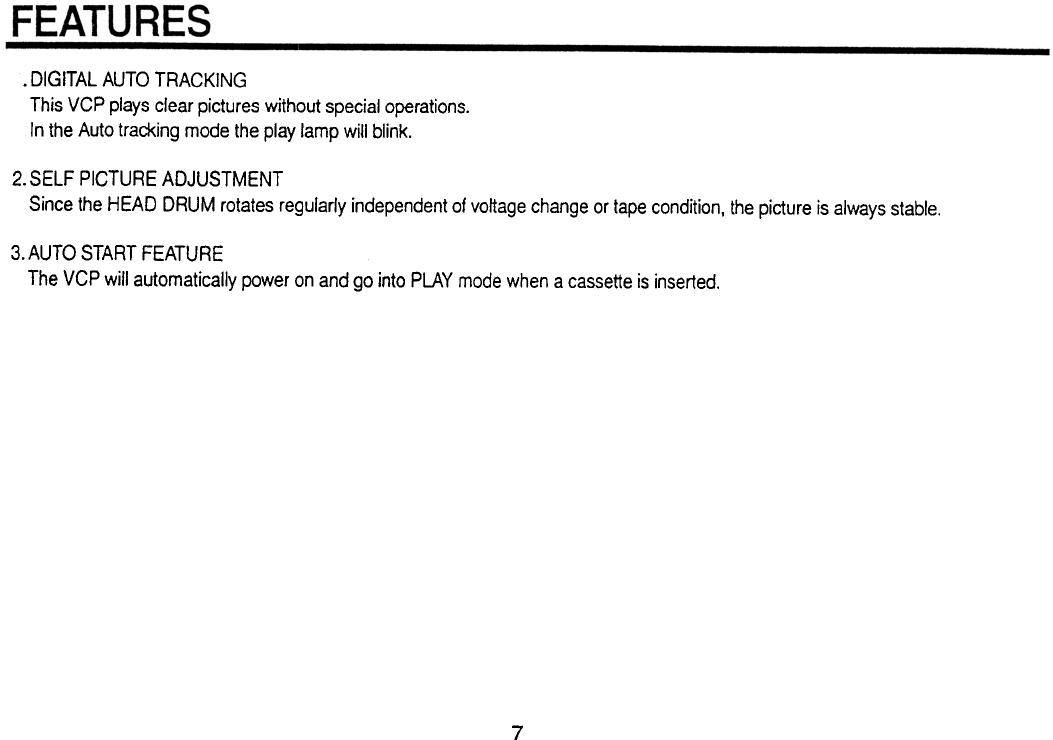

.DIGITAL AUTO TRACKING

This VCP plays clear pictures without special operations.

In the Auto tracking mode the play lamp will blink.

2. SELF PICTURE ADJUSTMENT

Since the HEAD DRUM rotates regularly independent of voltage change or tape condition. the picture is always stable.

3. AUTO START FEATURE

The VCP will automatically power on and go into PLAY mode when a cassette is inserted.

7

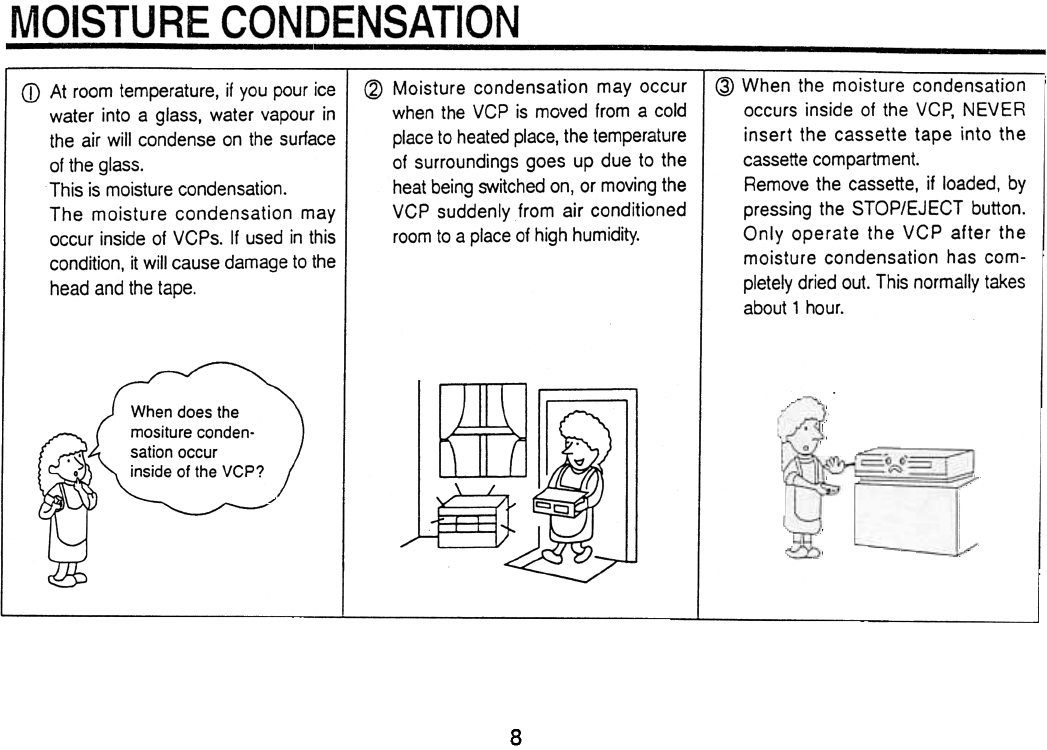

~ Moisture condensation may occur

when the VCP is moved from a cold

place to heated place, the temperature

of surroundings goes up due to the

heat being switched on, or moving the

VCP suddenly from air conditioned

room to a place of high humidity.

@ When the moisture condensation

occurs inside of the VCP, NEVER

insert the cassette tape into the

cassette compartment.

Remove the cassette, if loaded, by

pressing the STOP/EJECT button.

Only operate the VCP after the

moisture condensation has com-

pletely dried out. This normally takes

about 1 hour.

0) At room temperature, if you pour ice

water into a glass, water vapour in

the air will condense on the surface

of the glass.

This is moisture condensation.

The moisture condensation may

occur inside of VCPs. If used in this

condition, it will cause damage to the

head and the tape.

8

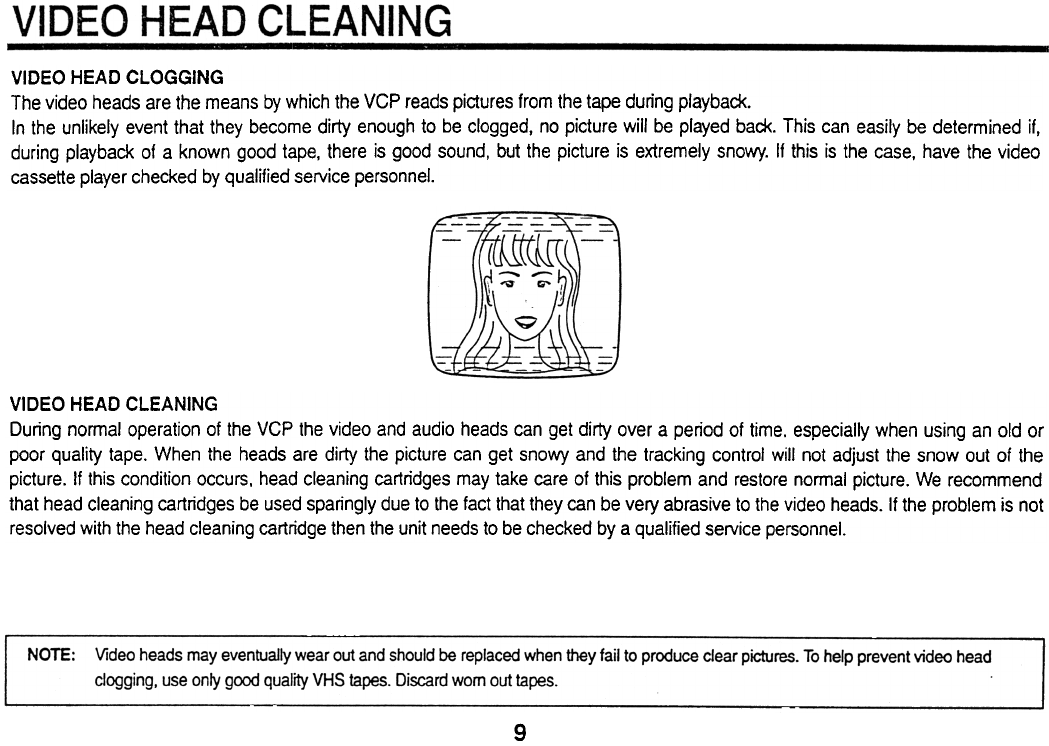

VIDEO HEAD CLOGGING

The video heads are the means by which the VCP reads pictures from the tape during playback.

In the unlikely event that they become dirty enough to be clogged, no picture will be played back. This can easily be determined if,

during playback of a known good tape, there is good sound, but the picture is extremely snowy. If this is the case, have the video

cassette player checked by qualified service personnel.

VIDEO HEAD CLEANING

During normal operation of the VCP the video and audio heads can get dirty over a period of time. especially when using an old or

poor quality tape. When the heads are dirty the picture can get snowy and the tracking control will not adjust the snow out of the

picture. If this condition occurs. head cleaning cartridges may take care of this problem and restore normal picture. We recommend

that head cleaning cartridges be used sparingly due to the fact that they can be very abrasive to the video heads. If the problem is not

resolved with the head cleaning cartridge then the unit needs to be checked by a qualified service personnel.

9

-,,--~,"'-~-, ."-..~." """~..,;."' ,.- "' " "'-"":, ""-"' ; ,;-~

~

~~.:~*~;

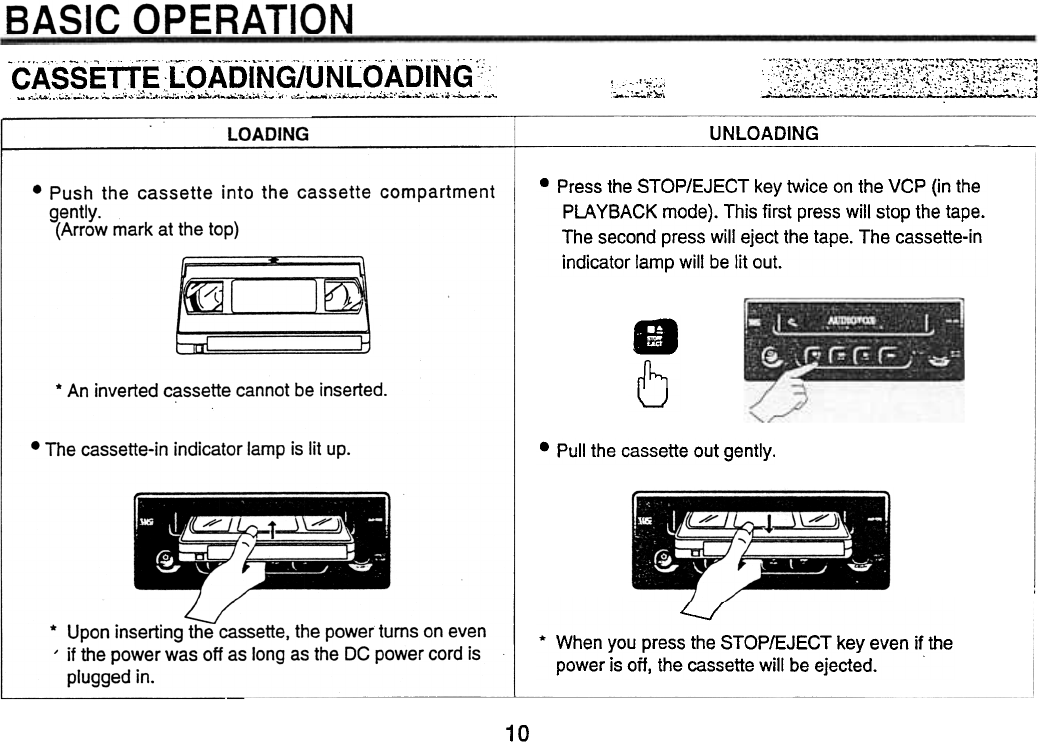

UNLOADING

LOADING

.Press the STOP/EJECT key twice on the VCP (in the

PLAYBACK mode). This first press will stop the tape.

The second press will eject the tape. The cassette-in

indicator lamp will be lit out.

.Push the cassette into the cassette compartment

gently.

(Arrow mark at the top)

II

O

* An inverted cassette cannot be inserted

.The cassette-in indicator lamp is lit up. .Pull the cassette out gently.

I-/

* Upon inserting the cassette, the power turns on even

, if the power was off as long as the DC power cord is

plugged in.

L.J

* When you press the STOP/EJECT key even if the

power is off, the cassette will be ejected.

10

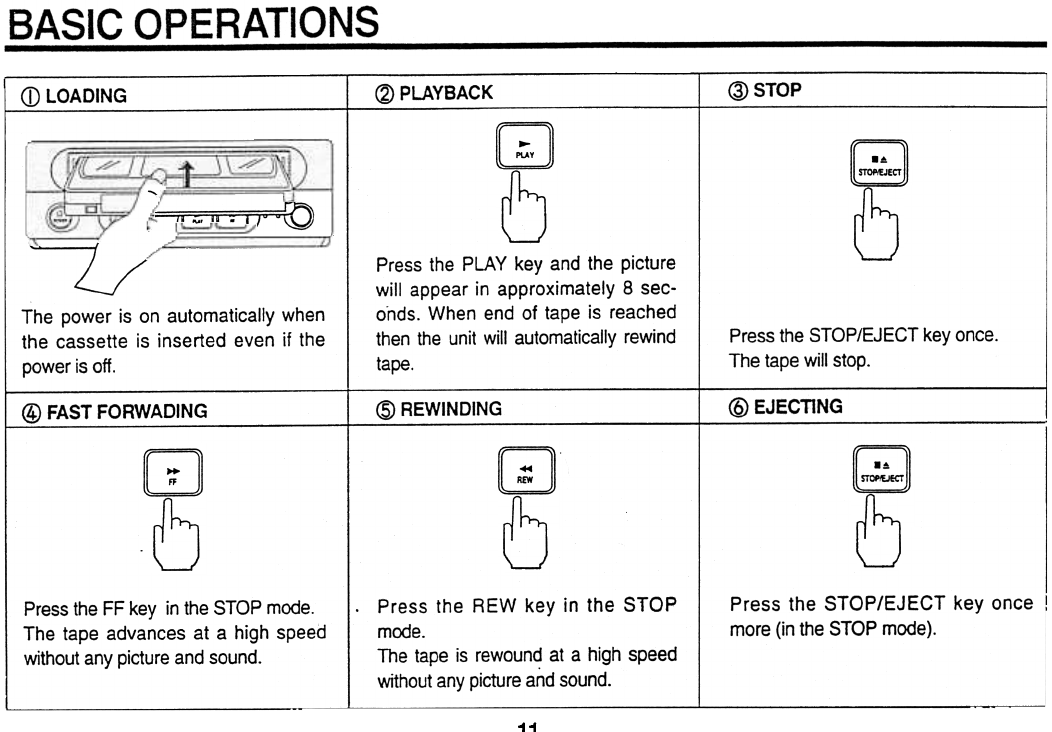

(3) STOP

~ PLAYBACK

<D LOADING

(" -! ! , \ /-

~

11... I' .1/- -~

~

Press the PLAY key and the picture

will appear in approximately 8 sec-

o"nds. When end of tape is reached

then the unit will automatically rewind

tape.

"-2/

The power is on automatically when

the cassette is inserted even if the

power is off.

Press the STOP/EJECT key once

The tape will stop.

@ EJECTING

~ REWINDING

@ FAST FORWADING

Press the STOP/EJECT key once

more (in the STOP mode).

Press the FF key in the STOP mode.

The tape advances at a high speed

without any picture and sound.

Press the REW key in the STOP

mode.

The tape is rewound at a high speed

without any picture and sound.

ii

The VCP enters the playback mode during special operations as soon as the PLAY key is pressed. During special operations noise

bars and loss of color may affect the picture. This is not a fault with this unit.

(i) TO VISUALLY SEARCH

REVERSE

~ TO OPERATE RE-AUTO TRACKING

CD TO VISUALLY SEARCH

FORWARD

.Press the PLAY key during playback

and then the VCP enters the Re-

Auto Tracking mode.

.Press the REW key once in the play-

back mode. And then the tape is

rewound rapidly with the pictures.

Press this key once more the tape

will rewind at a high speed.

.Press the FF key once in the

playback mode. And then the tape

advances rapidly with the pictures.

Press this key once more. the tape

will advance at a high speed.

12

IDENTIFICATION

FRONT PANEL

@ Stop/eject key

Press this key to stop tape and once more to eject tape.

@ Rewind/Review key

If this key is pressed in the PLA YBACK mode, the VCP

enters the reverse picture search mode. If pressed in

STOP mode, then the tape will rewind at high speed.

The REW indicator lamp will light up in orange.

CD Cassette Compartment

@ Power key

When power is supplied to the set, the power indicator

lamp will always light up in red.

The Power ON and Power OFF mode will be toggled by

pressing this key.

When the POWER is switched on, the power lamp will light

up in red and the other keys will light up in green.

13

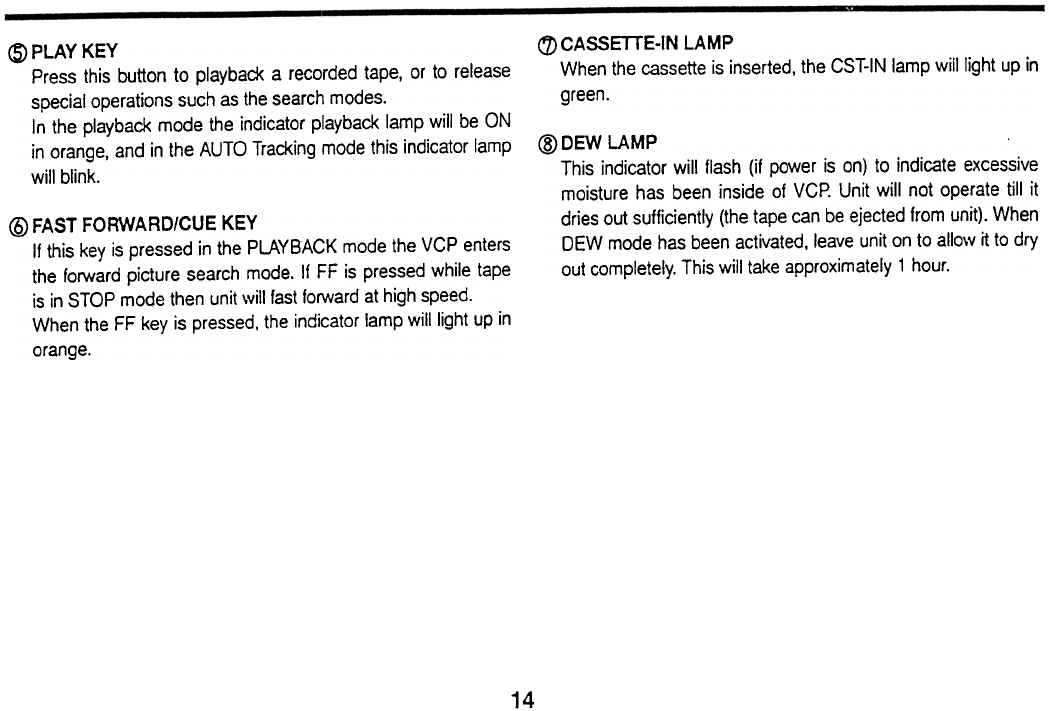

(2) CASSETTE.IN LAMP

When the cassette is inserted, the CST-IN lamp will light up in

green.

(5) PLAY KEY

Press this button to playbad< a recorded tape, or to release

special operations such as the search modes.

In the playback mode the indicator playback lamp will be ON

in orange, and in the AUTO Tracking mode this indicator lamp

will blink.

@DEW LAMP

This indicator will flash (if power is on) to indicate excessive

moisture has been inside of VGP. Unit will not operate till it

dries out sufficiently (the tape can be ejected from unit). When

DEW mode has been activated. leave unit on to allow it to dry

out completely. This will take approximately 1 hour.

@ FAST FORWARD/CUE KEY

If this key is pressed in the PLAYBACK mode the VCP enters

the forward picture search mode. If FF is pressed while tape

is in STOP mode then unit will fast forward at high speed.

When the FF key is pressed, the indicator lamp will light up in

orange.

14

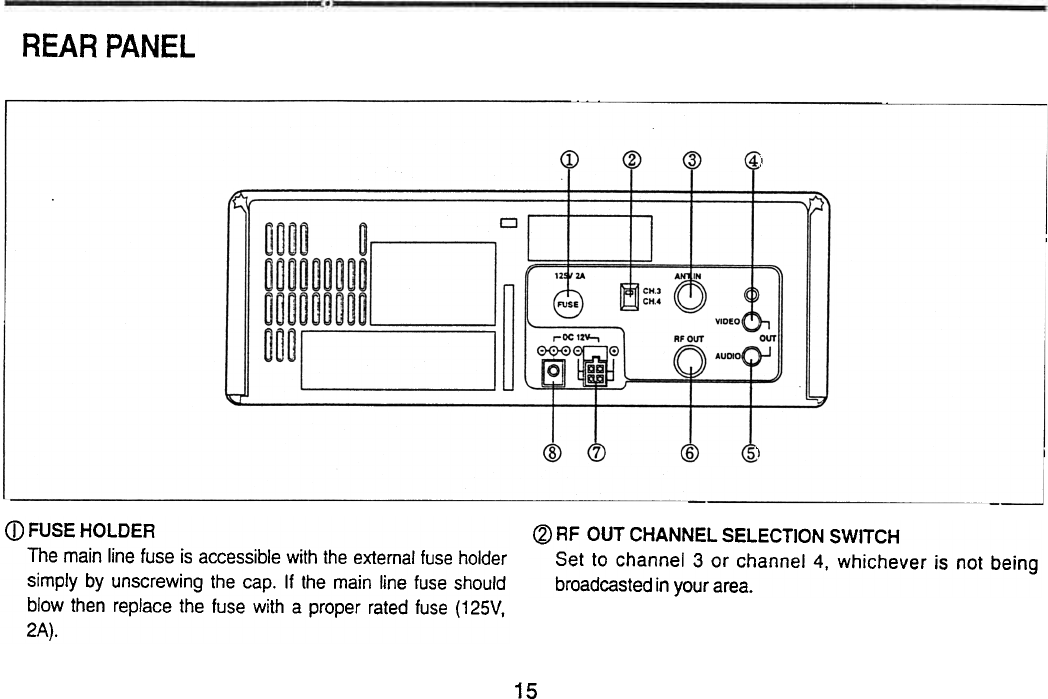

REAR PANEL

CDFUSEHOLDER

The main line fuse is accessible with the external fuse holder

simply by unscrewing the cap. If the main line fuse should

blow then replace the fuse with a proper rated fuse (125V,

2A).

~ RF OUT CHANNEL SELECTION SWITCH

Set to channel 3 or channel 4, whichever is not being

broadcasted in your area.

15

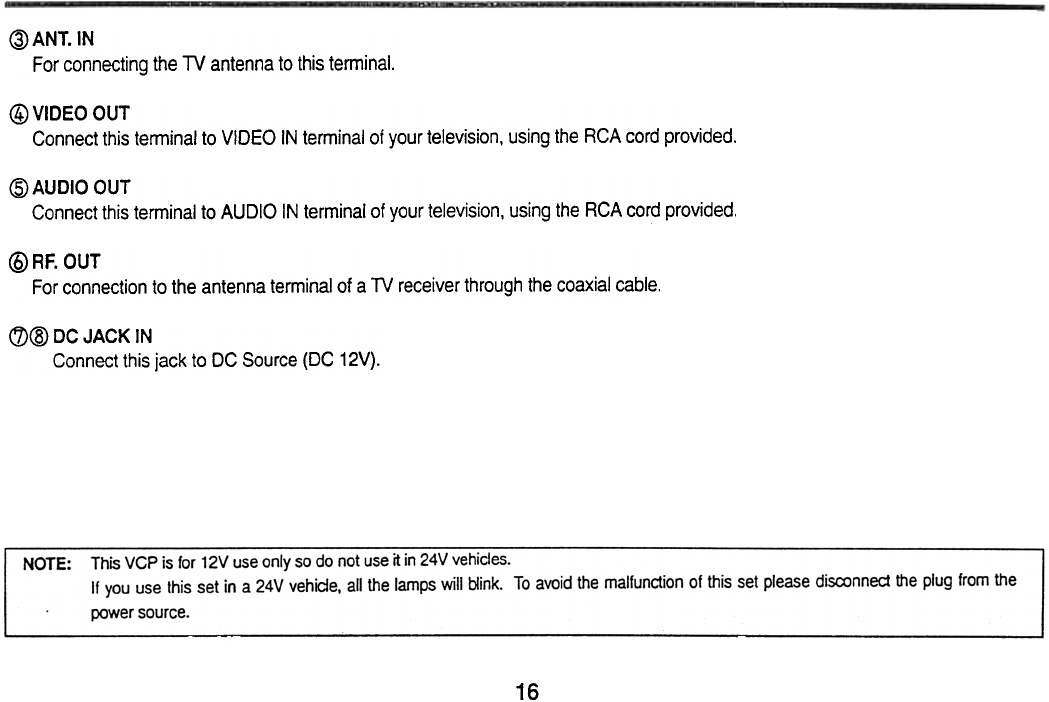

@ANT. IN

For connecting the 1V antenna to this terminal.

@ VIDEO OUT

Connect this terminal to VIDEO IN terminal of your television, using the RCA cord provided.

(5) AUDIO OUT

Connect this terminal to AUDIO IN terminal of your television, using the RCA cord provided.

(2) RF. OUT

For connection to the antenna terminal of a TV receiver through the coaxial cable.

~~ DC JACK IN

Connect this jack to DC Source (DC 12V).

16

.You can apply this method to DC 12V output only.

.Please connect to the vehicle only after making sure of the polarity of the cigarette lighter s~et. (negative earth)

17

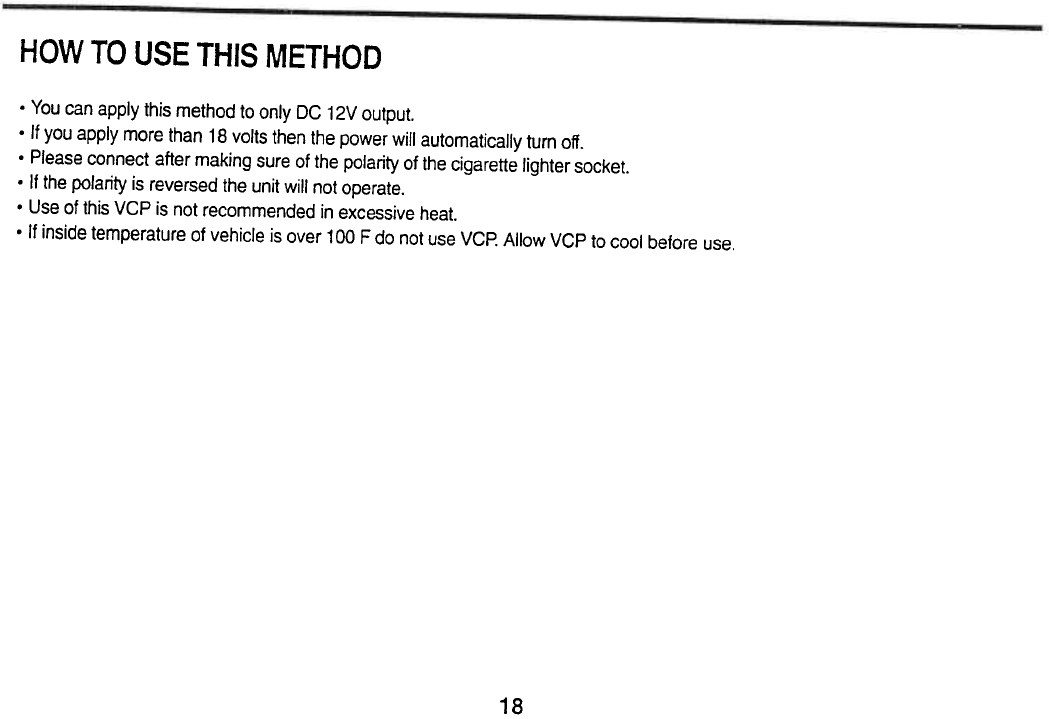

HOW TO USE THIS METHOD

.You can apply this method to only DC 12V output.

.If you apply more than 18 volts then the power will automatically turn off.

.Please connect after making sure of the polarity of the cigarette lighter socket.

.If the polarity is reversed the unit will not operate.

.Use of this VCP is not recommended in excessive heat.

.If inside temperature of vehicle is over 100 F do not use VCP. Allow VCP to cool before use.

18

PLAY key

19

POSSIBLE SOLUTIONS

CAUSE

SYMPTOMS

POWER

NO POWER .The power cord is not connected.

.The polarity of power cord is not correct. .Connect the power cord.

.Change the polarity of power cord.

PLAYBACK

.The TV is not set to the video channel

3or4.

.Set your TV to the video channel, 3 or

4.

No picture on screen when playing back

a recorded tape.

.Tracking is not adjusted .Adjust the picture to be clear by

pressing the PLAY key.

Noise bars on screen.

OTHERS

.If the cassette or the VGP is not in

normal condition, every indicator LEDI

LAMP is lit up and the VGP does not

work.

Operation keys do not work .Turn off the power and turn on the

power again by pressing the POWER

key.

.Unplug and replug the power cord.

.Safety device works to protect the

cassette when it is inserted incorrectly

.Pull the cassette out {unloading) and

insert it firmly into the cassette

compartment.

Cassette is ejected upon inserting

20

POSSIBLE SOLUTIONS

SYMPTOMS CAUSE

Check CH Video Switch is in ON position.

NO POWER

No backlighting at power button. NO 12VDC .Check circuit fuse at source of power

(see vehicle/converter manual).

.In-Iine fuse of power cord (in lighter

plug).

.VCP (2 amp .20X Smm) fuse located

on rear of unit.

.Power cord unplugged from 12V

outlet or at rear of unit.

(Unit in dew mode) Dew feature

activated (see owners manual)

.Retain power to player and allow unit

time to rid moisture. (After 30minutes

if dew indicator still on, completely

switch power off from unit and re-

supply after a minute. This can reset

dew indicator if moisture eliminated.)

Power indicated with backlighting-unit

will not operate.

.Insert tape

No tape in Unit.

Low Voltage

Unit in emergency mode.

.Start Vehicle. if not running.

.Contact dealer for service to player.

Mode indicators flashing unit will not

operate.

Play mode indicated no audio or

video to TV.

VCP connected to AN Input jack, RCA

patch cables set in TV mode.

.Switch TV to video mode with remote

or switch behind control door of TV.

21

POSSIBLE SOLUTIONS

CAUSE

SYMPTOMS

Play mode indicated no audio or Video

toTV.

.Switch to 1V mode

.Change conncetions from AN output

to AN input.

Output of VCP AN RCA cables or coax

not connected to TV input. .Check connectors between VCP and

T'l

Play mode indicated-No audio or video

toW.

(continued from previous page) Switchable input device used between

TV and VCP (game prep),

Poor connection between VGP output

and TV input.

.Check connection(a)

.Check connection(b)

Reversed MI inputs to TV.

.Check cable/by pass or continuity test.

Shorted Coax cable between VCP and

T'i

Poor Video/Snowy picture or lines on

screen.

Dirty Heads .Clean head using tape cartridge

cleaner. We recommend using

cartridge with cloth or paper tape and

cleaning drops included.

.These are readily avaliable at retail

stores.

22

MODEL

POWER SUPPLY

POWER CONSUMPTION

DIMENSION

WEIGHT APPROX.

VIDEO SIGNAL SYSTEM

AVP-7000

DC 12V

12W

265x89x295 (WxHxD)mm

3.4kg

NTSC COLOR

75.0. unbalanced AVX.

VHS TYPE

VIDEO SIGNAL, OUTPUT(RF) VHS

TAPE TYPE

TAPE SPEED SP 33.35mmlsec,

LP 22.23mmlsec, SLP 11. 12mmlsec

FF/REW TIME(T-120) Approx. 5MIN

1 Vpp 75 Q unbalanced

NEGATIVE SYNC

-5dBm 10k Q MAX

VIDEO SIGNAL OUTPUT(LINE)

AUDIO SIGNAL OUTPUTlLINE)

OPERATING CONDITION HUMIDITY 85% RHmax

TEMPERATURE: 5'(:-35'(: (41r-95r)

OPERATING POWER VOLTAGE 12-14V

23

AuDIovox @PECIALIZED ApPLICATIONS, L.L.C.

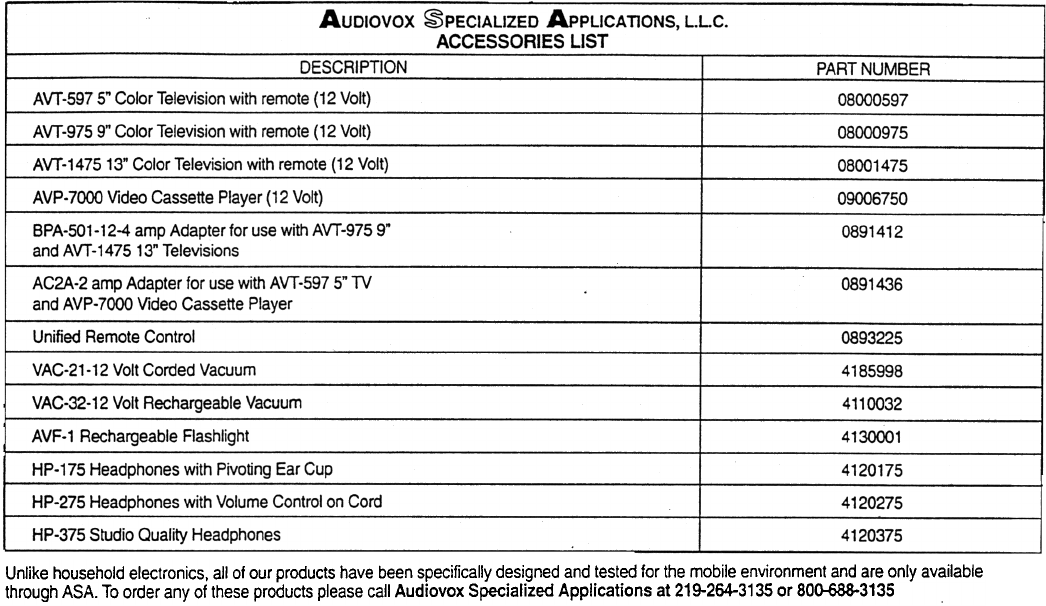

ACCESSORIES LIST

DESCRIPTION PART NUMBER

08000597

08000975

08001475

09006750

0891412

AVT -597 5" Color Television with remote (12 Volt)

AVT -975 9" Color Television with remote (12 Volt)

AVT-1475 13" Color Television with remote (12 Volt)

AVP-7000 Video Cassette Player (12 Volt)

BPA-501-12-4 amp Adapter for use with AVT -975 9.

andAVT-147513.Televisions

AC2A-2 amp Adapter for use with AVT -597 5" TV

and AVP-7000 Video Cassette Player

0891436

Unified Remote Control 0893225

4185998

4110032

4130001

4120175

4120275

4120375

VAC-21-12 Volt Corded Vacuum

VAC.32.12 Volt Rechargeable Vacuum

AVF-1 Rechargeable Flashlight

HP-175 Headphones with Pivoting Ear Cup

HP-275 Headphones with Volume Control on Cord

HP-375 Studio Quality Headphones

Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available

through ASA. To order any of these products please call Audiovox Specialized Applications at 219-264-3135 or SO0-688-3135

AUDIOVOX @pECIAUZED ~pLlcA TIONS, L.L.C

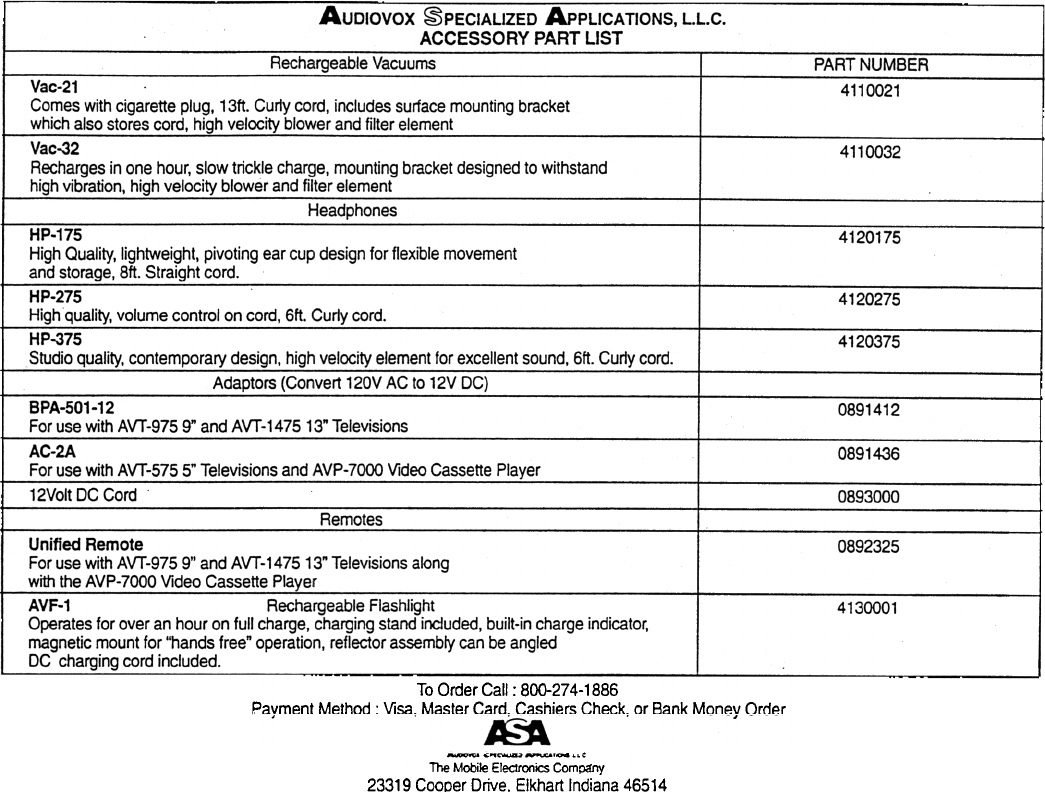

ACCESSORY PART LIST

Recharg~~ble Vacuums PART NUMBER

4110021

Vac-21

Comes with cigarette plug, 13ft. Curly cord, includes surface mounting bracket

which~stores cord. high~~ty-~~r and filter element

4110032

Vac-32

Recharges in one hour, slow trickle charge, mounting bracket designed to withstand

high vibration, high velocity blower and filter element

Headphones

4120175

HP-175

High Quality, lightweight, pivoting ear cup design for flexible movement

and storage, 8ft. Straight cord. ---

4120275

HP-275

~~~ q~ality,yolume control on cord, 6tt. Curly cord.

4120375

HP-375

Studio quality, contemporary design, high velocity element for excellent sound, 6ft. Curly cord

Adaptors (Conver1120V AC 10 12V DC)

0891412

BPA-501-12

For use with AVT-975 9" and AVT-1475 13" Televisions

0891436

AC-2A

For use with Avr-575 5" Televisions and AVP-7000 Video Cassette Player

12Volt DC Cord 0893000

Remotes

0892325

Unified Remote

For use with Avr -975 9" and Avr -1475 13" Televisions along

~~ the A VP- 7000 Vid~oQ~ss~~~--

4130001

AVF-1 Rechargeable Flashlight

Operates for over an hour on full charge, charging stand included, built-in charge indicator,

magnetic mount for "hands free" operation, reflector assembly can be angled

DC charging cord included.

-.~~~,-."

The Mobile Electronics Company

23319 Cooper Drive. Elkhart Indiana 46514

To Order Call: 800-274-1886

Payment Method: Visa. Master Card. Cashiers Check. or Bank Monev Order

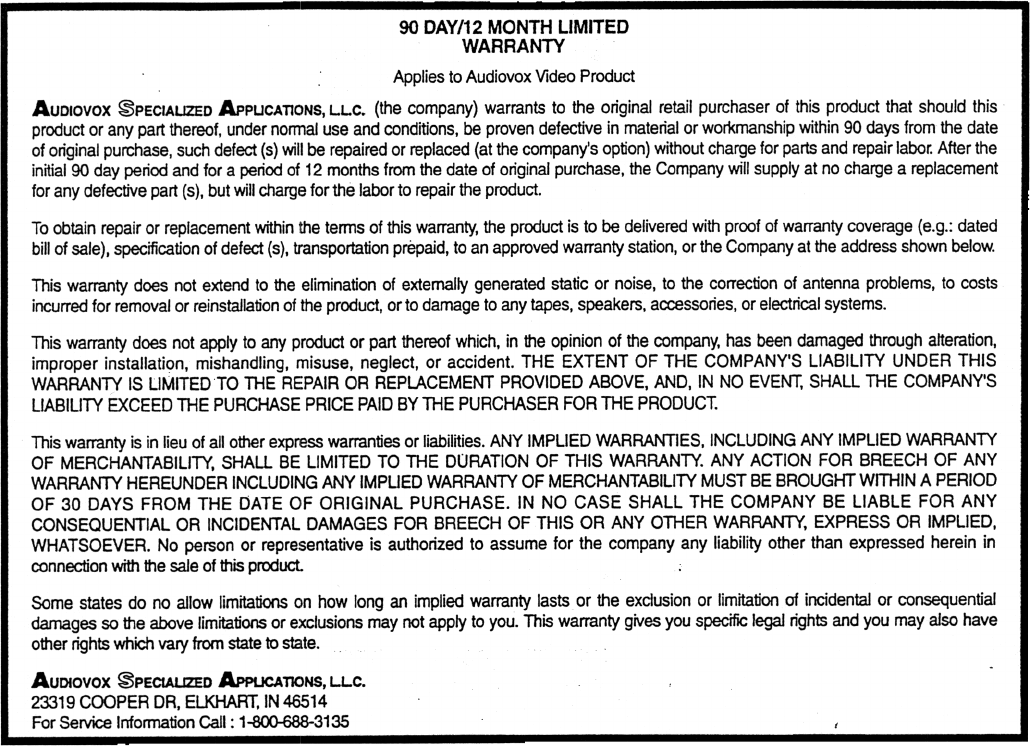

90 DAY/12 MONTH LIMITED

WARRANTY

Applies to Audiovox Video Product

AUDIOVOX @PECIAUZED APPUCATIONS. LLC. (the company) warrants to the original retail purchaser of this product that should this

product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date

of original purchase, such defect (5) will be repaired or replaced (at the company's option) without charge for parts and repair labor: After the

initial 90 day period and for a period of 12 months from the date of original purchase, the Company will supply at no charge a replacement

for any defective part (5), but will charge for the labor to repair the product.

To obtain repair or replacement within the terms of this warranty, the product is to be delivered with proof of warranty coverage (e.g.: dated

bill of sale), specification of defect (5), transportation prepaid, to an approved warranty station, or the Company at the address shown below.

This warranty does not extend to the elimination of extemally generated static or noise, to the correction of antenna problems, to costs

incurred for removal or reinstaJlation of the product, or to damage to any tapes, speakers, accessories, or electrical systems.

This warranty does not apply to any product or part thereof which, in the opinion of the company, has been damaged through alteration,

improper installation, mishandling, misuse, neglect, or accident. THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS

WARRANTY IS LIMITED 10 THE REPAIR OR REPLACEMENT PROVIDED ABOVE. AND, IN NO EVENl; SHALL THE COMPANY'S

LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER FOR THE PRODUCl:

This warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY

OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WARRANTY. ANY ACTION FOR BREECH OF ANY

WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD

OF 30 DAYS FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREECH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,

WHATSOEVER. No person or representative is authorized to assume for the company any liability other than expressed herein in

connection with Ule sale of Ulis prOOuct.

Some states do no allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential

danlages so Ule above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have

oUler rights which vary from state to state.

AUDfOVOX @PECIAUZED APPUCAT1ONS. LLC.

23319 COOPER DR, ELKHART,IN 46514

For Service Information Call: 1-800-688-3135
