Thank you for choosing a Jensen product. We hope you will nd the instructions

in this owner’s manual clear and easy to follow. If you take a few minutes to look

through it, you’ll learn how to use all the features of your new Jensen VX7010

Multimedia Receiver for maximum enjoyment. Please save this manual for future

reference.

We recommend having your Jensen VX7010 Multimedia Receiver installed by a

reputable installation shop.

FEATURES

DVD

• Audio Equalizer

• Next Chapter and Previous Chapter

• Play/Pause

• Track Direct Entry

• Disc Menu

• Selection Repeat / Track Repeat

• Disc Audio

• Disc Language

• Pic Control

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA, China, Japan, Europe, Europe (LW) and Orient (OIRT)

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod®/iPhone®

• iPod®/ iPhone® via USB

• High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums

and Songs. Play music and view video/photo* les from your iPod®. *Video/

photo playback requires jLink-USB iPod® interface cable (sold separately).

• Power Management Charges iPod® while Connected

VX7010

SiriusXM-Ready®

• Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor

(Vehicle Tuner and Subscription required and sold separately)

Chassis

• 1.0 DIN (Import / ISO-DIN Mountable)

• Motorized Flip-Out / Flip-Up TFT Screen

• 7” High Denition TFT LCD

• 1,152,000 Sub Pixels (800 x 3 X 480)

General

• Beep Tone Conrmation (ON-OFF Option)

• Built-In Bluetooth® providing Hands-Free operation for safety and convenience

and A2DP for streaming music from your smartphone or other Bluetooth®

device.

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Front Panel USB - Playback Music / Video Files via Portable Hard Drives / USB

Sticks

• Ten-Band Tone Equalizer

• Rear Subwoofer Line Output

• Rear Camera Input

• Touch Screen Calibration Mode

• Rotary Encoder Audio Control

Rear Camera

• The VX7010 is “camera ready.” Before accessing any camera features, you must

purchase and install a rear video camera.

Navigation

• Tele Atlas Map Data

• 11 Million Points of Interest

• External Memory 4GB SD Card

• Latest Map Guarantee (Must be redeemed within 90 days of initial activation)

• 13 Natural Voice Languages for Navigation Guidance

VX7010

WARNING! Never install this unit where operation and viewing could interfere

with safe driving conditions.

WARNING! To reduce the risk of a trac accident (except when using for rear

view video camera) never use the video display function while driving the vehicle.

This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or re, never expose this unit to moisture

or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid impact to

the unit’s monitor.

WARNING! Using an improper fuse may cause damage to the unit and result in

re.

VX7010

CONTROLS AND INDICATORS

OPEN

VX7010

VX7010 Controls and Indicators

1. LCD Screen and Touch Screen:

Touch icons on this screen to access menus or control functions.

2. Eject ( ) Button:

Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is

ejected and the unit will change to radio operation. If the disc is not removed

from the unit and the button is pressed again, the disc will be re-loaded. If the

disc is not removed from the disc slot within 10 seconds of being ejected, it

will be automatically reloaded to prevent it from being accidentally damaged.

VX7010

3. Display (DISP) Button:

Touch to adjust the screen brightness.

Touch and hold to turn the screen o.

When the TFT is closed, press once and repeat to cycle through clock time,

metadata, RDS information, etc. The type of information displayed depends

upon the selected source

3.5 mm AV IN Jack:

This connector accepts a 3.5 mm jack through which signals from various

audio/video devices can be applied to the unit.

5. Open Button:

Press to open/close the TFT/LCD screen.

6. Reset Button:

Press this button to reset the system settings (except password and parental

lock settings) and to correct a system halt or other illegal operation. Use the

tip of a pen to press the Reset button.

Micro SD card slot:

Used to insert microSD cards containing containing navigation software

updates.

8. USB slot:

Used to connect an iPod®, MP3 player or ash drive connection adapter for

playback of music/video les.

Interface Cover:

Covers the Micro SD card slot, USB slot and Reset button.

10.

Remote Sensor:

Used to receive command signals from the remote control.

11.

Previous ( ) / Next ( ) Buttons:

Press the Previous ( ) button to play the previous track on a disc.

Press the Next ( ) button to play the next track on a disc.

12. Rotary Volume ( ) Knob / Mute Button

Rotate the knob to adjust the volume from 0 to 50.

Press the knob momentarily to mute the audio. Press the knob again to

restore the audio.

13. SRC / Power On/O ( ) Button

Press to turn the unit ON.

When on, press to switch the playing source.

Press and hold to turn the unit o.

14. Disc Slot:

Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a

disc is inserted.

VX7010

REMOTE CONTROL

Remote Control Notes

1. Aim the remote control at the remote sensor on the unit.

Remove the battery or insert a battery insulator if the remote control will not

be used for a month or longer.

3. Do not store the remote control in direct sunlight or in a high temperature

environment. It may not function properly.

4. Under normal operation conditions, battery life is approximately 6 months. If

the remote control does not work, replace the battery.

5. Use button-shaped CR2025 lithium batteries only.

6. Do not recharge or disassemble the battery.

7. Do not heat the battery or expose the battery to re.

8. To avoid risk of accident, store the battery in a place that children can not

reach.

Battery Installation/Removal

1. Slide out the battery compartment cover located on the bottom of the back

of the remote control.

Insert a CR2025 lithium battery into the battery tray. Make sure that the

proper polarity (+ or -) is observed.

3. Align the cover tabs with the remote control and slide the cover in until it

locks.

Slide Out

Slide In

Battery Compartment Cover Removal/Installation

VX7010

This page intentionally left blank

VX7010

18 16

VX7010 Remote Control

VX7010

Remote Control Functional Description

1. SOURCE SRC Button: Press this button to switch between

and select available sources. (Disc, Radio, USB/iPod®, AV-IN1,

Settings, Bluetooth®, Camera, AV-IN2, Pandora or SiriusXM)

POWER Button ( ): Press this button to turn the unit ON and OFF.

3. BLUETOOTH BT Button: Press this button to enter the Bluetooth

feature.

4. MAP Button: Press this button to enter the Navigation feature. Press again to

return to previous source.

5. PLAY / PAUSE   Button: Press this button to pause the playback of a disc.

Press this button again to resume normal playback.

6. NEXT FORWARD uul) Button: Press this button to skip to the next chapter,

track or song during playback of a disc. Press this button while in Radio mode

to search available radio station by increasing tuning frequency. Press this

button while in iPod mode to pause playback/starts playback of a music le.

7. ANGLE Button ( ): Press to display and select dierent camera angles

in DVD mode. Each time the button is pressed, the angle changes.

NOTE: The numbers of angles vary from disc to disc. Not all discs contain this

option.

8. SUBTITLE Button ( ): Press to display and select the subtitle language in

DVD mode. Each time the button is pressed, the subtitle language changes.

NOTE: The type and number of languages for subtitles vary from disc to disc.

9. AUDIO Button: Press to display and select the audio language in

DVD mode. Each time the button is pressed, the language changes.

NOTE: The languages for audio vary from disc to disc.

10. VOLUME Button VOL + and : Press these buttons to increase or decrease

the playback volume.

11. SETUP Button: Press to this button to enter the system settings menu.

12. MUTE Button ( ): Press this button to turn the audio output ON and OFF.

13. GOTO Button: Press this button to open direct entry search screen during the

playback of a disc.

14. ANSWER INCOMING PHONE CALL Button ( ): Press this button to answer

an incoming Bluetooth phone call.

VX7010

15. DISCONNECT ACTIVE PHONE CALL Button ( ): Press this button to

disconnect an active Bluetooth phone call.

16. BACKSPACE Button ( ): Press this button to correct invalid number entries

when entering passwords, track/chapter selections or phone numbers using

the remote control.

17. RANDOM Button ( ): Press this button to play tracks or chapters in random

order while playing a disc.

18. REPEAT Button   : Press this button to repeat the playback of a current track.

Allows the user to repeat a selected Title, Chapter or Track of a DVD, CD or MP3.

19. NUMBER Buttons (0-9): Press these buttons to directly access chapters and

tracks, dialing phone numbers, or entering passwords.

20. UP (p) / DOWN q) Buttons – Press these buttons to scroll upward and

downward, respectively, in menu options.

21. MENU Button: Press this button to access the root menu of a DVD or CD

during playback. The disc will return to normal playback and the root menu

will disappear if no selection is made within 10 seconds. This button is also

used to select photo mode of an MP3 player.

22. ENTER Button (OK): Press this button to implement a selected setting or

accept an option.

23. LEFT t / RIGHT u Buttons: – Press these buttons to shift left and right,

respectively, in the menu options

24. EQUALIZER Button (EQ): Press this button to accesses the equalizer menu in

all audio playback modes.

25. SCREEN BACKLIGHT ADJUST BUTTON  : Press this button to adjust the

screen backlighting level between low, medium and bright.

VX7010

26. ZOOM Button ( ): (FOR VIEWING IMAGE FILES)

DISC images -

Press ZOOM button CD Player Performs

Once

Enlarge the picture 125% of the original size

2 times

Enlarge the picture 150% of the original size

3 times

Enlarge the picture 200% of the original size

4 times Picture is returned to original size

27. BAND Button: Press this button to scroll though preset stations.

28. PREVIOUS ltt) Button – Press this button to go back to the previous

chapter, track or song during playback of a disc. Press this button while in

Radio mode to search available radio station by increasing tuning frequency.

Press this button while in iPod mode to pause playback/starts playback of a

music le.

29. DISC Button: Press this button to enter Disc mode radio mode and scroll

though preset stations.

30. TUNER: Press this button to enter Radio mode.

31. EJECT Button ( ): Press this button to eject a DVD/CD/MP3 disc. Disc play is

stopped, the disc is ejected and the unit will change to radio operation. If the

disc is not removed from the unit and the button is pressed again, the disc will

be re-loaded. If the disc is not removed from the disc slot within 10 seconds

of being ejected, it will be automatically reloaded to prevent it from being

accidentally damaged.

32. HOME Button: Press this button to return to the source menu.

VX7010

USING THE TFT MONITOR

Opening/Closing the TFT Monitor

Open the TFT Monitor

Press the OPEN button on the front panel to activate the mechanism that moves

the display panel into the viewing position.

Close the TFT Monitor

Press the OPEN button on the front panel to load the display panel back into the

compartment.

TFT Monitor Tilt Angle Adjustment

A known characteristic of TFT panels is that the quality of the display varies in

relationship to the viewing angle. To adjust the monitor angle for optimum

viewing:

1. Press and hold the OPEN button on the front panel until a beep is heard.

2. To adjust the tilt of the display panel, turn the rotary volume ( ) knob.

To store the new tilt setting, press and hold the OPEN button. The rotary

volume ( ) knob will return to normal operation.

VX7010

EXTERNAL DEVICES

Connecting External Devices

External devices, including a game console, camcorder, navigation unit, iPod®,

Zune®, etc. can be connected to this unit using its front A/V input 3.5mm jack (AV-

In1), the rear RCA inputs (AV-In2) or the USB port.

You cannot directly control external devices connected to the A/V INPUTs using

the front panel controls or this unit’s remote control.

AV-In1

AV-In1 is used for playback of audio/video from an external device connected to

the unit through a 3.5mm jack. The unit can increase or decrease the volume of

the connected device all other controls are done on the connected device. Select

“AV-In 1” mode to access auxiliary devices.

AV-In2

AV-In2 is used for playback of audio/video from an external device connected

through RCA connectors located on the back of the unit (see the VX7010

Installation Guide). The unit can increase or decrease the volume of the connected

device; all other controls are done on the connected device. Select “AV-In2” mode

to access auxiliary devices.

3.5mmA/V Cable (not included)

Video

Left Audio

Right Audio

Ground

OPEN

USB Cable (not included)

Connecting External Devices

VX7010

QUICK START GUIDE

Turning the Unit ON or OFF

Press the front panel SRC / Power ( ) button to turn the unit ON. To turn the unit

OFF, press and hold the front panel SRC / Power ( ) button for 2 seconds.

Selecting an Audio/Video Source, Bluetooth, Steering

Wheel Controls, Backup Camera or Pandora

To select a source by using the front panel SRC button or main menu screens:

1. Press the SRC button on the front panel to switch playing sources.

SRC

Button

VX7010 Front Panel

2. Touch the desired source icon on one of the two main menu screens.

Screen 1 of 2: Disc, Radio, USB, AV-IN1, Settings, Bluetooth (BT) or Camera.

Touch Next at the bottom of the screen to access Screen 2 of 2: Steering Wheel

Controls (SWC), AV-IN2, Pandora or SiriusXM (SXM).

Screen 1 Screen 2

VX7010 Main Menu Screen

VX7010

System Settings Adjustment

To access and adjust system settings:

Touch the Settings ( ) icon on the Main Menu screen to enter the SETTINGS

MENU. Sub-menus where adjustments can be made will be highlighted. (See

”SYSTEM SETTINGS” on page 23.)

Volume Adjustment

To increase or decrease the volume level, rotate the front panel Rotary

Volume ( ) knob / Mute button. The unit’s front panel screen will display the

volume level for 3 seconds. The volume level ranges from 0 to 50 (a beep sounds,

indicating that the adjustment limit has been reached).

Audible Beep Conrmation

An audible beep tone conrms each function selection. The beep tone can be

disabled through the Setup menu. (See “General Sub-menu Features” on page

23.)

Muting the Audio

Press the front panel Rotary Volume ( ) knob / Mute button to mute the audio

from the unit. Mute icon is displayed on the LCD screen. Press the Rotary

Volume ( ) knob / Mute button again to restore the audio volume to its

previous level. Adjusting the volume or using any of the audio setup features

cancels the mute function.

Equalizer Controls

Equalizer (EQ): Adjustment can be made after entering one of the audio/video

sources (Disc, Radio, USB, AV-IN or SXM).

Touch the Equalizer (EQ) icon to view the Equalizer Control Screen to select a

desired preset setting (Optimal, Classic, Rock, Jazz, Techno or Pop), Flat setting,

custom User setting, make adjustments to the audio Balance and Fade levels or to

turn the Loudness option ON or OFF. Touch the SRC icon to return to the current

source. (See ”Adjusting Equalizer Controls” on page 21.)

VX7010

Playing a Disc

To begin playback of an Audio/Video Disc:

Press the front panel Rotary Volume ( ) knob / Mute button to turn the unit

ON.

Insert a disc with the label side facing up. Playback will begin automatically.

(See “DISC OPERATION” on page 32.)

To eject a disk:

1. Press the front panel Eject ( ) button.

Resetting the System

Soft Reset - To correct a system halt or other illegal operation, use the tip of a pen

to press and release the reset button located just below the front panel interface

cover.

[RESET]

Button

System Reset Button

After a system reset, the unit restores all factory default settings.

Note: If the unit is reset while a DVD is playing, the unit will return to Main Menu

once the reset is complete.

Parking Brake Inhibit

When the pink “Parking” wire is connected to the vehicle Parking Brake circuit, the

front TFT monitor will display video when the Parking Brake is engaged.

VX7010

EQUALIZER CONTROL MENU

Adjusting Equalizer Controls

The Equalizer adjustment screen allows the user to easily adjust the audio system

to meet the acoustical characteristics of the vehicle. The acoustical characteristics

vary depending on the type of vehicle and measurements.

For example: proper setting of the audio controls can improve the speakers

frequency response to compensate for cabin.

The Balance/Fade levels and Loudness ON/OFF option of a selected audio/video

source (Disc, Radio, USB/iPod®, AV-IN1, AV-IN2 or SXM) is also adjusted through the

Equalizer adjustment screen.

Equalizer (EQ) (10 Band)

1. Touch the Equalizer (EQ) icon to view and select a desired preset setting

(Optimal, Classic, Rock, Jazz, Techno or Pop) or Flat setting.

Note: The equalizer will automatically change to “USER” when individual audio

functions are adjusted.

Equalizer Adjustment Screen

2. Select a desired frequency range slide bar to be adjusted (31.5, 62.5, 125, 250,

500, 1K, 2K, 4K, 8K or 16K).

3. Touch and move the slide bar Up or Down to adjust the frequency sound level

settings from -10 to +10.

User Setting

Touch the User icon to customize each of equalizers 10 frequency bands.

Flat Setting

Touch the Flat icon to set the equalizers 10 band frequencies to the midpoint.

VX7010

Reset Setting

Touch the Reset icon to reset the 10 equalizer band frequencies to the mid point.

Loud Setting

Touch the Loud icon to turn the loud option ON or OFF. The loud option

automatically alters the frequency response curve of audio to make it sound more

natural when played at a lower volume level.

Exiting the Equalizer

To exit the Equalizer menu touch the SRC icon to return to the current source.

Fade-Balance

Balance-Touch the FAD-BAL icon on the left side of the equalizer screen to display

the balance/fader screen.

Fade-Balance Adjustment Screen

Balance - This feature is used to balance the audio output levels between the

left and right side of the vehicle. Touch the t or u icons to change the balance

control settings -20 (Left) to +20 (Right). The setting can also be changed by

touching screen within the grid to move the sphere.

Fader - This feature is used to fade the audio output levels between the front and

rear of the vehicle. Touch the p or q icons to change the fade control settings -20

(Rear) to +20 (Front). The setting can also be changed by touching screen within

the grid to move the sphere.

Sub (Subwoofer) - This feature is used to reduce or increase the subwoofer sound

level. Touch the slide bar p or q icons to adjust the settings.

Exiting the Balance-Fader

To exit the balance-fader touch the SRC icon on the top left corner of the screen.

VX7010

SYSTEM SETTINGS

To access System Settings, touch the icon on the Main Menu screen. There are

seven System Settings Sub-menus (General, Audio, Time, Language, Bluetooth,

DVD or Volume) that are used to adjust the performance of each option of the

VX7010. The Version Sub-menu is for information only. Touch a desired Sub-Menu

and the Sub-menu will appear highlighted. The features available for adjustment

will appear on the screen.

System Settings Screens

Adjusting a Sub-Menu Feature

1. Touch the Sub-Menu feature to be adjusted.

2. Touch the p or q icon to view the previous or next feature page, if

applicable. An options list appears on the right.

3. Touch the desired feature option once to make selection then touch again to

conrm the selection.

General Sub-menu Features

Radio Region - USA, China, Japan, Europe, Europe (LW), and Orient (OIRT)

USA frequencies:

• AM Frequency Spacing - 9 kHz/10 kHz

• AM Frequency Band - 530 kHz ~ 1720 kHz

• FM Frequency Spacing - 50 kHz/200 kHz

• FM Frequency Band - 87.5 MHz ~ 107.9 MHz

Radio Lo/Dx - Touch the Distance or Local to increase or decrease radio tuning

sensitivity to receive local or distant stations.

TFT Standby - Touch OFF, 10s or 20s to set the unit’s front panel TFT LCD screen to

stay ON continuously or to blackout the screen after 10 or 20 seconds.

Display Adjust - Touch Night, Dark, Normal or Bright to set the unit’s front panel

TFT LCD screen to be adjusted for day and night conditions.

VX7010

Beep - Touch ON or OFF to turn the selection conrmation beep ON or OFF.

Wallpaper - Touch Engine Start, Blue Haze, Green Cubes, Red Swirl or Tribal to

select the TFT LCD wallpaper. Touch again to conrm and set the wallpaper.

Calibration- The Touch Screen Calibration adjustment is used to set the

parameters of the touch screen to ensure that when the screen is touched, it

corresponds to the feature desired.

Note: Never use a pen or sharp object to calibrate the touch screen as this will

damage the panel.

1. Touch the Calibrate icon and the rst screen will appear with instructions.

Follow the instructions on the screen touching and momentarily holding

nger or a stylus to the center of the target for 2 seconds. Repeat as the target

moves to each corner of the screen and nally to the center.

Calibration Screen

3. The second screen will appear:

Calibration Screen Conrmation

4. If the screen is touched, the new calibration parameters will be accepted. If

the screen is not touched within thirty seconds, the new parameters will be

disregarded.

VX7010

Illumination - Touch to access the Illumination screen. Touch a color to set the

front panel display to the selected color.

UI Color - Touch green, red, amber, blue or purple to select the user interface

color. Touch again to conrm and set the color.

Demo - Touch ON or OFF to turn the demonstration mode ON or OFF. The factory

default setting is ON.

VX7010

Audio Sub-menu Features

The Audio Sub-menu is used to turn the Subwoofer output ON or OFF and to

select a Subwoofer crossover frequency.

Audio Sub-menu Screen

Subwoofer - Touch ON or OFF to turn the subwoofer output ON or OFF.

Subwoofer Crossover - Touch a crossover frequency (80Hz, 120Hz or 160Hz) to

set a cut-o frequency for the subwoofer’s low-pass lter (LPF).

Time Sub-menu Features

The clock appears in the top right corner of the screen during certain operations.

Note: The AM/PM indication will change as you continue to adjust the hour past 12.

Time Sub-menu Screen

Date - Touch the Date icon and use the p or q icons to set the day, month, and

year. After setting the date, touch Save. The date will appear to the right of the

Date option.

Clock Mode - Touch 12Hr to set the clock display to 12 hour time intervals using

AM and PM. Touch 24Hr to set the clock display to a 24 hour time interval (or

military time).

VX7010

Time - Touch the Time icon and use the p or q icons to set the hour, minute, and

either AM or PM. After setting the time, touch Save. The time will appear to the

right of the Date option.

Date Settings Time Settings

Date and Time Setting Screens

Language Sub-menu Features

If a DVD supports more than one Subtitle or Audio language, all the languages are

available for selection during playback. If the selected language is not supported

by the DVD, then the default language is used.

Language Sub-menu Screen

On Screen Display (OSD) - Touch English, Spanish or French to select the

language for the OSD Display.

DVD Audio - If available, this feature allows the user to select one of the

languages contained on the disc for the DVD audio.

DVD Subtitle - If available, this feature allows the user to select one of the

languages contained on the disc for the DVD subtitles.

Disc Menu - Allows the user to select one of the languages contained on the disc

menu.

VX7010

Bluetooth Sub-menu Features

The Bluetooth audio capabilities can be used for wireless phones hands free

applications. Before attempting to use the Bluetooth functions on this unit, please

make sure the wireless phone to be connected supports Bluetooth functions.

Bluetooth Pairing Code Screen 2

Bluetooth - Touch ON or OFF to turn the Bluetooth function ON or OFF.

Auto-Connect - Touch ON or OFF to turn the Bluetooth Auto-Connect function

ON or OFF.

Auto-Answer - Touch ON or OFF to turn the Bluetooth Auto-Answer function ON

or OFF.

Pairing - This feature allows the user to create a unique 4 digit code for pairing

Bluetooth devices to the unit. The factory default pairing code is “0000”.

1. Touch the Paring Code icon and the Pairing Code entry screen will appear.

2. Use the keyboard to enter a unique 4-digit Pairing Code.

NOTE: If a wrong digit is entered touching the arrow will remove the number.

3. Touch OK to conrm 4 digit pairing code.

Pairing Code Entry Screen Pairing Code Conrmation Screen

Pairing Code Screens

VX7010

DVD Sub-menu Features

The DVD system has a built-in parental lock feature to prevent unauthorized

persons from viewing restricted disc content. By default, the rating system is

unlocked. Once set up, the parental lock is released only by entering the correct

password. Once the password is entered, rating is available for setup.

DVD Sub-menu Screen

Set Password - This feature allows the user to create a unique 4-digit password to

activate or deactivate the “Rating” option.

1. Touch the Set Password Code icon and the Password entry screen will appear.

2. Use the keyboard enter a unique 4 digit Password.

NOTE: If a wrong digit is entered touching the green arrow will remove the

number.

3. Touch OK to conrm 4 digit Password.

Password Entry Screen Password Conrmation Screen

DVD Password Screens

Rating Level - Select the appropriate rating level for the intended viewing

audience (Kid Safe, G, PG, PG-13, PG-R, R, NC-17, and Adult). The user may override

higher ratings by using the password.

DRC - This feature allows the user to turn the Dynamic Range Control ON for

better playback for low volumes or OFF.

VX7010

Load Factory - This feature allows the user to “Reset” to restore the factory default

settings (Rating system only).

To reset the password, access the “RATING” menu and enter the current password.

Once the correct password is entered, you can access the “Password” eld and

enter a new one.

Note: Record the password and keep it in a safe place for future reference. The

rating for each disc is marked on the disc, disc package, or documentation. If

the rating is not available on the disc, the parental lock feature is unavailable.

Some discs restrict only portions of the disc, allowing the appropriate content

will play. For details, please refer to the disc description.

Volume Sub-menu Features

The Volume Sub-menu allows the user to increase or decrease the relative volume

of the audio output of each source individually.

Volume Sub-menu Screen 1 Volume Sub-menu Screen 2

Volume Sub-menu Screens

DVD - Touch the DVD icon to enter the setting, then use the p or q icons

increase or decrease the relative volume level between -6 to +6.

USB - Touch the USB icon to enter the setting of the connected device, then use

the p or q icons to increase or decrease the relative volume level

between -6 to +6.

Radio - Touch the Radio icon to enter the setting, then use the p or q icons

increase or decrease the relative volume level between -6 to +6.

Bluetooth - Touch the Bluetooth icon to enter the setting of the connected

device, then use the p or q icons to increase or decrease the relative volume

level between -6 to +6.

VX7010

AV-IN1 - Touch the AV-IN1 icon to enter the setting of the connected device then

use the p or q icons to increase or decrease the relative volume level

between -6 to +6.

AV-IN2 - Touch the AV-IN2 icon to enter the setting of the connected device then

use the p or q icons to increase or decrease the relative volume level

between -6 to +6.

Navigation - Touch the Navigation icon to enter the setting of the connected

device then use the p or q icons to increase or decrease the relative volume level

between -6 to +6.

iPod - Touch the iPod icon to enter the setting then use the p or q icons to increase

or decrease the relative volume level between -6 to +6.

SXM - Touch the SXM icon to enter the setting then use the p or q icons to increase

or decrease the relative volume level between -6 to +6.

The default relative volume level setting for all available sources is “0”.

Version Sub-menu Features

The Version Sub-menu is used to identify the model and resident operating

system as well as the hardware and software versions.

Version Sub-Menu Screen 1 Version Sub-Menu Screen 2

Version Sub-Menu Screens 1 and 2

Exiting the System Setup Menu

To exit setup mode and resume normal playback, touch the SRC icon on the

screen.

VX7010

DISC OPERATION

Compatible Audio Discs Types

This system will play the following types of discs:

• DVD - DVDs that contain audio and/or video.

• Audio discs - Audio CDs that contain audio, video and image les.

• MP3 discs -

A disc that contains audio, video and image les (for example, a

CD-R with downloaded MP3 les).

NOTE: This unit is designed to play pre-recorded (original) CD/DVDs. Some burned

CD / DVDs may not play due to dierent recording formats and speeds.

DVD Operation

Note: When properly installed, DVD video cannot be displayed on the main TFT

screen unless the parking brake is applied. If you attempt to play a DVD while

the vehicle is moving, the TFT screen displays:

Warning!!!

It is illegal to view video

while driving or operating

a motor vehicle. Set parking

brake to view video.

From the Main Menu Screen touch the DISC Icon or insert a disc into the disc slot,

label side up. Playback begins when a disc is inserted correctly.

DVD Main Menu

When a DVD is playing, touch the TFT LCD screen to view the DVD main menu. The

on-screen icons and touch key areas are outlined below.

DVD Main Menu

SRC Icon - Touch this icon to return to the Main Menu Screen.

DVD - Displays the current source.

VX7010

Title/Chapter Information - The title/chapter information displayed is the current

number of the track playing, the total number of tracks on the disc, the current

chapter playing and the total number of chapters on the disc.

Time Display - This indicator displays the time as entered by the user in the

Settings Menu.

Chapter Elapsed Playback Time - The elapsed playback time of chapter is

displayed on the screen.

Total Playback Time - The total playback time of disc is displayed on the screen.

More ( p/q ) - Touch the p/q icons to display the next or previous page of the

Disc menu.

( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See

“Adjusting Equalizer Controls” on page 21.)

( ) Previous - Touch this icon to play the previous track.

( ) Play/Pause - Touch this icon to begin disc playback. Touch this icon again to

pause disc playback.

( ) Next - Touch this icon to play the next track.

Direct Entry - Touch this icon to the display the Direct Entry Screen.

Menu - Touch this icon to view the DVD root menu.

A-B - Touch to repeat a specic portion from point A to point B of the disc. During

playback touch A-B to set the starting point A. Touch A-B a second time to set the

ending point B. The player will repeatedly play the part between Point A and

Point B. Touch A-B a third time to cancel A-B repeat and resume playback.

Audio - Touch this icon to select an audio language for DVD playback. The audio

language selection depends on the languages contained on the disc.

Language - Touch this icon to select a subtitle language for DVD playback. The

subtitle language selection depends on the languages contained on the disc.

VX7010

( ) Repeat - Touch this icon during playback to repeat the current chapter.

The icon on the screen will light and small letter C will appear below the icon and

the chapter will repeat. Touch this icon a second time to repeat the current title.

The icon on the TFT LCD screen will light and small letter T will appear below the

icon and the title track will repeat. Touch the icon a third time to repeat the title

and chapter. The icon on the main TFT LCD screen will light and small letter A will

appear below the icon and the title and chapter will repeat. Touch the icon again

the repeat function will be cancelled. The icon on the main TFT LCD screen will

dim and playback of the remainder of the disc will resume.

PIC - When the PIC icon is touched the picture adjust screen appears. Touch this

icon during playback to adjust the color brightness, contrast, saturation and hue.

The levels can be adjusted to suit the users preferences. The adjustments are

accomplished by touching the + or - icons to decrease or increase the desired

setting. The settings have range of 1 to 20.

Note: The Picture Adjustment Screen will turn OFF automatically if no adjustment is

made within ve seconds or if any other part of the screen is touched.

DVD Picture Adjustment Screen

VX7010

Direct Entry

When the Direct Entry icon is touched the Direct Entry Screen appears. The user

can manually select a title or a chapter. By touching q icon, the user can select a

chapter or title. The title or chapter can be selected by touching the corresponding

number for a title or chapter. After entering the numbers, touch the OK icon. If a

wrong digit is entered, touching the arrow will remove the number. After touching

OK, playback will begin.

DVD Chapter and Title Direct Entry Screen

Inserting a Disc

Upon inserting a DVD disc, DVD mode is entered and disc play begins. A disc

cannot be inserted if there is already a disc in the unit or if the power is o.

Note: If Parental Lock (Rating) is activated and the disc inserted is not authorized,

the 4-digit code must be entered and/or the disc must be authorized. (See

“DVD Sub-menu Features” on page 29.)

Note:

DVD-R and DVD-RW will not play unless the recording session is nalized and

the DVD is closed.

Ejecting a Disc- Press the Eject ( ) button on the front of the unit to eject the

disc. The unit automatically reverts to Tuner mode. You may eject a disc with the

unit powered o. The unit will remain o after the disc is ejected.

Resetting the Loading Mechanism - If the disc loads abnormally or an abnormal

core mechanism operation occurs, press and hold the Eject ( ) button on the

front of the unit to reset the loading mechanism. Normal operation resumes.

Accessing DVD Mode - To switch to DVD mode when a disc is already inserted,

touch SRC on the TFT LCD screen to access the source menu. Touch the disc icon.

VX7010

Multi-Language Discs (DVD Only)

Changing Audio Language - If you are watching a disc recorded in multiple

languages, touch the TFT LCD screen, then touch AUDIO to choose a language.

Each time the icon is touched the language will change.

Changing Subtitle Language - If you are watching a disc recorded in multiple

languages with subtitles, touch the TFT LCD, then touch Language screen to

choose the language that you would like the subtitles to appear.

Playback Information

During DVD and VCD playback, touch the TFT LCD screen to display playback

information on the screen, including the current playback time.

DVD Playback Information

• DVD Video – Format of current disc.

• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.

• Title 5/08 – Indicates the fth of 8 titles on the DVD is currently playing.

• Chapter 2/16 – Indicates that the second of 16 chapters on the DVD is currently

playing.

VCD Playback Information

• VCD2.0 – Format of current disc.

• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.

VX7010

General Disc Information

Disc Properties

Symbol 12cm Disc Properties Max Play Time

Single side single layer (DVD-5)

Single side double layer (DVD-9)

Double side single layer (DVD-10)

Double side double layer (DVD-18)

(MPEG 2 Method)

133 minutes

242 minutes

266 minutes

484 minutes

Single side single layer (VCD) (MPEG 1 Method)

74 minutes

Single side single layer 74 minutes

Disc Symbols

Symbol Meaning

Number of voice languages recorded. The number inside the icon

indicates the number languages on the disc (maximum of 8).

Number of subtitle languages available on the disc (maximum of 32).

Number of angles provided (maximum of 9).

Aspect ratios available. “LB” stands for Letter Box and “PS” stands for

Pan/Scan. In the example on the left, the 16:9 video can be converted

to Letter Box video.

Indicates the region code where the disc can be played.

• Region 1: USA, Canada, East Pacic Ocean Islands

• Region 2: Japan, Western Europe, Northern Europe, Egypt, South

Africa, Middle East

• Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia,

South-East Asia

• Region 4: Australia, New Zealand, Middle and South America,

South Pacic Ocean Islands/Oceania

• Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe,

North Korea, North Africa, North-West Asia

• Region 6: Mainland China

• ALL: All regions

VX7010

CD Operation

From the Main Menu Screen touch the DISC icon or insert a CD into the disc slot,

label side up. Playback begins in CD mode when a disc is inserted correctly.

CD Main Menu

The on-screen icons and touch key areas are outlined below.

CD Main Menu

SRC Icon - Touch this icon to return to the Main Menu Screen.

DISC - Displays the current source.

Track Number- Lists the current track playing and the total number of tracks

contained on the disc.

Time Display - This indicator displays the time as entered by the user in the

Settings Menu.

CD Disc Information Display - Displays the artist, the title of the track and the

title of the album.

More ( p/q ) - Touch the p/q icons to display the next or previous page of the

Disc menu.

( ) Previous - Touch this icon to play the previous track.

( ) Play/Pause - Touch this icon to begin disc playback. Touch this icon again to

pause disc playback.

( ) Next - Touch this icon to play the next track.

VX7010

List - Touch this icon to access the list of tracks contained on the disc. Touch a

desired track icon twice and the track will begin playing.

( ) Shue - Touch this icon to play tracks in the directory in a random order.

The icon will light on the main CD screen.

( ) Repeat - Touch this icon to repeat playback of the current track. The icon

on the TFT LCD screen will light and small number 1 will appear below the icon

and the track will repeat. Touch this icon a second time and the album will repeat.

The icon on the TFT LCD screen will light and small letter a will appear below the

icon and the album will repeat. Touch the icon again the repeat function will be

cancelled. The icon on the TFT LCD screen will dim and playback of the remainder

of the disc will resume.

( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See

“Adjusting Equalizer Controls” on page 21.)

Direct Entry - Touch this icon to the display the Direct Entry Screen.

Track Elapsed Playback Time - The elapsed playback time of track is displayed on

the on the TFT LCD screen.

Track Total Playback Time - The total playback time of track is displayed on the

main CD screen.

VX7010

CD List

Touching the List icon will display the CD List Screen. The CD List Screen illustrates

the contents of a CD disc. The contents are divided into folders and various le

types. The le types are audio tracks, Audio Video Interleave (AVI) les, and image

les such as JPEGS. AVI les is a format designed to store both audio and video

data for simultaneous playback. Touching the icon will display the les present on

the disc.

CD List Screen

( ) Audio Files - Touch the audio le icon to display the audio les. Touch the

audio le icon to select a track. Touch the audio le icon again to conrm and

playback will begin.

( ) Video Files - Touch the video le icon to display the video les. Touch the

video le icon to select a video le. Touch the video le icon again to conrm and

playback will begin.

( ) Image Files (JPEG etc) - Touch the image icon to display a folder or

individual JPEG les. Touch the image icon to select a folder or an individual JPEG

le. In the case of a JPEG folder touch the folder icon twice and the contents of

the folder will be displayed. Touch the JPEG image icon to select and view an

individual JPEG le.

( ) Folders - Touch the icon to display the folder/le hierarchy. Touch the folder

icon twice and the contents of the folder will be displayed. Touch the le’s icon to

select a le. Touch the icon again to conrm and open the le.

VX7010

Track Direct Entry

When the Direct Entry icon is touched the Direct Entry Screen appears. The user

can manually select a track by touching the corresponding number. After entering

the track numbers touch the OK icon. If a wrong digit is entered touching the

arrow will remove the number. After touching OK playback will begin.

CD Track Direct Entry Screen

Controlling Playback

Inserting a Disc - Upon inserting a CD, disc play begins. You cannot insert a disc if

there is already a disc in the unit or if the power is o.

Ejecting a Disc - Press the Eject ( ) button on the front of the unit to eject the

disc. The unit automatically reverts to Tuner mode. You may eject a disc with the

unit powered o. The unit will remain o after the disc is ejected.

Resetting the Loading Mechanism - If the disc loads abnormally or an abnormal

core mechanism operation occurs, press and hold the Eject ( ) button on the

front of the unit to reset the loading mechanism. Normal operation resumes.

Pausing Playback - Touch the Play/Pause ( ) icon to suspend or resume disc

play.

Moving Through Tracks - Touch the Next ( ) icon to advance to the next track

on the disc. Touch the Previous ( ) icon to move to the previous track.

Repeat Playback - Touch the icon to alter repeat mode according to the

following:

• CD-DA: Repeat Track > Repeat Album > Repeat O

• CD-R/RW: Repeat Track > Repeat Album > Repeat O

Random Play Select - Touch the Random ( ) icon to play the tracks on the disc

in a random, shued order. Touch the Random ( ) icon again to cancel Random

Play mode.

Note: CD-R and CD-RW will not play unless the recording session is nalized.

VX7010

MP3/WMA Operation

MP3 is a format for storing digital audio. An audio CD-quality song can be

compressed into the MP3 format with very little loss of quality, while taking up

much less space. Insert a MP3 Disc into the disc slot, label side up. Playback begins

in MP3 mode when a disc is inserted correctly. The unit plays the songs in the

order they were burned on to the disc. The menu for playing audio MP3 music les

is the same as previously described for CD discs.

Media and File Requirements

This player allows you to play back MP3 and WMA les recorded onto CD-R/RWs,

DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted

using the full method and not the quick method to prevent illegal disc operation.

For the greatest le capacity, Dual Layer DVD’s can be used when burning music to

a disc.

MP3 Format Compatibility

The le naming formats listed below are compatible with this unit:

• ISO 9660 – le name: 12 characters, le extension: 3 characters

• ISO 9660 – le name: 31 characters, le extension: 3 characters

• Joliet – 64 characters

If the le or folder name does not conform to ISO 9660 le system standards, it

may not be displayed or played back correctly. Use the following settings when

compressing audio data for your MP3 disc:

• Transfer Bit Rate: 128kbps

• Sampling Frequency: 48kHz

When recording MP3 up to the maximum disc capacity, disable additional writing.

For recording on an empty disc up to maximum disc capacity, use the “Disc at

once” setting.

MP3 Playing Order

When selected for play, les and folders are accessed in the order they were

written by the CD writer. As a result, the order in which they are expected to be

played may not match the order in which they are actually played. You may be

able to set the order in which MP3/WMA les are to be played by writing them

onto a medium such as a CD-R with their le names beginning with play sequence

numbers such as “01” to “99”.

VX7010

Controlling Playback

Inserting a Disc- Upon inserting a MP3/WMA disc, disc play begins. You cannot

insert a disc if there is already a disc in the unit or if the power is o.

Ejecting a Disc - Press the Eject ( ) button on the front of the unit to eject the disc.

The unit automatically reverts to Tuner mode. You may eject a disc with the unit

powered o. The unit will remain o after the disc is ejected.

Resetting the Loading Mechanism - If the disc loads abnormally or an abnormal

core mechanism operation occurs, press and hold the Eject ( ) button on the

front of the unit to reset the loading mechanism. Normal operation resumes.

Playing MP3/WMA Files - After inserting a MP3/WMA disc, les will play in the

sequence of the “Root’ directory.

Note: When burning MP3 / WMA les onto a DVD disc, use the 2X or 4X burning

option, if available. This slower burning speed will help eliminate buer errors

and increase disc reading reliability. Also, use folders when burning large

numbers of songs / les to a disc for easy music navigation. Select the “Disc at

Once” option and close your disc.

Note: CD-R and CD-RW will not play unless the recording session is nalized.

Pausing Playback - Touch the Play/Pause ( ) icon to suspend or resume

playback.

Moving Through Tracks - Touch the Next ( ) icon to advance to the next track

Touch the Previous ( ) icon to move to the previous track on the MP3 disc.

Repeat Playback - Touch the Repeat ( ) icon to alter repeat mode as follows:

Repeat Single > Repeat Folder > Repeat All > Repeat O.

Random Play Select - Touch the Random ( ) icon to play the tracks on the MP3

disc device in a random, shued order. Touch the Random ( ) icon again to

cancel Random Play mode.

VX7010

RADIO TUNER OPERATION

From the main menu screen touch the radio icon. The radio tuner display screen

appears.

Radio Tuner TFT Display

The on-screen icons and touch key areas are outlined below.

Radio Tuner TFT Display Screen

SRC Icon - Touch to view the SOURCE MENU and select a new playback source.

Radio - Displays the current source.

Time Display - This indicator displays the time as entered by the user in the

Settings Menu.

Preset List - Provides a display of the preset frequencies. Touch to recall a preset

station. The radio can store 6 FM1, 6 FM2, 6 FM3, 6 AM1, and 6 AM2 frequency

presets.

Local/Distance - Displays the local distant setting.

Stereo - Displays stereo radio signal reception.

FM1 - Displays the current preset frequency band.

P1 through P6 - Displays the current preset frequency within the preset

frequency band that currently playing.

107.7 MHz - Displays the radio station frequency that is currently playing.

VX7010

More ( p/q ) - Touch the p/q icons to display the next or previous page of the

Disc menu.

( ) Previous/Manual Seek - Touch this icon to momentarily seek the previous

available radio station. Touch and hold this icon to manually tune the radio in

200KHz (for FM) or 10kHZ (for AM) increments. Default mode is resumed after 10

seconds of inactivity.

( AS ) Auto Store - Touch to automatically search and store all strong stations.

( ) Next/Manual Seek - Touch this icon to momentarily seek the next available

radio station or touch and hold to manually tune the radio in 200KHz (for FM)

or 10kHZ (for AM) increments. Default mode is resumed after 10 seconds of

inactivity.

Band - Touch to change between AM/FM bands.

Option - Touch this icon to display the Options screen.

Save - Touch this icon to save a radio station frequency in one or all six preset

stations on FM band 1, 2, 3 or AM band 1 and 2.

Local/Distance - Touch to select and activate local and distant station reception.

When the Local function is on, only radio stations with a strong local radio signal

are played.

Direct Entry - Touch this icon to the display the Direct Entry Screen.

( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See

“Adjusting Equalizer Controls” on page 21.)

Option Screen

Touching the Options icon will display the following RDS, CT and PTY functions on

the Tuner TFT LCD display screen.

Radio Tuner Option Screen

VX7010

RDS ON/OFF - The Radio Data System (RDS) enables trac reports to be received

and provides many facilities, including enabling the radio station name to be

displayed.

CT ON/OFF - (Clock Time) When enabled the radio system clock is synchronized

with broadcasters time signal setting the clock automatically. In some regions

where daylight savings time is not adhered to, the system clock will be o by 1

hour. In these cases, set CT to OFF and manually set the clock.

PTY - The Program Type (PTY) function displays the program category of the

current station such as category (news, sports, talk etc.) Use the scroll bar to select

various categories. Touching the Back icon returns the user to main tuner screen.

PTY Screen

There are 27 categories in the PTY function.

1. None 8. Adult Hits 15. Jazz 22. Personality

2. News 9. Soft Rock 16. Classic 23. Public

3. Info 10. Top 40 17. RGB 24. College

4. Sports 11. Country 18. Soft RGB 25. Weather

5. Talk 12. Oldies 19. Language 26. Test

6. Rock 13. Soft 20. Religious Music 27. Alert

7. Classic Rock 14. Nostalgia 21. Religious Talk

VX7010

Direct Entry Tuning

When the Direct Entry icon is touched the Direct Entry Screen appears. The user

can enter the desired radio station frequency using the on-screen number pad.

After entering the radio station frequency touch the OK icon. If a wrong digit is

entered touching the green arrow will remove the number. After touching OK the

radio will tune to the entered station. Playback will begin.

Radio Direct Entry Screen

Using Preset Stations

Six numbered preset icons store and recall stations for each band. All six stored

stations (P1 through P6) for the current band appear on the screen.

Storing a Station

1. Select a band (if needed), then tune to a desired radio station frequency.

2. Touch the on-screen Save icon. The following screen will appear.

Preset Save Screen

VX7010

3. Touch the preset number in which you would like to store the current

station. The station frequency is displayed at the top of the menu. The preset

number will appear highlighted. The station frequency will be stored in the

highlighted preset. The station will be displayed Tuner TFT LCD screen. Station

can also be stored by touching and holding the preset icon to store the station

currently tuned as a preset.

Recalling a Station

1. Select a preset band (if needed).

Touch an on-screen preset icons (P1 through P6) to select the corresponding

stored station.

Preset Station Screen

Auto Store (AS)

To select six strong stations and store them in the current band. This feature is most

useful when travelling in an area where you are not familiar with the local stations.

1. Select a band (if needed).

2. Touch the AS icon to activate the Auto Store function. FM Band 1 will be lled

if enough stations are detected. The AM Bands function in a similar manner.

As new stations are found they will replace stations already stored in that

band.

Note: If stations have already been set as favorites, activating the Auto-

Store feature will erase those stations and enter the new strong

stations.

Local/Distance Radio Station Seeking

When the Local function is on, only radio stations with a strong local radio signal

are played. To activate the Local function in the AM/FM tuner mode, touch the

More on the Tuner TFT LCD screen. The Local/Distance icon is revealed. Touch

Local or Distance to turn the local/distance function on or o. When the Local or

Distance function is active, the Local or Distance indicator at the top of the screen

is illuminated.

VX7010

USB OPERATION

The unit will read the audio/video les on USB devices automatically.

Note: The USB/SD ports will recognize most USB/SD ash memory devices and

portable hard drives. Portable hard drives (hard drives must be formatted to

FAT32 and NTFS is not supported).

Inserting/Removing a USB Device or microSD Card

Note: The microSD card is used to update navigation software only.

To insert a USB device or microSD card:

1. Locate the Interface Cover on the front of the radio.

3.5mmA/V Cable (not included)

Video

Left Audio

Right Audio

Ground

OPEN

USB Cable (not included)

USB Slot and microSD Card Slot Location

2. Lift the protective cover to reveal the USB slot and microSD card slots.

3. Insert the USB device/microSD card into the USB/microSD card connectors.

Note: microSD cards are inserted into the microSD card slot until a click is

heard. The click will ensure that the card is securely inserted to the unit.

To remove the USB device or microSD card:

1. Touch the SRC icon on the main menu or press the SRC button on the front

panel to switch to another mode.

2. Remove the USB device or microSD card from the connector.

VX7010

USB Operation

From the main menu screen touch the USB icon.

USB Main Menu

The on-screen icons and touch key areas are outlined below.

USB Main Menu

SRC Icon - Touch this icon to return to the Main Menu Screen.

Scrolling Display - Displays current track information.

Track Number - Lists the current audio track playing and the total number of

audio tracks in audio mode. Lists the current video folder and the total number of

video folders in video mode.

Time Display - This indicator displays the time as entered by the user in the

Settings Menu.

More ( p/q ) - Touch the p/q icons to display the next or previous page of the

SDHC/USB menu.

( ) Previous - Touch this icon to play the previous track.

( ) Play/Pause - Touch this icon to begin playback. Touch this icon again to

pause playback.

( ) Next - Touch this icon to play the next track.

VX7010

List - Touch this icon to access the list of audio and video les contained on the

USB device/microSD card. Touch a folder icon and the contents of the folder will

be displayed. Touch a desired track icon twice and the track will begin playing.

( ) Shue - Touch this icon to play audio or video tracks in a random order. The

icon will light on the main TFT LCD screen.

( ) Repeat - In audio mode touch this icon to repeat playback of the current

audio track. The icon on the main TFT LCD screen will light and a small letter A

will appear below the icon and the all the audio tracks will repeat. Touch this

icon again and single track will repeat. The icon on the TFT LCD screen will light

and small number 1 will appear below the icon. Touch the icon again the repeat

function will be cancelled. The icon on the main TFT LCD screen will dim and

playback of the remainder of the tracks will resume.

In video mode touch this icon during playback to repeat the current track. The

icon on the main TFT LCD screen will light and small number 1 will appear below

the icon and the track will repeat. Touch the icon again to repeat all the tracks

will repeat. The icon on the main TFT LCD screen will light and small letter A will

appear below the icon and all the tracks will repeat. Touch the icon again the

repeat function will be cancelled. The icon on the main TFT LCD screen will dim

and playback of the remainder of the tracks will resume.

( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See

“Adjusting Equalizer Controls” on page 21.)

Direct Entry - Touch this icon to the display the Direct Entry Screen.

VX7010

USB List

Touching the List icon will display the USB List Screen. The USB List Screen

illustrates the audio and video les present in the USB device. The contents are

divided into folders and various le types. The le types consist of audio and video

les. Touching the folder icon will display the les present in the folder.

USB List Screen

( ) Audio Files - Touch the audio le icon to display the audio les. Touch the

audio le icon to select a track. Touch the audio le icon again to conrm and

playback will begin.

( ) Video Files - Touch the video le icon to display the video les. Touch the

video le icon to select a video le. Touch the video le icon again to conrm and

playback will begin.

( ) Image Files (JPEG etc) - Touch the image icon and the following message

will appear:

Use the USB to control/select photos. Touch screen to return to the menu.

( ) Folders - Touch the icon to display the folder/le hierarchy. Touch the folder

icon and the contents of the folder will be displayed. Touch the le’s icon to select

a le. Touch the icon again to conrm and open the le.

VX7010

Direct Entry

When the Direct Entry icon is touched the Direct Entry Screen appears. The user

can manually select a track by touching the corresponding number. After entering

the track numbers touch the OK icon. If a wrong digit is entered touching the

arrow will remove the number. After touching OK playback will begin.

USB Track Direct Entry Screen

Moving Through Tracks

Touch the Next ( ) icon to advance to the next track on the USB device.

Touch the Previous ( ) icon to move to the previous track on the USB device.

Pausing Playback

Touch the Play/Pause ( ) icon to suspend or resume playback.

PIC - When the PIC icon is touched the picture adjust screen appears. Touch this

icon during playback to adjust the color brightness, contrast, saturation and hue.

The levels can be adjusted to suit the users preferences. The adjustments are

accomplished by touching the + or - icons to decrease or increase the desired

setting. The settings have range of 1 to 20.

USB Picture Adjust Screen

Note: The Picture Adjustment Screen will turn OFF automatically if no adjustment is

made within ve seconds or if any other part of the screen is touched.

VX7010

iPod®/iPhone® OPERATION

Accessing iPod® Mode

The user can control an iPod®/iPhone® using the touch screen to access, albums,

songs, videos, etc.

Note: For iPod®/iPhone® video playback, use an adapter cable equipped with a USB

connector and a 3.5 mm AV jack. For basic connectivity, the iPod®/iPhone®

must be connected to the unit using the iPod®/iPhone® adapter cable that

came with the iPod/iPhone (also available separately) and a adapter cable to

connect to the unit’s mini USB connector. Be sure your iPod®/iPhone® has the

latest Apple rmware installed to avoid connectivity issues.

The unit will automatically switch to iPod® mode when an iPod®, iPod® touch or

iPhone® is plugged into the front panel USB connector. Also the iPod® can be

accessed from the Main Menu Screen by touching the iPod® icon (only available

when an iPod® or iPhone® is connected to the front panel USB connector).

Main Menu Screen with iPod® Icon

VX7010

iPod®/iPhone® Main Menu

The on-screen icons and touch key areas are outlined below.

iPod®/iPhone® Main Menu

SRC Icon - Touch this icon to return to the Main Menu Screen.

iPod - Displays the current source.

Track Number - Lists the current audio track playing and the total number of

audio tracks in audio mode. Lists the current video folder and the total number of

video folders in video mode.

Time Display - This indicator displays the time as entered by the user in the

Settings Menu.

More ( p/q ) - Touch the p/q icons to display the next or previous page of the

iPod® menu.

( ) Previous - Touch this icon to play the previous track.

( ) Play/Pause - Touch this icon to begin playback. Touch this icon again to

pause playback.

( ) Next - Touch this icon to play the next track.

List - Touch this icon to access the list of audio and video les contained on the

iPod®. Touch a folder icon and the contents of the folder will be displayed. Touch a

desired track icon twice and the track will begin playing.

( ) Shue - Touch this icon to play audio or video tracks in a random order. The

icon will light on the main TFT LCD screen.

VX7010

( ) Repeat - In audio mode touch this icon to repeat playback of the current

audio track. The icon on the main TFT LCD screen will light and a small letter A

will appear below the icon and the all the audio tracks will repeat. Touch this

icon again and single track will repeat. The icon on the TFT LCD screen will light

and small number 1 will appear below the icon. Touch the icon again the repeat

function will be cancelled. The icon on the main TFT LCD screen will dim and

playback of the remainder of the tracks will resume.

( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See

“Adjusting Equalizer Controls” on page 21.)

Direct Entry - Touch this icon to the display the Direct Entry Screen.

iPod® List

Touching the List icon will display the iPod® List Screen. The iPod® List Screen

illustrates the audio and video les present in the iPod®. The contents are divided

into folders and various le types. The le types consist of audio and video les.

Touching the folder icon will display the les present in the folder.

iPod®/iPhone® List Screen

( ) Audio Files - Touch the audio le icon to display the audio les. Touch the

audio le icon to select a track. Touch the audio le icon again to conrm and

playback will begin.

( ) Video Files - Touch the video le icon to display the video les. Touch the

video le icon to select a video le. Touch the video le icon again to conrm and

playback will begin.

( ) Image Files (JPEG etc) - Image les are selected and controlled by the iPod®.

Touch the image icon and the following message will appear:

Use the iPod® to control/select photos.

Touch screen to return to the menu.

VX7010

( ) Folders - Touch the icon to display the folder/le hierarchy. Touch the folder

icon and the contents of the folder will be displayed. Touch the le’s icon to select

a le. Touch the icon again to conrm and open the le.

Controlling Playback

Direct Entry

When the Direct Entry icon is touched the Direct Entry Screen appears. The user

can manually select a track by touching the corresponding number. After entering

the track numbers touch the OK icon. If a wrong digit is entered touching the

arrow will remove the number. After touching OK playback will begin.

iPod®/iPhone® Track Direct Entry Screen

Moving Through Tracks

Touch the Next ( ) icon to advance to the next track on the iPod®.

Touch the Previous ( ) icon to move to the previous track on the iPod®.

VX7010

Pausing Playback

Touch the Play/Pause ( ) icon to suspend or resume playback.

PIC - When the PIC icon is touched the picture adjust screen appears. Touch this

icon during playback to adjust the color brightness, contrast, saturation and hue.

The levels can be adjusted to suit the users preferences. The adjustments are

accomplished by touching the + or - icons to decrease or increase the desired

setting. The settings have range of 1 to 20.

Note: The Picture Adjustment Screen will turn OFF automatically if no adjustment is

made within ve seconds or if any other part of the screen is touched.

iPod®/iPhone® Picture Adjust Screen

VX7010

AV-In1/AV-In2 OPERATION

AV-In1

AV-In1 is used for playback of audio/video from an external device connected to

the unit through a 3.5mm jack located on the font panel. The unit can increase or

decrease the volume of the connected device. All other controls are done on the

connected device.

AV-In1 Screen (No Signal)

AV-In2

AV-In2 is used for playback of audio/video from an external device connected

through RCA connectors located on the back of the unit. The unit can increase or

decrease the volume of the connected device. All other controls are done on the

connected device.

AV-In2 Screen (No Signal)

Note: Audio/Video device must be connected to the unit using an audio/video

adapter cable that is available separately.

Note: The unit can not directly control external devices connected to the Media Link.

Please refer to the owner’s manual that came with the external device for

instructions.

Note: Video will only play when the vehicle parking brake is engaged. This is

designed to meet FMVSS standards and laws. The brake must be connected

for this feature to operate.

VX7010

BLUETOOTH OPERATION

Bluetooth® was launched by a special interest group (SIG) comprised of Ericsson

Inc., Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently developed

by nearly 2,000 companies worldwide. The Bluetooth® word mark and logos

are owned by the Bluetooth® SIG, Inc. and any use of such marks by Audiovox

Corporation is under license. Other trademarks and trade names are those of their

respective owners.

Bluetooth® technology has the capability to wirelessly synchronize and transfer

data among devices. The Bluetooth® audio capabilities can be used for mobile

phones hands free applications. Bluetooth® has many proles and the unit is

compatible with most Bluetooth® enabled mobile phones. Before attempting to

use the Bluetooth® functions on the unit, please make sure your mobile phone

supports Bluetooth® functions.

Note: The line-of-sight distance between this unit and your mobile phone must be

8 feet (2.4 meters) or less for sending and receiving voice and data via

Bluetooth® wireless technology.

Please make sure your mobile phone supports Bluetooth® functions (Headset

or Handsfree proles or both). Adhere to the following guidelines for successful

operation.

• Before using Bluetooth® functions, you must pair your mobile phone to the

VX7010 unit (see “Pairing the Bluetooth® System with Your Mobile Phone and

Unit”). To ensure the best reception for pairing and re-connection, please make

sure the mobile phone battery is fully charged before you begin.

• Try to perform pairing within a few minutes of the mobile phone being turned

on.

• Once the unit has been paired with the mobile phone, the unit’s model number,

“VX7010”, will be displayed on the mobile phone.

• To achieve the best performance, always keep the mobile phone within 10 feet

(3 meters) of the unit.

• Always keep a clear path between the mobile phone and the unit. Never place a

metal object or any other obstacle between the mobile phone and the unit.

• Some mobile phones may have a “Power Saving Mode” option. PLEASE DO NOT

use the power saving mode with the VX7010.

• Before accepting or making a call, make sure your mobile phone’s “Bluetooth®

function” is turned on.

• To ensure the best conversation quality/performance, stay within 3 feet

(1 meter) of the unit’s microphone when talking.

• To manually disconnect the mobile phone from the unit, touch the “Chain Link”

icon on the Bluetooth® user interface (next to the mobile phone name) and the

Bluetooth® device will be “disconnected”, but still paired.

VX7010

Bluetooth User Interface

The on-screen icons and information for Bluetooth® functions are outlined below.

Bluetooth User Interface Screen

SRC Icon - Touch this icon to return to the Main Menu Screen.

Bluetooth - Displays the current source.

LGVX9200 - Indicates the device that is paired with the unit.

( ) - Indicates whether the unit is connected with a Bluetooth®device. Touch to

connect to a Bluetooth® device.

( ) - Touch to disconnect from a Bluetooth® device.

VX7010 Device Name - Provides the name that will appear on the Bluetooth®

device.

Scan - Touch the icon to search for Bluetooth® devices.

Options - Touch to display the Bluetooth® options page.

VX7010

Hands Free Prole (HFP)

To use a mobile phone with this unit, it is necessary to rst establish a connection

using Bluetooth® wireless technology. The connection is normally established

using Hands Free Prole (HFP), which gives you full control of functions available

on the mobile phone source. However, depending on your mobile phone, the

connection may be made using Head Set Prole (HSP), making some functions

unavailable. This is a limitation of your mobile phone, not the VX7010.

Since there are a number of Bluetooth® mobile phone implementations available

on the market, operations with your Bluetooth® mobile phone using this unit vary

greatly.

Please refer to the instruction manual that came with your Bluetooth® mobile

phone along with this manual while operating your mobile phone with this unit.

Pairing the Your Mobile Phone with the Unit

Your mobile phone can initiate a search for new devices and pair to the unit. The

following paragraphs describes the pairing process.

Note: The following procedures are generic. Procedures for pairing mobile phones

may vary slightly from mobile phone manufacturer to mobile phone

manufacturer.

1. Touch the MENU on the front panel to access the source menu.

Touch the BT icon on the source menu and the Bluetooth® user interface

screen will appear.

3. Touch the Options icon and the following screen will appear:

Bluetooth Option Menu

4. On the Options submenu set the Bluetooth function to ON.

5. On the Options submenu set the Auto Connect function to ON.

6. Set the mobile phone Bluetooth® discover mode to ON.

Note: Some discovery modes have a time limit usually a minute before they are

automatically turned OFF.

7. Touch the “Scan” icon on the unit’s Bluetooth® user interface screen. Available

devices will appear with the “Pair” icon next to it.

VX7010

8. Touch the “Pair” icon on the unit’s Bluetooth® user interface screen.

A prompt to pair or bond should appear on your mobile phone. Accept the

request and initiate the process.

Note: Some mobile phones require a “pass key” or pairing code to connect. If

your phone requires a pass key or pairing code, you will need to enter this

number. The default pairing code for many mobile phones is “0000”. The

default code for the unit is “0000”.

10. A prompt to enter a PIN number or passkey for the unit should appear. The

default passkey for the unit is “0000”.

11.

At this point a prompt stating pairing successful should appear. Another

prompt should appear asking connect to the unit, Yes or NO. Touch Yes. The

mobile phone and the unit should connect. The mobile phone should display

a message similar to “Device Connected” and the mobile phone and the unit

are now connected. VX4010 will appear on the mobile phone list of devices.

Managing Incoming Calls

When connected to a Bluetooth® mobile phone, the unit will mute audio output,

pause CD play, and change to the Bluetooth® screen below when a call is received.

The incoming phone number or assigned name for that number will appear on

the screen. An audible tone will sound from the unit and a graphic display will

appear on the front panel.

Bluetooth Incoming Call Screen

icon: Touch to answer an incoming call.

2. icon: Touch to end an incoming call.

VX7010

Making an Outgoing Call

Outgoing calls can be performed in two manners. The outgoing call can be direct

dialed using the front panel keypad or the by touching either the Phonebook or

Call History icons, selecting a name and touching the phone number.

Direct Dialing:

1. Press the front panel MENU button and then touch the BLUETOOTH icon to

access the Bluetooth® main menu. The following screen will appear:

Bluetooth Direct Dial Screen

Use the 0-9, */+, and # icons to input the phone number. If necessary touch the

green arrow icon to clear the last digit or the entire number and start over.

3. After entering the phone number, touch the

icon to dial the call. The

number dialed will be displayed on the screen.

4. To end the call, touch the icon.

Answering an Incoming Call

To answer an incoming call touch the

icon. For best reception, speak loudly and

clearly into the units microphone. To end the conversation, touch the icon.

Rejecting an Incoming Call

Touch the Transfer to Phone icon to reject an incoming call. The call will revert to

your mobile phone and be left for voice mail.

Volume Control

To increase or decrease the volume level of an incoming call, turn the rotary knob

on the front panel or press the VOL+/ VOL- icons on the remote control.

VX7010

Audio Mute

To mute the phone call audio from the unit when a call is received, press the front

panel rotary knob. Press the front panel rotary knob again and phone call audio

will be restored to the unit.

Call Log

The call log consists of dialed numbers, received calls and missed calls.

Note: Not all wireless phones allow access to missed, received or dialed calls and

some will not allow uploading of your wireless phone’s address book.

Bluetooth Call Log Screen

Missed Calls List - The Missed Calls List retrieves the list of missed numbers from

your wireless phone if your wireless phone allows the function. The last missed

number is the rst number on the list. Touch the Missed Calls menu option to view

the list. To make a call from the Missed Calls list, touch the call’s name. Touch the

phone number and it will be dialed.

Received Calls - The Received Calls list retrieves the received numbers stored

on your wireless phone if your wireless phone allows the function. To access the

Received list, touch the Received Calls menu option. The last received number is

the rst number on the list. To make a call from the Received Calls list, touch the

name. A new screen will appear with the name on the top and the phone number

below. Touch the phone number and it will be dialed.

Dialed Calls - The Dialed Calls list retrieves the list of dialed numbers from your

wireless phone if your wireless phone allows the function. The last dialed number

is the rst number on the list. Touch the Dialed Calls menu option to view the

list. To make a call from the Dialed Calls list, touch the name. A new screen will

appear with the name on the top and the phone number below. Touch the phone

number and it will be dialed.

VX7010

Call Transfer

While talking, to transfer audio from the unit back to the mobile phone, touch the

Transfer to Phone icon. You can only transfer a call after it has been answered.

Touching the Transfer to Radio icon will return the audio from the mobile phone

to the unit. Touch the Transfer Call icon and the following screen will appear:

Transfer to Phone Screen Transfer to Radio Screen

Call Transfer Screens

Bluetooth Music Function

Bluetooth® provides an Advanced Audio Distribution Prole (A2DP) prole for

streaming music from a mobile phone or a portable multimedia player (PMP),

sometimes referred to as a MP3 player. The unit allows you to play back audio les

from your mobile phone or a PMP using a Bluetooth® connection.

Note: Please quit A2DP mode before attempting to make a phone call, as unexpected

results may occur depending on your mobile phone model.

The unit can control a Bluetooth® audio player via Advanced Audio Distribution

Prole (A2DP) or Audio/Video Remote Control Prole (AVRCP). Bluetooth® audio

players (or Bluetooth® adapters) compatible with these proles can be connected

to this unit. The following screen is used for streaming music.

Bluetooth Audio Control Screen

VX7010

While listening to audio the following functions are available:

1. Pause/Play ( ) icon: Touch to pause playback. Touch again to resume

playback.

2. Previous ( ) icon: Touch to play the previous track.

3. Next ( ) icon: Touch to play the next track.

Functionality varies depending on the prole used:

• A2DP: Stream audio from your Bluetooth® compatible audio player and listen to

the music through the unit.

• AVRCP: Play back, pause, select songs, etc. while streaming audio from your

Bluetooth® compatible audio player to the unit.

Note: Song information (e.g. elapsed playing time, song title, song index, etc.)

cannot be displayed on this unit. Since there are a number of Bluetooth®

audio players available on the market, operations with your Bluetooth® audio

player while using this unit may vary greatly. Please refer to the instruction

manual that came with your Bluetooth® audio player.

When there is an incoming call, the song will be paused. After the incoming call

is nished, the screen will return to the music function screen and playback will

continue.

Hands-Free Microphone

The hands-free microphone is installed in your vehicle in an accessible location

that provides optimum voice reception. For best reception, speak loudly and

clearly.

Hands-Free Microphone

VX7010

NAVIGATION QUICK START GUIDE

Follow these six easy steps and you are on your way.

Note: Before operating your iGO Primo software, please carefully read and

follow the instructions provided in the “Warnings and Precautions” section

of this manual.

Step 1 - Access the navigation function

To access the Navigation function press the front panel Menu button, then touch

the Navigation icon.

Step 2 - Start Up

After the iGO primo software starts, you will see the reminder warning to use your

iGO Primo software safely and lawfully.

Navigation Warning Screen

Step 3 - Access the Main Menu

Touch to access the Navigation Menu:

Navigation Main Menu

VX7010

Step 4 - Select a Destination

You have many ways to select a destination. Select by touching screen:

• Tap to select your destination by entering an address or

selecting a place of interest, a location on the map or one of your Favorite

destinations. You can also look up your recent destinations from the Smart

History, enter a coordinate or use the location saved in a photo.

• Tap to display the route parameters and the route in its full

length on the map. You can also perform route-related actions such as editing

or canceling your route, setting a start point for the route, picking route

alternatives, avoiding parts of the route, simulating navigation or adding the

destination to your Favorites.

• Tap to customize the way the navigation software works,

simulate demo routes, or to run some additional applications.

• Tap to start navigating on the map. The icon itself is a

miniature live map that shows your current position, the recommended route

and the surrounding map area. Tap the icon to enlarge the map to the full

screen.

Step 5 - Map/Guide Along Route

Proceed to the highlighted route and drive while the iGO Primo software provides

guidance to your destination.

Map/Guide Along Route Screen

VX7010

Step 6 - Arriving at Your Destination

When you are near your destination, the destination is indicated by a checkered

ag symbol .

Destination Arrived Screen

Refer to the XV7010 Navigation Operating Manual to become familiar with the

many options available on your iGO Primo software.

VX7010

REAR CAMERA OPERATION

This unit is “camera ready.” Before accessing any camera features, you must install a

rear video camera.

When the camera is not installed and the function is accessed by the gear selector

being placed in reverse or by the unit’s menu, the message “No Signal!” will be

displayed and the following screen will appear.

Rear Camera Screen

When the camera is installed, the rear view image of what is behind the vehicle will

appear when the vehicle is placed in reverse gear. When leaving reverse gear, the

unit displays the previous screen.

VX7010

STEERING WHEEL CONTROLS (SWC) OPERATION

The built-in SWC Interface is compatible with most vehicles equipped with

“resistive type” original equipment (OE) steering wheels.

Note: Not all OE steering wheel functions may be supported by the VX7010.

The following controls are available for most vehicles:

1. Volume

Up (+)

4. Seek Up

(Next)

7. Preset (+) 10. BT Send

2. Volume

Down (-)

5. Seek

Down (Prev)

8. Preset (-) 11. BT End

3. Mute 6. Source 9. Band 12. Undened

To access the SWC Controls for programing, touch the SWC icon on the second

page of the Main Source Menu.

SWC Programing Screen 1 SWC Programing Screen 2

SWC Programming Screens

VX7010

SWC Programing

Up to 16 steering wheel control functions can be programmed via the built-in

SWC interface. Not all functions may be supported for each vehicle.

Popular OE steering wheel functions are already pre-programmed from the

factory. If your vehicle does not support the exact same functions already pre-

programmed, you will need to clear / reset the SWC interface and program

in the exact functions of your vehicle. To clear / reset the SWC interface, press

and hold “Reset” for 2 seconds.

2. To begin programming the SWC interface after it has been cleared / reset,

press a key 1 ~ 16, then press a function. The name of the selected function

should appear next to the Key number programmed (Key 1 Volume +,

etc.).Continue programming in this manner until all of the OE steering wheel

control functions are completed.

Note: Functions 1 ~ 16 must be assigned to a function on the OE steering wheel.

For example, if the OE steering wheel does not support Preset + and

Preset -, then these functions must be cleared / reset in order for the other

functions to work correctly.

3. To “learn” the programming completed in step 2 above, press the “Learn” icon.

You will then be prompted to push each button on the OE steering wheel (for

1 second), so the unit can learn the corresponding function.

4. SWC learning / programming is now complete.

VX7010

PANDORA RADIO OPERATION

Pandora Radio is available via your iPhone® (data usage will occur), iPod® touch

(via Wi-Fi) or Android™ device (via Bluetooth®).

NOTE: The Pandora app must be installed on your iPhone®/iPod® touch or Android

device.

NOTE:

For basic iPod®/ iPhone® connectivity, you can use the white 30-pin to USB

iPod cable that came with your Apple device.

Note: To play Pandora Radio on this radio using an Android device, it is necessary to

rst establish a connection using Bluetooth® wireless technology.

Pandora Radio TFT Display

The on-screen indicators and touch key areas for Pandora Radio functions are

outlined below.

Pandora Radio User Interface Screen

SRC Icon - Touch this icon to return to the Main Menu Screen.

Pandora - Displays the current source.

Time Display - This indicator displays the time as entered by the user in the

Settings Menu.

Pandora Radio Information Display - Displays the Pandora station, artist, song,

and album information.

Elapsed Time indicator - Displays the elapsed and total playing time of the

current track playing.

Pandora Preview Window - Displays album art, if available.

More p - Touch to display the bookmark sub-menu.

VX7010

( ) Pause / Play Icon - Touch the icon to pause playback. Touch the icon to

begin playback.

( ) Next Icon - Press this icon skip a song, subject to the skip limit.

( ) Thumbs Up - Press thumbs up to tell Pandora you like the track currently

playing, and Pandora will play more tracks like it.

( ) Thumbs Down - Press thumbs down to tell Pandora not to play this track.

Pandora will skip to the next track. If the skip limit has been reached, Pandora will

continue to play but your feedback will be recorded.

Station List icon - Press this icon to access the Station List Screen.

Bookmark Sub-menu

Pandora Bookmark Sub-menu

Touch the Bookmark Track icon to bookmark a track.

Touch the Bookmark Artist icon to bookmark an artist.

Touch the More q icon to return to the Pandora Radio user interface screen.

VX7010

Station List Screen

The Station List Screen allows you to search for music by stations you created.

Pandora Radio Station List Screen

Touch a station on the list to choose that station.

Touch the Scroll Down (q) icon to view the next page in the list or the

Scroll Up (p) icon to view the previous page.

Touch the Return to Now Playing icon to return to the Pandora Radio user

interface screen.

To Launch/Stop Pandora Radio

1. Launch the Pandora app on the iPhone®, iPod® or Android device.

Touch the Pandora icon on the main menu screen. If only one device is

connected to the radio, the Pandora Radio user interface screen appears.

Pandora Radio User Interface Screen

VX7010

3. If both an Android device and iPhone®/ iPod® are connected to the radio, the

Select Android or iOS Screen appears.

Select Android or iOS Screen

To stop Pandora, exit the Pandora app on the iPhone®, iPod® or Android

device.

Pandora Error Messages

Message Displayed Cause Corrective Action

BookMark Track Error Software Error The track could not be

bookmarked, please try

again in a moment.

BookMark Artist Error Software Error The song could not be

bookmarked, please try

again in a moment.

Thumbs Up / Down Error

“Error Track Rating”

Software Error Song feedback could not

be sent, please try again

in a moment.

No Active Station Error Software Error This account has no

stations in it. Please visit

Pandora.com and login

to your account and add

stations.

Skip Limit Reached Software Error Please note that

Pandora limits skips to a

maximum of six skips per

station, per hour.

VX7010

SiriusXM® RADIO OPERATION

Only SiriusXM® brings you more of what you love to listen to, all in one place.

Get over 140 channels, including commercial-free music plus the best sports,

news, talk, comedy and entertainment. Welcome to the world of satellite radio. A

SiriusXM Vehicle Tuner and Subscription are required. For more information, visit

www.siriusxm.com.

Activating SiriusXM® Radio

After installing your SiriusXM Connect Vehicle Tuner and antenna, power on your

radio and select SiriusXM mode. You should be able to hear the SiriusXM preview

channel on Channel 1.

After you can hear the Preview channel, tune to Channel 0 to nd the Radio ID of

your tuner.

Note: The SiriusXM Radio ID does not include the letters I, O, S or F.

In the USA, you can activate online or by calling SiriusXM Listener care:

• Visit www.siriusxm.com/activatenow

• Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

• Visit www.siriusxm.ca/activatexm

• Call XM customer Care at 1-877-438-9677

Activation typically takes 10-15 minutes, but may take up to one hour. It is

recommended to leave your vehicle on until the “Subscription Updated” message

appears.

VX7010

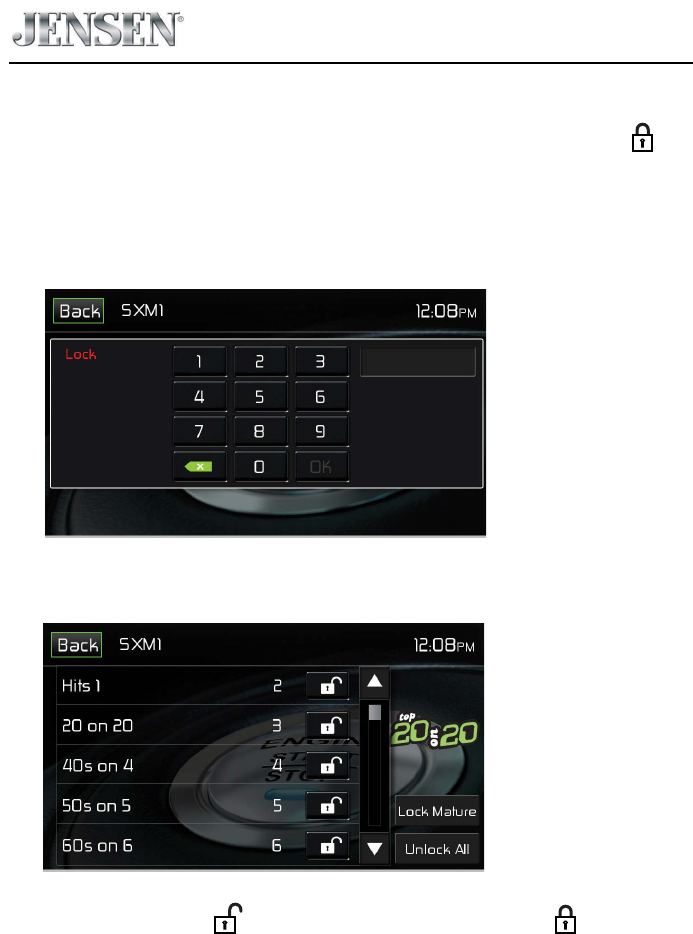

SiriusXM® User Interface

The on-screen indicators and touch key areas for SiriusXM® functions are outlined

below.

Page 1

SiriusXM® Menu Page 1

SRC Icon - Touch to return to the unit’s Main Menu Screen.

Band indicator (SXM1 icon) - Displays SiriusXM® radio band currently selected.

Three bands are available: SXM1, SXM2, and SXM3.

Time Display - This indicator displays the time as entered by the user in the

Settings Menu.

Signal Strength Indicator - As the strength of the satellite radio signal

increases, the number of illuminated segments will increase.

Program Information:

Channel Number - Channel numbers are used to designate the channel along with

the channel name and are useful for identifying/loading a channel via the “direct

entry” method.

Channel Name - The channel name is used to identify the channel and is usually

related to that channel’s musical content.

Category Name - A category may contain one or more channels grouped by their

Audiovox Vx7010 Owners Manual

Jensen-Vx-7010-Owners-Manual-775673 jensen-vx-7010-owners-manual-775673

VX-7010 - Owner’s Manual VX7010_OM_EN Free User Guide for Jensen GPS, Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
