Welcome!
This guide will get you up and running with
your August Smart Lock. Installation generally
takes less than 15 minutes. If you have any
trouble, please check our support section
(august.com/support), contact our installer
network (august.com/installers) or call
844-AUGUST1 (284-8781) for help.
August Installation Guide
4
Preparation
Make sure your existing deadbolt is compatible
with the August Smart Lock. Only standard
deadbolts are supported. Use our compatability
assistant to double-check. august.com/compatibility
TOOLS NEEDED
You will need a standard
phillips screwdriver.
Alternately, we have an installer network available
in major cities, who can help with installation.
august.com/installers
5

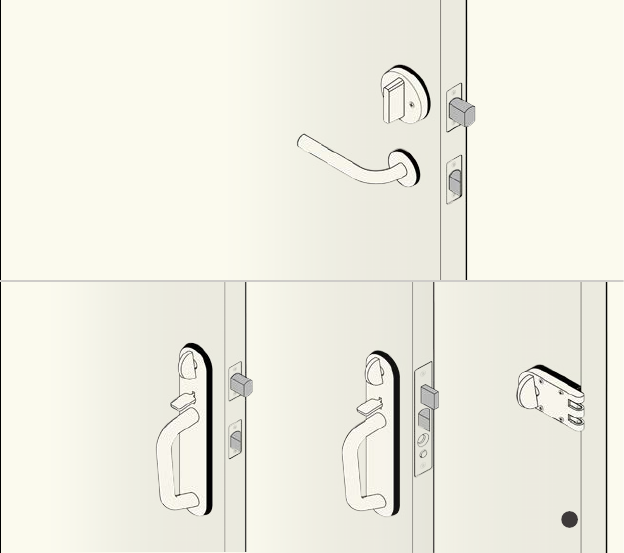

Compatibility
YES
Standard
Deadbolt is mounted and operates
independently of the door handle
Integrated
Lock & Handle
Handle and lock
thumb-latch are
both mounted
together on a
metal plate
NO
Mortise
An integrated
door handle
and deadbolt
in a single
metal unit
Rim
Cylinder
Mounted on
the inside, on
top of the
door and
door jamb
NO NO
August Installation Guide
6
1 August Smart Lock
(4 AA Batteries pre-installed)
1 Adhesive Strip
(Inside Envelope)
Package Contents
7
3 Mounting Plates
3 Adapters
August Installation Guide
8
Installation Overview
Before Installation
Key Hole
Deadbolt
Tail Piece
Thumb-latch
Screws
1
2
3
4
5
1
2
3
4
5

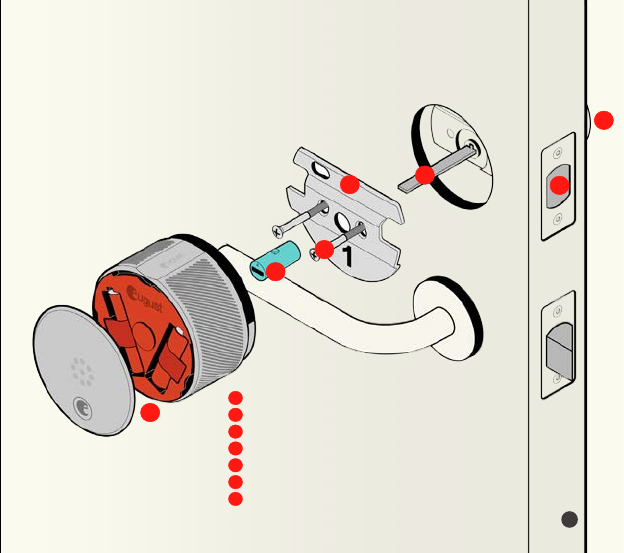

9
After Installation
Key Hole
Deadbolt
Tail Piece
Mounting Plate
Screws
Tail Piece Adapter
August Smart Lock & Faceplate
1
2
3
4
5
6
7
1
2
3
4
5
6
7
August Installation Guide
10

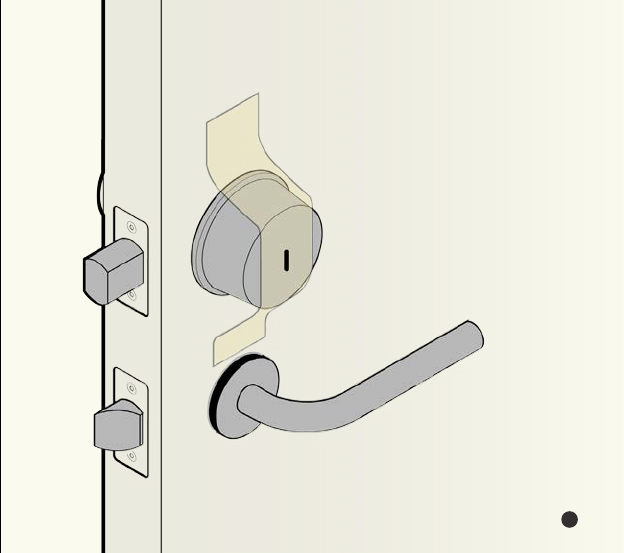

Step 1:
Prepare existing deadbolt.
Ax the supplied adhesive strip over the key
hole, securing it to the exterior side of your door.
This should hold the keyhole in place when you
remove the thumb-latch on the inside of the door.
11
August Installation Guide
12

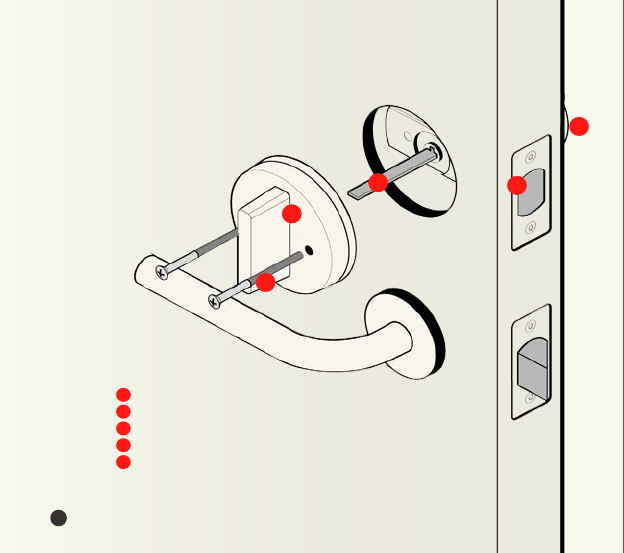

Step 2:
Remove your existing
thumb-latch.
Position your thumb-latch so that you can unscrew
the existing screws on your deadbolt.
Remove the screws entirely from the deadbolt and
keep them to assist in the next step.
Your thumb-latch may include an additional back
plate underneath it. If so, remove the back plate. Use
the back plate and the longer screws for the next step.
A
B
13
A
B
August Installation Guide
14
Step 3:
Select the correct
mounting plate.
If you know the brand of your deadbolt, please select
the correct mounting plate and adapter from the
Compatibility Chart and go to Step 4 (page 18).
If not, go to Step 3a (page 16) to find the correct
mounting plate and adapter.

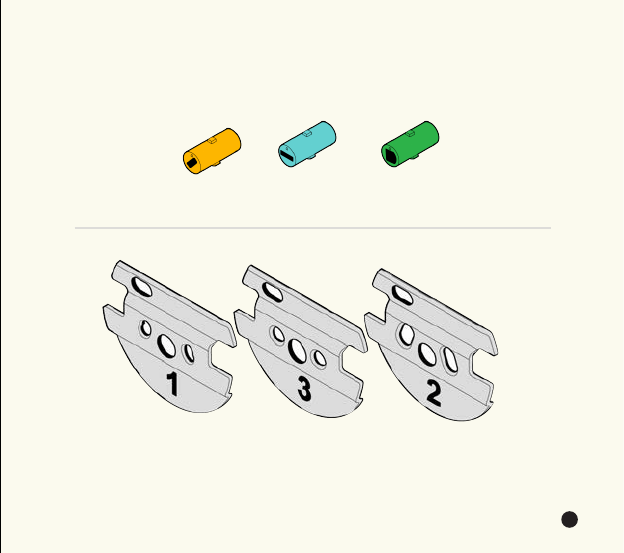

15
Standard Deadbolt
Compatibility Chart
BRAND MOUNTING PLATE ADAPTER
Baldwin - Estate/Images* 1
Baldwin Reserve/Prestige 3
Defiant 2
Emtek 3
Kwikset* 3
Omnia** 1
Schlage*** 2
Weiser 2
Weslock 1
* Baldwin and Kwikset Deadbolts installed before 1997 have unique installation
requirements, please contact us at 844-AUGUST1 (284-8781) and we will walk you
through installation. ** Compatible only with non-mortise, standard Omnia deadbolts.
*** Commercial grade Schlage B560 deadbolts require supplemental screws.
If your Schlage screws are too short please contact us at support@august.com
August Installation Guide
16

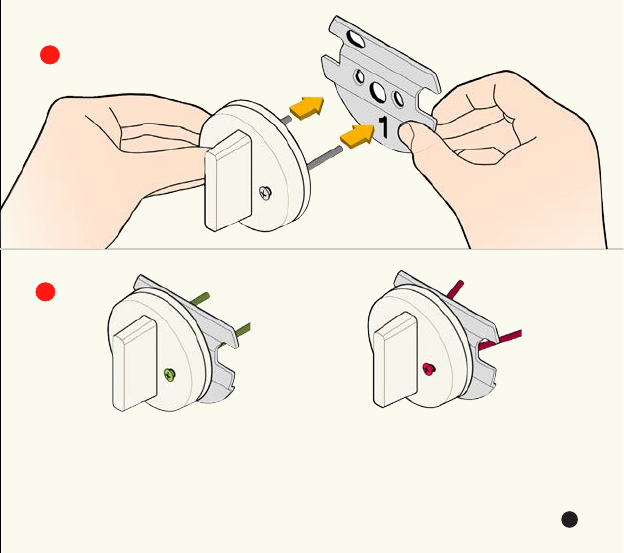

Step 3a:
Select the correct
mounting plate.
Insert the existing screws in the thumb-latch to
help you choose the correct mounting plate. If there
was a back plate under your thumb-latch, insert the
screws into this back plate instead of the thumb-latch.
Slide the mounting plates onto the screws one at
a time until you find a mounting plate that allows the
screws to fit straight through the holes.
A
B
17
COMPATIBLE
1. 2.
A
B
NOT COMPATIBLE
Having trouble selecting the right mounting plate? Try august.com/installation or call
August customer support at 844-AUGUST1 (284-8781)
August Installation Guide
18
Step 4:
Position the mounting plate.
Remove the screws from the thumb-latch and use
them to install the mounting plate over the existing
deadbolt tail piece.
Do not fully tighten the screws.
A
B
19
A
B
August Installation Guide
20

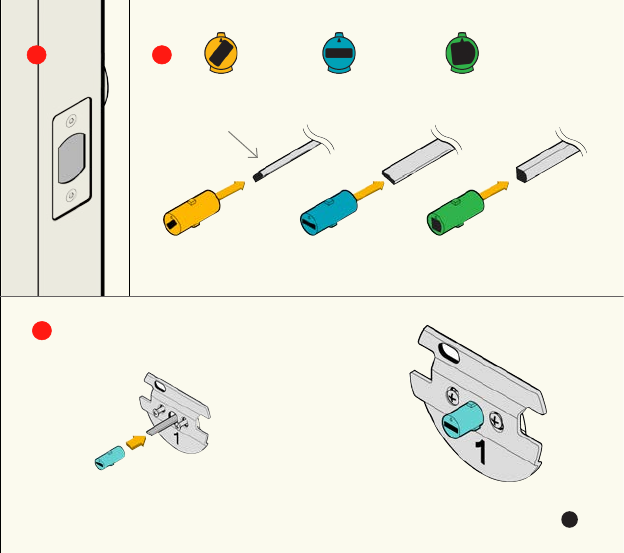

Step 5:
Position adapter and
align mounting plate.
Remove the tape from the key hole, and use your key
to turn your deadbolt to the fully unlocked position.
If your lock was not in the Compatibility Chart, select
the adapter that matches your tail piece. To do this, slide
each adapter onto the tail piece. The correct adapter
will have the small nub pointing up.
Place the correct adapter onto the tail piece with
the small nub pointing up, and tighten the two screws.
(Do not over-tighten.)
A
B
C
Having trouble selecting the right adapter? Call August customer
support at 844-AUGUST1 (284-8781)
21
B
C
A
Front View
Deadbolt Tail Piece
Adapter Alignment
August Installation Guide
22

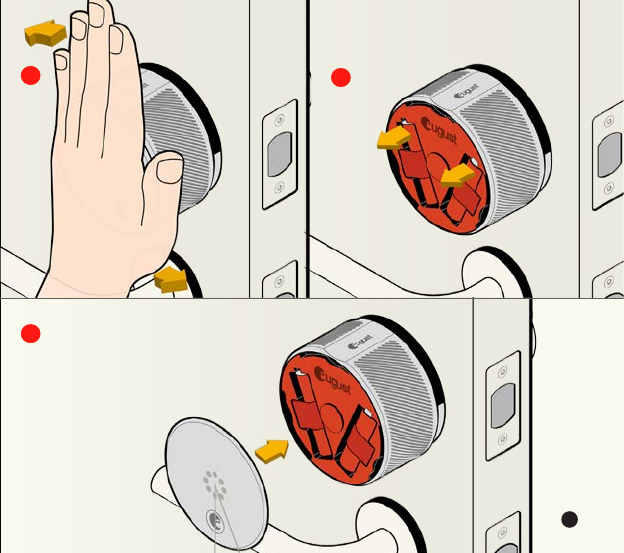

Step 6:
Attach the August Smart Lock.

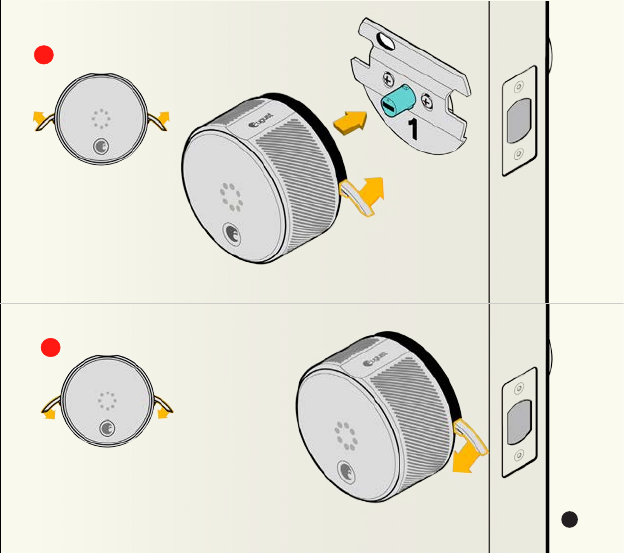

Position the August Smart Lock with the curved notch
at the top.
Pull out both side wing latches. Slide August
Smart Lock over adapter and tail piece and attach
to mounting plate. Make sure the back of the lock
is flush with the door.
To secure the August Smart Lock, clamp down both
side wing latches to the mounting plate completely and
remove the clear tape from the curved notch.
A
B
23
B
A
August Installation Guide
24
Step 7:
Remove battery tabs.
Press down on the face place and rotate it
counterclockwise to open the battery compartment.
Remove the two plastic tabs from the battery
contacts. Make sure batteries are properly seated
in the battery compartment.
Align faceplate hooks with the August Smart Lock.
The faceplate will lock into place with the logo at
the bottom.
B
A
C
25
AB
C
August Installation Guide
26
Step 8:

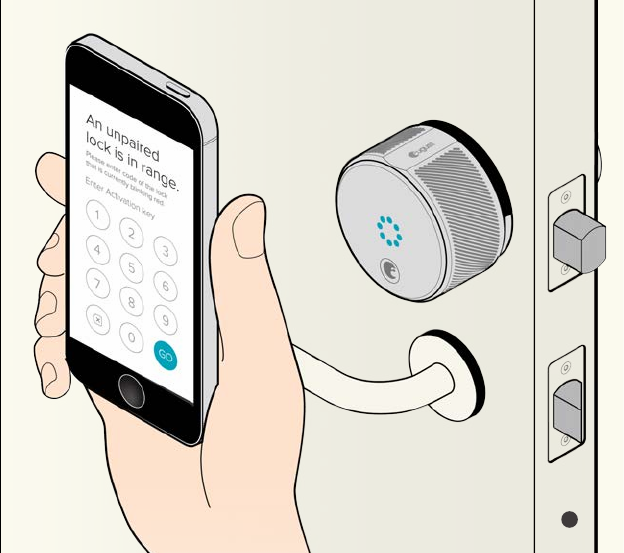

Install August App
Download the app from august.com/app
The App will then bring you through the necessary
profiling and calibration processes.
27
August Installation Guide
28
Questions?
If you have any questions or diculty, visit
august.com/support, call 844-AUGUST1 284-8781
or email questions to support@august.com
1006-0000-A Rev5
©2014 August Home Inc.
1
Terms and Conditons
August Terms and Conditions
2
Limited Warranty Statement
1. One (1) year Limited Hardware Warranty. Subject to the additional terms and conditions set forth below, August provides the
following Limited Warranty:
• Only to the person or entity that originally purchased the Device from August or from one of its authorized resellers or
distributors; and
• Only for Devices purchased and delivered to the end user within the United States, Canada, or Mexico.
2. Limited Warranty. August warrants the Device against defects in materials and workmanship under normal use for a period of
one (1) year from the date of purchase (“Warranty Period”). If a Device is returned to August during the Warranty Period as
provided below, and August determines that the Device is defective, August will either repair or replace the unit with either a
new or a refurbished August Smart Lock, or refund the original purchase price in return for the Device, at its option. If the
Warranty Period has expired or is otherwise not applicable as per the Scope and Limitation on Warranty, we will return the
Device to you. More information about this warranty can be found at www.august.com/support.
3. Return and Warrant Service Process. Please review the online help resources at www.august.com/support prior to seeking
warranty service. To obtain warranty service, you must first obtain a Return Merchandise Authorization (RMA) number from a
Customer Support Representative (CSR) at August. Customer Support contact information can be found by visiting
www.august.com/support. August may attempt to troubleshoot a warranty-related problem prior to issuing a RMA number.
August may ask for additional information upon request. Issued RMA numbers remain valid for thirty days from issuance. Once
an RMA number is obtained, your Device must be shipped freight prepaid; together with proof of purchase and all accessories,
either its original packaging or packaging aording an equal degree of protection, to the August authorized distribution facility
identified by the CSR. Failure to return any of the accessories may result in a delay and/or result in a credit to August or an
invoice for the missing accessories.
In performing warranty service, August may furnish replacement parts on an exchange basis and replaced parts will become
the property of August. Replacement parts provided by August shall be new or refurbished and of comparable quality, and may
be a dierent part that contains compatible features and functions. You will reimburse August for the inspection, testing and
repair of returned equipment determined by August not to be defective or which falls under one of the warranty exclusions
described below (as well as pay all shipping and handling charges). In all cases, August’s determination as to whether or not
the equipment is defective and covered by warranty will be final. Any replacement equipment will be warranted hereunder for
a period of one (1) year from shipment.
4. Scope of and Limitation of Warranty. The warranty on this Device is limited to the repair or replacement of defective units as
described in the Limited Warranty section above. This warranty does not cover customer training and education, installation,
set up adjustment, signal or reception problems. This warranty does not cover damage due to acts of God, accident, misuse,
abuse, negligence, commercial use or modification of, or to any part of your Device or caused by any third party product,
service or system, use for purposes other than for which the Device was designed or intended, use in improper temperature,
humidity or other environmental conditions, or use of the Device in violation of written instructions provided by August (which
may be provided at the time of purchase or on its website at www.august.com/support). This warranty does not cover damage
due to improper operation or maintenance, connections to improper voltage supply or attempted repair by anyone other than a
facility authorized by August to service your Device. This warranty does not cover consumables (such as batteries). This
warranty gives you specific legal rights, and you may have additional legal rights as required under local laws.
August Home Inc. Model: ASL-01 FCC: 2AB6UASL01 IC: 12163A-ASL01
REGULATORY COMPLIANCE INFORMATION
The August Smart Lock (ASL-01) is subject to the Federal Communications Commission (FCC) and Industry
Canada (IC) rules.
NOTICE:
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Les changements ou modifications non expressément approuvés par la partie responsable de la conformité
pourraient annuler l'autorité de l'utilisateur à utiliser l'équipement.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le onctionnement.

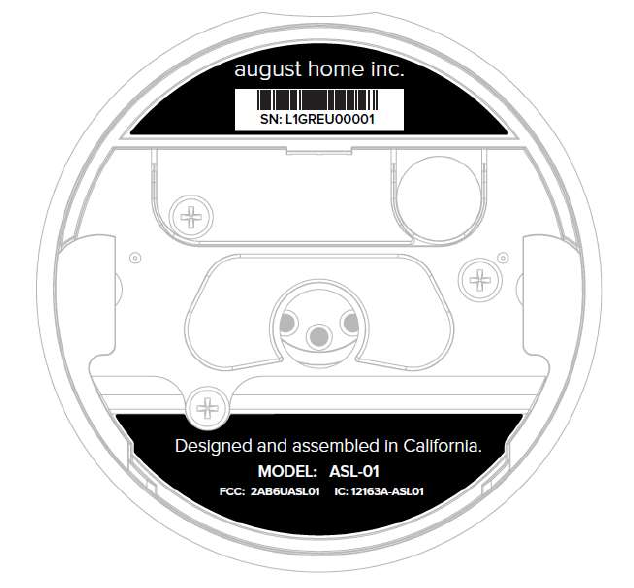

The serial number and regulatory codes are located on the back of the ASL-01.
August Home Inc. Model: ASL-01 FCC: 2AB6UASL01 IC: 12163A-ASL01
Specifications
Model Name: August ASL-01
Description: BLE Automatic Smart Lock
Model Number: ASL-01
Standards: Bluetooth Specification v4.0 (BLE), 2.4GHz ISM band (2402MHz to 2480MHz),
Channels: 40 x 2.0MHz channels
Data rate & Modulation: 1Mbps, GFSK, 250 kHz deviation.
Interface: Bluetooth Low Energy (BLE)
LED: Lock/Unlock
Speaker: Output, 1Watt Max.
Antenna: Internal Single-band (Internal IFA)
Transmitted Power: 0dBm Max.
Receive Sensitivity: -84dBm Typical
Antenna Gain in dBi: 3dBi Typical
Power Consumption: TX: BLE: 30mA Max.
RX: BLE: 500uA Max.
Motor Operation: 500mA Max.
Battery Type: 4 AA alkaline batteries.
Battery Life: 10 to 12 months *typical
Operational Voltage: +7.0V Maximum Voltage.
+6.0V Nominal Voltage.
+4.0V Minimum Voltage.
Environmental
Dimensions: 3.39” dia. x 2.24” height (86mm dia. x 57mm height)
Weight: 14.0 oz. (400 g)
Certification: FCC, IC
Operating Temp.: +32°F to +131°F (0°C to 55°C)
Storage Temp.: -4°F to +140°F (-40°C to 60°C)
Operating Humidity: 10% to 85% Noncondensing
Storage Humidity: 5% to 90% Noncondensing
Model Name: August ASL-01
Description: Automatic Smart Door Lock
*Depending on quality of batteries and lock usage.
