1
Installation Guide
Installation Guide2
Go to august.com/install
to watch a video version
of this installation guide.
3
Welcome!
This guide will get you up and running with your
August Smart Lock. Installation generally takes less
than 15 minutes. If you have any trouble, please check
our support section (august.com/support), contact
our installer network (august.com/installers) or call
844-AUGUST1 (284-8781) for help.
Installation Guide4
Preparation
Make sure your existing deadbolt is compatible with
the August Smart Lock. Only standard deadbolts are
supported. Use our compatibility assistant to double-
check: august.com/compatibility
You will need a standard Phillips
screwdriver.
Tools needed
Standard
Deadbolt is mounted and
operates independently of
the door handle.
Compatibility: YES
5
Alternately, we have a network of installers who can help with installation.
august.com/installers
Compatibility: NO
Integrated
Lock & Handle
Handle and lock thumb-
latch are both mounted
together on a metal plate
Mortise
An integrated door
handle and deadbolt in
a single metal unit
Rim Cylinder
Mounted on the inside,
on top of the door and
door jamb
Installation Guide6

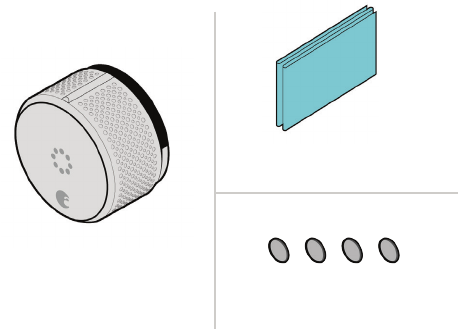

1 August Smart Lock
(4 AA Batteries Pre-installed)
Package Contents
4 Adhesive Rubber Bumpers
(Included Inside Envelope)
1 Adhesive Strip
(Included Inside Envelope)
7

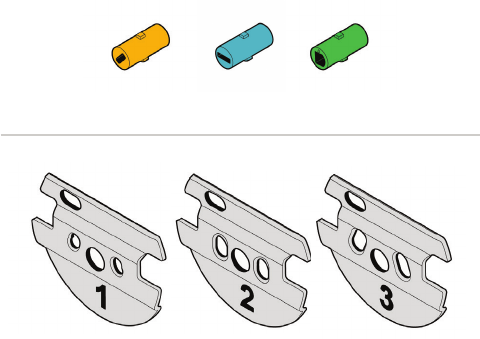

3 Mounting Plates
3 Adapters
Installation Guide8
Installation Overview
Before:
After:
Key Hole
Deadbolt
Tail Piece
Mounting Plate
Screws
Tail Piece Adapter
August Smart Lock
& Face Plate
Key Hole
Deadbolt
Tail Piece
Thumb-latch
Screws
1
2
3
4
5
6
7
1
1
2
3
4
5
2
3
4
5
Before Installation
9
1
2
3
4
5
6
7
After Installation
Installation Guide10

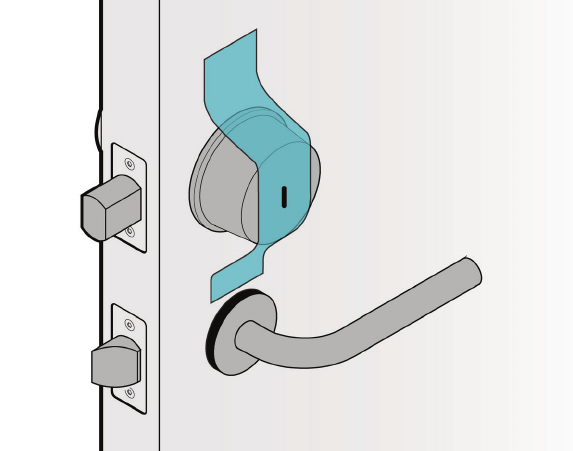

Step 1:
Prepare existing deadbolt.
Ax the supplied adhesive strip over the key hole,
securing it to the exterior side of your door. This should
hold the key hole in place when you remove the thumb-
latch on the inside of the door.
On some doors, such as those with glossy paint, the
included tape may not be strong enough. In this case you
should apply additional stronger tape to ensure that the
key hole stays in place. Use caution. Some types of tape,
such as duct tape, may damage the paint on certain types
of doors.
11
Installation Guide12

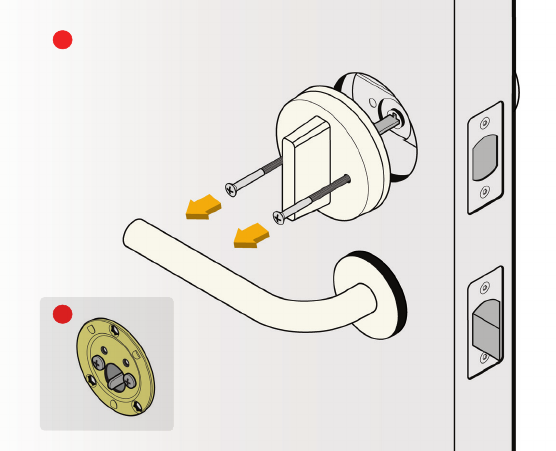

Step 2:
Remove your existing thumb-latch.
Position your thumb-latch so that you can unscrew the
existing screws on your deadbolt.
Remove the screws entirely from the deadbolt and keep
them to assist in the next step.
After removing the screws, be sure to unlock your
deadbolt before removing the thumb-latch.
Your thumb-latch may include an additional back plate
underneath it. If so, remove the back plate. Use the back
plate and the longer screws for the next step.
B
A
13
A
B
Installation Guide14
Step 3:
Select the correct mounting plate and adapter.
If you know the brand of your deadbolt, please select the
correct mounting plate and adapter from the Compatibility
Chart on the next page, and then
go to Step 4 (page 18).
If not, go to Step 3a (page 16) to find the correct mounting
plate and adapter.
If your tailpiece is in a vertical position when the door is
unlocked, you will need to remove the keyhole and rotate it
so the tailpiece is in a horizontal position before you install.
15
Standard Deadbolt Compatibility Chart
BRAND MOUNTING PLATE ADAPTER
Baldwin - Estate/Images* 1
Baldwin Reserve/Prestige 3
Defiant 2
Emtek 3
Kwikset* 3
Omnia** 1
Schlage*** 2
Weiser 2
Weslock 1
* Baldwin and Kwikset Deadbolts installed before 1997 have unique installation requirements, please
contact us at 844-AUGUST1 (284-8781) and we will walk you through installation.
** Compatible only with non-mortise, standard Omnia deadbolts.
*** Commercial grade Schlage B560 deadbolts require supplemental screws. If your Schlage screws
are too short please contact us at support@august.com
Installation Guide16

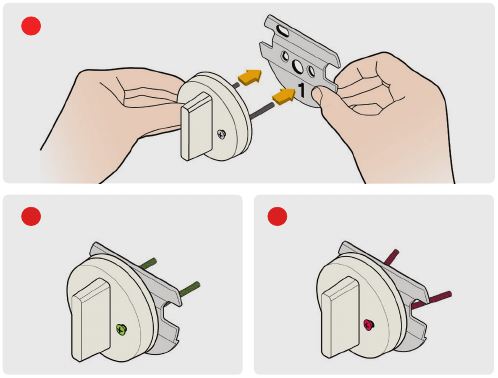

Step 3a:
Select the correct mounting plate.
Insert the existing screws in the thumb-latch to help you
choose the correct mounting plate. If there was a back
plate under your thumb-latch, insert the screws into this
back plate instead of the thumb-latch.
Slide the mounting plates onto the screws one at a time
until you find a mounting plate that allows the screws to fit
straight through the holes.
B
Having trouble selecting the right mounting plate? Try august.com/installation or call August
customer support at 844-AUGUST1 (284-8781)
A
17
B B
A
Compatibility: YES Compatibility: NO
Installation Guide18

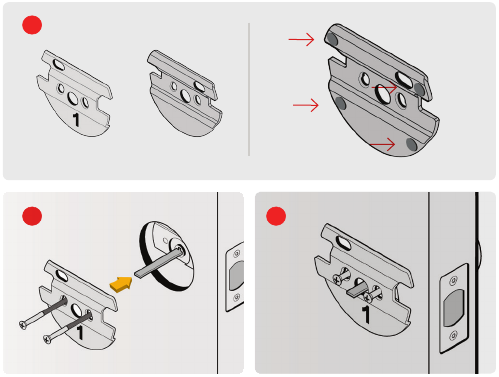

Step 4:
Position the mounting plate.
Remove the backing from the 4 rubber bumpers and
place them on the back side of the mounting plate (the
side that does not show a number).
Rotate the mounting plate so the 4 rubber bumpers are
between the mounting plate and the door. Remove the
screws from the thumb-latch and use them to install the
mounting plate over the existing deadbolt tail piece.
Moderately tighten the screws until the mounting plate
is settled against the door. Over-tightening can deform
the mounting plate and interfere with the operation of
the lock.
B
A
C
19
CB
A
Back: YESFront: NO
Installation Guide20
Step 5:
Position adapter and align mounting plate.
Remove the tape from the key hole, and use your
key to turn your deadbolt to the fully unlocked position.
If your lock was not in the Compatibility Chart, select the
adapter that fits your tail piece. To do this, slide each
adapter onto the tail piece. The correct adapter will have
the small nub pointing up.
Place the correct adapter onto the tail piece with
the small nub pointing up. Tighten the screws until they
are moderately tight. Do not over-tighten. Over-tighten-
ing can deform the mounting plate and interfere with the
operation of the lock.
B
C
A
21
C
Front View
Deadbolt Tail Piece
Adapter Alignment
B
A
Installation Guide22

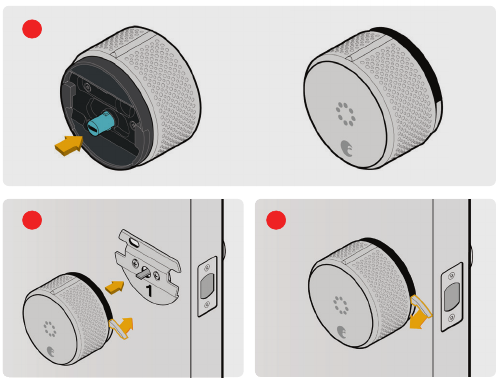

Step 6:
Attach the August Smart Lock.
Insert the adapter into the back of the August Smart Lock,
then position the August Smart Lock with the August name
badge at the top.
Pull out both side wing latches. Slide the August
Smart Lock over tail piece and attach to mounting plate.
Make sure the back of the lock is flush with the door.
To secure the August Smart Lock, clamp down both side
wing latches to the mounting plate completely.
If the latches are dicult to clamp down, then go back
to Step 5C and ensure that the screws have not been
over-tightened. You may need to loosen them slightly.
A
B
C
23
CB
A
Installation Guide24

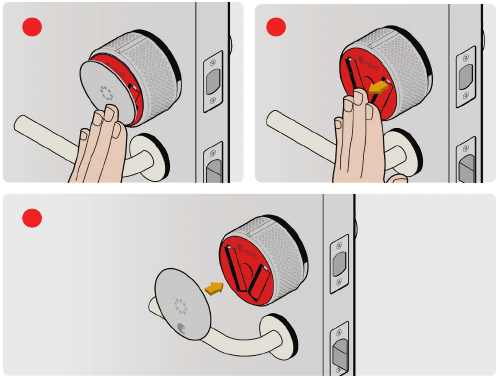

Step 7:
Remove battery tab.
Press down on the August logo located at the bottom
of the face plate. The top of the face plate will tilt
outward. Grab the face plate and remove.
Holding batteries in place, remove the plastic
battery isolation tab. Make sure that the battery is
properly seated in its compartment.
Place the face plate back onto the August Smart
Lock. Make sure the August logo is located along the
bottom of the face plate. The face plate attaches with
magnets straight onto the August Smart Lock.
A
B
C
25
C
B
A
Installation Guide26

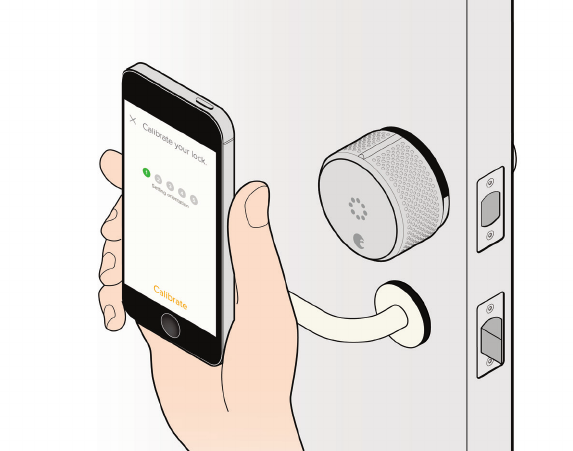

Step 8:
Install August App
Download the App from august.com/app
The app will help you create an account and
set up your August Smart Lock.
We suggest that you protect your phone with
a passcode in case it is lost or stolen.
27
Installation Guide28
Questions?
If you have any questions,
call 844-AUGUST1 (284-8781)
or visit august.com/support
Lost your phone? Go to
www.august.com to disable the August app
running on your phone.
©2015 August Home Inc.
080-00075-05
1
Terms and Conditons
August Terms and Conditions
2
Limited Warranty Statement
1. One (1) year Limited Hardware Warranty. Subject to the additional terms and conditions set forth below, August provides the
following Limited Warranty:
• Only to the person or entity that originally purchased the Device from August or from one of its authorized resellers or
distributors; and
• Only for Devices purchased and delivered to the end user within the United States, Canada, or Mexico.
2. Limited Warranty. August warrants the Device against defects in materials and workmanship under normal use for a period of
one (1) year from the date of purchase (“Warranty Period”). If a Device is returned to August during the Warranty Period as
provided below, and August determines that the Device is defective, August will either repair or replace the unit with either a
new or a refurbished August Smart Lock, or refund the original purchase price in return for the Device, at its option. If the
Warranty Period has expired or is otherwise not applicable as per the Scope and Limitation on Warranty, we will return the
Device to you. More information about this warranty can be found at www.august.com/support.
3. Return and Warrant Service Process. Please review the online help resources at www.august.com/support prior to seeking
warranty service. To obtain warranty service, you must first obtain a Return Merchandise Authorization (RMA) number from a
Customer Support Representative (CSR) at August. Customer Support contact information can be found by visiting
www.august.com/support. August may attempt to troubleshoot a warranty-related problem prior to issuing a RMA number.
August may ask for additional information upon request. Issued RMA numbers remain valid for thirty days from issuance. Once
an RMA number is obtained, your Device must be shipped freight prepaid; together with proof of purchase and all accessories,
either its original packaging or packaging aording an equal degree of protection, to the August authorized distribution facility
identified by the CSR. Failure to return any of the accessories may result in a delay and/or result in a credit to August or an
invoice for the missing accessories.
In performing warranty service, August may furnish replacement parts on an exchange basis and replaced parts will become
the property of August. Replacement parts provided by August shall be new or refurbished and of comparable quality, and may
be a dierent part that contains compatible features and functions. You will reimburse August for the inspection, testing and
repair of returned equipment determined by August not to be defective or which falls under one of the warranty exclusions
described below (as well as pay all shipping and handling charges). In all cases, August’s determination as to whether or not
the equipment is defective and covered by warranty will be final. Any replacement equipment will be warranted hereunder for
a period of one (1) year from shipment.
4. Scope of and Limitation of Warranty. The warranty on this Device is limited to the repair or replacement of defective units as
described in the Limited Warranty section above. This warranty does not cover customer training and education, installation,
set up adjustment, signal or reception problems. This warranty does not cover damage due to acts of God, accident, misuse,
abuse, negligence, commercial use or modification of, or to any part of your Device or caused by any third party product,
service or system, use for purposes other than for which the Device was designed or intended, use in improper temperature,
humidity or other environmental conditions, or use of the Device in violation of written instructions provided by August (which
may be provided at the time of purchase or on its website at www.august.com/support). This warranty does not cover damage
due to improper operation or maintenance, connections to improper voltage supply or attempted repair by anyone other than a
facility authorized by August to service your Device. This warranty does not cover consumables (such as batteries). This
warranty gives you specific legal rights, and you may have additional legal rights as required under local laws.
August Home Inc. Model: ASL-02 FCC: 2AB6UASL2 IC: 12163A-ASL2
REGULATORY COMPLIANCE INFORMATION
The August Smart Lock (ASL-02) is subject to the Federal Communications Commission (FCC) and Industry
Canada (IC) rules.
NOTICE:
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Les changements ou modifications non expressément approuvés par la partie responsable de la conformité
pourraient annuler l'autorité de l'utilisateur à utiliser l'équipement.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le onctionnement.
The serial number and regulatory codes are located on the back of the ASL-02.
August Home Inc. Model: ASL-02 FCC: 2AB6UASL2 IC: 12163A-ASL2
Specifications
Model Name: August ASL-02
Description: BLE Automatic Smart Lock
Model Number: ASL-02
Standards: Bluetooth Specification v4.0 (BLE), 2.4GHz ISM band (2402MHz to 2480MHz),
Channels: 40 x 2.0MHz channels
Data rate & Modulation: 1Mbps, GFSK, 250 kHz deviation.
Interface: Bluetooth Low Energy (BLE)
LED: Lock/Unlock
Speaker: Output, 1Watt Max.
Antenna: Internal Single-band (Internal IFA)
Transmitted Power: 0dBm Max.
Receive Sensitivity: -96.5dBm Typical
Antenna Gain in dBi: 0dBi Typical (3dBi Maximum).
Power Consumption: TX: BLE: 30mA Max.
RX: BLE: 500uA Max.
Motor Operation: 500mA Max.
Battery Type: 4 AA alkaline batteries.
Battery Life: 10 to 12 months *typical
Operational Voltage: +7.0V Maximum Voltage.
+6.0V Nominal Voltage.
+4.0V Minimum Voltage.
Environmental
Dimensions: 3.39” dia. x 2.24” height (86mm dia. x 57mm height)
Weight: 14.0 oz. (400 g)
Certification: FCC, IC
Operating Temp.: +32°F to +131°F (0°C to 55°C)
Storage Temp.: -4°F to +140°F (-40°C to 60°C)
Operating Humidity: 10% to 85% Noncondensing
Storage Humidity: 5% to 90% Noncondensing
Model Name: August ASL-02
Description: Automatic Smart Door Lock
*Depending on quality of batteries and lock usage.
