August MS515 Computer Speaker User Manual MS515 manual 20150722

August International Ltd Computer Speaker MS515 manual 20150722

User Manual

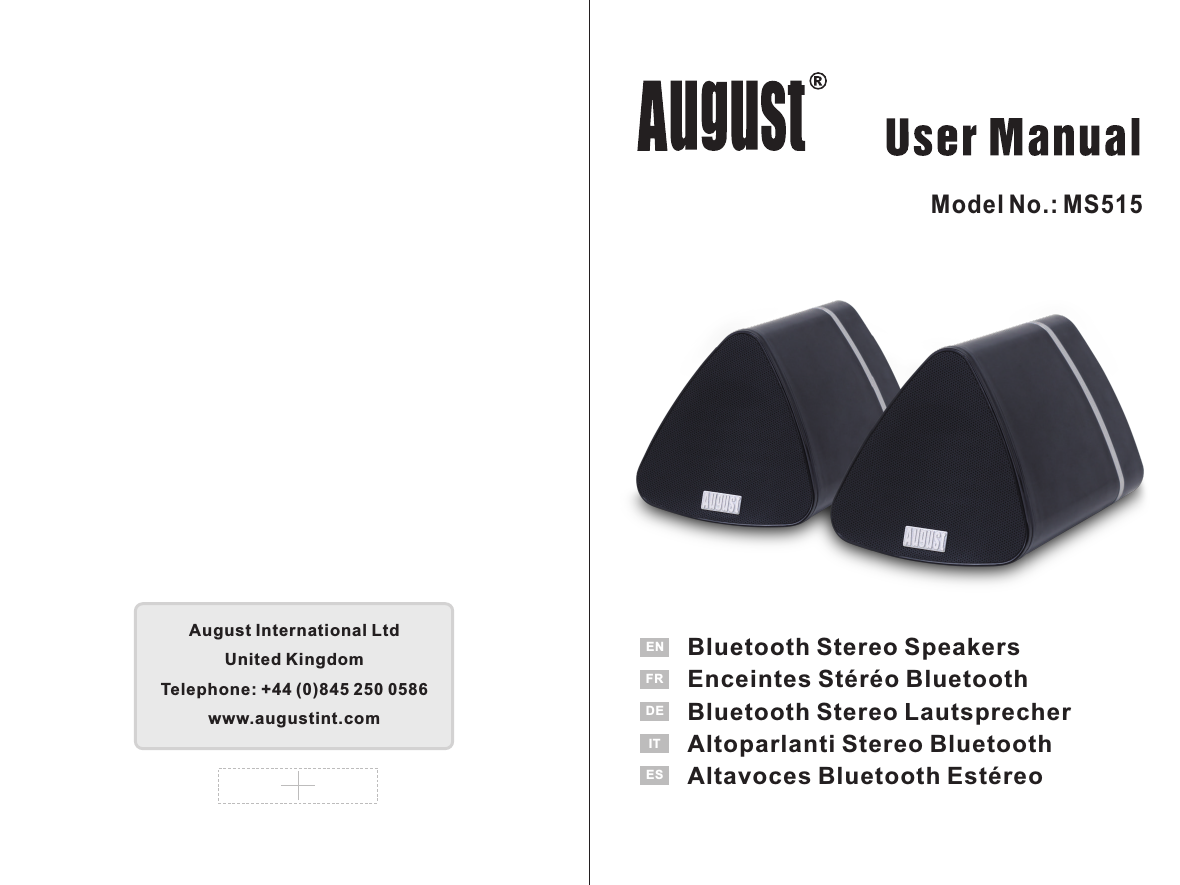

August International LtdUnited KingdomTelephone: +44 (0)845 250 0586 www.augustint.comModel No.: MS515Bluetooth Stereo SpeakersEnceintes Stéréo BluetoothBluetooth Stereo LautsprecherAltoparlanti Stereo BluetoothAltavoces Bluetooth EstéreoENFRDEITES

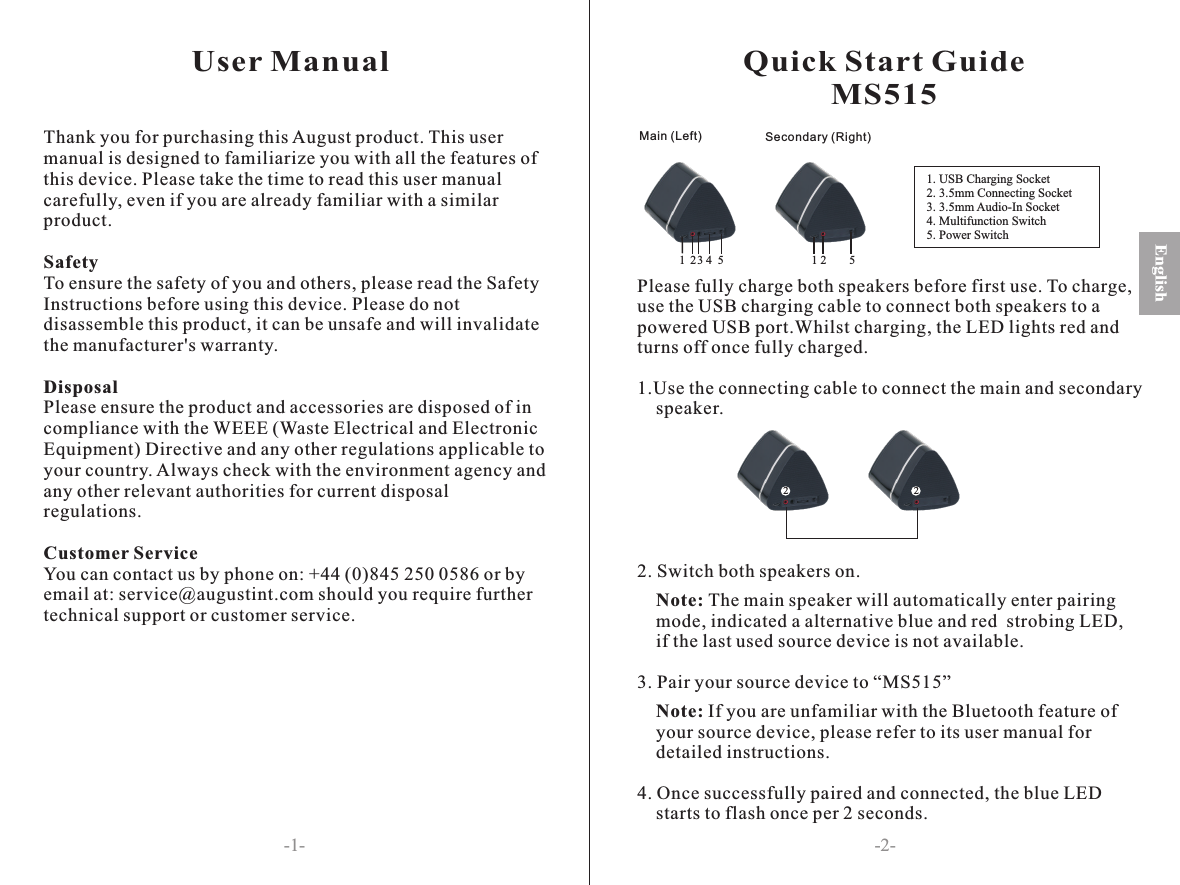

Please fully charge both speakers before first use. To charge, use the USB charging cable to connect both speakers to a powered USB port.Whilst charging, the LED lights red and turns off once fully charged.1.Use the connecting cable to connect the main and secondary speaker.2. Switch both speakers on. Note: The main speaker will automatically enter pairing mode, indicated a alternative blue and red strobing LED, if the last used source device is not available.3. Pair your source device to “MS515” Note: If you are unfamiliar with the Bluetooth feature of your source device, please refer to its user manual for detailed instructions.4. Once successfully paired and connected, the blue LED starts to flash once per 2 seconds. User Manual-2--1-English Français EspañolQuick Start GuideMS515Thank you for purchasing this August product. This user manual is designed to familiarize you with all the features of this device. Please take the time to read this user manual carefully, even if you are already familiar with a similar product.SafetyTo ensure the safety of you and others, please read the Safety Instructions before using this device. Please do not disassemble this product, it can be unsafe and will invalidate the manufacturer's warranty.DisposalPlease ensure the product and accessories are disposed of in compliance with the WEEE (Waste Electrical and Electronic Equipment) Directive and any other regulations applicable to your country. Always check with the environment agency and any other relevant authorities for current disposal regulations.Customer ServiceYou can contact us by phone on: +44 (0)845 250 0586 or by email at: service@augustint.com should you require further technical support or customer service.1. USB Charging Socket2. 3.5mm Connecting Socket3. 3.5mm Audio-In Socket4. Multifunction Switch5. Power SwitchMain (Left) Secondary (Right)213451 5222

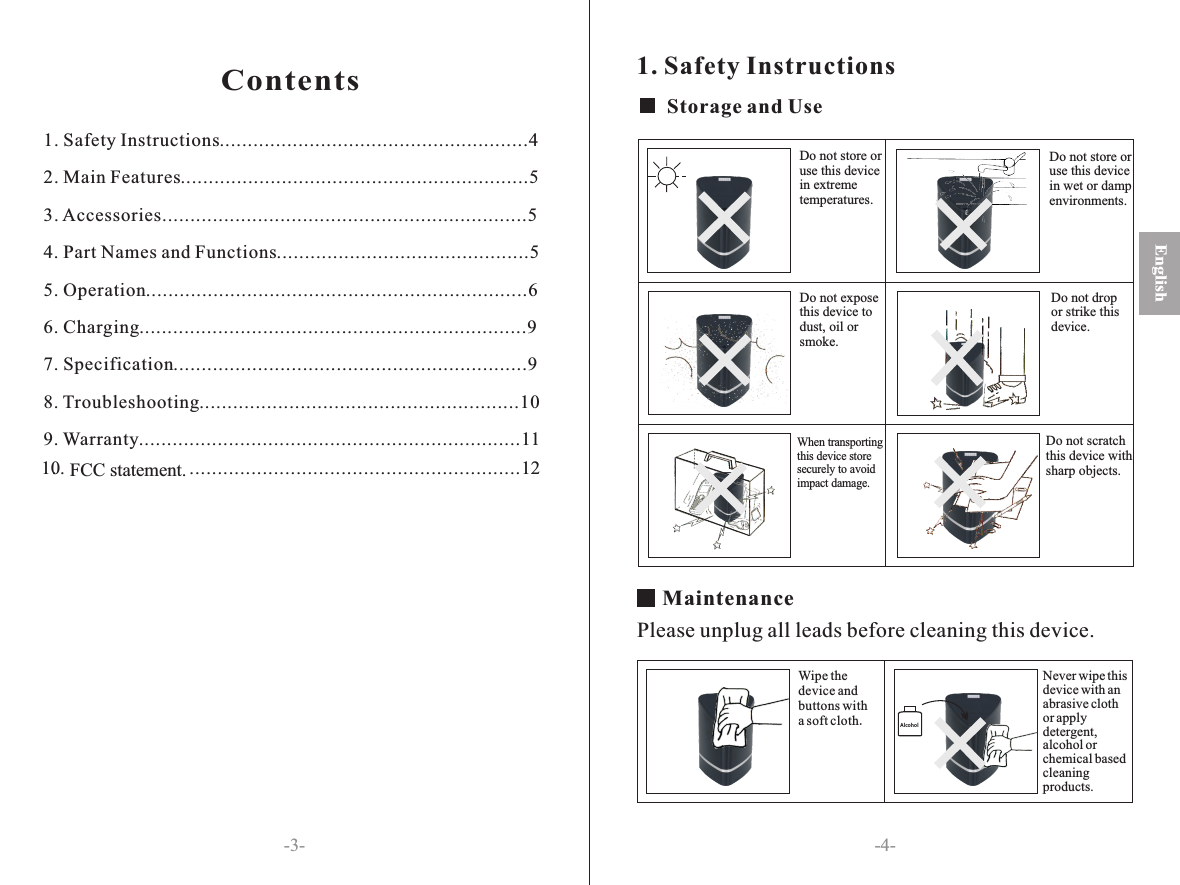

Contents Storage and UseDo not expose this device to dust, oil or smoke.When transporting this device store securely to avoid impact damage.Do not scratch this device with sharp objects.Do not store or use this device in extreme temperatures.Do not store or use this device in wet or damp environments.Do not drop or strike this device.MaintenancePlease unplug all leads before cleaning this device.Wipe the device and buttons with a soft cloth.Never wipe this device with an abrasive cloth or apply detergent, alcohol or chemical based cleaning products.Al coho l1. Safety Instructions-4--3-English Français Deutsch Español1. Safety Instructions.......................................................42. Main Features..............................................................53. Accessories.................................................................54. Part Names and Functions.............................................55. Operation....................................................................66. Charging.....................................................................97. Specification...............................................................98. Troubleshooting.........................................................109. Warranty....................................................................1110.. FCC statement. ...........................................................12

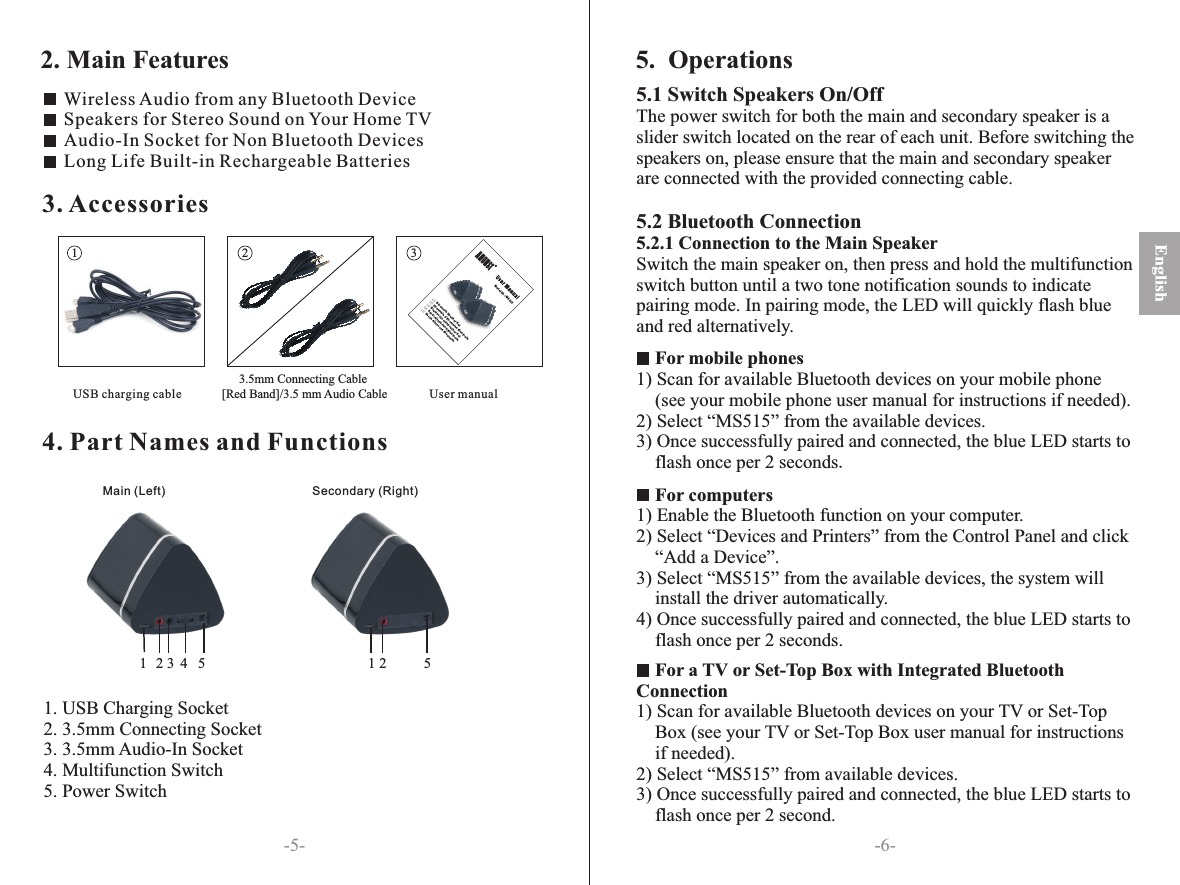

4. Part Names and Functions-6--5-3. Accessories1 2 3 USB charging cable 2. Main FeaturesEnglishWireless Audio from any Bluetooth DeviceSpeakers for Stereo Sound on Your Home TVAudio-In Socket for Non Bluetooth DevicesLong Life Built-in Rechargeable Batteries5. OperationsMain (Left) Secondary (Right)5.1 Switch Speakers On/OffThe power switch for both the main and secondary speaker is a slider switch located on the rear of each unit. Before switching the speakers on, please ensure that the main and secondary speaker are connected with the provided connecting cable.5.2 Bluetooth Connection5.2.1 Connection to the Main SpeakerSwitch the main speaker on, then press and hold the multifunction switch button until a two tone notification sounds to indicate pairing mode. In pairing mode, the LED will quickly flash blue and red alternatively. For mobile phones1) Scan for available Bluetooth devices on your mobile phone (see your mobile phone user manual for instructions if needed).2) Select “MS515” from the available devices. 3) Once successfully paired and connected, the blue LED starts to flash once per 2 seconds.For computers1) Enable the Bluetooth function on your computer.2) Select “Devices and Printers” from the Control Panel and click “Add a Device”.3) Select “MS515” from the available devices, the system will install the driver automatically.4) Once successfully paired and connected, the blue LED starts to flash once per 2 seconds. For a TV or Set-Top Box with Integrated BluetoothConnection1) Scan for available Bluetooth devices on your TV or Set-TopBox (see your TV or Set-Top Box user manual for instructionsif needed).2) Select “MS515” from available devices.3) Once successfully paired and connected, the blue LED starts to flash once per 2 second. 3.5mm Connecting Cable [Red Band]/3.5 mm Audio Cable User manualModel No .: MS515Bluetooth Speaker SetEnsemble d ’Enceintes BluetoothBlue tooth L autsprecher Se tSet di Altoparlanti BluetoothSet de A ltavoces Bluetoo thENFRDEITES1. USB Charging Socket2. 3.5mm Connecting Socket3. 3.5mm Audio-In Socket4. Multifunction Switch5. Power Switch13452 52 1

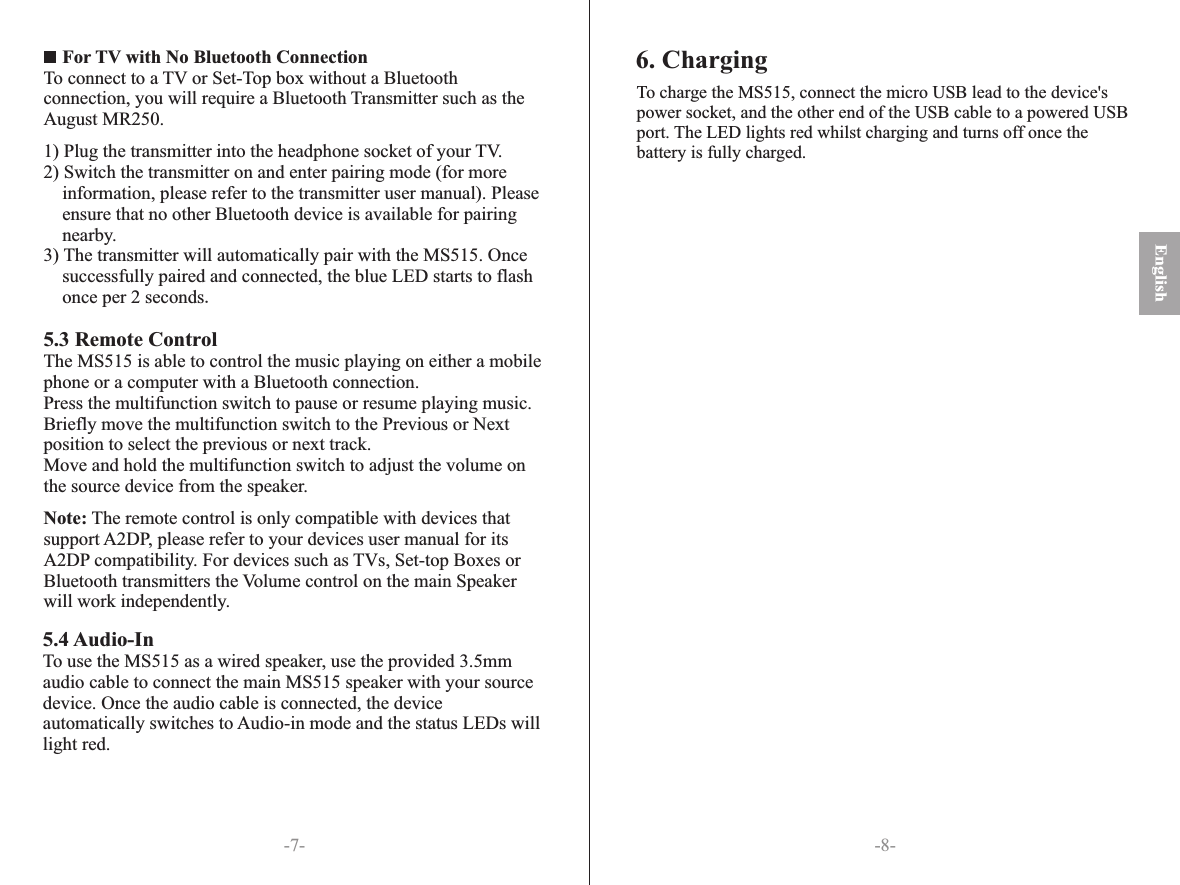

English-8--7- For TV with No Bluetooth ConnectionTo connect to a TV or Set-Top box without a Bluetoothconnection, you will require a Bluetooth Transmitter such as theAugust MR250.1) Plug the transmitter into the headphone socket of your TV.2) Switch the transmitter on and enter pairing mode (for moreinformation, please refer to the transmitter user manual). Pleaseensure that no other Bluetooth device is available for pairingnearby.3) The transmitter will automatically pair with the MS515. Once successfully paired and connected, the blue LED starts to flash once per 2 seconds.5.3 Remote ControlThe MS515 is able to control the music playing on either a mobile phone or a computer with a Bluetooth connection.Press the multifunction switch to pause or resume playing music. Briefly move the multifunction switch to the Previous or Next position to select the previous or next track.Move and hold the multifunction switch to adjust the volume on the source device from the speaker.Note: The remote control is only compatible with devices that support A2DP, please refer to your devices user manual for its A2DP compatibility. For devices such as TVs, Set-top Boxes or Bluetooth transmitters the Volume control on the main Speaker will work independently. 5.4 Audio-InTo use the MS515 as a wired speaker, use the provided 3.5mm audio cable to connect the main MS515 speaker with your source device. Once the audio cable is connected, the device automatically switches to Audio-in mode and the status LEDs will light red.To charge the MS515, connect the micro USB lead to the device's power socket, and the other end of the USB cable to a powered USB port. The LED lights red whilst charging and turns off once the battery is fully charged.6. Charging

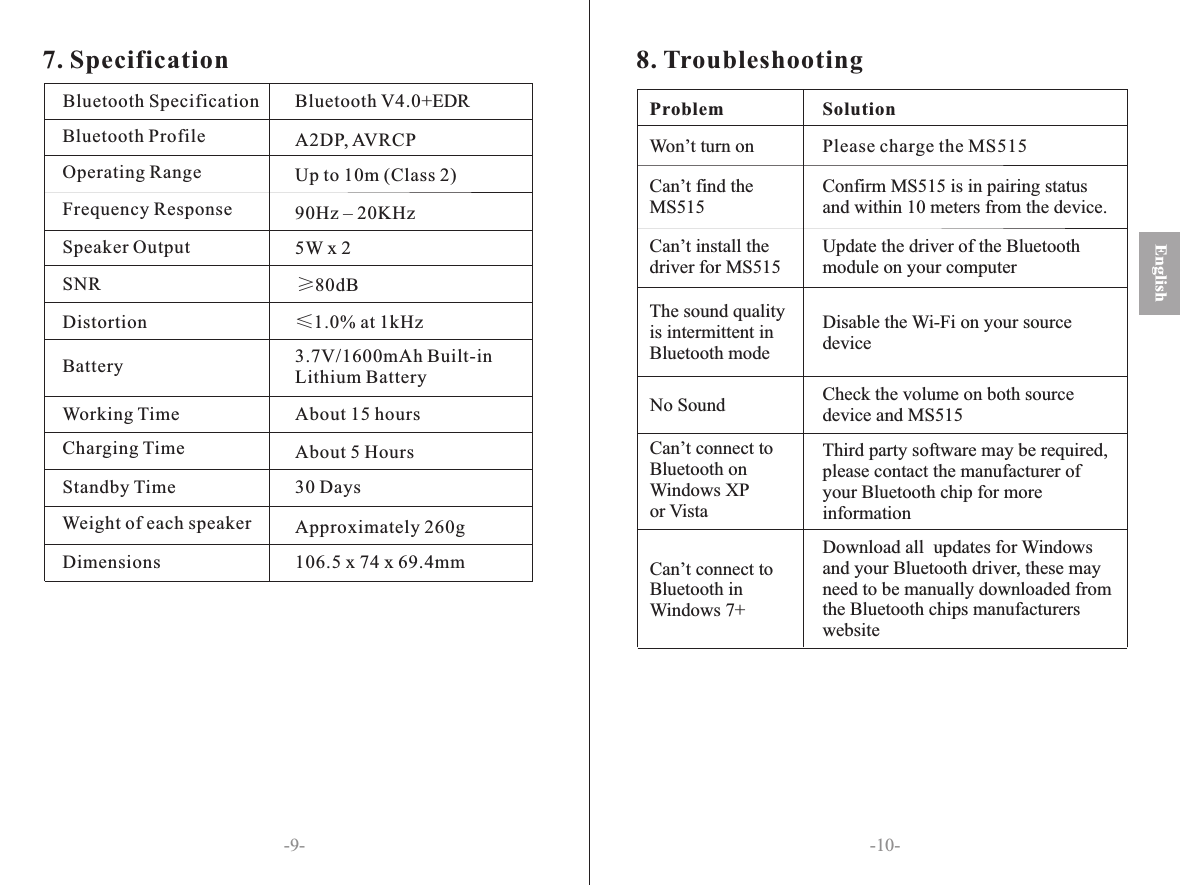

-10--9-English8. TroubleshootingUpdate the driver of the Bluetooth module on your computerProblemWon’t turn onCan’t find the MS515Can’t install the driver for MS515SolutionPlease charge the MS515Confirm MS515 is in pairing status and within 10 meters from the device.The sound quality is intermittent in Bluetooth modeDisable the Wi-Fi on your source deviceNo Sound Check the volume on both source device and MS515Can’t connect to Bluetooth on Windows XP or VistaCan’t connect to Bluetooth in Windows 7+Third party software may be required, please contact the manufacturer of your Bluetooth chip for more informationDownload all updates for Windows and your Bluetooth driver, these may need to be manually downloaded from the Bluetooth chips manufacturers websiteAbout 5 Hours7. Specification30 DaysBluetooth V4.0+EDRA2DP, AVRCPUp to 10m (Class 2)90Hz – 20KHz5W x 2≥80dB≤1.0% at 1kHz3.7V/1600mAh Built-inLithium BatteryAbout 15 hoursBluetooth SpecificationBluetooth ProfileOperating RangeFrequency ResponseSpeaker OutputSNRDistortionBatteryWorking TimeCharging TimeStandby TimeApproximately 260g106.5 x 74 x 69.4mmWeight of each speakerDimensions

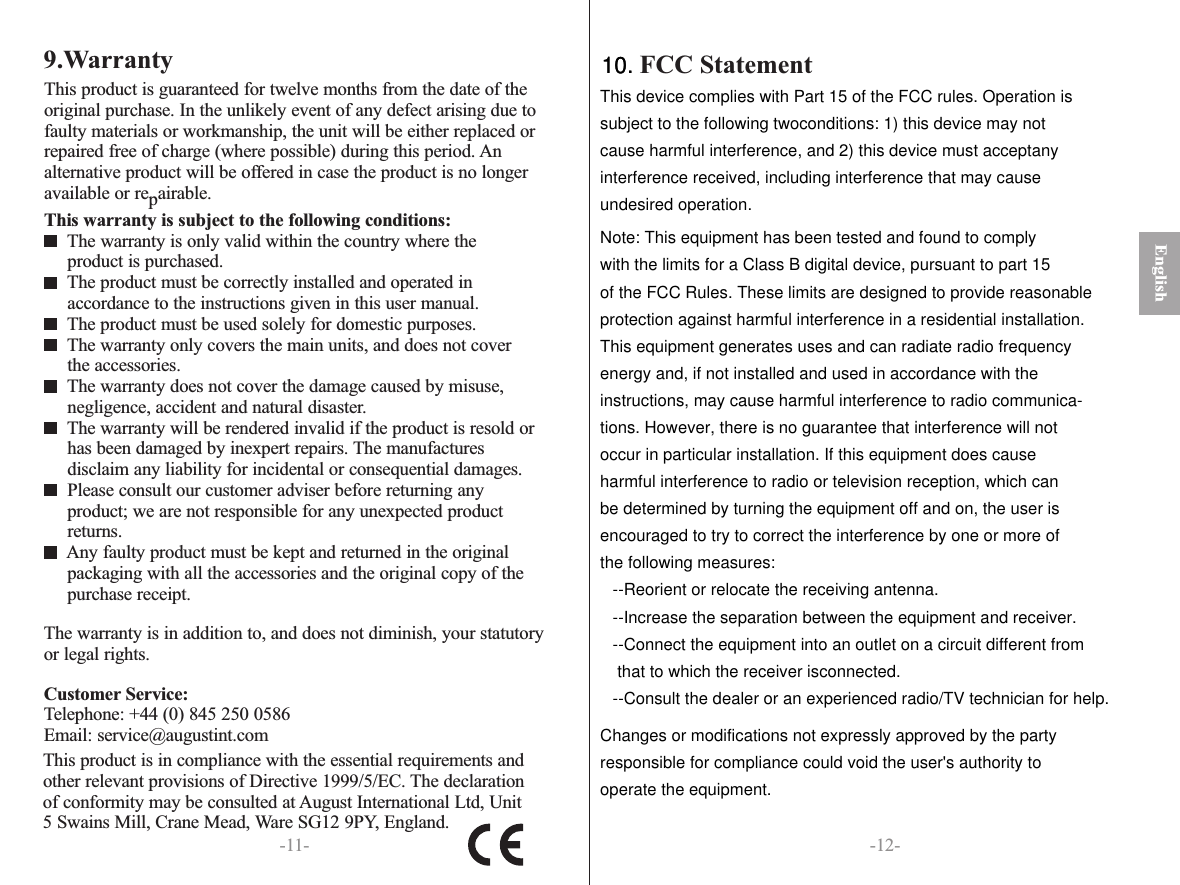

English-12--11-This product is guaranteed for twelve months from the date of the original purchase. In the unlikely event of any defect arising due to faulty materials or workmanship, the unit will be either replaced or repaired free of charge (where possible) during this period. An alternative product will be offered in case the product is no longer available or repairable.This warranty is subject to the following conditions:The warranty is only valid within the country where the product is purchased.The product must be correctly installed and operated in accordance to the instructions given in this user manual.The product must be used solely for domestic purposes.The warranty only covers the main units, and does not cover the accessories.The warranty does not cover the damage caused by misuse, negligence, accident and natural disaster.The warranty will be rendered invalid if the product is resold or has been damaged by inexpert repairs. The manufactures disclaim any liability for incidental or consequential damages.Please consult our customer adviser before returning any product; we are not responsible for any unexpected product returns.Any faulty product must be kept and returned in the original packaging with all the accessories and the original copy of the purchase receipt.The warranty is in addition to, and does not diminish, your statutory or legal rights.Customer Service:Telephone: +44 (0) 845 250 0586Email: service@augustint.com 9.WarrantyThis product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at August International Ltd, Unit 5 Swains Mill, Crane Mead, Ware SG12 9PY, England. This device complies with Part 15 of the FCC rules. Operation is subject to the following twoconditions: 1) this device may not cause harmful interference, and 2) this device must acceptany interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica-tions. However, there is no guarantee that interference will not occur in particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC Statement10.10.
