INSTALLATION,

OPERATION AND

MAINTENANCE

INSTRUCTIONS

FOR

MODEL 441

HORIZONTAL SPLIT CASE

&

MODEL 491

SPLIT CASE FIRE PUMP

TABLE OF CONTENTS PAGE i

TOPIC PAGE

PUMP IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

STORAGE OF PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

CAUTION NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION

1. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Net Positive Suction Head (NPSH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Minimum Submergence of Suction Pipe and Pit Design . . . . . . . . . . . . . . . . . . 4

4. Location and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5. Foundation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

6. Leveling of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

7. Grouting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

8. Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

9. Auxiliary Piping Connections and Gauges . . . . . . . . . . . . . . . . . . . . . . . . . 5

10. Constant Level Oiler – Oil Lubricated Pumps . . . . . . . . . . . . . . . . . . . . . . . . 5-6

11. Final Coupling Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

12. Flexible Shaft Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

13. Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

14. Mechanical Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPERATION

1. Operating at Reduced Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2. Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. Starting the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4. Bearing Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. Troubleshooting Operating Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

MAINTENANCE

1. Maintenance History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2. Inspections and Preventive Maintenance Requirements . . . . . . . . . . . . . . . . . 12

3. Bearing Lubrication

Grease-Lubricated Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Oil-Lubricated Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13

4. Packing Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5. Packing Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

6. Pump Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

7. Pump Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-18

REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

RECOMMENDED SPARE PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22

CROSS-SECTIONAL DRAWINGS AND PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . 23-24

PUMP IDENTIFICATION PAGE 1

PUMP IDENTIFICATION

Congratulations! You are the owner of one of the finest pumps commercially available. If you give it

the proper care as outlined and recommended by this manual, it will provide you with reliable service

and long life.

441 & 491 SPLIT CASE PUMPS

Your Aurora Model 441 & 491 is a Split Case Pump, meaning the casing is split along the horizontal

centerline. This new compact design, with its shorter bearing span, has less deflection under

hydraulic load which results in less wear on the sleeves, bearings and packing. It is ideally suited for

applications such as water systems, boosters, liquid transfer, irrigation and Fire Protection Systems.

These pumps are available with a wide variety of options including mechanical seals, impeller wear

rings, oil-lubricated and water-cooled bearings. Some options may not be available on Model 491

Fire Pumps.

This manual applies to:

X-441-XXX Horizontal Split Case Pumps

X-491-XXX Horizontal Split Case Fire Pumps

Example: 4-491-11A

Hydraulic design (if applicable)

Maximum nominal impeller diameter

Horizontal Fire Pump

Discharge size

Carefully record all the following data from your pump nameplate. It will aid in obtaining the correct

replacement parts in the future.

FIGURE (MODEL): __________________ SERIAL NUMBER: __________________

IMPELLER DIAMETER:_______________ SIZE: _____________________________

CAPACITY: _____________ GPM ______ TOTAL HEAD ____________ FT.

RPM: __________________

DRIVER

HORSEPOWER: _______________ SERIAL NUMBER: _______________________

SPEED: ____________ RPM VOLTAGE: _____________________________

MANUFACTURER: _____________________ FRAME: ________________________

PAGE 2 STORAGE OF PUMPS AND CAUTION NOTES

THESE INSTRUCTIONS APPLY TO THE PUMP ONLY. THEY ARE INTENDED TO BE GENERAL

AND NOT SPECIFIC. IF YOUR OPERATING CONDITIONS EVER CHANGE, ALWAYS REFER TO

THE FACTORY FOR REAPPLICATION. ALWAYS REFER TO THE MANUALS PROVIDED BY

MANUFACTURERS OF THE OTHER EQUIPMENT FOR THEIR SEPARATE INSTRUCTIONS.

CAUTION

IMPORTANT SAFETY NOTICE

THE INSTALLATION, USE AND OPERATION OF THIS TYPE OF EQUIPMENT IS AFFECTED BY

VARIOUS FEDERAL, STATE AND LOCAL LAWS AND THE REGULATIONS CONCERNING

OSHA. COMPLIANCE WITH SUCH LAWS RELATING TO PROPER INSTALLATION AND SAFE

OPERATION OF THIS TYPE OF EQUIPMENT IS THE RESPONSIBILITY OF THE EQUIPMENT

OWNER AND ALL NECESSARY STEPS SHOULD BE TAKEN BY THE OWNER TO ASSURE

COMPLIANCE WITH SUCH LAWS BEFORE OPERATING THE EQUIPMENT.

STORAGE OF PUMPS

IF THE EQUIPMENT IS NOT TO BE IMMEDIATELY INSTALLED AND OPERATED, STORE IT IN

A CLEAN, DRY, WELL-VENTILATED PLACE, FREE FROM VIBRATION, MOISTURE AND RAPID

OR WIDE VARIATIONS IN TEMPERATURE.

SPECIAL INSTRUCTIONS FOR:

OIL-LUBRICATED PUMPS: FILL THE BEARING RESERVOIRS WITH OIL. PRIOR TO

START-UP, DRAIN THE STORAGE OIL AND FILL THE RESERVOIRS WITH NEW OIL.

GREASE-LUBRICATED PUMPS: ROTATE THE SHAFT FOR SEVERAL REVOLUTIONS

AT LEASE ONCE EVERY TWO WEEKS TO:

1. COAT THE BEARING WITH LUBRICANT.

2. RETARD OXIDATION OR CORROSION AND,

3. PREVENT POSSIBLE FALSE BRINELLING.

CONSIDER A UNIT IN STORAGE WHEN:

1. IT HAS BEEN DELIVERED TO THE JOBSITE AND IS AWAITING INSTALLATION.

2. IT HAS BEEN INSTALLED BUT OPERATION IS DELAYED PENDING COMPLETION OF

CONSTRUCTION.

3. THERE ARE LONG PERIODS (30 DAYS OR MORE) BETWEEN OPERATION CYCLES.

4. THE PLANT (OR DEPARTMENT) IS SHUT DOWN FOR PERIODS OF LONGER THAN 30

DAYS.

NOTE: STORAGE REQUIREMENTS VARY DEPENDING ON THE LENGTH OF STORAGE,

THE CLIMATIC ENVIRONMENT AND THE EQUIPMENT. FOR STORAGE

PERIODS OF THREE MONTHS OR LONGER, CONTACT THE MANUFACTURER

FOR SPECIFIC INSTRUCTIONS. IMPROPER STORAGE COULD DAMAGE THE

EQUIPMENT WHICH WOULD RESULT IN NON-WARRANTY COVERED

RESTORATION REQUIREMENTS OR NON-WARRANTY COVERED PRODUCT

FAILURES.

INTRODUCTION AND INSTALLATION PAGE 3

INTRODUCTION

This manual contains information which is the result of carefully conducted engineering and research efforts. It

is designed to supply adequate instructions for the safe and efficient installation, operation maintenance of your

pump. Failure or neglect to properly install, operate or maintain your pump may result in personal injury,

property damage or unnecessary damage to the pump.

Variations exist in both the equipment used with these pumps and the particular installation of the pump and

driver. Therefore, specific operating instructions are not within the scope of this manual. The manual contains

general rules for installation, operation and maintenance of the pump.

Observe all caution or danger tags attached to the pump or included in this manual.

INSTALLATION

1. GENERAL

CAUTION: CAREFULLY READ ALL SECTIONS OF THIS MANUALAND ALL OTHER

INSTRUCTION MANUALS PROVIDED BY MANUFACTURERS OF OTHER

EQUIPMENT SUPPLIED WITH THIS PUMP.

Upon receipt of the shipment, unpack and inspect the pump and driver assemblies and individual parts to

ensure that none are missing or damaged. Carefully inspect al boxes and packing material for loose parts

before discarding them. Report immediately to the transportation company involved, and to the factory, any

missing parts or damage incurred during shipment, and file your “damaged and/or lost-in-shipment” claim with

the carrier.

Horizontal pump and driver assemblies mounted on a common base are accurately aligned at the factory.

However, alignment may be disturbed in transit or during installation. It must be checked after the unit is

leveled on its foundation, after the grouting has set and the foundation bolts are tightened, and after the piping

is completed.

When the pump and driver are mounted on separate base structures, the pump should be leveled and aligned

first, then the driver leveled and aligned with the pump. With separate bases, a flexible shaft between the pump

and driver must be used.

2. NET POSITIVE SUCTION HEAD (NPSH)

NPSH can be defined as the head (energy) that causes liquid to flow through the suction pipe and enter the eye

of the impeller.

NPSH is expressed in two values: (1) NPSH required (NPSHR) and (2) NPSH available (NPSHA). It is essential

that NPSHA be always greater than NPSHR to prevent cavitation, vibration, wear and unstable operation.

NPSHR is a function of the pump design and therefore varies with the model, size, capacity and speed of the

pump. The value for your pump can be obtained from your pump performance curve or from the factory.

A. When the source of the liquid is above the pump:

NPSHA = barometric pressure (feet) + static suction head (feet) – friction losses in suction piping

(feet) – vapor pressure of liquid (feet)

B. When the source of the liquid is below the pump:

NPSHA = barometric pressure (feet) - static suction lift (feet) – friction losses in suction piping (feet)

– vapor pressure of liquid (feet)

PAGE 4 INSTALLATION (continued)

3. MINIMUM SUBMERGENCE OF SICTION PIPE AND PIT DESIGN

For installations where the pump draws fluid from a sump, the hydraulic characteristics of the pump, the suction

inlet submergence and NPSH must be considered. Generally, it is required that an evenly distributed flow of

non-aerated water be supplied to the suction bell. Improper pit design or insufficient suction pipe submergence

can result in intake vortexing which reduces the pump’s performance and can result in severe damage to the

pump.

We recommend that you secure the advice of a qualified Consulting Engineer for the analysis of the suction pit.

Significant engineering data on design is provided in the Hydraulic Institute Standards.

4. LOCATION AND HANDLING

The pump should be located as near the fluid as possible so a short direct suction pipe can be used to keep

suction losses at a minimum. If possible, locate the pump so the fluid will flow to the suction opening by gravity.

The discharge piping should be direct and with as few elbows and fittings as possible. The total net positive

suction head available (NPSHA), which includes suction lift and pipe friction losses, must be equal to or greater

than the net positive suction head required (NPSHR) by the pump.

The pump and driver should be located in an area that will permit periodic inspection and maintenance. Head

room and access should be provided and all units should be installed in a dry location with adequate drainage.

WARNING: DO NOT LIFT THE COMPLETE UNIT BY THE DRIVER OR PUMP SHAFTS OR EYE BOLTS.

To lift a horizontal mounted unit, a chain or suitable lifting device should be attached to each corner of the unit

base. The driver by itself may be lifted using the proper eyebolts provided by the manufacturer, but these

should not be used to lift the entire assembled unit.

5. FOUNDATION

The foundation should have a level surface and have sufficient mass to prevent vibration and form a permanent

rigid support for the unit. The most satisfactory foundations are concrete with anchor bolts of adequate size

embedded in the foundation in pipe sleeves with an inside diameter 2½ times larger than the bolt diameter.

This will allow final accurate positioning of the unit.

6. LEVELING OF THE UNIT

Lower the unit onto the foundation, positioning it so the anchor bolts are aligned with the center of the mounting

holes in the base. On all units, always disconnect the coupling halves and never reconnect them until all the

alignment operations are complete.

The base should be supported on metal shims or metal wedges placed directly under the part of the base

carrying the greatest weight, and spaced close enough to give uniform support and stability (see Figure 1).

Adjust the metal shims or wedges until the shafts of the pump and driver are level. Alignment adjustments can

be accomplished by adjusting the supports under the base. When proper alignment is obtained, tighten the

foundation bolts snugly, but not too firmly, and recheck the alignment before grouting.

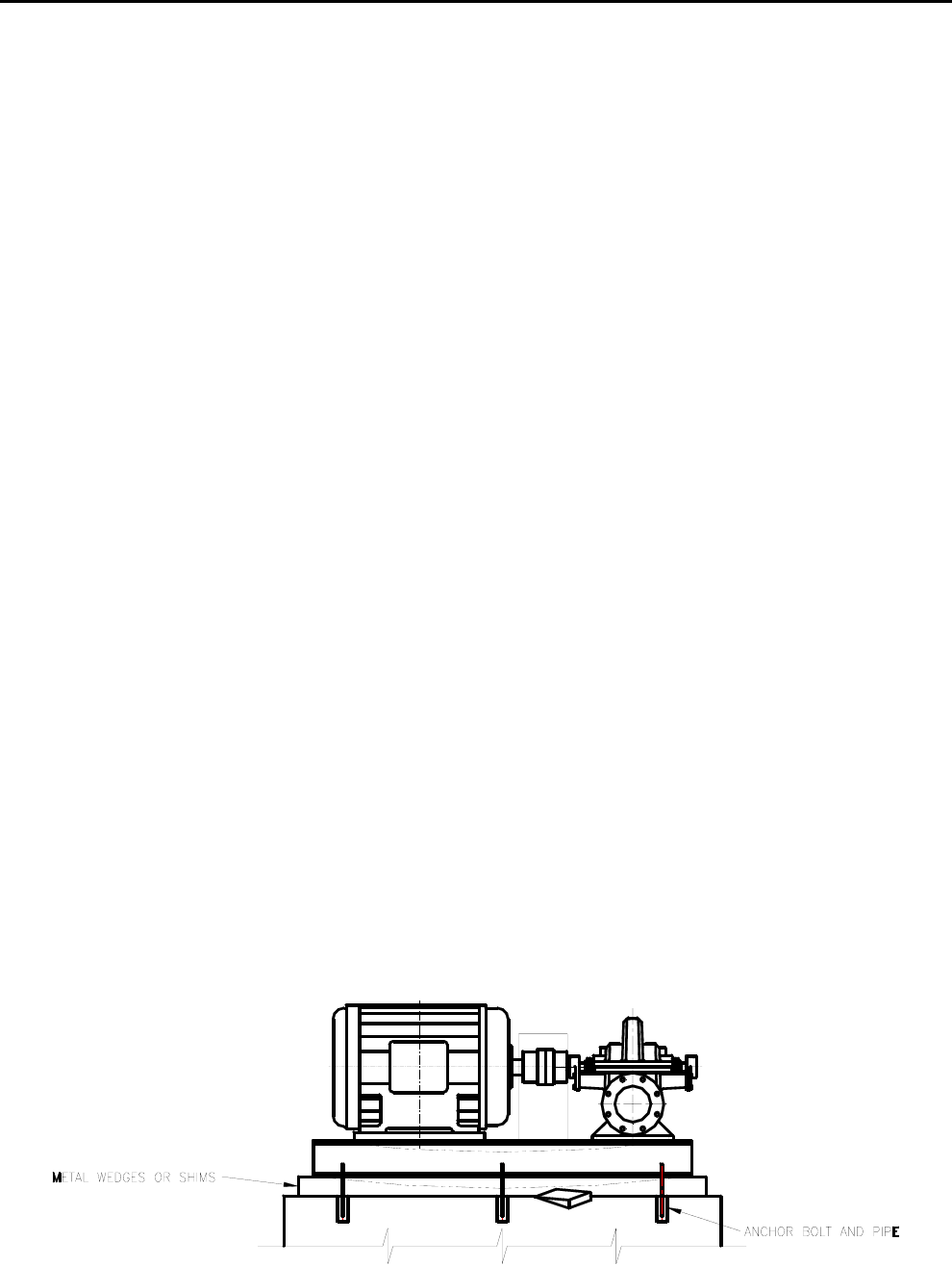

Figure 1

BASEPLATE INSTALLATION

INSTALLATION (continued) PAGE 5

7. GROUTING

When the alignment is correct, the unit should be grouted using high grade non-shrinking grout. The entire

base should be filled with grout. Be sure to fill all gaps and voids. Allow the grout to fully cure before firmly

tightening the foundation bolts. Then recheck the alignment before connecting the piping.

8. PIPING

CAUTION: ALL PIPING CONNECTIONS MUST BE MADE WITH THE PIPING IN A FREE

SUPPORTED STATE, AND WITHOUT THE NEED TO APPLY VERTICAL OR

SIDE PRESSURE TO OBTAIN ALIGNMENT OF THE PIPING WITH THE

PUMP FLANGE.

CAUTION: AFTER ALL THE PIPING IS CONNECTED, THE PUMP AND DRIVER

ALIGNMENT MUST BE RECHECKED.

All piping should be independently supported near the pump so that pipe strain will not be transmitted to the

pump casing. The suction and discharge piping should be one or two sizes larger than the pump flange sizes,

especially where the piping is of considerable length. Any flexible joints installed in the piping must be equipped

with tension rods to absorb piping axial thrust. Care must be exercised in arranging elbows so as not to

generate vortexing in the pump inlet.

The suction pipe must be air tight and sloped upward to the pump flange to avoid air pockets which will impair

satisfactory pump operation. The discharge pipe should be as direct as possible with a minimum of valves to

reduce pipe friction losses.

A check valve and closing valve should be installed in the pump discharge line and a closing valve in the

suction line. The check valve, between the pump and the closing valve, protects the pump from water hammer

and prevents reverse rotation in the event of power failure. The closing valves are used in priming, starting and

when the pump is shut down. The pump must never be throttled by the use of a valve in the suction line.

9. AUXILIARY PIPING CONNECTIONS AND GAUGES

In addition to the primary piping connections, your pump may require mechanical seal and seal water filter

connections, connections to the lantern ring (see the “Packing Box” and “Mechanical Seal” sections of this

manual), stuffing box drain, discharge and suction flange gauges, casing relief valve drain or baseplate drain

connections. All these lines and gauges should now be installed.

10. CONSTANT LEVEL OILERS

If your pump has oil-lubricated bearings, it will be equipped with constant level oilers which will be shipped loose

to prevent damage in shipment. The oilers must be installed in the tapped holes in the side of the beating

housings. To provide proper lubrication, the pipe connection the oiler to the bearing housing must be level (see

Figure 2).

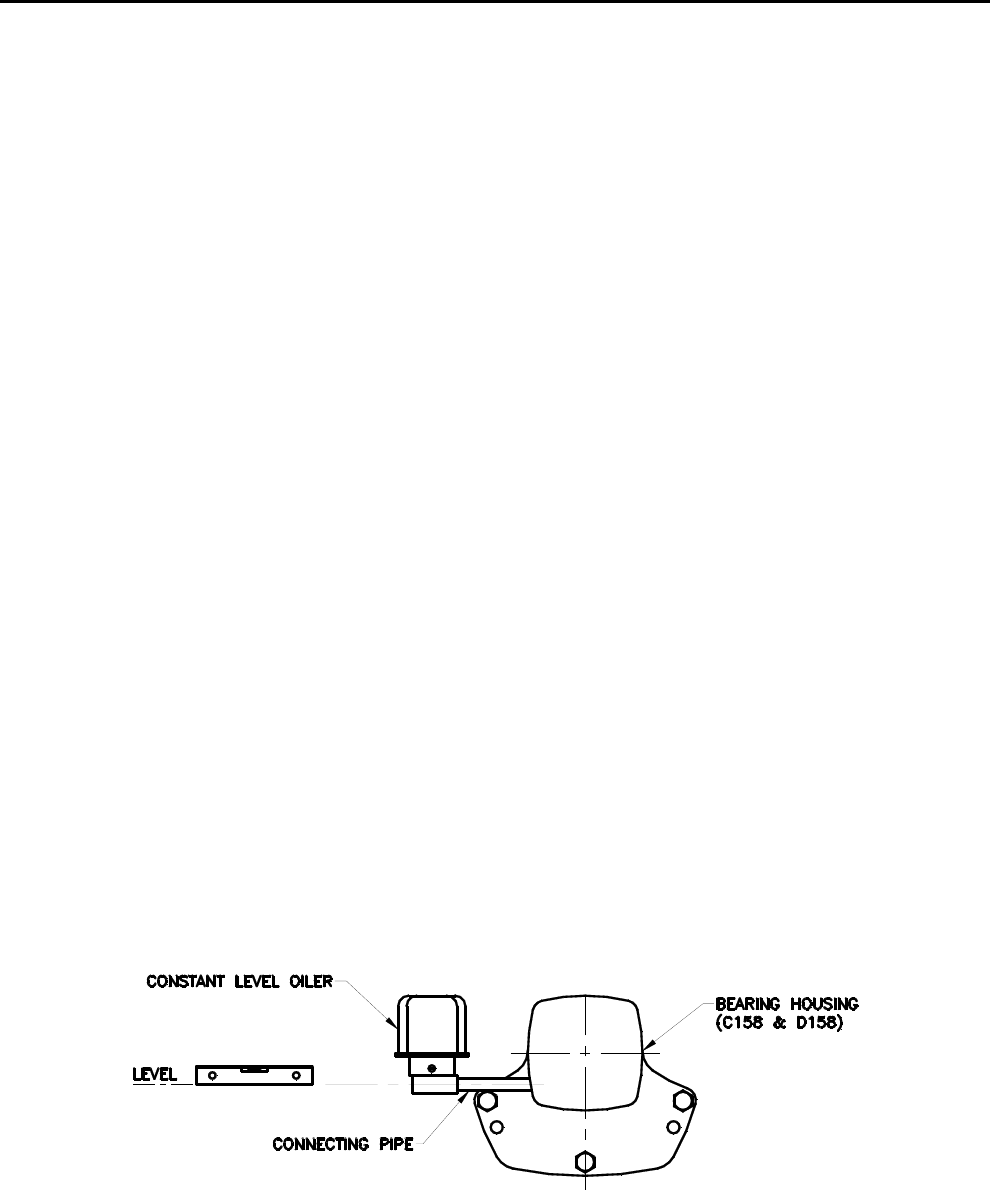

FIGURE 2

When the oiler is level, fill the bottle and screw it onto the lower reservoir of the oiler. Allow the oil to flow into

the bearing reservoir. Several fillings of the bottle may be required before the oil level for which the oiler is set is

reached and the oil stops flowing. After filling the oil reservoir, check the oil level to make sure it is as specified

in the following table (see Page 6).

PAGE 6 INSTALLATION (continued)

BEARING HOUSING OIL LEVEL CHART

4-441-11A/C 5-441-18A 5-441-11A

PUMP MODEL 3-441-9A/C 4-441-14C 6-441-14A/C 6-441-19A

(PUMP SIZE) 4-441-8A 5-441-14A 6-441-18C 8-441-18A

6-441-12A 8-441-14A 10-441-20

Centerline of shaft to oil level 3/4" 7/8" 1-3/16" 1-1/2" 1-13/16"

2-441-8A

NOTE: For Fire Pumps, the Model designation changes from “441” to “491.”

Adjust the oil level, if necessary, by loosening the setscrews on the side of the dust cap, raising the bottle and

tightening the screws. Refer to the oiler manufacturer’s instructions for more specific details.

11. FINAL COUPLING ALIGNMENT

The alignment of the coupling must be carefully checked during installation and as the last step before starting

the pump. If realignment is required, the piping should be disconnected first. After aligning, reconnect the

piping in accordance with the previous instructions and again recheck the alignment.

A flexible coupling must not be used to compensate for misalignment resulting from poor installation or

temperature changes.

Aurora Pumps are supplied with several different types of commercial couplings. The following instructions

apply to units supplied with Woods couplings. If your unit has a different brand coupling, the manufacturer’s

instructions should be obtained before proceeding.

NOTE: FOR MAXIMUM LIFE, KEEP MISALIGNMENT VALUES AS NEAR TO ZERO AS POSSIBLE.

MAXIMUM ALLOWABLE MISALIGNMENT – WOODS COUPLINGS (Dimensions in inches)

Sleeve Types E & N Type H

Size Parallel Angular Parallal Angular

4 1/2 .005 .021 - -

5 3/4 .007 .028 - -

6 7/8 .007 .035 .005 .008

7 1 .010 .040 .006 .010

8 1-1/8 .010 .047 .007 .012

9 1-7/16 .012 .054 .008 .014

10 1-5/8 .012 .064 .010 .016

11 1-7/8 .016 .075 .011 .018

12 2-5/16 .016 .087 .012 .021

13 2-11/16 .020 .092 .015 .025

14 3-1/4 .022 .121 .017 .030

16 4-1/4 .031 .165 - -

"G" Dimension

The coupling Type is printed on the sleeve.

* Type H sleeves SHOULD NOT be used as direct replacements for EPDM or Hytrel sleeves.

A. Use a blunt screwdriver to slip the wire ring out of the groove and remove the two-piece sleeve.

Check the “G” dimension. If it is not as shown in the preceding table, loosen one flange of the

coupling and reposition it to achieve the specified “G” dimension.

NOTE: On a sleeve bearing electric motor, the armature should be at its electrical center when the “G”

dimension is measured.

B. Check parallel misalignment by placing a straightedge across the two coupling flanges and

measuring the maximum offset at various points around the periphery of the coupling. DO NOT

ROTATE THE COUPLING. If the maximum offset exceeds the figure shown under “Parallel” in the

preceding table, realign the coupling.

INSTALLATION (continued) PAGE 7

FIGURE 3

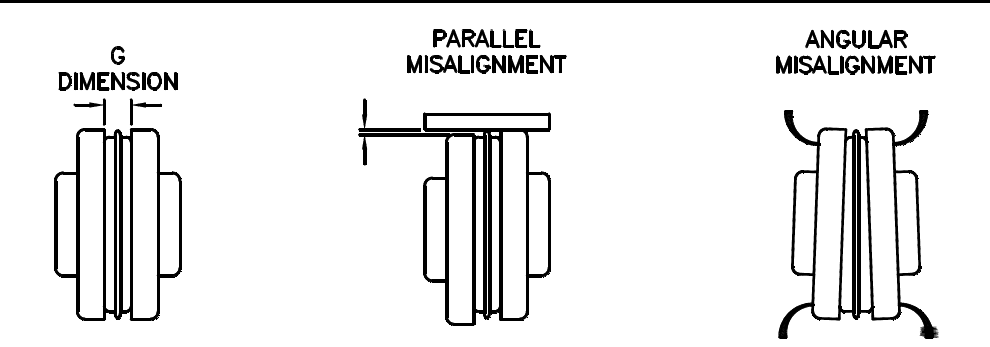

COUPLING ALIGNMENT

11. FINAL COUPLING ALIGNMENT (continued)

C Check the angular alignment with a micrometer or caliper. Measure from the outside of one flange to

the outside of the other at intervals around the periphery of the coupling. Determine the maximum

and minimum dimensions. DO NOT ROTATE THE COUPLING. The difference between the

maximum and minimum dimensions should not exceed the figure shown under “Angular” in the

preceding table. If a correction is required, you must always recheck the parallel alignment.

D. If the coupling employs a two-piece sleeve with a wire ring, force the ring into its groove in the center

of the sleeve. It may be necessary to pry the ring into position with a blunt screwdriver.

WARNING: CHECK SAFETY CODES, AND ALWAYS INSTALL PROTECTIVE GUARD OR

SHIELD AS REQUIRED BY VARIOUS FEDERAL, STATE AND LOCAL LAWS AND

REGULATIONS CONCERNING OSHA.

WARNING: COUPLING SLEEVES MAY BE THROWN FROM THE ASSEMBLY WHEN

SUBJECTED TO A SEVERE SHOCK LOAD.

12. FLEXIBLE SHAFTING ALIGNMENT

For installation and alignment of intermediate flexible shafting, refer to the manufacturer’s instructions.

13. ROTATION

Before connecting the coupling halves, bump start the driver to verify rotation is in the proper direction. The

correct pump rotation is indicated by a directional arrow on the pump casing.

PAGE 8 INSTALLATION continued)

14. MECHANICAL SEALS

CAUTION: DRY OPERATION OF THE PUMP MAY CAUSE DAMAGE TO THE MECHANICAL SEAL

AND IMPELLER.

Model 441 pumps can be supplied with optional single face mechanical shaft seals. Mechanical seals are

installed and adjusted in the factory and require no further adjustments in the field.

For further information, refer to the seal manufacturer’s instructions.

FIGURE 4

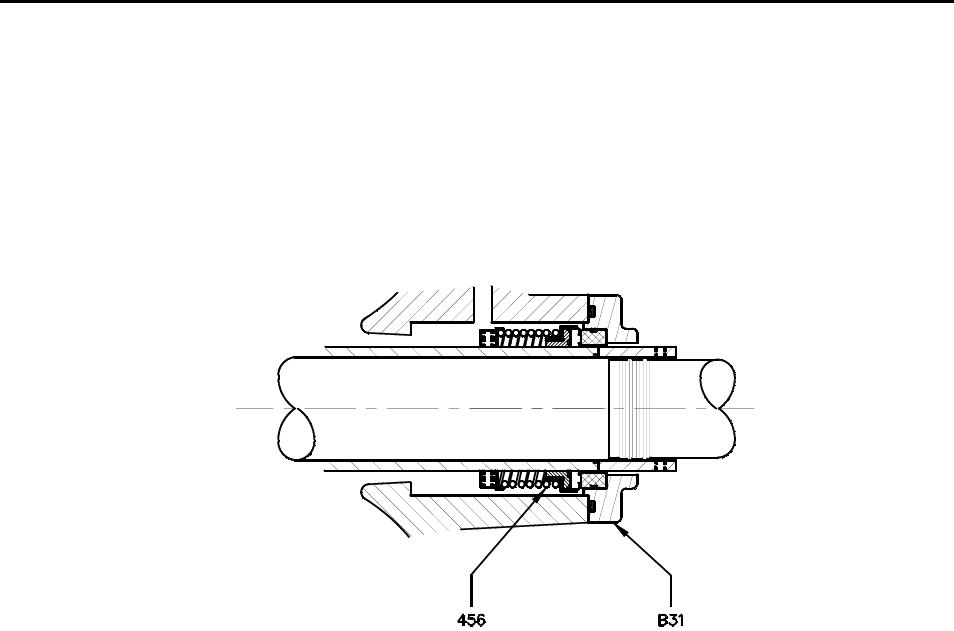

TYPICAL MECHANICAL SEAL

OPERATION PAGE 9

Because variations exist in both the equipment used with these pumps and in the particular installation of the

pump and driver, specific operating instructions are not within the scope of this manual. However, there are

general rules and practices that apply to all pump installations and operation.

CAUTION: BEFORE STARTING OR OPERATING THE PUMP, READ THIS ENTIRE MANUAL,

ESPECIALLY THE FOLLOWING INSTRUCTIONS:

A. BEFORE STARTING THE PUMP, INSTALL CLOSED GUARDS AROUND THE COUPLING.

B. BEFORE STARTING THE PUMP, ROTATE THE UNIT OR ASSEMBLY BY HAND TO ASSURE ALL

MOVING PARTS ARE FREE.

C. OBSERVE ALL CAUTION AND DANGER TAGS ATTACHED TO THE EQUIPMENT.

D. NEVER RUN THE PUMP DRY AS THE CLOSE RUNNING FITS WITHIN THE PUMP ARE WATER

LUBRICATED. RUNNING DRY MAY RESULT IN PUMP SEIZURE.

E. BEFORE STARTING THE PUMP, FILL THE CASING AND SUCTION LINE WITH LIQUID. THE

PUMP MAY BE PRIMED USING AN EJECTOR OR VACUUM PUMP.

F. BEFORE STARTING A PACKED BOX PUMP, ADJUST THE PACKING GLAND SO THERE IS

SUFFICIENT LEAKAGE TO LUBRICATE THE PACKING AND ASSURE A COOL PACKING BOX.

(SEE MAINTENANCE INSTRUCTIONS).

G. IF EXCESSIVE VIBRATION OR NOISE OCCURS DURING OPERATION, SHUT THE PUMP DOWN

AND CONSULT AN AURORA PUMP REPRESENTATIVE.

1. OPERATING AT REDUCED CAPACITY

Although these pumps are applicable over a wide range of operating conditions, care should be exercised when

doing so, especially when the actual conditions differ from the sold-for conditions. You should always contact

your nearest Aurora Pump sales office before operating the pumps for any condition other than that for which it

was sold.

2. PRIMING

Since the pump medium is used to lubricate various internal parts, running a centrifugal pump dry can result in

extensive damage and possible seizing. It is therefore imperative that the pump be primed prior to initial start-

up and that prime be maintained through subsequent start-stop cycles.

The priming method is different for positive and negative suction head systems, and the following procedures

should be followed.

A. Positive Suction Head –

1. Open the vent on the highest point on the pump casing.

2. Open all suction valves.

3. Allow the pumped liquid to flow from the vent hole until all air bubbles are vented, then close the

vent.

4. The pump is now primed.

B. Negative Suction Head –

1. Install an ejector or vacuum pump on the vent at the highest point on the pump casing.

2. Close the discharge valve.

3. Open the suction valve.

4. Start ejector or vacuum pump.

5. Allow the liquid to flow until a continuous flow is exhausted from the ejector, then close the valve to

the vent.

6. The pump is now primed.

PAGE 10 OPERATION (continued)

3. STARTING THE PUMP

A. After the pump is primed, and with the discharge valve closed and the suction valve open, start the driver

according to the driver manufacturer’s instructions.

B. Open the discharge valve slowly to prevent water hammer.

C. After the pump has been started, check bearing temperatures, packing box lubrication and operation and

pump noise level for a period of several hours.

CAUTION: BEGIN THESE CHECKS IMMEDIATELY UPON STARTING THE PUMP AND MONITOR

THEM CONTINUOUSLY FOR THE FIRST SEVERAL HOURS OF OPERATION.

4. BEARING OPERATING TEMPERATURE

These pumps are designed to operate over a wide ambient temperature range. The bearing temperature, when

measured at the outside surface of the bearing housing, should not exceed 190oF. Temperatures in excess of

190oF may indicate lack of lubricant, bearing overload or insipient bearing failure. If the temperature exceeds

this limit, the pump should be stopped and the cause investigated and corrected.

5. TROUBLESHOOTING OPERATING PROBLEMS

If you have followed the installation and start-up procedures outlined in this manual, your pump should provide

reliable service and long life. However, if operating problems do occur, significant time and expense can be

saved if you use the following checklist to eliminate the most common causes of those problems.

INSUFFICIENT DISCHARGE

PRESSURE OR FLOW

1. Pump not primed.

2. Speed too slow; check driver.

3. Discharge head too high.

4. Suction lift too high.

5. Wrong direction of rotation

6. Air leaks into suction piping, packing box or

gaskets.

7. Impeller passage partially plugged.

8. Impeller damaged.

9. Impeller running clearance too large.

10. Insufficient suction line submergence.

11. Air in liquid.

12. Impeller diameter too small.

13. Insufficient Net Positive Suction Head.

LOSS OF SUCTION DURING OPERATION

1. Suction line leaks.

2. Water seal line plugged.

3. Suction lift too high.

4. Air or gases in liquid.

5. Air leaks into suction piping, packing box or

gaskets.

6. Wrong direction of rotation.

7. Insufficient suction line submergence.

EXCESSIVE POWER CONSUMPTION

1. Speed too high.

2. Head lower than rating, pumping too much liquid.

3. Specific gravity or viscosity of liquid too high.

4. Mechanical defects:

• Shaft bent

• Rotating element binds

5. Misalignment.

6. System head lower than design.

7. Incorrect impeller diameter.

VIBRATION OR NOISE

1. Misalignment between driver and pump.

2. Loose foundation bolts or defective grouting.

3. Mechanical defects:

• Shaft bent

• Rotating element binds

4. Head lower than rating; pumping too much liquid.

5. Pipe strain – improperly supported or aligned.

6. Pump running at shut-off condition.

7. Insufficient suction line submergence.

8. Air in liquid.

OVERHEATING

1. Bearings:

• Excessive grease.

• Shaft bent.

• Rotating element binds.

• Pipe strain.

• Insufficient bearing lubrication.

• Incorrect type grease

2. Packing box:

• Packing gland too tight.

• Water seal line plugged

• Air not vented out of mechanical seal.

• Flushing water not circulating for mechanical

seal.

MAINTENANCE PAGE 11

1. MAINTENANCE HISTORY

DATE MAINTENANCE PERFORMED PARTS USED SYMBOL

NUMBER(S)

PAGE 12 MAINTENANCE (continued)

2. INSPECTIONS AND PREVENTIVE MAINTENANCE REQUIREMENTS

To assure satisfactory operation of the pump, daily inspections and periodic maintenance are required. We

suggest that an inspection and maintenance log be kept and that the inspector immediately report any

problems. A guide for preventive maintenance for normal applications is given below. Unusual applications,

with abnormal heat, moisture, dust, etc. may require more frequent inspections and service.

ITEM

Packing Box

Pump Alignment

Vibration

Bearings:

Grease lubricated

Oil lubricated

ACTION REQUIRED

Adjust gland, inspect packing for

possible replacement

Check for change in alignment

Check for change in vibration

Lubricate

FREQUENCY (HOURS OF OPERATION)

150 Hours

ANNUALLY

ANNUALLY

Every 2000 hours of operation,

but at least once a year.

As required to maintain proper oil level –

drain and replace oil every 2000 hours of

operation, but at least once a year.

3. BEARING LUBRICATION

A. Grease Lubricated Bearings

Under normal operating conditions, the bearings must be lubricated after every 2000 hours of running

time, but at least once a year regardless of total operating hours.

CAUTION: ANY APPLICATION WITH ABNORMAL HEAT, MOISTURE, DUST, ETC. MAY

REQUIRE A CHANGE IN THIS SCHEDULE AND YOU SHOULD REFER TO A

LUBRICATION ENGIEER OR THE FACTORY FOR SPECIFIC INSTRUCTIONS.

CAUTION: THE GREASES RECOMMENDED IN THIS MANUAL WILL PROVIDE SATISFACTORY

LUBRICATION OVER A WIDE TEMPERATURE RANGE. THERE IS, HOWEVER, A

PRACTICAL LIMIT, AND OPERATION OF THE PUMP SHOULD BE DISCONTINUED

AND THE FACTORY CONSULTED IF THE TEMPERATURE, WHEN MEASURED ON

THE OUTSIDE OF THE BEARING HOUSING, EXCEEDS 190oF.

RECOMMENDED GREASE: Chevron SRI grease N.L.G.I. No. 2 multi-purpose with a mineral oil

viscosity of 517 SUS at 100oF or equivalent.

Proceed as follows for bearing lubrication:

WARNING: KEEP HANDS, FINGERS, CLOTHING AND ANY TOOLS AWAY FROM THE

COUPLING. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL

INJURY.

1. Stop the pump and remove the pipe plug at the bottom of the bearing housing.

2. Connect a grease gun to the lubrication fitting.

3. Inject grease until it relieves at the bearing housing cover and drain hole.

4. Remove the grease gun.

5. Start the pump. NOTE: Immediately after lubrication, bearing temperatures may rise above the

normal level. Continue running the unit until bearing temperatures stabilize at the normal level.

6. Stop the unit, wipe off the relieved grease and replace the drain plug.

7. Start the unit and resume normal operation.

B. Oil Lubricated Bearings

Fill the constant level oiler and add additional oil as required. Replace the old oil with new every 2000

hours, but at least once a year. Drain the oil by removing the plug at the bottom of the bearing

housings (C158 and D158).

MAINTENANCE (continued) PAGE 13

3. BEARING LUBRICATION (continued)

Check the oiler setting periodically to be sure it is correct. Refer to the following table for the correct setting.

RECOMMENDED OILS: The oil used should be non-detergent type containing rust and oxidation inhibitors,

supplied by a reputable manufacturer.

Depending on bearing/pump operating temperature, the grade and viscosity should be as follows:

Below 120oF – ISO Vg Grade 40-70 (SAE 20)

120F to 250oF – ISO Vg Grade 70-100 (SAE 20)

Above 250oF – Consult the factory for a recommendation.

4. PACKING BOX

CAUTION: DO NOT TIGHTEN THE GLAND TO STOP ALL LEAKAGE. LEAKAGE IS NECESSARY TO

ENSURE THE COOLING, FLUSHING AND LUBRICATION OF THE PACKING AND TO

PREVENT SHAFT SLEEVE DAMAGE.

The packing boxes on Aurora Pumps are packed at he factory. All packing is subject to wear and should be

given regular inspections and, if necessary, periodic adjustments. Generally, packed box pumps require

inspection of the packing and adjustments to the glands after each 150 hours of operation.

Adjustment is made by lightly tightening the gland nuts, then loosening them so that they can be adjusted with

finger pressure to allow a small flow of liquid to lubricate the packing. If the flow of liquid has increased and

cannot be reduced by a slight tightening of the gland, add one ring of packing to the packing box and readjust

the gland. If this fails to reduce the flow, replace the packing and/or shaft sleeve.

The packing boxes may be fitted with lantern rings. When a lantern ring is furnished, the sealing chamber

should be connected to a source of clear fresh water.

5. PACKING REPLACEMENT

Use a good grade of soft, square long fiber packing, thoroughly graphited. The replacement procedure should

be as follows:

A. Stop the pump.

B. Unbolt and remove the glands away from the packing.

C. Use a packing hook to remove the worn rings of packing and lantern rings. Note the location of the

lantern rings relative to the amount of packing on each side of the lantern rings. (See sectional

drawings on pages 23 & 24.)

D. Clean the packing boxes and shaft sleeves.

E. Inspect the shaft sleeves for wear or rough finish and replace if necessary.

F. Install new packing and lantern rings.

CAUTION: STAGGER THE PACKING END JOINTS 180 AND FIRMLY SEAT THE PACKING.

THE FOLLOWING TABLE GIVES THE PERTINENT PACKING BOX, LANTERN RING

AND PACKING DIMENSIONS (see page 14).

G. Reinstall the glands and tighten the gland nuts.

H. Loosen the gland nuts so they can be adjusted with finger pressure to obtain correct leakage for

lubrication after start-up.

PAGE 14 MAINTENANCE (continued)

5. PACKING REPLACEMENT (continued)

PUMP MODEL

(

PUMP SIZE

)

4-441-11A 5-441-18A

2-441-8A 3-441-9A/C 4-441-14C 6-441-14A/C 6-441-19A

4-441-8 5-441-14A 6-441-18A 10-441-20

6-441-12A 8-441-14A

PACKING BOX

Sleeve O.D. 1-5/8 2 2-1/2 3 3-1/2

Packing Box I.D. 2-7/16 2-15/16 3-9/16 4-3/16 4-13/16

Packing Box Depth 2-15/16 2-7/8 3-7/8 4-5/16 4-3/4

PACKING SIZE 3/8 3/8 1/2 9/16 5/8

Qty. of Rings per Box

(Without Lantern Ring)

Lantern Ring Width 3/4 3/4 1 1-1/8 1-1/4

PACKING ARRANGEMENT

WITH LANTERN RING

(Packing Rings-Lantern

Ring-Packing Ring)*

2-L-3 2-L-3 2-L-3 2-L-32-L-3

7 7777

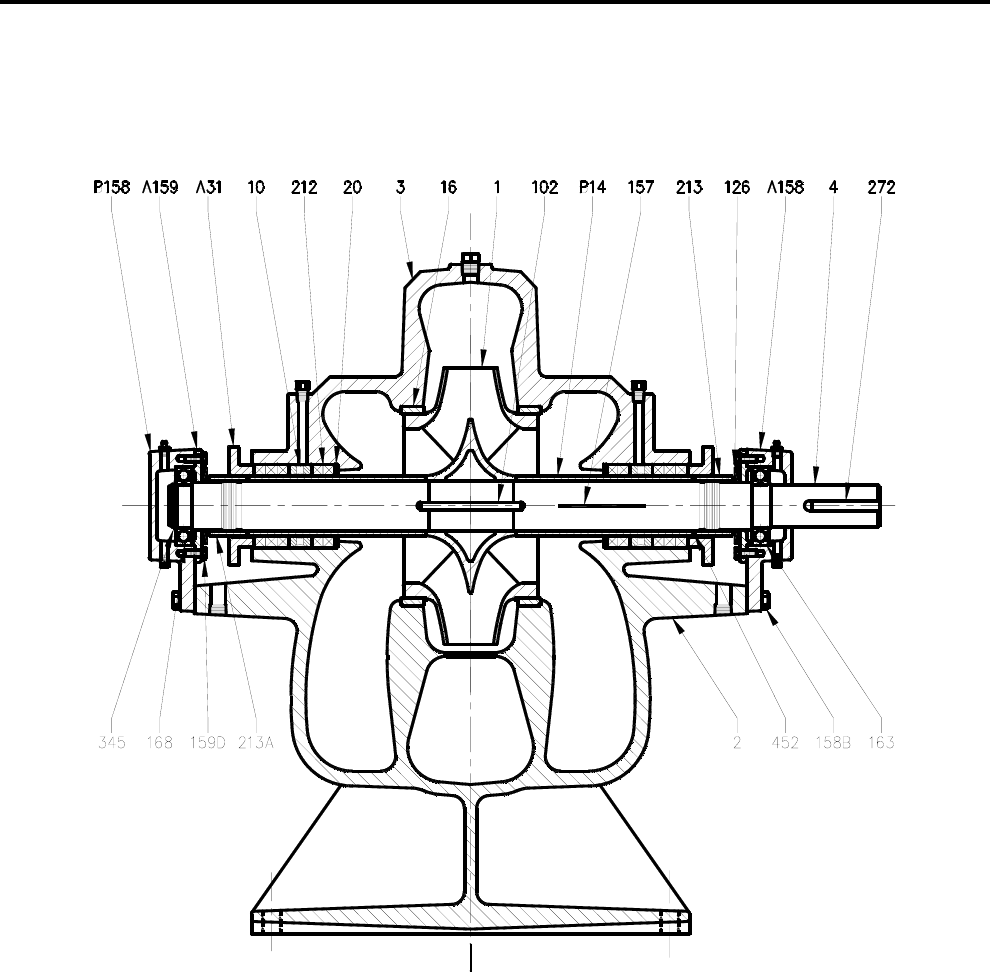

* See Sectional Drawings on pages 23 & 24.

NOTE: For Fire Pumps, the Model designation changes from “441” to “491.”

6. PUMP DISASSEMBLY

CAUTION: READ THIS ENTIRE DISASSEMBLY PROCEDURE AND REFER TO THE SECTIONAL

DRAWINGS IN THIS MANUAL BEFORE PROCEEDING.

Major maintenance will require disassembly of the pump. Following are step-by-step instructions.

A. Lock out the power to the driver and close the suction and discharge valves. Drain the pump,

disconnect and remove the coupling or flexible shafting. Disconnect and remove all auxiliary piping to

the upper casing (3) and bearing housings (C158 and D158) (packing box flush line, lubricators on oil

lubricated pumps, cooling water lines on pumps with water-cooled bearings, etc.).

B. Remove the capscrews (2A) securing the upper casing half (3) to the lower half (2). Remove the gland

nuts (31B) and slide the glands (A31 or B31) off the gland studs (31A). Install jack screws in the tapped

holes in the upper casing half and use them to separate the flanges. Carefully lift the upper casing half

using the long shank eyebolts in the tapped holes in the upper casing half.

CAUTION: USE OF A CRANE OR HOIST OF ADEQUATE CAPACITY IS RECOMMENDED. THE

LIFTING HOOK SHOULD BE NO LESS THAN 3-4 FEET ABOVE THE EYE OF THE

EYEBOLTS TO AVOID BENDING OF THE BOLTS. THE USE OF THE SHORT

EYEBOLTS IS NOT RECOMMENDED SINCE THE UPPER CASING HALF WILL TEND

TO TIP WHILE BEING LIFTED, RESULTING IN POSSIBLE DAMAGE OR PERSONAL

INJURY.

C. Remove the capscrews (158B) and pins (158A) that secure the bearing housings (158) to the lower

casing. The pins may be removed using the threaded holes in the pins.

D. Lift the rotor assembly from the casing using a double rope sling.

WARNING: BE CAREFUL WHEN POSITIONING THE ROPES TO AVOID THE ROTOR SLIPPING

AND CAUSING POSSIBLE SERIOUS PERSONAL INJURY.

MAINTENANCE (continued) PAGE 15

6. PUMP DISASSEMBLY (continued)

E. Remove the capscrews (159D) that secure the bearing housing covers (159) to the bearing housings

and remove the housings from the rotating assembly.

F. Remove the outer snap ring (345) from the outboard bearing end of the rotating assembly, and use a

wheel/bearing puller to remove the outboard (168) and inboard (163) bearings.

WARNING: TO PREVENT POSSIBLE SERIOUS PERSONAL INJURY, EXTREME CARE SHOULD

BE EXERCISED TO SELECT THE PROPER PULLER, AND APPROVED SAFETY

GLASSES SHOULD BE WORN.

CAUTION: BECAUSE OF POSSIBLE DAMAGE OR CONTAMINATION DURING REMOVAL,

BEARINGS SHOULD NOT BE REUSED AND NEW BEARINGS SHOULD ALWAYS

BE INSTALLED.

G. Remove bearing housing covers (159), water slingers (126), casing wearing rings (16), lantern rings

(10) and packing (212). If the pump is equipped with mechanical seals (456), refer to the seal

manufacturer’s instructions.

If the pump is equipped with an oil lubrication system, remove the lip seals (158C) from the inboard and

outboard bearing housing covers and the inboard bearing housing.

H. Remove the shaft sleeves (A14 or B14). Depending on the pump service, shaft sleeves are supplied in

two different configurations. The removal procedure for each configuration differs:

Sleeves Affixed With Loctite: Remove the shaft sleeve nuts (213) (if they are provided), heat the

sleeves to approximately 450oF to break the bond, then tap them with a brass or copper mallet.

WARNING: TO PREVENT POSSIBLE SERIOUS PERSONAL INJURY, HEAT RESISTANT

GLOVES MUST BE WORN WHEN HANDLING HEATED PARTS.

Sleeves Keyed To Shaft: Remove the shaft sleeve nuts (213), shaft sleeves (B14) and the shaft

sleeve O-rings (452).

CAUTION: BECAUSE OF POSSIBLE DAMAGE DURING DISASSEMBLY, O-RINGS SHOULD NOT

BE REUSED AND NEW O-RINGS SHOULD ALWAYS BE INSTALLED.

I. Slide the impeller (1) off the shaft (4) and remove the impeller key (102).

J. If your pump has impeller wear rings and they require replacement, they will be secured by one of two

methods, and you should proceed as follows:

Wearing Rings Secured With Loctite: Heat the sleeves to approximately 450oF to break the bond,

then tap them with a brass or copper mallet. If heating fails to affect removal, the rings may be ground

off.

Wearing Rings Secured With Setscrews: Remove the setscrews (17A) and chisel cut or grind the

rings in two at the setscrew location.

WARNING: TO PREVENT POSSIBLE SERIOUS PERSONAL INJURY, HEAT RESISTANT

GLOVES MUST BE WORN WHEN HANDLING HEATED PARTS.

WARNING: TO PREVENT POSSIBLE SERIOUS PERSONAL INJURY, EXTREME CARE SHOULD

BE EXERCISED TO SELECT THE PROPER GRINDING EQUIPMENT, AND

APPROVED SAFETY GLASSES SHOULD BE WORN WHEN GRINDING.

K. The pump disassembly is now complete. All parts should be thoroughly cleaned and inspected for

wear or damage, and replaced if required.

PAGE 16 MAINTENANCE (continued)

7. PUMP ASSEMBLY

CAUTION: READ THIS ENTIRE PROCEDURE BEFORE CONTINUING.

Following are step-by-step instructions for assembly of the pump and are essentially the reverse order of the

instructions for disassembly.

A. Thoroughly clean all parts to remove oil, grease and foreign material. Inspect for wear or damage and

replace if required. Remove all parts to a clean and dust-free location for assembly. Gaskets, grease

seals and bearings should not be reused and should always be replaced with new parts.

B. If the impeller wear rings (17) require replacement, they are a light press fit and will be secured by one

of the following methods. You should proceed as follows:

Rings Secured With Loctite: Apply a light film of Loctite No. 290 to the impeller part of the

impeller/wear ring fit and install the rings.

Rings Secured With Set Screws: Press the rings in place and drill and tap them using the same size

and number of setscrews as originally provided. The new holes should be 15o to 20o from the old

holes. Install and tighten the set screws.

CAUTION: BE CAREFUL NOT TO DRILL THROUGH THE IMPELLER AND BE SURE TO PRESS

THE WEAR RING COMPLETELY IN PLACE. THEY SHOULD BE FIRMLY BUTTED

AGAINST THE CORRESPONDING IMPELLER SHOULDER.

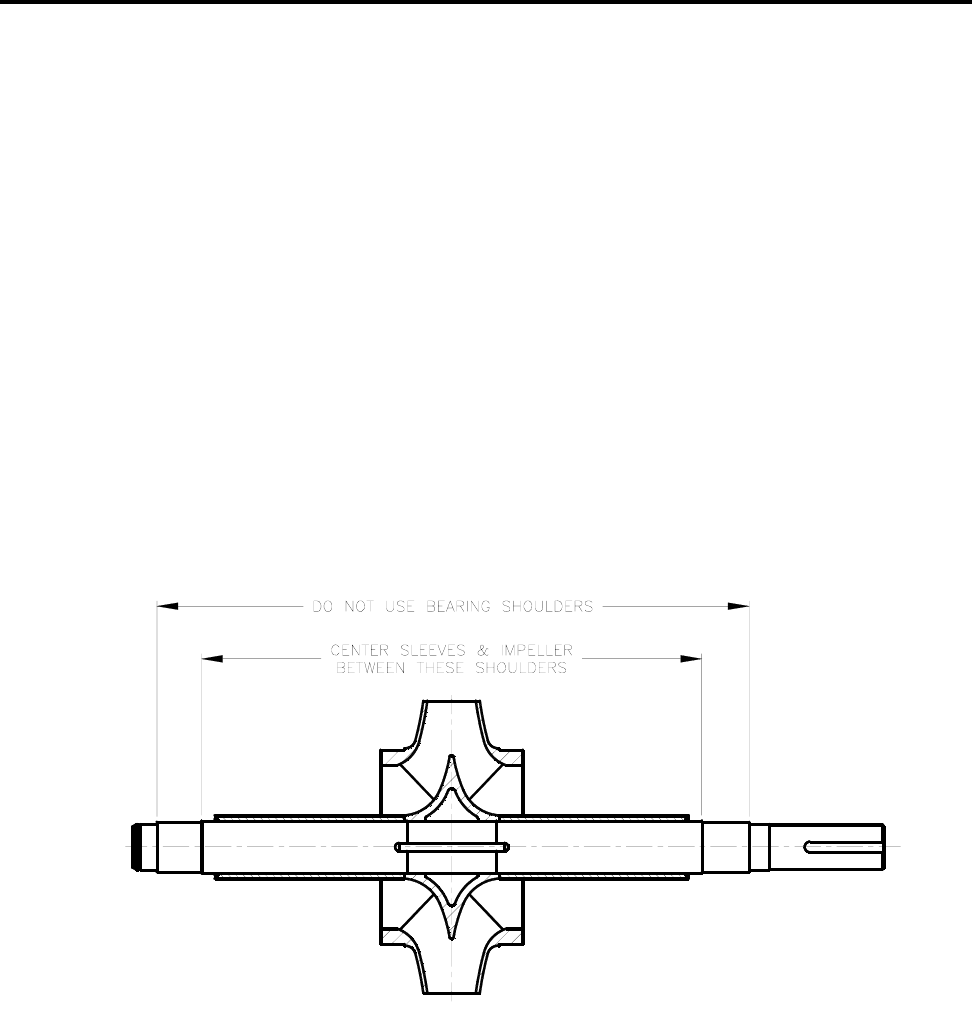

C. Install the impeller key (102) in the shaft (4) and slide the impeller (1) over the key, centering it between

the shaft shoulders as shown in Figure 5.

FIGURE 5

CAUTION: IF THE SHAFT SLEEVES ON YOUR PUMP ARE SECURED WITH LOCTITE ONLY,

REFER TO THE SHAFT SLEEVE INSTALLATION INSTRUCTIONS BEFORE

INSTALLING THE IMPELLER.

D. Install the shaft sleeves (A14 or B14), shaft sleeve nuts (213) and O-rings (452), if your pump uses

them, on the shaft. The shaft sleeves will be secured by one of three methods and you should proceed

as follows:

Sleeves Secured With Loctite And Sleeve Nuts: Apply two beads of Loctite No. 601 around the

shaft on the shaft/shaft sleeve fit, one approximately 2 inches from the impeller hub and the second at

the threaded end. Slide the shaft sleeves part way onto the shaft and rotate them at least one full

revolution to evenly spread the Loctite, then slide the sleeves over the shaft until they butt firmly against

the impeller hub. Install and tighten the shaft sleeve nuts (213) and the set screws (213A).

MAINTENANCE (continued) PAGE 17

7. PUMP ASSEMBLY (continued)

Sleeves Secured With Loctite Only: Clean the shaft, the bore of the sleeves and the bore of the

impeller with Loctite “Safety Solvent #75559.

Install the impeller key in the shaft and coat the impeller area on the shaft with Loctite 601. Press the

impeller onto the shaft, centering it between the shoulders as shown in Figure 5.

Coat the shaft on the shaft/sleeve fit and the bore of the sleeves with Loctite 601. Slide the sleeves

part way onto the shaft and rotate them at least one full revolution to evenly spread the Loctite, then

slide the sleeves over the shaft until they butt firmly against the impeller hub. Check the sleeve location

again and let the Loctite cure for 8 hours before completing the pump assembly.

Sleeves Installed With O-rings: Slide the shaft sleeves over the shaft until they engage the key and

butt firmly against the impeller hub. Install the O-rings in the outboard shaft sleeve nut end of the

sleeve and tighten the shaft sleeve nuts and setscrews.

CAUTION: THE LINEAR POSITION OF THE IMPELLER MUST BE OBTAINED AND THE SHAFT

SLEEVES MUST BE PROPERLY LOCATED. REFER TO FIGURE 5 ON THE

PREVIOUS PAGE OF THIS MANUAL. IF PROVIDED, THE SHAFT SLEEVE NUST

MUST BE TIGHTENED WITHIN 10 MINUTES AFTER THE LOCTITE IS APPLIED. TO

ACCOMPLISH LINEAR POSITIONING OF THE IMPELLER, LEAVE AN EQUAL

AMOUNT OF SHAFT OR SHAFT THREADS EXPOSED ON EACH END OF THE SHAFT

AFTER ASSEMBLY IS COMPLETED. ALLOW 4 HOURS FOR THE LOCTITE TO CURE

BEFORE COMPLETING THE PUMP ASSEMBLY.

CAUTION: THIS PUMP MAY BE SUPPLIED IN SEVERAL DIFFERENT CONFIGURATIONS. EACH

USES DIFFERENT BEARING COVERS AND HOUSINGS WITH DIFFERENT DRAWING

REFERENCE NUMBERS. DESPITE THE FOLLOWING INSTRUCTIONS, ALWAYS

REFER TO THE SECTIONAL DRAWINGS CONTAINED IN THIS MANUAL BEFORE

PROCEEDING, TO INSURE THAT YOU HAVE INSTALLED ALL REQUIRED LIP

SEALS, O-RINGS, ETC.

E. If your pump is oil lubricated, install the lip seals (159C) in the outboard and inboard bearing covers

(B159) and the lip seal and the lip seal (158C) in the inboard bearing housing (C158). Assemble the

O-rings (159A) on the bearing housing covers prior to installing the bearings.

F. If your pump is equipped with mechanical seals or solid packing glands, install the seals (456) and

mechanical seal glands (B31) or solid packing glands before proceeding. Refer to the seal

manufacturer’s instructions for installation.

G. Install the water slingers (126) on each end of the shaft.

H. Install the outboard and inboard bearing covers (A159 or B159) on the shaft.

I. Install the outboard (168) and inboard bearings (163).

WARNING: TO PREVENT POSSIBLE SERIOUS PERSONAL INJURY AND DAMAGE TO THE

BEARINGS, PRESSURE SHOULD BE APPLIED TO THE INNER BEARING RACE

ONLY.

Note: The pump is designed to have a .000 to .001 interference fit between the bearings and

the shaft.

J. Install the snap ring (345) on the outboard end of the shaft. Pack both bearings approximately one-

half full of lithium base NGLI2 all-purpose bearing grease.

K. Install bearing housings (A158 and B158 if grease lubricated, or C158 and D158 or E158 and F158)

over the bearings and securely bolt the bearing covers to the bearing housings using the appropriate

capscrews (159D)

L. Using a double rope sling, carefully lower the rotor assembly into the lower casing (2).

WARNING: BE CAREFUL WHEN POSITIONING THE ROPES TO AVOID THE ROTOR SLIPPING

AND CAUSING POSSIBLE SERIOUS PERSONAL INJURY.

CAUTION: WHEN LOWERING THE ROTOR, BE CAREFUL TO PROPERLY POSITION THE

WEARING RINGS. FAILURE TO DO SO COULD SERIOUSLY DAMAGE THE RINGS.

PAGE 18 MAINTENANCE (continued)

7. PUMP ASSEMBLY (continued)

M. Attach the bearing housings to the lower casing using the appropriate dowel pins (158A) and

capscrews (158B).

CAUTION: BE SURE BEARING HOUSING/CASING MATING SURFACES ARE CLEAN AND FREE FROM

BURRS, AS THIS WILL AFFECT THE ALIGNMENT OF THE ROTOR/CASING.

N. Inspect the upper casing (3) to assure that the water passage is clean and free from foreign material.

Apply a light coat of grease to the upper and lower casing mating surfaces and install a new casing

gasket (157) on the lower casing, making sure the holes are aligned. Position the pins in the casing

wearing rings to align with the slots in the lower casing. Lower the upper casing into position. Install

the casing alignment pins (2B) and securely bolt the upper and lower casing together using the

capscrews (2A).

O. Install the packing (212), lantern rings (10), split glands (19) and gland nuts (31B).

The pump assembly is now complete except for packing adjustment, which should be accomplished after the

pump is installed, primed and started up. Refer to the maintenance section of this manual for specific packing

adjustment instructions.

REPAIR PARTS PAGE 19

ORDERING PARTS

There are a variety of options available for this pump. When ordering parts, give the pump serial number, size

and figure number and a complete description and item number of each part. Refer to the drawings and parts

list in the back of this manual. You should order parts from your local Aurora Pump distributor. Consult your

local telephone yellow pages for the office nearest you.

RETURNING PARTS

Unnecessary delays and wasted effort will be avoided if you use the proper procedure to return parts or

equipment. All materials or parts returned to the factory must have prior approval and a “Returned Goods Tag.”

Contact your nearest Aurora Pump distributor, listing the material to be returned and the reason for the return.

He will contact the factory to obtain the required approval and “Returned Goods Tag.” All materials to be

returned should be carefully packaged to avoid damage in route from rough handling or exposure to weather.

The “Returned Goods Tag” will give shipping instructions. All material is to be returned freight prepaid.

Aurora Pump makes improvements on its products from time to time and reserves the right to furnish improved

parts for repairs. A part that is received and is not identical in appearance, or has a different symbol from the

original part, may still be interchangeable. Examine the part carefully before contacting your Aurora Pump

distributor. The parts should never be returned to the factory without first obtaining proper authorization from

your Aurora Pump distributor.

RECOMMENDED SPARE PARTS

For Normal Dut

y

:

REF. NO. DESCRIPTION

A14 SLEEVE, SHAFT

B14 SLEEVE, SHAFT

16 WEARING RING, CASING

17 WEARING RING, IMPELLER (IF ON ORIGINAL CONSTRUCTION)

163 BEARING, INBOARD

168 BEARING, OUTBOARD

212 PACKING (OR MECHANICAL SEAL - 456)

GASKETS, COMPLETE SET

For Severe Dut

y

, Add The Followin

g

:

REF. NO. DESCRIPTION

COMPLETE ROTATING ASSEMBL

Y

PAGE 20 NOTES

NOTES PAGE 21

PAGE 22 NOTES

SECTIONAL DRAWING PAGE 23

Figure 6

STANDARD CONSTRUCTION

PAGE 24 SECTIONAL DRAWINGS

Figure 7

REF.

NO. DESCRIPTION REF.

NO. DESCRIPTION

1IMPELLER C158 * BEARING HOUSING, INBOARD, OIL LUBE

2CASING, LOWER HALF D158 BEARING HOUSING, OUTBOARD, OIL LUBE

2A * CAPSCREWS, CASING E158 * BEARING HOUSING, INBOARD, WATER-COOLED BEARING

2B * PIN, CASING ALIGNMENT F158 BEARING HOUSING, OUTBOARD, WATER-COOLED BEARING

2C * PIPE PLUG, CASING 158A * PIN, BEARING HOUSING ALIGNMENT

3CASING, UPPER HALF 158B * CAPSCREW, HOUSING

4SHAFT 158C LIPSEAL

10 LANTERN RING 158D * PIPE PLUG, HOUSING

A14 SHAFT SLEEVE A159 BEARING HOUSING COVER, GREASE LUBE

B14 SHAFT SLEEVE, KEYED B159 BEARING HOUSING COVER, OIL LUBE

16 WEARING RING, CASING C159 BEARING HOUSING COVER, WATER-COOLED BEARING

17 WEARING RING, IMPELLER 159A O-RING, OIL LUBE COVER

17A SETSCREW 159B O-RING, WATER-COOLED COVER

19 PACKING GLAND, SPLIT 159C LIPSEAL

20 WASHER, PACKING BOX 159D * CAPSCREW, HOUSING COVER

A31 PACKING GLAND, SOLID 163 BEARING, INBOARD

B31 GLAND, MECHANICAL SEAL 168 BEARING, OUTBOARD

31A * GLAND STUD 212 PACKING

31B * GLAND NUT 213 NUT, SHAFT SLEEVE

102 KEY, IMPELLER 213A SETSCREW

126 WATER SLINGER 272 KEY, COUPLING

157 GASKET, CASING 345 SNAP RING

A158 BEARING HOUSING, INBOARD, GREASE LUBE 452 O-RING, SHAFT SLEEVE

B158 BEARING HOUSING, OUTBOARD, GREASE LUBE 456 SEAL, MECHANICAL

* Not Shown
