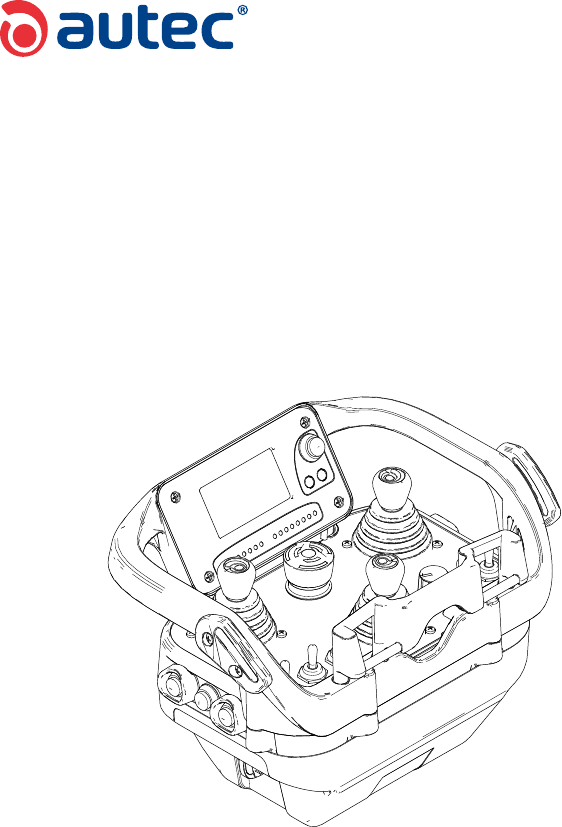

Autec s r l DJRNJ235 Transceiver unit User Manual
Autec s.r.l. Transceiver unit
User Manual
Original instructions
Instruction Manual for the use and the
maintenance of the Radio Remote Control
DYNAMIC PLUS SERIES
Part C: DJR Transmitting Unit
AUTEC SRL
Via Pomaroli, 65
36030 Caldogno (VI), ITALY
Phone: +39 0444 901000
Fax: +39 0444 901011
Email: info@autecsafety.com
www.autecsafety.com
LIUDJR000_eng-00
AUTEC LIUDJR000_eng-00
WARNING
THIS PART OF THE MANUAL CONSISTS OF: Part C - Information, instructions and
warnings for the DJR Transmitting Unit. The Manual consists of Part A – General, Part
B – Conformity and Frequencies, Part C – Transmitting Unit, Part D – Receiving Unit
and Part E – Battery and Battery Charger, plus the Technical Data Sheet.
THIS MANUAL, INCLUDING ALL PARTS THEREOF, AND ALL INSTRUCTIONS CONTAINED
HEREIN, MUST BE READ CAREFULLY AND UNDERSTOOD BEFORE INSTALLING,
USING, MAINTAINING OR REPAIRING THE AUTEC RADIO REMOTE CONTROL.
FAILURE TO READ AND COMPLY WITH ALL APPLICABLE WARNINGS AND
INSTRUCTIONS OR ANY ONE OF THE LIMITATIONS NOTED IN THIS MANUAL CAN
RESULT IN SERIOUS BODILY INJURY OR DEATH, AND/OR PROPERTY DAMAGE.
THE AUTEC RADIO REMOTE CONTROL IS NOT A STANDALONE PRODUCT AND IS
INTENDED ONLY AS A COMPONENT ON A MACHINE:
-ON WHICH AND WHERE THE USE OF A RADIO REMOTE CONTROL IS APPROPRIATE,
-THAT CAN BE OPERATED SAFELY AND IN ACCORDANCE WITH ALL APPLICABLE
LAWS, REGULATIONS AND STANDARDS BY SUCH REMOTE CONTROL.
ACCORDINGLY, IT IS THE RESPONSIBILITY OF THE MANUFACTURER AND OF THE
DESIGN PROFESSIONALS OF THE MACHINE ON WHICH THE AUTEC RADIO REMOTE
CONTROL IS TO BE INSTALLED, that a full and proper risk assessment is done to
determine whether the use and installation of the Autec Radio Remote Control is
appropriate for the safe and eective operation of the Machine by a Radio Remote Control
in the facility and for the purposes intended, and that the installation, maintenance
and operation of the Autec Radio Remote Control and all of its components are done
solely and completely in accordance with this Manual, and with all local applicable
laws, safety rules and standards (all of the foregoing referred to herein as “Laws,
Regulations and Standards”).
With reference to the USA market the Laws, Regulations and Standards include all safety
rules and regulations of the Occupational Safety & Health Administration (OSHA) (http://
www.osha.gov), all federal, state and local laws, regulations and building and electrical
codes, and all applicable standards, including but not limited to ANSI Standards.
LIUDJR000_eng-00 AUTEC
It is also the responsibility of the Manufacturer and of the design professionals of
the Machine on which the Autec Radio Remote Control is to be installed and used to
be certain that the structure, condition, organization and markings of the Machine as
installed at the facility is appropriate for and will allow for the safe and reliable use and
control of the Machine through the Autec Radio Remote Control interface.
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
DESIGN PROFESSIONALS, that the installation, maintenance and operation of the Autec
Radio Remote Control and all of its components are done solely and completely in
accordance with this Manual, and with all applicable Laws, Regulations and Standards,
even local. It is also the responsibility of the Manufacturer of the Machine on which the
Autec Radio Remote Control is to be installed and used, and their design professionals,
to be certain that the structure, condition, organization and markings of the Machine
as installed at the facility is appropriate for and will allow for the safe and reliable use
and control of the Machine through the Autec Radio Remote Control interface.
ONLY QUALIFIED AND PROPERLY TRAINED PERSONNEL SHOULD BE PERMITTED
TO OPERATE OR USE THE AUTEC RADIO REMOTE CONTROL AND THE MACHINE
OPERATED BY OR THROUGH THE AUTEC RADIO REMOTE CONTROL. ONLY QUALIFIED
AND PROPERLY TRAINED PERSONNEL SHOULD BE PERMITTED TO BE IN THE VICINITY
OF MACHINE OPERATED BY OR THROUGH THE AUTEC RADIO REMOTE CONTROL.
FAILURE TO PROPERLY INSTALL, OPERATE, MAINTAIN AND SERVICE THE AUTEC
RADIO REMOTE CONTROL CAN RESULT IN SERIOUS BODILY INJURY OR DEATH
AND/OR PROPERTY DAMAGE. Refer to this Manual and each of its Parts for further
assistance or contact Autec. Autec is not responsible for and shall not be held liable
for any installation of the Autec Radio Remote Control not performed by Autec or for
any use of the Autec Radio Remote Control not in complete compliance with, and/or
not maintained in complete compliance with, all Autec instructions and warnings and
all applicable Laws, Regulations and Standards, even local.
Autec is not responsible for and shall not be held liable for any alteration or modication
of the Autec Radio Remote Control, or the use of non-Autec components or products
used with or incorporated into the Autec Radio Remote Control.
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
DESIGN PROFESSIONALS, to be certain that the Autec Radio Remote Control is
properly maintained and serviced at all times in compliance with all Autec instructions
and warnings, and with all applicable Laws, Regulations and Standards, even local.
AUTEC LIUDJR000_eng-00
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
OFFICERS, MANAGERS AND SUPERVISORS, to be certain that all Users of the Autec
Radio Remote Control and that all Persons who are or will be working with or near
the Machine operated by or through the Autec Radio Remote Control are fully and
properly educated and trained by qualied Personnel in the proper and safe use of
the Autec Radio Remote Control and of the Machine, including without limitation
complete familiarity with and understanding of Autec warnings and instructions, and
all applicable Laws, Regulations and Standards, even local, and that such Users and
other Persons do in fact at all times operate or work with the Autec Radio Remote
Control safely and ONLY in compliance with Autec instructions and warnings and
with all applicable Laws, Regulations and Standards, even local. FAILURE TO DO SO
CAN RESULT IN SERIOUS BODILY INJURY OR DEATH AND/OR PROPERTY DAMAGE.
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
OFFICERS, MANAGERS AND SUPERVISORS, to be certain that the areas in which
the Machine operated by or through the Autec Radio Remote Control is located and
operates are clearly delineated and marked in accordance with all Autec warnings
and instructions, and all applicable Laws, Regulations and Standards, even local, and
otherwise sucient to alert and warn ALL PERSONS that the Machine is operated by
or through a Radio Remote Control, and prohibiting any unauthorized access thereto.
FAILURE TO DO SO CAN RESULT IN SERIOUS BODILY INJURY OR DEATH AND/OR
PROPERTY DAMAGE.
FAILURE TO OPERATE THE AUTEC RADIO REMOTE CONTROL SAFELY AND IN
COMPLIANCE WITH AUTEC INSTRUCTIONS AND WARNINGS AND WITH APPLICABLE
LAWS, REGULATIONS AND STANDARDS, EVEN LOCAL, AND/OR PERMITTING USERS
OR OTHER PERSONS NOT PROPERLY TRAINED IN THE SAFE AND PROPER USE
OF THE SYSTEM, OR THE MACHINE ON WHICH IT IS INSTALLED, CAN RESULT IN
SERIOUS BODILY INJURY OR DEATH AND/OR PROPERTY DAMAGE.
LIUDJR000_eng-00 AUTEC
INDEX
1 Information on the use of instructions ................................................................ 7
1.1 Structure of the Instruction Manual ................................................................ 7
1.2 Caption and terminology ................................................................................ 9
1.3 Symbols ........................................................................................................ 9
1.4 To whom the instructions are addressed ..................................................... 10
1.5 Instruction storage ....................................................................................... 10
1.6 Intellectual property ..................................................................................... 10
2 Brief product presentation ................................................................................. 11
2.1 Series, Radio Remote Control and Unit ....................................................... 11
2.2 Conformity with standards ........................................................................... 11
2.3 Contacts and useful addresses .................................................................... 11
2.4 Warranty ..................................................................................................... 11
2.5 Technical assistance and spare parts .......................................................... 11
3 Description of the Transmitting Unit ................................................................. 12
4 Technical data ..................................................................................................... 13
5 Technical Data Sheet .......................................................................................... 14
6 Plates ................................................................................................................... 14
7 Light and acoustic warning signals ................................................................... 15
7.1 Light signals ................................................................................................ 15
7.2 Acoustic signals .......................................................................................... 16
8 General operating instructions .......................................................................... 17
8.1 Power keyswitch .......................................................................................... 17
8.2 START pushbutton ...................................................................................... 18
8.3 STOP pushbutton ........................................................................................ 18
8.4 Display ........................................................................................................ 19
8.5 Command meaning ..................................................................................... 21
8.6 Low Power function ..................................................................................... 23
8.7 Battery ......................................................................................................... 23
8.8 ID internal tx memory .................................................................................. 24
8.9 Starting up the Radio Remote Control ......................................................... 24
8.10 Command activation .................................................................................... 25
8.11 Radio link interruption .................................................................................. 26
8.12 Transmitting Unit automatic switch o ......................................................... 26
8.13 Switching o the Transmitting Unit .............................................................. 27
8.14 "Data Feedback" function ............................................................................ 28
8.15 Cable control ............................................................................................... 29
8.16 BACK-UP UNIT ........................................................................................... 30
9 Instructions for the User .................................................................................... 31
9.1 Usage restrictions ........................................................................................ 31
9.2 User behaviour ............................................................................................ 31
9.3 Belt or harness ............................................................................................ 33
10 Maintenance ........................................................................................................ 38
11 Malfunction signalled by the Transmitting Unit ................................................ 39
11.1 Red LED [B] and green LED [A] .................................................................. 39
11.2 2.7” display .................................................................................................. 41
11.3 Identifying the activated command .............................................................. 42
12 Decommissioning and disposal ......................................................................... 46
AUTEC - Dynamic Plus series
Information on the use of instructions 7
LIUDJR000_eng-00
1 Information on the use of instructions
Before reading this part of the Manual, you must read and understand the general
part (Part A) of the Manual provided with the Radio Remote Control.
1.1 Structure of the Instruction Manual
The Manual for the use and maintenance of Autec Dynamic Plus series Radio Remote
Controls consists of dierent parts, that altogether form the Manual; the Manual must be
read carefully, understood and applied by the Radio Remote Control's Owner, User and by
all those Persons that, for any reasons, may operate with the Radio Remote Control or with
the Machine where it is installed.
The following table describes the structure of the Instruction Manual for the use and the
maintenance of the Radio Remote Control.
Part Title Contents
AGeneral part
- General information regarding the series,
- directions for risk assessment of the "Machine+Radio Remote
Control" system,
- warnings for installation of the Radio Remote Control,
- warnings for use and maintenance of the Radio Remote Control,
- instructions for correct transportation and storage of Radio Remote
Control.
BConformity and
frequencies
- Operating frequency bands of the Radio Remote Control,
- conformity and law references of the Radio Remote Control.
CTransmitting Unit
Description and instructions concerning the Transmitting Unit,
including:
- description of operation,
- commands,
- light signals,
- malfunctions,
- additional instructions to the general part.
DReceiving Unit
Description and instructions concerning the Receiving Unit,
including:
- description of operation,
- light signals,
- malfunctions,
- additional instructions to the general part.
EBattery and
Battery Charger
Description, warnings and instructions concerning batteries and
Battery Chargers, including:
- description of operation,
- light signals,
- malfunctions,
- instructions for the User.
8
LIUDJR000_eng-00
Information on the use of instructions
AUTEC - Dynamic Plus series
Usage and maintenance instructions are supplemented by the Radio Remote Control's
Technical Data Sheet, that:
-describes the Transmitting Unit's conguration,
-indicates the relation between commands sent by the Transmitting Unit and those available
on the Receiving Unit.
Usage and maintenance instruction as a whole are to be considered as an integral part both
of the Autec Radio Remote Control and of the Machine, system, device or Machinery system
where the Radio Remote Control is installed.
The Manufacturer of the Machine on which the Autec Radio Remote Control is installed, and
the Owner and User of the Machine, must make sure that the Instruction Manual and all of
its parts are included in the Instruction Manual of the Machine.
The CD attached to each Instruction Manual includes the translations of the Manual.
Act as follows to identify the single Manual parts in the relevant language in the CD:
-choose the desired language,
-select the single parts of the Manual: refer to the code name provided on the cover of
each part.

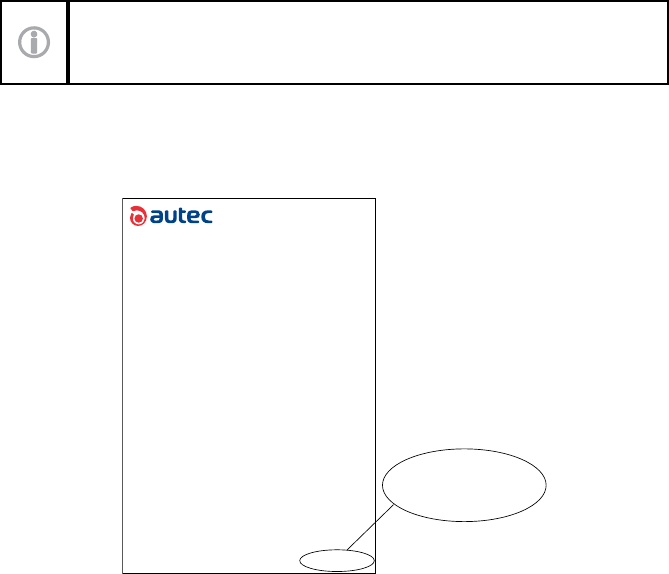

Original instructions
Instruction Manual for the use and the
maintenance of the Radio Remote Control
DYNAMIC PLUS SERIES
Part X: XXXXXXXXXXXXXXXXXXXXXXXXX
AUTEC SRL
Via Pomaroli, 65
36030 Caldogno (VI), ITALY
Phone number: +39 0444 901000
Fax: +39 0444 901011
Email: info@autecsafety.com
www.autecsafety.com
XXXXXXXXX_language-XX
XXXXXXXXX_language-XX
AUTEC - Dynamic Plus series
Information on the use of instructions 9
LIUDJR000_eng-00
1.2 Caption and terminology
Contact Autec if any of the instructions, symbols, warnings or images are not
clear and understandable, or if you have doubts or questions.
In this part of the Manual, the terms listed below have the same meaning explained in the
corresponding paragraph of the general part (Part A):
-Unit
-Radio Remote Control
-Transmitting Unit
-Receiving Unit
-Machine
-Manufacturer
-Installer
-User
-Maintenance Technician
-Manual or Instruction Manual
-Installation Manual
-Person
-Owner
Functions indicated for the Manufacturer, the Installer, the User and the Maintenance
Technician may be performed by a single Person, if he/she has the needed competence
and undertakes the resulting responsibilities. Each Person must be aware of the instructions
contained in the Manual, depending on the activity they carry out.
For example, if a Manufacturer is also the Installer, and/or Maintenance Technician, he must
also know and follow the instructions specically addressed to those Persons. The same
applies, for example, if a User is also the Manufacturer and/or the Installer.
1.3 Symbols
This symbol identies the parts of text in the Manual that must be read with
special attention.
This symbol identies the parts of text in the Manual containing warnings,
information and/or instructions that are particularly relevant with regards
to safety; failure in understanding them may cause hazards for People and/
or property.
10
LIUDJR000_eng-00
Information on the use of instructions
AUTEC - Dynamic Plus series
1.4 To whom the instructions are addressed
Addressees of instructions are listed in the paragraph with the same title in the general part:
please refer to that part.
1.5 Instruction storage
Regulation for the storage of instructions are described in the paragraph with the same title
in the general part: please refer to that part.
1.6 Intellectual property
Restrictions connected to intellectual property are described in the paragraph with the same
title in the general part: please refer to that part.
AUTEC - Dynamic Plus series
Brief product presentation 11
LIUDJR000_eng-00
2 Brief product presentation
2.1 Series, Radio Remote Control and Unit
The object of this part of the Manual is the DJR Transmitting Unit of a Dynamic Plus series'
Autec Radio Remote Control.
Autec Dynamic Plus series' Radio Remote Controls are designed to be used on Machines
and provide a command interface to their command and control system, to be used from an
appropriate distance and position.
2.2 Conformity with standards
The conformity of Radio Remote Controls with standards and with working requirements and
conditions in the single Countries is provided in the related specic part “Conformity and
frequencies” (Part B) of the Manual.
2.3 Contacts and useful addresses
The Radio Remote Controls are produced by Autec srl – Via Pomaroli, 65 – 36030 Caldogno
(VI) – ITALY.
You can nd contacts for Autec, its distributors, dealers and authorized service centres on
the website www.autecsafety.com.
2.4 Warranty
General warranty conditions are indicated both in the relevant sheet provided together with
this documentation, and in the specic page on the website www.autecsafety.com.
2.5 Technical assistance and spare parts
If you need technical services and/or spare parts, please refer to contacts provided in the
website www.autecsafety.com.
When applying for technical service to Autec, its distributors, dealers and authorized service
centres, the Radio Remote Control's serial number is required; you can nd it on the
identication plate on the Transmitting Unit and/or on the Receiving Unit.
12
LIUDJR000_eng-00
Description of the Transmitting Unit
AUTEC - Dynamic Plus series

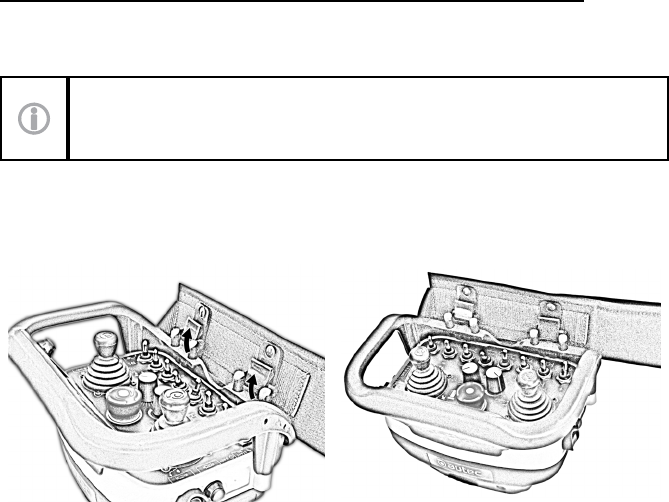

3 Description of the Transmitting Unit
P
AUTEC srl
via Pomaroli, 65 Caldogno (VI) ITALY
TA1343-00
BATTERY ................................... MBM06MH (7.2V )
............................................................ LPM02 (7.4V )
RADIO MODULE ......................................... FSAACI02A
FREQUENCY RANGE ................................ 863-870MHz
RF POWER ............................................... <25mW ERP
FREQUENCY RANGE ................................ 915-928MHz
RF POWER ............................................... <50mW ERP
AUTEC - Dynamic Plus series
Technical data 13
LIUDJR000_eng-00

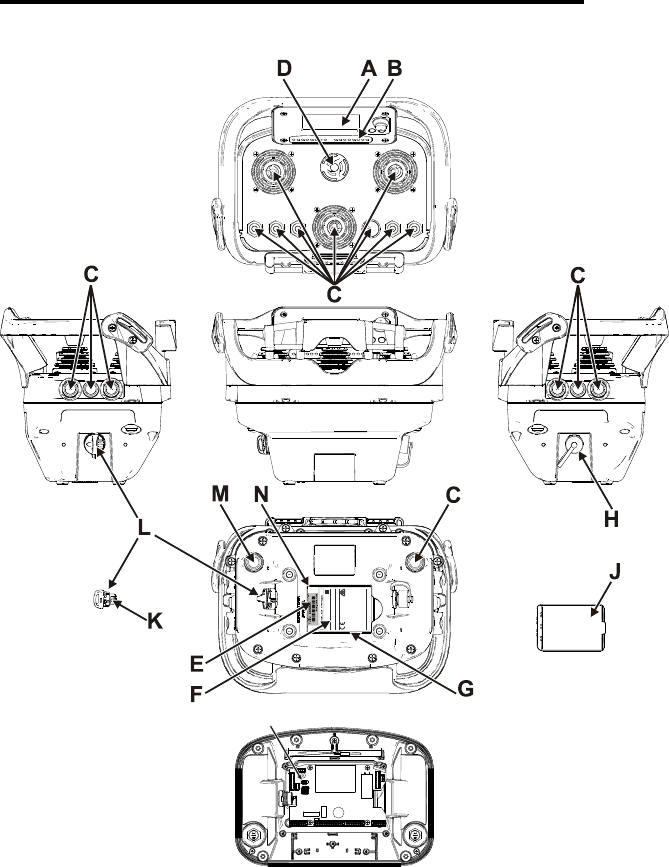

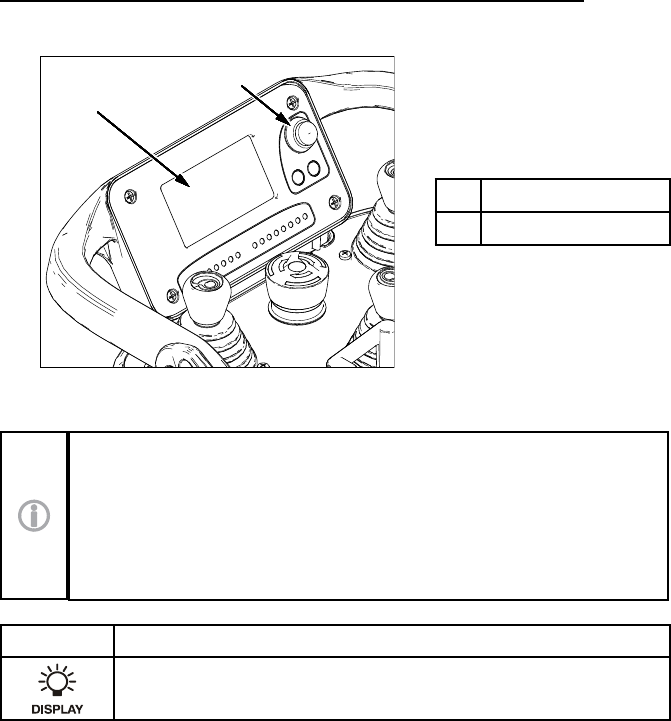

ADisplay or LED (if present)
BLEDs
CActuators (joysticks, selectors,
pushbuttons)
DSTOP pushbutton
ETransmitting Unit identication plate
FTechnical data plate
G
Radio Remote Control identication
plate (if the “ID internal tx memory” is
present)
HConnector for cable control (if present)
JBattery
KRadio Remote Control identication
plate (if the “Key ID 0-1” is present)
LPower keyswitch
MSTART pushbutton
NBattery housing
PConnector for "ID internal tx memory"
4 Technical data
Power supply (battery MBM06MH) ......................................................................... 7.2V
Power supply (battery LPM02) ............................................................................... 7.4V
Power supply (battery LPM04) ............................................................................... 7.4V
Antenna .................................................................................................................. internal
Housing material .......................................................................................... PA 6 (20%fg)
Protection degree ....................................................................................... IP65 (NEMA 4)
Dimensions .................................................................. 260x200x190mm (10.2x7.9x7.5In)
Weight ........................................................................................................... 2.0kg (4.4Lb)
Run time at 20°C (68°F):
- with battery MBM06MH ............................................................................................... 11h
- with battery LPM02 .................................................................................................. 18.5h
- with battery MBM06MH and monochromatic display 2.7" .............................................. 9h
- with battery LPM02 and monochromatic display 2.7" ................................................... 15h
- with battery LPM04 ..................................................................................................... 35h
- with battery LPM04 and monochromatic display 2.7" ................................................... 28h
- with battery LPM04 and colour display 4.3" ................................................................... 8h
14
LIUDJR000_eng-00
Technical Data Sheet
AUTEC - Dynamic Plus series
5 Technical Data Sheet
The Radio Remote Control 's Technical Data Sheet:
-describes the Transmitting Unit's conguration,
-indicates the relation between commands sent by the Transmitting Unit and those available
on the Receiving Unit.
The Technical Data Sheet must be lled in, checked and signed by the Installer, who is
responsible for correct wiring.
A Technical Data Sheet must always be kept together with this Manual: if you need to use
the Technical Data Sheet for administrative purposes (tests, check, etc.), make a copy of it.
The wiring of the Receiving Unit's outputs must always reect the wiring
indicated in the Technical Data Sheet.
6 Plates
The DJR Transmitting Unit has the following plates:
Plate Position Content
Radio Remote Control
identication plate
Key ID 0-1 (if present)
Radio Remote Control serial number
(S/N)
Battery housing (if the
“ID internal tx memory” is
present)
Transmitting Unit
identication plate Battery housing
Manufacturing year, bar code and
Transmitting Unit identication number
(TU ID)
Technical data plate Battery housing
MODEL, TYPE and main Transmitting
Unit technical data, marking and
possible Radio Remote Control marks
AUTEC - Dynamic Plus series
Light and acoustic warning signals 15
LIUDJR000_eng-00
7 Light and acoustic warning signals
7.1 Light signals
B
B
A
A
B A
C
ARed LED
BGreen LED
CLEDs for "Data
Feedback" function
B
C A

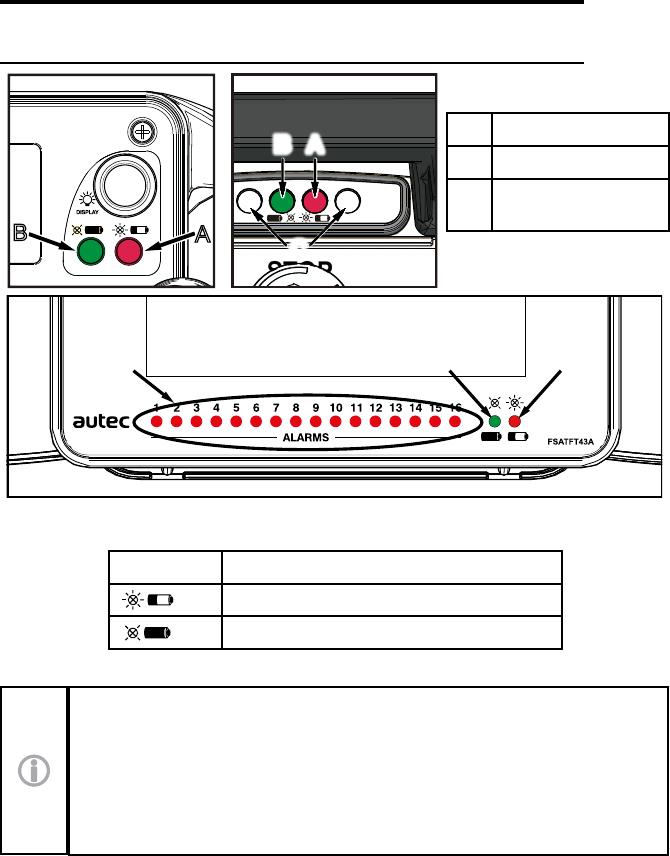

The DJR Transmitting Unit always has a green LED [B] and a red LED [A] that provide
information regarding the Radio Remote Control.
Symbol Meaning
This symbol identies the red LED [A].
This symbol identies the green LED [B].
The meaning of signals provided by the LEDs identied with “C” are explained in
the "Data Feedback" function part (see paragraph 8.14). The meaning of LEDs
related to the "Data Feedback" function are decided and established by the
Machine Manufacturer depending on the Machine's functions for which he wants
to receive information.
Signals provided by the red LED [A] indicate a Radio Remote Control malfunction. The
meaning of these signals and the possible actions to perform are described in chapter 11.
16
LIUDJR000_eng-00
Light and acoustic warning signals
AUTEC - Dynamic Plus series
The meaning of signals provided by the green LED [B], when the red LED [A] is o, are
described in the following table.
Light signals Meaning
The green LED is o.
The red LED is o. The Transmitting Unit is o.
The green LED blinks fast.
The red LED is o.
The Transmitting and Receiving Unit do not
communicate.
The green LED repeats the sequence: a
blink and a pause.
The red LED is o.
The Radio Remote Control is started and the Units
communicate via radio link in the 863-870MHz
frequency band.
The green LED repeats the sequence:
two blinks and a pause.
The red LED is o.
The Radio Remote Control is started and the Units
communicate via radio link in the 915-928MHz
frequency band.
The green LED repeats the sequence:
three blinks and a pause.
The red LED is o.
The Radio Remote Control is started and the Units
communicate via cable control.
The meaning of the green [B] and red [A] LED signals cannot be modied.
7.2 Acoustic signals
The DJR Transmitting Unit has an acoustic signal device that activates when:
-The battery is nearly at,
-the Transmitting Unit has been on for eight hours,
-The Transmitting Unit does not work correctly,
-during the Radio Remote Control start-up, the STOP pushbutton is pressed or damaged,
-during the Radio Remote Control start-up, the SAFETY command is activated (see
Technical Data Sheet),
-during the Radio Remote Control start-up, one of the commands D2-D20 is activated
(see Technical Data Sheet),
-during the Radio Remote Control start-up, one of the commands A1-A8 is activated (see
Technical Data Sheet),
-during the Radio Remote Control start-up, one of the commands H1-H8 is activated (see
Technical Data Sheet),
-during the Radio Remote Control start-up, one of the commands L1-L8 is activated (see
Technical Data Sheet),
-during the Radio Remote Control start-up, the battery is at.
The acoustic signal device activates whenever the red LED [A] illuminates. The meaning of
red LED [A] signals and of the acoustic signal device, and the possible actions to adopt are
described in chapter 11.
The meaning of the acoustic signals cannot be modied.
AUTEC - Dynamic Plus series
General operating instructions 17
LIUDJR000_eng-00
8 General operating instructions
8.1 Power keyswitch
The Transmitting Unit have a power keyswitch. It can either be:
-A mechanical key (see paragraph 8.1.1)
-A Key ID 0-1 (see paragraph 8.1.2).
The Radio Remote Control cannot work if the power keyswitch is not inserted in the Transmitting
Unit.
8.1.1 Mechanical key
The mechanical key makes it possible to power the Transmitting
Unit.

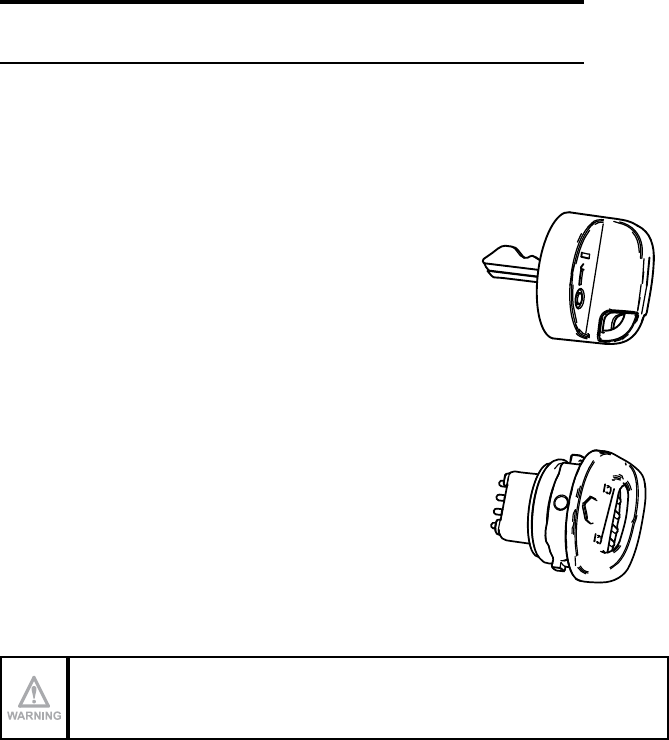

8.1.2 "Key ID 0-1"
The "Key ID 0-1" makes it possible to power the Transmitting Unit.
It stores the Radio Remote Control's address. Therefore, the "Key
ID 0-1" can only be used in the Transmitting Unit of the Radio
Remote Control where it belongs.
As the Radio Remote Control's address is stored in the "Key ID
0-1", this must be used with very strict care.
Only use the "Key ID 0-1" for the Transmitting Unit with which it was provided.
8.1.3 power keyswitch insertion
Perform the following operations to insert the power keyswitch:
1. introduce the power keyswitch inside the corresponding housing.
2. rotate the power keyswitch clockwise.
8.1.4 power keyswitch removal
Perform the following operations to remove the power keyswitch:
3. rotate the power keyswitch anticlockwise,
4. pull the power keyswitch to remove it from the corresponding housing.
18
LIUDJR000_eng-00
General operating instructions
AUTEC - Dynamic Plus series

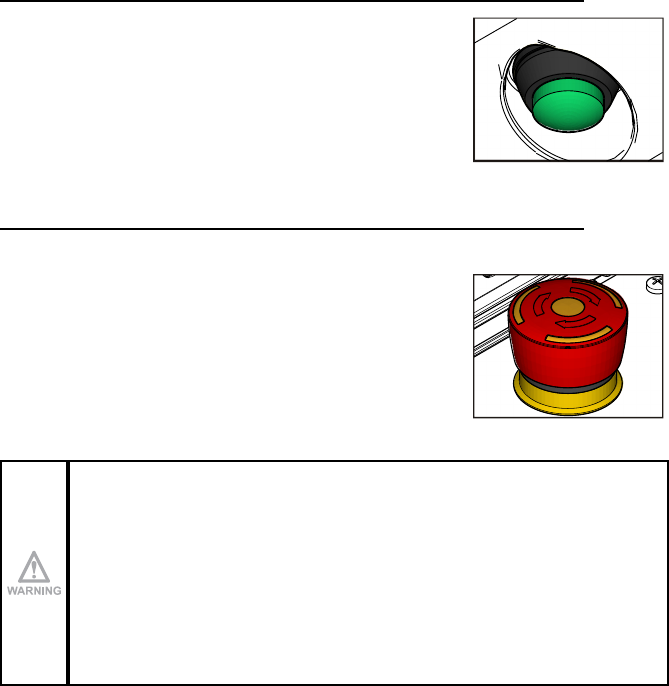

8.2 START pushbutton
The START pushbutton is used to:
-start the Radio Remote Control (see paragraph 8.9),
-activate the horn when the Radio Remote Control is started.
8.3 STOP pushbutton
When the STOP pushbutton is activated, the Machine stops and
the Transmitting Unit switches o. To start the Radio Remote
Control again and enable it to control the Machine after the STOP
pushbutton has been pressed, you need to:
-make sure that the working and usage conditions are safe,
-turn the STOP pushbutton in the arrow direction to unlock it,
-start the Radio Remote Control following the procedure
described in paragraph 8.9.
The STOP pushbutton should be pressed when it is necessary to stop the
Machine immediately whenever a dangerous condition occurs.
The Machine Manufacturer and/or the Installer must provide the instructions
and warnings concerning possible risks that may originate from the Machine
stop (by way of example: movement inertia, swinging load…).
AUTEC - Dynamic Plus series
General operating instructions 19
LIUDJR000_eng-00
8.4 Display
8.4.1 2.7” display

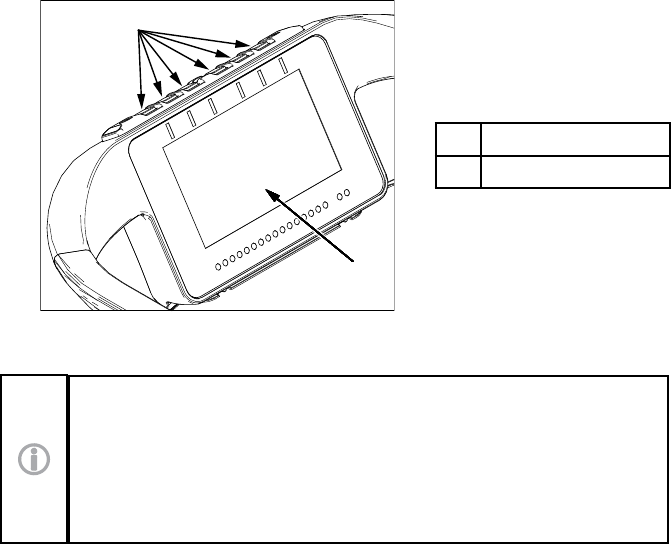

A
B
A2.7” display
BDISPLAY pushbutton
DISPLAY pushbutton
The DISPLAY pushbutton on the Transmitting Unit is used to interact with the 2.7" display.
Functions carried out by the DISPLAY pushbutton are congurable and chosen
by the Machine Manufacturer: the User must be properly trained about them.
No Machine operation or movement shall be connected to the use of the DISPLAY
pushbutton.
Symbol Meaning
This symbol identies the DISPLAY pushbutton.
20
LIUDJR000_eng-00
General operating instructions
AUTEC - Dynamic Plus series
8.4.2 4.3” display
A
B
ASix pushbuttons
B4.3” display
Six pushbuttons
The six pushbuttons on the Transmitting Unit are used to interact with the 4.3" display.
Functions carried out by the six pushbuttons are congurable and decided by the
Machine Manufacturer: the User must be properly trained about them.
No operation or movement of the Machine shall be connected to the use of the
buttons described above.
AUTEC - Dynamic Plus series
General operating instructions 21
LIUDJR000_eng-00
8.5 Command meaning
Commands on the Unit are specied according to the Machine's operations and functions.
Their presence and functions are decided and dened by the Machine Manufacturer, who
chooses the symbol conventions too.
The control devices described below, when present, perform the following functions (usually
the symbol conventions are as in the images).

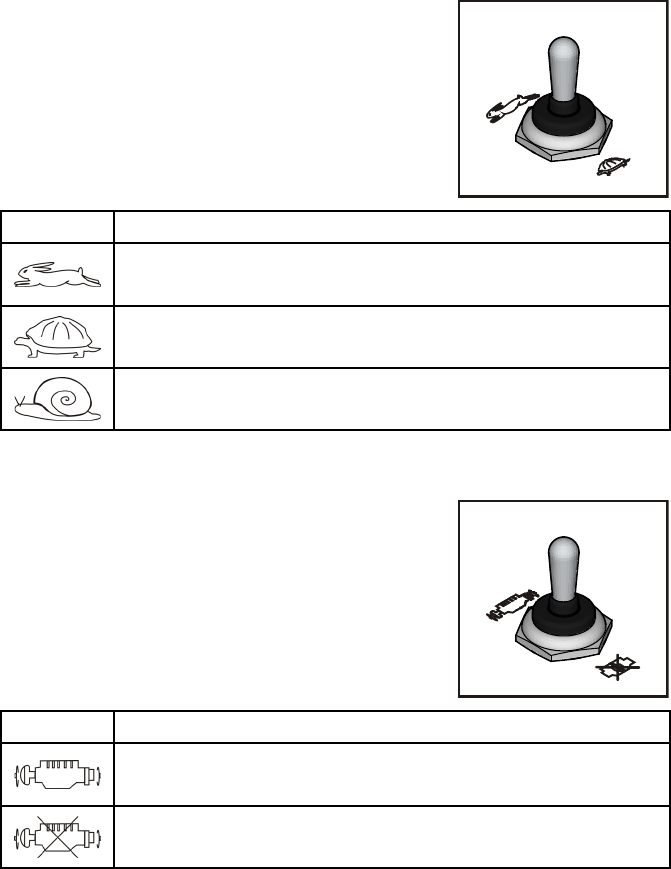

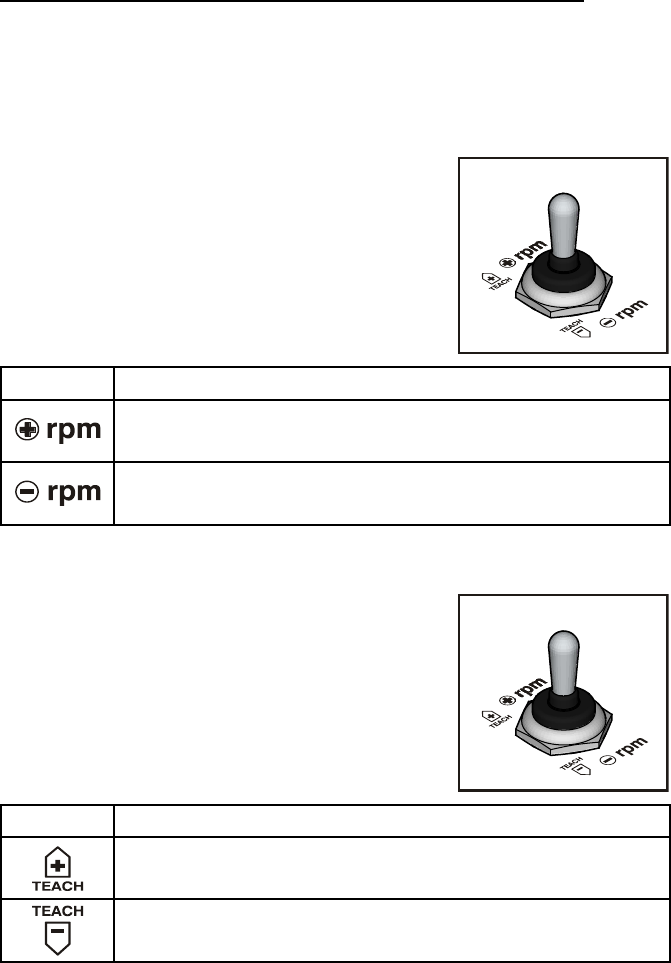

8.5.1 RPM+/- switch (during normal operation)
This switch increases (rpm +) or decreases (rpm -) the number
of revolutions of a Machine's engine.
Symbol Meaning
This symbol identies the command that increases the number of revolutions of a
Machine's engine.
This symbol identies the command that decreases the number of revolutions of a
Machine's engine.
8.5.2 TEACH switch (during REMOTE SETUP)
This switch is used to:
-set maximum and minimum values of proportional outputs
(see "Part D" in the Instruction Manual),
-set values related to the rest position of proportional
outputs (oset) (see "Part D" in the Instruction Manual),
-invert the movement direction of the joystick's axis (see
Installation Manual).
Symbol Meaning
This symbol identies the TEACH+ command.
This symbol identies the TEACH- command.
22
LIUDJR000_eng-00
General operating instructions
AUTEC - Dynamic Plus series
8.5.3 MOVEMENT SPEED SELECTOR
This switch is used to modify the speed of the Machine
movements.
Depending on the conguration:
-it sets two or three speed levels,
-it increases or decreases speed.
The levels and the speed increase and decrease are chosen
by the Machine Manufacturer.
Symbol Meaning
Depending on the conguration, this symbol indicates:
- the normal speed of the Machine movements or
- the increase of speed of the Machine movements.
Depending on the conguration, this symbol indicates:
- the reduced speed of the Machine movements or
- the decrease of speed of the Machine movements.
If this symbol is present, it indicates that the speed of the Machine movements is
further reduced.
8.5.4 Engine on/o switch
This switch is used to switch on and o a Machine's engine.
Symbol Meaning
This symbol indicates the power on command of a Machine's engine.
This symbol indicates the switch o command of a Machine's engine.
AUTEC - Dynamic Plus series
General operating instructions 23
LIUDJR000_eng-00
8.6 Low Power function
The LOW POWER function allows transmission at a lower power than the nominal power
and reduces the Radio Remote Control working range (see paragraph "Technical data" in
the general part of the Instruction Manual).
This function aims at:
-making it easier to work with several Radio Remote Control in the same working
environment (i.e.: many working Machines in the same working area)
-extending the battery run-time.
This function is established by the Machine Manufacturer (see Technical Data Sheet).
8.7 Battery
The Dynamic Plus series' Transmitting Units can only be powered by Autec
rechargeable batteries.
For warnings and instructions regarding the battery, see Battery Charger
manual.

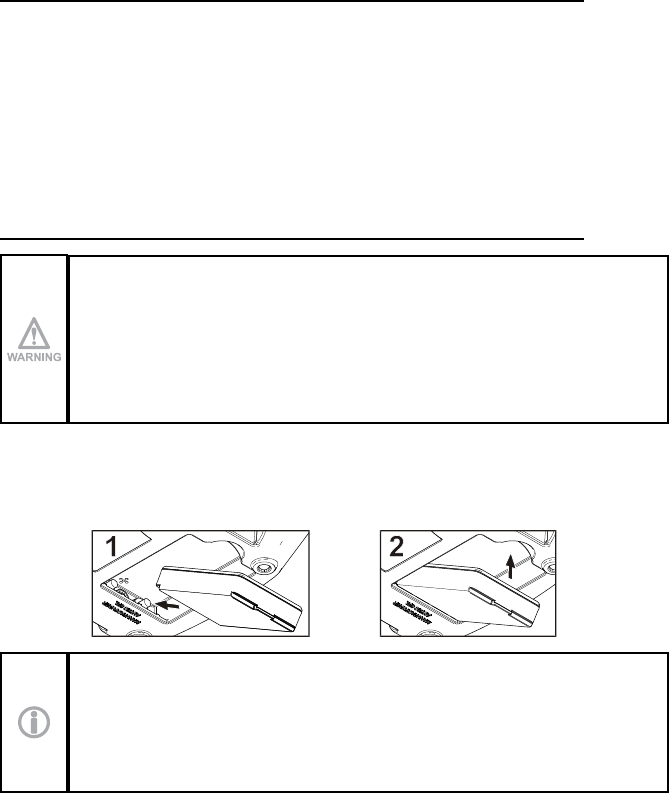

8.7.1 Battery insertion
Push the battery towards the contacts on the Transmitting Unit (1) and insert it inside the
housing (2).
The battery slides easily into place and ensures that the positive (+) and negative
(-) poles are correctly connected only if it is inserted with the plate facing its
housing, so that the battery's contacts match the Transmitting Unit's contacts.
24
LIUDJR000_eng-00
General operating instructions
AUTEC - Dynamic Plus series
8.7.2 Battery removal
Push the battery towards the contacts on the Transmitting Unit (3) and remove it from the
housing (4).
When the Transmitting Unit is not in use, remove the battery if possible.

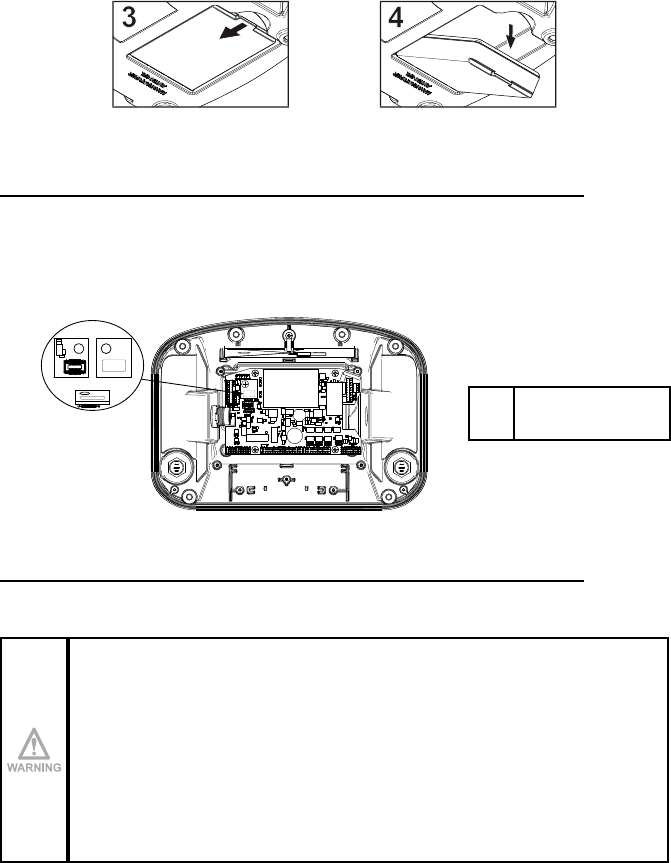

8.8 ID internal tx memory
The "ID internal tx memory" is a key containing the address that is used to code messages
exchanged between the Transmitting Unit and the Receiving Unit.
This key, if present, is inside the Transmitting Unit.
The Transmitting Unit has an "ID internal tx memory" if the Unit has a mechanical key, and
not the "Key ID 0-1", as its power keyswitch (see paragraph 8.1).
S/N:
XXXXXXX
S/N:
XXXXXXX
S/N:
XXXXXXX
A
AID internal tx
memory
8.9 Starting up the Radio Remote Control
Starting up the Radio Remote Control consists in establishing a radio link between the
Transmitting Unit and the Receiving Unit.
The Radio Remote Control start up is protected by a power keyswitch to
prevent unauthorised use of the Machine.
Insert the power keyswitch by performing the following procedure, to activate
the Radio Remote Control.
AUTEC - Dynamic Plus series
General operating instructions 25
LIUDJR000_eng-00
Perform the following procedure to start the Radio Remote Control:
1. power on the Receiving Unit respecting the voltage limits provided in the technical data
(see "Part D" of the Manual). The POWER LED switches on,
2. Insert a charged battery in the Transmitting Unit (see paragraph 8.7.1),
3. insert the power keyswitch in the Transmitting Unit (see paragraph 8.1.3),
4. press the START pushbutton and hold it down until the green LED repeats one of the
following sequences: one or two blinks and a pause. If the red LED lights up, refer to
chapter 11.
When the green LED repeats one of the following sequences: one or two blinks and a pause,
the Radio Remote Control is active and it can send commands and activate the Machine.
8.9.1 Monitored commands
When the START pushbutton is pressed during the Radio Remote Control start up, the
Transmitting Unit monitors the status of commands D2-D20, A1-A8, H1-H8 and L1-L8. If
any command is active, the Unit shows which command is active through the LEDs and the
display. In this case you need to hold the START pushbutton pressed until the Transmitting
Unit automatically switches o (otherwise the signal will interrupt).If none of the monitored
commands is active, the Radio Remote Control starts.
Commands monitored by the Transmitting Unit during start up are chosen
by the Machine Manufacturer according to the risk assessment. If this
assessment was positive, the Manufacturer can ask Autec to modify the
behaviour of commands D2-D20, A1-A8, H1-H8 and L1-L8 during start up.
Look up for monitored and non-monitored commands in the Technical Data
Sheet.
Commands D21-D48 and A9-A12 are not monitored during start up.
When the START pushbutton is pressed to start the Radio Remote Control,
the commands that are not monitored during start up, if active, immediately
activate the Machine functions that are associated with them.
8.10 Command activation
When the Radio Remote Control is started, it is possible to act on the joysticks, pushbuttons
and switches corresponding to the command you want to perform, whose functions and
symbols are decided by the Manufacturer and/or the Installer. To identify the relation between
the actuators and the corresponding Machine movements, the Machine Manufacturer and/
or the Installer shall provide relevant instructions and the User shall be properly trained.
26
LIUDJR000_eng-00
General operating instructions
AUTEC - Dynamic Plus series
8.11 Radio link interruption
When the radio link is incorrect or interrupted for a certain time lapse ("Passive Stop" indicated
in the Technical Data Sheet), the automatic stop function activates (see paragraph "Control
devices" in "Part A" of the Manual).
The green LED on the Transmitting Unit blinks fast.
The POWER LED on the Receiving Unit illuminates steadily.
To start the Radio Remote Control, press the START pushbutton until the green LED repeats
one of the following sequences: one or two blinks and a pause. If the red LED lights up,
refer to chapter 11.
When the green LED repeats one of the following sequences: one or two blinks and a pause,
the Radio Remote Control is active and it can send commands and activate the Machine.
8.12 Transmitting Unit automatic switch o
The Transmitting Unit automatically switches o when:
-the battery is at (see paragraph 8.12.1),
-the Radio Remote Control is not used for a certain time (see paragraph 8.12.2),
-the Transmitting Unit is powered and never switched o for eight hours non-stop (see
paragraph 8.12.3).
The green LED on the Transmitting Unit blinks fast.
The POWER LED on the Receiving Unit illuminates steadily.
To start the Radio Remote Control, press the START pushbutton until the green LED repeats
one of the following sequences: one or two blinks and a pause. If the red LED lights up,
refer to chapter 11.
When the green LED repeats one of the following sequences: one or two blinks and a pause,
the Radio Remote Control is active and it can send commands and activate the Machine.
8.12.1 Low battery
The Transmitting Unit indicates if the battery is not suciently charged (the red LED blinks
and an acoustic signal sounds).
The Transmitting Unit automatically switches o after 3.5 minutes after the onset of the signal.
It is necessary to bring the Machine to a safe state and replace the battery with a charged
one (see paragraph 8.7).
AUTEC - Dynamic Plus series
General operating instructions 27
LIUDJR000_eng-00
8.12.2 When the Transmitting Unit is not used
If the Transmitting Unit remains started for a certain time while none of these commands are
enabled: SAFETY, D2-D10, H1-H8 and L1-L8, then it automatically switches o. This time
frame is specied in the Technical Data Sheet (Automatic Switch O).
Setting or removal of the automatic switch o time (Automatic Switch O) is
done by Autec and decided by the Machine Manufacturer, according to his risk
assessment and to the eciency and functions he need on the Machine.
8.12.3 Non-stop use
The Transmitting Unit indicates if it has been on for eight hours non-stop (the red LED blinks
and an acoustic signal sounds).
The Transmitting Unit automatically switches o after 3.5 minutes after the onset of the signal.
Bring the Machine to a safe state before the Transmitting Unit automatically switches o.
8.13 Switching o the Transmitting Unit
Switch o the Transmitting Unit when not actively using the Radio Remote
Control to operate the Machine, or when work is otherwise interrupted, even
for short periods. Do not leave the load hanging or the Machine in dangerous
conditions (even when charging the Unit or changing the battery).
FAILURE TO DO SO CAN RESULT IN SERIOUS BODILY INJURY OR DEATH
AND/OR PROPERTY DAMAGE.
Voluntary switch o of the Transmitting Unit occurs in the following cases:
-when the power keyswitch is turned anti-clockwise or removed;
-when battery is removed (see paragraph 8.7.2),
-when the STOP pushbutton is pressed.
28
LIUDJR000_eng-00
General operating instructions
AUTEC - Dynamic Plus series
8.14 "Data Feedback" function
The "Data Feedback" function acts through the LED array and/or the display. The User receives
information and/or signals concerning some particular situations and the movements of the
controlled Machine by means of this function.
During normal Radio Remote Control operation, pay particular attention to the indications
displayed and signalled by the display and/or through the LEDs: they can be helpful to
evaluate the Machine working status.
Any information shown and signalled on the display and/or through the
"Data Feedback" LEDs can never be considered or used as a safety signal
or for legal metrology.
When operating and moving the Machine, remember that the Radio Remote
Control does not operate autonomously when potential hazardous situations
are displayed and signalled.
8.14.1 Operation with display
If the Transmitting Unit has a display, it is possible to show warning icons, the measurements
collected from the Machine and their description.
The Machine Manufacturer chooses which information are displayed and the way they are
displayed (icons and/or measurements and/or descriptions).
The battery level and the quality of the radio link are also always indicated.
8.14.2 Operation with LED
If the Transmitting Unit has an LED array for the "Data Feedback" function, specic Machine
conditions are signalled if they are illuminated (by way of example: load limits, limit switch).
The signalled conditions depend on the settings chosen by the Machine Manufacturer.
AUTEC - Dynamic Plus series
General operating instructions 29
LIUDJR000_eng-00
8.15 Cable control
The cable control is used:
-in particular working conditions, established by the Machine Manufacturer
-when it is not possible to build a radio link between the Radio Remote Control Units,
-when working in environments where using radio frequencies is not allowed or is dangerous,
-when a fully charged battery is not available.
ATTENTION: The use of the cable control entails risk of electric shock when
working near overhead or underground power line's cables.
8.15.1 Description
The cable control connects the Transmitting Unit to the Receiving Unit through a cable that
replaces the radio link. The cable shall be plugged in the suitable connectors, one on the
Transmitting Unit and the other on the Receiving Unit (or placed where established by the
Machine Manufacturer).
When using the cable control, the working features (i.e. the meaning of actuators and the
Data Feedback function) do not change.
8.15.2 Operation
Before starting to work, make sure that the cable and the corresponding
connectors are intact.
Work organisation, Machines' position, passages, etc. shall be planned
so as to avoid that the cable control 's cable may be damaged by moving
trolleys or by the ongoing operations.
Do not use the cable control's cable to lift the Transmitting Unit.
Lay the cable in such a way as to prevent it from being squashed or strained
by people or objects. Avoid contact with sharp or cutting objects that can
cut the cable's protective sheath.
The cable control cannot be used if the Radio Remote Control is installed
on a Machine that controls loads that are not isolated from AC power supply
(if applicable).
Using the cable control at the same time as the waist belt or the shoulder
harness means that there is a physical connection between the User and
the Machine: therefore, the User must constantly check that the Machine's
movements, especially in case of loss of control (by way of example: risk of
overturning, of cable dragging by other Machinery), do not cause hazards.
In such situations, the User must pull out the belt or open it by unfastening
its buckle(s).
30
LIUDJR000_eng-00
General operating instructions
AUTEC - Dynamic Plus series
The cable control must only be connected and disconnected when the Transmitting
Unit is o.
When you nish working with the cable control, disconnect the cable from the
Transmitting Unit and from the Machine, and protect the connectors with their caps.
Follow this procedure to control the Machine with the cable control:
1. power on the Receiving Unit respecting the voltage limits provided in the technical data
(see "Part D" of the Manual). The POWER LED switches on,
2. make sure that the battery is inside the Transmitting Unit and leave it there even though
the power supply comes from the Receiving Unit via the cable control. The battery is
not, in any case, recharged through the cable control: it can only be recharged through
its appropriate Battery Charger provided together with the system.
3. connect the cable control to its connector in the Receiving Unit (or where arranged by
the Machine Manufacturer),
4. connect the cable control to its connector on the Transmitting Unit,
5. insert the power keyswitch in the Transmitting Unit (see paragraph 8.1.3),
6. press the START pushbutton and hold it down until the green LED repeats the sequence:
three blinks and a pause.If the red LED lights up, refer to chapter 11.
When the green LED repeats the sequence: three blinks and a pause, the Radio Remote
Control is active and it can send commands and activate the Machine.
When working with the cable control the radio link is cut o:
8.16 BACK-UP UNIT
If the Transmitting Unit cannot be used, it can be replaced with a Transmitting Unit called
"BACK-UP UNIT"; you need to ask for it from Autec.
It is identical to the Unit that cannot be used any more; the only dierence is the presence
of the plate “BACK-UP UNIT” on the battery housing.
Insert in the "BACK-UP UNIT" the “Key ID 0-1” or the “ID internal tx memory”
of the Transmitting Unit that cannot be used any longer and perform the
address storage procedure described below.
8.16.1 Address storage
With fully charged battery and power keyswitch in the "BACK-UP UNIT", perform this procedure:
1. press the STOP pushbutton,
2. press the START pushbutton and hold it down until the green LED switches o,
3. unlock the STOP pushbutton,
It is now possible to start the Radio Remote Control and control the Machine with the "BACK-
UP UNIT" Transmitting Unit.
AUTEC - Dynamic Plus series
Instructions for the User 31
LIUDJR000_eng-00
9 Instructions for the User
The chapter "Instructions for the User" in "Part A" of the Instruction Manual contains the
warnings for the use that add to those provided in this chapter. Therefore, please refer to
that part of the Manual.
The following instructions refer to general usage situations for the DJR Transmitting Unit,
and indicate how people should or should not behave when using the Unit: they do not cover
any possible risk situations and/or drawbacks that may depend on specic applications of
Autec Radio Remote Controls.
However, instructions given in the following paragraphs do not replace nor complete the
instructions that must be provided by the Manufacturer of the Machine where an Autec Radio
Remote Control (to which the DJR Transmitting Unit belongs) is installed.
9.1 Usage restrictions
If the Radio Remote Control User wears electronic devices (by way of
example: pacemaker, implantable cardiac debrillator, hearing aids), the
Transmitting Unit must be kept at least 15 cm away from those devices
when in use.
9.2 User behaviour
Besides the instructions contained in the General Part (Part A) of the Instruction Manual,
when using the DJR Transmitting Unit, the User must:
-observe and comply with all instructions and warnings provided by the Machine
Manufacturer;
-observe and comply with all instructions and warnings provided by the Installer;
-observe and comply with all instructions and warnings provided by the Person responsible
for the Machine commissioning or making the Machine available for work;
-observe and comply with all instructions and warnings provided in the Radio Remote
Control Manual;
-observe and comply with all applicable Laws, Regulations and Standards, even local.
-follow and put into practice the working instructions he received, and/or those he must
be aware of because of his work and his tasks;
-avoid using the Radio Remote Control if he has not been properly trained and prepared,
and if he has not been qualied for its use by the Person responsible for the work;
-make sure that the Transmitting Unit and the Receiving Unit are whole and work perfectly;
-make sure that the Machine reacts correctly to the commands activated by the Autec
Radio Remote Control;
-not perform any operation if the tests mentioned in the previous two points did not give
positive results;
32
LIUDJR000_eng-00
Instructions for the User
AUTEC - Dynamic Plus series
-make sure that the Radio Remote Control operation and the consequent Machine
movement occur in safety conditions, to prevent hazards to people and/or property;
-adopt the necessary caution to avoid that the Machine operation causes dangerous
situations of any type; to this end, the User's physical and health status shall be taken
into account too;
-avoid leaving the Transmitting Unit unattended or in such a condition that it may be
damaged, tampered with, operated by people who are not qualied or by the movement
of people and/or objects (by way of example due to: fall, movement, contact);
-operate the Transmitting Unit by holding it correctly in his hands, so that he can activate
the Machine movements correctly and in safe conditions and monitor its light signals;
-keep at a safe distance from any risk situations originating from the use of the Machine
where the Autec Radio Remote Control is installed;
-avoid doing anything else while using the Radio Remote Control, such as, by way of
example, operate other Machines and/or other devices, eat and/or drink, use communication
devices (phone, radio phone, etc.), keyboards, computers, IT devices or AV equipment,
or carry out any other action that may pose the User in the situation not to be able to
correctly control the Transmitting Unit and/or the Machine;
-activate immediately, and anyway in safe conditions, the stop devices available on the
Transmitting Unit and/or on the Machine, in case dangerous situations occur, even if
they do not depend on the use of the Machine;
-use the Transmitting Unit in such a way as to avoid contact with objects and/or people,
fall and loss of control;
-use the Transmitting Unit with supports such as belts and the like, which are provided
with the Radio Remote Control;
-not modify or tamper with the Transmitting Unit, its components and/or its commands;
not modify the indications and/or meaning and/or abbreviations and/or symbols and/or
original stickers on the Transmitting Unit's panel.
AUTEC - Dynamic Plus series
Instructions for the User 33
LIUDJR000_eng-00
9.3 Belt or harness
The DJR Transmitting Unit always comes with a waist belt or a shoulder harness: the User
must mount the belt or the harness to the Transmitting Unit and use it as described in
paragraph 9.3.1 or 9.3.2.
Replace the belt or harness if it is damaged or worn.
9.3.1 Waist belt
Assembly
34
LIUDJR000_eng-00
Instructions for the User
AUTEC - Dynamic Plus series

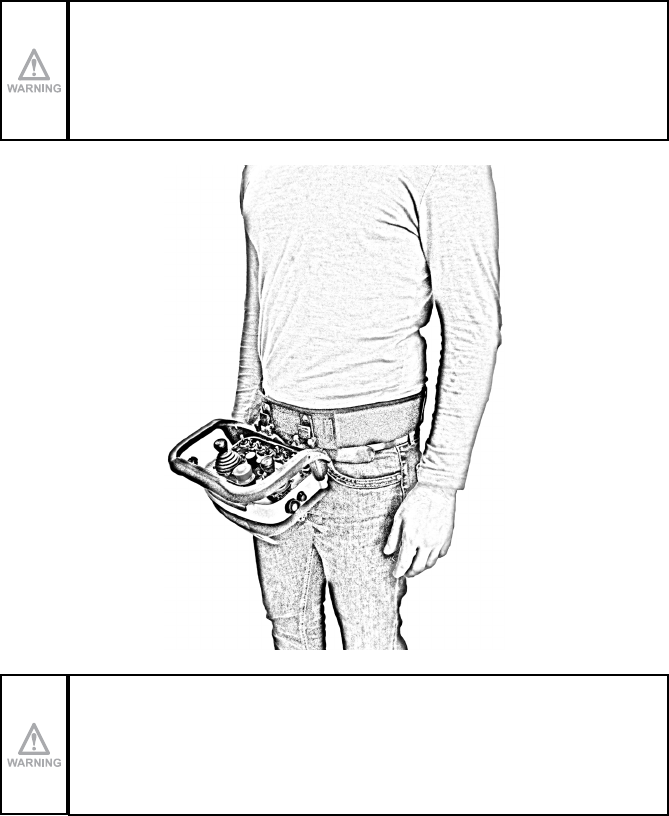

Use
The User must wear the Radio Remote Control with the belt as shown in
the photo below, to avoid its fall, loss, loss of control, accidental contact
and improper use.
If the Transmitting Unit and the belt are used in a dierent way from the
one described in the above mentioned gure, this results in improper use
and may lead to damage to the Transmitting Unit, to the User, to people
and/or property.
AUTEC - Dynamic Plus series
Instructions for the User 35
LIUDJR000_eng-00
9.3.2 Shoulder harness

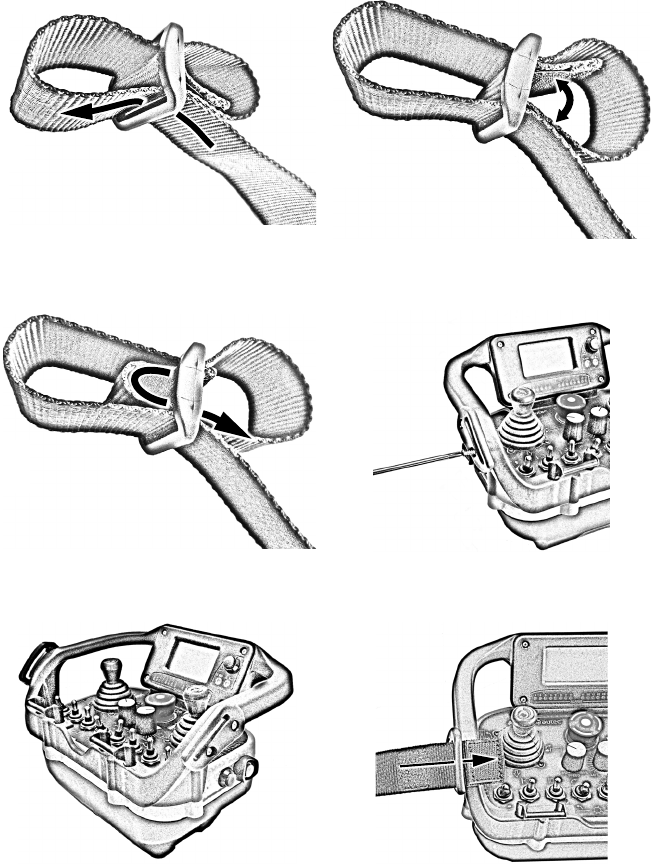

Assembly
1
2
1 2
3
3 4
5 6
36
LIUDJR000_eng-00
Instructions for the User
AUTEC - Dynamic Plus series

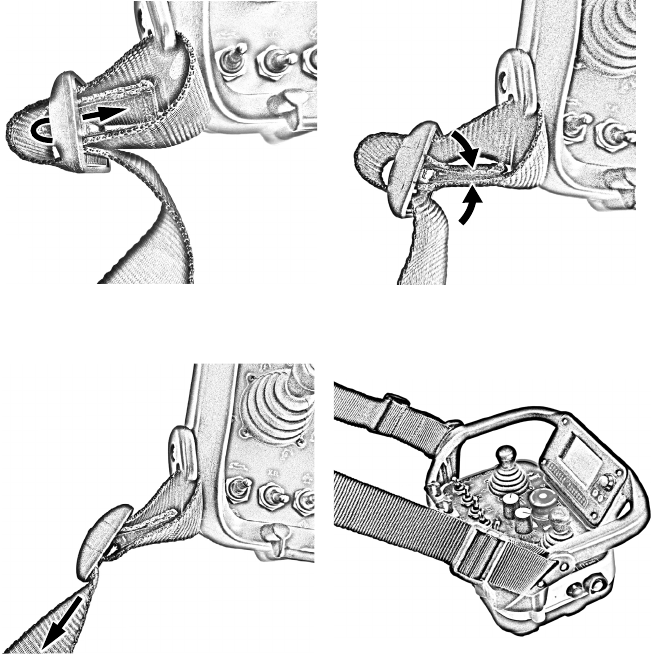

7
8
78
910
AUTEC - Dynamic Plus series
Instructions for the User 37
LIUDJR000_eng-00

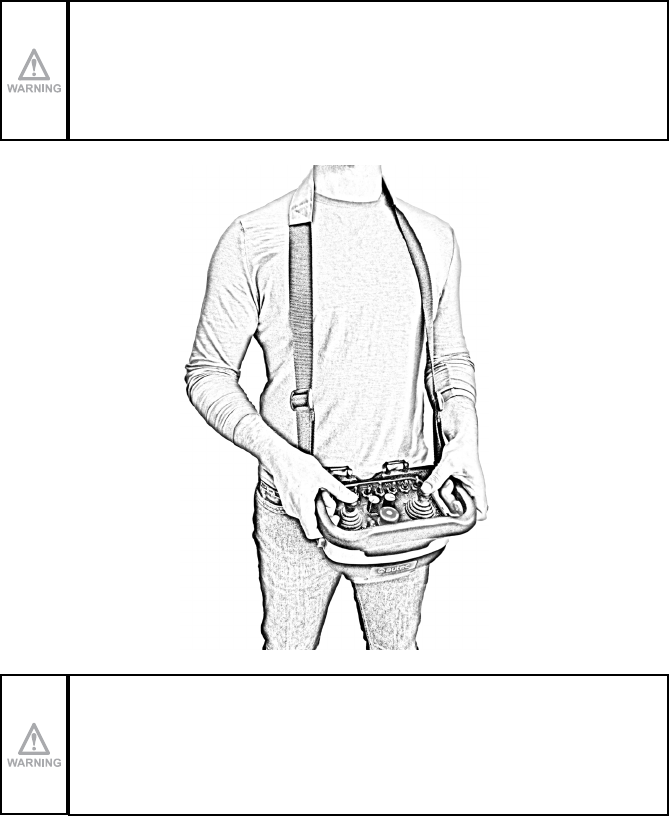

Use
The User must wear the Radio Remote Control with the belt as shown in
the photo below, to avoid its fall, loss, loss of control, accidental contact
and improper use.
If the Transmitting Unit and the belt are used in a dierent way from the
one described in the above mentioned gure, this results in improper use
and may lead to damage to the Transmitting Unit, to the User, to people
and/or property.
38
LIUDJR000_eng-00
Maintenance
AUTEC - Dynamic Plus series
10 Maintenance
Instructions for correct Radio Remote Control maintenance are described in the chapter
"Maintenance" included in "Part A" of the Instruction Manual. Therefore, please refer to that
part of the Manual.
AUTEC - Dynamic Plus series
Malfunction signalled by the Transmitting Unit 39
LIUDJR000_eng-00
11 Malfunction signalled by the Transmitting Unit
11.1 Red LED [B] and green LED [A]
The table below lists malfunctions that are signalled by LEDs on the Transmitting Unit and
the solution to those malfunctions.
If the problem persists after attempting the suggested solution, contact the support service
of the Machine Manufacturer.
Light signals Possible reason Solutions
The green LED blinks
fast.
The red LEDa blinks for
3.5 minutes.
The battery is not suciently
charged or the Transmitting
Unit has been on for eight
hoursb.
The battery needs to be replaced
with a charged one (see paragraph
8.7).
The green LED repeats
one of the following
sequences: ONE or
TWO blinks and a
pause.
The red LEDa blinks for
3.5 minutes.
The green LED repeats
the sequence: three
blinks and a pause.
The red LEDa blinks for
3.5 minutes.
The Transmitting Unit has been
on for eight hoursb.
You need to switch o the
Transmitting Unit and start the
Radio Remote Control again.
The green LED is o.
The red LEDa has ONE
very long blink.
The Transmitting Unit does not
work correctly.
Contact the support service of the
Machine Manufacturer.
At Radio Remote
Control start up,
the green LED is o
and
the red LEDa has ONE
long blinkc.
The STOP pushbutton is
pressed.
Unlock the STOP pushbutton. If
this signal persists, contact the
support service of the Machine
Manufacturer.
At Radio Remote
Control start up,
the green LED is o
and
the red LEDa has TWO
long blinksc.
The Transmitting Unit does not
work correctly.
Perform the address storage
procedure (see paragraph 8.16.1).
If this signal persists, contact the
support service of the Machine
Manufacturer.
40
LIUDJR000_eng-00
Malfunction signalled by the Transmitting Unit
AUTEC - Dynamic Plus series
Light signals Possible reason Solutions
At Radio Remote
Control start up,
the green LED is o
and
the red LED has THREE
long blinksc.
The battery is very low.
The battery needs to be replaced
with a charged one (see paragraph
8.7).
At Radio Remote
Control start up,
the green LED is o
and
the red LEDa has FOUR
long blinksc.
The SAFETY command is
activated (see Technical Data
Sheet).
Bring the actuators to the rest
position. If this signal persists,
contact the support service of the
Machine Manufacturer.
At Radio Remote
Control start up,
the green LED is on
and
the red LEDa has ONE
to FOUR long blinks
and some short blinks
c.
At least one of the actuators
corresponding to commands
D2-D20, A1-A8, H1-H8 and L1-
L8 is activated.
Bring the actuators to the rest
position. If this signal persists,
contact the support service of
the Machine Manufacturer. If
necessary, it is possible to identify
the activated command looking up
the table in paragraph 11.3.
a. Whenever the red LED illuminates, the acoustic signal device activates.
b. After this signal, the Transmitting Unit switches o.
c. Press START pushbutton and hold it down until the Transmitting Unit automatically switches o.
AUTEC - Dynamic Plus series
Malfunction signalled by the Transmitting Unit 41
LIUDJR000_eng-00
11.2 2.7” display
The table below lists malfunctions signalled by the 2.7" display, if present on the Transmitting
Unit, and the solution to those malfunctions.
If the problem persists after attempting the suggested solution, contact the support service
of the Machine Manufacturer.
Description shown on
the display Possible reason Solutions
At Radio Remote
Control start up,
the display shows
the description "Stop
pressed 06 00".
The STOP pushbutton is
pressed.
Unlock the STOP pushbutton. If
this signal persists, contact the
support service of the Machine
Manufacturer.
At Radio Remote
Control start up,
the display shows the
description "Key fail
04 00".
The Transmitting Unit does not
work correctly.
Perform the address storage
procedure (see paragraph 8.16.1).
If this signal persists, contact the
support service of the Machine
Manufacturer.
The display shows the
description "Battery
fail 05 01".
The battery is very low.
The battery needs to be replaced
with a charged one (see paragraph
8.7).
At Radio Remote
Control start up,
the display shows the
description "Safety
active 07 00".
The SAFETY command is
activated (see Technical Data
Sheet).
Bring the actuators to the rest
position. If this signal persists,
contact the support service of the
Machine Manufacturer.
At Radio Remote
Control start up,
the display show
one of the following
descriptions: "Digital
active", "Analog
active", "Direct H
active" or "Direct L
active".
At least one of the actuators
corresponding to commands
D2-D20, A1-A8, H1-H8 and L1-
L8 is activated.
Bring the actuators to the rest
position. If this signal persists,
contact the support service of
the Machine Manufacturer. If
necessary, it is possible to identify
the activated command looking up
the table in paragraph 11.3.
42
LIUDJR000_eng-00
Malfunction signalled by the Transmitting Unit
AUTEC - Dynamic Plus series
11.3 Identifying the activated command
If the green LED [B] is illuminated, this means that at least one of the commands D2-D20,
A1-A8, H1-H8 and L1-L8 is activated during the Radio Remote Control start up.
You can identify the activated command by observing the red LED [A] long blinks followed
by short blinks, as described in the table below.
Green LED
Red LEDd
2.7” display Activated
command
Number of long
blinks
Number of short
blinks
On 1 2 Digital active
11 02 D2
On 1 3 Digital active
11 03 D3
On 1 4 Digital active
11 04 D4
On 1 5 Digital active
11 05 D5
On 1 6 Digital active
11 06 D6
On 1 7 Digital active
11 07 D7
On 1 8 Digital active
11 08 D8
On 1 9 Digital active
11 09 D9
On 110 Digital active
11 10 D10
On 111 Digital active
11 11 D11
On 112 Digital active
11 12 D12
On 113 Digital active
11 13 D13
On 114 Digital active
11 14 D14
On 115 Digital active
11 15 D15
AUTEC - Dynamic Plus series
Malfunction signalled by the Transmitting Unit 43
LIUDJR000_eng-00
Green LED
Red LEDd
2.7” display Activated
command
Number of long
blinks
Number of short
blinks
On 116 Digital active
11 16 D16
On 117 Digital active
11 17 D17
On 118 Digital active
11 18 D18
On 119 Digital active
11 19 D19
On 120 Digital active
11 20 D20
On 2 1 Analog active
08 01 A1
On 2 2 Analog active
08 02 A2
On 2 3 Analog active
08 03 A3
On 2 4 Analog active
08 04 A4
On 2 5 Analog active
08 05 A5
On 2 6 Analog active
08 06 A6
On 2 7 Analog active
08 07 A7
On 2 8 Analog active
08 08 A8
On 3 1 Direct H active
09 01 H1
On 3 2 Direct H active
09 02 H2
On 3 3 Direct H active
09 03 H3
44
LIUDJR000_eng-00
Malfunction signalled by the Transmitting Unit
AUTEC - Dynamic Plus series
Green LED
Red LEDd
2.7” display Activated
command
Number of long
blinks
Number of short
blinks
On 3 4 Direct H active
09 04 H4
On 3 5 Direct H active
09 05 H5
On 3 6 Direct H active
09 06 H6
On 3 7 Direct H active
09 07 H7
On 3 8 Direct H active
09 08 H8
On 4 1 Direct L active
10 01 L1
On 4 2 Direct L active
10 02 L2
On 4 3 Direct L active
10 03 L3
On 4 4 Direct L active
10 04 L4
On 4 5 Direct L active
10 05 L5
On 4 6 Direct L active
10 06 L6
On 4 7 Direct L active
10 07 L7
On 4 8 Direct L active
10 08 L8
d. Whenever the red LED illuminates, the acoustic signal device activates.
AUTEC - Dynamic Plus series
Malfunction signalled by the Transmitting Unit 45
LIUDJR000_eng-00
Examples
If the red LED shows ONE long blink and TWELVE short blinks, this means that the Transmitting
Unit detected that command D12 is activated.
If the red LED shows TWO long blinks and FIVE short blinks, this means that the Transmitting
Unit detected that command A5 is activated.
If the red LED shows THREE long blinks and TWO short blinks, this means that the Transmitting
Unit detected that command H2 is activated.
If the red LED shows FOUR long blinks and ONE short blink, this means that the Transmitting
Unit detected that command L1 is activated.
46
LIUDJR000_eng-00
Decommissioning and disposal
AUTEC - Dynamic Plus series
12 Decommissioning and disposal
Instructions for correct decommissioning and disposal of Radio Remote Controls are described
in chapter "Decommissioning and disposal" in "Part A" of the Instruction Manual. Therefore,
please refer to that part of the Manual.
